Mazda X-5. Manual - part 105

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–15

09–14A

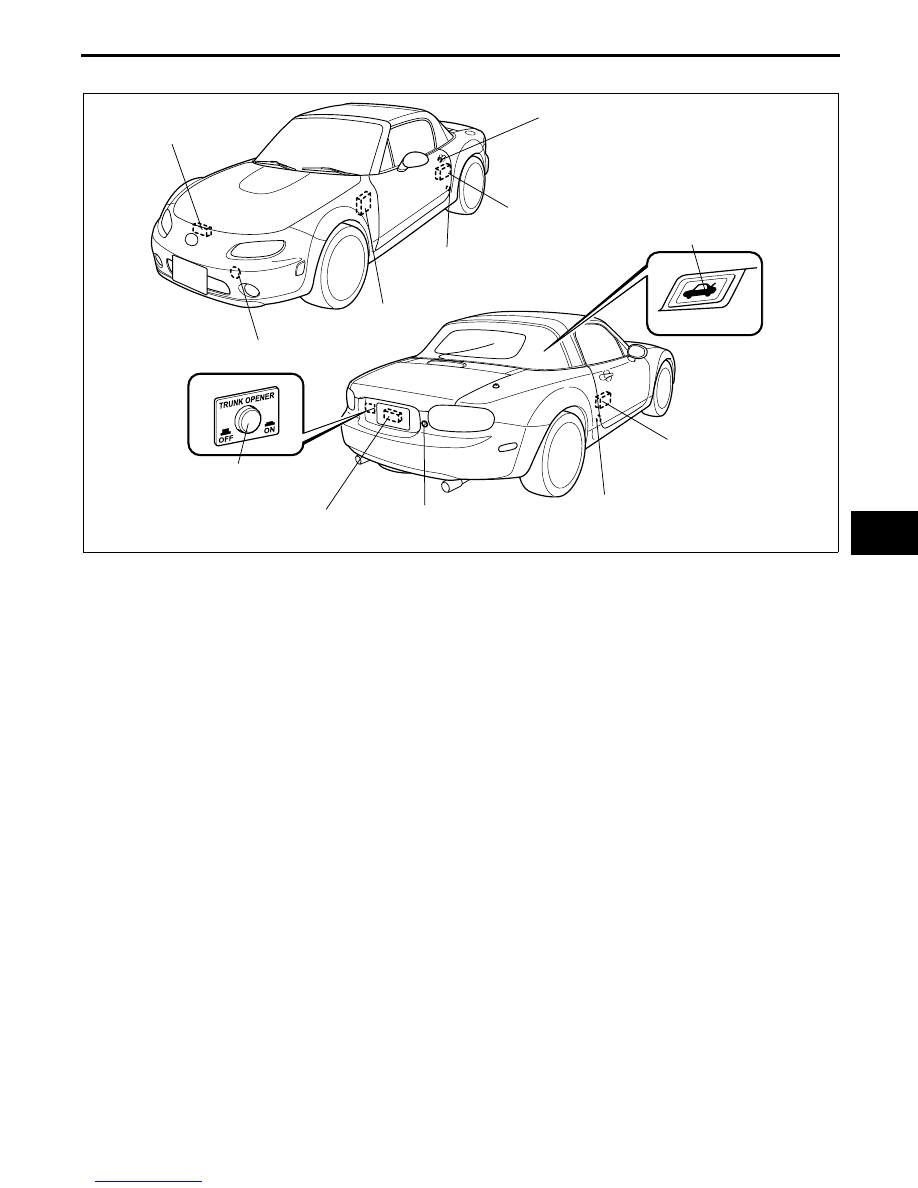

THEFT-DETERRENT SYSTEM STRUCTURAL VIEW

E5U091450000N02

End Of Sie

TRUNK LID OPENER
CANCEL SWITCH

TRUNK LID OPENER
SWITCH

TRUNK COMPARTMENT LIGHT
SWITCH (TRUNK LID OPENER)

PASSENGER'S SIDE
DOOR LOCK
ACTUATOR (DOOR
LOCK-LINK SWITCH)

DRIVER'S
SIDE DOOR
LOCK
ACTUATOR
(DOOR LOCK-
LINK SWITCH)

DOOR
SWITCH

TRUNK KEY CYLINDER
SWITCH

HOOD LATCH SWITCH

HORN

KEYLESS
CONTROL
MODULE

DOOR KEY CYLINDER
SWITCH

E5U914AS1013

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–16

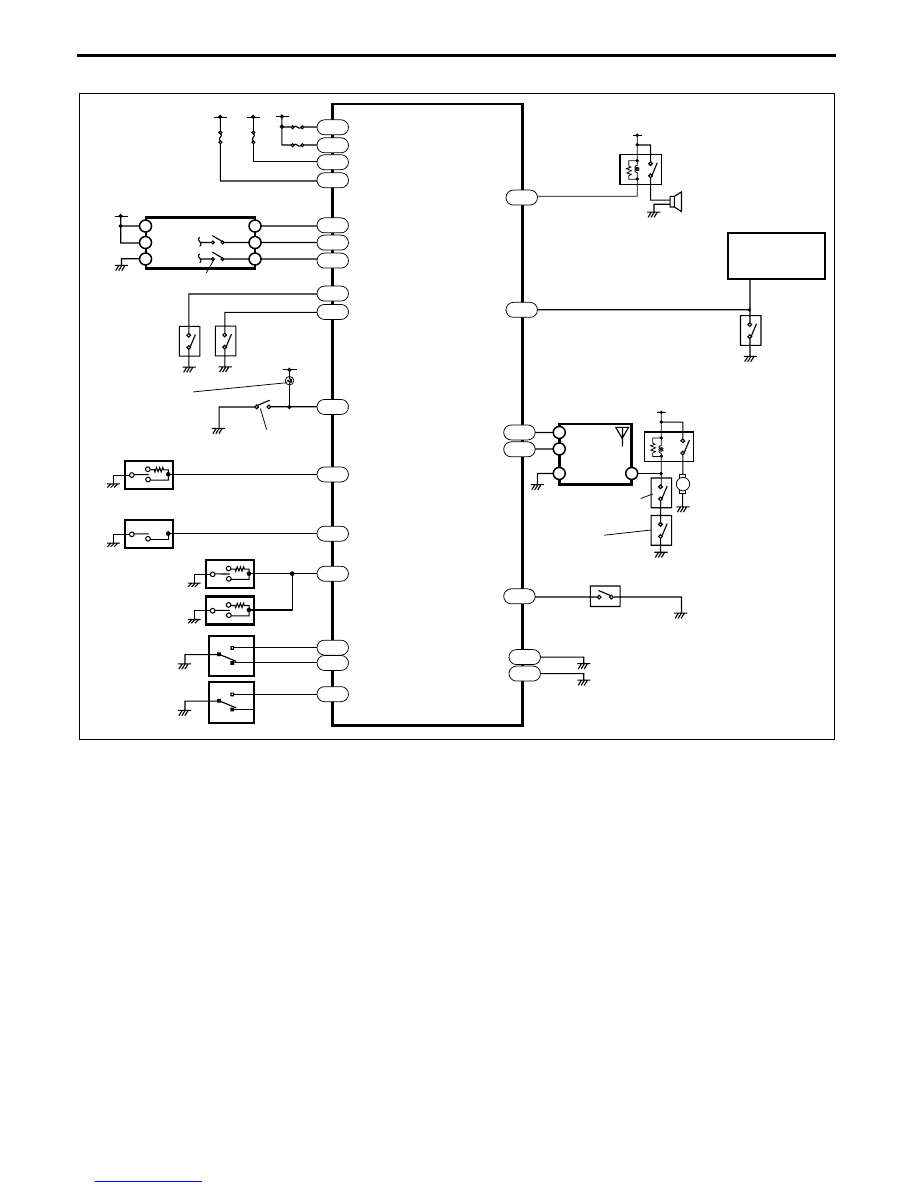

THEFT-DETERRENT SYSTEM WIRING DIAGRAM

E5U091450000N03

End Of Sie

DOOR SWITCH
(DRIVER-S SIDE)

DOOR SWITCH
(PASSENGER-S
SIDE)

FLASHER
CONTROL
MODULE

KEYLESS
RECEIVER
(REAR)

B+

ACC

IG1

STEERING LOCK UNIT

B+

PUSH SWITCH

KEY REMINDER SWITCH

TRUNK
COMPARTMENT
LIGHT SWITCH

TRUNK
COMPARTMENT
LIGHT

KEYLESS
CONTROL MODULE

DOOR KEY CYLINDER
SWITCH (DRIVER-SIDE)

TRUNK KEY CYLINDER
SWITCH

DOOR LOCK SWITCH
(DRIVER-SIDE)

DOOR LOCK SWITCH
(PASSENGER-SIDE)

DOOR LOCK-
LINK SWITCH
(DRIVER-SIDE)

DOOR LOCK-
LINK SWITCH
(PASSENGER-
SIDE)

UNLOCK

LOCK

UNLOCK

LOCK

B+

HORN
RELAY

HORN

HAZARD
WARNING
SWITCH

B+

TRUNK
OPEN
RELAY

TRUNK LID OPENER
CANCEL SWITCH

TRUNK LID
OPENER SWITCH

TRUNK LID
OPENER

HOOD SWITCH

E5U914AS1014

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–17

09–14A

SYSTEM FLOWCHART

E5U091450000N04

End Of Sie

Under all the following conditions, lock doors or trunk lid
with transmitter, ignition key or door lock switch:
All door close
Trunk lid close
Hood close

Arming confirmation
Hazard warning lights flash once.

Arming 1
Hazard warning light: off
Horn: off

Arming 2
Hazard warning light: off
Horn: off

Alarm 2
Hazard warning light: off
Horn: off

Dead
Hazard warning light: off
Horn: off

Initial
Hazard warning light: off
Horn: off

Ignition switch to LOCK position
and key reminder switch off

Ignition switch to ON position
or key reminder switch on

Trunk key cylinder
switch on or transmitter
trunk opener switch on

Alarm 1
Hazard warning light: on
Horn: on

Approx. 5 seconds
after trunk lid is closed

OFF

Approx. 2.5 minutes

OFF

Cancel confirmation
Hazard warning
lights flash two times.

Panic button

CANCEL CONDITION
1: Door unlock with transmitter or ignition key.
2: Key reminder switch on and ignition switch to ON position.
3: Trunk lid open with transmitter or ignition key.

Cancel condition
1 or 2

Cancel condition 1 or 2

Cancel condition
1 or 3

Cancel condition 1 or 3

If any one of the following
conditions occurs, go to Alarm 1:
Ignition switch to ON position
Door switch on
Hood switch on
Door lock-link switch unlock
Trunk compartment light switch on

If any one of the following
conditions occurs, go to Alarm 1:
Ignition switch to ON position
Door switch on
Hood switch on
Door lock-link switch unlock

Panic ON
Hazard warning light: on
Horn: on

If any one of the following
conditions occurs, go to Alarm 1:
Ignition switch to ON LOCK position
Door switch on off
Hood switch on off
Door lock-link switch unlock lock
Trunk compartment light switch on off

Panic ON
Hazard warning light: on
Horn: on

B6U0914S303

SECURITY AND LOCKS [ADVANCED KEYLESS SYSTEM]

09–14A–18

IMMOBILIZER SYSTEM OUTLINE

E5U091467000N01

Note

• The construction and operation of the auxiliary key is described. Refer to “ADVANCED KEYLESS START

FUNCTION OPERATION” for starting engine with the card key. (See 09–14A–8 ADVANCED KEYLESS
START FUNCTION OPERATION.)

Special Features

• The immobilizer system is a vehicle theft prevention device that only allows keys that have previously been

programmed to the vehicle to start the engine. It functions to prevent theft by means such as a forged key or
hotwiring.

• The system consists of the key (with built-in transponder), coil antenna, PCM, instrument cluster, and keyless

control module.

• The immobilizer system activates automatically when the start knob is turned to the LOCK or ACC position.

(The security light in the instrument cluster flashes while the immobilizer system is activated.)

• When the start knob is pressed (push switch ON) and turned to the ON position with a previously programmed

auxiliary key, the immobilizer system deactivation operation begins automatically. The engine is allowed to start
only after the deactivation operation is completed successfully. (The security light illuminates for 3 s and then
goes out when the immobilizer system has been deactivated.)

• The immobilizer system cannot be disabled.

• Due to immobilizer system characteristics, the engine cannot be started unless two or more keys are

programmed. Therefore, when resetting the immobilizer system (PCM replacement, Keyless control module
replacement, or Replacement of all programmed keys), two or more keys usable with the immobilizer system
must be readied before starting the operation.

• A maximum of eight keys can be programmed to one vehicle. The PID/data monitor function can be used to

verify the number of keys programmed to the vehicle.

• If there is a system malfunction or the immobilizer system is not properly deactivated due to deactivation

operation failure, the malfunction location can be verified by the flashing pattern of the security light in the
instrument cluster, or using the malfunction diagnosis function of the on-board diagnostic system.

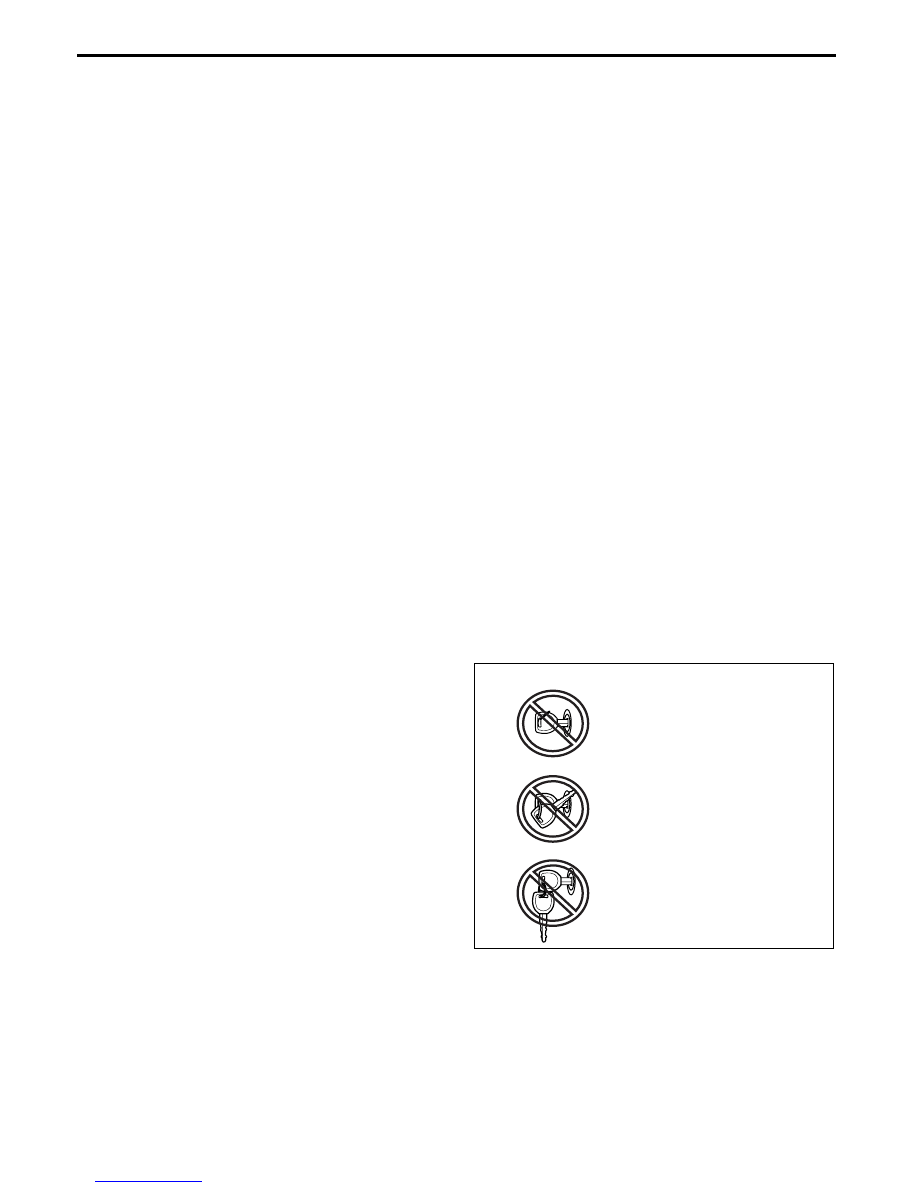

Caution

• If any of the following items are touching or near the key head, signal communication between the

key and vehicle is negatively affected, resulting in the engine not starting or a key programming
error. Do not perform procedures if any of the following items are touching or near the key head.

— Any metallic object

— Spare keys or keys for other vehicles equipped with an immobilizer system

— Any electronic device, or any credit or

other cards with magnetic strips

METAL RING LYING ON KEY HEAD

METAL PART OF ANOTHER
KEY TOUCHING KEY HEAD

KEY IS NEAR OR TOUCHING
ANOTHER IMMOBILIZER SYSTEM KEY

EXAMPLES:

B3E0914W006
