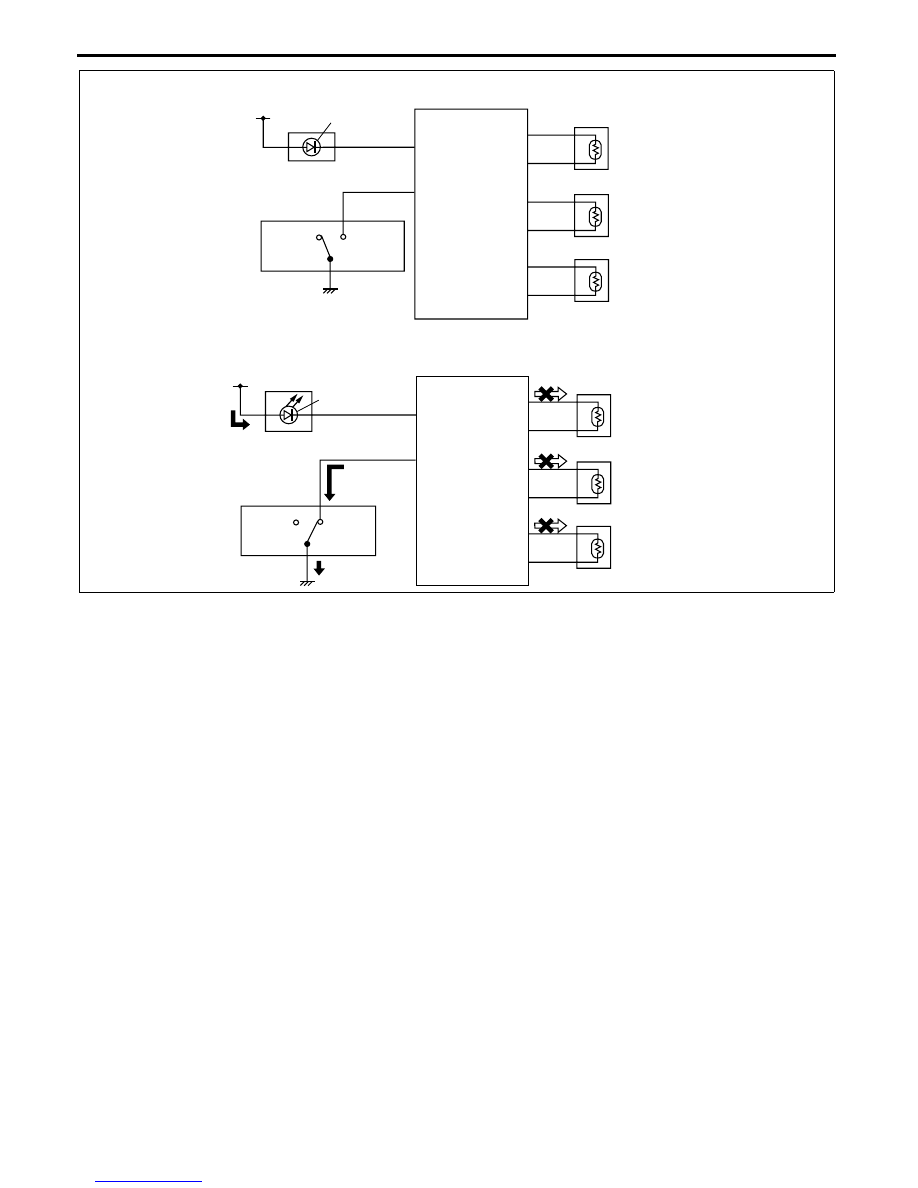

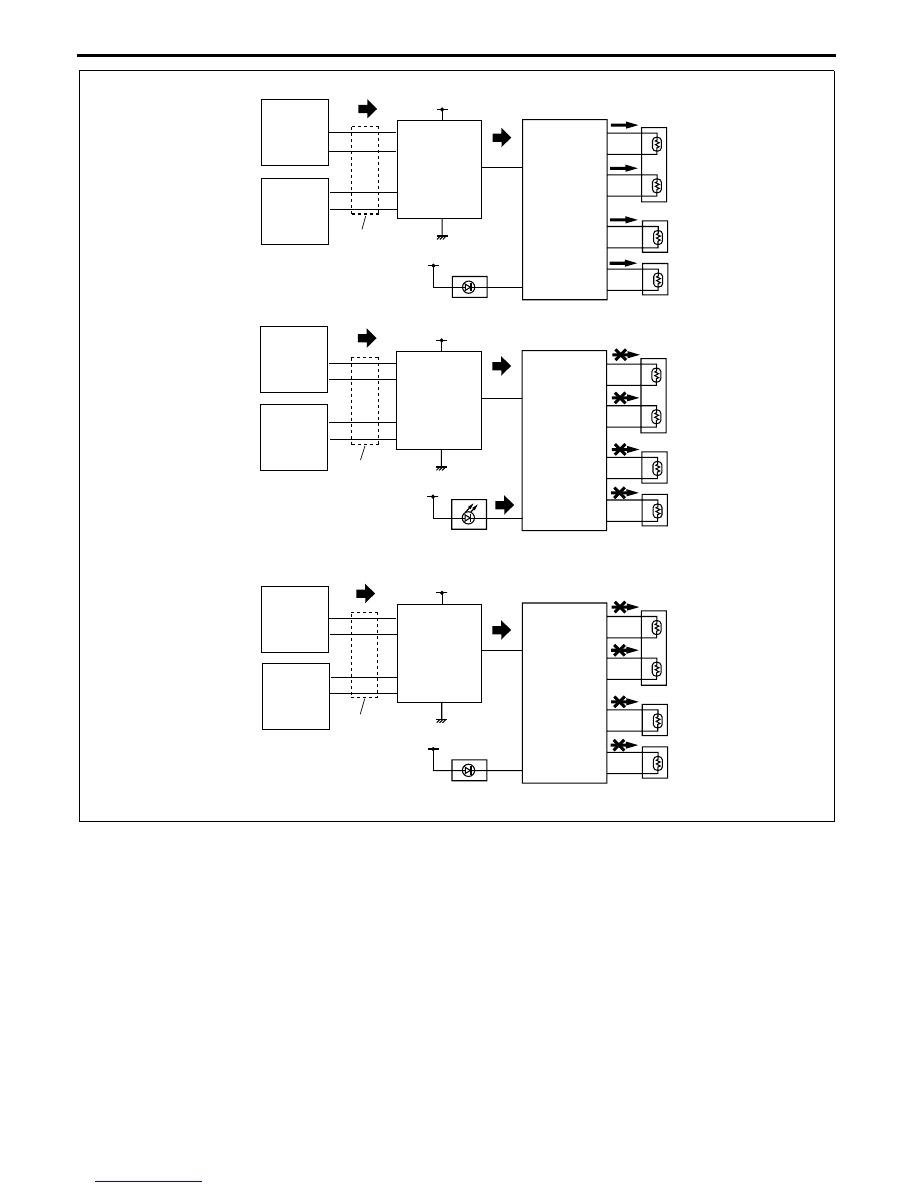

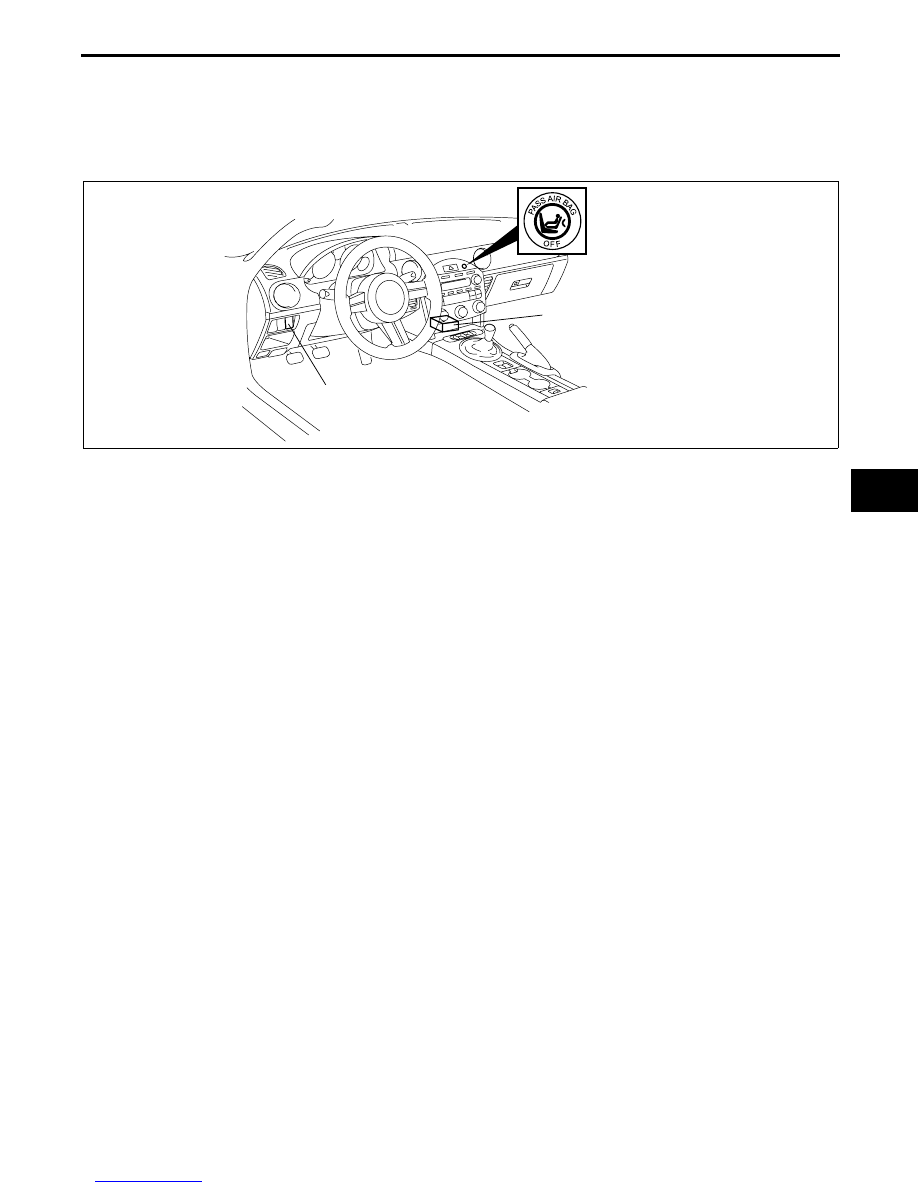

AIR BAG SYSTEM 08–10–9 08–10 PASSENGER SENSING SYSTEM OPERATION E5U081057031N03 1. The load on the passenger-side seat is converted into an electric signal by the strain gauge built into the seat weight sensor, and this signal is sent to the seat weight sensor control module. 2. The electronic signals from the two seat weight sensor are used for calculation by the seat weight sensor control module, which divides the result and then determines whether there is an adult or child (including a 3. The SAS control module performs control based on this determined result as shown in the following table when the module detects a level of impact requiring operation (deployment). ×: Possible -: Not possible Note • The passenger-side air bag module, the passenger-side side air bag module and the passenger-side pre- tensioner seat belt system will be turned off as the total seated weight drops toward 30kg {66 lb} and they Determined result Determined weight Passenger-side air bag module operation (deployment) Passenger-side side air bag module operation (deployment) Passenger-side pre-tensioner seat belt operation (deployment) PAD indicator Adult Approx. 42 kg {93 lb} or × × × Not illuminated Child (including Approx. 30 kg {66 lb} or - - - Illuminated Empty Approx. 0 kg {0 lb} - - - Not illuminated |
