P.189)

●

When switching the driving mode to

sport mode while driving in the D position

(



P.353)

■

Sudden start restraint control

(Drive-Start Control [DSC])



P.166

■

AI-SHIFT

The AI-SHIFT automatically selects the suit-

able gear according to driver performance

and driving conditions.

The AI-SHIFT automatically operates when

the shift position is in D. (Shifting the shift

position to the M position cancels the func-

tion.)

■

If a message about a shift operation is

shown

To prevent the shift position from being

selected incorrectly or the vehicle from

moving unexpectedly, the shift position may

be changed automatically or operating the

shift lever may be required. In this case,

change the shift position following the mes-

sages on the multi-information display.

■

After recharging/reconnecting the bat-

tery



P.498

Automatic transmission

Select the shift position depending
on your purpose and situation.

Shift position purpose and func-
tions

Shift posi-

tion

Objective or function

Parking the vehicle/starting

the engine

Reversing

Neutral

(Condition in which the

power is not transmitted)

Normal driving

M mode driving

(



P.190)

WARNING

■

When driving on slippery road sur-

faces

Do not accelerate or shift the shift posi-

tion suddenly.

Sudden changes in engine braking may

cause the vehicle to spin or skid, resulting

in an accident.

187

4-2. Driving procedures

Driving

Shift lever

Operate the shift lever gently and securely
in the direction of the arrow on the shift
position indicator.
To shift to N, slide the shift lever in the

direction of the arrow and hold it.
Release the shift lever after each shifting
operation to allow it to return to its regular

position (

Shifting to M is only possible when the shift
position is in D.
When shifting from P to N, D or R, from N,
D, M or R to P, from D or M to R, or from R
to D, ensure that the brake pedal is being
depressed and the vehicle is stationary.

Shift position indicator

Meter display:
The current shift position is illuminated.
Shift lever display:
The current shift position is illuminated.
When selecting the shift position, make
sure that the shift position has been
changed to the desired position by check-
ing the shift position indicator provided on
the instrument cluster.

P position switch

Fully stop the vehicle and set the parking
brake, and then press the P position switch.
When the shift position is changed to P, the
switch illuminates.
Check that the shift position indicator
shows P.

■

Changing the shift position in each

engine switch mode

●

The shift position cannot be changed

when the engine switch is in ACC or off.

●

When the engine switch is in ON, the

shift position can only be changed to N.

●

When the engine is running, the shift

position can be changed from P to D, N,

or R.

■

Shifting the shift position from P to other

positions

●

While depressing the brake pedal firmly,

operate the shift lever. If the shift lever is

operated without depressing the brake

NOTICE

■

Situations where shift control system

malfunctions are possible

If any of the following situations occurs,

shift control system malfunctions are

possible.

Immediately stop the vehicle in a safe

place on level ground, apply the parking

brake, and then contact your Lexus

dealer.

●

When the warning message indicating

the shift control system appears on the

multi-information display. (

P.477)

●

The display indicates that no shift posi-

tion is selected for more than a few

seconds.

Shift position display and how to
change the shift position

188

4-2. Driving procedures

pedal, the buzzer will sound and the shift-

ing operation will be disabled.

●

When selecting the shift position, make

sure that the shift position has been

changed to the desired position by

checking the shift position indicator pro-

vided on the instrument cluster.

●

The shift position cannot be changed

from P to M directly.

■

The shift position cannot be changed

when

In the following situations, a buzzer will

sound to inform you that the shift position

cannot be changed. Use the appropriate

operation to attempt to change the shift

position again.

●

When attempting to change the shift

position from P with the brake pedal not

depressed

●

When attempting to change the shift

position from P with the accelerator

pedal depressed

●

When attempting to change the shift

position from N while stopped or driving

at an extremely low speed with the brake

pedal not depressed

●

When attempting to change the shift

position from N while stopped or driving

at an extremely low speed with the accel-

erator pedal depressed

●

When attempting to change the shift

position from P or N to M

●

When the P position switch is pressed

while driving

When driving at an extremely low speed,

the shift position may change to P.

■

The shift position automatically changes

to N when

In the following situations, a buzzer will

sound to inform you that the shift position

has been changed to N. Use the appropri-

ate operation to attempt to change the shift

position again.

●

When attempting to change the shift

position to R while the vehicle is moving

forward

When driving at a low speed, the shift posi-
tion may change to R.

●

When attempting to change the shift

position to D while the vehicle is moving

backward

When driving at a low speed, the shift posi-
tion may change to D.

●

When attempting to change the shift

position from R to M

■

If the N shift position is selected while

driving

If the shift lever is moved to N while driving

above a certain speed, the shift position will

change to N without holding the shift lever

in the N position. In this situation, a buzzer

will sound and a message will be displayed

on the multi-information display to inform

you that the shift position has been changed

to N.

■

Automatic P position selection function

In the following situations, the shift position

is automatically changed to P.

●

When pressing the engine switch with the

vehicle stopped while the engine switch is

in ON and the shift position is in a posi-

tion other than P (after the shift position

has changed to P, the engine switch will
turn off)

●

If the driver’s door is opened and all of the

following conditions are met, while the

shift position is in a position other than P

• The engine switch is in ON.

• The driver is not wearing the seat belt.

• The brake pedal is not depressed.
To start off the vehicle after the shift posi-
tion is changed to P, operate the shift lever
again.

●

When the vehicle is stopped after the

engine has been stopped in an emer-

gency while driving.

●

When voltage of the battery drops while

the shift position is in a position other than

: When the engine switch is pressed while

driving at extremely slow speeds, such
as immediately before stopping the vehi-
cle, the shift position may automatically
change to P. Make sure that the vehicle
is completely stopped before pressing

189

4-2. Driving procedures

Driving

the engine switch.

■

If the shift position cannot be shifted

from P

There is a possibility that the battery is dis-

charged. Check the battery in this situation.

(



P.498)

■

Customization

Some functions can be customized.

(



P.528)

■

Driving mode

P.353

To drive using temporary shift range
selection, operate the “-” or “+” paddle
shift switch.
When the “-” paddle shift switch is
operated, the shift range switches to a
range that enables engine braking
force that is suitable to driving condi-
tions. When the “+” paddle shift switch
is operated, the shift range switches to
a range that is one range higher than
the current range.
Changing the shift range allows
restriction of the highest gear, prevent-
ing unnecessary upshifting and
enabling the level of engine braking
force to be selected.

WARNING

■

For the shift lever

●

Do not remove the shift lever knob or

use anything but a genuine Lexus shift

lever knob. Also, do not hang anything

on the shift lever.

Doing so could prevent the shift lever

from returning to position, causing

unexpected accidents to occur when

the vehicle is in motion.

●

In order to prevent the shift position

from accidentally being changed, do

not touch the shift lever when not using

them.

■

P position switch

●

Do not press the P position switch

while the vehicle is moving.

If the P position switch is pressed when

driving at very low speeds (for example,

directly before stopping the vehicle), the

vehicle may stop suddenly when the shift

position switches to P, which could lead

to an accident.

●

In order to prevent the shift position

from accidentally being changed, do

not touch the P position switch when

not using them.

NOTICE

■

When exiting the vehicle (driver’s

seat only)

Check that the shift position indicator

shows P and that the parking brake indi-

cator is illuminated before opening the

door and exiting the vehicle.

Selecting the driving mode

Selecting shift ranges in the D
position

190

4-2. Driving procedures

Upshifting

Downshifting

The selected shift range, from D1 to D8,
will be displayed on the meter.
To return to normal D position driving, the
“+” paddle shift switch must be held down
for a period of time.

■

Shift ranges and their functions

A lower shift range will provide greater
engine braking forces than a higher shift
range.

■

Automatic deactivation of shift range

selection in the D position

Shift range selection in the D position will

be deactivated in the following situations:

●

When the vehicle comes to a stop

●

If the accelerator pedal is depressed for

more than a certain period of time

●

When the shift position is shifted to a

position other than D.

■

Downshifting restriction warning

buzzer

To help ensure safety and driving perfor-

mance, downshifting operation may some-

times be restricted. In some circumstances,

downshifting may not be possible even

when the paddle shift switch is operated. (A

buzzer will sound twice.)

To enter M mode, shift the shift position
to M. Gears can be selected by oper-
ating the paddle shift switches, allowing
you to drive in the gear of your choos-
ing.

Upshifting

Downshifting

The gear changes once every time the
paddle shift switch is operated.
The selected gear, from M1 to M8, will be
fixed and displayed on the meter.

When in the M position, the gear will
not change unless the paddle shift
switches are operated. Also, the gear
will not shift when the vehicle speed is
low, even if an upshift operation is per-
formed.
However, even when in the M position,
the gears will be automatically
changed in the following situations:



When vehicle speed drops (down-

Meter dis-

play

Function

D2 - D8

A gear in the range between

1 and the selected gear is

automatically chosen

depending on vehicle speed

and driving conditions

1st gear is set

Selecting gears in the M position

191

4-2. Driving procedures

Driving

shift only).



When it is necessary to protect the
engine or automatic transmission
when the engine coolant tempera-
ture is low, the automatic transmis-
sion fluid temperature is high or low,
or other reasons.

■

Downshifting restriction warning

buzzer

To help ensure safety and driving perfor-

mance, downshifting operation may some-

times be restricted. In some circumstances,

downshifting may not be possible even

when the paddle shift switch is operated. (A

buzzer will sound twice.)



By performing the following opera-
tion, the shift position can be held in
N until the shift position switches to
P without activating the automatic P
position selection function.

Operate the shift lever and change
the shift position to N when the
engine is running.

Return the shift lever to its regular

position (

Operate the shift lever to N and
hold it there until the buzzer
sounds.

Press the engine switch within 5
seconds after the buzzer sounds.

The engine stops with the shift position in
N

Make sure to check that the buzzer
sounds and “Holding N Push P Switch

When Done” is displayed on the
multi-information display.



In order to shift to a position other
than N, first press the P position
switch to change the shift position to
P.



If the automatic P position switching
operation selection function is per-
formed operated with the engine
stopped, the automatic P position
selection function may not operate.
Always perform the operation with
the engine started.

: To keep this state, do not operate the

engine switch. If the engine switch is
operated repeatedly, the engine switch
will turn off after the shift position has
automatically changed to P.

Keeping the shift position in N
without activating the automatic
P position selection function

NOTICE

■

Keeping the shift position in N with-

out activating the automatic P posi-

tion selection function

Make sure that the engine is started.

If an operation is performed when the

engine is not started, the shift position

may change to P.

192

4-2. Driving procedures

Right turn

Lane change to the right (move the
lever partway and release it)

The right hand signals will flash 3 times.

Lane change to the left (move the
lever partway and release it)

The left hand signals will flash 3 times.

Left turn

■

Turn signals can be operated when

The engine switch is in ON.

■

If the indicator flashes faster than usual

Have the vehicle inspected by your Lexus

dealer.

■

If the turn signals stop flashing before a

lane change has been performed

Operate the lever again.

■

Using the manual mode

The parking brake can be set and
released manually.

Parking brake indicator (U.S.A.)
Parking brake indicator (Canada)

Pull the switch to set the parking
brake.

The parking brake indicator will turn on.
Pull and hold the parking brake switch if an
emergency occurs and it is necessary to
operate the parking brake while driving.

Turn signal lever

Operating instructions

Parking brake

The parking brake can be set or
released automatically or manually.

In automatic mode, the parking
brake can be set or released auto-
matically according to shift posi-
tion operation.

Also, even in automatic mode, the
parking brake can be set or
released manually.

Operating instructions

193

4-2. Driving procedures

Driving

Press the switch to release the
parking brake.

• Operate the parking brake switch while

depressing the brake pedal.

• Using the parking brake automatic

release function, the parking brake can
be released by depressing the accelera-
tor pedal. When using this function,
slowly depress the accelerator pedal.
(

P.193)

Make sure that the parking brake indicator
turn off.
If the parking brake indicator flash, operate
the switch again. (



P.473)

■

Turning the automatic mode on

While the vehicle is stopped, pull and
hold the parking brake switch until a
buzzer sounds and a message is shown
on the multi-information display.
When the automatic mode is turned
on, the parking brake operates as fol-
lows.



When the shift position is shifted
from P, the parking brake will be
released, and the parking brake
indicator will turn off.



When the shift position is shifted to
P, the parking brake will be set, and
the parking brake indicator will turn
on.

Operate the shift position with the
vehicle stopped and the brake pedal
depressed.

The auto function may not operate if the
shift lever is moved extremely quickly or
the brake pedal is not firmly depressed. In
this situation, apply the parking brake man-
ually. (

P.192)

■

Turning the automatic mode off

While the vehicle is stopped and
depressing the brake pedal, press and
hold the parking brake switch until a
buzzer sounds and a message is shown
on the multi-information display.

■

Parking brake operation

●

When the engine switch is not in ON, the

parking brake cannot be released using

the parking brake switch.

●

When the engine switch is not in ON,

automatic mode (automatic brake setting

and releasing) is not available.

■

Parking brake automatic release func-

tion

When all of the following conditions are

met, the parking brake can be released by

depressing the accelerator pedal.

●

The driver’s door is closed

●

The driver is wearing the seat belt

●

The shift position is in a forward driving

position or reverse driving position

●

The malfunction indicator lamp or brake

system warning light is not illuminated.

When depressing the accelerator pedal,

depress it slowly.
If the parking brake is not released when

the accelerator pedal is depressed, release

the parking brake manually.
When the shift position is shifted from P, the

parking brake will be released automati-

cally.

■

Parking brake automatic lock function

The parking brake will be set automatically

under the following conditions:

●

The brake pedal is not depressed

●

The driver’s door is open

●

The driver’s seat belt is not fastened

●

The shift position is in a position other

than P or N

(Vehicles with Lexus Teammate

Advanced Park: The shift position is in P

during Advanced Park operation.)

194

4-2. Driving procedures

●

The malfunction indicator lamp and

brake system warning light are not illumi-

nated

■

If “Parking Brake Temporarily Unavail-

able” is displayed on the multi-informa-

tion display

If the parking brake is operated repeatedly

over a short period of time, the system may

restrict operation to prevent overheating. If

this happens, refrain from operating the

parking brake. Normal operation will return

after about 1 minute.

■

If “EPB Activation Stopped Incom-

pletely” or “Parking Brake Unavailable”

is displayed on the multi-information

display

Operate the parking brake switch. If the

message does not disappear after operat-

ing the switch several times, the system may

be malfunctioning. Have the vehicle

inspected by your Lexus dealer.

■

Parking brake operation sound

When the parking brake operates, a motor

sound (whirring sound) may be heard. This

does not indicate a malfunction.

■

Parking brake indicator

●

Depending on the engine switch mode,

the parking brake indicator will turn on

and stay on as described below:

ON: Comes on until the parking brake is

released.

Not in ON: Stays on for approximately 15

seconds.

●

When the engine switch is turned off with

the parking brake set, the parking brake

indicator will stay on for about 15 sec-

onds. This does not indicate a malfunc-

tion.

■

When the parking brake switch mal-

functions

Automatic mode (automatic brake setting

and releasing) will be turned on automati-

cally.

■

Parking the vehicle

P.161

■

Parking brake engaged warning buzzer

A buzzer will sound if the vehicle is driven

with the parking brake engaged. “Parking

Brake ON” is displayed on the multi-infor-

mation display (with the vehicle reaching a

speed of 3 mph [5 km/h]).

■

If the brake system warning light comes



P.467

■

Usage in winter time



P.365

WARNING

■

When parking the vehicle

Do not leave a child in the vehicle alone.

The parking brake may be released unin-

tentionally by a child and there is the dan-

ger of the vehicle moving that may lead

to an accident resulting in death or seri-

ous injury.

■

Parking brake switch

Do not set any objects near the parking

brake switch. Objects may interfere with

the switch and may lead the parking

brake to unexpectedly operate.

■

Parking brake automatic lock func-

tion

Never use the automatic parking brake

engagement function in place of normal

parking brake operation. This function is

designed to reduce the risk of a collision

due to the driver forgetting to engage the

parking brake. Over-reliance on this

function to park the vehicle safely may

lead to an accident resulting in death or

serious injury.

NOTICE

■

When parking the vehicle

Before you leave the vehicle, shift the

shift position to P, set the parking brake

and make sure that the vehicle does not

move.

195

4-2. Driving procedures

Driving

Turns the brake hold system on

The brake hold standby indicator (green)

comes on. While the system is holding

the brake, the brake hold operated indica-
tor (yellow)

comes on.

■

Brake hold system operating conditions

The brake hold system cannot be turned on

in the following conditions:

●

The driver’s door is not closed.

●

The driver is not wearing the seat belt.

●

The parking brake is engaged.

●

“EPB Activation Stopped Incompletely”

or “Parking Brake Malfunction Visit Your

Dealer” is displayed on the multi-infor-

mation display.

If any of the conditions above are detected

when the brake hold system is enabled, the

NOTICE

■

When the system malfunctions

Stop the vehicle in a safe place and

check the warning messages.

■

When the vehicle battery is dis-

charged

The parking brake system cannot be acti-

vated. (

P.498)

■

When the parking brake cannot be

released due to a malfunction

Driving the vehicle with the parking

brake set will lead to brake components

overheating, which may affect braking

performance and increase brake wear.

Have the vehicle inspected by your

Lexus dealer immediately if this occurs.

Brake Hold

The brake hold system keeps the
brake applied when the shift posi-
tion is in D, M or N with the system
on and the brake pedal has been
depressed to stop the vehicle. The
system releases the brake when the
accelerator pedal is depressed with
the shift position in D or M to allow
smooth start off.

Enabling the system

196

4-2. Driving procedures

system will turn off and the brake hold

standby indicator light will go off. In addi-

tion, if any of the conditions are detected

while the system is holding the brake, a

warning buzzer will sound and a message

will be shown on the multi-information dis-

play. The parking brake will then be set

automatically.

■

Brake hold function

●

If the brake pedal is left released for a

period of about 3 minutes after the sys-

tem has started holding the brake, the

parking brake will be set automatically. In

this case, a warning buzzer sounds and a

message is shown on the multi-informa-

tion display.

●

The brake hold function may not hold the

vehicle when the vehicle is on a steep

incline. In this situation, it may be neces-

sary for the driver to apply the brakes. A

warning buzzer will sound and the

multi-information display will inform the

driver of this situation. If a warning mes-

sage is shown on the multi-information

display, read the message and follow the

instructions.

●

To turn the system off while the system is

holding the brake, firmly depress the

brake pedal and press the button again.

●

When do not wish for the parking brake

to operate automatically, press and hold

the brake hold switch until the standby

indicator (green) turns off, and then turn

the engine switch off.

■

When the parking brake is set automati-

cally while the system is holding the

brakes

Perform any of the following operations to

release the parking brake.

●

Depress the accelerator pedal. (The

parking brake will not be released auto-

matically if the seat belt is not fastened.)

●

Operate the parking brake switch with

the brake pedal depressed.

Make sure that the parking brake indicator

goes off. (

P.192)

■

When an inspection at your Lexus

dealer is necessary

When the brake hold standby indicator

(green) does not illuminate even when the

brake hold switch is pressed with the brake

hold system operating conditions met, the

system may be malfunctioning. Have the

vehicle inspected at your Lexus dealer.

■

If “Brake Hold Malfunction Press Brake

to Deactivate Visit Your Dealer” or

“Brake Hold Malfunction Visit Your

Dealer” is displayed on the multi-infor-

mation display

The system may be malfunctioning. Have

the vehicle inspected by your Lexus dealer.

■

Warning messages and buzzers

Warning messages and buzzers are used to

indicate a system malfunction or to inform

the driver of the need for caution. If a warn-

ing message is shown on the multi-informa-

tion display, read the message and follow

the instructions.

■

When another control activates with the

brake hold system (AWD vehicles)

A message is displayed on the multi-infor-

mation display in any of the following cases.

●

“Brake Hold Unavailable See the

Owner’s Manual”

• When the brake hold switch is pressed

while the downhill assist control system is

activated.

●

“Brake Hold Unavailable Press Brake to

Deactivate”

• When the DAC switch is operated while

the brake hold system is activated.

The brake hold system and downhill assist

control system cannot be activated at the

same time. Please press the brake hold

switch with the brake pedal depressed to

turn off the brake hold system.

■

If the brake hold operated indicator

flashes



P.474

WARNING

■

When the vehicle is on a steep incline

Take care when using the brake hold sys-

tem on a steep incline, exercise caution.

The brake hold function may not hold

brakes in such situations.

197

4-2. Driving procedures

Driving

WARNING

Also, the system may not activate

depending on the angle of the slope.

■

When stopped on a slippery road

The system cannot stop the vehicle when

the gripping ability of the tires has been

exceeded. Do not use the system when

stopped on a slippery road.

NOTICE

■

When parking the vehicle

The brake hold system is not designed

for use when parking the vehicle for a

long period of time. Turning the engine

switch off while the system is holding the

brake may release the brake, which

would cause the vehicle to move. When

operating the engine switch, depress the

brake pedal, shift the shift position to P

and set the parking brake.

198

4-3. Operating the lights and wipers

4-3.Operating the lights and wipers

Operating the

switch turns on

the lights as follows:

U.S.A.
Canada

The side marker, parking, tail,

license plate, instrument panel
lights, and daytime running lights
(



P.198) turn on.

The headlights and all lights

listed above (except daytime run-
ning lights) turn on.

The headlights, daytime run-

ning lights (

P.198) and all the

lights listed below turn on and off
automatically.
(When the engine switch is in ON.)

(U.S.A.) Off

■

AUTO mode can be used when

The engine switch is in ON.

■

Daytime running light system

●

The daytime running lights illuminate

using the same lights as the low beam

headlights and illuminate dimmer than

the low beam headlights.

●

To make your vehicle more visible to

other drivers during daytime driving, the

daytime running lights turn on automati-

cally when all of the following conditions

are met. (The daytime running lights are

not designed for use at night.)

• The engine is running

• The parking brake is released
• The headlight switch is in the

position

: When the surroundings are bright

The daytime running lights remain on after

they illuminate, even if the parking brake is

set again.

●

For the U.S.A.: Daytime running lights

can be turned off by operating the switch.

●

Compared to turning on the headlights,

the daytime running light system offers

greater durability and consumes less

electricity, so it can help improve fuel

economy.

■

Headlight control sensor

The sensor may not function properly if an

object is placed on the sensor, or anything

that blocks the sensor is affixed to the wind-

shield.

Doing so interferes with the sensor detect-

ing the level of ambient light and may cause

the automatic headlight system to malfunc-

tion.

Headlight switch

The headlights can be operated
manually or automatically.

Operating instructions

199

4-3. Operating the lights and wipers

Driving

■

Automatic light off system

●

When the headlights are on: The head-

lights and tail lights turn off 30 seconds

after the driver’s door is opened and

closed if the engine switch is turned off.
(The lights turn off immediately if

the key is pressed after all the doors are

locked.)

●

When only the tail lights are on: The tail

lights turn off automatically if the engine

switch is turned off and the driver’s door

is opened.

For U.S.A.: To turn the lights on again, turn

the engine switch to ON, or turn the light
switch off once and then back to

For Canada: To turn the lights on again, turn

the engine switch to ON, or turn the light
switch to

once and then back to

or .

■

Automatic headlight leveling system (if

equipped)

The level of the headlights is automatically

adjusted according to the number of pas-

sengers and the loading condition of the

vehicle to ensure that the headlights do not

interfere with other road users.

■

Light reminder buzzer

A buzzer sounds when the engine switch is

turned to ACC or OFF and the driver’s

door is opened while the lights are turned

on.

■

Windshield wiper linked headlight illu-

mination

When driving during daytime with the
headlight switch turned to

, if the wind-

shield wipers are used, the headlights will

turn on automatically after several seconds

to help enhance the visibility of your vehicle.

■

Battery-saving function

In order to prevent the battery of the vehicle

from discharging, if the headlights and/or

tail lights are on when the engine switch is

turned off the battery saving function will

operate and automatically turn off all the

lights after approximately 20 minutes.

When the engine switch is turned to ON,

the battery-saving function will be disabled.

When any of the following are performed,

the battery-saving function is canceled

once and then reactivated. All the lights will

turn off automatically 20 minutes after the

battery- saving function has been reacti-

vated:

●

When the headlight switch is operated

●

When a door is opened or closed

■

When unlocking the doors (welcome

lamp)

The parking lights and tail lights automati-

cally turn on when the surroundings are

dark and the doors are unlocked using the

entry function or wireless remote control if
the light switch is in the

position.

■

Customization

Some functions can be customized.

(

P.528)

NOTICE

■

To prevent battery discharge

Do not leave the lights on longer than

necessary when the engine is off.

200

4-3. Operating the lights and wipers

With the headlights on, push the
lever away from you to turn on the
high beams.

Pull the lever toward you to the center
position to turn the high beams off.

Pull the lever toward you and
release it to flash the high beams
once.

You can flash the high beams with the
headlights on or off.

When any of the following conditions is
met, while the headlights (low beam)
are on, the cornering lights will addi-
tionally turn on and light up the direc-
tion of movement for the vehicle. This is
to ensure excellent visibility when
either driving at intersections or park-
ing at night.



The steering wheel is operated



The turn signal lever is operated



The shift position is in R (both left
and right side cornering lights)

■

Cornering light control

●

When vehicle speed is approximately 22

mph (35 km/h) or higher, the cornering

lights will not turn on.

●

After the lights remain illuminated for 30

minutes, they automatically turn off.

Turning on the high beam head-
lights

Cornering lights (if equipped)

201

4-3. Operating the lights and wipers

Driving

: If equipped



According to the vehicle speed, the
brightness and illuminated area of
the high beams are adjusted.



The high beams are illuminated so
that the area around a vehicle ahead
is shaded. (Shaded high beam)

The shaded high beam helps ensure for-
ward visibility while reducing the dazzling
effect on the drivers of vehicles ahead.

Area illuminated by the high beams
Area illuminated by the low beams



According to the distance to a pre-
ceding vehicle, the illuminated area
of the low beams is adjusted.

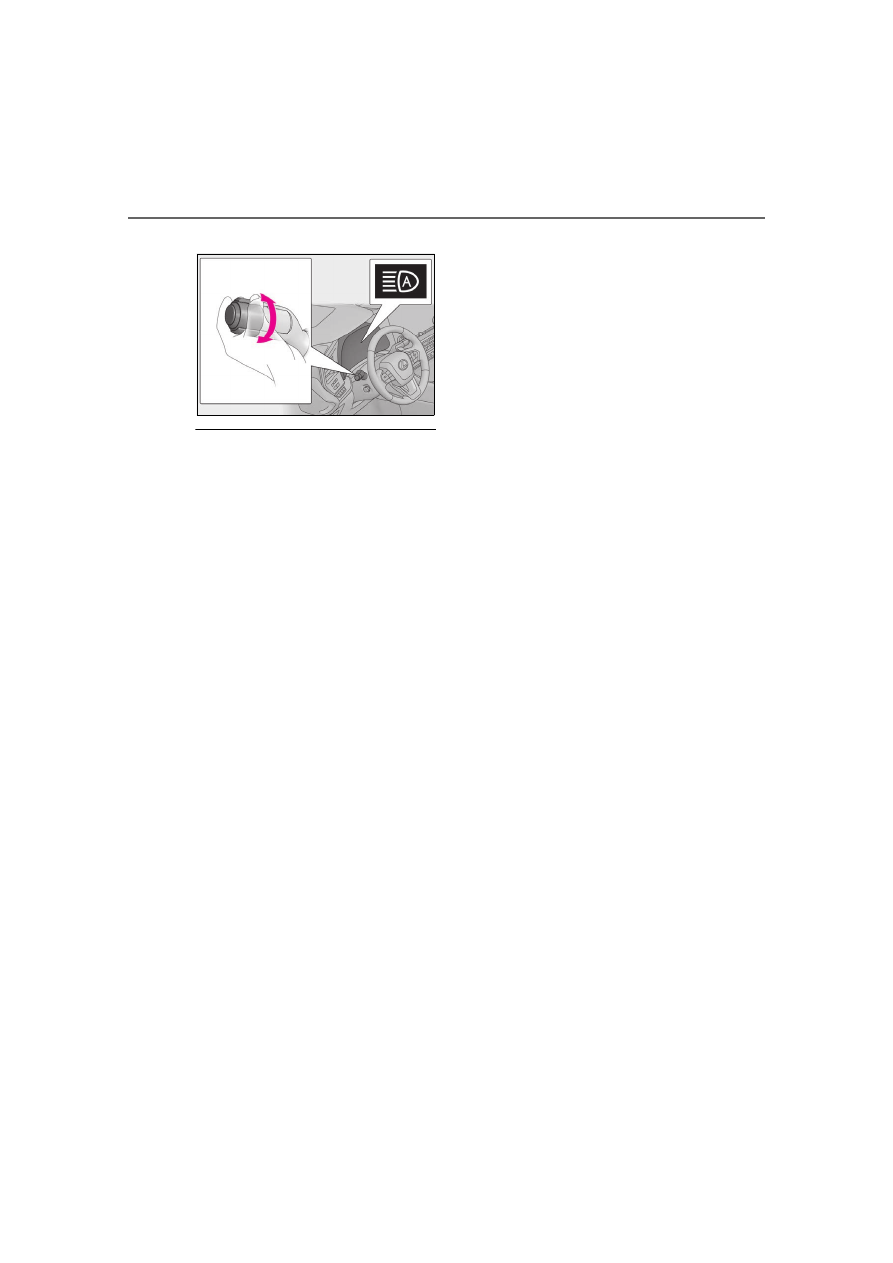

Press the Adaptive High-beam Sys-
tem switch.

Turn the headlight switch to the

position.

When the headlight switch lever is in the

low beam position, the AHS will be

enabled and the AHS indicator will illumi-

AHS (Adaptive High-beam
System)

The Adaptive High-beam System
uses a front camera located on the
upper portion of the windshield to
detect the brightness of the lights of
vehicles ahead, streetlights, etc.,
and automatically controls the light
distribution of the headlights.

WARNING

■

For safe use

Do not overly rely on the Adaptive

High-beam System. Always drive safely,

taking care to observe your surroundings

and turning the high beams on or off

manually if necessary.

■

To prevent unintentional operation of

the Adaptive High-beam System

When it is necessary to disable the sys-

tem:

System controls

Using the Adaptive High-beam
System

202

4-3. Operating the lights and wipers

nate.

■

System operating conditions

●

When all of the following conditions are

met, the high beams will illuminate and

the system will operate:

• The vehicle speed is approximately 19

mph (30 km/h) or more.

• The area ahead of the vehicle is dark.

●

When all of the following conditions are

met, the headlights will change to the

shaded high beams according to the

position of vehicles ahead:

• The vehicle speed is approximately 19

mph (30 km/h) or more

• The area ahead of the vehicle is dark.

• There is a vehicle ahead with lights on.

• There are few streetlights or other lights

on the road ahead.

●

If any of the following conditions are met,

the system will change to the low beams:

• The vehicle speed is approximately 16

mph (25 km/h) or lower.

• The area ahead of the vehicle is not dark.

• There are many vehicles ahead.

• There are many streetlights or other

lights on the road ahead.

■

Front camera detection

●

In the following situations, the high beams

may not be automatically changed to the

shaded high beams:

• When a vehicle cuts in front of your vehi-

cle

• When another vehicle crosses in front of

the vehicle

• When vehicles ahead are repeatedly

detected and then hidden due to

repeated curves, road dividers or road-

side trees

• When a vehicle ahead approaches from

a far lane

• When a vehicle ahead is far away

• When a vehicle ahead has no lights

• When the lights of a vehicle ahead are

dim

• When a vehicle ahead is reflecting strong

light, such as the headlights of your vehi-

cle

• Situations in which the sensors may not

operate properly:

●

The high beams may change to the

shaded high beams if a vehicle ahead that

is using fog lights without its headlights

turned on is detected.

●

House lights, street lights, traffic signals,

and illuminated billboards or signs and

other reflective objects may cause the

high beams to change to the shaded high

beams, cause the high beams not to

change to the shaded high beams, or

change the area that is not illuminated.

●

The following may change the speed at

which the shaded areas change or the

timing at which the headlights change to

the low beams:

• The brightness of lights of vehicles ahead

• The movement and direction of vehicles

ahead

• The distance between the vehicle and a

vehicle ahead

• When a vehicle ahead only has lights illu-

minated on one side

• When a vehicle ahead is a two-wheeled

vehicle

• The condition of the road (gradient,

curve, condition of the road surface, etc.)

• The number of passengers and amount of

luggage

●

The light distribution control of the head-

lights may not match the driver’s expecta-

tions

●

Bicycles and other small vehicles may not

be detected.

●

In the following situations, the system may

not be able to correctly detect the bright-

ness of the surroundings. This may cause

the low beams to remain on or the high

beams to flash or dazzle pedestrians or

vehicles ahead. In such a case, it is neces-

sary to manually change between the

high beams and low beams.

• When there are lights similar to head-

203

4-3. Operating the lights and wipers

Driving

lights or tail lights in the surrounding area

• When headlights or tail lights of vehicles

ahead are turned off, dirty, changing

color, or not aimed properly

• When the headlights are repeatedly

changing between the high beams and

low beams.

• When use of the high beams is inappro-

priate or when the high beams may be

flashing or dazzling pedestrians or other

drivers.

• When the vehicle is used in an area in

which vehicles travel on the opposite side

of the road of the country for which the

vehicle was designed, for example using

a vehicle designed for right-hand traffic in

a left-hand traffic area, or vice versa

• When it is necessary to disable the sys-

tem:



• Situations in which the sensors may not

operate properly:



■

Customization

The settings of some functions can be

changed. (



P.528)

■

Changing to the high beams

Push the lever forward.

The AHS indicator will turn off and the high
beam indicator will turn on.
Pull the lever to its original position to
enable the Adaptive High-beam System
again.

■

Changing to the low beams

Press the Adaptive High-beam System
switch.

The AHS indicator will turn off.
Press the switch to enable the Adaptive
High-beam System again.

It is recommended to switch to the low
beams when use of the high beams is
inappropriate or when the high beams
may cause problems or distress to
other drivers or pedestrians nearby.
Pull the lever rearward and then return
it to its original position.

The high beams will illuminate while the
lever is pulled, however, after the lever is
returned to its original position, the low
beams will remain on for a certain amount
of time. After this, the Adaptive High-beam
System will operate.

Turning the high beams on/off
manually

Temporarily changing to the low
beams

204

4-3. Operating the lights and wipers

Press the Automatic High Beam
switch.

Turn the headlight switch to the

position.

When the headlight switch lever is in the

low beam position, the AHB system will be

enabled and the AHB indicator will illumi-

nate.

■

Automatic operating conditions of the

high beams

●

When all of the following conditions are

met, the high beams will illuminate auto-

matically:

• The vehicle speed is approximately 21

mph (34 km/h) or more.

• The area ahead of the vehicle is dark.

• There are no vehicles ahead with lights

on.

• There are few streetlights or other lights

on the road ahead.

●

If any of the following conditions are met,

the headlights will change to the low

beams:

• Vehicle speed drops below approxi-

mately 17 mph (27 km/h).

• The area ahead of the vehicle is not dark.

• There is a vehicle ahead with lights on.

• There are many streetlights or other

lights on the road ahead.

■

Front camera detection

●

In the following situations, the high beams

may not be automatically changed to the

low beams:

• When a vehicle cuts in front of your vehi-

cle

• When another vehicle crosses in front of

the vehicle

• When vehicles ahead are repeatedly

detected and then hidden due to

repeated curves, road dividers or road-

side trees

• When a vehicle ahead approaches from

a far lane

• When a vehicle ahead is far away

AHB (Automatic High
Beam)

The Automatic High Beam uses a
front camera located on the upper
portion of the windshield to detect
the brightness of the lights of vehi-
cles ahead, streetlights, etc., and
automatically changes the head
lights between the high beams and
low beams.

WARNING

■

For safe use

Do not overly rely on the Automatic High

Beam. Always drive safely, taking care to

observe your surroundings and turning

the high beams on or off manually if nec-

essary.

■

To prevent unintentional operation of

the Automatic High Beam System

When it is necessary to disable the sys-

tem:

Using the Automatic High Beam
system

205

4-3. Operating the lights and wipers

Driving

• When a vehicle ahead has no lights

• When the lights of a vehicle ahead are

dim

• When a vehicle ahead is reflecting strong

light, such as own headlights

• Situations in which the sensors may not

operate properly:



●

The headlights may change to the low

beams if a vehicle ahead that is using fog

lights without its headlights turned on is

detected.

●

House lights, street lights, traffic signals,

and illuminated billboards or signs may

cause the high beams to change to the

low beams, or the low beams to remain

on.

●

The following may change the timing at

which the headlights change to the low

beams:

• The brightness of lights of vehicles ahead

• The movement and direction of vehicles

ahead

• The distance between the vehicle and a

vehicle ahead

• When a vehicle ahead only has lights illu-

minated on one side

• When a vehicle ahead is a two-wheeled

vehicle

• The condition of the road (gradient,

curve, condition of the road surface, etc.)

• The number of passengers and amount of

luggage

●

The headlights may change between the

high beams and low beams unexpectedly.

●

Bicycles and other small vehicles may not

be detected.

●

In the following situations, the system may

not be able to correctly detect the bright-

ness of the surroundings. This may cause

the low beams to remain on or the high

beams to flash or dazzle pedestrians or

vehicles ahead. In such a case, it is neces-

sary to manually change between the

high beams and low beams.

• When there are lights similar to head-

lights or tail lights in the surrounding area

• When headlights or tail lights of vehicles

ahead are turned off, dirty, changing

color, or not aimed properly

• When the headlights are repeatedly

changing between the high beams and

low beams.

• When use of the high beams is inappro-

priate or when the high beams may be

flashing or dazzling pedestrians or other

drivers.

• When the vehicle is used in an area in

which vehicles travel on the opposite side

of the road of the country for which the

vehicle was designed, for example using

a vehicle designed for right-hand traffic in

a left-hand traffic area, or vice versa

• When it is necessary to disable the sys-

tem:

• Situations in which the sensors may not

operate properly:

■

Temporarily reducing front camera sen-

sitivity

The sensitivity of the front camera can be

temporarily reduced.

Turn the engine switch off with the fol-

lowing conditions met.

●

The headlight switch is in the

position.

●

The headlight switch lever is in the low

beam position.

●

The Automatic High Beam switch is on.

Turn the engine switch to ON.

Within 60 seconds after performing

step 2, push the headlight switch lever

to the high beam position then pull it to

the original position quickly 10 times,

then leave the lever in its original posi-

tion.

If the sensitivity is changed, the Auto-

matic High Beam indicator will blink 3

times.

■

Changing to the high beams

Push the lever forward.

The AHB indicator will turn off and the
high beam indicator will turn on.
Pull the lever to its original position to
enable the Automatic High Beam system

Turning the high beams on/off
manually

207

4-3. Operating the lights and wipers

Driving

(U.S.A.) or

(Canada)

Turns the fog lights off

Turns the fog lights on

■

Fog lights can be used when

The headlights are on in low beam.

Operating the

lever operates

the wipers or washer as follows:

When

is selected, the wipers will

operate automatically when the sen-
sor detects falling rain. The system
automatically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.

Fog light switch

The fog lights secure excellent visi-
bility in difficult driving conditions,
such as in rain and fog.

Operating instructions

Windshield wipers and
washer

Operating the lever can switch
between automatic operation and
manual operation, or can use the
washer.

NOTICE

■

When the windshield is dry

Do not use the wipers, as they may dam-

age the windshield.

Operating the wiper lever

208

4-3. Operating the lights and wipers

(U.S.A.) or

(Canada)

Off

Rain-sensing wiper operation

(U.S.A.) or

(Canada)

Low speed operation

(U.S.A.) or

(Canada)

High speed operation

(U.S.A.) or

(Canada)

Temporary operation

When AUTO mode is selected, the
sensor sensitivity can be adjusted by
turning the switch ring.

Increases the sensitivity

Decreases the sensitivity

Washer/wiper dual opera-

tion

Pulling the lever operates the wipers and
washer.
(After operating several times, the wipers
operate once more time after a short delay
to prevent dripping. However, the dripping
prevention does not operate while the
vehicle is moving.)
Vehicles with headlight cleaners:
When the engine switch is in ON and the
headlights are on, if the lever is pulled, the
headlight cleaners will operate once. After
this, the headlight cleaners will operate
every 5th time the lever is pulled.

■

The windshield wipers and washer can

be operated when

The engine switch is in ON.

■

Operating the windshield wipers and
washer using the voice control system

: If equipped

209

4-3. Operating the lights and wipers

Driving

The following operation can be performed

using the voice control system.

●

Operating the windshield wipers only

once

●

Operating the windshield washer (it can

be performed only when the vehicle is

stopped)

For details regarding the voice control sys-

tem, refer to the “MULTIMEDIA

OWNER’S MANUAL”.

■

Effects of vehicle speed on wiper opera-

tion

With low speed windshield wiper operation

selected, wiper operation will be switched

from low speed to intermittent wiper opera-

tion when the vehicle is stationary. (How-

ever, when the sensor sensitivity is adjusted

to the highest level, the mode will not

switch.)

■

Raindrop sensor

●

The raindrop sensor judges the amount

of raindrops.

An optical sensor is adopted. It may not

operate properly when sunlight from the

rising or setting of the sun intermittently

strikes the windshield, or if bugs, etc. are

present on the windshield.

●

If the wiper switch is turned to the

position while the engine switch is in ON,

the wipers will operate once to show that

AUTO mode is activated.

●

When the sensor sensitivity ring is turned
toward high while in

position, the

wipers will operate once to indicate that

the sensor sensitivity is enhanced.

●

If the temperature of the raindrop sensor

is 185°F (85°C) or higher, or 5°F

(-15°C) or lower, automatic operation

may not occur. In this case, operate the

wipers in any mode other than AUTO

mode.

■

If no windshield washer fluid sprays

Check that the washer nozzles are not

blocked, if there is washer fluid in the

washer fluid tank.

■

Front door opening linked windshield

wiper stop function

When

is selected and the windshield

wipers are operating, if a front door is

opened, the operation of the windshield

wipers will be stopped to prevent anyone

near the vehicle from being sprayed by

water from the wipers, provided the vehicle

is stopped with the parking brake applied or

the shift position in P. When the front door is

closed, wiper operation will resume.

WARNING

■

Caution regarding the use of wind-

shield wipers in AUTO mode

The windshield wipers may operate

unexpectedly if the sensor is touched or

the windshield is subject to vibration in

AUTO mode. Take care that your fingers,

etc. do not become caught in the wind-

shield wipers.

■

Caution regarding the use of washer

fluid

When it is cold, do not use the washer

fluid until the windshield becomes warm.

The fluid may freeze on the windshield

and cause low visibility. This may lead to

an accident, resulting in death or serious

injury.

NOTICE

■

When the washer fluid tank is empty

Do not operate the switch continually as

the washer fluid pump may overheat.

210

4-3. Operating the lights and wipers

When the windshield wipers are not
being used, they retract to below the
hood. To enable the windshield wipers
to be lifted when parking in cold condi-
tions or when replacing a windshield
wiper insert, change the rest position of
the windshield wipers to the service
position using the wiper lever.

■

Raising the wipers to the service
position

Within approximately 45 seconds of
turning the engine switch off, move the

wiper lever to the

(U.S.A.) or

(Canada) position and hold it for
approximately 2 seconds or more.

The wipers will move to the service posi-
tion.

■

Lifting the windshield wipers

While holding the hook portion of the
wiper arm, lift the windshield wiper
from the windshield.

Hook portion

■

Lowering the windshield wipers to the

retracted position

With the windshield wipers placed on the

windshield, turn the engine switch to ON

and then move the wiper lever to an operat-

ing position. When the wiper switch is

turned off, the windshield wipers will stop at

the retracted position.

NOTICE

■

When a nozzle becomes blocked

In this case, contact your Lexus dealer.

Do not try to clear it with a pin or other

object. The nozzle will be damaged.

■

To prevent battery discharge

Do not leave the wipers on longer than

necessary when the engine is off.

Changing the windshield wiper
rest position/Lifting the wind-
shield wipers

211

4-3. Operating the lights and wipers

Driving

■

Operating the windshield wipers and
washer using the voice control system

: If equipped



For the U.S.A.

The windshield wipers can be moved to the

service position using the voice control

system. (Operation is possible only when

the vehicle is stopped with the wiper switch
in .)



For Canada

The windshield wipers can be moved to the

service position using the voice control

system. (Operation is possible only when

the vehicle is stopped with the wiper switch
in .)
For details regarding the voice control sys-

tem, refer to the “MULTIMEDIA

OWNER’S MANUAL”.

Operating the

switch operates

the rear wiper as follows:

(U.S.A.) or

(Canada) Off

(U.S.A.) or

(Canada) Inter-

mittent operation

(U.S.A.) or

(Canada) Nor-

mal operation

NOTICE

■

When lifting the windshield wipers

●

Do not lift the windshield wipers when

they are in the retracted position

below the hood. Otherwise, they may

contact the hood, possibly resulting in

damage to a windshield wiper and/or

the hood.

●

Do not lift a windshield wiper by the

wiper blade. Otherwise, the wiper

blade may be deformed.

●

Do not operate the wiper lever when

the windshield wipers are lifted. Oth-

erwise, the windshield wipers may

contact the hood, possibly resulting in

damage to the windshield wipers

and/or hood.

Rear window wiper and
washer

NOTICE

■

When the rear window is dry

Do not use the wiper, as it may damage

the rear window.

Operating the wiper lever

212

4-3. Operating the lights and wipers

Washer/wiper dual opera-

tion

Pushing the lever operates the wiper and
washer.
The wiper will automatically operate a cou-
ple of times after the washer squirts.
The washer will automatically operate and
clean the camera for the Digital Rear-view
Mirror

(



P.141) and rear camera

: If equipped

: Refer to the “MULTIMEDIA

OWNER’S MANUAL”.

■

The rear window wiper and washer can

be operated when

The engine switch is in ON.

■

Operating the rear window wiper and
washer using the voice control system

: If equipped

The following operation can be performed

using the voice control system.

●

Operating the rear window wiper only

once

●

Operating the rear window washer (it

can be performed only when the vehicle

is stopped)

For details regarding the voice control sys-

tem, refer to the “MULTIMEDIA

OWNER’S MANUAL”.

■

If no washer fluid sprays

Check that the washer nozzle is not

blocked if there is washer fluid in the washer

fluid tank.

■

Reverse-linked rear window wiper func-

tion

When the shift position is shifted to R when

the front wipers are operating, the rear win-

dow wiper will operate once.

■

Back door opening linked rear window

wiper stop function

When the rear window wiper is operating, if

the back door is opened while the vehicle is

stopped, operation of the rear window

wiper will be stopped to prevent anyone

near the vehicle from being sprayed by

water from the wiper. When the back door

is closed, wiper operation will resume.

NOTICE

■

When the washer fluid tank is empty

Do not operate the switch continually as

the washer fluid pump may overheat.

■

When a nozzle becomes blocked

In this case, contact your Lexus dealer.

Do not try to clear it with a pin or other

object. The nozzle will be damaged.

■

To prevent battery discharge

Do not leave the wiper on longer than

necessary when the engine is off.

213

4-4. Refueling

Driving

4-4.Refueling



Close all the doors and windows,
and turn the engine switch off.



Confirm the type of fuel.

■

Fuel types

P.517

■

Fuel tank opening for unleaded gasoline

To help prevent incorrect fueling, your vehi-

cle has a fuel tank opening that only accom-

modates the special nozzle on unleaded

fuel pumps.

■

If the malfunction indicator lamp illumi-

nates

The malfunction indicator lamp may illumi-

nate erroneously if refueling is performed

repeatedly when the fuel tank is nearly full.

Opening the fuel tank cap

Perform the following steps to open
the fuel tank cap:

Before refueling the vehicle

WARNING

■

When refueling the vehicle

Observe the following precautions while

refueling the vehicle. Failure to do so may

result in death or serious injury.

●

After exiting the vehicle and before

opening the fuel door, touch an

unpainted metal surface to discharge

any static electricity. It is important to

discharge static electricity before refu-

eling because sparks resulting from

static electricity can cause fuel vapors

to ignite while refueling.

●

Always hold the grips on the fuel tank

cap and turn it slowly to remove it.

A whooshing sound may be heard

when the fuel tank cap is loosened.

Wait until the sound cannot be heard

before fully removing the cap. In hot

weather, pressurized fuel may spray

out of the filler neck and cause injury.

●

Do not allow anyone that has not dis-

charged static electricity from their

body to come close to an open fuel

tank.

●

Do not inhale vaporized fuel.

Fuel contains substances that are

harmful if inhaled.

●

Do not smoke while refueling the vehi-

cle.

Doing so may cause the fuel to ignite

and cause a fire.

●

Do not return to the vehicle or touch

any person or object that is statically

charged.

This may cause static electricity to

build up, resulting in a possible ignition

hazard.

■

When refueling

Observe the following precautions to

prevent fuel overflowing from the fuel

tank:

●

Securely insert the fuel nozzle into the

fuel filler neck.

●

Stop filling the tank after the fuel noz-

zle automatically clicks off.

●

Do not top off the fuel tank.

NOTICE

■

Refueling

Do not spill fuel during refueling.

Doing so may damage the vehicle, such

as causing the emission control system to

operate abnormally or damaging fuel

system components or the vehicle’s

painted surface.

214

4-4. Refueling

Press the switch to open the fuel
filler door.

Turn the fuel tank cap slowly and
remove it, then put it into the holder
on the fuel filler door.

■

If the fuel filler door cannot be opened
