1-3. LEXUS Enform

(1-800-255-3987)



Canada
1-800-26-LEXUS
(1-800-265-3987)



Puerto Rico
1-877-539-8777

■

Safety Connect Services Information

●

Phone calls using the vehicle’s Blue-
tooth

®

 technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall

2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

●

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

●

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

●

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

■

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

■

When contacting the response center

You may be unable to contact the response

center if the network is busy.

When the engine switch is turned to
IGNITION ON mode, the red indica-
tor light comes on for 2 seconds then
turns off. Afterward, the green indica-
tor light comes on, indicating that the
service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:



Green indicator light on = Active
service



Green indicator light flashing =
Safety Connect call in process



Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)



No indicator light (off) = Safety
Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle

Safety Connect LED light Indi-
cators

Safety Connect services

57

1-3. LEXUS Enform

1

For safety and security

occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-
tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio trans-
mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.



ANSI (American National Stan-
dards Institute) C95.1 [1992]



NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]

Safety information for Safety
Connect

58

1-3. LEXUS Enform



ICNIRP (International Commission
on Non-Ionizing Radiation Protec-
tion) [1996]

Those standards were based on com-
prehensive and periodic evaluations of
the relevant scientific literature. Over
120 scientists, engineers, and physi-
cians from universities, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com-
plies with the FCC guidelines in addi-
tion to those standards.

59

1-4. Theft deterrent system

1

For safety and security

1-4.Theft deterrent system

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.

■

System maintenance

The vehicle has a maintenance-free type

engine immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

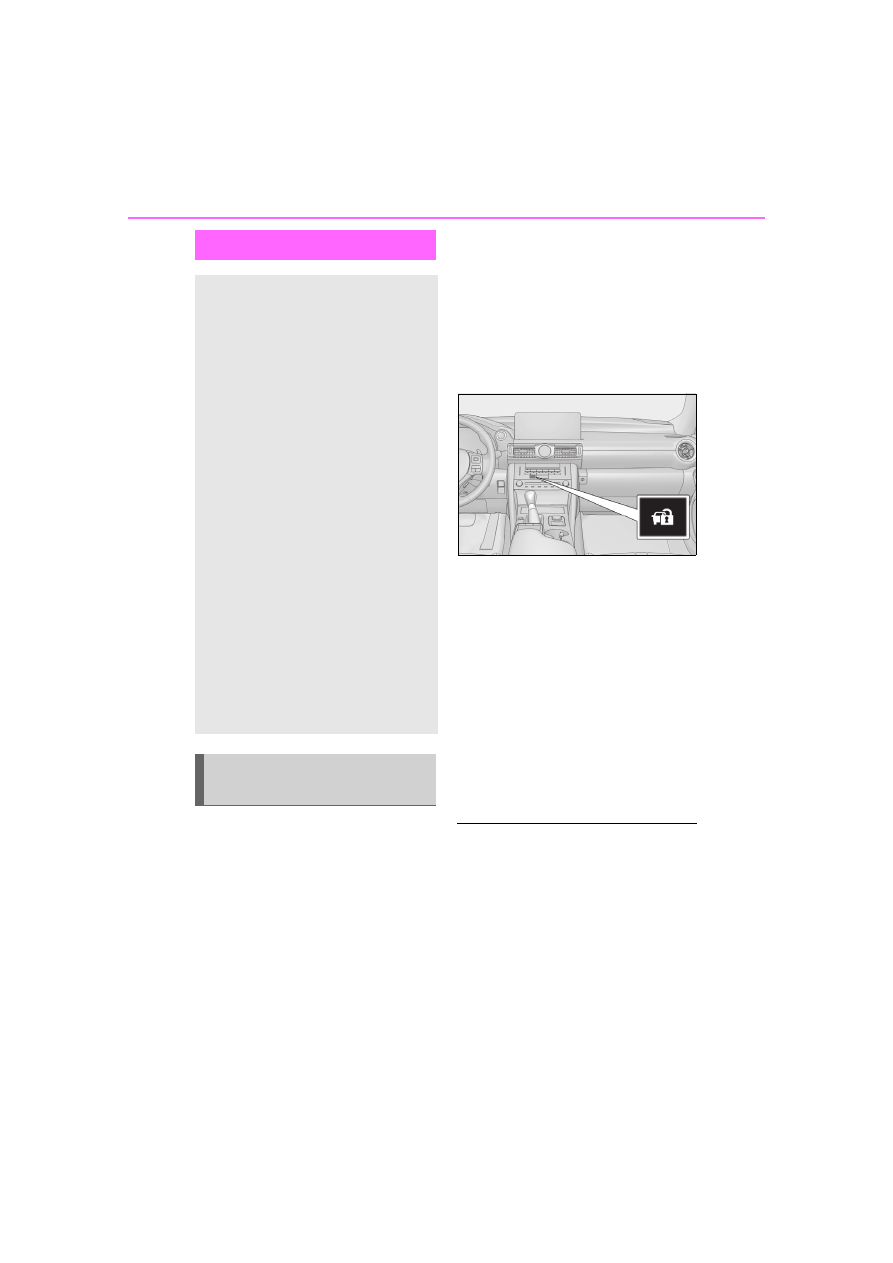

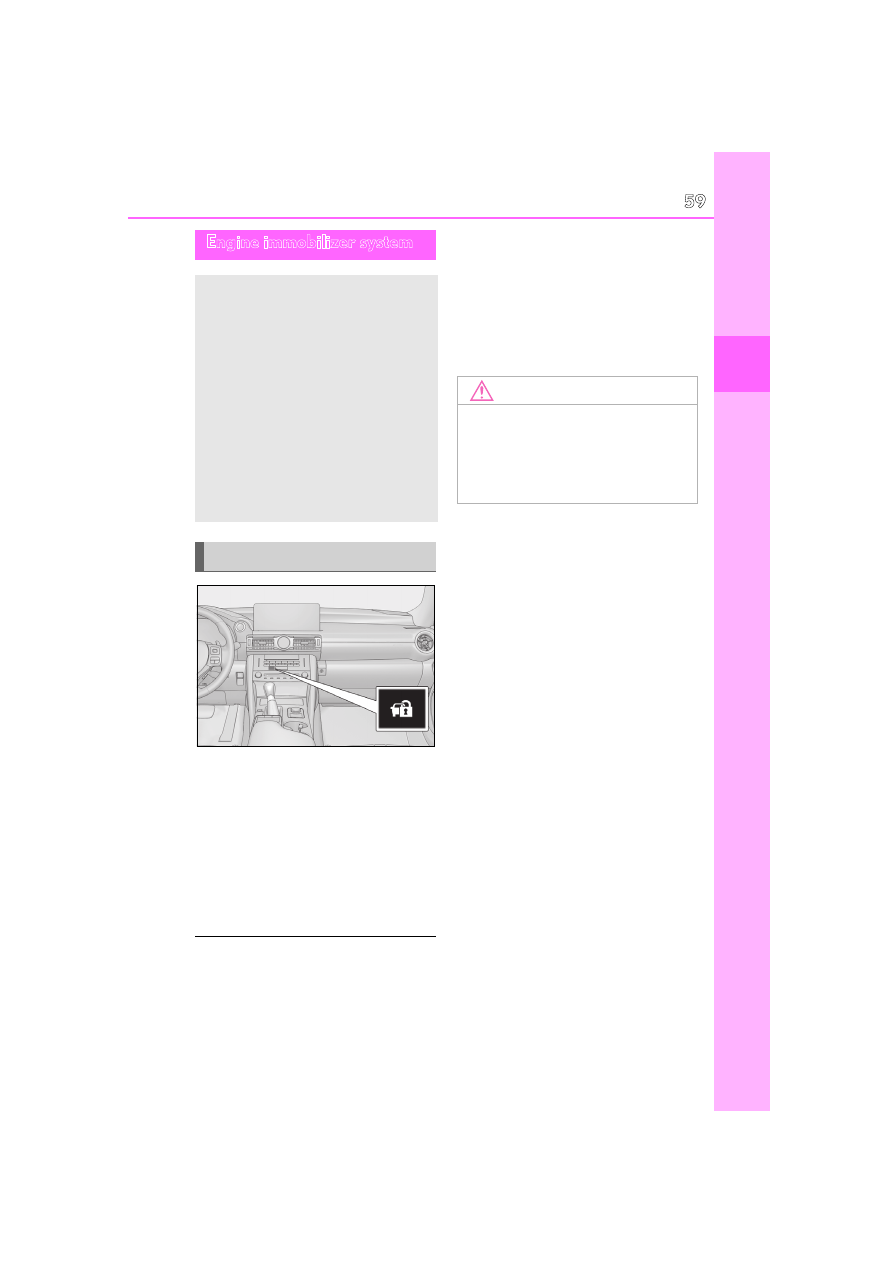

Engine immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.

Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.

Operating the system

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

60

1-4. Theft deterrent system

■

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:



Nobody is in the vehicle.



The windows and moon roof (if
equipped) are closed before the
alarm is set.



No valuables or other personal

items are left in the vehicle.

■

Setting

Close the doors, trunk and hood, and
lock both side doors. The system will
be set automatically after 30 seconds.

The indicator light changes from being on
to flashing when the system is set.

■

Deactivating or stopping

Do one of the following to deactivate
or stop the alarms:



Unlock the doors.



Open the trunk using the entry
function or wireless remote control.



Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

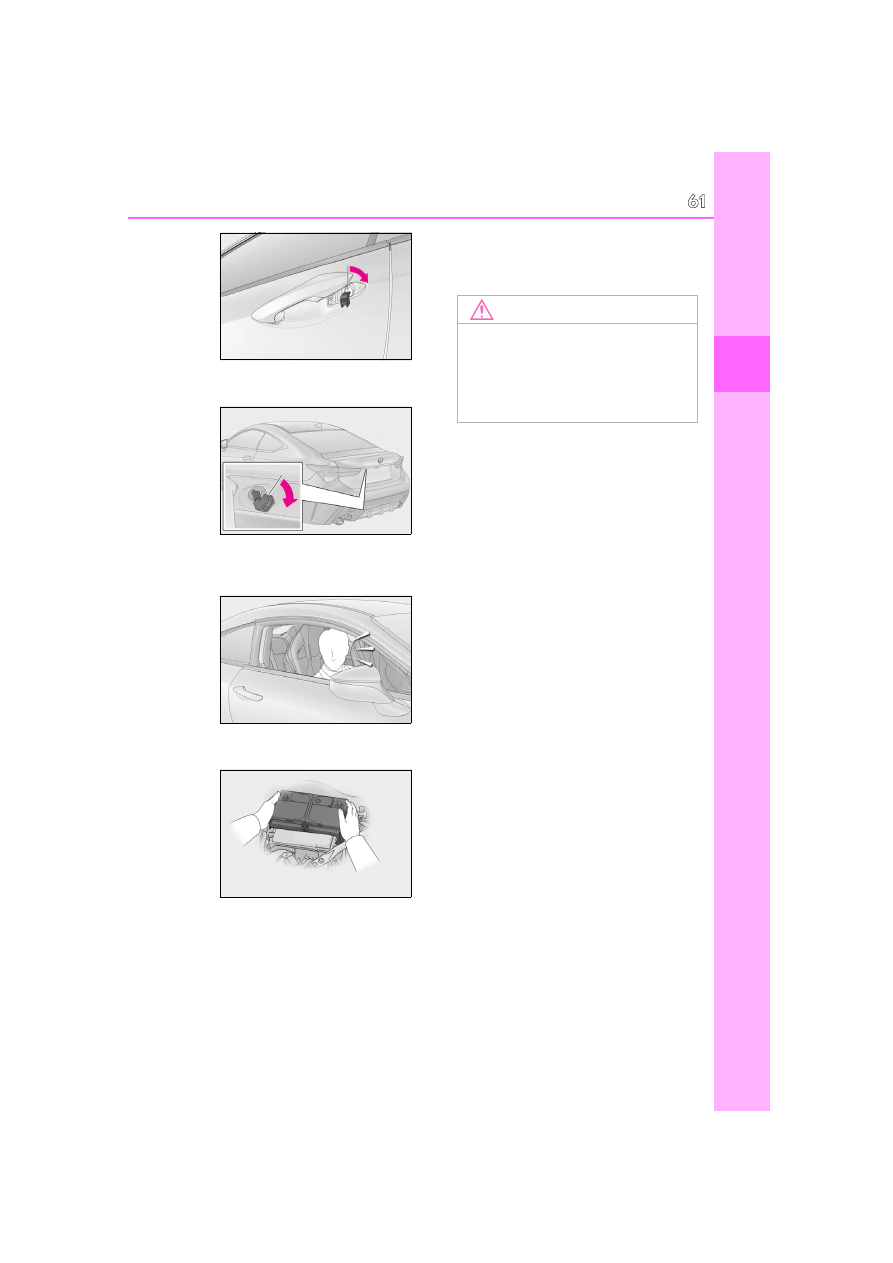

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

●

For Canada: The doors are unlocked

using the mechanical key.

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:



Except for Canada: A locked
door is unlocked or opened in any
way other than using the entry
function, wireless remote control
or mechanical key. (The doors will
lock again automatically.)



For Canada: A locked door is
unlocked or opened in any way
other than using the entry func-
tion or wireless remote control.
(The doors will lock again auto-
matically.)



The trunk is opened in any way
other than using the entry func-
tion or wireless remote control.



The hood is opened.

Setting/deactivating/stopping
the alarm system

61

1-4. Theft deterrent system

1

For safety and security

●

The trunk is opened using the mechanical

key.

●

A person inside the vehicle opens a door,

the trunk or hood, or unlocks the vehicle

using an inside lock button.

●

The battery is recharged or replaced

when the vehicle is locked. (



P.350)

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

●

When recharging or replacing the bat-

tery

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

62

1-4. Theft deterrent system

Theft prevention labels
(U.S.A.)

These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.

63

2

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

.

2-1. Instrument cluster

Warning lights and indicators

...........................................................

64

Gauges and meters ....................

68

Multi-information display..........

75

Fuel consumption information

...........................................................

84

64

2-1. Instrument cluster

2-1.Instrument cluster

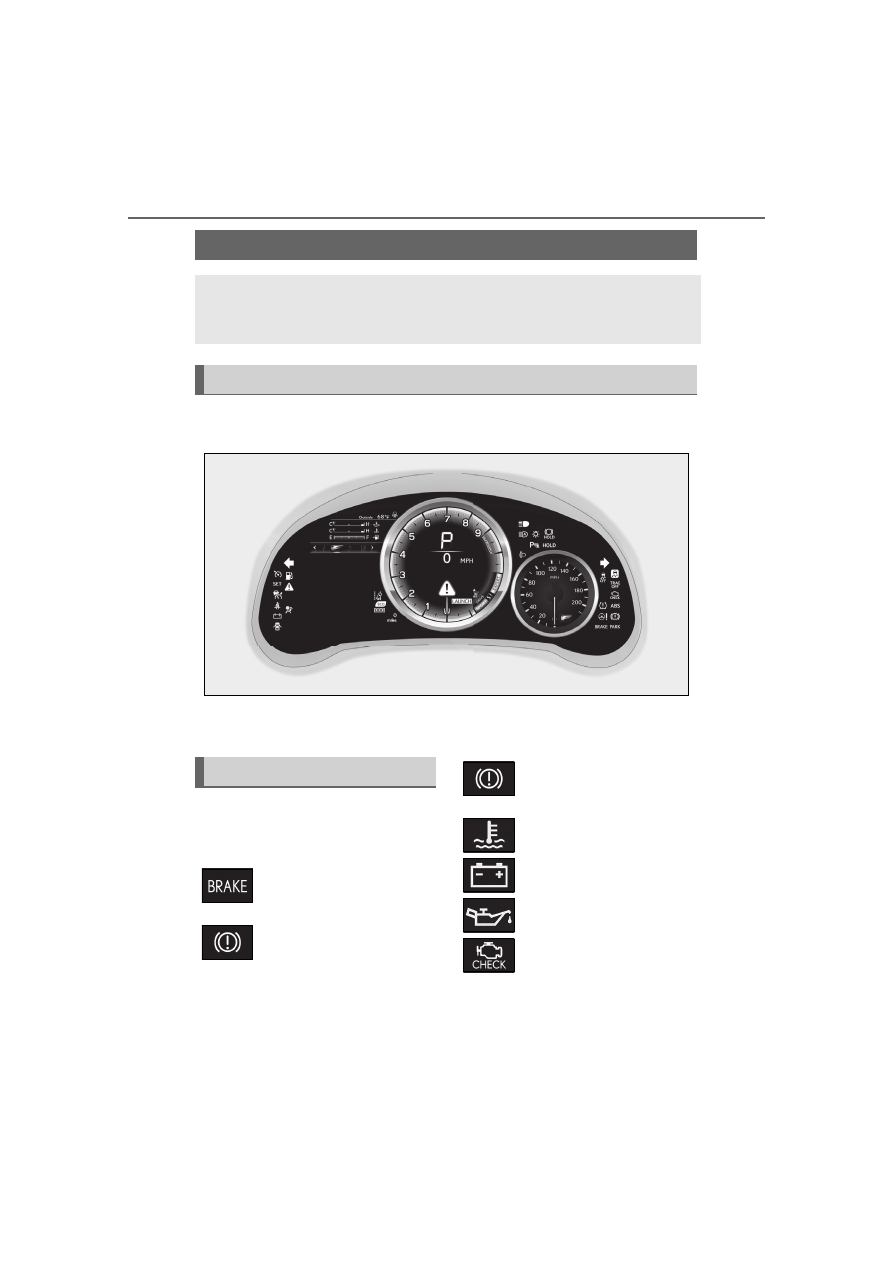

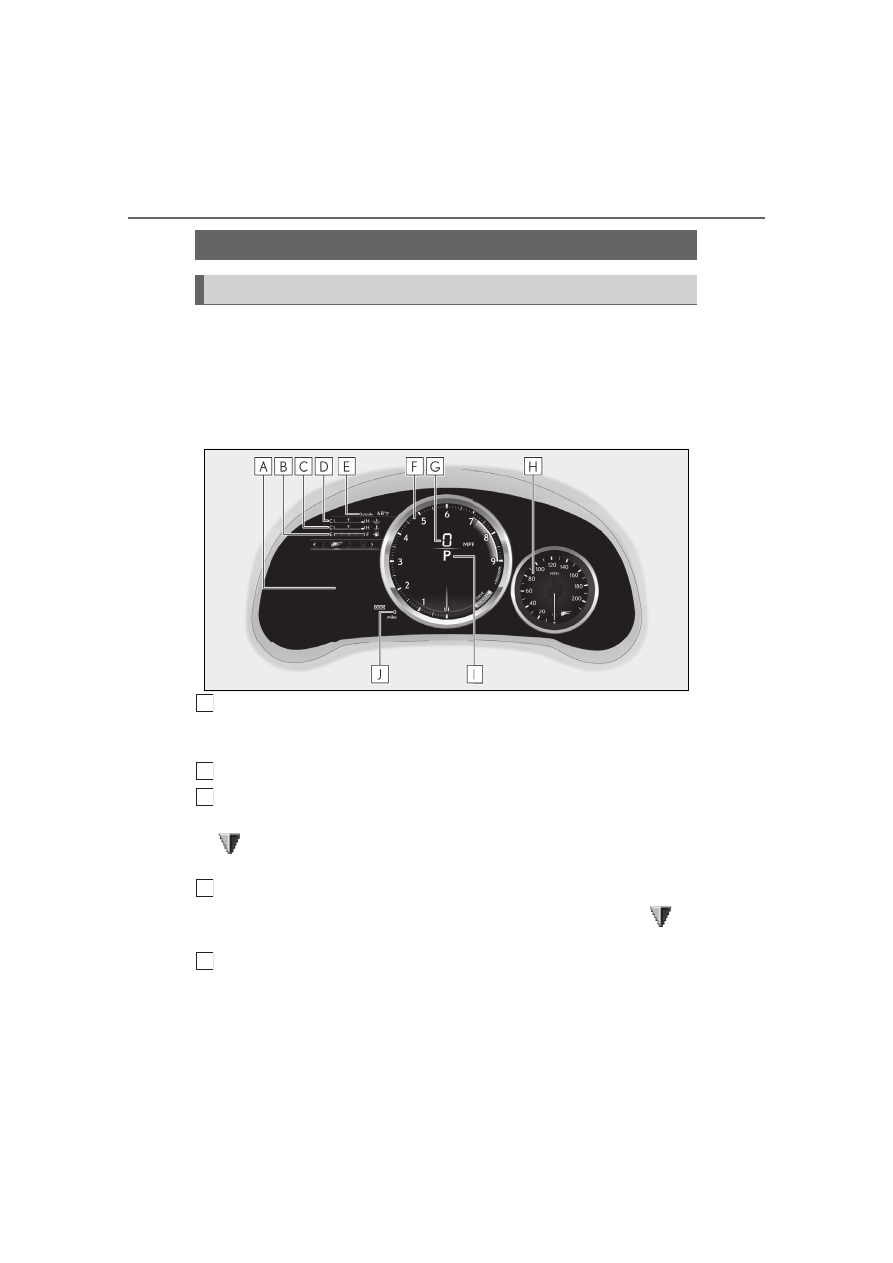

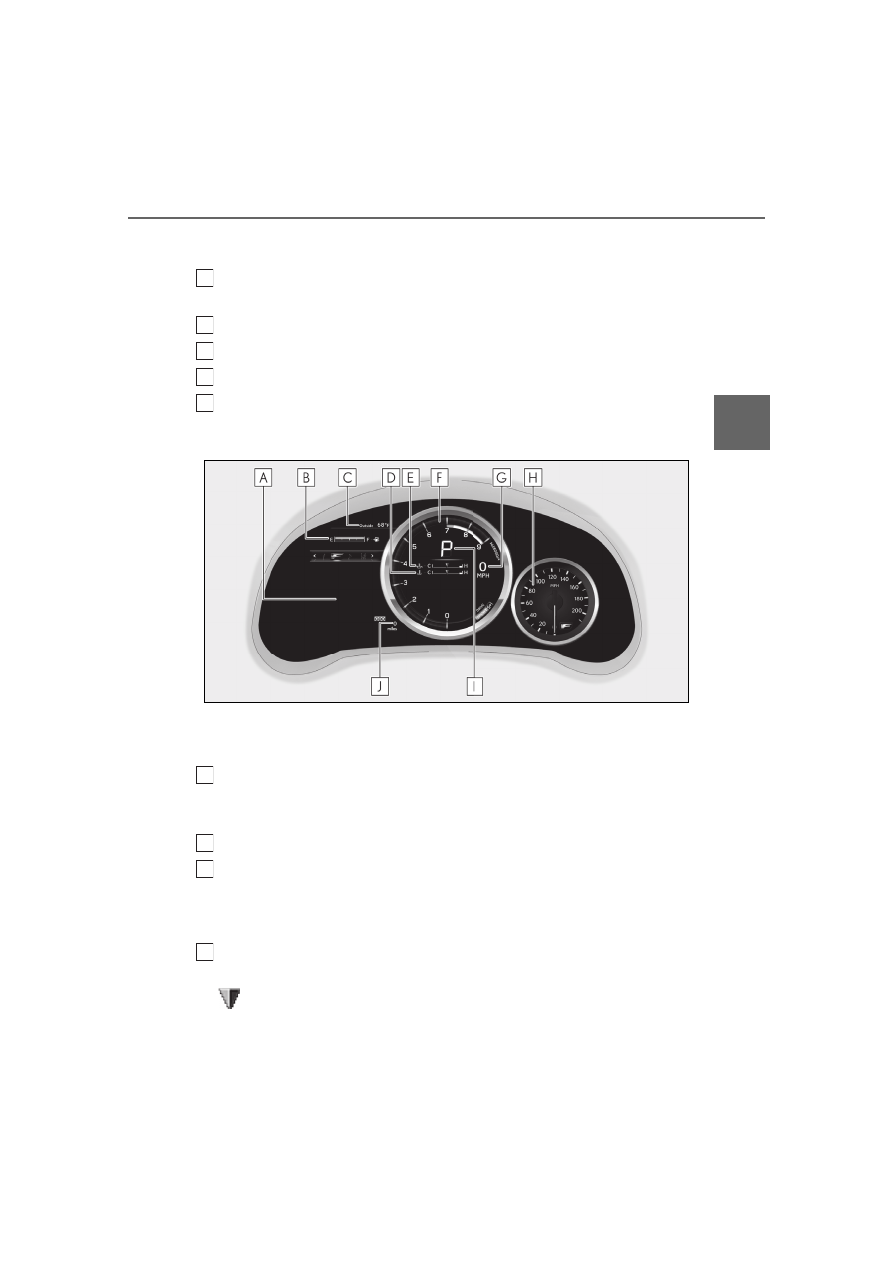

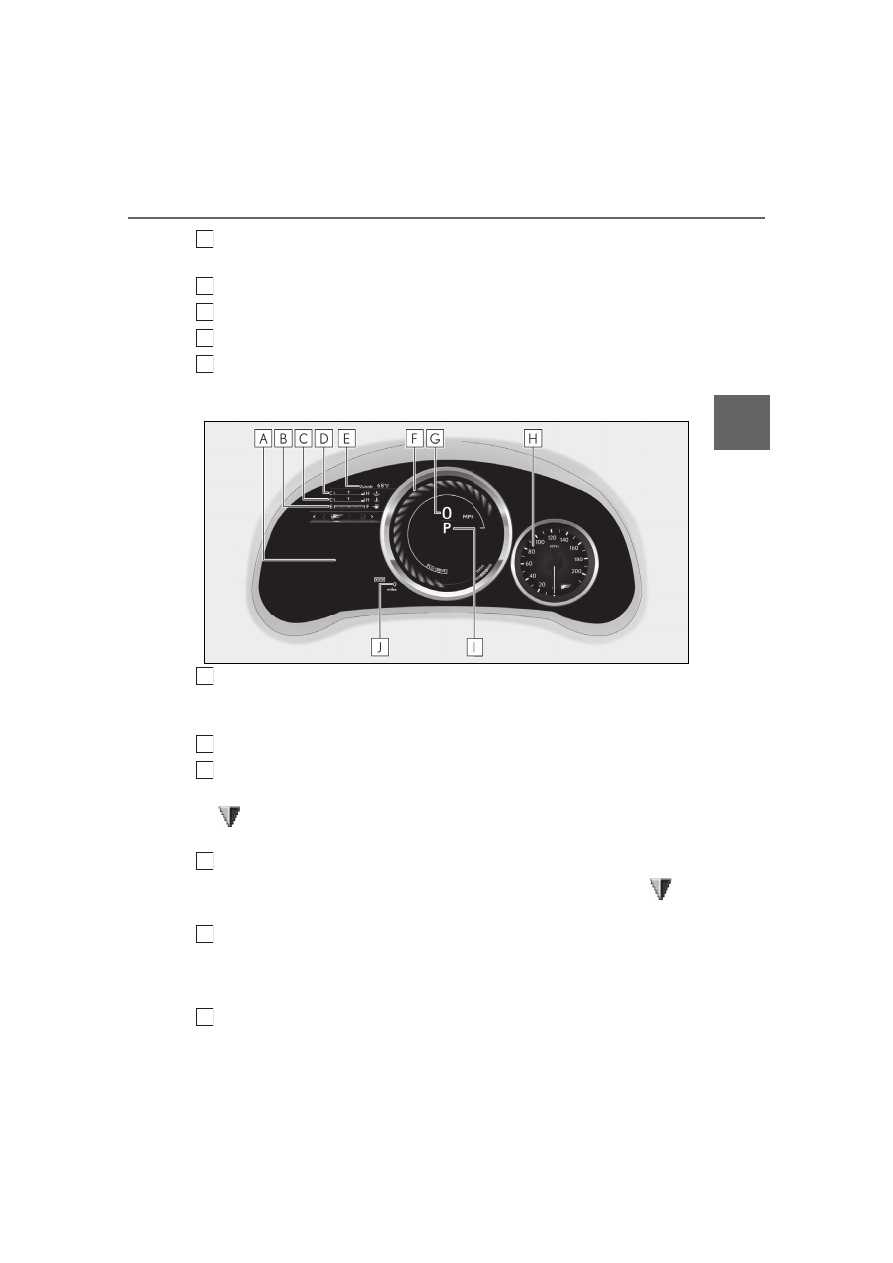

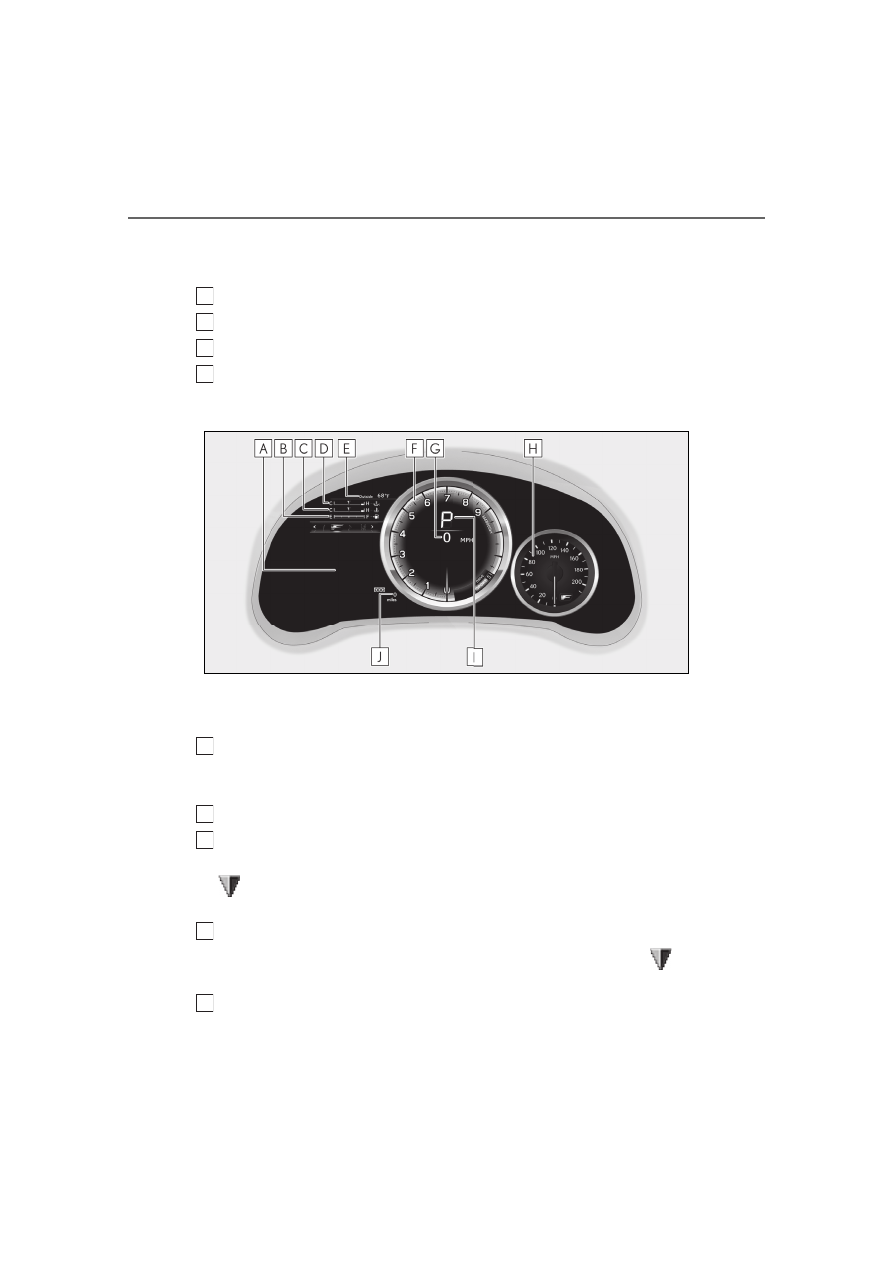

For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.

The units used on the meters and some indicators may differ depending on the target
region.

Warning lights inform the driver of mal-
functions in the indicated vehicle sys-
tems.

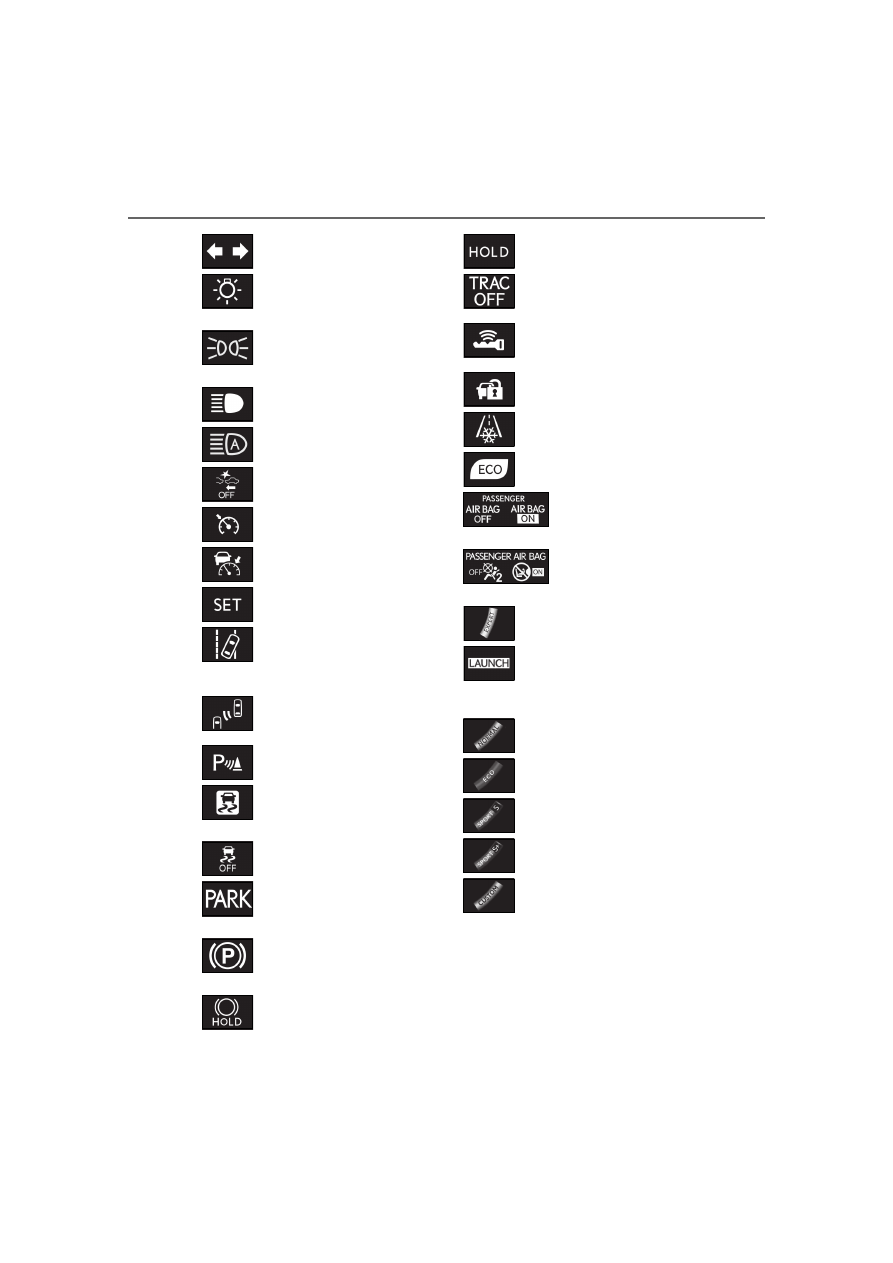

Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.

Warning lights and indicators displayed on the instrument cluster

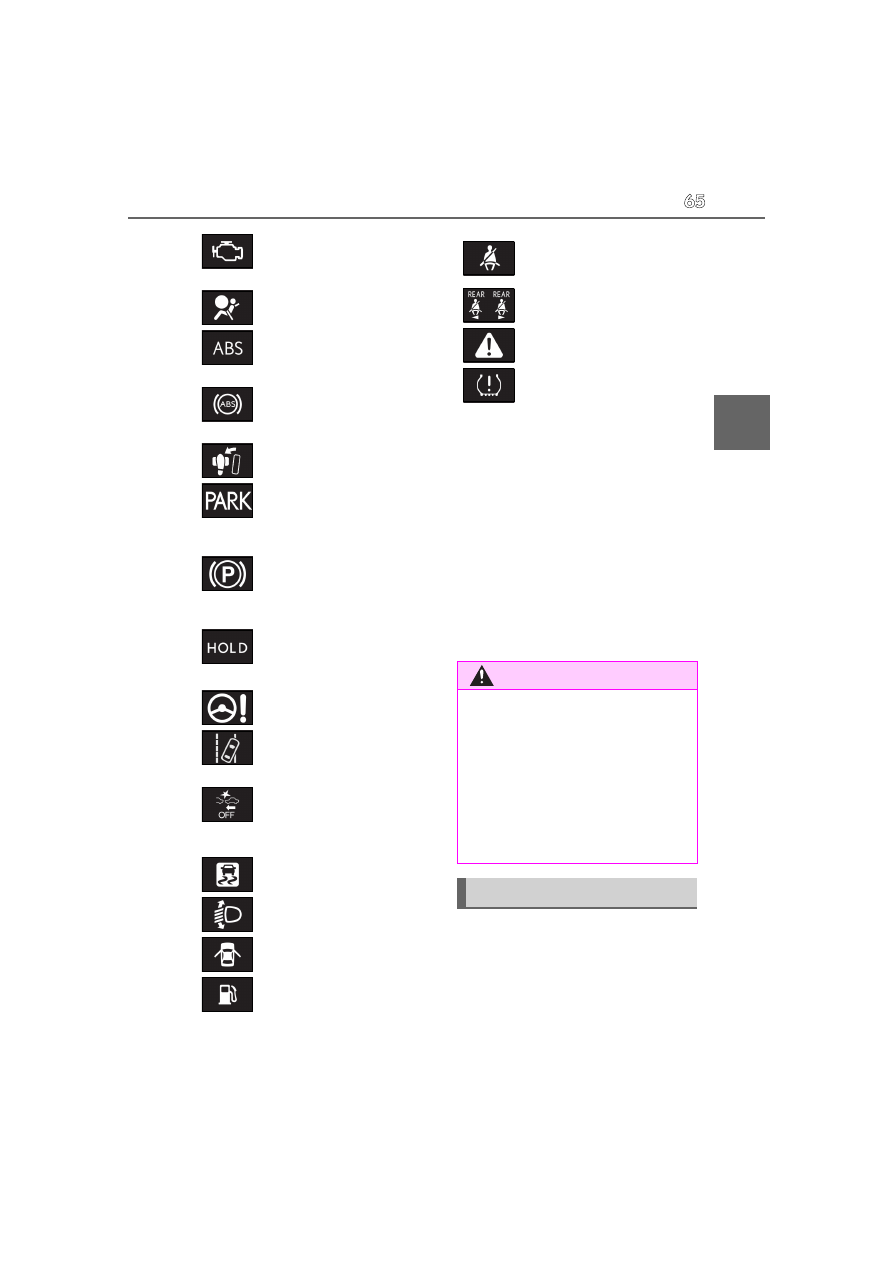

Warning lights

(U.S.A.)

Brake system warning light

*1



(



P.314)

(red)

(Canada)

Brake system warning light

*1



(



P.314)

(yellow)

Brake system warning light

*1



(



P.314)

High coolant temperature
warning light

*2

 (



P.314)

Charging system warning
light

*1, 2

 (



P.315)

Low engine oil pressure warn-
ing light

*2

 (



P.315)

(U.S.A.)

Malfunction indicator lamp

*1



(



P.315)

65

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

*1

: These lights turn on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

*2

: This light illuminates on the multi-infor-

mation display.

*3

: This light illuminates on the center

panel.

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

(Canada)

Malfunction indicator lamp

*1



(



P.315)

SRS warning light

*1

 (



P.315)

(U.S.A.)

ABS warning light

*1

 (



P.316)

(Canada)

ABS warning light

*1

 (



P.316)

Inappropriate pedal operation
warning light

*2

 (



P.316)

(flashes)

(U.S.A.)

Parking brake warning light
(



P.316)

(flashes)

(Canada)

Parking brake warning light
(



P.316)

(flashes)

Brake hold operated indicator

*1



(



P.317)

Electric power steering system
warning light

*1

 (



P.317)

(orange)

LTA indicator (



P.317)

(flashes or

illuminates)

PCS warning light

*1

 (



P.317)

Slip indicator

*1

 (



P.318)

Automatic headlight leveling
system warning light (



P.318)

Open door warning light
(



P.318)

Low fuel level warning light
(



P.318)

Driver’s and front passenger’s
seat belt reminder light
(



P.318)

Rear passenger’s seat belt
reminder lights

*3

 (



P.319)

Master warning light

*1



(



P.319)

Tire pressure warning light

*1



(



P.320)

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the engine, this could

mean that these systems are not available

to help protect you in an accident, which

could result in death or serious injury.

Have the vehicle inspected by your

Lexus dealer immediately if this occurs.

Indicators

66

2-1. Instrument cluster



Drive mode indicators

*1

: These lights turn on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or

Turn signal indicator (



P.135)

(U.S.A.)

Headlight indicator (



P.141)

(Canada)

Tail light indicator (



P.141)

Headlight high beam indicator
(



P.142)

Automatic High Beam indica-
tor

*1

 (



P.143)

PCS warning light

*1, 2

 (



P.163)

Cruise control indicator
(



P.181)

Dynamic radar cruise control
indicator (



P.181)

Cruise control “SET” indicator
(



P.181)

*3

LTA indicator (



P.160, 175)

BSM (Blind Spot Monitor) out-
side rear view mirror indica-
tors

*4, 5

 (



P.192)

Intuitive parking assist indicator
(if equipped) (



P.200)

(flashes)

Slip indicator

*1

 (



P.211)

VSC OFF indicator

*1, 2



(



P.212)

(U.S.A.)

Parking brake indicator
(



P.136)

(Canada)

Parking brake indicator
(



P.136)

Brake hold standby indicator

*1



(



P.139)

Brake hold operated indicator

*1



(



P.139)

TRAC OFF indicator

*1, 2



(



P.212)

Smart access system with
push-button start indicator

*6



(



P.128)

Security indicator

*7

 (



P.59,

60)
Low outside temperature indi-
cator

*6, 8

 (



P.68)

Eco Driving Indicator Light

*1



(



P.78)

(U.S.A.)

“AIR BAG ON/OFF”
indicator

*1, 7

 (



P.38)

(Canada)

“AIR BAG ON/OFF”
indicator

*1, 7

 (



P.38)

“EXPERT” indicator (



P.212)

“LAUNCH” indicator
(



P.207)

“NORMAL” indicator
(



P.205)

Eco drive mode indicator
(



P.205)

“SPORT S” indicator (



P.205)

“SPORT S+” indicator
(



P.205)

“CUSTOM” indicator
(



P.205)

67

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

turn off. Have the vehicle inspected by
your Lexus dealer.

*2

: The light comes on when the system is

turned off.

*3

: Depending on the operating condition,

the color and illuminating/flashing state
of the light change.

*4

: In order to confirm operation, the BSM

outside rear view mirror indicators illu-
minate in the following situations:

• When the engine switch is turned to

IGNITION ON mode while the
BSM main switch is turned on.

• When the BSM main switch is

turned on while the engine switch is
in IGNITION ON mode.

If the system is functioning correctly,
the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction in
the system. If this occurs, have the vehi-
cle inspected by your Lexus dealer.

*5

: This light illuminates on the outside rear

view mirrors.

*6

: This light illuminates on the multi-infor-

mation display.

*7

: This light illuminates on the center

panel.

*8

: When the outside temperature is

approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

68

2-1. Instrument cluster

■

Locations of gauges and meters

If the drive mode is changed, some of the meter displays and the gauge layout will
be changed.

The units used on the meters may differ depending on the target region.



Normal mode

Multi-information display

Presents the driver with a variety of vehicle data (



P.75)

Displays warning messages in case of a malfunction (



P.323)

Fuel gauge
Engine coolant temperature gauge

Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor (

) enters the red zone, a buzzer will sound and the indicator will turn red and start

flashing. Also, a warning message will be displayed.

Engine oil temperature gauge

Displays the engine oil temperature. If the engine oil temperature gauge indicator (

)

enters the red zone, the indicator will turn red and start flashing.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Gauges and meters

Meter display

A

B
C

D

E

69

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Tachometer

Displays the engine speed in revolutions per minute

Digital speedometer
Analog speedometer
Shift position/shift range/gear position (



P.132)

Odometer and trip meter display (



P.74)



Eco drive mode

Multi-information display

Presents the driver with a variety of vehicle data (



P.75)

Displays warning messages in case of a malfunction (



P.323)

Fuel gauge
Engine coolant temperature gauge

Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor (

) enters the red zone, a buzzer will sound and the indicator will turn red and start

flashing. Also, a warning message will be displayed.

Engine oil temperature gauge

Displays the engine oil temperature. If the engine oil temperature gauge indicator (

)

enters the red zone, the indicator will turn red and start flashing.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Eco driving meter

F

G

H

I

J

A

B
C

D

E

F

70

2-1. Instrument cluster

Displays the vehicle acceleration. The more rapidly the vehicle is accelerated, the lower the
number of blue segments displayed, indicating that your driving is less ecofriendly. This
meter is designed as a guideline to show the eco-friendliness of your driving.

Digital speedometer
Analog speedometer
Shift position/shift range/gear position (



P.132)

Odometer and trip meter display (



P.74)



SPORT S mode

The units used on the meters may differ depending on the target region.
These illustrations show the default meter display for SPORT S mode. The meter displays
for SPORT S mode can be changed on the settings display of the multi-information display.

Multi-information display

Presents the driver with a variety of vehicle data (



P.75)

Displays warning messages in case of a malfunction (



P.323)

Fuel gauge
Engine coolant temperature gauge

Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor (

) enters the red zone, a buzzer will sound and the indicator will turn red and start

flashing. Also, a warning message will be displayed.

Engine oil temperature gauge

Displays the engine oil temperature. If the engine oil temperature gauge indicator (

)

enters the red zone, the indicator will turn red and start flashing.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low

G

H

I

J

A

B
C

D

E

71

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Tachometer

Displays the engine speed in revolutions per minute

Digital speedometer
Analog speedometer
Shift position/shift range/gear position (



P.132)

Odometer and trip meter display (



P.74)



SPORT S+ mode

The units used on the meters may differ depending on the target region.
These illustrations show the default meter display for SPORT S+ mode. The meter displays
for SPORT S+ mode can be changed on the settings display of the multi-information display.

Multi-information display

Presents the driver with a variety of vehicle data (



P.75)

Displays warning messages in case of a malfunction (



P.323)

Fuel gauge
Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Engine coolant temperature gauge

Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor (

) enters the red zone, a buzzer will sound and the indicator will turn red and start

flashing. Also, a warning message will be displayed.

F

G

H

I

J

A

B
C

D

72

2-1. Instrument cluster

Engine oil temperature gauge

Displays the engine oil temperature. If the engine oil temperature gauge indicator (

)

enters the red zone, the indicator will turn red and start flashing.

Tachometer

Displays the engine speed in revolutions per minute

Digital speedometer
Analog speedometer
Shift position/shift range/gear position (



P.132)

Odometer and trip meter display (



P.74)

■

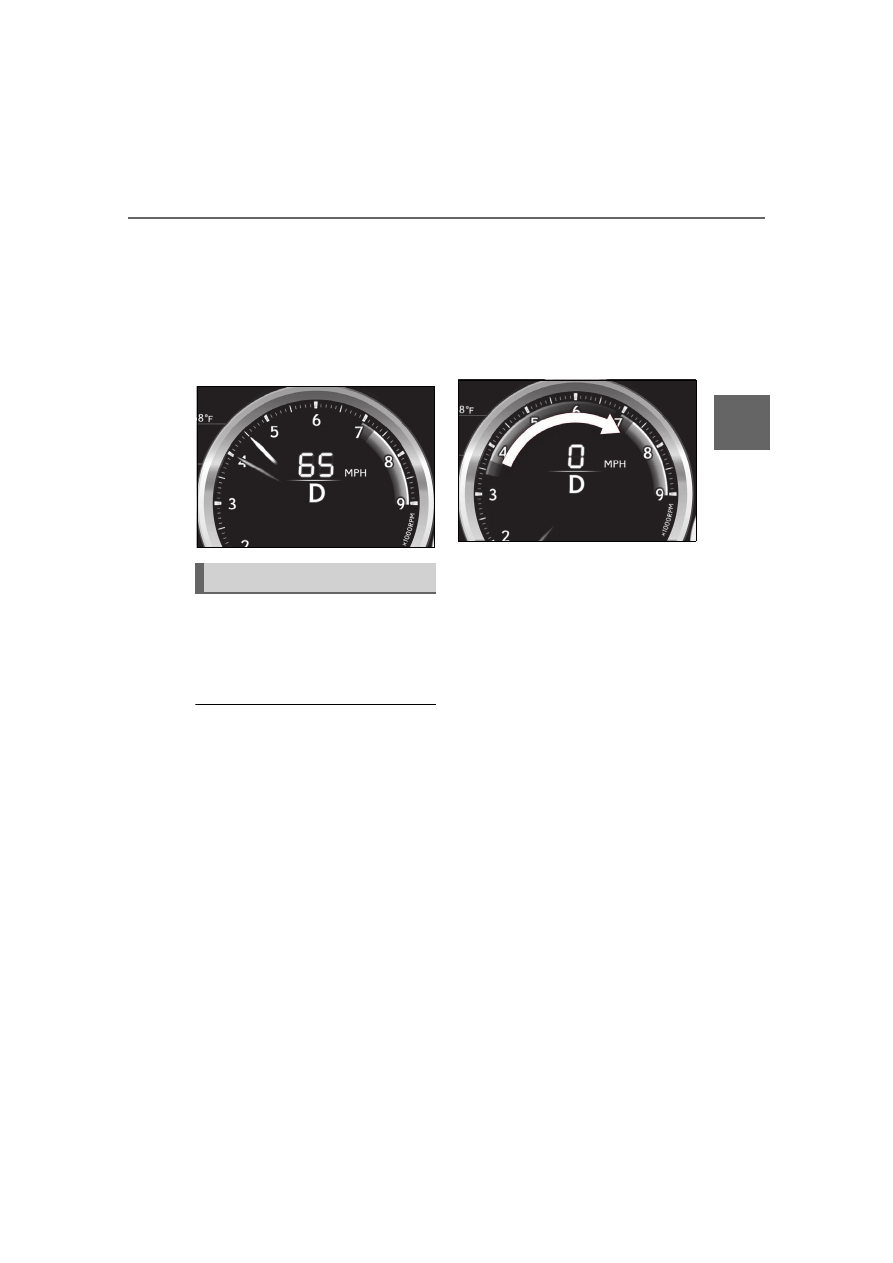

Speed indicator

When the vehicle reaches the set
speed, the speed unit display will turn
yellow.

The indicators will be displayed in yellow
(corresponding to a speed set by a user) or
red (fixed at 100 mph [160 km/h])

*

.

This setting can be enabled on the
multi-information display.

*

: Always observe the legal speed limit

when driving on public roads.

■

Rev indicator (SPORT S
mode/SPORT S+ mode)

When the shift lever is in M, an indica-
tor on the tachometer will be displayed
in 3 steps. When the 3rd level indicator
is displayed, the indicator will flash and
a buzzer will sound to notify you of
shift-up timing.

The indicator may be displayed when
downshifting, depending on the engine
speed.

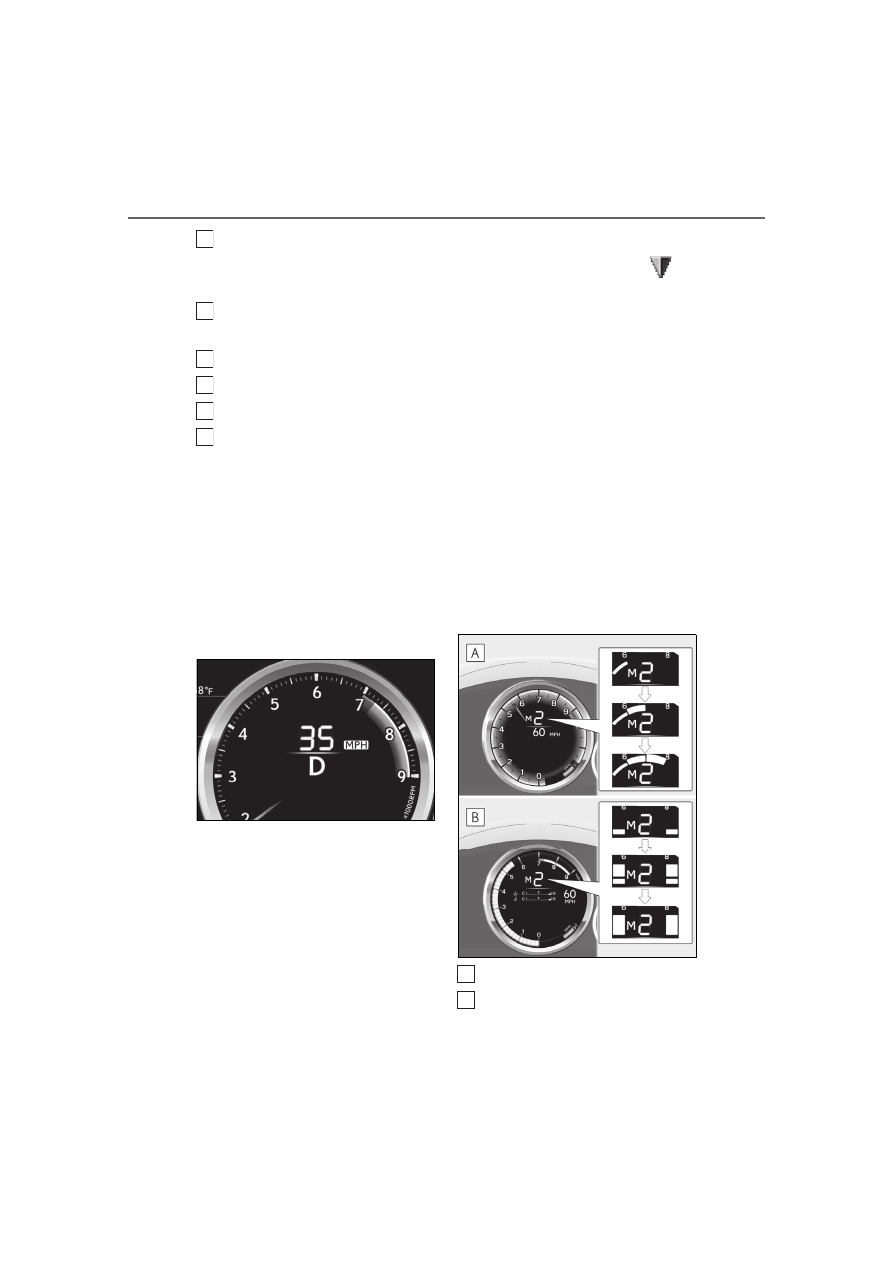

These illustrations show the default meter
display for SPORT S mode and SPORT S+
mode. The meter displays for SPORT S
mode and SPORT S+ mode can be
changed on the settings display of the
multi-information display.

SPORT S mode
SPORT S+ mode

E

F

G

H

I

J

A
B

73

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

■

Rev peak (Normal mode/SPORT
S mode)

The engine speed reaches or exceeds
3600 rpm, an afterimage of the
tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

■

Meter display and layout

If the drive mode is changed, some of
the meter displays and the gauge lay-
out will be changed. (



P.205)

■

The meters and display illuminate when

The engine switch is in IGNITION ON

mode.

■

Welcome illumination of the analog

speedometer

●

When the driver’s door is opened, the

analog speedometer will illuminate. Then,

when the driver’s door is closed, the ana-

log speedometer will illuminate and go

off (pulsate) 3 times.

●

In the following situations, the analog

speedometer will not pulsate even

though the driver’s door is opened and

closed:

• Within 60 seconds after the analog

meter pulsation completes

• Within 60 seconds of turning the engine

switch off

■

Variable red zone

To help protect the engine, the engine

speed is controlled by starting the red zone

of the tachometer at different engine

speeds ranging from 3700 rpm to 7300

rpm depending on the engine coolant tem-

perature. Before driving under extremely

high load conditions, make sure to suffi-

ciently warm up the engine.

■

Eco driving meter

●

The number of blue segments displayed

on the eco driving meter

decreases/increases depending on the

vehicle acceleration. Use this meter as a

guideline when you wish to drive in an

eco-friendly manner that reduces fuel

consumption.

However, on a downward grade where

the vehicle can accelerate without the

accelerator pedal being depressed, the

eco driving meter may not display the

eco-driving state correctly.

●

When the shift lever is moved to P, N or

R, the segments will turn gray and the eco

driving meter will not operate.

■

Dimming the analog speedometer light-

ing

The analog speedometer lighting will be

dimmed when the ambient light is bright,

such as during the daytime, and SPORT S

or SPORT S+ mode is selected.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

Changing the display

74

2-1. Instrument cluster

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “_ _” or “E” is displayed, the system

may be malfunctioning.

Take your vehicle to your Lexus dealer.

■

Pop-up display

●

In some situations, such as when a switch

operation is performed, a pop-up display

will be temporarily displayed on the

multi-information display.

●

Some pop-up displays can be set on/off.

(



P.82)

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

■

Customization

The meter display can be customized on

the multi-information display. (



P.374)

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
To reset, display the desired trip meter and
press and hold the odometer/trip meter
and trip meter reset button.

■

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator of the tachom-

eter enter the red zone, as it rep-

resents the engine speed range which

exceeds the maximum safe engine

speed.

●

In the following situations, the engine

may be overheating. In this case,

immediately stop the vehicle in a safe

place, and check the engine after it has

cooled completely. (



P.352)

• The engine coolant temperature

gauge indicator (

) is in the red

zone and flashing.

• The engine oil temperature gauge

indicator (

) is in the red zone and

flashing.

Odometer and trip meter dis-
play

75

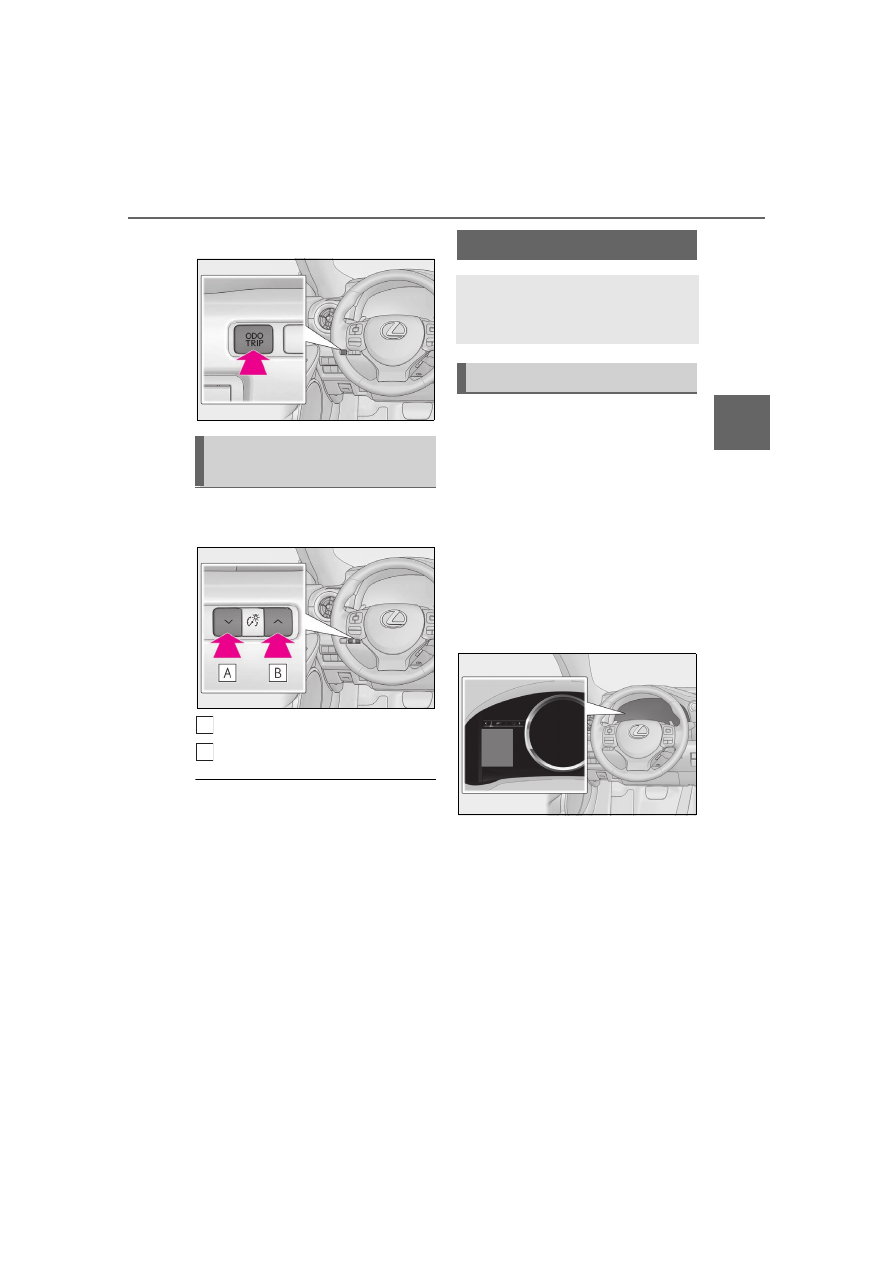

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

will reset the trip meter.

The brightness of the instrument panel
lights can be adjusted.

Darker
Brighter

■

Instrument panel brightness adjustment

The instrument panel brightness levels

when the tail lights are on and off can be

adjusted individually. However, when the

surroundings are bright (daytime, etc.),

turning on the tail lights will not change the

instrument panel brightness. At this time,

any adjustments made to the instrument

panel brightness levels will be applied to

both settings at once.

■

Display



Content display area

By selecting menu icons on the
multi-information display, a variety of
driving-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.



Sub-content display area

Displays some “F” content in conjunc-
tion with the content display area.

Changing the instrument panel
light brightness

A
B

Multi-information display

The multi-information display pres-
ents the driver with a variety of
vehicle data.

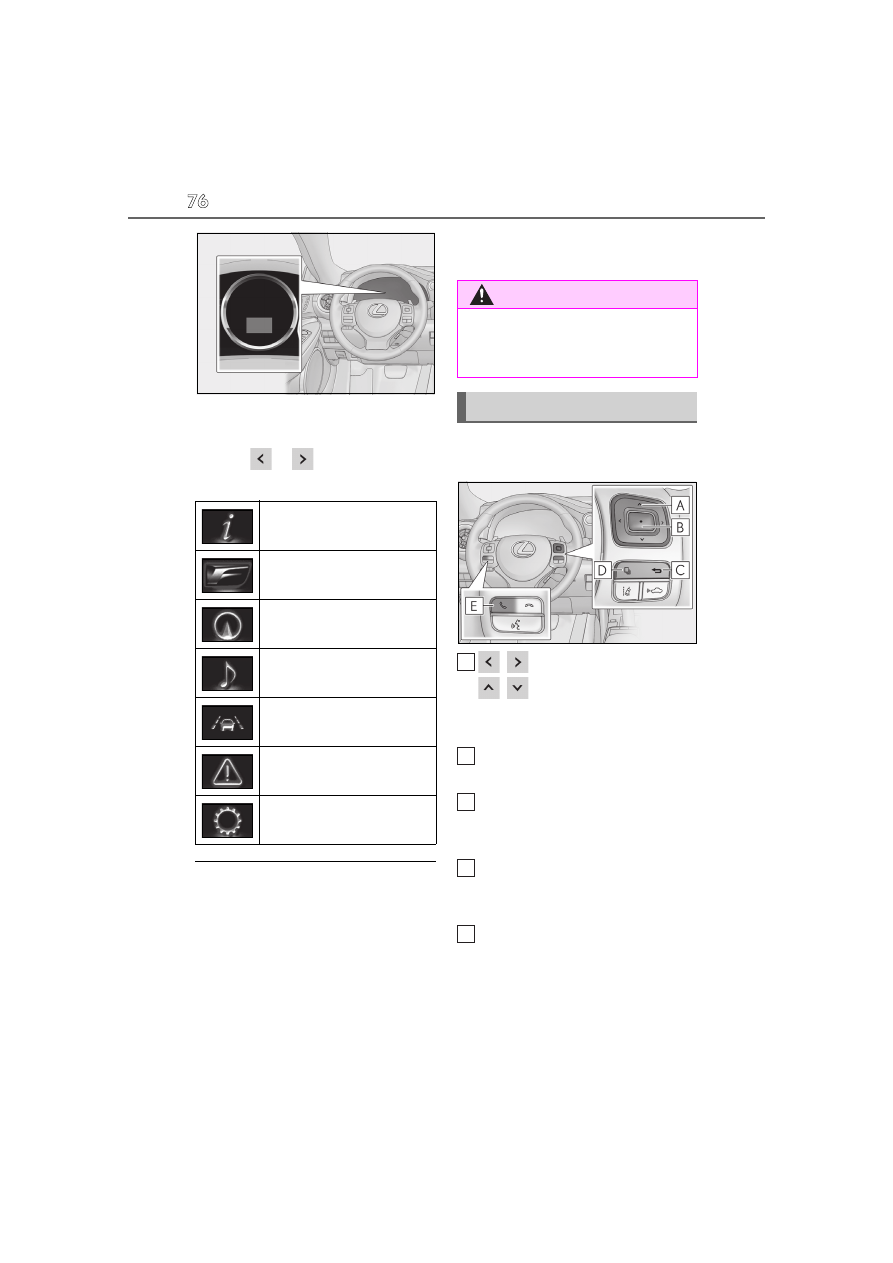

Displays and menu icons

76

2-1. Instrument cluster

■

Menu icons

The menu icons will be displayed by
pressing

 or

 of the meter con-

trol switch.

■

Start-up display

When the engine is started, the name of the

vehicle is displayed on the multi-information

display.

While the start-up display is being dis-

played, the meter display cannot be

changed even if the drive mode is changed.

When the start-up display is finished, the

meter display for the currently selected

mode will be displayed.

■

Liquid crystal display



P.74

The multi-information display is oper-
ated using the meter control switches.

/

: Select menu icons

/

: Change displayed con-

tent, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen

Pressing and holding the switch will display
the first screen of the selected menu icon.

Press: Display the top screen
Press and hold: Register current
screen as the top screen
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIMEDIA

Drive information

“F” content

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving assist system informa-
tion

Warning message display

Settings display

WARNING

■

The information display at low tem-

peratures



P.74

Changing the meter display

A

B

C

D

E

77

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

SYSTEM OWNER’S MANUAL”.

■

Registering a top screen

The displayed top screen can be
changed to a registered screen of your
choice.
To register a screen as the top screen,
display the desired screen and press
and hold

.



A message asking to confirm if reg-
istration is desired will be displayed.
If the selected screen cannot be
registered, a registration failure
message will be displayed.



When no screen has been regis-
tered, the drive information screen
will be displayed.

■

Resetting drive information

To reset the average fuel economy
(after reset)/average vehicle speed
(after reset)/elapsed time (after reset)
that are displayed on

, display the

desired item and press and hold

.

If both of the displayed items are resetta-
ble, a message will be displayed asking
which item(s) to reset.

■

Drive information 1/Drive infor-
mation 2/Drive information 3

Select to display various drive data.
Up to 2 of the following items can be
selected for each drive information
screen:
Items displayed can be switched by

pressing

 or

 of the meter con-

trol switches to select

 and pressing

 or

.

Use the displayed values as a reference
only.



Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)



Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)



Drive information 3

• Average fuel economy (after refuel)
• Elapsed time (after start)

Displayed items (listed below) can be
changed on

. (



P.82)



Current fuel consumption

Displays instantaneous current fuel con-
sumption



Average fuel economy

• After reset: Displays average fuel con-

sumption since display reset

*1, 2

• After start: Displays average fuel con-

sumption since engine start

*2

• After refuel: Displays average fuel con-

sumption since refuel

*2, 3



Average vehicle speed

• After reset: Displays average vehicle

speed since display reset

*1

• After start: Displays average vehicle

speed since engine start



Elapsed time

• After reset: Displays elapsed time since

the display was reset

*1

Content displayed as drive infor-
mation

78

2-1. Instrument cluster

• After start: Displays elapsed time since

engine start



Distance

• Driving range: Displays driving range

with remaining fuel

*3, 4

• After  start:  Displays drive distance since

vehicle start



Other

Blank: No item

*1

: Resetting:



P.77

*2

: Use the displayed fuel consumption as a

reference.

*3

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.

*4

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

■

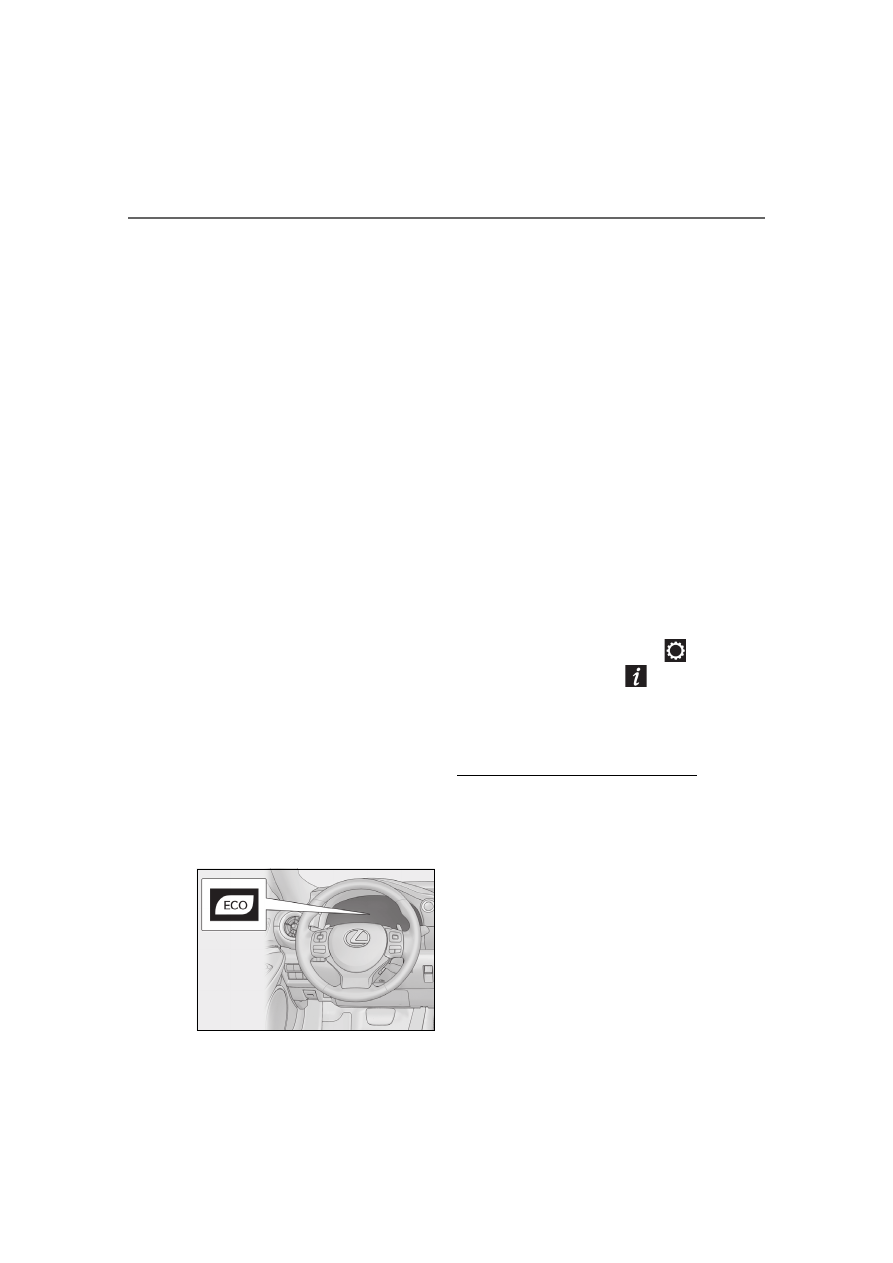

Eco Driving Indicator

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator
Light will turn on.
When the acceleration exceeds the
Zone of Eco driving, or when the vehi-
cle is stopped, the light turns off.

Eco Driving Indicator will not operate
under the following conditions:



The shift lever is in any position
other than D.



A paddle shift switch is operated.



Neither normal mode nor Eco drive
mode is selected. (



P.205)



The vehicle speed is approximately
80 mph (130 km/h) or higher.

■

Tire pressure



P.285

■

Gear positions

Displays the current gear position
when the shift lever is in D or M.

■

Units

The units of measure used can be
changed while driving.

Unlike the units setting performed on

,

the units setting performed on

 can be

changed while driving.

■

Blank (No items)

Displays no drive information contents.

■

Tire pressure

●

It may take a few minutes to display the

tire inflation pressure after the engine

switch is turned to IGNITION ON mode.

It may also take a few minutes to display

the tire inflation pressure after inflation

pressure has been adjusted.

●

“---” may be displayed if the tire position

information cannot be determined due to

unfavorable radio wave conditions.

●

Tire inflation pressure changes with tem-

perature. The displayed values may also

be different from the values measured

using a tire pressure gauge.

79

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

■

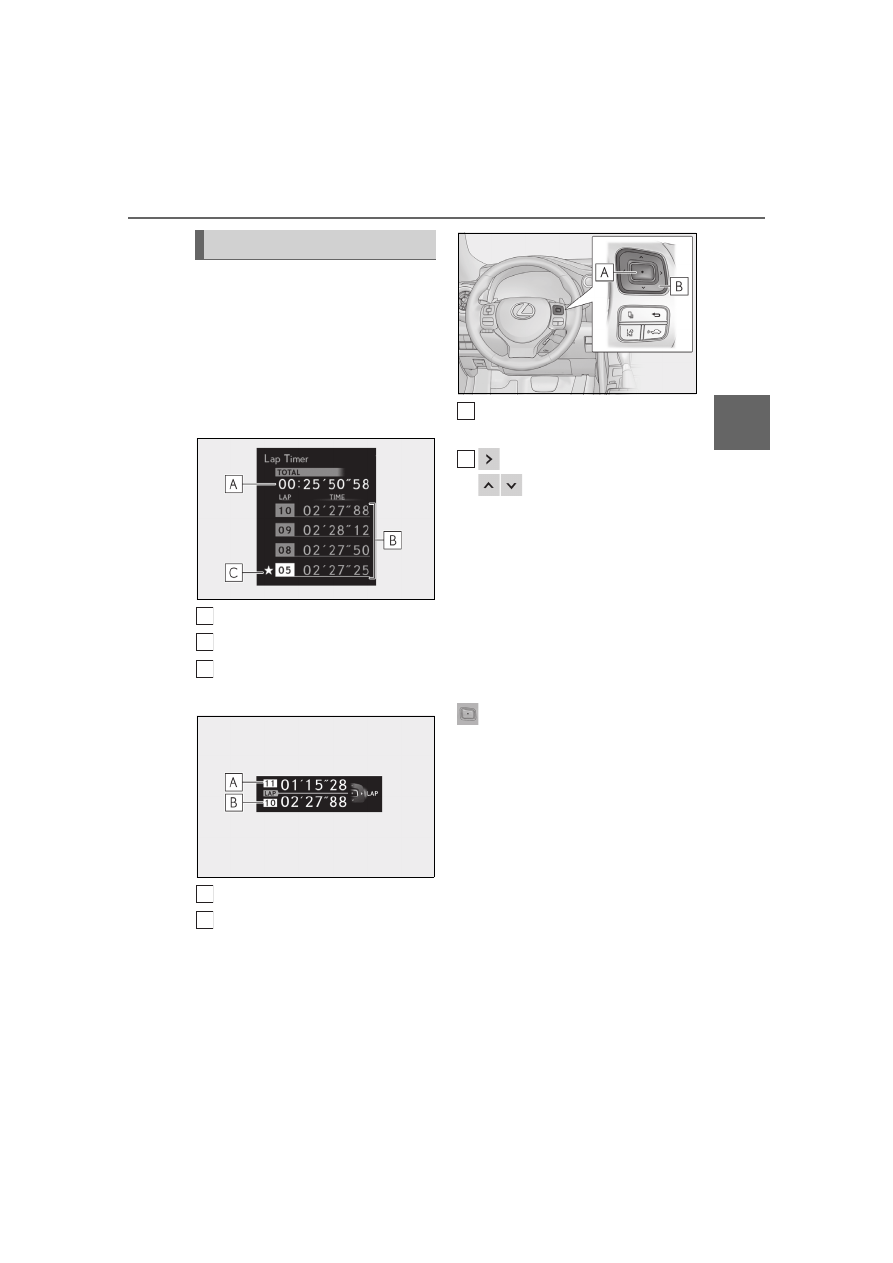

Lap timer

Measures and displays current lap time
and previous lap times



Reading the display

Measured lap times since the timer was
last reset are displayed as follows:
• Content  display  area

Total lap time
Past lap times
Fastest lap (marked with a star)

• Sub-content  display  area

Current lap time
Most recent lap time



Operating the meter control
switches

Press: Start/stop lap timer
Press and hold: Reset

: Mark off one lap

: Change displayed content

While a lap time is being measured, the
display can be changed to show the follow-
ing content:
• G-force
• Tire pressure
• Rear  wing  position



Resetting/saving measured lap
times

After stopping the lap timer, press and hold

.

When a confirmation screen is displayed,
select to reset/save the measured lap
times.
When saved, the lap time data will be dis-
played on the history screen. (



P.79)

■

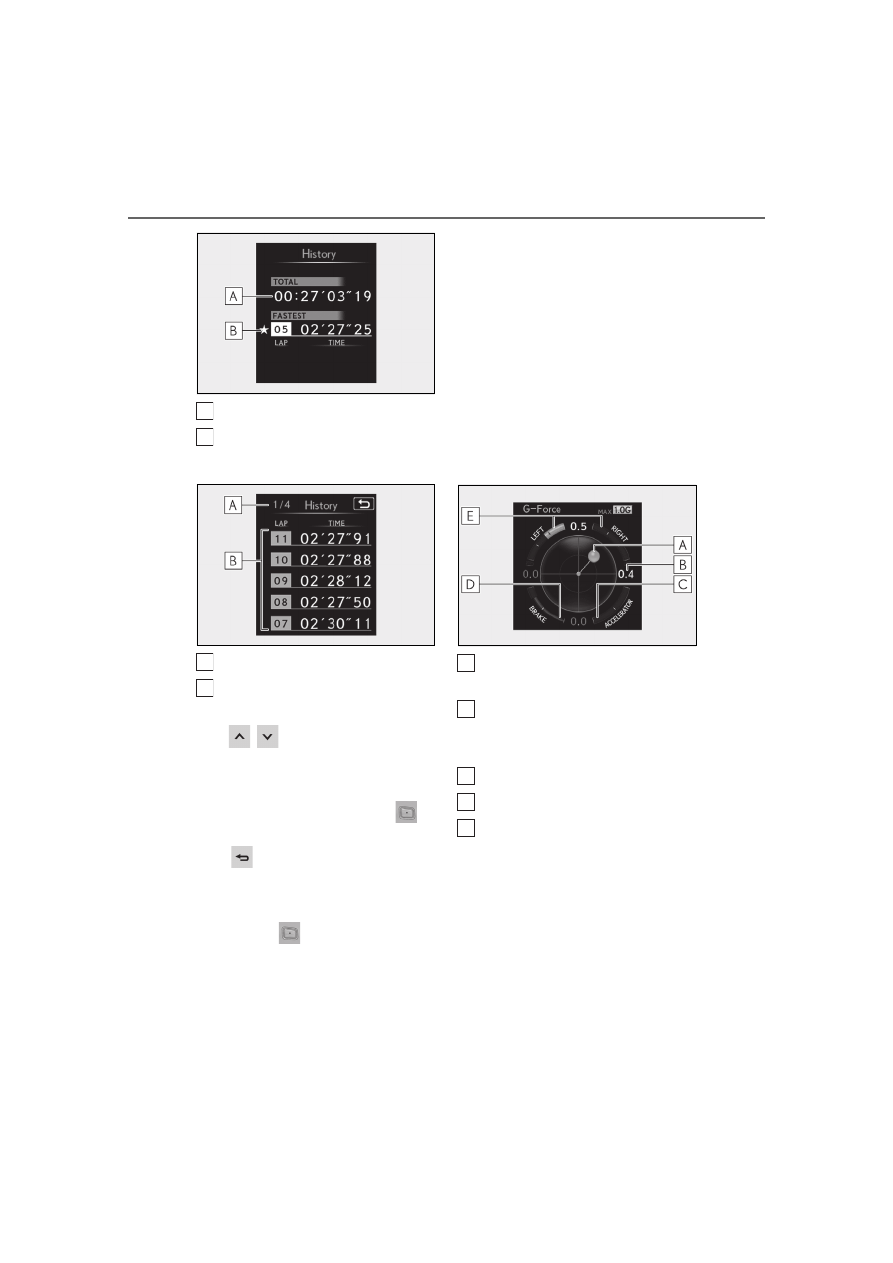

History (Lap timer)

Displays the saved lap times



Reading the display

• History top screen

“F” content

A
B
C

A
B

A

B

80

2-1. Instrument cluster

Total lap time
Fastest lap time

• Past  lap  screen

Page
Past lap times (20 most recent lap
times)

Press

/

 to scroll up and down the

screen.



Switching the display

To display the past lap screen, press

.

To return to the history top screen,
press

.



Deleting history

When the history top screen is displayed,
press and hold

 to display a confir-

mation screen.

To delete the history, follow the instructions
displayed on the screen.

■

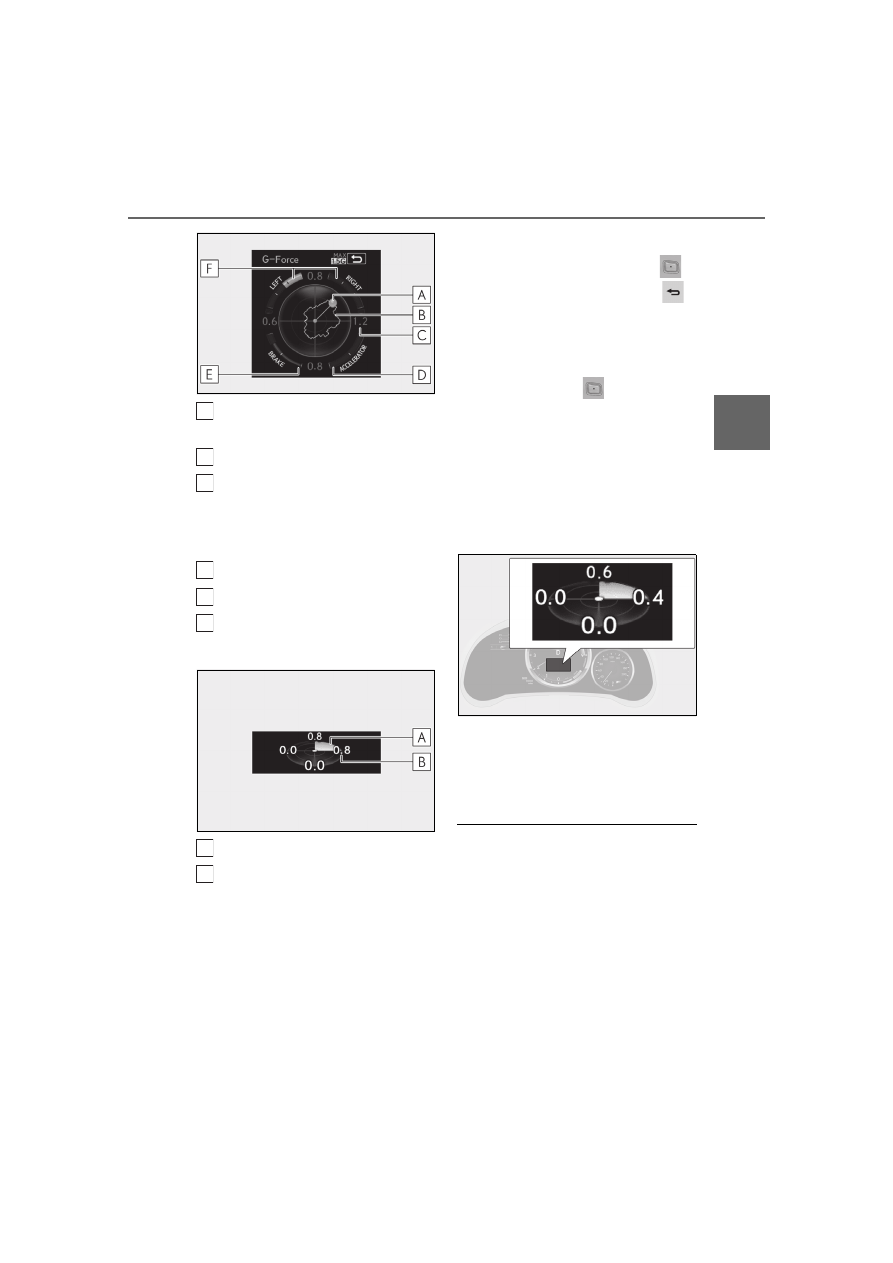

G-force

Displays lateral G-forces on the vehi-
cle
Also displays, around the periphery of
the G-force display, the left and right
steering amount, accelerator pedal
input, and brake fluid pressure



Reading the display

• Normal display
Displays the following on the content dis-
play area

Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount

• Advanced display
Displays the following on the sub-content
display area and content display area



Content display area

A
B

A
B

A

B

C
D

E

81

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Acceleration G-force on the vehi-
cle
Record of the maximum G-forces
Value of the maximum G-force
since display reset (analyzed value
of front/rear and left/right
G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount



Sub-content display area

G-force direction
Current G-force value (analyzed
value of front/rear and left/right
G-forces)

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.



Switching the display

To switch to advanced display, press

.

To return to normal display, press

.



Resetting the record of maximum
G-forces

With the record of maximum G-forces dis-
played, press and hold

 to reset the dis-

play.



Peak hold function (advanced dis-
play only)

If lateral G-forces of 0.5 G or greater are
generated, the G-force value displayed on
the sub-content display area will turn yel-
low and be held for 3 seconds.

■

Rear wing position (vehicles with
an active rear wing)

Displays the raised/retracted state of
the active rear wing

■

Using the lap timer

If the engine is stopped while a lap is being

timed, the lap timer will stop and the lap

time up to that point will be recorded.

■

G-force display

●

The G-force values may not be zero even

when the vehicle is parked, such as when

it is parked on an incline.

●

The steering amount, accelerator pedal

input, and brake fluid pressure displays

are disabled until the engine has warmed

up (the variable red zone of the tachome-

A

B
C

D

E
F

A
B

82

2-1. Instrument cluster

ter has retracted to 7300 rpm).

After the engine has warmed up, these

displays will be enabled.

●

Depending on the vehicle usage condi-

tions, the brake fluid pressure display may

not reach its maximum reading even

though the brake pedal is fully depressed.

●

If a battery terminal is disconnected and

reconnected, the steering amount display

may be disabled temporarily. After driv-

ing the vehicle for a while, the display will

be enabled.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display (heading-up dis-
play)

The operating conditions of the audio
system can be displayed on the
multi-information display.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist) (



P.170)



RSA (Road Sign Assist) (if
equipped) (



P.179)



Dynamic radar cruise control with
full-speed range (



P.181)

Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. (



P.323)

■

Meter display settings that can be
changed



Language

Select to change the language on the dis-
play.



Units

Select to change the units of measure dis-
played.



 Eco Driving Indicator Light

(



P.78)

Select to enable/disable the Eco Driving
Indicator Light.



 Switch settings

Displays a procedure to register a desired
screen to

.

You can register 1 screen as a shortcut,
which can be displayed by pressing

.



Drive information screen (



P.77)

Select to select up to 2 items that will be
displayed on each Drive information
screen (Drive information 1 screen, Drive
information 2 screen, and Drive informa-
tion 3 screen) respectively.



Pop-up display (



P.74)

Select to enable/disable the pop-up dis-
play.
• Intersection Guidance (if equipped)
• Telephone
• Audio Feedback

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

Warning message display

Settings display

83

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

• Volume Feedback
• Adjust Brightness



Rev indicator (



P.72)

• Select to enable/disable the Rev indica-

tor.

• Select to set the desired engine speed at

which the Rev indicator will begin to be
displayed.



Rev peak (



P.73)

Select to enable/disable the Rev peak.



Gauge options

Select to change the displayed meters for
each applicable drive mode.



Default setting

Select to reset the meter display settings to
the default setting.

■

Vehicle functions and settings that
can be changed



P.374

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

■

When disconnecting and reconnecting

battery terminals

The following information data will be reset:

●

Drive information

●

Lap timer: Measured lap times, history

●

G-force: Record of the maximum

G-forces

■

Customization

Some functions can be customized.

(



P.374)

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the

multi-information display while driving

as you may fail to see pedestrians,

objects on the road, etc. ahead of the

vehicle.

■

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

84

2-1. Instrument cluster

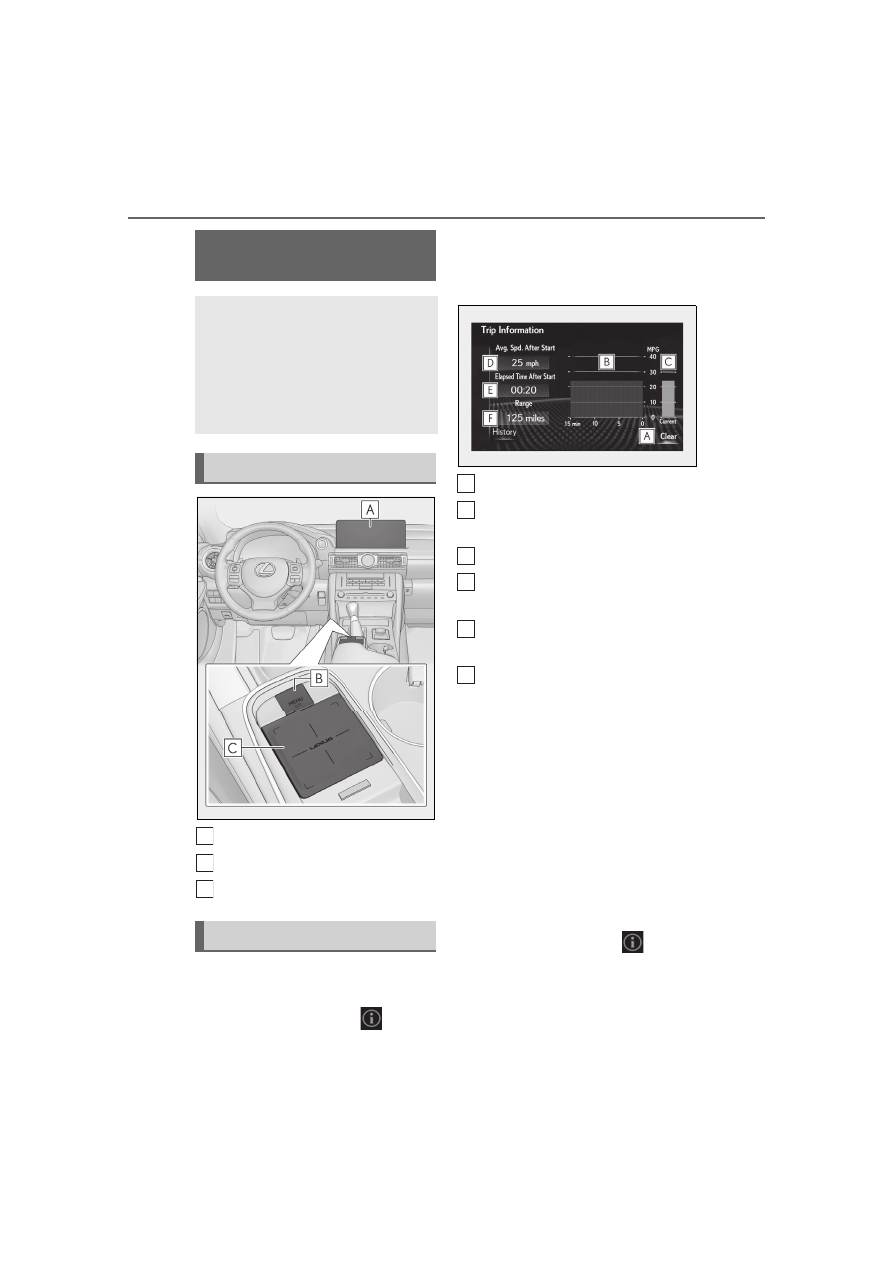

Center Display
“MENU” button
Touchpad

■

Trip information

Press the “MENU” button on the
Remote Touch, then select

 on the

menu screen, and then select “ECO”.
If a screen other than “Trip Information”
is displayed, select “Trip Information”.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range

Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

History

Press the “MENU” button on the
Remote Touch, then select

 on the

menu screen, and then select “ECO”.
If a screen other than “History” is dis-
played, select “History”.

Fuel consumption informa-
tion

Fuel consumption information can
be displayed on the Center Display.

Vehicles with a 10.3-inch display:
The fuel consumption information
can be displayed and operated on
the side display.

System components

Consumption

A
B
C

A
B

C
D

E

F

85

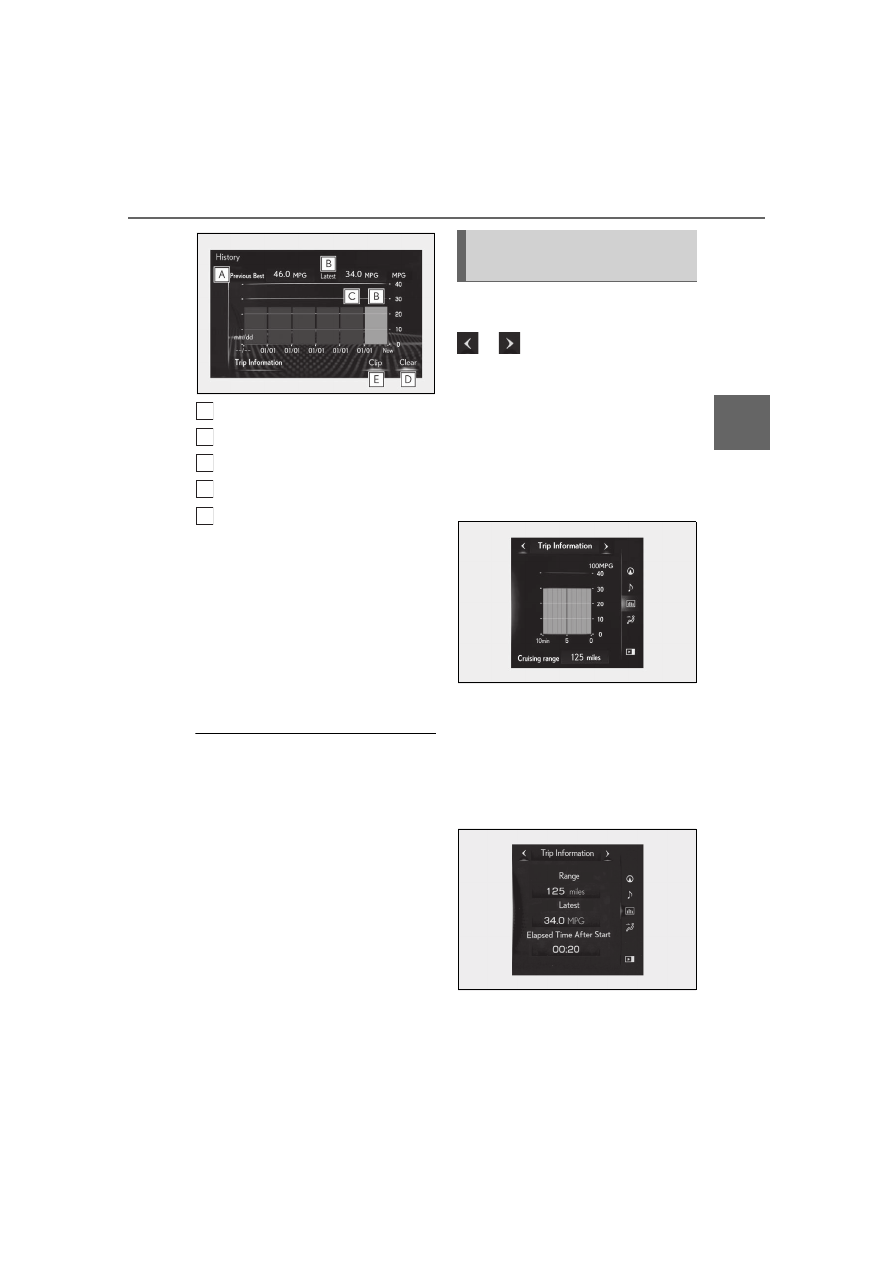

2-1. Instrument cluster

2

Vehi

cle

 status

inform

ati

on a

nd i

ndic
ators

Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data

The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Clip” to measure the current fuel

consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

Display the vehicle information on the
side display (



P.222), and then select

 or

 to display the desired

screen.
The image is an example only, and may
vary slightly from actual conditions.

■

Trip information (type A)

Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.

Use the displayed average fuel consump-
tion as a reference.

■

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.

Use the displayed average fuel consump-
tion as a reference.

A
B
C
D

E

Using the side display (vehicles
with a 10.3-inch display)

86

2-1. Instrument cluster

■

History

Displays the average fuel consumption
and highest fuel consumption.

Use the displayed average fuel consump-
tion as a reference.

87

3

3

Be

fore
 dri
ving

Before driving

.

3-1. Key information

Keys ...................................................

88

3-2. Opening, closing and locking the

doors and trunk

Doors.................................................

92

Trunk..................................................

95

Smart access system with

push-button start.......................

98

3-3. Adjusting the seats

Front seats.....................................

103

Power easy access system/driving

position memory/memory recall
function........................................

105

3-4. Adjusting the steering wheel and

mirrors

Steering wheel.............................

108

Inside rear view mirror.............

109

Outside rear view mirrors.......

110

3-5. Opening, closing the windows

and moon roof

Power windows............................

112

Moon roof ......................................

114
