P.88)

Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)

Operating the smart access system with
push-button start (

P.97)

■

Card key (if equipped)

●

The card key is not waterproof.

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

If it is difficult to take out the mechanical

key, push down the lock release button

using a pen tip etc. If it is still difficult to

pull it out, use a coin etc.

●

To store the mechanical key in the card

key, insert it while pressing the lock

release button.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag etc., ensure that

the buttons are not likely to be pressed acci-

dentally. Pressing a button may cause the

electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is about a year

and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin and a message will be

shown on the multi-information display

when the engine is stopped.

Keys

The keys

B
C
D

3-1. Key information

fore
dri
ving

●

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary.

• The smart access system with push-but-

ton start or the wireless remote control

does not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

●

To avoid serious deterioration, do not

leave the electronic key within 3 ft. (1 m)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

■

Replacing the battery

P.312

■

Confirmation of the number of regis-

tered keys

The number of keys already registered to

the vehicle can be confirmed. Ask your

Lexus dealer for details.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to

strong shocks or bend them.

●

Do not expose the keys to high tem-

peratures for long periods of time.

●

Do not get the keys wet or wash them

in an ultrasonic washer etc.

●

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else

to the surface of the electronic key.

●

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers,

or medical electrical equipment, such

as low-frequency therapy equipment.

■

Carrying the electronic key on your

person

Carry the electronic key 3.9 in. (10 cm)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 3.9 in. (10

cm) of the electronic key may interfere

with the key, causing the key to not func-

tion properly.

■

In case of a smart access system with

push-button start malfunction or

other key-related problems

P.356

■

When an electronic key is lost

P.355

■

Handling the card key

●

Do not apply excess force when insert-

ing the mechanical key into the card

key. Doing so may damage the card

key.

●

If the battery or card key terminals get

wet, the battery may corrode.

If the key is dropped into water, or if

drinking water etc. is spilled on the key,

immediately remove the battery cover

and wipe the battery and terminals. (To

remove the battery cover, lightly grasp

and pull it.) If the battery is corroded,

have your Lexus dealer replace the

battery.

●

Do not crush the battery cover or use

a screwdriver to remove the battery

cover.

Forcibly removing the battery cover

may bend or damage the key.

3-1. Key information

Locks the doors (

Unlocks the doors (

Opens the windows

and moon

roof

*1,2

(



Opens the trunk (



P.95)

Sounds the alarm

: This setting must be customized at your

Lexus dealer.

: If equipped

■

Theft deterrent panic mode

When

is pressed for longer than

about one second, an alarm will sound

intermittently and the vehicle lights will flash

to deter any person from trying to break

into or damage your vehicle.
To stop the alarm, press any button on the

electronic key.

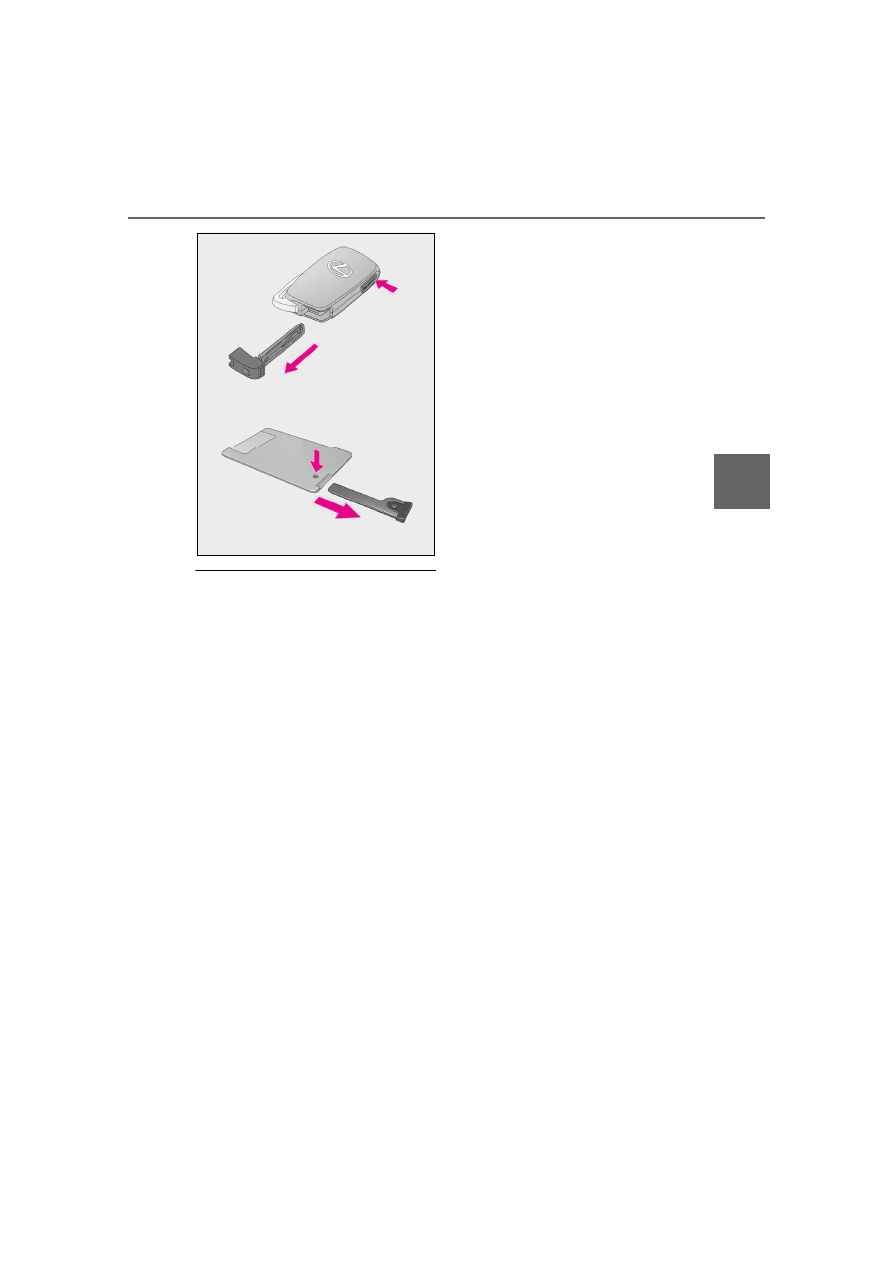

To take out the mechanical key, push
the release button and take the key out.

The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
(

NOTICE

●

If the battery cover is frequently

removed, the battery cover may

become loose.

●

When installing the battery, make sure

to check the direction of the battery.

Installing the battery in the wrong

direction may cause the battery to

deplete rapidly.

●

The surface of the card key may be

damaged, or its coating may peel off in

the following situations:

• The card key is carried together with

hard objects, such as coins and keys.

• The card key is scraped with a sharp

object, such as the tip of a mechanical

pencil.

• The surface of the card key is wiped

with thinner or benzene.

Wireless remote control

Using the mechanical key

3-2. Opening, closing and locking the doors and trunk

3-2.Opening, closing and locking the doors and trunk

■

Smart access system with
push-button start

Carry the electronic key to enable this
function.

Grip the driver’s door handle to
unlock the door. Grip the passen-
ger’s front door handle to unlock all
the doors.

Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.

: The door unlock settings can be

changed.

Touch the lock sensor (indentation
on the upper part of the front door
handle) to lock all the doors.

Check that the door is securely locked.

■

Wireless remote control

Locks all the doors

Check that the door is securely locked.

Unlocks all the doors

Pressing the button unlocks the driver’s
door. Pressing the button again within 5
seconds unlocks the other door.
Press and hold to open the windows

and

moon roof

*1,2

: This setting must be customized at your

Lexus dealer.

: If equipped

■

Switching the door unlock function

It is possible to set which doors the entry

function unlocks using the wireless remote

control.

Turn the engine switch off.

When the indicator light on the key sur-
face is not on, press and hold

for approximately 5

seconds while pressing and holding

The setting changes each time an operation

is performed, as shown below. (When

changing the setting continuously, release

the buttons, wait for at least 5 seconds, and

repeat step

Doors

Unlocking and locking the doors
from the outside

3-2. Opening, closing and locking the doors and trunk

fore
dri
ving

To prevent unintended triggering of the

alarm, unlock the doors using the wireless

remote control and open and close a door

once after the settings have been changed.

(If a door is not opened within 60 seconds
after

is pressed, the doors will be

locked again and the alarm will automati-

cally be set.)

In a case that the alarm is triggered, imme-

diately stop the alarm. (



P.61)

■

Impact detection door lock release sys-

tem

In the event that the vehicle is subject to a

strong impact, all the doors are unlocked.

Depending on the force of the impact or the

type of accident, however, the system may

not operate.

■

Operation signals

A buzzer sounds and the emergency flash-

ers flash to indicate that the doors have

been locked/unlocked. (Locked: once;

Unlocked: twice)
A buzzer sounds to indicate that the win-

dows and moon roof are operating.

■

Security feature

If a door is not opened within approximately

60 seconds after the vehicle is unlocked,

the security feature automatically locks the

vehicle again.

■

Welcome light illumination control

The parking, tail and license plate lights

automatically turn on at night when the

doors are unlocked using the entry function

or wireless remote control if the light switch

is in the “AUTO” position.

■

When the doors cannot be locked by the

lock sensor on the upper part of the

door handle

If the door will not lock even when the top-

side sensor area is touched, try touching

both the topside and underside sensor

areas at the same time.

■

Door lock buzzer

If an attempt to lock the doors is made when

a door is not fully closed, a buzzer sounds

continuously for 5 seconds. Fully close the

door to stop the buzzer, and lock the vehi-

cle once more.

■

Setting the alarm

Locking the doors will set the alarm system.

(

P.61)

■

Using the mechanical key

The doors can also be locked and unlocked

with the mechanical key. (



■

Conditions affecting the operation of

the smart access system with push-but-

ton start or wireless remote control



P.98

■

If the smart access system with

push-button start or the wireless remote

control does not operate properly

Use the mechanical key to lock and unlock

the doors. (

Replace the key battery with a new one if it

is depleted. (

P.312)

Multi-information

display/Beep

Unlocking function

Exterior: Beeps 3

times

Interior: Pings once

Holding the driver’s
door handle unlocks
only the driver’s
door.

Holding the front
passenger’s door
handle unlocks all
the doors.

Exterior: Beeps

twice

Interior: Pings once

Holding either front
door handle unlocks
all the doors.

3-2. Opening, closing and locking the doors and trunk

■

Rear seat reminder function

In order to remind you not to forget lug-

gage, etc. in the rear seat, when the engine

switch is turned off after any of the following

conditions are met, a buzzer will sound and

a message will be displayed on the

multi-information display for approximately

6 seconds.

●

The engine is started within 10 minutes

after opening and closing a rear door.

●

A rear door has been opened and closed

after the engine was started.

However, if a rear door is opened and then

closed within approximately 2 seconds, the

rear seat reminder function may not oper-

ate.
The rear seat reminder function determines

that luggage, etc. has been placed in a rear

seat based on opening and closing of a rear

door. Therefore, depending on the situation,

the rear seat reminder function may not

operate and you may still forget luggage,

etc. in the rear seat, or it may operate

unnecessarily.
The rear seat reminder function can be

enabled/disabled.

■

Customization

Some functions can be customized.

(



■

Door lock switches

Locks all the doors

Unlocks all the doors

■

Inside lock buttons

Locks the door

Unlocks the door

The front doors can be opened by pull-
ing the inside handle even if the lock
buttons are in the lock position.

■

Locking the doors from the outside with-

out a key

Move the inside lock button to the lock

position.

Close the door.

The door cannot be locked if the engine

WARNING

■

To prevent an accident

Observe the following precautions while

driving the vehicle.

Failure to do so may result in a door

opening and an occupant being thrown

out of the vehicle, resulting in death or

serious injury.

●

Ensure that all doors are properly

closed and locked.

●

Do not pull the inside handle of the

doors while driving.

Be especially careful with the front doors,
as the doors may be opened even if the
inside lock buttons are in locked position.

●

Set the rear door child-protector locks

when children are seated in the rear

seats.

Unlocking and locking the doors
from the inside

3-2. Opening, closing and locking the doors and trunk

fore
dri
ving

switch is in ACCESSORY or IGNITION

ON mode, or the electronic key is left

inside the vehicle. However, the key may not

be detected correctly and the door may be

locked.

■

If a symbol indicating one or more of the

doors open is shown on the multi-infor-

mation display

The hood, one or more of the doors, or

trunk is not fully closed. If the vehicle

reaches a speed of 3 mph (5 km/h), a

buzzer sounds to indicate that the door(s)

are not fully closed. Make sure to close

hood, all doors and trunk.

The door cannot be opened from
inside the vehicle when the lock is set.

Unlock

Lock

These locks can be set to prevent children
from opening the rear doors. Push down
on each rear door switch to lock both rear
doors.

The following functions can be set or
canceled:

For instructions on customizing, refer to
P.392.

Rear door child-protector lock

Automatic door locking and
unlocking systems

Function

Operation

Speed linked
door locking
function

All doors are automati-
cally locked when vehi-
cle speed is
approximately 12 mph
(20 km/h) or higher.

Shift position
linked door lock-
ing function

All doors are automati-
cally locked when shift-
ing the shift lever to
position other than P.

Shift position
linked door
unlocking func-
tion

All doors are automati-
cally unlocked when
shifting the shift lever
to P.

Driver’s door
linked door
unlocking func-
tion

All doors are automati-
cally unlocked when
driver’s door is
opened.

3-2. Opening, closing and locking the doors and trunk

Trunk

The trunk can be opened using the
trunk opener, entry function or
wireless remote control.

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

■

Before driving

●

Make sure that the trunk lid is fully

closed. If the trunk lid is not fully

closed, it may open unexpectedly

while driving and hit near-by objects or

luggage in the trunk may be thrown

out, causing an accident.

●

Do not allow children to play in the

trunk.

If a child is accidentally locked in the

trunk, they could suffer from heat

exhaustion, suffocation or other inju-

ries.

●

Do not allow a child to open or close

the trunk lid.

Doing so may cause the trunk lid to

open unexpectedly, or cause the

child’s hands, head, or neck to be

caught by the closing trunk lid.

■

Important points while driving

Never let anyone sit in the trunk. In the

event of sudden braking or a collision,

they are susceptible to death or serious

injury.

■

Using the trunk

Observe the following precautions.

Failure to do so may cause parts of the

body to be caught, resulting in serious

injury.

●

Remove any heavy loads, such as snow

and ice, from the trunk lid before

opening it. Failure to do so may cause

the trunk lid to suddenly shut again

after it is opened.

●

When opening or closing the trunk lid,

thoroughly check to make sure the

surrounding area is safe.

●

If anyone is in the vicinity, make sure

they are safe and let them know that

the trunk is about to open or close.

●

Use caution when opening or closing

the trunk lid in windy weather as it may

move abruptly in strong wind.

●

The trunk lid may suddenly shut if it is

not opened fully. It is more difficult to

open or close the trunk lid on an

incline than on a level surface, so

beware of the trunk lid unexpectedly

opening or closing by itself. Make sure

that the trunk lid is fully open and

secure before using the trunk.

●

When closing the trunk lid, take extra

care to prevent your fingers etc. from

being caught.

●

When closing the trunk lid, make sure

to press it lightly on its outer surface. If

the trunk handle is used to fully close

the trunk lid, it may result in hands or

arms being caught.

3-2. Opening, closing and locking the doors and trunk

fore
dri
ving

Press the trunk opener switch.

■

Smart access system with
push-button start

While carrying the electronic key,
press the button on the trunk lid.

When all the doors are unlocked with the
power door lock system, the trunk can be
opened without carrying the electronic
key.

■

Wireless remote control

Press and hold the switch.

Using the trunk grip, lower the trunk
without applying force to the side and
push the trunk down from the outside
to close it.

■

Trunk light

The trunk light turns on when the trunk is

opened.

■

Function to prevent the trunk being

locked with the electronic key inside

●

When all doors are locked, closing the

trunk lid with the electronic key left inside

the trunk will sound an alarm.

In this case, the trunk lid can be opened

pressing the trunk release button on the

trunk lid.

●

If the spare electronic key is put in the

trunk with all the doors locked, the key

confinement prevention function is acti-

vated so the trunk can be opened. In

order to prevent theft, take all electronic

WARNING

●

Do not attach any accessories other

than genuine Lexus parts to the trunk

lid. Such additional weight on the trunk

lid may cause the lid to suddenly shut

again after it is opened.

Opening the trunk from inside
the vehicle

Opening the trunk from outside
the vehicle

When closing the trunk

3-2. Opening, closing and locking the doors and trunk

keys with you when leaving the vehicle.

●

If the electronic key is put in the trunk with

all the doors locked, the key may not be

detected depending on the location of

the key and the surrounding radio wave

conditions. In this case, the key confine-

ment prevention function cannot be acti-

vated, causing the doors to lock when the

trunk is closed. Make sure to check

where the key is before closing the trunk.

●

The key confinement prevention function

cannot be activated if any one of the

doors is unlocked. In this case, open the

trunk using the trunk opener.

■

Internal trunk release lever

The trunk lid can be opened by pulling the

glow-in-the-dark lever located on the inside

of the trunk lid to the side.
The lever will continue to glow for some

time after the trunk lid is closed.

■

Using the mechanical key

The trunk can be also opened using the

mechanical key. (



■

If the smart access system with

push-button start or the wireless remote

control does not operate properly

Use the mechanical key to unlock the trunk.

(



Replace the key battery with a new one if it

is depleted. (



P.312)

■

If a symbol indicating the trunk opens is

shown on the multi-information display

P.93

■

Customization

Some functions can be customized.

(



To protect luggage stored in the trunk
against theft, the luggage security sys-
tem can be set to on.

Move the luggage security system
levers to the lock position.

To disable the trunk opener, turn
the main switch in the glove box off.

On
Off

When the main switch is off, the trunk lid
cannot be opened even with the wireless
remote control or entry function.

■

When leaving a key to the vehicle with a

parking attendant



P.89

Luggage security system

A
B

3-2. Opening, closing and locking the doors and trunk

fore
dri
ving

■

Antenna location

Antennas outside the cabin
Antennas inside the cabin
Antenna inside the trunk
Antenna outside the trunk

■

Effective range (areas within which the

electronic key is detected)

When locking or unlocking the doors

The system can be operated when the
electronic key is within about 2.3 ft. (0.7 m)
of an outside door handle. (Only the doors
detecting the key can be operated.)

When opening the trunk

The system can be operated when the
electronic key is within about 2.3 ft. (0.7 m)
of the trunk release button.

When starting the engine or changing
engine switch modes

The system can be operated when the
electronic key is inside the vehicle.

■

Alarms and warning messages

A combination of exterior and interior

alarms as well as warning messages shown

on the multi-information display are used to

prevent theft of the vehicle and accidents

resulting from erroneous operation. Take

appropriate measures in response to any

warning message on the multi-information

display. (

P.342)

When only an alarm sounds, circumstances

and correction procedures are as follows.

●

When an exterior alarm sounds once for

5 seconds

Smart access system with
push-button start

The following operations can be
performed simply by carrying the
electronic key (including the card
key) on your person, for example in
your pocket. The driver should
always carry the electronic key.



Locks and unlocks the doors
(



Opens the trunk (

P.95)



Starts the engine (



P.130)

A
B
C
D

3-2. Opening, closing and locking the doors and trunk

●

When an interior alarm sounds continu-

ously

■

If a warning message is displayed indi-

cating that there is a malfunction in the

smart access system with push-button

start

An attempt was made to lock the doors

using the smart access system with

push-button start while the electronic key

was still inside the vehicle. Retrieve the elec-

tronic key from the vehicle and lock the

doors again.

■

Battery-saving function

The battery-saving function will be acti-

vated in order to prevent the electronic key

battery and the vehicle battery from being

discharged while the vehicle is not in opera-

tion for a long time.

●

In the following situations, the smart

access system with push-button start may

take some time to unlock the doors.

• The electronic key has been left within

approximately 6 ft. (2 m) of the outside of

the vehicle for 10 minutes or longer.

• The smart access system with push-but-

ton start has not been used for 5 days or

longer.

●

If the smart access system with push-but-

ton start has not been used for 14 days or

longer, the doors cannot be unlocked at

any door except the driver’s door. In this

case, hold the driver’s door handle, or use

the wireless remote control or mechani-

cal key, to unlock the doors.

■

Electronic Key Battery-Saving Function

When battery-saving mode is set, battery

depletion is minimized by stopping the elec-

tronic key from receiving radio waves.

Press

twice while pressing and holding

. Confirm that the electronic key indica-

tor flashes 4 times.
While the battery-saving mode is set, the

smart access system with push-button start

cannot be used. To cancel the function,

press any of the electronic key buttons.

■

Conditions affecting operation

The smart access system with push-button

start uses weak radio waves. In the following

situations, the communication between the

electronic key and the vehicle may be

affected, preventing the smart access sys-

tem with push-button start, wireless remote

control and engine immobilizer system

from operating properly. (Ways of coping:



●

When the electronic key battery is

depleted

●

Near a TV tower, electric power plant,

Situation

Correction

procedure

An attempt was made to

lock the vehicle while a

door was open.

Close all of the
doors and lock

the doors

again.

The trunk was closed

while the electronic key

was still inside the trunk

and all the doors were

locked.

Retrieve the

electronic key
from the trunk

and close the

trunk lid.

Situation

Correction

procedure

The engine switch was

turned to ACCESSORY

mode while the driver’s

door was open (The

driver’s door was opened

when the engine switch

was in ACCESSORY

mode).

Turn the engine

switch off and

close the

driver’s door.

The engine switch was

turned off while the

driver’s door was open.

Close the

driver’s door.

3-2. Opening, closing and locking the doors and trunk

fore
dri
ving

gas station, radio station, large display,

airport or other facility that generates

strong radio waves or electrical noise

●

When carrying a portable radio, cellular

phone, cordless phone or other wireless

communication device

●

When the electronic key is in contact

with, or is covered by the following metal-

lic objects

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil

inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

●

When other wireless keys (that emit radio

waves) are being used nearby

●

When carrying the electronic key

together with the following devices that

emit radio waves

• Another vehicle’s electronic key or a

wireless key that emits radio waves

• Personal computers or personal digital

assistants (PDAs)

• Digital audio players

• Portable game systems

●

If window tint with a metallic content or

metallic objects are attached to the rear

window

■

Note for the entry function

●

Even when the electronic key is within the

effective range (detection areas), the sys-

tem may not operate properly in the fol-

lowing cases:

• The electronic key is too close to the win-

dow or outside door handle, near the

ground, or in a high place when the doors

are locked or unlocked.

• The electronic key is near the ground or

in a high place, or too close to the rear

bumper center when the trunk is opened.

• The electronic key is on the instrument

panel, rear package tray or floor, or in the

door pockets or glove box when the

engine is started or engine switch modes

are changed.

●

Do not leave the electronic key on top of

the instrument panel or near the door

pockets when exiting the vehicle.

Depending on the radio wave reception

conditions, it may be detected by the

antenna outside the cabin and the doors

will become lockable from the outside,

possibly trapping the electronic key

inside the vehicle.

●

As long as the electronic key is within the

effective range, the doors may be locked

or unlocked by anyone. However, only

the doors detecting the electronic key

can be used to unlock the vehicle.

●

Even if the electronic key is not inside the

vehicle, it may be possible to start the

engine if the electronic key is near the

window.

●

The doors may unlock or lock if a large

amount of water splashes on the door

handle, such as in the rain or in a car

wash, when the electronic key is within

the effective range. (The doors will auto-

matically be locked after approximately

30 seconds if the doors are not opened

and closed.)

●

If the wireless remote control is used to

lock the doors when the electronic key is

near the vehicle, there is a possibility that

the door may not be unlocked by the

entry function. (Use the wireless remote

control to unlock the doors.)

●

Touching the door lock or unlock sensor

while wearing gloves may prevent lock or

unlock operation.

●

When the lock operation is performed

using the lock sensor, recognition signals

will be shown up to two consecutive

times. After this, no recognition signals

will be given.

●

If the door handle becomes wet while the

electronic key is within the effective

range, the door may lock and unlock

repeatedly. In this case, follow the follow-

ing correction procedures to wash the

vehicle:

• Place the electronic key in a location 6 ft.

(2 m) or more away from the vehicle.

(Take care to ensure that the key is not

stolen.)

• Set the electronic key to battery-saving

mode to disable the smart access system

with push-button start. (



P.98)

●

If the electronic key is inside the vehicle

and a door handle becomes wet during a

100

3-2. Opening, closing and locking the doors and trunk

car wash, a message may be shown on

the multi-information display and a

buzzer will sound outside the vehicle. To

turn off the alarm, lock all the doors.

●

The lock sensor may not work properly if

it comes into contact with ice, snow, mud,

etc. Clean the lock sensor and attempt to

operate it again, or use the lock sensor on

the lower part of the door handle.

●

A sudden handle operation or a handle

operation immediately after entering the

effective range may prevent the doors

from being unlocked. Touch the door

unlock sensor and check that the doors

are unlocked before pulling the door

handle again.

●

Unlocking the vehicle may take more

time if another electronic key is within the

effective range.

■

When the vehicle is not driven for

extended periods

●

To prevent theft of the vehicle, do not

leave the electronic key within 6 ft. (2 m)

of the vehicle.

●

The smart access system with push-but-

ton start can be deactivated in advance.

(

P.98)

■

To operate the system properly

●

Make sure to carry the electronic key

when operating the system. Do not get

the electronic key too close to the vehicle

when operating the system from the out-

side of the vehicle.

Depending on the position and holding
condition of the electronic key, the key may
not be detected correctly and the system
may not operate properly. (The alarm may
go off accidentally, or the door lock pre-
vention function may not operate.)

●

Do not leave the electronic key inside the

luggage compartment.

The key confinement prevention function

may not operate, depending on the loca-

tion of the key (close to a spare tire, the

inside edge of the luggage compart-

ment), conditions (inside a metal bag,

close to metallic objects) and the radio

waves in the surrounding area. (



P.95)

■

If the smart access system with

push-button start does not operate

properly

●

Locking and unlocking the doors and

opening the trunk: Use the mechanical

key.



P.356

●

Starting the engine:



P.357

■

Customization

Some functions can be customized.

(

■

If the smart access system with

push-button start has been deactivated

in a customized setting

●

Locking and unlocking the doors and

opening the trunk:

Use the wireless remote control or

mechanical key. (

P.90, 95, 356)

●

Starting the engine and changing engine

switch modes:

P.357

●

Stopping the engine:

P.131

WARNING

■

Caution regarding interference with

electronic devices

●

People with implantable cardiac pace-

makers, cardiac resynchronization

therapy-pacemakers or implantable

cardioverter defibrillators should keep

away from the smart access system

with push-button start antennas.

(

P.97)

The radio waves may affect the opera-

tion of such devices. If necessary, the

entry function can be disabled. Ask

your Lexus dealer for details, such as

the frequency of radio waves and tim-

ing of the emitted radio waves. Then,

consult your doctor to see if you

should disable the entry function.

102

3-3. Adjusting the seats

3-3.Adjusting the seats

Seat position adjustment
Seatback angle adjustment
Seat cushion (front) angle adjust-
ment
Seat cushion (rear) angle adjust-
ment
Lumbar support adjustment (if
equipped)

■

Power easy access system (if equipped)

The driver’s seat and steering wheel move

in accordance with engine switch mode and

the driver’s seat belt condition. (

■

When adjusting the seat

●

Take care when adjusting the seat so that

the head restraint does not touch the ceil-

ing.

●

When folding down a rear seatback, if it

interferes with a front seatback, adjust the

front seat position so that the seats no

longer interfere with each other. How-

ever, if adjusting the front seat position

causes the correct driving posture to not

be maintained, return the rear seatback

to its original position. (

P.103)

Front seats

WARNING

■

When adjusting the seat position

●

Take care when adjusting the seat

position to ensure that other passen-

gers are not injured by the moving

seat.

●

Do not put your hands under the seat

or near the moving parts to avoid

injury.

Fingers or hands may become

jammed in the seat mechanism.

●

Make sure to leave enough space

around the feet so they do not get

stuck.

■

Seat adjustment

To reduce the risk of sliding under the lap

belt during a collision, do not recline the

seat more than necessary.

If the seat is too reclined, the lap belt may

slide past the hips and apply restraint

forces directly to the abdomen, or your

neck may contact the shoulder belt,

increasing the risk of death or serious

injury in the event of an accident.

Adjustments should not be made while

driving as the seat may unexpectedly

move and cause the driver to lose control

of the vehicle.

Adjustment procedure

103

3-3. Adjusting the seats

fore
dri
ving

Check that the luggage security
system lever in the trunk is in the
unlock position.

Pull the seatback lock release lever
and fold the seatback down.

To return the rear seatbacks to their origi-

nal position, lift them up until they lock.

P.96

Rear seats

The rear seatbacks can be folded
down.

WARNING

Observe the following precautions. Fail-

ure to do so may result in death or seri-

ous injury.

■

When folding the rear seatbacks

down

●

Do not fold the seatbacks down while

driving.

●

Stop the vehicle on level ground, set

the parking brake and shift the shift

lever to P.

●

Do not allow anyone to sit on a folded

seatback or in the trunk while driving.

●

Do not allow children to enter the

trunk.

■

After returning the rear seatback to

the upright position

●

Make sure that the seatback is

securely locked in position by lightly

pushing it back and forth.

If the seatback is not securely locked,

the red marking will be visible on the

seatback lock release knob. Make sure

that the red marking is not visible.

●

Check that the seat belts are not

twisted or caught in the seatback.

Folding down the rear seatbacks

Luggage security system

104

3-3. Adjusting the seats

: If equipped

The seat and steering wheel are auto-
matically adjusted to allow the driver to
enter and exit the vehicle easily.
When all of the following have been
performed, the driver’s seat and steer-
ing wheel are automatically adjusted to
a position that allows driver to enter
and exit the vehicle easily.
• The shift lever has been shifted to P.
• The engine switch has been turned

off.

• The driver’s seat belt has been

unfastened.

When any of the following has been per-
formed, the driver’s seat and steering wheel
automatically return to their original posi-
tions.

• The engine switch has been turned

to ACCESSORY mode or IGNI-
TION ON mode.

• The driver’s seat belt has been fas-

tened.

■

Operation of the power easy access sys-

tem

When exiting the vehicle, the power easy

access system may not operate if the seat is

already close to the rearmost position, etc.

■

Customization

Some functions can be customized.

(

Check that the shift lever is in P.

Turn the engine switch to IGNI-
TION ON mode.

Adjust the driver’s seat, steering
wheel, and outside rear view mir-
rors to the desired positions.

While pressing the “SET” button, or
within 3 seconds after the “SET”
button is pressed, press button “1”,
“2” or “3” until the buzzer sounds.

Driving position memory

This feature automatically adjusts
the driver’s seat, steering wheel
and outside rear view mirrors to
make entering and exiting the vehi-
cle easier or to suit your prefer-
ences.

Up to 3 different driving positions
can be recorded.

Each electronic key (including a
card key) can be registered to
recall your preferred driving posi-
tion.

Power easy access system

Recording a driving position into
memory

105

3-3. Adjusting the seats

fore
dri
ving

If the selected button has already been

preset, the previously recorded position

will be overwritten.

■

Seat positions that can be memorized

(

P.102)

The adjusted positions other than the posi-

tion adjusted by lumbar support switch can

be memorized.

■

In order to correctly use the driving

position memory function

If a seat position is already in the furthest

possible position and the seat is operated in

the same direction, the recorded position

may be slightly different when it is recalled.

Check that the shift lever is in P.

Turn the engine switch to IGNI-
TION ON mode.

Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.

■

To stop the position recall operation

part-way through

Perform any of the following operations:

●

Press the “SET” button.

●

Press button “1”, “2” or “3”.

●

Operate any of the seat adjustment

switches (only cancels seat position

recall).

●

Operate the tilt and telescopic steering

control switch (only cancels steering

wheel position recall).

■

Operating the driving position memory

after turning the engine switch off

Recorded seat positions can be activated

up to 180 seconds after the driver’s door is

opened and another 60 seconds after it is

closed again. Recorded steering wheel

position can be activated by pressing the

engine switch.

■

Registering procedure

Record your driving position to button
“1”, “2” or “3” before performing the
following:
Carry only the key you want to register,

WARNING

■

Seat adjustment caution

Take care during seat adjustment so that

the seat does not strike the rear passen-

ger or squeeze your body against the

steering wheel.

Recalling a driving position

Registering/canceling/recall a
driving position to an electronic
key (including a card key) (mem-
ory recall function)

106

3-3. Adjusting the seats

and then close the driver’s door. If 2 or
more keys are in the vehicle, the driv-
ing position cannot be recorded prop-
erly.

Check that the shift lever is in P.

Turn the engine switch to IGNI-
TION ON mode.

Recall the driving position that you
want to record.

While pressing the recalled button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds.

If the button could not be registered, the

buzzer sounds continuously for approxi-

mately 3 seconds.

■

Cancelation procedure

Carry only the key you want to cancel
and then close the driver’s door. If 2 or
more keys are in the vehicle, the driv-
ing position cannot be canceled prop-
erly.

Turn the engine switch to IGNI-
TION ON mode.

While pressing the “SET” button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds twice.

If the button could not be canceled, the

buzzer sounds continuously for approxi-

mately 3 seconds.

■

Recall procedure

Make sure that the doors are
locked before recalling the driving
position. Carry the electronic key
that has been registered to the driv-
ing position, and then unlock and
open the driver’s door using the
smart access system with push-but-
ton start system or wireless remote
control.

The driving position will move to the

recorded position (not including the steer-

ing wheel). However, the seat will move to

a position slightly behind the recorded

position in order to make entering the vehi-

cle easier.
If the driving position is in a position that

has already been recorded, the seat and

outside rear view mirrors will not move.

Turn the engine switch to ACCES-
SORY mode or IGNITION ON
mode, or fasten a seat belt.

The seat and steering wheel will move to

the recorded position.

■

Recalling the driving position using the

memory recall function

●

Different driving positions can be regis-

tered for each electronic key. Therefore,

the driving position that is recalled may

be different depending on the key being

carried.

●

If a door other than the driver’s door is

unlocked with the smart access system

with push-button start system, the driving

position cannot be recalled. In this case,

press the driving position button which

has been set.

■

Customization

Some functions can be customized.

(

107

3-3. Adjusting the seats

fore
dri
ving



Front seats

Pull the head restraints up.

Down

Push the head restraint down while press-
ing the lock release button



Rear seats

Pull the head restraints up.

Down

Push the head restraint down while press-
ing the lock release button

■

Adjusting the height of the head

restraints

Make sure that the head restraints are

adjusted so that the center of the head

restraint is closest to the top of your ears.

■

Adjusting the rear seat head restraint

Always raise the head restraint one level

from the stowed position when using.

The position of the head restraint can
be adjusted forward in 4 stages.

If the head restraint is pulled forward from
the foremost position, it will return to the
rearmost position.

Head restraints

Head restraints are provided for all
seats.

WARNING

■

Head restraint precautions

Observe the following precautions

regarding the head restraints. Failure to

do so may result in death or serious

injury.

●

Use the head restraints designed for

each respective seat.

●

Adjust the head restraints to the cor-

rect position at all times.

●

After adjusting the head restraints,

push down on them and make sure

they are locked in position.

●

Do not drive with the head restraints

removed.

Adjusting a head restraint verti-
cally

Horizontal adjustment (if
equipped)

109

3-4. Adjusting the steering wheel and mirrors

fore
dri
ving

3-4.Adjusting the steering wheel and mirrors



Power type

Operating the switch moves the steer-
ing wheel in the following directions:

Down

Toward the driver

Away from the driver



Manual type

Hold the steering wheel and push
the lever down.

Adjust to the ideal position by mov-
ing the steering wheel horizontally
and vertically.

After adjustment, pull the lever up to

secure the steering wheel.

■

The steering wheel can be adjusted

when (power type)

The engine switch is in ACCESSORY or
IGNITION ON mode

: If the driver’s seat belt is fastened, the

steering wheel can be adjusted regard-
less of engine switch mode.

■

Automatic adjustment of the steering

position (if equipped)

A desired steering position can be entered

to memory and recalled automatically by

the driving position memory system.

(

■

Power easy access system (if equipped)

The steering wheel and driver’s seat move

in accordance with engine switch mode and

the driver’s seat belt condition. (

Steering wheel

Adjustment procedure

WARNING

■

Caution while driving

Do not adjust the steering wheel while

driving.

Doing so may cause the driver to mis-

handle the vehicle and cause an acci-

dent, resulting in death or serious injury.

110

3-4. Adjusting the steering wheel and mirrors

To sound the horn, press on or close to
the

mark.

The height of the rear view mirror can
be adjusted to suit your driving pos-
ture.
Adjust the height of the rear view mir-
ror by moving it up and down.

■

Manual anti-glare inside rear view
mirror

Reflected light from the headlights of
vehicles behind can be reduced by
operating the lever.

WARNING

■

After adjusting the steering wheel

(manual type)

Make sure that the steering wheel is

securely locked.

Otherwise, the steering wheel may move

suddenly, possibly causing an accident,

and resulting in death or serious injury.

Also, the horn may not sound if the steer-

ing wheel is not securely locked.

Sounding the horn

Inside rear view mirror

The rear view mirror’s position can
be adjusted to enable sufficient
confirmation of the rear view.

Adjusting the height of rear view
mirror

WARNING

■

Caution while driving

Do not adjust the position of the mirror

while driving.

Doing so may lead to mishandling of the

vehicle and cause an accident, resulting

in death or serious injury.

Anti-glare function

112

3-4. Adjusting the steering wheel and mirrors

■

When using the outside rear view mir-

rors in a cold weather

When it is cold and the outside rear view

mirrors are frozen, it may not be possible to

fold/extend them or adjust the mirror sur-

face. Remove the ice, snow, etc. covering

the outside rear view mirrors.

To select a mirror to adjust, press
the switch.

The indicator comes on.

Left
Right

Pressing the same switch again will put the

switch in neutral.

To adjust the mirror, press the
switch.

Up
Right
Down
Left

■

Mirror angle can be adjusted when

The engine switch is in ACCESSORY or

IGNITION ON mode.

■

Defogging the mirrors

The outside rear view mirrors can be

cleared using the mirror defoggers. Turn on

the rear window defogger to turn on the

outside rear view mirror defoggers.

(

P.245)

■

Automatic adjustment of the mirror

angle (if equipped)

A desired mirror face angle can be entered

to memory and recalled automatically by

the driving position memory. (

■

Auto anti-glare function (if equipped)

When the anti-glare inside rear view mirror

is set to automatic mode, the outside rear

view mirrors will activate in conjunction with

the anti-glare inside rear view mirror to

reduce reflected light. (

P.110)

Outside rear view mirrors

The rear view mirror’s position can
be adjusted to enable sufficient
confirmation of the rear view.

WARNING

■

Important points while driving

Observe the following precautions while

driving.

Failure to do so may result in loss of con-

trol of the vehicle and cause an accident,

resulting in death or serious injury.

●

Do not adjust the mirrors while driving.

●

Do not drive with the mirrors folded.

●

Both the driver and passenger side

mirrors must be extended and prop-

erly adjusted before driving.

Adjustment procedure

113

3-4. Adjusting the steering wheel and mirrors

fore
dri
ving

■

Linked mirror function when reversing

(if equipped)

When either “L” or “R” of the mirror select

switch is selected, the outside rear view mir-

rors will automatically angle downwards

when the vehicle is reversing in order to

give a better view of the ground.
To disable this function, select neither “L”

nor “R”.
To set the mirror angle used when the vehi-

cle is reversing, adjust the mirror angle at a

desired position with the shift position in R.
The adjusted angle will be memorized and

the mirror will automatically tilt to the mem-

orized angle whenever the shift lever is

shifted to R from next time.
The memorized downward tilt position of

the mirror is linked to the normal position

(angle adjusted with the shift lever in other

than R). Therefore, if the normal position is

changed after adjustment, the tilt position

will also change.
When the normal position is changed, read-

just the angle in reversing.

Push the mirror back in the direction of
the vehicle’s rear.

WARNING

■

When the mirror defoggers are oper-

ating

Do not touch the rear view mirror sur-

faces, as they can become very hot and

burn you.

Folding the mirrors

114

3-5. Opening, closing the windows and moon roof

3-5.Opening, closing the windows and moon roof

The power windows can be opened
and closed using the switches.
Operating the switch moves the win-
dows as follows:

Closing

One-touch closing

Opening

One-touch opening

: To stop the window partway, operate the

switch in the opposite direction.

■

The power windows can be operated

when

The engine switch is in IGNITION ON

mode.

■

Operating the power windows after

turning the engine off

The power windows can be operated for

approximately 45 seconds after the engine

switch is turned to ACCESSORY mode or

turned off. They cannot, however, be oper-

ated once either front door is opened.

■

Jam protection function

If an object becomes jammed between the

window and the window frame while the

window is closing, window movement is

stopped and the window is opened slightly.

■

Catch protection function

If an object becomes caught between the

door and window while the window is open-

ing, window movement is stopped.

■

When the window cannot be opened or

closed

When the jam protection function or catch

protection function operates unusually and

the door window cannot be opened or

closed, perform the following operations

with the power window switch of that door.

●

Stop the vehicle. With the engine switch

in IGNITION ON mode, within 4 sec-

onds of the jam protection function or

catch protection function activating, con-

tinuously operate the power window

switch in the one-touch closing direction

or one-touch opening direction so that

the door window can be opened and

closed.

●

If the door window cannot be opened

and closed even when performing the

above operations, perform the following

procedure for function initialization.

Turn the engine switch to IGNITION

ON mode.

Pull and hold the power window switch

in the one-touch closing direction and

completely close the door window.

Release the power window switch for a

moment, resume pulling the switch in

the one-touch closing direction, and

hold it there for approximately 6 sec-

onds or more.

Press and hold the power window

switch in the one-touch opening direc-

tion. After the door window is com-

pletely opened, continue holding the

switch for an additional 1 second or

more.

Release the power window switch for a

moment, resume pushing the switch in

the one-touch opening direction, and

hold it there for approximately 4 sec-

onds or more.

Pull and hold the power window switch

in the one-touch closing direction

again. After the door window is com-

pletely closed, continue holding the

switch for a further 1 second or more.

Power windows

Opening and closing proce-
dures

115

3-5. Opening, closing the windows and moon roof

fore
dri
ving

If you release the switch while the window is

moving, start again from the beginning.

If the window reverses and cannot be fully

closed or opened, have the vehicle

inspected by your Lexus dealer.

■

Door lock linked window operation

●

The power windows can be opened and
closed using the mechanical key.

(

●

The power windows can be opened using
the wireless remote control.

(



: These settings must be customized at

your Lexus dealer.

■

Power windows open warning buzzer

A buzzer sounds and a message is shown

on the multi-information display in the

instrument cluster when the engine switch

is turned off and the driver’s door is opened

with the power windows open.

■

Customization

Some functions can be customized.

(



Press the switch to lock the passenger
window switches.

The indicator

will come on.

Use this switch to prevent children from
accidentally opening or closing a passen-
ger window.

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

■

Closing the windows

●

The driver is responsible for all the

power window operations, including

the operation for the passengers. In

order to prevent accidental operation,

especially by a child, do not let a child

operate the power windows. It is possi-

ble for children and other passengers

to have body parts caught in the power

window. Also, when riding with a child,

it is recommended to use the window

lock switch. (

P.115)

●

Check to make sure that all passen-

gers do not have any part of their body

in a position where it could be caught

when a window is being operated.

●

When exiting the vehicle, turn the

engine switch off, carry the key and

exit the vehicle along with the child.

There may be accidental operation,

due to mischief, etc., that may possibly

lead to an accident.

■

Jam protection function

●

Never use any part of your body to

intentionally activate the jam protec-

tion function.

●

The jam protection function may not

work if something gets jammed just

before the window is fully closed. Be

careful not to get any part of your body

jammed in the window.

■

Catch protection function

●

Never use any part of your body or

clothing to intentionally activate the

catch protection function.

●

The catch protection function may not

work if something gets caught just

before the window is fully opened. Be

careful not to get any part of your body

or clothing caught in the window.

Preventing accidental operation
(window lock switch)

116

3-5. Opening, closing the windows and moon roof

■

The power windows can be operated

when

The engine switch is in IGNITION ON

mode.

■

When the battery is disconnected

The window lock switch is disabled. If nec-

essary, press the window lock switch after

reconnecting the battery.

: If equipped

■

Opening and closing

Opens the moon roof

The moon roof stops slightly before the
fully open position to reduce wind noise.
Press the switch again to fully open the
moon roof.

Closes the moon roof

: Lightly press either way of the moon roof

switch to stop the moon roof partway.

■

Tilting up and down

Tilts the moon roof up

Tilts the moon roof down

Moon roof

Use the overhead switches to open
and close the moon roof and tilt it
up and down.

Operating the moon roof

117

3-5. Opening, closing the windows and moon roof

fore
dri
ving

: Lightly press either way of the moon roof

switch to stop the moon roof partway.

■

The moon roof can be operated when

The engine switch is in IGNITION ON

mode.

■

Operating the moon roof after turning

the engine off

The moon roof can be operated for approx-

imately 45 seconds after the engine switch

is turned to ACCESSORY mode or turned

off. It cannot, however, be operated once

either front door is opened.

■

Jam protection function

If an object is detected between the moon

roof and the frame while the moon roof is

closing or tilting down, travel is stopped and

the moon roof opens slightly.

■

Sunshade

The sunshade can be opened and closed

manually. However, the sunshade will open

automatically when the moon roof is

opened.

■

Door lock linked moon roof operation

●

The moon roof can be opened and
closed using the mechanical key.

(

●

The moon roof can be opened using the
wireless remote control.

(

: These settings must be customized at

your Lexus dealer.

■

When the moon roof does not close nor-

mally

Perform the following procedure:

●

If the moon roof closes but then re-opens

slightly

Stop the vehicle.

Press and hold the “CLOSE” switch.

The moon roof will close, reopen and pause
for approximately 10 seconds.

Then it will

close again, tilt up and pause for approxi-

mately 1 second. Finally, it will tilt down,

open and close.

Check to make sure that the moon roof

is completely closed and then release

the switch.

●

If the moon roof tilts down but then tilts

back up

Stop the vehicle.

Press and hold the “UP” switch

until

the moon roof moves into the tilt up

position and stops.

Release the “UP” switch once and then
press and hold the “UP” switch again.

The moon roof will pause for approximately
10 seconds in the tilt up position.

Then it

will adjust slightly and pause for approxi-

mately 1 second. Finally, it will tilt down,

open and close.

Check to make sure that the moon roof

is completely closed and then release

the switch.

: If the switch is released at the incorrect

time, the procedure will have to be per-
formed again from the beginning.

: If the switch is released after the above

mentioned 10 second pause, automatic
operation will be disabled. In that case,
press and hold the “CLOSE” or “UP”
switch, and the moon roof will tilt up and
pause for approximately 1 second. Then
it will tilt down, open and close. Check
to make sure that the moon roof is com-
pletely closed and then release the
switch.

If the moon roof does not fully close even

after performing the above procedure cor-

rectly, have the vehicle inspected by your

Lexus dealer.

■

Moon roof open warning buzzer

A buzzer sounds and a message is shown

on the multi-information display in the

instrument cluster when the engine switch

is turned off and the driver’s door is opened

with the moon roof open.

■

Customization

Some functions can be customized.

(
