289

5-5. Using the other interior features

5

Interio

r fe

atures

■

The wireless charger can be operated

when

The power switch is in ACCESSORY or

ON mode.

■

Usable portable devices

●

Qi standard wireless charge standard

can be used on compatible devices.

However, not all Qi standard devices and

compatibility are guaranteed.

●

Starting with mobile phones and smart-

phones, it is aimed for low power electri-

cally supplied portable devices of no

more than 5W.

●

However, charging exceeding 5 W is

supported by the following portable

devices.

• Charging at 7.5 W or less is supported

by iPhone’s that support 7.5 W charging.

• Charging at 10 W or less is supported by

portable devices compliant with EPP out-

put as defined by WPC standard

Ver1.2.4.

■

When covers and accessories are

attached to portable devices

Do not charge in situations where cover

and accessories not able to handle Qi are

attached to the portable device. Depending

on the type of cover (including for certain

genuine manufacturer parts) and acces-

sory, it may not be possible to charge.

When charging is not performed even with

the portable device placed on the charge

area, remove the cover and accessories.

■

AM radio cooperation function during

charging

●

When noise enters the AM radio during

charging, charging frequency will be

automatically changed to reduce noise.

●

During the AM radio automatic tuning,

charging is temporarily stopped in order

to prevent tuning error due to noise

Orange (repeatedly

flashes 3 times continu-

ously) or flashing

between green and

orange

Gray

The charging coil in the portable
device moved outside of the charge
area and charging has stopped
momentarily.



Remove the portable device
from the charging tray, check
that the operation indicator light
changes back to green, and then
place the portable device so that
it is near the center of the
charging tray. Also, if a case or
cover is installed to the portable
device, remove it.

Orange (repeatedly

flashes 4 times continu-

ously)

Gray

Safety shutdown resulting when the
temperature within the wireless
charger exceeded the set value



Stop charging, remove the porta-
ble device from the charging
tray, wait for the temperature to
drop, and then start charging
again.

Operation indicator light

Suspected causes/Handling method

Charging tray side

Center Display side

290

5-5. Using the other interior features

caused by charging. When tuning is fin-

ished, charging will be automatically

resumed.

■

Important points of the wireless charger

●

If the electronic key cannot be detected

within the vehicle interior, charging can-

not be done. When the door is opened

and closed, charging may be temporarily

suspended.

●

When charging, the wireless charging

device and portable device will get

warmer, however this is not a malfunc-

tion.

When a portable device gets warm while

charging, charging may stop due to the

protection function on the portable

device side. In this case, when the tem-

perature of the portable device drops

significantly, charge again.

The fan may start operating to lower the

temperature inside the wireless charger,

however this is not a malfunction.

■

Operation sounds

A buzzing noise may be heard when press-

ing the power switch to turn to ACCES-

SORY or ON mode or when detecting a

portable device. However, this is not a mal-

function.

WARNING

■

Caution while driving

When charging a portable device, for

safety reasons, the driver should not

operate the main part of the portable

device while driving.

■

Caution while in motion

Do not charge lightweight devices such

as wireless headphones while in motion.

These devices are very light and may be

ejected from the charging tray, which

may lead to unforeseen accidents.

■

Caution regarding interference with

electronic devices

People with implantable cardiac pace-

makers, cardiac resynchronization ther-

apy-pacemakers or implantable

cardioverters, as well as any other elec-

trical medical device, should consult their

physician about the usage of the wireless

charger.

■

To prevent malfunctions or burns

Observe the following precautions. Fail-

ure to do so may result in a equipment

failure and damage, catch fire, burns due

to overheat or electric shock.

●

Do not insert any metallic objects

between the charge area and the por-

table device while charging

●

Do not attach an aluminum sticker or

other metallic object to the charge

area

●

Do not attach an aluminum sticker or

other metallic object to the side of the

portable device (or to its case or

cover) that touches the charge area

●

Do not use the charging tray as a small

storage space

●

Do not subject to a strong force or

impact

●

Do not disassemble, modify or remove

●

Do not charge devices other than

specified portable devices

●

Keep away from magnetic items

●

Do not charge devices if the charge

area is covered in dust

●

Do not cover with a cloth or similar

material

NOTICE

■

Situations in which the function may

not operate normally

Devices may not be charged normally in

the following situations.

291

5-5. Using the other interior features

5

In

te

rio

r f

ea

tu

re

s

NOTICE

●

The portable device is fully charged

●

The portable device is being charged

with a cable connected

●

There is foreign matter between the

charge area and portable device

●

Charging has caused the portable

device to heat up

●

The temperature around the charging

tray is 95°F (35°C) or higher, such as

in extreme heat

●

The portable device is placed with its

charging side facing up

●

The portable device is placed in an

area misaligned from the charge area

●

The portable device is larger than the

charging tray

●

A foldable and portable device is

placed outside the charge area

●

The vehicle is in an area where strong

electrical waves or noise are emitted,

such as near a television tower, power

plant, gasoline station, broadcasting

station, large display, airport, etc.

●

When the camera of the portable

device largely protrudes

●

Any of the following objects that is

0.08 in (2 mm) or thicker is stuck or

installed between the charging side of

the portable device and the charge

area.

• Thick cases or covers

• A case that uses a magnet on the

charging side of the portable device

• A case or cover attached with an

uneven or tilted surface, so that the

charging side is not flat

• Thick decorations

• Accessories, such as finger rings,

straps, etc.

●

When the portable device is in contact

with, or is covered by any of the follow-

ing metallic objects:

• A card that has metal on it, such as alu-

minum foil, etc.

• A pack of cigarettes that includes alu-

minum foil

• A wallet or bag that is made of metal

• Coins

• A heating pad

• CDs, DVDs or other media

• A metal accessory

• A case or cover made of metal

●

Electric wave type wireless remote

controls are being used nearby

●

When the electronic key is taken out-

side the vehicle

●

2 or more portable devices are placed

on the charging tray at the same time

If charging is abnormal or the operation

indicator light continues to flash for any

other reason, the wireless charger may

be malfunctioning. Contact your Lexus

dealer.

■

To prevent malfunctions and data

corruptions

●

When charging, bringing a credit, or

other magnetic card, or magnetic stor-

age media close to the charge area

may clear any stored data due to mag-

netic influence. Also, do not bring a

wristwatch or other precision instru-

ment close to the charge area since

doing so may cause it to malfunction.

292

5-5. Using the other interior features

Fold down the armrest for use.

An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.

■

Rear sunshade

The rear sunshade can be raised and
lowered by operating the button
shown below.
Press the switch. (Raise/lower)

NOTICE

●

Do not charge with a non-contact IC

card such as a transportation system

IC card inserted between the charging

side of a portable device and the

charge area. The IC chip may become

extremely hot and damage the porta-

ble device or IC card. Be especially

careful not to charge a portable device

inside a case or cover with a non-con-

tact IC card attached.

●

Do not leave portable devices inside

the vehicle. The inside of the vehicle

can become hot in extreme heat,

which could cause a malfunction.

■

If the smartphone OS has been

updated

If the smartphone OS has been updated

to a newer version, its charging specifi-

cations may have changed significantly.

For details, check the information on the

manufacturer’s website.

■

To prevent 12-volt battery discharge

Do not use the wireless charger for a

long period of time when the hybrid sys-

tem is stopped.

Armrest

NOTICE

■

To prevent damage to the armrest

Do not apply too much load on the arm-

rest.

Assist grips

WARNING

■

Assist grips

Do not use the assist grip when getting in

or out of the vehicle or rising from your

seat.

NOTICE

■

To prevent damage to the assist grip

Do not hang any heavy object or put a

heavy load on the assist grip.

Rear sunshade (if
equipped)/rear door sunshades
(if equipped)

293

5-5. Using the other interior features

5

In

te

rio

r f

ea

tu

re

s

■

Rear door sunshades

Pull the tab of the rear door sunshade
and hook the sunshade on the anchors.

To retract the rear door sunshade, unhook
the sunshade and retract it slowly.

■

The rear sunshade can be used when

●

The power switch is in ON mode.

●

The rear sunshade can be operated for

approximately 1 minute even after the

power switch is turned to ACCESSORY

mode or turned off.

■

Reverse operation feature

To ensure adequate rear visibility, the rear

sunshade automatically lowers when the

shift lever is shifted to R.
However, the rear sunshade is raised again

if any of the following occurs:

●

The button is pressed again.

*

●

Shift the shift lever to P.

●

The shift lever is shifted out of R, and the

vehicle reaches a speed of 9 mph (15

km/h).

If the hybrid system is turned off after the

rear sunshade was lowered due to the

reverse operation feature, it will not be

raised even when the hybrid system is

turned on again and the vehicle reaches a

speed of 9 mph (15 km/h). To raise the

sunshade again, press the button.

*

: Occasionally, the reverse function may

not be carried out after the switch has
been pressed. Repeat the above opera-
tion to operate the function.

WARNING

■

When the rear sunshade is being

raised or lowered

When the rear sunshade is being oper-

ated, do not place fingers or other

objects in the fastener section or in the

opening. They may get caught, causing

injury.

NOTICE

■

To prevent 12-volt battery discharge

Do not operate the rear sunshade when

the hybrid system is not operating.

■

To ensure normal operation of the

sunshades

●

Do not operate the rear sunshade

when any objects are on top of its

opening/closing part.

The rear sunshade may not operate

properly.

294

5-5. Using the other interior features

Long objects can be loaded into the
vehicle by utilizing the trunk space and
rear seat area.

1

Fold down the armrest.

2

Fold down the handle and open the
armrest door.

The armrest door can be locked and
unlocked using the mechanical key.

Unlock

Lock

The coat hooks are provided with the
rear assist grips.

NOTICE

●

To ensure normal operation of the rear

sunshade and rear door sunshades,

observe the following precautions:

• Do not place excessive load on the

motor or other components of the rear

sunshade.

• Do not attach items to the rear sun-

shade and rear door sunshades.

• Keep the opening clean and clear of

obstructions.

• Do not operate the rear sunshade

continuously for long periods of time.

Trunk storage extension

WARNING

■

When not in use

Ensure that the armrest door is closed. In

the event of sudden braking, items stored

in the trunk may be thrown forward into

the cabin, resulting in injury.

Coat hooks

WARNING

■

Items that should not be hanged

Do not hang coat hangers or other hard

or sharp objects on the hook. If the SRS

curtain shield airbags deploy, these items

may become projectiles, causing death

or serious injury.

A

B

295

5-5. Using the other interior features

5

In

te

rio

r f

ea

tu

re

s

■

HomeLink

®

 programming procedure

The programming procedures can also be

found at the following URL.

Website: www.homelink.com/lexus

For support, contact customer support at

the following.
Help Line: 1-800-355-3515

The HomeLink

®

 wireless control sys-

tem in your vehicle has 3 buttons
which can be programmed to operate
3 different devices. Refer to the pro-
gramming methods on the following
pages to determine the method which
is appropriate for the device.

HomeLink

®

 indicator light

Garage door operation indicators

HomeLink

®

 icon

Illuminates while HomeLink

®

 is operating.

Buttons

■

Codes stored in the HomeLink

®

 mem-

ory

●

The registered codes are not erased

even if the 12-volt battery cable is discon-

nected.

●

If learning failed when registering a dif-
ferent code to a HomeLink

®

 button that

already has a code registered to it, the

already registered code will not be

erased.

Garage door opener

The garage door opener can be
programmed using the
HomeLink

®

 to operate garage

doors, gates, entry doors, door
locks, home lighting systems, secu-
rity systems, and other devices.

System components

WARNING

■

When programming a garage door

or other remote control device

The garage door or other device may

operate, so ensure people and objects

are out of danger to prevent potential

harm.

A

B

C

D

296

5-5. Using the other interior features

■

Before programming HomeLink

®



During programming, it is possible
that garage doors, gates, or other
devices may operate. For this rea-
son, make sure that people and
objects are clear of the garage door
or other devices to prevent injury or
other potential harm.



It is recommended that a new bat-
tery be placed in the remote control
transmitter for more accurate pro-
gramming.



Garage door opener motors manu-
factured after 1995 may be
equipped with rolling code protec-
tion. If this is the case, you may need
a stepladder or other sturdy, safe
device to reach the “Learn” or
“Smart” button on the garage door
opener motor.

■

Programming HomeLink

®

Steps

1

 through

3

 must be performed

within 60 seconds, otherwise the indi-
cator light will stop flashing and pro-
gramming will not be able to be
completed.

1

Press and release the HomeLink

®



button you want to program and
check that the HomeLink

®

 indica-

tor light flashes (orange).

2

Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink

®

 buttons.

Keep the HomeLink

®

 indicator light in

view while programming.

3

Program a device.



Programming a device other than
an entry gate (for U.S.A. owners)

Press and hold the remote control
transmitter button until the

WARNING

■

Conforming to federal safety stan-

dards

Do not use the HomeLink

®

 compatible

transceiver with any garage door opener

or device that lacks safety stop and

reverse features as required by federal

safety standards.
This includes any garage door that can-

not detect an interfering object. A door

or device without these features

increases the risk of death or serious

injury.

■

When operating or programming
HomeLink

®

Never allow a child to operate or play
with the HomeLink

®

 buttons.

Programming the HomeLink

®

297

5-5. Using the other interior features

5

Interio

r fe

atures

HomeLink

®

 indicator light changes

from slowly flashing orange to rapidly
flashing green (rolling code) or contin-
uously lit green (fixed code), then
release the button.



Programming an entry gate (for
U.S.A. owners)/Programming a
device in the Canadian market

Press and release the remote control
transmitter button at 2 second inter-
vals, repeatedly, until the HomeLink

®



indicator light changes from slowly
flashing (orange) to rapidly flashing
(green) (rolling code) or continuously
lit (green) (fixed code).

4

Test the HomeLink

®

 operation by

pressing the newly programmed
button and observing the indicator
light:



Indicator light illuminates: Program-
ming of a fixed code device has
completed. The garage door or
other device should operate when a
HomeLink

®

 button is pressed and

released.



Indicator light flashes rapidly: The
garage door opener motor or other
device is equipped with a rolling
code. To complete programming,
firmly press and hold the
HomeLink

®

 button for 2 seconds

then release it.



If the garage door or other device
does not operate, proceed to “Pro-
gramming a rolling code system”.

5

Repeat the steps above to program
another device for any of the
remaining HomeLink

®

 buttons.

■

Programming a rolling code sys-
tem

2 or more people may be necessary to
complete rolling code programming.

1

Locate the “Learn” or “Smart” but-
ton on the garage door opener
motor in the garage.

This button can usually be found where the

hanging antenna wire is attached to the

unit. The name and color of the button may

vary by manufacturer. Refer to the owner’s

manual supplied with the garage door

opener motor for details.

2

Press and release the “Learn” or
“Smart” button.

Perform

3

 within 30 seconds after per-

forming

2

.

3

Press and hold the desired
HomeLink

®

 button (inside the

vehicle) for 2 seconds and release

298

5-5. Using the other interior features

it. Repeat this sequence
(press/hold/release) up to 3 times
to complete programming.
If the garage door opener motor
operates when the HomeLink

®



button is pressed, the garage door
opener motor recognizes the
HomeLink

®

 signal.

■

Enabling 2-way communication
with a garage door (only available
for compatible devices)

When enabled, 2-way communication
allows you to check the status of the
opening and closing of a garage door
through indicators in your vehicle.
2-way communication is only available
if the garage door opener motor used
is a compatible device. (To check
device compatibility, refer to
www.homelink.com.)

1

Within 5 seconds after program-
ming the garage door opener has
been completed, if the garage door
opener motor is trained to
HomeLink

®

, both garage door

operation indicators will flash rap-
idly (green) and the light on the
garage door opener motor will
blink twice, indicating that 2-way
communication is enabled.

If the indicators do not flash, perform

2

 and

3

 within the first 10 presses of the

HomeLink

®

 button after programming

has been completed.

2

Press a programmed HomeLink

®



button to operate a garage door.

3

Within 1 minute of pressing the
HomeLink

®

 button, after the

garage door operation has
stopped, press the “Learn” or
“Smart” button on the garage door
opener motor. Within 5 seconds of
the establishment of 2-way com-
munication with the garage door
opener, both garage door opera-
tion indicators in the vehicle will
flash rapidly (green) and the light
on the garage door opener motor
will blink twice, indicating that 2-
way communication is enabled.

■

Reprogramming a single
HomeLink

®

 button

When the following procedure is per-
formed, buttons which already have
devices registered to them can be
overwritten:

1

With one hand, press and hold the
desired HomeLink

®

 button.

2

When the HomeLink

®

 indicator

starts flashing (orange), continue to
hold the HomeLink

®

 button and

perform “Programming
HomeLink

®

”

1

 (it takes 20 sec-

onds for the HomeLink

®

 indicator

to start flashing).

■

Before programming

●

Install a new battery in the transmitter.

299

5-5. Using the other interior features

5

Interio

r fe

atures

●

The battery side of the transmitter must
be pointed away from the HomeLink

®

.

Press the appropriate HomeLink

®



button. The HomeLink

®

 indicator light

should turn on.
The status of the opening and closing
of a garage door is shown by the indi-
cators.

Opening

Closing

This function is only available if the garage
door opener motor used is a compatible
device. (To check device compatibility,
refer to www.homelink.com.)

The indicators can operate within
approximately 820 ft. (250 m) of the
garage door. However, if there are
obstructions between the garage door
and the vehicle, such as houses and

trees, feedback signals from the
garage door may not be received.
To recall the previous door operation
status, press and release either

HomeLink

®

 buttons

 and

 or

 and

 simulta-

neously. The last recorded status will
be displayed for 3 seconds.

Press and hold the 2 outside buttons
for 10 seconds until the HomeLink

®



indicator light changes from continu-
ously lit (orange) to rapidly flashing
(green).

If you sell your vehicle, be sure to erase the
programs stored in the HomeLink

®

 mem-

ory.

Operating HomeLink

®

Color

Status

Orange (flashing)

Currently open-

ing/closing

Green

Opening/closing

has completed

Red (flashing)

Feedback signals

cannot be received

A
B

Erasing the entire HomeLink

®



memory (all three codes)

300

5-5. Using the other interior features

*

: If equipped

To turn the compass on or off, press
and hold the button for more than 3
seconds.

Directions are displayed as follows:

■

Conditions unfavorable to correct

operation

The compass may not show the correct

direction in the following conditions:

●

The vehicle is stopped immediately after

turning.

●

The vehicle is on an inclined surface.

●

The vehicle is in a place where the earth’s

magnetic field is subject to interference

by artificial magnetic fields (underground

car park/parking lot, under a steel tower,

between buildings, roof car park/parking

lot, near an intersection, near a large

vehicle, etc.).

●

The vehicle has become magnetized.

(There is a magnet or metal object near

the inside rear view mirror.)

●

The 12-volt battery has been discon-

nected.

●

A door is open.

Compass

*

The compass on the inside rear
view mirror indicates the direction
in which the vehicle is heading.

Operation and displays

Display

Direction

“N”

North

“NE”

Northeast

“E”

East

“SE”

Southeast

“S”

South

“SW”

Southwest

“W”

West

“NW”

Northwest

WARNING

■

While driving the vehicle

Do not adjust the display. Adjust the dis-

play only when the vehicle is stopped.

NOTICE

■

To avoid the compass malfunctions

Do not place magnets or any metal

objects near the inside rear view mirror.

Doing this may cause the compass sen-

sor to malfunction.

■

To ensure normal operation of the

compass

●

Do not perform a circling calibration

of the compass in a place where the

earth’s magnetic field is subject to

interference by artificial magnetic

fields.

●

During calibration, do not operate

electric systems (moon roof, power

windows, etc.) as they may interfere

with the calibration.

301

5-5. Using the other interior features

5

Interio

r fe

atures

■

Deviation

The direction display deviates from the
true direction determined by the
earth’s magnetic field. The amount of
deviation varies depending on the geo-
graphic position of the vehicle.

If you cross over one of the map boundar-
ies shown in illustration, the compass will
deviate.
To obtain higher precision or perfect cali-
bration, refer to “Deviation calibration”.

■

Deviation calibration

1

Stop the vehicle.

2

Press and hold the button for 6 sec-
onds. A number (1 to 15) appears
on the compass display.

3

Referring to the map above, press
the button to select the number of
the zone you are in.

If the direction is displayed several seconds

after adjustment, the calibration is com-

plete.

■

Circling calibration

1

Stop the vehicle in a place where it
is safe to drive in a circle.

2

Press and hold the button for 9 sec-
onds.

“C” appears on the compass display.

3

Drive the vehicle at 5 mph (8
km/h) or less in a circle until a
direction is displayed.

Calibrating the compass

302

5-5. Using the other interior features

If there is not enough space to drive in a

circle, drive around the block until a direc-

tion is displayed.

WARNING

■

When doing the circling calibration

Secure a wide space, and watch out for

people and vehicles in the vicinity. Do not

violate any local traffic rules while per-

forming circling calibration.

303

6

6

Mai
nte

na

nc

e a

nd

 c

are

Maintenance and care

6-1. Maintenance and care

Cleaning and protecting the vehi-

cle exterior................................

304

Cleaning and protecting the vehi-

cle interior .................................

307

6-2. Maintenance

Maintenance requirements ...

310

General maintenance...............

311

Emission inspection and mainte-

nance (I/M) programs ..........

314

6-3. Do-it-yourself maintenance

Do-it-yourself service precau-

tions...............................................

315

Hood................................................

317

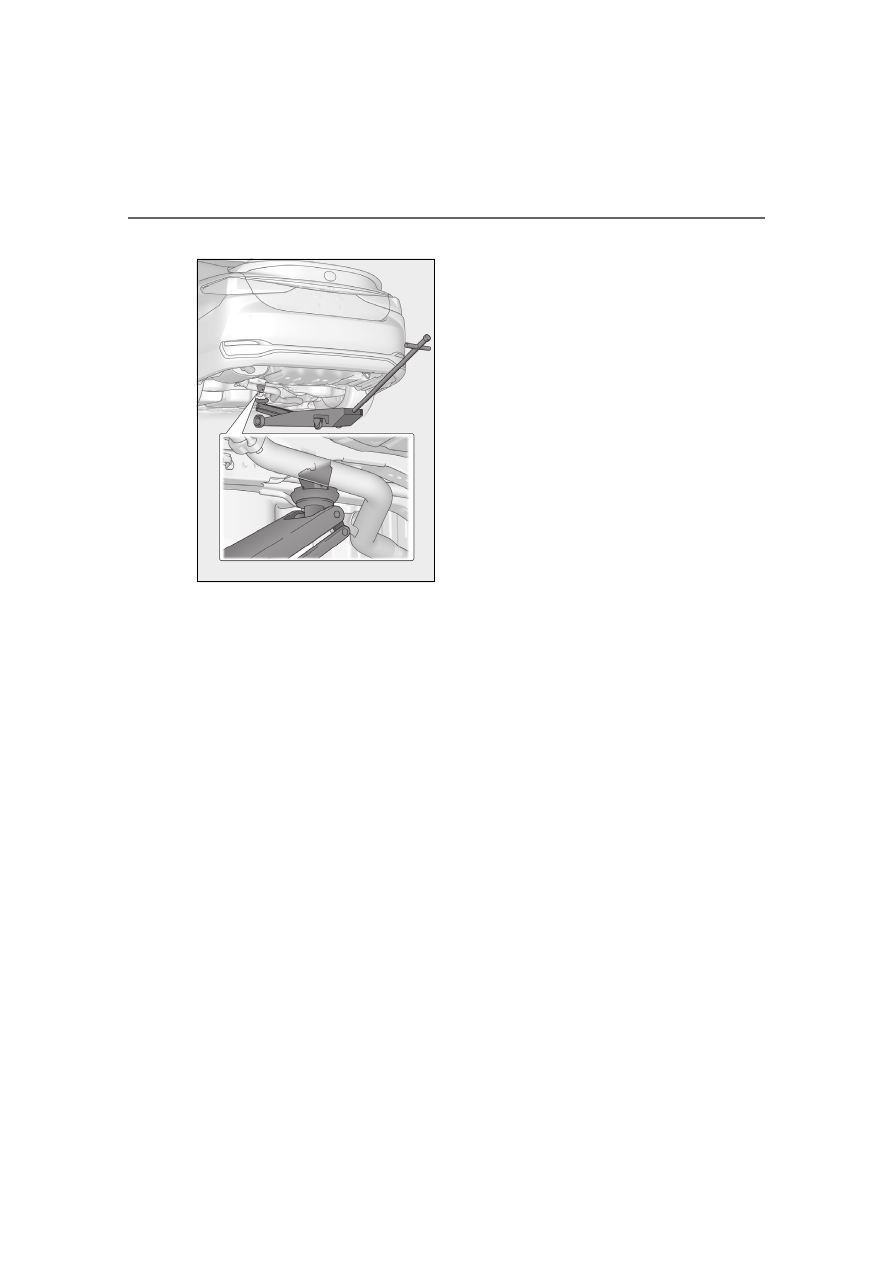

Positioning a floor jack.............

317

Engine compartment................

319

12-volt battery.............................

325

Tires ................................................

327

Tire inflation pressure..............

335

Wheels...........................................

337

Air conditioning filter...............

338

Cleaning the hybrid battery (trac-

tion battery) air intake vent and
filter ..............................................

340

Electronic key battery.............

343

Checking and replacing fuses

........................................................

345

Headlight aim..............................

347

Light bulbs....................................

349

304

6-1. Maintenance and care

6-1.Maintenance and care



Working from top to bottom, liber-
ally apply water to the vehicle body,
wheel wells and underside of the
vehicle to remove any dirt and dust.



Wash the vehicle body using a
sponge or soft cloth, such as a
chamois.



For hard-to-remove marks, use car
wash soap and rinse thoroughly with
water.



Wipe away any water.



Wax the vehicle when the water-
proof coating deteriorates.

If water does not bead on a clean surface,
apply wax when the vehicle body is cool.

■

Self-restoring coat

The vehicle body has a self-restoring coat-

ing that is resistant to small surface

scratches caused in a car wash etc.

●

The coating lasts for 5 to 8 years from

when the vehicle is delivered from the

plant.

●

The restoration time differs depending on

the depth of the scratch and outside tem-

perature.

The restoration time may become

shorter when the coating is warmed by

applying warm water.

●

Deep scratches caused by keys, coins,

etc. cannot be restored.

●

Do not use wax that contain abrasives.

■

Automatic car washes

●

Before washing the vehicle:

• Fold the mirrors

• Turn off the power trunk lid (if equipped)
Start washing from the front of the vehicle.
Make sure to extend the mirrors before
driving.

●

Brushes used in automatic car washes

may scratch the vehicle surface, parts

(wheel, etc.) and harm your vehicle’s

paint.

●

Rear spoiler may not be washable in

some automatic car washes. There may

also be an increased risk of damage to

vehicle.

■

High pressure car washes

As water may enter the cabin, do not bring

the nozzle tip near the gaps around the

doors or perimeter of windows, or spray

these areas continuously.

■

Notes for the smart access system with

push-button start

If the door handle becomes wet while the

electronic key is within the effective range,

the door may lock and unlock repeatedly. In

that case, follow the following correction

procedures to wash the vehicle:

●

Place the key in a position 6 ft. (2 m) or

more separate from the vehicle while the

vehicle is being washed. (Take care to

ensure that the key is not stolen.)

●

Set the electronic key to battery-saving

mode to disable the smart access system

with push-button start. (



P.117)

■

Wheels and wheel ornaments

●

Remove any dirt immediately by using a

neutral detergent.

●

Wash detergent off with water immedi-

ately after use.

●

To protect the paint from damage, make

sure to observe the following precau-

tions.

• Do not use acidic, alkaline or abrasive

detergent

• Do not use hard brushes

• Do not use detergent on the wheels

when they are hot, such as after driving or

Cleaning and protecting the
vehicle exterior

Perform cleaning in a manner
appropriate to each component
and its material.

Cleaning instructions

305

6-1. Maintenance and care

6

Mai
nte

na

nc

e a

nd

 c

are

parking in hot weather

■

Brake pads and calipers

Rust may form if the vehicle is parked with

wet brake pads or disc rotors, causing them

to stick. Before parking the vehicle after it is

washed, drive slowly and apply the brakes

several times to dry the parts.

■

Bumpers

Do not scrub with abrasive cleaners.

■

Front side windows water-repellent

coating

The following precautions can extend the

effectiveness of the water-repellent coat-

ing.

●

Remove any dirt, etc. from the front side

windows regularly.

●

Do not allow dirt and dust to accumulate

on the windows for a long period.

Clean the windows with a soft, damp

cloth as soon as possible.

●

Do not use wax or glass cleaners that

contain abrasives when cleaning the win-

dows.

●

Do not use any metallic objects to

remove condensation build up.

■

Plated portions

If dirt cannot be removed, clean the parts as

follows:

●

Use a soft cloth dampened with an

approximately 5% solution of neutral

detergent and water to clean the dirt off.

●

Wipe the surface with a dry, soft cloth to

remove any remaining moisture.

●

To remove oily deposits, use alcohol wet

wipes or a similar product.

WARNING

■

When washing the vehicle

Do not apply water to the inside of the

engine compartment. Doing so may

cause the electrical components etc. to

catch fire.

■

When cleaning the windshield (vehi-

cles with rain-sensing windshield wip-

ers)

Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wip-

ers may operate unexpectedly in the fol-

lowing situations, and may result in hands

being caught or other serious injuries

and cause damage to the wiper blades.

Off

AUTO

●

When the upper part of the windshield

where the raindrop sensor is located is

touched by hand

●

When a wet rag or similar is held close

to the raindrop sensor

●

If something bumps against the wind-

shield

●

If you directly touch the raindrop sen-

sor body or if something bumps into

the raindrop sensor

■

Precautions regarding the exhaust

pipes

As exhaust gases cause the exhaust

pipes to become quite hot, do not touch

the exhaust pipes while the hybrid system

is operating or immediately after the

hybrid system is turned off.
When washing the vehicle, be careful not

to touch the exhaust pipes until they have

cooled sufficiently, as touching hot

exhaust pipes can cause burns.

A

B

306

6-1. Maintenance and care

WARNING

■

Precaution regarding the rear

bumper with Blind Spot Monitor

If the paint of the rear bumper is chipped

or scratched, the system may malfunc-

tion. If this occurs, consult your Lexus

dealer.

NOTICE

■

To prevent paint deterioration and

corrosion on the body and compo-

nents (aluminum wheels etc.)

●

Wash the vehicle immediately in the

following cases:

• After driving near the sea coast
• After driving on salted roads
• If coal tar, pollen or tree sap is present

on the paint surface

• If dead insects, insect droppings or

bird droppings are present on the

paint surface

• After driving in an area contaminated

with soot, oily smoke, mine dust, iron

powder or chemical substances

• If the vehicle becomes heavily soiled

with dust or mud

• If liquids such as benzene and gasoline

are spilled on the paint surface

●

If the paint is chipped or scratched,

have it repaired immediately.

●

To prevent the wheels from corroding,

remove any dirt and store in a place

with low humidity when storing the

wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use organic

substances or scrub with a hard brush.

This may damage the surfaces of the

lights.

●

Do not apply wax to the surfaces of the

lights.

Wax may cause damage to the lenses.

■

When using an automatic car wash

(vehicles with rain-sensing windshield

wipers)

Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wip-

ers may operate and the wiper blades

may be damaged.

■

When using a high pressure car wash

●

When washing the vehicle, do not

spray the camera or its surrounding

area directly with a high pressure

washer. Shock applied from high pres-

sure water may cause the device to not

operate normally.

●

Do not spray water directly on the

radar which is equipped behind the

emblem. Otherwise it may cause the

device to be damaged.

●

Do not bring the nozzle tip close to

boots (rubber or resin manufactured

cover), connectors or the following

parts. The parts may be damaged if

they come into contact with high-pres-

sure water.

• Traction related parts
• Steering parts
• Suspension parts
• Brake parts

●

Keep the cleaning nozzle at least 11.9

in. (30 cm) away from the vehicle

body. Otherwise resin section, such as

moldings and bumpers, may be

deformed and damaged. Also, do not

continuously hold the nozzle in the

same place.

●

Do not spray the lower part of the

windshield continuously.

If water enters the air conditioning sys-

tem intake located near the lower part

of the windshield, the air conditioning

system may not operate correctly.

●

Do not wash the underside of the vehi-

cle using a high pressure car washer.

307

6-1. Maintenance and care

6

Mai
nte

na

nc

e a

nd

 c

are



Remove dirt and dust using a vac-
uum cleaner. Wipe dirty surfaces
with a cloth dampened with luke-
warm water.



If dirt cannot be removed, wipe it off
with a soft cloth dampened with
neutral detergent diluted to approx-
imately 1%.
Wring out any excess water from
the cloth and thoroughly wipe off
remaining traces of detergent and
water.

■

Shampooing the carpets

There are several commercial foaming-

type cleaners available. Use a sponge or

brush to apply the foam. Rub in overlapping

circles. Do not use water. Wipe dirty sur-

faces and let them dry. Excellent results are

obtained by keeping the carpet as dry as

possible.

■

Handling the seat belts

Clean with mild soap and lukewarm water

using a cloth or sponge. Also check the

belts periodically for excessive wear, fray-

ing or cuts.

■

When cleaning the carpeted portions of

the glove box, console box, etc.

If a strong adhesive tape is used, there is a

possibility that the surface of the carpet

could be damaged.

Cleaning and protecting the
vehicle interior

Perform cleaning in a manner
appropriate to each component
and its material.

Protecting the vehicle interior

WARNING

■

Water in the vehicle

●

Do not splash or spill liquid in the vehi-

cle, such as on the floor, on the rear

seats, in the hybrid battery (traction

battery) air vents, and in the trunk.

(



P.64)

Doing so may cause the hybrid bat-

tery, electrical components, etc. to

malfunction or catch fire.

●

Do not get any of the SRS components

or wiring in the vehicle interior wet.

(



P.28)

An electrical malfunction may cause

the airbags to deploy or not function

properly, resulting in death or serious

injury.

●

Vehicles with wireless charger: Do not

let the wireless charger (



P.285) get

wet. Failure to do so may cause the

charger to become hot and cause

burns or could cause electric shock

resulting in death or serious injury.

■

Cleaning the interior (especially

instrument panel)

Do not use polish wax or polish cleaner.

The instrument panel may reflect off the

windshield, obstructing the driver’s view

and leading to an accident, resulting in

death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following types of

detergent, as they may discolor the

vehicle interior or cause streaks or

damage to painted surfaces:

• Non-seat portions: Organic sub-

stances such as benzene or gasoline,

alkaline or acidic solutions, dye, and

bleach

• Seats: Alkaline or acidic solutions,

such as thinner, benzene, and alcohol

308

6-1. Maintenance and care



Remove dirt using a water-damp-
ened soft cloth or synthetic chamois.



Wipe the surface with a dry soft
cloth to remove any remaining
moisture.

■

Cleaning the areas with satin-finish

metal accents

The metal areas use a layer of real metal for

the surface. It is necessary to clean them

regularly. If dirty areas are left uncleaned

for long periods of time, they may be diffi-

cult to clean.



Remove dirt and dust using a vac-
uum cleaner.



Wipe off any excess dirt and dust
with a soft cloth dampened with
diluted detergent.

Use a diluted water solution of approxi-
mately 5% neutral wool detergent.



Wring out any excess water from
the cloth and thoroughly wipe off all
remaining traces of detergent.



Wipe the surface with a dry soft
cloth to remove any remaining
moisture. Allow the leather to dry in
a shaded and ventilated area.

■

Caring for leather areas

Lexus recommends cleaning the interior of

the vehicle at least twice a year to maintain

the quality of the vehicle’s interior.

NOTICE

●

Do not use polish wax or polish

cleaner. The instrument panel’s or

other interior part’s painted surface

may be damaged.

■

Preventing damage to leather sur-

faces

Observe the following precautions to

avoid damage to and deterioration of

leather surfaces:

●

Remove any dust or dirt from leather

surfaces immediately.

●

Do not expose the vehicle to direct

sunlight for extended periods of time.

Park the vehicle in the shade, espe-

cially during summer.

●

Do not place items made of vinyl, plas-

tic, or containing wax on the uphol-

stery, as they may stick to the leather

surface if the vehicle interior heats up

significantly.

■

Water on the floor

Do not wash the vehicle floor with water.

Vehicle systems such as the audio sys-

tem may be damaged if water comes into

contact with electrical components such

as the audio system above or under the

floor of the vehicle. Water may also

cause the body to rust.

■

When cleaning the inside of the wind-

shield

Do not allow glass cleaner to contact the

lens. Also, do not touch the lens.

(



P.177)

■

Cleaning the inside of the rear win-

dow

●

Do not use glass cleaner to clean the

rear window, as this may cause dam-

age to the rear window defogger

heater wires or antenna. Use a cloth

dampened with lukewarm water to

gently wipe the window clean. Wipe

the window in strokes running parallel

to the heater wires or antenna.

●

Be careful not to scratch or damage

the heater wires or antenna.

Cleaning the areas with satin-
finish metal accents

Cleaning the leather areas

309

6-1. Maintenance and care

6

Mai
nte

na

nc

e a

nd

 c

are



Remove dirt and dust using a vac-
uum cleaner.



Wipe it off with a soft cloth damp-
ened with neutral detergent diluted
to approximately 1%.



Wring out any excess water from
the cloth and thoroughly wipe off
remaining traces of detergent and
water.

Cleaning the synthetic leather
areas

310

6-2. Maintenance

6-2.Maintenance

■

Repair and replacement

It is recommended that genuine Lexus parts

be used for repairs to ensure performance

of each system. If non-Lexus parts are used

in replacement or if a repair shop other than

a Lexus dealer performs repairs, confirm

the warranty coverage.

■

Allow inspection and repairs to be per-

formed by a Lexus dealer

●

Lexus technicians are well-trained spe-

cialists and are kept up to date with the

latest service information. They are well

informed about the operations of all sys-

tems on your vehicle.

●

Keep a copy of the repair order. It proves

that the maintenance that has been per-

formed is under warranty coverage. If

any problem should arise while your vehi-

cle is under warranty, your Lexus dealer

will promptly take care of it.

General maintenance should be per-
formed on a daily basis. This can be
done by yourself or by a Lexus dealer.

Scheduled maintenance should be
performed at specified intervals
according to the maintenance sched-
ule.

For details about maintenance items and
schedules, refer to the “Warranty and Ser-
vice Guide”, “Owner’s Manual Supple-
ment” or “Scheduled Maintenance”.

■

Resetting the message indicating main-

tenance is required

After the required maintenance is per-

formed according to the maintenance

schedule, please reset the message.

To reset the message, follow the procedure

described below:

1

Press

 or

 of the meter control

switches and select

.

2

Press

 or

 of the meter control

switches and select “Vehicle Settings”.
Then press “OK”.

Maintenance requirements

To ensure safe and economical
driving, day-to-day care and regu-
lar maintenance are essential. It is
the owner’s responsibility to per-
form regular checks. Lexus recom-
mends the following maintenance:

WARNING

■

If your vehicle is not properly main-

tained

Improper maintenance could result in

serious damage to the vehicle and possi-

ble death or serious injury.

■

Handling of the 12-volt battery

●

Engine exhaust, some of its constitu-

ents, and a wide variety of automobile

components contain or emit chemicals

known to the State of California to

cause cancer and birth defects and

other reproductive harm. Work in a

well ventilated area.

●

Oils, fuels and fluids contained in vehi-

cles as well as waste produced by

component wear contain or emit

chemicals known to the State of Cali-

fornia to cause cancer and birth

defects or other reproductive harm.

Avoid exposure and wash any affected

area immediately.

●

12-volt battery posts, terminals and

related accessories contain lead and

lead compounds which are known to

cause brain damage. Wash your hands

after handling. (



P.325)

General maintenance

Scheduled maintenance

311

6-2. Maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

3

Press

 or

 of the meter control

switches and select “Scheduled Mainte-
nance”. Then press “OK”.

4

Select “Yes” and press “OK”.

A message will be displayed when the reset

procedure has been completed.

You can perform some maintenance
procedures by yourself.
Please be aware that do-it-yourself
maintenance may affect warranty cov-
erage.

The use of Lexus repair manuals is recom-
mended.
For details about warranty coverage, refer
to the separate “Owner’s Guide”, “War-
ranty and Service Guide”, “Owner’s Man-
ual Supplement” or “Warranty Booklet”.

Do-it-yourself maintenance

General maintenance

Listed below are the general main-
tenance items that should be per-
formed at the intervals specified in
the “Warranty and Service Guide”
or “Owner’s Manual Supplement”.
It is recommended that any prob-
lem you notice should be brought to
the attention of your Lexus dealer
or qualified service shop for advice.

WARNING

■

If the hybrid system is operating

Turn the hybrid system off and ensure

that there is adequate ventilation before

performing maintenance checks.

Engine compartment

Items

Check points

Brake fluid

Is the brake fluid at the
correct level?
(



P.323)

Engine/power
control unit cool-
ant

Is the engine/power
control unit coolant at
the correct level?
(



P.322)

Engine oil

Is the engine oil at the
correct level?
(



P.319)

Exhaust system

There should not be
any fumes or strange
sounds.

312

6-2. Maintenance

Radiator/con-
denser

The radiator and con-
denser should be free
from foreign objects.
(



P.323)

Washer fluid

Is there sufficient
washer fluid?
(



P.324)

Trunk

Items

Check points

12-volt battery

Check the battery
connections.
(



P.325)

Vehicle interior

Items

Check points

Accelerator
pedal

• The accelerator

pedal should move
smoothly (without
uneven pedal effort
or catching).

Hybrid transmis-
sion “Park” mech-
anism

• When  parked  on  a

slope and the shift
lever is in P, is the
vehicle securely
stopped?

Brake pedal

• Does  the  brake

pedal move
smoothly?

• Does  the  brake

pedal have appro-
priate clearance
from the floor?

• Does  the  brake

pedal have the cor-
rect amount of free
play?

Items

Check points

Brakes

• The  vehicle  should

not pull to one side
when the brakes are
applied.

• The brakes should

work effectively.

• The brake pedal

should not feel
spongy.

• The brake pedal

should not get too
close to the floor
when the brakes are
applied.

Head restraints

• Do  the  head

restraints move
smoothly and lock
securely?

Indicators/buzz-
ers

• Do  the  indicators

and buzzers function
properly?

Lights

• Do all the lights

come on?

• Are the headlights

aimed correctly?

Parking brake

• Does the parking

brake operate nor-
mally?

• When parked on a

slope and the park-
ing brake is on, is the
vehicle securely
stopped?

Seat belts

• Do the seat belts

operate smoothly?

• The seat belts should

not be damaged.

Items

Check points

313

6-2. Maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

Seats

• Do the seat controls

operate properly?

Steering wheel

• Does the steering

wheel rotate
smoothly?

• Does the steering

wheel have the cor-
rect amount of free
play?

• There  should  not  be

any strange sounds
coming from the
steering wheel.

Vehicle exterior

Items

Check points

Doors/trunk

• Do the doors/trunk

operate smoothly?

Engine hood

• Does  the  engine

hood lock system
work properly?

Fluid leaks

• There  should  not  be

any signs of fluid
leakage after the
vehicle has been
parked.

Items

Check points

Tires

• Is the tire inflation

pressure correct?

• The tires should not

be damaged or
excessively worn.

• Have the tires been

rotated according to
the maintenance
schedule?

• The wheel nuts

should not be loose.

Windshield wip-
ers

• The wiper blades

should not show any
signs of cracking,
splitting, wear, con-
tamination or defor-
mation.

• The wiper blades

should clear the
windshield without
streaking or skip-
ping.

Items

Check points

314

6-2. Maintenance

The OBD system determines that a
problem exists somewhere in the emis-
sion control system. Your vehicle may
not pass the I/M test and may need to
be repaired. Contact your Lexus
dealer to service the vehicle.



When the 12-volt battery is discon-
nected or discharged
Readiness codes that are set during
ordinary driving are erased.
Also, depending on your driving
habits, the readiness codes may not
be completely set.



When the fuel tank cap is loose
The malfunction indicator lamp
comes on indicating a temporary
malfunction and your vehicle may
not pass the I/M test.

The error code in the OBD system will
not be cleared unless the vehicle is
driven 40 or more times.

Contact your Lexus dealer to prepare
the vehicle for re-testing.

Emission inspection and
maintenance (I/M) pro-
grams

Some states have vehicle emission
inspection programs which include
OBD (On Board Diagnostics)
checks. The OBD system monitors
the operation of the emission con-
trol system.

If the malfunction indicator lamp
comes on

Your vehicle may not pass the
I/M test in the following situa-
tions:

When the malfunction indicator
lamp still remains on after sev-
eral driving trips

If your vehicle does not pass the
I/M test

315

6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

6-3.Do-it-yourself maintenance

Do-it-yourself service pre-
cautions

If you perform maintenance by
yourself, be sure to follow the cor-
rect procedure as given in these
sections.

Maintenance

Items

Parts and tools

12-volt battery
condition
(



P.325)

• Grease
• Conventional wrench

(for terminal clamp
bolts)

Brake fluid
level
(



P.323)

• FMVSS No.116 DOT 3

or SAE J1703 brake
fluid
FMVSS No.116 DOT 4
or SAE J1704 brake
fluid

• Rag or paper towel
• Funnel (used only for

adding brake fluid)

Engine/power
control unit
coolant level
(



P.322)

• “Toyota  Super  Long

Life Coolant” or a simi-
lar high quality eth-
ylene glycol-based
non-silicate, non-amine,
non-nitrite and non-
borate coolant with
long-life hybrid organic
acid technology
For the U.S.A.:
“Toyota Super Long
Life Coolant” is pre-
mixed with 50% cool-
ant and 50% deionized
water.
For Canada:
“Toyota Super Long
Life Coolant” is pre-
mixed with 55% cool-
ant and 45% deionized
water.

• Funnel (used only for

adding coolant)

Hybrid bat-
tery (traction
battery) air
intake vent
(



P.340)

• Vacuum cleaner, etc.
• Phillips screwdriver

Engine oil level
(



P.319)

• “Toyota  Genuine

Motor Oil” or equiva-
lent

• Rag or paper towel
• Funnel (used only for

adding engine oil)

Fuses
(



P.345)

• Fuse with same amper-

age rating as original

Headlight aim

• Phillips-head screw-

driver

Items

Parts and tools

316

6-3. Do-it-yourself maintenance

Light bulbs
(



P.349)

• Bulb with same number

and wattage rating as
original

• Flathead screwdriver

Radiator and
condenser
(



P.323)



Tire inflation
pressure
(



P.335)

• Tire pressure gauge
• Compressed air source

Washer fluid
(



P.324)

• Water or washer fluid

containing antifreeze
(for winter use)

• Funnel (used only for

adding water or washer
fluid)

WARNING

The engine compartment contains many

mechanisms and fluids that may move

suddenly, become hot, or become elec-

trically energized. To avoid death or seri-

ous injury, observe the following

precautions.

■

When working on the engine com-

partment

●

Make sure that the “IGNITION ON”

on the multi-information display and

the “READY” indicator are both off.

●

Keep hands, clothing and tools away

from the moving fan and engine drive

belt.

●

Be careful not to touch the engine,

power control unit, radiator, exhaust

manifold, etc. right after driving as they

may be hot. Oil and other fluids may

also be hot.

●

Do not leave anything that may burn

easily, such as paper and rags, in the

engine compartment.

Items

Parts and tools

●

Do not smoke, cause sparks or expose

an open flame to fuel. Fuel fumes are

flammable.

■

When working near the electric cool-

ing fan or radiator grille

Be sure the power switch is off.

With the power switch in ON mode, the

electric cooling fan may automatically

start to run if the air conditioning is on

and/or the coolant temperature is high.

(



P.323)

■

Safety glasses

Wear safety glasses to prevent flying or

falling material, fluid spray, etc. from get-

ting in your eyes.

NOTICE

■

If you remove the air cleaner filter

Driving with the air cleaner filter

removed may cause excessive engine

wear due to dirt in the air.

317

6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

1

Pull the hood lock release lever.

The hood will pop up slightly.

2

Pull up the auxiliary catch lever and
lift the hood.

■

Front

Hood

Opening the hood

WARNING

■

Pre-driving check

Check that the hood is fully closed and

locked.

If the hood is not locked properly, it may

open while the vehicle is in motion and

cause an accident, which may result in

death or serious injury.

Positioning a floor jack

When using a floor jack, follow the
instructions in the manual provided
with the jack and perform the oper-
ation safely.
When raising your vehicle with a
floor jack, position the jack cor-
rectly. Improper placement may
damage your vehicle or cause
injury.

Location of the jack point

318

6-3. Do-it-yourself maintenance

■

Rear

319

6-3. Do-it-yourself maintenance

6

Mai
nte

na

nc

e a

nd

 c

are

Fuse boxes (



P.345)

Engine oil filler cap (



P.321)

Engine oil level dipstick (



P.319)

Brake fluid reservoir (



P.323)

Radiator (



P.323)

Electric cooling fan

Condenser (



P.323)

Power control unit coolant reservoir (



P.322)

Engine coolant reservoir (



P.322)

Washer fluid tank (



P.324)

■

12-volt battery



P.325

With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick.

Engine compartment

Components

A
B
C
D

E
F

G

H

I

J

Checking the engine oil

320

6-3. Do-it-yourself maintenance

1

Park the vehicle on level ground.

After warming up the engine and turning

off the hybrid system, wait about 5 minutes

for the oil to drain back into the bottom of

the engine.

2

Holding a rag under the end, pull
the dipstick out.

3

Wipe the dipstick clean.

4

Reinsert the dipstick fully.

5

Holding a rag under the end, pull
the dipstick out and check whether
the oil level is above low level mark.

Low level mark

The shape of the dipstick may differ
depending on the type of vehicle or
engine.

6

Wipe the dipstick and reinsert it
fully.

■

Engine oil consumption

A certain amount of engine oil will be con-

sumed while driving. In the following situa-

tions, oil consumption may increase, and

engine oil may need to be refilled in

between oil maintenance intervals.

●

When the engine is new, for example

directly after purchasing the vehicle or

after replacing the engine

●

If low quality oil or oil of an inappropriate

viscosity is used

●

When driving at high engine speeds or

with a heavy load, or when driving while

accelerating or decelerating frequently

●

When leaving the engine idling for a long

time, or when driving frequently through

heavy traffic

■

Engine oil level rise

If the vehicle is repeatedly driven without

the engine warmed up, moisture caused by

dew condensation inside the engine or fuel

which did not burn mixes into the engine oil,

resulting in a rise in engine oil level. How-

ever, this is not a malfunction.
For example, the engine become difficult to

be warmed up in the following situations.

●

When driving a short distance

●

When driving at a low speed

●

When the outside temperature is low

When checking the engine oil, make sure

that the engine is warmed up. If the engine

oil level exceeds the refill upper limit mark,

contact your Lexus dealer.

■

Checking the oil type and prepar-
ing the items needed

Make sure to check the oil type and
prepare the items needed before add-
ing oil.



Engine oil selection



P.400

NOTICE

■

To prevent serious engine damage

Check the oil level on a regular basis.

A

Adding engine oil
