2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

tent, scroll up/down the screen and
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

Move the main meter

and return

to the previous screen

Call sending/receiving and history
display
Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S
MANUAL”.

: F SPORT models

■

Display items (except F SPORT
models)

Press

of the meter control

switches and select

. Then press

to display the following

items:



Drive information 1



Drive information 2



Energy monitor (



P.95)



Tire pressure (



P.329)



Display off

■

Display items (F SPORT models)



Main meter in center position

Press

of the meter control

switches to display the following items:



Drive information 1



Drive information 2



Tire pressure (



P.329)



Units



Display off



Main meter moved to the right

Press

of the meter control

switches and select

. Then press

to display the following

items:



Drive information 1



Drive information 2



Energy monitor (



P.95)



G-force



Tire pressure (



P.329)



Display off

■

Drive information 1/Drive informa-
tion 2

Displays drive information such as the
following:

Use the displayed values as a reference
only.



Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)



Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)

Displayed items (listed below) can be
changed on

. (



P.89)



Current fuel consumption

Bar type: Displays instantaneous current
fuel consumption



Average fuel economy

Content of driving information

2-1. Instrument cluster

After reset: Displays average fuel con-
sumption since the display was reset

After start: Displays average fuel con-
sumption since hybrid system start
After refuel: Displays average fuel con-
sumption since refuel



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since hybrid system start



Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since
hybrid system start



Distance

Driving range: Displays driving range with
remaining fuel

*2, 3

After start: Displays the distance driven
since hybrid system start



Other

Blank: No item

: To reset, display the desired item and

press and hold “OK” of the meter con-
trol switches.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the power switch
off. If the vehicle is refueled without
turning the power switch off, the display
may not be updated.

■

G-force (F SPORT models)

Displays lateral G-forces on the vehi-
cle.

Acceleration G-force on the vehi-
cle

Current G-force value (analyzed
value of front/rear and left/right G-
forces)

Record of the maximum G-forces

This display is intended for use as a guide-
line. Depending on factors such as the
road surface condition, temperature and
vehicle speed, the display may not show
the actual condition of the vehicle.



Resetting the record of maximum
G-forces

Press and hold “OK” of the meter control
switches to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

■

Units (F SPORT models)

On some models, the units of measure
used can be changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display (heading-up dis-
play)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist) (



P.191)



Dynamic radar cruise control with
full-speed range (



P.203)



RSA (Road Sign Assist) (if
equipped) (



P.200)

■

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display (except F
SPORT models)

Select to set the display of the speedome-
ter to digital or analog.



Drive information 1/Drive informa-
tion 2

Select to select up to 2 items (



P.87) that

will be displayed on each Drive information
screen (Drive information 1 screen and
Drive information 2 screen) respectively.



Clock

Select to switch between 12-hour display
and 24-hour display.



Pop-up display

Select to enable/disable some pop-up dis-
plays for each relevant system.



Tachometer setting

Select to set the display of the Hybrid Sys-
tem Indicator or tachometer for each driv-
ing mode.



Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.



Rev peak (F SPORT models)

Select to enable/disable the rev peak.



EV indicator

Select to enable/disable the EV indicator.



Default setting

Select to reset the meter display settings to
the default setting.

■

Vehicle functions and settings that
can be changed



P.417

■

Suspension of the settings display

●

Some settings cannot be changed while

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

Settings display

2-1. Instrument cluster

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

■

Suggestion to turn on the head-
lights

If the headlights turn off, and the vehi-
cle speed is 3 mph (5 km/h) or higher
for a certain amount of time when the
surroundings are dark, a suggestion
message will be displayed.

■

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight

switch in

after the power switch

has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”.

If a front door is opened after the power
switch is turned off, this suggestion mes-
sage will not be displayed.

■

Customization

Some functions can be customized.

(



P.417)

WARNING

■

Cautions during setting up the dis-

play

As the hybrid system needs to be operat-

ing during setting up the display, ensure

that the vehicle is parked in a place with

adequate ventilation. In a closed area

such as a garage, exhaust gases includ-

ing harmful carbon monoxide (CO) may

collect and enter the vehicle. This may

lead to death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while setting up the display features.

Suggestion function

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

: If equipped

Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.

Driving support system display area (



P.93)

Navigation system-linked display area (if equipped)

Displays the following items which are linked to the navigation system:
• Route guidance to destination
• Street name
• Compass (heading-up display)

Driving information display area

Displays the following items:
• Speed limit of the current road (linked to the navigation system) (U.S.A. only)
• RSA (Road Sign Assist) display (if equipped) (



P.200)

• Speedometer
• Shift position and shift range (



P.154)

Hybrid System Indicator/tachometer display area (



P.94)

Head-up display

The head-up display projects a variety of driving-related information and the
operating state of the driving support systems on the windshield.

System components

2-1. Instrument cluster

Head-up display switch

■

Head-up display will operate when

The power switch is in ON mode.

■

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display

Only street names which are included in the

map data will be displayed.

■

Enabling/disabling the head-up
display

Press the Head-up display switch.

■

Changing settings of the head-up
display

The following settings can be changed
on

of the multi-information display.

(



P.85)



Brightness and vertical position of
the head-up display

Select to adjust the brightness or vertical
position of the head-up display.



Hybrid System Indicator/tachome-
ter

Select to display the Hybrid System Indica-
tor, tachometer or no content.



Display content

WARNING

■

When using the head-up display

●

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

●

Do not continuously look at the head-

up display while driving as you may fail

to see pedestrians, objects on the

road, etc. ahead of the vehicle.

NOTICE

■

Head-up display projector

●

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

Using the head-up display

2-1. Instrument cluster

Vehi

cle

status

inform

ati

indic
ators

Select to enable/disable the following
items:
• Route guidance to destination/street

name

• Driving support system display

• Compass (heading-up display)
• Audio system operation status

: Make sure to enable this display when

using the driving support systems



Display angle

Select to adjust the angle of the head-up
display.

■

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the power switch is

turned off then back to ON mode.

■

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted
according to the ambient brightness.

■

Head-up display automatic position

adjustment

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(



P.121)

■

When the 12-volt battery is discon-

nected

The customize settings of the head-up dis-

play will be reset.

Displays the operational status of the
following systems:



LTA (Lane Tracing Assist) (



P.191)



Dynamic radar cruise control with
full-speed range (



P.203)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

■

Driving support systems

Displays a warning/suggestion/advice

WARNING

■

Caution for changing settings of the

head-up display

As the hybrid system needs to be operat-

ing while changing the settings of the

head-up display, ensure that the vehicle

is parked in a place with adequate venti-

lation. In a closed area such as a garage,

exhaust gases including harmful carbon

monoxide (CO) may collect and enter

the vehicle. This may lead to death or a

serious health hazard.

NOTICE

■

When changing the settings of the

head-up display

To prevent 12-volt battery discharge,

ensure that the hybrid system is operat-

ing while changing the settings of the

head-up display.

Driving support system display
area

Pop-up display

2-1. Instrument cluster

message or the operating state of a rel-
evant system.



PCS (Pre-Collision System)
(



P.181)



Intuitive parking assist (if equipped)
(



P.222)



PKSB (Parking Support Brake) (if
equipped) (



P.238)



Brake Override System (



P.138)



Drive-Start Control (DSC)
(



P.143)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

■

icons

These icons are linked to the multi-
information display

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.
(



P.370)

: Information icon

Displayed when a suggestion pop-up dis-
play (



P.90) or advice pop-up display is

displayed on the multi-information display.

■

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display.

■

Audio system operation status

Displayed when an audio remote con-

trol switch on the steering wheel is
operated.

■

Hands-free system status

Displayed when the hands-free system
is operated.

■

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

■

Hybrid System Indicator

Charge area

Hybrid Eco area

Eco area

Power area

Displayed content is the same as that dis-
played on the meter (Hybrid System Indi-
cator). For details, refer to P.77 or P.82.

■

Tachometer

Displays the engine speed in revolu-
tions per minute.

Hybrid System Indica-
tor/tachometer display area

A
B
C
D

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Multi-information display

Center Display

Meter control switches

The energy monitor can be used to
check the vehicle drive status, hybrid
system operation status and energy
regeneration status.

■

Display procedure



Multi-information display

Press

of the meter control

switches and select

, and then press

to select the energy monitor

display.



Center Display

Select

on the main menu.

Select “Energy flow”.

■

Reading the display

The arrows will appear in accordance
with the energy flow. When there is no
energy flow, arrows will not be dis-
played.

The color of the arrows will change as fol-
lows
Blue: When the hybrid battery (traction
battery) is regenerated or charged.

Yellow

/Orange

: When the hybrid bat-

tery (traction battery) is in use.
Red: When the gasoline engine is in use.

: Multi-information display

: Center Display



Multi-information display

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

Gasoline engine

Hybrid battery (traction battery)

Tire

Energy monitor/consump-
tion screen

You can view the status of your
hybrid system and fuel consump-
tion information on the multi-infor-
mation display and Center Display.

System components

Energy monitor

A
B
C

2-1. Instrument cluster



Center Display

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.

Gasoline engine

Electric motor (traction motor)

Hybrid battery (traction battery)

Tires

■

Hybrid battery (traction battery) status

●

The display changes in 8 levels accord-

ing to the remaining charge amount of

the hybrid battery (traction battery).

• The figure shows the multi-information

display as an example for explanation.

• These images are examples only, and

may vary slightly from actual conditions.

Low

High

●

Color of the hybrid battery (traction bat-

tery) displayed on the Center Display will

be blue when the power switch is in other

than ACCESSORY mode.

■

Color of the engine displayed on the

Center Display

Color of the engine displayed on the Cen-

ter Display will be orange when the engine

is running.

■

Display procedure

Select

on the main menu.

Select “Trip information”.

Select “Current”.

■

Display

Resetting the history data

Fuel consumption in the past 15
minutes

Current fuel consumption

Average vehicle speed since the
hybrid system was started.

Trip range

Elapsed time since the hybrid sys-
tem was started.

Use the displayed average fuel consump-
tion as a reference.
The image is an example only, and may
vary slightly from actual conditions.

A
B
C
D

Current screen

A
B

C
D

E
F

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Display procedure

Select

on the main menu.

Select “Trip information”.

Select “History”.

■

Display

Latest fuel consumption

Best recorded fuel consumption

Previous fuel consumption record

Resetting the history data

Updating the latest fuel consump-
tion data

Use the displayed average fuel consump-
tion as a reference.
The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear data”.

■

Trip range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.

This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

History screen

A
B
C
D

fore
dri
ving

Before driving

3-1. Key information

Keys .................................................

100

3-2. Opening, closing and locking the

doors and trunk

Doors...............................................

104

Trunk................................................

108

Smart access system with push-

button start..................................

115

3-3. Adjusting the seats

Front seats.....................................

120

Driving position memory .........

121

Head restraints............................

124

3-4. Adjusting the steering wheel and

mirrors

Steering wheel.............................

126

Inside rear view mirror.............

127

Outside rear view mirrors......

128

3-5. Opening and closing the win-

dows and moon roof

Power windows............................

131

Moon roof .....................................

133

100

3-1. Key information

3-1.Key information

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart access system with

push-button start (



P.115)

• Operating the wireless remote control

function

Mechanical keys

Key number plate

Card key (electronic key) (if
equipped)

Operating the smart access system with
push-button start (



P.115)

■

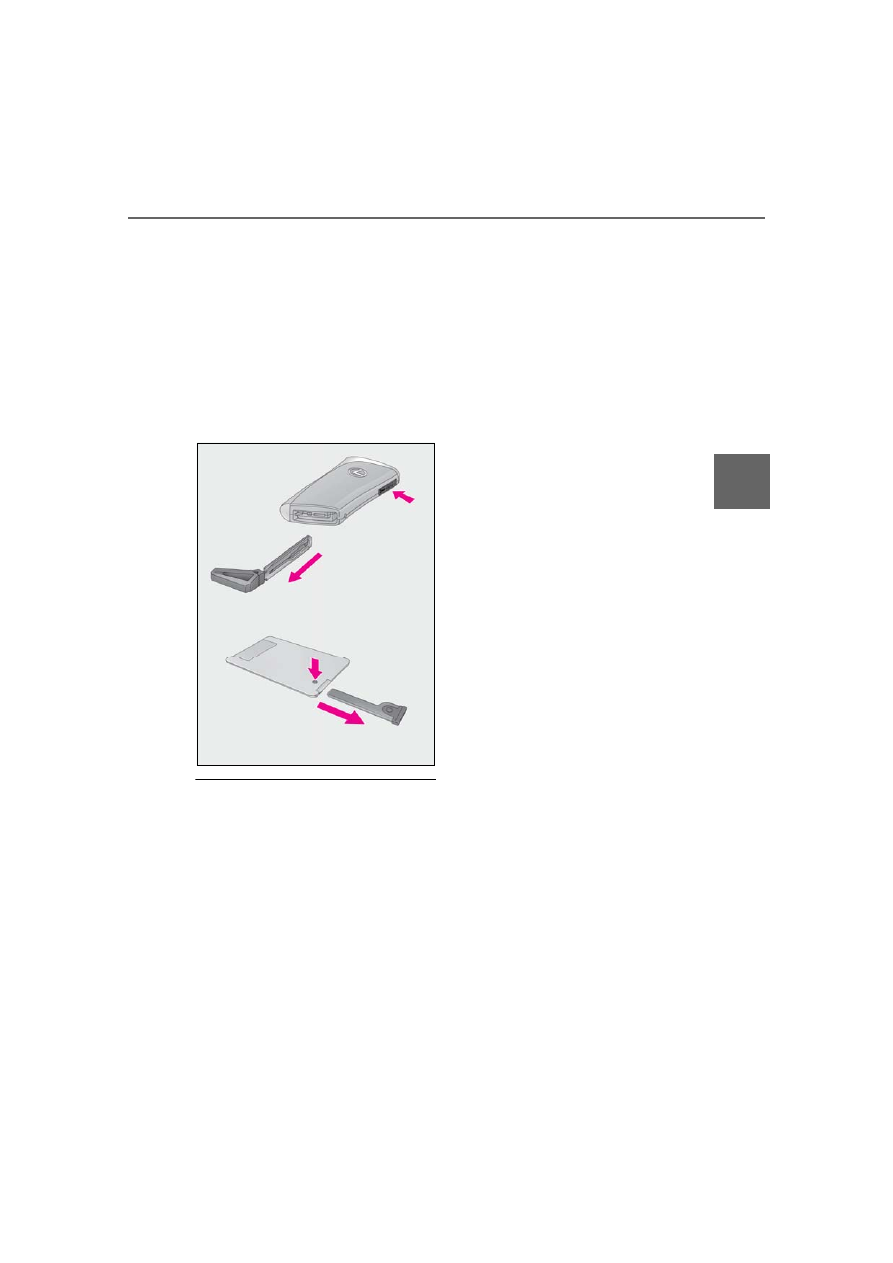

Card key (if equipped)

●

The card key is not waterproof.

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

If it is difficult to take out the mechanical

key, push down the lock release button

using a pen tip etc. If it is still difficult to

pull it out, use a coin etc.

●

To store the mechanical key in the card

key, insert it while pressing the lock

release button.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag etc., ensure that

the buttons are not likely to be pressed

accidentally. Pressing a button may cause

the electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is from one year

to one year and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin when the hybrid sys-

tem is stopped.

●

Battery-saving mode can reduce the

Keys

Key types

B
C
D

101

3-1. Key information

fore
dri

ving

power consumption of electronic keys

that are not used for long periods of time.

(



P.117)

●

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary. (



P.343)

• The smart access system with push-but-

ton start or the wireless remote control

does not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

You can replace the battery by yourself
(



P.343). However, as there is a danger

that the electronic key may be damaged, it
is recommended that replacement be car-
ried out by your Lexus dealer.

●

To avoid serious deterioration, do not

leave the electronic key within 3 ft. (1 m)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

■

Replacing the battery



P.343

■

Confirmation of the registered key

number

The number of keys already registered to

the vehicle can be confirmed. Ask your

Lexus dealer for details.

■

If “A New Key has been Registered

Contact Your Dealer for Details” is

shown on the multi-information display

This message will be displayed each time

the driver’s door is opened when the doors

are unlocked from the outside for approxi-

mately 10 days after a new electronic key

has been registered.

If this message is displayed but you have not

had a new electronic key registered, ask

your Lexus dealer to check if an unknown

electronic key (other than those in your

possession) has been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to

strong shocks or bend them.

●

Do not expose the keys to high tem-

peratures for long periods of time.

●

Do not get the keys wet or wash them

in an ultrasonic washer etc.

●

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else

to the surface of the electronic key.

●

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers.

●

Do not place the keys near medical

electrical equipment such as low-fre-

quency therapy equipment or micro-

wave therapy equipment, and do not

receive medical attention with the keys

on your person.

■

Carrying the electronic key on your

person

Carry the electronic key 3.9 in. (10 cm)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 3.9 in. (10

cm) of the electronic key may interfere

with the key, causing the key to not func-

tion properly.

■

In case of a smart access system with

push-button start malfunction or
