6-3. Do-it-yourself maintenance

When replacing wheels, care should
be taken to ensure that they are equiv-
alent to those removed in load capac-
ity, diameter, rim width and inset

Replacement wheels are available at
your Lexus dealer.

: Conventionally referred to as offset.

Lexus does not recommend using the
following:



Wheels of different sizes or types



Used wheels



Bent wheels that have been
straightened

■

When replacing wheels

The wheels of your vehicle are equipped

with tire pressure warning valves and trans-

mitters that allow the tire pressure warning

system to provide advance warning in the

event of a loss in tire inflation pressure.

Whenever wheels are replaced, tire pres-

sure warning valves and transmitters must

be installed. (



P.327)



Use only Lexus wheel nuts and
wrenches designed for use with
your aluminum wheels.



When rotating, repairing or chang-
ing your tires, check that the wheel
nuts are still tight after driving 1000
miles (1600 km).



Be careful not to damage the alumi-
num wheels when using tire chains.



Use only Lexus genuine balance
weights or equivalent and a plastic
or rubber hammer when balancing
your wheels.

Wheels

If a wheel is bent, cracked or heav-
ily corroded, it should be replaced.
Otherwise, the tire may separate
from the wheel or cause a loss of
handling control.

Wheel selection

WARNING

■

When replacing wheels

●

Do not use wheels that are a different

size from those recommended in the

loss of handling control.

●

Never use an inner tube in a leaking

wheel which is designed for a tubeless

tire. Doing so may result in an acci-

dent, causing death or serious injury.

■

Use of defective wheels prohibited

Do not use cracked or deformed wheels.

Doing so could cause the tire to leak air

during driving, possibly causing an acci-

dent.

NOTICE

■

Replacing tire pressure warning

valves and transmitters

●

Because tire repair or replacement

may affect the tire pressure warning

valves and transmitters, make sure to

have tires serviced by your Lexus

dealer or other qualified service shop.

In addition, make sure to purchase

your tire pressure warning valves and

transmitters at your Lexus dealer.

●

Ensure that only genuine Lexus wheels

are used on your vehicle.

Tire pressure warning valves and

transmitters may not work properly

with non-genuine wheels.

Aluminum wheel precautions

335

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

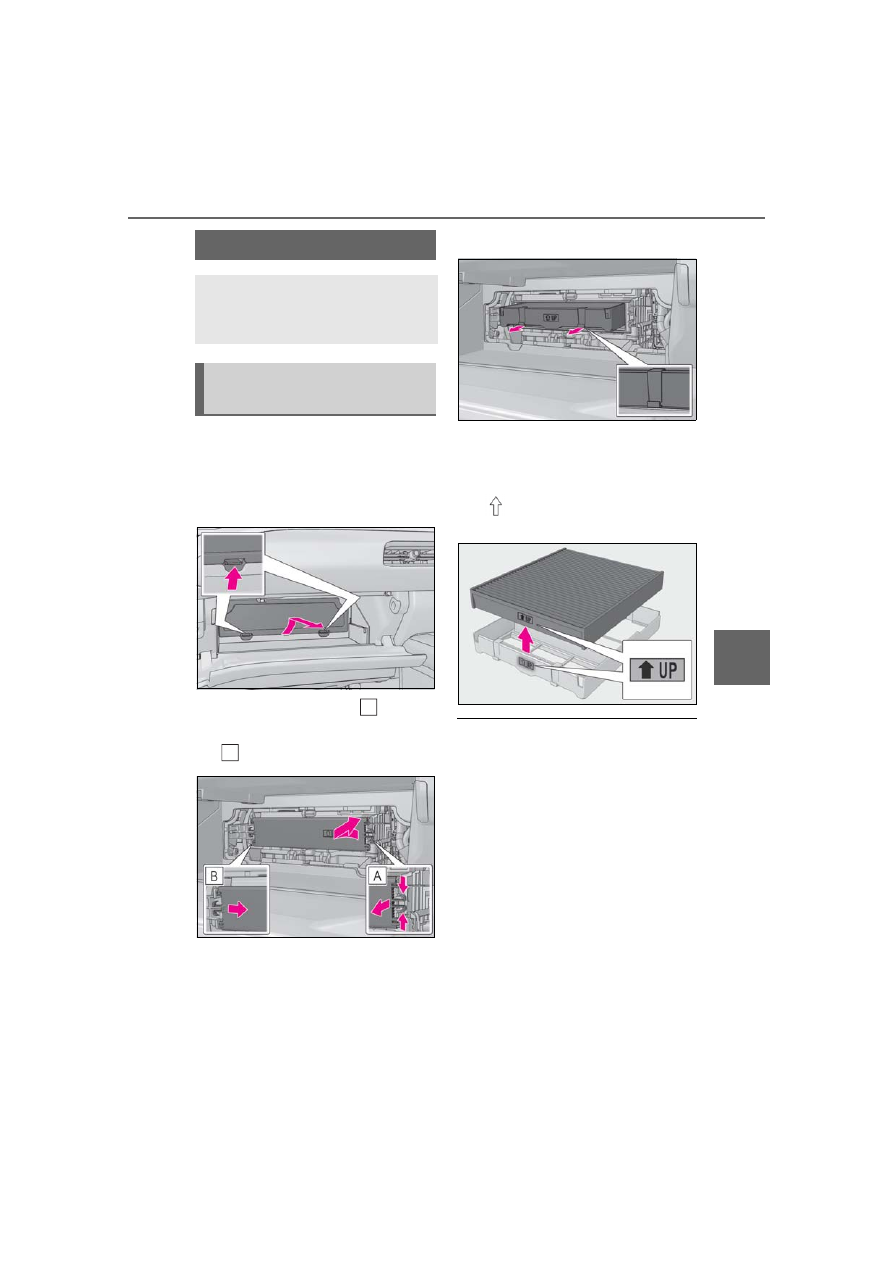

Turn the engine switch off.

Open the glove box. Remove the
partition. (



P.275)

Remove the panel.

Unlock the filter cover (

), pull

the filter cover out of the claws
(

), and remove the filter cover.

Remove the filter case.

Remove the air conditioning filter
from the filter case and replace it
with a new one.

The “

UP” marks shown on the filter and

the filter case should be pointing up.

■

Checking interval

Inspect and replace the air conditioning fil-

ter according to the maintenance schedule.

In dusty areas or areas with heavy traffic

flow, early replacement may be required.

(For scheduled maintenance information,

plement” or “Scheduled Maintenance”.)

■

If air flow from the vents decreases dra-

matically

The filter may be clogged. Check the filter

and replace if necessary.

■

Air conditioning filter with deodorizing

function

When fragrances are placed in your vehi-

cle, the deodorizing effect may become sig-

nificantly weakened in a short period.

When an air conditioning odor comes out

continuously, replace the air conditioning

Air conditioning filter

The air conditioning filter must be
changed regularly to maintain air
conditioning efficiency.

Removing the air conditioning
filter

336

6-3. Do-it-yourself maintenance

filter.

■

If the electronic key battery is depleted

The following symptoms may occur:

●

The smart access system with push-but-

ton start and wireless remote control will

not function properly.

●

The operational range will be reduced.

■

When the card key battery needs to be

replaced (if equipped)

The battery for the card key is available only

at Lexus dealers. Your Lexus dealer can

replace the battery for you.

Prepare the following before replacing
the battery:



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2032

■

Use a CR2032 lithium battery

●

Batteries can be purchased at your Lexus

dealer, local electrical appliance shops or

camera stores.

●

Replace only with the same or equivalent

type recommended by the manufacturer.

●

Dispose of used batteries according to

the local laws.

NOTICE

■

When using the air conditioning sys-

tem

Make sure that a filter is always installed.

Using the air conditioning system with-

out a filter may cause damage to the sys-

tem.

■

To prevent damage to the filter cover

When moving the filter cover in the

direction of arrow to release the fitting,

pay attention not to apply excessive

force to the claws. Otherwise, the claws

may be damaged.

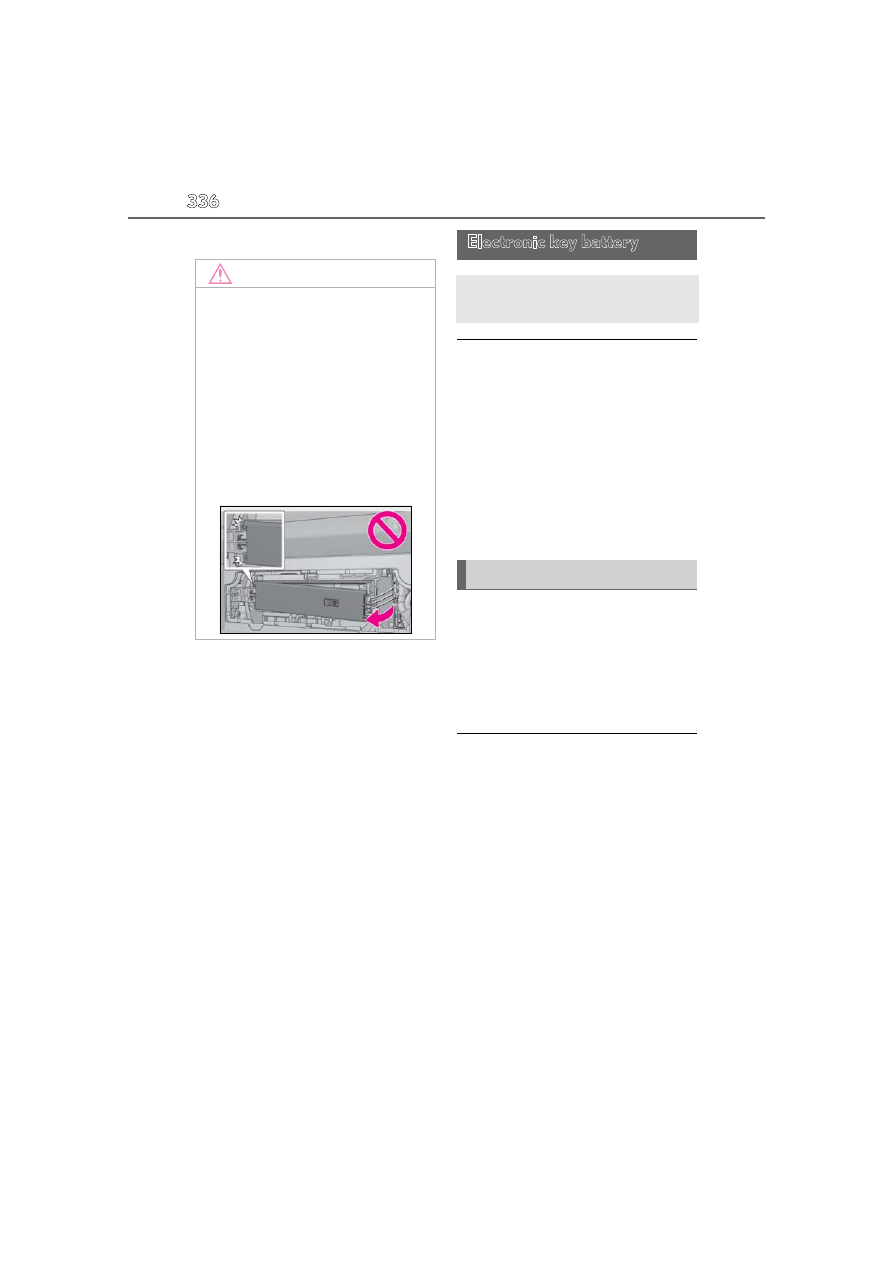

Electronic key battery

Replace the battery with a new one
if it is depleted.

Items to prepare

337

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

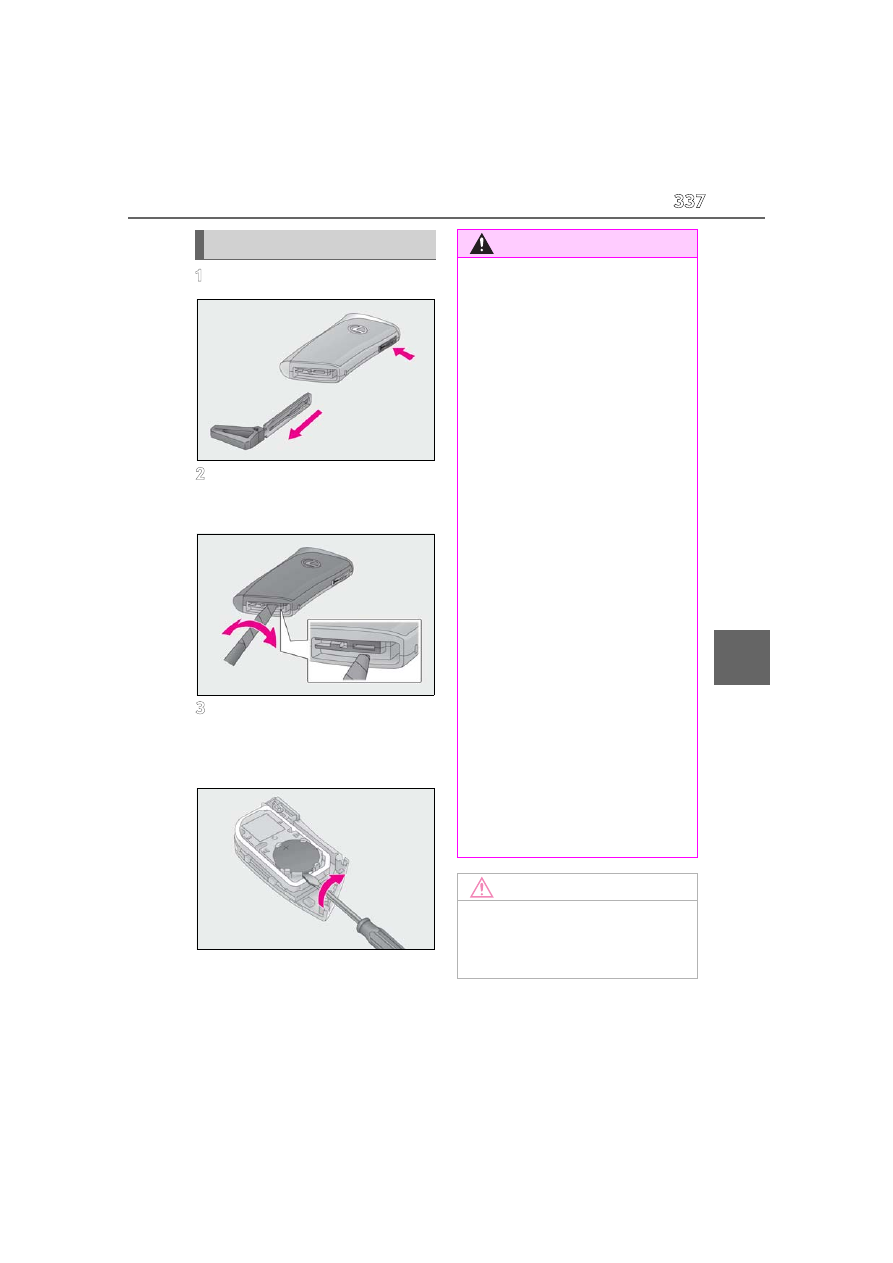

Take out the mechanical key.

Remove the cover.

To prevent damage to the key, cover the

tip of the flathead screwdriver with a tape.

Remove the depleted battery using
the small flathead screwdriver.

Insert a new battery with the “+” terminal

facing up.

Replacing the battery

WARNING

■

Battery precautions

Observe the following precautions.
Failure to do so may result in death or

serious injury.

●

Do not swallow the battery. Doing so

may cause chemical burns.

●

A coin battery or button battery is

used in the electronic key. If a battery

is swallowed, it may cause severe

chemical burns in as little as 2 hours

and may result in death or serious

injury.

●

Keep away new and removed batter-

ies from children.

●

If the cover cannot be firmly closed,

stop using the electronic key and stow

the key in the place where children

cannot reach, and then contact your

Lexus dealer.

●

If you accidentally swallow a battery or

put a battery into a part of your body,

get emergency medical attention

immediately.

■

To prevent battery explosion or leak-

age of flammable liquid or gas

●

Replace the battery with a new battery

of the same type. If a wrong type of

battery is used, it may explode.

●

Do not expose batteries to extremely

low pressure due to high altitude or

extremely high temperatures.

●

Do not burn, break or cut a battery.

NOTICE

■

When replacing the battery

Use a screwdriver of appropriate size.

Applying excessive force may deform or

damage the cover.

338

6-3. Do-it-yourself maintenance

Turn the engine switch off.

Open the fuse box cover.



Engine compartment: type A fuse
box

Push the tab in and lift the lid off.



Engine compartment: type B fuse
box

Push the tab in and lift the lid off.



Left side instrument panel

Remove the lid.

NOTICE

■

For normal operation after replacing

the battery

Observe the following precautions to

prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery to

rust.

●

Do not touch or move any other com-

ponent inside the remote control.

●

Do not bend either of the battery ter-

minals.

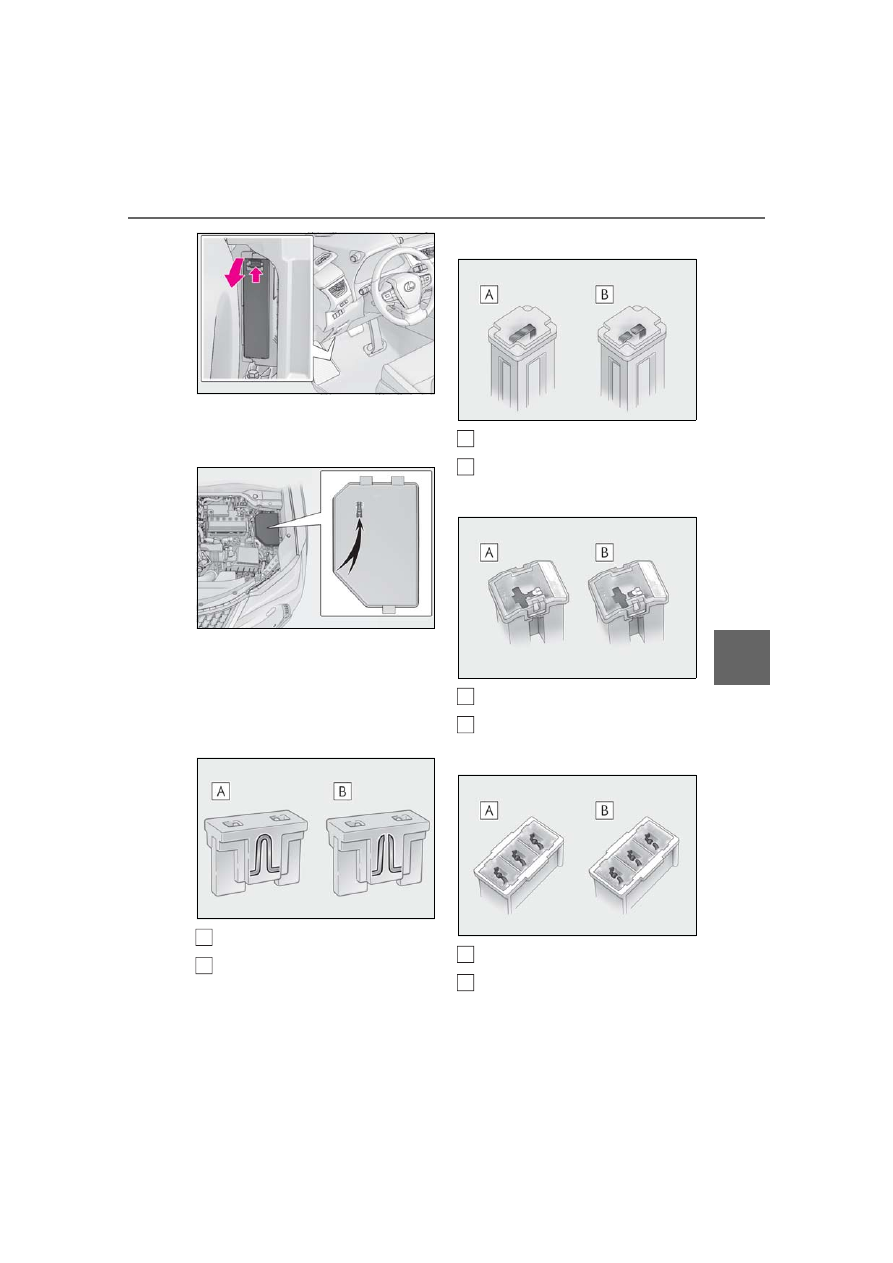

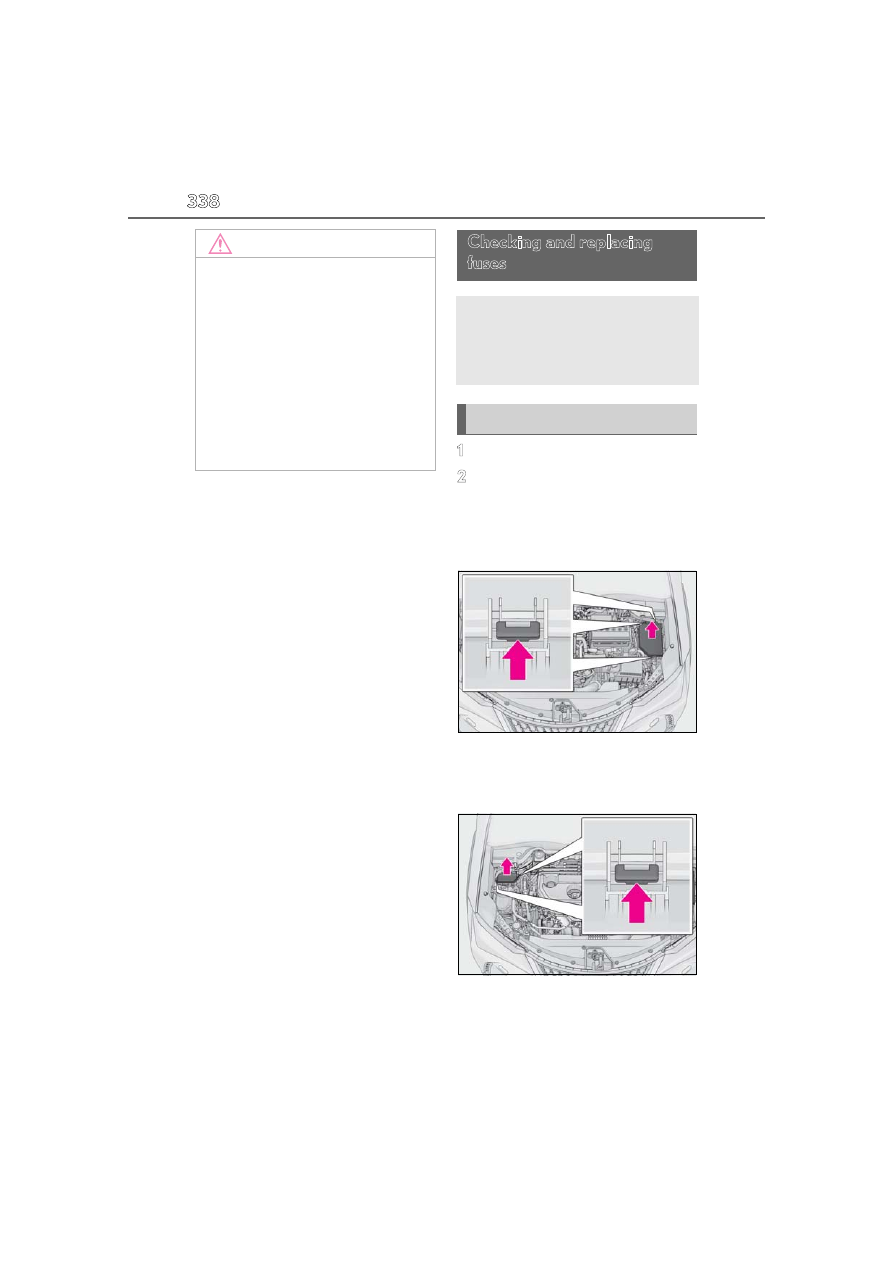

Checking and replacing
fuses

If any of the electrical components
do not operate, a fuse may have
blown. If this happens, check and
replace the fuses as necessary.

Checking and replacing fuses

339

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

Remove the fuse.

Only type A fuse can be removed using

the pullout tool.

Check if the fuse is blown.

Replace the blown fuse with a new fuse of

an appropriate amperage rating. The

amperage rating can be found on the fuse

box lid.



Type A

Normal fuse

Blown fuse



Type B

Normal fuse

Blown fuse



Type C

Normal fuse

Blown fuse



Type D

Normal fuse

Blown fuse

A
B

340

6-3. Do-it-yourself maintenance

■

After a fuse is replaced

●

When installing the lid, make sure that the

tab is installed securely.

●

If the lights do not turn on even after the

fuse has been replaced, a bulb may need

replacement. (



P.342)

●

If the replaced fuse blows again, have the

vehicle inspected by your Lexus dealer.

■

If there is an overload in a circuit

The fuses are designed to blow, protecting

the wiring harness from damage.

■

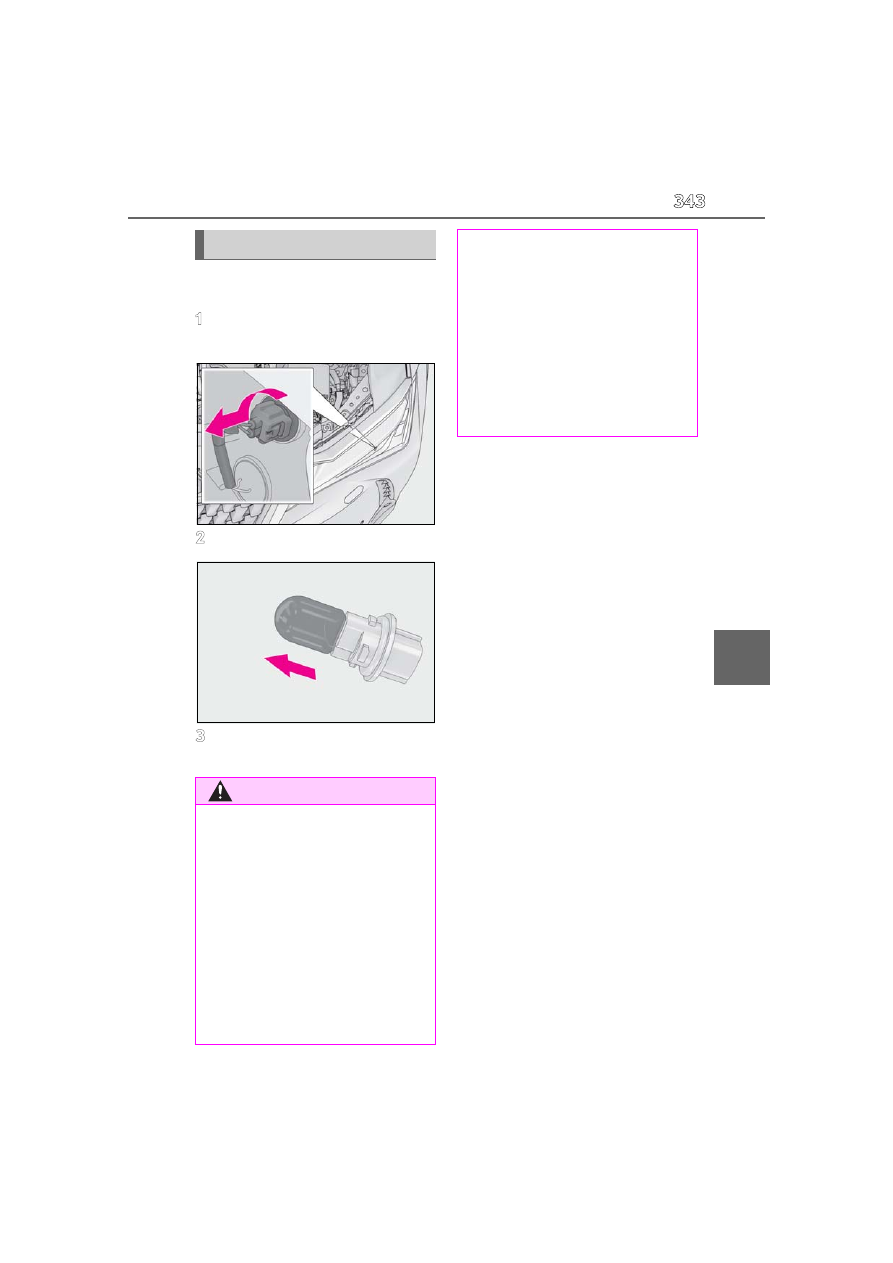

When replacing light bulbs

Lexus recommends that you use genuine

Lexus products designed for this vehicle.

Because certain bulbs are connected to cir-

cuits designed to prevent overload, non-

genuine parts or parts not designed for this

vehicle may be unusable.



Single-beam headlights

Adjustment bolt A

Adjustment bolt B



Triple-beam headlights

Adjustment bolt A

Adjustment bolt B



Make sure the vehicle has a full tank
of gasoline and the area around the
headlight is not deformed.



Park the vehicle on level ground.



Make sure the tire inflation pressure

WARNING

■

To prevent system breakdowns and

vehicle fire

Observe the following precautions.

Failure to do so may cause damage to

the vehicle, and possibly a fire or injury.

●

Never use a fuse of a higher amperage

rating than that indicated, or use any

other object in place of a fuse.

●

Always use a genuine Lexus fuse or

equivalent.

Never replace a fuse with a wire, even

as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical overload

determined and repaired by your Lexus

dealer as soon as possible.

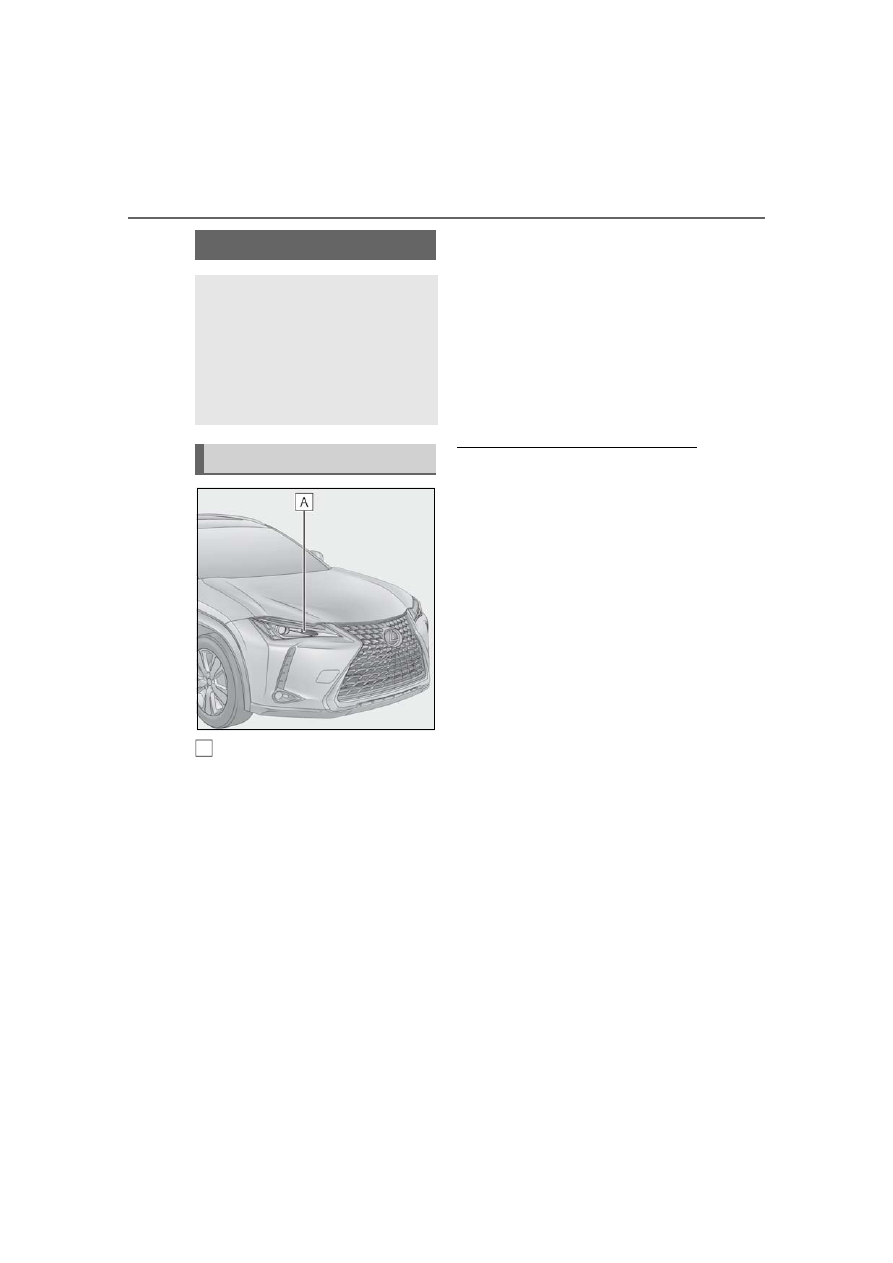

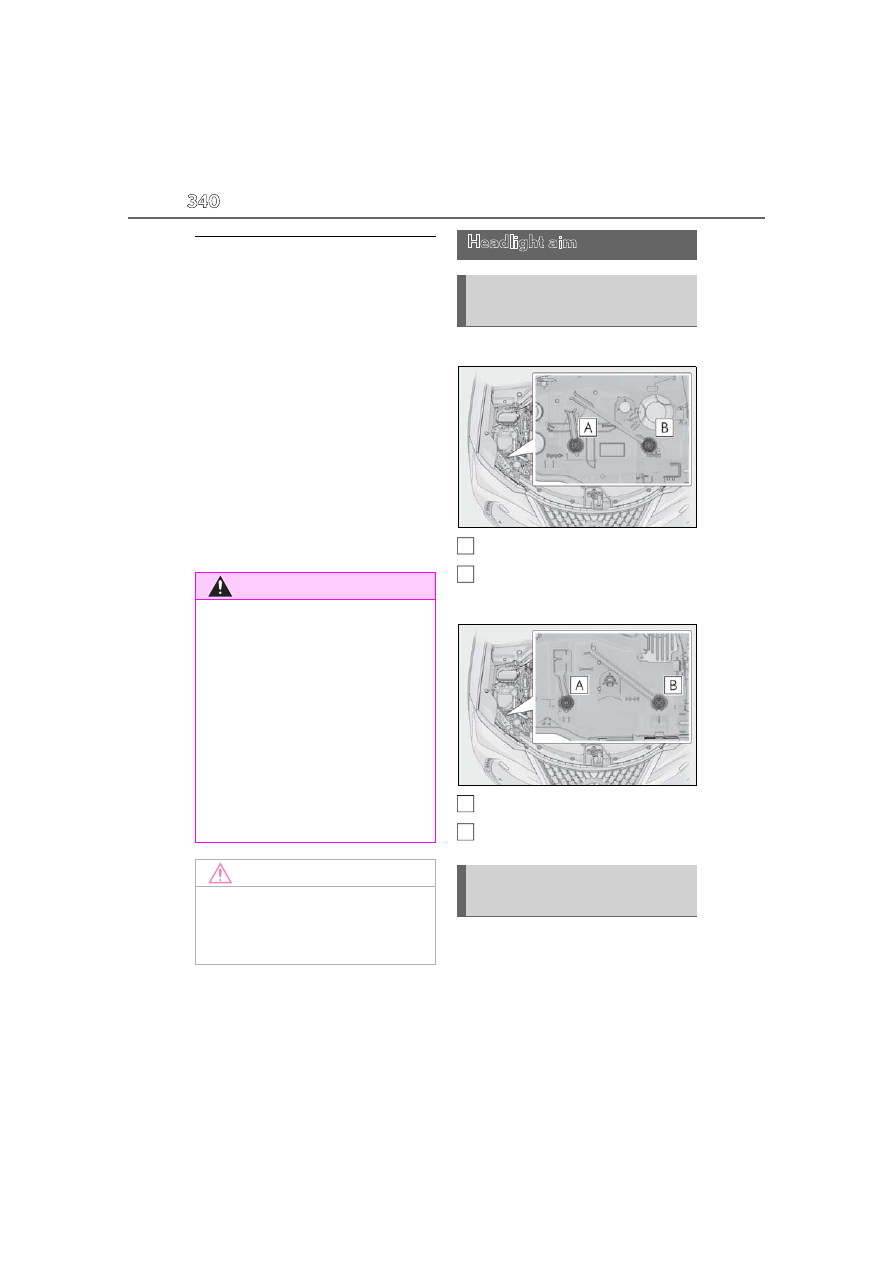

Headlight aim

Vertical movement adjusting
bolts

Before checking the headlight
aim

341

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

is at the specified level.



Have someone sit in the driver’s
seat.



Bounce the vehicle several times.

Using a Phillips-head screwdriver,
turn bolt A in either direction.
Remember the turning direction
and the number of turns.



Single-beam headlights



Triple-beam headlights

Turn bolt B the same number of
turns and in the same direction as
step

If the headlight cannot be adjusted using

this procedure, take the vehicle to your

Lexus dealer to adjust the headlight aim.



Single-beam headlights



Triple-beam headlights

Adjusting the headlight aim

342

6-3. Do-it-yourself maintenance

Front turn signal light (vehicles with
single-beam headlights)

■

Bulbs that need to be replaced by
your Lexus dealer



Headlights



Parking lights and daytime running
lights



Front turn signal lights (vehicles with
triple-beam headlights)



Fog lights (if equipped)



Cornering lights (if equipped)



Side turn signal lights



Tail lights



Stop lights



Tail lights/stop lights



Rear turn signal lights



Back-up lights



High mounted stoplight



License plate lights



Side marker lights

■

LED lights

Vehicles with single-beam headlights:
The lights other than the front turn signal

light each consist of a number of LEDs. If

any of the LEDs burn out, take your vehicle

to your Lexus dealer to have the light

replaced.
Vehicles with triple-beam headlights:
The lights consist of a number of LEDs. If

any of the LEDs burn out, take your vehicle

to your Lexus dealer to have the light

replaced.

■

Condensation build-up on the inside of

the lens

Temporary condensation build-up on the

inside of the headlight lens does not indi-

cate a malfunction. Contact your Lexus

dealer for more information in the following

situations:

●

Large drops of water have built up on the

inside of the lens.

●

Water has built up inside the headlight.

■

When replacing light bulbs



P.340

Light bulbs

You may replace the following bulb
by yourself. Before replacing,
check the wattage of the light bulb
to be replaced. As there is a danger
that components may be damaged,
we recommend that replacement is
carried out by your Lexus dealer.

Bulb location

343

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

■

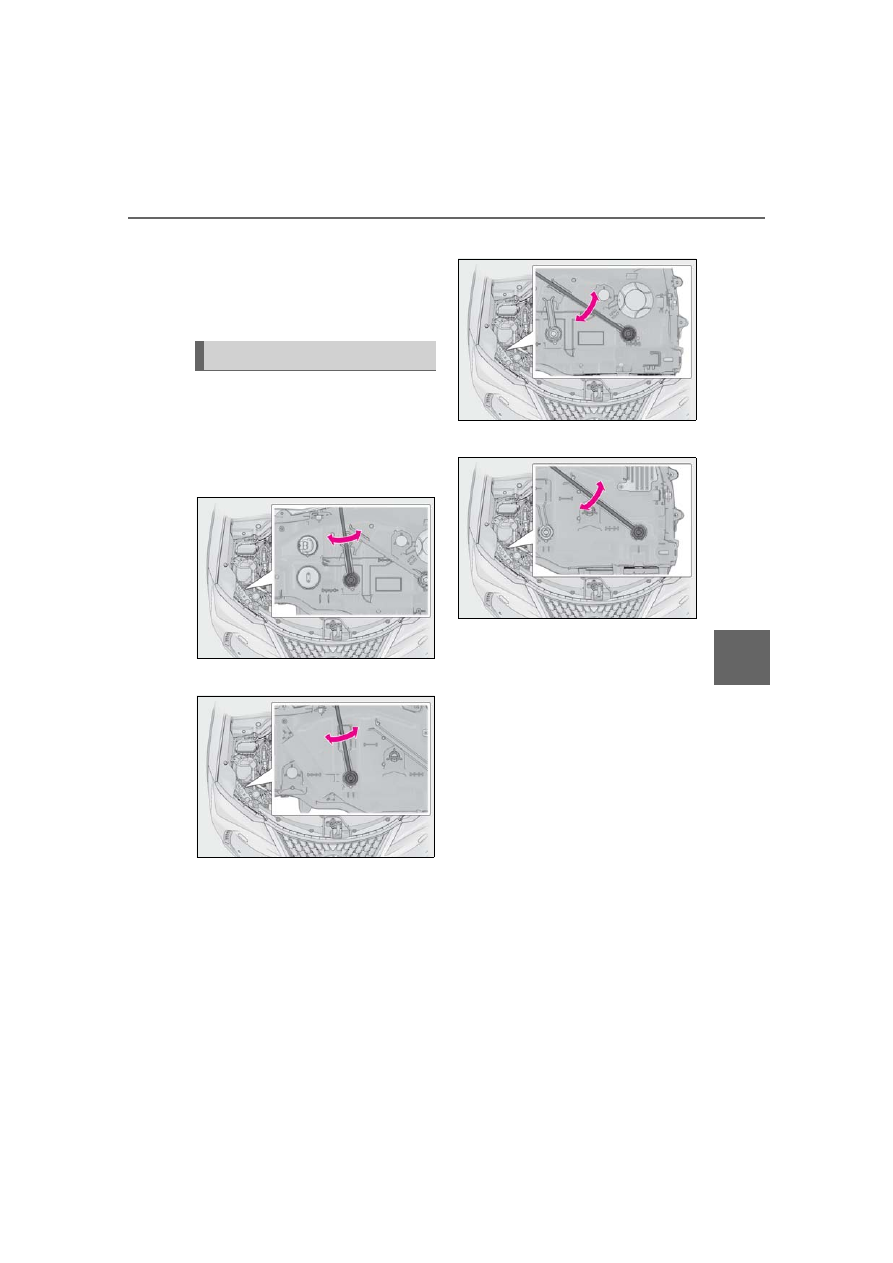

Front turn signal lights (vehicles
with single-beam headlights)

Turn the bulb base counterclock-
wise.

Remove the light bulb.

When installing, reverse the steps
listed.

Replacing light bulb

WARNING

■

Replacing light bulb

●

Turn off the light. Do not attempt to

replace the bulb immediately after

turning off the light.

The bulb become very hot and may

cause burns.

●

Do not touch the glass portion of the

light bulb with bare hands. When it is

unavoidable to hold the glass portion,

use and hold with a clean dry cloth to

avoid getting moisture and oils on the

bulb.

Also, if the bulb is scratched or

dropped, it may blow out or crack.

●

Fully install light bulb and any parts

used to secure it. Failure to do so may

result in heat damage, fire, or water

entering the light unit. This may dam-

age the light or cause condensation to

build up on the lens.

■

To prevent damage or fire

●

Make sure bulb is fully seated and

locked.

●

Check the wattage of the bulb before

installing to prevent heat damage.

345

When trouble

ari

ses

When trouble arises

7-1. Essential information

Emergency flashers..................

346

If your vehicle has to be stopped

in an emergency.....................

346

If the vehicle is submerged or

water on the road is rising ..

347

7-2. Steps to take in an emergency

If your vehicle needs to be towed

........................................................

349

If you think something is wrong

........................................................

352

Fuel pump shut off system .....

353

If a warning light turns on or a

warning buzzer sounds .......

354

If a warning message is displayed

........................................................

363

If you have a flat tire (vehicles with

spare tire) ..................................

366

If you have a flat tire (vehicles

without spare tire)..................

373

If the engine will not start .......

374

If you lose your keys.................

375

If the fuel filler door cannot be

opened........................................

376

If the electronic key does not

operate properly ....................

376

If the vehicle battery is

discharged ................................

378

If your vehicle overheats ........

382

If the vehicle becomes stuck

384

346

7-1. Essential information

7-1.Essential information

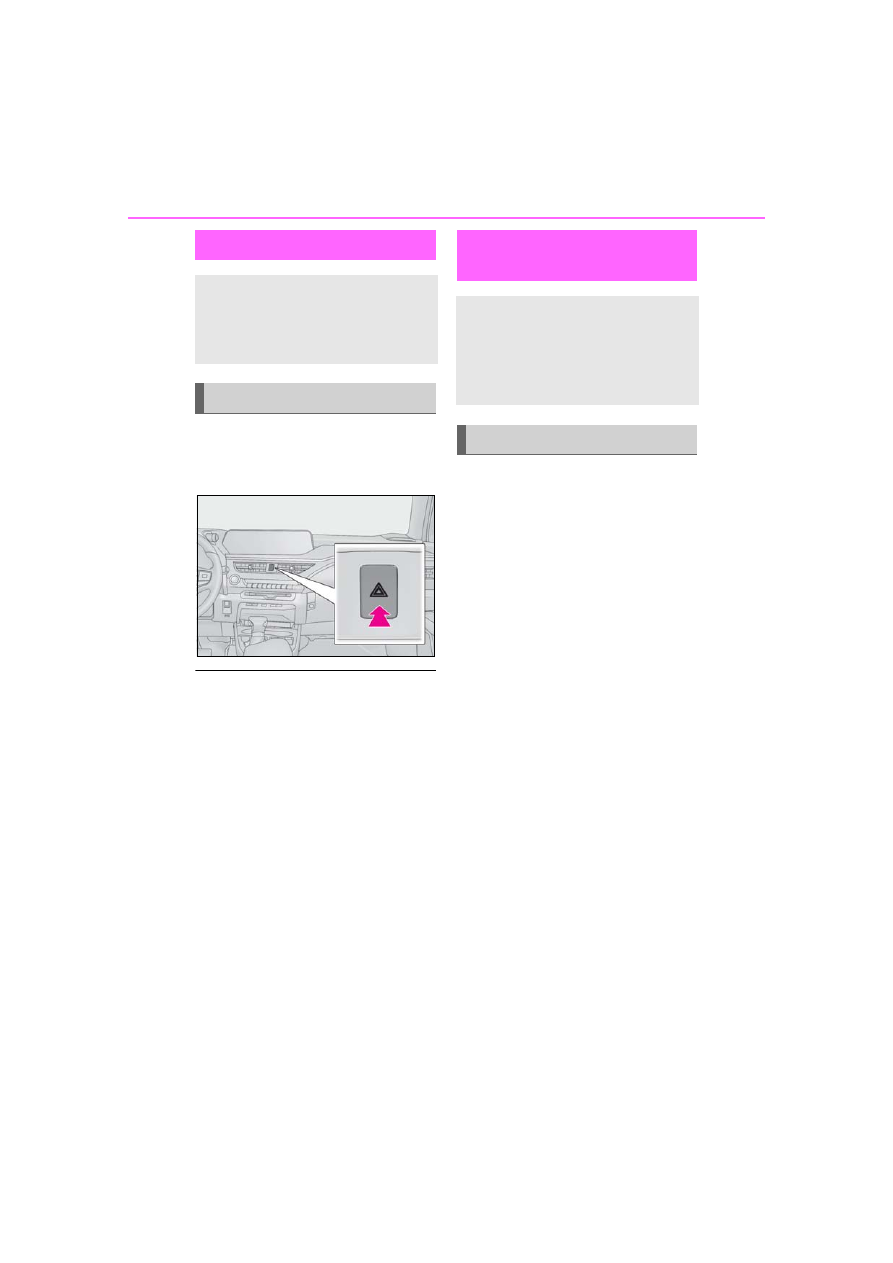

Press the switch.

All the turn signal lights will flash. To turn
them off, press the switch once again.

■

Emergency flashers

●

If the emergency flashers are used for a

long time while the engine is not running,

the battery may discharge.

●

If any of the SRS airbags deploy (inflate)

or in the event of a strong rear impact, the

emergency flashers will turn on automati-

cally. The emergency flashers will turn off

automatically after operating for approxi-

mately 20 minutes. To manually turn the

emergency flashers off, press the switch

twice. (The emergency flashers may not

turn on automatically depending on the

force of the impact and conditions of the

collision.)

Steadily step on the brake pedal
with both feet and firmly depress it.

Do not pump the brake pedal repeatedly

as this will increase the effort required to

slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N

After slowing down, stop the vehi-
cle in a safe place by the road.

Stop the engine.



If the shift lever cannot be shifted to
N

Keep depressing the brake pedal
with both feet to reduce vehicle
speed as much as possible.

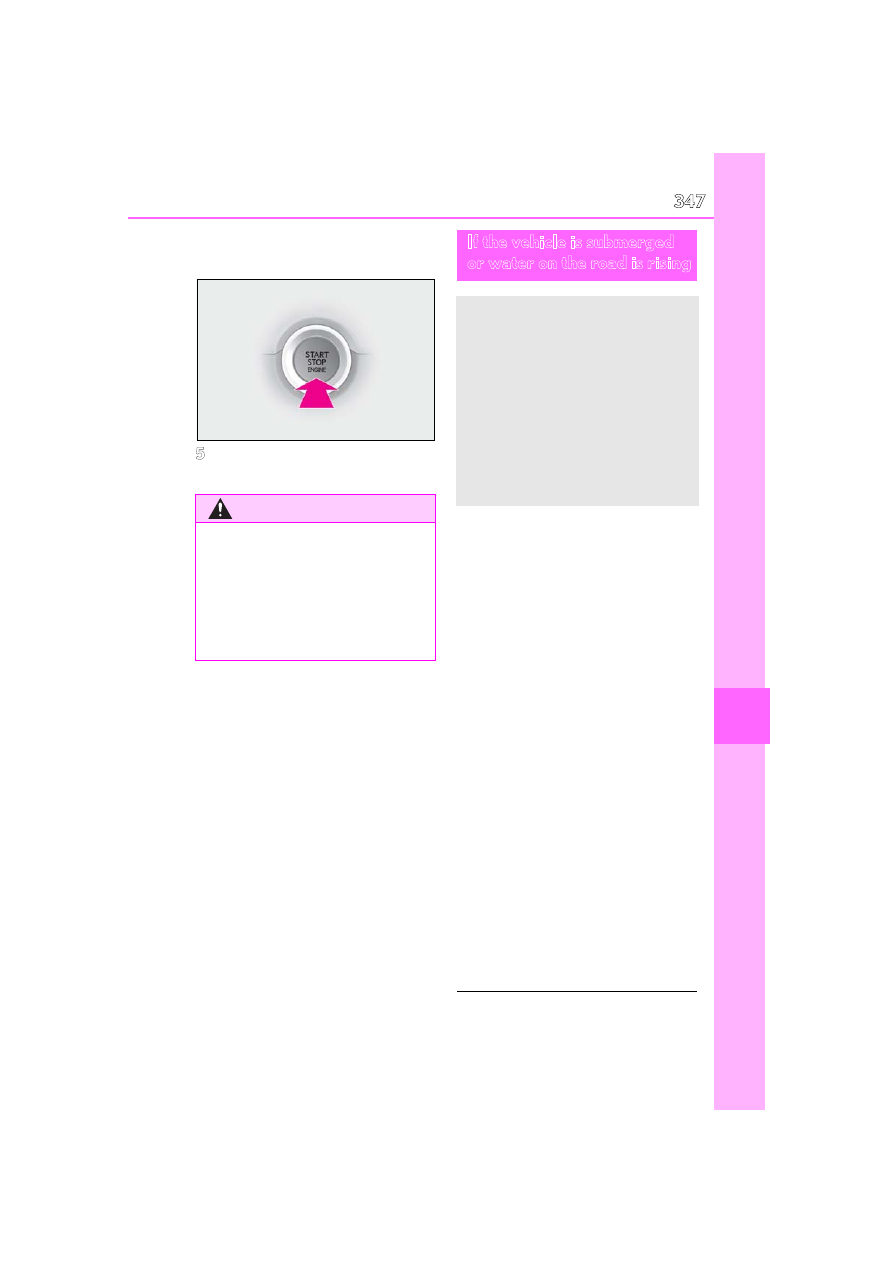

To stop the engine, press and hold
the engine switch for 2 consecutive

Emergency flashers

The emergency flashers are used to
warn other drivers when the vehi-
cle has to be stopped in the road
due to a breakdown, etc.

Operating instructions

If your vehicle has to be
stopped in an emergency

Only in an emergency, such as if it
becomes impossible to stop the
vehicle in the normal way, stop the
vehicle using the following proce-
dure:

Stopping the vehicle

347

7-1. Essential information

n t

ris

seconds or more, or press it briefly
3 times or more in succession.

Stop the vehicle in a safe place by
the road.



If the door can be opened, open the
door and exit the vehicle.



If the door can not be opened, open
the window using the power win-
dow switch and ensure an escape
route.



If the window can be opened, exit
the vehicle through the window.



If the door and window cannot be
opened due to the rising water,
remain calm, wait until the water
level inside the vehicle rises to the
point that the water pressure inside
of the vehicle equals the water pres-
sure outside of the vehicle and then
open the door after waiting for the
rising water to enter the vehicle, and
exit the vehicle. When the outside
water level exceeds half the height
of the door, the door cannot be
opened from the inside due to water
pressure.

■

Water level exceeds the floor

When the water level exceeds the floor and

WARNING

■

If the engine has to be turned off while

driving

Power assist for the brakes and steering

wheel will be lost, making the brake

pedal harder to depress and the steering

wheel heavier to turn. Decelerate as

much as possible before turning off the

engine.

If the vehicle is submerged
or water on the road is rising

This vehicle is not designed to be
able to drive on roads that are
deeply flooded with water. Do not
drive on roads where the roads may
be submerged or the water may be
rising. It is dangerous to remain in
the vehicle, if it anticipated that the
vehicle will be flooded or set a drift.
Remain calm and follow the follow-
ing.

348

7-1. Essential information

time has passed, the electrical equipment

will get damaged, the power windows will

not operate, the engine stops, and the vehi-

cle may not be able to get moving.

■

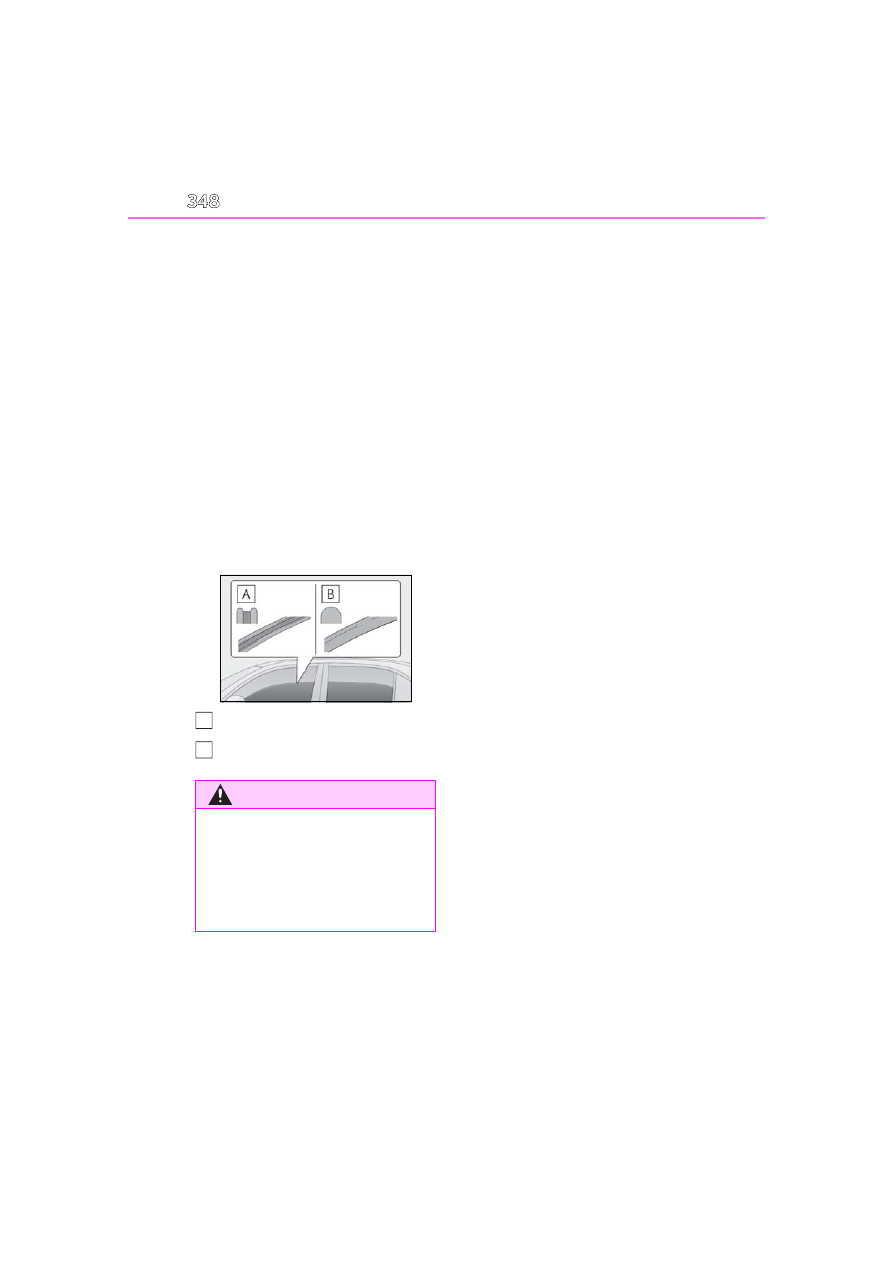

Using an emergency escape hammer

Laminated glass

is used in the windshield

and front side windows on this vehicle.

Laminated glass cannot be shattered with
an emergency hammer

: Contact your Lexus dealer or aftermar-

ket accessory manufacturer for further
information about an emergency ham-
mer.

: If equipped

■

How to distinguish laminated glass

When looking from the cross-sectional

view point, laminated glass is two sheets of

glass pasted together.

Laminated glass

Tempered glass

WARNING

■

Caution while driving

Do not drive on roads where the roads

may be submerged or the water may be

rising. Otherwise the vehicle may be

damaged and cannot move, as well as

become flooded and set a drift, which

may lead to death.

349

7-2. Steps to take in an emergency

n t

ris

7-2.Steps to take in an emergency

The following may indicate a problem
with your transmission. Contact your
Lexus dealer or commercial towing
service before towing.



The engine is running but the vehi-
cle does not move.



The vehicle makes an abnormal
sound.

If your vehicle needs to be
towed

If towing is necessary, we recom-
mend having your vehicle towed by
your Lexus dealer or commercial
towing service, using a wheel-lift
type truck or flatbed truck.
Use a safety chain system for all
towing, and abide by all state/pro-
vincial and local laws.

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

■

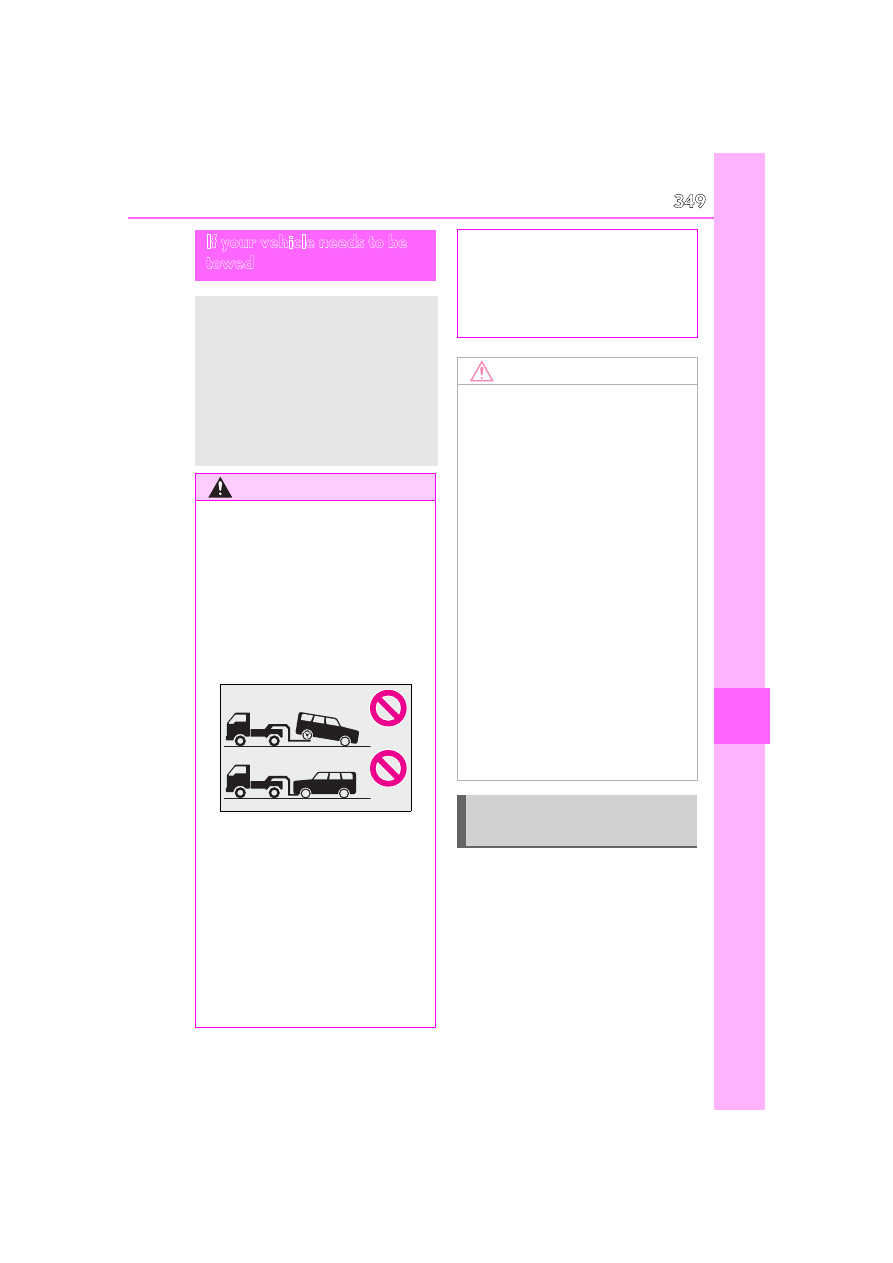

When towing the vehicle

Be sure to transport the vehicle with the

front wheels raised or with all four wheels

raised off the ground. If the vehicle is

towed with the front wheels contacting

the ground, the drivetrain and related

parts may be damaged.

■

While towing

●

When towing using cables or chains,

avoid sudden starts, etc. which place

excessive stress on the towing eyelets,

cables or chains. The towing eyelets,

cables or chains may become dam-

aged, broken debris may hit people,

and cause serious damage.

●

Do not turn the engine switch off.

There is a possibility that the steering

wheel is locked and cannot be oper-

ated.

■

Installing towing eyelets to the vehi-

cle

Make sure that towing eyelets are

installed securely.

If not securely installed, towing eyelets

may come loose during towing.

NOTICE

■

To prevent damage to the vehicle

when towing using a wheel-lift type

truck

●

Do not tow the vehicle from the rear

when the engine switch is OFF.

The steering lock mechanism is not

strong enough to hold the front wheels

straight.

●

When raising the vehicle, ensure ade-

quate ground clearance for towing at

the opposite end of the raised vehicle.

Without adequate clearance, the vehi-

cle could be damaged while being

towed.

■

To prevent damage to the vehicle

when towing with a sling-type truck

Do not tow with a sling-type truck, either

from the front or rear.

■

To prevent damage to the vehicle

during emergency towing

Do not secure cables or chains to the

suspension components.

Situations when it is necessary to
contact dealers before towing

350

7-2. Steps to take in an emergency



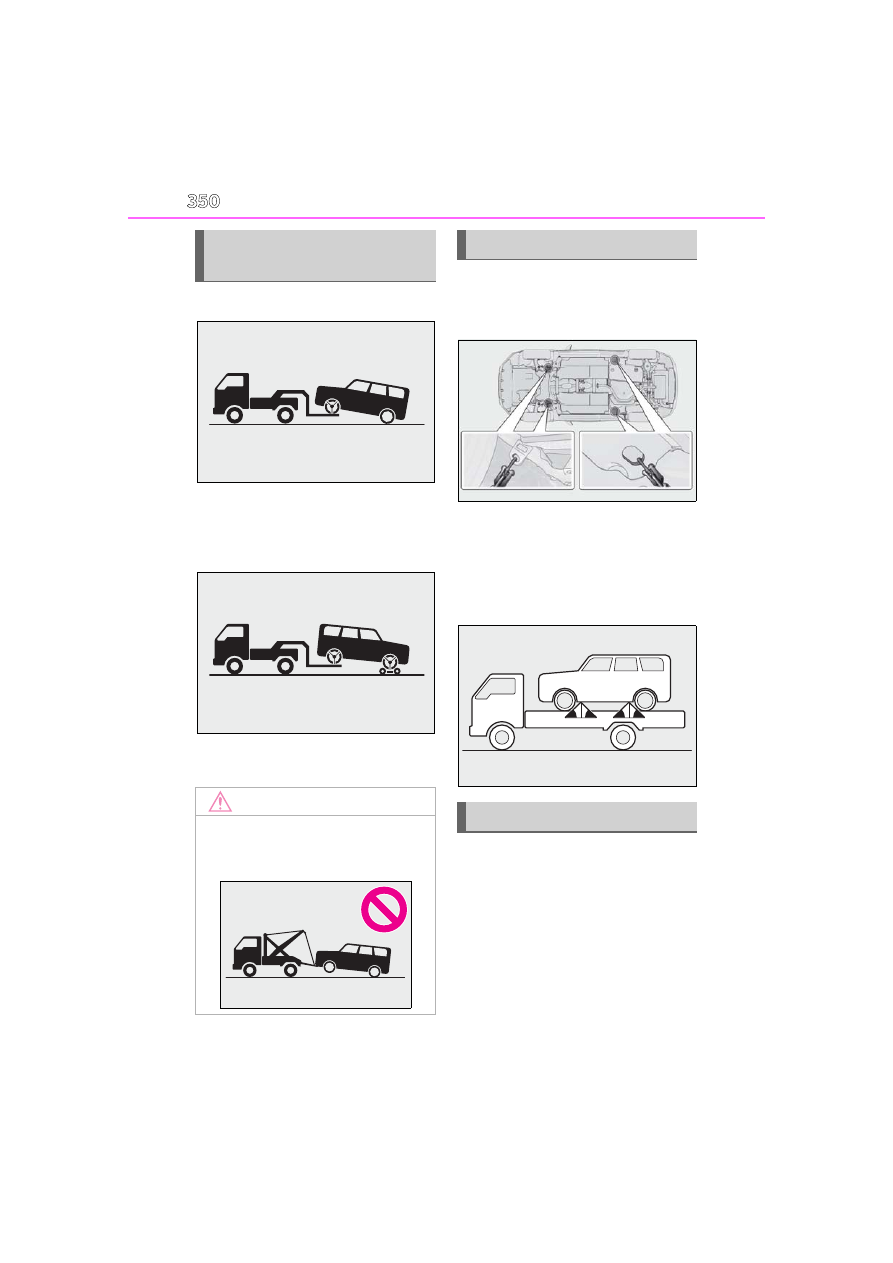

From the front

Release the parking brake.
Turn automatic mode off. (



P.158)



From the rear

Use a towing dolly under the front
wheels.

If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration.

If you use chains or cables to tie down
your vehicle, the angles shaded in
black must be 45°.
Do not overly tighten the tie downs or
the vehicle may be damaged.

If a tow truck is not available in an
emergency, your vehicle may be tem-
porarily towed using cables or chains
secured to the emergency towing eye-
lets. This should only be attempted on
hard surfaced roads for at most 50
miles (80 km) at under 18 mph (30
km/h).
A driver must be in the vehicle to steer

Towing with a wheel-lift type
truck

NOTICE

■

Towing with a sling-type truck

Do not tow with a sling-type truck to pre-

vent body damage.

Using a flatbed truck

Emergency towing

Content .. 18 19 20 21 ..
