272

5-4. Using the driving support systems

Q

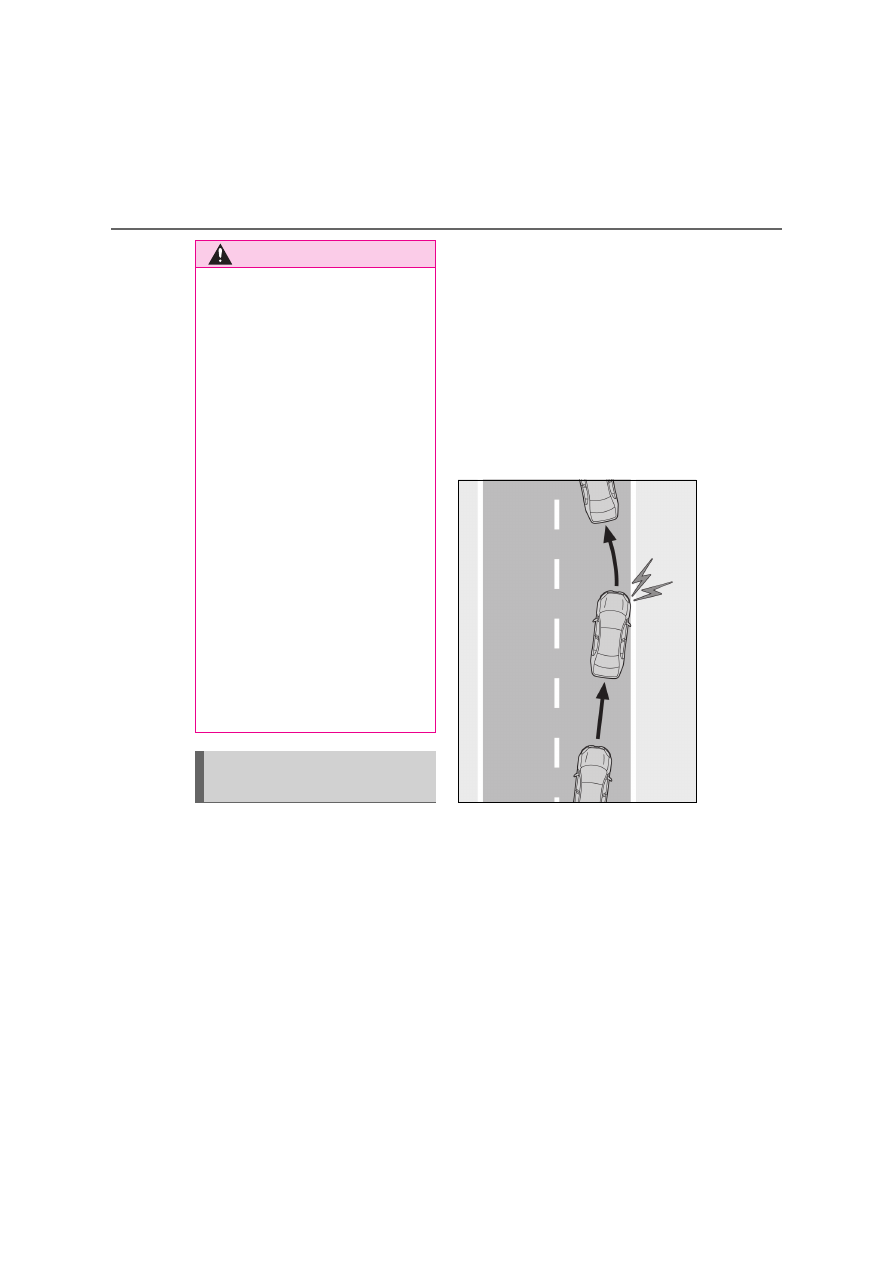

Lane departure alert function

When the system determines that the
vehicle might depart from its lane or
course

*

, a warning is displayed on the

multi-information display, and either a
warning buzzer will sound or the steer-
ing wheel will vibrate to alert the driver.
When the warning buzzer sounds or
the steering wheel vibrates, check the
area around your vehicle and carefully

operate the steering wheel to move the
vehicle back to the center of the lane.
Vehicle with BSM: When the system
determines that the vehicle might
depart from its lane and that the possi-
bility of a collision with an overtaking
vehicle in the adjacent lane is high, the
lane departure alert will operate even if
the turn signals are operating.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

Q

Steering assist function

When the system determines that the
vehicle might depart from its lane or
course

*

, the system provides assis-

tance as necessary by operating the
steering wheel in small amounts for a
short period of time to keep the vehicle
in its lane.
If the system detects that the steering
wheel has not been operated for a

WARNING

O

The distance to the preceding vehicle

is extremely short.

O

The vehicle is moving up and down a

large amount due to road conditions

during driving (poor roads or road

seams).

O

When driving in a tunnel or at night

with the headlights off or when a head-

light is dim due to its lens being dirty or

it being misaligned.

O

The vehicle is struck by a crosswind.

O

The vehicle is affected by wind from a

vehicle driven in a nearby lane.

O

The vehicle has just changed lanes or

crossed an intersection.

O

Tires which differ by structure, manu-

facturer, brand or tread pattern are

used.

O

When tires of a size other than speci-

fied are installed.

O

Snow tires, etc. are equipped.

O

The vehicle is being driven at

extremely high speeds.

Functions included in LTA sys-
tem

273

5

5-4. Using the driving support systems

Dr

ivin
g

fixed amount of time or the steering
wheel is not being firmly gripped, a
warning is displayed on the multi-infor-
mation display and the function is tem-
porarily canceled.
Vehicle with BSM: When the system
determines that the vehicle might
depart from its lane and that the possi-
bility of a collision with an overtaking
vehicle in the adjacent lane is high, the
steering assist function will operate
even if the turn signals are operating.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

Q

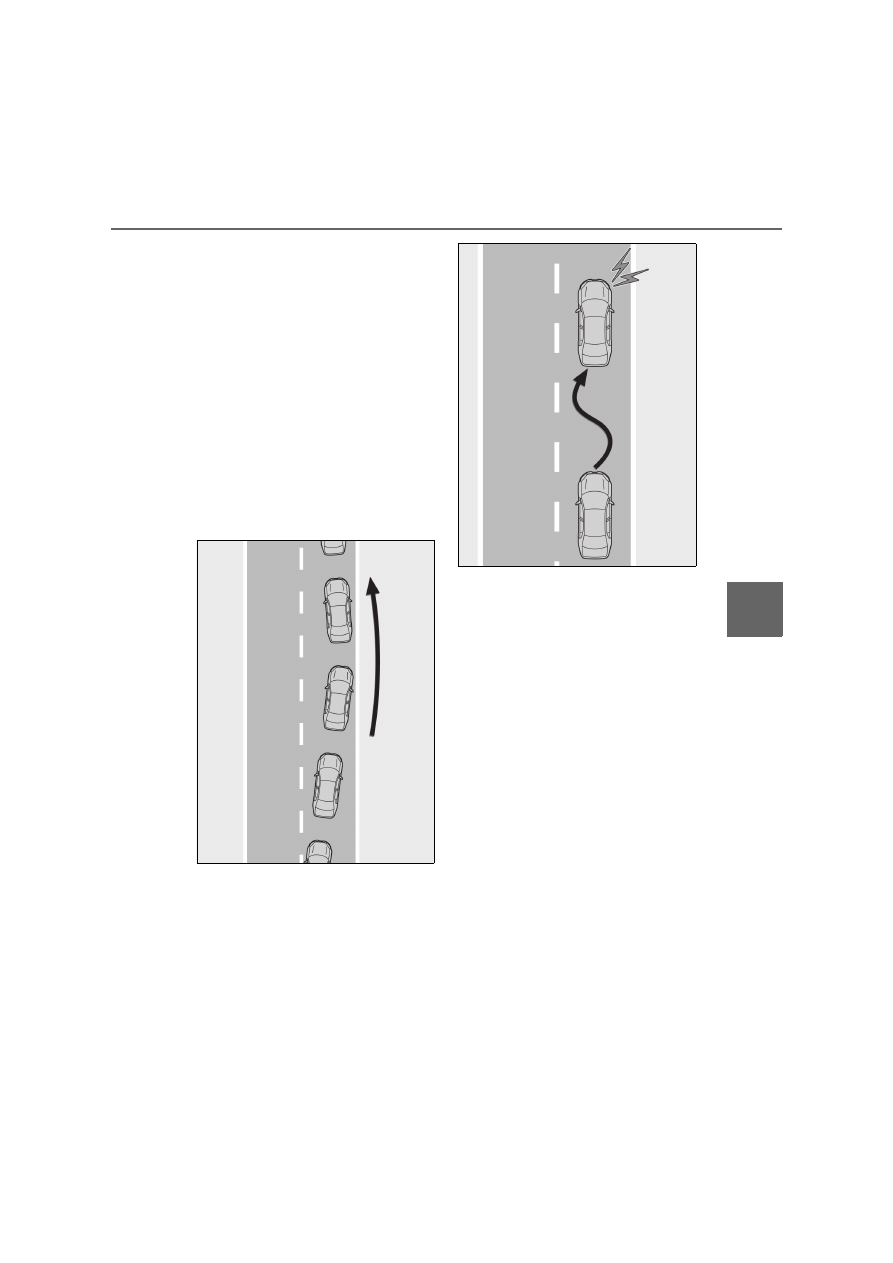

Vehicle sway warning function

When the vehicle is swaying within a
lane, the warning buzzer will sound
and a message will be displayed on the
multi-information display to alert the
driver.

Q

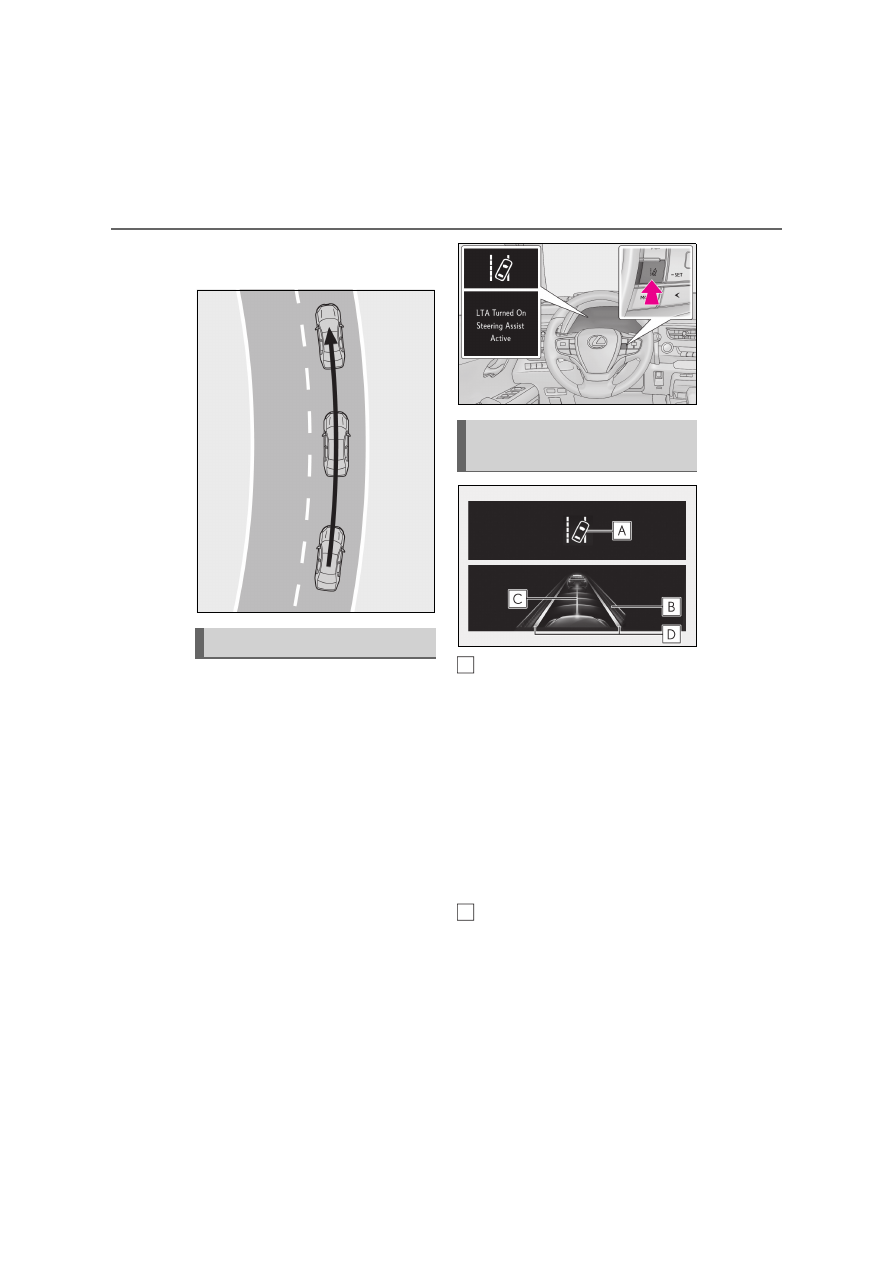

Lane centering function

This function is linked with dynamic
radar cruise control with full-speed
range and provides the required assis-
tance by operating the steering wheel
to keep the vehicle in its current lane.
When dynamic radar cruise control
with full-speed range is not operating,
the lane centering function does not
operate.
In situations where the white (yellow)
lane lines are difficult to see or are not
visible, such as when in a traffic jam, this
function will operate to help follow a
preceding vehicle by monitoring the
position of the preceding vehicle.
If the system detects that the steering
wheel has not been operated for a
fixed amount of time or the steering
wheel is not being firmly gripped, a
warning is displayed on the multi-infor-

274

5-4. Using the driving support systems

mation display and the function is tem-
porarily canceled.

Press the LTA switch to turn the LTA
system on.
The LTA indicator illuminates and a
message is displayed on the multi-
information display.
Press the LTA switch again to turn the
LTA system off.
When the LTA system is turned on or
off, operation of the LTA system con-
tinues in the same condition the next
time the EV system is started.

LTA indicator

The illumination condition of the indicator
informs the driver of the system operation
status.
Illuminated in white:
LTA system is operating.
Illuminated in green:
Steering wheel assistance of the steering
assist function or lane centering function is
operating.
Flashing in orange:
Lane departure alert function is operating.

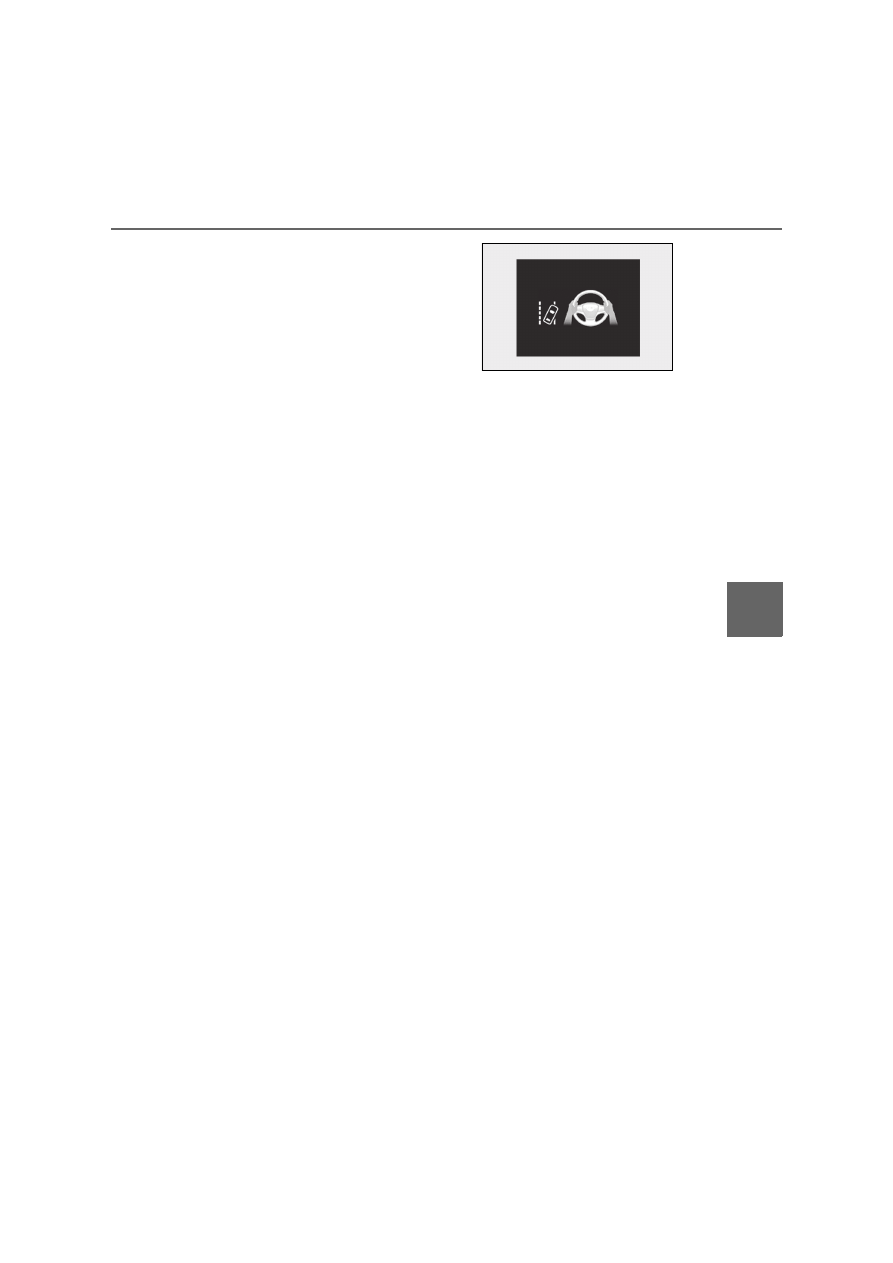

Operation display of steering
wheel operation support

Displayed when the multi-information dis-
play is switched to the driving support sys-
tem information display.
Indicates that steering wheel assistance of

Turning LTA system on

Indications on multi-information
display

A

B

275

5

5-4. Using the driving support systems

Dr

ivin
g

the steering assist function or lane center-
ing function is operating.
Both outer sides of the lane are displayed:
Indicates that steering wheel assist of the
lane centering function is operating.
One outer side of the lane is displayed:
Indicates that steering wheel assist of the
steering assist function is operating.
Both outer sides of the lane are flashing:
Alerts the driver that their input is neces-
sary to stay in the center of the lane (lane
centering function).

Follow-up cruising display

Displayed when the multi-information dis-
play is switched to the driving support sys-
tem information display.
Indicates that steering assist of the lane
centering function is operating by monitor-
ing the position of a preceding vehicle.
When the follow-up cruising display is dis-
played, if the preceding vehicle moves,
your vehicle may move in the same way.
Always pay careful attention to your sur-
roundings and operate the steering wheel
as necessary to correct the path of the
vehicle and ensure safety.

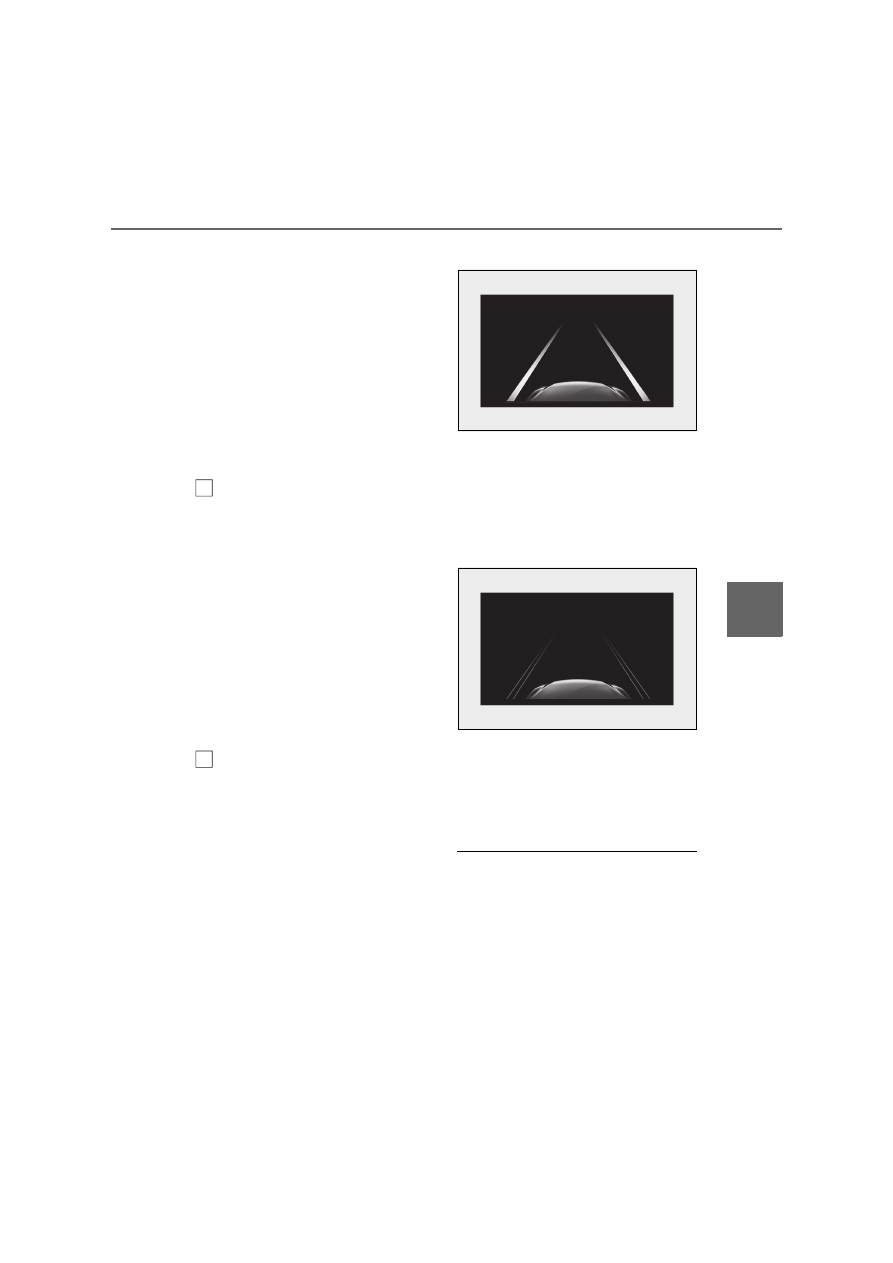

Lane departure alert function dis-
play

Displayed when the multi-information dis-
play is switched to the driving support sys-
tem information display.



Inside of displayed lines is white

Indicates that the system is recognizing
white (yellow) lines or a course

*

. When the

vehicle departs from its lane, the white line
displayed on the side the vehicle departs
from flashes orange.



Inside of displayed lines is black

Indicates that the system is not able to rec-
ognize white (yellow) lines or a course

*

 or

is temporarily canceled.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

Q

Operation conditions of each function

O

Lane departure alert function

This function operates when all of the fol-
lowing conditions are met.
• LTA is turned on.

• Vehicle speed is approximately 50 km/h

(32 mph) or more.

*1

• System recognizes white (yellow) lane

lines or a course

*2

. (When a white [yel-

C

D

276

5-4. Using the driving support systems

low] line or course

*2

 is recognized on

only one side, the system will operate

only for the recognized side.)

• Width of traffic lane is approximately 3 m

(9.8 ft.) or more.

• Turn signal lever is not operated. (Vehi-

cles with BSM: Except when another

vehicle is in the lane on the side where

the turn signal was operated)

• Vehicle is not being driven around a

sharp curve.

• No system malfunctions are detected.

(



P.278)

*1

: The function operates even if the vehicle

speed is less than approximately 50
km/h (32 mph) when the lane centering
function is operating.

*2

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

O

Steering assist function

This function operates when all of the fol-
lowing conditions are met in addition to the
operation conditions for the lane departure
alert function.
• Setting for “Steering Assist” in

 of the

multi-information display is set to “On”.

(



P.164)

• Vehicle is not accelerated or decelerated

by a fixed amount or more.

• Steering wheel is not operated with a

steering force level suitable for changing

lanes.

• ABS, VSC, TRC and PCS are not oper-

ating.

• TRC or VSC is not turned off.

• Hands off steering wheel warning is not

displayed. (



P.277)

O

Vehicle sway warning function

This function operates when all of the fol-
lowing conditions are met.
• Setting for “Warning” in

 of the multi-

information display is set to “On”.

(



P.164)

• Vehicle speed is approximately 50 km/h

(32 mph) or more.

• Width of traffic lane is approximately 3 m

(9.8 ft.) or more.

• No system malfunctions are detected.

(



P.278)

O

Lane centering function

This function operates when all of the fol-
lowing conditions are met.
• LTA is turned on.

• Setting for “Steering Assist” and “Lane

Centre” in

 of the multi-information

display are set to “On”. (



P.164)

• This function recognizes white (yellow)

lane lines or the position of a preceding

vehicle (except when the preceding vehi-

cle is small, such as a motorcycle).

• The dynamic radar cruise control with

full-speed range is operating in vehicle-

to-vehicle distance control mode.

• Width of traffic lane is approximately 3 to

4 m (10 to 13 ft.).

• Turn signal lever is not operated.

• Vehicle is not being driven around a

sharp curve.

• No system malfunctions are detected.

(



P.278)

• Vehicle does not accelerate or deceler-

ate by a fixed amount or more.

• Steering wheel is not operated with a

steering force level suitable for changing

lanes.

• ABS, VSC, TRC and PCS are not oper-

ating.

• TRC or VSC is not turned off.

• Hands off steering wheel warning is not

displayed. (



P.277)

• The vehicle is being driven in the center

of a lane.

• Steering assist function is not operating.

Q

Temporary cancelation of functions

O

When operation conditions are no lon-

ger met, a function may be temporarily

canceled. However, when the operation

conditions are met again, operation of

the function is automatically restored.

(



P.275)

O

If the operation conditions (



P.275) are

no longer met while the lane centering

function is operating, the steering wheel

may vibrate and the buzzer may sound to

indicate that the function has been tem-

277

5

5-4. Using the driving support systems

Dr

ivin
g

porarily canceled. However, if the Steer-

ing wheel vibration customization setting

is set to On, the system will notify the

driver by vibrating the steering wheel

instead of sounding the buzzer.

Q

Steering assist function/lane centering

function

O

Depending on the vehicle speed, lane

departure situation, road conditions, etc.,

the driver may not feel the function is

operating or the function may not oper-

ate at all.

O

The steering control of the function is

overridden by the driver’s steering wheel

operation.

O

Do not attempt to test the operation of

the steering assist function.

Q

Lane departure alert function

O

The warning buzzer may be difficult to

hear due to external noise, audio play-

back, etc. Also, it may be difficult to feel

steering wheel vibrations due to the road

conditions, etc.

O

If the edge of the course

*

 is not clear or

straight, the lane departure alert function

may not operate.

O

Vehicles with BSM: It may not be possi-

ble for the system to determine if there is

a danger of a collision with a vehicle in an

adjacent lane.

O

Do not attempt to test the operation of

the lane departure alert function.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

Q

Hands off steering wheel warning

In the following situations, a warning mes-

sage urging the driver to hold the steering

wheel and the symbol shown in the illustra-

tion are displayed on the multi-information

display to warn the driver. The warning

stops when the system determines that the

driver holds the steering wheel. Always

keep your hands on the steering wheel

when using this system, regardless of warn-

ings.

O

When the system determines that the

driver is driving without holding the steer-

ing wheel while the system is operating

If the driver continues to keep their hands
off of the steering wheel, the buzzer sounds,
the driver is warned and the function is tem-
porarily canceled. This warning also oper-
ates in the same way when the driver
continuously operates the steering wheel
only a small amount. The buzzer also
sounds even if the alert type is set to Steer-
ing wheel vibration.

O

When the system determines that the

vehicle may deviate from the lane while

driving around a curve while the lane

centering function is operating.

Depending on the vehicle condition and
road conditions, the warning may not oper-
ate. Also, if the system determines that the
vehicle is driving around a curve, warnings
will occur earlier than during straight-lane
driving.

O

When the system determines that the

driver is driving without holding the steer-

ing wheel while the steering wheel assist

of the steering assist function is operat-

ing.

If the driver continues to keep their hands
off of the steering wheel and the steering
wheel assist is operating, the buzzer sounds
and the driver is warned. Each time the
buzzer sounds, the continuing time of the
buzzer becomes longer.
The buzzer also sounds even if the alert
type is set to Steering wheel vibration.

278

5-4. Using the driving support systems

Q

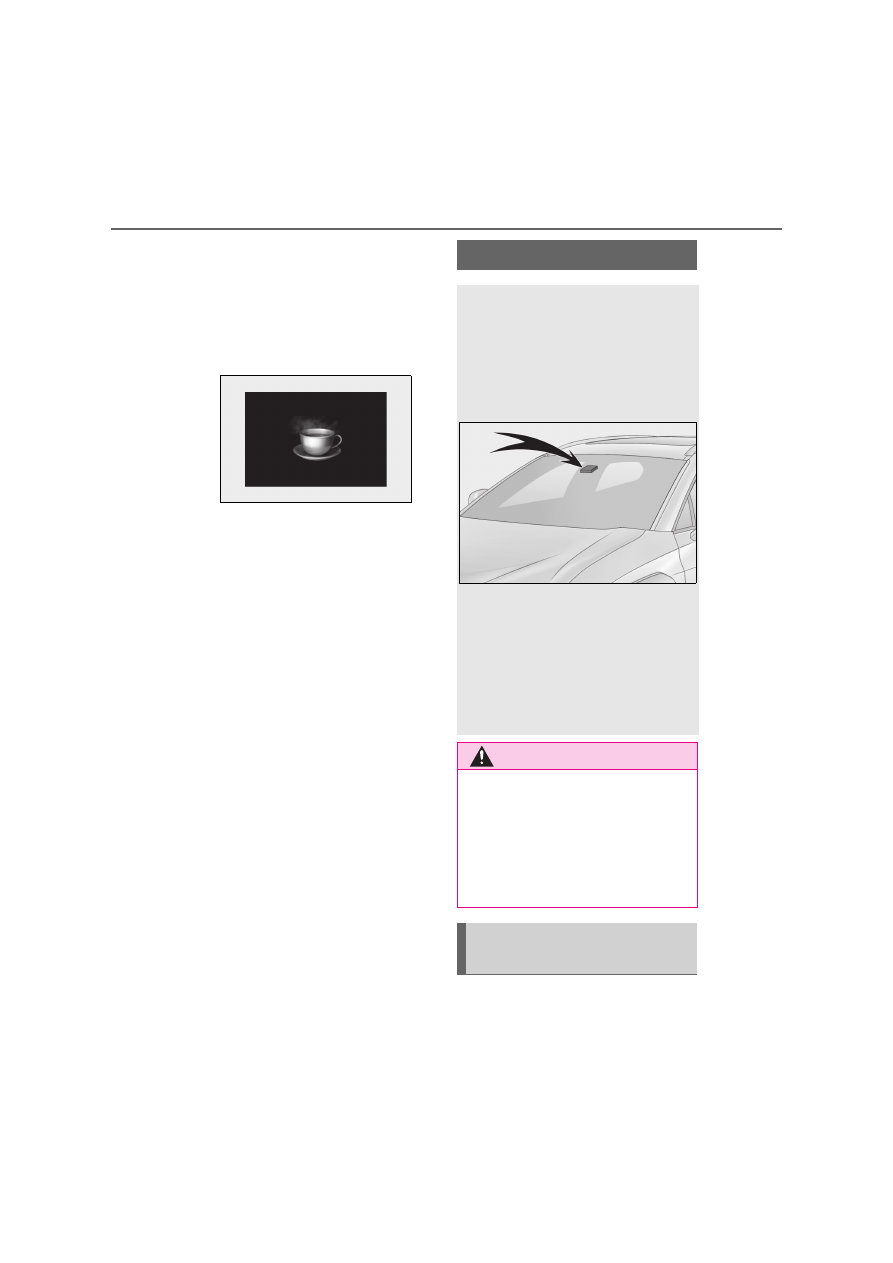

Vehicle sway warning function

When the system determines that the vehi-

cle is swaying while the vehicle sway warn-

ing function is operating, a buzzer sounds

and a warning message urging the driver to

rest and the symbol shown in the illustration

are simultaneously displayed on the multi-

information display.

Depending on the vehicle and road condi-

tions, the warning may not operate.

Q

Warning message

If the following warning message is dis-

played on the multi-information display and

the LTA indicator illuminates in orange, fol-

low the appropriate troubleshooting proce-

dure. Also, if a different warning message is

displayed, follow the instructions displayed

on the screen.

O

“LTA Malfunction Visit Your Dealer”

The system may not be operating properly.
Have the vehicle inspected by any autho-
rized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

O

“LTA Unavailable”

The system is temporarily canceled due to a
malfunction in a sensor other than the front
camera. Turn the LTA system off, wait for a
little while, and then turn the LTA system
back on.

O

“LTA Unavailable at Current Speed”

The function cannot be used as the vehicle
speed exceeds the LTA operation range.
Drive slower.

Q

Customization

Function settings can be changed.
(Customizable features:



P.483)

When the front camera recognizes a
sign and/or information of a sign is

RSA (Road Sign Assist)

The RSA system recognizes spe-
cific road signs using the front cam-
era and/or navigation system
(when speed limit information is
available) to provide information to
the driver via the display.

If the system judges that the vehicle
is being driven over the speed limit,
performing prohibited actions, etc.
according to the recognized road
signs, it notifies the driver through a
visual notification and notification
buzzer or steering wheel vibration.

WARNING

Q

Before using the RSA

Do not rely solely upon the RSA system.

RSA is a system which supports the

driver by providing information, but it is

not a replacement for a driver’s own

vision and awareness. Drive safely by

always paying careful attention to the

traffic rules.

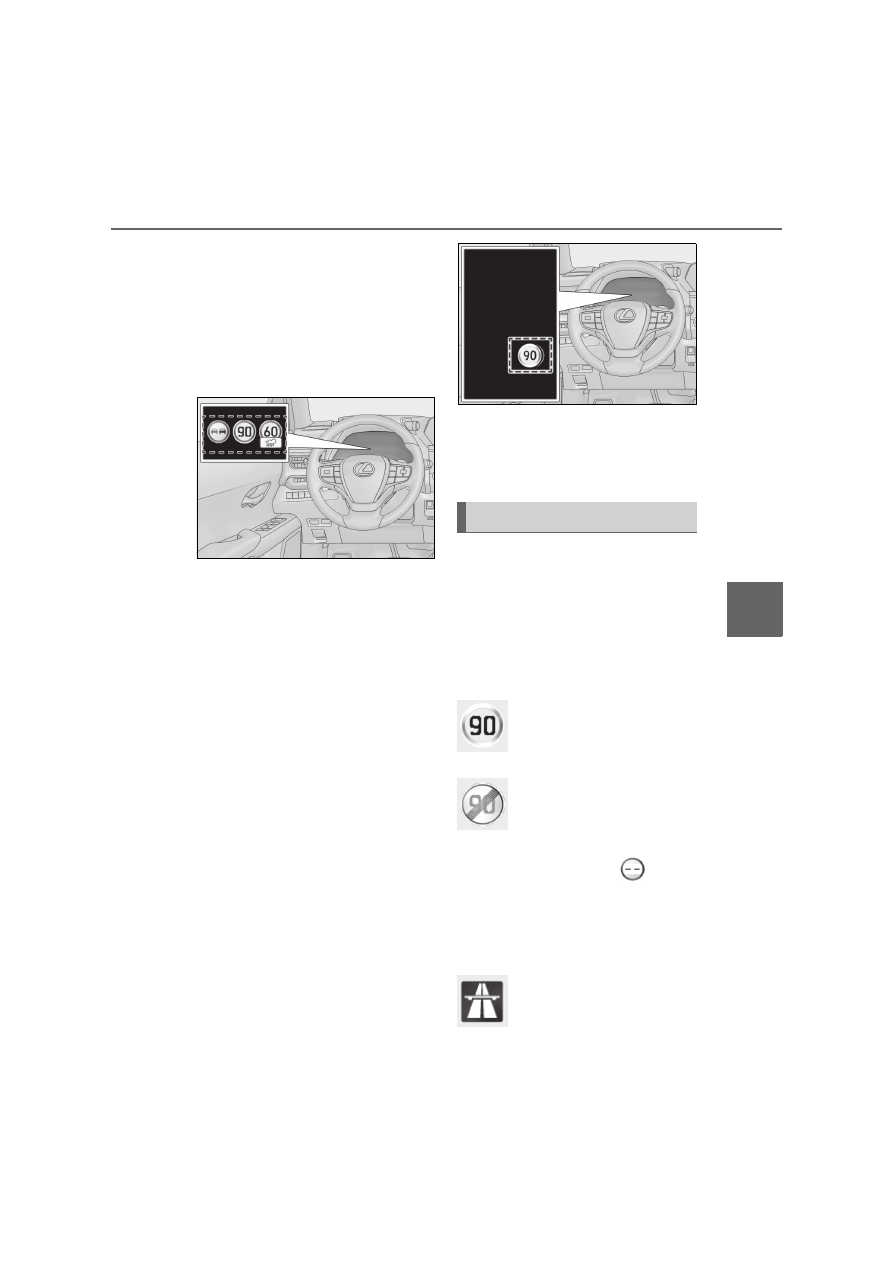

Indication on the multi-informa-
tion display

279

5

5-4. Using the driving support systems

Dr

ivin
g

available from the navigation system,
the sign will be displayed on the multi-
information display.



When the driving support system
information display is selected, a
maximum of 3 signs can be dis-
played. (



P.164)



When a tab other than the driving
support system information display
is selected, the following types of
road signs will be displayed.
(



P.164)

• Speed limit begins/ends sign
• Speed limit related information sign

(Motorway, Expressway, Urban area,
Residential area)

• End of prohibition sign

• No-entry  sign

*

 (when notification is nec-

essary)

• Speed limit with supplemental sign

(Ramp way only)

*

: For vehicles with navigation system

If signs other than speed limit signs are rec-
ognized, they will be displayed in an over-
lapping stack under the current speed limit
sign.

The following types of road signs,
including electronic signs and blinking
signs, are displayed.

A non-official (not meeting the Vienna
Convention) or a recently introduced traf-
fic sign may not be displayed.



Speed limit road signs

*

: Speed limit begins/Maximum

speed zone begins

: Speed limit ends/Maximum

speed zone ends

*

: No speed limit information

 is dis-

played when speed limit sign or speed
limit related sign information is not avail-
able.



Speed limit related information

*1, 2

: Motorway entrance

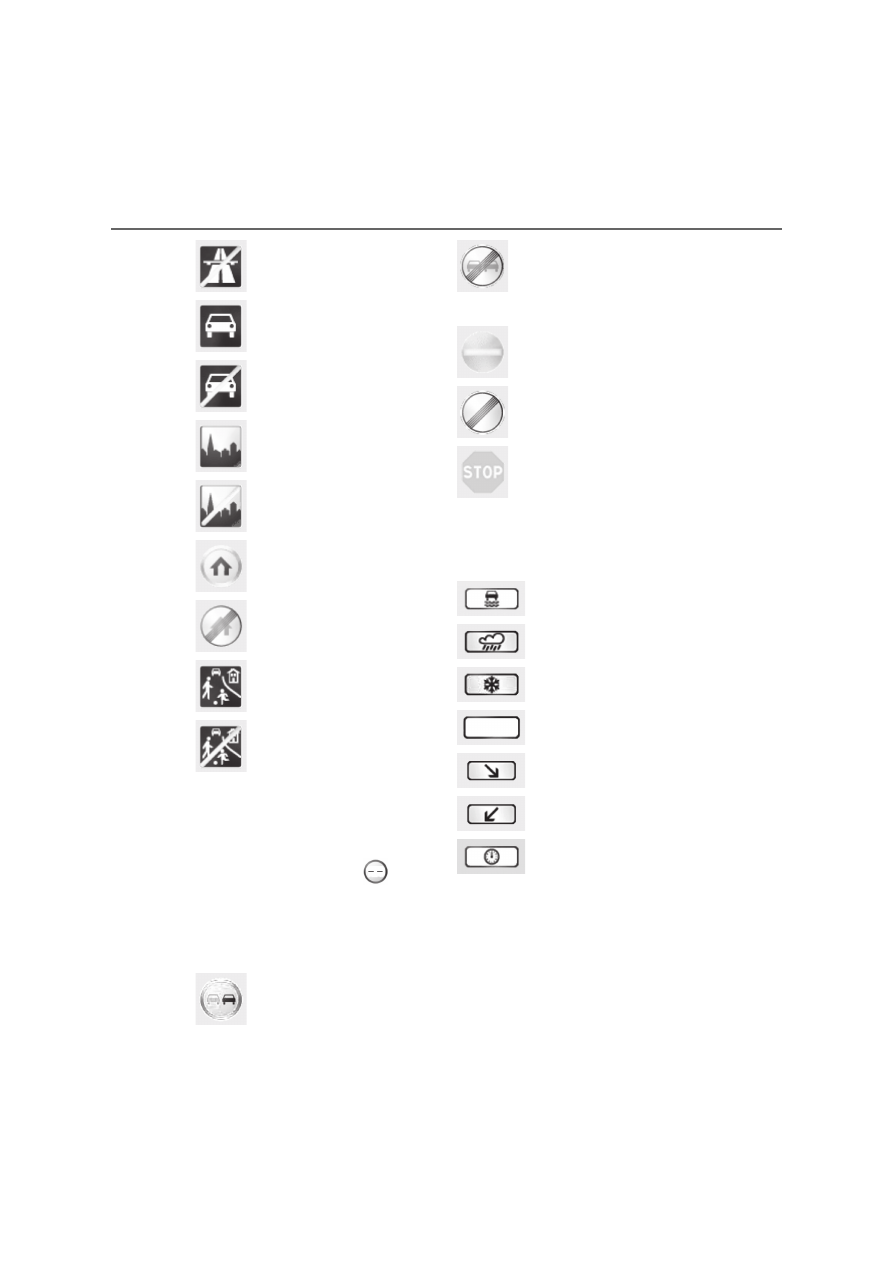

Supported types of road signs

280

5-4. Using the driving support systems

: Motorway exit

: Expressway entrance

: Expressway exit

: Urban area beginning

: Urban area ending

: Urban area beginning

: Urban area ending

: Residential area beginning

: Residential area ending

*1

: Displayed when a sign is recognized

but speed limit information for the road
is not available from the navigation sys-
tem

*2

: No speed limit information

 is dis-

played when speed limit sign or speed
limit related sign information is not
available.



No-overtaking road signs

: No overtaking begins

: No overtaking ends



Other road signs

: No-entry

*

: End of prohibition

: Stop

*

: For vehicles with navigation system



Speed limit with supplemental
mark

*1

: Wet

: Rain

: Ice

: Supplemental mark exists

*2

: Exit ramp on right

*3

: Exit ramp on left

*3

: Time

*1

: Displayed simultaneously with speed

limit.

*2

: Contents not recognized.

*3

: If the turn signal indicator is not oper-

ated when changing lanes, the mark
does not display.

281

5

5-4. Using the driving support systems

Dr

ivin
g

In the following situations, the RSA sys-
tem will notify the driver.



When the vehicle speed exceeds
the speed notification threshold of
the speed limit sign displayed, the
sign display will be emphasized and
a buzzer will sound.



When the RSA system recognizes a
no-entry sign and detects that the
vehicle has entered a no-entry area
based on the map information of the
navigation system, the no-entry sign
flashes and a buzzer will sound. (For
vehicles with navigation system)



If it is detected that your vehicle is
overtaking when a no overtaking
sign is displayed on the multi-infor-
mation display, the displayed sign
will flash and a steering wheel will
vibrate.
Depending on the situation, traffic
environment (traffic direction,
speed unit) may be detected incor-
rectly and a notification function
may not operate properly.

Q

Setting procedure

1

Press

 or

 of the meter control

switches and select

2

Press

 or

 of the meter control

switches and select “Vehicle Settings”,

then press “OK”

3

Press

 or

 of the meter control

switches and select

, then press

“OK”

4

Press

 or

 of the meter control

switches and select “RSA”, then press

“OK”

Q

Automatic turn-off of RSA sign display

One or more signs automatically turn off in

the following situations.

O

No sign has been recognized for a cer-

tain distance.

O

The road changes due to a left or right

turn, etc.

Q

Conditions in which the function may

not operate or detect correctly

In the following situations, RSA does not

operate normally and may not recognize

signs, display the incorrect sign, etc. How-

ever, this does not indicate a malfunction.

O

The front camera is misaligned due to a

strong impact being applied to the sen-

sor, etc.

O

Dirt, snow, stickers, etc. are on the wind-

shield near the front camera.

O

In inclement weather such as heavy rain,

fog, snow or sand storms.

O

Light from an oncoming vehicle, the sun,

etc. enters the front camera.

O

The sign is dirty, faded, tilted or bent.

O

The contrast of electronic sign is low.

O

All or part of the sign is hidden by the

leaves of a tree, a pole, etc.

O

The sign is only visible to the front camera

for a short amount of time.

O

The driving scene (turning, lane change,

etc.) is judged incorrectly.

O

If a sign not appropriate for the currently

traveled lane, but the sign exists directly

after a freeway branches, or in an adja-

cent lane just before merging.

O

Stickers are attached to the rear of the

preceding vehicle.

O

A sign resembling a system compatible

sign is recognized.

O

Side road speed signs may be detected

and displayed (if positioned in sight of the

front camera) while the vehicle is travel-

Notification function

282

5-4. Using the driving support systems

ing on the main road.

O

Roundabout exit road speed signs may

be detected and displayed (if positioned

in sight of the front camera) while travel-

ing on a roundabout.

O

The front of the vehicle is raised or low-

ered due to the carried load.

O

The surrounding brightness is not suffi-

cient or changes suddenly.

O

When a sign intended for trucks, etc. is

recognized.

O

The vehicle is driven in a country with a

different direction of traffic.

O

The navigation system map data is out-

dated.

O

The navigation system is not operating.

O

The speed information displayed on the

meter and on the navigation system may

be different due to the navigation system

using map data.

Q

Speed limit sign display

If the power switch was last turned off while

a speed limit sign was displayed on the

multi-information display, the same sign dis-

plays again when the power switch is turned

to ON.

Q

Customization

Some functions can be customized. (Cus-

tomizable features:



P.483)

Q

Meter display

Multi-information display

Set speed

Indicators

Dynamic radar cruise con-
trol with full-speed range

In vehicle-to-vehicle distance con-
trol mode, the vehicle automati-
cally accelerates, decelerates and
stops to match the speed changes
of the preceding vehicle even if the
accelerator pedal is not depressed.
In constant speed control mode,
the vehicle runs at a fixed speed.
Use the dynamic radar cruise con-
trol with full-speed range on free-
ways and highways.



Vehicle-to-vehicle distance con-
trol mode (



P.285)



Constant speed control mode
(



P.289)

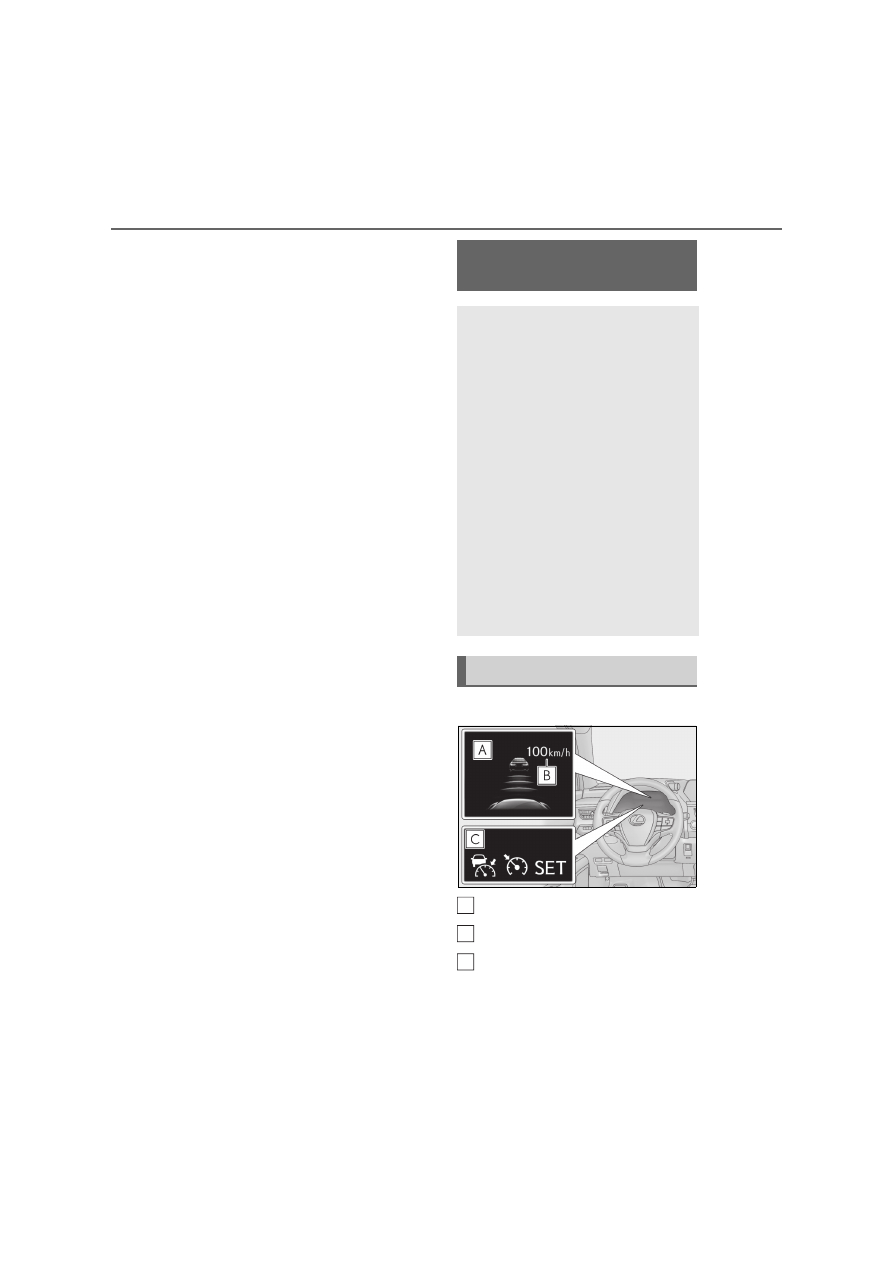

System components

A
B
C

283

5

5-4. Using the driving support systems

Dr

ivin
g

Q

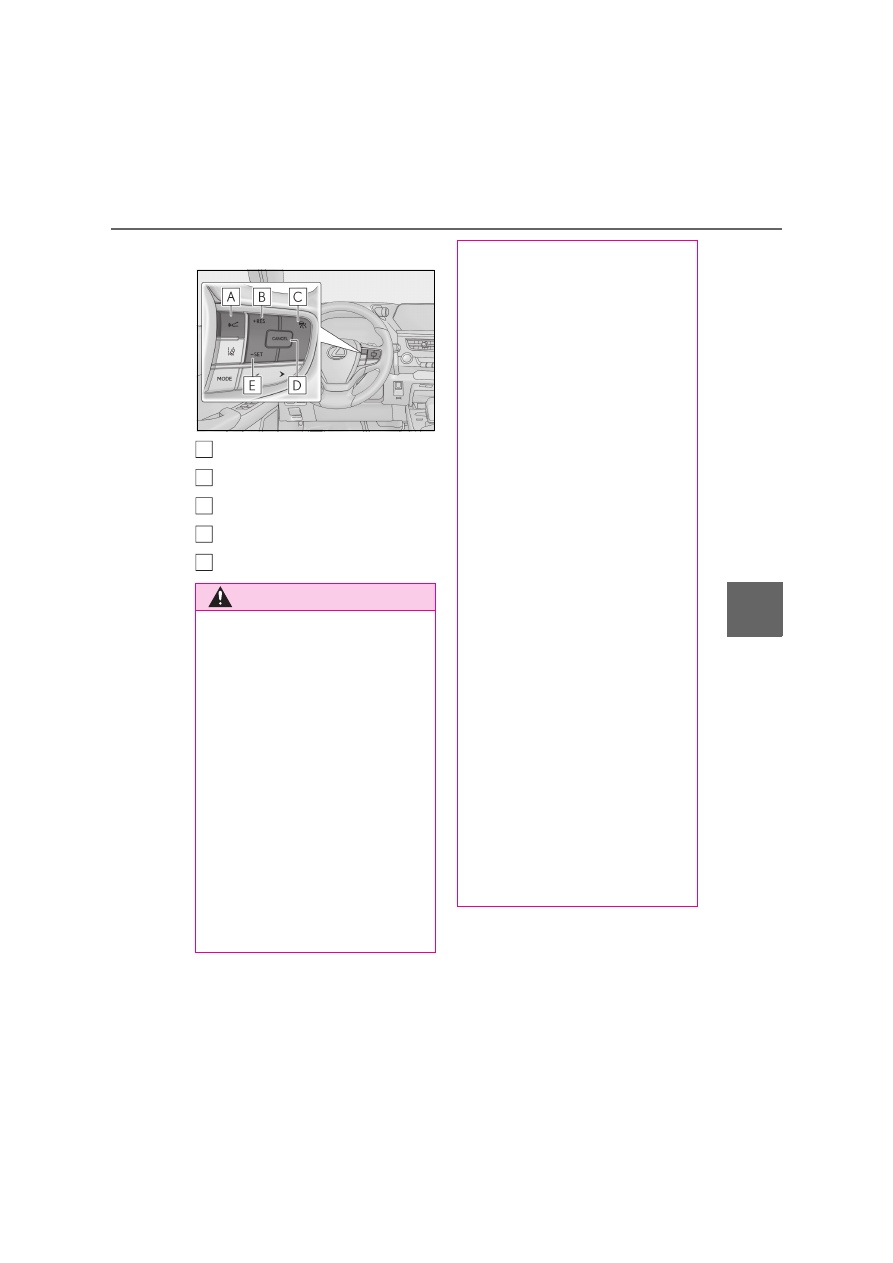

Operation switches

Vehicle-to-vehicle distance switch

“+RES” switch

Cruise control main switch

Cancel switch

“-SET” switch

WARNING

Q

Before using dynamic radar cruise

control with full-speed range

O

Driving safely is the sole responsibility

of the driver. Do not rely solely on the

system, and drive safely by always pay-

ing careful attention to your surround-

ings.

O

The dynamic radar cruise control with

full-speed range provides driving

assistance to reduce the driver’s bur-

den. However, there are limitations to

the assistance provided.

Read the following conditions care-

fully. Do not overly rely on this system

and always drive carefully.

• When the sensor may not be correctly

detecting the vehicle ahead:



P.291

• Conditions under which the vehicle-

to-vehicle distance control mode may

not function correctly:



P.292

A
B
C
D

E

O

Set the speed appropriately depend-

ing on the speed limit, traffic flow, road

conditions, weather conditions, etc.

The driver is responsible for checking

the set speed.

O

Even when the system is functioning

normally, the condition of the preced-

ing vehicle as detected by the system

may differ from the condition

observed by the driver. Therefore, the

driver must always remain alert, assess

the danger of each situation and drive

safely. Relying solely on this system or

assuming the system ensures safety

while driving can lead to an accident,

resulting in death or serious injury.

O

Switch the dynamic radar cruise con-

trol with full-speed range setting to off,

using the cruise control main switch

when not in use.

Q

Cautions regarding the driving assist

systems

Observe the following precautions, as

there are limitations to the assistance

provided by the system.

Failure to do so may cause an accident

resulting in death or serious injury.

O

Assisting the driver to measure follow-

ing distance

The dynamic radar cruise control with

full-speed range is only intended to

help the driver in determining the fol-

lowing distance between the driver’s

own vehicle and a designated vehicle

traveling ahead. It is not a mechanism

that allows careless or inattentive driv-

ing, and it is not a system that can assist

the driver in low-visibility conditions. It

is still necessary for driver to pay close

attention to the vehicle’s surroundings.

284

5-4. Using the driving support systems

WARNING

O

Assisting the driver to judge proper

following distance

The dynamic radar cruise control with

full-speed range determines whether

the following distance between the

driver’s own vehicle and a designated

vehicle traveling ahead is within a set

range. It is not capable of making any

other type of judgement. Therefore, it

is absolutely necessary for the driver to

remain vigilant and to determine

whether or not there is a possibility of

danger in any given situation.

O

Assisting the driver to operate the

vehicle

The dynamic radar cruise control with

full-speed range does not include

functions which will prevent or avoid

collisions with vehicles ahead of your

vehicle. Therefore, if there is ever any

possibility of danger, the driver must

take immediate and direct control of

the vehicle and act appropriately in

order to ensure the safety of all

involved.

Q

Situations unsuitable for dynamic

radar cruise control with full-speed

range

Do not use dynamic radar cruise control

with full-speed range in any of the follow-

ing situations.
Doing so may result in inappropriate

speed control and could cause an acci-

dent resulting in death or serious injury.

O

Roads where there are pedestrians,

cyclists, etc.

O

In heavy traffic

O

On roads with sharp bends

O

On winding roads

O

On slippery roads, such as those cov-

ered with rain, ice or snow

O

On steep downhills, or where there

are sudden changes between sharp up

and down gradients

Vehicle speed may exceed the set

speed when driving down a steep hill.

O

At entrances to freeways and high-

ways

O

When weather conditions are bad

enough that they may prevent the sen-

sors from detecting correctly (fog,

snow, sandstorm, heavy rain, etc.)

O

When there is rain, snow, etc. on the

front surface of the radar or front cam-

era

O

In traffic conditions that require fre-

quent repeated acceleration and

deceleration

O

During emergency towing

O

When an approach warning buzzer is

heard often

285

5

5-4. Using the driving support systems

Dr

ivin
g

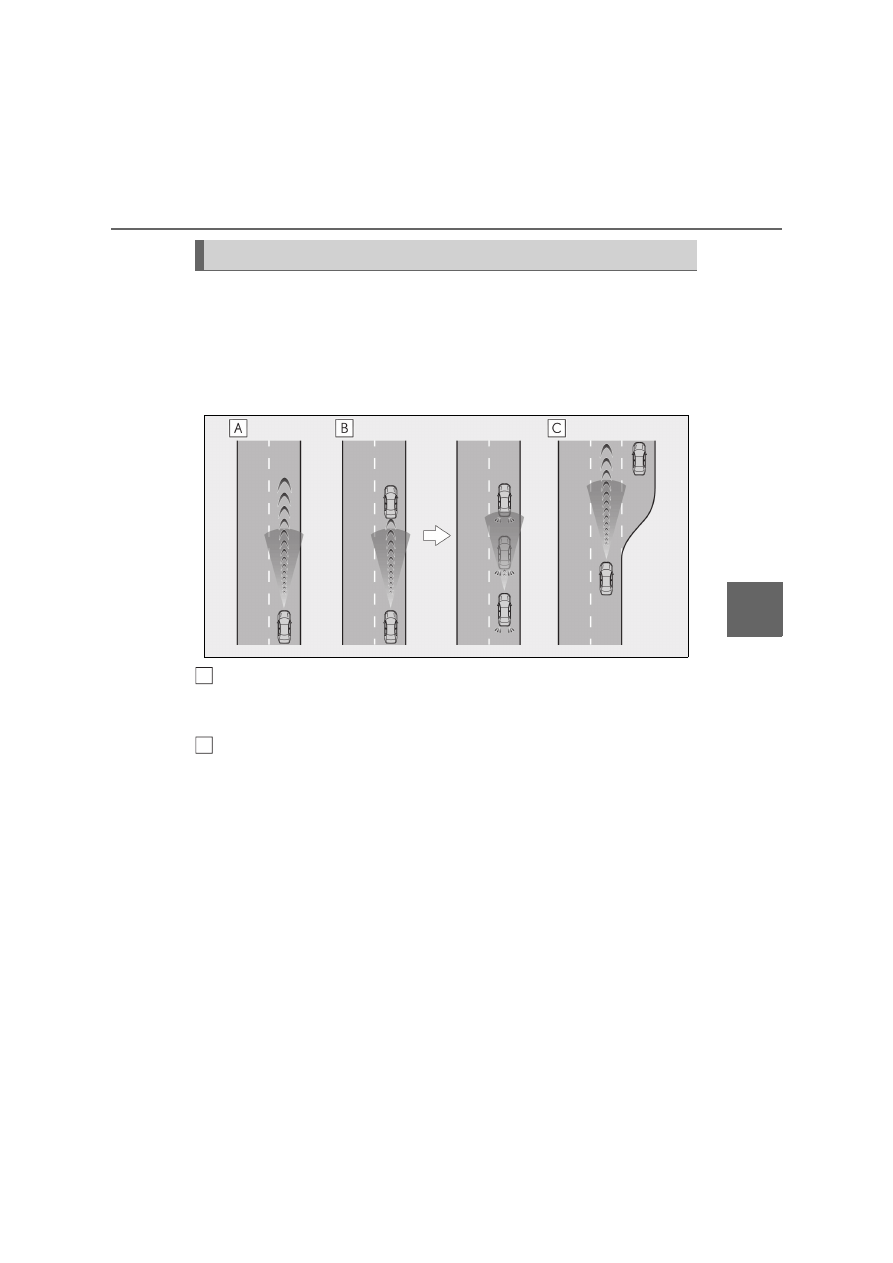

This mode employs a radar to detect the presence of vehicles up to approximately
100 m (328 ft.) ahead, determines the current vehicle-to-vehicle following dis-
tance, and operates to maintain a suitable following distance from the vehicle
ahead. The desired vehicle-to-vehicle distance can also be set by operating the
vehicle-to-vehicle distance switch.

When driving on downhill slopes, the vehicle-to-vehicle distance may become shorter.

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver.

Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed appears

When a vehicle is detected running ahead of you, the system automatically decelerates
your vehicle. When a greater reduction in vehicle speed is necessary, the system applies
the brakes (the stop lights will come on at this time). The system will respond to changes in
the speed of the vehicle ahead in order to maintain the vehicle-to-vehicle distance set by
the driver. Approach warning warns you when the system cannot decelerate sufficiently to
prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your vehicle will also stop (vehicle is stopped by sys-
tem control). After the vehicle ahead starts off, pressing the “+RES” switch or depressing
the accelerator pedal (start-off operation) will resume follow-up cruising. If the start-off
operation is not performed, system control continues to keep your vehicle stopped.
When the turn signal lever is operated and your vehicle moves to an overtaking lane while
driving at 80 km/h (50 mph) or more, the vehicle will accelerate to help to overtake a
passing vehicle.

Driving in vehicle-to-vehicle distance control mode

A

B

286

5-4. Using the driving support systems

The system’s identification of what is an overtaking lane may be determined solely based on
the location of the steering wheel in the vehicle (left side driver position versus right side
driver position.) If the vehicle is driven to a region where the overtaking lane is on a differ-
ent side from where the vehicle is normally driven, the vehicle may accelerate when the
turn signal lever is operated in the opposite direction to the overtaking lane (e.g., if the
driver normally operates the vehicle in a region where the overtaking lane is to the right but
then drives to a region where the overtaking lane is to the left, the vehicle may accelerate
when the right turn signal is activated).

Example of acceleration
When there are no longer any preceding vehicles driving slower than the set
speed

The system accelerates until the set speed is reached. The system then returns to constant
speed cruising.

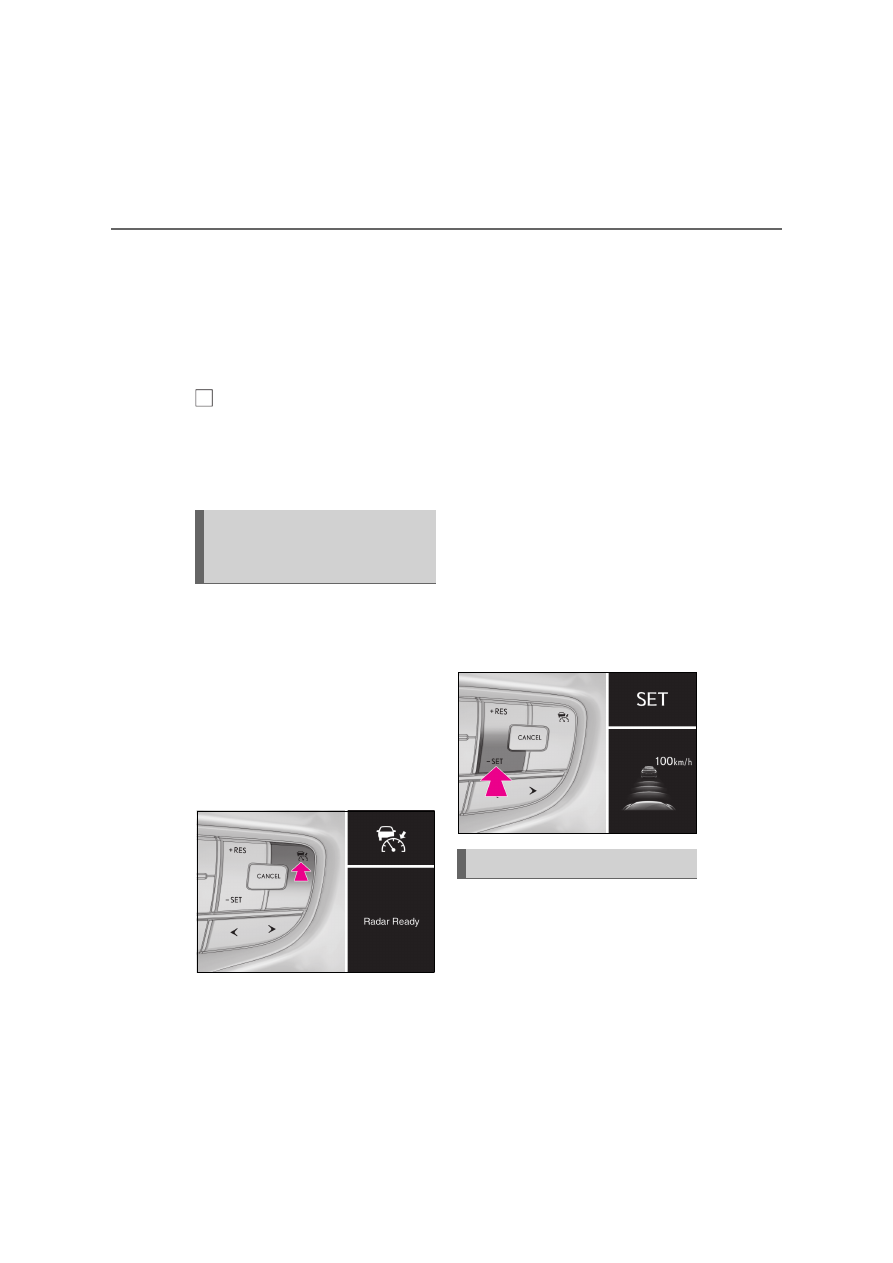

1

Press the cruise control main
switch to activate the cruise con-
trol.

Dynamic radar cruise control indicator will

come on and a message will be displayed

on the multi-information display. Press the

switch again to deactivate the cruise con-

trol.
If the cruise control main switch is pressed

and held for 1.5 seconds or more, the sys-

tem turns on in constant speed control

mode. (



P.289)

2

Accelerate or decelerate, with
accelerator pedal operation, to the

desired vehicle speed (at or above
approximately 30 km/h [20 mph])
and press the “-SET” switch to set
the speed.

Cruise control “SET” indicator will come

on.
The vehicle speed at the moment the

switch is released becomes the set speed.



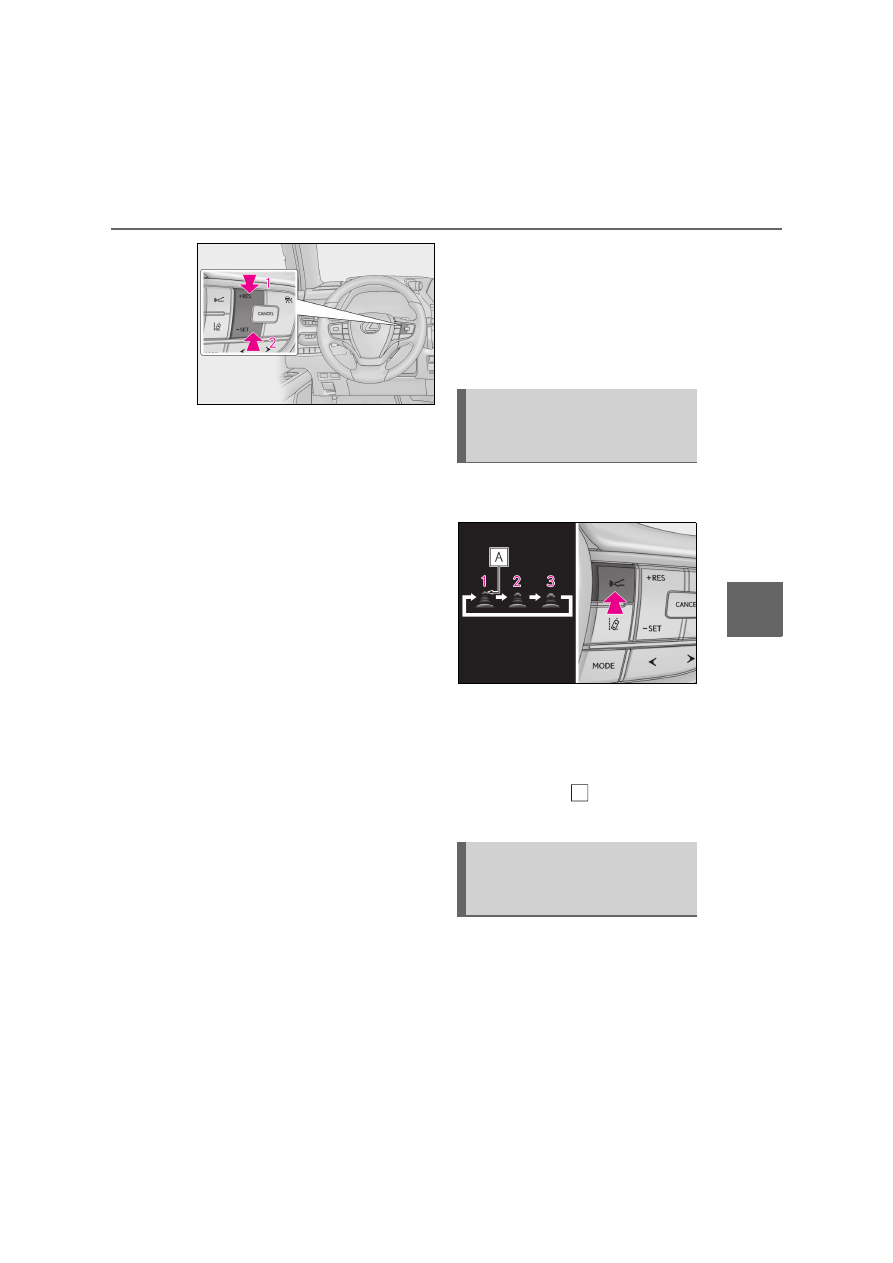

Adjusting the set speed by the
switch

To change the set speed, press the
“+RES” or “-SET” switch until the
desired set speed is displayed.

C

Setting the vehicle speed (vehi-
cle-to-vehicle distance control
mode)

Adjusting the set speed

287

5

5-4. Using the driving support systems

Dr

ivin
g

1

Increases the speed
(Except when the vehicle has been
stopped by system control in vehi-
cle-to-vehicle distance control
mode)

2

Decreases the speed

Fine adjustment: Press the switch.
Large adjustment: Press and hold the
switch to change the speed, and release
when the desired speed is reached.

In the vehicle-to-vehicle distance con-
trol mode, the set speed will be
increased or decreased as follows:

Fine adjustment: By 1 km/h (0.6 mph)

*1

 or 1

mph (1.6 km/h)

*2

 each time the switch is

pressed
Large adjustment: Increases or decreases
in 5 km/h (3.1 mph)

*1

 or 5 mph (8 km/h)

*2



increments for as long as the switch is held

In the constant speed control mode
(



P.289), the set speed will be

increased or decreased as follows:

Fine adjustment: By 1 km/h (0.6 mph)

*1

 or 1

mph (1.6 km/h)

*2

 each time the switch is

pressed
Large adjustment: The speed will continue
to change while the switch is held.

*1

: When the set speed is shown in “km/h”

*2

: When the set speed is shown in “MPH”



Increasing the set speed by the
accelerator pedal

1

Accelerate with accelerator pedal
operation to the desired vehicle
speed

2

Press the “-SET” switch

Pressing the switch changes the vehi-
cle-to-vehicle distance as follows:

1

Long

2

Medium

3

Short

If a vehicle is running ahead of you, the pre-
ceding vehicle mark

 will also be dis-

played.

Select a distance from the table below.
Note that the distances shown corre-
spond to a vehicle speed of 80 km/h
(50 mph). Vehicle-to-vehicle distance
increases/decreases in accordance

Changing the vehicle-to-vehicle
distance (vehicle-to-vehicle dis-
tance control mode)

Vehicle-to-vehicle distance set-
tings (vehicle-to-vehicle dis-
tance control mode)

A
