6-3. Do-it-yourself maintenance

WARNING

Do not touch the glass portion of the

light bulb with bare hands. When it is

unavoidable to hold the glass portion,

use and hold with a clean dry cloth to

avoid getting moisture and oils on the

bulb.

Also, if the bulb is scratched or

dropped, it may blow out or crack.

Fully install light bulb and any parts

used to secure it. Failure to do so may

result in heat damage, fire, or water

entering the light unit. This may dam-

age the light or cause condensation to

build up on the lens.

To prevent damage or fire

Make sure bulb is fully seated and

locked.

Check the wattage of the bulb before

installing to prevent heat damage.

403

Wh
en

troubl
e ar
ises

When trouble arises

7-1. Essential information

Emergency flashers .................

404

If your vehicle has to be stopped

in an emergency.....................

404

If the vehicle is submerged or

water on the road is rising ..

405

7-2. Steps to take in an emergency

If your vehicle needs to be towed

........................................................

407

If you think something is wrong

..........................................................

411

If a warning light turns on or a

warning buzzer sounds ........

412

If a warning message is displayed

........................................................

422

If you have a flat tire (vehicles with

emergency tire puncture repair
kit).................................................

426

If you have a flat tire (vehicles with

spare tire) ..................................

439

If you have a flat tire (vehicles with

run-flat tires).............................

447

If the hybrid system will not start

........................................................

448

If you lose your keys.................

450

If the fuel filler door cannot be

opened .......................................

450

If the electronic key does not

operate properly .....................

451

If the 12-volt battery is discharged

........................................................

453

If your vehicle overheats........

458

If the vehicle becomes stuck .

462

404

7-1. Essential information

7-1.Essential information

Press the switch.

All the turn signal lights will flash. To turn
them off, press the switch once again.

Emergency flashers

If the emergency flashers are used for a

long time while the hybrid system is not

operating (while the “READY” indicator

is not illuminated), the 12-volt battery may

discharge.

If any of the SRS airbags deploy (inflate)

or in the event of a strong rear impact, the

emergency flashers will turn on automati-

cally. The emergency flashers will turn off

automatically after operating for approxi-

mately 20 minutes. To manually turn the

emergency flashers off, press the switch

twice.

(The emergency flashers may not turn on
automatically depending on the force of the
impact and conditions of the collision.)

Steadily step on the brake pedal
with both feet and firmly depress it.

Do not pump the brake pedal repeatedly

as this will increase the effort required to

slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N

After slowing down, stop the vehi-
cle in a safe place by the road.

Stop the hybrid system.



If the shift lever cannot be shifted to
N

Keep depressing the brake pedal
with both feet to reduce vehicle
speed as much as possible.

To stop the hybrid system, press
and hold the power switch for 2
consecutive seconds or more, or

Emergency flashers

The emergency flashers are used to
warn other drivers when the vehi-
cle has to be stopped in the road
due to a breakdown, etc.

Operating instructions

If your vehicle has to be
stopped in an emergency

Only in an emergency, such as if it
becomes impossible to stop the
vehicle in the normal way, stop the
vehicle using the following proce-
dure:

Stopping the vehicle

405

7-1. Essential information

Wh
en

troubl
e ar
ises

press it briefly 3 times or more in
succession.

Stop the vehicle in a safe place by
the road.



If the door can be opened, open the
door and exit the vehicle.



If the door can not be opened, open
the window using the power win-
dow switch and ensure an escape
route.



If the window can be opened, exit
the vehicle through the window.



If the door and window cannot be
opened due to the rising water,
remain calm, wait until the water
level inside the vehicle rises to the
point that the water pressure inside
of the vehicle equals the water pres-
sure outside of the vehicle and then
open the door after waiting for the
rising water to enter the vehicle, and
exit the vehicle. When the outside
water level exceeds half the height
of the door, the door cannot be
opened from the inside due to water
pressure.

WARNING

If the hybrid system has to be turned

off while driving

Power assist for the steering wheel will

be lost, making the steering wheel

heavier to turn. Decelerate as much as

possible before turning off the hybrid

system.

If the vehicle is submerged
or water on the road is rising

This vehicle is not designed to be
able to drive on roads that are
deeply flooded with water. Do not
drive on roads where the roads may
be submerged or the water may be
rising. It is dangerous to remain in
the vehicle, if it anticipated that the
vehicle will be flooded or set a drift.
Remain calm and follow the follow-
ing.

406

7-1. Essential information

Water level exceeds the floor

When the water level exceeds the floor and

time has passed, the electrical equipment

will get damaged, the power windows will

not operate, the engine and motor stop, and

the vehicle may not be able to get moving.

Using an emergency escape hammer

Laminated glass

is used in the windshield

and front side windows on this vehicle.

Laminated glass cannot be shattered with
an emergency hammer

: Contact any authorized Lexus retailer or

Lexus authorized repairer, or any reli-
able repairer, or aftermarket accessory
manufacturer for further information
about an emergency hammer.

: If equipped

How to distinguish laminated glass

When looking from the cross-sectional

view point, laminated glass is two sheets of

glass pasted together.

Laminated glass

Tempered glass

WARNING

Caution while driving

Do not drive on roads where the roads

may be submerged or the water may be

rising. Otherwise the vehicle may be

damaged and cannot move, as well as

become flooded and set a drift, which

may lead to death.

407

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

7-2.Steps to take in an emergency

If your vehicle needs to be
towed

If towing is necessary, we recom-
mend having your vehicle towed by
any authorized Lexus retailer or
Lexus authorized repairer, or any
reliable repairer or commercial
towing service, using a wheel-lift
type truck or flatbed truck.

Use a safety chain system for all
towing, and abide by all state/pro-
vincial and local laws.

2WD models: If towing your vehi-
cle with a wheel-lift type truck from
the front, the vehicle’s rear wheels
and axles must be in good condi-
tions. (



P.407, 408) If they are

damaged, use a towing dolly or flat-
bed truck.

AWD models: If towing your vehi-
cle with a wheel-lift type truck, use
a towing dolly. (



P.407, 408)

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

When towing the vehicle



2WD models

Be sure to transport the vehicle with the

front wheels raised or with all four wheels

raised off the ground. If the vehicle is

towed with the front wheels contacting

the ground, the drivetrain and related

parts may be damaged or electricity

generated by the operation of the motor

may cause a fire to occur depending on

the nature of the damage or malfunction.



AWD models

Be sure to transport the vehicle with all

four wheels raised off the ground. If the

vehicle is towed with the tires contacting

the ground, the drivetrain or related

parts may be damaged, the vehicle may

fly off the truck, or electricity generated

by the operation of the motor may cause

a fire to occur depending on the nature

of the damage or malfunction.

408

7-2. Steps to take in an emergency

The following may indicate a problem
with your transmission. Contact any
authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer or commercial towing service
before towing.



The hybrid system warning message
is shown on the multi-information
display and the vehicle does not
move.



The vehicle makes an abnormal
sound.



From the front (2WD models)

Release the parking brake.

Turn automatic mode off. (



P.196)

WARNING

While towing

When towing using cables or chains,

avoid sudden starts, etc. which place

excessive stress on the towing eyelets,

cables or chains. The towing eyelets,

cables or chains may become dam-

aged, broken debris may hit people,

and cause serious damage.

Do not turn the power switch off.

There is a possibility that the steering

wheel is locked and cannot be oper-

ated.

Installing towing eyelets to the vehi-

cle

Make sure that towing eyelets are

installed securely.

If not securely installed, towing eyelets

may come loose during towing.

NOTICE

To prevent damage to the vehicle

when towing using a wheel-lift type

truck

Do not tow the vehicle from the rear

when the power switch is OFF. The

steering lock mechanism is not strong

enough to hold the front wheels

straight.

When raising the vehicle, ensure ade-

quate ground clearance for towing at

the opposite end of the raised vehicle.

Without adequate clearance, the vehi-

cle could be damaged while being

towed.

To prevent damage to the vehicle

when towing with a sling-type truck

Do not tow with a sling-type truck, either

from the front or rear.

To prevent damage to the vehicle

during emergency towing

Do not secure cables or chains to the

suspension components.

Situations when it is necessary to
contact dealers before towing

Towing with a wheel-lift type
truck

409

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises



From the front (AWD models)

Use a towing dolly under the rear
wheels.



From the rear

Use a towing dolly under the front
wheels.

When using a flatbed truck to trans-
port the vehicle, use tire strapping
belts. Refer to the owner’s manual of
the flatbed truck for the tire strapping
method.
In order to suppress vehicle movement
during transportation, set the parking
brake and turn the power switch off.

If a tow truck is not available in an
emergency, your vehicle may be tem-
porarily towed using cables or chains
secured to the emergency towing eye-
lets. This should only be attempted on
hard surfaced roads for short distances
at under 30 km/h (18 mph).
A driver must be in the vehicle to steer
and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and
brakes must be in good condition.

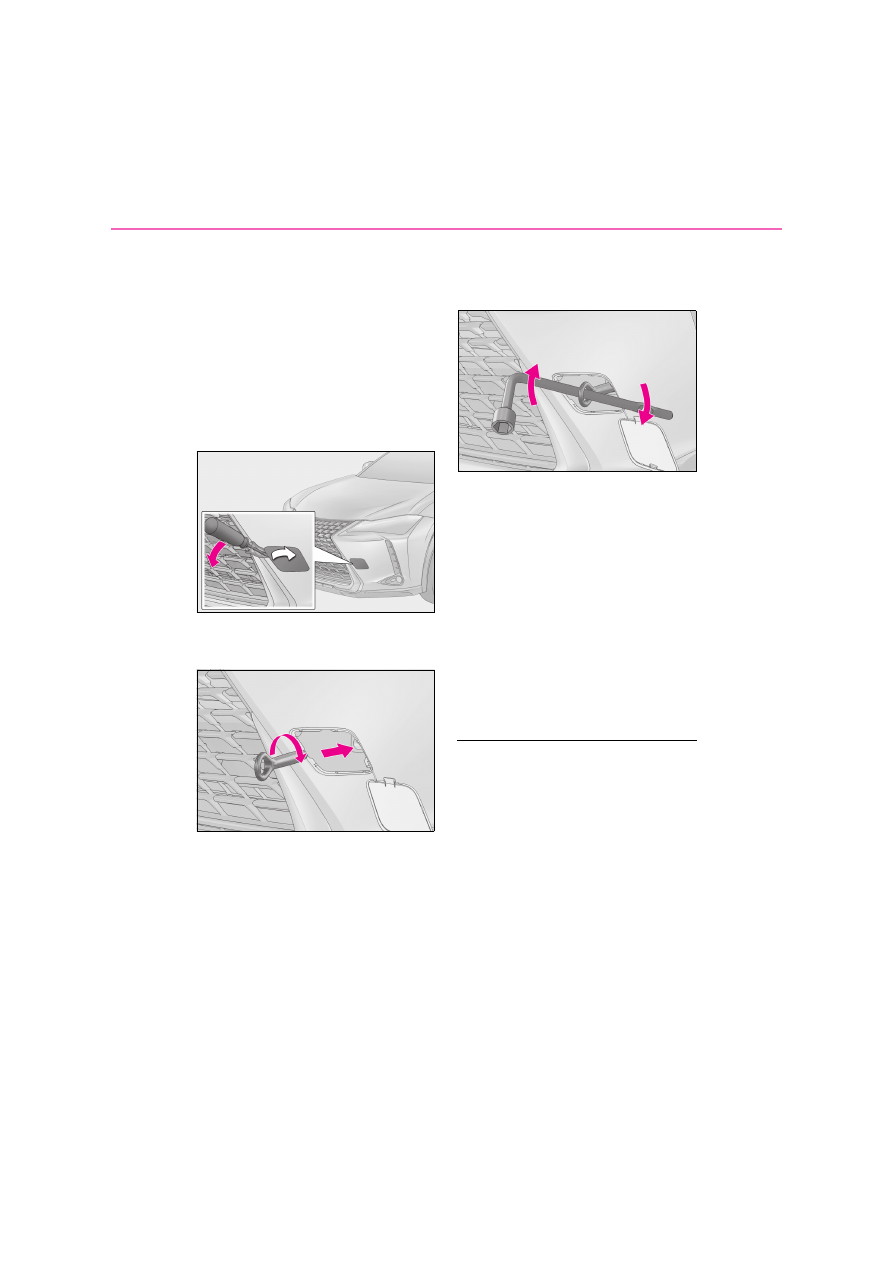

To have your vehicle towed by another
vehicle, the towing eyelet must be
installed to your vehicle. Install the tow-

NOTICE

Towing with a sling-type truck

Do not tow with a sling-type truck to pre-

vent body damage.



2WD models



AWD models

Using a flatbed truck

Emergency towing

Emergency towing procedure

410

7-2. Steps to take in an emergency

ing eyelet using the following proce-
dure.

Take out the wheel nut wrench (if
equipped) and towing eyelet.
(



P.344)

Remove the eyelet cover using a
flathead screwdriver.

To protect the bodywork, place a rag

between the screwdriver and the vehicle

body as shown in the illustration.

Insert the towing eyelet into the
hole and tighten partially by hand.

Tighten down the towing eyelet
securely using a wheel nut wrench
(if equipped) or hard metal bar.

Securely attach cables or chains to
the towing eyelet.

Take care not to damage the vehicle body.

Enter the vehicle being towed and
start the hybrid system.

If the hybrid system does not start, turn the

power switch to ON.

Shift the shift lever to N and release
the parking brake.

Turn automatic mode off. (



P.196)

When the shift lever cannot be shifted:



P.192

While towing

If the hybrid system is off, the power assist

for the brakes and steering will not function,

making steering and braking more difficult.

Wheel nut wrench

Vehicles with wheel nut wrench: Wheel nut

wrench is installed in luggage compart-

ment. (



P.344)

Vehicles without wheel nut wrench: Wheel

nut wrench can be purchased at any autho-

rized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

411

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises



Fluid leaks under the vehicle
(Water dripping from the air condi-
tioning after use is normal.)



Flat-looking tires or uneven tire
wear



Engine coolant temperature gauge
needle continually points higher
than normal



Changes in exhaust sound



Excessive tire squeal when corner-
ing



Strange noises related to the sus-
pension system



Pinging or other noises related to
the hybrid system



Engine missing, stumbling or run-
ning roughly



Appreciable loss of power



Vehicle pulls heavily to one side
when braking



Vehicle pulls heavily to one side
when driving on a level road



Loss of brake effectiveness, spongy
feeling, pedal almost touches the
floor

If you think something is
wrong

If you notice any of the following
symptoms, your vehicle probably
needs adjustment or repair. Con-
tact any authorized Lexus retailer
or Lexus authorized repairer, or
any reliable repairer as soon as pos-
sible.

Visible symptoms

Audible symptoms

Operational symptoms

412

7-2. Steps to take in an emergency

Brake system warning light (warning buzzer)

Charging system warning light

(warning buzzer)

: This light illuminates on the multi-information display.

Low engine oil pressure warning light

(warning buzzer)

: This light illuminates on the multi-information display.

If a warning light turns on or a warning buzzer sounds

Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.

Actions to the warning lights or warning buzzers

Warning light

Details/Actions

(red)

Indicates that:



The brake fluid level is low; or



The brake system is malfunctioning



Immediately stop the vehicle in a safe place and contact any autho-
rized Lexus retailer or Lexus authorized repairer, or any reliable
repairer. Continuing to drive the vehicle may be dangerous.

Warning light

Details/Actions

Indicates a malfunction in the vehicle’s charging system



Immediately stop the vehicle in a safe place and contact any autho-
rized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.

Warning light

Details/Actions

Indicates that the engine oil pressure is too low



Immediately stop the vehicle in a safe place and contact any autho-
rized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.

413

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

Malfunction indicator lamp (warning buzzer)

High coolant temperature warning light

(warning buzzer)

: This light illuminates on the multi-information display.

Tire pressure warning light

Warning light

Details/Actions

Indicates a malfunction in:



The emission control system (on some models);



The hybrid system;



The electronic engine control system; or



The electronic throttle control system



Immediately stop the vehicle in a safe place and contact any autho-
rized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.

Warning light

Details/Actions

Indicates that the engine coolant temperature is too high



Immediately stop the vehicle in a safe place.
Handling method (



P.458)

Warning light

Details/Actions

When the light comes on after blinking for approximately 1 minute:
Malfunction in the tire pressure warning system



Have the system checked by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.

When the light comes on:
Low tire inflation pressure such as



Natural causes



Flat tire

Vehicles without run-flat tires



Immediately stop the vehicle in a safe place. (



P.420)

Vehicles with run-flat tires



P.420

414

7-2. Steps to take in an emergency

Brake system warning light (warning buzzer)

SRS warning light (warning buzzer)

ABS warning light (warning buzzer)

Electric power steering system warning light (warning buzzer)

Warning light

Details/Actions

(yellow)

Indicates a malfunction in:



The regenerative braking system;



The electronically controlled brake system; or



The parking brake system



Have the vehicle inspected by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.

Warning light

Details/Actions

Indicates a malfunction in:



The SRS airbag system; or



The seat belt pretensioner system



Have the vehicle inspected by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.

Warning light

Details/Actions

Indicates a malfunction in:



The ABS; or



The brake assist system



Have the vehicle inspected by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.

Warning light

Details/Actions

(red)

(yellow)

Indicates a malfunction in the EPS (Electric Power Steering) system



Have the vehicle inspected by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.

415

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

Slip indicator

Parking brake indicator

Brake hold operated indicator (warning buzzer)

Lexus parking assist-sensor OFF indicator (warning buzzer)

Warning light

Details/Actions

Indicates a malfunction in:



The VSC system;



The TRC system; or



The hill-start assist control system



Have the vehicle inspected by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.

Warning light

Details/Actions

(flashes)

Indicates a malfunction in the parking brake system



Have the vehicle inspected by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.

Warning light

Details/Actions

(flashes)

Indicates a malfunction in the brake hold system



Have the vehicle inspected by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.

Warning light

Details/Actions

(flashes)

(if equipped)

When a buzzer sounds:
Indicates a malfunction in the Lexus parking assist-sensor function



Have the vehicle inspected by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.

When a buzzer does not sound:
Indicates that the system is temporarily unavailable, possibly due to a
sensor being dirty or covered with ice, etc.



Follow the instructions displayed on the multi-information display.
(



P.282)

416

7-2. Steps to take in an emergency

RCTA OFF indicator (warning buzzer)

PKSB OFF indicator (warning buzzer)

Low fuel level warning light

Warning light

Details/Actions

(flashes)

(if equipped)

When a buzzer sounds:
Indicates a malfunction in the RCTA (Rear Crossing Traffic Alert) func-
tion



Have the vehicle inspected by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.

When a buzzer does not sound:
Indicates that the rear bumper around the radar sensor is covered with
dirt, etc. (



P.276)



Follow the instructions displayed on the multi-information display.
(



P.289)

Warning light

Details/Actions

(flashes)

(if equipped)

When a buzzer sounds:
Indicates a malfunction in the PKSB (Parking Support Brake) system



Have the vehicle inspected by any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer immediately.

When a buzzer does not sound:
Indicates that the system is temporarily unavailable, possibly due to a
sensor being dirty or covered with ice, etc.



Follow the instructions displayed on the multi-information display.
(



P.297)

Warning light

Details/Actions

Indicates that remaining fuel is approximately 6.4L (1.7 gal., 1.4 Imp.gal.)
or less



Refuel the vehicle.

417

7-2. Steps to take in an emergency

Wh
en

troubl
e ar
ises

Driver’s and front passenger’s seat belt reminder light (warning buzzer)

: Driver’s and front passenger’s seat belt warning buzzer:

The driver’s and front passenger’s seat belt warning buzzer sounds to alert the driver and
front passenger that his or her seat belt is not fastened. If the seat belt is unfastened, the
buzzer sounds intermittently for a certain period of time after the vehicle reaches a certain
speed.

Rear passengers’ seat belt reminder lights

(warning buzzer)

: This light illuminates on the multi-information display. Regardless of whether or not a

rear passenger is present, this light will also illuminate for a certain period of time after
the rear door is opened and closed.

: Rear passengers’ seat belt warning buzzer:

The rear passengers’ seat belt warning buzzer sounds to alert the rear passenger that his
or her seat belt is not fastened. If the seat belt is unfastened, the buzzer sounds intermit-
tently for a certain period of time after the vehicle reaches a certain speed.

Warning light

Details/Actions

Warns the driver and/or front passenger to fasten their seat belts



Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s seat
belt also needs to be fastened to make the warning light (warning
buzzer) turn off.

Warning light

Details/Actions

Warns the rear passengers to fasten their seat belts



Fasten the seat belt.

Lexus UX (2022 year). Manual in english - page 23
