4-5. Using the driving support systems

: If equipped

Meter display

Set speed

Indicators

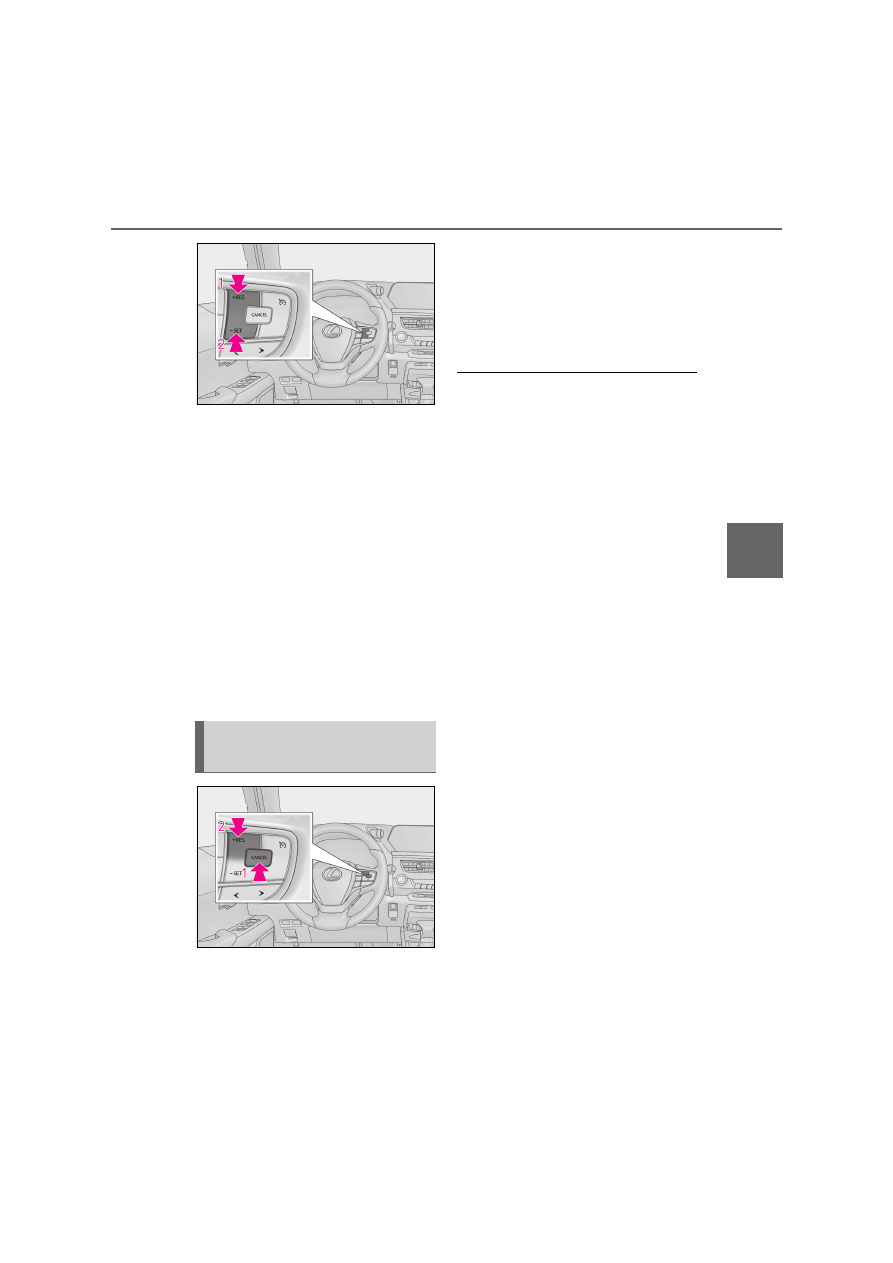

Operation switches

“+RES” switch

Cruise control main switch

“-SET” switch

Cancel switch

Press the cruise control main
switch to activate the cruise con-
trol.

Cruise control indicator will come on.

Press the switch again to deactivate the

cruise control.

Accelerate or decelerate the vehi-
cle to the desired speed, and press
the “-SET” switch to set the speed.

Cruise control “SET” indicator will come

on.

The vehicle speed at the moment the

switch is released becomes the set speed.

To change the set speed, press the
“+RES” or “-SET” switch until the
desired set speed is obtained.

Cruise control

Use the cruise control to maintain a
set speed without depressing the
accelerator pedal.
Use the cruise control on freeways
and highways.

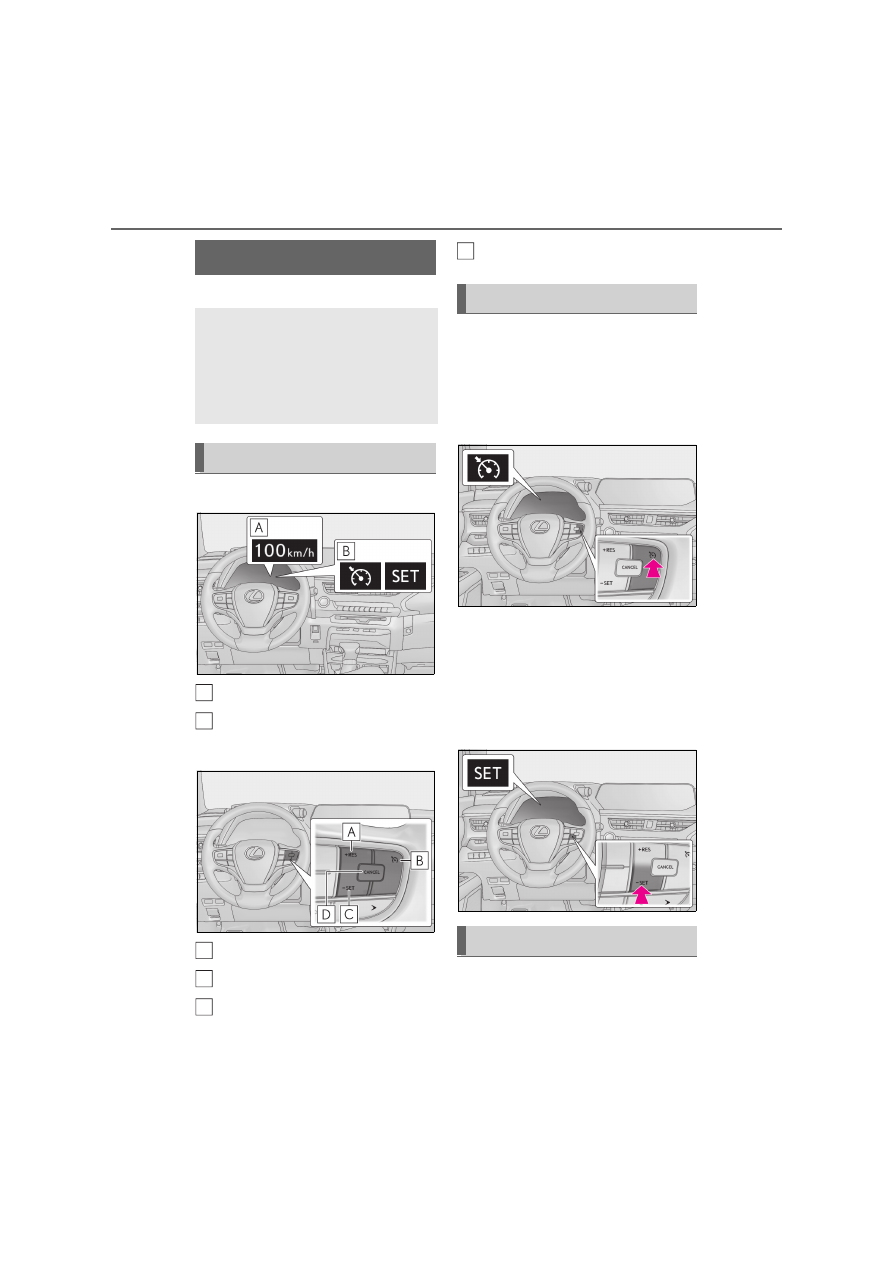

System components

A
B

A
B
C

Setting the vehicle speed

Adjusting the set speed

265

4-5. Using the driving support systems

ivin
g

Increases the speed

Decreases the speed

Fine adjustment: Press the switch.
Large adjustment: Press and hold switch.
The set speed will be increased or
decreased as follows:
Fine adjustment: By approximately 1 km/h
(0.6 mph)

or 1 mph (1.6 km/h)

each

time the switch is pressed.
Large adjustment: The set speed can be
increased or decreased continually until
the switch is released.

: When the set speed is shown in “km/h”

: When the set speed is shown in “MPH”

Pressing the cancel switch cancels
the constant speed control.

The speed setting is also canceled when
the brakes are applied.

Pressing the “+RES” switch
resumes the constant speed con-
trol.

Resuming is available when the vehicle
speed is more than approximately 30
km/h (20 mph).

Cruise control can be set when

The shift lever is in D.

Vehicle speed is above approximately

30 km/h (20 mph).

Accelerating after setting the vehicle

speed

The vehicle can be accelerated normally.

After acceleration, the set speed

resumes.

Even without canceling the cruise con-

trol, the set speed can be increased by

first accelerating the vehicle to the

desired speed and then pressing the “-

SET” switch to set the new speed.

Automatic cruise control cancelation

Cruise control will stop maintaining the

vehicle speed in any of the following situa-

tions.

Actual vehicle speed falls more than

approximately 16 km/h (10 mph) below

the preset vehicle speed.

Actual vehicle speed is below approxi-

mately 30 km/h (20 mph).

VSC is activated.

TRC is activated for a period of time.

When the VSC or TRC system is turned

off.

If the warning message for the cruise

control is shown on the multi-informa-

tion display

Press the cruise control main switch once to

deactivate the system, and then press the

switch again to reactivate the system.

If the cruise control speed cannot be set or

if the cruise control cancels immediately

after being activated, there may be a mal-

function in the cruise control system. Have

Canceling and resuming the
constant speed control

266

4-5. Using the driving support systems

the vehicle inspected by authorized Lexus

retailer or Lexus authorized repairer, or any

reliable repairer.

: If equipped

WARNING

To avoid operating the cruise control

by mistake

Switch the cruise control off using the

cruise control main switch when not in

use.

Situations unsuitable for cruise con-

trol

Do not use cruise control in any of the

following situations.

Doing so may result in loss of control and

could cause an accident resulting in

death or serious injury.

In heavy traffic

On roads with sharp bends

On winding roads

On slippery roads, such as those cov-

ered with rain, ice or snow

On steep downhills

Vehicle speed may exceed the set

speed when driving down a steep hill.

When your vehicle is towing a trailer

(vehicles with towing package) or

during emergency towing

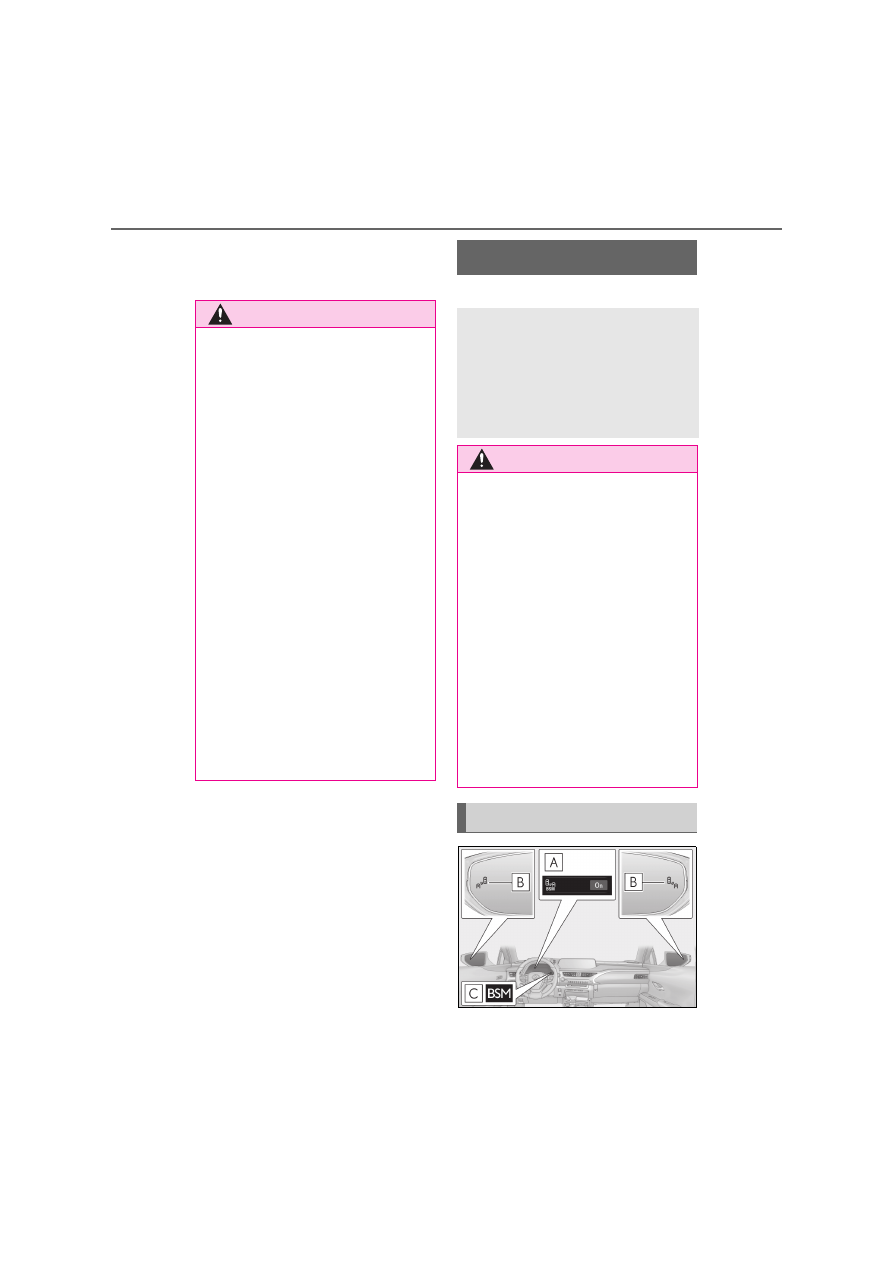

BSM (Blind Spot Monitor)

The Blind Spot Monitor is a system
that uses rear side radar sensors
installed on the inner side of the
rear bumper on the left and right
side to assist the driver in confirm-
ing safety when changing lanes.

WARNING

Cautions regarding the use of the

system

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.
The Blind Spot Monitor is a supplemen-

tary function which alerts the driver that a

vehicle is in a blind spot of the outside

rear view mirrors or is approaching rap-

idly from behind into a blind spot. Do not

overly rely on the Blind Spot Monitor. As

the function cannot judge if it is safe to

change lanes, over reliance could lead to

an accident resulting in death or serious

injury.
As the system may not function correctly

under certain conditions, the driver’s

own visual confirmation of safety is nec-

essary.

System components

267

4-5. Using the driving support systems

ivin
g

Multi-information display

The Blind Spot Monitor can be turned
on/off.

Outside rear view mirror indicators

When a vehicle is detected in a blind spot
of the outside rear view mirrors or
approaching rapidly from behind into a
blind spot, the outside rear view mirror
indicator on the detected side will illumi-
nate. If the turn signal lever is operated
toward the detected side, the outside rear
view mirror indicator flashes.

BSM indicator

Illuminates when the Blind Spot Monitor is
enabled

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

When “Blind Spot Monitor Unavailable”

is shown on the multi-information dis-

play

Ice, snow, mud, etc., may be attached to the

rear bumper around the sensors.

(



P.276) The system should return to nor-

mal operation after removing the ice, snow,

mud, etc. from the rear bumper. Addition-

ally, the sensors may not operate normally

when driving in extremely hot or cold envi-

ronments.

Customization

Some functions can be customized.

(



P.485)

276

4-5. Using the driving support systems

Use the meter control switches to turn
on/off the function. (



P.110)

Press

to select

Press

to select

and

then press “OK”.

WARNING

To ensure the system can operate

properly

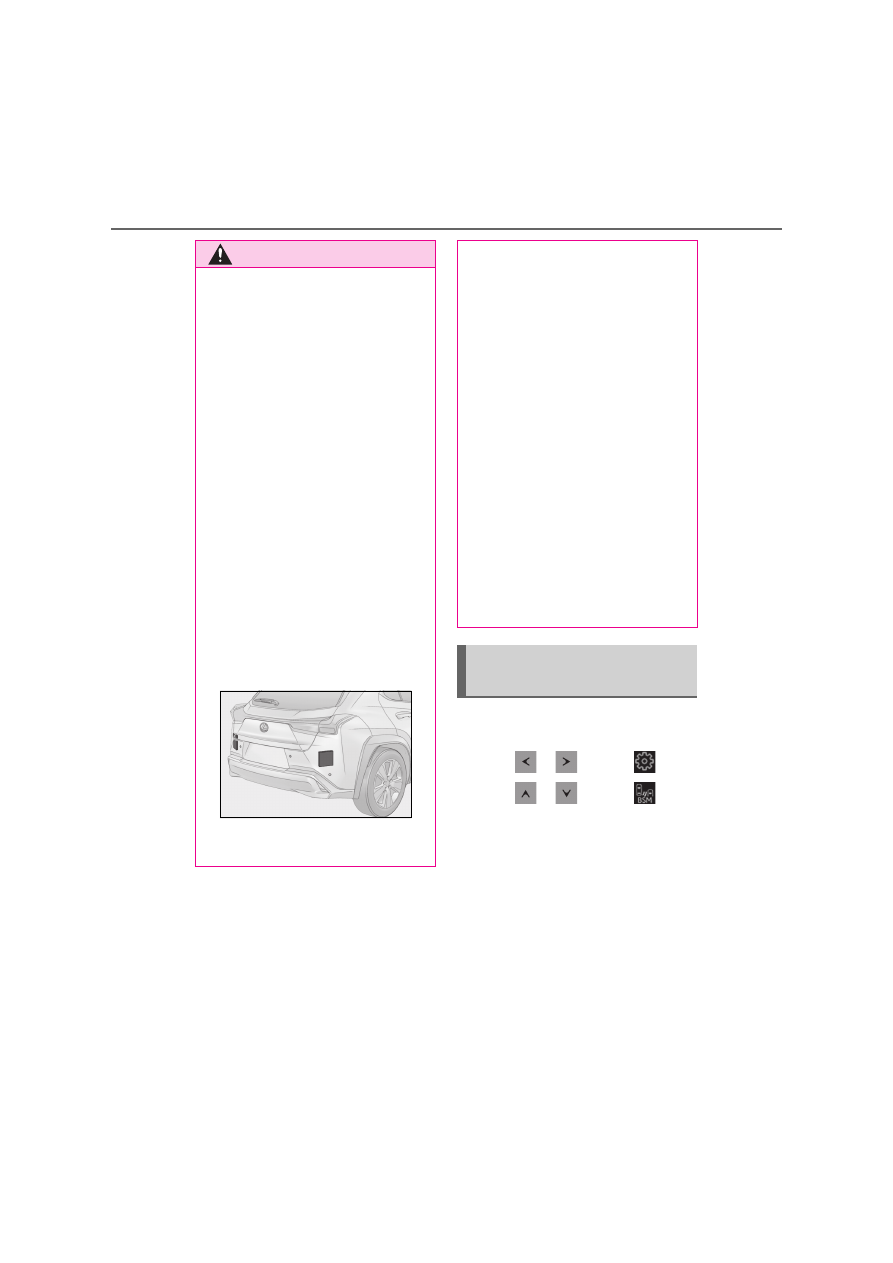

Blind Spot Monitor sensors are installed

behind the left and right sides of the rear

bumper respectively. Observe the fol-

lowing to ensure the Blind Spot Monitor

can operate correctly.

Keep the sensors and the surrounding

areas on the rear bumper clean at all

times.

If a sensor or its surrounding area on the
rear bumper is dirty or covered with
snow, the Blind Spot Monitor may not
operate and a warning message
(



P.267) will be displayed. In this situa-

tion, clear off the dirt or snow and drive
the vehicle with the operation conditions
of the BSM function (



P.278) satisfied

for approximately 10 minutes. If the
warning message does not disappear,
have the vehicle inspected by any autho-
rized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Do not attach stickers to the sensor or

surrounding area on the rear bumper.

Do not subject a sensor or its sur-

rounding area on the rear bumper to a

strong impact.

If a sensor is moved even slightly off posi-
tion, the system may malfunction and
vehicles may not be detected cor-
rectly.In the following situations, have
your vehicle inspected by any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.
• A sensor or its surrounding area is

subject to a strong impact.

• If the surrounding area of a sensor is

scratched or dented, or part of them

has become disconnected.

Do not disassemble the sensor.

Do not modify the sensor or surround-

ing area on the rear bumper.

Do not paint the rear bumper any

color other than an official Lexus color.

Turning the Blind Spot Monitor
on/off

277

4-5. Using the driving support systems

ivin
g

Vehicles that can be detected by the Blind Spot Monitor

The Blind Spot Monitor uses rear side radar sensors to detect the following vehi-
cles traveling in adjacent lanes and advises the driver of the presence of such vehi-
cles via the indicators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)

Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)

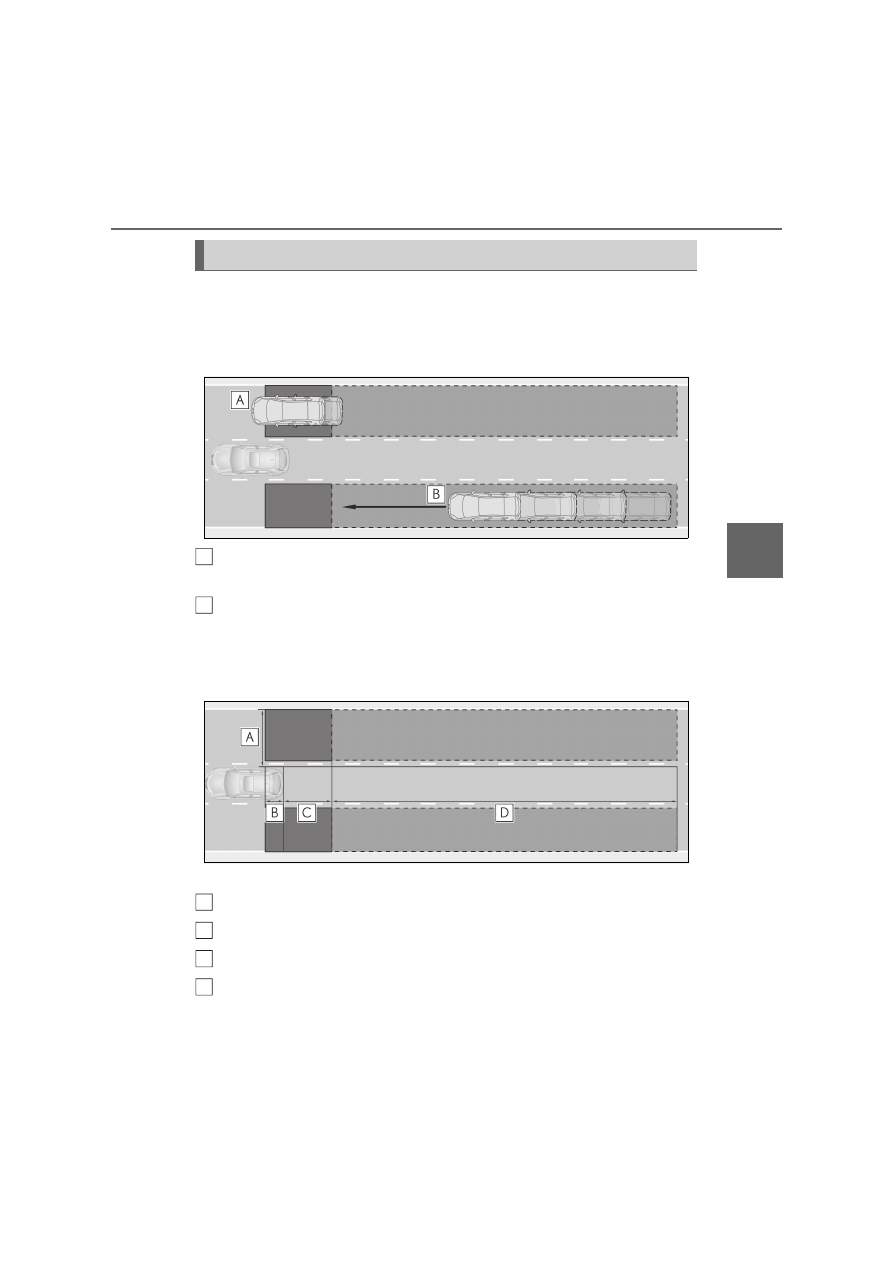

The Blind Spot Monitor detection areas

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 0.5 m (1.6 ft.) to 3.5 m (11.5 ft.) from either side of the vehicle

Approximately 1 m (3.3 ft.) forward of the rear bumper

Approximately 3 m (9.8 ft.) from the rear bumper

Approximately 3 m (9.8 ft.) to 60 m (197 ft.) from the rear bumper

: The area between the side of the vehicle and 0.5 m (1.6 ft.) from the side of the vehicle

Blind Spot Monitor operation

A
B
C
D

278

4-5. Using the driving support systems

cannot be detected.

: The greater the difference in speed between your vehicle and the detected vehicle is,

the farther away the vehicle will be detected, causing the outside rear view mirror indi-
cator to illuminate or flash.

The Blind Spot Monitor is operational

when

The Blind Spot Monitor is operational when

all of the following conditions are met:

The Blind Spot Monitor is on.

The shift lever is in a position other than R.

The vehicle speed is greater than

approximately 16 km/h (10 mph).

The Blind Spot Monitor will detect a

vehicle when

The Blind Spot Monitor will detect a vehicle

present in the detection area in the follow-

ing situations:

A vehicle in an adjacent lane overtakes

your vehicle.

You overtake a vehicle in adjacent lane

slowly.

Another vehicle enters the detection

area when it changes lanes.

Conditions under which the system will

not detect a vehicle

The Blind Spot Monitor is not designed to

detect the following types of vehicles

and/or objects:

Small motorcycles, bicycles, pedestrians,
etc.

Vehicles traveling in the opposite direc-

tion

Guardrails, walls, signs, parked vehicles
and similar stationary objects

Following vehicles that are in the same
lane

Vehicles traveling 2 lanes away from
your vehicle

Vehicles which are being overtaken rap-
idly by your vehicle

: Depending on the conditions, detection

of a vehicle and/or object may occur.

Conditions under which the system may

not function correctly

The Blind Spot Monitor may not detect

vehicles correctly in the following situa-

tions:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When the distance between your vehicle

and a following vehicle is short

• When there is a significant difference in

speed between your vehicle and the

vehicle that enters the detection area

• When the difference in speed between

your vehicle and another vehicle is

changing

• When a vehicle enters a detection area

traveling at about the same speed as your

vehicle

• As your vehicle starts from a stop, a vehi-

cle remains in the detection area

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When vehicle lanes are wide, or when

driving on the edge of a lane, and the

vehicle in an adjacent lane is far away

from your vehicle

• When an accessory (such as a bicycle

carrier) is installed to the rear of the vehi-

cle

• When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

279

4-5. Using the driving support systems

ivin
g

• Immediately after the Blind Spot Monitor

is turned on

Instances of the Blind Spot Monitor

unnecessarily detecting a vehicle and/or

object may increase in the following situ-

ations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When the distance between your vehicle

and a guardrail, wall, etc. that enters the

detection area is short

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When vehicle lanes are narrow, or when

driving on the edge of a lane, and a vehi-

cle traveling in a lane other than the adja-

cent lanes enters the detection area

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When the tires are slipping or spinning

• When the distance between your vehicle

and a following vehicle is short

• When an accessory (such as a bicycle

carrier) is installed to the rear of the vehi-

cle

: If equipped

Lexus parking assist-sensor



P.280

RCTA (Rear Crossing Traffic
Alert) function (if equipped)



P.288

Adjusting the buzzer volume

The buzzer volume can be adjusted on
the multi-information display. The vol-
ume of buzzers for the Lexus parking
assist-sensor and RCTA function will
be adjusted simultaneously.
Use the meter control switches to
change settings. (



P.110)

Press

to select

PKSA (Parking Support
Alert)

The Parking Support Alert system
consists of the following functions
that operate when driving at a low
speed or backing up, such as when
parking. When the system deter-
mines that the possibility of a colli-
sion with a detected object, such as
a wall is high, a warning operates to
urge the driver to take evasive
action.

PKSA (Parking Support Alert)
system

Setting the buzzer volume

280

4-5. Using the driving support systems

Press

to select “PKSA”

and then press “OK”.

Press

to select

and

then press “OK”.

Each time the switch is pressed, the vol-

ume level will change between 1, 2, and 3.

Muting a buzzer temporarily

A mute button will be displayed on the
multi-information display when an
object is detected. To mute the buzzer,
press “OK”.
The buzzers for the Lexus parking
assist-sensor and RCTA function will
be muted simultaneously.
Mute will be canceled automatically in
the following situations:



When the shift lever is changed.



When there is a malfunction in a
sensor or the system is temporarily
unavailable.



When the operating function is dis-
abled manually.



When the power switch is turned
off.

: If equipped

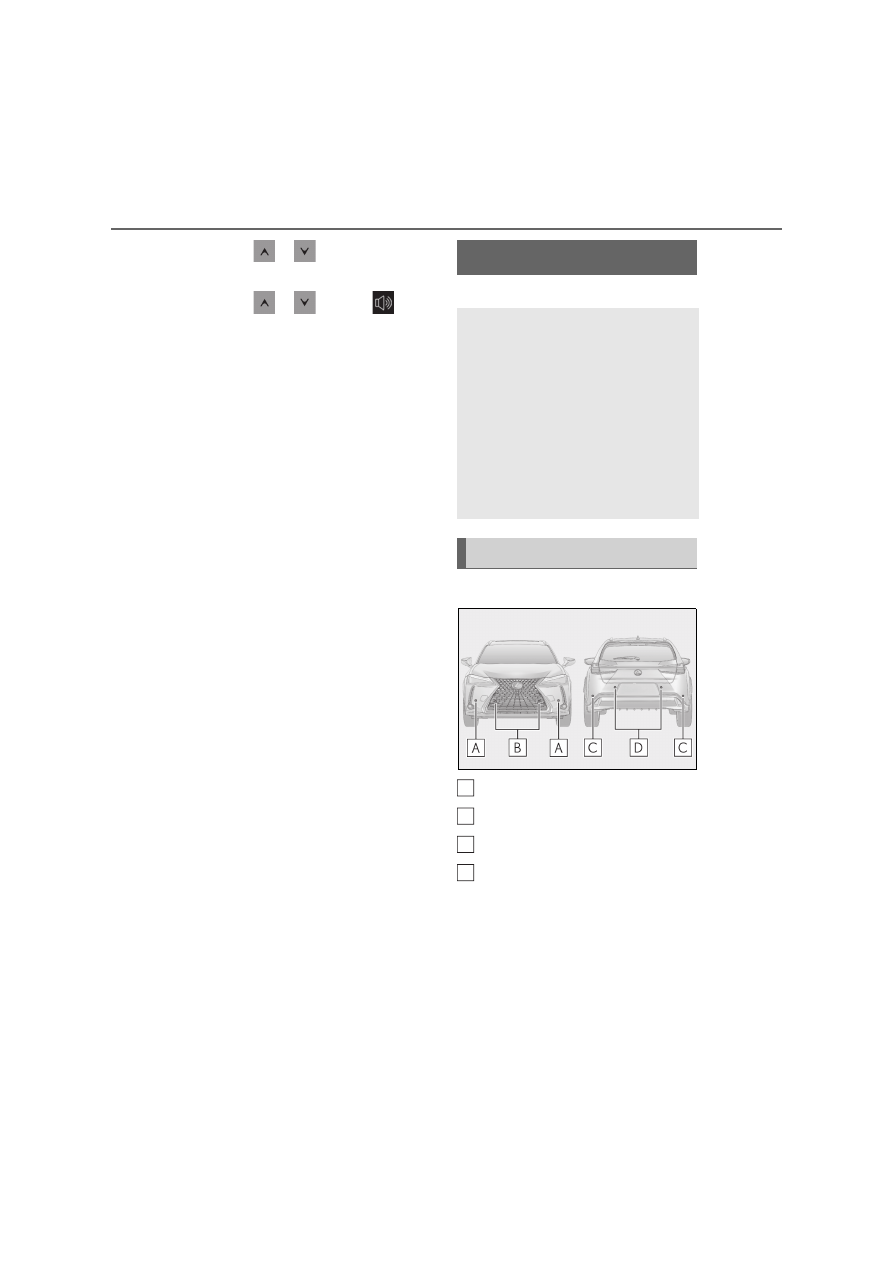

Types of sensors

Front corner sensors

Front center sensors

Rear corner sensors

Rear center sensors

Display

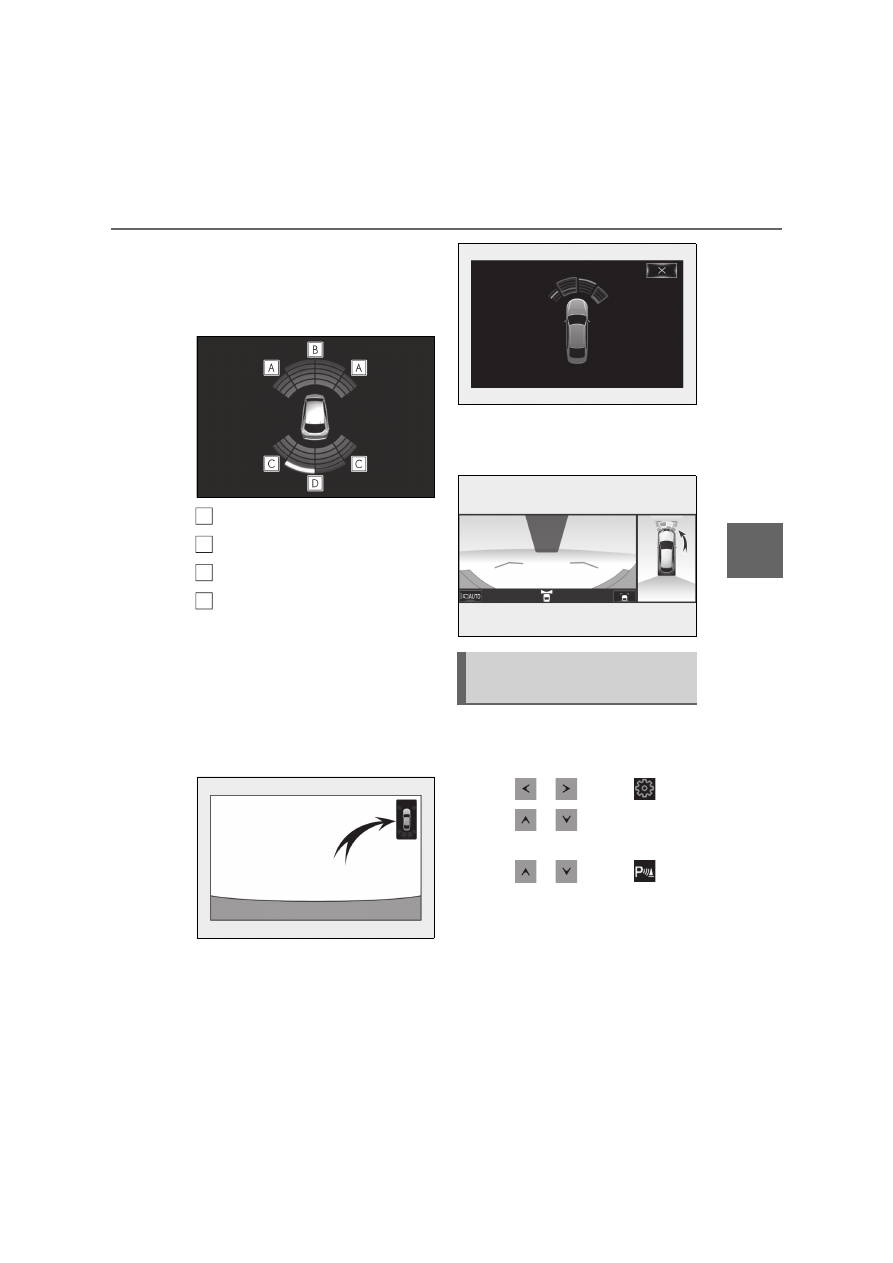

When the sensors detect an object,
such as a wall, a graphic is shown on
the multi-information display, head-up
display (if equipped) and Center Dis-
play (vehicles with 10.3-inch display

Lexus parking assist-sensor

The distance from your vehicle to
objects, such as a wall, when paral-
lel parking or maneuvering into a
garage is measured by the sensors
and communicated via the multi-
information display, head-up dis-
play (if equipped), Center Display
and a buzzer. Always check the sur-
rounding area when using this sys-
tem.

System components

A
B
C
D

281

4-5. Using the driving support systems

ivin
g

model) depending on the position and
distance to the object.



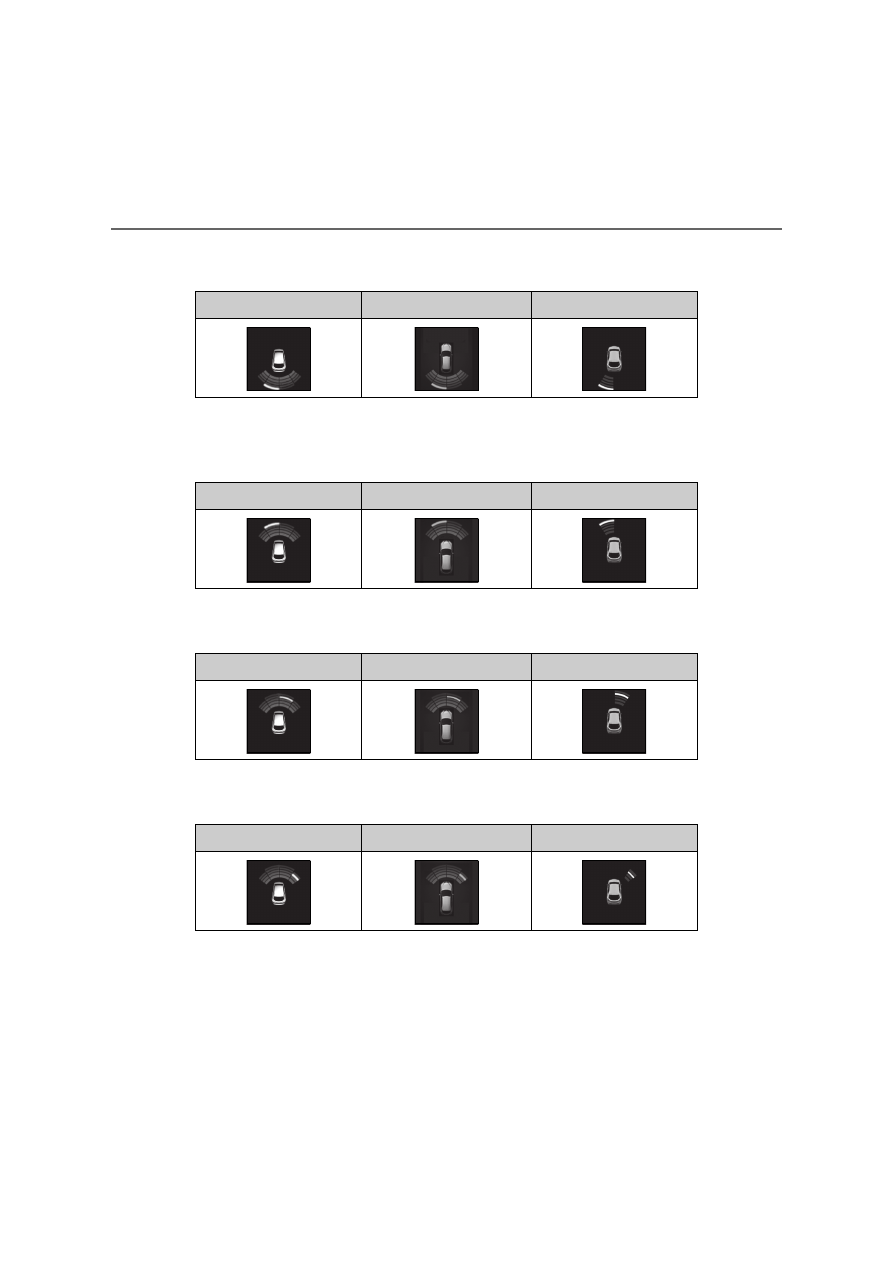

Multi-information display and head-
up display

Front corner sensor detection

Front center sensor detection

Rear corner sensor detection

Rear center sensor detection



Center Display

A graphic is shown when the Lexus park-
ing assist monitor (if equipped) is dis-
played.
A simplified image is displayed on the
Center Display when an object is detected.
• When the shift lever is in R

• When the shift lever is in N, S or D

When an object is detected, a graphic will
be displayed on the panoramic view moni-
tor (if equipped).

Use the meter control switches to
enable/disable the Lexus parking
assist-sensor. (



P.110)

Press

to select

Press

to select “PKSA”

and then press “OK”.

Press

to select

and

then press “OK”.

When the Lexus parking assist-sensor
function is disabled, the Lexus parking
assist-sensor OFF indicator (



P.96)

illuminates on the multi-information
display.

A
B
C
D

Turning Lexus parking assist-
sensor on/off

282

4-5. Using the driving support systems

When the Lexus parking assist-sensor
function is turned on or off, operation
of the Lexus parking assist-sensor
function continues in the same condi-
tion the next time the hybrid system is
started.

The system can be operated when

The power switch is in ON.

Lexus parking assist-sensor function is

on.

The vehicle speed is less than about 10

km/h (6 mph).

The shift lever is in other than P.

Setting the buzzer volume

The buzzer volume can be adjusted on the

multi-information display. (



P.279)

If “Parking Assist Unavailable Clean

Parking Assist Sensor” is displayed on

the multi-information display

A sensor may be covered with ice, snow,

dirt, etc. Remove the ice, snow, dirt, etc.,

from the sensor to return the system to nor-

mal.

WARNING

Cautions regarding the use of the

system

There is a limit to the degree of recogni-

tion accuracy and control performance

that this system can provide, do not

overly rely on this system. The driver is

always responsible for paying attention

to the vehicle’s surroundings and driving

safely.

To ensure the system can operate

properly

Observe the following precautions.

Failing to do so may result in the vehicle

being unable to be driven safely and pos-

sibly cause an accident.

Do not damage the sensors, and

always keep them clean.

Do not attach a sticker or install an

electronic component, such as a

backlit license plate (especially fluo-

rescent type), fog lights, fender pole or

wireless antenna near a radar sensor.

Do not subject the surrounding area of

the sensor to a strong impact. If sub-

jected to an impact, have the vehicle

inspected by any authorized Lexus

retailer or Lexus authorized repairer,

or any reliable repairer. If the front or

rear bumper needs to be

removed/installed or replaced, con-

tact any authorized Lexus retailer or

Lexus authorized repairer, or any reli-

able repairer.

Do not modify, disassemble or paint

the sensors.

Do not attach a license plate cover.

Keep your tires properly inflated.

When to disable the function

In the following situations, disable the

function as it may operate even though

there is no possibility of a collision.

Failing to observe the warnings above.

The front or rear bumper or a sensor

receives a strong impact.

A non-genuine Lexus suspension

(lowered suspension, etc.) is installed.

Notes when washing the vehicle

Do not apply intensive bursts of water or

steam to the sensor area.
Doing so may result in the sensor mal-

functioning.

When using a high pressure washer to

wash the vehicle, do not spray the sen-

sors directly, as doing so may cause a

sensor to malfunction.

When using steam to clean the vehi-

cle, do not direct steam too close to

the sensors as doing so may cause a

sensor to malfunction.

283

4-5. Using the driving support systems

ivin
g

Also, due to ice forming on a sensor at low

temperatures, a warning message may be

displayed or the sensor may not be able to

detect an object. Once the ice melts, the

system will return to normal.

If “Parking Assist Unavailable” is dis-

played on the multi-information display

Water may be continuously flowing over

the sensor surface, such as in a heavy

rain. When the system determines that it

is normal, the system will return to nor-

mal.

Initialization may not have been per-

formed after a 12-volt battery terminal

was disconnected and reconnected. Ini-

tialize the system. (



P.283)

If this message continues to be displayed

even after initialization, have the vehicle

inspected by any authorized Lexus retailer

or Lexus authorized repairer, or any reli-

able repairer.

If a 12-volt battery terminal has been

disconnected and reconnected

The system needs to be initialized. To initial-

ize the system, drive the vehicle straight

ahead for 5 seconds or more at a speed of

approximately 35 km/h (22 mph) or more.

Additionally, for vehicles with the Parking

Support Brake function, turn the steering

wheel fully to the left and right with the vehi-

cle stopped.

Sensor detection information

The sensor’s detection areas are limited

to the areas around the vehicle’s front

and rear bumpers.

The following situations may occur

during use.

• Depending on the shape of the object

and other factors, the detection distance

may shorten, or detection may be impos-

sible.

• There will be a short delay between

object detection and display. Even at low

speeds, there is a possibility that the

object will come within the sensor’s

detection areas before the display is

shown and the warning beep sounds.

• It might be difficult to hear the buzzer due

to the volume of the audio system or air

flow noise of the air conditioning system.

• It may be difficult to hear the buzzer if

buzzers for other systems are sounding.

Objects which the system may not prop-

erly detect

The shape of the object may prevent the

sensor from detecting it. Pay particular

attention to the following objects:

Wires, fences, ropes, etc.

Cotton, snow and other materials that

absorb sound waves

Sharply-angled objects

Low objects

Tall objects with upper sections project-

ing outwards in the direction of your vehi-

cle

People may not be detected if they are

wearing certain types of clothing.

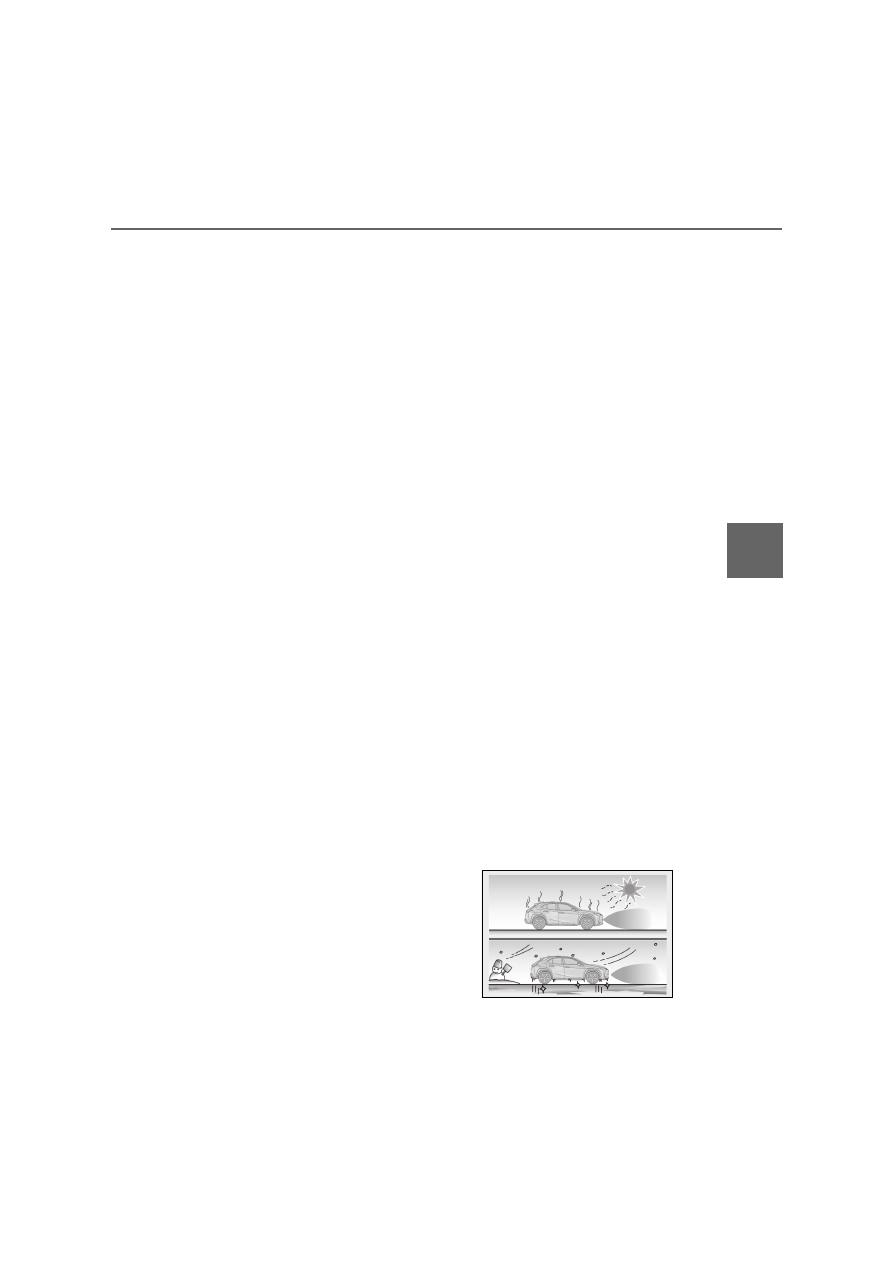

Situations in which the system may not

operate properly

Certain vehicle conditions and the sur-

rounding environment may affect the ability

of a sensor to correctly detect objects. Par-

ticular instances where this may occur are

listed below.

There is dirt, snow or ice on a sensor.

(Cleaning the sensors will resolve this

problem.)

A sensor is frozen. (Thawing the area will

resolve this problem.)

In especially cold weather, if a sensor is

frozen the sensor display may be dis-

played abnormally, or objects, such as a

wall, may not be detected.

When a sensor or the area around a sen-

sor is extremely hot or cold.

On an extremely bumpy road, on an

incline, on gravel, or on grass.

284

4-5. Using the driving support systems

When vehicle horns, vehicle detectors,

motorcycle engines, air brakes of large

vehicles, the clearance sonar of other

vehicles or other devices which produce

ultrasonic waves are near the vehicle.

A sensor is coated with a sheet of spray

or heavy rain.

If objects draw too close to the sensor.

When a pedestrian is wearing clothing

that does not reflect ultrasonic waves (ex.

skirts with gathers or frills).

When objects that are not perpendicular

to the ground, not perpendicular to the

vehicle traveling direction, uneven, or

waving are in the detection range.

Strong wind is blowing.

When driving in inclement weather such

as fog, snow or a sandstorm.

When an object that cannot be detected

is between the vehicle and a detected

object.

If an object such as a vehicle, motorcycle,

bicycle or pedestrian cuts in front of the

vehicle or runs out from the side of the

vehicle.

If the orientation of a sensor has been

changed due to a collision or other

impact.

When equipment that may obstruct a

sensor is installed, such as a towing eye-

let, bumper protector (an additional trim

strip, etc.), bicycle carrier, or snow plow.

If the front of the vehicle is raised or low-

ered due to the carried load.

If the vehicle cannot be driven in a stable

manner, such as when the vehicle has

been in an accident or is malfunctioning.

When tire chains, a compact spare tire or

an emergency tire puncture repair kit are

used.

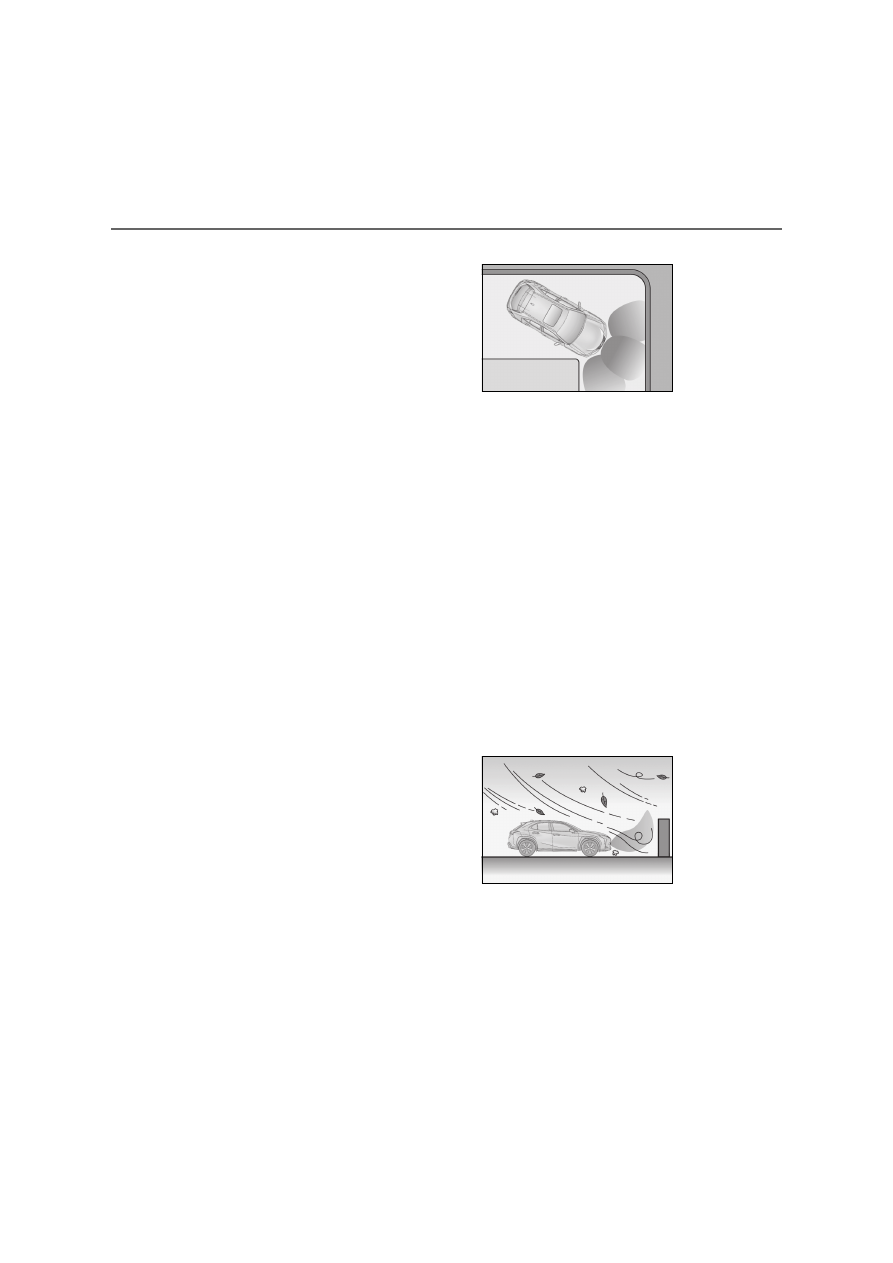

Situations in which the system may

operate even if there is no possibility of a

collision

In some situations, such as the following, the

system may operate even though there is

no possibility of a collision.

When driving on a narrow road.

When driving toward a banner, flag, low-

hanging branch or boom barrier (such as

those used at railroad crossings, toll

gates and parking lots).

When there is a rut or hole in the surface

of the road.

When driving on a metal cover (grating),

such as those used for drainage ditches.

When driving up or down a steep slope.

If a sensor is hit by a large amount of

water, such as when driving on a flooded

road.

There is dirt, snow, water drops or ice on

a sensor. (Cleaning the sensors will

resolve this problem.)

A sensor is coated with a sheet of spray

or heavy rain.

When driving in inclement weather such

as fog, snow or a sandstorm.

When strong winds are blowing.

When vehicle horns, vehicle detectors,

motorcycle engines, air brakes of large

vehicles, the clearance sonar of other

vehicles or other devices which produce

ultrasonic waves are near the vehicle.

If the front of the vehicle is raised or low-

ered due to the carried load.

If the orientation of a sensor has been

285

4-5. Using the driving support systems

ivin
g

changed due to a collision or other

impact.

The vehicle is approaching a tall or

curved curb.

Driving close to columns (H-shaped steel

beams, etc.) in multi-story parking

garages, construction sites, etc.

If the vehicle cannot be driven in a stable

manner, such as when the vehicle has

been in an accident or is malfunctioning.

On an extremely bumpy road, on an

incline, on gravel, or on grass.

When tire chains, a compact spare tire or

an emergency tire puncture repair kit are

used.

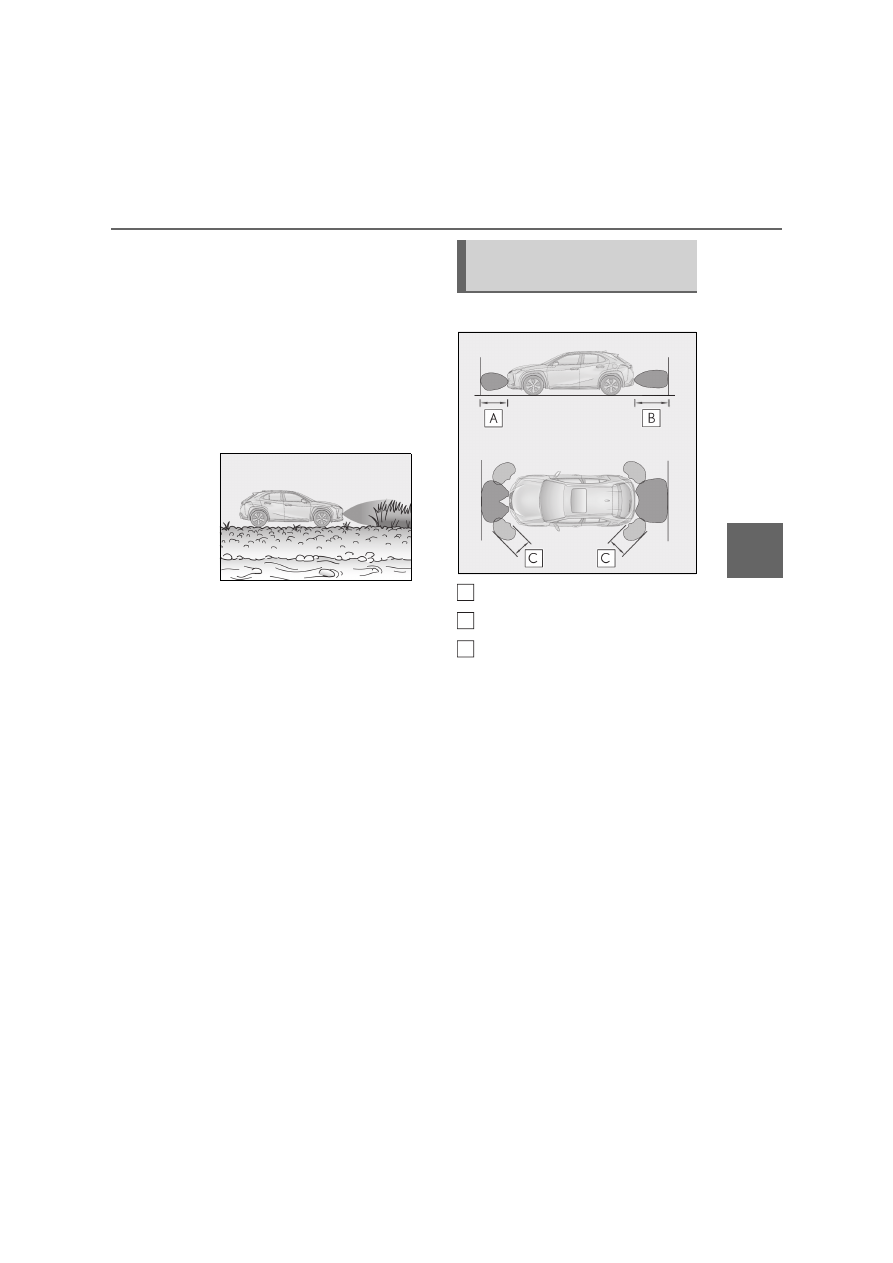

Detection range of the sensors

Approximately 100 cm (3.3 ft.)

Approximately 150 cm (4.9 ft.)

Approximately 60 cm (2.0 ft.)

The diagram shows the detection range of
the sensors. Note that the sensors cannot
detect objects that are extremely close to
the vehicle.
The range of the sensors may change
depending on the shape of the object, etc.

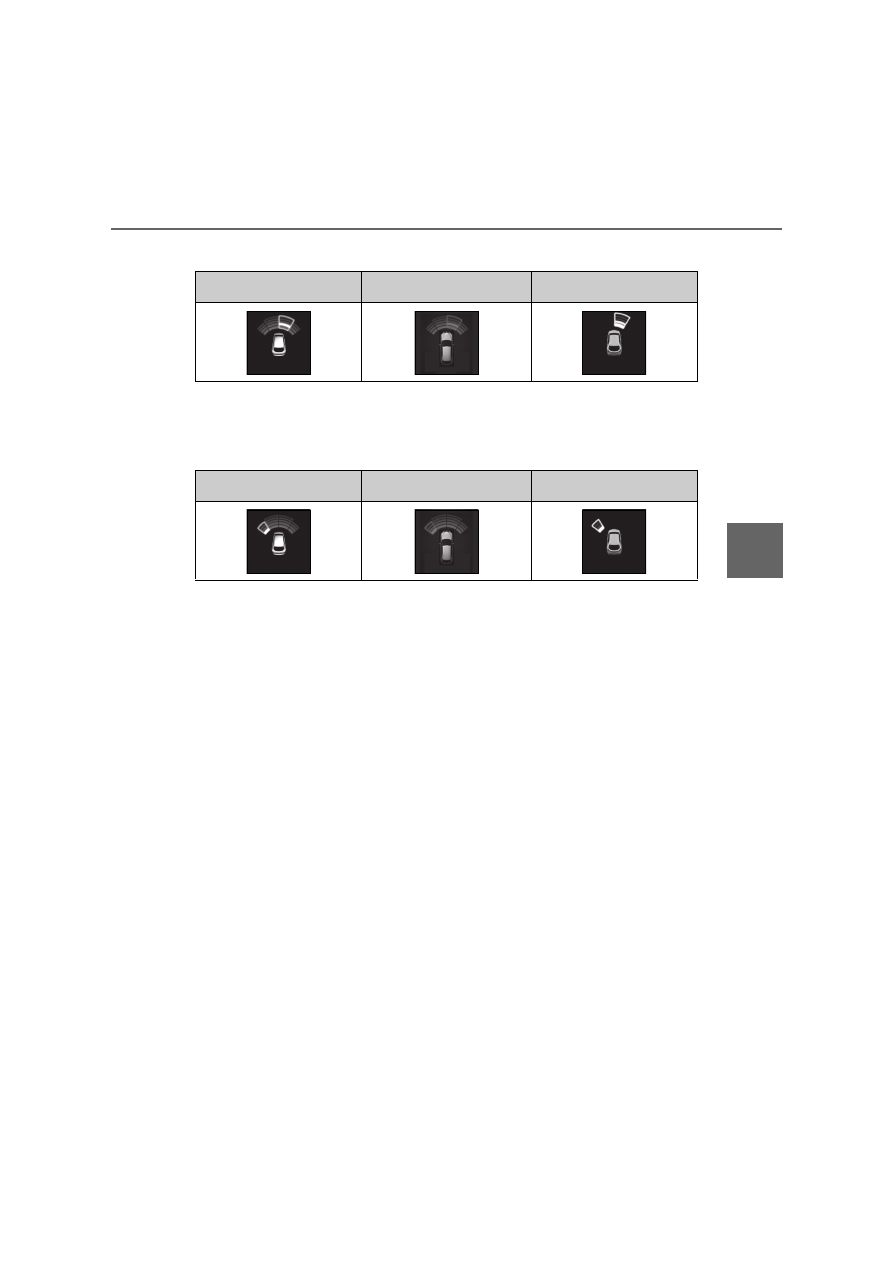

Multi-information display, head-up display (if equipped) and Center Display
(vehicles with 10.3-inch display model)

When an object is detected by a sensor, the approximate distance to the object will
be displayed on the multi-information display, Center Display, and head-up dis-
play. (As the distance to the object becomes short, the distance segments may
blink.)

Sensor detection display, object
distance

A
B
C

286

4-5. Using the driving support systems



Approximate distance to object: 150 cm (4.9 ft.) to 60 cm (2.0 ft.)

(Rear cen-

ter sensor)

: Automatic buzzer mute function is enabled. (



P.287)



Approximate distance to object: 100 cm (3.3 ft.) to 60 cm (2.0 ft.)

(Front cen-

ter sensor)

: Automatic buzzer mute function is enabled. (



P.287)



Approximate distance to object: 60 cm (2.0 ft.) to 45 cm (1.5 ft.)

: Automatic buzzer mute function is enabled. (



P.287)



Approximate distance to object: 45 cm (1.5 ft.) to 30 cm (1.0 ft.)

: Automatic buzzer mute function is enabled. (



P.287)

Multi-information display

Center Display

Head-up display

Multi-information display

Center Display

Head-up display

Multi-information display

Center Display

Head-up display

Multi-information display

Center Display

Head-up display

287

4-5. Using the driving support systems

ivin
g



Approximate distance to object: 30 cm (1.0 ft.) to 15 cm (0.5 ft.)

: Automatic buzzer mute function is disabled. (



P.287)

: The distance segments will blink slowly.



Approximate distance to object: Less than 15 cm (0.5 ft.)

: Automatic buzzer mute function is disabled. (



P.287)

: The distance segments will blink rapidly.

Buzzer operation and distance to
an object

A buzzer sounds when the sensors are
operating.



The buzzer beeps faster as the vehi-
cle approaches an object. When the
vehicle comes within the following
distance of the object, the buzzer
sounds continuously:

Approximately 30 cm (1.0 ft.)



When 2 or more objects are
detected simultaneously, the buzzer
sounds for the nearest object. If one
or more objects come within
approximately 30 cm (1.0 ft.) of the
vehicle, the buzzer will repeat a long
tone, followed by fast beeps.



Automatic buzzer mute function:

After a buzzer begins sounding, if
the distance between the vehicle
and the detected object does not
become shorter, the buzzer will be
muted automatically. (However, if
the distance between the vehicle
and object is 30 cm [1.0 ft.] or less,
this function will not operate.)

The buzzer sounds volume can be
adjusted. (



P.279)

Multi-information display

Center Display

Head-up display

Multi-information display

Center Display

Head-up display

Content .. 13 14 15 16 ..
