236

4-5. Using the driving support systems

Side road speed signs may be detected

and displayed (if positioned in sight of the

front camera) while the vehicle is travel-

ing on the main road.

Roundabout exit road speed signs may

be detected and displayed (if positioned

in sight of the front camera) while travel-

ing on a roundabout.

The front of the vehicle is raised or low-

ered due to the carried load.

The surrounding brightness is not suffi-

cient or changes suddenly.

When a sign intended for trucks, etc. is

recognized.

The speed information displayed on the

meter and on the navigation system may

be different due to the navigation system

using map data.

Speed limit sign display

If the power switch was last turned off while

a speed limit sign was displayed on the

multi-information display, the same sign dis-

plays again when the power switch is turned

to ON mode.

Customization

Some functions can be customized. (Cus-

tomizable features:

P.472)

Vehicle-to-vehicle distance switch
Multi-information display
Set speed
Indicators

Dynamic radar cruise con-
trol with full-speed range

In vehicle-to-vehicle distance con-
trol mode, the vehicle automati-
cally accelerates, decelerates and
stops to match the speed changes
of the preceding vehicle even if the
accelerator pedal is not depressed.
In constant speed control mode,
the vehicle runs at a fixed speed.

Use the dynamic radar cruise con-
trol with full-speed range on free-
ways and highways.

Vehicle-to-vehicle distance con-
trol mode (

P.238)

Constant speed control mode
(

P.243)

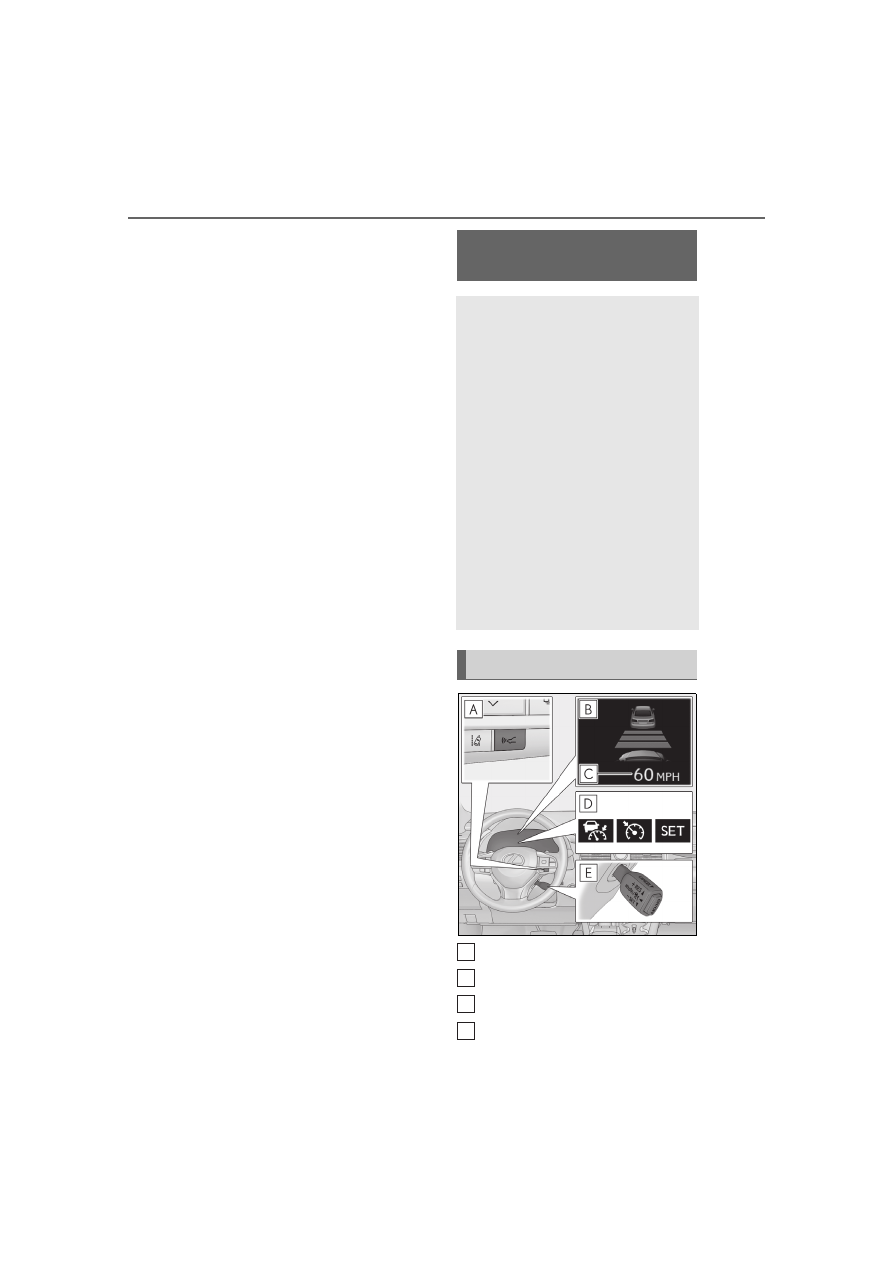

System Components

A
B
C
D

237

4-5. Using the driving support systems

4

Driving

Cruise control switch

WARNING

Before using dynamic radar cruise

control with full-speed range

Driving safely is the sole responsibility

of the driver. Do not rely solely on the

system, and drive safely by always pay-

ing careful attention to your surround-

ings.

The dynamic radar cruise control with

full-speed range provides driving

assistance to reduce the driver’s bur-

den. However, there are limitations to

the assistance provided.

Read the following conditions care-

fully. Do not overly rely on this system

and always drive carefully.

• When the sensor may not be correctly

detecting the vehicle ahead:

P.244

• Conditions under which the vehi-

cle-to-vehicle distance control mode

may not function correctly:

P.245

Set the speed appropriately depend-

ing on the speed limit, traffic flow, road

conditions, weather conditions, etc.

The driver is responsible for checking

the set speed.

Even when the system is functioning

normally, the condition of the preced-

ing vehicle as detected by the system

may differ from the condition

observed by the driver. Therefore, the

driver must always remain alert, assess

the danger of each situation and drive

safely. Relying solely on this system or

assuming the system ensures safety

while driving can lead to an accident,

resulting in death or serious injury.

Switch the dynamic radar cruise con-

trol with full-speed range setting to off,

using the “ON/OFF” button when not

in use.

E

Cautions regarding the driving assist

systems

Observe the following precautions, as

there are limitations to the assistance

provided by the system. Failure to do so

may cause an accident resulting in death

or serious injury.

Assisting the driver to measure follow-

ing distance

The dynamic radar cruise control with

full-speed range is only intended to help

the driver in determining the following

distance between the driver’s own vehi-

cle and a designated vehicle traveling

ahead. It is not a mechanism that allows

careless or inattentive driving, and it is

not a system that can assist the driver in

low-visibility conditions.

It is still necessary for driver to pay close

attention to the vehicle’s surroundings.

Assisting the driver to judge proper

following distance

The dynamic radar cruise control with

full-speed range determines whether the

following distance between the driver’s

own vehicle and a designated vehicle

traveling ahead is within a set range. It is

not capable of making any other type of

judgement. Therefore, it is absolutely

necessary for the driver to remain vigi-

lant and to determine whether or not

there is a possibility of danger in any

given situation.

Assisting the driver to operate the

vehicle

The dynamic radar cruise control with

full-speed range does not include func-

tions which will prevent or avoid colli-

sions with vehicles ahead of your vehicle.

Therefore, if there is ever any possibility

of danger, the driver must take immedi-

ate and direct control of the vehicle and

act appropriately in order to ensure the

safety of all involved.

238

4-5. Using the driving support systems

This mode employs a radar to detect the presence of vehicles up to approximately

WARNING

Situations unsuitable for dynamic

radar cruise control with full-speed

range

Do not use dynamic radar cruise control

with full-speed range in any of the follow-

ing situations. Doing so may result in

inappropriate speed control and could

cause an accident resulting in death or

serious injury.

Roads where there are pedestrians,

cyclists, etc.

In heavy traffic

On roads with sharp bends

On winding roads

On slippery roads, such as those cov-

ered with rain, ice or snow

On steep downhills, or where there

are sudden changes between sharp up

and down gradients

Vehicle speed may exceed the set

speed when driving down a steep hill.

At entrances to freeways and highways

When weather conditions are bad

enough that they may prevent the sen-

sors from detecting correctly (fog,

snow, sandstorm, heavy rain, etc.)

When there is rain, snow, etc. on the

front surface of the radar or front cam-

era

In traffic conditions that require fre-

quent repeated acceleration and

deceleration

When your vehicle is towing a trailer

or during emergency towing

When an approach warning buzzer is

heard often

Driving in vehicle-to-vehicle distance control mode

239

4-5. Using the driving support systems

4

Driving

328 ft. (100 m) ahead, determines the current vehicle-to-vehicle following dis-
tance, and operates to maintain a suitable following distance from the vehicle
ahead. The desired vehicle-to-vehicle distance can also be set by operating the
vehicle-to-vehicle distance switch.

When driving on downhill slopes, the vehicle-to-vehicle distance may become shorter.

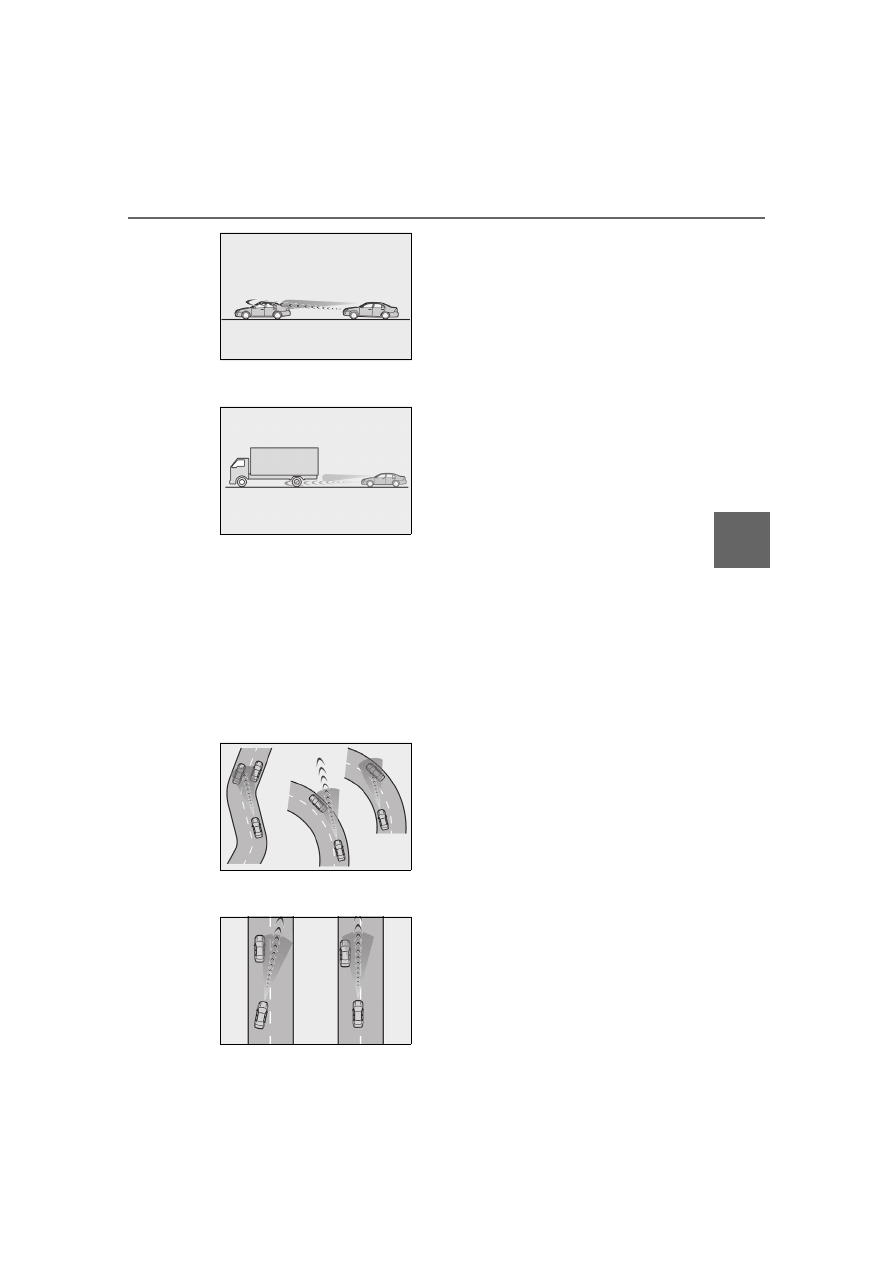

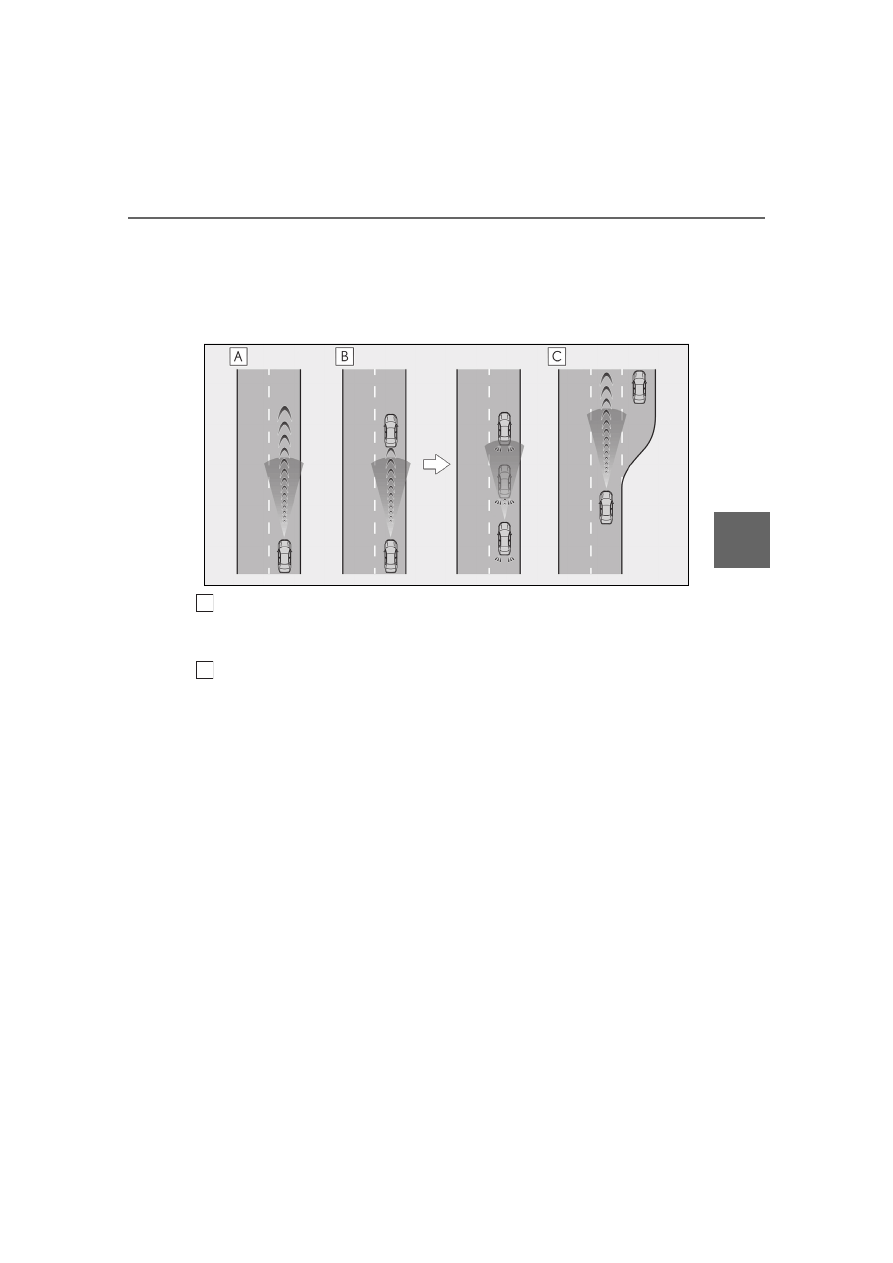

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver.

Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed appears

When a vehicle is detected running ahead of you, the system automatically decelerates
your vehicle. When a greater reduction in vehicle speed is necessary, the system applies
the brakes (the stop lights will come on at this time). The system will respond to changes in
the speed of the vehicle ahead in order to maintain the vehicle-to-vehicle distance set by
the driver. Approach warning warns you when the system cannot decelerate sufficiently to
prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your vehicle will also stop (vehicle is stopped by sys-
tem control). After the vehicle ahead starts off, pushing the cruise control lever up or
depressing the accelerator pedal (start-off operation) will resume follow-up cruising. If the
start-off operation is not performed, system control continues to keep your vehicle
stopped.
When the turn signal lever is operated and your vehicle moves to an overtaking lane while
driving at 50 mph (80 km/h) or more, the vehicle will accelerate to help to overtake a
passing vehicle.
The system’s identification of what is an overtaking lane may be determined solely based on
the location of the steering wheel in the vehicle (left side driver position versus right side
driver position.) If the vehicle is driven to a region where the overtaking lane is on a different
side from where the vehicle is normally driven, the vehicle may accelerate when the turn

A

B

240

4-5. Using the driving support systems

signal lever is operated in the opposite direction to the overtaking lane (e.g., if the driver
normally operates the vehicle in a region where the overtaking lane is to the right but then
drives to a region where the overtaking lane is to the left, the vehicle may accelerate when
the right turn signal is activated).

Example of acceleration
When there are no longer any preceding vehicles driving slower than the set
speed

The system accelerates until the set speed is reached. The system then returns to constant
speed cruising.

1

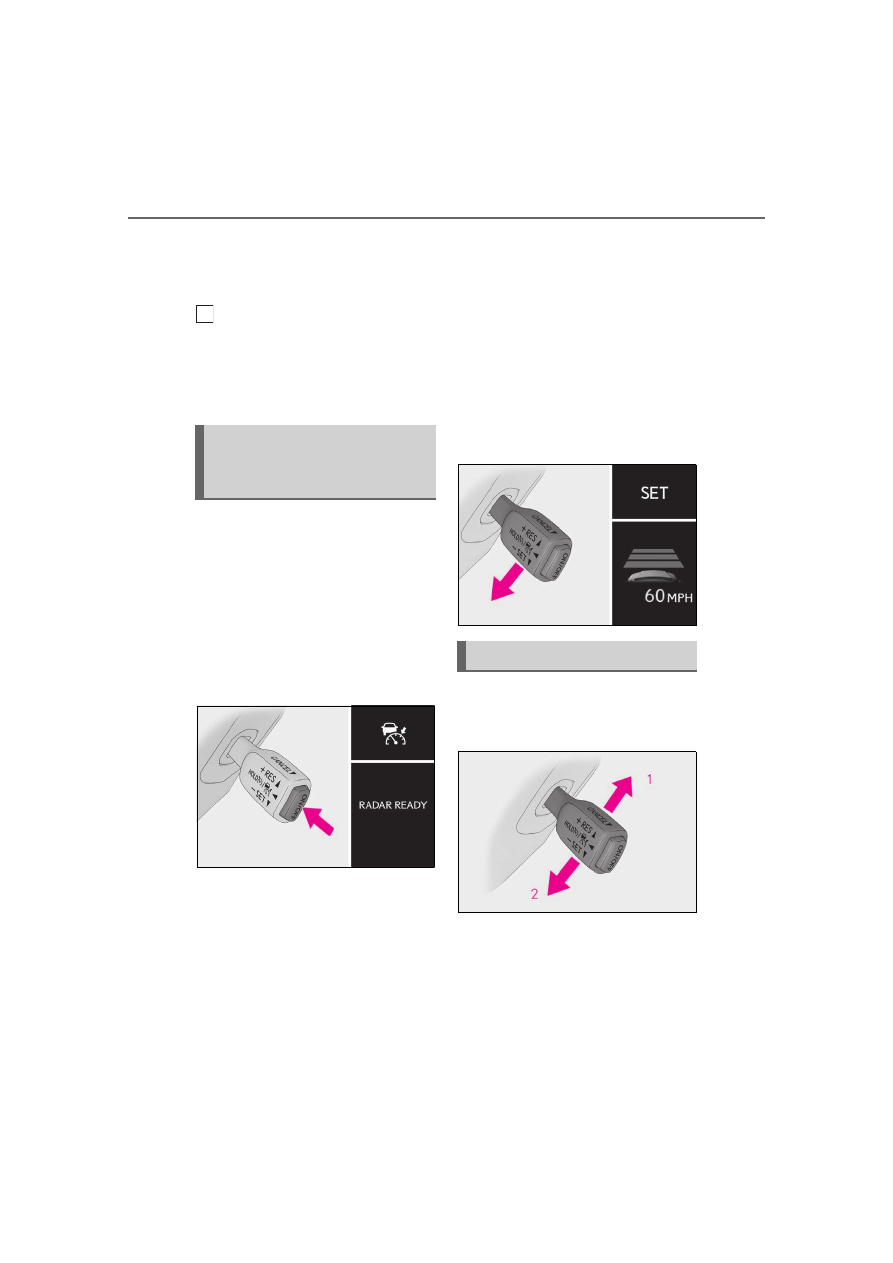

Press the “ON/OFF” button to acti-
vate the cruise control.

Dynamic radar cruise control indicator will

come on and a message will be displayed

on the multi-information display. Press the

button again to deactivate the cruise con-

trol.
If the “ON/OFF” button is pressed and

held for 1.5 seconds or more, the system

turns on in constant speed control mode.

(

P.243)

2

Accelerate or decelerate, with
accelerator pedal operation, to the
desired vehicle speed (at or above
approximately 20 mph [30 km/h])
and push the lever down to set the
speed.

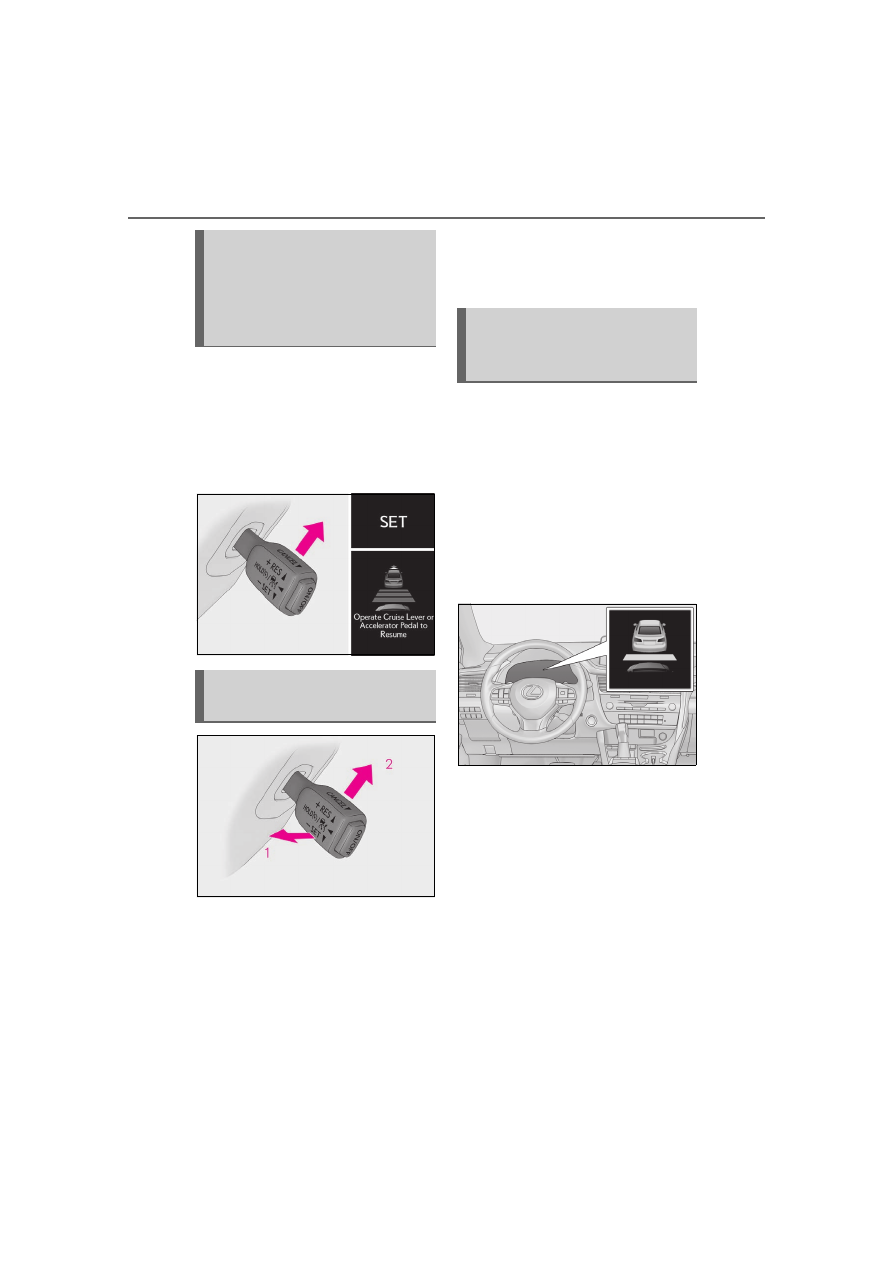

Cruise control “SET” indicator will come

on.

The vehicle speed at the moment the lever

is released becomes the set speed.

To change the set speed, operate the
lever until the desired set speed is dis-
played.

1

Increases the speed (Except when
the vehicle has been stopped by
system control in vehicle-to-vehi-
cle distance control mode)

2

Decreases the speed

Fine adjustment: Momentarily move the

C

Setting the vehicle speed (vehi-
cle-to-vehicle distance control
mode)

Adjusting the set speed

241

4-5. Using the driving support systems

4

Driving

lever in the desired direction.
Large adjustment: Hold the lever up or
down to change the speed, and release
when the desired speed is reached.

In the vehicle-to-vehicle distance con-
trol mode, the set speed will be
increased or decreased as follows:

For the U.S. mainland, Hawaii

Fine adjustment: By 1 mph (1.6 km/h)

*1

 or 1

km/h (0.6 mph)

*2

 each time the lever is

operated
Large adjustment: Increases or decreases
in 1 mph (1.6 km/h)

*1

 or 1 km/h (0.6 mph)

*2



increments for as long as the lever is held

For Canada, Guam, Puerto Rico
and Saipan

Fine adjustment: By 1 mph (1.6 km/h)

*1

 or 1

km/h (0.6 mph)

*2

 each time the lever is

operated
Large adjustment: Increases or decreases
in 5 mph (8 km/h)

*1

 or 5 km/h (3.1 mph)

*2



increments for as long as the lever is held

In the constant speed control mode
(

P.243), the set speed will be

increased or decreased as follows:

Fine adjustment: By 1 mph (1.6 km/h)

*1

 or 1

km/h (0.6 mph)

*2

 each time the lever is

operated
Large adjustment: The speed will continue
to change while the switch is held.

*1

: When the set speed is shown in “MPH”

*2

: When the set speed is shown in “km/h”

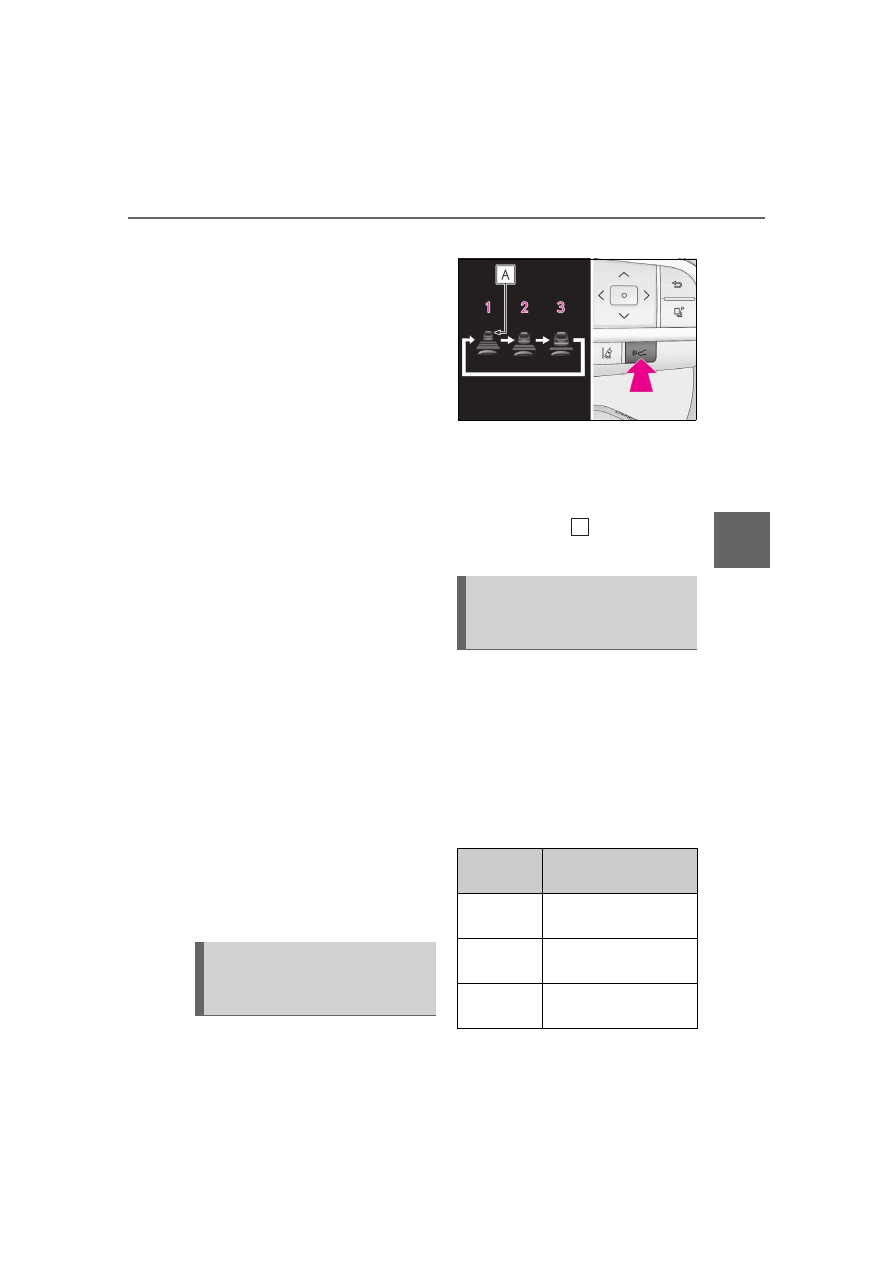

Pressing the switch changes the vehi-

cle-to-vehicle distance as follows:

1

Long

2

Medium

3

Short

If a vehicle is running ahead of you, the pre-
ceding vehicle mark

 will also be dis-

played.

Select a distance from the table below.
Note that the distances shown corre-
spond to a vehicle speed of 50 mph
(80 km/h). Vehicle-to-vehicle distance
increases/decreases in accordance
with vehicle speed. When the vehicle is
stopped by system control, the vehicle
stops at a certain vehicle-to-vehicle
distance depending on the situation.

Changing the vehicle-to-vehicle
distance (vehicle-to-vehicle dis-
tance control mode)

Vehicle-to-vehicle distance set-
tings (vehicle-to-vehicle dis-
tance control mode)

Distance

options

Vehicle-to-vehicle dis-

tance

Long

Approximately 160 ft. (50

m)

Medium

Approximately 130 ft. (40

m)

Short

Approximately 100 ft. (30

m)

A

242

4-5. Using the driving support systems

After the vehicle ahead of you starts
off, push the lever up.
Your vehicle will also resume follow-up
cruising if the accelerator pedal is
depressed after the vehicle ahead of
you starts off.

1

Pulling the lever toward you can-
cels the speed control.

The speed control is also canceled when
the brake pedal is depressed. (When the
vehicle has been stopped by system con-
trol, depressing the brake pedal does not
cancel the setting.)

2

Pushing the lever up resumes the
cruise control and returns vehicle
speed to the set speed.

When your vehicle is too close to a
vehicle ahead, and sufficient automatic
deceleration via the cruise control is
not possible, the display will flash and
the buzzer will sound to alert the driver.
An example of this would be if another
driver cuts in front of you while you are
following a vehicle. Depress the brake
pedal to ensure an appropriate vehi-
cle-to-vehicle distance.

Warnings may not occur when

In the following instances, warnings
may not occur even when the vehi-
cle-to-vehicle distance is small.

When the speed of the preceding
vehicle matches or exceeds your
vehicle speed

When the preceding vehicle is trav-
eling at an extremely slow speed

Immediately after the cruise control
speed was set

When depressing the accelerator

Resuming follow-up cruising
when the vehicle has been
stopped by system control (vehi-
cle-to-vehicle distance control
mode)

Canceling and resuming the
speed control

Approach warning (vehi-
cle-to-vehicle distance control
mode)

243

4-5. Using the driving support systems

4

Driving

pedal

When constant speed control mode is
selected, your vehicle will maintain a
set speed without controlling the vehi-
cle-to-vehicle distance. Select this
mode only when vehicle-to-vehicle dis-
tance control mode does not function
correctly due to a dirty radar, etc.

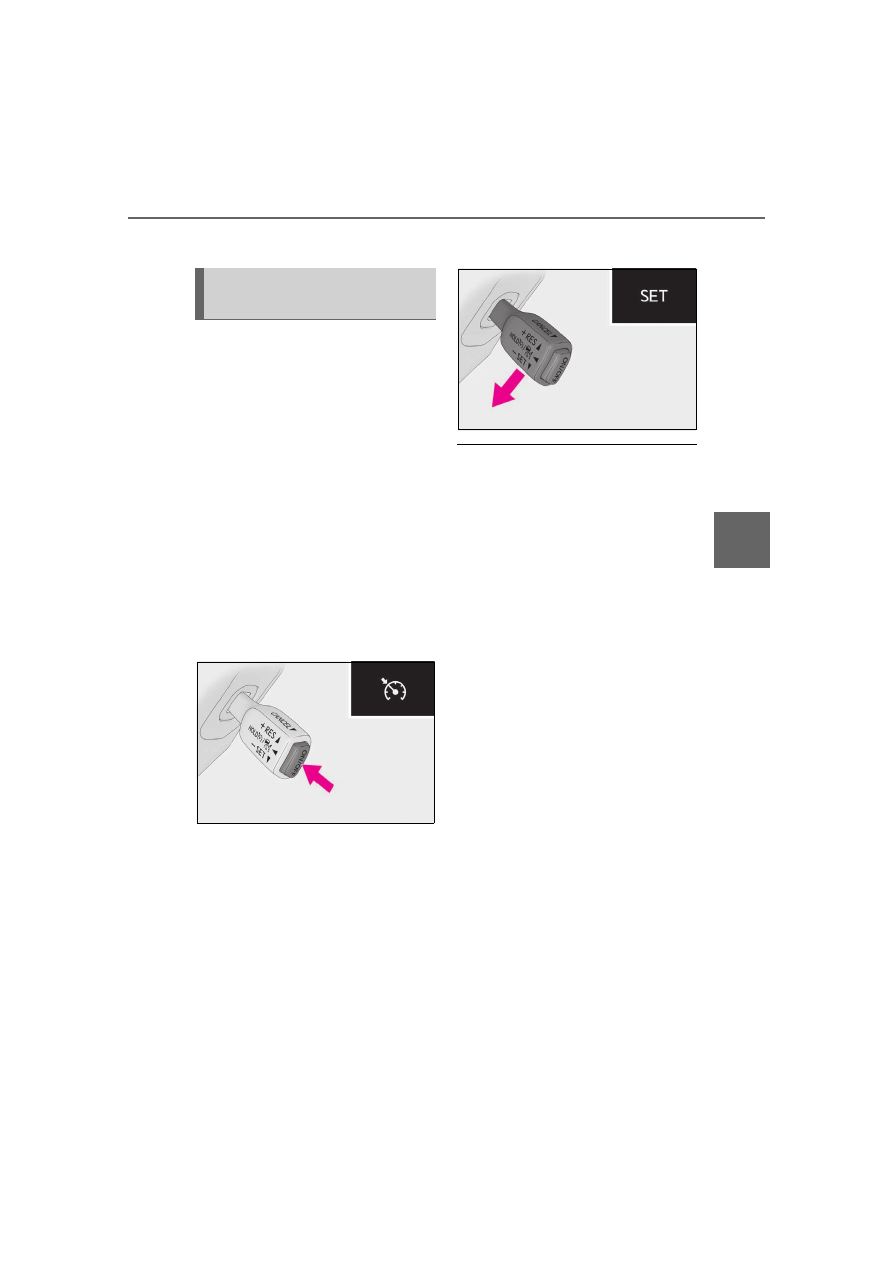

1

With the cruise control off, press
and hold the “ON/OFF” button for
1.5 seconds or more.

Immediately after the “ON/OFF” button is

pressed, the dynamic radar cruise control

indicator will come on. Afterwards, it

switches to the cruise control indicator.
Switching to constant speed control mode

is only possible when operating the lever

with the cruise control off.

2

Accelerate or decelerate, with
accelerator pedal operation, to the
desired vehicle speed (at or above
approximately 20 mph [30 km/h])
and push the lever down to set the
speed.

Cruise control “SET” indicator will come

on.
The vehicle speed at the moment the lever

is released becomes the set speed.
Adjusting the speed setting:

P.240

Canceling and resuming the speed setting:

P.242

Dynamic radar cruise control with

full-speed range can be set when

The shift lever is in D.

The desired set speed can be set when

the vehicle speed is approximately 20

mph (30 km/h) or more.

(However, when the vehicle speed is set

while driving at below approximately 20

mph [30 km/h], the set speed will be set

to approximately 20 mph [30 km/h].)

Accelerating after setting the vehicle

speed

The vehicle can accelerate by operating the

accelerator pedal. After accelerating, the

set speed resumes. However, during vehi-

cle-to-vehicle distance control mode, the

vehicle speed may decrease below the set

speed in order to maintain the distance to

the preceding vehicle.

When the vehicle stops while follow-up

cruising

Pushing the lever up while the vehicle

ahead stops will resume follow-up cruis-

ing if the vehicle ahead starts off within

approximately 3 seconds after the lever

is pushed up.

If the vehicle ahead starts off within 3 sec-

onds after your vehicle stops, follow-up

cruising will be resumed.

Automatic cancelation of vehi-

cle-to-vehicle distance control mode

Vehicle-to-vehicle distance control mode is

automatically canceled in the following situ-

ations.

VSC is activated.

Selecting constant speed con-
trol mode

244

4-5. Using the driving support systems

TRAC is activated for a period of time.

When the VSC or TRAC system is

turned off.

The sensor cannot detect correctly

because it is covered in some way.

When the brake control or output restric-

tion control of a driving support system

operates.

(For example: Pre-Collision System,

Drive-Start Control)

The parking brake is operated.

The vehicle is stopped by system control

on a steep incline.

The following are detected when the

vehicle has been stopped by system con-

trol:

• The driver is not wearing a seat belt.

• The driver’s door is opened.

• The vehicle has been stopped for about 3

minutes.

If vehicle-to-vehicle distance control mode

is automatically canceled for any reasons

other than the above, there may be a mal-

function in the system. Contact your Lexus

dealer.

Automatic cancelation of constant

speed control mode

Constant speed control mode is automati-

cally canceled in the following situations:

Actual vehicle speed is more than

approximately 10 mph (16 km/h) below

the set vehicle speed.

Actual vehicle speed falls below approxi-

mately 20 mph (30 km/h).

VSC is activated.

TRAC is activated for a period of time.

When the VSC or TRAC system is

turned off.

When the brake control or output restric-

tion control of a driving support system

operates.

(For example: Pre-Collision System,

Drive-Start Control)

If constant speed control mode is automati-

cally canceled for any reasons other than

the above, there may be a malfunction in the

system. Contact your Lexus dealer.

Brake operation

A brake operation sound may be heard and

the brake pedal response may change, but

these are not malfunctions.

Warning messages and buzzers for

dynamic radar cruise control with

full-speed range

Warning messages and buzzers are used to

indicate a system malfunction or to inform

the driver of the need for caution while driv-

ing. If a warning message is shown on the

multi-information display, read the message

and follow the instructions.(

P.216,420)

When the sensor may not be correctly

detecting the vehicle ahead

In the case of the following and depending

on the conditions, operate the brake pedal

when deceleration of the system is insuffi-

cient or operate the accelerator pedal

when acceleration is required.

As the sensor may not be able to correctly

detect these types of vehicles, the approach

warning (

P.242) may not be activated.

Vehicles that cut in suddenly

Vehicles traveling at low speeds

Vehicles that are not moving in the same

lane

Vehicles with small rear ends (trailers

with no load on board, etc.)

Motorcycles traveling in the same lane

When water or snow thrown up by the

surrounding vehicles hinders the detect-

ing of the sensor

When your vehicle is pointing upwards

(caused by a heavy load in the luggage

compartment, etc.)

245

4-5. Using the driving support systems

4

Driving

Preceding vehicle has an extremely high

ground clearance

Conditions under which the vehi-

cle-to-vehicle distance control mode

may not function correctly

In the case of the following conditions,

operate the brake pedal (or accelerator

pedal, depending on the situation) as nec-

essary.

As the sensor may not be able to correctly

detect vehicles ahead, the system may not

operate properly.

When the road curves or when the lanes

are narrow

When steering wheel operation or your

position in the lane is unstable

When the vehicle ahead of you deceler-

ates suddenly

When driving on a road surrounded by a

structure, such as in a tunnel or on a

bridge

While the vehicle speed is decreasing to

the set speed after the vehicle acceler-

ates by depressing the accelerator pedal

246

4-5. Using the driving support systems

*

: If equipped

Meter control switches

Turning the Blind Spot Monitor on/off.

Outside rear view mirror indicators

When a vehicle is detected in a blind spot
of the outside rear view mirrors or
approaching rapidly from behind into a
blind spot, the outside rear view mirror
indicator on the detected side will illumi-
nate. If the turn signal lever is operated
toward the detected side, the outside rear
view mirror indicator flashes.

BSM indicator

Illuminates when the Blind Spot Monitor is
enabled

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

When “Blind Spot Monitor Unavailable”

is shown on the multi-information dis-

play

Ice, snow, mud, etc., may be attached to the

rear bumper around the sensors. (

P.246)

The system should return to normal opera-

tion after removing the ice, snow, mud, etc.

from the rear bumper. Additionally, the sen-

sors may not operate normally when driving

in extremely hot or cold environments.

Customization

Some functions can be customized.

(

P.472)

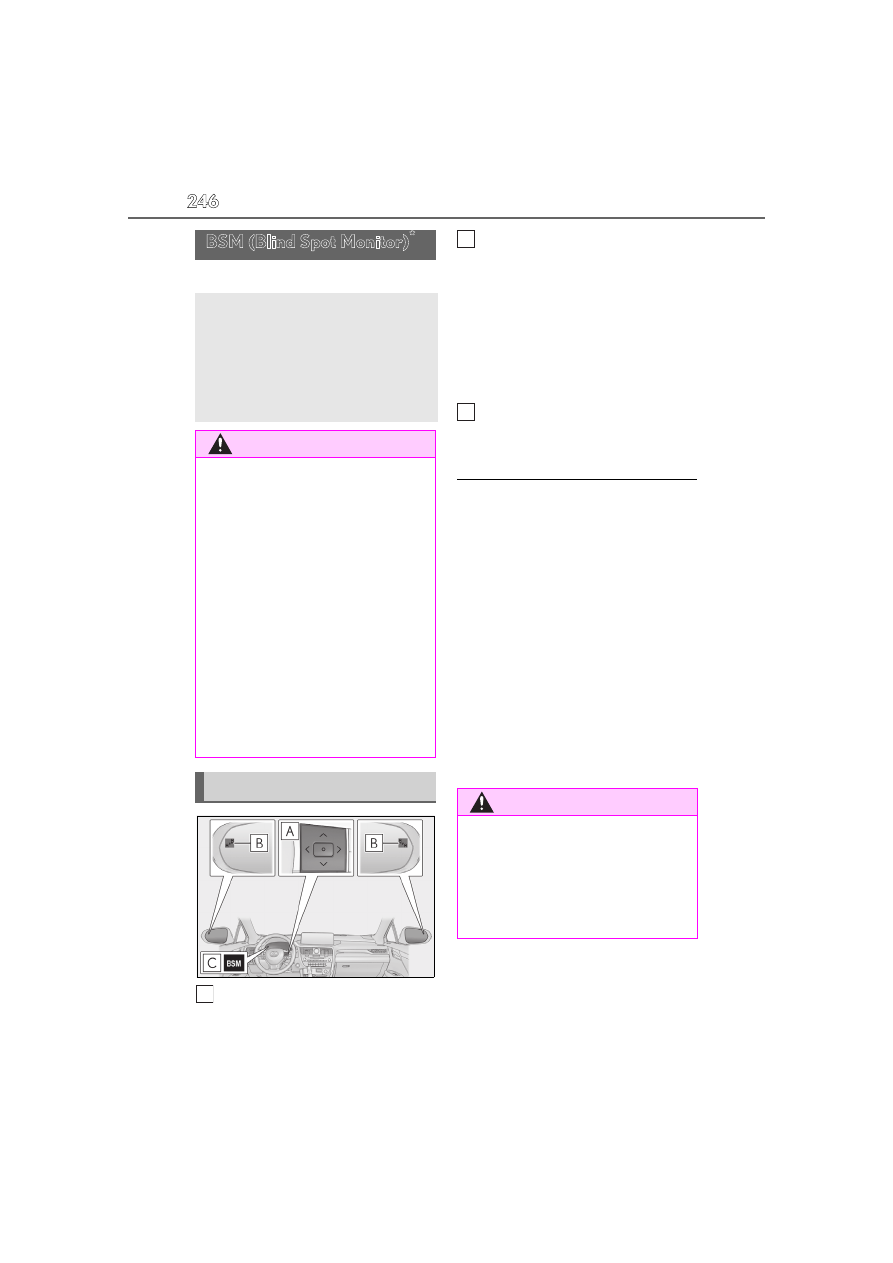

BSM (Blind Spot Monitor)

*

The Blind Spot Monitor is a system
that uses rear side radar sensors
installed on the inner side of the
rear bumper on the left and right
side to assist the driver in confirm-
ing safety when changing lanes.

WARNING

Cautions regarding the use of the sys-

tem

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.
The Blind Spot Monitor is a supplemen-

tary function which alerts the driver that a

vehicle is in a blind spot of the outside

rear view mirrors or is approaching rap-

idly from behind into a blind spot. Do not

overly rely on the Blind Spot Monitor. As

the function cannot judge if it is safe to

change lanes, over reliance could lead to

an accident resulting in death or serious

injury.
As the system may not function correctly

under certain conditions, the driver’s own

visual confirmation of safety is necessary.

System components

A

WARNING

To ensure the system can operate

properly

Blind Spot Monitor sensors are installed

behind the left and right sides of the rear

bumper respectively. Observe the fol-

lowing to ensure the Blind Spot Monitor

can operate correctly.

B

C

247

4-5. Using the driving support systems

4

Driving

Use the meter control switches to turn
on/off the function.

1

Press

 or

 to select

.

2

Press

 or

 to select

 and

then press

.

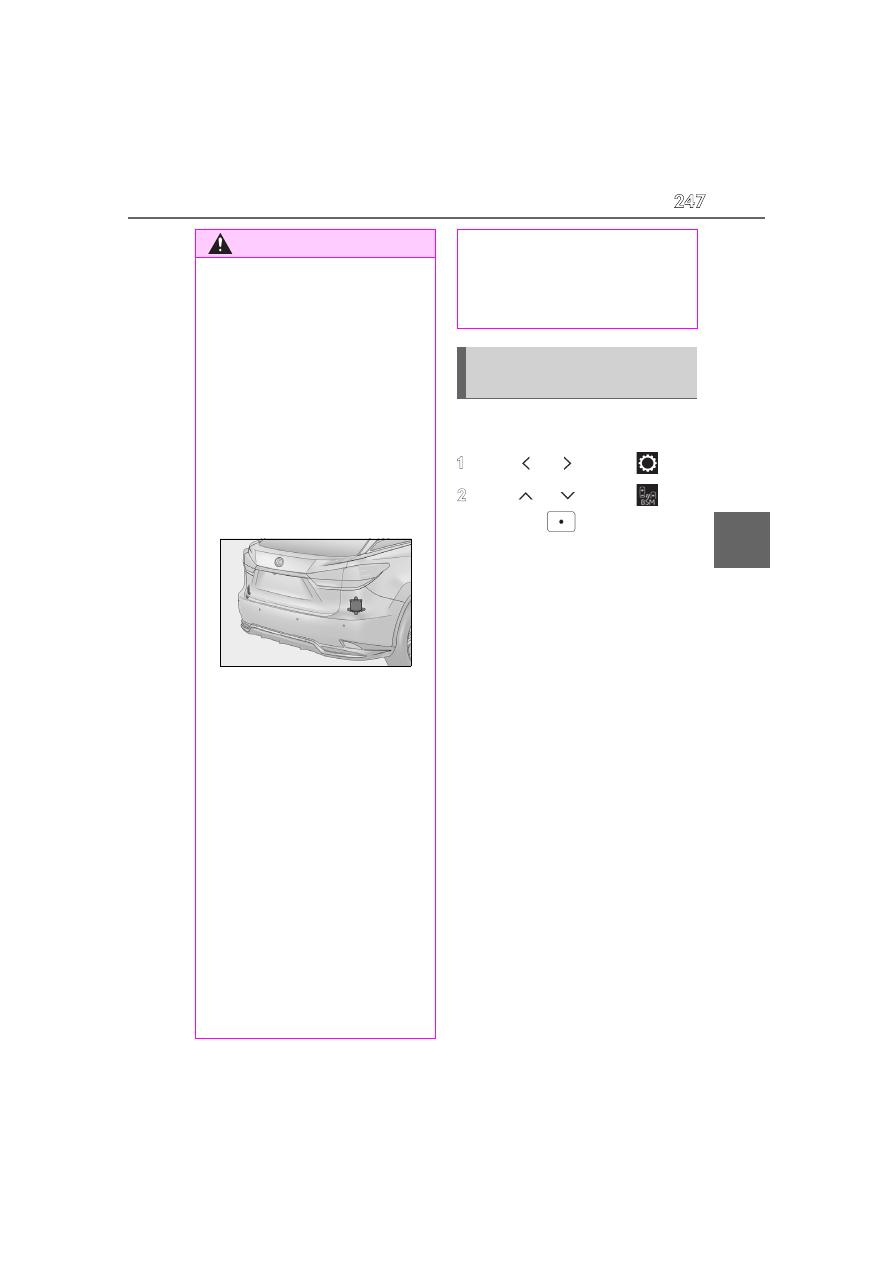

WARNING

Keep the sensors and the surrounding

areas on the rear bumper clean at all

times.

If a sensor or its surrounding area on the
rear bumper is dirty or covered with
snow, the Blind Spot Monitor may not
operate and a warning message
(

P.246) will be displayed. In this situa-

tion, clear off the dirt or snow and drive
the vehicle with the operation conditions
of the BSM function (

P.249) satisfied

for approximately 10 minutes. If the
warning message does not disappear,
have the vehicle inspected by your Lexus
dealer.

Do not attach stickers to the sensor or

surrounding area on the rear bumper.

Do not subject a sensor or its sur-

rounding area on the rear bumper to a

strong impact.

If a sensor is moved even slightly off

position, the system may malfunction

and vehicles may not be detected cor-

rectly.

In the following situations, have your

vehicle inspected by your Lexus

dealer.

• A sensor or its surrounding area is

subject to a strong impact.

• If the surrounding area of a sensor is

scratched or dented, or part of them

has become disconnected.

Do not disassemble the sensor.

Do not modify the sensor or surround-

ing area on the rear bumper.

If a sensor or the rear bumper needs to

be removed/installed or replaced,

contact your Lexus dealer.

Do not paint the rear bumper any

color other than an official Lexus color.

Turning the Blind Spot Monitor
on/off

248

4-5. Using the driving support systems

Vehicles that can be detected by the Blind Spot Monitor

The Blind Spot Monitor uses rear side radar sensors to detect the following vehi-
cles traveling in adjacent lanes and advises the driver of the presence of such vehi-
cles via the indicators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)

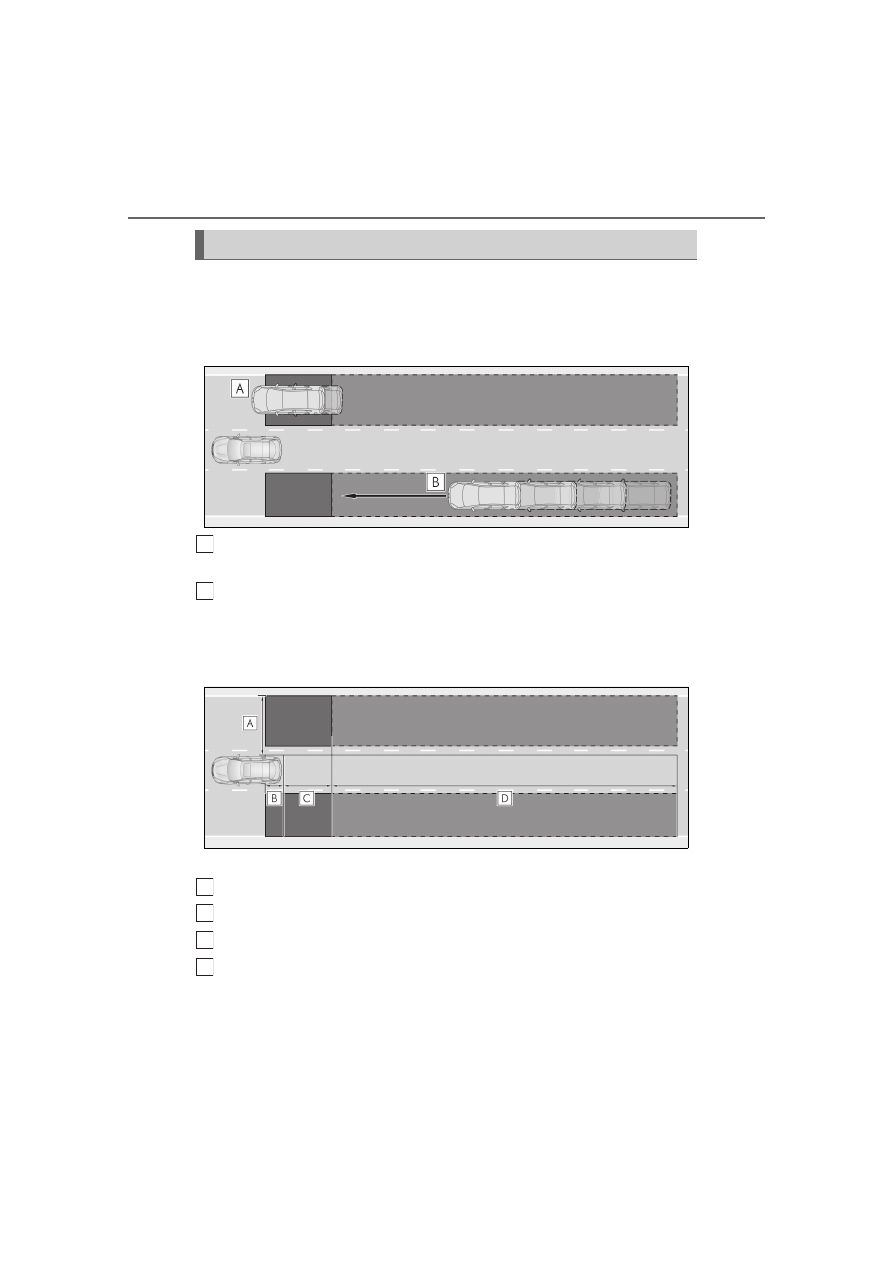

The Blind Spot Monitor detection areas

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of the vehicle

*1

Approximately 3.3 ft. (1 m) forward of the rear bumper
Approximately 9.8 ft. (3 m) from the rear bumper

Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear bumper

*2

*1

: The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side of the vehicle

cannot be detected.

*2

: The greater the difference in speed between your vehicle and the detected vehicle is,

Blind Spot Monitor operation

A

B

A
B
C
D

249

4-5. Using the driving support systems

4

Driving

the farther away the vehicle will be detected, causing the outside rear view mirror indi-
cator to illuminate or flash.

The Blind Spot Monitor is operational

when

The Blind Spot Monitor is operational when

all of the following conditions are met:

The Blind Spot Monitor is on.

The shift lever is in a position other than R.

The vehicle speed is greater than approx-

imately 10 mph (16 km/h).

The Blind Spot Monitor will detect a

vehicle when

The Blind Spot Monitor will detect a vehicle

present in the detection area in the follow-

ing situations:

A vehicle in an adjacent lane overtakes

your vehicle.

You overtake a vehicle in an adjacent lane

slowly.

Another vehicle enters the detection

area when it changes lanes.

Conditions under which the system will

not detect a vehicle

The Blind Spot Monitor is not designed to

detect the following types of vehicles and/or

objects:

Small motorcycles, bicycles, pedestrians,
etc.

*

Vehicles traveling in the opposite direc-

tion

Guardrails, walls, signs, parked vehicles
and similar stationary objects

*

Following vehicles that are in the same
lane

*

Vehicles traveling 2 lanes away from your
vehicle

*

Vehicles which are being overtaken rap-
idly by your vehicle

*

*

: Depending on the conditions, detection

of a vehicle and/or object may occur.

Conditions under which the system may

not function correctly

The Blind Spot Monitor may not detect

vehicles correctly in the following situa-

tions:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When the distance between your vehicle

and a following vehicle is short

• When there is a significant difference in

speed between your vehicle and the vehi-

cle that enters the detection area

• When the difference in speed between

your vehicle and another vehicle is

changing

• When a vehicle enters a detection area

traveling at about the same speed as your

vehicle

• As your vehicle starts from a stop, a vehi-

cle remains in the detection area

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When vehicle lanes are wide, or when

driving on the edge of a lane, and the

vehicle in an adjacent lane is far away

from your vehicle

• When an accessory (such as a bicycle

carrier) is installed to the rear of the vehi-

cle

• When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

• Immediately after the Blind Spot Monitor

is turned on

Instances of the Blind Spot Monitor

unnecessarily detecting a vehicle and/or

object may increase in the following situ-

250

4-5. Using the driving support systems

ations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When the distance between your vehicle

and a guardrail, wall, etc. that enters the

detection area is short

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When vehicle lanes are narrow, or when

driving on the edge of a lane, and a vehi-

cle traveling in a lane other than the adja-

cent lanes enters the detection area

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When the tires are slipping or spinning

• When the distance between your vehicle

and a following vehicle is short

• When an accessory (such as a bicycle

carrier) is installed to the rear of the vehi-

cle

*

: If equipped

Intuitive parking assist (if
equipped)

Ultrasonic sensors are used to detect
static objects in the detection area
when driving at a low speed or backing
up. (

P.252)

RCTA (Rear Cross Traffic Alert)
function (if equipped)

Rear side radar sensors are used to
detect approaching vehicles in the
detection areas behind the vehicle
when backing up. (

P.259)

Adjusting the buzzer volume

The buzzer volume can be adjusted on
the multi-information display. The vol-
ume of buzzers for the intuitive parking
assist and RCTA function will be

PKSA (Parking Support
Alert)

*

The Parking Support Alert system
consists of the following functions
that operate when driving at a low
speed or backing up, such as when
parking. When the system deter-
mines that the possibility of a colli-
sion with a detected object or such
as a wall is high, a warning operates
to urge the driver to take evasive
action.

PKSA (Parking Support Alert)
system

Setting the buzzer volume

251

4-5. Using the driving support systems

4

Driving

adjusted simultaneously.
Use the meter control switches to
change settings. (

P.89)

Vehicles without the Intuitive park-
ing assist

1

Press

 or

 to select

.

2

Press

 or

 to select “Vehicle

Settings” and then press

.

3

Press

 or

 to select

 and

then press

.

Each time the switch is pressed, the volume

level will change between 1, 2, and 3.

Vehicles with the Intuitive parking
assist

1

Press

 or

 to select

.

2

Press

 or

 to select “PKSA”

and then press

.

3

Press

 or

 to select

 and

then press

.

Each time the switch is pressed, the volume

level will change between 1, 2, and 3.

Muting a buzzer temporarily

Vehicles without the Intuitive park-
ing assist

A mute button will be displayed on the
multi-information display when an
object is detected. To mute the buzzer,
press .
Mute will be canceled automatically in
the following situations:

When the shift lever is changed.

When the vehicle speed exceeds a
certain speed.

When the operating function is tem-
porarily canceled.

When the operating function is dis-
abled manually.

When the power switch is turned
off.

Vehicles with the Intuitive parking
assist

A mute button will be displayed on the
multi-information display when an
object is detected. To mute the buzzer,
press .
The buzzers for the intuitive parking
assist and RCTA function will be muted
simultaneously.
Mute will be canceled automatically in
the following situations:

When the shift lever is changed.

When the vehicle speed exceeds a
certain speed.

When there is malfunction in a sen-
sor or the system is temporarily
unavailable.

When the operating function is dis-
abled manually.

When the power switch is turned
off.















Content      ..     12      13      14      15     ..
