Lexus RX350 (2022 year). Manual in english - page 4

P.264)

(flashes)

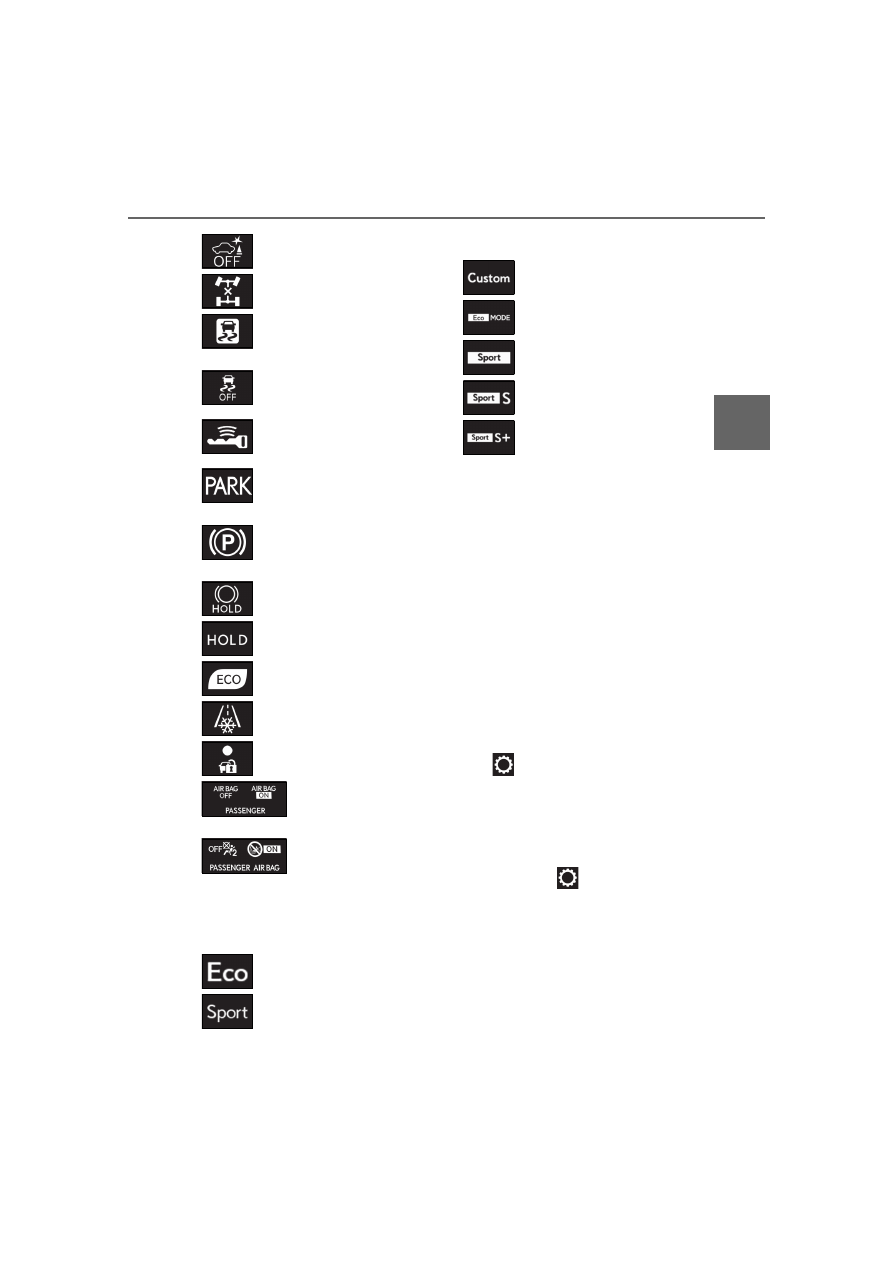

Slip indicator

(



P.266)

VSC OFF indicator

*1, 2

(

P.267)

Smart access system with
push-button start indicator

(

P.170)

(U.S.A.)

Parking brake indicator
(

P.179)

(Canada)

Parking brake indicator
(

P.179)

Brake hold standby indicator

(

P.182)

Brake hold operated indicator

(

P.182)

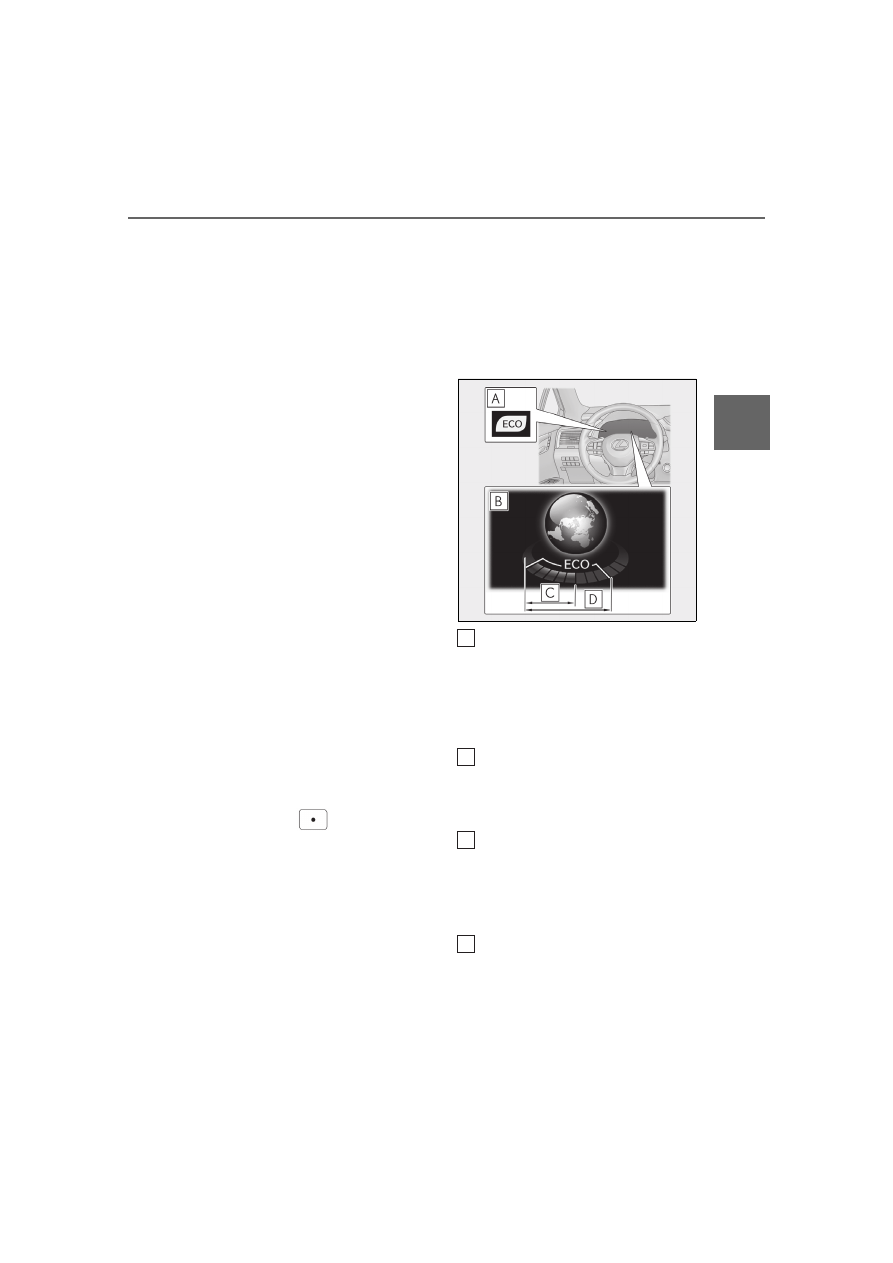

Eco Driving Indicator Light

(

P.81)

Low outside temperature indi-
cator

(



P.75)

Security indicator

(



P.66,

67)

(U.S.A.)

“AIR BAG ON/OFF”
indicator

*1, 7

(

P.40)

(Canada)

“AIR BAG ON/OFF”
indicator

*1, 7

(

P.40)

Eco drive mode indicator
(

Sport mode indicator (if
equipped) (



Customize mode indicator
(



Eco drive mode indicator
(



Sport mode indicator (if
equipped) (

Sport S mode indicator
(



Sport S+ mode indicator
(



2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

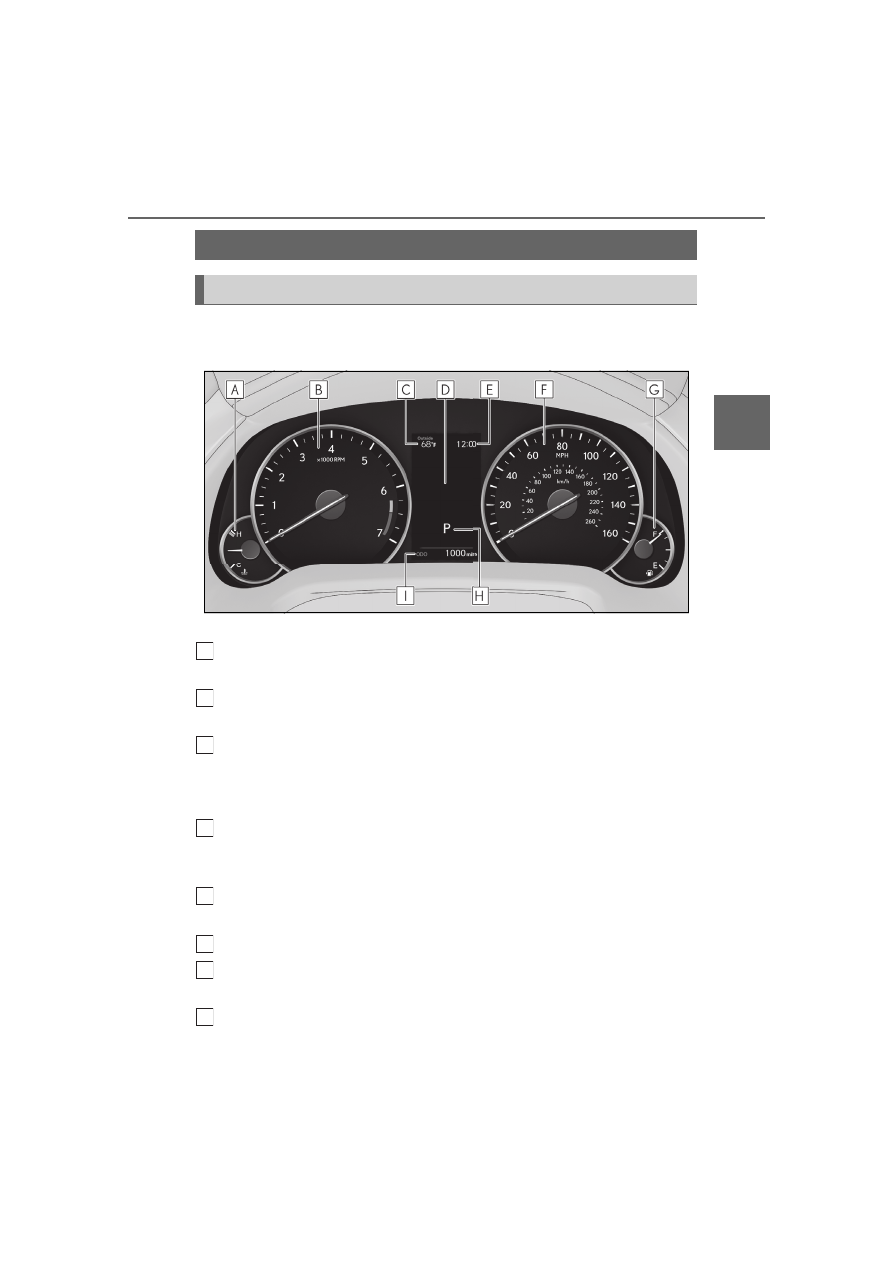

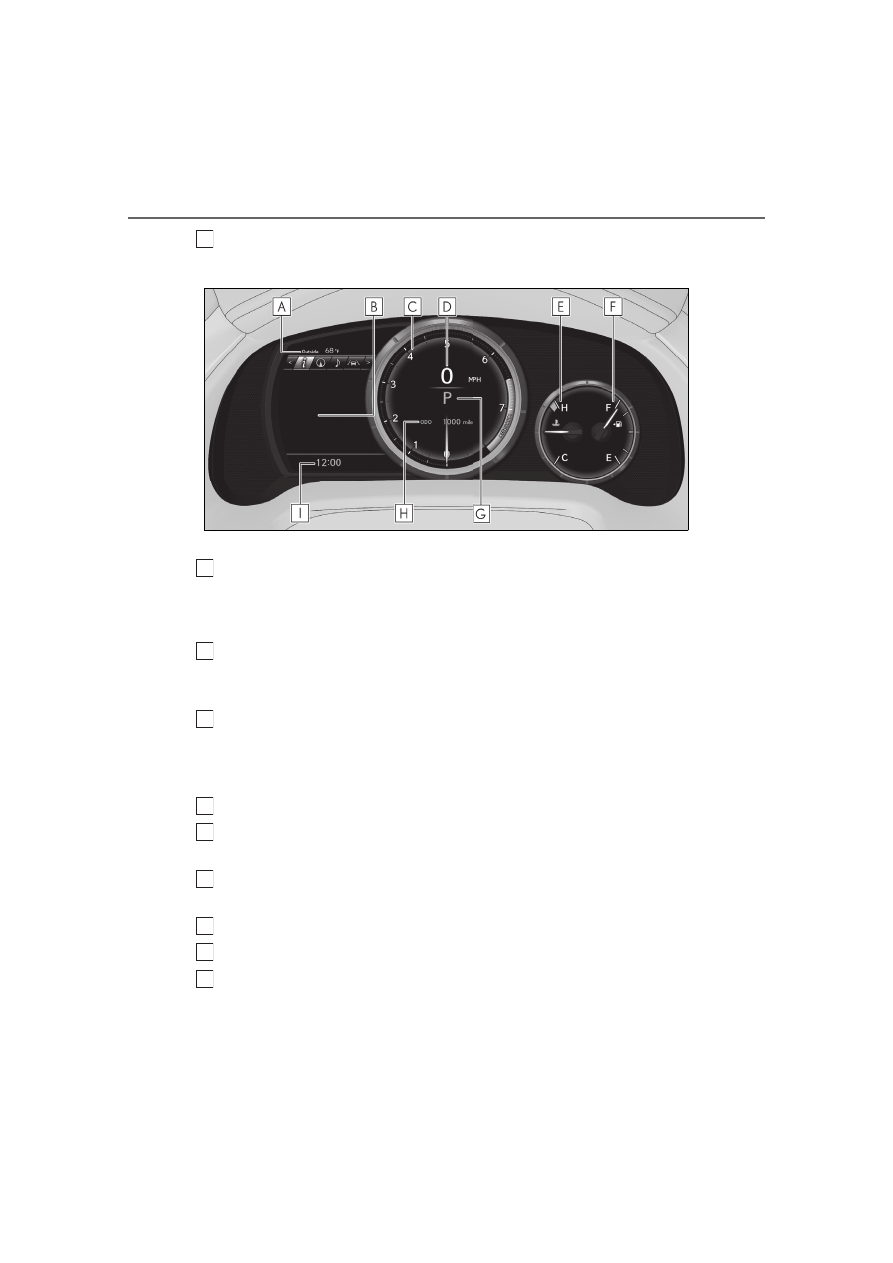

Locations of gauges and meters



Except F SPORT models

The units used on the meters may differ depending on the target region.

Engine coolant temperature gauge

Displays the engine coolant temperature

Tachometer

Displays the engine speed in revolutions per minute

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Multi-information display

Presents the driver with a variety of vehicle data (



P.79)

Displays warning messages in case of a malfunction (



P.402)

Clock

Time displayed is linked to the analog clock on the instrument panel. (



P.323)

Speedometer
Fuel gauge

Displays the quantity of fuel remaining in the tank

Shift position display (

P.174)

Gauges and meters

Meter display

2-1. Instrument cluster

Odometer and trip meter display (



P.78)



F SPORT models

The units used on the meters may differ depending on the target region.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.

Multi-information display

Presents the driver with a variety of vehicle data (



P.79)

Displays warning messages in case of a malfunction (



P.402)

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Speedometer
Engine coolant temperature gauge

Displays the engine coolant temperature

Fuel gauge

Displays the quantity of fuel remaining in the tank

Shift position display (

P.174)

Odometer and trip meter display (



P.78)

Clock

Time displayed is linked to the analog clock on the instrument panel. (



P.323)

■

Rev indicator (F SPORT models)

When the engine speed reaches a set

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

speed, a ring-shaped indicator will be
displayed on the tachometer.

The desired engine speed at which the Rev
indicator will begin to be displayed can be
set on

of the multi-information display.

(



P.79)

■

Rev peak (F SPORT models)

The engine speed reaches or exceeds
5000 rpm, an afterimage of the
tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

■

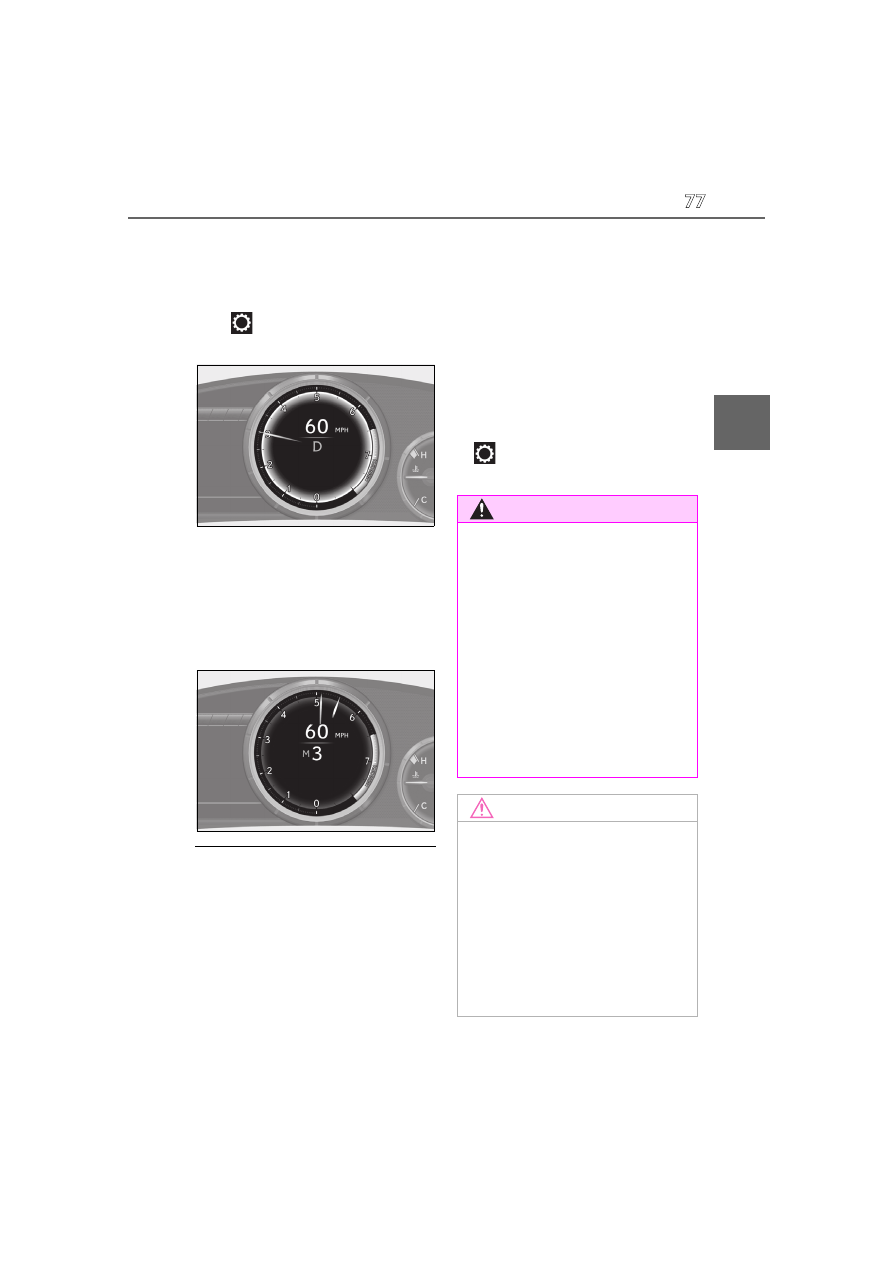

The meters and display illuminate when

The engine switch is in IGNITION ON

mode.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

■

Customization

The gauges and meters can be customized
on

of the multi-information display.

(

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (

P.426)

2-1. Instrument cluster

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

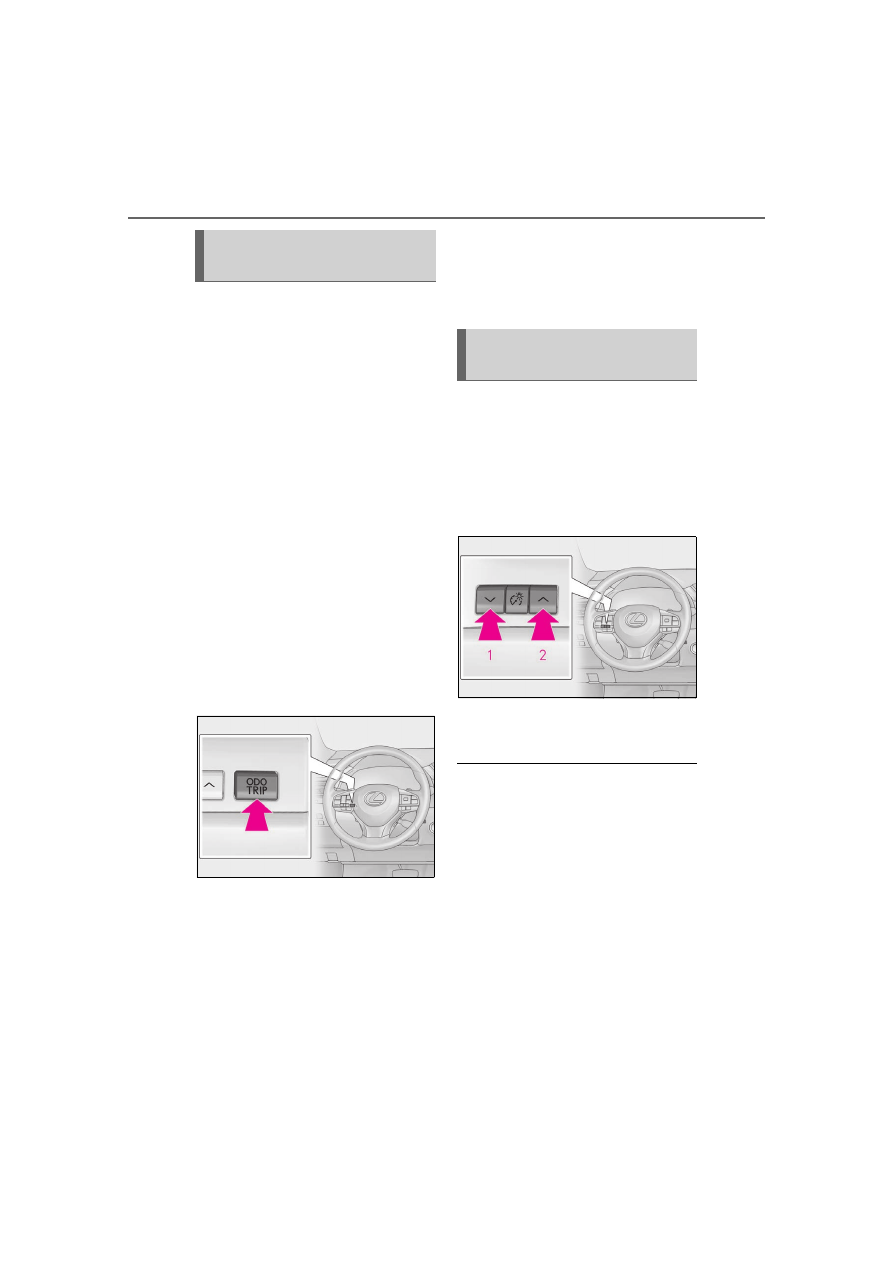

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Pop-up display

Distance until next engine oil change

Displays the distance until the next engine
oil change. This display will be displayed in
the following situations:



When the engine switch is turned to
IGNITION ON mode.



When a warning message indicating
that oil maintenance should be per-
formed soon or is required is dis-
played.

The brightness of the instrument panel
lights can be adjusted.

If the brightness is adjusted when the sur-
roundings are bright and the tail lights are
on (day mode brightness adjustment), the
brightness level of night mode will be
adjusted at the same time.

Darker

Brighter

■

Brightness of the meters (day mode and

night mode)

The brightness of the meters is changed

between day mode and night mode.

●

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

●

Night mode: When the tail lights are on

and the surrounding area is dark

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Display



Except F SPORT models

By selecting menu icons on the
multi-information display, a variety of
driving-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.



F SPORT models

■

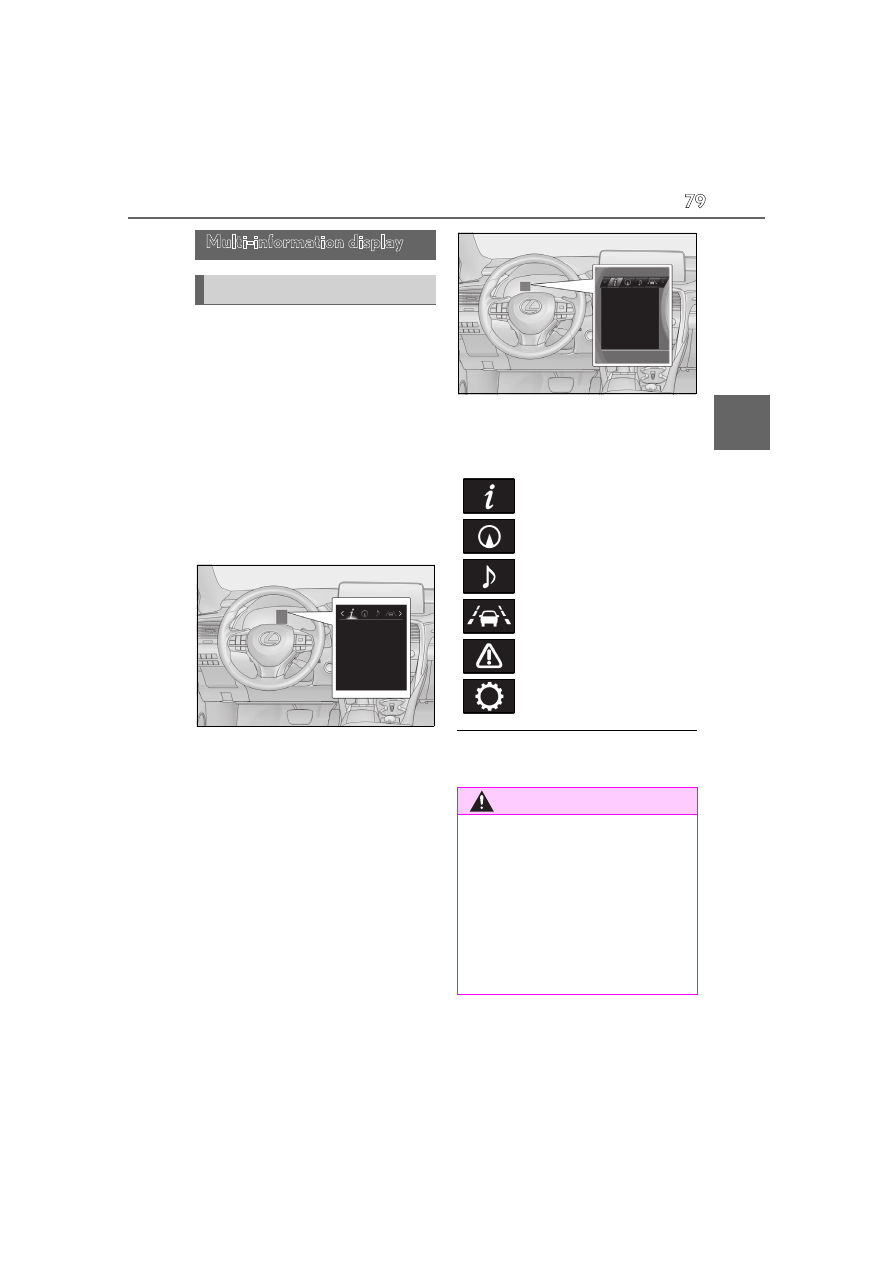

Menu icons

Select a menu icon to display its con-
tent.

■

Liquid crystal display



P.77

Multi-information display

Display and menu icons

Driving information (

P.80)

Navigation system-linked dis-
play (if equipped) (

Audio system-linked display
(



Driving assist system informa-
tion (



Warning message display
(



P.402)

Settings display (



WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the

multi-information display while driving

as you may fail to see pedestrians,

objects on the road, etc. ahead of the

vehicle.

2-1. Instrument cluster

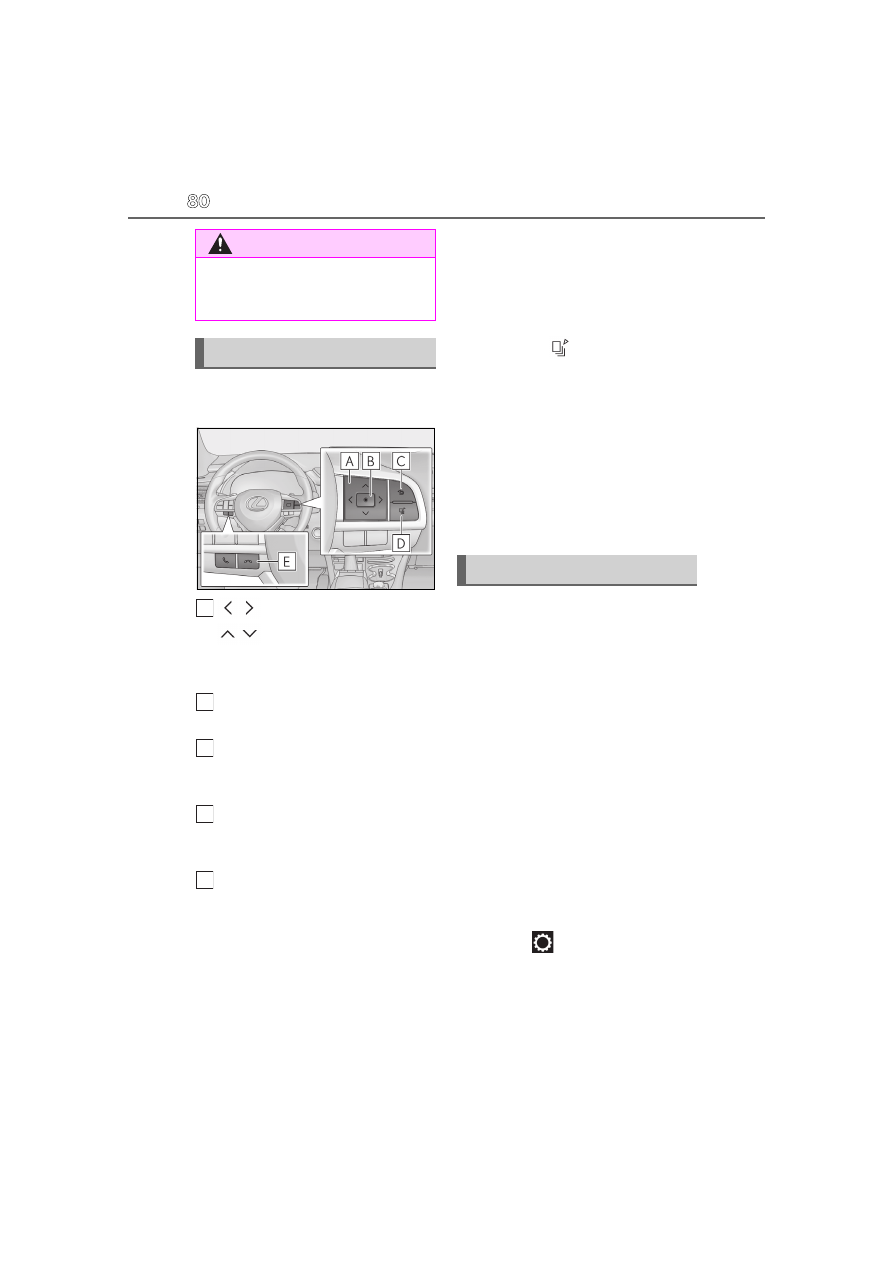

The multi-information display is oper-
ated using the meter control switches.

: Select menu icons
: Change displayed content,

scroll up/down the screen and
move the cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous screen

Pressing and holding the switch will display
the first screen of the selected menu icon.

Press: Display the top screen
Press and hold: Register current
screen as the top screen
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

■

Registering a top screen

The displayed top screen can be
changed to a registered screen of your
choice. To register a screen as the top
screen, display the desired screen and
press and hold



A message asking to confirm if reg-
istration is desired will be displayed.
If the selected screen cannot be
registered, a registration failure
message will be displayed.



When no screen has been regis-
tered, the drive information screen
will be displayed.

■

Content displayed as drive infor-
mation

Displays drive information such as the
following:



Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)



Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)



Drive information 3

• Average fuel economy (after refuel)
• Elapsed time (after start)

Displayed items (listed below) can be
changed on

. (





Current fuel consumption

Displays instantaneous current fuel con-
sumption

WARNING

■

The information display at low tem-

peratures



P.77

Changing the meter display

Drive information

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators



Average fuel economy

After reset: Displays average fuel con-
sumption since the display was reset

*1, 2

After start: Displays average fuel con-
sumption since engine start

After refuel: Displays average fuel con-
sumption since refuel

*2, 3



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since engine start



Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since
engine start



Distance

Driving range: Displays driving range with
remaining fuel

*3, 4

After start: Displays drive distance since
vehicle start



Other

Blank: No item

: To reset, display the desired item and

press and hold

of the meter con-

trol switch.
If both of the displayed items are reset-
table, a message will be displayed ask-
ing which item(s) to reset.

: Use the displayed fuel consumption as a

reference.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without

turning the engine switch off, the display
may not be updated.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

■

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.

Eco driving ratio based on acceler-
ation

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.

Zone of Eco driving

■

AWD Control (if equipped)

Displays the driving force applied to
each wheel using segments.

2-1. Instrument cluster

The greater the number of segments
displayed, the greater the driving force
applied.

■

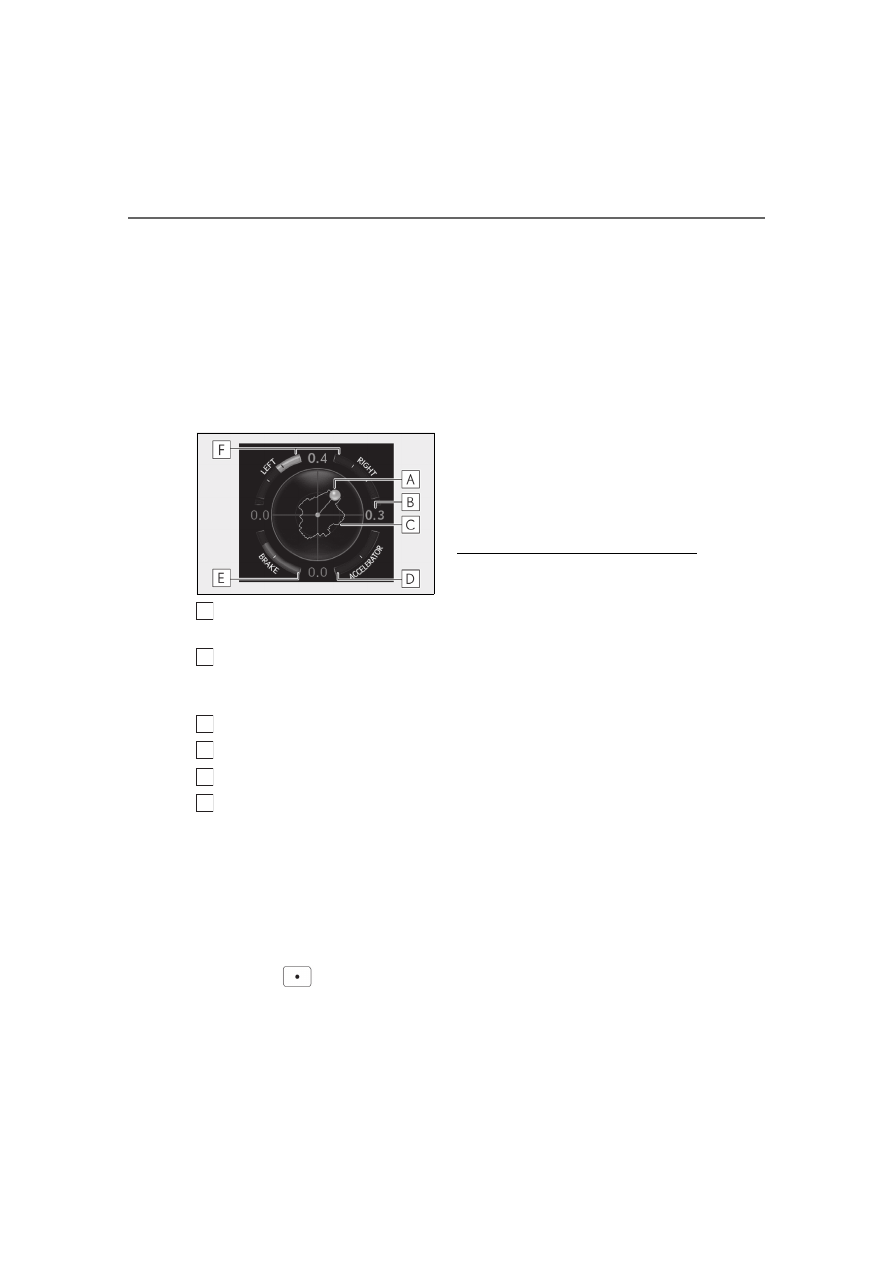

G-force (if equipped)

Displays lateral G-forces on the vehi-
cle. Also displays, around the periph-
ery of the G-force display, the left and
right steering amount, accelerator
pedal input, and brake fluid pressure.

Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces
Accelerator pedal input
Brake fluid pressure
Steering amount

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.



Resetting the record of maximum
G-forces

Press and hold

of the meter control

switch to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

■

Tire pressure

P.359

■

Units (if equipped)

The units of measure used can be
changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.

■

Blank (No items)

Displays no drive information contents.

■

Eco Driving Indicator

Eco Driving Indicator will not operate

under the following conditions:

●

The shift lever is in any position other than

●

A paddle shift switch is operated.

●

Sport mode is selected.

●

The driving mode is set to customized

mode and the powertrain control is set to

power (



●

The vehicle speed is approximately 80

mph (130 km/h) or higher.

■

G-force display (if equipped)

●

The G-force values may not be zero even

when the vehicle is parked, such as when

it is parked on an incline.

●

Depending on the vehicle usage condi-

tions, the brake fluid pressure display may

not reach its maximum reading even

though the brake pedal is fully depressed.

●

If a battery terminal is disconnected and

reconnected, the steering amount display

may be disabled temporarily. After driv-

ing the vehicle for a while, the display will

be enabled.

■

Tire pressure

• It may take a few minutes to display the

C
D

E
F

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

tire inflation pressure after the engine

switch is turned to IGNITION ON mode.

It may also take a few minutes to display

the tire inflation pressure after inflation

pressure has been adjusted.

• “---” may be displayed if the tire position

information cannot be determined due to

unfavorable radio wave conditions.

• Tire inflation pressure changes with tem-

perature. The displayed values may also

be different from the values measured

using a tire pressure gauge.

Select to display the following naviga-
tion system-linked information.



Route guidance



Compass display (heading-up dis-
play)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist) (

P.211)



RSA (Road Sign Assist) (if
equipped) (



P.220)



Dynamic radar cruise control with
full-speed range (



P.222)

■

Meter display settings that can be
changed



Clock

Select to switch between 12-hour display
and 24-hour display.



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Eco Driving Indicator Light

(

P.81)

Select to enable/disable the Eco Driving
Indicator Light.



Switch settings

Select to display how to change the top
screen.



Drive information 1/Drive informa-
tion 2/Drive information 3

Select to select up to 2 items (



P.80) that

will be displayed on each Drive information
screen (Drive information 1 screen, Drive
information 2 screen, and Drive informa-
tion 3 screen) respectively.



Pop-up display

Select to enable/disable the pop-up dis-
play.
• Intersection guidance (if equipped)
• Incoming calls
• Brightness adjustment



Color (except F SPORT models)

Select to set the color of the cursor on the
multi-information display.



Needle (F SPORT models)

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving assist system information

Settings display

2-1. Instrument cluster

Select to set the tachometer needle color.



Rev indicator (F SPORT models)
(



P.76)

• Select to enable/disable the Rev indica-

tor.

• Select to set the desired engine speed at

which the Rev indicator will begin to be
displayed.

Selectable engine speed range:
2000 rpm to 6500 rpm



Rev peak (F SPORT models)
(



P.77)

Select to enable/disable the Rev peak.



Default setting

Select to reset the meter display settings to
the default setting.

■

Vehicle functions and settings that
can be changed



P.449

■

Background color of the indicator/shift

position display area (except F SPORT

models)

The background color of the indicator/shift

position display area is changed according

to the driving mode as follows (

P.262):

●

Eco drive mode: Blue

●

Sport mode: Red

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

■

Suggestion to enable the power
back door

If the power back door system is dis-
abled (setting on

set to off) and the

power back door switch on the instru-
ment panel is operated, a suggestion
message will be displayed asking if you
wish to enable the power back door
system.
To enable the power back door system,
select “Yes”.

After enabling the power back door sys-
tem, press the power back door switch
again to open or close the power back
door.

WARNING

■

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

Suggestion function

2-1. Instrument cluster

: If equipped

Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.

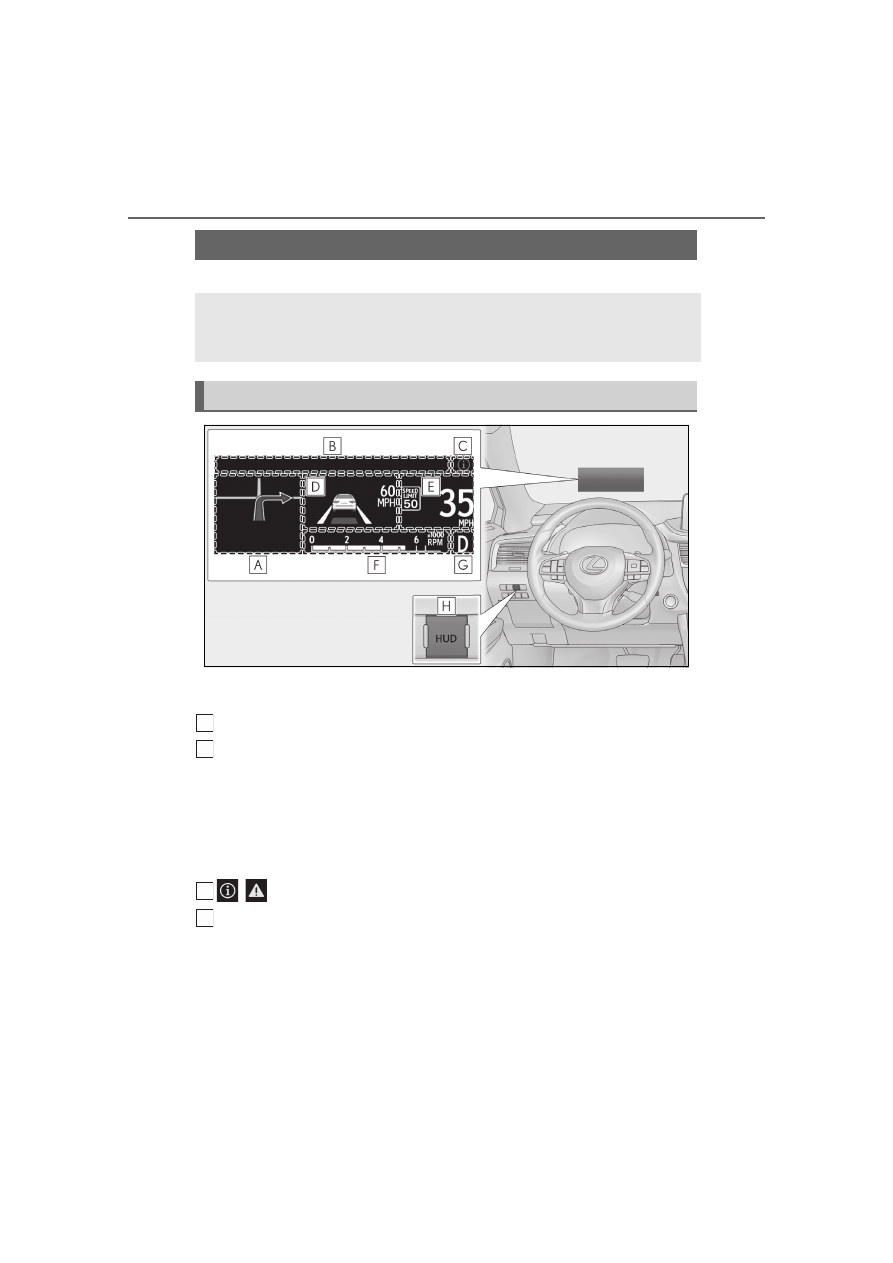

Navigation system-linked display area (if equipped) (

P.89)

Message display area (



P.89)

Displays the following items:
• Warning/Message (if equipped)
• Audio system operation status
• Outside temperature
Displays the following item, which are linked to the navigation system:
• Street name

icon (

P.88)

Driving assist system status display area (if equipped)

Displays the operational status of the following systems:
• Dynamic radar cruise control with full-speed range (



P.222)

• LTA (Lane Tracing Assist) (

P.211)

• Intuitive parking assist (

P.238)

• Parking Support Brake function (for static objects) (

P.257)

Displayed content is the same as that displayed on the multi-information display. For details,

Head-up display

The head-up display is linked to the meters and navigation system (if equipped)
and projects a variety of information in front of the driver, such as the current
vehicle speed and route guidance to a set destination.

System components

A
B

C
D

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

refer to the explanations of each system.

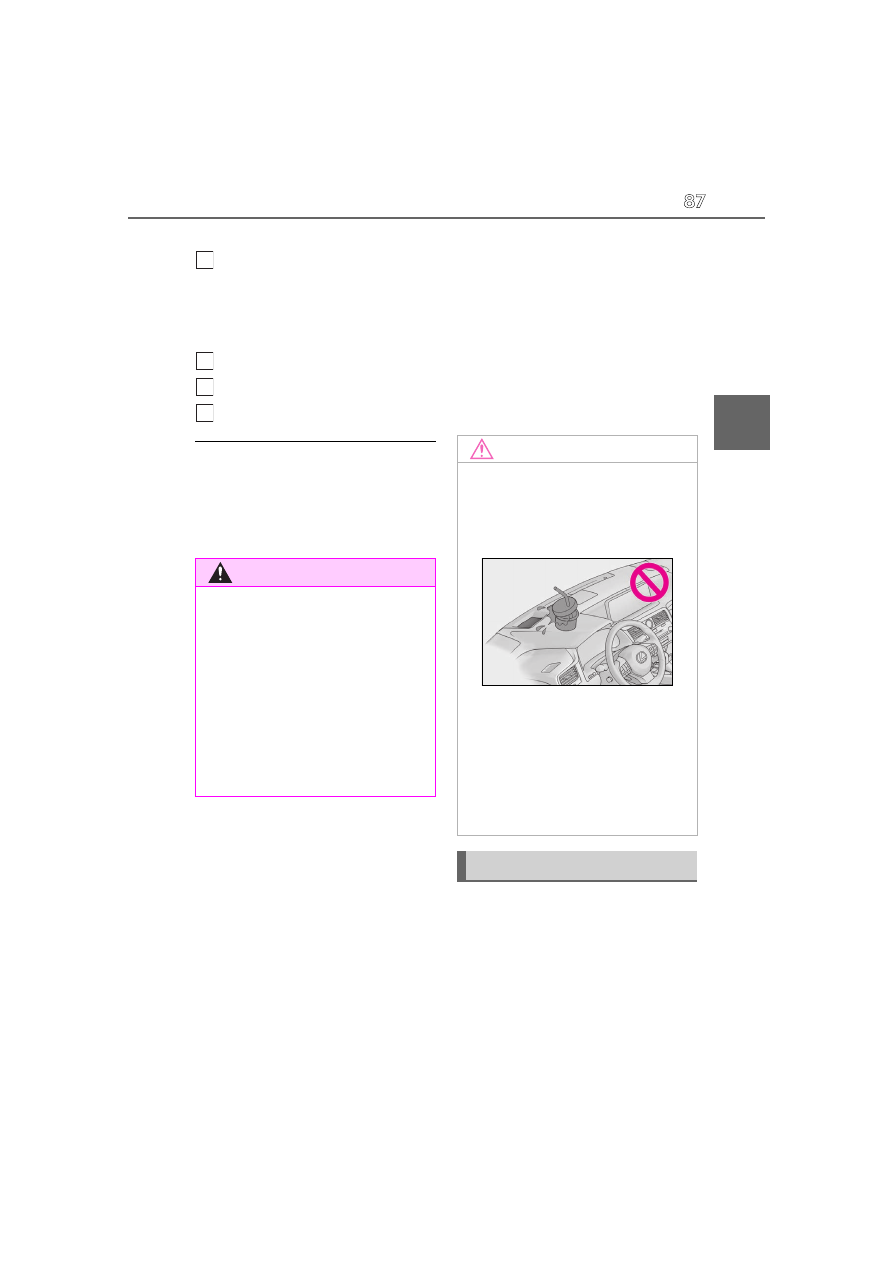

Vehicle speed display area

Displays the following items:
• Vehicle speed
• Speed limit (vehicles with a navigation system) (U.S.A. only)
• Road sign icons recognized by the RSA (



P.220)

Eco Driving Indicator/Tachometer (



P.90)

Shift position display (

P.174)

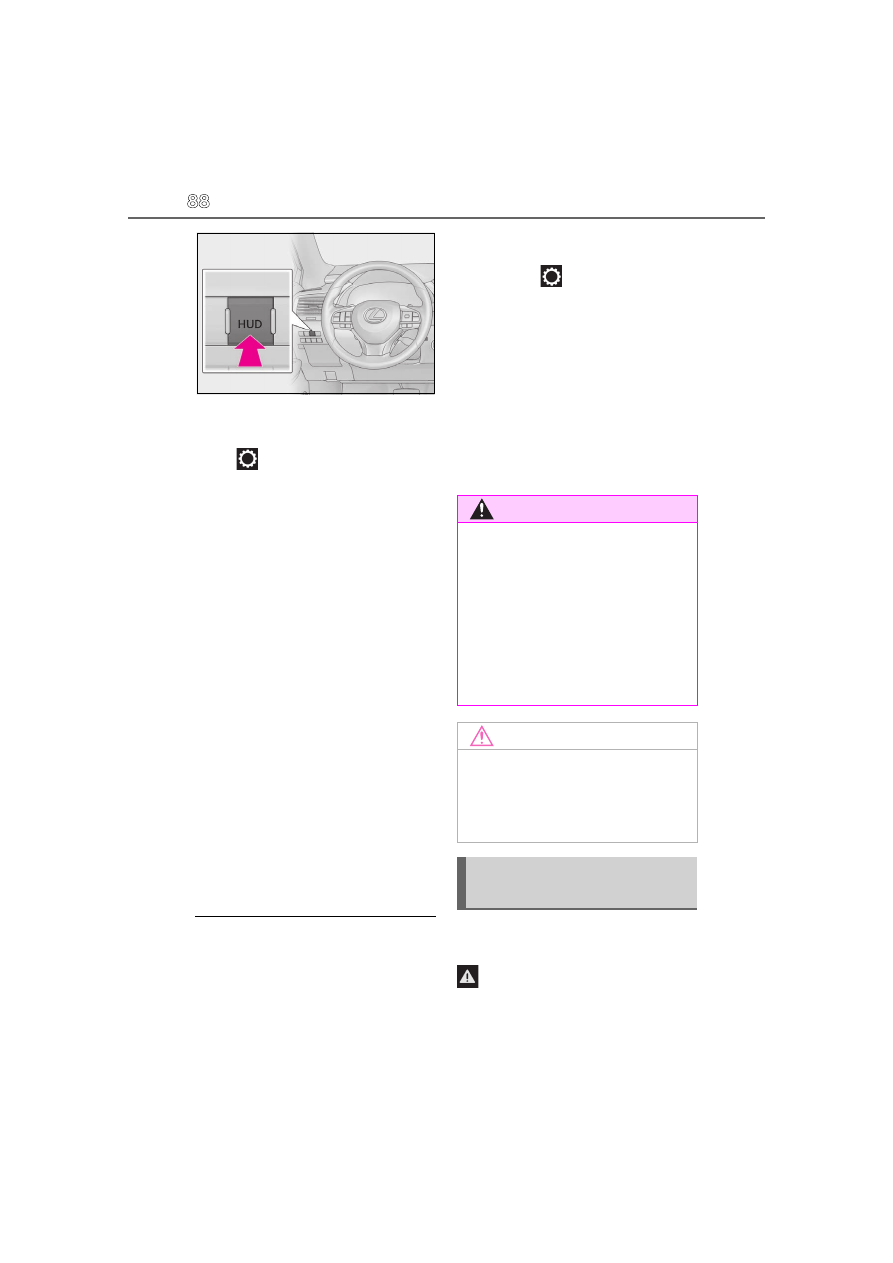

HUD (Head-up display) switch (
