2-1. Instrument cluster

: If equipped

Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.

Navigation system-linked display area (if equipped) (



P.91)

Message display area (



P.91)

Displays the following items:
• Warning/Message (if equipped)
• Audio system operation status
• Outside temperature
Displays the following item, which are linked to the navigation system:
• Street name

icon (



P.90)

Driving assist system status display area (if equipped)

Displays the operational status of the following systems:
• Dynamic radar cruise control with full-speed range (



P.244)

• LTA (Lane Tracing Assist) (



P.230)

• Lexus parking assist-sensor (



P.268)

Head-up display

The head-up display is linked to the meters and navigation system (if equipped)
and projects a variety of information in front of the driver, such as the current
vehicle speed.

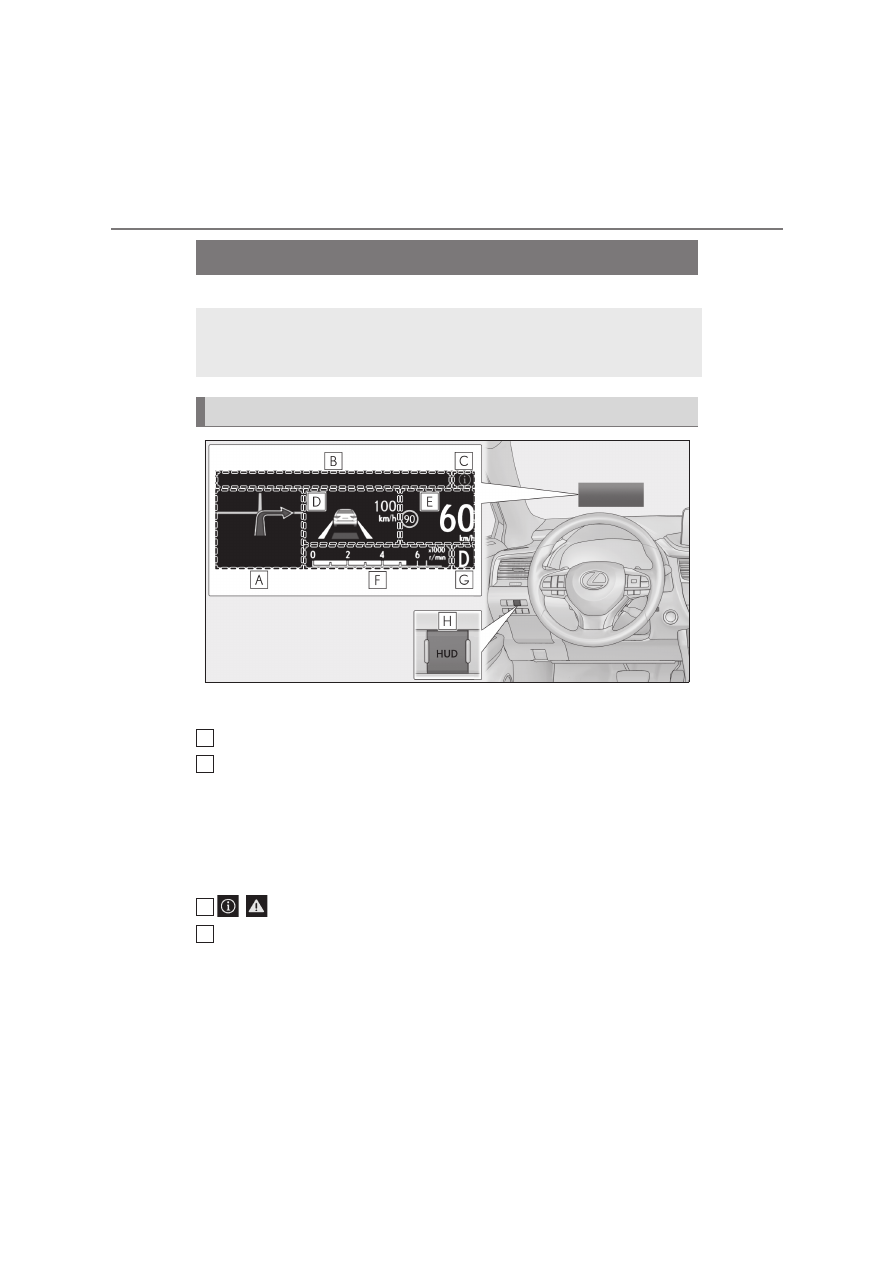

System components

A
B

C
D

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

• Parking Support Brake function (for static objects) (



P.288)

Displayed content is the same as that displayed on the multi-information display. For details,
refer to the explanations of each system.

Vehicle speed display area

Displays the following items:
• Vehicle speed
• Road sign icons recognized by the RSA (if equipped) (



P.240)

Eco Driving Indicator/Tachometer (



P.92)

Shift position display (



P.181)

HUD (Head-up display) switch (



P.89)

■

Head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Enabling/Disabling the head-up
display

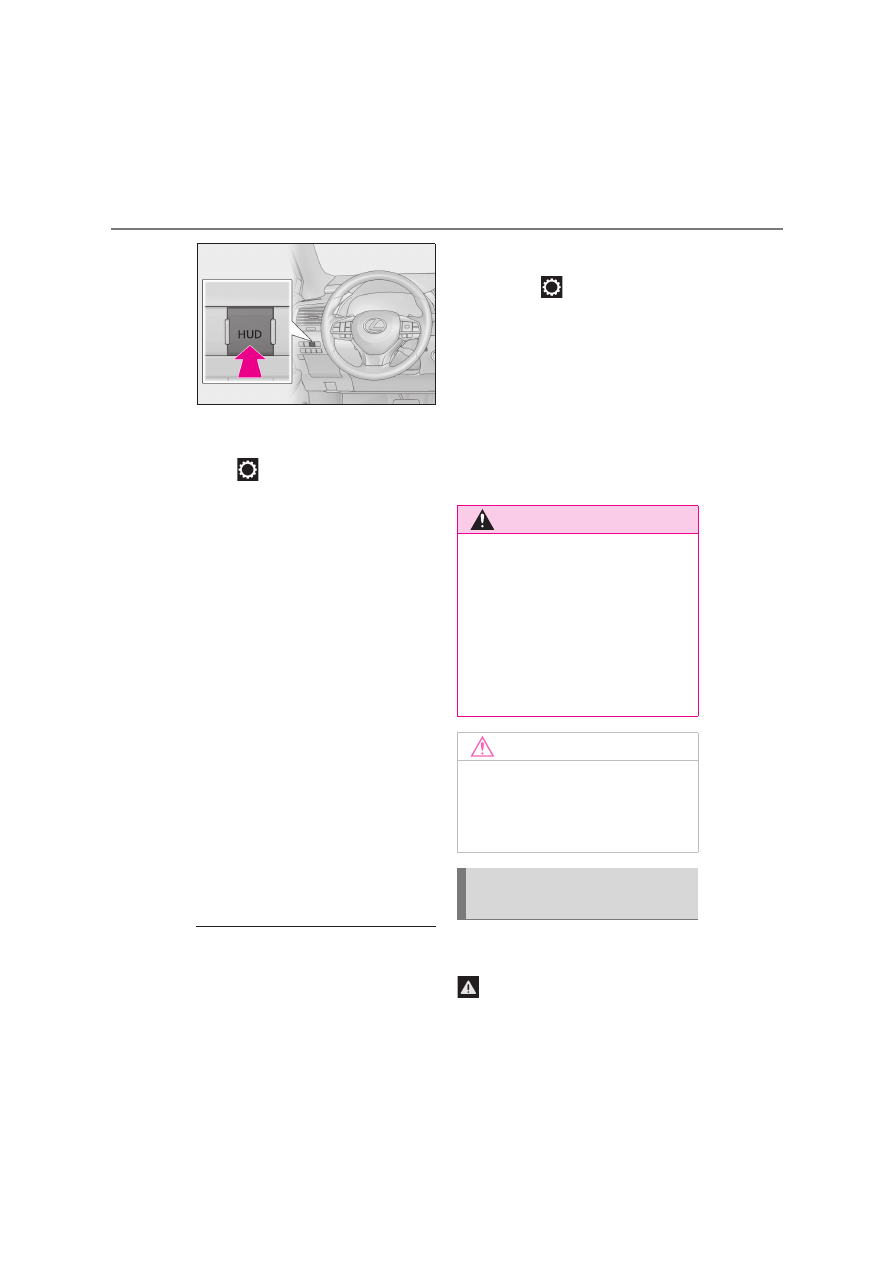

Press the HUD (Head-up display)
switch.

WARNING

■

Before using the head-up display

●

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

●

Do not continuously look at the

head-up display while driving as you

may fail to see pedestrians, objects on

the road, etc. ahead of the vehicle.

NOTICE

■

To prevent damage to components

●

Do not place any drinks near the

head-up display projector. If the pro-

jector gets wet, electrical malfunctions

may result.

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector. Doing so

could cause mechanical malfunctions.

Using the head-up display

2-1. Instrument cluster

■

Changing settings of the head-up
display

Select

on the multi-information

display (



P.480) to change the fol-

lowing settings:



Display brightness/position

Select to adjust the brightness and position
of the head-up display.



Display content

Select to enable/disable the following
items:
• Route guidance to destination (if

equipped)

• Driving assist system status (if equipped)
• Compass (if equipped)
• Audio system operation status



Eco Driving Indicator/Tachometer

Select to display Eco Driving Indica-
tor/tachometer/no content.



Display angle

Select to adjust the angle of the head-up
display.

■

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the engine switch is

turned off then back to IGNITION ON

mode.

■

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted

according to the ambient brightness.

■

Automatic adjustment of the head-up

display position (if equipped)

A desired head-up display position can be

entered to memory and recalled automati-

cally by the driving position memory sys-

tem. (



P.138)

■

When the battery is disconnected

The customize settings of the head-up dis-

play will be reset.

Displays the following multi-informa-
tion display linked icons:

: Master warning icon

Displayed when a warning message is dis-

WARNING

■

Caution for changing settings of the

head-up display

As the engine needs to be running while

changing the settings of the head-up dis-

play, ensure that the vehicle is parked in a

place with adequate ventilation. In a

closed area such as a garage, exhaust

gases including harmful carbon monox-

ide (CO) may collect and enter the vehi-

cle. This may lead to death or a serious

health hazard.

NOTICE

■

When changing the settings of the

head-up display

To prevent battery discharge, ensure that

the engine is running while the changing

the settings of the head-up display.

Information icon/Master warn-
ing icon

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

played on the multi-information display.
(



P.424)

: Information icon

Displayed when a suggestion/advice
pop-up display is displayed on the
multi-information display. (



P.86)

Displays the following items in the
appropriate situation:

■

Warning/Message (if equipped)

Displays the following system warn-
ing/messages:



PCS (Pre-Collision System)
(



P.222)



Parking Support Brake function (for
static objects) (



P.288)



Dynamic radar cruise control with
full-speed range (



P.244)



Brake Override System (



P.163)



Drive-Start Control (



P.163)

Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display. For
details, refer to the explanation of each sys-
tem.

■

Audio system operation status

Displayed when the audio system is
operated.

■

Outside temperature

Displayed in the following situations:



When the engine switch is turned to
IGNITION ON mode



When the low outside temperature

indicator is flashing

Displayed content is the same as that
displayed on the multi-information dis-
play. For details, refer to the explana-
tion of the outside temperature display
on the multi-information display.
(



P.77)

Displays the following items which are
linked to the navigation system:

■

Street name

The name of the street that the vehicle
is currently driving on is displayed on
the bottom of the display area.
When the navigation system is per-
forming route guidance, the name of
the next street will be displayed on the
top of the display area.

■

Street name display (vehicles with a nav-

igation system)

Only street names which are included in the

map data will be displayed.

Displays the following items which are
linked to the navigation system:

■

Route guidance to destination

Displayed when the navigation system
is performing route guidance. When
approaching an intersection, an arrow
will be displayed to indicate the sug-
gested direction of travel.

■

Compass

Displays the direction of travel.

Message display area

Navigation system-linked dis-
play area (if equipped)

2-1. Instrument cluster

■

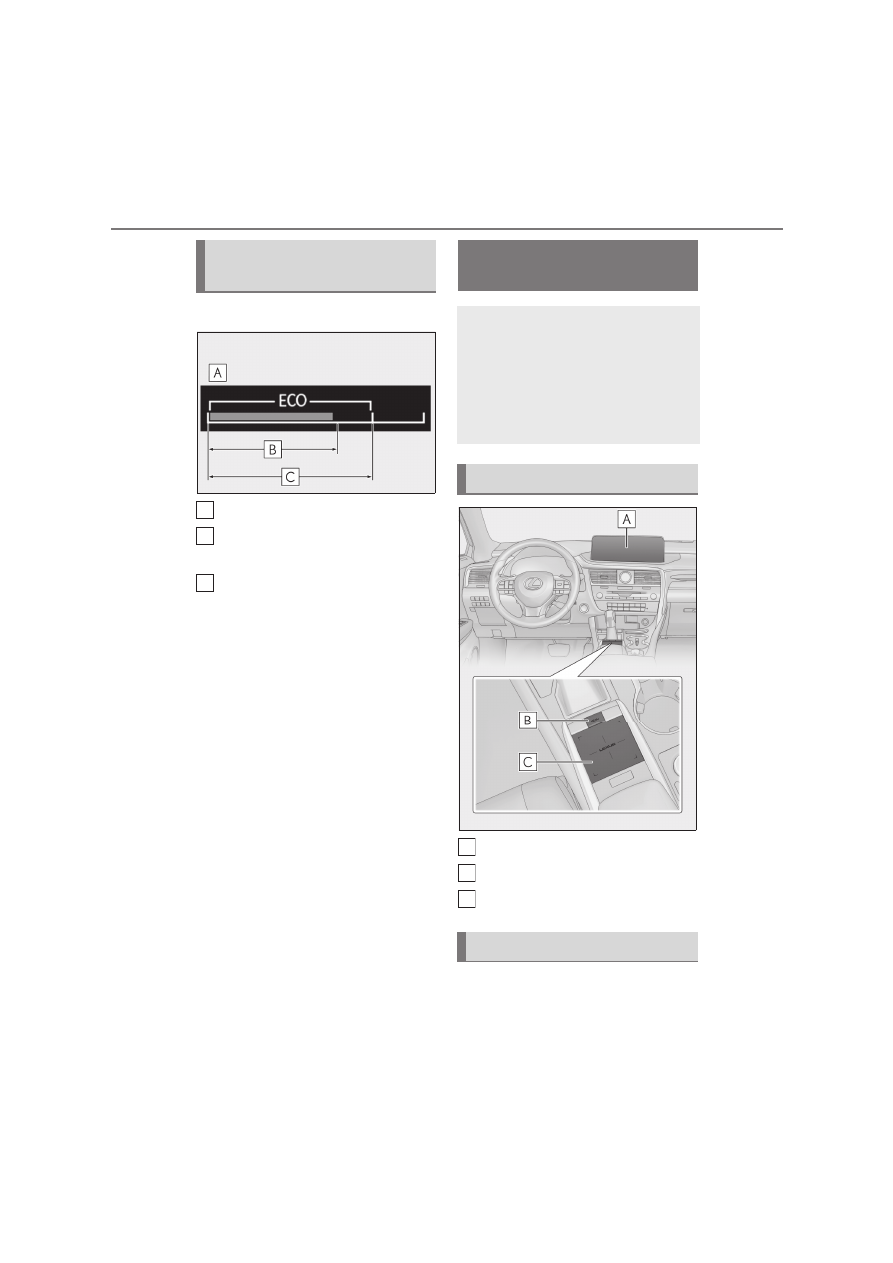

Eco Driving Indicator

Eco Driving Indicator Zone Display
Eco driving ratio based on acceler-
ation
Zone of Eco driving

Displayed content is the same as that dis-
played on the multi-information display
(Eco Driving Indicator). For details, refer to
P.82.

■

Tachometer

Displays the engine speed in revolu-
tions per minute.

Center Display
“MENU” button
Touchpad

■

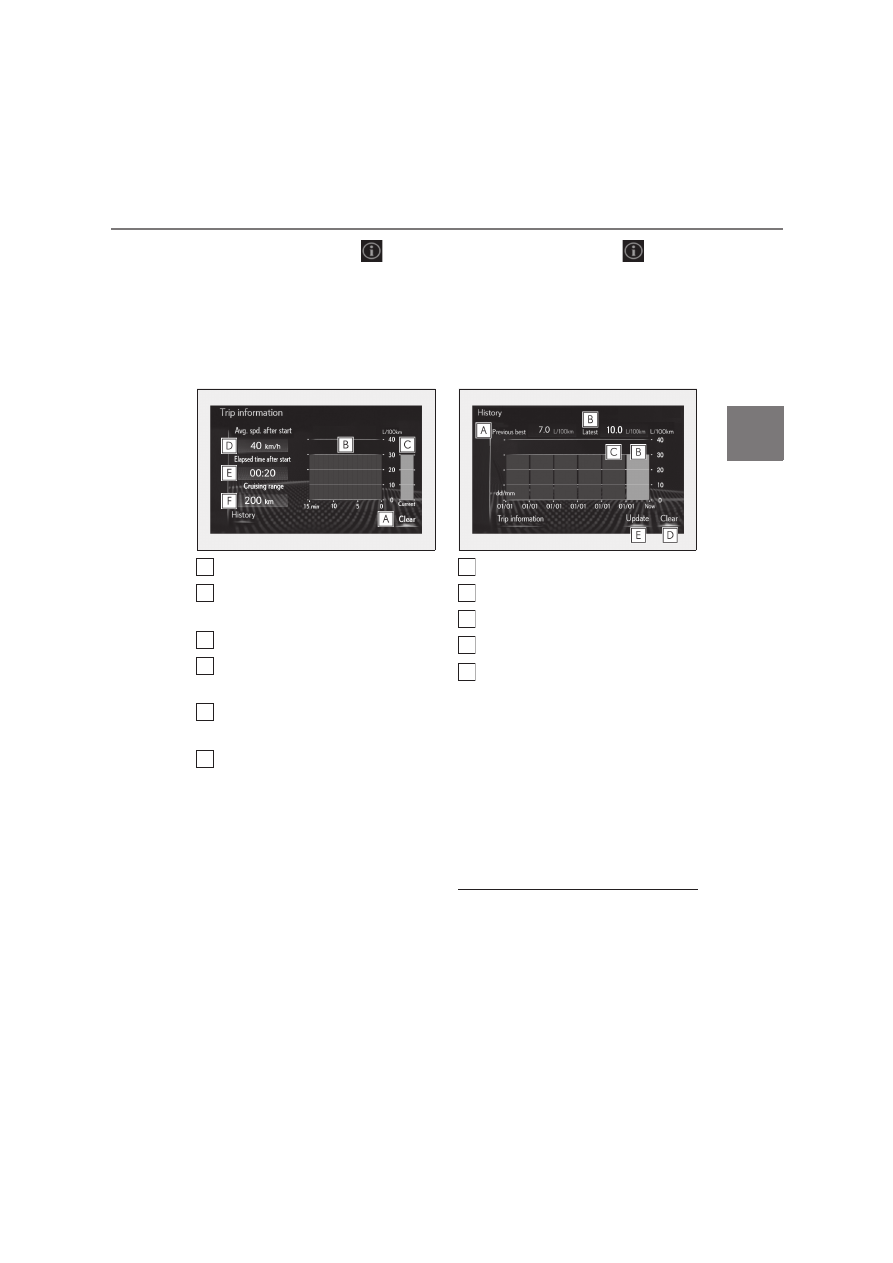

Trip information

Press the “MENU” button on the

Eco Driving Indicator/Tachome-
ter

A
B

Fuel consumption informa-
tion

Fuel consumption information can
be displayed on the Center Display.

Vehicles with a 12.3-inch display:
The fuel consumption information
can be displayed and operated on
the side display.

System components

Consumption

A
B
C

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

Remote Touch, then select

on the

menu screen.
If a screen other than “Trip information”
is displayed, select “Trip information”.
This system can also be operated by
the touch screen.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range

Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

History

Press the “MENU” button on the

Remote Touch, then select

on the

menu screen.
If a screen other than “History” is dis-
played, select “History”.
This system can also be operated by
the touch screen.

Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data

The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

A
B

C
D

A
B
C
D

2-1. Instrument cluster

■

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

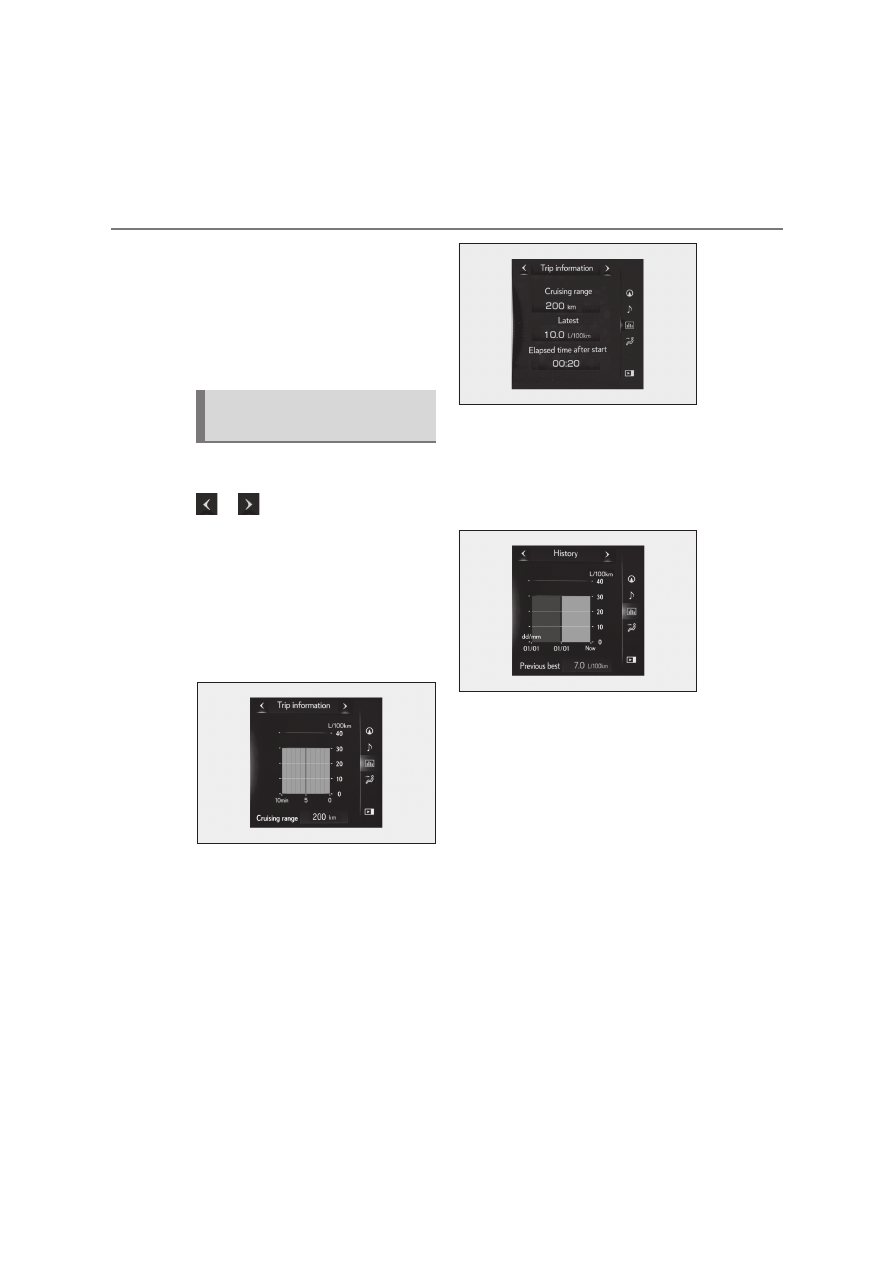

Display the vehicle information on the
side display (



P.313), and then select

to display the desired

screen.
The image is an example only, and may
vary slightly from actual conditions.

■

Trip information (type A)

Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.

Use the displayed average fuel consump-
tion as a reference.

■

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.

Use the displayed average fuel consump-
tion as a reference.

■

History

Displays the average fuel consumption
and highest fuel consumption.

Use the displayed average fuel consump-
tion as a reference.

Using the side display (vehicles
with a 12.3-inch display)

fore
driving

Before driving

3-1. Key information

Keys ...................................................

3-2. Opening, closing and locking the

doors

Side doors .....................................

100

Back door......................................

104

Power back door .......................

107

Smart entry & start system.....

120

3-3. Adjusting the seats

Front seats.....................................

125

Rear seats......................................

126

Driving position memory ........

138

Head restraints............................

142

3-4. Adjusting the steering wheel and

mirrors

Steering wheel ............................

145

Inside rear view mirror.............

146

Outside rear view mirrors......

147

3-5. Opening, closing the windows

and moon roof

Power windows ..........................

150

Moon roof .....................................

153

Panoramic moon roof..............

156

3-1. Key information

3-1.Key information

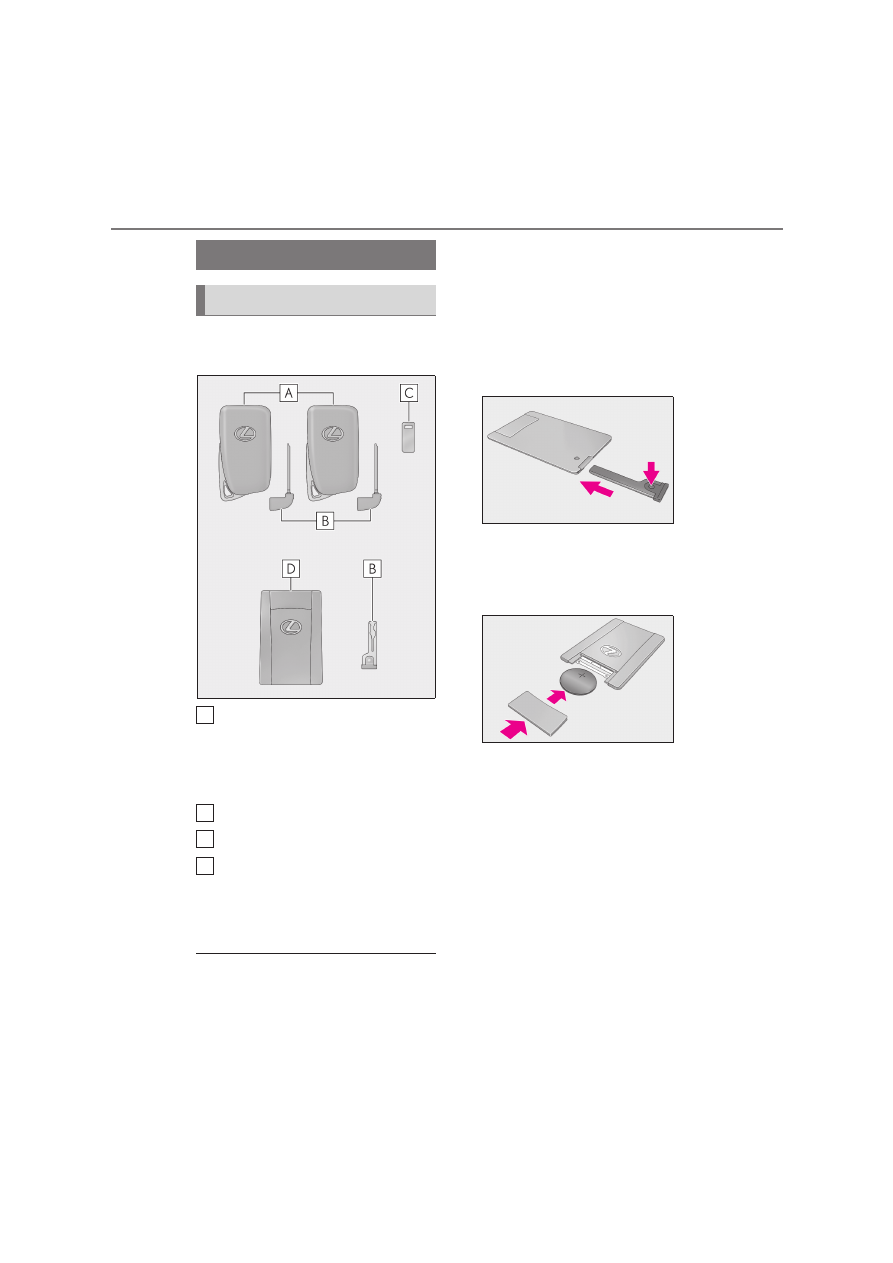

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart entry & start sys-

tem (



P.120)

• Operating the wireless remote control

function (



P.98)

Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)

Operating the smart entry & start system
(



P.120)

■

Card key (if equipped)

●

The card key is not waterproof.

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

If it is difficult to take out the mechanical

key, push down the release button using a

pen tip, etc. If it is still difficult to pull it out,

use a coin, etc.

●

To store the mechanical key in the card

key, insert it while pressing the release

button.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag, etc., ensure that

the buttons are not likely to be pressed acci-

dentally. Pressing a button may cause the

electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is about a year

and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin when the engine is

Keys

The keys

B
C
D

3-1. Key information

fore
driving

stopped.

●

To reduce key battery depletion when the

electronic key is to not be used for long

periods of time, set the electronic key to

the battery-saving mode. (



P.121)

●

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary.

• The smart entry & start system or the

wireless remote control does not oper-

ate.

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

●

To avoid serious deterioration, do not

leave the electronic key within 1 m (3 ft.)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

■

Replacing the battery



P.393

■

Confirmation of the registered key

number

The number of keys already registered to

the vehicle can be confirmed. Ask any

authorized Lexus retailer or Lexus author-

ized repairer, or any reliable repairer for

details.

■

If “A New Key has been Registered

Contact Your Dealer for Details” is

shown on the multi-information display

This message will be displayed each time

the driver’s door is opened when the doors

are unlocked from the outside for approxi-

mately one week after a new electronic key

has been registered.

If this message is displayed but you have not

had a new electronic key registered, ask

any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer

to check if an unknown electronic key

(other than those in your possession) has

been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to

strong shocks or bend them.

●

Do not expose the keys to high tem-

peratures for long periods of time.

●

Do not get the keys wet or wash them

in an ultrasonic washer, etc.

●

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else

to the surface of the electronic key.

●

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers,

or medical electrical equipment, such

as low-frequency therapy equipment.

■

Carrying the electronic key on your

person

Carry the electronic key 10 cm (3.9 in.)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 10 cm

(3.9 in.) of the electronic key may inter-

fere with the key, causing the key to not

function properly.

■

In case of a smart entry & start system

malfunction or other key-related

problems



P.458

■

When an electronic key is lost



P.456

3-1. Key information

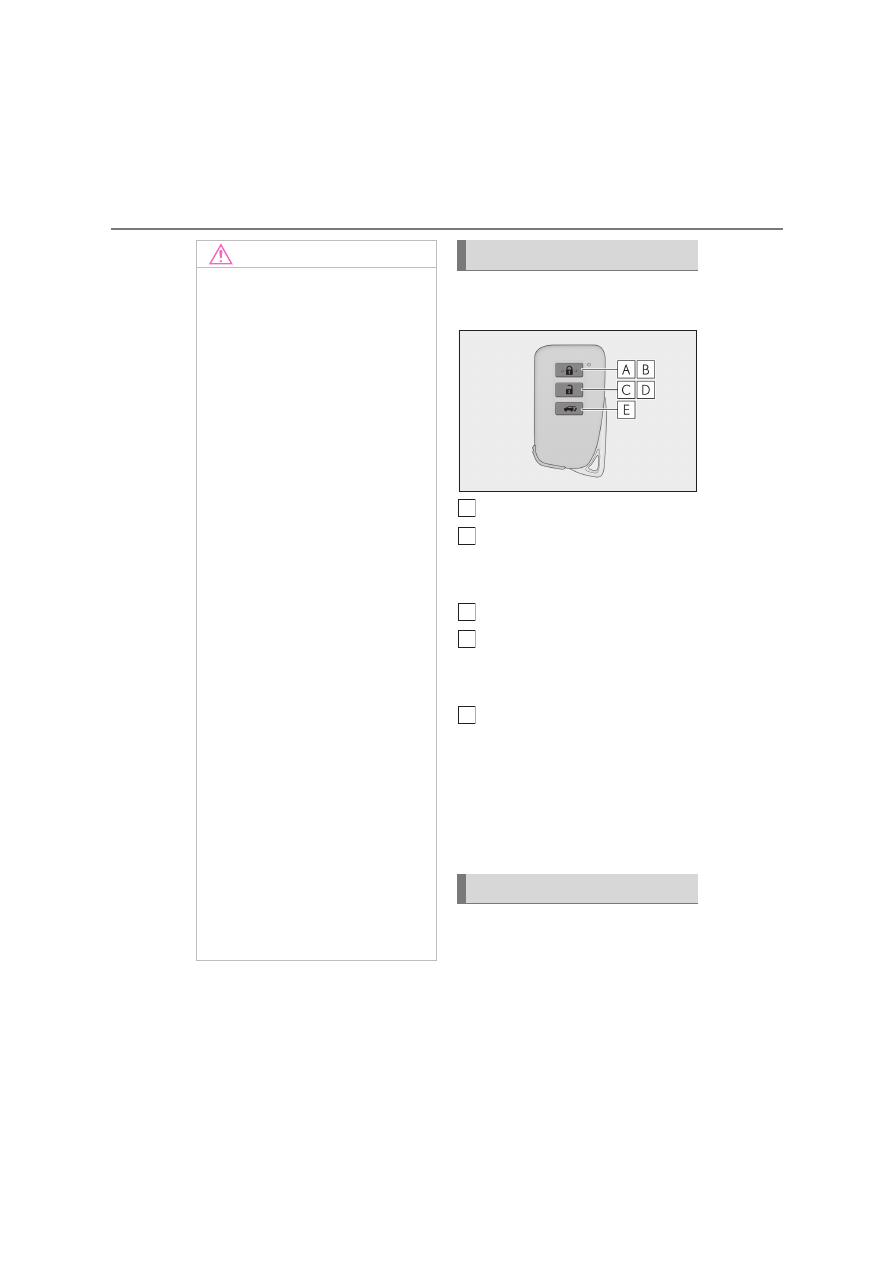

The electronic keys are equipped with
the following wireless remote control:

Locks all the doors (



P.100)

Closes the windows

and the

moon roof

*1, 2

or panoramic moon

roof

*1, 2

(



P.100)

Unlocks all the doors (



P.100)

Opens the windows

and the

moon roof

*1, 2

or panoramic moon

roof

*1, 2

(



P.100)

Opens and closes the power back
door

(



P.109)

: If equipped

: These settings must be customized at

any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

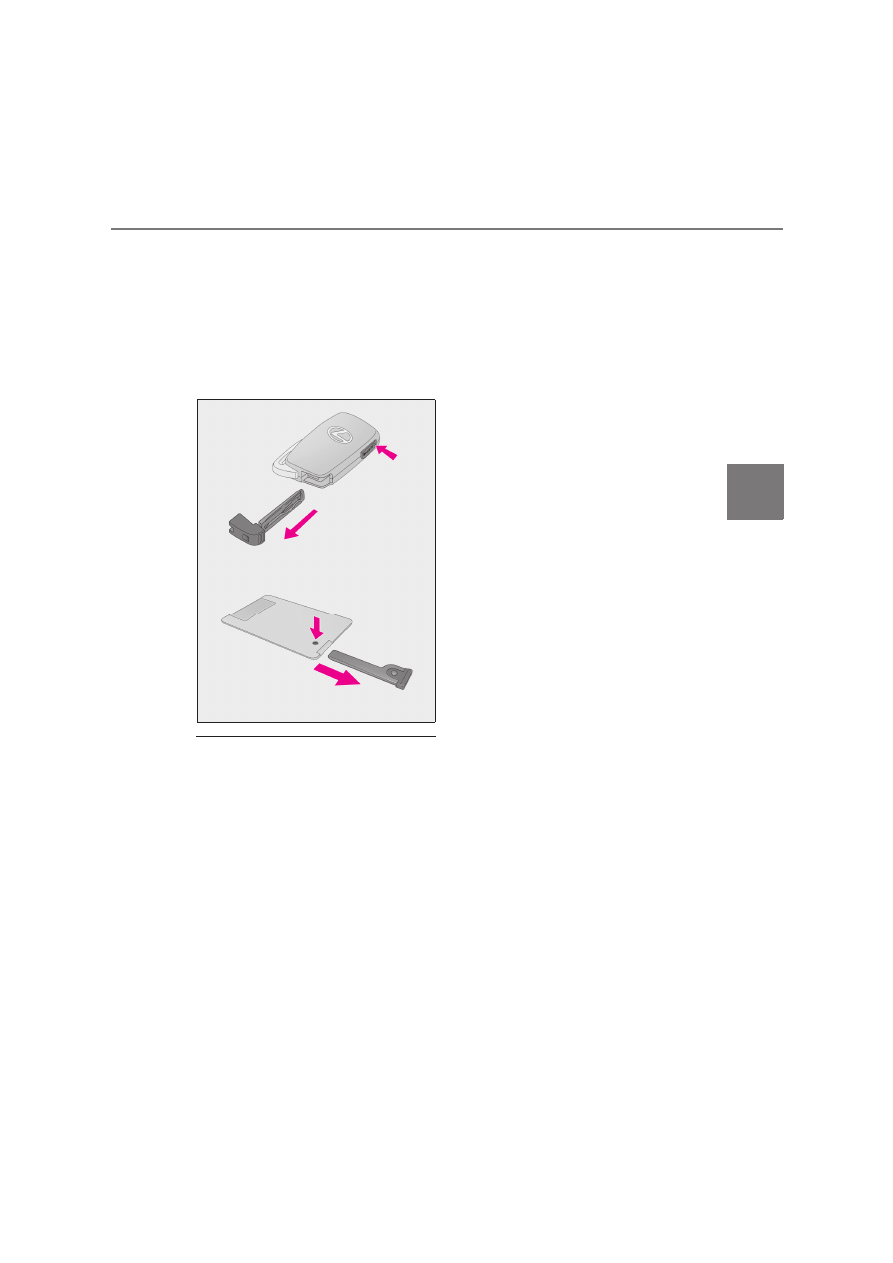

To take out the mechanical key, push
the release button and take the key out.

The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt

NOTICE

■

Handling the card key (if equipped)

●

Do not apply excess force when insert-

ing the mechanical key into the card

key. Doing so may damage the card

key.

●

If the battery or card key terminals get

wet, the battery may corrode and the

card key may stop working.

If the key is dropped into water, or if

drinking water, etc. is spilled on the key,

immediately remove the battery cover

and wipe the battery and terminals. (To

remove the battery cover, lightly grasp

and pull it.) If the battery is corroded,

have any authorized Lexus retailer or

Lexus authorized repairer, or any relia-

ble repairer replace the battery.

●

Do not crush the battery cover or use

a screwdriver to remove the battery

cover. Forcibly removing the battery

cover may bend or damage the key.

●

If the battery cover is frequently

removed, the battery cover may

become loose.

●

When installing the battery, make sure

to check the direction of the battery.

Installing the battery in the wrong

direction may cause the battery to

deplete rapidly.

●

The surface of the card key may be

damaged, or its coating may peel off in

the following situations:

• The card key is carried together with

hard objects, such as coins and keys.

• The card key is scraped with a sharp

object, such as the tip of a mechanical

pencil.

• The surface of the card key is wiped

with thinner or benzene.

Wireless remote control

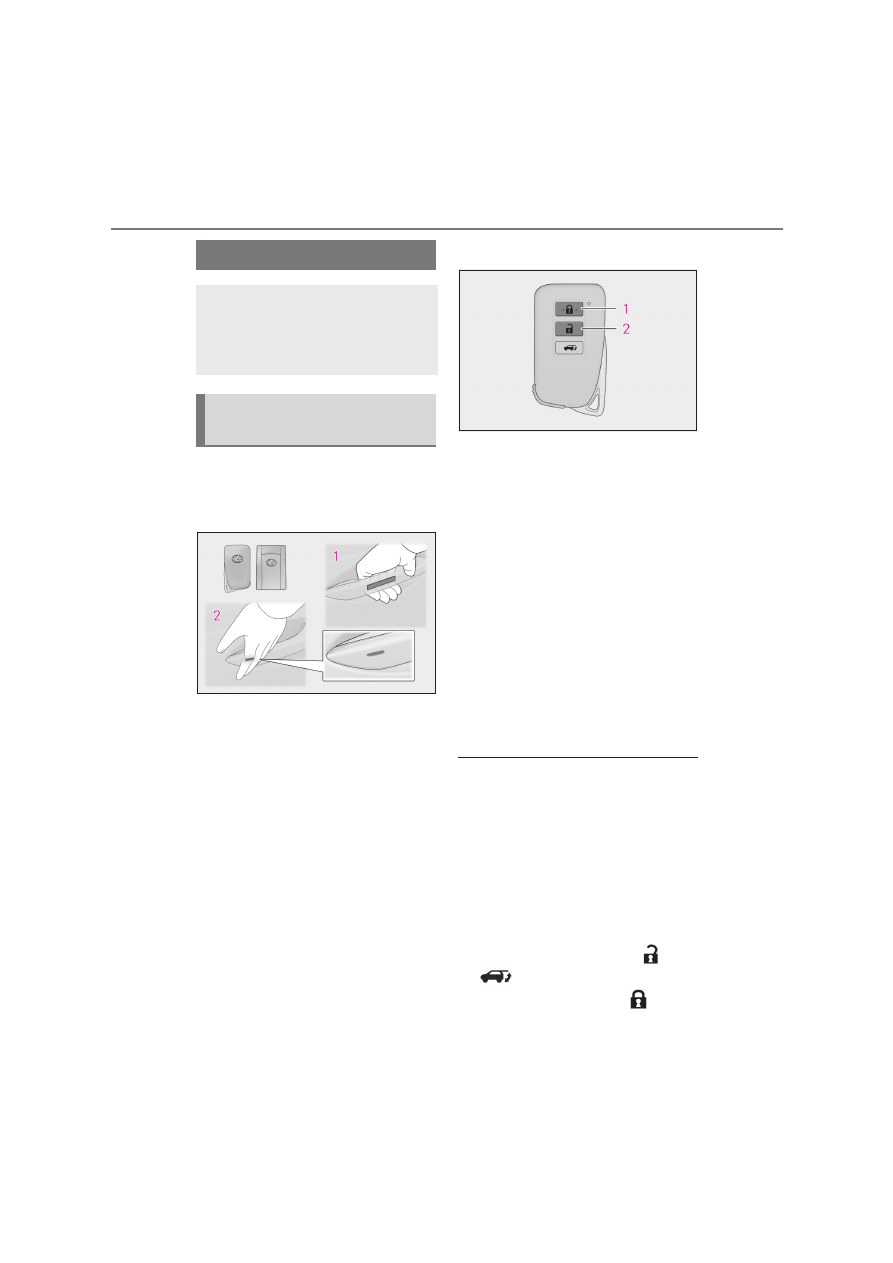

Using the mechanical key

A
B

C
D

3-1. Key information

fore
driving

to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
(



P.458)

■

When required to leave the vehicle’s

key with a parking attendant

Lock the glove box as circumstances

demand. (



P.338)

Remove the mechanical key for your own

use and provide the attendant with the elec-

tronic key only.

■

If you lose your mechanical keys



P.456

■

If a wrong key is used

The key cylinder rotates freely, isolated

from the internal mechanism.

100

3-2. Opening, closing and locking the doors

3-2.Opening, closing and locking the doors

■

Smart entry & start system

Carry the electronic key to enable this
function.

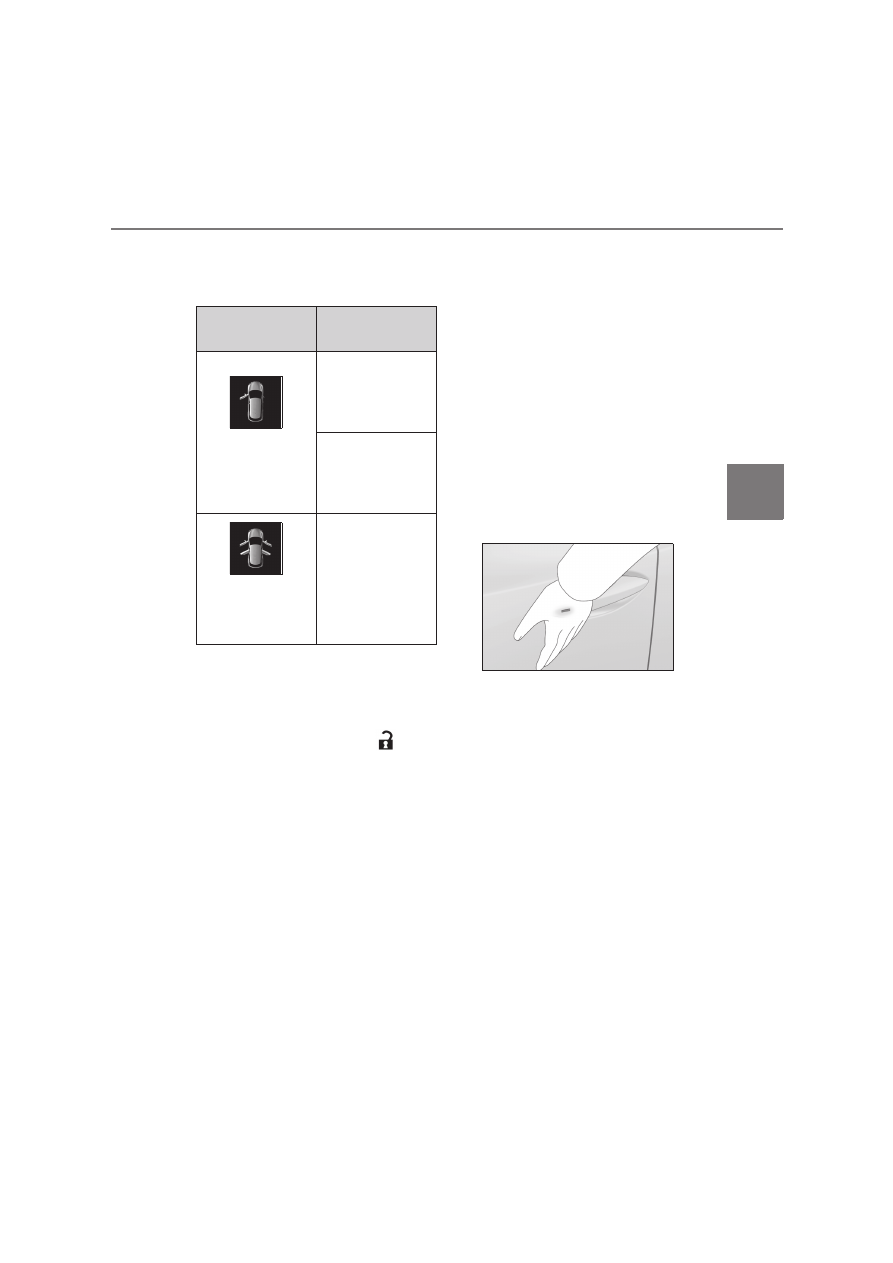

Grip the door handle to unlock the
doors.

Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.

: The door unlock settings can be

changed.

Touch the lock sensor (indentation
on the surface of the door handle)
to lock all the doors.

Check that the door is securely locked.

■

Wireless remote control

Locks all the doors

Check that the door is securely locked.
Press and hold to close the windows

and

the moon roof

*1, 2

or panoramic moon

roof

*1, 2

Unlocks all the doors

Press and hold to open the windows

and

the moon roof

*1, 2

or panoramic moon

roof

*1, 2

: If equipped

: This setting must be customized at any

authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

■

Switching the door unlock function

It is possible to set which doors the entry

function unlocks using the wireless remote

control.

Turn the engine switch off.

Cancel the intrusion sensor and tilt sen-

sor of the alarm system to prevent unin-

tended triggering of the alarm while

changing the settings. (if equipped)

(



P.66)

When the indicator light on the key sur-
face is not on, press and hold

for approximately 5 seconds

while pressing and holding

The setting changes each time an operation

Side doors

The vehicle can be locked and
unlocked using the entry function,
wireless remote control or door
lock switches.

Unlocking and locking the doors
from the outside

101

3-2. Opening, closing and locking the doors

fore
driving

is performed, as shown below. (When

changing the setting continuously, release

the buttons, wait for at least 5 seconds, and

repeat step

For vehicles with an alarm: To prevent unin-

tended triggering of the alarm, unlock the

doors using the wireless remote control and

open and close a door once after the set-

tings have been changed. (If a door is not
opened within 30 seconds after

pressed, the doors will be locked again and

the alarm will automatically be set.)

In a case that the alarm is triggered, imme-

diately stop the alarm. (



P.65)

■

Impact detection door lock release sys-

tem

In the event that the vehicle is subject to a

strong impact, all the doors are unlocked.

Depending on the force of the impact or the

type of accident, however, the system may

not operate.

■

Operation signals

Doors:
The emergency flashers flash to indicate

that the doors have been locked/unlocked.

(Locked: Once; Unlocked: Twice)

Windows and moon roof or panoramic

moon roof:
A buzzer sounds.

■

Security feature

If a door is not opened within approximately

30 seconds after the vehicle is unlocked,

the security feature automatically locks the

vehicle again.

■

When the door cannot be locked by the

lock sensor on the surface of the door

handle

When the door cannot be locked even if the

lock sensor on the surface of the door han-

dle is touched by a finger, touch the lock

sensor with the palm.
When gloves are being worn, remove the

gloves.

■

Door lock buzzer

If an attempt to lock the doors is made when

a door is not fully closed, a buzzer sounds

continuously for 5 seconds. Fully close the

door to stop the buzzer, and lock the vehi-

cle once more.

■

Setting the alarm (if equipped)

Locking the doors will set the alarm system.

(



P.65)

■

Conditions affecting the operation of

the smart entry & start system or wire-

less remote control



P.121

■

If the smart entry & start system or the

wireless remote control does not oper-

ate properly

Use the mechanical key to lock and unlock

the doors. (



P.458)

Replace the key battery with a new one if it

is depleted. (



P.393)

Multi-information

display/Beep

Unlocking function

Exterior: Beeps 3

times

Interior: Pings once

Holding the driver’s
door handle unlocks
only the driver’s
door.

Holding any of the
passenger door
handles unlocks all
the doors.

Exterior: Beeps

twice

Interior: Pings once

Holding a door han-
dle unlocks all the
doors.

102

3-2. Opening, closing and locking the doors

■

If the battery is discharged

The doors cannot be locked and unlocked

using the smart entry & start system or

wireless remote control. Lock or unlock the

doors using the mechanical key. (



P.458)

■

Customization

Some functions can be customized.

(



P.480)

■

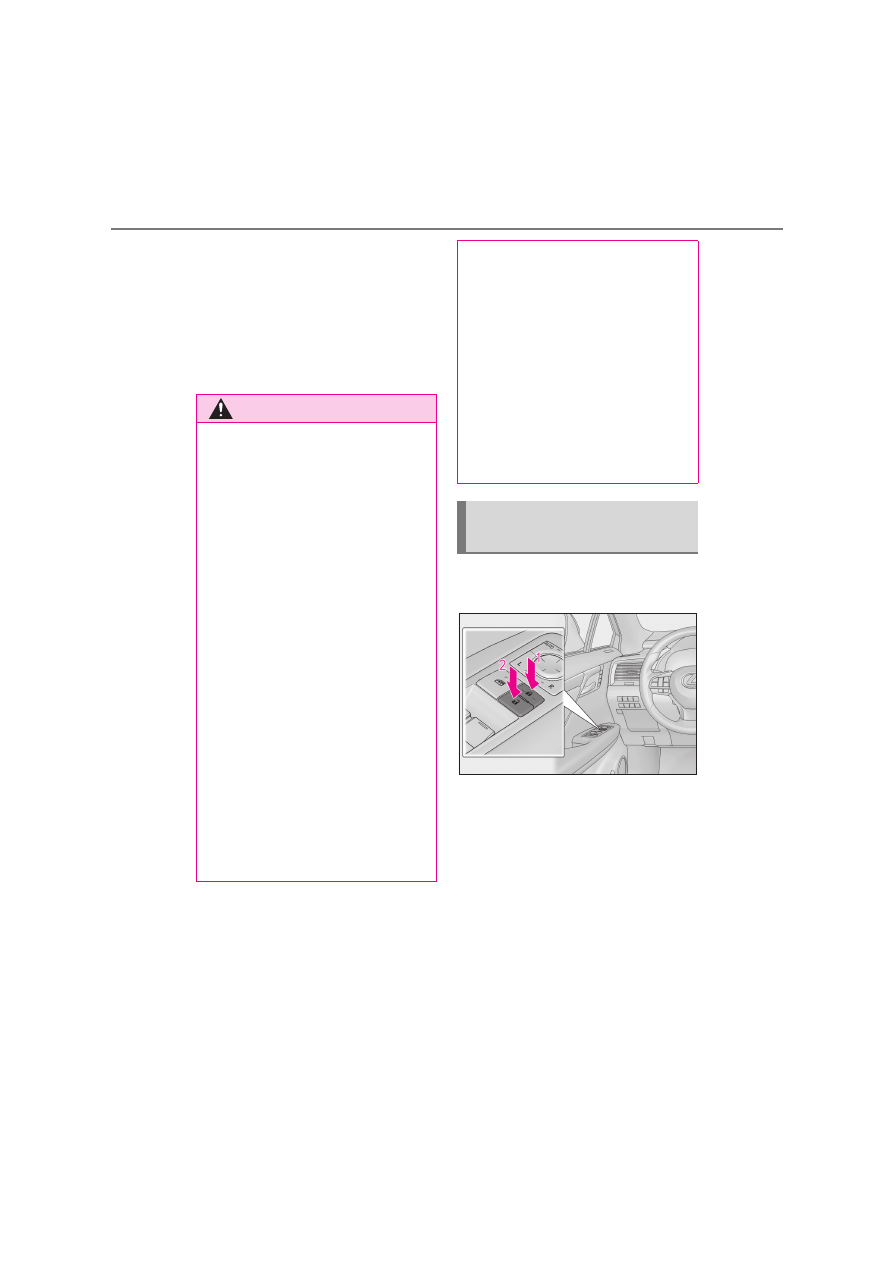

Door lock switches (to
lock/unlock)

Locks all the doors

Unlocks all the doors

■

Inside lock buttons (to lock)

Push down the inside lock button to
lock the door.

WARNING

■

To prevent an accident

Observe the following precautions while

driving the vehicle.

Failure to do so may result in a door

opening and an occupant falling out,

resulting in death or serious injury.

●

Ensure that all doors are properly

closed and locked.

●

Do not pull the inside handle of the

doors while driving.

Be especially careful for the front doors,
as the doors may be opened even if the
inside lock buttons are in locked position.

●

Set the rear door child-protector locks

when children are seated in the rear

seats.

■

When opening or closing a door

Check the surroundings of the vehicle

such as whether the vehicle is on an

incline, whether there is enough space

for a door to open and whether a strong

wind is blowing. When opening or clos-

ing the door, hold the door handle tightly

to prepare for any unpredictable move-

ment.

■

When using the wireless remote con-

trol and operating the power windows

or the moon roof or panoramic moon

roof

Operate the power windows or the

moon roof or panoramic moon roof after

checking to make sure that there is no

possibility of any passenger having any of

their body parts caught in the windows or

the moon roof or panoramic moon roof.

Also, do not allow children to operate the

wireless remote control. It is possible for

children and other passengers to get

caught in the power windows or the

moon roof or panoramic moon roof.

Unlocking and locking the doors
from the inside

103

3-2. Opening, closing and locking the doors

fore
driving

■

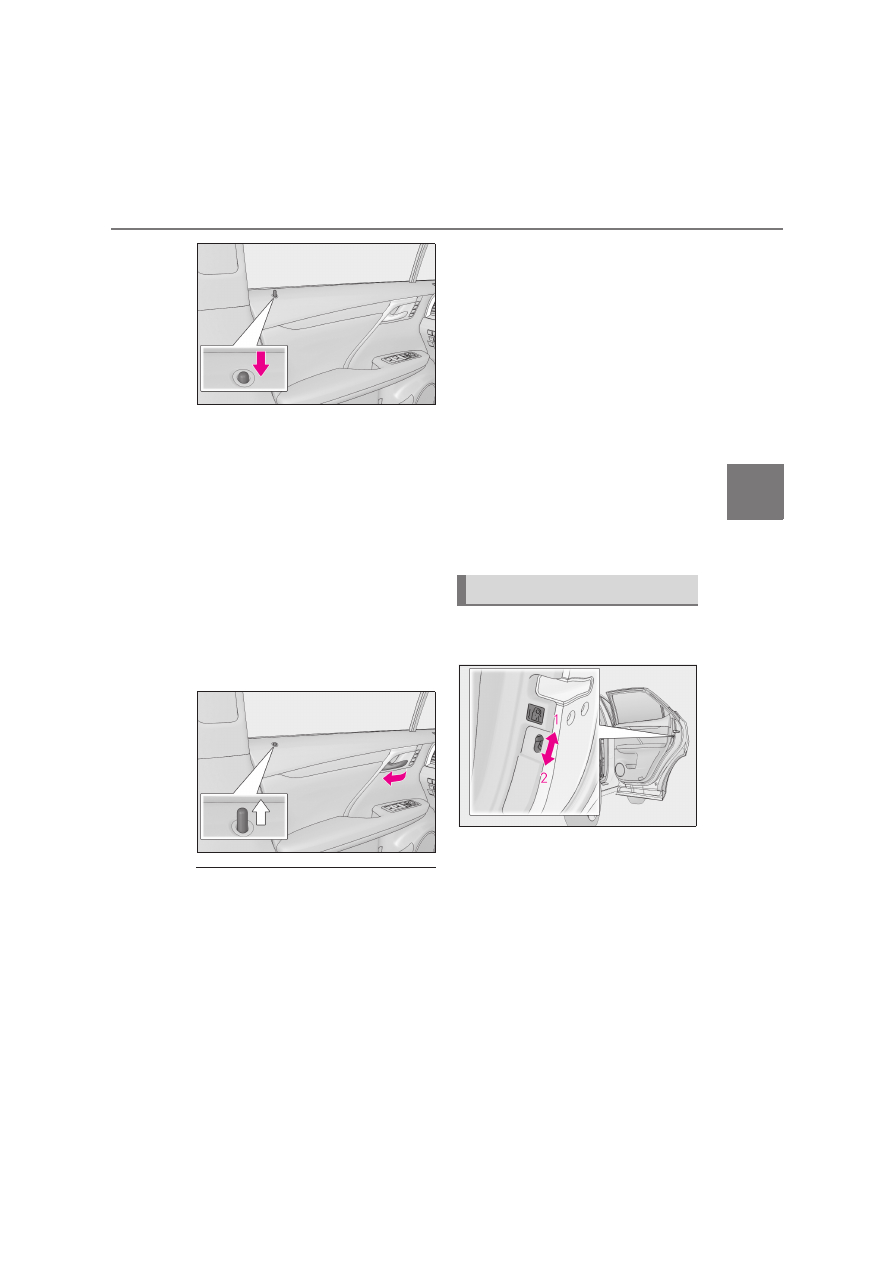

Inside door handles (to unlock)



For the front doors

Pull the handle to unlock and open the
door.

When the door is unlocked, the inside lock
button will pop up.



For the rear doors

Pull the handle to unlock the door. Pull
the handle a second time to open the
door.

When the door is unlocked, the inside lock
button will pop up.

■

Locking the doors from the outside with-

out a key



For the front doors

Push down the inside lock button.

Close the door while pulling the door

handle.

The door cannot be locked if the engine

switch is in ACCESSORY or IGNITION

ON mode, or the electronic key is left

inside the vehicle. However, the key may not

be detected correctly and the door may be

locked.



For the rear doors

Push down the inside lock button.

Close the door.

The door cannot be locked if the engine

switch is in ACCESSORY or IGNITION

ON mode, or the electronic key is left

inside the vehicle. However, the key may not

be detected correctly and the door may be

locked.

■

Open door warning buzzer

If the vehicle speed reaches 5 km/h (3

mph), the master warning light flashes and a

buzzer sounds to indicate that door(s) or

the hood in not fully closed.

The open door(s) or hood is displayed on

the multi-information display.

The door cannot be opened from
inside the vehicle when the lock is set.

Unlock

Lock

These locks can be set to prevent children
from opening the rear doors. Push down
on each rear door switch to lock both rear
doors.

Rear door child-protector lock

Content .. 3 4 5 6 ..
