Lexus RC-F (2022 year). Manual in english - page 20

335

7-2. Steps to take in an emergency

When trouble

ises

Remove the cover inside the trunk and
pull the lever.

■

When the electronic key does not work

properly

●

Make sure that the smart entry & start

system has not been deactivated in the

customization setting. If it is off, turn the

function on.

●

Check if battery-saving mode is set. If it is

set, cancel the function. (



P.104)

■

Unlocking the door

Use the mechanical key (



P.92) in

order to perform the following opera-
tions:

If the fuel filler door cannot
be opened

If the fuel filler door cannot be
opened by pressing the center of
the rear edge of the fuel filler door
with the doors unlocked, the follow-
ing procedure can be used to open
the fuel filler door.

Opening the fuel filler door

If the electronic key does not
operate properly

If communication between the
electronic key and vehicle is inter-
rupted (



P.104) or the electronic

key cannot be used because the
battery is depleted, the smart entry
& start system and wireless remote
control cannot be used. In such
cases, the doors and trunk can be
opened and the engine can be
started by following the procedure
below.

NOTICE

■

In case of a smart entry & start system

malfunction or other key-related

problems

Take your vehicle with all the electronic

keys provided with your vehicle, includ-

ing the card key, to any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer.

Locking and unlocking the doors
and opening the trunk

336

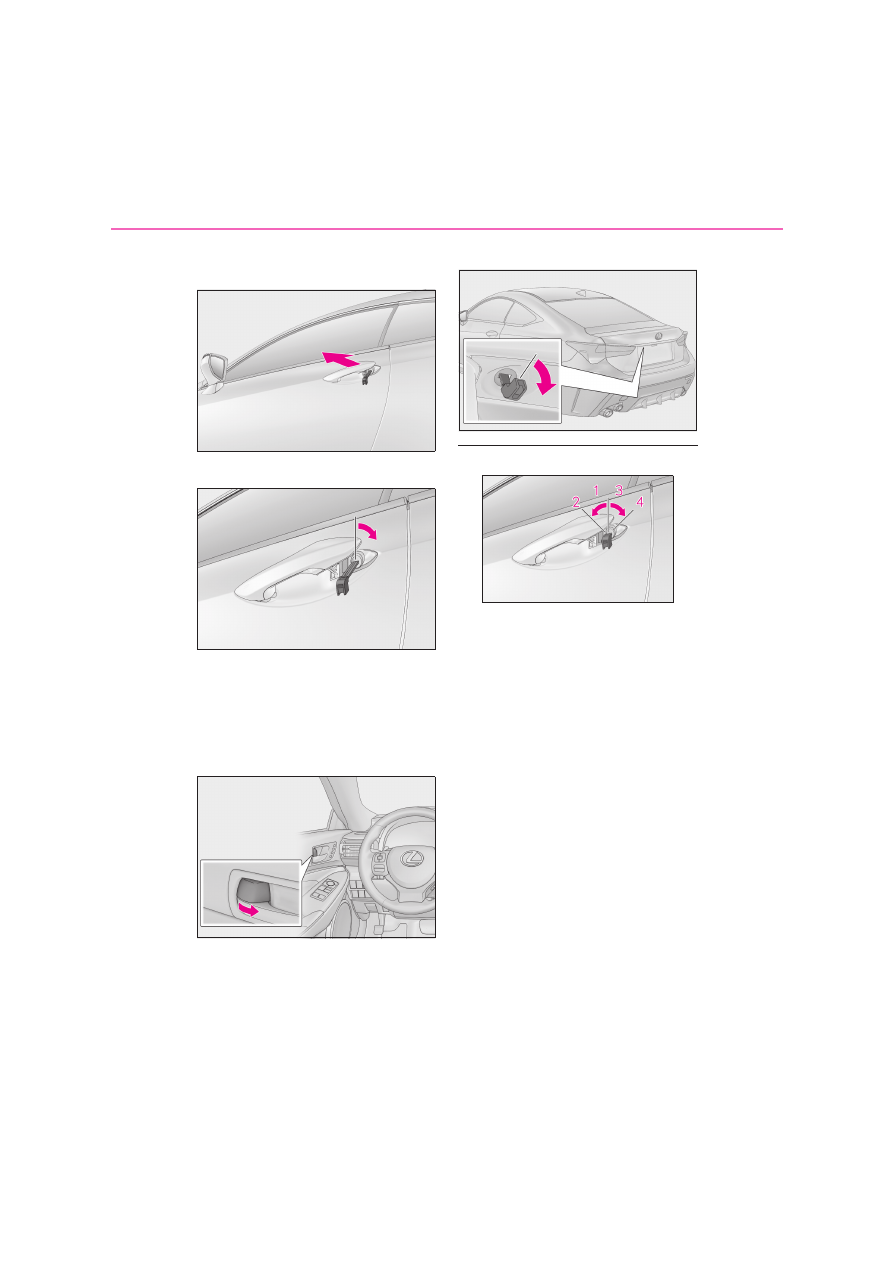

7-2. Steps to take in an emergency

Insert the mechanical key while
pulling on the driver’s door handle.

Unlocking the door.

Remove the key, return the handle,
and then pull the handle again.

■

Locking the door

Move the inside lock button to the
lock position.

Close the door while pulling the
door handle.

■

Opening the trunk

Turn the mechanical key clockwise to

open. (



P.60)

■

Key linked functions

Locks both side door

Closes the windows and moon roof (if
equipped) (turn and hold)

Unlocks the door

Opens the windows and moon roof (if
equipped) (turn and hold)

: These settings must be customized at

any authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.

337

7-2. Steps to take in an emergency

When trouble

ises

Ensure that the shift lever is in P and
depress the brake pedal.

Touch the Lexus emblem side of the
electronic key to the engine switch.

When the electronic key is detected, a

buzzer sounds and the engine switch will

turn to IGNITION ON mode.
When the smart entry & start system is

deactivated in customization setting, the

engine switch will turn to ACCESSORY

mode.

Firmly depress the brake pedal and
check that

is shown on the

multi-information display.

Press the engine switch.

In the event that the engine still cannot

be started, contact any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

■

Stopping the engine

Shift the shift lever to P and press the engine

switch as you normally do when stopping

the engine.

■

Electronic key battery

As the above procedure is a temporary

measure, it is recommended that the elec-

tronic key battery be replaced immediately

when the battery is depleted. (



P.289)

■

Alarm (if equipped)

Using the mechanical key to lock the doors

will not set the alarm system.

If a door is unlocked using the mechanical

key when the alarm system is set, the alarm

may be triggered.

■

Changing engine switch modes

Release the brake pedal and press the

engine switch in step

above.

The engine does not start and modes will be

changed each time the switch is pressed.

(



P.134)

WARNING

■

When using the mechanical key and

operating the power windows or

moon roof

Operate the power window or moon

roof after checking to make sure that

there is no possibility of any passenger

having any of their body parts caught in

the window or moon roof.

Also, do not allow children to operate the

mechanical key. It is possible for children

and other passengers to get caught in

the power window or moon roof.

Starting the engine

338

7-2. Steps to take in an emergency

If you have a set of jumper (or booster)
cables and a second vehicle with a
12-volt battery, you can jump start your
vehicle by following the steps below.

Confirm that the electronic key is
being carried.

When connecting the jumper (or booster)

cables, depending on the situation, the

alarm may activate and doors locked.

(



P.61)

Open the hood. (



P.270)

Remove the engine cover.
Raise the rear of the engine cover
to remove the rear clip, and then
raise the front of the engine cover
to remove the front clips.

Connect a positive jumper cable clamp to   on your vehicle and connect the
clamp on the other end of the positive cable to   on the second vehicle. Then,
connect a negative cable clamp to   on the second vehicle and connect the
clamp at the other end of the negative cable to  .



Left-hand drive vehicles

If the vehicle battery is dis-
charged

The following procedures may be
used to start the engine if the vehi-
cle’s battery is discharged.
You can also call any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Restarting the engine

339

7-2. Steps to take in an emergency

When trouble

ises

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Solid, stationary, unpainted metallic point away from the battery and any mov-
ing parts as shown in the illustration



Right-hand drive vehicles

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the battery of your vehi-
cle.

Open and close any of the door of
your vehicle with the engine switch
off.

Maintain the engine speed of the
second vehicle and start the engine
of your vehicle by turning the
engine switch to IGNITION ON
mode.

Once the vehicle’s engine has
started, remove the jumper cables

in the exact reverse order from
which they were connected.

Once the engine starts, have the vehi-
cle inspected any authorized Lexus
retailer or Lexus authorized repairer,
or any reliable repairer as soon as pos-
sible.

■

Starting the engine when the battery is

discharged

The engine cannot be started by push-start-

ing.

■

To prevent battery discharge

●

Turn off the headlights and the audio sys-

tem while the engine is off.

●

Turn off any unnecessary electrical com-

ponents when the vehicle is running at a

low speed for an extended period, such

A
B
C
D

340

7-2. Steps to take in an emergency

as in heavy traffic.

■

Charging the battery

The electricity stored in the battery will dis-

charge gradually even when the vehicle is

not in use, due to natural discharge and the

draining effects of certain electrical appli-

ances. If the vehicle is left for a long time,

the battery may discharge, and the engine

may be unable to start. (The battery

recharges automatically during driving.)

■

When recharging or replacing the bat-

tery

●

In some cases, it may not be possible to

unlock the doors using the smart entry &

start system when the battery is dis-

charged. Use the wireless remote control

or the mechanical key to lock or unlock

the doors.

●

The engine may not start on the first

attempt after the battery has recharged

but will start normally after the second

attempt. This is not a malfunction.

●

The engine switch mode is memorized by

the vehicle. When the battery is recon-

nected, the system will return to the

mode it was in before the battery was dis-

charged. Before disconnecting the bat-

tery, turn the engine switch off.

If you are unsure what mode the engine

switch was in before the battery dis-

charged, be especially careful when

reconnecting the battery.

■

When replacing the battery

●

Use a battery that conforms to European

regulations.

●

Use a battery that tha case size is same as

the previous one (LN3), 20 hour rate

capacity (20HR) is equivalent (70Ah) or

greater, and performance rating (CCA)

is equivalent (592A) or greater.

• If the sizes differ, the battery cannot be

properly secured.

• If the 20 hour rate capacity is low, even if

the time period where the vehicle is not

used is a short time, battery may dis-

charge and the engine may not be able to

start.

●

For details, consult any authorized Lexus

retailer or Lexus authorizedrepairer, or

any reliable repairer.

WARNING

■

Avoiding battery fires or explosions

Observe the following precautions to

prevent accidentally igniting the flamma-

ble gas that may be emitted from the bat-

tery:

●

Make sure each jumper cable is con-

nected to the correct terminal and that

it is not unintentionally in contact with

any other than the intended terminal.

●

Do not allow the other end of the

jumper cable connected to the “+” ter-

minal to come into contact with any

other parts or metal surfaces in the

area, such as brackets or unpainted

metal.

●

Do not allow the + and - clamps of the

jumper cables to come into contact

with each other.

●

Do not smoke, use matches, cigarette

lighters or allow open flame near the

battery.

●

If the battery fluid level is excessively

low (



P.276), do not use the battery.

■

Battery precautions

The battery contains poisonous and cor-

rosive acidic electrolyte, while related

parts contain lead and lead compounds.

Observe the following precautions when

handling the battery:

●

When working with the battery, always

wear safety glasses and take care not

to allow any battery fluids (acid) to

come into contact with skin, clothing

or the vehicle body.

●

Do not lean over the battery.

341

7-2. Steps to take in an emergency

When trouble

ises

Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the engine.

If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.

After the engine has cooled down
sufficiently, inspect the hoses and

WARNING

●

In the event that battery fluid comes

into contact with the skin or eyes,

immediately wash the affected area

with water and seek medical attention.

Place a wet sponge or cloth over the

affected area until medical attention

can be received.

●

Always wash your hands after handling

the battery support, terminals, and

other battery-related parts.

●

Do not allow children near the battery.

NOTICE

■

When handling jumper cables

When connecting the jumper cables,

ensure that they do not become entan-

gled in the cooling fans or engine drive

belt.

If your vehicle overheats

The following may indicate that
your vehicle is overheating.



The engine coolant temperature
gauge (



P.70) is in the red zone

or a loss of engine power is expe-
rienced. (For example, the vehicle
speed does not increase.)



“Engine Coolant Temp High Stop
in a Safe Place See Owner’s
Manual” is shown on the
multi-information display.



Steam comes out from under the
hood.

Correction procedures

342

7-2. Steps to take in an emergency

radiator core (radiator) for any
leaks.

Cooling fans
Radiator

If a large amount of coolant leaks, immedi-
ately contact any authorized Lexus retailer
or Lexus authorized repairer, or any relia-
ble repairer.

The coolant level is satisfactory if it
is between the full (“FULL”) and low
(“LOW”) lines on the reservoir.

Reservoir cap
“FULL”
“LOW”

Add coolant if necessary.

Water can be used in an emergency if

coolant is unavailable.

Start the engine and turn the air
conditioning system on to check
that the radiator cooling fans oper-
ate and to check for coolant leaks
from the radiator or hoses.

The fans operate when the air conditioning

system is turned on immediately after a

cold start. Confirm that the fans are oper-

ating by checking the fan sound and air

flow. If it is difficult to check these, turn the

air conditioning system on and off repeat-

edly.

(The fans may not operate in freezing tem-

peratures.)

If the fans are not operating:
Stop the engine immediately and
authorized Lexus retailer or Lexus
authorized repairer, or any reliable
repairer.
If the fans are operating:
Have the vehicle inspected at the
nearest authorized Lexus retailer
or Lexus authorized repairer, or any
reliable repairer.

A
B

A
B
C

WARNING

■

When inspecting under the hood of

your vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

343

7-2. Steps to take in an emergency

When trouble

ises

Stop the engine. Set the parking
brake and shift the shift lever to P.

Remove the mud, snow or sand
from around the rear wheels.

Place wood, stones or some other
material under the rear wheels to
help provide traction.

Restart the engine.

Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

When it is difficult to free the vehicle

Press the

switch to turn off TRC.

WARNING

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

Keep hands and clothing (especially a

tie, a scarf or a muffler) away from the

fans and belts. Failure to do so may

cause the hands or clothing to be

caught, resulting in serious injury.

●

While the engine and radiator are hot,

do not loosen or remove the coolant

reservoircap.

High temperature steam or coolant

couldspray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the engine has

cooled down sufficiently. Adding cool

coolant to a hot engine too quickly can

cause damage to the engine.

■

To prevent damage to the cooling sys-

tem

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust

etc.).

●

Do not use any coolant additive.

If the vehicle becomes stuck

Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

344

7-2. Steps to take in an emergency

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with

the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damaging the transmission

and other components

●

Avoid spinning the rear wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be freed.

345

Vehi

cle

ifica

tio

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

346

Fuel information.........................

353

8-2. Customization

Customizable features ...........

354

8-3. Items to initialize

Items to initialize ........................

364

346

8-1. Specifications

8-1.Specifications

: Unladen vehicle

: Vehicles with 235/40R19 tires

■

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel and in the
engine compartment.

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

4710 mm (185.4 in.)

Overall width

1845 mm (72.6 in.)

Overall height

1390 mm (54.7 in.)

Wheelbase

2730 mm (107.5 in.)

Tread

Front

1555 mm (61.2 in.)

1565 mm (61.6 in.)

Rear

1560 mm (61.4 in.)

1550 mm (61.0 in.)

Gross vehicle mass

2250 kg (4960 lb.)

Maximum permissible axle capac-
ity

Front

1260 kg (2778 lb.)

Rear

1260 kg (2778 lb.)

Vehicle identification

347

8-1. Specifications

Vehi

cle

ifica

tio

This number is also on the manufac-
turer’s label.

■

Engine number

The engine number is located as
shown.

Engine

Model

2UR-GSE

Type

8-cylinder V type, 4-cycle, gasoline

Bore and stroke

94.0



89.5 mm (3.70



3.52 in.)

Displacement

4969 cm

(303.2 cu. in.)

Drive belt tension

Automatic adjustment

348

8-1. Specifications

: If unleaded gasoline with a Research Octane Number of 98 is not available, unleaded

gasoline with a Research Octane Number of 95 may be used with no detrimentto
engine durability or driveability.

■

Oil capacity (Drain and refill [Reference

])

: The engine oil capacity is a reference quantity to be used when changing the engine oil.

Warm up and turn off the engine, wait more than 5 minutes, and check the oil level on the
dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota
Genuine Motor Oil”. Another motor
oil of matching quality can also be
used.
Oil grade:
5W-30:
API grade SM “Energy-Conserving”,

SN “Resource-Conserving”, SN PLUS
“Resource-Conserving” or SP
“Resource-Conserving” ; or ILSAC
GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 5W-30 is filled into your Lexus
vehicle at manufacturing, and the best
choice for good fuel economy and
good starting in cold weather.

Fuel

Fuel type

When you find these types of fuel label at the
gas station, use only the fuel with one of the
following labels.

EU area: Unleaded gasoline conforming to
European standard EN228 only
Except EU area: Unleaded gasoline only

Research Octane Number

98 or higher

Fuel tank capacity (Reference)

66 L (17.4 gal., 14.5 Imp. gal.)

Lubrication system

With filter

8.8 L (9.3 qt., 7.7 Imp. qt.)

Without filter

7.9 L (8.3 qt., 7.0 Imp. qt.)

349

8-1. Specifications

Vehi

cle

ifica

tio

Temperature range anticipated
before next oil change

Oil viscosity (5W-30 is explained here
as an example):
• The 5W in 5W-30 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 30 in 5W-30 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should use.

API Service Symbol

Top portion: “API SERVICE SP” means the
oil quality designation by American Petro-
leum Institute (API).
Center portion: “SAE 5W-30” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and envi-
ronmental protection capabilities.

ILSAC Certification Mark

The International Lubricant Specification
Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the
container.

: The fluid capacity is a reference quantity.

Cooling system

Capacity

11.5 L (12.2 qt., 10.1 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology

Do not use plain water alone.

350

8-1. Specifications

If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

■

Spark plug

: The fluid capacity is a reference quantity.

If replacement is necessary, contact any authorized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Ignition system (spark plug)

Make

DENSO FK20HBR-J8

Gap

0.8 mm (0.031 in.)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (battery)

Specific gravity reading at 20°C
(68°F):

1.25 or higher
If the specific gravity is lower than the standard
value, charge the battery.

Charging rates
Quick charge
Slow charge

15 A max.
5 A max.

Automatic transmission

Fluid capacity

11.2 L (11.8 qt., 9.9 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Automatic transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-

tion, or damage the transmission of your vehicle.

Content .. 18 19 20 21 ..
