2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
To reset, display the desired trip meter and
press and hold the odometer/trip meter
and trip meter reset button.

■

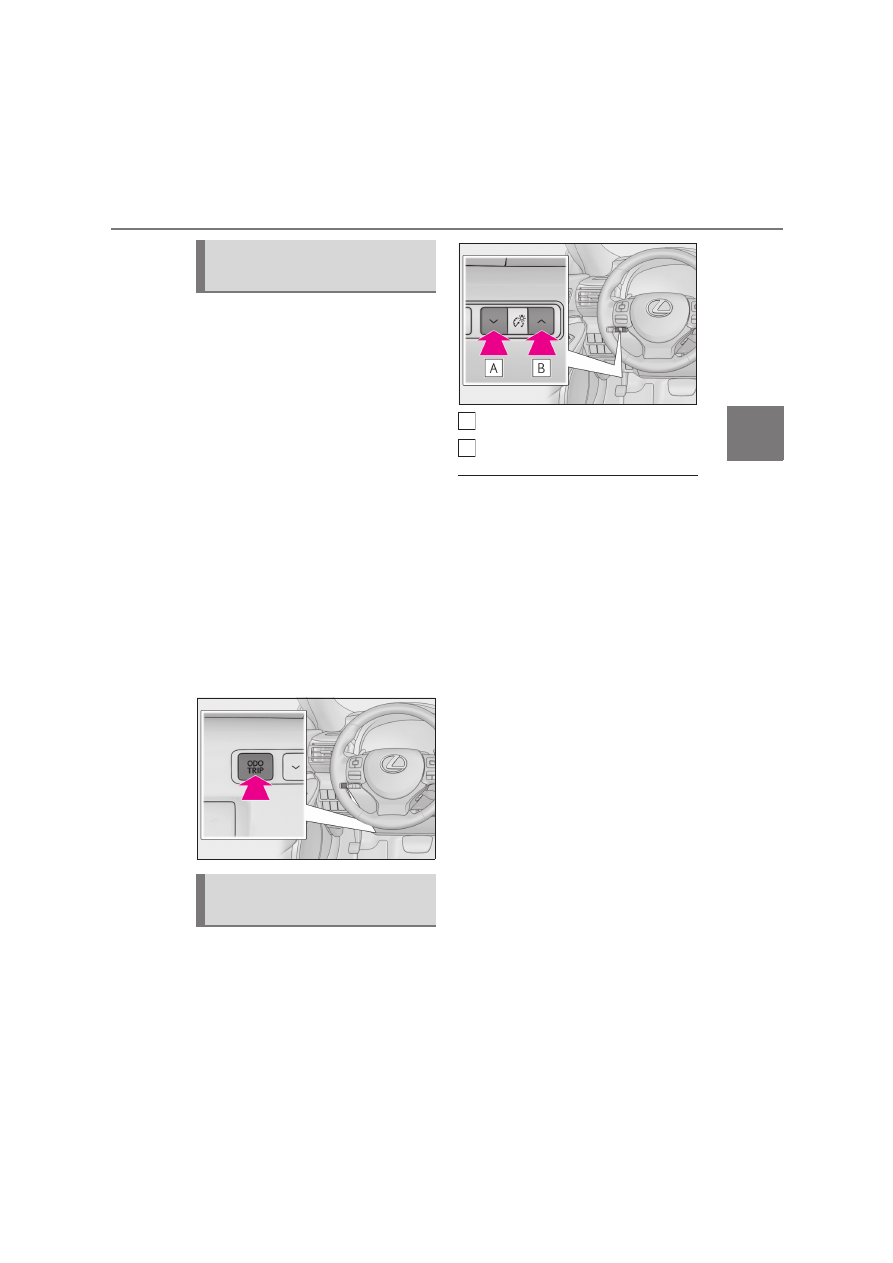

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

The brightness of the instrument panel
lights can be adjusted.

Darker
Brighter

■

Instrument panel brightness adjustment

The instrument panel brightness levels

when the tail lights are on and off can be

adjusted individually. However, when the

surroundings are bright (daytime, etc.),

turning on the tail lights will not change the

instrument panel brightness.

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness

A
B

2-1. Instrument cluster

■

Display



Content display area

By selecting menu icons on the
multi-information display, a variety of
driving-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.



Sub-content display area

Displays some “F” content in conjunc-
tion with the content display area.

■

Menu icons

The menu icons will be displayed by
pressing

of the meter con-

trol switch.

■

Start-up display

When the engine is started, the name of the

vehicle is displayed on the multi-information

display.

While the start-up display is being dis-

played, the meter display cannot be

changed even if the drive mode is changed.

When the start-up display is finished, the

meter display for the currently selected

mode will be displayed.

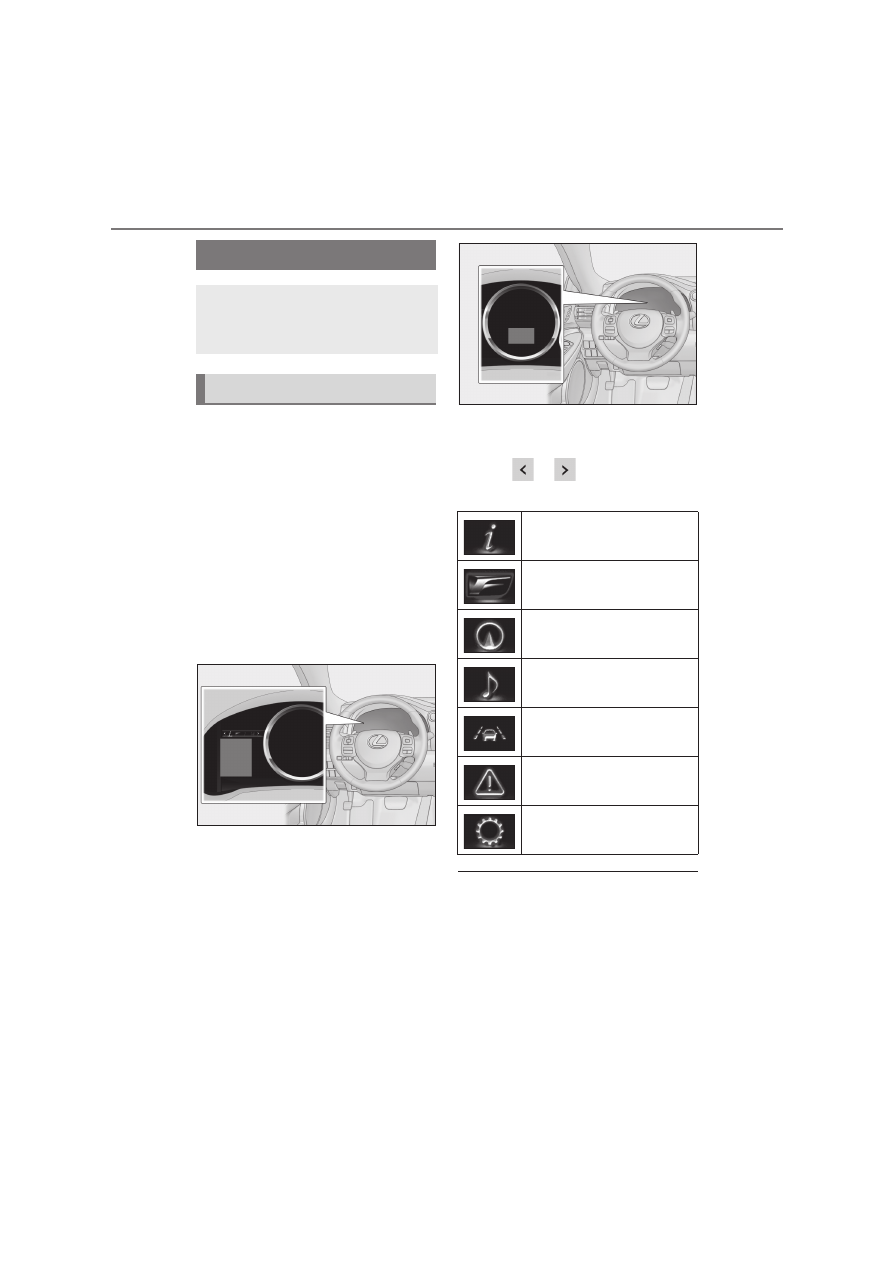

Multi-information display

The multi-information display pre-
sents the driver with a variety of
vehicle data.

Displays and menu icons

Drive information

“F” content

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving assist system informa-
tion

Warning message display

Settings display

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

■

Liquid crystal display



P.76

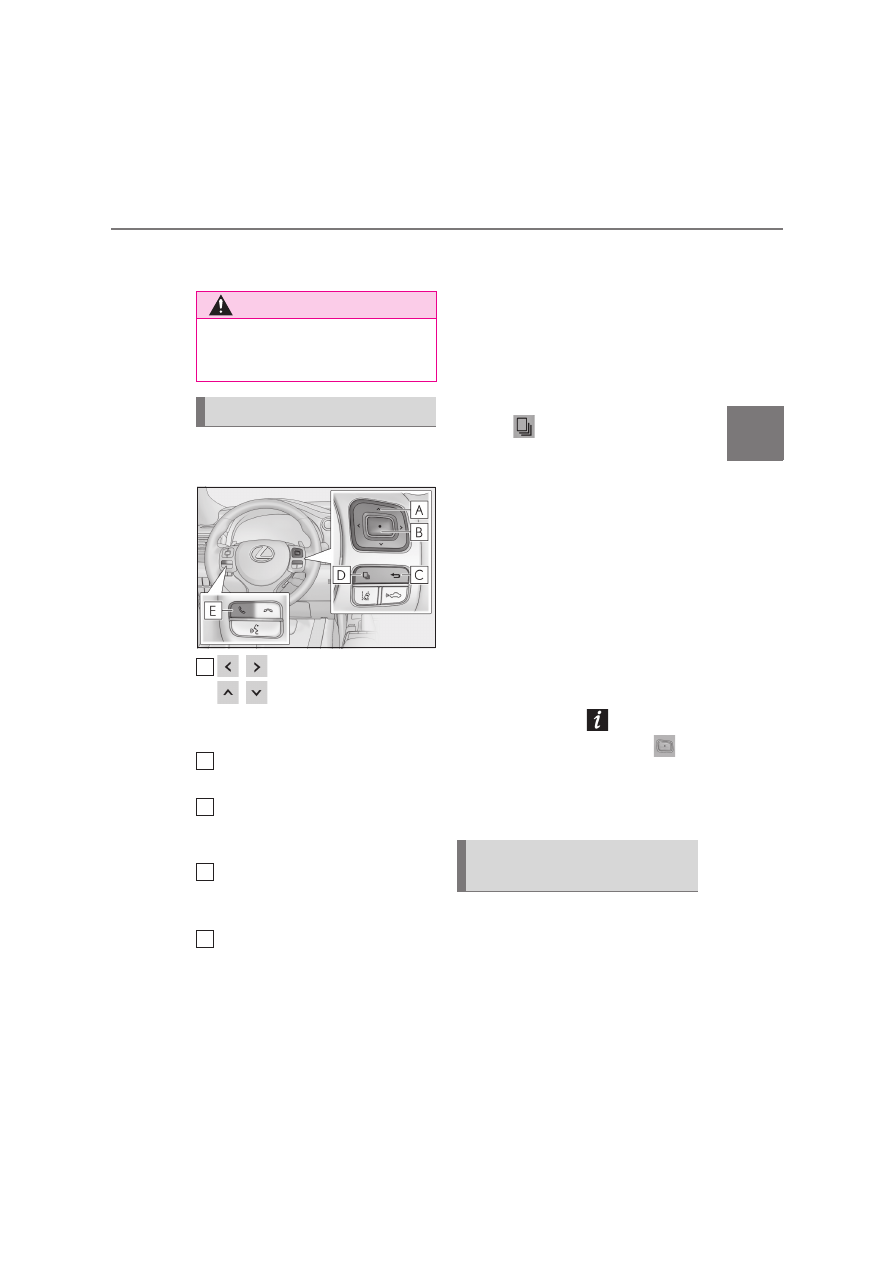

The multi-information display is oper-
ated using the meter control switches.

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen

Pressing and holding the switch will display
the first screen of the selected menu icon.

Press: Display the top screen
Press and hold: Register current
screen as the top screen
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to

the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

■

Registering a top screen

The displayed top screen can be
changed to a registered screen of your
choice.
To register a screen as the top screen,
display the desired screen and press
and hold



A message asking to confirm if reg-
istration is desired will be displayed.
If the selected screen cannot be
registered, a registration failure
message will be displayed.



When no screen has been regis-
tered, the drive information screen
will be displayed.

■

Resetting drive information

To reset the average fuel economy
(after reset)/average vehicle speed
(after reset)/elapsed time (after reset)
that are displayed on

, display the

desired item and press and hold

If both of the displayed items are resetta-
ble, a message will be displayed asking
which item(s) to reset.

■

Drive information 1/Drive infor-
mation 2/Drive information 3

Select to display various drive data.
Up to 2 of the following items can be
selected for each drive information
screen:

WARNING

■

The information display at low tem-

peratures



P.76

Changing the meter display

Content displayed as drive infor-
mation

2-1. Instrument cluster

Items displayed can be switched by
pressing

of the meter con-

trol switches to select

and pressing

Use the displayed values as a reference
only.



Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)



Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)



Drive information 3

• Average fuel economy (after refuel)
• Elapsed time (after start)

Displayed items (listed below) can be
changed on

. (



P.86)



Current fuel consumption

Displays instantaneous current fuel con-
sumption



Average fuel economy

• After reset: Displays average fuel con-

sumption since display reset

*1, 2

• After start: Displays average fuel con-

sumption since engine start

• After refuel: Displays average fuel con-

sumption since refuel

*2, 3



Average vehicle speed

• After reset: Displays average vehicle

speed since display reset

• After start: Displays average vehicle

speed since engine start



Elapsed time

• After reset: Displays elapsed time since

the display was reset

• After start: Displays elapsed time since

engine start



Distance

• Driving range: Displays driving range

with remaining fuel

*3, 4

• After start: Displays drive distance since

vehicle start



Other

Blank: No item

: Resetting:



P.79

: Use the displayed fuel consumption as a

reference.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

■

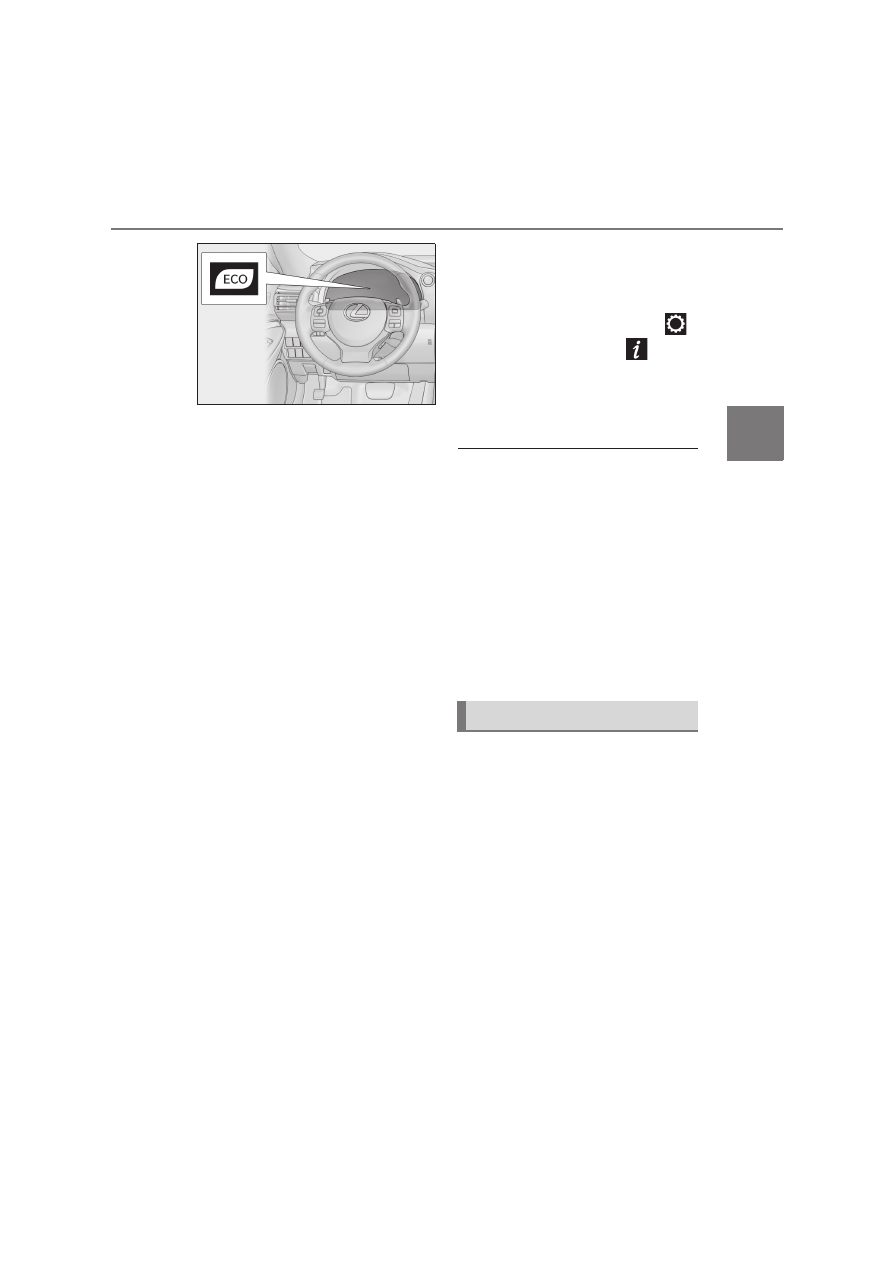

Eco Driving Indicator

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator
Light will turn on.
When the acceleration exceeds the
Zone of Eco driving, or when the vehi-
cle is stopped, the light turns off.

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

Eco Driving Indicator will not operate
under the following conditions:



The shift lever is in any position
other than D.



A paddle shift switch is operated.



Neither normal mode nor Eco drive
mode is selected. (



P.204)



The vehicle speed is approximately
130 km/h (80 mph) or higher.

■

Tire pressure



P.281

■

Gear positions

Displays the current gear position
when the shift lever is in D or M.

■

Vehicle sway warning (if equipped)

Detects the sway of the vehicle within a
lane, which is often associated with a
decrease in the driver’s attention level,
and displays the decrease in attention
using a bar display.
The shorter the bar length, the more
the driver may need to rest.

This display is a part of the LDA (Lane
Departure Alert with steering control) sys-
tem. The display is enabled when the oper-
ating conditions of the vehicle sway
warning are met. (



P.169)

■

Units (if equipped)

The units of measure used can be
changed while driving.

Unlike the units setting performed on

the units setting performed on

can be

changed while driving.

■

Blank (No items)

Displays no drive information contents.

■

Tire pressure

●

It may take a few minutes to display the

tire inflation pressure after the engine

switch is turned to IGNITION ON mode.

It may also take a few minutes to display

the tire inflation pressure after inflation

pressure has been adjusted.

●

“---” may be displayed if the tire position

information cannot be determined due to

unfavorable radio wave conditions.

●

Tire inflation pressure changes with tem-

perature. The displayed values may also

be different from the values measured

using a tire pressure gauge.

■

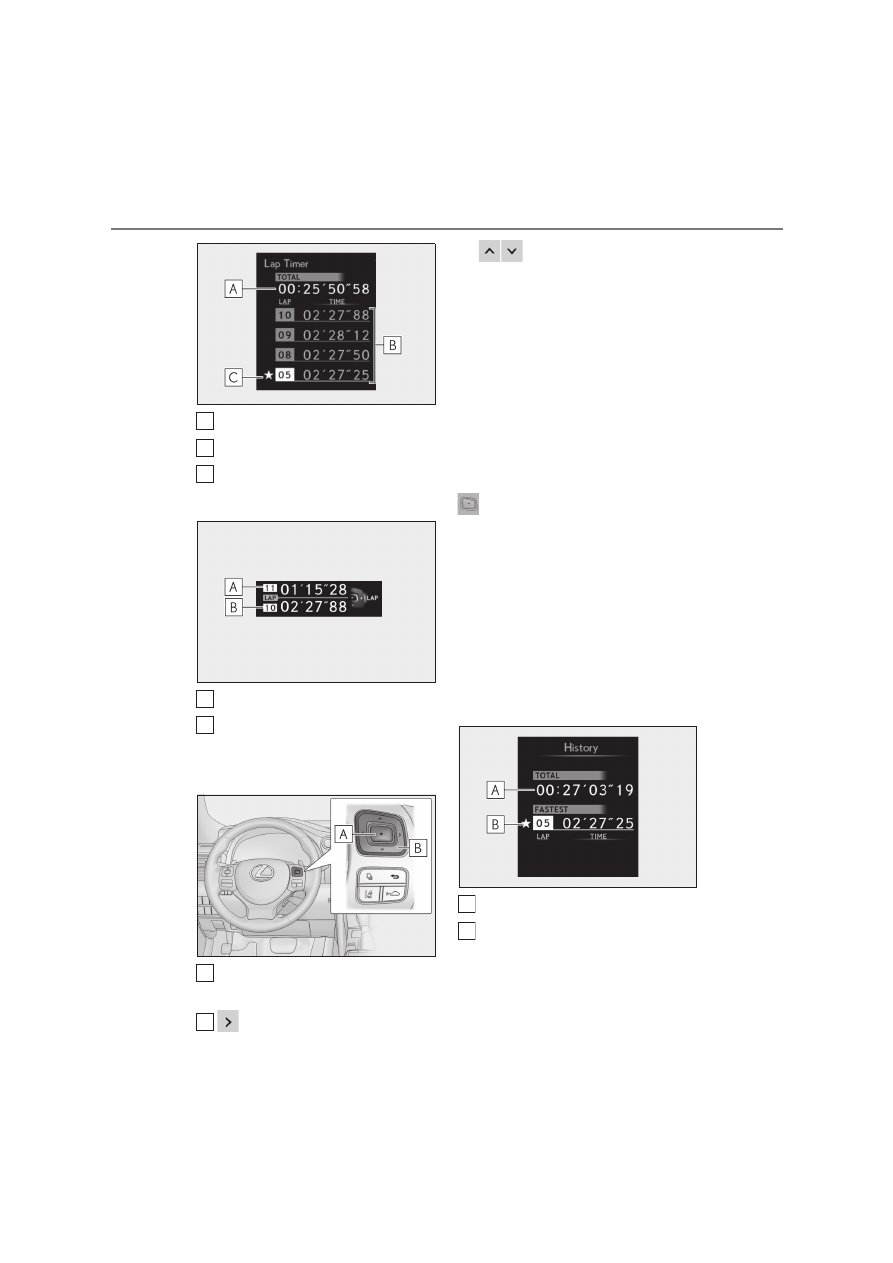

Lap timer

Measures and displays current lap time
and previous lap times



Reading the display

Measured lap times since the timer was
last reset are displayed as follows:
• Content display area

“F” content

2-1. Instrument cluster

Total lap time
Past lap times
Fastest lap (marked with a star)

• Sub-content display area

Current lap time
Most recent lap time



Operating the meter control
switches

Press: Start/stop lap timer
Press and hold: Reset

: Mark off one lap

: Change displayed content

While a lap time is being measured, the
display can be changed to show the follow-
ing content:
• Torque distribution (if equipped)
• G-force
• Tire pressure
• Rear wing position



Resetting/saving measured lap
times

After stopping the lap timer, press and hold

When a confirmation screen is displayed,
select to reset/save the measured lap
times.
When saved, the lap time data will be dis-
played on the history screen. (



P.82)

■

History (Lap timer)

Displays the saved lap times



Reading the display

• History top screen

Total lap time
Fastest lap time

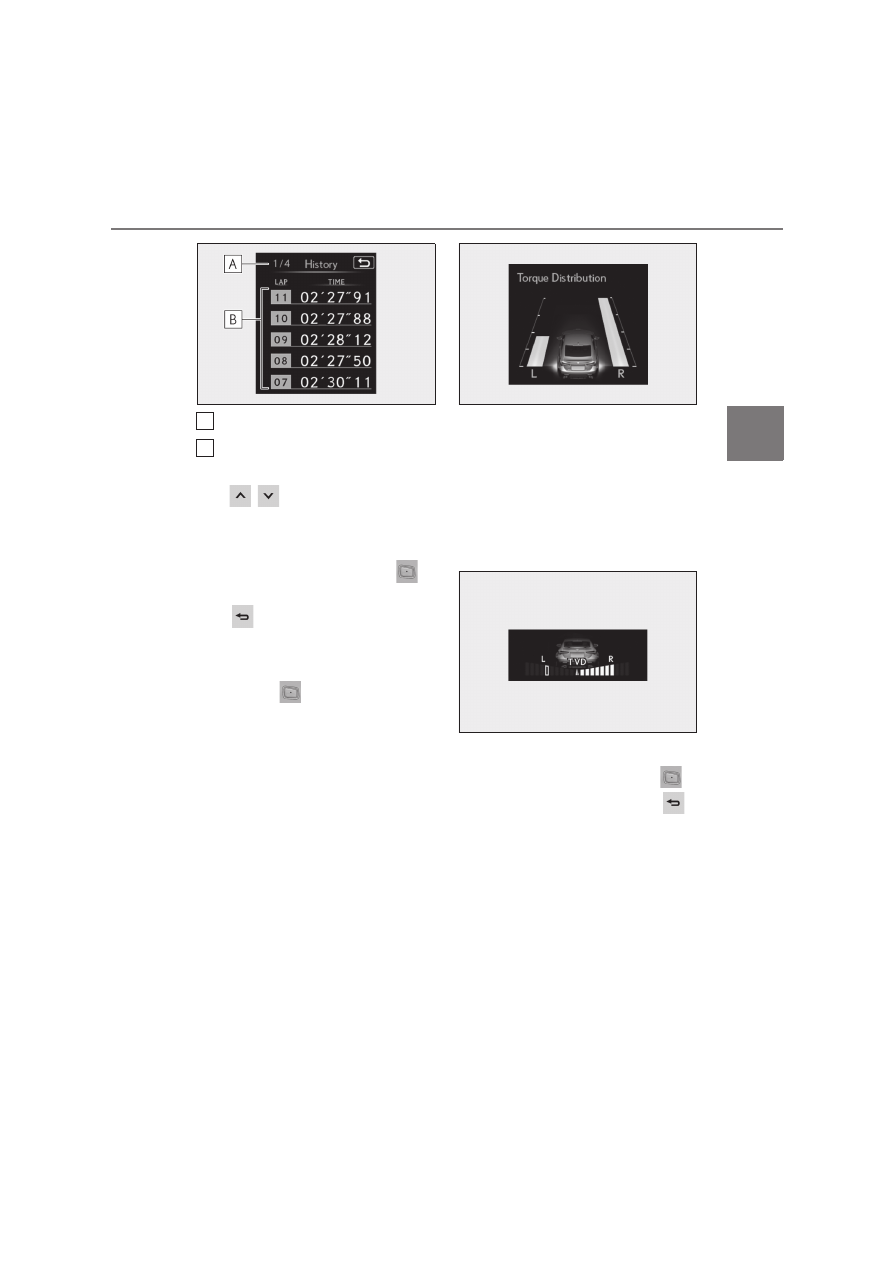

• Past lap screen

A
B
C

A
B

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

Page
Past lap times (20 most recent lap
times)

Press

to scroll up and down the

screen.



Switching the display

To display the past lap screen, press

To return to the history top screen,
press



Deleting history

When the history top screen is displayed,
press and hold

to display a confir-

mation screen.

To delete the history, follow the instructions
displayed on the screen.

■

Torque distribution (if equipped)

Displays the distribution of driving
torque between the left and right rear
wheels



Reading the display

• Normal display
Displays the amount of drive torque
applied to the left and right rear wheels
through bars that fluctuate in length on the
content display area.

• Advanced display
Displays the difference in torque applied to
the left and right rear wheels through dis-
played segments on the sub-content dis-
play area in addition to the bar display.
The greater the number of segments dis-
played, the greater the difference in torque
is.



Switching the display

To switch to advanced display, press

To return to normal display, press



Peak hold function (advanced dis-
play only)

If the difference in torque of 4 segments or
more is applied to the left or right rear
wheel, a yellow outline will be displayed for
the highest segment that was reached, for
a certain amount of time.

A
B

2-1. Instrument cluster

■

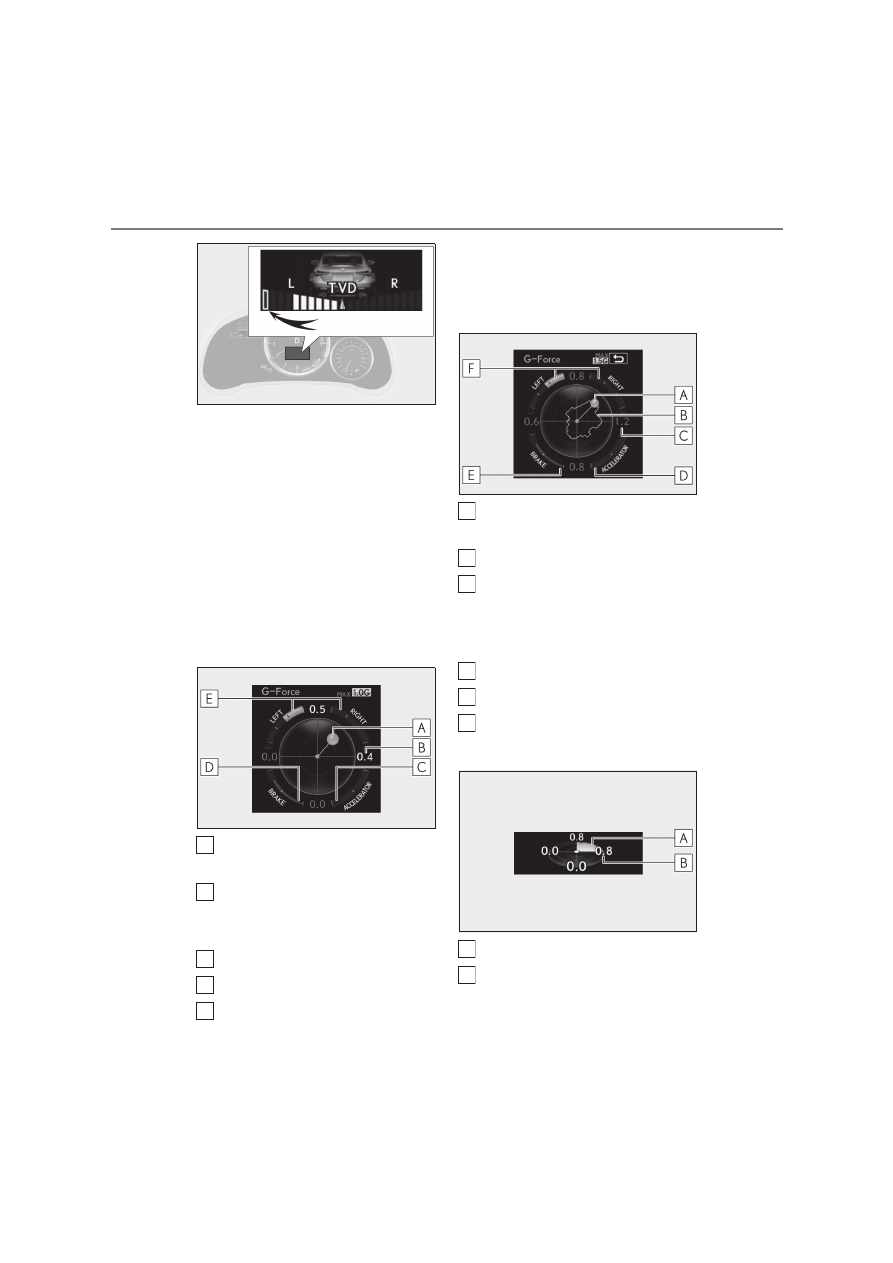

G-force

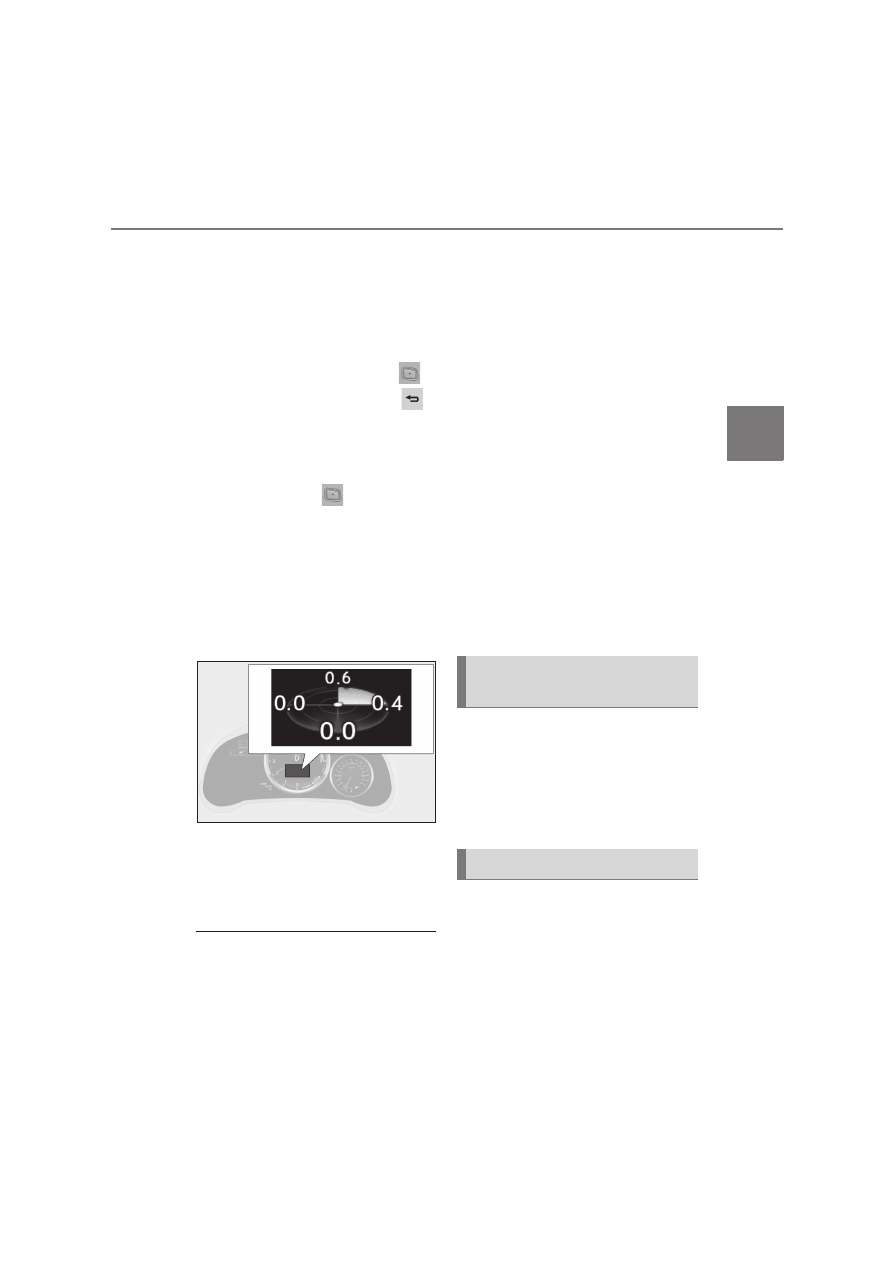

Displays lateral G-forces on the vehi-
cle
Also displays, around the periphery of
the G-force display, the left and right
steering amount, accelerator pedal
input, and brake fluid pressure



Reading the display

• Normal display
Displays the following on the content dis-
play area

Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount

• Advanced display
Displays the following on the sub-content
display area and content display area



Content display area

Acceleration G-force on the vehi-
cle
Record of the maximum G-forces
Value of the maximum G-force
since display reset (analyzed value
of front/rear and left/right
G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount



Sub-content display area

G-force direction
Current G-force value (analyzed
value of front/rear and left/right
G-forces)

C
D

B
C

E
F

A
B

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.



Switching the display

To switch to advanced display, press

To return to normal display, press



Resetting the record of maximum
G-forces

With the record of maximum G-forces dis-
played, press and hold

to reset the dis-

play.



Peak hold function (advanced dis-
play only)

If lateral G-forces of 0.5 G or greater are
generated, the G-force value displayed on
the sub-content display area will turn yel-
low and be held for 3 seconds.

■

Rear wing position (vehicles with
an active rear wing)

Displays the raised/retracted state of
the active rear wing

■

Using the lap timer

If the engine is stopped while a lap is being

timed, the lap timer will stop and the lap

time up to that point will be recorded.

■

Torque distribution display (if equipped)

Torque distribution may not be displayed

correctly in some cases, such as when the

vehicle passes over road expansion joints.

■

G-force display

●

The G-force values may not be zero even

when the vehicle is parked, such as when

it is parked on an incline.

●

The steering amount, accelerator pedal

input, and brake fluid pressure displays

are disabled until the engine has warmed

up (the variable red zone of the tachome-

ter has retracted to 7300 r/min).

After the engine has warmed up, these

displays will be enabled.

●

Depending on the vehicle usage condi-

tions, the brake fluid pressure display may

not reach its maximum reading even

though the brake pedal is fully depressed.

●

If a battery terminal is disconnected and

reconnected, the steering amount display

may be disabled temporarily. After driv-

ing the vehicle for a while, the display will

be enabled.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display (heading-up dis-
play)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

2-1. Instrument cluster

Select to display the operational status
of the following systems:



Cruise control (if equipped)
(



P.187)



Dynamic radar cruise control (if
equipped) (



P.179)



LDA (Lane Departure Alert with
steering control) (if equipped)
(



P.168)



RSA (Road Sign Assist) (if
equipped) (



P.175)

Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. (



P.311)

■

Meter display settings that can be
changed



Language

Select to change the language on the dis-
play.



Units

Select to change the units of measure dis-
played.



Eco Driving Indicator Light

(



P.80)

Select to enable/disable the Eco Driving
Indicator Light.



Switch settings

Displays a procedure to register a desired
screen to

You can register 1 screen as a shortcut,
which can be displayed by pressing



Drive information screen (



P.79)

Select to select up to 2 items that will be
displayed on each Drive information
screen (Drive information 1 screen, Drive
information 2 screen, and Drive informa-
tion 3 screen) respectively.



Pop-up display (



P.76)

Select to enable/disable the pop-up dis-
play.
• Intersection Guidance (if equipped)
• Telephone
• Audio Feedback
• Volume Feedback
• Adjust Brightness
• TVD MODE (if equipped)



Rev indicator (



P.74)

• Select to enable/disable the Rev indica-

tor.

• Select to set the desired engine speed at

which the Rev indicator will begin to be
displayed.



Rev peak (



P.75)

Select to enable/disable the Rev peak.



Gauge options

Select to change the displayed meters for
each applicable drive mode.



Default setting

Select to reset the meter display settings to
the default setting.

Driving support system informa-
tion display

Warning message display

Settings display

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

■

Vehicle functions and settings that
can be changed



P.354

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

■

When disconnecting and reconnecting

battery terminals

The following information data will be reset:

●

Drive information

●

Lap timer: Measured lap times, history

●

G-force: Record of the maximum

G-forces

■

Customization

Some functions can be customized.

(



P.354)

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the

multi-information display while driving

as you may fail to see pedestrians,

objects on the road, etc. ahead of the

vehicle.

■

Cautions during setting up the dis-

play

As the engine needs to be running dur-

ing setting up the display, ensure that the

vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

2-1. Instrument cluster

Center Display
“MENU” button
Touchpad

■

Trip information

Press the “MENU” button on the

Remote Touch, then select

on the

menu screen.
If a screen other than “Trip information”
is displayed, select “Trip information”.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range

Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

History

Press the “MENU” button on the
Remote Touch, then select

on the

menu screen, and then select “ECO”.

Fuel consumption informa-
tion

Fuel consumption information can
be displayed on the Center Display.

Vehicles with a 10.3-inch display:
The fuel consumption information
can be displayed and operated on
the side display.

System components

Consumption

A
B
C

A
B

C
D

2-1. Instrument cluster

Vehi

e s

tus

info
rm

ation a

indi
cators

If a screen other than “History” is dis-
played, select “History”.

Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data

The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Clip” to measure the current fuel

consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

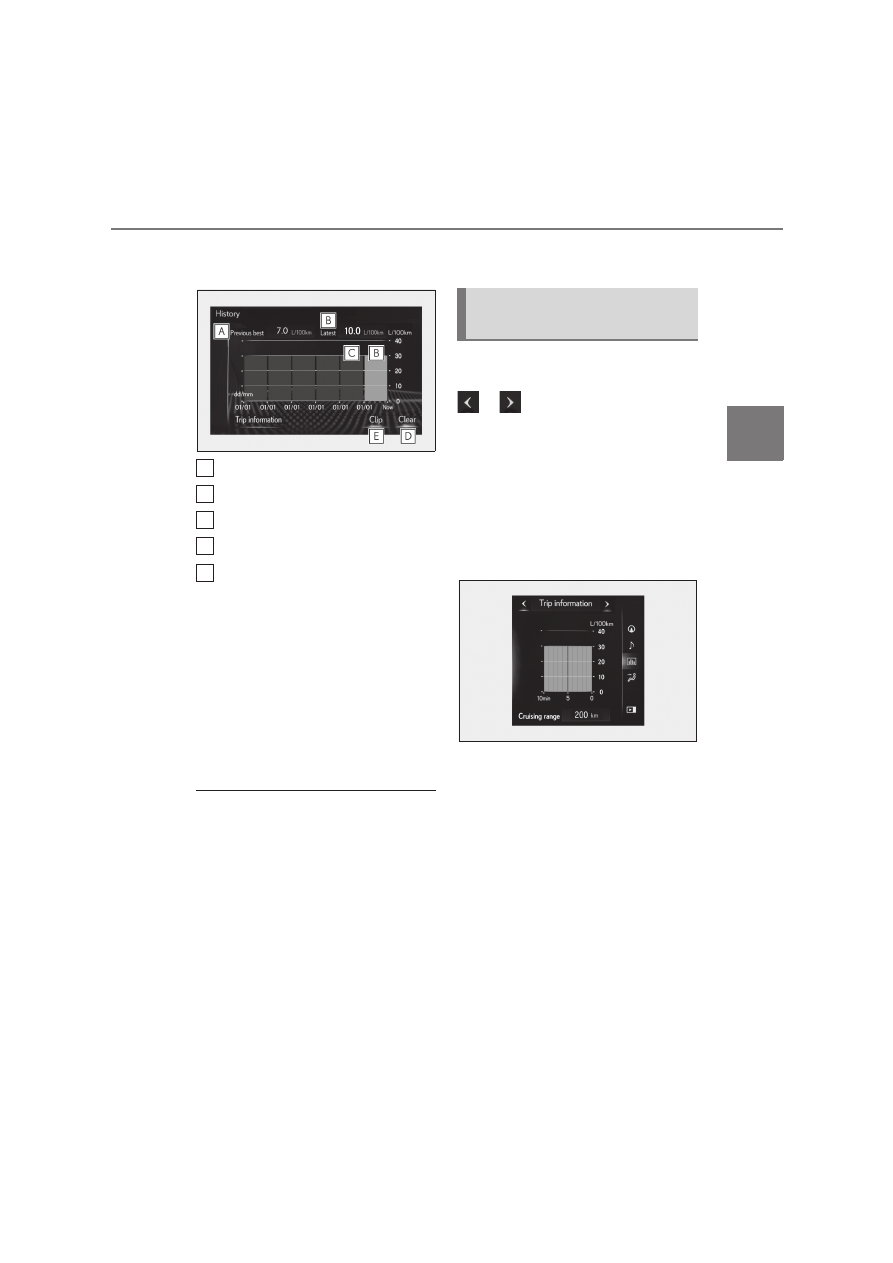

Display the vehicle information on the
side display (



P.226), and then select

to display the desired

screen.
The image is an example only, and may
vary slightly from actual conditions.

■

Trip information (type A)

Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.

Use the displayed average fuel consump-
tion as a reference.

■

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.

A
B
C
D

Using the side display (vehicles
with a 10.3-inch display)

fore
driving

Before driving

3-1. Key information

Keys ....................................................

3-2. Opening, closing and locking the

doors and trunk

Doors ................................................

Trunk ...............................................

100

Smart entry & start system.....

103

3-3. Adjusting the seats

Front seats.....................................

107

Power easy access system/driving

position memory/memory recall
function........................................

109

3-4. Adjusting the steering wheel and

mirrors

Steering wheel .............................

112

Inside rear view mirror..............

113

Outside rear view mirrors.......

114

3-5. Opening, closing the windows

and moon roof

Power windows ...........................

117

Moon roof ......................................

119

3-1. Key information

3-1.Key information

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart entry & start sys-

tem (



P.103)

• Operating the wireless remote control

function (



P.94)

Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)

Operating the smart entry & start system
(



P.103)

■

Card key (if equipped)

●

The card key is not waterproof.

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

If it is difficult to take out the mechanical

key, push down the lock release button

using a pen tip etc. If it is still difficult to

pull it out, use a coin etc.

●

To store the mechanical key in the card

key, insert it while pressing the lock

release button.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag etc., ensure that

the buttons are not likely to be pressed acci-

dentally. Pressing a button may cause the

electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is about a year

and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin and a message will be

Keys

The keys

B
C
D

Lexus RC-F (2022 year). Manual in english - page 4
