Lexus NX350h (2022 year). Manual in english

●

When the vehicle is traveling at a low speed
and the brake pedal is not depressed, or is
depressed late

●

When the accelerator pedal is depressed ex-
cessively

●

When the moves forward due to the incorrect
shift position being selected

Moving Vehicles Rear of the Vehicle

If a rear radar sensor detects a vehicle approaching from the right or left at the rear
of the vehicle and the system determines that the possibility of a collision is high,
this function will perform brake control to reduce the likelihood of an impact with
the approaching vehicle.

* :

If equipped

6-2. Using the safe driving support functions

430

INFORMATION

■

The system will operate when

The function will operate when the driving assist infomation indicator is not illuminated or
flashing and all of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is enabled.

•

The vehicle speed is 9 mph (15 km/h) or less.

•

Vehicles are approaching from the right or left at the rear of the vehicle at a
traveling speed of approximately 5 mph (8 km/h) or more.

•

The shift position is in R.

•

The PKSB (Parking Support Brake) determines that a stronger than normal brake
operation is necessary to avoid a collision with an approaching vehicle.

●

Brake control

•

Hybrid system output restriction control is operating.

•

The PKSB (Parking Support Brake) determines that an emergency brake operation
is necessary to avoid a collision with an approaching vehicle.

■

The system will stop operating when

The function will stop operating if any of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is disabled.

•

The collision becomes avoidable with normal brake operation.

•

A vehicle is no longer approaching from the right or left at the rear of the vehicle.

●

Brake control

•

PKSB (Parking Support Brake) system is disabled.

•

Approximately 2 seconds have elapsed since the vehicle was stopped by brake
control.

•

The brake pedal is depressed after the vehicle is stopped by brake control.

•

A vehicle is no longer approaching from the right or left at the rear of the vehicle.

■

Detection range

The detection range of the system differs from the detection area of the RCTA function.

→

P.416

Therefore, even if the RCTA function detects a vehicle and provides an alert, the

PKSB (Parking Support Brake) system may not start operating.

6-2. Using the safe driving support functions

431

Driving suppor

t s

ystem

■

RCTA buzzer

Regardless of whether the RCTA function is on or off, if the PKSB (Parking Support
Brake) system is not disabled, when the brake control operates, the buzzer will sound to
alert the driver.

■

Situations in which the system may not operate properly

→

P.411

■

Situations in which the system may operate even if there is no possibility of a
collision

→

P.411

Examples of the Moving Vehicles Rear of the Vehicle operation

This function will operate in situations such as the following if a vehicle is detected
in the traveling direction of the vehicle.

■

When reversing, a vehicle is approaching and the brake pedal is not de-
pressed, or is depressed late

Moving Vehicles Rear of the Vehicle sensors

→

P.386

WARNING

■

To ensure the system can operate properly

→

P.386

Pedestrians Rear of the Vehicle

If the rear camera sensor detects a pedestrian behind the vehicle while backing
up and the system determines that the possibility of colliding with the detected
pedestrian is high, a buzzer will sound. If the system determines that the possibility
of colliding with the detected pedestrian is extremely high, the brakes will be
applied automatically to help reduce the impact of the collision.

* :

If equipped

6-2. Using the safe driving support functions

432

INFORMATION

■

The system will operate when

●

The function will operate when the driving assist infomation indicator is not illuminated
or flashing and all of the following conditions are met:

•

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is enabled.

•

The vehicle speed is approximately 9 mph (15 km/h) or less.

•

The shift position is in R.

•

The rear camera sensor detects a pedestrian behind the vehicle while backing
up and the system determines that the possibility of colliding with the detected
pedestrian is high.

•

The PKSB (Parking Support Brake) determines that a stronger-than-normal brake
operation is necessary to avoid a collision.

●

Brake control

•

Hybrid system output restriction control is operating.

•

The PKSB (Parking Support Brake) determines that an emergency brake operation
is necessary to avoid a collision with a pedestrians.

■

The system will stop operating when

The function will stop operating if any of the following conditions are met:

●

Hybrid system output restriction control

•

PKSB (Parking Support Brake) system is disabled.

•

The collision becomes avoidable with normal brake operation.

•

The pedestrian is no longer detected behind your vehicle.

●

Brake control

•

PKSB (Parking Support Brake) system is disabled.

•

Approximately 2 seconds have elapsed since the vehicle was stopped by brake
control.

•

The brake pedal is depressed after the vehicle is stopped by brake control.

●

The pedestrian is no longer detected behind your vehicle.

■

Detection range

The detection area of the system differs from the detection area of the RCD function.

→

P.421

Therefore, even if the RCD function detects a pedestrian and provides an alert,

the PKSB (Parking Support Brake) may not start operating.

■

Situations in which the system may not operate properly

→

P.418

6-2. Using the safe driving support functions

433

Driving suppor

t s

ystem

■

Situations in which the system may operate unexpectedly

→

P.418

When a vehicle is detected behind the vehicle

When a pedestrian is detected behind the vehicle while backing up, the brake
pedal is not depressed or is depressed late.

Pedestrians Rear of the Vehicle display

Displays a message to urge the driver to take evasive action when a pedestrian
is detected in the detection area behind the vehicle. (A message will also be
displayed on the center display.)

Pedestrian detection icon

Brake reminder

Static Objects Around the vehicle (Vehicles with Advanced Park)

While parking, if a sensor detects a surrounding stationary object, such as a wall,
with which a collision is likely, the system will operate to help avoid a collision or
reduce the impact of the collision.
The system will operate in the following situations when a stationary object is
detected in the surrounding area.

●

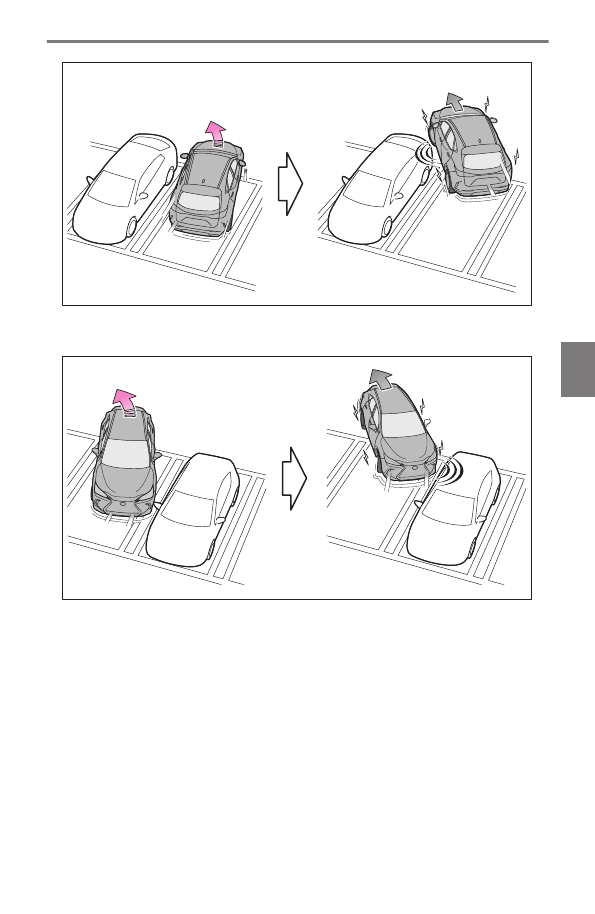

When moving forward and a collision with a stationary object on the inner side
of a turn is likely

* :

If equipped

6-2. Using the safe driving support functions

434

●

When reversing and a collision with a stationary object on the outer side of a
turn is likely

■

Operating conditions

This function is operable when any of the following conditions are met in addition to
the operating conditions for stationary objects in around the vehicle.

●

After the hybrid system has been started, the vehicle has moved approximately
23.0 ft. (7 m) or less

●

The R shift position is selected

●

After the shift position has been changed from R to D, the vehicle has moved
approximately 23.0 ft. (7 m) or less

■

The system will stop operating when

→

P.427

6-2. Using the safe driving support functions

435

Driving suppor

t s

ystem

■

Sensor detection information

The detection range of the system differs from the detection range of the intuitive
parking assist.
Therefore, even if the intuitive parking assist detects a static object and provides a
warning, the PKSB (Parking Support Brake) system may not start operating.

■

Objects which the sensor may not be properly detected

→

P.399

■

Intuitive parking assist sensor buzzer

Regardless of whether the intuitive parking assist sensor buzzer is enabled or not
(

→

P.404

), if the PKSB (Parking Support Brake) system is enabled (

→

P.426

), the

front or rear sensors detect an object and brake control is performed, the intuitive
parking assist buzzer buzzer will sound to notify the driver of the approximate
distance to the object.

■

Situations in which the system may not operate properly

→

P.400

■

Situations in which the system may operate even though there is no possibility
of a collision

●

In addition to the situations in which stationary objects around the vehicle
(

→

P.427

) may not be detected, objects may not be detected by the sensors in

the following situations:

●

When moving sideways, such as when parallel parking

→

P.399

■

Detection of objects along the sides of the vehicle

●

Objects along the sides of the vehicle are not instantaneously detected. The
location of objects in relation to the vehicle is estimated after they are first
detected by the front or rear side sensors, or side cameras. Therefore, after the
power switch is changed to ON, even if an object is along the side of the vehicle,
it may not be detected until the vehicle has been driven a small amount and the
side sensors or side cameras completely scan the areas along the sides of the
vehicle.

●

If a vehicle, person, animal, etc., is detected by a side sensors or side cameras,
but then leaves the detection area of the side sensors or side cameras, the
system will assume the object has not moved.

6-2. Using the safe driving support functions

436

Parking assistance through the Advanced Park main switch operation

Purpose of the Lexus Teammate Advanced Park

The Advanced Park is a system which assists in safely and smoothly parking in
a target parking space by displaying the blind spots around the vehicle and the
parking spot through a bird’s eye view, delivering operation guidance through
displays and buzzer operation, and changing the shift position, operating the steer-
ing wheel, accelerator pedal, and brake pedal.Additionally, the panoramic view
monitor can display the area in front, behind, and from above the vehicle, helping
confirm the condition of the area around the vehicle. For details on the panoramic
view monitor refer to "MULTIMEDIA OWNER'S MANUAL".Depending on the
condition of the road surface or the vehicle, the distance between the vehicle and a
parking space, etc., it may not be possible to assist in parking in the target space.

Purpose of the Remote control function

Remote control function is a system which assists in parking or exiting from
a parking space selected on the center display by allowing changing the shift
position, operating the steering wheel, accelerator pedal, and brake pedal
from outside of the vehicle via a smartphone.

Preparation before using

→

P.472

Related Links

Customizable features(P. 739)

Advanced Park functions

■

Perpendicular parking (forward/reverse) function

Assistance is provided from the position the vehicle is stopped near the target
parking space until the vehicle is in the parking space.

→

P.450

■

Perpendicular exiting (forward/reverse) function

Assistance is provided from the parked position until the vehicle is in a position
where you can easily exit from the parking space.

→

P.453

■

Parallel parking function

Assistance is provided from the position the vehicle is stopped near the target
parking space until the vehicle is in the parking space.

→

P.456

* :

If equipped

6-2. Using the safe driving support functions

437

Driving suppor

t s

ystem

■

Parallel exiting function

Assistance is provided from the parked position until the vehicle is in a position
where you can easily exit from the parking space.

→

P.459

■

Memory function

Assistance is provided until the vehicle is guided into a previously registered
parking space.

→

P.462

■

Remote control function

By operating a smartphone, assistance in entering or exiting a nearby target
parking space, confirmed on the screen of the smartphone, is provided from
outside of the vehicle.

→

P.468

WARNING

■

Cautions regarding the use of the system

The recognition and control capabilities for this system are limited. The driver should
always drive safety by always being responsible without over relying on the system and
have a understanding of the surrounding situations.

●

As with a normal vehicle, take care to observe your surroundings while the vehicle is
moving.

●

Always pay attention to the vehicle’s surroundings while the system is operating and
depress the brake pedal as necessary to slow or stop the vehicle.

●

When parking, make sure that the vehicle can be parked in the target parking space
before beginning operation.

●

Depending on the condition of the road surface or the vehicle, the distance between
the vehicle and a parking space, etc., it may not be possible to detect a parking space
or the system may not be able to provide assistance to the point the vehicle is fully
parked.

●

This system will guide the vehicle to appropriate positions for changing the direction
of travel, however, if you feel that the vehicle is approaching too close to an adjacent
parked vehicle at any time, depress the brake pedal and change the shift position.
However, if this is performed, the number of times the vehicle changes direction may
increase, and the vehicle may be parked at an angle.

●

As following objects may not be detected, make sure to check the safety of the area
around your vehicle and depress the brake pedal to stop the vehicle if it may collide
with an object.

•

Wires, fences, ropes, etc.

•

Cotton, snow and other materials that absorb sound waves

* :

If equipped

6-2. Using the safe driving support functions

438

WARNING

•

Sharply-angled objects

•

Low objects (curb stones, parking blocks, etc.)

•

Tall objects with upper sections projecting outwards in the direction of your vehicle

●

Even if there is an object in the target parking space, it may not be detected and
assistance may be performed.

●

While the system is operating, if it is likely that your vehicle will collide with a nearby
vehicle, parking block, object, or person, depress the brake pedal to stop the vehicle
and press the Advanced Park main switch to disable the system.

●

Never use only the center display to view the area behind the vehicle. The image
displayed may differ than the actual situation. Using only the screen when backing up
may lead to an accident, such as a collision with another vehicle. When backing up,
make sure to look directly or use the mirrors to check the safety of the area around
your vehicle, especially behind the vehicle.

●

When the ambient temperature is extremely low, the screen may appear dark or the
displayed image may become unclear. Also, as moving objects may appear distorted
or may not be able to be seen on the screen, make sure to directly check the safety of
the area around your vehicle.

●

In the following situations, while the vehicle is stopped and held by Advanced Park,
it may be canceled and the vehicle may start moving. Immediately depress the brake
pedal. Failure to do so may lead to an accident.

•

When the driver’s door is opened

•

When operations instructed by the system are not performed within a certain
amount of time

•

When the brake pedal is depressed and the vehicle is stopped for a certain amount
of time

•

When the system malfunctions

●

As the steering wheel will turn while this system is operating, pay attention to the
following.

•

Be careful so that a necktie, scarf, or arm does not get caught. Keep your upper
body away from the steering wheel. Also, keep children away from the steering
wheel.

•

Long fingernails may be caught and when the steering wheel is rotating, leading to
injury.

•

In an emergency, depress the brake pedal to stop the vehicle, and then press the
Advanced Park main switch to disable the system.

●

Do not allow anyone to put their hands outside of a window while this system is
operating.

6-2. Using the safe driving support functions

439

Driving suppor

t s

ystem

WARNING

■

Precautions for the cameras and sensors

●

Due to the characteristics of the camera lens, the position of and distance to people
and objects displayed on the screen may differ from the actual situation. For details,
refer to Panoramic view monitor [Vehicles equipped with Lexus Teammate Advanced
Park (parking assist system)] in the "MULTIMEDIA OWNER'S MANUAL".

●

Make sure to observe the precautions for using the intuitive parking assist, otherwise a
sensor may not operate correctly, possibly leading to an accident.

→

P.399

●

In situations such as the following, the sensors may not operate correctly, possibly
leading to an accident. Proceed carefully.

•

When there is a parked vehicle next to the target parking space, if the displayed
target parking space is far from the actual target parking space, a sensor may be
misaligned. Have the vehicle inspected by your Lexus dealer.

•

Do not install any accessories near the detection area of the sensors.

■

To ensure correct operation of the Advanced Park

Observe the following precautions. Failing to do so may result in the vehicle being unable
to be driven safely and possibly cause an accident.

●

Do not use this system in situations such as the following:

•

When in areas other than common parking spaces

•

When the surface of the parking space is sand or gravel and is not clearly defined
with parking space lines

•

When the parking space is not level, such as when on a slope or has differences in
height

•

Mechanical parking system

•

Parking lot with a device which raises to contact the bottom of the vehicle

•

When the road surface is frozen, slick, or covered with snow

•

When it is extremely hot and the asphalt is melting

•

When there is an object in front of the vehicle

•

When there is an object between your vehicle and the target parking spot or within
the target parking spot (within the displayed blue box)

•

When there is a gutter between your vehicle and the target parking space or within
the target parking spot (within the displayed blue box)

•

When there is a hole or gutter in the exit direction

•

When in high pedestrian or vehicle traffic areas

•

When the parking space is in a location that is difficult to park in (too narrow for
your vehicle, etc.)

6-2. Using the safe driving support functions

440

WARNING

•

When images are unclear due to dirt or snow attached to the camera lens, light
being shined into the camera or shadows

•

When tire chains or a compact spare tire is installed to the vehicle

•

When the doors or back door are not completely closed

•

When an arm is held outside of a window

•

In inclement weather such as heavy rain or snow

●

Make sure to use only standard sized tires, such as those that were installed to the
vehicle when it was shipped from the factory. Otherwise, Advanced Park may not
operate properly. Also, when the tires have been replaced, the displayed position of
the lines or box displayed on the screen may become incorrect. When replacing the
tires, contact your Lexus Dealer.

●

In situations such as the following, it may not be possible for the system to provide
assistance to a registered parking spot:

•

When the tires are extremely worn or the tire inflation pressure is low

•

When carrying a heavy load

•

When the vehicle is tilted due to the carried load

•

When a heater is installed in the surface of the parking space (road surface freeze
prevention heater)

•

When the wheels are misaligned, such after a wheel has been subjected to a strong
impact

•

When a pedestrian or passing vehicle is detected during assistance

•

When something is incorrectly detected as a parking line (light, reflections from a
building, difference in height on the parking surface, a gutter, painted road lines,
redrawn lines, etc.)

If the vehicle deviates greatly from the set parking space in any situation other than the
above, have the vehicle inspected by your Lexus dealer.

■

When using Remote control function

●

Remote control function is a function of the Advanced Park system. When using
Remote control function on public roads, be sure to follow all local road traffic laws
and regulations.

●

Remote control function can only be used after agreeing to the disclaimer of the
smartphone application.

●

Remote control function can only perform some driving operations. It should only
be operated by a driver with a valid driving license. While using application, carry,
electronic key. While operating, do not stare at the application screen, and pay

6-2. Using the safe driving support functions

441

Driving suppor

t s

ystem

WARNING

attention to the vehicle’s surroundings. In an emergency, cancel the Remote control
function operation and stop the vehicle.

●

As with a normal vehicle, take care to observe the area around the vehicle while the
vehicle is moving.

●

Always pay attention to the vehicle’s surroundings while the system is operating.

●

Remote control function is a system which assists in remote parking or exiting opera-
tions using a smartphone. When using Remote control function, the driver must carry
the electronic key and smartphone and confirm the safety of the area around the
vehicle.

●

While using Remote control function, the vehicle can be stopped by stop continuously
operating the smartphone (stopping movement of your finger, removing your finger
from the screen, etc.). The vehicle can also be stopped by touching the cancel button
on the smartphone application, unlocking the doors using the electronic key, or
opening a door.

●

If it seems like your vehicle may contact an obstruction, etc., stop operating the
smartphone and cancel Remote control function if necessary.

●

System operation will only be performed at a fixed speed and the vehicle cannot
be accelerated or decelerated even if the speed of continuous operation of the
smartphone is increased or decreased.

●

Never drive the vehicle while staring at the smartphone screen.

●

When driving, make sure to directly check the safety of the area around your vehicle.

●

Do not use Remote control function when passengers or pets are in the vehicle.

●

In an emergency, the system can be canceled by operating a switch on the electronic
key or by opening a door.

●

To use Remote control function, it is necessary to have a smartphone with the latest
version of the Remote Park app. The following operating systems are supported:

•

Android

™

•

Apple

iOS

●

When registering the vehicle to the Remote Park smartphone app, disconnect any
other apps which are connected to the vehicle.

●

To enable Remote control function, make sure to disable the Apple CarPlay connec-
tion.

●

When parking, make sure that the vehicle can be parked in the target parking space
before beginning operation.

●

Only use Remote control function on level road surfaces which are not slick. Do not
use Remote control function for parking spaces on a downward or upward slope.

6-2. Using the safe driving support functions

442

WARNING

●

While Remote control function is operating, if a malfunction or system limitation is
detected, the following will occur automatically:

•

Remote control function will be canceled

•

The vehicle will stop

•

The shift position will change to P and the parking brake will be engaged

•

The power switch will turn off (for some malfunctions, the power switch will not turn
off or cannot be turned off. Enter the vehicle and take corrective action according
to the message displayed on the smartphone.)

•

The doors will remain locked

●

When starting Remote control function, unlock the doors with wireless remote control
by electronic key.

●

When Remote control function is operating, the driver should remain within approxi-
mately 9.8 ft. (3 m) of the vehicle. If the driver becomes more than approximately 9.8
ft. (3 m) away, Remote control function will
be suspended and a message will be displayed on the smartphone. Remote control
function operation can be resumed by approaching the vehicle.

●

The headlights will be turned on if the surrounding area is dark.

●

If system operation is canceled due to a malfunction, the emergency flashers will flash.
The emergency flashers will turn off if any of the following conditions are met:

•

A door is opened

•

3 minutes have elapsed since the emergency flashers began flashing

●

Remote control function can only be started when the following conditions are met:

•

When the hybrid system is starting, after assist mode is selected

•

When the power switch is off

•

When the remote air conditioning is operating

●

After unlocking the doors using the wireless remote control, if the doors are locked
using the smart entry function, the lock operation may be delayed.

NOTICE

■

Precautions for use Advanced Park

If the 12-volt battery was discharged or has been removed and installed, fold and extend
the outside rear view mirrors.

6-2. Using the safe driving support functions

443

Driving suppor

t s

ystem

NOTICE

■

When using Remote control function

●

Check the battery charge level of the smartphone before using Remote control func-
tion. If the battery of the smartphone dies while operating Remote control function,
assist will be suspended. Also, if the battery charge level of the smartphone is 20%
or less when attempting to start Remote control function, Remote control function will
not be started.

●

Turn on the Bluetooth communication function of the smartphone before using
Remote control function. Remote control function cannot be used if the Bluetooth
function is off.

●

Do not turn off the Bluetooth function of the smartphone or disconnect from the
multi-media system while using Remote control function. If the vehicle cannot be
connected to via Bluetooth, Remote control function cannot be used.

●

While using Remote control function, if a call is received, etc., and another app is
opened, Remote control function will be suspended. Assist can be resumed if the
Remote Park app is reopened within 3 minutes. If 3 minutes or more elapse, assist will
be canceled.

●

While using Remote control function, if the home button or power button of the
smartphone is pressed and the screen is locked, Remote control function will be
suspended. Assist can be resumed if the Remote Park app is reopened within 3
minutes. If 3 minutes or more elapse, assist will be canceled.

●

Do not use the Remote Park app with devices other than those which operation has
been confirmed by the maker. Otherwise the system may not operate correctly.

●

When the ambient temperature is low, it may take time for the system to start, due to
12-volt battery charging.

●

If the 12-volt battery voltage drops, assistance will be canceled.

●

When using Remote control function on a slope, the vehicle speed will be slower and
the distance that the vehicle will approach objects will become longer than when on a
level road surface.

●

If a system temporary failure occurs, after the vehicle is stopped by the electronic
parking brake or the shift position being changed to P, the power switch may turn off
and the system may be canceled. In this case, have the vehicle inspected by your Lexus
dealer.

●

If a system malfunction occurs, assistance may be temporarily suspended. If the system
returns to normal, operation can be resumed. Follow the content on the smartphone
screen to resume operation.

●

Remote control function cannot be started if the hybrid system has been started using
an aftermarket remote starter.

6-2. Using the safe driving support functions

444

NOTICE

●

After Remote control function completes, the parking brake will be engaged as per
regulations. As the parking brake may freeze and not be able to be released, avoid
using Remote control function in extremely cold areas. Also, if the parking brake
freezes, it may make a noise when it is released. However, this does not indicate a
malfunction.

Type of Advanced Park cameras and sensors

Cameras and sensors are used to detect parked
vehicles, making it easier to identify parking
spaces.

INFORMATION

■

Camera images

As special cameras are used, the colors in displayed images may differ from the actual
color.

▶

Front camera

▶

Side cameras

▶

Rear camera

▶

Sensors

→

P.404

6-2. Using the safe driving support functions

445

Driving suppor

t s

ystem

Lexus NX350h (2022 year). Manual in english - page 26
