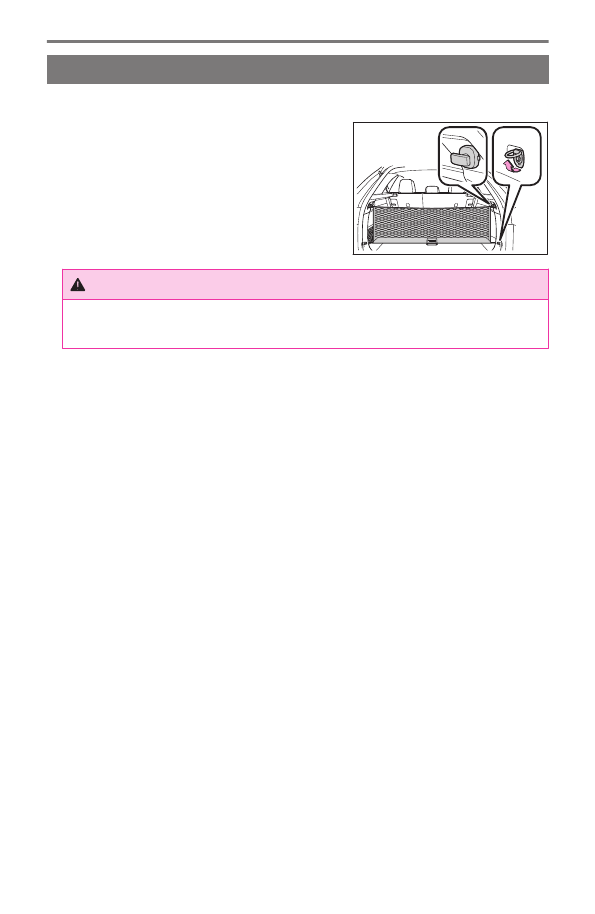

Using the cargo net hooks

The cargo net can be hung using the cargo net hooks.

●

Raise the hook to use.

WARNING

To avoid injury, when the cargo net hooks are not in use, make sure to return them to
their stowed position.

4-6. Using the luggage compartment

300

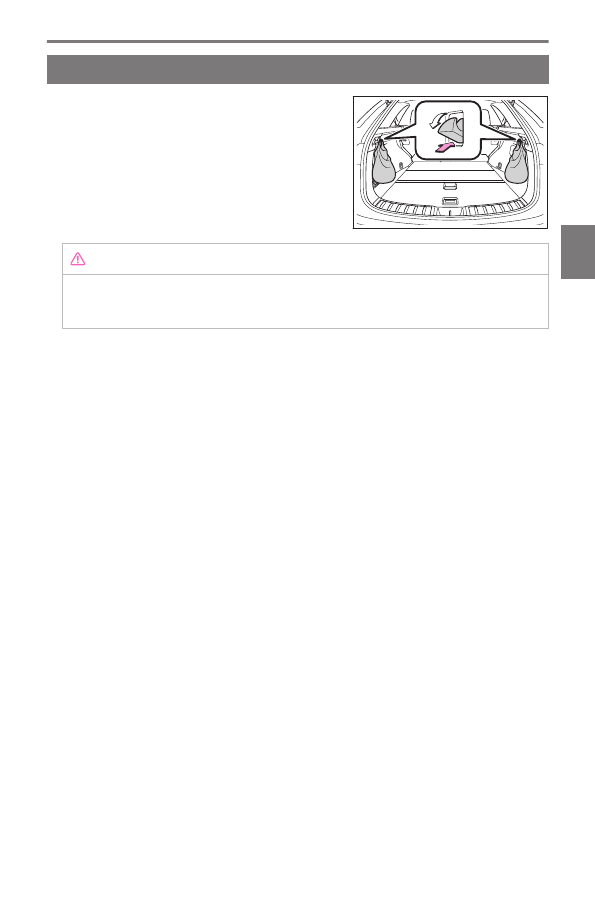

Using the grocery bag hooks

●

Push the grocery back hook to use.

NOTICE

Do not hang objects heavier than 8.8 lb. (4 kg) on the grocery bag hooks.
Doing so may damage the grocery bag hook.

4-6. Using the luggage compartment

301

4

Interior feat

ur

es

Deck board

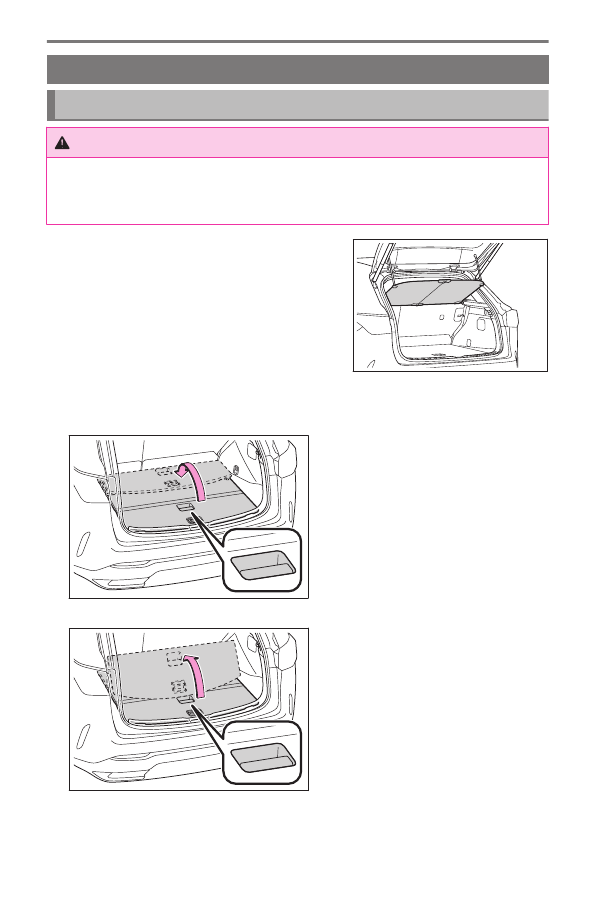

Opening the deck board

WARNING

If a deck board has been opened or removed, return it to its original position before
driving. Otherwise, in the event of sudden braking or an accident, a deck board or stored
items may fly out and strike an occupant.

1

Open the back door.

2

Open the deck board.

▶

Pattern A

▶

Pattern B

4-6. Using the luggage compartment

302

▶

Pattern C

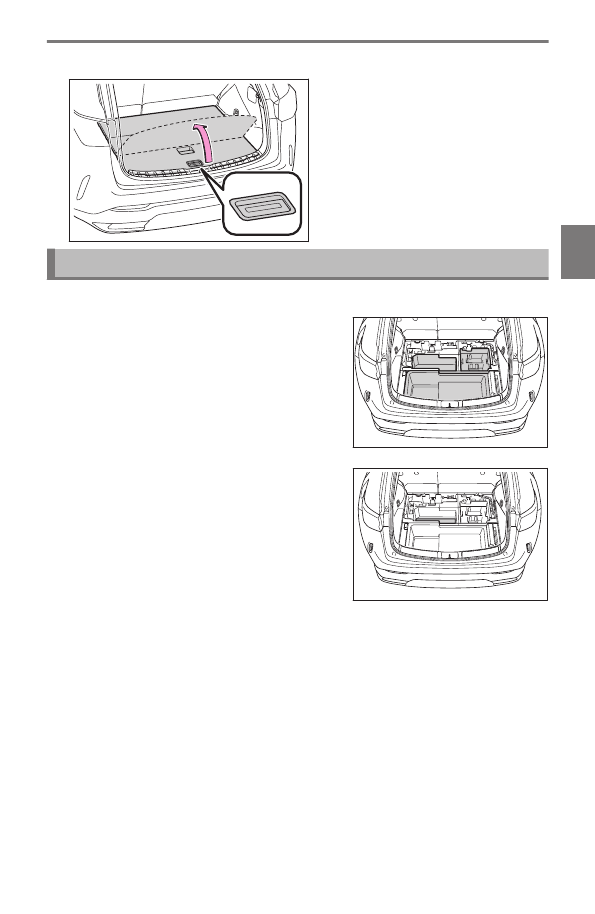

Storing items in the deck under tray

The following items can be stowed.

●

Accessories

●

Warning reflector

*1

*1 :

A warning reflector itself is not included as an original equipment.

4-6. Using the luggage compartment

303

4

Interior feat

ur

es

Stowing the luggage cover

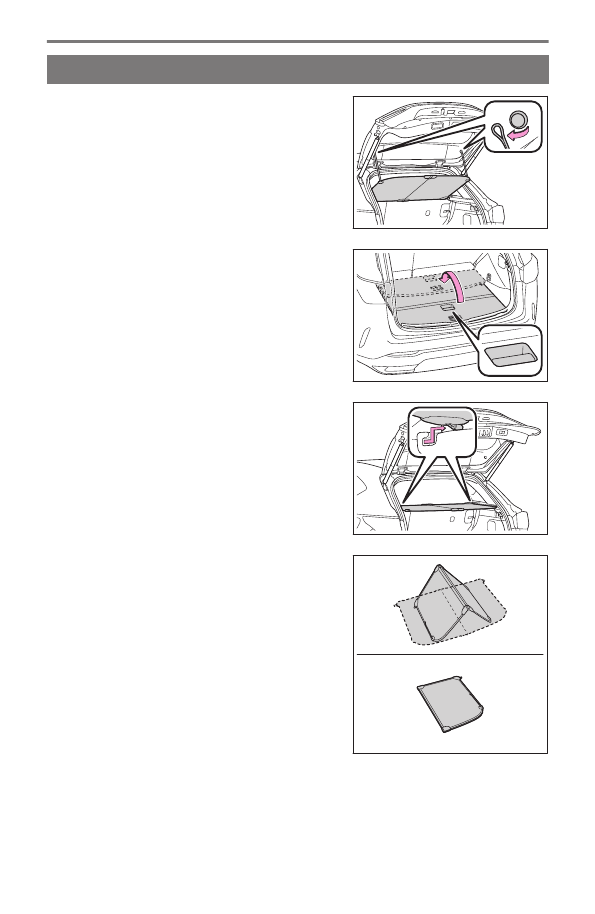

1

Unhook each cord.

2

Pull the lever upwards and fold the deck
board.

3

Remove the luggage cover.

If a rear seat seatback is reclined, remove the
luggage cover after moving the seatback to the
upright position.

4

Fold the luggage cover.

4-6. Using the luggage compartment

304

5

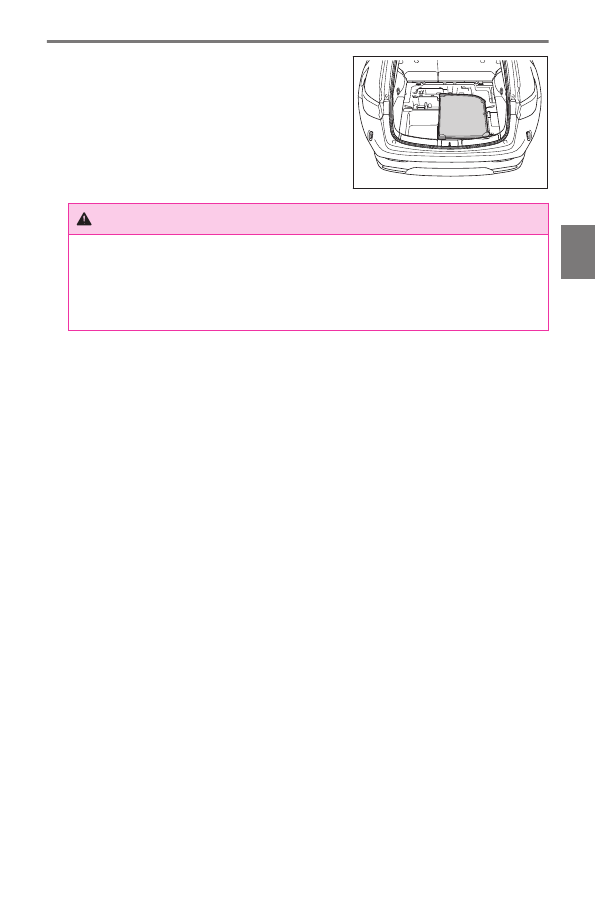

Lift the deck board and stow the luggage
cover in the deck under tray.

WARNING

●

Do not stow items on the luggage cover. In the event of sudden braking or
swerving, the items may fly about and strike an occupant.

●

Do not allow children to climb on the luggage cover. Doing so may damage the
luggage cover.

4-6. Using the luggage compartment

305

4

Interior feat

ur

es

5

Vehicle status information and indicators

5-1. Functions and displays of the

meter

Warning lights and indica-

tors.............................................

308

Gauges and meters (except

F SPORT models).................

315

Gauges and meters (F

SPORT models)...................

320

5-2. Functions of the displays

Multi-information display

(vehicles without a head-
up display) ...............................

325

Multi-information display

(vehicles with a head-up
display)......................................

327

Head-up display.......................

329

Displayed content ....................

331

5-3. Changing the settings of the

displays

Changing the instrument

panel light brightness...........

341

Changing settings for the

head-up display.....................

342

307

5

Vehicle st

at

us information and indicator

s

Functions and displays of the meter

Warning lights and indicators

The warning lights and indicators on the instrument cluster and outside rear view
mirrors inform the driver of the status of the vehicle’s various systems.

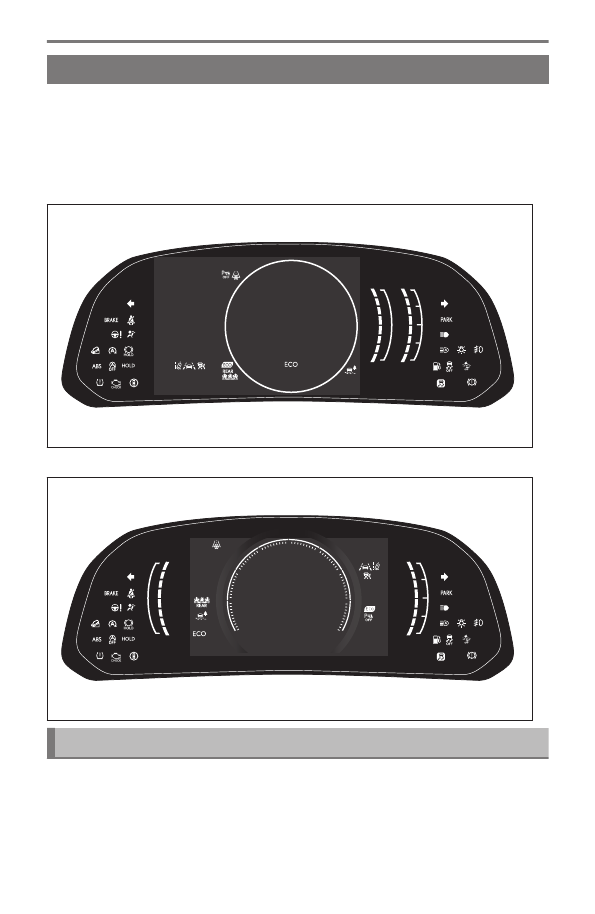

For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.

▶

Vehicles without a head-up display

▶

Vehicles with a head-up display

List of warning lights

Warning lights inform the driver of malfunctions in the indicated vehicle’s systems.

5-1. Functions and displays of the meter

308

(U.S.A.)

(Canada)
(red)

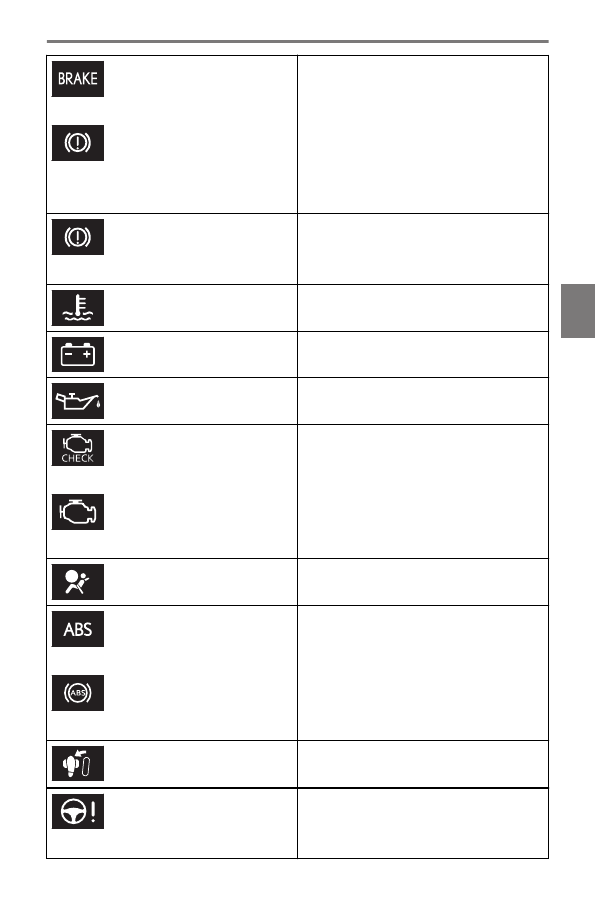

Brake system warning light

(1)

(yellow)

Brake system warning light

(1)

High coolant temperature warning light

(2)

Charging system warning light

(2)

Low engine oil pressure warning light

(2)

(U.S.A.)

(Canada)

Malfunction indicator lamp

(1)

SRS warning light

(1)

(U.S.A.)

(Canada)

ABS warning light

(1)

Inappropriate pedal operation warning
light

(2)

(red)

Electric power steering system warning
light

(1)

5-1. Functions and displays of the meter

309

5

Vehicle st

at

us information and indicator

s

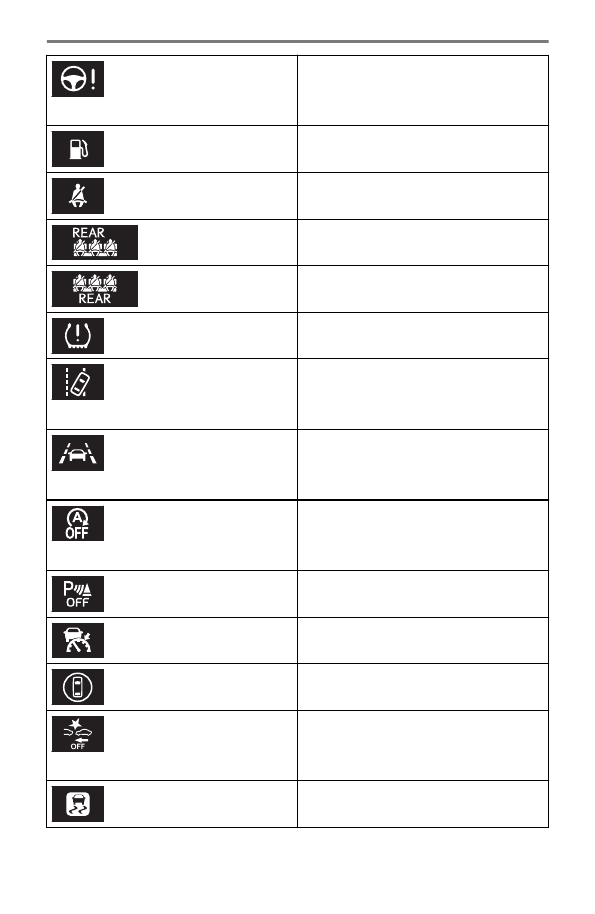

(yellow)

Electric power steering system warning
light

(1)

Low fuel level warning light

Driver’s and front passenger’s seat belt re-
minder light

Rear passengers’ seat belt reminder lights
(vehicles without a head-up display)

Rear passengers’ seat belt reminder lights
(vehicles with a head-up display)

Tire pressure warning light

(1)

(orange)

LDA indicator

(orange)

LTA indicator

(flashes)

Stop & Start cancel indicator

(1)

Intuitive parking assist OFF indicator

*(1)

Dynamic radar cruise control indicator

Driving assist infomation indicator

(1)

(flashes or illuminates)

PCS warning light

(1)

Slip indicator

(1)

* :

If equipped

5-1. Functions and displays of the meter

310

(U.S.A.)
(flashes)

(Canada)
(flashes)

Parking brake indicator

(flashes)

Brake hold operated indicator

(1)

(1)

These lights come on when the engine switch is turned to ON to indicate that a system

check is being performed. They will turn off after the engine is started, or after a few

seconds. There may be a malfunction in a system if the lights do not come on, or turn

off. Have the vehicle inspected by your Lexus dealer.

(2)

This light illuminates on the multi-information display.



WARNING

Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to help
protect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by your Lexus dealer immediately if this occurs.

 Related Links

If a warning light turns on/flashes(P. 559)

List of indicators

The indicators inform the driver of the operating state of the vehicle’s various
systems.

Turn signal indicator

(U.S.A.)

Headlight indicator

5-1. Functions and displays of the meter

311

5

Vehicle st

at

us information and indicator

s

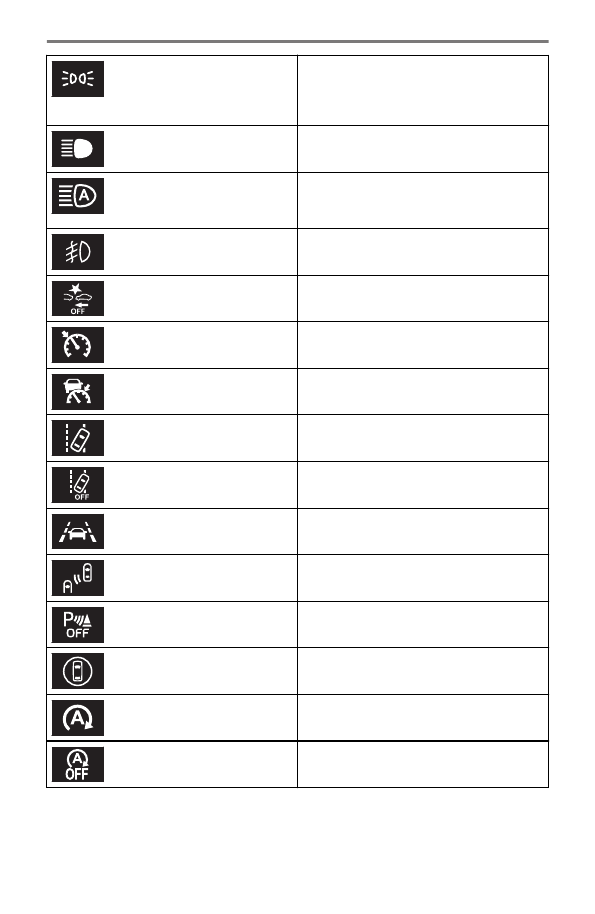

(Canada)

Tail light indicator

Headlight high beam indicator

AHS indicator

*(1)

AHB indicator

*(1)

Front fog light indicator

PCS warning light

(1)(3)

Cruise control indicator

Dynamic radar cruise control indicator

LDA indicator

LDA OFF indicator

(3)

LTA indicator

BSM outside rear view mirror indicators

(2)

Intuitive parking assist OFF indicator

*(3)(1)

Driving assist infomation indicator

(1)(3)

Stop & Start indicator

(1)

Stop & Start cancel indicator

(1)(3)

* :

If equipped

5-1. Functions and displays of the meter

312

(flashes)

Slip indicator

(1)

VSC OFF indicator

(1)(3)

(U.S.A.)

(Canada)

Parking brake indicator

(1)

Brake hold standby indicator

(1)

Brake hold operated indicator

(1)

Eco driving indicator light

(1)

Low outside temperature indicator

(4)

[AIR BAG ON/OFF] indicator

(5)

Downhill assist control system indicator

*

Eco drive mode indicator

Sport mode indicator

(6)

Sport S mode indicator

(7)

Sport S+ mode indicator

(7)

Custom mode indicator

(7)

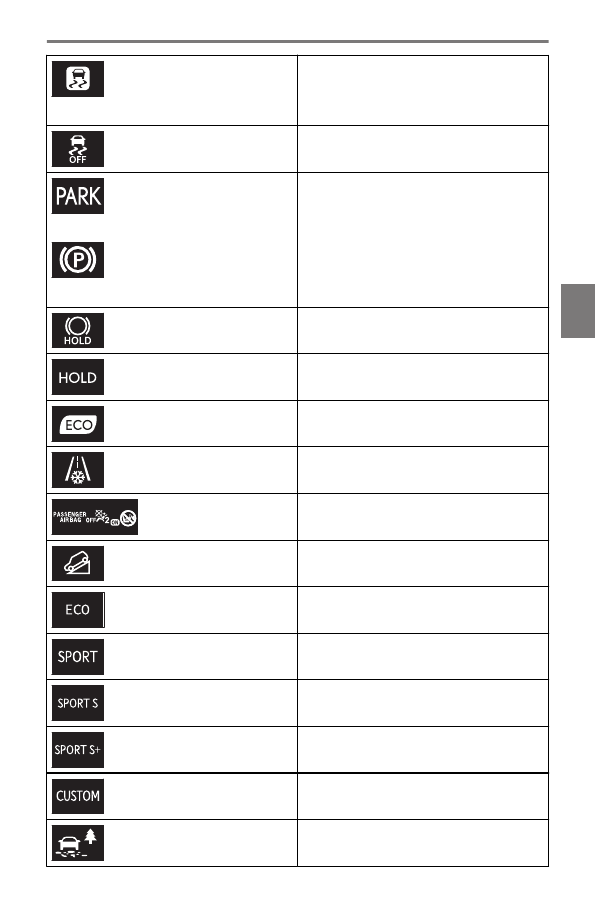

Trail Mode indicator

*

5-1. Functions and displays of the meter

313

5

Vehicle st

at

us information and indicator

s

(1)

These lights come on when the engine switch is turned to ON to indicate that a system

check is being performed. They will turn off after the engine is started, or after a few

seconds. There may be a malfunction in a system if the lights do not come on, or turn

off. Have the vehicle inspected by your Lexus dealer.

(2)

This light illuminates on the outside rear view mirrors.

(3)

This light comes on when the system is turned off.

(4)

When the outside temperature is approximately 37°F (3°C) or lower, this indicator

will flash for approximately 10 seconds, then stay on.

(5)

This light illuminates on the front interior/personal lights.

(6)

Except F SPORT models

(7)

F SPORT models



 Related Links

Customizable features(P. 703)

5-1. Functions and displays of the meter

314

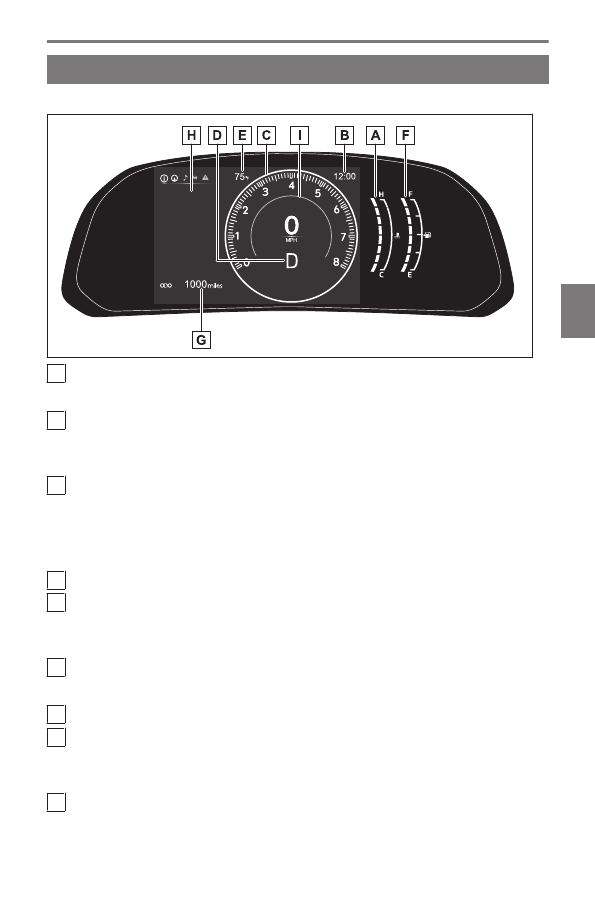

Gauges and meters (except F SPORT models)

▶

Vehicles without a head-up display

A

Engine coolant temperature gauge

Displays the engine coolant temperature

B

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "MULTIMEDIA OWNER'S MANUAL".

C

Tachometer

Displays the engine speed in revolutions per minute
Speedometer
Depending on the certain settings, the display will change.

D

Shift position/shift range/gear position

E

Outside temperature

Displays the ambient temperature within the range of -40°F (-40°C) to 122°F
(50°C).

F

Fuel gauge

Displays the quantity of fuel remaining in the tank.

G

Odometer and trip meter display

H

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

I

Background color of driving mode

Background color changes according to the driving mode.

5-1. Functions and displays of the meter

315

5

Vehicle st

at

us information and indicator

s

▶

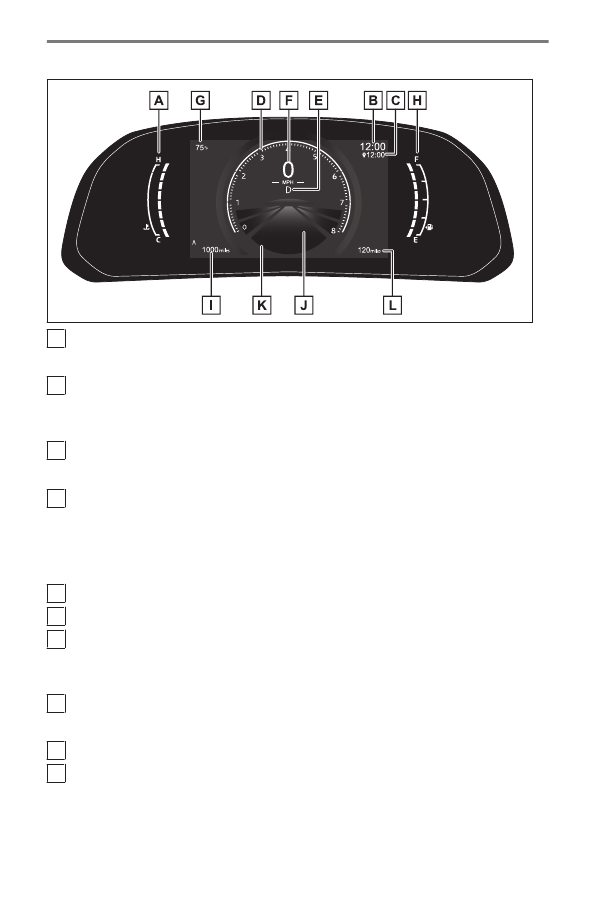

Vehicles with a head-up display

A

Engine coolant temperature gauge

Displays the engine coolant temperature

B

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "MULTIMEDIA OWNER'S MANUAL".

C

Navigation system estimated time of arrival display

*

Displays the estimated time of arrival according to the navigation system.

D

Tachometer

Displays the engine speed in revolutions per minute
Analog speedometer
Depending on the certain settings, the display will change.

E

Shift position/shift range/gear position

F

Digital speedometer

G

Outside temperature

Displays the ambient temperature within the range of -40°F (-40°C) to 122°F
(50°C).

H

Fuel gauge

Displays the quantity of fuel remaining in the tank.

I

Odometer and trip meter display

J

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

* :

If equipped

5-1. Functions and displays of the meter

316
