236

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

●

In addition to the above, in some situa-

tions, such as the following, the emer-

gency steering assist may not operate.

• When the white (yellow) lane lines are

difficult to see, such as when they are

faint, diverging/merging, or a shadow is

cast upon them

• When the lane is wider or narrower than

normal

• When there is a light and dark pattern on

the road surface, such as due to road

repairs

• When the target is too close

• When there is insufficient safe or unob-

structed space for the vehicle to be

steered into

• If oncoming vehicle is present

• If VSC function is operating

●

In some situations such as the following,

sufficient braking force or steering force

may not be obtained, preventing the sys-

tem from performing properly:

• If the braking functions cannot operate to

their full extent, such as when the brake

parts are extremely cold, extremely hot,

or wet

• If the vehicle is not properly maintained

(brakes or tires are excessively worn,

improper tire inflation pressure, etc.)

• When the vehicle is being driven on a

gravel road or other slippery surface

• When the road surface has deep wheel

tracks

• When driving on a hill road

• When driving on a road that has inclines

to the left or right

■

If VSC is disabled

●

If VSC is disabled (



P.337), the pre-col-

lision brake assist and pre-collision brak-

ing functions are also disabled.

●

The PCS warning light will turn on and

“VSC Turned Off Pre-Collision Brake

System Unavailable” will be displayed on

the multi-information display.

237

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

4

Driving

*

: If equipped

When the system detects a vehicle
approaching from the left or right in
front of your vehicle when approaching
an intersection, a notification will be
displayed on the head-up display and
panoramic view monitor

*

.

*

: Refer to “NAVIGATION AND MULTI-

MEDIA SYSTEM OWNER’S MAN-
UAL”.

When the system determines that your
vehicle may be about to enter an inter-
section even though a vehicle is
approaching from the left or right in
front of your vehicle, a buzzer will
sound and a message will be displayed
on the multi-information display to
urge you to depress the brake pedal.



Head-up display



Multi-information display

FCTA (Front Cross Traffic
Alert)

*

When approaching an intersection
at low speed, the radar sensors on
the front side of the vehicle can
detect approaching vehicles to the
left and right of the front of the vehi-
cle. In this case, the head-up display
is used to inform the driver of
detected vehicles.

FCTA system functions

WARNING

■

Cautions regarding the use of the

function

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.
The FCTA system is a supplementary

system that informs the driver of vehicles

approaching from the left and right of the

front of the vehicle.
Do not overly rely on the FCTA system.

Over reliance on the system may lead to

an accident, resulting in death or serious

injury.
The details of the warning display may

differ from the actual traffic conditions.
Although the warning display will stop

being displayed after a certain amount of

time, this does not indicate that vehicles

or pedestrians are no longer around your

vehicle.

238

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

■

Enabling/disabling the FCTA sys-
tem

The FCTA system can be enabled/dis-
abled on

 (



P.84) of the

multi-information display.

The system is automatically enabled each
time the power switch is turned to ON
mode.

■

Changing the alert timing

The FCTA (Front Cross Traffic Alert)
timing can be changed on



(



P.84) of the multi-information dis-

play.

The set alert timing is retained when the
power switch is turned off. However, if the
FCTA system is disabled and re-enabled,
the alert timing will return to the default
setting (middle).

1

Early

2

Middle

This is the default setting.

3

Late

■

The FCTA function is operational when

The system operates when all of the follow-

ing conditions are met.

●

A shift position other than P or R is

selected.

●

Vehicle speed is approximately 9 mph

(15 km/h) or lower.

●

A vehicle is approaching from the left or

right in front of your vehicle at a speed

between approximately 6 mph (10 km/h)

and 37 mph (60 km/h).

●

There are no preceding vehicles ahead of

your vehicle.

●

The accelerator pedal is not strongly

depressed.

●

The brake pedal is not being strongly

depressed.

■

Situations in which the system may

operate even though no vehicles are

approaching

In certain situations, such as the following,

the system may operate even though no

vehicles are approaching:

●

When approaching objects on the road-

side, such as guardrails, traffic signs, util-

ity poles, street lights, trees, or walls

●

When driving near a TV tower, broad-

casting station, electric power plant, or

other location where strong radio waves

or electrical noise may be present

●

When passing an object on the side of the

road, such as a parked vehicle

●

When a vehicle or pedestrian is

approaching from the left or right in front

of your vehicle from far away

●

When a vehicle or pedestrian is moving

within a parking spot, etc. next to the lane

your vehicle is driving in

●

When a pedestrian or bicyclist is moving

on a sidewalk

●

When a vehicle or pedestrian is moving

away from your vehicle

●

When a vehicle approaching from the left

or right in front of your vehicle is deceler-

ating or stops

●

When a vehicle approaching from the left

Changing settings of the FCTA
system

239

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

4

Driving

or right in front of your vehicle makes a

left/right turn immediately in front of your

vehicle

●

When a pedestrian is approaching your

vehicle

●

When an oncoming vehicle makes a

left/right turn

●

When your vehicle enters an intersection

before a vehicle approaching from the

left or right in front of your vehicle

●

When stopped at traffic light and a vehi-

cle approaches from the left or right in

front of your vehicle

●

When driving in a location where there

are objects which reflect radar, such as

vehicles, guardrails, walls, traffic signs,

etc.

●

When making a left/right turn in front of

an approaching vehicle

●

When passing an oncoming vehicle

●

When being overtaken by another vehi-

cle

●

When driving next to another vehicle or a

pedestrian

●

When a vehicle or pedestrian

approaches the side of your vehicle

Some objects, such as the following, may be

detected and cause the FCTA system to

operate:

●

Pedestrians

■

Situations in which the system may not

operate properly

In some situations, such as the following, a

vehicle may not be detected by a front side

radar sensor, preventing the system from

operating properly:

●

If the front end or side of an approaching

vehicle is small (sports cars, etc.)

●

If the front end of an approaching vehicle

is low (low-slung sports cars, etc.)

●

If the ground clearance of an approach-

ing vehicle is extremely high

●

If the shape of an approaching vehicle is

unusual (tractors, motorcycles with side-

cars, etc.)

●

If a vehicle suddenly enters the detection

area on the left or right in front of your

vehicle from a parking lot, etc.

●

If an approaching vehicle moves sud-

denly (sudden steering, acceleration,

deceleration, etc.)

●

When driving in inclement weather such

as heavy rain, fog, snow or a sandstorm

●

After the hybrid system has been started

and the vehicle has not been driven for a

certain amount of time

●

When driving on a road with a grade that

changes sharply (sharp incline/decline)

●

When driving around a sharp curve or on

an undulating road

●

If a vehicle is approaching from the left or

right of the front of your vehicle diago-

nally

●

When a vehicle is approaching from the

left or right in front of your vehicle from

far away

●

When there is an object between your

vehicle and an approaching vehicle

●

When driving in a location where there

are objects which reflect radar, such as

guardrails, walls, vehicles, etc.

●

When a group of vehicles which are close

together approach

●

Immediately after the FCTA system has

been enabled

240

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

■

If the PCS warning light illuminates and

a message is displayed on the

multi-information display

The system may be temporarily unavailable

or may be malfunctioning.

While driving on a road with clear
white (yellow) lane lines, the LTA sys-
tem warns the driver if the vehicle may
deviate from the current lane or
course

*

, and also can slightly operate

the steering wheel to help avoid devia-
tion from the lane or course

*

. Also,

while the dynamic radar cruise control
with full-speed range is operating, this
system will operate the steering wheel
to maintain the vehicle’s lane position
and when changing lanes.
The LTA system recognizes white (yel-
low) lane lines or a course

*

 using the

front camera. Additionally, it detects
preceding and surrounding vehicles
using the front camera and radar.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

LTA (Lane Tracing Assist)
(vehicles with Lexus Safety
System + A)

Summary of functions

241

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

4

Driving

WARNING

■

Before using LTA system

●

Do not rely solely upon the LTA sys-

tem. The LTA system does not auto-

matically drive the vehicle or reduce

the amount of attention that must be

paid to the area in front of the vehicle.

The driver must always assume full

responsibility for driving safely by pay-

ing careful attention to the surround-

ing conditions and operating the

steering wheel to correct the path of

the vehicle. Also, the driver must take

adequate breaks when fatigued, such

as from driving for a long period of

time.

●

Failure to perform appropriate driving

operations and pay careful attention

may lead to an accident, resulting in

death or serious injury.

●

When not using the LTA system, use

the LTA switch to turn the system off.

■

Situations unsuitable for LTA system

In the following situations, use the LTA

switch to turn the system off. Failure to do

so may lead to an accident, resulting in

death or serious injury.

●

Vehicle is driven on a road surface

which is slippery due to rainy weather,

fallen snow, freezing, etc.

●

Vehicle is driven on a snow-covered

road.

●

White (yellow) lines are difficult to see

due to rain, snow, fog, dust, etc.

●

Vehicle is driven in a temporary lane or

restricted lane due to construction

work.

●

Vehicle is driven in a construction

zone.

●

A spare tire, tire chains, etc. are

equipped.

●

When the tires have been excessively

worn, or when the tire inflation pres-

sure is low.

●

During emergency towing.

■

Situations in which the lane change

assist function should not be used

●

When driving on a one lane road or

road without lane markers

●

When there is no broken white line

between your vehicle and the lane

toward which the turn signal is oper-

ated

●

Vehicle is driven in traffic lanes other

than that freeways and highways.

■

Preventing LTA system malfunctions

and operations performed by mistake

●

Do not modify the headlights or place

stickers, etc. on the surface of the

lights.

●

Do not modify the suspension etc. If

the suspension etc. needs to be

replaced, contact your Lexus dealer.

●

Do not install or place anything on the

hood or grille. Also, do not install a

grille guard (bull bars, kangaroo bar,

etc.).

●

If your windshield needs repairs, con-

tact your Lexus dealer.

■

Conditions in which functions may

not operate properly

In the following situations, the functions

may not operate properly and the vehicle

may depart from its lane. Drive safely by

always paying careful attention to your

surroundings and operate the steering

wheel to correct the path of the vehicle

without relying solely on the functions.

242

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

WARNING

●

When the follow-up cruising display is

displayed (



P.247) and the preced-

ing vehicle changes lanes. (Your vehi-

cle may follow the preceding vehicle

and also change lanes.)

●

When the follow-up cruising display is

displayed (



P.247) and the preced-

ing vehicle is swaying. (Your vehicle

may sway accordingly and depart from

the lane.)

●

When the follow-up cruising display is

displayed (



P.247) and the preced-

ing vehicle departs from its lane. (Your

vehicle may follow the preceding vehi-

cle and depart from the lane.)

●

When the follow-up cruising display is

displayed (



P.247) and the preced-

ing vehicle is being driven extremely

close to the left/right lane line. (Your

vehicle may follow the preceding vehi-

cle and depart from the lane.)

●

Vehicle is being driven around a sharp

curve.

●

Objects or patterns that could be mis-

taken for white (yellow) lines are pres-

ent on the side of the road (guardrails,

reflective poles, etc.).

●

Vehicle is driven where the road

diverges, merges, etc.

●

Repair marks of asphalt, white (yellow)

lines, etc. are present due to road

repair.

●

There are shadows on the road that

run parallel with, or cover, the white

(yellow) lines.

●

The vehicle is driven in an area without

white (yellow) lines, such as in front of a

tollgate or checkpoint, or at an inter-

section, etc.

●

The white (yellow) lines are cracked,

“Botts’ dots”, “Raised pavement

marker” or stones are present.

●

The white (yellow) lines cannot be

seen or are difficult to see due to sand,

etc.

●

The vehicle is driven on a road surface

that is wet due to rain, puddles, etc.

243

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

4

Driving

■

Lane departure alert function

When the system determines that the
vehicle might depart from its lane or
course

*

, a warning is displayed on the

multi-information display, and either a
warning buzzer will sound or the steer-
ing wheel will vibrate to alert the driver.

When the warning buzzer sounds or the
steering wheel vibrates, check the area
around your vehicle and carefully operate
the steering wheel to move the vehicle
back to the center of the lane.
When the system determines that the vehi-
cle might depart from its lane and that the
possibility of a collision with an overtaking
vehicle in the adjacent lane is high, the lane
departure alert will operate even if the turn
signals are operating.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

WARNING

●

The traffic lines are yellow (which may

be more difficult to recognize than

lines that are white).

●

The white (yellow) lines cross over a

curb, etc.

●

The vehicle is driven on a bright sur-

face, such as concrete.

●

If the edge of the road is not clear or

straight.

●

The vehicle is driven on a surface that

is bright due to reflected light, etc.

●

The vehicle is driven in an area where

the brightness changes suddenly, such

as at the entrances and exits of tunnels,

etc.

●

Light from the headlights of an oncom-

ing vehicle, the sun, etc. enters the

camera.

●

The vehicle is driven on a slope.

●

The vehicle is driven on a road which

tilts left or right, or a winding road.

●

The vehicle is driven on an unpaved or

rough road.

●

The traffic lane is excessively narrow

or wide.

●

The vehicle is extremely tilted due to

carrying heavy luggage or having

improper tire pressure.

●

The distance to the preceding vehicle

is extremely short.

●

The vehicle is moving up and down a

large amount due to road conditions

during driving (poor roads or road

seams).

●

When driving in a tunnel or at night

with the headlights off or when a head-

light is dim due to its lens being dirty or

it being misaligned.

●

The vehicle is struck by a crosswind.

●

The vehicle is affected by wind from a

vehicle driven in a nearby lane.

●

The vehicle has just changed lanes or

crossed an intersection.

●

Tires which differ by structure, manu-

facturer, brand or tread pattern are

used.

●

When tires of a size other than speci-

fied are installed.

●

Snow tires, etc. are equipped.

●

The vehicle is being driven at

extremely high speeds.

Functions included in LTA system

244

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

■

Steering assist function

When the system determines that the
vehicle might depart from its lane or
course

*

, the system provides assis-

tance as necessary by operating the
steering wheel in small amounts for a
short period of time to keep the vehicle
in its lane.

If the system detects that the steering
wheel has not been operated for a fixed
amount of time or the steering wheel is not
being firmly gripped, a warning is displayed
on the multi-information display and the
function is temporarily canceled.
When the system determines that the vehi-
cle might depart from its lane and that the
possibility of a collision with an overtaking
vehicle in the adjacent lane is high, the
steering assist function will operate even if
the turn signals are operating.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

■

Vehicle sway warning function

When the vehicle is swaying within a
lane, the warning buzzer will sound and
a message will be displayed on the
multi-information display to alert the
driver.

245

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

4

Driving

■

Lane centering function

This function is linked with dynamic
radar cruise control with full-speed
range and provides the required assis-
tance by operating the steering wheel
to keep the vehicle in its current lane.

When dynamic radar cruise control with
full-speed range is not operating, the lane
centering function does not operate.
In situations where the white (yellow) lane
lines are difficult to see or are not visible,
such as when in a traffic jam, this function
will operate to help follow a preceding
vehicle by monitoring the position of the
preceding vehicle.
If the system detects that the steering
wheel has not been operated for a fixed
amount of time or the steering wheel is not
being firmly gripped, a warning is displayed
on the multi-information display and the
function is temporarily canceled.

■

Lane change assist function

This function is linked to the dynamic

radar cruise control with full-speed
range and provides assistance for per-
forming lane changes by operating the
steering wheel when you hold the turn
signal lever partway (lane change posi-
tion). (



P.184)

When lane change assist function is
operating, the acceleration and decel-
eration of the vehicle is controlled
while the preceding vehicle and vehi-
cles driven in the lane toward which the
turn signal is operated are monitored.
Use lane change assist function on
freeways and highways.

When the lane centering function is not
operating, the lane change assist function
will not operate.
The lane change assist function should not
be operated when changing lanes on a
road that is diverging or merging.

246

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Press the LTA switch to turn the LTA
system on.

The LTA indicator illuminates and a mes-
sage is displayed on the multi-information
display.
Press the LTA switch again to turn the LTA
system off.
When the LTA system is turned on or off,
operation of the LTA system continues in
the same condition the next time the hybrid
system is started.

Hold the turn signal lever partway
(lane change position) for approxi-
mately 1 second.(



P.184)

The direction you are signaling will be dis-
played on the multi-information display.

LTA indicator

The illumination condition of the indicator
informs the driver of the system operation
status.
Illuminated in white: LTA system is operat-
ing.
Illuminated in green: Steering wheel assis-
tance of the steering assist function or lane
centering function is operating.
Flashing in orange: Lane departure alert

Turning LTA system on

Operating the lane change assist
function

Indications on multi-information
display

A

247

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

4

Driving

function is operating.

Operation display of steering
wheel operation support

Displayed when the multi-information dis-
play is switched to the driving support sys-
tem information display.
Indicates that steering wheel assistance of
the steering assist function or lane center-
ing function is operating.
Both outer sides of the lane are displayed:
Indicates that steering wheel assist of the
lane centering function is operating.
One outer side of the lane is displayed:
Indicates that steering wheel assist of the
steering assist function is operating.
Both outer sides of the lane are flashing:
Alerts the driver that their input is neces-
sary to stay in the center of the lane (lane
centering function).

Lane departure alert function dis-
play

Displayed when the multi-information dis-
play is switched to the driving support sys-
tem information display.



Inside of displayed lines is white

Indicates that the system is recognizing
white (yellow) lines or a course

*

. When

the vehicle departs from its lane, the
white line displayed on the side the
vehicle departs from flashes orange.



Inside of displayed lines is black

Indicates that the system is not able to
recognize white (yellow) lines or a
course

*

 or is temporarily canceled.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

Follow-up cruising display

Displayed when the multi-information dis-
play is switched to the driving support sys-
tem information display.
Indicates that steering assist of the lane
centering function is operating by monitor-
ing the position of a preceding vehicle.
When the follow-up cruising display is dis-
played, if the preceding vehicle moves,
your vehicle may move in the same way.
Always pay careful attention to your sur-
roundings and operate the steering wheel
as necessary to correct the path of the
vehicle and ensure safety.

■

Lane change assist function



Lane change assist display

B

C

D

248

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

Indicates that steering wheel assist of the
lane change assist function is operating.



Approaching vehicle warning dis-
play

Indicates that an approaching vehicle is
detected in the adjacent lane.

■

Warning display

When the lane centering function is oper-
ating and the system determines that the
vehicle may depart from its lane due to a
sharp curve, etc., a warning display urging
the driver to operate the steering wheel,
will be displayed.
This display will also be displayed when
operation of the lane change assist func-
tion is canceled.
In some situations a warning display may
not be displayed.

Some displays, which are the same as
those displayed on the multi-informa-
tion display, will be displayed.

■

LTA system curve display on the
head-up display

The curve display on the head-up display
changes according to the direction and
curvature of the curve.

■

Operation conditions of each function

●

Lane departure alert function

This function operates when all of the fol-

lowing conditions are met.

• LTA is turned on.

• Vehicle speed is approximately 32 mph

(50 km/h) or more.

*1

• System recognizes white (yellow) lane

lines or a course

*2

. (When a white [yel-

low] line or course

*2

 is recognized on

only one side, the system will operate

only for the recognized side.)

• Width of traffic lane is approximately 9.8

ft. (3 m) or more.

• Turn signal lever is not operated. (Except

when another vehicle is in the lane on the

side where the turn signal was operated)

• Vehicle is not being driven around a

sharp curve.

• No system malfunctions are detected.

(



P.252)

• The Advanced Drive is not operating. (if

equipped)

*1

: The function operates even if the vehi-

cle speed is less than approximately 32
mph (50 km/h) when the lane center-
ing function is operating.

*2

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

●

Steering assist function

Indications on head-up display

249

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

4

Driving

This function operates when all of the fol-

lowing conditions are met in addition to the

operation conditions for the lane depar-

ture alert function.
• Setting  for  “Steering  Assist” in

 of the

multi-information display is set to “ON”.

(



P.84)

• Vehicle is not accelerated or decelerated

by a fixed amount or more.

• Steering wheel is not operated with a

steering force level suitable for changing

lanes.

• ABS, VSC, TRAC and PCS are not oper-

ating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning is not

displayed. (



P.251)

• The Advanced Drive is not operating. (if

equipped)

●

Vehicle sway warning function

This function operates when all of the fol-

lowing conditions are met.
• Setting for “Sway Warning” in

 of the

multi-information display is set to “ON”.

(



P.84)

• Vehicle speed is approximately 32 mph

(50 km/h) or more.

• Width of traffic lane is approximately 9.8

ft. (3 m) or more.

• No system malfunctions are detected.

(



P.252)

• The Advanced Drive is not operating. (if

equipped)

●

Lane centering function

This function operates when all of the fol-

lowing conditions are met.

• LTA is turned on.

• Setting for “Steering Assist” and “Lane

Center” in

 of the multi-information

display are set to “ON”. (



P.84)

• This function recognizes white (yellow)

lane lines or the position of a preceding

vehicle (except when the preceding vehi-

cle is small, such as a motorcycle).

• The dynamic radar cruise control with

full-speed range is operating in vehi-

cle-to-vehicle distance control mode.

• Width of traffic lane is approximately 10

to 13 ft. (3 to 4 m).

• Turn signal lever is not operated.

• Vehicle is not being driven around a

sharp curve.

• No system malfunctions are detected.

(



P.252)

• Vehicle does not accelerate or deceler-

ate by a fixed amount or more.

• Steering wheel is not operated with a

steering force level suitable for changing

lanes.

• ABS, VSC, TRAC and PCS are not oper-

ating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning is not

displayed. (



P.251)

• The driver has one or both hands on the

steering wheel.

• The vehicle is being driven in the center

of a lane.

• Steering assist function is not operating.

• The Advanced Drive is not operating. (if

equipped)

●

Lane change assist function

This function will operate when all of the

following conditions are met:

• The lane centering function is operating.

• “Lane Change Assist” is set to “ON” in

 of the multi-information dis-

play.(



P.84)

• The vehicle speed is between approxi-

mately 57 and 85 mph (90 and 140

km/h).

• White (yellow) lane lines are detected by

the system.

• A broken white line is detected between

your vehicle and the lane toward which

the turn signal is operated.

• The turn signal lever is held partway (lane

change position) for approximately 1 sec-

ond.

• A vehicle is not overtaking your vehicle

or detected in the lane toward which the

turn signal is operated.

• The vehicle is being driven straight or

around a slight curve.

• The vehicle is not accelerating or decel-

erating more than a certain amount.

• The steering wheel is not being turned

sufficiently to perform a lane change.

• ABS, VSC, TRAC and PCS are not oper-

ating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning is not

displayed. (



P.251)

• The dynamic radar cruise control with

250

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

full-speed range approach warning is not

operating.

• The lane departure alert function is not

operating.

• The curve speed reduction function

(



P.273) is not operating.

• The Advanced Drive is not operating. (if

equipped)

■

Temporary cancelation of functions

●

When operation conditions are no longer

met, a function may be temporarily can-

celed. However, when the operation con-

ditions are met again, operation of the

function is automatically restored.

(



P.249)

●

If the operation conditions (



P.249) are

no longer met while the lane centering

function is operating, the steering wheel

may vibrate and the buzzer may sound to

indicate that the function has been tem-

porarily canceled. However, if the “Alert”
customization setting is set to

,

the system will notify the driver by vibrat-

ing the steering wheel instead of sound-

ing the buzzer.

●

If the operating conditions (



P.249) are

no longer met, the buzzer may sound to

indicate that the lane change assist func-

tion has been temporarily canceled.

■

Steering assist function/lane centering

function

●

Depending on the vehicle speed, lane

departure situation, road conditions, etc.,

the driver may not feel the function is

operating or the function may not oper-

ate at all.

●

Even if the curve speed reduction func-

tion (



P.273) operates, the lane center-

ing function may not be able to drive the

vehicle around a curve successfully.

●

The steering control of the function is

overridden by the driver’s steering wheel

operation.

●

Do not attempt to test the operation of

the steering assist function.

■

Lane departure alert function

●

The warning buzzer may be difficult to

hear due to external noise, audio play-

back, etc. Also, it may be difficult to feel

steering wheel vibrations due to the road

conditions, etc.

●

If the edge of the course

*

 is not clear or

straight, the lane departure alert function

may not operate.

●

It may not be possible for the system to

determine if there is a danger of a colli-

sion with a vehicle in an adjacent lane.

●

Do not attempt to test the operation of

the lane departure alert function.

*

: Boundary between asphalt and the side

of the road, such as grass, soil, or a curb

■

Lane change assist function

Depending on the vehicle speed, vehicle

condition, road conditions, or conditions of

the area around the vehicle, the lane

change assist function may not operate or it

may be difficult to recognize that it has

operated.
If steering control operation is excessive or

insufficient, it can be corrected by the

driver’s operation of the steering wheel.
In situations such as the following, the lane

change assist function may be canceled:

●

When the system no longer detects white

(yellow) lane lines

●

When the turn signal lever is operated

fully (right/left turn position)

●

When the vehicle speed is outside of the

operational range of the function

●

When the system detects operation of

the steering wheel, brake or accelerator

pedal by the driver

While the lane change assist function is

operating, if the system detects that a vehi-

cle is quickly approaching in the lane

toward which the turn signal is operated,

the steering assist may slightly steer the

vehicle away from the lane while a buzzer is

sounding, the steering wheel is vibrating,

and a warning display is displayed on the

multi-information display, to help prevent

the vehicle from entering the lane and alert

the driver of the approaching vehicle.

■

Hands off steering wheel warning

In the following situations, a warning mes-

sage urging the driver to hold the steering

251

4-5. Using the driving support systems

LEXUS LS500h Owner's Manual

4

Driving

wheel and the symbol shown in the illustra-

tion are displayed on the multi-information

display to warn the driver. The warning

stops when the system determines that the

driver holds the steering wheel. Always

keep your hands on the steering wheel

when using this system, regardless of warn-

ings.
Depending on the vehicle condition and

road conditions, the warning may not oper-

ate. Also, if the system determines that the

vehicle is driving around a curve, warnings

will occur earlier than during straight-lane

driving.

●

When the system determines that the

driver is driving without holding the steer-

ing wheel while the system is operating

If the driver continues to keep their hands
off of the steering wheel, the buzzer
sounds, the driver is warned and the func-
tion is temporarily canceled. This warning
also operates in the same way when the
driver continuously operates the steering
wheel only a small amount.
The buzzer also sounds even if the alert
type is set to

.

●

When the system determines that the

driver is driving without holding the steer-

ing wheel while the steering wheel assist

of the steering assist function is operating

If the driver continues to keep their hands
off of the steering wheel and the steering
wheel assist is operating, the buzzer
sounds and the driver is warned. Each time
the buzzer sounds, the continuing time of
the buzzer becomes longer.
The buzzer also sounds even if the alert
type is set to

.

In situations such as the following, the sys-

tem may not be able to detect when the

driver’s hands are on the steering wheel:

●

If a steering wheel cover is installed.

●

If the driver is wearing gloves.

●

If something is attached to the steering

wheel.

●

If the driver is gripping the wood trim,

stitched area, spokes, or other part of the

steering wheel that does not have sen-

sors.

In situations such as the following, the hands

off steering wheel alert may not operate

and the steering assist function and lane

centering function may operate even if the

driver’s hands are off the steering wheel:

●

If an object contacts the steering wheel.

●

If a wide object or arms are held in front

of the steering wheel.

■

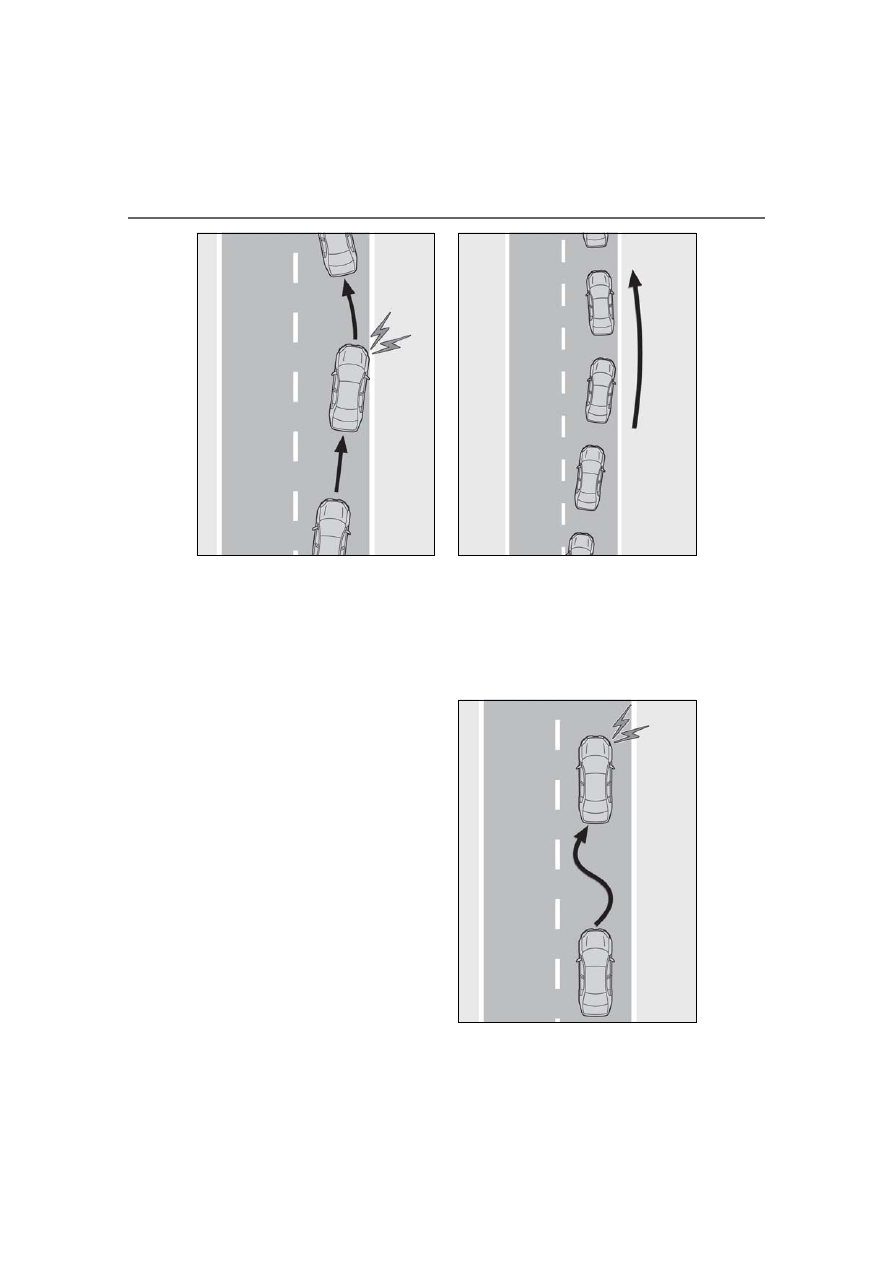

Vehicle sway warning function

When the system determines that the vehi-

cle is swaying while the vehicle sway warn-

ing function is operating, a buzzer sounds

and a warning message urging the driver to

rest and the symbol shown in the illustration

are simultaneously displayed on the

multi-information display.

Depending on the vehicle and road condi-

tions, the warning may not operate.

■

Situations in which LTA will turn on auto-

matically (vehicles with Advanced

Drive)

When the dynamic radar cruise control

with full-speed range operates in vehi-

cle-to-vehicle distance control mode, LTA

will turn on. (



P.270)

■

LTA (Lane Tracing Assist) warning mes-

sages

If the following warning message is dis-
