1-2. Child safety

LEXUS LS500h Owner's Manual

■

When installing in the rear out-
board seats

Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint sys-
tem.

Vehicles with power rear seat:
Adjust the seat

If there is a gap between the child seat and

the seatback, adjust the seatback angle

until good contact is achieved. (



P.50)

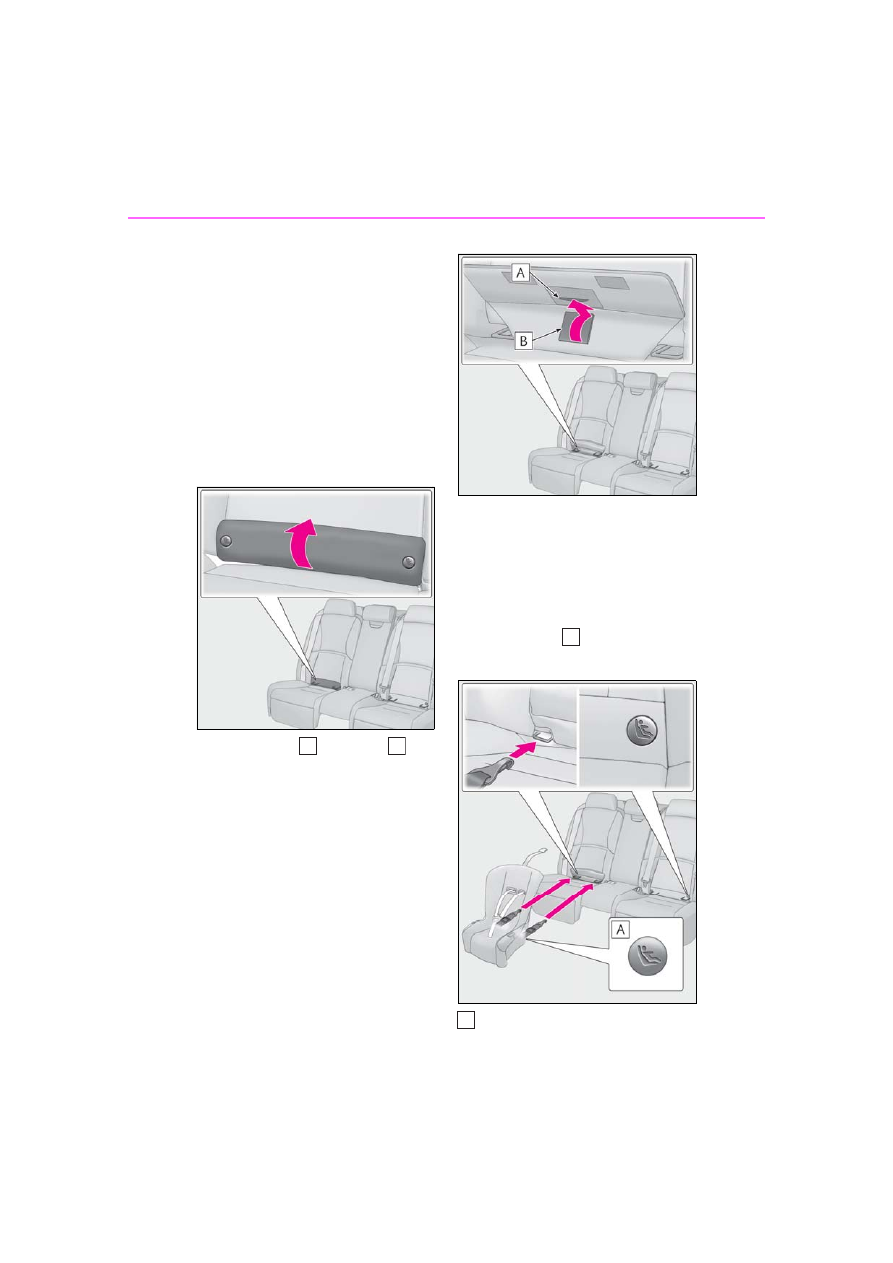

Open the cover.

Insert the tab into the slit of
the cover.

The cover will be held open.



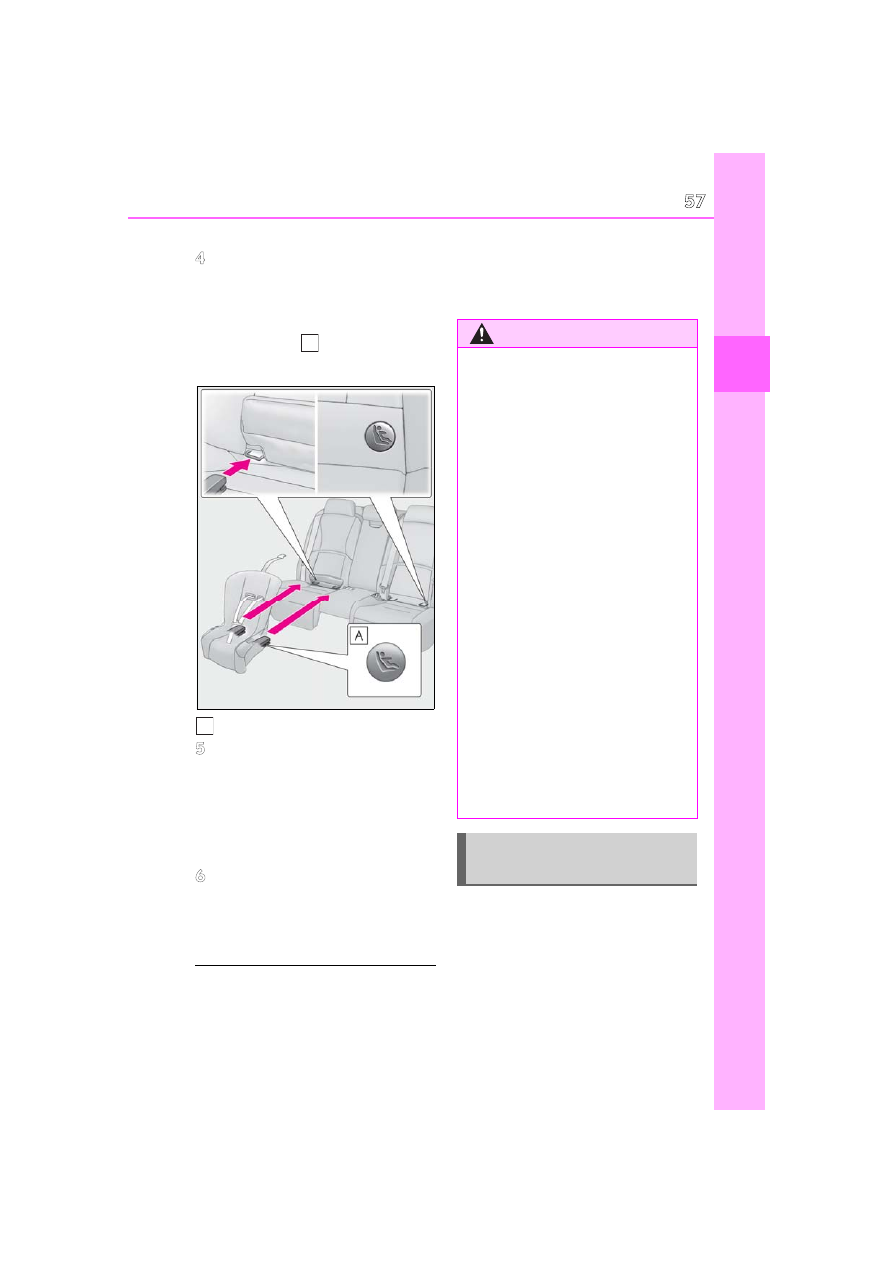

With flexible lower attachments

Latch the hooks of the lower
attachments onto the LATCH
anchors.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.

Canada only

1-2. Child safety

LEXUS LS500h Owner's Manual

For safety and security



With rigid lower attachments

Latch the buckles onto the LATCH
anchors.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.

Canada only

If the child restraint has a top tether
strap, follow the child restraint man-
ufacturer’s operation manual
regarding the installation, using the
top tether strap to latch onto the
top tether strap anchor. (



P.57)

After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
(



P.55)

■

Laws and regulations pertaining to

anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming to

FMVSS213 or CMVSS213 specifications

can be used.

This vehicle is designed to conform to SAE

J1819.

■

Anchor brackets (for top tether
strap)

Anchor brackets are provided for each
rear seat.
Use anchor brackets when fixing the
top tether strap.

WARNING

■

When installing a child restraint sys-

tem

Observe the following precautions.

Failure to do so may result in death or

serious injury.

●

When using the LATCH anchors, be

sure that there are no foreign objects

around the anchors and that the seat

belt is not caught behind the child

restraint system.

●

Follow all installation instructions pro-

vided by the child restraint system

manufacturer.

●

When securing some types of child

restraint systems in rear seats, it may

not be possible to properly use the

seat belts in positions next to the child

restraint without interfering with it or

affecting seat belt effectiveness. Be

sure your seat belt fits snugly across

your shoulder and low on your hips. If it

does not, or if it interferes with the

child restraint, move to a different posi-

tion. Failure to do so may result in

death or serious injury.

●

If the seat is adjusted, reconfirm the

security of the child restraint system.

Using an anchor bracket (for top
tether strap)

1-2. Child safety

LEXUS LS500h Owner's Manual



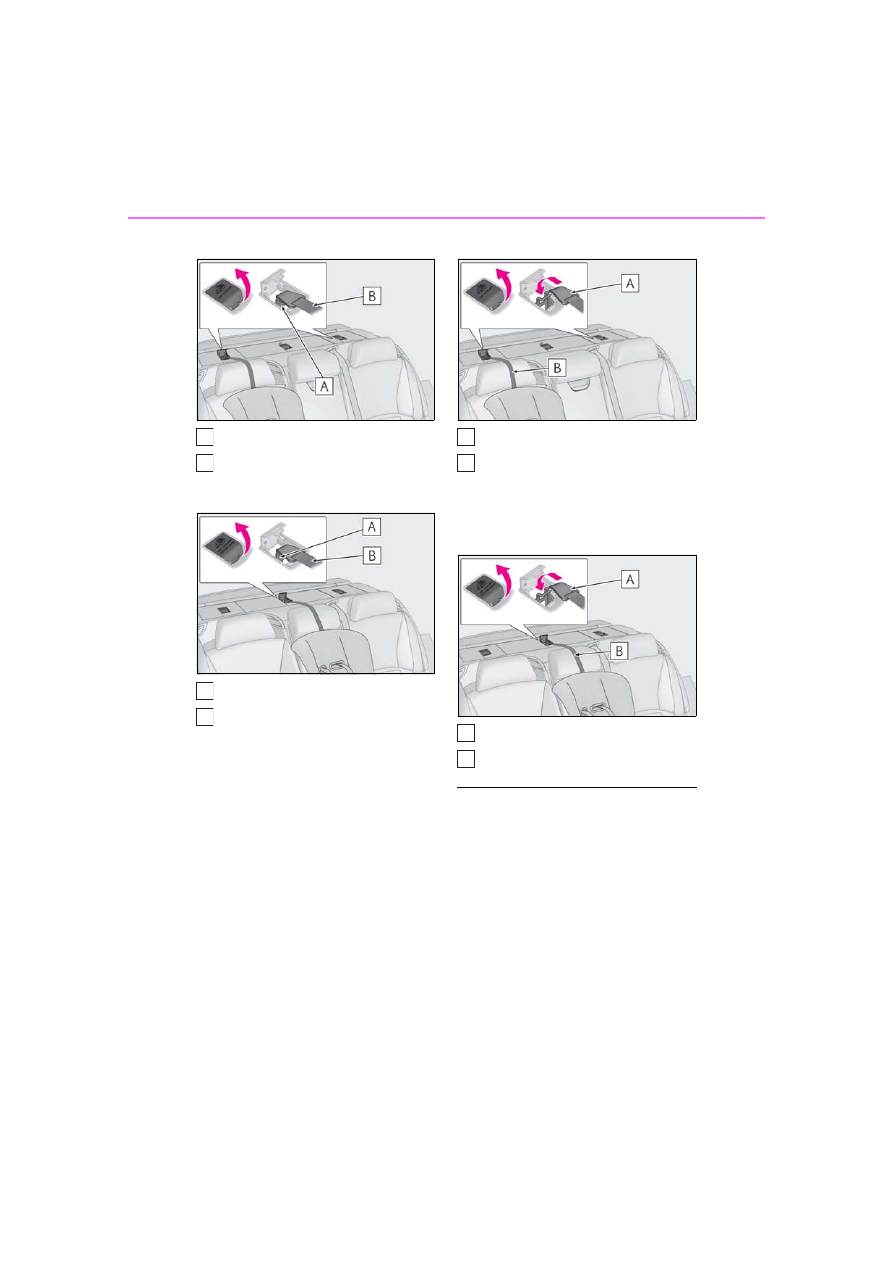

Outboard rear seats

Anchor brackets
Top tether strap



Rear center seat

Anchor bracket
Top tether strap

■

Fixing the top tether strap to the
anchor bracket

Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint sys-
tem.
Open the anchor bracket cover, latch
the hook onto the anchor bracket and
tighten the top tether strap.

Make sure the top tether strap is securely
latched. (



P.55)



Outboard rear seats

Hook
Top tether strap

Adjust the head restraint to the lowest
position.



Rear center seat

Hook
Top tether strap

■

Laws and regulations pertaining to

anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming to

FMVSS213 or CMVSS213 specifications

can be used.

This vehicle is designed to conform to SAE

J1819.

A
B

1-2. Child safety

LEXUS LS500h Owner's Manual

For safety and security

WARNING

■

When installing a child restraint sys-

tem

Observe the following precautions.

Failure to do so may result in death or

serious injury.

●

Firmly attach the top tether strap and

make sure that the belt is not twisted.

●

Do not attach the top tether strap to

anything other than the anchor

bracket.

●

Follow all installation instructions pro-

vided by the child restraint system

manufacturer.

●

Be sure to have the top tether strap

pass over the top of the head restraint.

If the belt passes below the head

restraint, it is possible that the child

restraint system may not be securely

fixed.

●

If the seat is adjusted, reconfirm the

security of the child restraint system.

NOTICE

■

Anchor brackets (for top tether

strap)

When not in use, make certain to close

the lid. If it remains open, the lid may be

damaged.

1-3. Lexus Enform

LEXUS LS500h Owner's Manual

1-3.Lexus Enform

“SOS” button
LED light indicators
Microphone

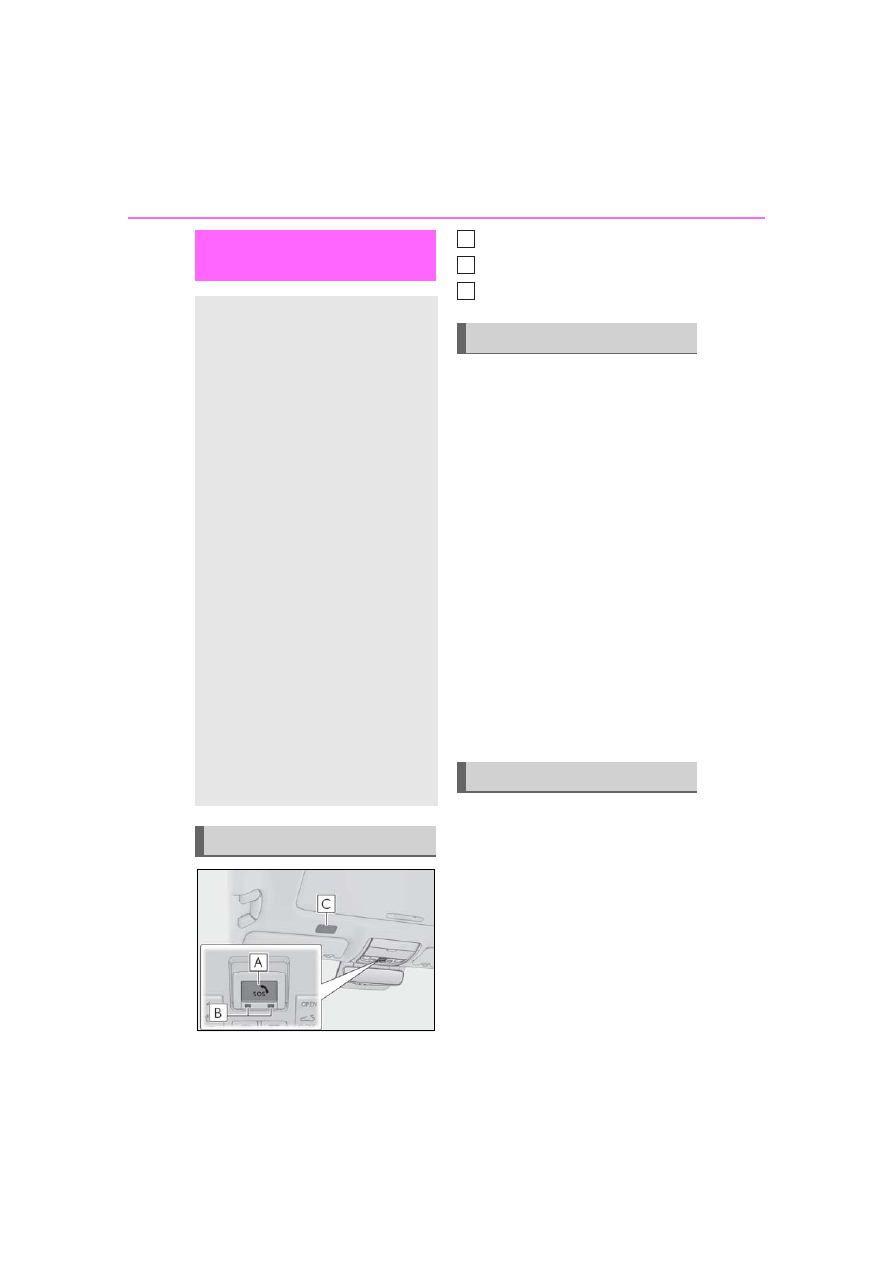

Subscribers have the following Safety
Connect services available:



Automatic Collision Notification

Helps drivers receive necessary response
from emergency service providers.
(



P.62)

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Helps drivers in the event of vehicle theft.
(



P.62)



Emergency Assistance Button
(“SOS”)

Connects drivers to response-center sup-
port. (



P.62)



Enhanced Roadside Assistance

Provides drivers various on-road assis-
tance. (



P.62)

After you have signed the Telematics
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.



The United States

1-800-25-LEXUS (1-800-255-3987)

Lexus Enform Safety Con-
nect

Safety Connect is a subscrip-
tion-based telematics service that
uses Global Positioning System
(GPS) data and embedded cellular
technology to provide safety and
security features to subscribers.
Safety Connect is supported by
Lexus’ designated response center,
which operates 24 hours per day, 7
days per week.

Safety Connect service is available
by subscription on select, telemat-
ics hardware-equipped vehicles.

By using the Safety Connect ser-
vice, you are agreeing to be bound
by the Telematics Subscription Ser-
vice Agreement and its Terms and
Conditions, as in effect and
amended from time to time, a cur-
rent copy of which is available at
Lexus.com. All use of the Safety
Connect service is subject to such
then-applicable Terms and Condi-
tions.

System components

Services

Subscription

A
B
C

1-3. Lexus Enform

LEXUS LS500h Owner's Manual

For safety and security



Canada

1-800-26-LEXUS (1-800-265-3987)



Puerto Rico

1-877-539-8777

■

Safety Connect Services Information

●

Phone calls using the vehicles Blue-
tooth

technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall

2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

●

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

●

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

●

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

■

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

■

When contacting the response center

You may be unable to contact the response

center if the network is busy.

When the power switch is turned to
ON mode, the red indicator light
comes on for 2 seconds then turns off.
Afterward, the green indicator light
comes on, indicating that the service is
active.
The following indicator light patterns
indicate specific system usage condi-
tions:



Green indicator light on = Active
service



Green indicator light flashing =
Safety Connect call in process



Red indicator light (except at vehi-
cle start-up) = System malfunction
(contact your Lexus dealer)



No indicator light (off) = Safety
Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emer-

Safety Connect LED light Indi-
cators

Safety Connect services

1-3. Lexus Enform

LEXUS LS500h Owner's Manual

gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-
tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at
1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at
Lexus.com.

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio trans-
mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.



ANSI (American National Stan-
dards Institute) C95.1 [1992]



NCRP (National Council on Radia-
tion Protection and Measurement)
Report 86 [1986]

Safety information for Safety
Connect

1-3. Lexus Enform

LEXUS LS500h Owner's Manual

For safety and security



ICNIRP (International Commission
on Non-Ionizing Radiation Protec-
tion) [1996]

Those standards were based on com-
prehensive and periodic evaluations of
the relevant scientific literature. Over
120 scientists, engineers, and physi-
cians from universities, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com-
plies with the FCC guidelines in addi-
tion to those standards.

1-4. Hybrid system

LEXUS LS500h Owner's Manual

1-4.Hybrid system

■

System components

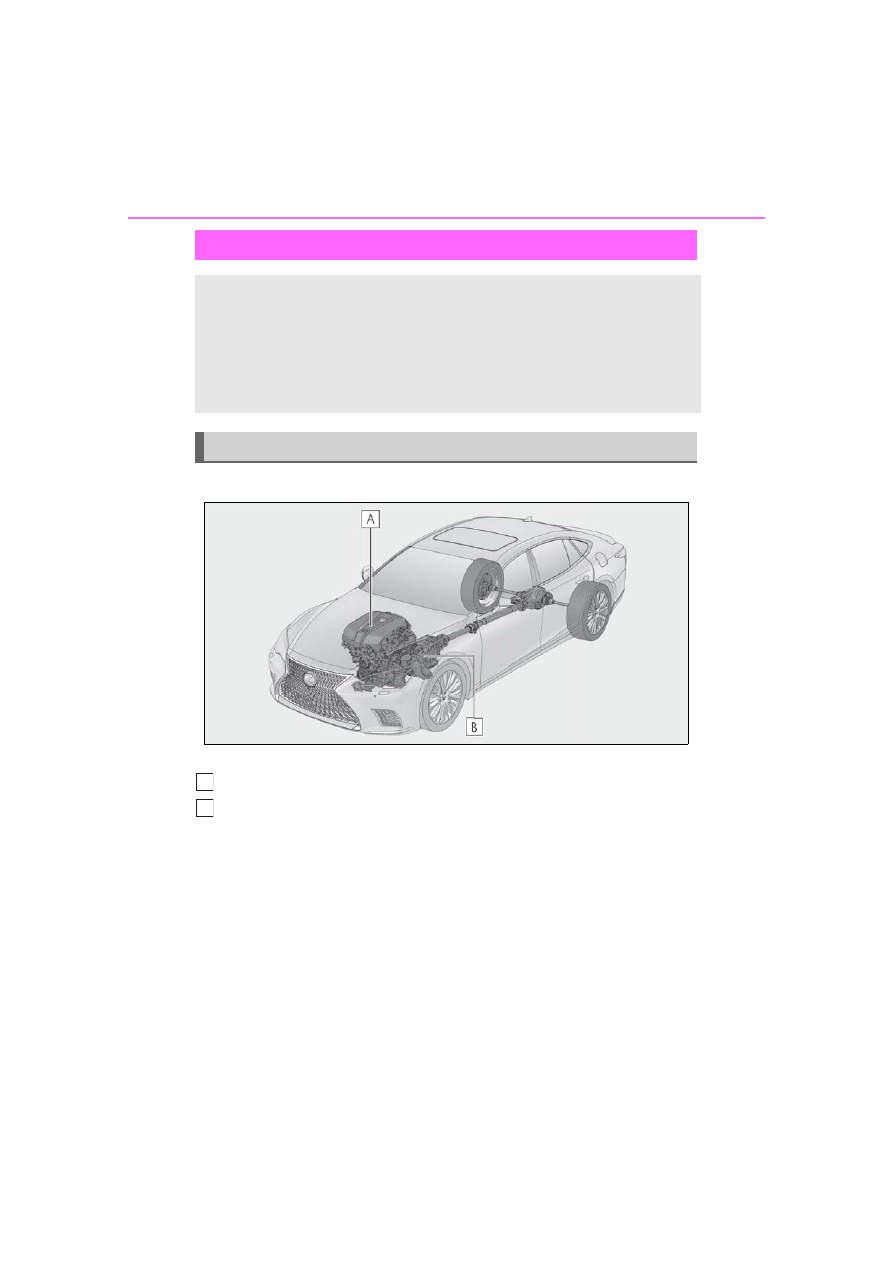

The illustration is an example for explanation and may differ from the actual item.

Gasoline engine
Electric motor (traction motor)

■

When stopped/during start off

The gasoline engine stops

when the

vehicle is stopped. During start off, the
electric motor (traction motor) drives
the vehicle. At slow speeds or when
traveling down a gentle slope, the
engine is stopped

and the electric

motor (traction motor) is used.
When the shift position is in N, the

hybrid battery (traction battery) is not
being charged.

: When the hybrid battery (traction bat-

tery) requires charging or the engine is
warming up, etc., the gasoline engine will
not automatically stop.

■

During normal driving

The gasoline engine is predominantly
used. The electric motor (traction
motor) charges the hybrid battery

Hybrid system features

Your vehicle is a hybrid electric vehicle. It has characteristics different from
conventional vehicles. Be sure you are closely familiar with the characteristics
of your vehicle, and operate it with care.

The hybrid system combines the use of a gasoline engine and an electric motor
(traction motor) according to driving conditions, improving fuel efficiency and
reducing exhaust emissions.

System components

A
B

1-4. Hybrid system

LEXUS LS500h Owner's Manual

For safety and security

(traction battery) as necessary.

■

When accelerating sharply

When the accelerator pedal is
depressed heavily, the power of the
hybrid battery (traction battery) is
added to that of the gasoline engine via
the electric motor (traction motor).

■

When braking (regenerative brak-
ing)

The wheels operate the electric motor
(traction motor) as a power generator,
and the hybrid battery (traction bat-
tery) is charged.

■

Regenerative braking

In the following situations, kinetic energy is

converted to electric energy and decelera-

tion force can be obtained in conjunction

with the recharging of the hybrid battery

(traction battery).

●

The accelerator pedal is released while

driving with the shift position in D or M.

●

The brake pedal is depressed while driv-

ing with the shift position in D or M.

■

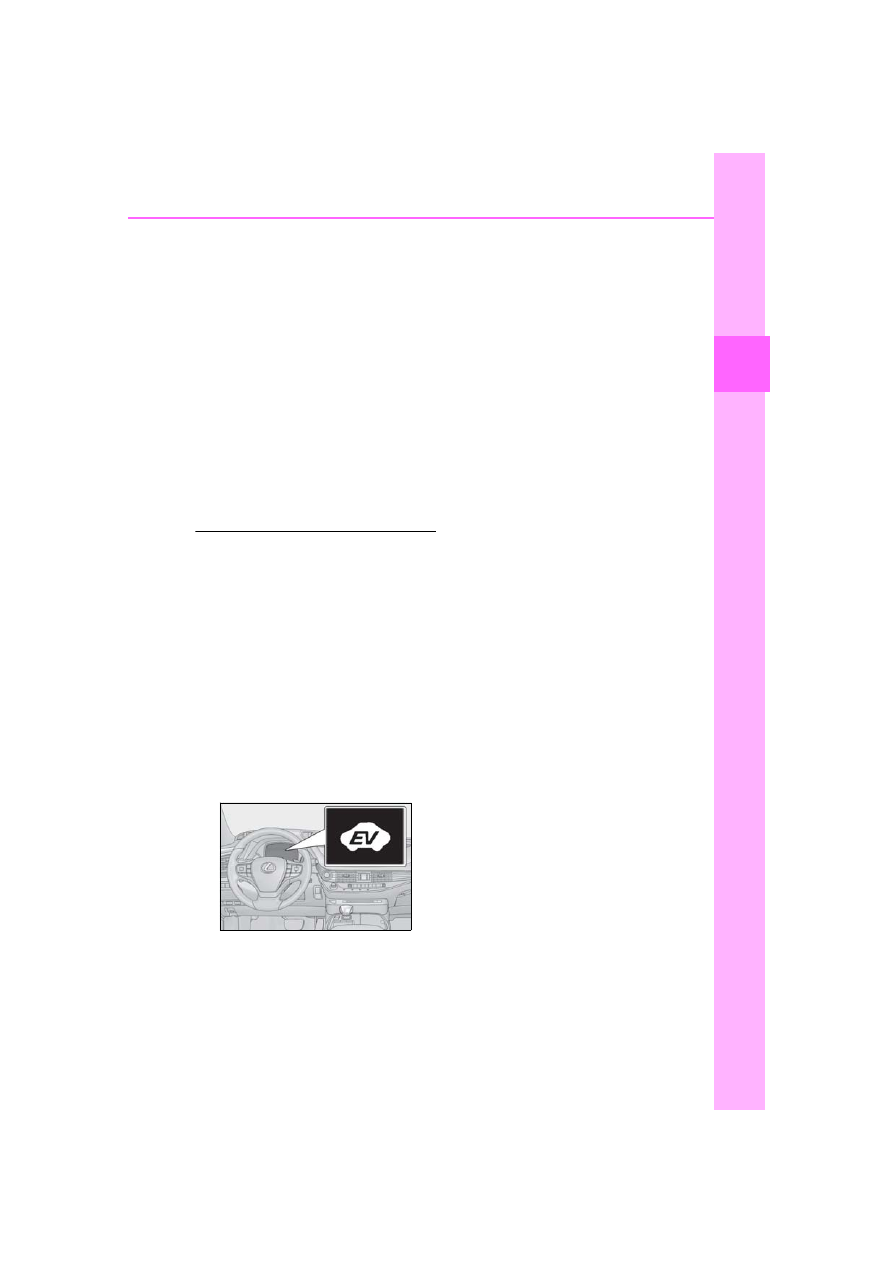

EV indicator

The EV indicator comes on when the vehi-

cle is driven using only the electric motor

(traction motor) or the gasoline engine is

stopped.

■

Conditions in which the gasoline engine

may not stop

The gasoline engine starts and stops auto-

matically. However, it may not stop auto-

matically in the following conditions:

●

During gasoline engine warm-up

●

During hybrid battery (traction battery)

charging

●

When the temperature of the hybrid bat-

tery (traction battery) is high or low

●

When the heater is switched on

●

When the shift position is in M

Depending on the circumstances, the gaso-

line engine may also not stop automatically

in other situations.

■

Charging the hybrid battery (traction

battery)

As the gasoline engine charges the hybrid

battery (traction battery), the battery does

not need to be charged from an outside

source. However, if the vehicle is left parked

for a long time the hybrid battery (traction

battery) will slowly discharge. For this rea-

son, be sure to drive the vehicle at least

once every few months for at least 30 min-

utes or 10 miles (16 km). If the hybrid bat-

tery (traction battery) becomes fully

discharged and you are unable to start the

hybrid system, contact your Lexus dealer.

■

Charging the 12-volt battery



P.481

■

After the 12-volt battery has discharged

or when the terminal has been removed

and installed during exchange, etc.

The gasoline engine may not stop even if

the vehicle is being driven by the hybrid bat-

tery (traction battery). If this continues for a

few days, contact your Lexus dealer.

■

Sounds and vibrations specific to a

hybrid electric vehicle

Because there is no engine sound or vibra-

tion, it is easy to mistake the hybrid electric

vehicle for being off when it is actually still

running, as indicated by the “READY” indi-

cator being illuminated. For safety, make

sure to always shift the shift position to P

and apply the parking brake when parked.
The following sounds or vibrations may

occur when the hybrid system is operating

and are not a malfunction:

●

Motor sounds may be heard from the

engine compartment.

●

Relay operating sounds such as a snap or

soft clank will be emitted from the hybrid

1-4. Hybrid system

LEXUS LS500h Owner's Manual

battery (traction battery), behind the rear

seats, when the hybrid system is started

or stopped.

●

Sounds may be heard from the hybrid

battery (traction battery) behind the rear

seats when the hybrid system starts or

stops.

●

Sounds from the hybrid system may be

heard when the trunk lid is open.

●

Sounds may be heard from the transmis-

sion when the gasoline engine starts or

stops, when driving at low speeds, or

during idling.

●

Engine sounds may be heard when

accelerating sharply.

●

Sounds may be heard due to regenera-

tive braking when the brake pedal is

depressed or as the accelerator pedal is

released.

●

Vibration may be felt or sounds may be

heard when the gasoline engine starts or

stops.

●

Cooling fan sounds may be heard from

the air intake vents on the both sides of

the rear seatback.

■

Maintenance, repair, recycling, and dis-

posal

Contact your Lexus dealer regarding main-

tenance, repair, recycling and disposal. Do

not dispose of the vehicle yourself.

■

Customization

Some functions can be customized.

(



P.513)

When driving with the gasoline engine
stopped, a sound, which changes in
accordance with the driving speed, will
be played in order to warn people
nearby of the vehicle’s approach. The
sound will stop when the vehicle speed
exceeds approximately 22 mph (35
km/h).

■

Acoustic Vehicle Alerting System

In the following cases, the Acoustic Vehicle

Alerting System may be difficult for sur-

rounding people to hear.

●

In very noisy areas

●

In the wind or the rain

Also, as the Acoustic Vehicle Alerting Sys-

tem is installed on the front of the vehicle, it

may be more difficult to hear from the rear

of the vehicle compared to the front.

Acoustic Vehicle Alerting Sys-
tem

1-4. Hybrid system

LEXUS LS500h Owner's Manual

For safety and security

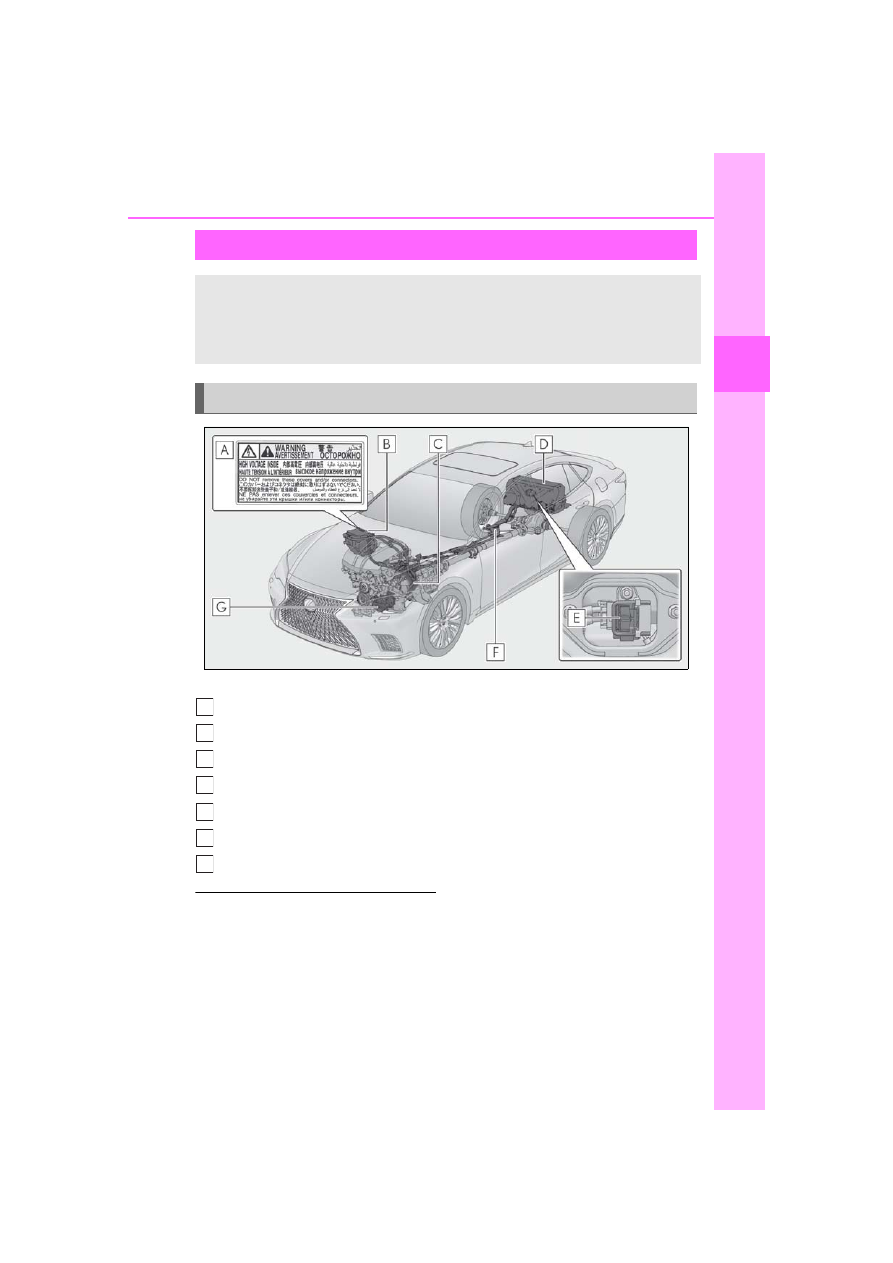

The illustration is an example for explanation and may differ from the actual item.

Warning label
Power control unit
Electric motor (traction motor)
Hybrid battery (traction battery)
Service plug
High voltage cables (orange)
Air conditioning compressor

■

Running out of fuel

When the vehicle has run out of fuel and the

hybrid system cannot be started, refuel the

vehicle with at least enough gasoline to

make the low fuel level warning light

(



P.466) go off. If there is only a small

amount of fuel, the hybrid system may not

be able to start. (The standard amount of

fuel is about 3.4 gal. [13 L, 2.8 Imp. gal.],

when the vehicle is on a level surface. This

value may vary when the vehicle is on a

slope. Add extra fuel when the vehicle is

inclined.)

■

Electromagnetic waves

●

High voltage parts and cables on hybrid

electric vehicles incorporate electro-

magnetic shielding, and therefore emit

approximately the same amount of elec-

Hybrid system precautions

Take care when handling the hybrid system, as it is a high voltage system (about
650 V at maximum) as well as contains parts that become extremely hot when
the hybrid system is operating. Obey the warning labels attached to the vehi-
cle.

System components

A
B
C
D

E
F

1-4. Hybrid system

LEXUS LS500h Owner's Manual

tromagnetic waves as conventional gaso-

line powered vehicles or home electronic

appliances.

●

Your vehicle may cause sound interfer-

ence in some third party-produced radio

parts.

■

Hybrid battery (traction battery)

The hybrid battery (traction battery) has a

limited service life. The lifespan of the

hybrid battery (traction battery) can

change in accordance with driving style and

driving conditions.

■

Starting the hybrid system in an

extremely cold environment

When the hybrid battery (traction battery)

is extremely cold (below approximately

-22°F [-30°C]) under the influence of the

outside temperature, it may not be possible

to start the hybrid system. In this case, try to

start the hybrid system again after the tem-

perature of the hybrid battery increases due

to the outside temperature increase etc.

WARNING

■

High voltage precautions

This vehicle has high voltage DC and AC

systems as well as a 12-volt system. DC

and AC high voltage is very dangerous

and can cause severe burns and electric

shock that may result in death or serious

injury.

●

Never touch, disassemble, remove or

replace the high voltage parts, cables

or their connectors.

●

The hybrid system will become hot

after starting as the system uses high

voltage. Be careful of both the high

voltage and the high temperature, and

always obey the warning labels

attached to the vehicle.

●

Never try to open the service plug

access hole located behind the rear

seat. The service plug is used only

when the vehicle is serviced and is

subject to high voltage.

■

Road accident cautions

Observe the following precautions to

reduce the risk of death or serious injury:

●

Stop the vehicle in a safe place to pre-

vent subsequent accidents. While

depressing the brake pedal, apply the

parking brake and shift the shift posi-

tion to P to stop the hybrid system.

Then, slowly release the brake pedal.

●

Do not touch the high voltage parts,

cables and connectors.

●

If electric wires are exposed inside or

outside your vehicle, an electric shock

may occur. Never touch exposed elec-

tric wires.

●

Do not touch the battery if liquid is

leaking from or adhering to it.

If electrolyte (carbonate ester-based

organic electrolyte) from the hybrid

battery (traction battery) comes into

contact with the eyes or skin, it could

cause blindness or skin wounds. In the

unlikely event that it comes into con-

tact with the eyes or skin, wash it off

immediately with a large amount of

water, and seek immediate medical

attention.

1-4. Hybrid system

LEXUS LS500h Owner's Manual

For safety and security

WARNING

●

If electrolyte is leaking from the hybrid

battery (traction battery), do not

approach the vehicle.

Even in the unlikely event that the

hybrid battery (traction battery) is

damaged, the internal construction of

the battery will prevent a large amount

of electrolyte from leaking out. How-

ever, any electrolyte that does leak out

will give off a vapor. This vapor is an

irritant to skin and eyes and could

cause acute poisoning if inhaled.

●

Do not bring burning or high-tem-

perature items close to the electrolyte.

The electrolyte may ignite and cause a

fire.

●

If a fire occurs in the hybrid electric

vehicle, leave the vehicle as soon as

possible. Never use a fire extinguisher

that is not meant for electric fires.

Using even a small amount of water

may be dangerous.

●

If your vehicle needs to be towed, do

so with four wheels raised. If the

wheels connected to the electric

motor (traction motor) are on the

ground when towing, the motor may

continue to generate electricity. This

may cause a fire. (



P.457)

●

Carefully inspect the ground under the

vehicle. If you find that liquid has

leaked onto the ground, the fuel sys-

tem may have been damaged. Leave

the vehicle as soon as possible.

■

Hybrid battery (traction battery)

●

Your vehicle contains a sealed lith-

ium-ion battery.

●

Never resell, hand over or modify the

hybrid battery. To prevent accidents,

hybrid batteries that have been

removed from a disposed vehicle are

collected through your Lexus dealer.

Do not dispose of the battery yourself.

Unless the battery is properly collected,
the following may occur, resulting in
death or serious injury:

• The hybrid battery may be illegally dis-

posed of or dumped, and it is hazard-

ous to the environment or someone

may touch a high voltage part, result-

ing in an electric shock.

• The hybrid battery

is intended to be

used exclusively with your hybrid elec-

tric vehicle. If the hybrid battery is used

outside of your vehicle or modified in

any way, accidents such as electric

shock, heat generation, smoke gener-

ation, an explosion and electrolyte

leakage may occur.

When reselling or handing over your
vehicle, the possibility of an accident is
extremely high because the person
receiving the vehicle may not be aware
of these dangers.

●

If your vehicle is disposed of without

the hybrid battery having been

removed, there is a danger of serious

electric shock if high voltage parts,

cables and their connectors are

touched. In the event that your vehicle

must be disposed of, the hybrid battery

must be disposed of by your Lexus

dealer or a qualified service shop. If

the hybrid battery is not disposed of

properly, it may cause electric shock

that can result in death or serious

injury.

1-4. Hybrid system

LEXUS LS500h Owner's Manual

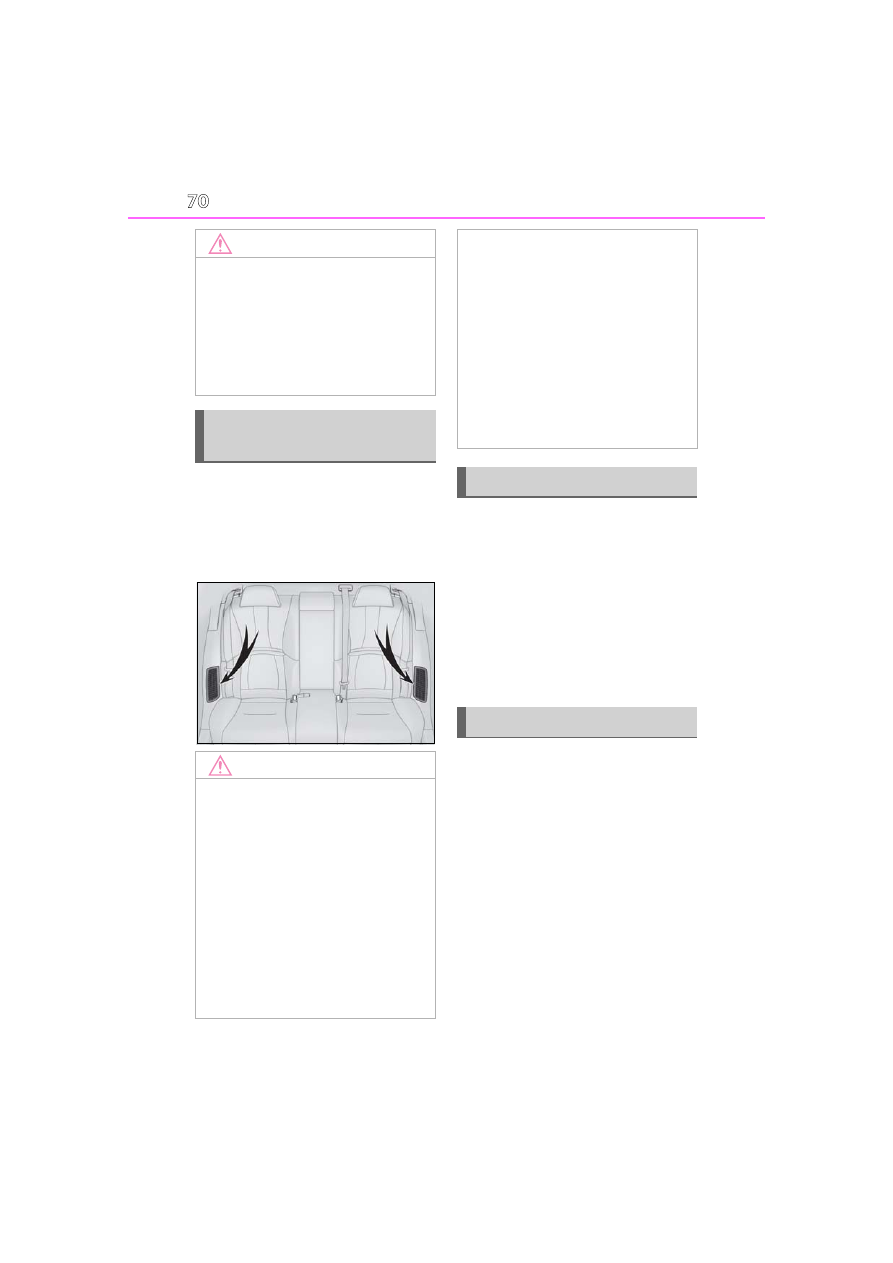

There are air intake vents on each side
of the rear seatback with the purpose
of cooling the hybrid battery (traction
battery). If the vents become blocked,
hybrid battery output may be reduced.

When a certain level of impact is
detected by the impact sensor, the
emergency shut off system blocks the
high voltage current and stops the fuel
pump to minimize the risk of electrocu-
tion and fuel leakage. If the emergency
shut off system activates, your vehicle
will not restart. To restart the hybrid
system, contact your Lexus dealer.

A message is automatically displayed
when a malfunction occurs in the
hybrid system or an improper opera-
tion is attempted.

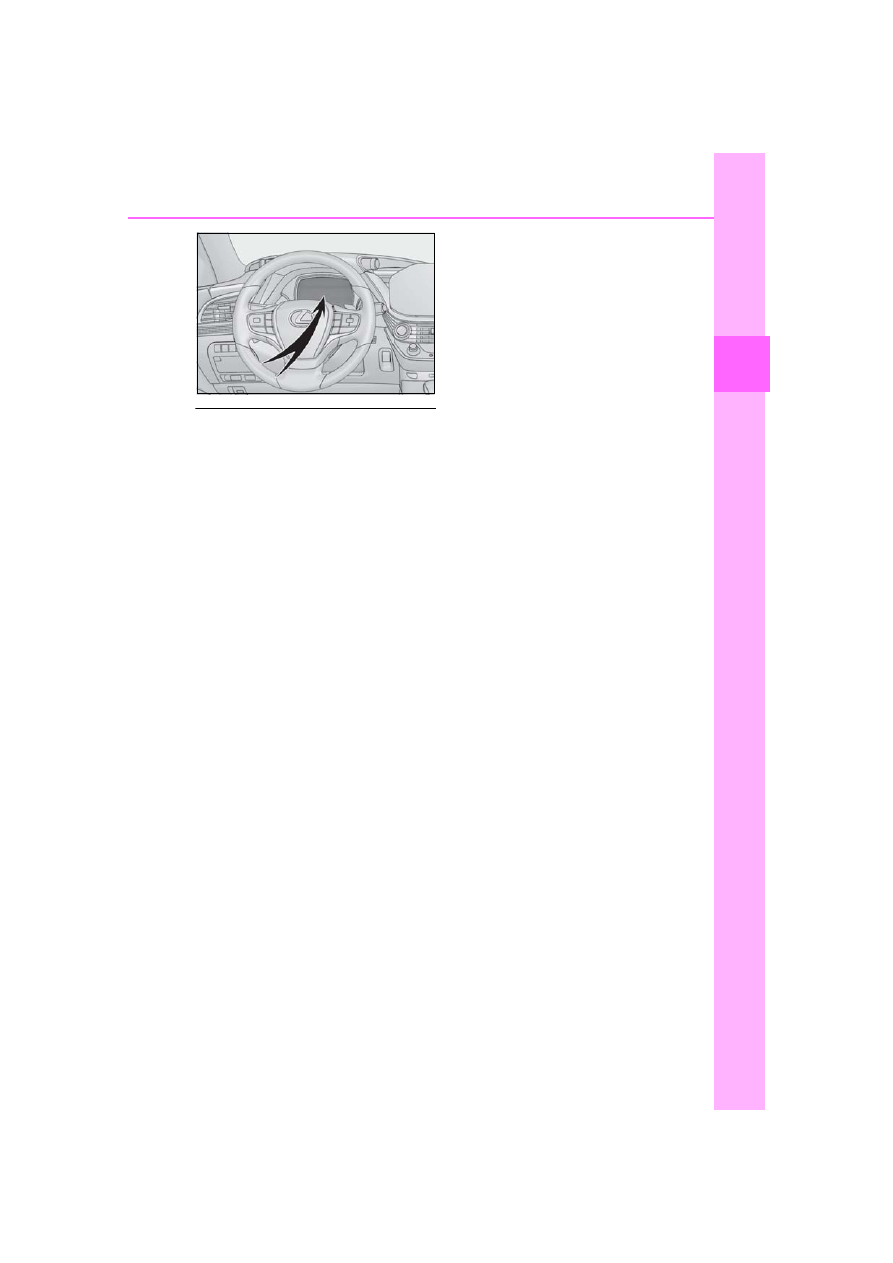

If a warning message is shown on the
multi-information display, read the
message and follow the instructions.

NOTICE

■

Hybrid battery (traction battery) air

intake vents

Do not carry large amounts of water

such as water cooler bottles in the vehi-

cle. If water spills onto the hybrid battery

(traction battery), the battery may be

damaged. Have the vehicle inspected by

your Lexus dealer.

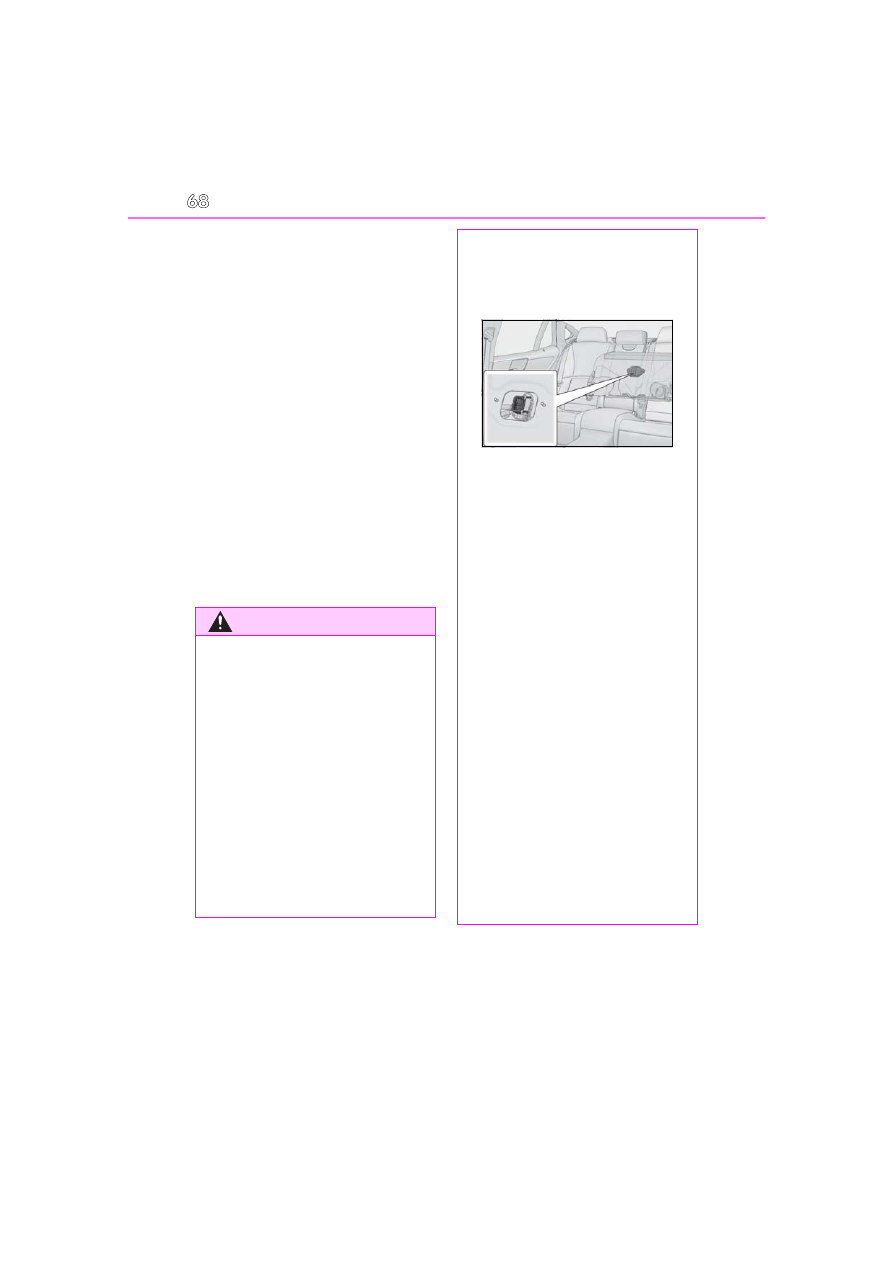

Hybrid battery (traction bat-
tery) air intake vents

NOTICE

■

Hybrid battery (traction battery) air

intake vents

●

Make sure not to block the air intake

vent with anything, such as a seat

cover, plastic cover, or luggage. If the

vents become blocked, the hybrid bat-

tery (traction battery) input and output

may be restricted, leading to a reduc-

tion in hybrid battery (traction battery)

output and a malfunction.

●

When dust etc. has accumulated in the

air intake vent, periodically clean it

with a vacuum cleaner to prevent the

vent from clogging.

●

A filter is installed to the air intake vent.

When the filter remains noticeably

dirty even after cleaning the air intake

vent, filter cleaning or replacement is

recommended. When cleaning or

replacing the filter, contact your Lexus

dealer.

Refer to P.442for details on how to

clean the filters.

●

Do not get water or foreign materials

in the air intake vents as this may cause

a short circuit and damage the hybrid

battery (traction battery).

Emergency shut off system

Hybrid warning message

1-4. Hybrid system

LEXUS LS500h Owner's Manual

For safety and security

■

If a warning light comes on, a warning

message is displayed, or the 12-volt bat-

tery is disconnected

The hybrid system may not start. In this

case, try to start the system again. If the

“READY” indicator does not come on, con-

tact your Lexus dealer.

Content .. 1 2 3 4 ..
