378

6-2. Maintenance

LEXUS LS500 Owner's Manual

The OBD system determines that a
problem exists somewhere in the emis-
sion control system. Your vehicle may
not pass the I/M test and may need to
be repaired. Contact your Lexus
dealer to service the vehicle.



When the battery is disconnected
or discharged

Readiness codes that are set during ordi-
nary driving are erased.
Also, depending on your driving habits, the
readiness codes may not be completely
set.



When the fuel tank cap is loose

The malfunction indicator lamp comes on
indicating a temporary malfunction and
your vehicle may not pass the I/M test.

The error code in the OBD system will
not be cleared unless the vehicle is
driven 40 or more times.

Contact your Lexus dealer to prepare
the vehicle for re-testing.

Emission inspection and
maintenance (I/M) pro-
grams

Some states have vehicle emission
inspection programs which include
OBD (On Board Diagnostics)
checks. The OBD system monitors
the operation of the emission con-
trol system.

If the malfunction indicator lamp
comes on

Your vehicle may not pass the
I/M test in the following situa-
tions:

When the malfunction indicator
lamp still remains on after sev-
eral driving trips

If your vehicle does not pass the
I/M test

379

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

Mai
nte

e a

are

6-3.Do-it-yourself maintenance

Do-it-yourself service pre-
cautions

If you perform maintenance by
yourself, be sure to follow the cor-
rect procedure as given in these
sections.

Maintenance

Items

Parts and tools

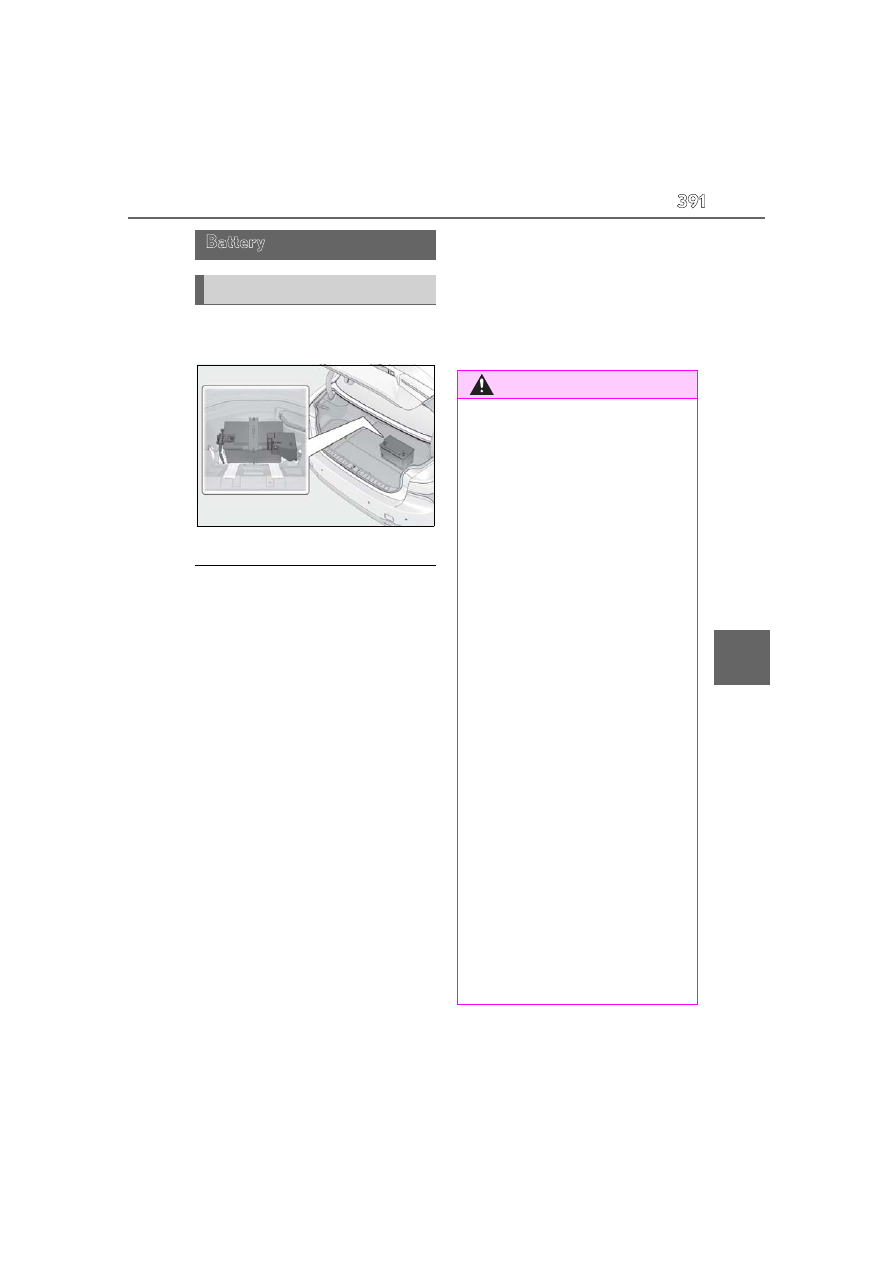

Battery condition
(



P.391)

• Grease
• Conventional

wrench (for terminal
clamp bolts)

Brake fluid level
(



P.389)

• FMVSS No.116 DOT

3 or SAE J1703
brake fluid
FMVSS No.116 DOT
4 or SAE J1704
brake fluid

• Rag or paper towel
• Funnel (used only for

adding brake fluid)

Engine/inter-
cooler coolant
level (



P.388)

• “Toyota Super Long

Life Coolant” or a
similar high quality
ethylene gly-
col-based non-sili-
cate, non-amine,
non-nitrite and
non-borate coolant
with long-life hybrid
organic acid tech-
nology
For the U.S.A.:
“Toyota Super Long
Life Coolant” is
pre-mixed with 50%
coolant and 50%
deionized water.
For Canada:
“Toyota Super Long
Life Coolant” is
pre-mixed with 55%
coolant and 45%
deionized water.

• Funnel (used only for

adding coolant)

Engine oil level
(



P.386)

• “Toyota Genuine

Motor Oil” or equiv-
alent

• Rag or paper towel
• Funnel (used only for

adding engine oil)

Fuses (



P.410)

• Fuse with same

amperage rating as
original

Headlight aim
(



P.413)

• Phillips-head screw-

driver

Items

Parts and tools

380

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

Radiator, con-
denser, inter-
cooler radiator
and intercooler
sub radiator
(



P.389)



Tire inflation pres-
sure (



P.404)

• Tire pressure gauge
• Compressed air

source

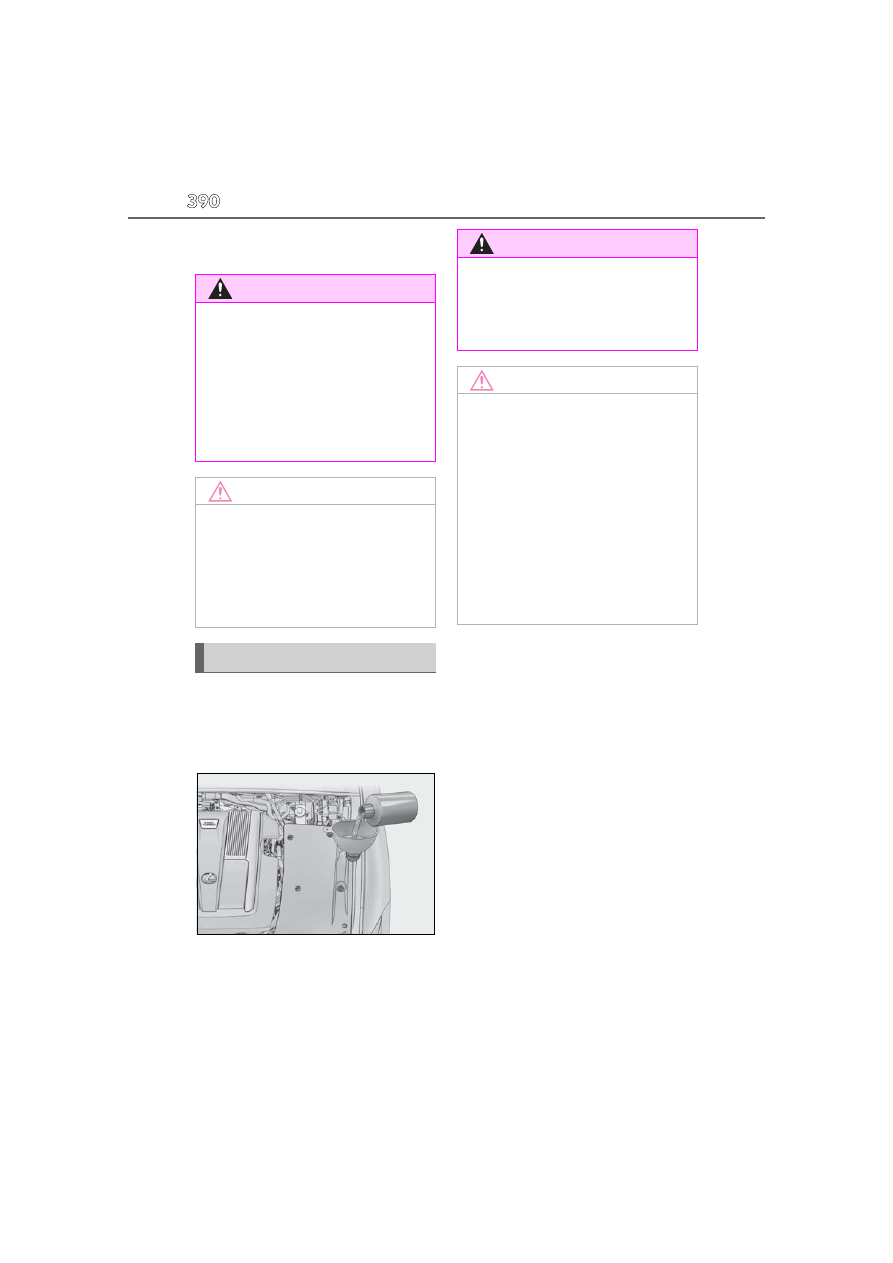

Washer fluid
(



P.390)

• Water or washer

fluid containing anti-
freeze (for winter
use)

• Funnel (used only for

adding water or
washer fluid)

WARNING

The engine compartment contains many

mechanisms and fluids that may move

suddenly, become hot, or become elec-

trically energized. To avoid death or seri-

ous injury, observe the following

precautions.

■

When working on the engine com-

partment

●

Keep hands, clothing and tools away

from the moving fan and engine drive

belt.

●

Be careful not to touch the engine,

radiator, exhaust manifold, etc. right

after driving as they may be hot. Oil

and other fluids may also be hot.

●

Do not leave anything that may burn

easily, such as paper and rags, in the

engine compartment.

●

Do not smoke, cause sparks or expose

an open flame to fuel. Fuel fumes are

flammable.

Items

Parts and tools

■

When working near the electric cool-

ing fan or radiator grille

Be sure the engine switch is off.

With the engine switch in IGNITION

ON mode, the electric cooling fan may

automatically start to run if the air condi-

tioning is on and/or the coolant tempera-

ture is high. (



P.389)

■

Safety glasses

Wear safety glasses to prevent flying or

falling material, fluid spray, etc. from get-

ting in your eyes.

NOTICE

■

If you remove the air cleaner filter

Driving with the air cleaner filter

removed may cause excessive engine

wear due to dirt in the air.

381

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

Mai
nte

e a

are

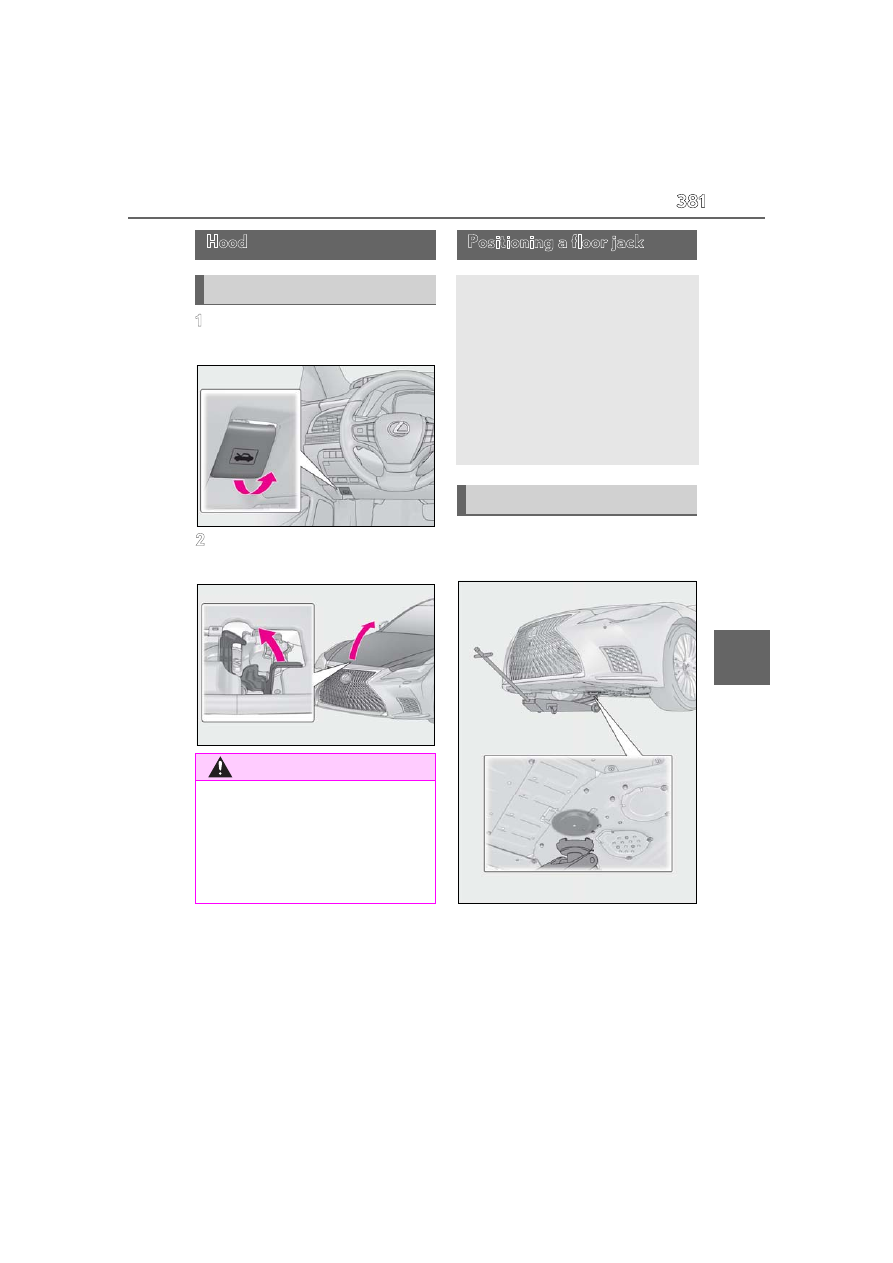

Pull the hood lock release lever.

The hood will pop up slightly.

Pull up the auxiliary catch lever and
lift the hood.

■

Front



2WD models

Hood

Opening the hood

WARNING

■

Pre-driving check

Check that the hood is fully closed and

locked.

If the hood is not locked properly, it may

open while the vehicle is in motion and

cause an accident, which may result in

death or serious injury.

Positioning a floor jack

When using a floor jack, follow the
instructions in the manual provided
with the jack and perform the oper-
ation safely.
When raising your vehicle with a
floor jack, position the jack cor-
rectly. Improper placement may
damage your vehicle or cause
injury.

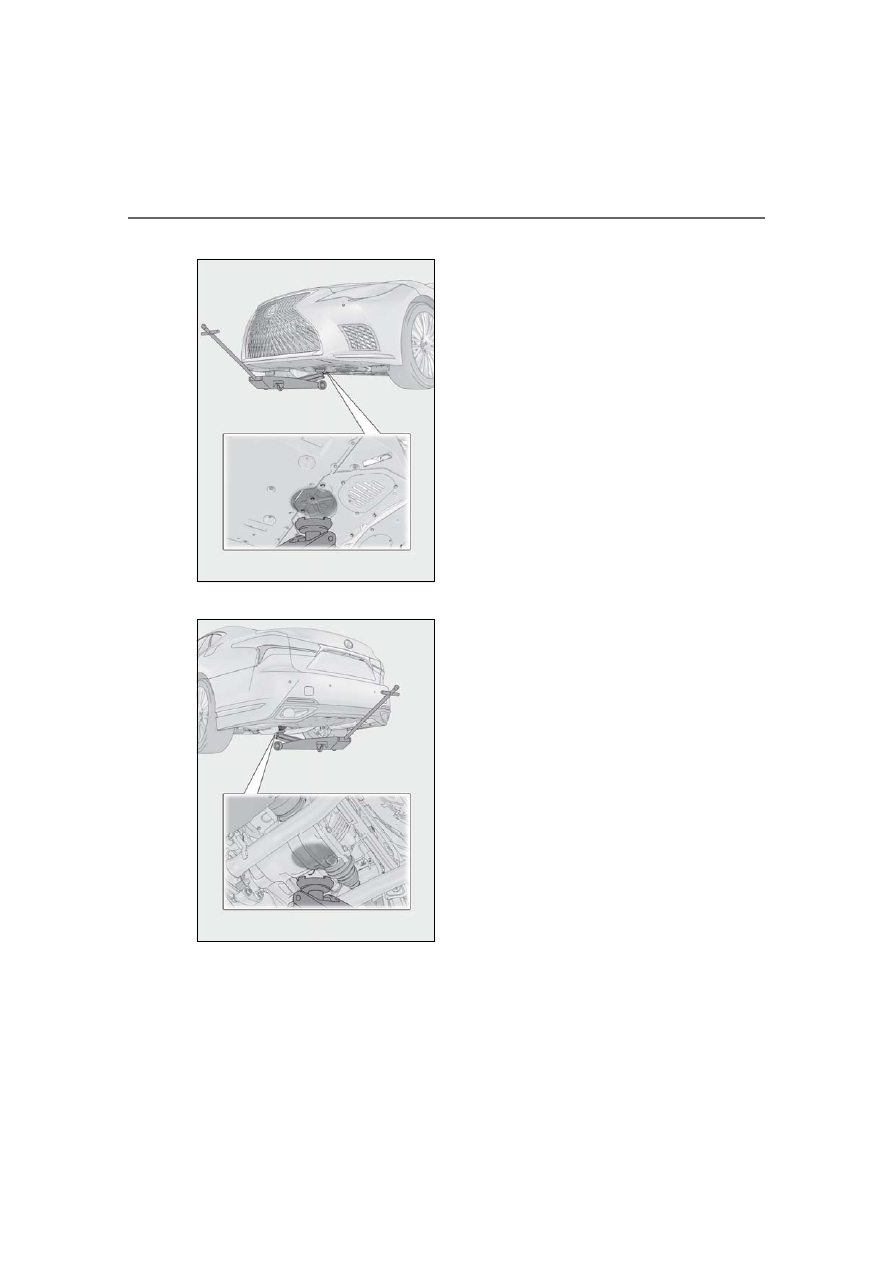

Location of the jack point

382

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual



AWD models

■

Rear

383

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

Mai
nte

e a

are

Fuse boxes (



P.410)

Engine oil filler cap (



P.387)

Engine coolant reservoir (



P.388)

Intercooler coolant reservoir (



P.388)

Engine oil level dipstick (



P.386)

Brake fluid reservoir (



P.389)

Washer fluid tank (



P.390)

Radiator (



P.389)

Intercooler radiator (



P.389)

Electric cooling fan
Condenser (



P.389)

Intercooler sub radiator (



P.389)

For AWD models:
The engine oil level dipstick is located on the opposite side of the engine.

■

Battery



P.391

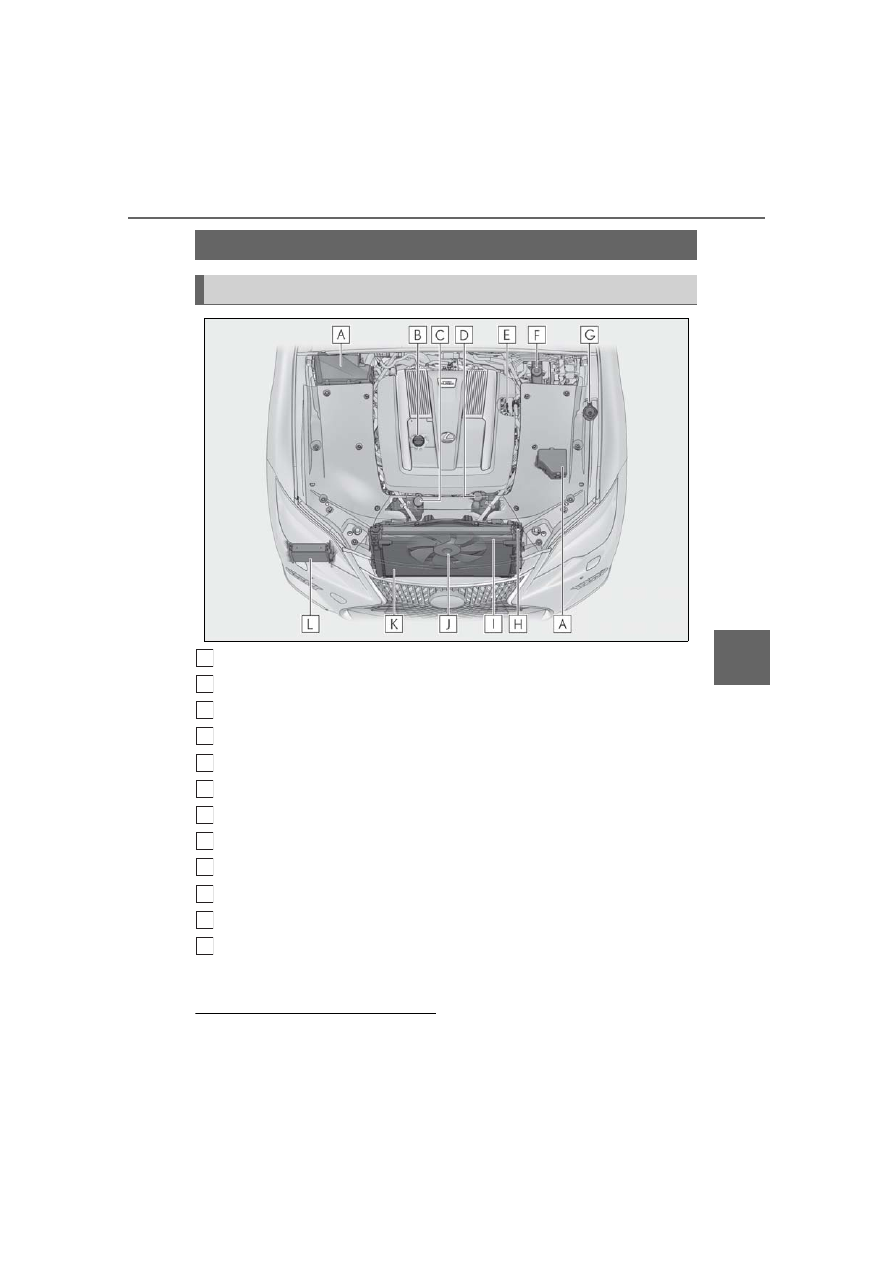

Engine compartment

Components

A
B
C
D

E
F

384

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

■

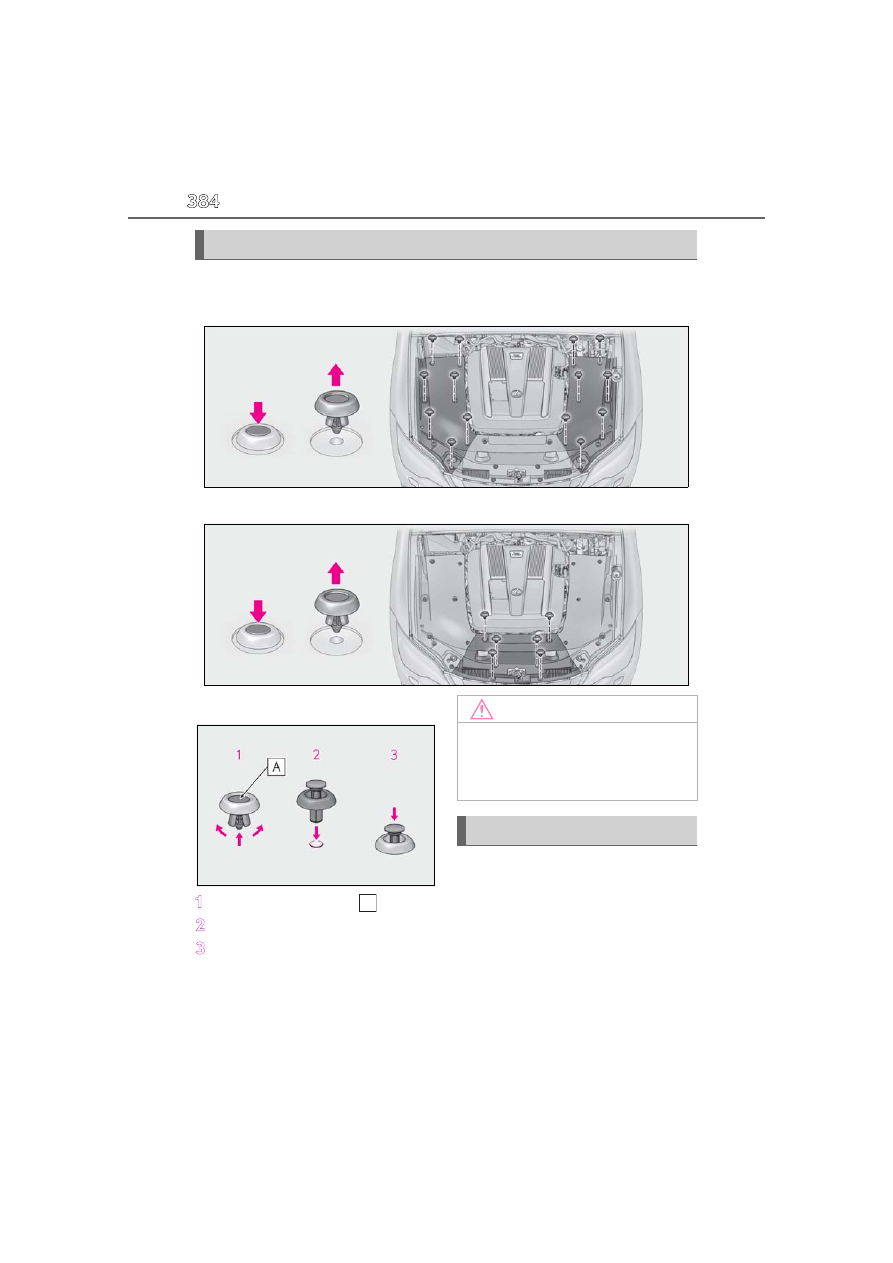

Removing the engine compartment cover



Outside



Front

■

Installing the clips

Push up center portion

Insert

Press

■

Removing the engine cover

Lift the front of the engine cover
straight up and then pull it forward.

Engine compartment cover

NOTICE

■

Checking the engine compartment

cover after installation

Make sure that the cover is securely

installed in its original position.

Engine cover

385

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

Mai
nte

e a

are

■

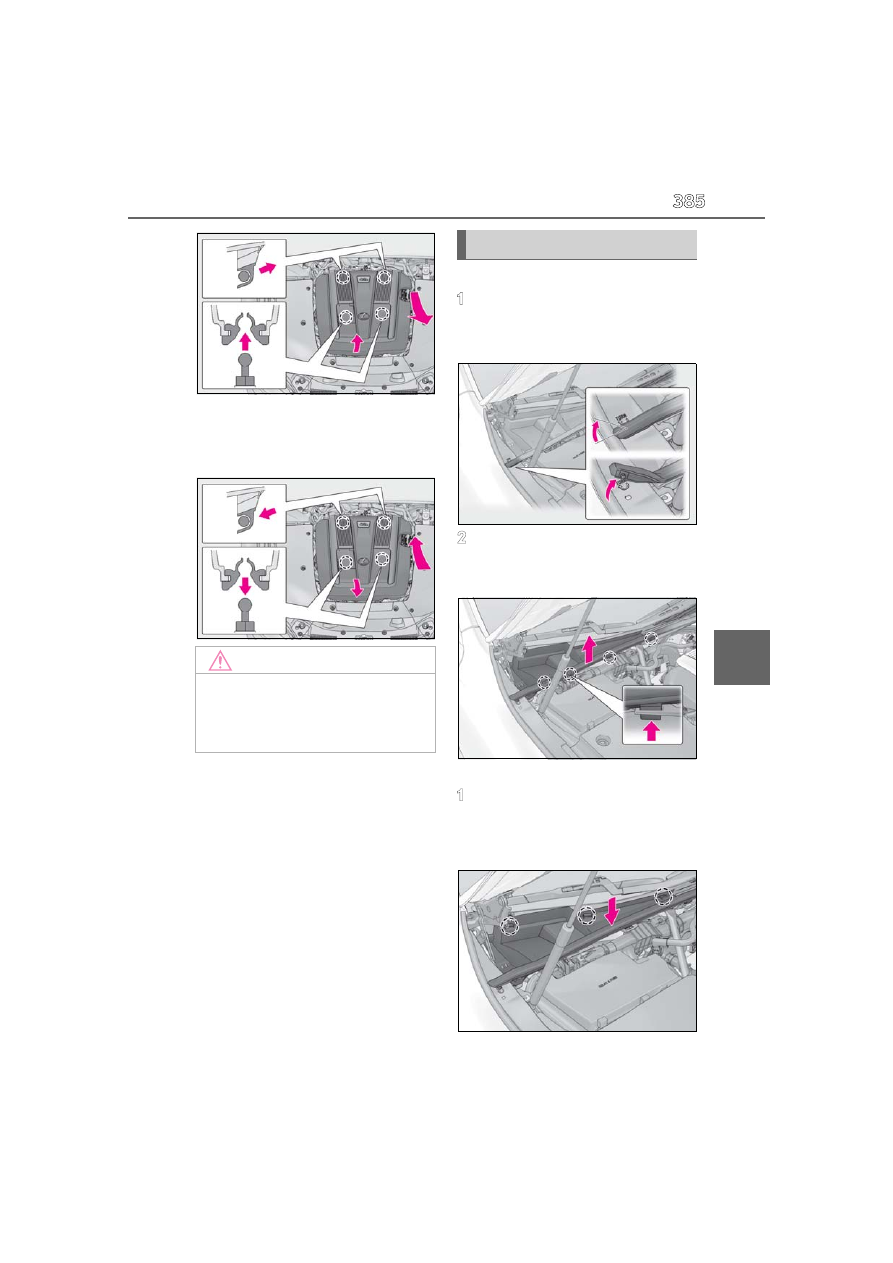

Installing the engine cover

Engage the claws of the engine cover
to install it.

■

Removing the service cover

Pull up the passenger side end of
the rubber strip to disengage it
from the vehicle body.

Remove the service cover.

Push the tabs and lift away the service

cover.

■

Installing the service cover

Install the service cover.

Make sure to engage the claws on the

windshield side of the service cover when

installing the service cover.

NOTICE

■

Checking the engine cover after

installation

Make sure that the cover is securely

installed in its original position.

Service cover

386

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

Engage the rubber strip to the vehi-
cle body.

With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick.

■

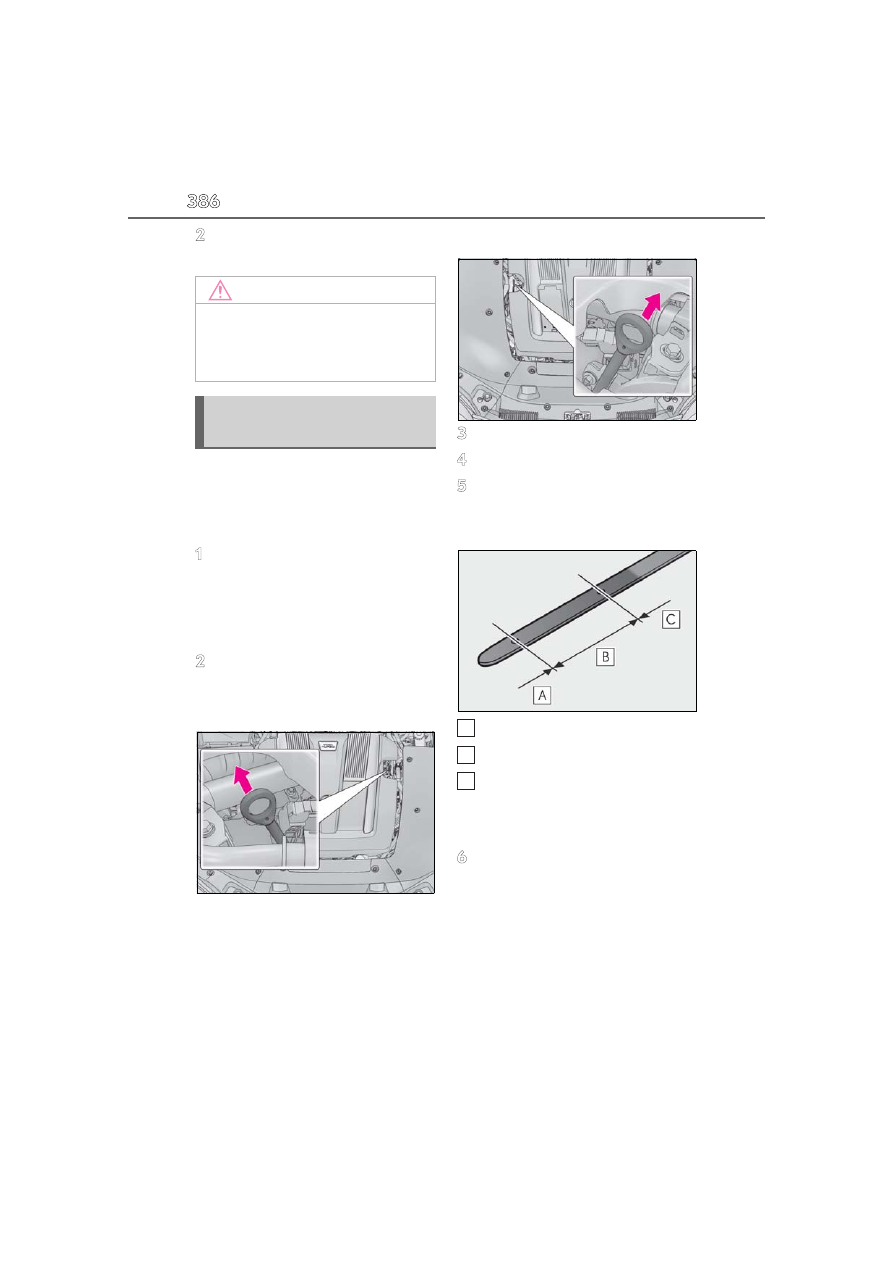

Checking the engine oil

Park the vehicle on level ground.
After warming up the engine and
turning it off, wait more than 5 min-
utes for the oil to drain back into the
bottom of the engine.

Holding a rag under the end, pull
the dipstick out.



2WD models



AWD models

Wipe the dipstick clean.

Reinsert the dipstick fully.

Holding a rag under the end, pull
the dipstick out and check the oil
level.

Low
Normal
Excessive

The shape of the dipstick may differ

depending on the type of vehicle or

engine.

Wipe the dipstick and reinsert it
fully.

■

Checking the oil type and prepar-
ing the item needed

Make sure to check the oil type and
prepare the items needed before add-
ing oil.



Engine oil selection

NOTICE

■

Checking the service cover after

installation

Make sure that the cover is securely

installed in its original position.

Checking and adding the engine
oil

387

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

Mai
nte

e a

are



P.456



Oil quantity (Low



Full)

1.6 qt. (1.5 L, 1.3 Imp. qt.)



Item
Clean funnel

■

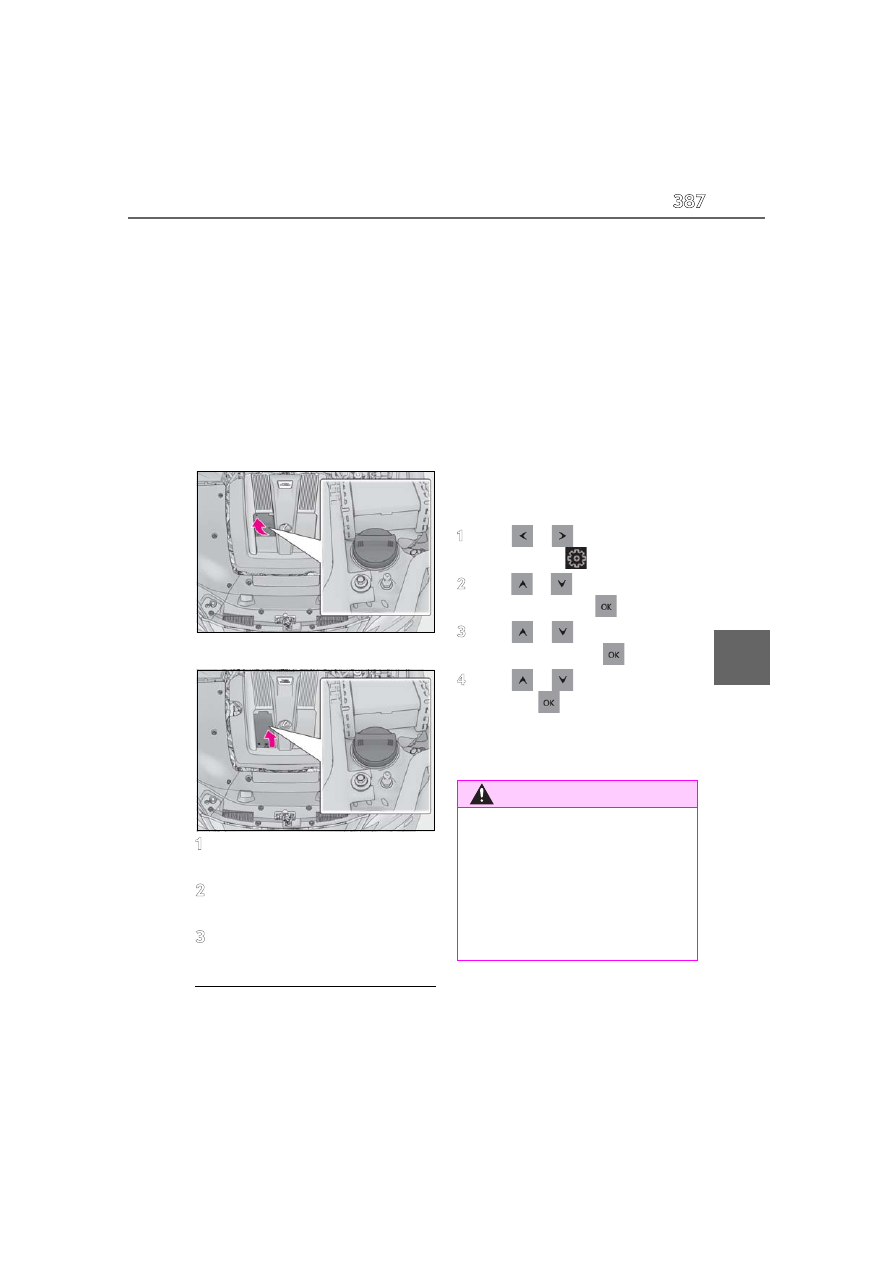

Adding engine oil

If the oil level is below or near the low
level mark, add engine oil of the same
type as that already in the engine.



2WD models



AWD models

Remove the oil filler cap by turning
it counterclockwise.

Add engine oil slowly, checking the
dipstick.

Install the oil filler cap by turning it
clockwise.

■

Engine oil consumption

A certain amount of engine oil will be con-

sumed while driving. In the following situa-

tions, oil consumption may increase, and

engine oil may need to be refilled in

between oil maintenance intervals.

●

When the engine is new, for example

directly after purchasing the vehicle or

after replacing the engine

●

If low quality oil or oil of an inappropriate

viscosity is used

●

When driving at high engine speeds or

with a heavy load, or when driving while

accelerating or decelerating frequently

●

When leaving the engine idling for a long

time, or when driving frequently through

heavy traffic

■

After changing the engine oil

The engine oil maintenance data should be

reset. Perform the following procedures:

Press

of the meter control

switch to select

Press

to select “Vehicle Set-

tings” and then press

Press

to select “Oil Mainte-

nance” and then press

Press

to select “Yes” and

then press

A message will be displayed on the

multi-information display when the reset

procedure has been completed.

WARNING

■

Used engine oil

●

Used engine oil contains potentially

harmful contaminants which may

cause skin disorders such as inflamma-

tion and skin cancer, so care should be

taken to avoid prolonged and

repeated contact. To remove used

engine oil from your skin, wash thor-

oughly with soap and water.

388

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

■

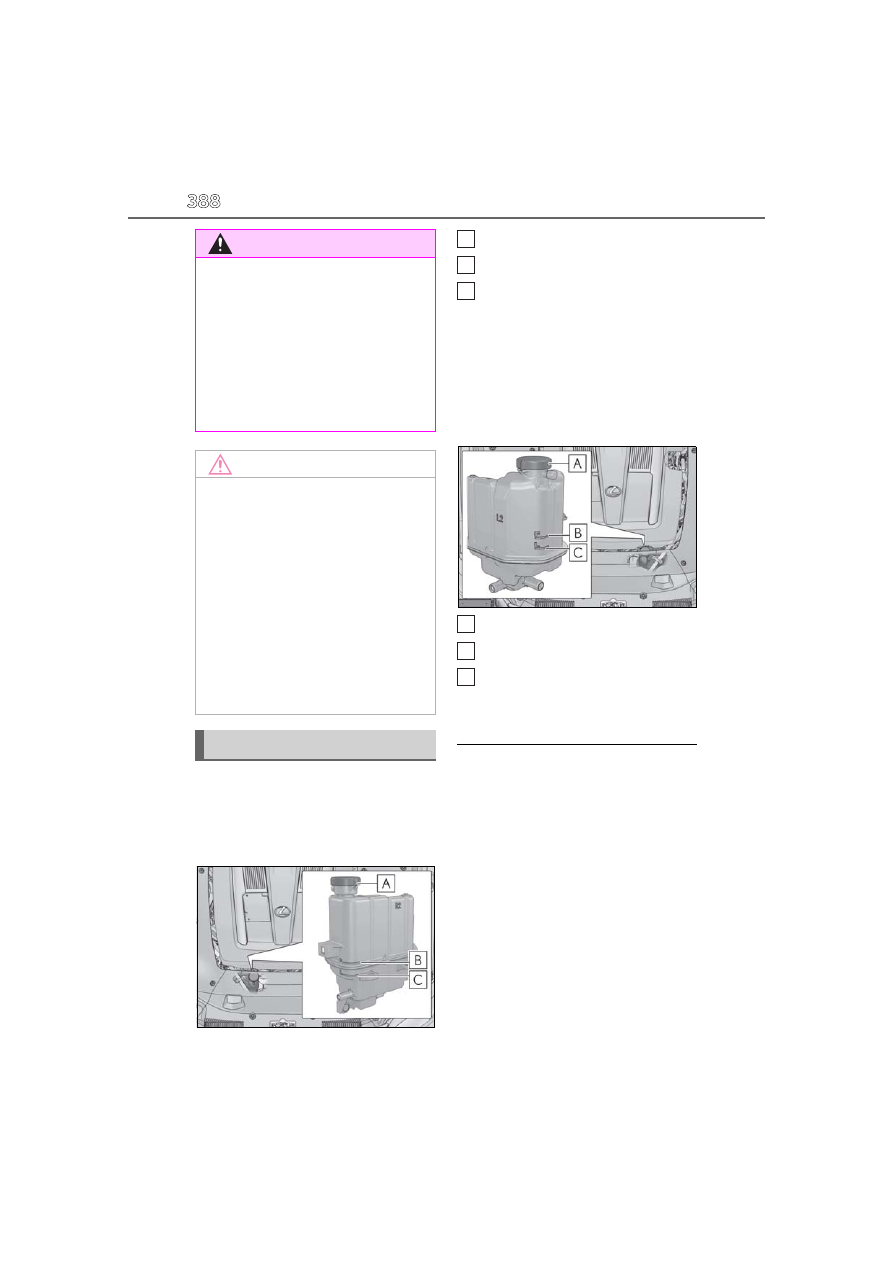

Engine coolant reservoir

The coolant level is satisfactory if it is
between the “F” and “L” lines on the
reservoir when the engine is cold.

Reservoir cap
“F” line
“L” line

If the level is on or below the “L” line, add
coolant up to the “F” line. (



P.448)

■

Intercooler coolant reservoir

The coolant level is satisfactory if it is
between the “F” and “L” lines on the
reservoir when the engine is cold.

Reservoir cap
“F” line
“L” line

If the level is on or below the “L” line, add
coolant up to the “F” line. (



P.448)

■

Coolant selection

Only use “Toyota Super Long Life Coolant”

or a similar high quality ethylene glycol

based non-silicate, non-amine, non-nitrite,

and non-borate coolant with long-life

hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mix-

ture of 50% coolant and 50% deionized

water. (Minimum temperature: -31°F

[-35°C])
Canada:
“Toyota Super Long Life Coolant” is a mix-

ture of 55% coolant and 45% deionized

water. (Minimum temperature: -44°F

[-42°C])
For more details about coolant, contact

WARNING

●

Dispose of used oil and filters only in a

safe and acceptable manner. Do not

dispose of used oil and filters in house-

hold trash, in sewers or onto the

ground.

Call your Lexus dealer, service station

or auto parts store for information

concerning recycling or disposal.

●

Do not leave used engine oil within the

reach of children.

NOTICE

■

To prevent serious engine damage

Check the oil level on a regular basis.

■

When replacing the engine oil

●

Be careful not to spill engine oil on the

vehicle components.

●

Avoid overfilling, or the engine could

be damaged.

●

Check the oil level on the dipstick

every time you refill the vehicle.

●

Be sure the engine oil filler cap is prop-

erly tightened.

Checking the coolant

389

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

Mai
nte

e a

are

your Lexus dealer.

■

If the coolant level drops within a short

time of replenishing

Visually check the radiator, hoses, engine

coolant reservoir caps, drain cock and

water pump.

If you cannot find a leak, have your Lexus

dealer test the cap and check for leaks in

the cooling system.

Check the radiator, condenser, inter-
cooler radiator and intercooler sub
radiator and clear away any foreign
objects. If either of the above parts is
extremely dirty or you are not sure of

their condition, have your vehicle
inspected by your Lexus dealer.

■

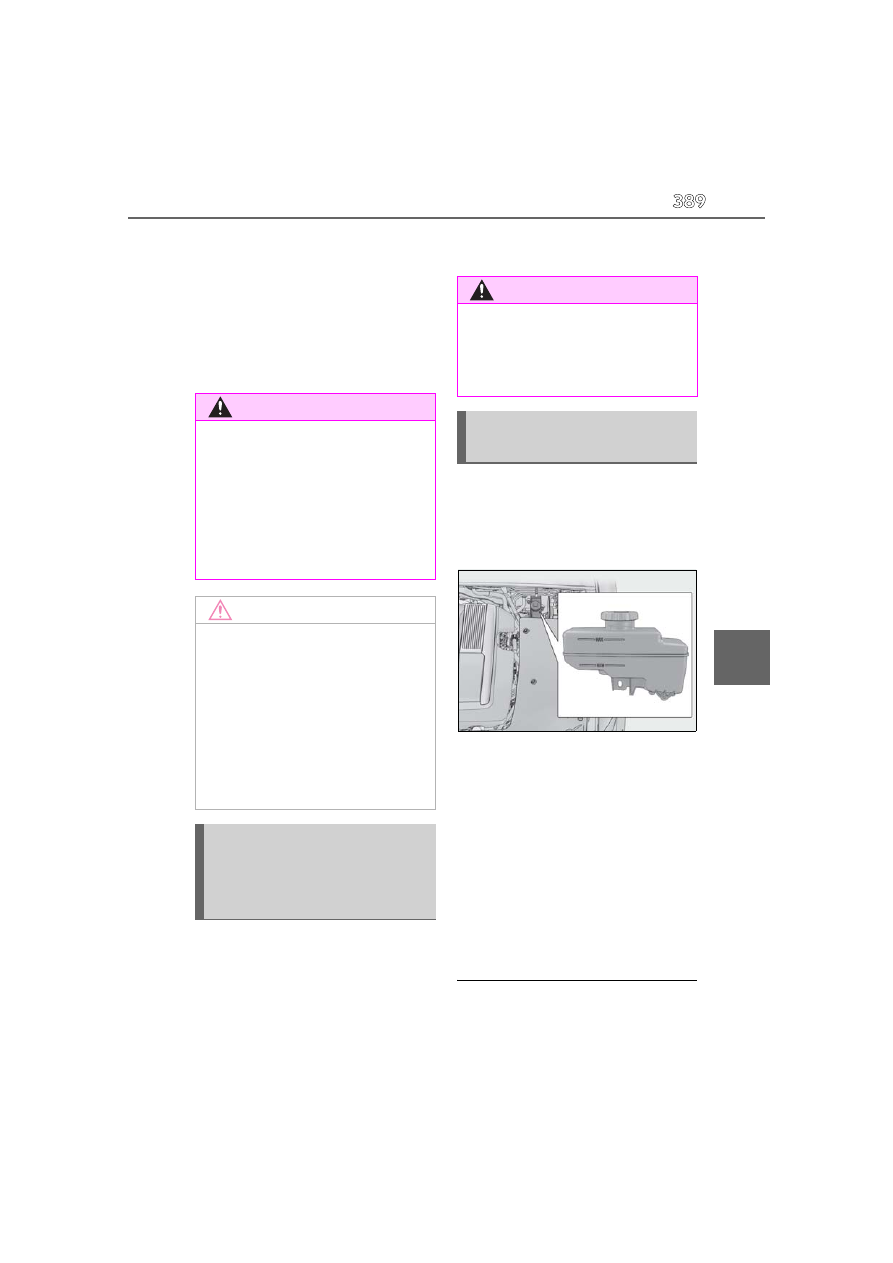

Checking fluid level

The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.

■

Adding fluid

Make sure to check the fluid type and
prepare the necessary item.



Fluid type

FMVSS No.116 DOT 3 or SAE J1703
brake fluid
FMVSS No.116 DOT 4 or SAE J1704
brake fluid



Item

Clean funnel

■

Brake fluid can absorb moisture from

the air

Excess moisture in the brake fluid can cause

WARNING

■

When the engine is hot

Do not remove the engine coolant reser-

voir cap, the intercooler coolant reser-

voir cap and the coolant inlet cap.

(



P.450)

The cooling system may be under pres-

sure and may spray hot coolant if the cap

is removed, causing serious injuries, such

as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor

straight antifreeze. The correct mixture

of water and antifreeze must be used to

provide proper lubrication, corrosion

protection and cooling. Be sure to read

the antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to pre-

vent it from damaging parts or paint.

Checking the radiator, con-
denser, intercooler radiator (if
equipped) and intercooler sub
radiator (if equipped)

WARNING

■

When the engine is hot

Do not touch the radiator, condenser,

intercooler radiator or intercooler sub

radiator as they may be hot and cause

serious injuries, such as burns.

Checking and adding the brake
fluid

390

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

a dangerous loss of braking efficiency. Use

only newly opened brake fluid.

If any washer does not work or the
warning message appears on the
multi-information display, the washer
tank may be empty. Add washer fluid.

WARNING

■

When filling the reservoir

Take care as brake fluid can harm your

hands and eyes and damage painted sur-

faces.

If fluid gets on your hands or in your eyes,

flush the affected area with clean water

immediately.
If you still experience discomfort, see a

doctor.

NOTICE

■

If the fluid level is low or high

It is normal for the brake fluid level to go

down slightly as the brake pads wear out

or when the fluid level in the accumulator

is high.

If the reservoir needs frequent refilling,

there may be a serious problem.

Adding the washer fluid

WARNING

■

When adding washer fluid

Do not add washer fluid when the engine

is hot or running as washer fluid contains

alcohol and may catch fire if spilled on

the engine, etc.

NOTICE

■

Do not use any fluid other than

washer fluid

Do not use soapy water or engine anti-

freeze instead of washer fluid.

Doing so may cause streaking on the

vehicle’s painted surfaces, as well as

damaging the pump leading to problems

of the washer fluid not spraying.

■

Diluting washer fluid

Dilute washer fluid with water as neces-

sary.

Refer to the freezing temperatures listed

on the label of the washer fluid bottle.

391

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

Mai
nte

e a

are

The battery is located in the trunk
under the luggage mat.

Removing the luggage mat:



P.349

■

Before recharging

When recharging, the battery produces

hydrogen gas which is flammable and

explosive. Therefore, observe the following

precautions before recharging:

●

If recharging with the battery installed on

the vehicle, be sure to disconnect the

ground cable.

●

Make sure the charger is off when con-

necting and disconnecting the charger

cables to the battery.

■

After recharging/reconnecting the bat-

tery

●

Unlocking the doors using the smart

access system with push-button start may

not be possible immediately after recon-

necting the battery. If this happens, use

the wireless remote control or the

mechanical key to lock/unlock the doors.

●

Start the engine with the engine switch in

ACCESSORY mode. The engine may

not start with the engine switch turned off.

However, the engine will operate nor-

mally from the second attempt.

●

The engine switch mode is recorded by

the vehicle. If the battery is reconnected,

the vehicle will return the engine switch

mode to the status it was in before the

battery was disconnected. Make sure to

turn off the engine switch before discon-

necting the battery. Take extra care when

connecting the battery if the engine

switch mode prior to discharge is

unknown.

If the system will not start even after multiple

attempts, contact your Lexus dealer.

Battery

Location

WARNING

■

Chemicals in the battery

The battery contains poisonous and cor-

rosive sulfuric acid and may produce

hydrogen gas which is flammable and

explosive. To reduce the risk of death or

serious injury, take the following precau-

tions while working on or near the bat-

tery:

●

Do not cause sparks by touching the

battery terminals with tools.

●

Do not smoke or light a match near the

battery.

●

Avoid contact with eyes, skin and

clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when

working near the battery.

●

Keep children away from the battery.

■

Where to safely charge the battery

Always charge the battery in an open

area. Do not charge the battery in a

garage or closed room where there is

insufficient ventilation.

■

Emergency measures regarding

electrolyte

●

If electrolyte gets in your eyes

Flush your eyes with clean water for at

least 15 minutes and get immediate

medical attention. If possible, continue

to apply water with a sponge or cloth

while traveling to the nearest medical

facility.

392

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

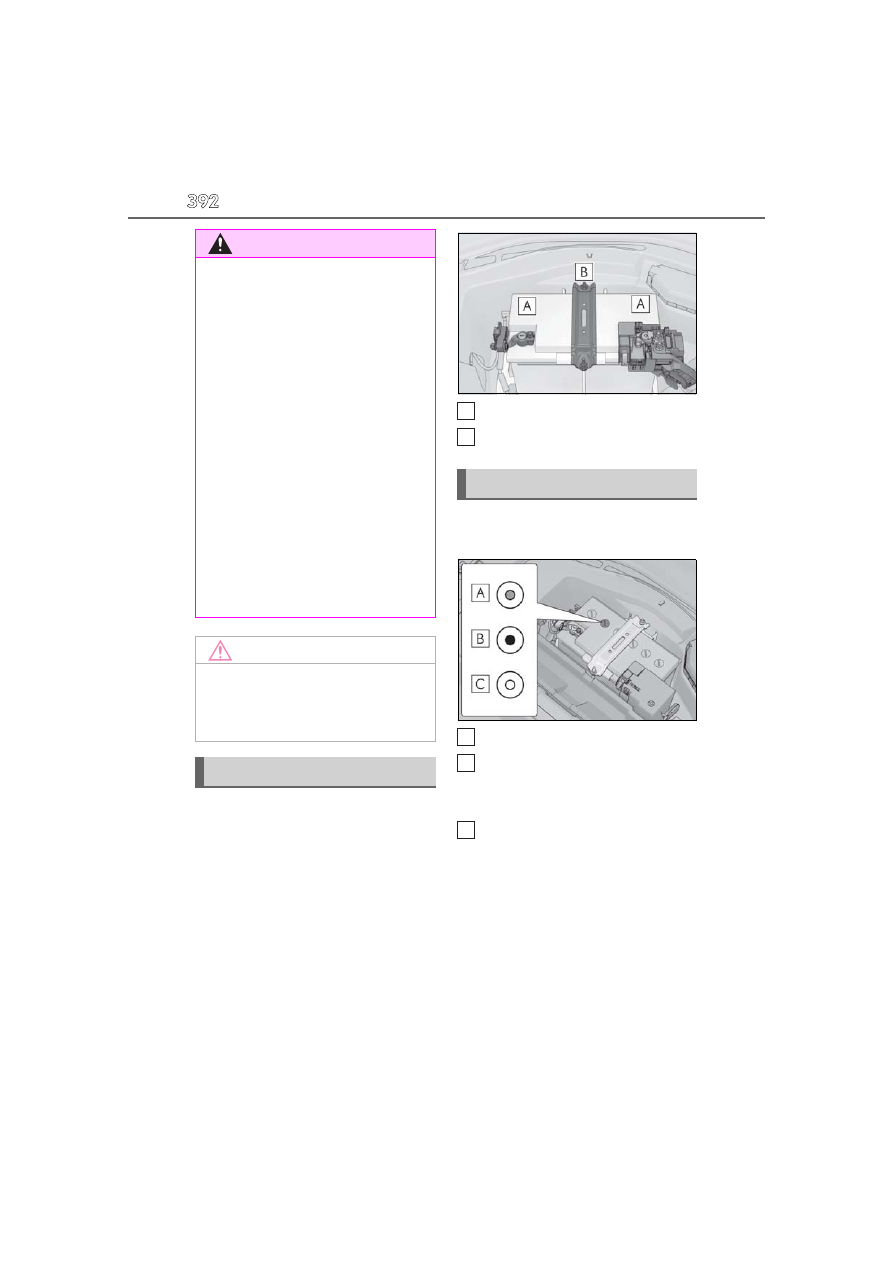

Make sure that the battery terminals
are not corroded and that there are no
loose connections, cracks, or loose
clamps.

Terminals
Hold-down clamp

Check the battery condition by indica-
tor color.

Blue: Good condition
Red: Charging is necessary.
Have the vehicle inspected by your
Lexus dealer.
Clear: Replacement is necessary.
Have the battery checked by your
Lexus dealer.

WARNING

●

If electrolyte gets on your skin

Wash the affected area thoroughly. If

you feel pain or burning, get medical

attention immediately.

●

If electrolyte gets on your clothes

It can soak through clothing on to your

skin. Immediately take off the clothing

and follow the procedure above if nec-

essary.

●

If you accidentally swallow electrolyte

Drink a large quantity of water or milk.

Get emergency medical attention

immediately.

■

When replacing the battery

Use a battery designed for this vehicle.

Failure to do so may cause gas (hydro-

gen) to enter the passenger compart-

ment, causing a fire or explosion.
For replacement of the battery, contact

your Lexus dealer.

NOTICE

■

When recharging the battery

Never recharge the battery while the

engine is running. Also, be sure all acces-

sories are turned off.

Exterior

Checking the battery condition

393

6-3. Do-it-yourself maintenance

LEXUS LS500 Owner's Manual

Mai
nte

e a

are

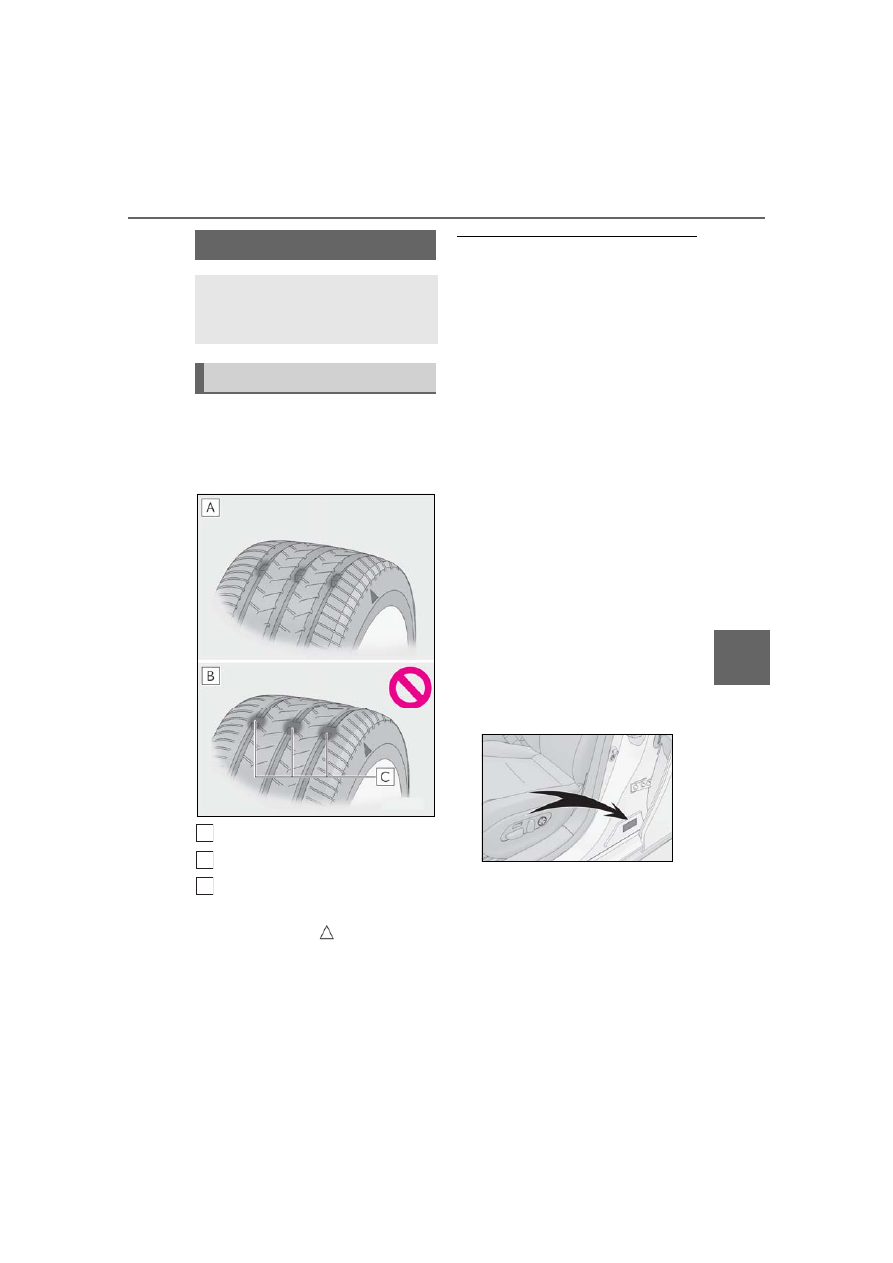

Check if the treadwear indicators are
showing on the tires. Also check the
tires for uneven wear, such as excessive
wear on one side of the tread.

New tread
Worn tread
Treadwear indicator

The location of treadwear indicators is
shown by a “TWI” or “

” mark, etc.,

molded into the sidewall of each tire.
Replace the tires if the treadwear indica-
tors are showing on a tire.

■

When to replace your vehicle’s tires

Tires should be replaced if:

●

The treadwear indicators are showing on

a tire.

●

You have tire damage such as cuts, splits,

cracks deep enough to expose the fabric,

and bulges indicating internal damage

●

A tire goes flat repeatedly or cannot be

properly repaired due to the size or loca-

tion of a cut or other damage

If you are not sure, consult with your Lexus

dealer.

■

Tire life

Any tire over 6 years old must be checked

by a qualified technician even if it has sel-

dom or never been used or damage is not

obvious.

■

Maximum load of tire

Check that the maximum load of the

replacement tire is greater than 1/2 of the

Gross Axle Weight Ratings (GAWR) of

either the front axle or the rear axle, which-

ever is greater.
For the GAWR, see the Certification Label.

For the maximum load of the tire, see the

load limit at maximum cold tire inflation

pressure mentioned on the sidewall of the

tire. (



P.465)

■

Tire types

●

Summer tires

Summer tires are high-speed performance
tires best suited to highway driving under
dry conditions. Since summer tires do not
have the same traction performance as
snow tires, summer tires are inadequate for
driving on snow-covered or icy roads. For
driving on snow-covered roads or icy

Tires

Replace or rotate tires in accor-
dance with maintenance schedules
and treadwear.

Checking tires

A
B
C

Content .. 21 22 23 24 ..
