7-2. Steps to take in an emergency

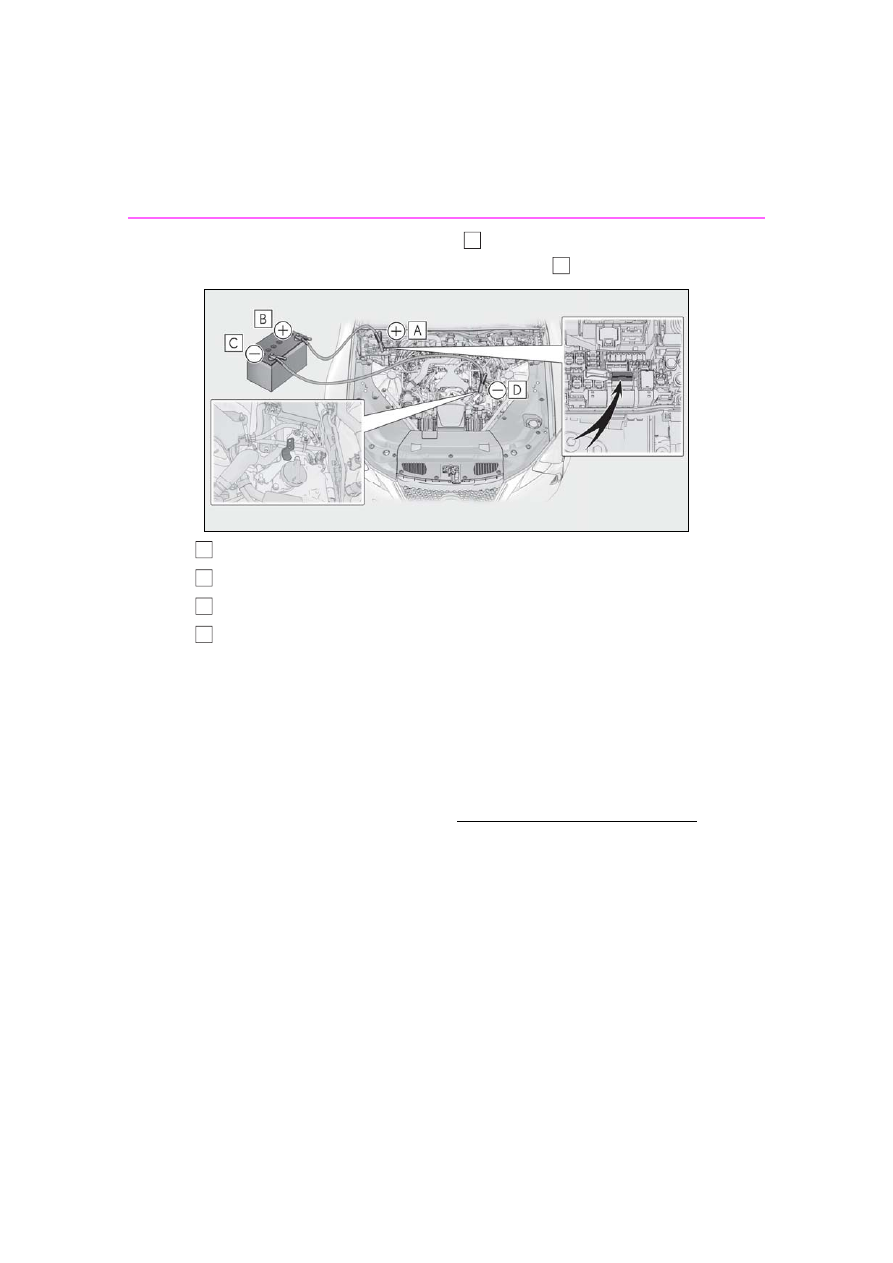

Then, connect a negative cable clamp to

on the second vehicle and con-

nect the clamp at the other end of the negative cable to

Exclusive jump starting terminal (your vehicle)

Positive (+) battery terminal (second vehicle)

Negative (-) battery terminal (second vehicle)

Solid, stationary, unpainted metallic point away from the exclusive jump starting
terminal and any moving parts as shown in the illustration

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the battery of your vehi-
cle.

Open and close any of the door of
your vehicle with the engine switch
OFF.

Maintain the engine speed of the
second vehicle and start the engine
of your vehicle by turning the
engine switch to ON.

Once the vehicle’s engine has
started, remove the jumper cables
in the exact reverse order from
which they were connected.

Close the exclusive jump starting
terminal cover, and reinstall the
fuse box cover to its original posi-
tion.

Once the engine starts, have the vehicle

inspected at your Lexus dealer as soon as

possible.

■

Starting the engine when the battery is

discharged

The engine cannot be started by push-start-

ing.

■

To prevent battery discharge

●

Turn off the headlights and the audio sys-

tem while the engine is stopped.

●

Turn off any unnecessary electrical com-

ponents when the vehicle is running at a

low speed for an extended period, such

as in heavy traffic.

A
B
C
D

331

7-2. Steps to take in an emergency

When trouble

ari

ses

■

When the battery is removed or dis-

charged

●

Side window open/close function linked

to door operation does not operate.

When closing the side window, slowly

close the side window while pushing the
upper portion

of the side window

inside the soft top roof.

●

Information stored in the ECU is cleared.

When the battery is depleted, have the

vehicle inspected at your Lexus dealer.

●

Some systems may require initialization.

(



P.374)

■

When removing the battery terminals

When the battery terminals are removed,

the information stored in the ECU is

cleared. Before removing the battery termi-

nals, contact your Lexus dealer.

■

Charging the battery

The electricity stored in the battery will dis-

charge gradually even when the vehicle is

not in use, due to natural discharge and the

draining effects of certain electrical appli-

ances. If the vehicle is left for a long time,

the battery may discharge, and the engine

may be unable to start. (The battery

recharges automatically during driving.)

■

When recharging or replacing the bat-

tery

●

Immediately after replacing the battery,

fully open or close the soft top roof, as the

luggage cover may be half-opened.

●

In some cases, it may not be possible to

unlock the doors using the smart access

system with push-button start when the

battery is discharged. Use the wireless

remote control or the mechanical key to

lock or unlock the doors.

●

The engine may not start on the first

attempt after the battery has recharged

but will start normally after the second

attempt. This is not a malfunction.

●

The engine switch mode is memorized by

the vehicle. When the battery is recon-

nected, the system will return to the

mode it was in before the battery was dis-

charged. Before disconnecting the bat-

tery, turn the engine switch off.

If you are unsure what mode the engine

switch was in before the battery dis-

charged, be especially careful when

reconnecting the battery.

●

If the battery discharges, it may not be

possible to shift the shift position to other

positions. In this case, the vehicle cannot

be towed without lifting both rear wheels

because the rear wheels will be locked.

(



P.304)

■

When replacing the battery

●

Use a Central Degassing type battery

(European Regulations).

●

Use a battery that the case size is same as

the previous one (LN4), 20 hour rate

capacity (20HR) is equivalent (80Ah) or

greater, and performance rating (CCA)

is equivalent (685A) or greater.

• If the sizes differ, the battery cannot be

properly secured.

• If the 20 hour rate capacity is low, even if

the time period where the vehicle is not

used is a short time, the battery may dis-

charge and engine may not be able to

start.

●

Use a battery with a handle. If a battery

without a handle is used, removal is more

difficult.

●

After exchanging, firmly attach the fol-

lowing items to the exhaust hole of the

battery.

• Use the exhaust hose that was attached

to the battery before exchanging.

• Use the exhaust hole plug included with

the battery exchanged or the one

332

7-2. Steps to take in an emergency

installed on the battery prior to the

exchange. (Depending on the battery to

be exchanged, the exhaust hole may be

plugged.)

Exhaust hole plug

Exhaust hole

Exhaust hose

For details, consult your Lexus dealer.

WARNING

■

When removing the battery termi-

nals

Always remove the negative (-) terminal

first. If the positive (+) terminal contacts

any metal in the surrounding area when

the positive (+) terminal is removed, a

spark may occur, leading to a fire in addi-

tion to electrical shocks and death or

serious injury.

■

Avoiding battery fires or explosions

Observe the following precautions to

prevent accidentally igniting the flamma-

ble gas that may be emitted from the bat-

tery:

●

Make sure each jumper cable is con-

nected to the correct terminal and that

it is not unintentionally in contact with

any other than the intended terminal.

●

Do not allow the other end of the

jumper cable connected to the “+” ter-

minal to come into contact with any

other parts or metal surfaces in the

area, such as brackets or unpainted

metal.

●

Do not allow the + and - clamps of the

jumper cables to come into contact

with each other.

●

Do not smoke, use matches, cigarette

lighters or allow open flame near the

battery.

●

If the battery fluid level is excessively

low (



P.276), do not use the battery.

■

Battery precautions

The battery contains poisonous and cor-

rosive acidic electrolyte, while related

parts contain lead and lead compounds.

Observe the following precautions when

handling the battery:

●

When working with the battery, always

wear safety glasses and take care not

to allow any battery fluids (acid) to

come into contact with skin, clothing

or the vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid comes

into contact with the skin or eyes,

immediately wash the affected area

with water and seek medical attention.

Place a wet sponge or cloth over the

affected area until medical attention

can be received.

●

Always wash your hands after han-

dling the battery support, terminals,

and other battery-related parts.

●

Do not allow children near the battery.

■

After recharging the battery

Have the battery inspected at your Lexus

dealer as soon as possible. If the battery

is deteriorating, continued use may

cause the battery to emit a malodorous

gas, which may be detrimental to the

health of passengers.

333

7-2. Steps to take in an emergency

When trouble

ari

ses



Two or more people are needed for
this procedure and some steps
requires a large force.



There is a possibility to damage the
vehicle when applying a strong
force or removing the parts. Lexus
recommends contacting your Lexus
dealer.

WARNING

■

When exchanging the battery

After exchanging, securely attach the

exhaust hose and exhaust hole plug to

the exhaust hole of the exchanged bat-

tery. If not properly installed, gases

(hydrogen) may leak into the vehicle

interior, and there is the possible danger

of the gas igniting and exploding.

NOTICE

■

When handling jumper cables

When connecting the jumper cables,

ensure that they do not become entan-

gled in the cooling fan or engine drive

belt.

■

To prevent damaging the vehicle

The exclusive jump starting terminal is to

be used when charging the battery from

another vehicle in an emergency. It can-

not be used to jump start another vehicle.

If the soft top roof cannot be
closed

If the soft top roof cannot be closed
even though the roof switch is oper-
ated, check that all the operational
conditions are met. (



P.123)

If all the operational conditions are
met and the soft top roof cannot be
closed, there may be a malfunction.
Immediately have the vehicle
inspected by your Lexus dealer.
When “Opening Function Unavail-
able System Overheated” or
“Function Temporarily Unavailable
System Overheated” is displayed
on the multi-information display, do
not close the soft top roof manually.
If the soft top roof is closed manu-
ally, the roof switch may not prop-
erly operates next time.
In this case, the soft top roof can be
closed by the following procedure
as an emergency measure, how-
ever, Lexus does not recommend it
as this procedure requires special-
ized knowledge.

Before closing the soft top roof

334

7-2. Steps to take in an emergency



When touching a place where a
hand can not easily reach, wear
gloves to protect your hands.



Turn the engine switch off.



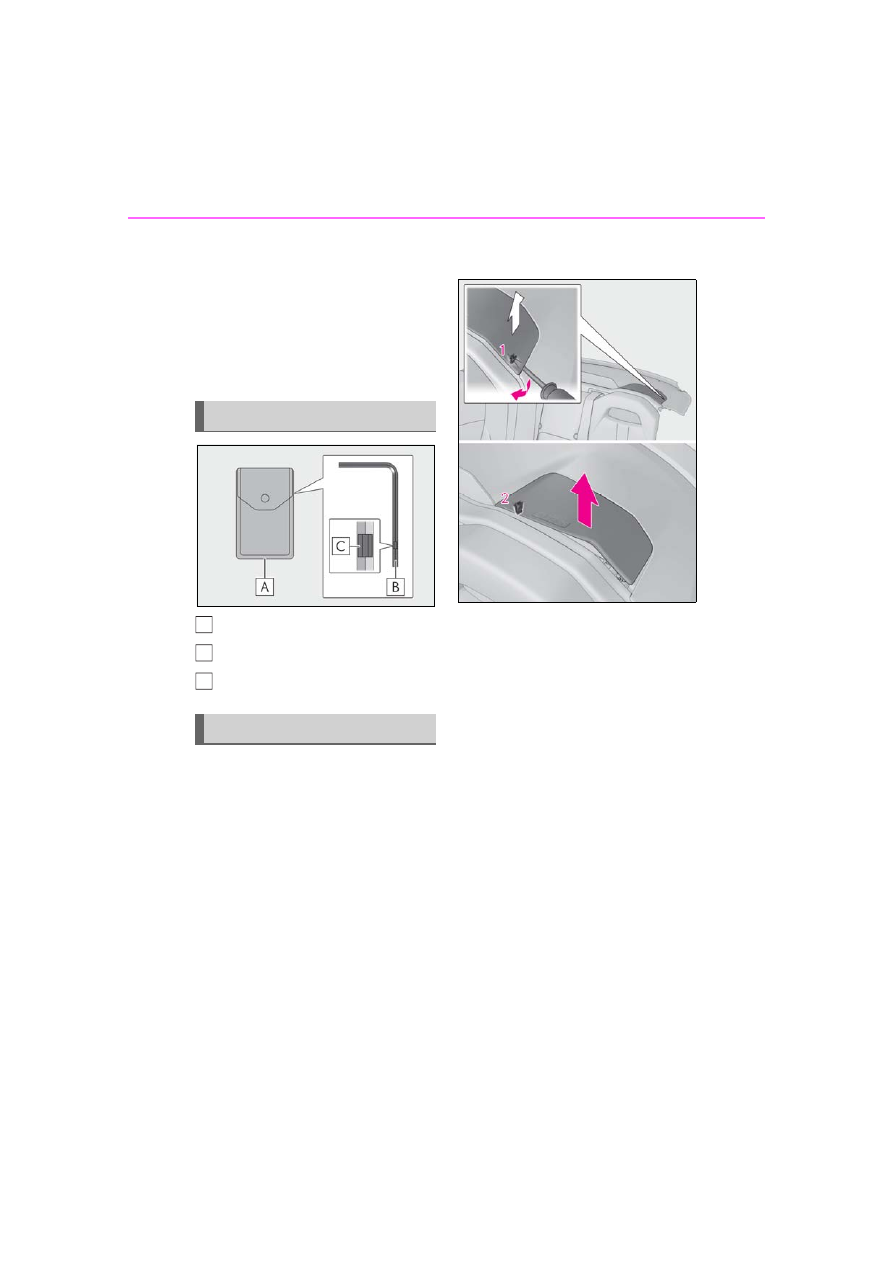

The tool for manually closing the
soft top roof is stored in the glove
box. (



P.242)

Tool bag

Tool

Groove

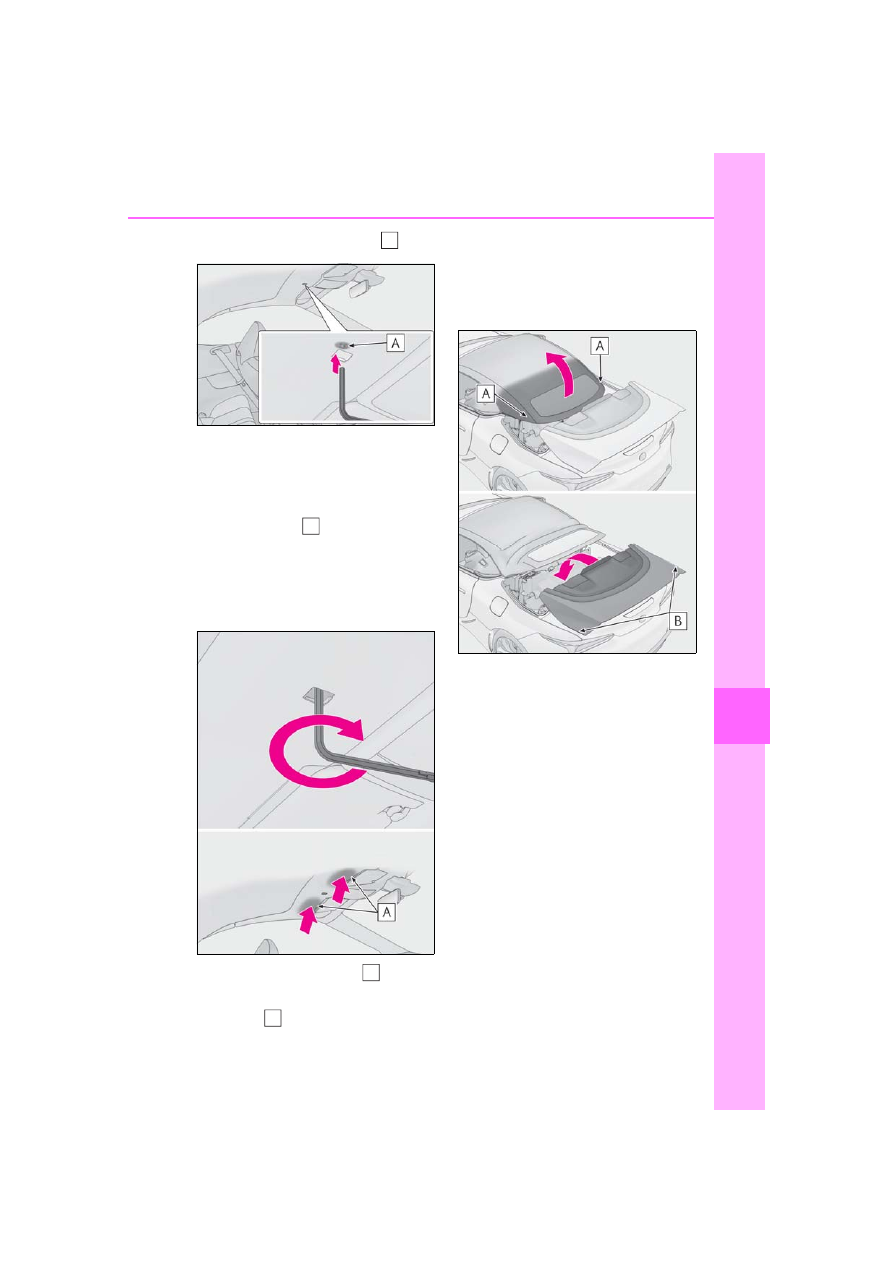

Press the All window control switch
to fully open the side windows and
rear quarter windows. (



P.118) If

the switch does not operate, con-
tact your Lexus dealer.

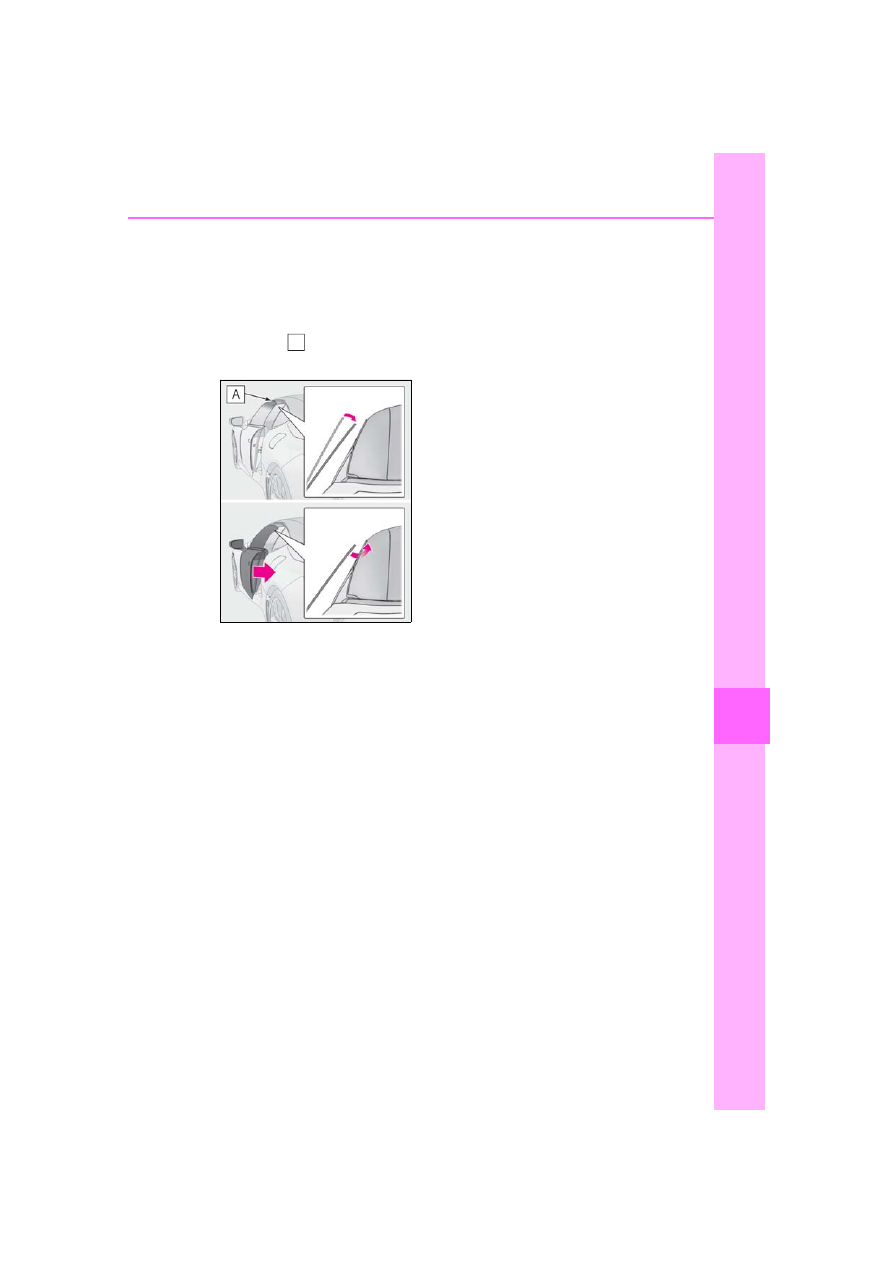

Remove the cover behind the rear
left seat.

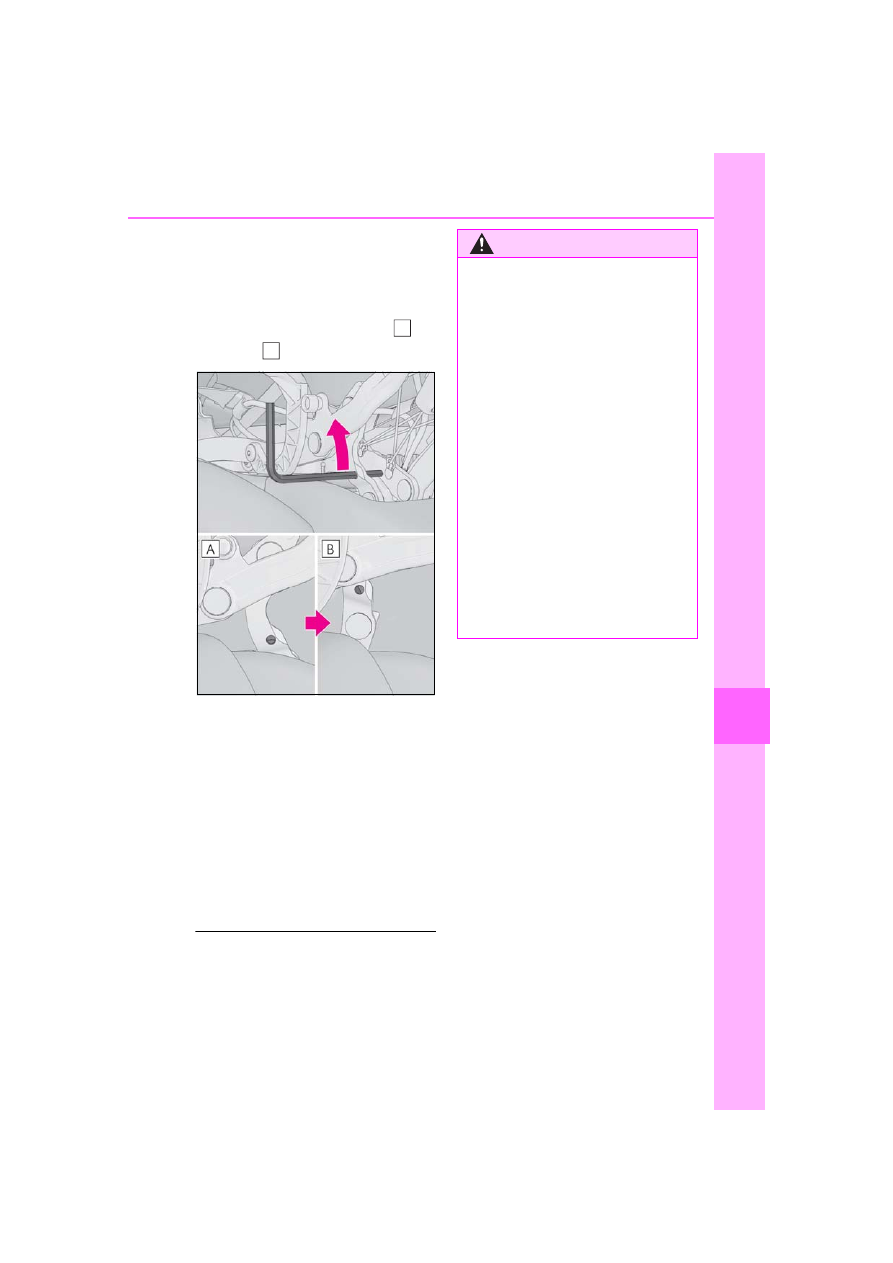

Remove the claw on the left side
using the flathead screwdriver.

The flathead screwdriver is installed in the
trunk.

Remove the claw on the right side.

Tool

Closing the soft top roof

A
B
C

335

7-2. Steps to take in an emergency

When trouble

ari

ses

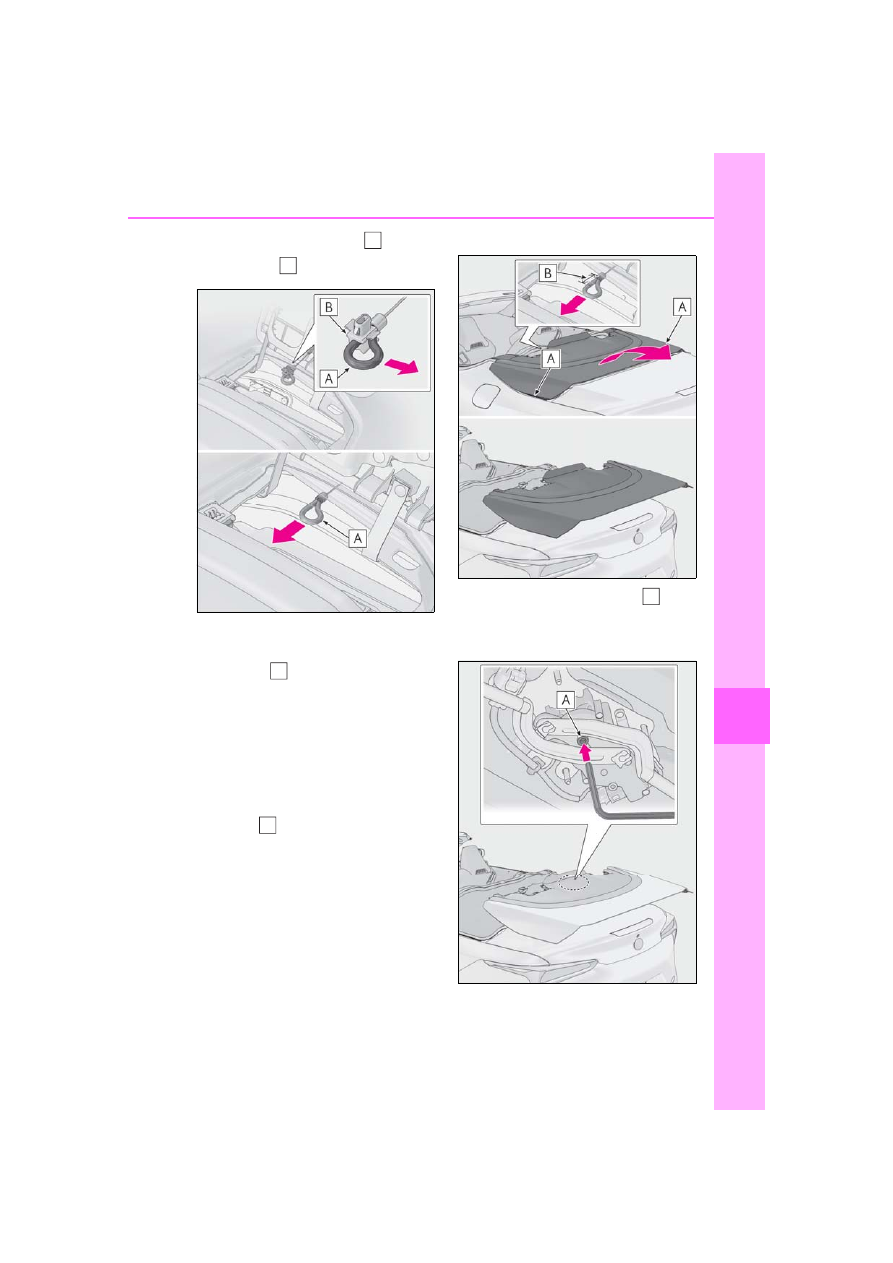

Take out the yellow ring

from

the clamp

and pull it.

While pulling the yellow ring to
unlock the luggage cover, hold the
portions

of the luggage cover

and lift it to the rear of the vehicle
without tilting laterally.

If your hands are released while lifting the

luggage cover, the luggage cover may

shut, resulting in hands or arms being

caught between the cover and vehicle.
After lifting the luggage cover up, attach
the portion

between the red line and

root of the yellow ring to the clamp.

Insert the tool into the hole

the center of the back side of the
luggage cover.

Rotate the tool until it no longer
moves.

336

7-2. Steps to take in an emergency

Rotate the tool again with applying more

force to check that the tool has been com-

pletely rotated.

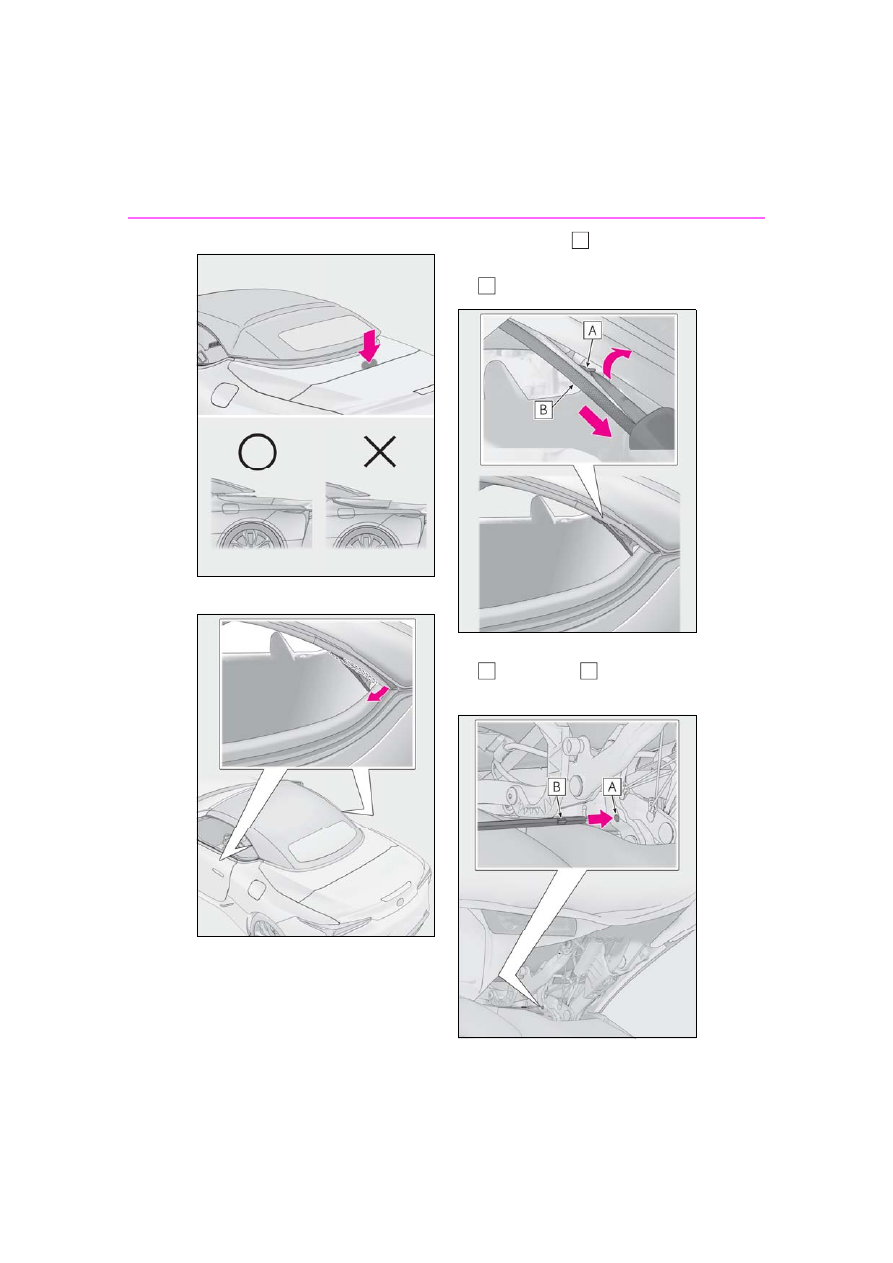

Hold the both right and left portions

of the stored soft top roof

simultaneously.

Lift up the soft top roof without tilt-
ing laterally, move it to the front of
the vehicle, and close it.

After lifting up the soft top roof to the posi-

tion shown in the illustration, lower the

front part of the soft top roof holding the
lower part

of the rear window.

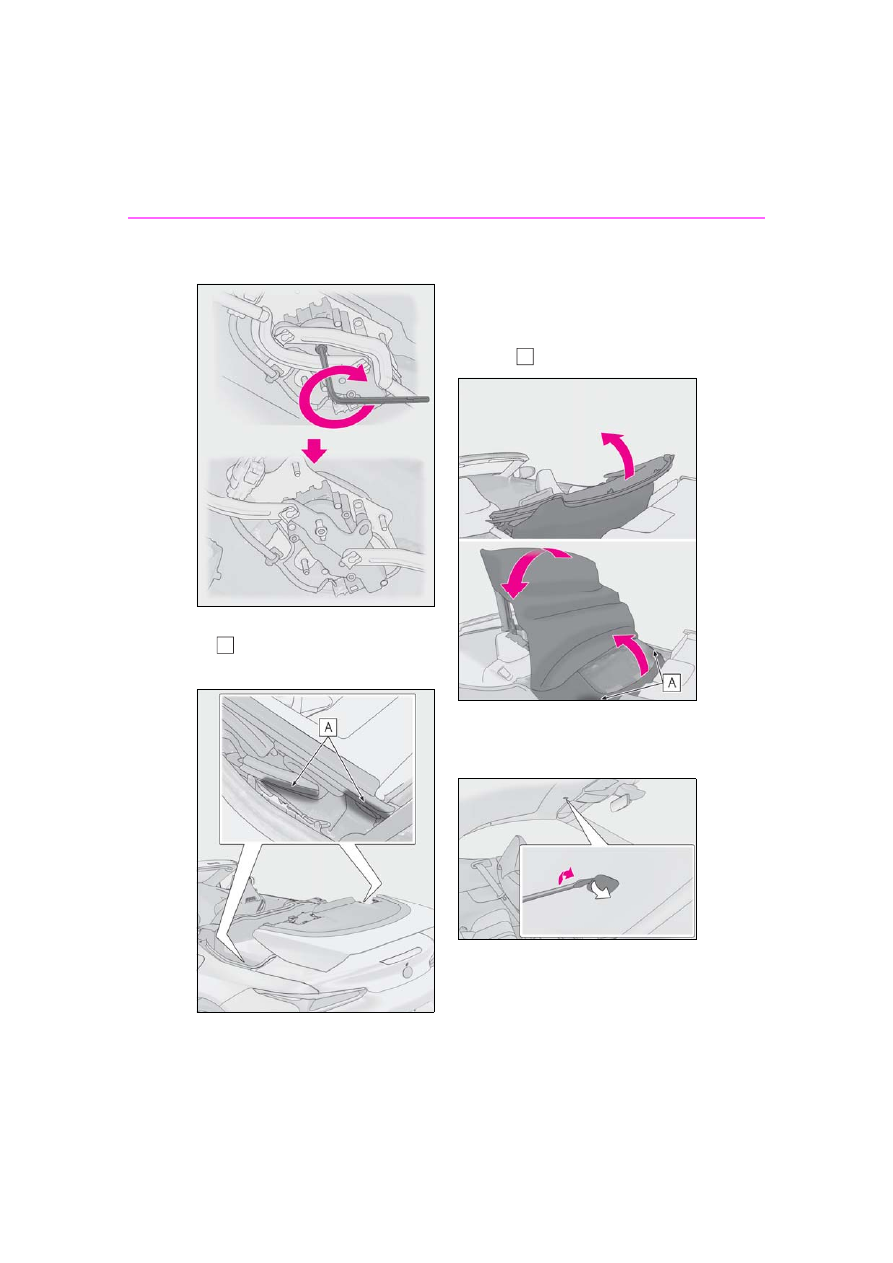

Remove the cover inside the soft
top roof using a flathead screw-
driver.

337

7-2. Steps to take in an emergency

When trouble

ari

ses

Insert the tool into the hole

Rotate the tool until it no longer
moves.

The front side of the soft top roof will be

locked.

Push the inner side

of the soft top roof

to check that the soft top roof is firmly

locked and not raised.
If the soft top roof is not firmly locked, it

may be opened by wind pressure while

driving.

While lifting the portion

of the

under the rear window, hold the
portion

of the luggage cover

and move it to the front side of the
vehicle and close it.

When closing the luggage cover, be care-

ful that your hand or fingers is not caught in

the luggage cover and vehicle.

Lower the rear window and push
the rear center of the luggage
cover.

Check that there is no difference in height

between the luggage cover and trunk and

338

7-2. Steps to take in an emergency

the luggage cover is properly closed.

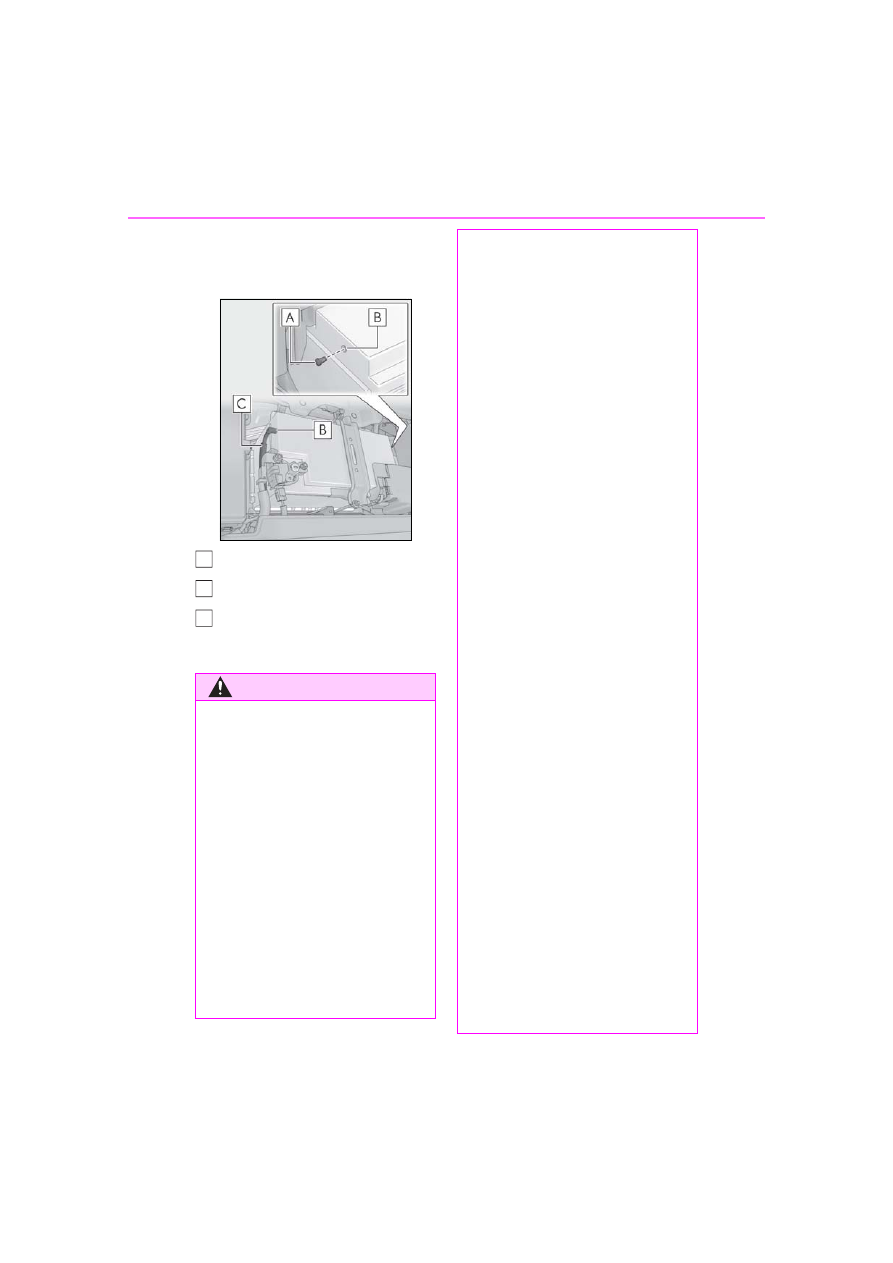

Turn the inside of the soft top roof.

Lift up the claw

using a flathead

screwdriver, and pull the portion

backward of the vehicle.

Insert the tool edge with a groove

into the hole

until the tool

stops.

339

7-2. Steps to take in an emergency

When trouble

ari

ses

Push the tool backward to a slant-
ing side at the rear of the vehicle
until it no longer moves.

A large force is required to move the tool.

The tool will move from the position

the position

in the illustration.

Turn the engine switch to ON and
check that “Soft Top Operation
Not Completed” is not displayed
on the multi-information display.

If the message is displayed, check the steps

and

have been completed.

Reinsert the parts that were
removed in the steps

and

The parts removed in the step

cannot be

used again and must be replaced at your

Lexus dealer.

■

Parts removed during the manual clos-

ing procedure

Keep any parts removed during the proce-

dure inside the vehicle and take all removed

parts and the vehicle to your Lexus dealer.

WARNING

■

When manually closing the soft top

roof

Observe the following precautions:

●

Stop the vehicle on a flat surface in a

safe place.

●

Set the parking brake and shift the shift

position to P.

●

Ensure that there are no occupants

inside the vehicle.

●

Do not perform this procedure while

there are strong winds blowing.

●

Turn the engine switch off.

●

Be careful not to catch any part of your

body or clothing in the moving parts.

●

Some parts of this procedure may

result in an injury if performed with

bare hands. Protect your hands with

gloves or a piece of cloth when per-

forming the procedure.

340

7-2. Steps to take in an emergency

Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the engine.

If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.

After the engine has cooled down
sufficiently, inspect the hoses and
radiator core (radiator) for any
leaks.

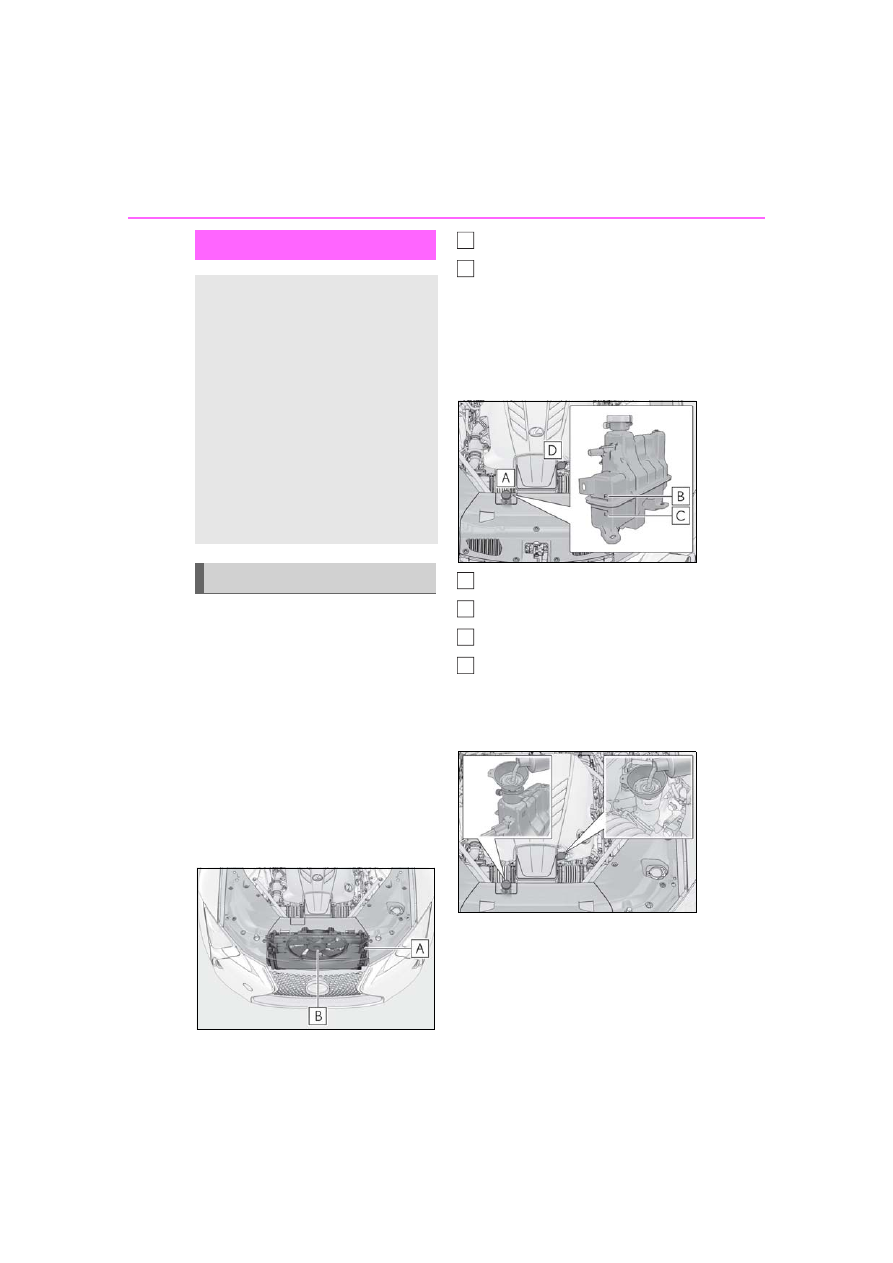

Radiator

Cooling fan

If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.

The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.

Reservoir

“F” line

“L” line

Coolant inlet cap

Add coolant if necessary.

Water can be used in an emergency if

coolant is unavailable.

Start the engine and turn the air
conditioning system on to check
that the radiator cooling fan oper-
ates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning

If your vehicle overheats

The following may indicate that
your vehicle is overheating.



The engine coolant temperature
gauge (



P.73) is in the red zone

or a loss of engine power is expe-
rienced. (For example, the vehicle
speed does not increase.)



“Engine Coolant Temp High” is
shown on the multi-information
display.



Steam comes out from under the
hood.

Correction procedures

A
B

A
B
C
D

341

7-2. Steps to take in an emergency

When trouble

ari

ses

system is turned on immediately after a

cold start. Confirm that the fan is operating

by checking the fan sound and air flow. If it

is difficult to check these, turn the air con-

ditioning system on and off repeatedly.

(The fan may not operate in freezing tem-

peratures.)

If the fan is not operating:
Stop the engine immediately and
contact your Lexus dealer.
If the fan is operating:
Have the vehicle inspected at the
nearest Lexus dealer.

■

When adding coolant

Add coolant in accordance with the follow-

ing procedure.

Remove the service cover.

Remove the engine cover.

Remove the caps

and

Add coolant through the inlet of the cap

up to the “F” line

, and then

replace the cap

Add coolant through the inlet of the cap

until it is full, and then replace the

cap .

WARNING

■

When inspecting under the hood of

your vehicle

Observe the following precautions.

Failure to do so may result in serious

injury such as burns.

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

Keep hands and clothing (especially a

tie, a scarf or a muffler) away from the

fan and belts. Failure to do so may

cause the hands or clothing to be

caught, resulting in serious injury.

●

While the engine and radiator are hot,

do not loosen or remove the coolant

inlet cap or coolant reservoir cap.

High temperature steam or coolant

could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the engine has

cooled down sufficiently. Adding cool

coolant to a hot engine too quickly can

cause damage to the engine.

342

7-2. Steps to take in an emergency

Stop the engine. Set the parking
brake and shift the shift position to
P.

Remove the mud, snow or sand
from around the rear wheels.

Place wood, stones or some other
material under the rear wheels to
help provide traction.

Restart the engine.

Shift the shift position to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

When it is difficult to free the vehicle

Press the

switch to turn off TRAC.

NOTICE

■

To prevent damage to the cooling

system

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust

etc.).

●

Do not use any coolant additive.

If the vehicle becomes stuck

Carry out the following procedures
if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

343

7-2. Steps to take in an emergency

When trouble

ari

ses

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift position

Be careful not to shift the shift position

with the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damaging the transmission

and other components

●

Avoid spinning the rear wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be

freed.

345

Vehi

cle

spec

ifi

tions

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

346

Fuel information.........................

353

Tire information..........................

355

8-2. Customization

Customizable features............

363

8-3. Items to initialize

Items to initialize ........................

374

346

8-1. Specifications

8-1.Specifications

: Unladen vehicle

■

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel.

This number is also stamped under the
right-hand front seat.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

187.4 in. (4760 mm)

Overall width

75.6 in. (1920 mm)

Overall height

53.1 in. (1350 mm)

Wheelbase

113.0 in. (2870 mm)

Tread

Front

64.2 in. (1630 mm)

Rear

64.4 in. (1635 mm)

Vehicle capacity weight
(Occupants + luggage)

720 lb. (325 kg)

Seating capacity

4 (Front 2, Rear 2)

Vehicle identification

Content .. 18 19 20 21 ..
