282

6-3. Do-it-yourself maintenance

the vehicle is driven on an unpaved road.

When performing initialization, drive on a

paved road if possible. Depending on the

driving environment and condition of the

tires, initialization will be completed in

approximately 10 to 30 minutes. If initializa-

tion is not complete after driving approxi-

mately 10 to 30 minutes, continue driving

for a while. If the inflation of each tire is not

displayed after driving for approximately 1

hour, perform the following procedure.

●

Park the vehicle in a safe place for

approximately 20 minutes. Then drive

straight (with occasional left and right

turns) at approximately 25 mph (40

km/h) or more for approximately 10 to

30 minutes.

However, in the following situations, the tire
inflation pressure will not be recorded and
the system will not operate properly. Per-
form initialization again.

●

When performing initialization, the tire

pressure warning light does not blink 3

times. (Initialization will not occur while

driving)

●

After performing initialization, the tire

pressure warning light blinks for 1 minute

then stays on after driving for about 20

minutes.

If the inflation pressure of each tire is still not
displayed, have the vehicle inspected by
your Lexus dealer.

■

When registering ID codes

●

Initialize the tire pressure warning system

after ID code registration. Initialization is

disabled if the system was initialized

before registration.

●

After ID code registration, the tires are

hot by driving. Initialize the tire pressure

warning system after the tires become

cold.

The tire pressure warning valve and
transmitter is equipped with a unique
ID code. When replacing a tire pres-
sure warning valve and transmitter, it is
necessary to register the ID code.
When registering the ID codes, per-
form the following procedure.

Turn the engine switch to ON.

Press

of the meter con-

trol switches and select

Press

of the meter con-

trol switches and select “Vehicle
Settings”, then press “OK”.

Press

of the meter con-

trol switches and select “TPWS
SET”, then press “OK”.

Press

of the meter con-

trol switches and select “Change
wheel set”. Then press and hold
“OK” until the tire pressure warn-
ing light starts blinking.

The change wheel set mode is activated

and registration is started.

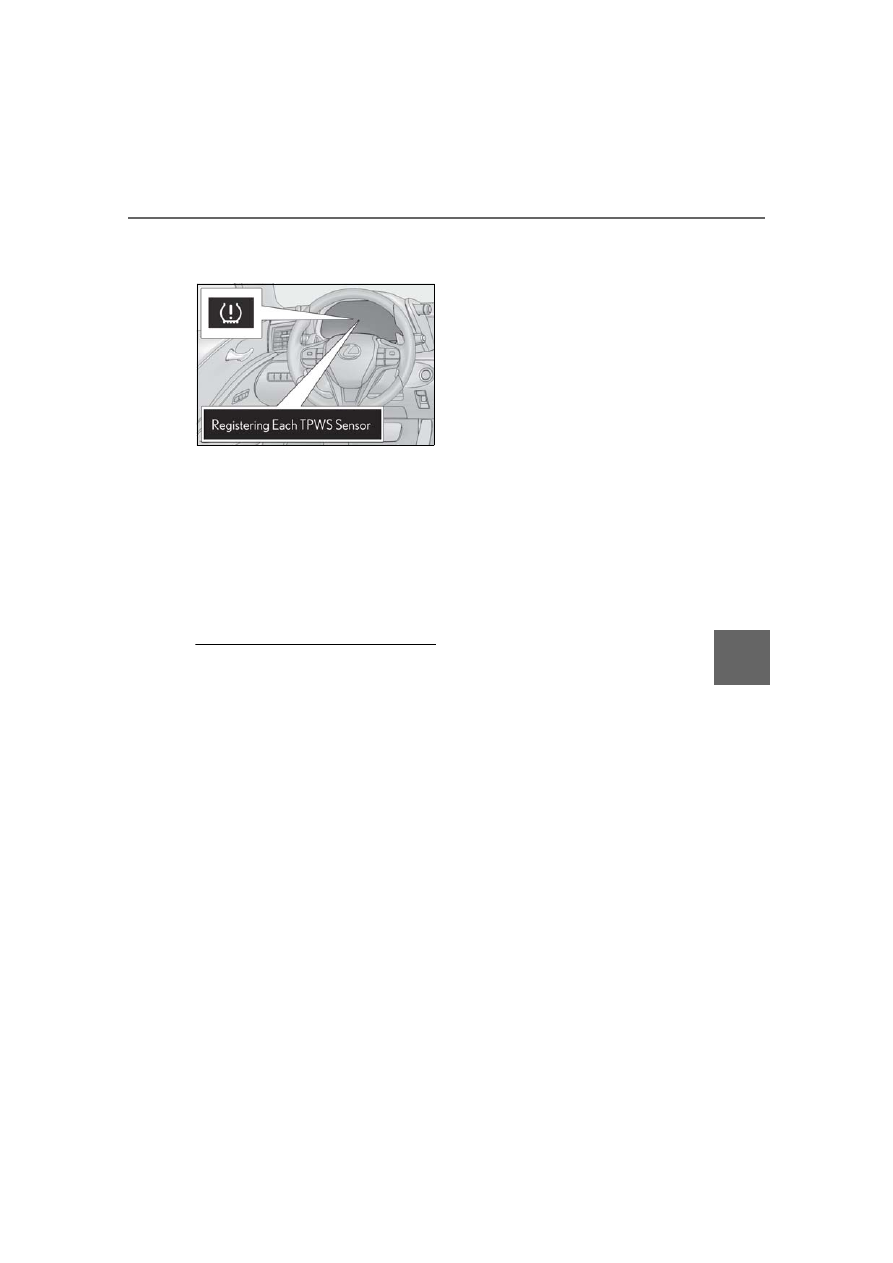

A message is displayed on the multi-infor-

mation display, and “--” is displayed for

WARNING

■

When initializing the tire pressure

warning system

Do not initialize tire inflation pressure

without first adjusting the tire inflation

pressure to the specified level. Other-

wise, the tire pressure warning light may

not come on even if the tire inflation

pressure is low, or it may come on when

the tire inflation pressure is actually nor-

mal.

Registering ID codes

283

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

inflation pressure of each tire. Then, the tire

pressure warning light blinks rapidly for

approximately 1 minute and stays on.

Drive the vehicle at 25mph (40
km/h) or more for approximately
10 to 30 minutes.

When registration is completed, the tire

pressure warning light will go off and the

inflation pressure of each tire will be dis-

played on the multi-information display.
The time elapsed before registration is

completed differs according to the driving

condition and environment.

■

Canceling the change wheel set mode

●

If turning the engine switch off when in

the change wheel set mode before driv-

ing, the change wheel set mode is can-

celed.

●

After driving when in the change wheel

set mode, the change wheel set mode

cannot be canceled. To cancel the mode,

perform the procedure for ID code regis-

tration again and turn the engine switch

off before driving.

●

If the change wheel set mode is canceled,

the ID codes that have already been reg-

istered are communicated. When com-

munication is finished, the tire pressure

warning light will turn off.

■

When ID code registration may not

operate properly

●

Do not move the vehicle backward

during registration. Registration is started

again from the beginning and it may take

longer than usual.

●

When another vehicle is running the side

of the vehicle such as in heavy traffic, it

may take longer to detect the vehicle’s

tire pressure warning valves and trans-

mitters.

●

If tire pressure warning valves and trans-

mitters are in the vehicle, the ID codes

may not be registered.

If registration takes long time, perform the
procedure for ID code registration again
after parking the vehicle for 20 minutes.
If the ID codes cannot be registered even
when performing the above procedure,
contact your Lexus dealer.

284

6-3. Do-it-yourself maintenance



Stop the vehicle in a safe place on a

hard, flat surface.



Set the parking brake.



Shift the shift position to P.



Stop the engine.

■

Tools

As your vehicle is equipped with run-flat

tires, the following tools for replacing a tire

are not included with your vehicle. They can

be purchased at your Lexus dealer.

●

Wheel nut wrench

●

Jack

●

Jack handle

Screwdriver

Wheel nut wrench

Jack

Jack handle

Towing eyelet

Replacing the tire

When raising your vehicle with a
jack, position the jack correctly.
Improper placement may damage
your vehicle or cause injury.
If necessary tire replacement
seems difficult to perform, contact
your Lexus dealer.

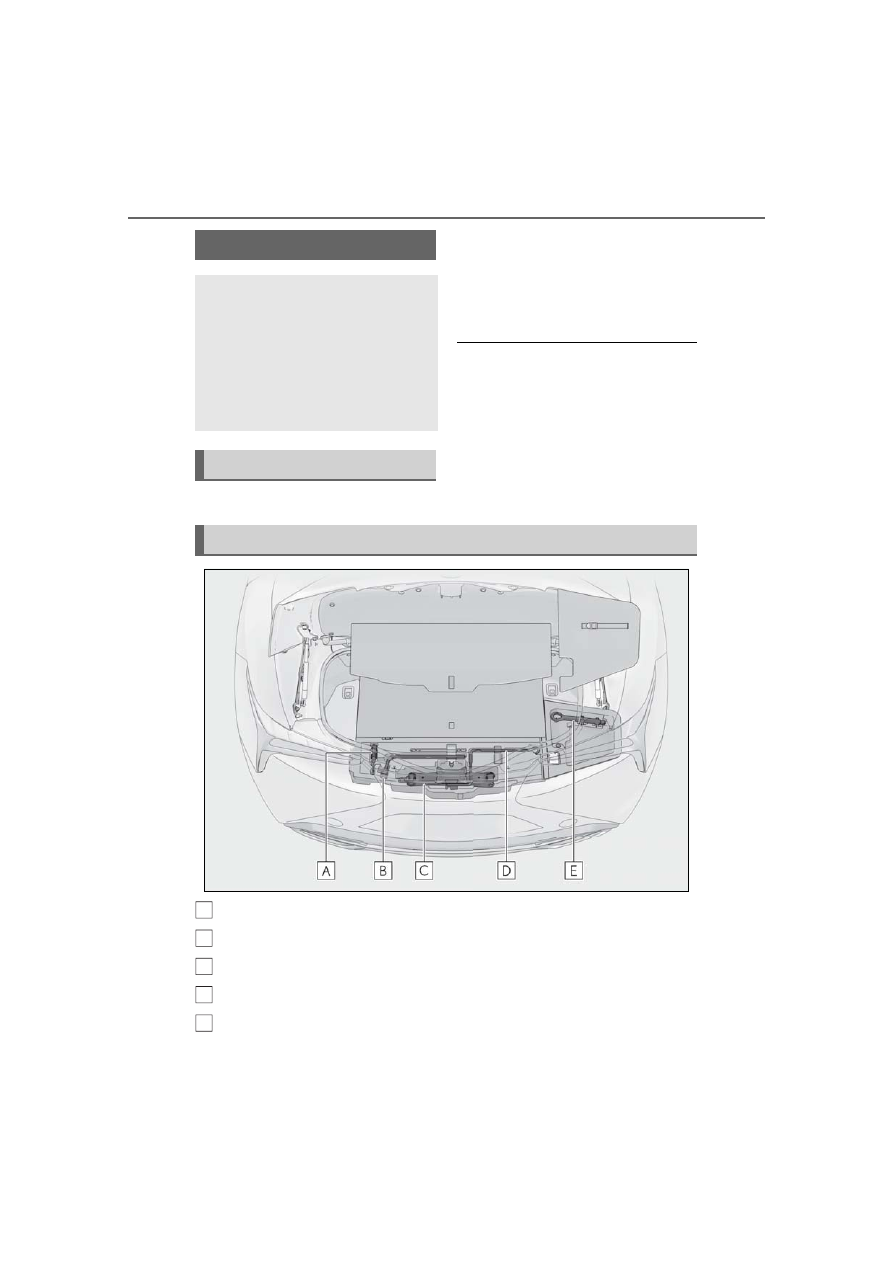

Before jacking up the vehicle

Location of the tools

A
B
C
D

285

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

: They can be purchased at your Lexus dealer.

Chock the tires.

Slightly loosen the wheel nuts (one
turn).

Turn the tire jack portion

hand until the notch of the jack is in
contact with the jack point.

The jack point guides are located under

WARNING

■

Using the tire jack

Observe the following precautions.

Improper use of the tire jack may cause

the vehicle to suddenly fall off the jack,

leading to death or serious injury.

●

Do not use the tire jack for any pur-

pose other than replacing tires.

●

Do not use other tire jacks for replac-

ing tires on this vehicle.

●

Put the jack properly in its jack point.

●

Do not put any part of your body under

the vehicle while it is supported by the

jack.

●

Do not start the engine or drive the

vehicle while the vehicle is supported

by the jack.

●

Do not raise the vehicle while some-

one is inside.

●

When raising the vehicle, do not put an

object on or under the jack.

●

Do not raise the vehicle to a height

greater than that required to replace

the tire.

●

Use a jack stand if it is necessary to get

under the vehicle.

●

When lowering the vehicle, make sure

that there is no-one near the vehicle. If

there are people nearby, warn them

vocally before lowering.

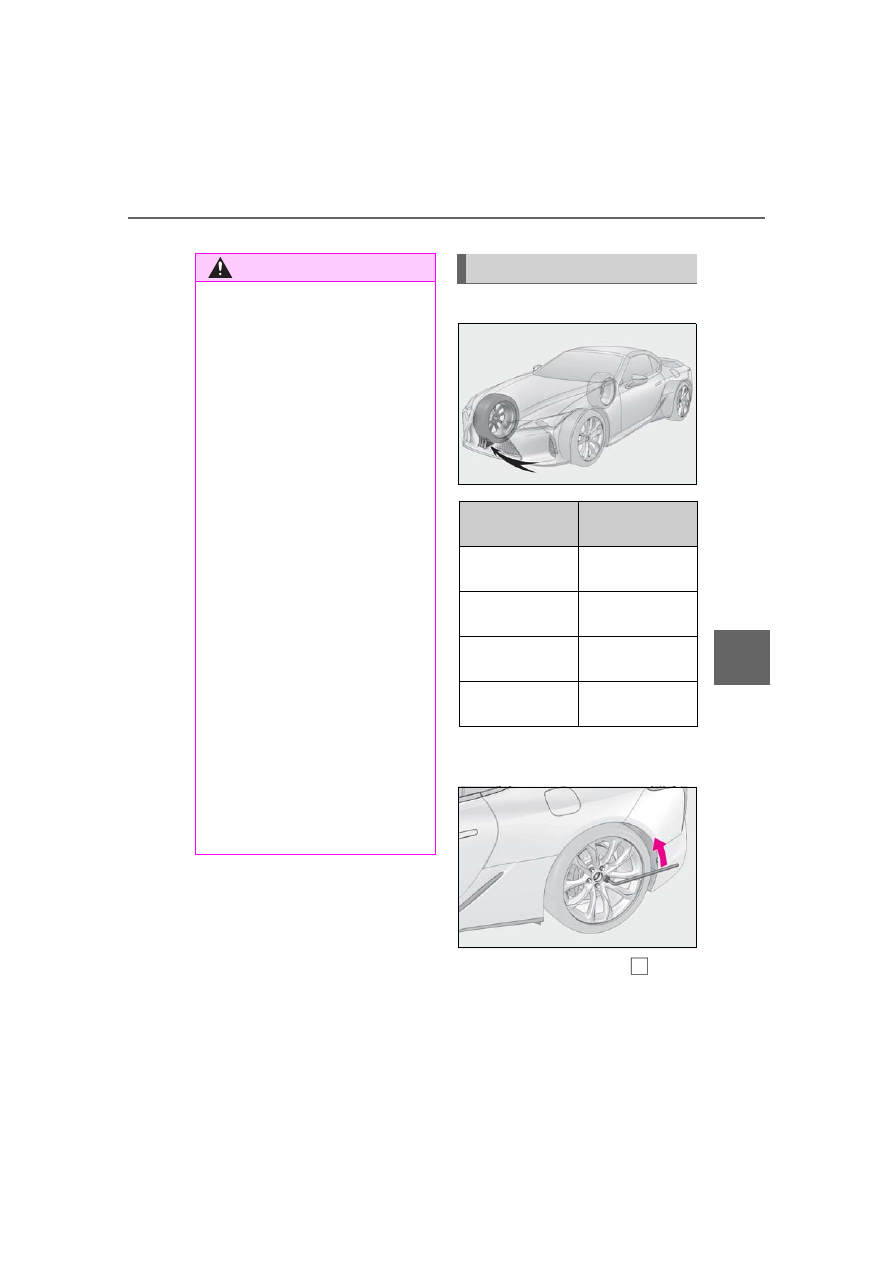

Removing a tire

Tire

Wheel chock posi-

tions

Front left-hand side

Behind the rear
right-hand side tire

Front right-hand
side

Behind the rear left-
hand side tire

Rear left-hand side

In front of the front
right-hand side tire

Rear right-hand side

In front of the front
left-hand side tire

286

6-3. Do-it-yourself maintenance

the rocker panel. They indicate the jack

point positions.

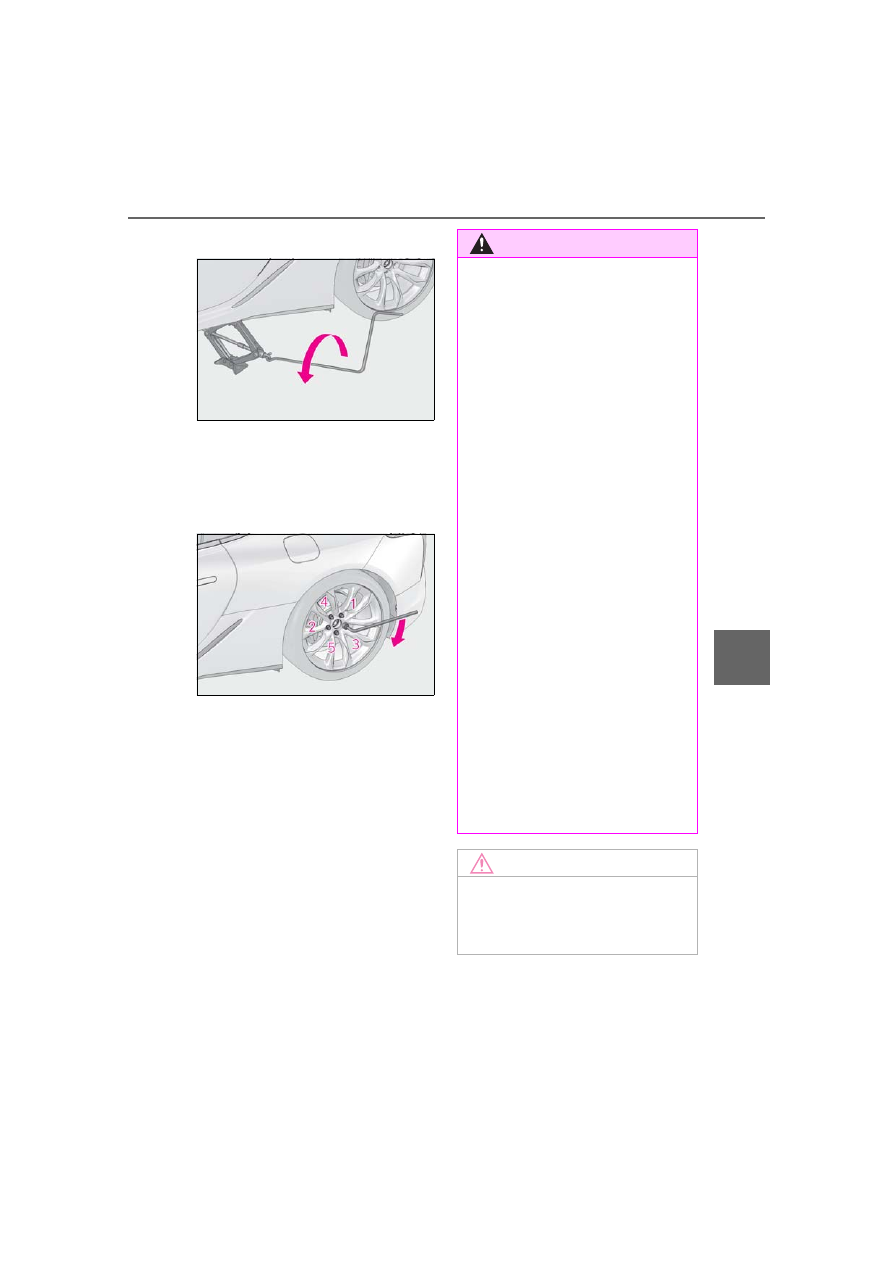

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and the
tire.

When resting the tire on the ground, place

the tire so that the wheel design faces up to

avoid scratching the wheel surface.

Remove any dirt or foreign matter
from the wheel contact surface.

If foreign matter is on the wheel contact

surface, the wheel nuts may loosen while

the vehicle is in motion, causing the tire to

come off.

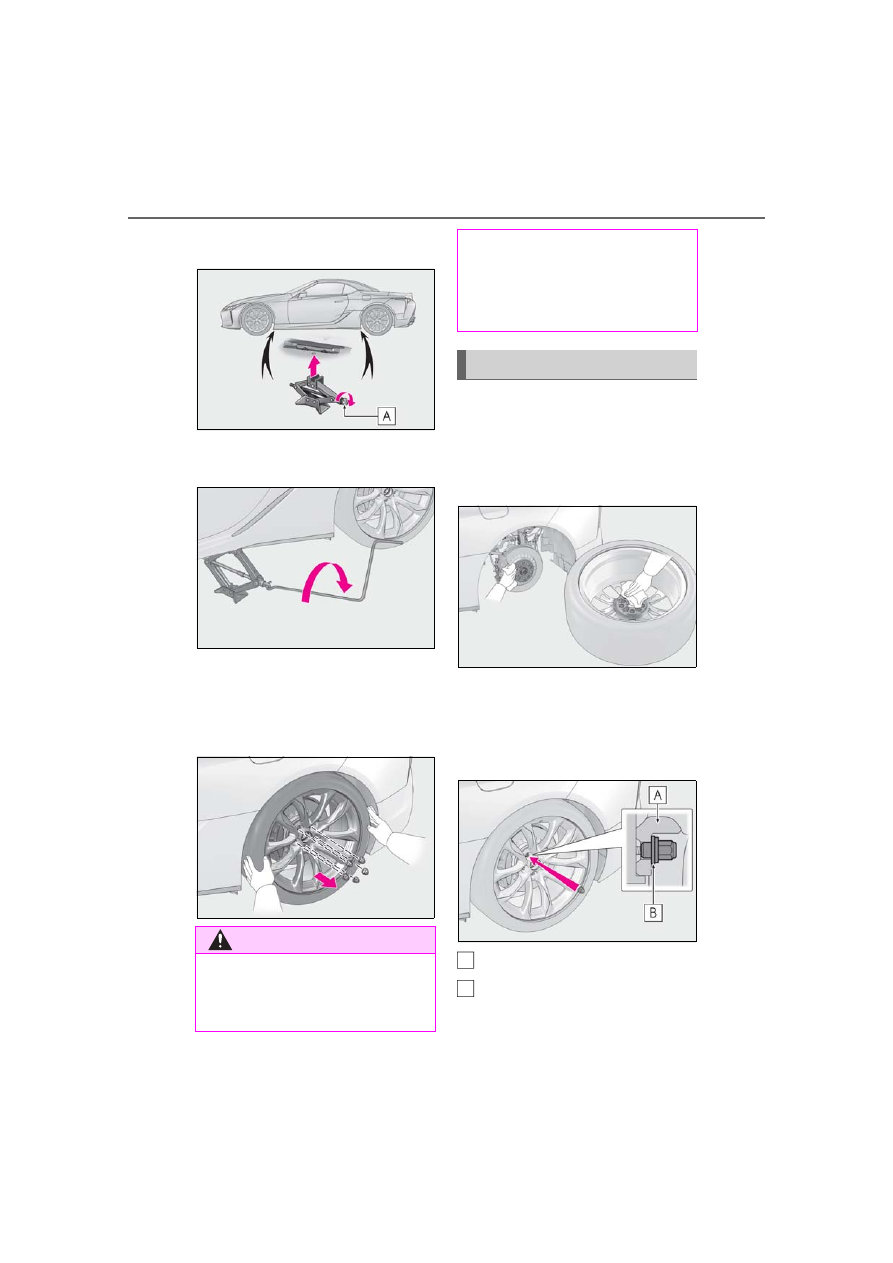

Install the tire and loosely tighten
each wheel nut by hand by approxi-
mately the same amount.

Turn the wheel nuts until the washers come

into contact with the disc wheel.

Disc wheel

Washer

WARNING

■

Replacing a tire

Do not touch the disc wheels or the area

around the brakes immediately after the

vehicle has been driven.

After the vehicle has been driven the disc

wheels and the area around the brakes

will be extremely hot. Touching these

areas with hands, feet or other body

parts while changing a tire, etc. may

result in burns.

Installing the tire

A
B

287

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

Lower the vehicle.

Firmly tighten each wheel nut two
or three times in the order shown in
the illustration.

Tightening torque:

103.3 ft•lbf (140 N•m, 14.3 kgf•m)

Stow all the tools.

WARNING

■

When installing the tire

Failure to follow these precautions could

cause the wheel nuts to loosen and the

tire to fall off, resulting in death or serious

injury.

●

Never use oil or grease on the wheel

bolts or wheel nuts.

Oil and grease may cause the wheel

nuts to be excessively tightened, lead-

ing to bolt or disc wheel damage. In

addition, the oil or grease can cause

the wheel nuts to loosen and the wheel

may fall off, causing a serious accident.

Remove any oil or grease from the

wheel bolts or wheel nuts.

●

Have the wheel nuts tightened with a

torque wrench to 103.3 ft•lbf (140

N•m, 14.3 kgf•m) soon as possible

after changing wheels.

●

Do not attach a heavily damaged

wheel ornament, as it may fly off the

wheel while the vehicle is moving.

●

When installing a tire, only use wheel

nuts that have been specifically

designed for that wheel.

●

If there are any cracks or deformations

in the bolt screws, nut threads or bolt

holes of the wheel, have the vehicle

inspected by your Lexus dealer.

■

After using the tools

Before driving, make sure all the tools

are stored securely in place. Failure to do

so may cause injury in case of a collision

or sudden braking.

NOTICE

■

Repairing or replacing tires, wheels,

tire pressure warning valves, trans-

mitters and tire valve caps



P.280

288

6-3. Do-it-yourself maintenance

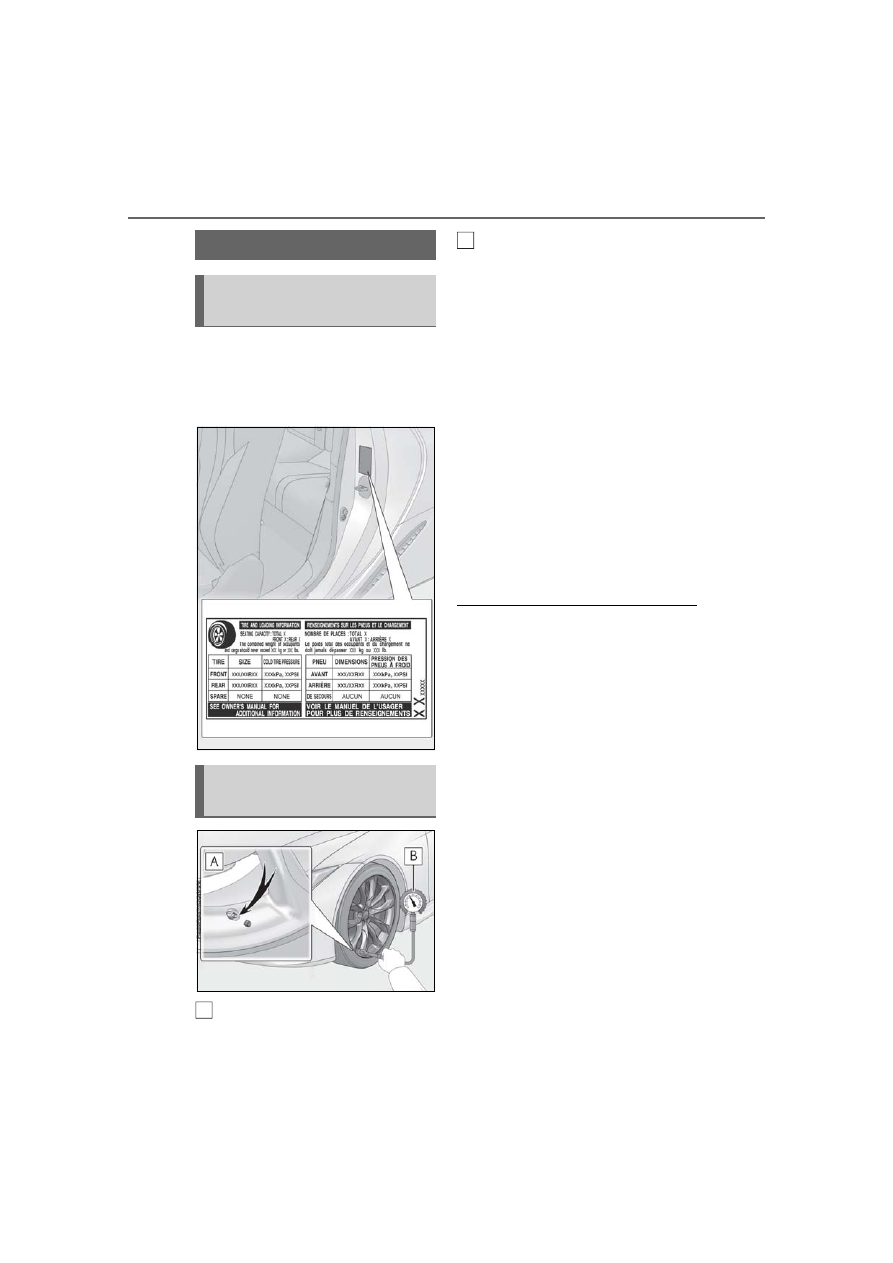

The recommended cold tire inflation
pressure and tire size are displayed on
the tire and loading information label.
(



P.351)

Tire valve

Tire pressure gauge

Remove the tire valve cap.

Press the tip of the tire pressure
gauge onto the tire valve.

Read the pressure using the gauge
gradations.

If the tire inflation pressure is not at
the recommended level, adjust the
pressure.
If you add too much air, press the
center of the valve to deflate.

After completing the tire inflation
pressure measurement and adjust-
ment, apply soapy water to the
valve and check for leakage.

Put the tire valve cap back on.

■

Tire inflation pressure check interval

You should check tire inflation pressure

every two weeks, or at least once a month.

Do not forget to check the spare.

■

Effects of incorrect tire inflation pres-

sure

Driving with incorrect tire inflation pressure

may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor han-

dling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drivetrain

If a tire needs frequent inflating, have it

checked by your Lexus dealer.

■

Instructions for checking tire inflation

pressure

When checking tire inflation pressure,

observe the following:

●

Check only when the tires are cold.

If your vehicle has been parked for at

least 3 hours or has not been driven for

Tire inflation pressure

Checking the specified tire infla-
tion pressure

Inspection and adjustment pro-
cedure

289

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

more than 1 mile or 1.5 km, you will get an

accurate cold tire inflation pressure read-

ing.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is properly

inflated based only on its appearance.

●

It is normal for the tire inflation pressure

to be higher after driving as heat is gener-

ated in the tire. Do not reduce tire infla-

tion pressure after driving.

●

Never exceed the vehicle capacity

weight.

Passengers and luggage weight should

be placed so that the vehicle is balanced.

WARNING

■

Proper inflation is critical to save tire

performance

Keep your tires properly inflated.

If the tires are not properly inflated, the

following conditions may occur which

could lead to an accident resulting in

death or serious injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting from

overheated tires

●

Air leaking from between tire and

wheel

●

Wheel deformation and/or tire dam-

age

●

Greater possibility of tire damage

while driving (due to road hazards,

expansion joints, sharp edges in the

road, etc.)

NOTICE

■

When inspecting and adjusting tire

inflation pressure

Be sure to put the tire valve caps back

on.

If a valve cap is not installed, dirt or mois-

ture may get into the valve and cause an

air leak, resulting in decreased tire infla-

tion pressure.

290

6-3. Do-it-yourself maintenance

When replacing wheels, care should
be taken to ensure that they are equiv-
alent to those removed in load capac-
ity, diameter, rim width and inset

Replacement wheels are available at
your Lexus dealer.

: Conventionally referred to as offset.

Lexus does not recommend using the
following:



Wheels of different sizes or types



Used wheels



Bent wheels that have been
straightened

■

When replacing wheels

The wheels of your vehicle are equipped

with tire pressure warning valves and trans-

mitters that allow the tire pressure warning

system to provide advance warning in the

event of a loss in tire inflation pressure.

Whenever wheels are replaced, tire pres-

sure warning valves and transmitters must

be installed. (



P.280)



Use only Lexus wheel nuts and
wrenches designed for use with
your aluminum wheels.



When rotating, repairing or chang-
ing your tires, check that the wheel
nuts are still tight after driving 1000
miles (1600 km).



Use only Lexus genuine balance
weights or equivalent and a plastic
or rubber hammer when balancing
your wheels.

Wheels

If a wheel is bent, cracked or heav-
ily corroded, it should be replaced.
Otherwise, the tire may separate
from the wheel or cause a loss of
handling control.

Wheel selection

WARNING

■

When replacing wheels

●

Do not use wheels that are a different

size from those recommended in the

Owner’s Manual, as this may result in a

loss of handling control.

●

Never use an inner tube in a leaking

wheel which is designed for a tubeless

tire. Doing so may result in an acci-

dent, causing death or serious injury.

■

Use of defective wheels prohibited

Do not use cracked or deformed wheels.

Doing so could cause the tire to leak air

during driving, possibly causing an acci-

dent.

NOTICE

■

Replacing tire pressure warning

valves and transmitters

●

Because tire repair or replacement

may affect the tire pressure warning

valves and transmitters, make sure to

have tires serviced by your Lexus

dealer or other qualified service shop.

In addition, make sure to purchase

your tire pressure warning valves and

transmitters at your Lexus dealer.

●

Ensure that only genuine Lexus wheels

are used on your vehicle.

Tire pressure warning valves and

transmitters may not work properly

with non-genuine wheels.

Aluminum wheel precautions

291

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

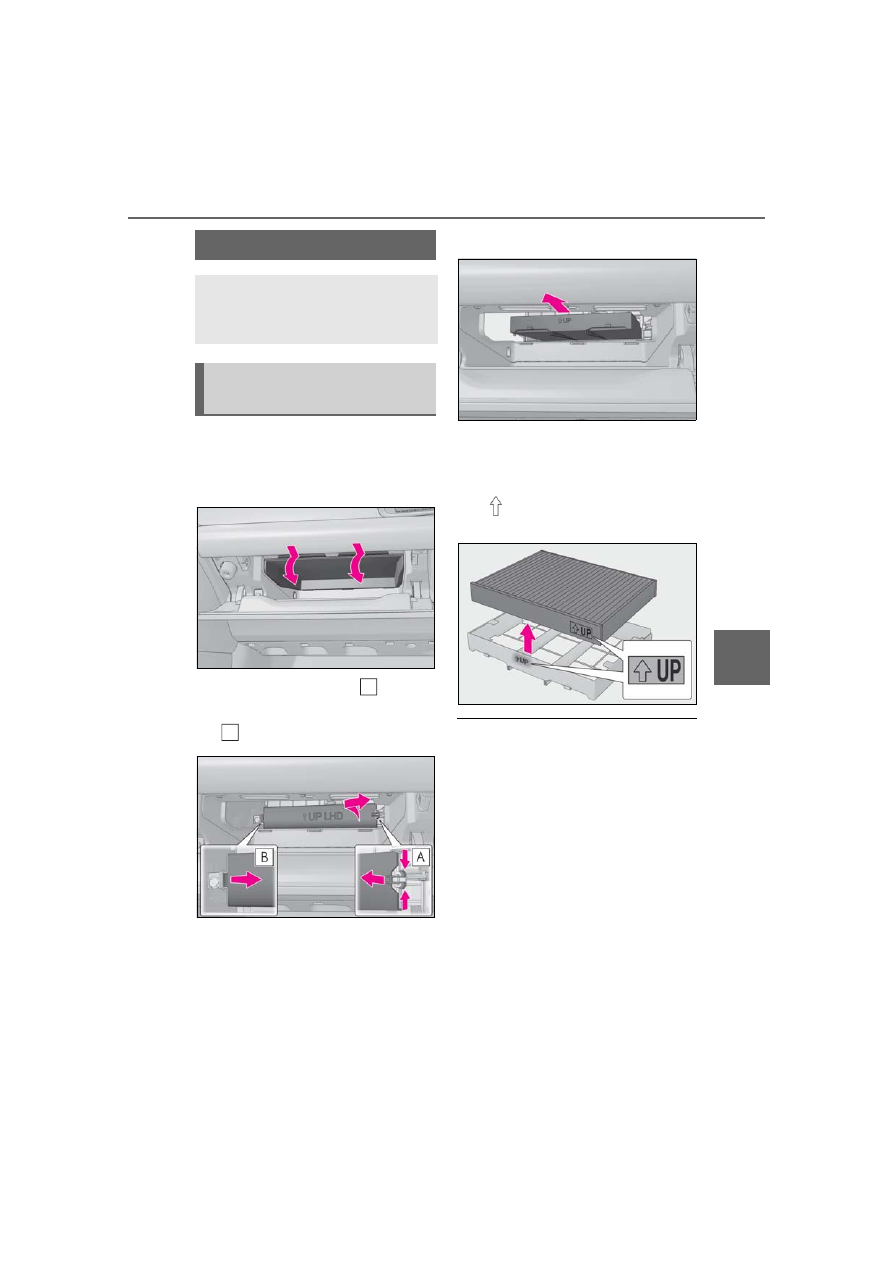

Turn the engine switch off.

Open the glove box.

Remove the panel.

Unlock the filter cover (

), pull

the filter cover out of the claws
(

), and remove the filter cover.

Remove the filter case.

Remove the air conditioning filter
from the filter case and replace it
with a new one.

The “

UP” marks shown on the filter and

the filter case should be pointing up.

■

Checking interval

Inspect and replace the air conditioning fil-

ter according to the maintenance schedule.

In dusty areas or areas with heavy traffic

flow, early replacement may be required.

(For scheduled maintenance information,

please refer to the “Owner’s Manual Sup-

plement” or “Scheduled Maintenance”.)

■

If air flow from the vents decreases dra-

matically

The filter may be clogged. Check the filter

and replace if necessary.

■

Air conditioning filter with deodorizing

function

When fragrances are placed in your vehi-

cle, the deodorizing effect may become sig-

nificantly weakened in a short period.

When an air conditioning odor comes out

continuously, replace the air conditioning

Air conditioning filter

The air conditioning filter must be
changed regularly to maintain air
conditioning efficiency.

Removing the air conditioning
filter

292

6-3. Do-it-yourself maintenance

filter.

■

If the electronic key battery is depleted

The following symptoms may occur:

●

The smart access system with push-but-

ton start and wireless remote control will

not function properly.

●

The operational range will be reduced.

■

When the card key battery needs to be

replaced (if equipped)

The battery for the card key is available only

at Lexus dealers. Your Lexus dealer can

replace the battery for you.

Prepare the following before replacing
the battery:



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2032

■

Use a CR2032 lithium battery

●

Batteries can be purchased at your Lexus

dealer, local electrical appliance shops or

camera stores.

●

Replace only with the same or equivalent

type recommended by the manufacturer.

●

Dispose of used batteries according to

the local laws.

NOTICE

■

When using the air conditioning sys-

tem

Make sure that a filter is always installed.

Using the air conditioning system with-

out a filter may cause damage to the sys-

tem.

■

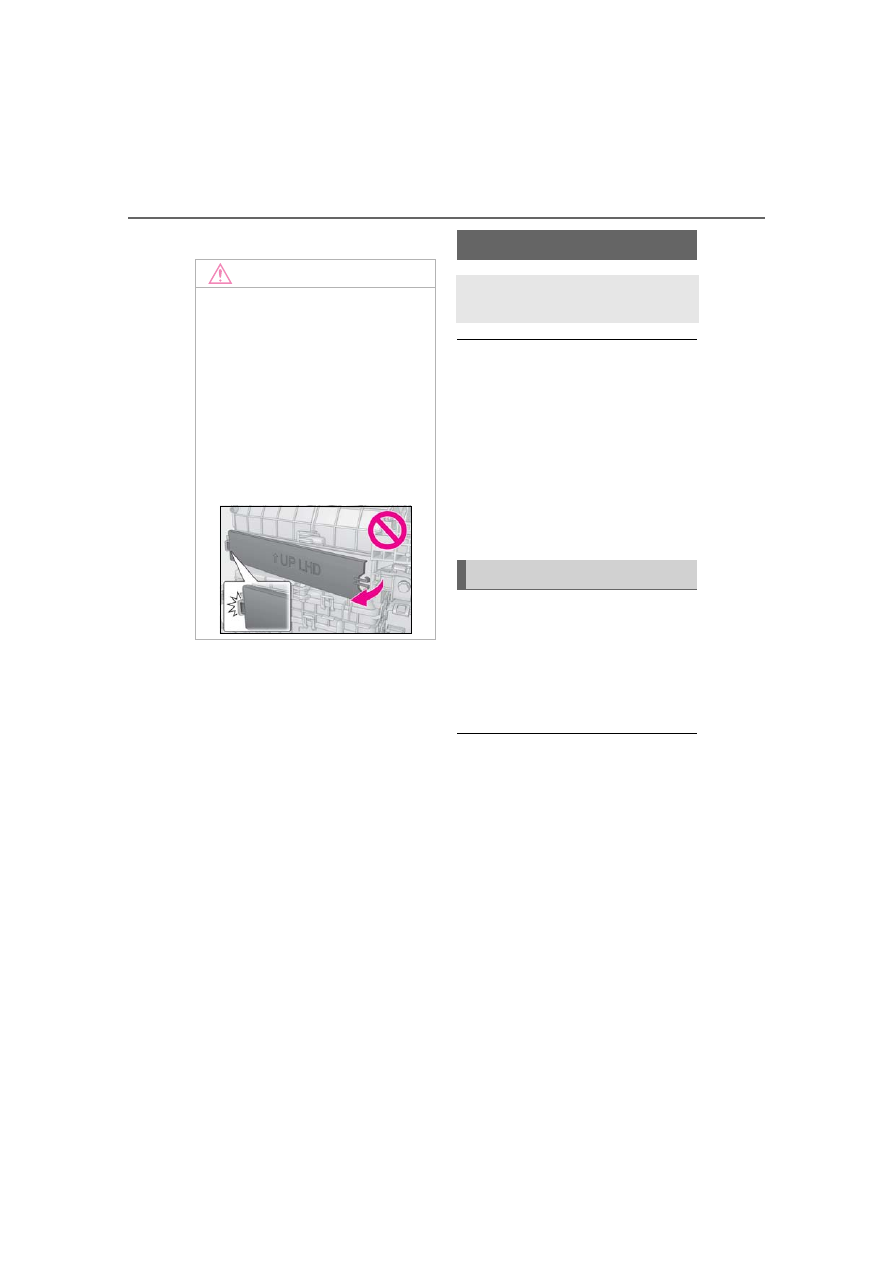

To prevent damage to the filter cover

When moving the filter cover in the

direction of arrow to release the fitting,

pay attention not to apply excessive

force to the claws. Otherwise, the claws

may be damaged.

Electronic key battery

Replace the battery with a new one
if it is depleted.

Items to prepare

293

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

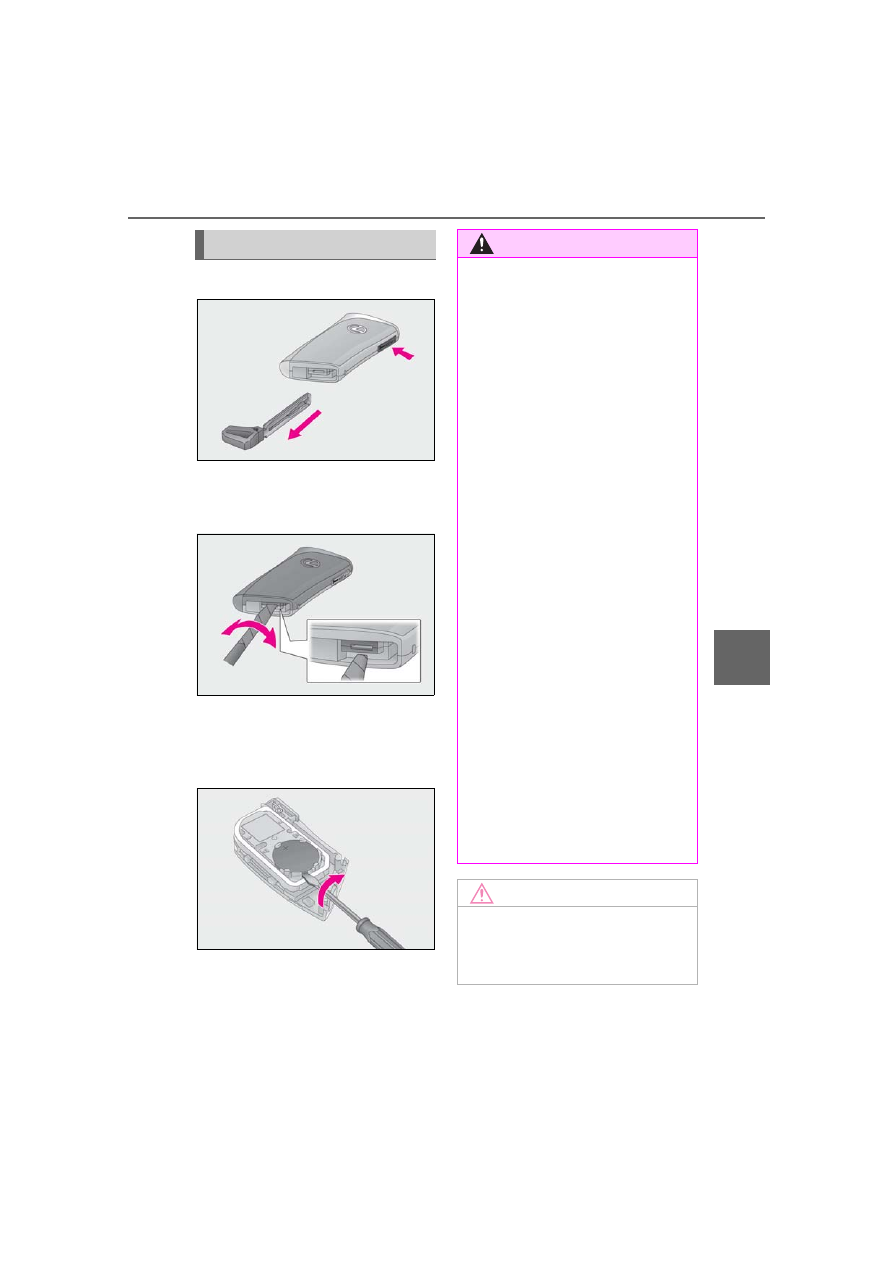

Take out the mechanical key.

Remove the cover.

To prevent damage to the key, wrap the tip

of the screwdriver with tape.

Remove the depleted battery using
a small flathead screwdriver.

Insert a new battery with the “+” terminal

facing up.

Replacing the battery

WARNING

■

Battery precautions

Observe the following precautions. Fail-

ure to do so may result in death or seri-

ous injury.

●

Do not swallow the battery. Doing so

may cause chemical burns.

●

A coin battery or button battery is

used in the electronic key. If a battery

is swallowed, it may cause severe

chemical burns in as little as 2 hours

and may result in death or serious

injury.

●

Keep away new and removed batter-

ies from children.

●

If the cover cannot be firmly closed,

stop using the electronic key and stow

the key in the place where children

cannot reach, and then contact your

Lexus dealer.

●

If you accidentally swallow a battery or

put a battery into a part of your body,

get emergency medical attention

immediately.

■

To prevent battery explosion or leak-

age of flammable liquid or gas

●

Replace the battery with a new battery

of the same type. If a wrong type of

battery is used, it may explode.

●

Do not expose batteries to extremely

low pressure due to high altitude or

extremely high temperatures.

●

Do not burn, break or cut a battery.

NOTICE

■

When replacing the battery

Use a screwdriver of appropriate size.

Applying excessive force may deform or

damage the cover.

294

6-3. Do-it-yourself maintenance

Turn the engine switch off.

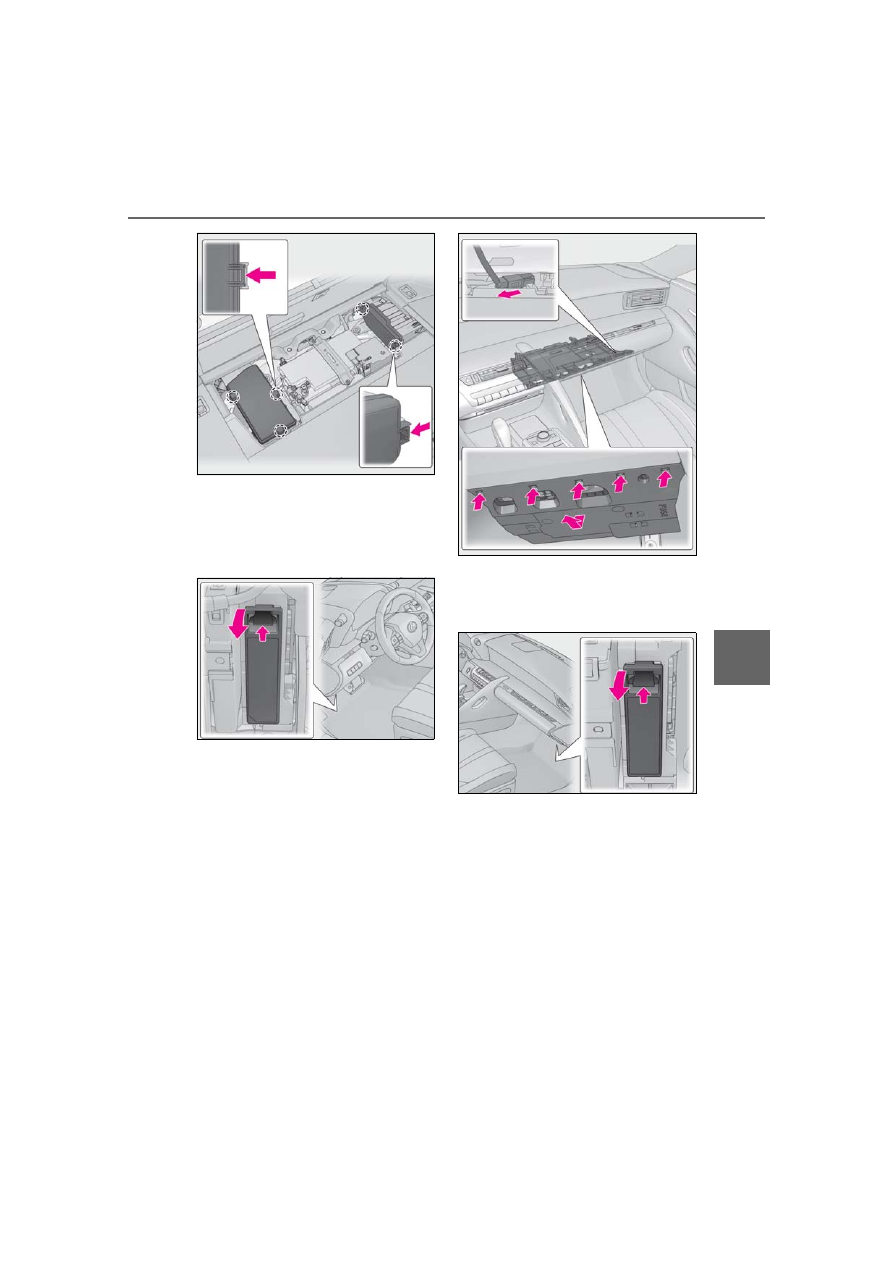

Open the Fuse box cover.



Engine compartment:

Push the tab in and lift the lid off.



Trunk

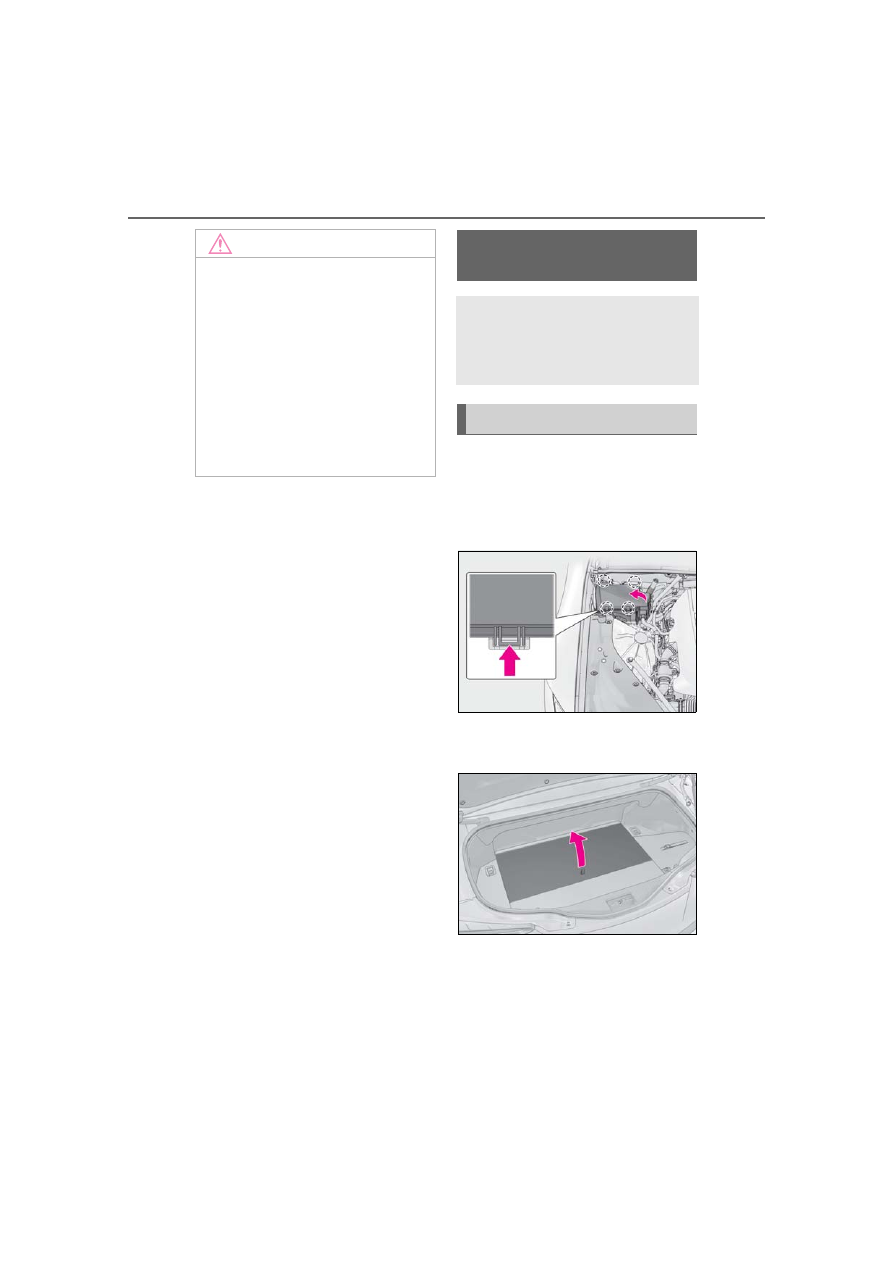

Remove the luggage mat.

Push the tab in and lift the lid off.

NOTICE

■

For normal operation after replacing

the battery

Observe the following precautions to

prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery to

rust.

●

Do not touch or move any other com-

ponent inside the remote control.

●

Do not bend either of the battery ter-

minals.

Checking and replacing
fuses

If any of the electrical components
do not operate, a fuse may have
blown. If this happens, check and
replace the fuses as necessary.

Checking and replacing fuses

295

6-3. Do-it-yourself maintenance

Mai
nte

e a

are



Driver’s side instrument panel

Push the tab in and remove the lid.
Make sure to push the tab in during
removal or installation.



Front passenger’s side instrument
panel

Remove the cover, and then remove the
footwell light connector.

Push the tab in and remove the lid.
Make sure to push the tab in during
removal or installation.

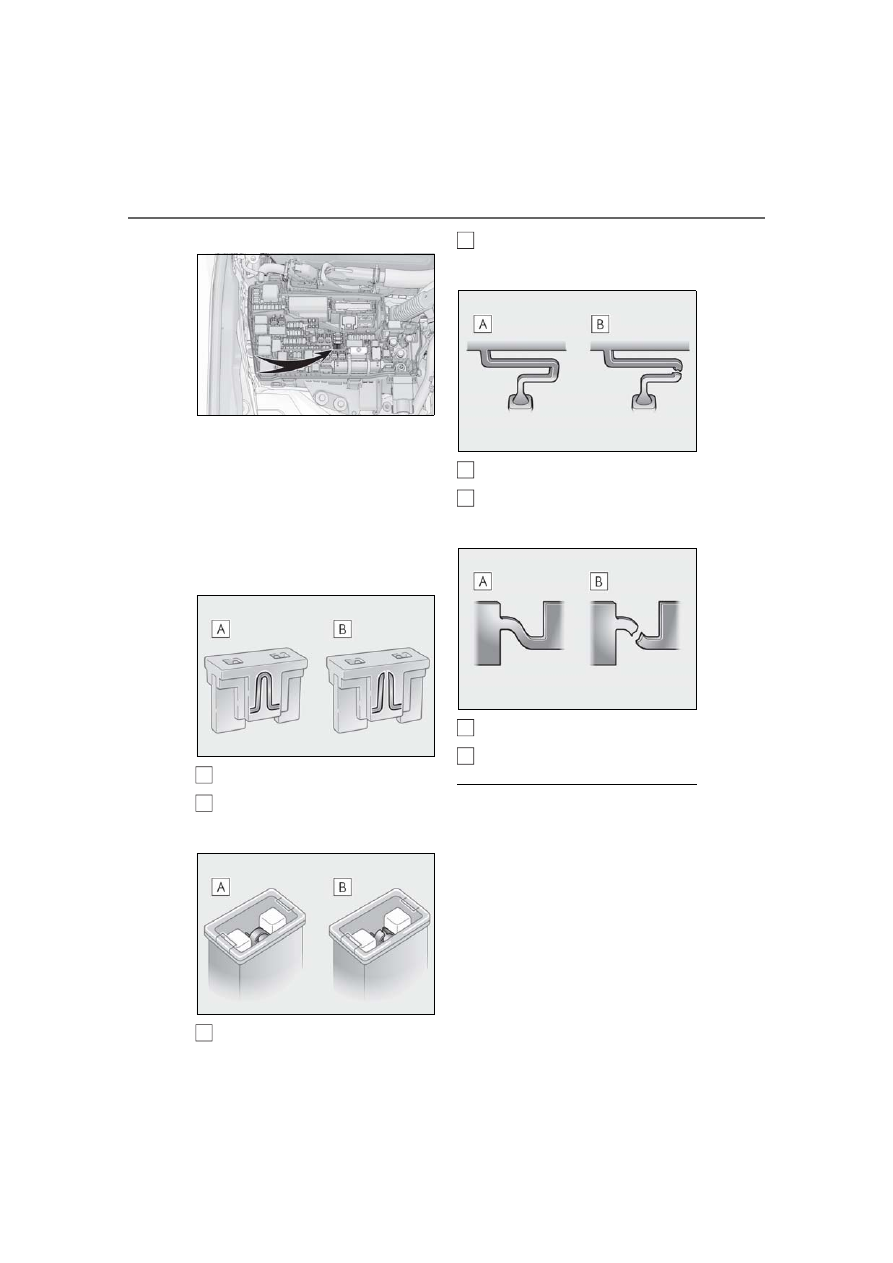

Remove the fuse with the pullout
tool.

Only type A fuses can be removed using

296

6-3. Do-it-yourself maintenance

the pullout tool.

Check if the fuse is blown.

Type A and B:

Replace the blown fuse with a new fuse of

an appropriate amperage rating. The

amperage rating can be found on the fuse

box lid.
Type C and D:

Contact your Lexus dealer.



Type A

Normal fuse

Blown fuse



Type B

Normal fuse

Blown fuse



Type C

Normal fuse

Blown fuse



Type D

Normal fuse

Blown fuse

■

After a fuse is replaced

●

When installing the lid, make sure that the

tab is installed securely.

●

If the lights do not turn on even after the

fuse has been replaced, a bulb may need

replacement. (



P.298)

●

If the replaced fuse blows again, have the

vehicle inspected by your Lexus dealer.

■

If there is an overload in a circuit

The fuses are designed to blow, protecting

the wiring harness from damage.

■

When replacing light bulbs

Lexus recommends that you use genuine

Lexus products designed for this vehicle.

A
B

297

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

Because certain bulbs are connected to cir-

cuits designed to prevent overload, non-

genuine parts or parts not designed for this

vehicle may be unusable.

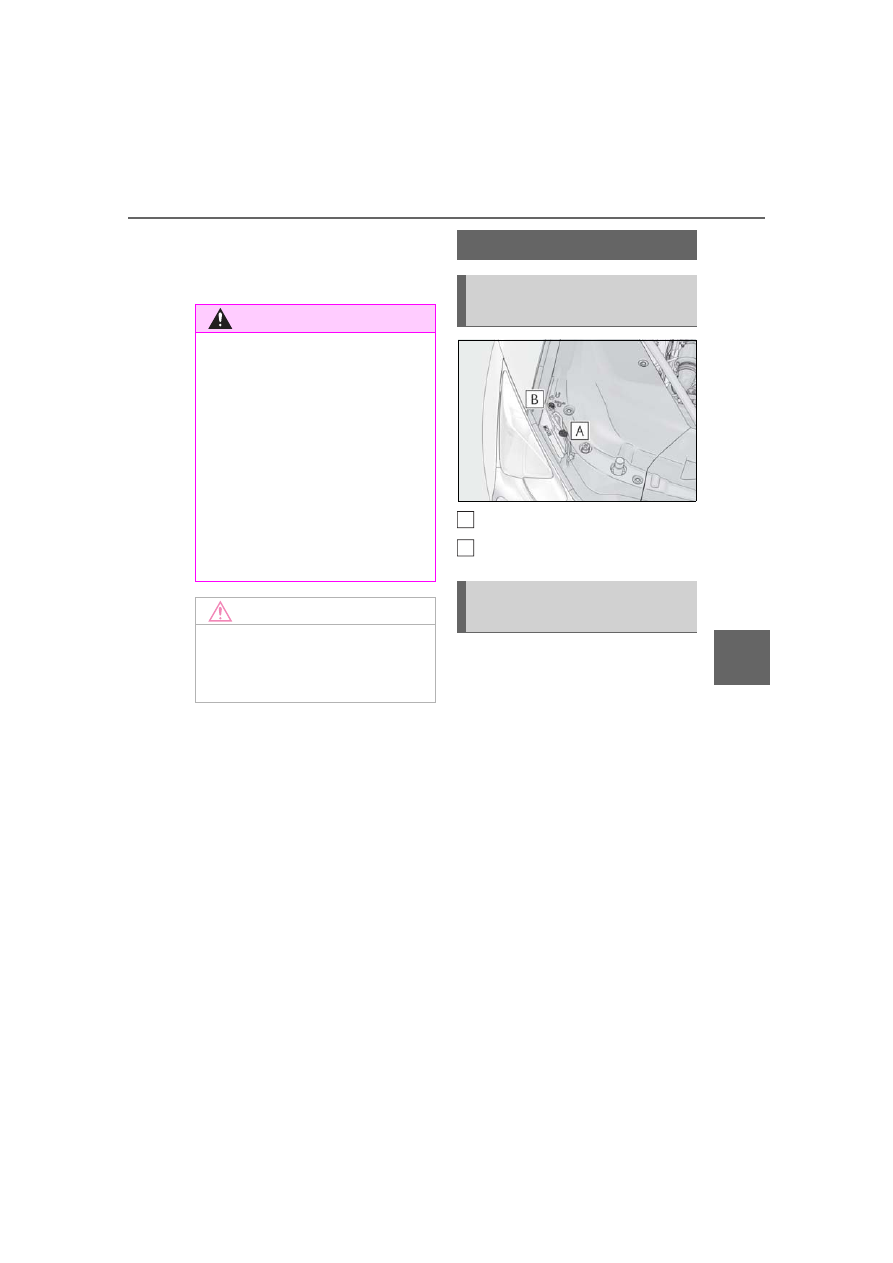

Adjustment bolt A

Adjustment bolt B



Make sure the vehicle has a full tank
of gasoline and the area around the
headlight is not deformed.



Park the vehicle on level ground.



Make sure the tire inflation pressure
is at the specified level.



Have someone sit in the driver’s
seat.



Bounce the vehicle several times.

WARNING

■

To prevent system breakdowns and

vehicle fire

Observe the following precautions.

Failure to do so may cause damage to

the vehicle, and possibly a fire or injury.

●

Never use a fuse of a higher amperage

rating than that indicated, or use any

other object in place of a fuse.

●

Always use a genuine Lexus fuse or

equivalent.

Never replace a fuse with a wire, even

as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical overload

determined and repaired by your Lexus

dealer as soon as possible.

Headlight aim

Vertical movement adjusting
bolts

Before checking the headlight
aim

A
B

Content .. 15 16 17 18 ..
