Lexus LC500C (2022 year). Manual in english

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Trip information

If a screen other than “Trip Informa-
tion” is displayed, select “Trip Informa-
tion”.

Resetting the consumption data

Fuel consumption in the past 15
minutes

Current fuel consumption

Average vehicle speed since the
engine was started.

Elapsed time since the engine was
started.

Cruising range

Average fuel consumption for the past 15
minutes is divided by color into past aver-
ages and averages attained since the
engine switch was last turned to ON. Use
the displayed average fuel consumption as
a reference.
The image is an example only, and may
vary slightly from actual conditions.

■

History

If a screen other than “History” is dis-
played, select “History”.

Best recorded fuel consumption

Latest fuel consumption

Previous fuel consumption record

Resetting the history data

Updating the latest fuel consump-
tion data

The average fuel consumption history is
divided by color into past averages and the
average fuel consumption since the last
updated. Use the displayed average fuel
consumption as a reference.
The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

A
B

C
D

A
B
C
D

2-1. Instrument cluster

Display the vehicle information on the
side display (



P.225), and then select

to display the desired

screen.

■

Trip information (type A)

Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

■

Trip information (type B)

Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-

tion as a reference.

■

History

Displays the average fuel consump-
tion, last average fuel consumption and
highest fuel consumption.

The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consump-
tion as a reference.

Using the side display

fore
dri
ving

Before driving

3-1. Key information

Keys ...................................................

3-2. Opening, closing and locking the

doors and trunk

Doors.................................................

Trunk..................................................

Smart access system with push-

button start..................................

101

3-3. Adjusting the seats

Front seats.....................................

106

Driving position memory ........

108

Head restraints.............................

112

3-4. Adjusting the steering wheel and

mirrors

Steering wheel..............................

113

Inside rear view mirror..............

114

Outside rear view mirrors.......

115

3-5. Opening and closing the win-

dows

Power windows............................

118

3-6. Opening and closing the soft top

roof

Soft top roof..................................

122

3-1. Key information

3-1.Key information

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart access system with

push-button start (



P.101)

• Operating the wireless remote control

function

Mechanical keys

Key number plate

Card key (electronic key) (if
equipped)

Operating the smart access system with
push-button start (



P.101)

■

Card key (if equipped)

●

The card key is not waterproof.

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag etc., ensure that

the buttons are not likely to be pressed

accidentally. Pressing a button may cause

the electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is from one year

to one year and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin when the engine is

stopped.

●

Electronic keys that will not be used for

long periods of time can be set to the bat-

tery-saving mode in advance. (



P.103)

●

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

that the electronic key battery may be

depleted. Replace the battery when nec-

essary. (



P.292)

• The smart access system with push-but-

ton start or the wireless remote control

does not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface

does not turn on.

You can replace the battery by yourself

Keys

Key types

B
C
D

3-1. Key information

fore
dri
ving

(



P.292). However, as there is a danger

that the electronic key may be damaged, it
is recommended that replacement be car-
ried out by your Lexus dealer.

●

To avoid serious deterioration, do not

leave the electronic key within 3 ft. (1 m)

of the following electrical appliances that

produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and

battery chargers

• Recharging cellular phones or cordless

phones

• Table lamps

• Induction cookers

■

Replacing the battery



P.292

■

Confirmation of the registered key

number

The number of keys already registered to

the vehicle can be confirmed. Ask your

Lexus dealer for details.

■

If “A New Key has been Registered

Contact Your Dealer for Details” is

shown on the multi-information display

This message will be displayed each time

the driver’s door is opened when the doors

are unlocked from the outside for approxi-

mately 10 days after a new electronic key

has been registered.

If this message is displayed but you have not

had a new electronic key registered, ask

your Lexus dealer to check if an unknown

electronic key (other than those in your

possession) has been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to

strong shocks or bend them.

●

Do not expose the keys to high tem-

peratures for long periods of time.

●

Do not get the keys wet or wash them

in an ultrasonic washer etc.

●

Do not attach metallic or magnetic

materials to the keys or place the keys

close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else

to the surface of the electronic key.

●

Do not place the keys near objects that

produce magnetic fields, such as TVs,

audio systems and induction cookers.

●

Do not place the keys near medical

electrical equipment such as low-fre-

quency therapy equipment or micro-

wave therapy equipment, and do not

receive medical attention with the keys

on your person.

■

Carrying the electronic key on your

person

Carry the electronic key 3.9 in. (10 cm)

or more away from electric appliances

that are turned on. Radio waves emitted

from electric appliances within 3.9 in. (10

cm) of the electronic key may interfere

with the key, causing the key to not func-

tion properly.

■

In case of a smart access system with

push-button start malfunction or

other key-related problems



P.325

■

When an electronic key is lost



P.324

■

Handling the card key (if equipped)

●

If the battery or card key terminals get

wet, the battery may corrode and the

card key may stop working.

If the key is dropped into water, or if

drinking water, etc. is spilled on the

key, immediately remove the battery

cover and wipe the battery and termi-

nals. (To remove the battery cover,

lightly grasp and pull it.) If the battery is

corroded, have your Lexus dealer

replace the battery.

3-1. Key information

The electronic keys are equipped with
the following wireless remote control:

Locks the doors (

Unlocks the doors (

Opens the windows

(



Opens the trunk (

Sounds the alarm (

: This setting must be customized at your

Lexus dealer.

■

Theft deterrent panic mode

When

is pressed for longer than

about one second, an alarm will sound

intermittently and the vehicle lights will flash

to deter any person from trying to break

into or damage your vehicle.
To stop the alarm, press any button on the

electronic key.

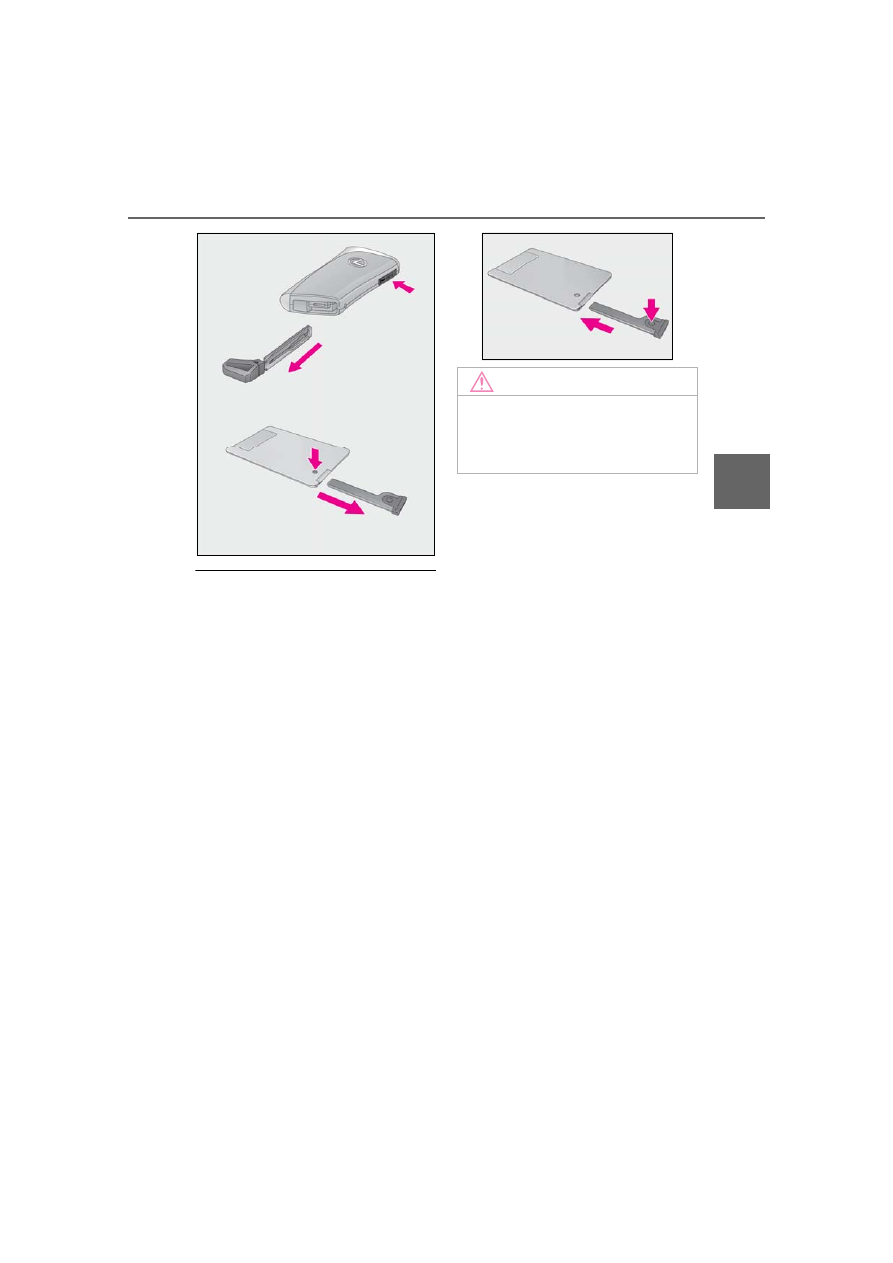

To take out the mechanical key, push
the release button and take the key out.

The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
(



P.325)

NOTICE

●

Do not crush the battery cover or use

a screwdriver to remove the battery

cover.

Forcibly removing the battery cover

may bend or damage the key.

●

If the battery cover is frequently

removed, the battery cover may

become loose.

●

When installing the battery, make sure

to check the direction of the battery.

Installing the battery in the wrong

direction may cause the battery to

deplete rapidly.

●

The surface of the card key may be

damaged, or its coating may peel off in

the following situations:

• The card key is carried together with

hard objects, such as coins and keys.

• The card key is scraped with a sharp

object, such as the tip of a mechanical

pencil.

• The surface of the card key is wiped

with thinner or benzene.

Wireless remote control

A
B
C

Using the mechanical key

3-1. Key information

fore
dri
ving

■

When required to leave the vehicle’s

key with a parking attendant

Turn the trunk opener main switch off and

lock the glove box (



P.242) as circum-

stances demand.

Remove the mechanical key for your own

use and provide the attendant with the elec-

tronic key only.

■

If you lose your mechanical keys



P.324

■

If a wrong key is used

The key cylinder rotates freely, isolated

from the internal mechanism.

■

Card key (if equipped)

●

If it is difficult to take out the mechanical

key, push down the release button using

a pen tip etc. If it is still difficult to pull it

out, use a coin etc. (



P.92)

●

To store the mechanical key in the card

key, insert it while pressing the release

button.

NOTICE

■

Handling the card key (if equipped)

Do not apply excess force when inserting

the mechanical key into the card key.

Doing so may damage the card key.

3-2. Opening, closing and locking the doors and trunk

3-2.Opening, closing and locking the doors and trunk

■

Smart access system with push-
button start

Carry the electronic key to enable this
function.

Push the depression on the front
edge of the driver’s door handle to
unlock the door. Push the depres-
sion on the front edge of the pas-
senger’s door handle to unlock
both side doors.

The outside door handles will be extended.
The extended outside door handles are
automatically retracted in approximately
60 seconds.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.

: The door unlock settings can be

changed.

Push the rear edge of the extended
door handle to lock the doors.

If the outside door handles are extended,
they will be retracted.
After locking the doors, check that the
door is securely locked with the door lock
indicator (



P.96).

■

Wireless remote control

Locks both side doors

The outside door handles will be retracted
if they have been extended. After locking
the doors, check that the door is securely
locked with the door lock indicator
(



P.96).

Unlocks both side doors

Pressing the button unlocks the driver’s
door. Pressing the button again within 5
seconds unlocks the other door.
The outside door handles will be extended.
Press and hold to open the windows.

: This setting must be customized at your

Lexus dealer.

■

Side window open/close function linked

to door operation

When a door is opened, its window opens

slightly. When a door is closed, its window

closes completely.

■

Speed-linked outside door handle

retracting function

When the vehicle speed reaches 6 mph (10

km/h), the outside door handles will be

retracted.

■

To extend the outside door handles

retracted automatically

The outside door handle can be extended

by pushing the depression on the front

edge of it. To lock the doors, push the rear

edge of the outside door handle after

extending it once.

Doors

Unlocking and locking the doors
from the outside

3-2. Opening, closing and locking the doors and trunk

fore
dri
ving

■

Switching the door unlock function

It is possible to set which doors the entry

function unlocks using the wireless remote

control.

Turn the engine switch off.

When the indicator light on the key sur-
face is not on, press and hold

for approximately 5

seconds while pressing and holding

The setting changes each time an operation

is performed, as shown below. (When

changing the setting continuously, release

the buttons, wait for at least 5 seconds, and

repeat step

To prevent unintended triggering of the

alarm, unlock the doors using the wireless

remote control and open and close a door

once after the settings have been changed.

(If a door is not opened within 60 seconds
after

is pressed, the doors will be

locked again and the alarm will automati-

cally be set.)

In a case that the alarm is triggered, imme-

diately stop the alarm. (



P.63)

■

Impact detection door lock release sys-

tem

In the event that the vehicle is subject to a

strong impact, both side doors are

unlocked. Depending on the force of the

impact or the type of accident, however, the

system may not operate.

■

Operation signals

A buzzer sounds and the emergency flash-

ers flash to indicate that the doors have

been locked/unlocked. (Locked: once;

Unlocked: twice)
A buzzer sounds to indicate that the win-

dows are operating.
Depending on the opening/closing state of

the soft top roof, the buzzer may be

delayed.

■

Security feature

If a door is not opened within approximately

60 seconds after the vehicle is unlocked,

the security feature automatically locks the

vehicle again.

■

Open door warning buzzer

If an attempt to lock the doors is made when

a door is not fully closed, a buzzer sounds

continuously for 5 seconds. Fully close the

door to stop the buzzer, and lock the vehi-

cle once more.

■

Setting the alarm

Locking the doors will set the alarm system.

(



P.63)

■

Conditions affecting the operation of

the smart access system with push-but-

ton start or wireless remote control



P.103

■

If the smart access system with push-

button start or the wireless remote con-

trol does not operate properly

Use the mechanical key to lock and unlock

the doors. (



P.325)

Replace the key battery with a new one if it

is depleted. (



P.292)

■

If the battery is discharged

The doors cannot be locked and unlocked

Multi-information

display/Beep

Unlocking function

Exterior: Beeps 3

times

Interior: Pings

once

Pushing the depres-
sion on the front edge
of the driver’s door
handle unlocks only
the driver’s door.

Pushing the depres-
sion on the front edge
of the passenger’s
door handle unlocks
both side doors.

Exterior: Beeps

twice

Interior: Pings

once

Pushing the depres-
sion on the front edge
of either door handle
unlocks both side
doors.

3-2. Opening, closing and locking the doors and trunk

using the smart access system with push-

button start or wireless remote control.

Lock or unlock the doors using the

mechanical key. (



P.325)

■

Customization

Settings (e.g. unlocking function using a

key) can be changed.

(Customizable features:



P.363)

■

Door lock switches

Locks both side doors

The indicator

comes on.

Unlocks both side doors

The indicator

turns off.

■

Inside door handles

Pull the inside door handle to unlock
the door.

The door lock indicator

turns off.

The doors can be opened by pulling the
inside door handle even if the door lock
indicator

illuminates.

■

Door lock indicator

The door lock indicator turns on when the

door is locked. When the engine switch is

off, the door lock indicator will turn off auto-

matically after 30 seconds.

WARNING

■

To prevent an accident

Observe the following precautions while

driving the vehicle.

Failure to do so may result in a door

opening and an occupant being thrown

out of the vehicle, resulting in death or

serious injury.

●

Ensure that both side doors are prop-

erly closed and locked.

●

Do not pull the inside handle of the

doors while driving.

The doors may be opened even if they

are locked.

■

Side window open/close function

linked to door operation

Do not hold the upper edge of the side

window when you close the door. Other-

wise, your fingers or hand may be caught

in the window.

■

When entering and exiting the vehi-

cle

Do not step on the scuff plate. Slipping

on the surface may result in injury.

Unlocking and locking the doors
from the inside

3-2. Opening, closing and locking the doors and trunk

fore
dri
ving

■

If a symbol indicating one or both side

doors open is shown on the multi-infor-

mation display

The hood, one or both side of the doors, or

trunk are not fully closed. If the vehicle

reaches a speed of 3 mph (5 km/h), the

master warning light flashes and a buzzer

sounds to indicate that the door(s) are not

fully closed. Make sure to close hood, both

side doors and trunk.

■

Customization

The time elapsed before the door lock indi-

cator turns off can be changed.

(Customizable features:



P.363)

The following functions can be set or
canceled:

For instructions on customizing, refer to
P.363.

Automatic door locking and
unlocking systems

Function

Operation

Speed linked
door locking
function

Both side doors are
automatically locked
when vehicle speed is
approximately 12 mph
(20 km/h) or higher.

Shift position
linked door lock-
ing function

Both side doors are
automatically locked
when the shift position
is shifted to a position
other than P.

Shift position
linked door
unlocking func-
tion

Both side doors are
automatically unlocked
when the shift position
is shifted to P.

Driver’s door
linked door
unlocking func-
tion

Both side doors are
automatically unlocked
when driver’s door is
opened within approxi-
mately 45 seconds
after turning the engine
switch off.

Function

Operation

3-2. Opening, closing and locking the doors and trunk

Trunk

The trunk can be opened using the
trunk opener switch, entry function
or wireless remote control.

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

■

Before driving

●

Make sure that the trunk lid is fully

closed. If the trunk lid is not fully

closed, it may open unexpectedly

while driving and hit near-by objects or

luggage in the trunk may be thrown

out, causing an accident.

●

Do not allow children to play in the

trunk.

If a child is accidentally locked in the

trunk, they could suffer from heat

exhaustion, suffocation or other inju-

ries.

●

Do not allow a child to open or close

the trunk lid.

Doing so may cause the trunk lid to

open unexpectedly, or cause the

child’s hands, head, or neck to be

caught by the closing trunk lid.

■

Important points while driving

Never let anyone sit in the trunk. In the

event of sudden braking or a collision,

they are susceptible to death or serious

injury.

■

Using the trunk

Observe the following precautions.

Failure to do so may cause parts of the

body to be caught, resulting in serious

injury.

●

Remove any heavy loads, such as

snow and ice, from the trunk lid before

opening it. Failure to do so may cause

the trunk lid to suddenly shut again

after it is opened.

●

When opening or closing the trunk lid,

thoroughly check to make sure the

surrounding area is safe.

●

If anyone is in the vicinity, make sure

they are safe and let them know that

the trunk is about to open or close.

●

Use caution when opening or closing

the trunk lid in windy weather as it may

move abruptly in strong wind.

●

On an incline it is more difficult to

open or close the trunk lid than on a

level surface, so beware of the trunk lid

unexpectedly opening or closing by

itself. Make sure that the trunk lid is

fully open and secure before using the

trunk.

●

When opening the trunk lid, take care

so that it does not hit anyone in the

face or any other part of the body.

●

When closing the trunk lid, take extra

care to prevent your fingers etc. from

being caught.

●

When closing the trunk lid, make sure

to press it lightly on its outer surface. If

the trunk grip is used to fully close the

trunk lid, it may result in hands or arms

being caught.

3-2. Opening, closing and locking the doors and trunk

fore
dri
ving

■

Trunk opener switch

Press the trunk opener switch.

When the doors has been locked using the
entry function or wireless remote control,
the trunk cannot be opened.

■

Smart access system with push-
button start

While carrying the electronic key,
press the button.
When both side doors are unlocked
using one of the following methods, the
trunk can be opened without the elec-
tronic key:
• Entry function
• Wireless remote control
• Door lock switches
• Automatic door unlocking system
• Mechanical key

WARNING

●

Do not pull on the trunk damper stay

to close the trunk lid, and do not hang

on the trunk damper stay.

Doing so may cause hands to be

caught or the trunk damper stay to

break, causing an accident.

●

Do not attach any accessories other

than genuine Lexus parts to the trunk

lid. Such additional weight on the trunk

lid may cause the lid to suddenly shut

again after it is opened.

NOTICE

■

Trunk damper stays

The trunk is equipped with damper stays

that hold the trunk lid in place.

Observe the following precautions. Fail-

ure to do so may cause damage to the
trunk damper stay

, resulting in mal-

function.

●

Do not attach any foreign objects,

such as stickers, plastic sheets, or

adhesives to the damper stay rod.

●

Do not touch the damper stay rod with

gloves or other fabric items.

●

Do not attach any accessories other

than genuine Lexus parts to the trunk

lid.

●

Do not place your hand on the damper

stay or apply lateral forces to it.

Opening the trunk

100

3-2. Opening, closing and locking the doors and trunk

■

Wireless remote control

Press and hold the switch.

A buzzer sounds.

■

When the operation of the soft top roof

has not been completed

The trunk lid cannot be opened. Wait until

the soft top roof is fully opened or closed

before opening the trunk lid. (



P.122)

■

Trunk light

The trunk light turns on when the trunk is

opened.

■

Function to prevent the trunk being

locked with the electronic key inside

●

When both side doors are locked, clos-

ing the trunk lid with the electronic key

left inside the trunk will sound an alarm.

In this case, the trunk lid can be opened

by pressing the trunk release button on

the trunk lid.

●

If the spare electronic key is put in the

trunk with both side doors locked, the key

confinement prevention function is acti-

vated so the trunk can be opened. In

order to prevent theft, take all electronic

keys with you when leaving the vehicle.

●

If the electronic key is put in the trunk

with both side doors locked, the key may

not be detected depending on the loca-

tion of the key and the surrounding radio

wave conditions. In this case, the key con-

finement prevention function cannot be

activated, causing the trunk to be locked

when the trunk lid is closed. Make sure to

check where the key is before closing the

trunk.

●

The key confinement prevention function

cannot be activated if either door is

unlocked. In this case, open the trunk

using the trunk opener switch.

●

If the trunk lid is closed by a hand having

the electronic key when the both side

doors are locked, a warning buzzer may

sound. In this case, the trunk is not locked.

Do not close the trunk lid by a hand hav-

ing the electronic key.

■

Internal trunk release lever

The trunk lid can be opened by pulling the

glow-in-the-dark lever located on the inside

of the trunk to the side.
The lever will continue to glow for some

time after the trunk lid is closed.

■

If the smart access system with push-

button start or the wireless remote con-

trol does not operate properly

Use the trunk opener switch to unlock the

trunk. (



P.325)

Replace the key battery with a new one if it

is depleted. (



P.292)

■

If a symbol indicating the trunk opens is

shown on the multi-information display



P.97

■

If the battery is discharged

The trunk cannot be locked and unlocked

using the smart access system with push-

button start or wireless remote control.

Lock or unlock the trunk using the mechan-

ical key. (



P.327)

■

Customization

The trunk unlocking operation can be

changed. (Customizable features:



P.363)

Using the trunk grip, lower the trunk

Closing the trunk

101

3-2. Opening, closing and locking the doors and trunk

fore
dri
ving

without applying force to the side and
push the trunk down from the outside
to close it.

The trunk opener switch can be tem-
porarily disabled to protect luggage
stored in the trunk against theft.
Turn the trunk opener main switch in
the glove box off to disable the trunk
opener.

Off

When the trunk opener main switch is off,
the trunk lid cannot be opened even with
the wireless remote control or entry func-
tion.

■

When leaving a key to the vehicle with a

parking attendant



P.93

■

Antenna location

Antennas outside the cabin

Antennas inside the cabin

Antenna inside the trunk

Antenna outside the trunk

Protecting luggage against theft

A
B

Smart access system with
push-button start

The following operations can be
performed simply by carrying the
electronic key (including the card
key) on your person, for example in
your pocket. The driver should
always carry the electronic key.



Locks and unlocks the doors
(



P.94)



Opens the trunk (



P.99)



Starts the engine (



P.141)

102

3-2. Opening, closing and locking the doors and trunk

■

Effective range (areas within which the

electronic key is detected)

When locking or unlocking the doors
The system can be operated when the
electronic key is within about 2.3 ft. (0.7
m) of an outside door handle. (Only the
doors detecting the key can be oper-
ated.)

When opening the trunk
The system can be operated when the
electronic key is within about 2.3 ft. (0.7
m) of the trunk release button.

When starting the engine or changing
engine switch modes
The system can be operated when the
electronic key is inside the vehicle.

■

If an alarm sounds or a warning message

is displayed

An alarm sounds and warning messages

are displayed on the multi-information dis-

play to protect against unexpected acci-

dents or theft of the vehicle resulting from

erroneous operation. When a warning

message is displayed, take appropriate

measures based on the displayed message.
When only an alarm sounds, circumstances

and correction procedures are as follows.

●

When an exterior alarm sounds once for

5 seconds

●

When an interior alarm sounds continu-

ously

■

If “Key Detected in Vehicle” is shown on

the multi-information display

An attempt was made to lock the doors

using the smart access system with push-

button start while the electronic key was still

inside the vehicle. Retrieve the electronic

key from the vehicle and lock the doors

again.

■

Battery-saving function

The battery-saving function will be acti-

vated in order to prevent the electronic key

battery and the battery from being dis-

Situation

Correction proce-

dure

The trunk was
closed while the
electronic key was
still inside the trunk
and both side doors
were locked.

Retrieve the elec-
tronic key from the
trunk and close the
trunk lid.

An attempt was
made to lock the
vehicle while a door
was open.

Close both side
doors and lock the
doors again.

Situation

Correction proce-

dure

The engine switch
was turned to ACC
while the driver’s
door was open (or
the driver’s door
was opened while
the engine switch
was in ACC).

Turn the engine
switch off and close
the driver’s door.

The engine switch
was turned off while
the driver’s door
was open.

Close the driver’s
door.

Lexus LC500C (2022 year). Manual in english - page 5
