151

4-3. Operating the lights and wipers

Driving

• Current wiper operation: High

speed operation

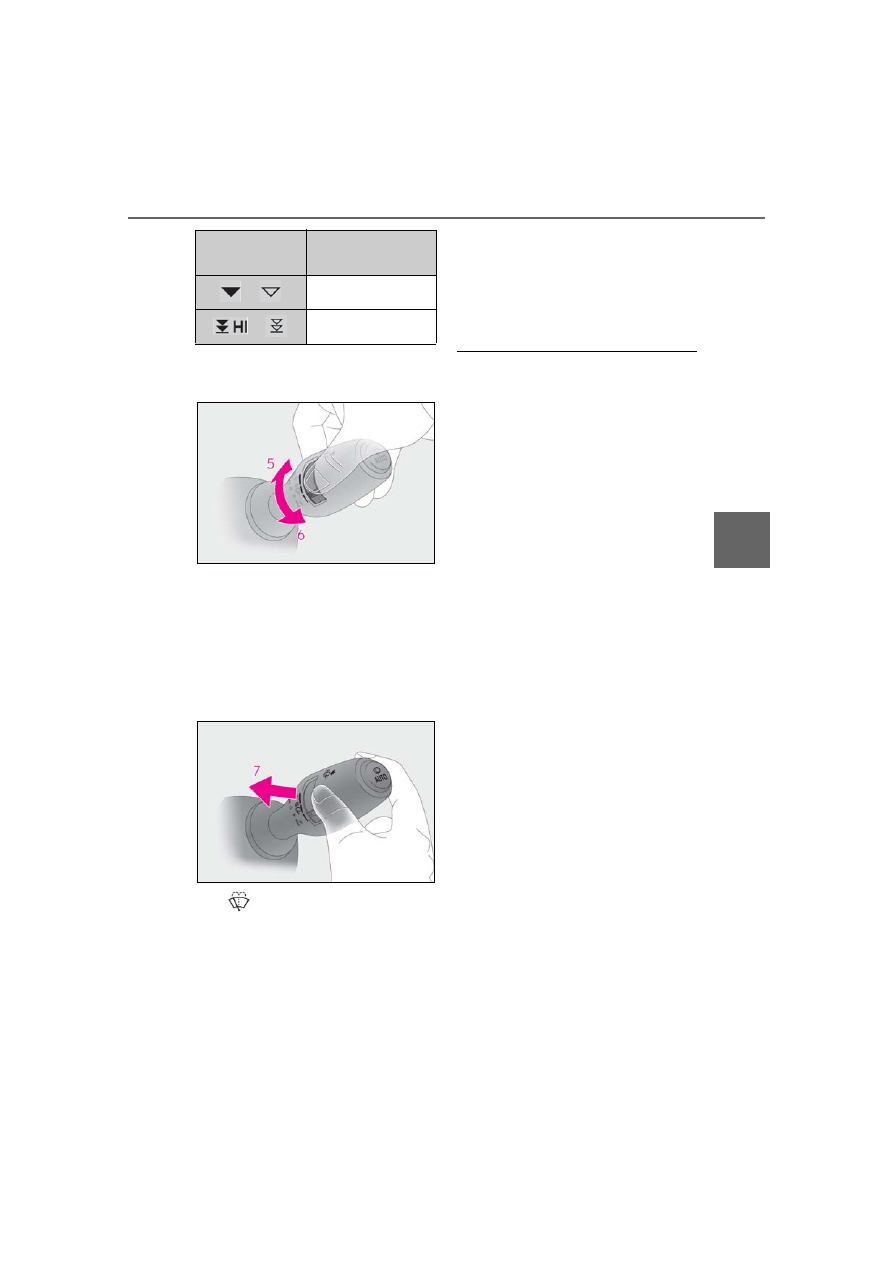

Wiper intervals can be adjusted when
intermittent operation is selected.

Increases the intermittent wind-
shield wiper frequency

Decreases the intermittent wind-
shield wiper frequency

The intermittent windshield wiper operates
more frequently as vehicle speed becomes
higher.

Washer/wiper dual opera-

tion

Pulling the lever operates the wipers and
washer.
The wipers will automatically operate a
couple of times after the washer squirts.
Vehicles with headlight cleaners:
When the engine switch is in IGNITION
ON mode and the headlights are on, if the
lever is pulled, the headlight cleaners will
operate once. After this, the headlight
cleaners will operate every 5th time the
lever is pulled.



Rain-sensing windshield wipers

(U.S.A.) or

(Canada)

Wiper lever oper-

ation

Wiper operation

Off

Intermittent operation

High speed operation

Wiper lever oper-

ation

Wiper operation

Off

Low speed operation

No change

152

4-3. Operating the lights and wipers

Move the lever up by 2 levels

Move the lever up by 1 level

(U.S.A.) or

(Canada)

Move the lever down by 1 level

(U.S.A.) or

(Canada)

Move the lever down by 2 levels

AUTO mode on/off switch

With AUTO mode selected, the wipers will
operate automatically when the sensor
detects falling rain. The system automati-
cally adjusts wiper timing in accordance
with rain volume and vehicle speed.
The AUTO mode indicator

will turn on

when AUTO mode is selected.

Depending on the operating state of
the wipers when the wiper lever is
operated, the wipers will operate as
follows.
• Current wiper operation: Off

• Current wiper operation: Low

speed operation

• Current wiper operation: High

speed operation

• Current wiper operation: AUTO

mode (Intermittent operation)

: After temporary operation, the mode

will return to AUTO mode.

• Current wiper operation: AUTO

mode (Continuously)

Wiper lever oper-

ation

Wiper operation

Temporary operation

Low speed operation

High speed operation

Wiper lever oper-

ation

Wiper operation

Off

High speed operation

Wiper lever oper-

ation

Wiper operation

Off

Low speed operation

No change

Wiper lever oper-

ation

Wiper operation

Off

Temporary operation

Low speed operation

High speed operation

Wiper lever oper-

ation

Wiper operation

Off

No change

Wiper lever oper-

ation

Wiper operation

153

4-3. Operating the lights and wipers

Driving

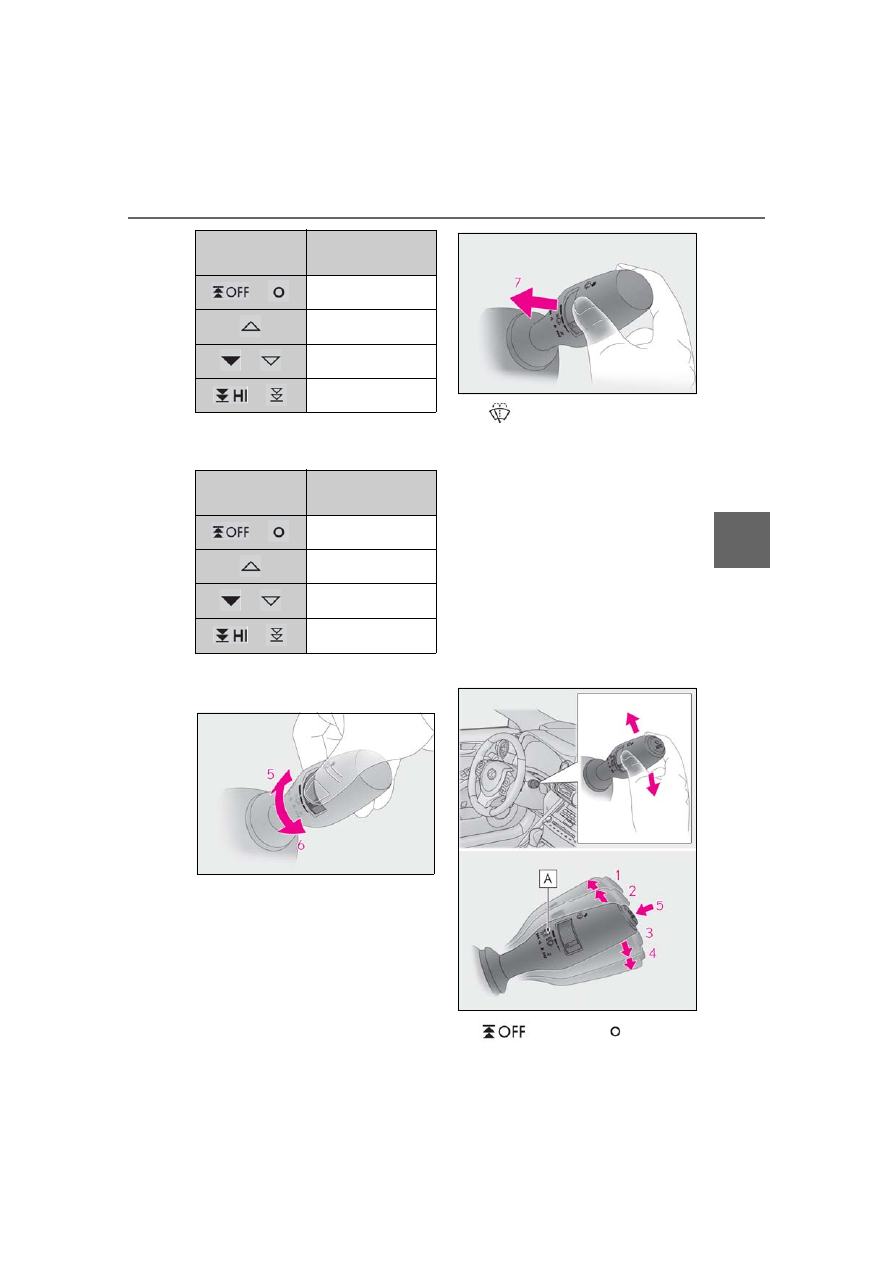

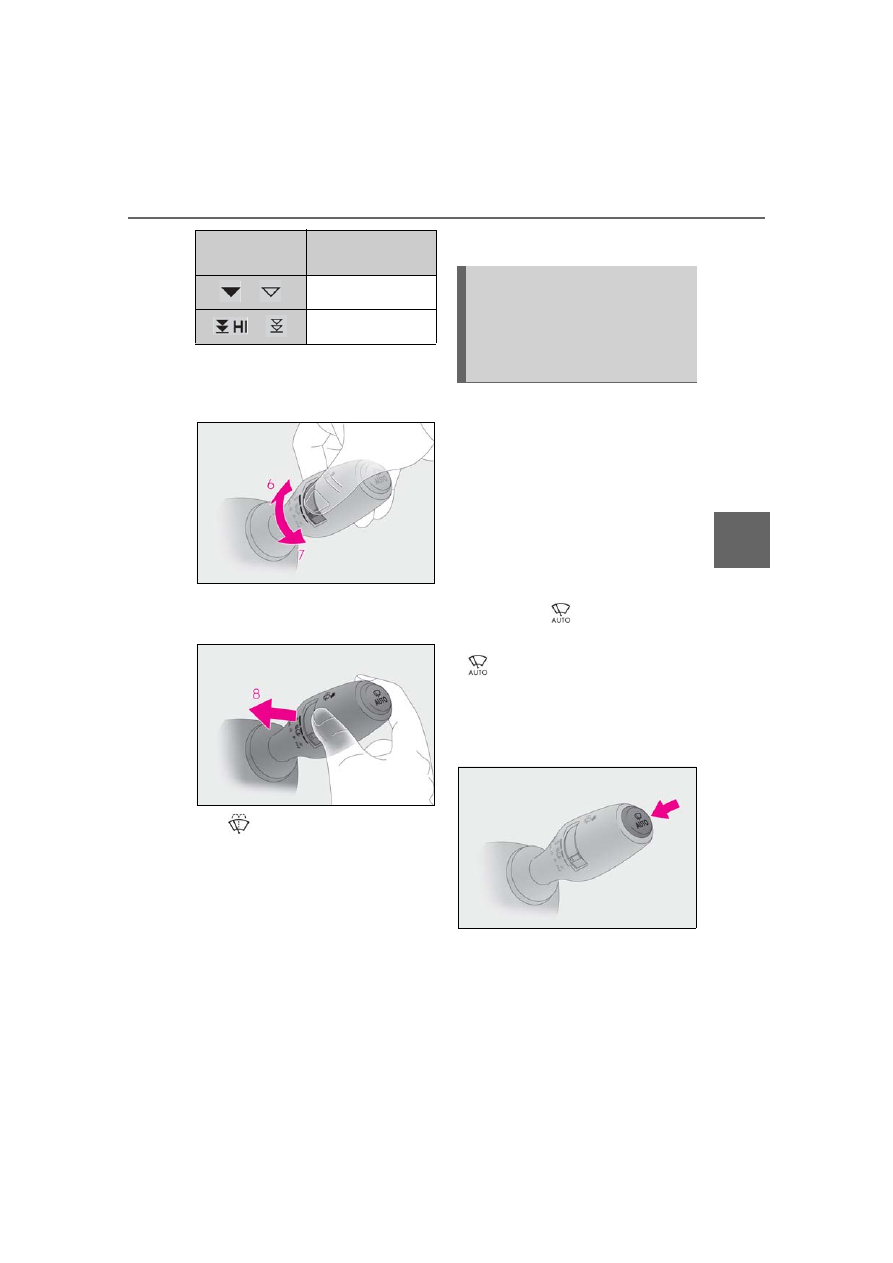

When AUTO mode is selected, the
sensor sensitivity can be adjusted by
turning the switch ring.

Increases the sensitivity

Decreases the sensitivity

Washer/wiper dual opera-

tion

lever is pulled.

The wipers can be used as intermittent
windshield wipers, which operate
regardless of vehicle speed or amount
of raindrops. The intermittent wind-
shield wiper operation can be switched
when the vehicle is stopped and the
wiper is off. The wiper operation can-
not be switched during AUTO mode
or while the intermittent windshield
wipers are operating.

Press and hold

until the AUTO

mode indicator stops flashing.

is pressed and held until the AUTO

mode indicator stops flashing again, it will
return to its previous state.
The wiper can be switched when the vehi-
cle is stopped and the wipers are off.

Low speed operation

High speed operation

Wiper lever oper-

ation

Wiper operation

Switching between the intermit-
tent windshield wipers and
rain-sensing windshield wipers
(vehicles with rain-sensing wind-
shield wipers)

154

4-3. Operating the lights and wipers

■

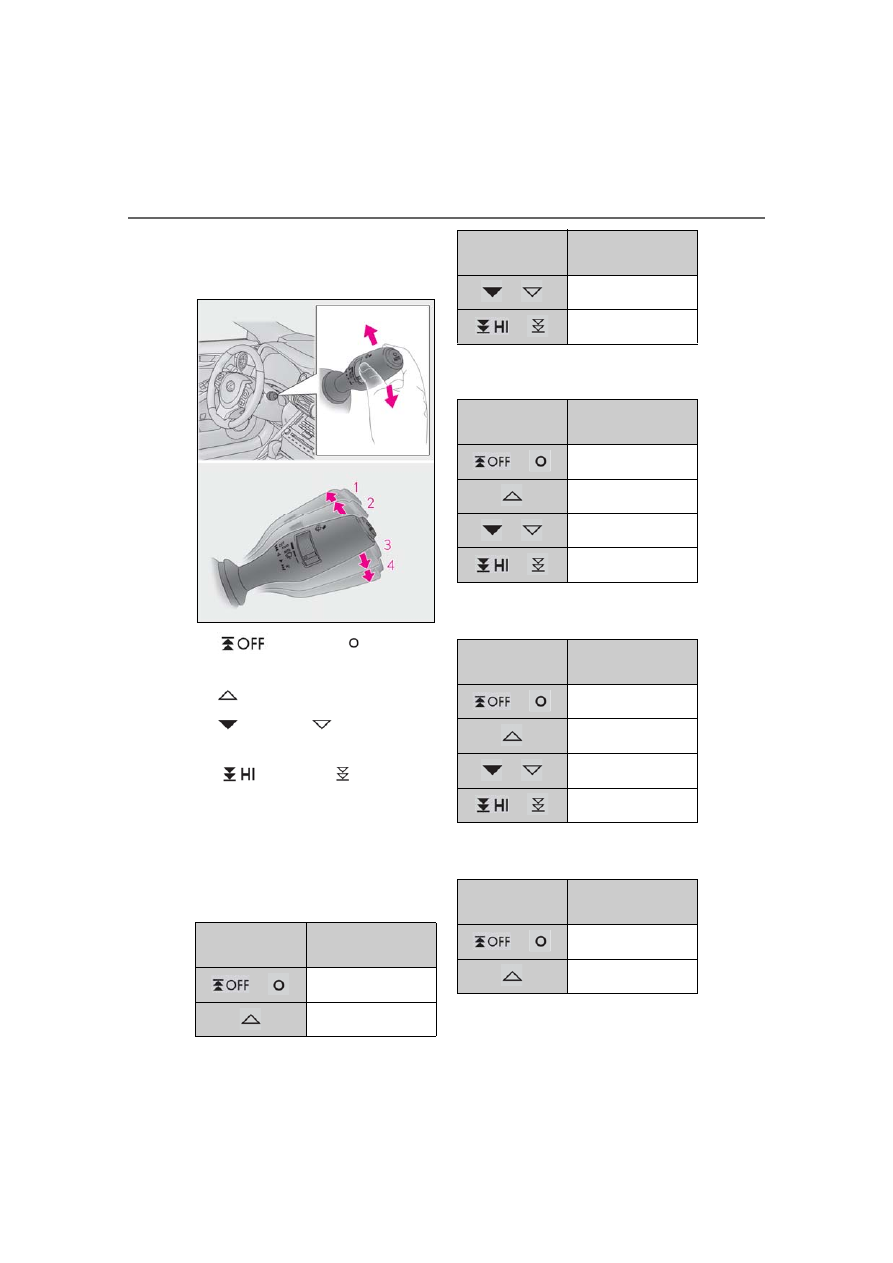

Operation of the intermittent
windshield wipers with interval
adjuster

(U.S.A.) or

(Canada)

Move the lever up by 2 levels

Move the lever up by 1 level

(U.S.A.) or

(Canada)

Move the lever down by 1 level

(U.S.A.) or

(Canada)

Move the lever down by 2 levels

Depending on the operating state of
the wipers when the wiper lever is
operated, the wipers will operate as
follows.
• Current wiper operation: Off

• Current wiper operation: Intermit-

tent operation

• Current wiper operation: Low

speed operation

• Current wiper operation: High

speed operation

Wiper lever oper-

ation

Wiper operation

Temporary operation

Intermittent operation

High speed operation

Wiper lever oper-

ation

Wiper operation

Off

Low speed operation

High speed operation

Wiper lever oper-

ation

Wiper operation

Off

Intermittent operation

High speed operation

Wiper lever oper-

ation

Wiper operation

Off

Low speed operation

Wiper lever oper-

ation

Wiper operation

155

4-3. Operating the lights and wipers

Driving

Wiper intervals can be adjusted when
intermittent operation is selected.

Increases the intermittent wind-
shield wiper frequency

Decreases the intermittent wind-
shield wiper frequency

The intermittent windshield wiper operates
more frequently as vehicle speed becomes
higher.

Washer/wiper dual opera-

tion

Pulling the lever operates the wipers and
washer.
The wipers will automatically operate a
couple of times after the washer squirts.
Vehicles with headlight cleaners:

When the engine switch is in IGNITION
ON mode and the headlights are on, if the
lever is pulled, the headlight cleaners will
operate once. After this, the headlight
cleaners will operate every 5th time the
lever is pulled.

■

The windshield wiper and washer can be

operated when

The engine switch is in IGNITION ON

mode.

■

Dripping prevention wiper sweep

After performing a washing and wiping

operation several times, the wipers operate

one more time after a short delay to prevent

dripping.
However, this final wiper operation will not

be performed while driving.

■

Effects of vehicle speed on wiper opera-

tion (vehicles with rain-sensing wind-

shield wipers)

Vehicle speed affects the following even

when the wipers are not in AUTO mode.

●

Intermittent wiper interval

●

Wiper operation when the washer is

being used (delay until drip prevention

wiper sweep occurs)

With low speed windshield wiper operation

selected, wiper operation will be switched

from low speed to intermittent wiper opera-

tion only when the vehicle is stationary.

■

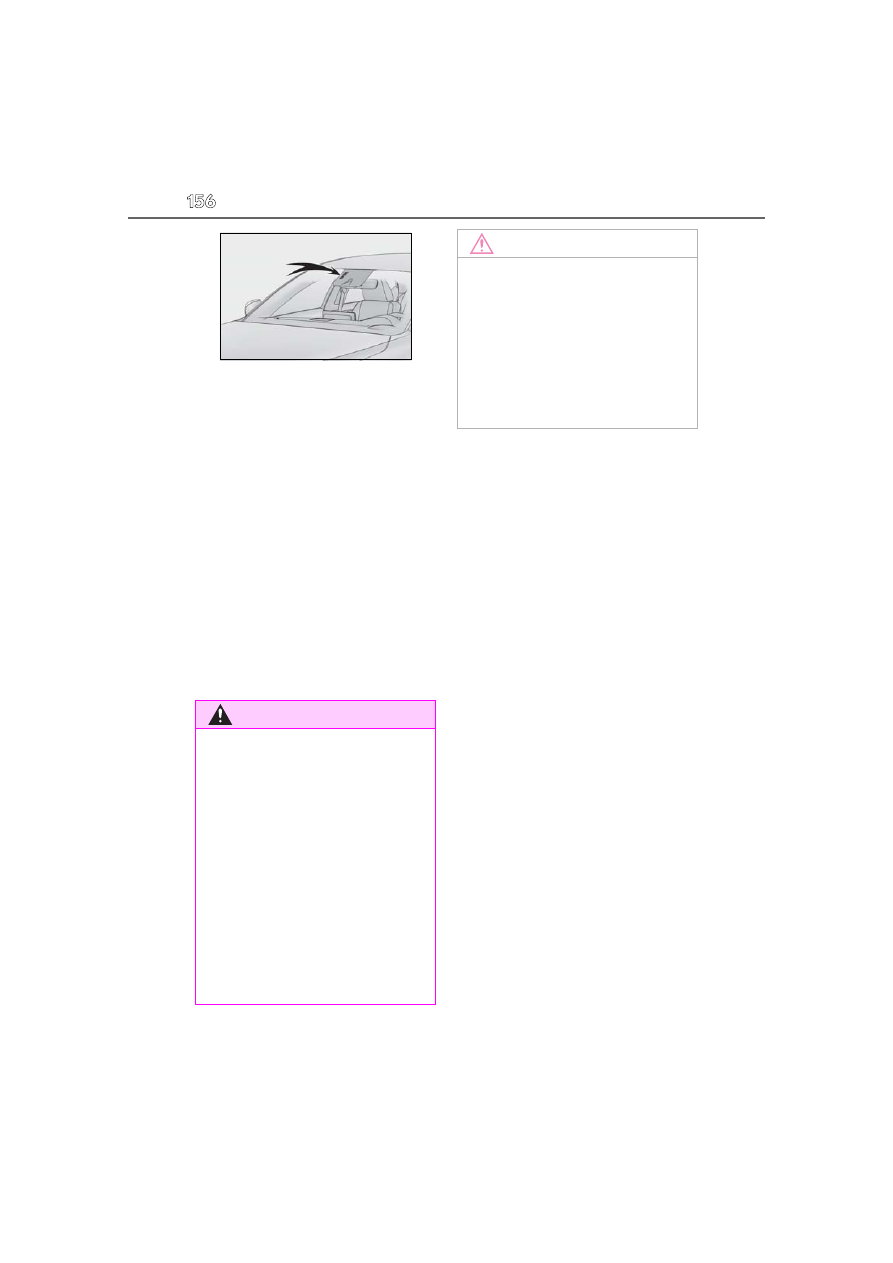

Raindrop sensor (vehicles with

rain-sensing windshield wipers)

●

The raindrop sensor judges the amount

of raindrops.

An optical sensor is adopted. It may not

operate properly when sunlight from the

rising or setting of the sun intermittently

strikes the windshield, or if bugs etc. are

present on the windshield.

No change

Wiper lever oper-

ation

Wiper operation

156

4-3. Operating the lights and wipers

●

If the wiper is turned to AUTO mode

while the engine switch is in IGNITION

ON mode, the wipers will operate once

to show that AUTO mode is activated.

●

If the temperature of the raindrop sensor

is 185°F (85°C) or higher, or -22°F

(-30°C) or lower, automatic operation

may not occur. In this case, operate the

wipers in any mode other than AUTO

mode.

■

When the windshield wipers are in tem-

porary operation (vehicles with

rain-sensing windshield wipers)

AUTO mode cannot be activated even if is

pressed.

■

If no windshield washer fluid sprays

Check that the washer nozzles are not

blocked if there is washer fluid in the wind-

shield washer fluid reservoir.

WARNING

■

Caution regarding the use of wind-

shield wipers in AUTO mode

The windshield wipers may operate

unexpectedly if the sensor is touched or

the windshield is subject to vibration in

AUTO mode. Take care that your fingers

or anything else do not become caught

in the windshield wipers.

■

Caution regarding the use of washer

fluid

When it is cold, do not use the washer

fluid until the windshield becomes warm.

The fluid may freeze on the windshield

and cause low visibility. This may lead to

an accident, resulting in death or serious

injury.

NOTICE

■

When there is no washer fluid spray

from the nozzle

Damage to the washer fluid pump may

be caused if the lever is pulled toward

you and held continually.

■

When a nozzle becomes blocked

In this case, contact your Lexus dealer.

Do not try to clear it with a pin or other

object. The nozzle will be damaged.

157

4-4. Refueling

Driving

4-4.Refueling



Close all the doors and windows,
and turn the engine switch off.



Confirm the type of fuel.

■

Fuel types



P.376

■

Fuel tank opening for unleaded gasoline

To help prevent incorrect fueling, your vehi-

cle has a fuel tank opening that only accom-

modates the special nozzle on unleaded

fuel pumps.

■

If the malfunction indicator lamp illumi-

nates

The malfunction indicator lamp may illumi-

nate erroneously if refueling is performed

repeatedly when the fuel tank is nearly full.

Opening the fuel tank cap

Perform the following steps to open
the fuel tank cap:

Before refueling the vehicle

WARNING

■

When refueling the vehicle

Observe the following precautions while

refueling the vehicle. Failure to do so may

result in death or serious injury.

●

After exiting the vehicle and before

opening the fuel door, touch an

unpainted metal surface to discharge

any static electricity. It is important to

discharge static electricity before refu-

eling because sparks resulting from

static electricity can cause fuel vapors

to ignite while refueling.

●

Always hold the grips on the fuel tank

cap and turn it slowly to remove it.

A whooshing sound may be heard

when the fuel tank cap is loosened.

Wait until the sound cannot be heard

before fully removing the cap. In hot

weather, pressurized fuel may spray

out the filler neck and cause injury.

●

Do not allow anyone that has not dis-

charged static electricity from their

body to come close to an open fuel

tank.

●

Do not inhale vaporized fuel.

Fuel contains substances that are

harmful if inhaled.

●

Do not smoke while refueling the vehi-

cle.

Doing so may cause the fuel to ignite

and cause a fire.

●

Do not return to the vehicle or touch

any person or object that is statically

charged.

This may cause static electricity to

build up, resulting in a possible ignition

hazard.

■

When refueling

Observe the following precautions to

prevent fuel overflowing from the fuel

tank:

●

Securely insert the fuel nozzle into the

fuel filler neck.

●

Stop filling the tank after the fuel noz-

zle automatically clicks off.

●

Do not top off the fuel tank.

NOTICE

■

Refueling

Do not spill fuel during refueling.

Doing so may damage the vehicle, such

as causing the emission control system to

operate abnormally or damaging fuel

system components or the vehicle’s

painted surface.

158

4-4. Refueling

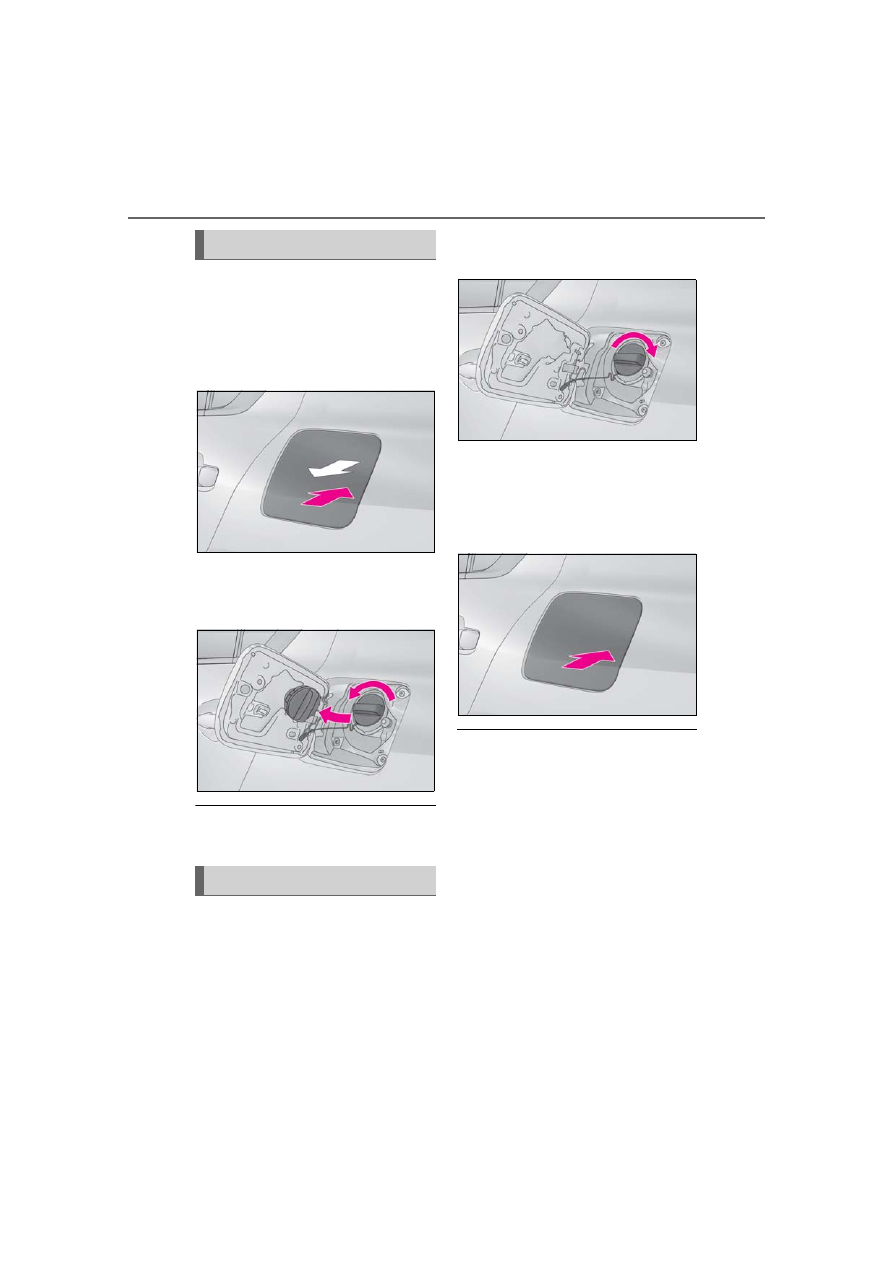

With the doors unlocked, press the
center of the rear edge of the fuel
filler door.

Push until you hear a click and take your

hand away to slightly open the fuel filler

door. Then open the door fully by hand.

Turn the fuel tank cap slowly to
remove it and put it into the holder
on the fuel filler door.

■

If the fuel filler door cannot be opened



P.351

After refueling, turn the fuel tank
cap until you hear a click. Once the

cap is released, it will turn slightly in
the opposite direction.

Close the fuel filler door, and press
the center of the rear edge of the
fuel filler door until you hear a click.

When you lock the doors, the fuel filler

door will also lock.

■

Fuel filler door lock condition

The fuel filler door may not be locked even

when the vehicle’s doors are locked in the

following situations:

●

When operating the door lock button

inside the vehicle

●

When the automatic door locking system

is operated (



P.93)

●

When the fuel filler door is closed after

the vehicle’s doors are locked

Opening the fuel tank cap

Closing the fuel tank cap

159

4-4. Refueling

Driving

WARNING

■

When replacing the fuel tank cap

Do not use anything but a genuine Lexus

fuel tank cap designed for your vehicle.

Doing so may cause a fire or other inci-

dent which may result in death or serious

injury.

160

4-5. Using the driving support systems

4-5.Using the driving support systems

■

PCS (Pre-Collision System)



P.165

■

LTA (Lane Tracing Assist)



P.175

■

AHB (Automatic High Beam)



P.147

■

RSA (Road Sign Assist)



P.184

: If equipped

■

Dynamic radar cruise control with
full-speed range



P.187

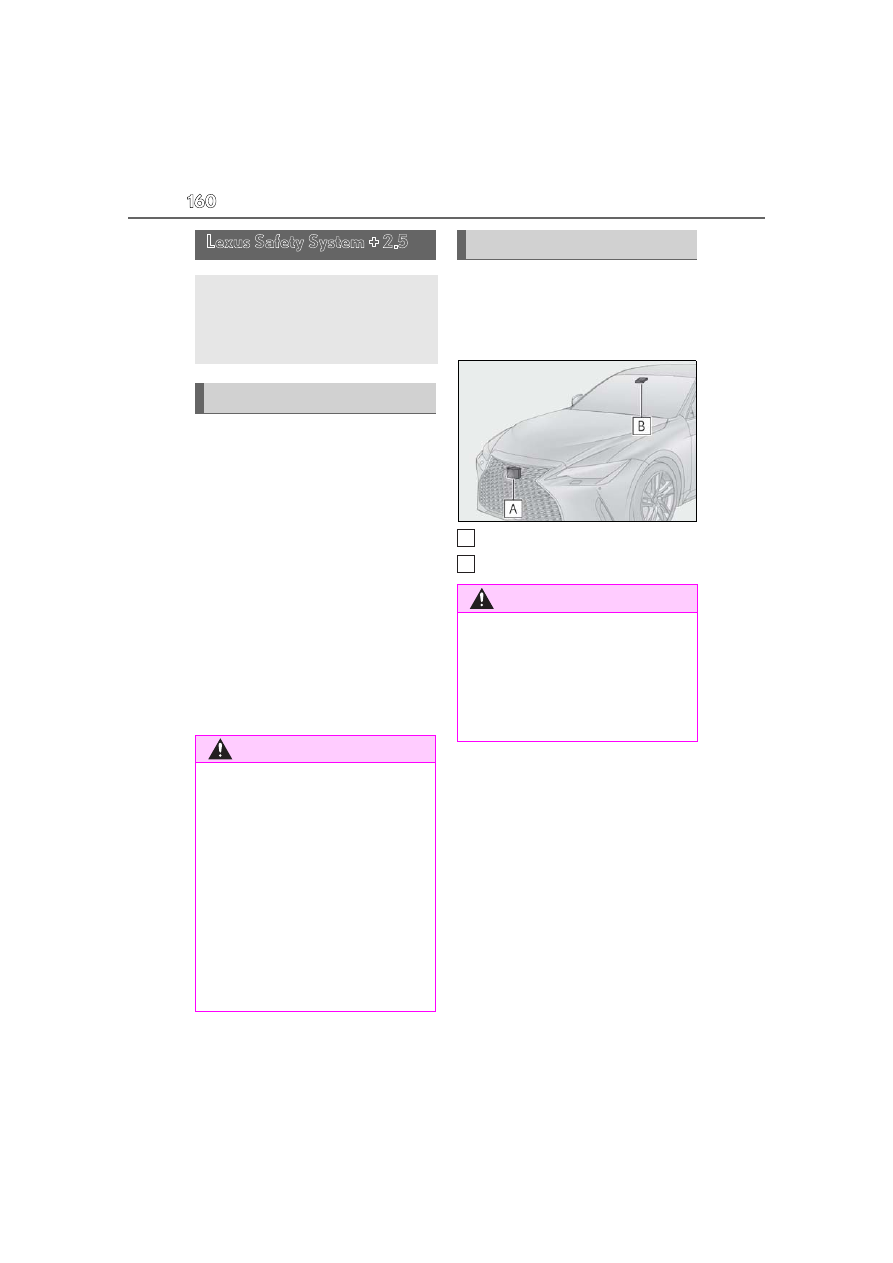

Two types of sensors, located behind
the front grille and windshield, detect
information necessary to operate the
drive assist systems.

Radar sensor
Front camera

Lexus Safety System + 2.5

The Lexus Safety System + 2.5 con-
sists of the following drive assist sys-
tems and contributes to a safe and
comfortable driving experience:

Driving assist system

WARNING

■

Lexus Safety System + 2.5

The Lexus Safety System + 2.5 is

designed to operate under the assump-

tion that the driver will drive safely, and is

designed to help reduce the impact to

the occupants and the vehicle in the case

of a collision or assist the driver in normal

driving conditions.
As there is a limit to the degree of recog-

nition accuracy and control performance

that this system can provide, do not

overly rely on this system. The driver is

always responsible for paying attention

to the vehicle’s surroundings and driving

safely.

Sensors

WARNING

■

To avoid malfunction of the radar sen-

sor

Observe the following precautions.
Otherwise, the radar sensor may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

161

4-5. Using the driving support systems

Driving

WARNING

●

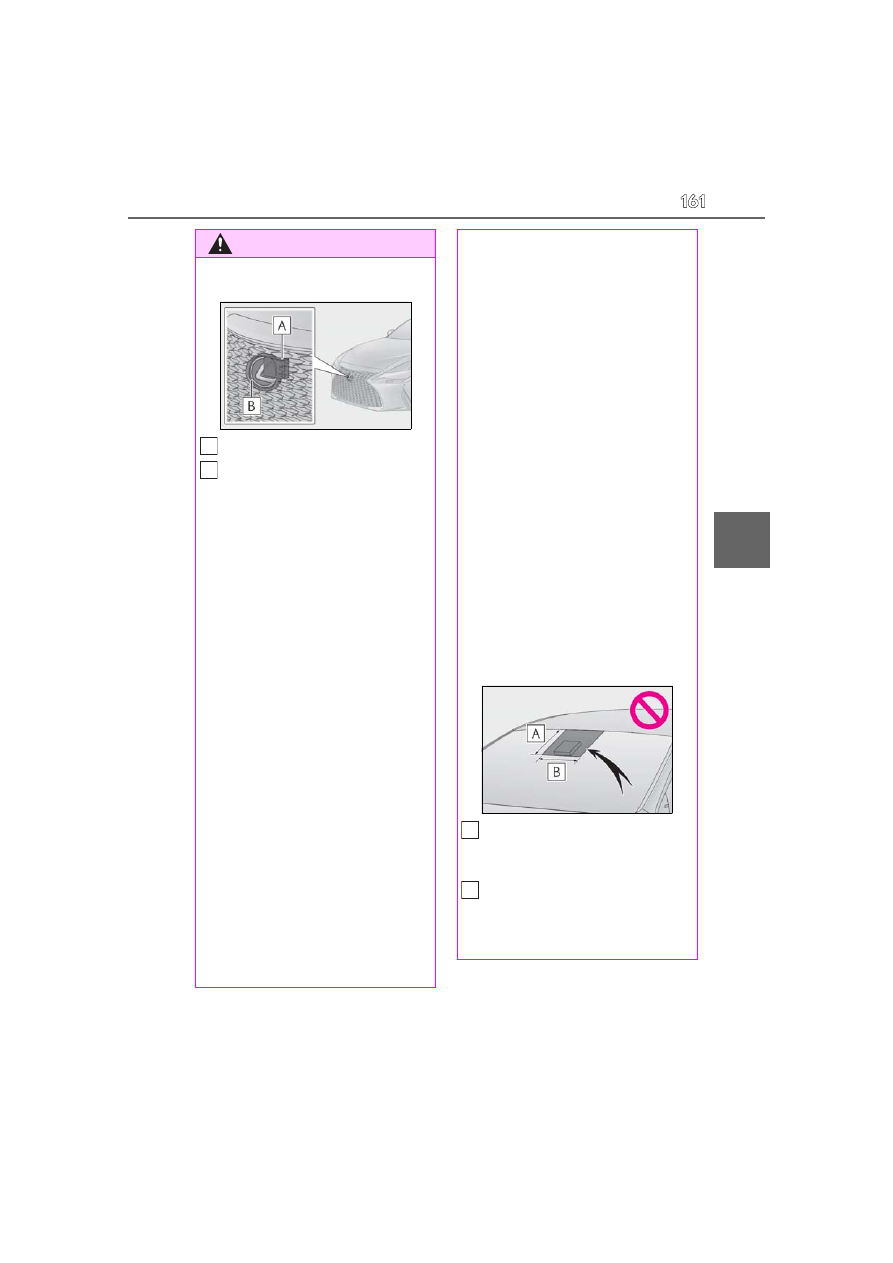

Keep the radar sensor and the radar

sensor cover clean at all times.

Radar sensor
Radar sensor cover

If the front of the radar sensor or the front
or back of the radar sensor cover is dirty
or covered with water droplets, snow,
etc., clean it.
Clean the radar sensor and radar sensor
cover with a soft cloth to avoid damaging
them.

●

Do not attach accessories, stickers

(including transparent stickers) or

other items to the radar sensor, radar

sensor cover or surrounding area.

●

Do not subject the radar sensor or its

surrounding area to a strong impact.

If the radar sensor, front grille, or front

bumper has been subjected to a

strong impact, have the vehicle

inspected by your Lexus dealer.

●

Do not disassemble the radar sensor.

●

Do not modify or paint the radar sen-

sor or radar sensor cover.

●

In the following cases, the radar sensor

must be recalibrated. Contact your

Lexus dealer for details.

• When the radar sensor or front grille

are removed and installed, or replaced

• When the front bumper is replaced

■

To avoid malfunction of the front cam-

era

Observe the following precautions.
Otherwise, the front camera may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

●

Keep the windshield clean at all times.

• If the windshield is dirty or covered

with an oily film, water droplets, snow,

etc., clean the windshield.

• If a glass coating agent is applied to the

windshield, it will still be necessary to

use the windshield wipers to remove

water droplets, etc. from the area of

the windshield in front of the front

camera.

• If the inner side of the windshield

where the front camera is installed is

dirty, contact your Lexus dealer.

●

Do not attach objects, such as stickers,

transparent stickers, etc., to the outer

side of the windshield in front of the

front camera (shaded area in the illus-

tration).

From the top of the windshield to
approximately 0.4 in. (1 cm) below
the bottom of the front camera
Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. [10 cm] to the
right and left from the center of the
front camera)

162

4-5. Using the driving support systems

WARNING

●

If the part of the windshield in front of

the front camera is fogged up or cov-

ered with condensation or ice, use the

windshield defogger to remove the

fog, condensation or ice. (



P.245)

●

If water droplets cannot be properly

removed from the area of the wind-

shield in front of the front camera by

the windshield wipers, replace the

wiper insert or wiper blade.

●

Do not attach window tint to the wind-

shield.

●

Replace the windshield if it is damaged

or cracked.

After replacing the windshield, the

front camera must be recalibrated.

Contact your Lexus dealer for details.

●

Do not allow liquids to contact the

front camera.

●

Do not allow bright lights to shine into

the front camera.

●

Do not dirty or damage the front cam-

era.

When cleaning the inside of the wind-

shield, do not allow glass cleaner to

contact the lens of the front camera.

Also, do not touch the lens.

If the lens is dirty or damaged, contact

your Lexus dealer.

●

Do not subject the front camera to a

strong impact.

●

Do not change the installation position

or direction of the front camera or

remove it.

●

Do not disassemble the front camera.

●

Do not modify any components of the

vehicle around the front camera

(inside rear view mirror, etc.) or ceiling.

●

Do not attach any accessories to the

hood, front grille or front bumper that

may obstruct the front camera. Con-

tact your Lexus dealer for details.

●

If a surfboard or other long object is to

be mounted on the roof, make sure

that it will not obstruct the front cam-

era.

●

Do not modify the headlights or other

lights.

163

4-5. Using the driving support systems

Driving

■

If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in the system.

●

In the following situations, perform the actions specified in the table. When the normal

operating conditions are detected, the message will disappear and the system will

become operational.

If the message does not disappear, contact your Lexus dealer.

●

In the following situations, if the situation has changed (or the vehicle has been driven for

some time) and the normal operating conditions are detected, the message will disappear

and the system will become operational.

If the message does not disappear, contact your Lexus dealer.

• When the temperature around the radar sensor is outside of the operational range, such

as when the vehicle is in the sun or in an extremely cold environment

• When the front camera cannot detect objects in front of the vehicle, such as when driving

in the dark, snow, or fog, or when bright lights are shining into the front camera

• Depending on the conditions in the vicinity of the vehicle, the radar may judge the sur-

rounding environment can not be properly recognized. In that case, “Pre-Collision Sys-

Situation

Actions

When the area around a camera is covered
with dirt, moisture (fogged up, covered with
condensation, ice, etc.), or other foreign
matter

Using the wiper and A/C function, remove
the dirt and other attached matter.
(



P.245)

When the temperature around the front
camera is outside of the operational range,
such as when the vehicle is in the sun or in an
extremely cold environment

If the front camera is hot, such as after the
vehicle had been parked in the sun, use the
air conditioning system to decrease the tem-
perature around the front camera.
If a sunshade was used when the vehicle
was parked, depending on its type, the sun-
light reflected from the surface of the sun-
shade may cause the temperature of the
front camera to become excessively high.

If the front camera is cold, such after the
vehicle is parked in an extremely cold envi-
ronment, use the air conditioning system to
increase the temperature around the front
camera.

The area in front of the front camera is
obstructed, such as when the hood is open
or a sticker is attached to the part of the
windshield in front of the front camera.

Close the hood, remove the sticker, etc. to
clear the obstruction.

When “Pre-Collision System Radar In Self
Calibration Unavailable See Owner’s Man-
ual” is displayed.

Check whether there is attached materials
on the radar sensor and radar sensor cover,
and if there is, remove it.

165

4-5. Using the driving support systems

Driving

The system can detect the following
(The detectable objects differs
depending on the function.):



Vehicles



Bicyclists



Pedestrians

■

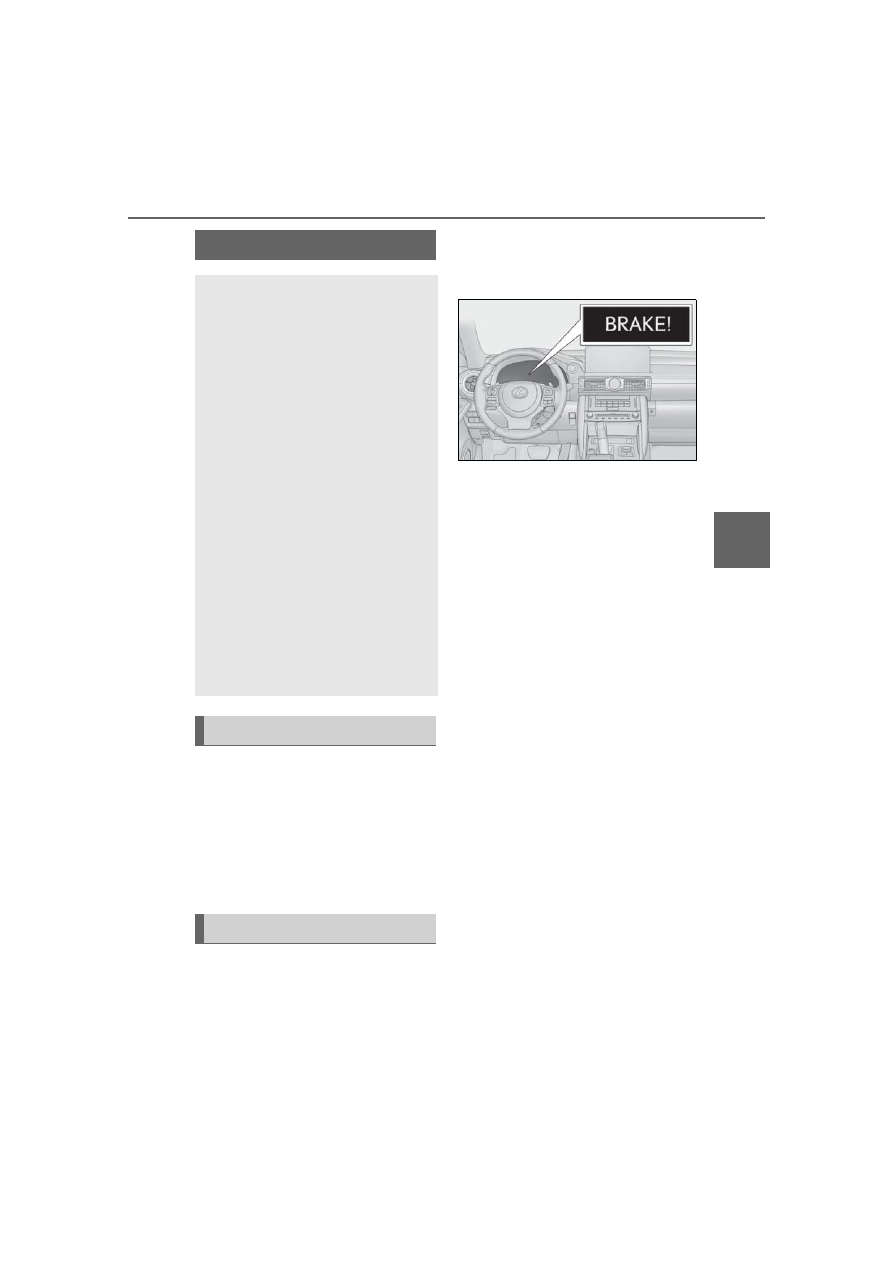

Pre-collision warning

When the system determines that the
possibility of a frontal collision is high, a
buzzer will sound and a warning mes-

sage will be displayed on the
multi-information display to urge the
driver to take evasive action.

■

Pre-collision brake assist

When the system determines that the
possibility of a frontal collision is high,
the system applies greater braking
force in relation to how strongly the
brake pedal is depressed.

■

Pre-collision braking

If the system determines that the possi-
bility of a frontal collision is extremely
high, the brakes are automatically
applied to help avoid the collision or
reduce the impact of the collision.

■

Emergency steering assist

If the system determines that the possi-
bility of a frontal collision is high and
that there is sufficient space for the
vehicle to be steered into within its
lane, and the driver has begun evasive
maneuver or steering, emergency
steering assist will assist the steering
movements to help enhance the vehi-
cle stability and for lane departure pre-
vention. During operation, the
indicator will illuminate in green.

PCS (Pre-Collision System)

The pre-collision system uses a
radar sensor and front camera to
detect objects (



P.165) in front of

the vehicle. When the system
determines that the possibility of a
frontal collision with an object is
high, a warning operates to urge
the driver to take evasive action
and the potential brake pressure is
increased to help the driver avoid
the collision. If the system deter-
mines that the possibility of a frontal
collision with an object is extremely
high, the brakes are automatically
applied to help avoid the collision or
help reduce the impact of the colli-
sion.

The pre-collision system can be dis-
abled/enabled and the warning tim-
ing can be changed. (



P.168)

Detectable objects

System functions

166

4-5. Using the driving support systems

■

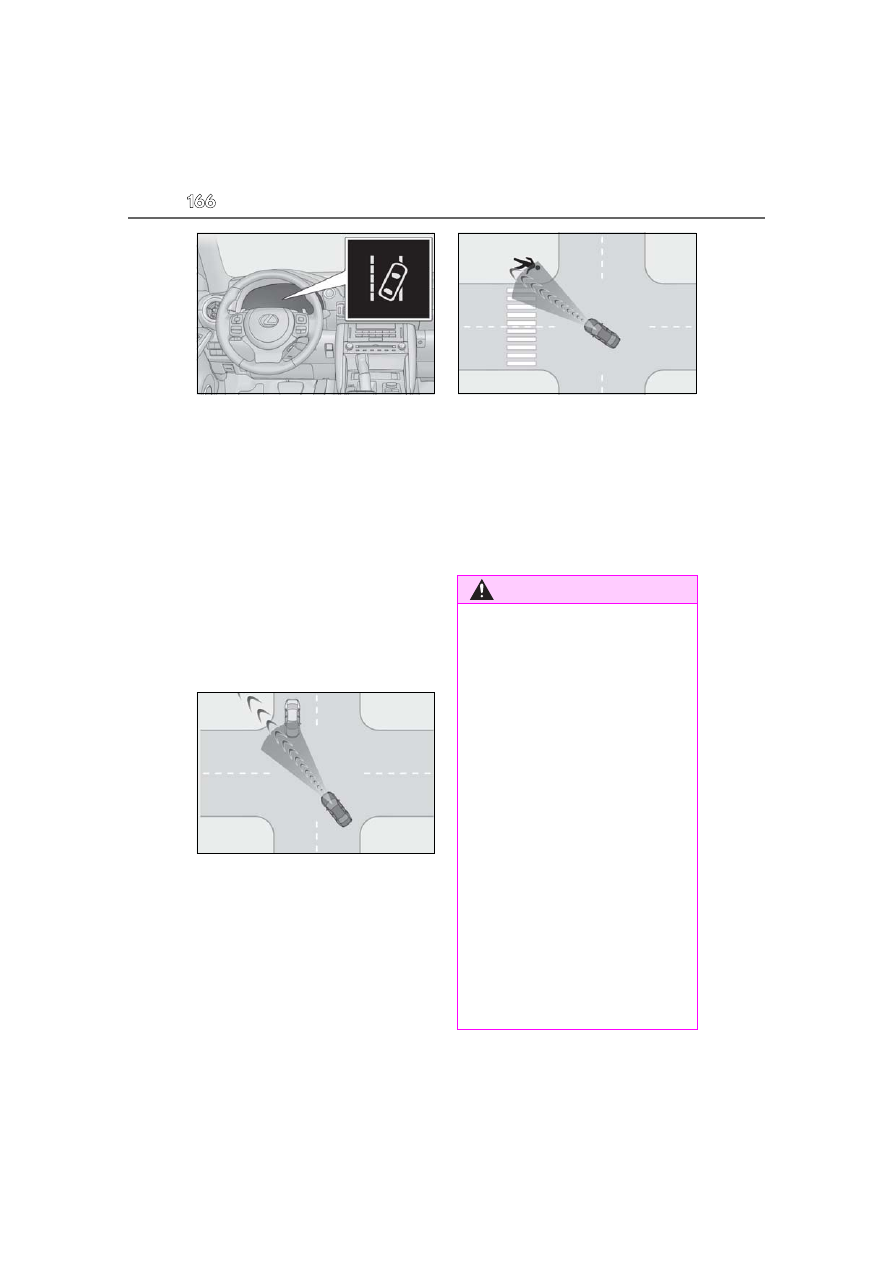

Intersection right/left turn assis-
tance

If the system determines that there is a
high possibility of a collision in the fol-
lowing situations, it will assist with
Pre-collision warning and, if necessary
Pre-collision braking.
Depending on the configuration of the
intersection, it may not be possible to
support.



When you turn right/left at an inter-
section and cross the path of an
oncoming vehicle



When you turn right/left, pedestrian
is detected in the forward direction
and estimated to enter your vehi-
cle’s path (bicyclists are not
detected.)

■

Suspension control (if equipped)

When the system determines that the
possibility of a frontal collision is high,
the Adaptive Variable Suspension Sys-
tem (



P.229) will control the damp-

ing force of the shock absorbers to
help maintain an appropriate vehicle
posture.

WARNING

■

Limitations of the pre-collision system

●

The driver is solely responsible for safe

driving. Always drive safely, taking

care to observe your surroundings.

Do not use the pre-collision system

instead of normal braking operations

under any circumstances. This system

will not prevent collisions or lessen col-

lision damage or injury in every situa-

tion. Do not overly rely on this system.

Failure to do so may lead to an acci-

dent, resulting in death or serious

injury.

●

Although this system is designed to

help avoid a collision or help reduce

the impact of the collision, its effective-

ness may change according to various

conditions, therefore the system may

not always be able to achieve the same

level of performance.

Read the following conditions care-

fully. Do not overly rely on this system

and always drive carefully.

• Conditions under which the system

may operate even if there is no possi-

bility of a collision:



P.171

167

4-5. Using the driving support systems

Driving

WARNING

• Conditions under which the system

may not operate properly:



P.172

●

Do not attempt to test the operation of

the pre-collision system yourself.

Depending on the objects used for

testing (dummies, cardboard objects

imitating detectable objects, etc.), the

system may not operate properly, pos-

sibly leading to an accident.

■

Pre-collision braking

●

When the pre-collision braking func-

tion is operating, a large amount of

braking force will be applied.

●

If the vehicle is stopped by the opera-

tion of the pre-collision braking func-

tion, the pre-collision braking function

operation will be canceled after

approximately 2 seconds. Depress the

brake pedal as necessary.

●

The pre-collision braking function may

not operate if certain operations are

performed by the driver. If the acceler-

ator pedal is being depressed strongly

or the steering wheel is being turned,

the system may determine that the

driver is taking evasive action and pos-

sibly prevent the pre-collision braking

function from operating.

●

In some situations, while the pre-colli-

sion braking function is operating,

operation of the function may be can-

celed if the accelerator pedal is

depressed strongly or the steering

wheel is turned and the system deter-

mines that the driver is taking evasive

action.

●

If the brake pedal is being depressed,

the system may determine that the

driver is taking evasive action and pos-

sibly delay the operation timing of the

pre-collision braking function.

■

Emergency steering assist

●

As emergency steering assist opera-

tion will be canceled when the system

determines that lane departure pre-

vention function has been completed.

●

Emergency steering assist may not

operate or may be canceled in the fol-

lowing cases as the system may deter-

mine the driver is taking actions.

• If the accelerator pedal is being

depressed strongly, the steering wheel

is being operated sharply, the brake

pedal is being depressed or the turn

signal lever is being operated. In this

case, the system may determine that

the driver is taking evasive action and

the emergency steering assist may not

operate.

• In some situations, while the emer-

gency steering assist is operating,

operation of the function may be can-

celed if the accelerator pedal is

depressed strongly, the steering wheel

is operated sharply or the brake pedal

is being depressed and the system

determines that the driver is taking

evasive action.

• When the emergency steering assist is

operating, if the steering wheel is held

firmly or is operated in the opposite

direction to that which the system is

generating torque, the function may be

canceled.

■

When to disable the pre-collision sys-

tem

In the following situations, disable the

system, as it may not operate properly,

possibly leading to an accident resulting

in death or serious injury:

●

When the vehicle is being towed

●

When your vehicle is towing another

vehicle

●

When transporting the vehicle via

truck, boat, train or similar means of

transportation

Content .. 7 8 9 10 ..
