313

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

Check the wattage of the light bulb to
be replaced. (



P.375)

Light bulbs

You may replace the following bulbs
by yourself. The difficulty level of
replacement varies depending on
the bulb. If necessary bulb replace-
ment seems difficult to perform,
contact your Lexus dealer.

For more information about replac-
ing other light bulbs, contact your
Lexus dealer.

Preparing for light bulb replace-
ment

314

6-3. Do-it-yourself maintenance

Front turn signal light (bulb type)
Rear turn signal light

■

Replacing the following bulbs

If any of the lights listed below has
burnt out, have it replaced by your
Lexus dealer.



Headlight



Parking lights and daytime running
lights



Front turn signal lights (LED type)



Side marker lights



Side turn signal lights



Stop/tail lights



Tail lights



Back-up light



High mounted stoplight



License plate lights

■

LED Lights

The lights other than the front turn signal

lights (bulb type) and rear turn signal lights

each consist of a number of LEDs. If any of

the LEDs burn out, take your vehicle to your

Lexus dealer to have the light replaced.

■

Condensation build-up on the inside of

the lens

Temporary condensation build-up on the

inside of the headlight lens does not indi-

cate a malfunction. Contact your Lexus

dealer for more information in the following

situations:

●

Large drops of water have built up on the

inside of the lens.

●

Water has built up inside the headlight.

■

When replacing light bulbs



P.311

Bulb locations

A
B

315

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

■

Front turn signal lights (bulb type)

IS500: Removing the engine com-
partment cover.

Push the center of the clip.

Remove the clip.

For the left side only: Pinch the clip
to remove the washer fluid filler
opening.

Turn the bulb base counterclock-
wise.

Remove the light bulb.

Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.

After installing the light bulb, turn on the

front turn signal light to visually check that

there is no light leaking from the bulb base.

After replacing the left side bulb,
install the washer fluid filler opening
to its original position.

Replacing light bulbs

316

6-3. Do-it-yourself maintenance

IS500: Install the engine compart-
ment cover.

Push up center portion

Insert

Press

■

Rear turn signal lights

Open the trunk and apply protec-
tive tape to the vehicle body around
the light unit.

Use masking tape, etc. Do not use duct

tape, as it may leave residue or damage the

paint when removed.

Insert a flathead screw-driver
between the cover and the light unit

and pry up the cover in several
positions as shown in the illustration
to disengage the claws (indicated
by a dotted line).

To prevent scratching the vehicle, wrap the

tip of the flathead screwdriver with a cloth,

etc.

Pull the cover toward the rear of the
vehicle to remove it.

Remove the 2 bolts.

317

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

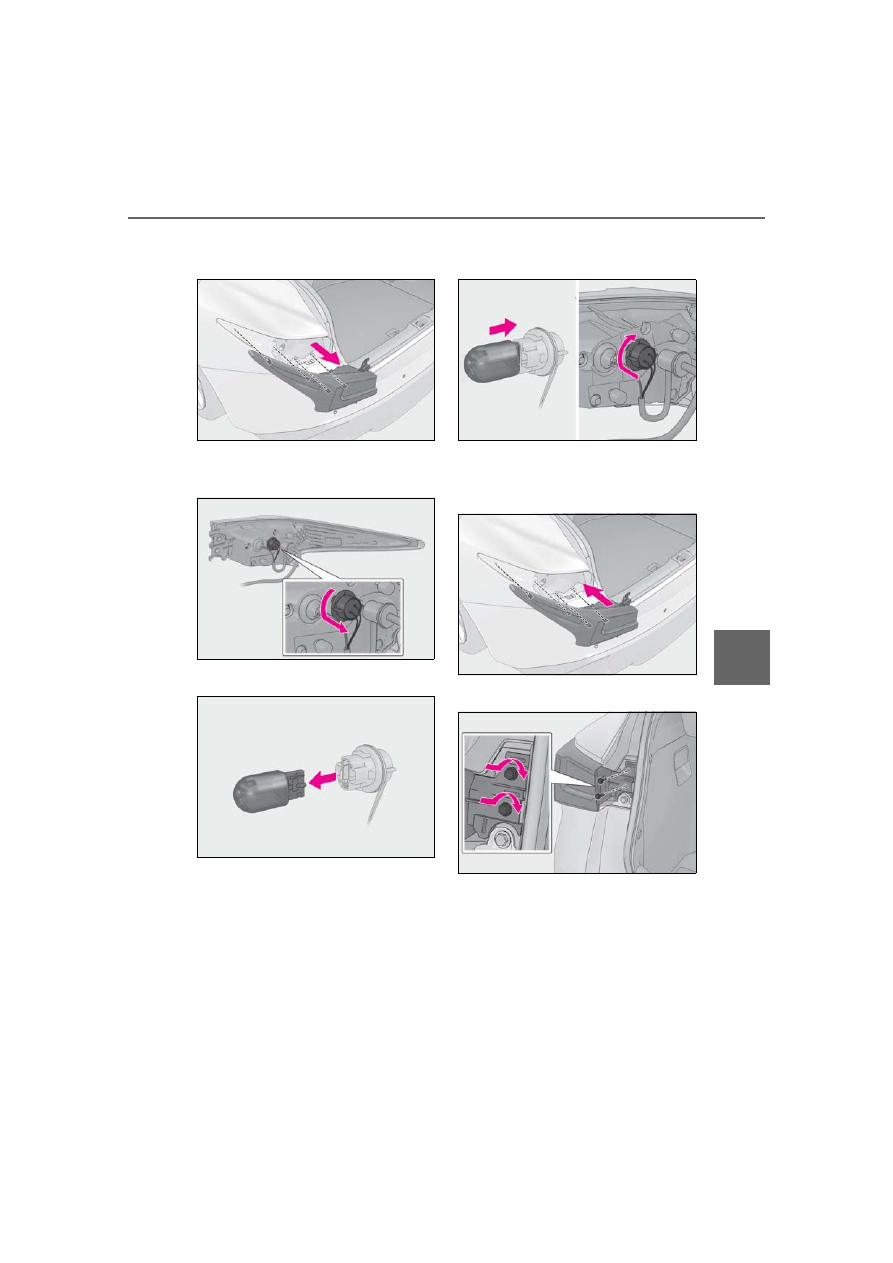

Pull the light unit toward the rear of
the vehicle to remove it.

Turn the bulb base counterclock-
wise.

Remove the light bulb.

Install a new light bulb and then
install the bulb base to the light unit

by inserting it and turning it clock-
wise.

Install the light unit.

Align the tabs and push the light unit

toward the front of the vehicle to install it.

Install the 2 bolts.

318

6-3. Do-it-yourself maintenance

Install the cover.

Remove the protective tape.

■

When replacing the front turn signal

lights (bulb type)

When the washer fluid filler opening is

removed with a large amount of washer

fluid contained in the washer tank, washer

fluid may spill onto the vehicle and cleaning

may be required.

WARNING

■

Replacing light bulbs

●

Turn off the lights. Do not attempt to

replace the bulb immediately after

turning off the lights.

The bulbs become very hot and may

cause burns.

●

Do not touch the glass portion of the

light bulb with bare hands. When it is

unavoidable to hold the glass portion,

use and hold with a clean dry cloth to

avoid getting moisture and oils on the

bulb.

Also, if the bulb is scratched or

dropped, it may blow out or crack.

●

Fully install light bulbs and any parts

used to secure them. Failure to do so

may result in heat damage, fire, or

water entering the headlight unit. This

may damage the headlights or cause

condensation to build up on the lens.

■

To prevent damage or fire

●

Make sure bulbs are fully seated and

locked.

●

Check the wattage of the bulb before

installing to prevent heat damage.

319

When trouble

ari

ses

When trouble arises

7-1. Essential information

Emergency flashers..................

320

If your vehicle has to be stopped in

an emergency..........................

320

If the vehicle is submerged or

water on the road is rising ...

321

7-2. Steps to take in an emergency

If your vehicle needs to be towed

........................................................

323

If you think something is wrong

........................................................

327

Fuel pump shut off system .....

328

If a warning light turns on or a

warning buzzer sounds .......

329

If a warning message is displayed

........................................................

338

If you have a flat tire...................

341

If the engine will not start .......

349

If you lose your keys.................

350

If the fuel filler door cannot be

opened.........................................

351

If the electronic key does not

operate properly .....................

351

If the vehicle battery is discharged

........................................................

353

If your vehicle overheats ........

357

If the vehicle becomes stuck

.........................................................

361

320

7-1. Essential information

7-1.Essential information

Press the switch to flash all of the turn
signal lights.

To turn them off, press the switch once
again.

■

Emergency flashers

●

If the emergency flashers are used for a

long time while the engine is not operat-

ing, the battery may discharge.

●

If any of the SRS airbags deploy (inflate)

or in the event of a strong rear impact, the

emergency flashers will turn on automati-

cally.

The emergency flashers will turn off auto-

matically after operating for approxi-

mately 20 minutes. To manually turn the

emergency flashers off, press the switch

twice.

(The emergency flashers may not turn on

automatically depending on the force of

the impact and conditions of the colli-

sion.)

Steadily step on the brake pedal
with both feet and firmly depress it.

Do not pump the brake pedal repeatedly

as this will increase the effort required to

slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N

After slowing down, stop the vehi-
cle in a safe place by the road.

Stop the engine.



If the shift lever cannot be shifted to
N

Keep depressing the brake pedal
with both feet to reduce vehicle
speed as much as possible.

To stop the engine, press and hold
the engine switch for 2 consecutive

Emergency flashers

The emergency flashers are used to
warn other drivers when the vehicle
has to be stopped on the road due
to a breakdown, etc.

Operating instructions

If your vehicle has to be
stopped in an emergency

Only in an emergency, such as if it
becomes impossible to stop the
vehicle in the normal way, stop the
vehicle using the following proce-
dure:

Stopping the vehicle

321

7-1. Essential information

n t

ris

seconds or more, or press it briefly
3 times or more in succession.

Stop the vehicle in a safe place by
the road.



If the door can be opened, open the
door and exit the vehicle.



If the door cannot be opened, open
the window using the power window
switch and ensure an escape route.



If the window can be opened, exit
the vehicle through the window.



If the door and window cannot be
opened due to the rising water,
remain calm, wait until the water
level inside the vehicle rises to the
point that the water pressure inside
of the vehicle equals the water pres-
sure outside of the vehicle and then
open the door after waiting for the
rising water to enter the vehicle, and
exit the vehicle. When the outside
water level exceeds half the height
of the door, the door cannot be
opened from the inside due to water
pressure.

■

Water level exceeds the floor

When the water level exceeds the floor and

time has passed, the electrical equipment

will get damaged, the power windows will

WARNING

■

If the engine has to be turned off while

driving

Power assist for the brakes and steering

wheel will be lost, making the brake

pedal harder to depress and the steering

wheel heavier to turn. Decelerate as

much as possible before turning off the

engine.

If the vehicle is submerged
or water on the road is rising

This vehicle is not designed to be
able to drive on roads that are
deeply flooded with water. Do not
drive on roads where the roads may
be submerged or the water may be
rising. It is dangerous to remain in
the vehicle, if it anticipated that the
vehicle will be flooded or set a drift.
Remain calm and follow the follow-
ing.

322

7-1. Essential information

not operate, the engine stop, and the vehi-

cle may not be able to get moving.

■

Using an emergency escape hammer

Laminated glass is used in the windshield on

this vehicle.
Laminated glass cannot be shattered with
an emergency hammer

Tempered glass is used in the windows on

this vehicle.

: Contact your Lexus dealer or aftermar-

ket accessory manufacturer for further
information about an emergency ham-
mer.

WARNING

■

Caution while driving

Do not drive on roads where the roads

may be submerged or the water may be

rising. Otherwise the vehicle may be

damaged and cannot move, as well as

become flooded and set a drift, which

may lead to death.

323

7-2. Steps to take in an emergency

n t

ris

7-2.Steps to take in an emergency

If your vehicle needs to be
towed

If towing is necessary, we recom-
mend having your vehicle towed by
your Lexus dealer or commercial
towing service, using a wheel-lift
type truck or flatbed truck.

Use a safety chain system for all
towing, and abide by all state/pro-
vincial and local laws.

If towing your vehicle with a
wheel-lift type truck from the front,
the vehicle’s rear wheels and axles
must be in good conditions.
(



P.324)

If they are damaged, use a towing
dolly or flatbed truck.

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

■

When towing the vehicle



2WD models

Be sure to transport the vehicle with all

four wheels raised off the ground. If the

vehicle is towed with the tires contacting

the ground, the drivetrain and related

parts may be damaged or an accident

may occur due to a change in direction

of the vehicle.



AWD models

Be sure to transport the vehicle with all

four wheels raised off the ground. If the

vehicle is towed with the tires contacting

the ground, the drivetrain or related

parts may be damaged, the vehicle may

fly off the truck.

324

7-2. Steps to take in an emergency

The following may indicate a problem
with the drivetrain. Contact your Lexus
dealer or commercial towing service
before towing.



The engine is running but the vehi-
cle does not move.



The vehicle makes an abnormal
sound.



From the front

Use a towing dolly under the rear
wheels.

WARNING

■

While towing

●

When towing using cables or chains,

avoid sudden starts, etc. which place

excessive stress on the towing eyelets,

cables or chains. The towing eyelets,

cables or chains may become dam-

aged, broken debris may hit people,

and cause serious damage.

●

Do not turn the engine switch off.

There is a possibility that the steering

wheel is locked and cannot be oper-

ated.

■

Installing towing eyelet to the vehicle

Make sure that towing eyelet is installed

securely.

If not securely installed, towing eyelet

may come loose during towing.

NOTICE

■

To prevent damage to the vehicle

when towing using a wheel-lift type

truck

●

Do not tow the vehicle from the rear

when the engine switch is off. The

steering lock mechanism is not strong

enough to hold the front wheels

straight.

●

When raising the vehicle, ensure ade-

quate ground clearance for towing at

the opposite end of the raised vehicle.

Without adequate clearance, the vehi-

cle could be damaged while being

towed.

■

To prevent damage to the vehicle

when towing with a sling-type truck

Do not tow with a sling-type truck, either

from the front or rear.

■

To prevent damage to the vehicle

during emergency towing

Do not secure cables or chains to the

suspension components.

■

Recreational towing (behind motor

home, etc.)

Never dinghy tow your vehicle to pre-

vent causing serious damage to the

AWD system and transmission. (



P.129)

Situations when it is necessary to
contact dealers before towing

Towing with a wheel-lift type
truck

325

7-2. Steps to take in an emergency

n t

ris



From the rear

Use a towing dolly under the front
wheels.

When using a flat-bed truck to trans-
port the vehicle, use tire strapping
belts. Refer to the owner's manual of
the flat-bed truck for the tire strapping
method.
In order to suppress vehicle movement
during transportation, set the parking
brake and turn the engine switch off.

If a tow truck is not available in an
emergency, your vehicle may be tem-
porarily towed using cables or chains
secured to the emergency towing eye-
lets. This should only be attempted on
hard surfaced roads for at most 50
miles (80 km) at under 18 mph (30
km/h).
A driver must be in the vehicle to steer
and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and
brakes must be in good condition.

To have your vehicle towed by another
vehicle, the towing eyelet must be
installed to your vehicle. Install the tow-
ing eyelet using the following proce-
dure.

Take out the wheel bolt wrench,
flathead screwdriver and towing
eyelet. (



P.341)

Remove the eyelet cover using a
flathead screwdriver.

To protect the bodywork, place a rag

between the screwdriver and the vehicle

body as shown in the illustration.

NOTICE

■

Towing with a sling-type truck

Do not tow with a sling-type truck to pre-

vent body damage.

Using a flatbed truck

NOTICE

■

Using a flatbed truck

Do not overly tighten the tie downs or the

vehicle may be damaged.

Emergency towing

Emergency towing procedure

326

7-2. Steps to take in an emergency

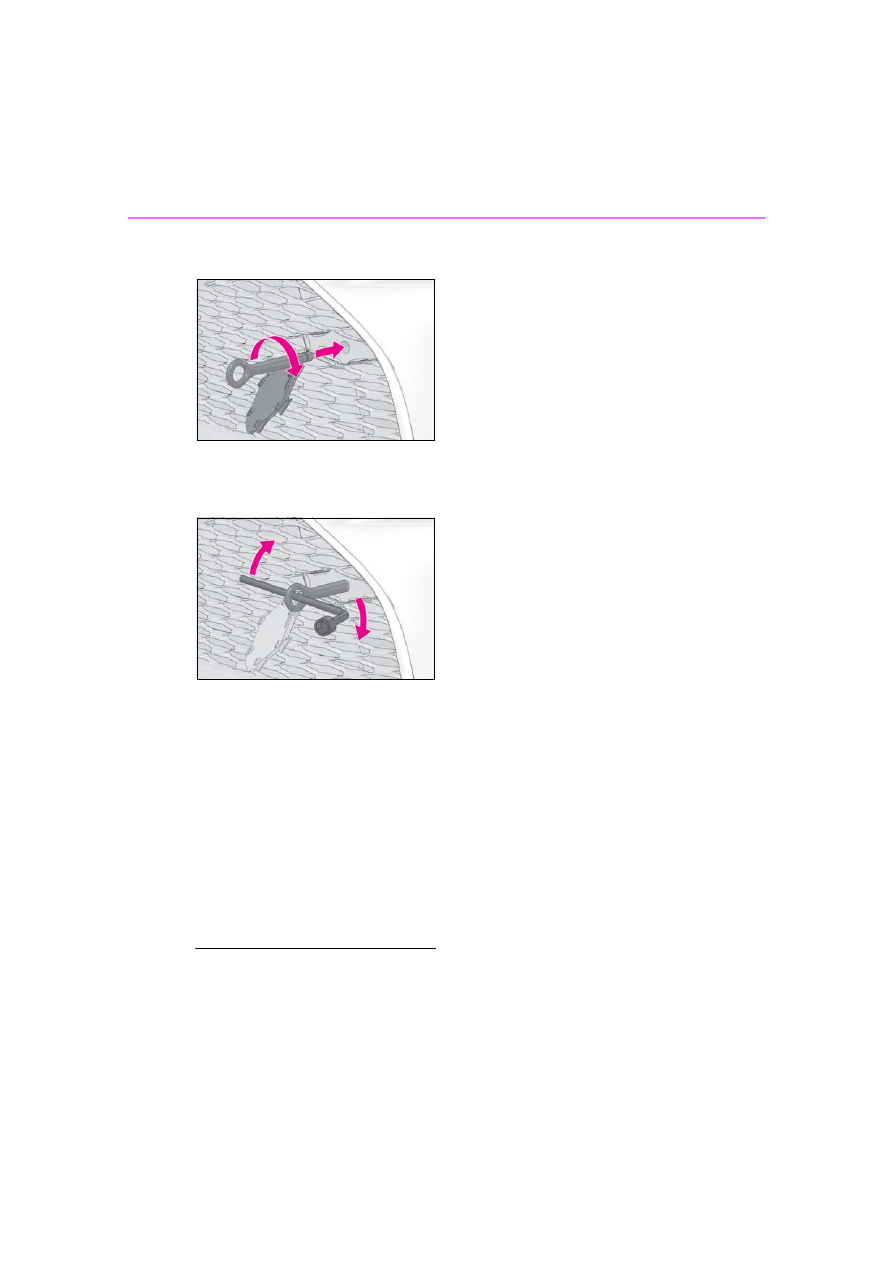

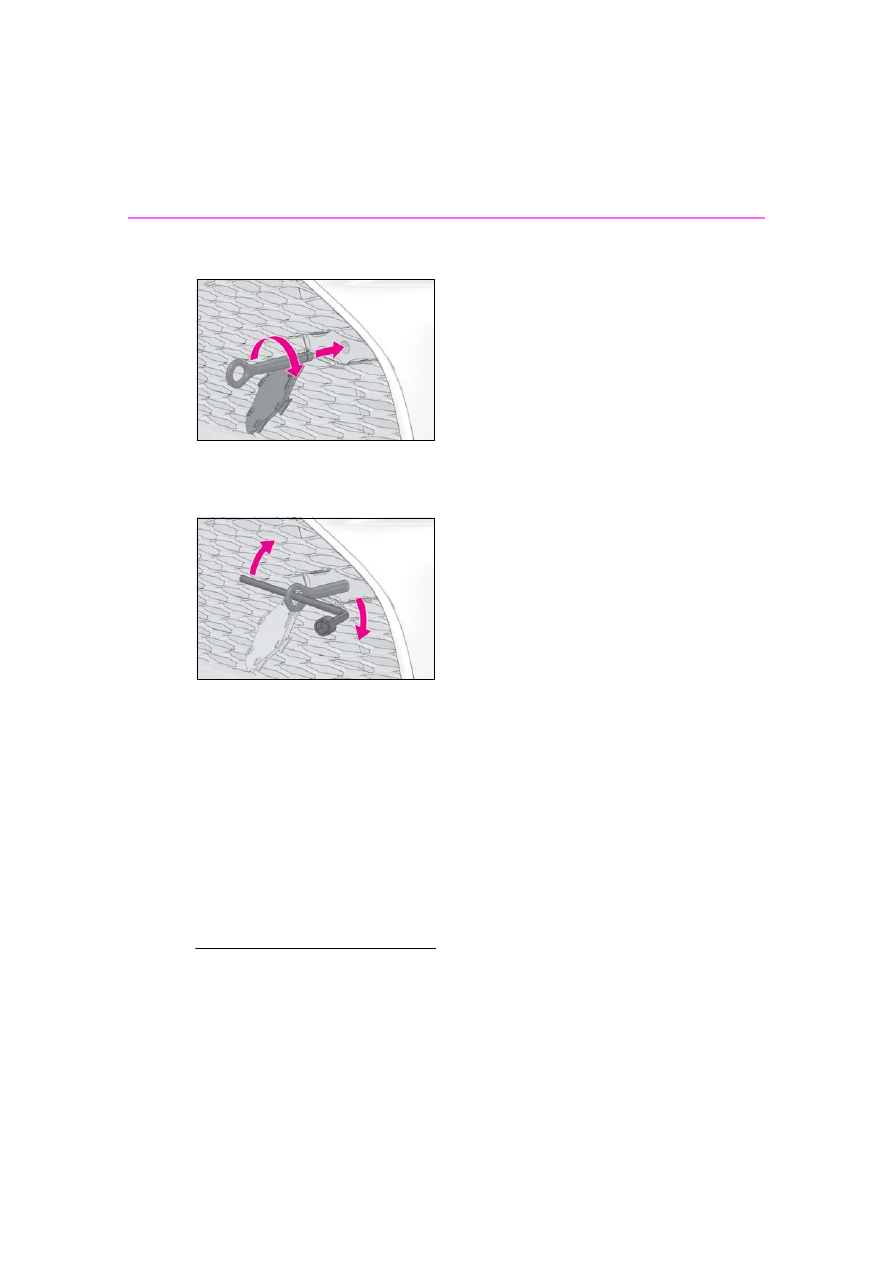

Insert the towing eyelet into the
hole and tighten partially by hand.

Tighten down the towing eyelet
securely using a wheel bolt wrench
or hard metal bar.

Securely attach cables or chains to
the towing eyelet.

Take care not to damage the vehicle body.

Enter the vehicle being towed and
start the engine.

If the engine does not start, turn the engine

switch to IGNITION ON mode.

Shift the shift lever to N and release
the parking brake.

Turn automatic mode off. (



P.140)

When the shift lever cannot be shifted:



P.135

■

While towing

If the engine is not running, the power assist

for the brakes and steering will not function,

making steering and braking more difficult.

■

Wheel bolt wrench

Wheel bolt wrench is installed in the trunk.

(



P.341)

327

7-2. Steps to take in an emergency

When trouble

ari

ses



Fluid leaks under the vehicle.
(Water dripping from the air condi-
tioning after use is normal.)



Flat-looking tires or uneven tire
wear



Engine coolant temperature gauge
needle continually points higher
than normal.



Changes in exhaust sound



Excessive tire squeal when corner-
ing



Strange noises related to the sus-
pension system



Pinging or other noises related to
the engine



Engine missing, stumbling or run-
ning roughly



Appreciable loss of power



Vehicle pulls heavily to one side
when braking



Vehicle pulls heavily to one side
when driving on a level road



Loss of brake effectiveness, spongy
feeling, pedal almost touches the
floor

If you think something is
wrong

If you notice any of the following
symptoms, your vehicle probably
needs adjustment or repair. Con-
tact your Lexus dealer as soon as
possible.

Visible symptoms

Audible symptoms

Operational symptoms

328

7-2. Steps to take in an emergency

Follow the procedure below to restart
the engine after the system is activated.

Turn the engine switch to ACCES-
SORY mode or turn it off.

Restart the engine.

Fuel pump shut off system

To minimize the risk of fuel leakage
when the engine stalls or when an
airbag inflates upon collision, the
fuel pump shut off system stops the
supply of fuel to the engine.

Restarting the engine

NOTICE

■

Before starting the engine

Inspect the ground under the vehicle.

If you find that fuel has leaked onto the

ground, the fuel system has been dam-

aged and is in need of repair. Do not

restart the engine.

Content .. 17 18 19 20 ..
