2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators



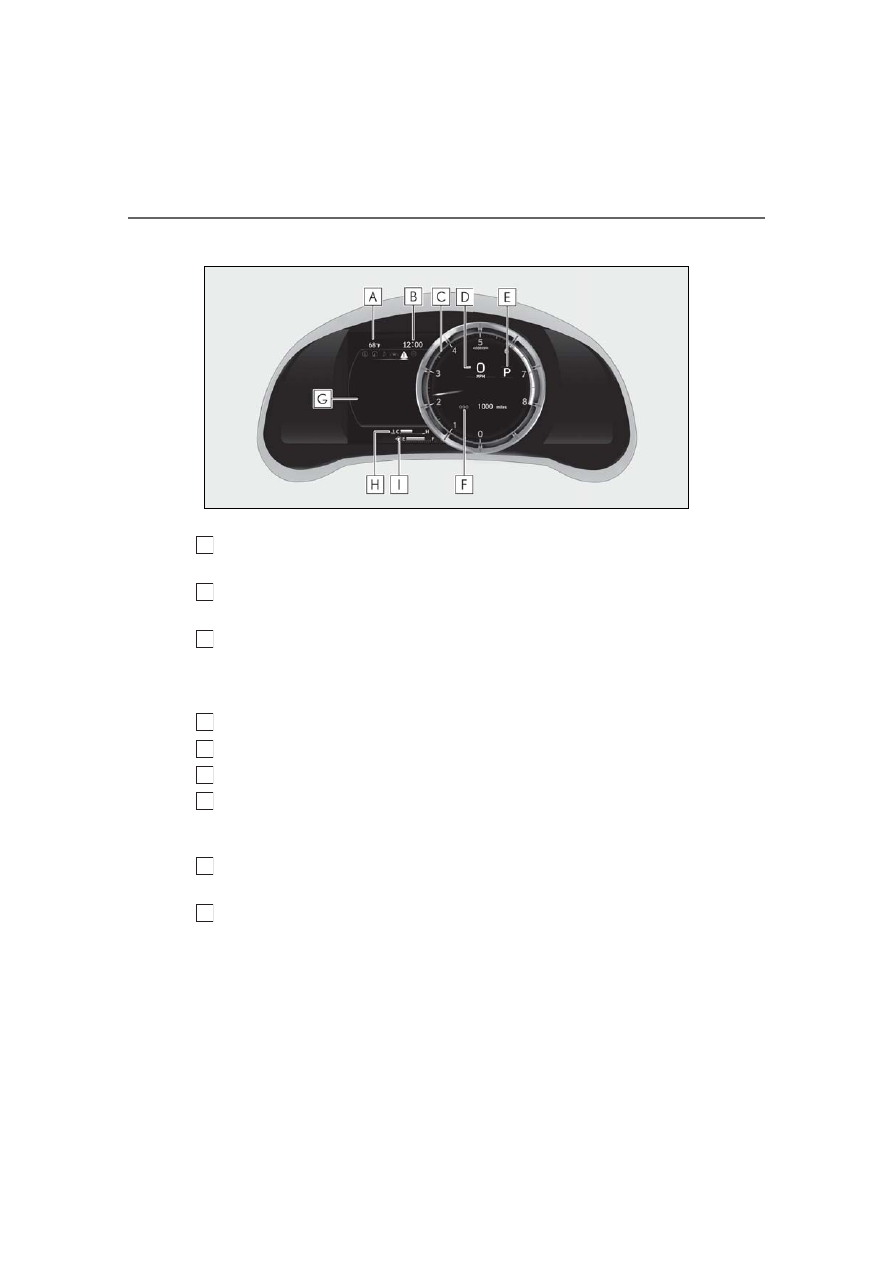

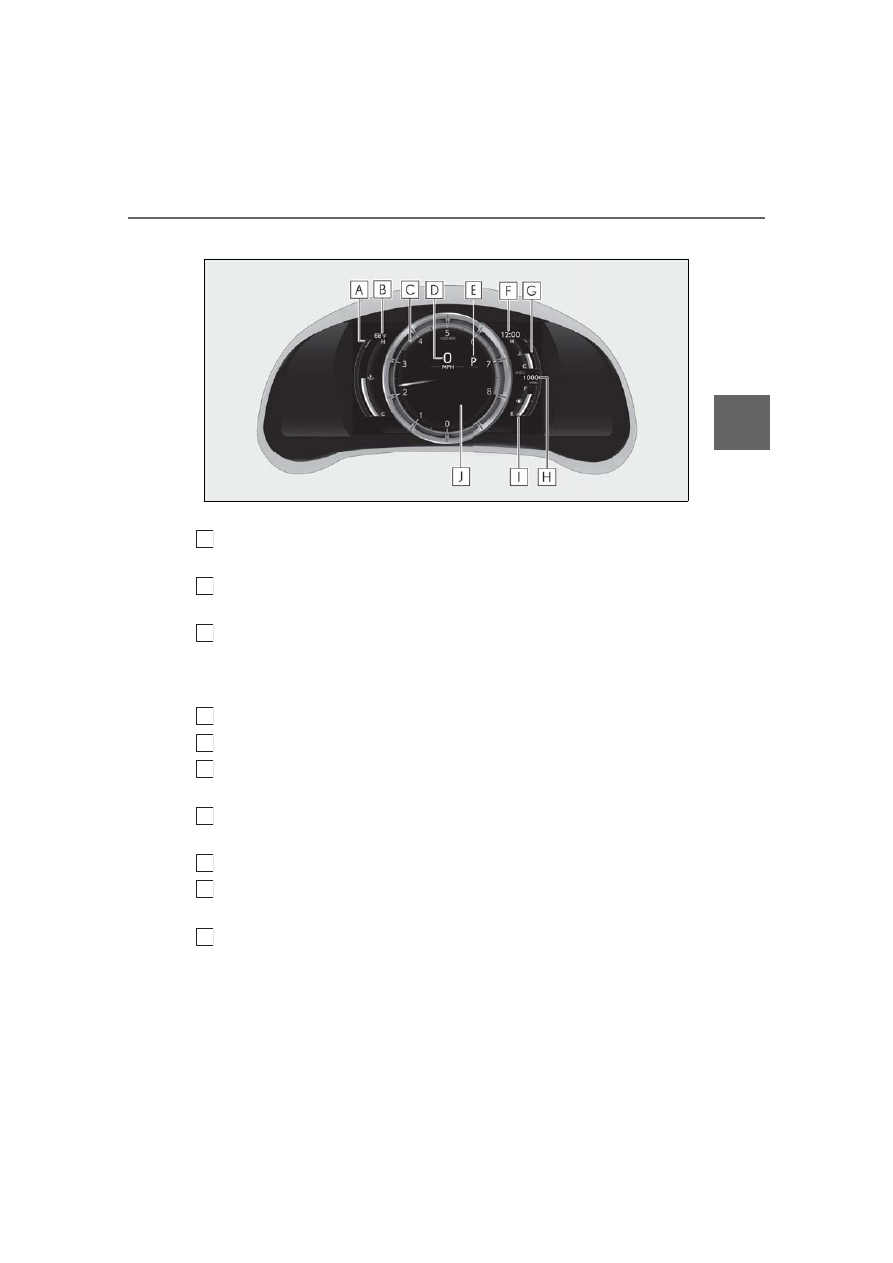

Main meter in center position (IS500)

The units of measure may differ depending on the intended destination of the vehicle.

Engine oil temperature gauge

Displays the engine oil temperature

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Speedometer
Shift position and gear position (



P.134)

Clock

Time displayed is linked to the analog clock on the center panel. (



P.260)

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (



P.74)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Multi-information display

Presents the driver with a variety of vehicle data (



P.75)

Displays warning messages if a malfunction occurs (



P.338)

E
F

2-1. Instrument cluster



Main meter moved to the right

The units of measure may differ depending on the intended destination of the vehicle.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Clock

Time displayed is linked to the analog clock on the center panel. (



P.260)

Tachometer

Speedometer
Shift position and gear position (



P.134)

Odometer and trip meter display (



P.74)

Multi-information display

Presents the driver with a variety of vehicle data (



P.75)

Displays warning messages if a malfunction occurs (



P.338)

Engine coolant temperature gauge

Displays the engine coolant temperature

Fuel gauge

Displays the quantity of fuel remaining in the tank

■

Rev indicator (F SPORT models)

When the engine speed reaches a set
speed, a ring-shaped indicator will be
displayed on the tachometer.

E
F

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

The desired engine speed at which the Rev
indicator will begin to be displayed can be
set on

of the multi-information display.

■

Rev peak (F SPORT models)

The engine speed reaches or exceeds
5000 rpm, an afterimage of the
tachometer will be displayed at the
highest engine speed for approxi-
mately 0.5 seconds.

Moves between center and right-side
positions.

■

The meters and display illuminate when

The engine switch is in IGNITION ON

mode.

■

Variable red zone (IS500)

To help protect the engine, the engine

speed is controlled by starting the red zone

of the tachometer at different engine

speeds ranging from 3700 rpm to 7300

rpm depending on the engine coolant tem-

perature. Before driving under extremely

high load conditions, make sure to suffi-

ciently warm up the engine.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

Changing the main meter loca-
tion (F SPORT models)

2-1. Instrument cluster

●

When “_ _”or “E” is displayed, the system

may be malfunctioning.

Take your vehicle to your Lexus dealer.

■

Pop-up display

●

In some situations, such as when a switch

operation is performed, a pop-up display

will be temporarily displayed on the

multi-information display or the odome-

ter/trip meter screen (F SPORT models).

●

Some pop-up displays can be set on/off.

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

■

Customization

The meter display can be customized on

the multi-information display. (



P.388)

■

Display items



Odometer

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.



Distance until next engine oil
change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.
For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (



P.357)

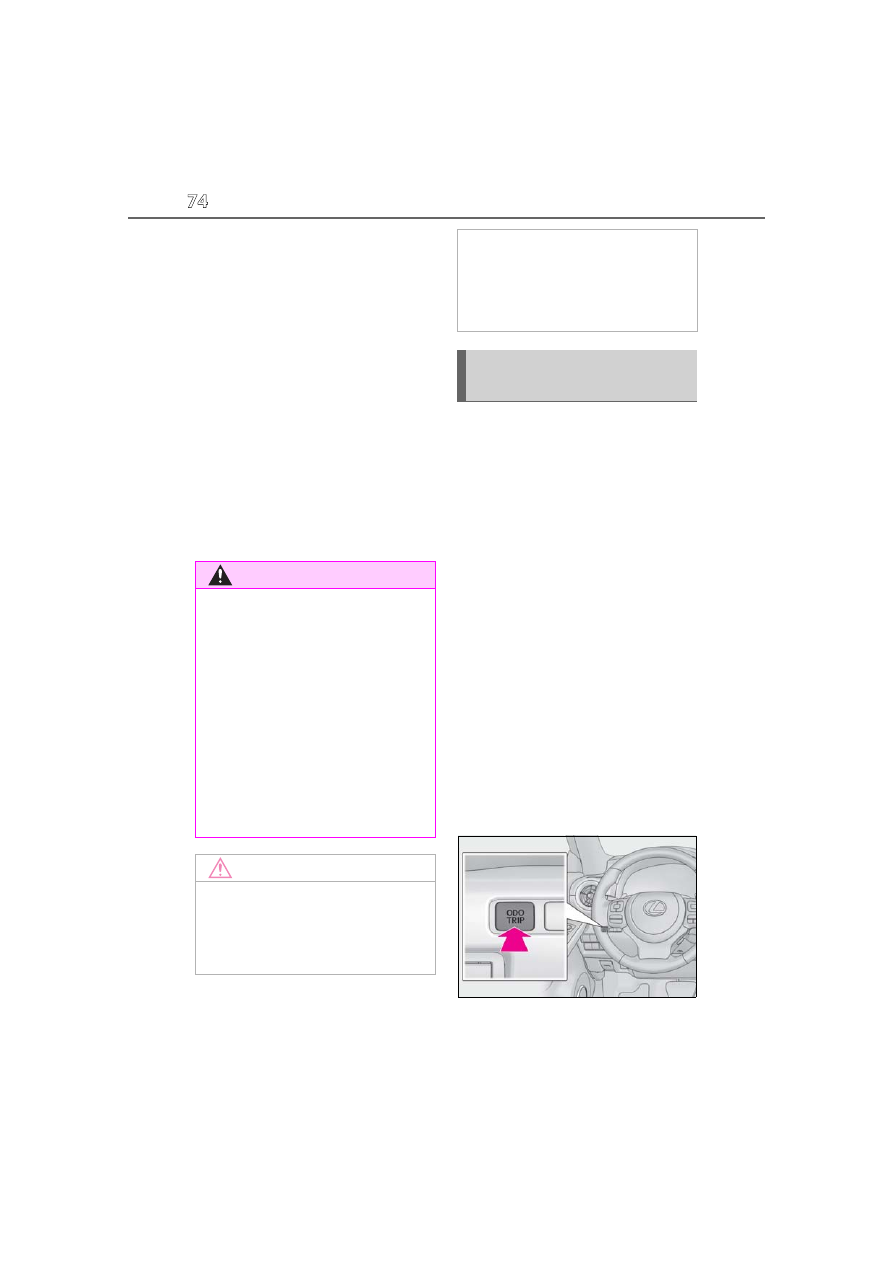

Odometer and trip meter dis-
play

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Pop-up display

Distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

Darker
Brighter

■

Brightness of the meters (day mode and

night mode)

The brightness of the meters changes

between day mode and night mode.

●

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

●

Night mode: When the tail lights are on

and the surrounding area is dark

■

Display (except F SPORT models)

By selecting menu icons on the
multi-information display, a variety of
driving-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or advice pop-up displays are
also displayed in certain situations.

■

Display (F SPORT models)



Main meter in center position

The multi-information display presents
the driver with a variety of driv-
ing-related information.
Warning or advice pop-up displays are
also displayed in certain situations.

Changing the instrument panel
light brightness

A
B

Multi-information display

The multi-information display pres-
ents the driver with a variety of
vehicle data.

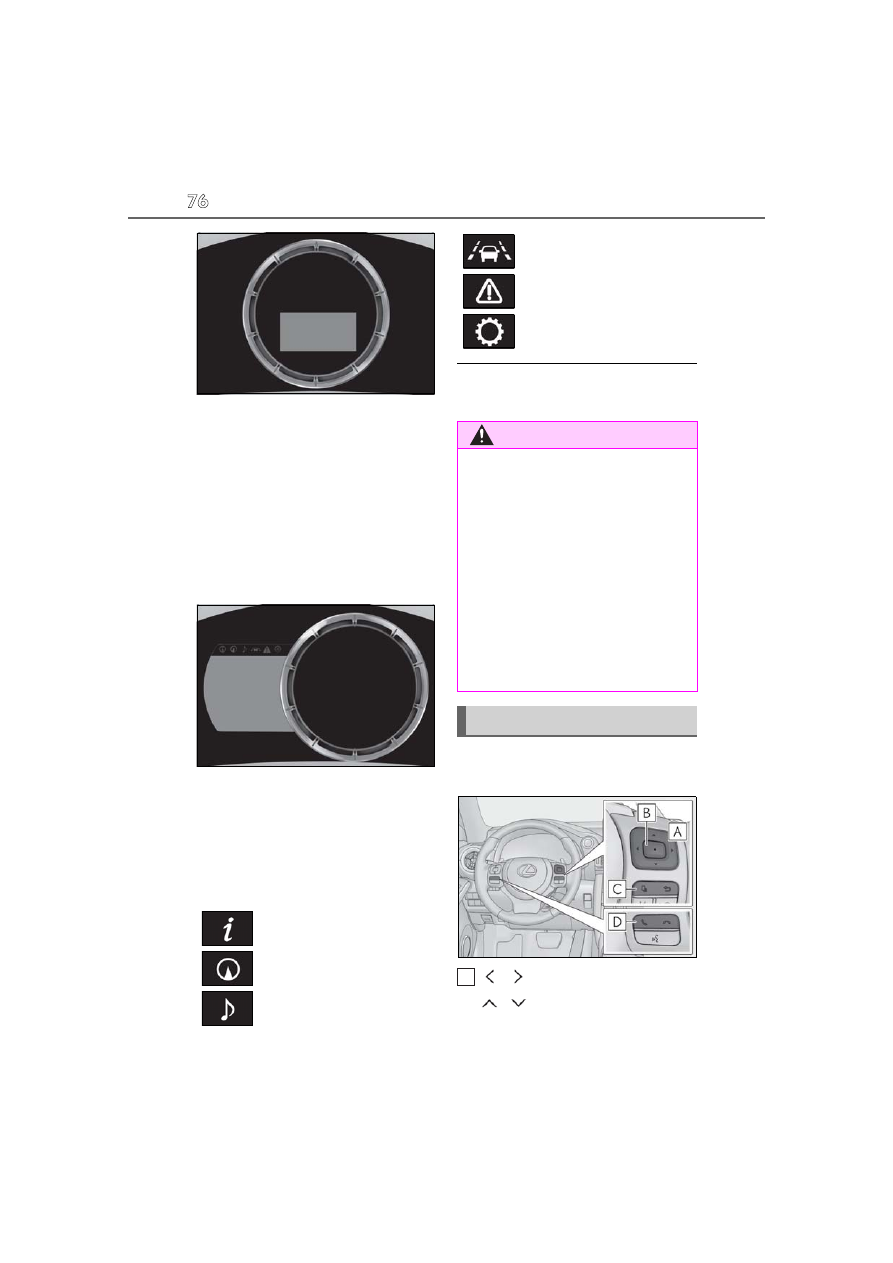

Display and menu icons

2-1. Instrument cluster



Main meter moved to the right

■

Menu icons

Select a menu icon to display its con-
tent.

F SPORT models: The menu icons can be
displayed when the main meter is moved to
the right.

■

Liquid crystal display



P.74

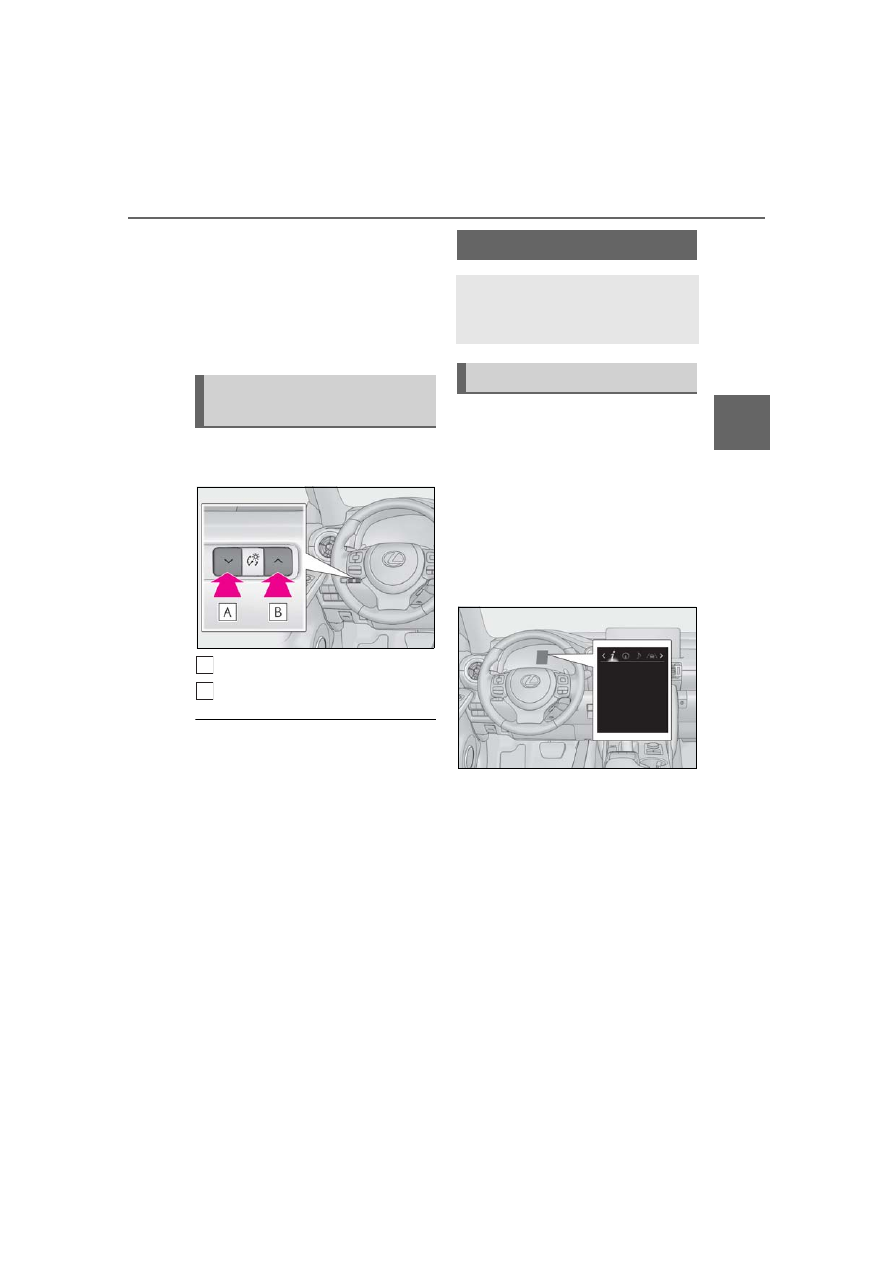

The multi-information display is oper-
ated using the meter control switches.

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen and

Driving information (



P.77)

Navigation system-linked dis-
play (if equipped) (



P.80)

Audio system-linked display
(



P.80)

Driving support system infor-
mation display (



P.80)

Warning message display
(



P.338)

Settings display (



P.81)

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the

multi-information display while driving

as you may fail to see pedestrians,

objects on the road, etc. ahead of the

vehicle.

■

The information display at low tem-

peratures



P.74

Changing the meter display

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

move the cursor up/down
Press: Enter/Set
Press and hold: Reset



Except F SPORT models

Display the top screen and return
to the previous screen
Press and hold

: Register cur-

rent screen as the top screen
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.



F SPORT models

Move the main meter and return to
the previous screen
Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.

■

Registering a top screen (except F
SPORT models)

The displayed top screen can be
changed to a registered screen of your
choice.
To register a screen as the top screen,
display the desired screen and press
and hold

■

Display items (except F SPORT
models)

Press

of the meter control

switch and select

. Then press

to display the following items:



Drive information 1



Drive information 2



Drive information 3



Eco Driving Indicator



Speedometer display



Tire pressure (



P.299)



Gear Position



Display off

■

Display items (F SPORT models)



Main meter in center position

Press

of the meter control

switch to display the following items:



Drive information 1



Drive information 2



Tire pressure (



P.299)



Gear Position



Units



Display off



Main meter moved to the right

Press

of the meter control

switch and select

. Then press

to display the following items:



Drive information 1



Drive information 2

Content of driving information

2-1. Instrument cluster



Eco Driving Indicator



Boost gauge/engine oil tempera-
ture gauge/engine oil pressure
gauge (if equipped)



G-force



Gear Position



Tire pressure (



P.299)



Display off

■

Drive information 1/Drive infor-
mation 2/Drive information 3

Displays drive information such as the
following:

Use the displayed values as a reference
only.



Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)



Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)



Drive information 3

• Average fuel economy (after refuel)
• Elapsed time (after start)

: Except F SPORT models

Displayed items (listed below) can be
changed on

. (



P.81)



Current fuel consumption

Bar type: Displays instantaneous current
fuel consumption



Average fuel economy

After reset: Displays average fuel con-
sumption since the display was reset

After start: Displays average fuel con-
sumption since engine start

After refuel: Displays average fuel con-
sumption since refuel



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since engine start



Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since
engine start



Distance

Driving range: Displays driving range with
remaining fuel

*2, 3

After start: Displays the distance driven
since engine start



Other

Blank: No item

: To reset, display the desired item and

press and hold

of the meter con-

trol switch.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

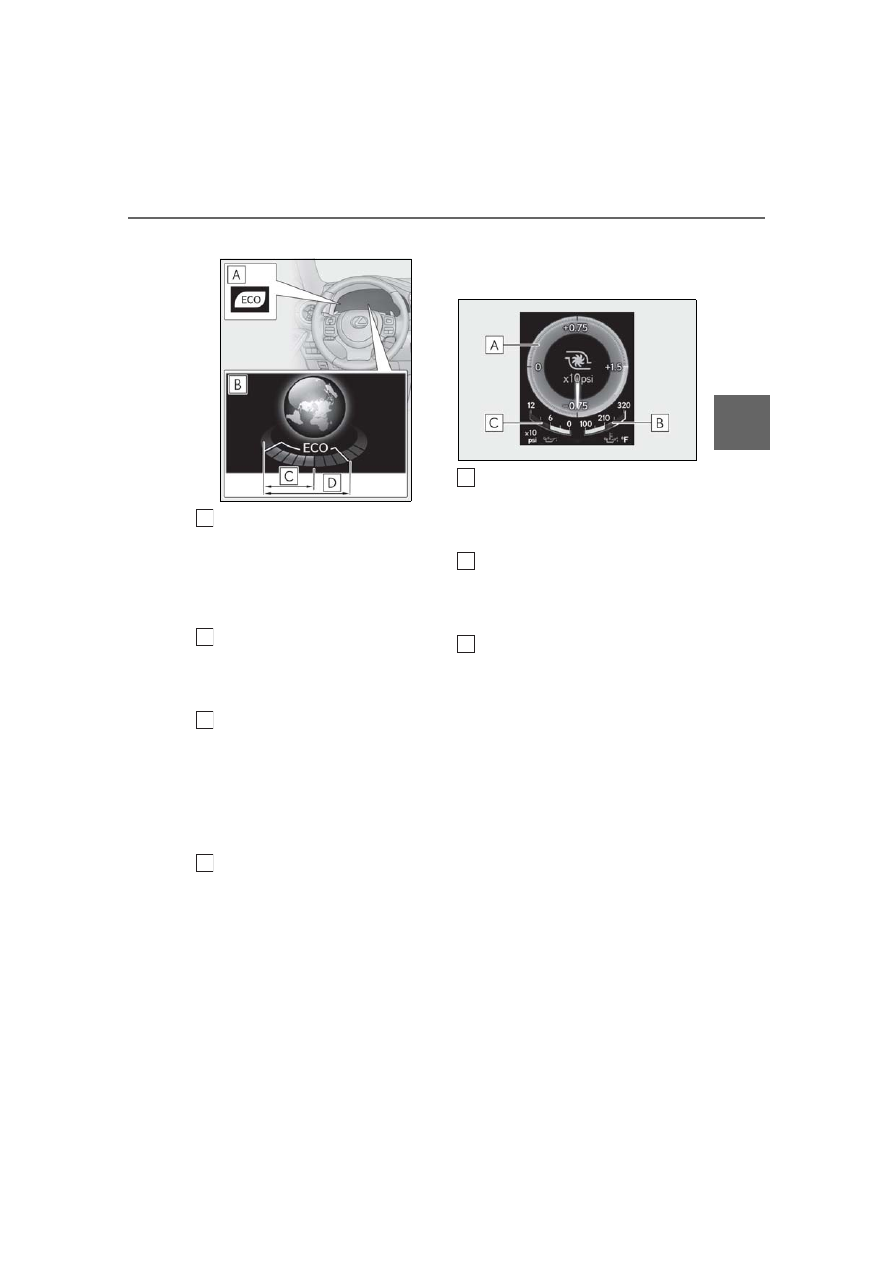

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.

Eco driving ratio based on acceler-
ation

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.
At this time, the Eco Driving Indicator Light
will turn off.

Zone of Eco driving

■

Speedometer (except F SPORT
models)

Displays the vehicle speed.

■

Boost gauge/engine oil tempera-
ture gauge/engine oil pressure
gauge (if equipped)

Boost gauge

Displays the boost pressure. The display
will change color if the specified pressure is
exceeded.

Engine oil temperature gauge

Displays the engine oil temperature. The
display will flash if the engine oil tempera-
ture exceeds 284 °F (140 °C).

Engine oil pressure gauge

Displays the engine oil pressure. A buzzer
will sound and warning message will be
displayed if the engine oil pressure
becomes low. (



P.340)

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.

: For F SPORT models, this item is not

available when the main meter is in the
center position.

■

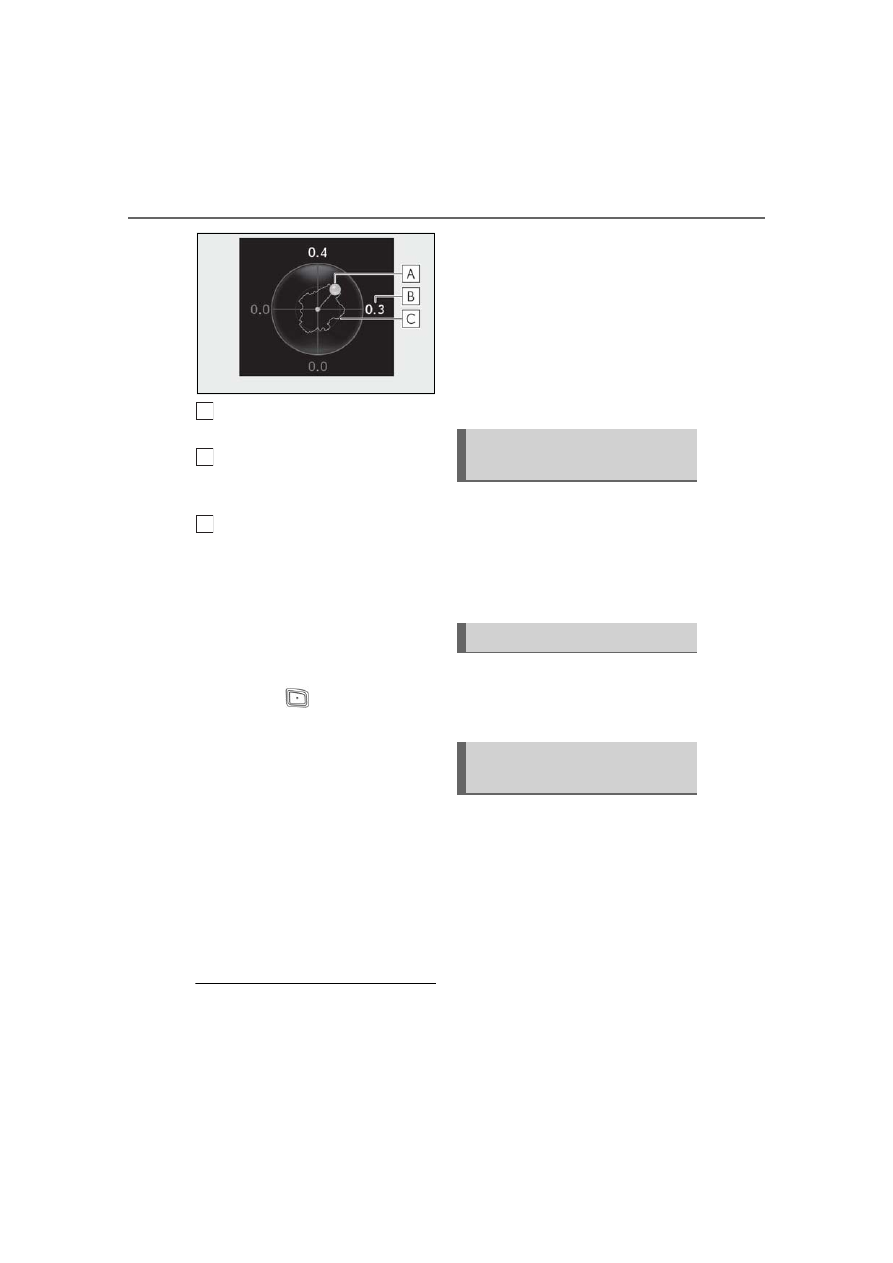

G-force (F SPORT models)

Displays lateral G-forces on the vehi-
cle.

2-1. Instrument cluster

Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces



Resetting the record of maximum
G-forces

Press and hold

of the meter control

switch to reset the record.



Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

: For F SPORT models, this item is not

available when the main meter is in the
center position.

■

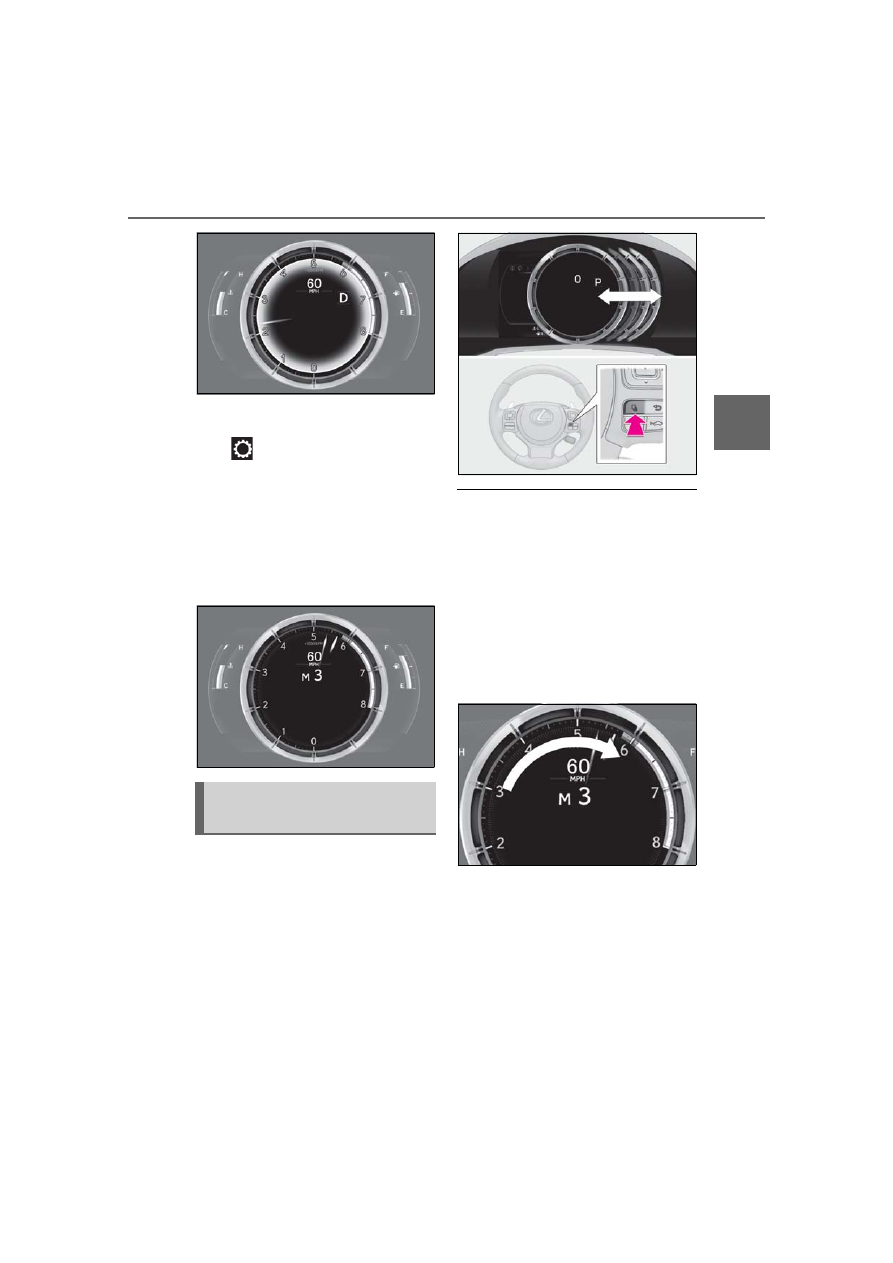

Gear Position

Displays the current shift range or gear
position when the shift position is in D
or M.

■

Eco Driving Indicator

Eco Driving Indicator will not operate

under the following conditions:

●

The shift lever is in position other than D.

●

A paddle shift switch is operated.

●

Neither normal mode nor Eco drive

mode is selected. (



P.227)

●

The vehicle speed is approximately 80

mph (130 km/h) or higher.

■

G-force display

The G-force values may not be zero even

when the vehicle is parked, such as when it

is parked on an incline.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display (heading-up dis-
play)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist) (



P.175)



Dynamic radar cruise control with
full-speed range (



P.187)



RSA (Road Sign Assist) (if
equipped) (



P.184)

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display (except F
SPORT models)

Select to set the display of the speedome-
ter to digital/analog/both digital and ana-
log.



Drive information 1/Drive informa-
tion 2/Drive information 3

Select to select up to 2 items (



P.78) that

will be displayed on each Drive information
screen (Drive information 1 screen, Drive
information 2 screen and Drive informa-
tion 3 screen) respectively.



Clock

Select to switch between 12-hour display
and 24-hour display.



Pop-up display

Select to enable/disable pop-up displays
for each relevant system.



Accent color

Select to change the accent color on the
screen, such as the cursor color.



Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.



Rev peak (F SPORT models)

Select to enable/disable the rev peak.



Eco Driving Indicator Light

Select to enable/disable the Eco Driving
Indicator Light.



Default setting

Select to reset the meter display settings to
the default setting.

■

Vehicle functions and settings that
can be changed



P.388

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Settings display

WARNING

■

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

2-1. Instrument cluster

Center Display
“MENU” button
Touchpad

■

Trip information

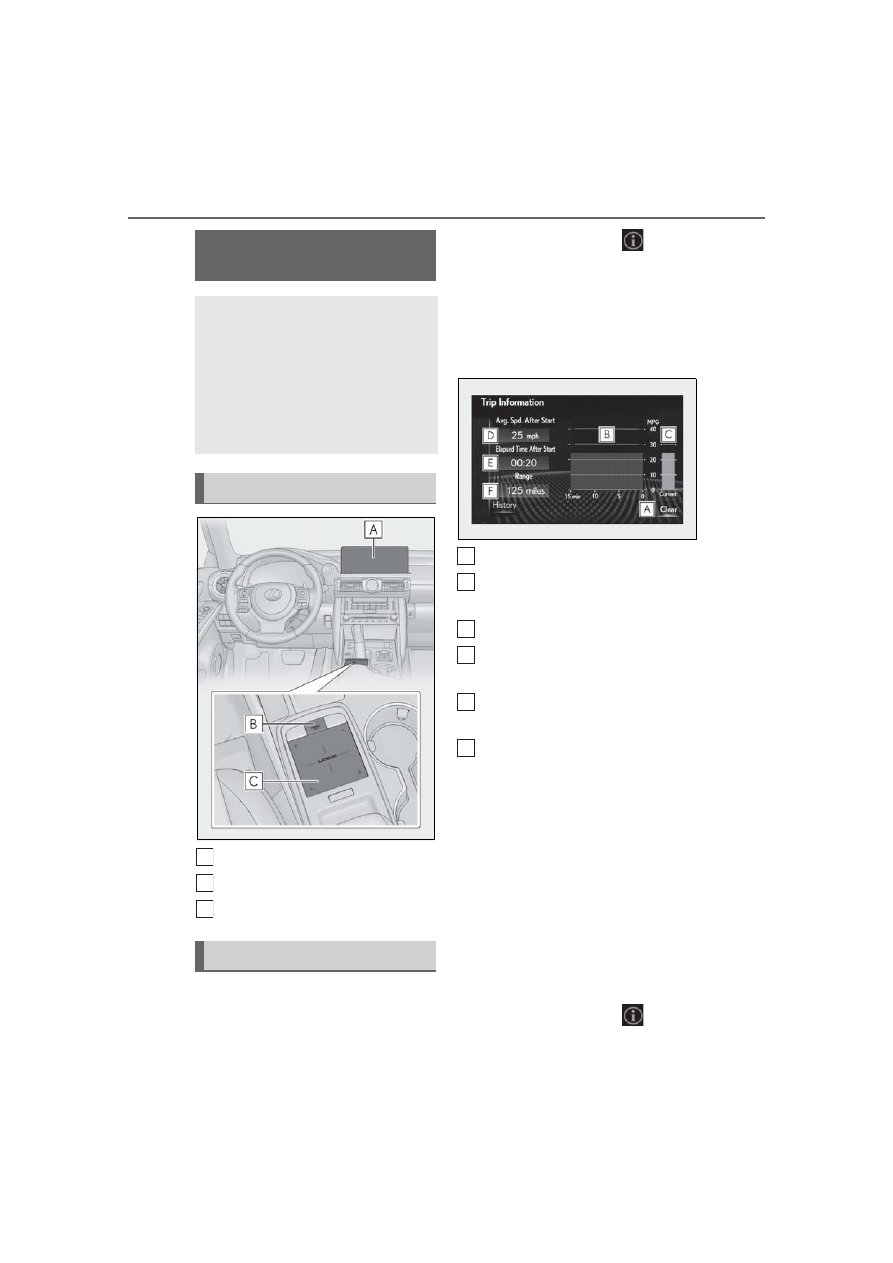

Press the “MENU” button on the

Remote Touch, then select

on the

menu screen.
If a screen other than “Trip Information”
is displayed, select “Trip Information”.
This system can also be operated by
the touch screen.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range

Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

History

Press the “MENU” button on the
Remote Touch, then select

on the

Fuel consumption informa-
tion

Fuel consumption information can
be displayed on the Center Display.

Vehicles with a navigation system
(10.3-inch display): The fuel con-
sumption information can be dis-
played and operated on the side
display.

System components

Consumption

A
B
C

A
B

C
D

2-1. Instrument cluster

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

menu screen.
If a screen other than “History” is dis-
played, select “History”.
This system can also be operated by
the touch screen.

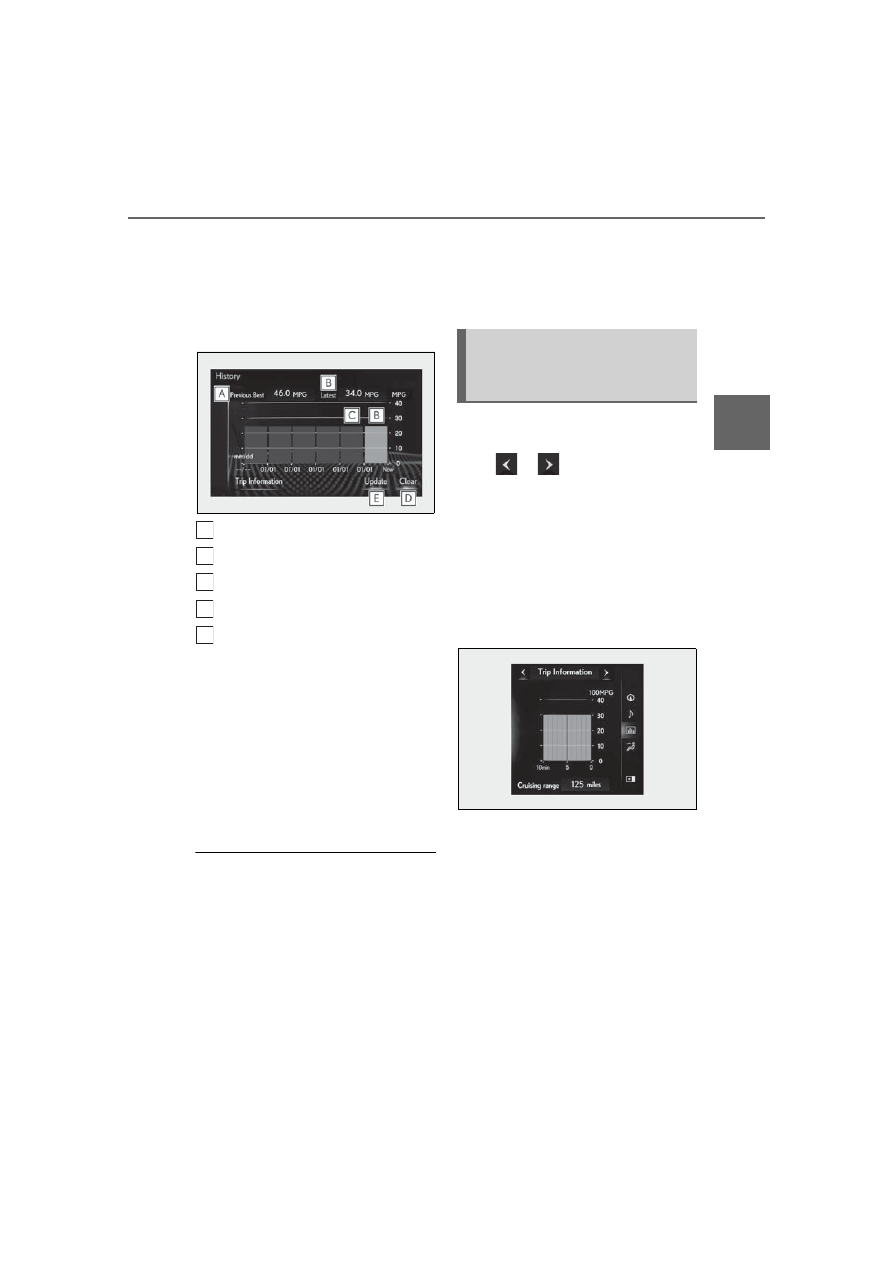

Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consump-
tion data

The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the dis-
played average fuel consumption as a
reference.

The image is an example only, and may
vary slightly from actual conditions.

■

Updating the history data

Update the latest fuel consumption by

selecting “Update” to measure the current

fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted

by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance

that can be driven with the quantity of fuel

remaining.
This distance is computed based on your

average fuel consumption.

As a result, the actual distance that can be

driven may differ from that displayed.

Vehicle information can be displayed
on the side display (



P.240), then

select

to select the desired

screen.
The image is an example only, and may
vary slightly from actual conditions.

■

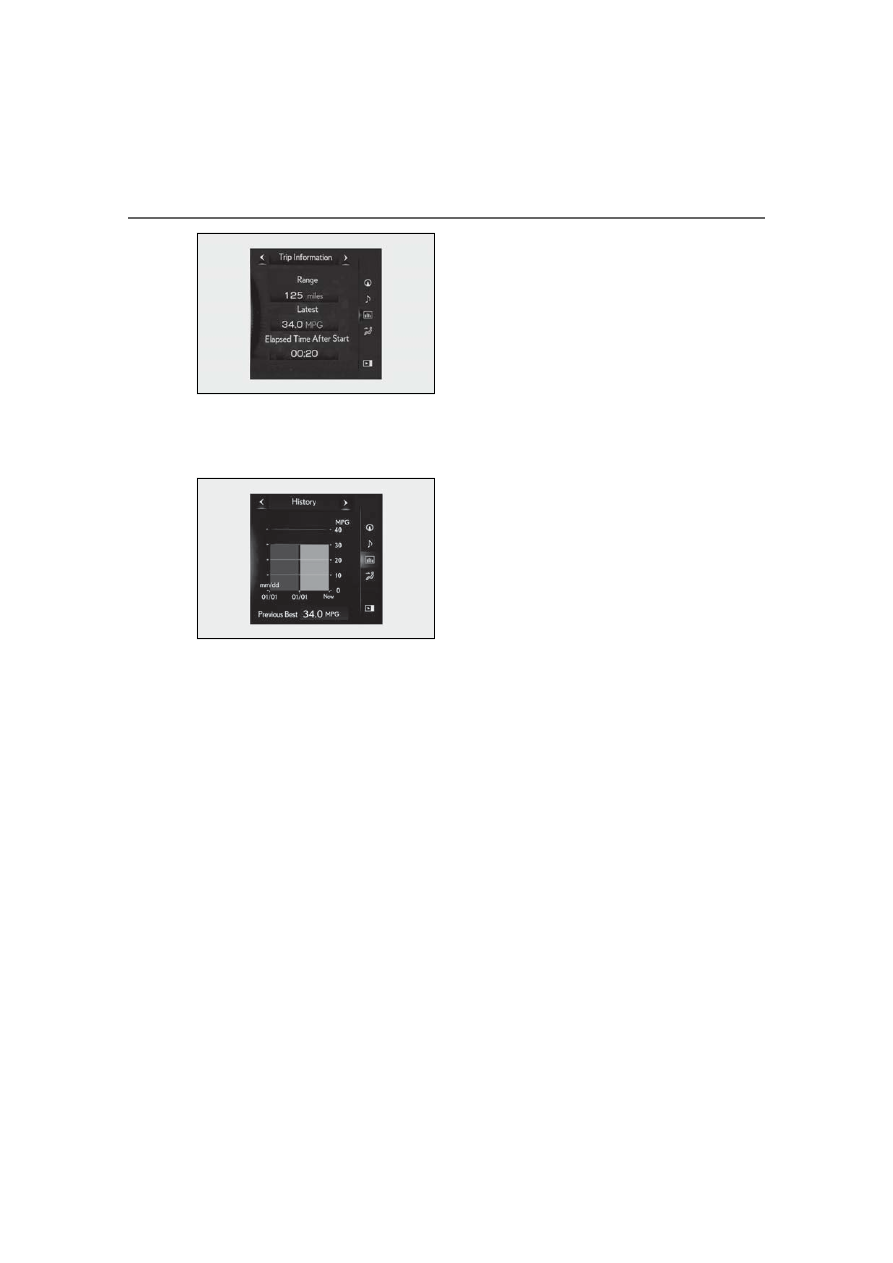

Trip information (type A)

Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.

■

Trip information (type B)

Displays the cruising range, average
fuel consumption and the amount of
time elapsed since the engine was
started.

A
B
C
D

Using the side display (vehicles
with a navigation system
[10.3-inch display])

fore
dri
ving

Before driving

3-1. Key information

Keys ...................................................

3-2. Opening, closing and locking the

doors and trunk

Doors.................................................

Trunk..................................................

Smart access system with

push-button start.......................

3-3. Adjusting the seats

Front seats.....................................

102

Rear seats......................................

103

Driving position memory ........

104

Head restraints............................

107

3-4. Adjusting the steering wheel and

mirrors

Steering wheel.............................

109

Inside rear view mirror..............

110

Outside rear view mirrors.......

112

3-5. Opening, closing the windows

and moon roof

Power windows............................

114

Moon roof ......................................

116

3-1. Key information

3-1.Key information

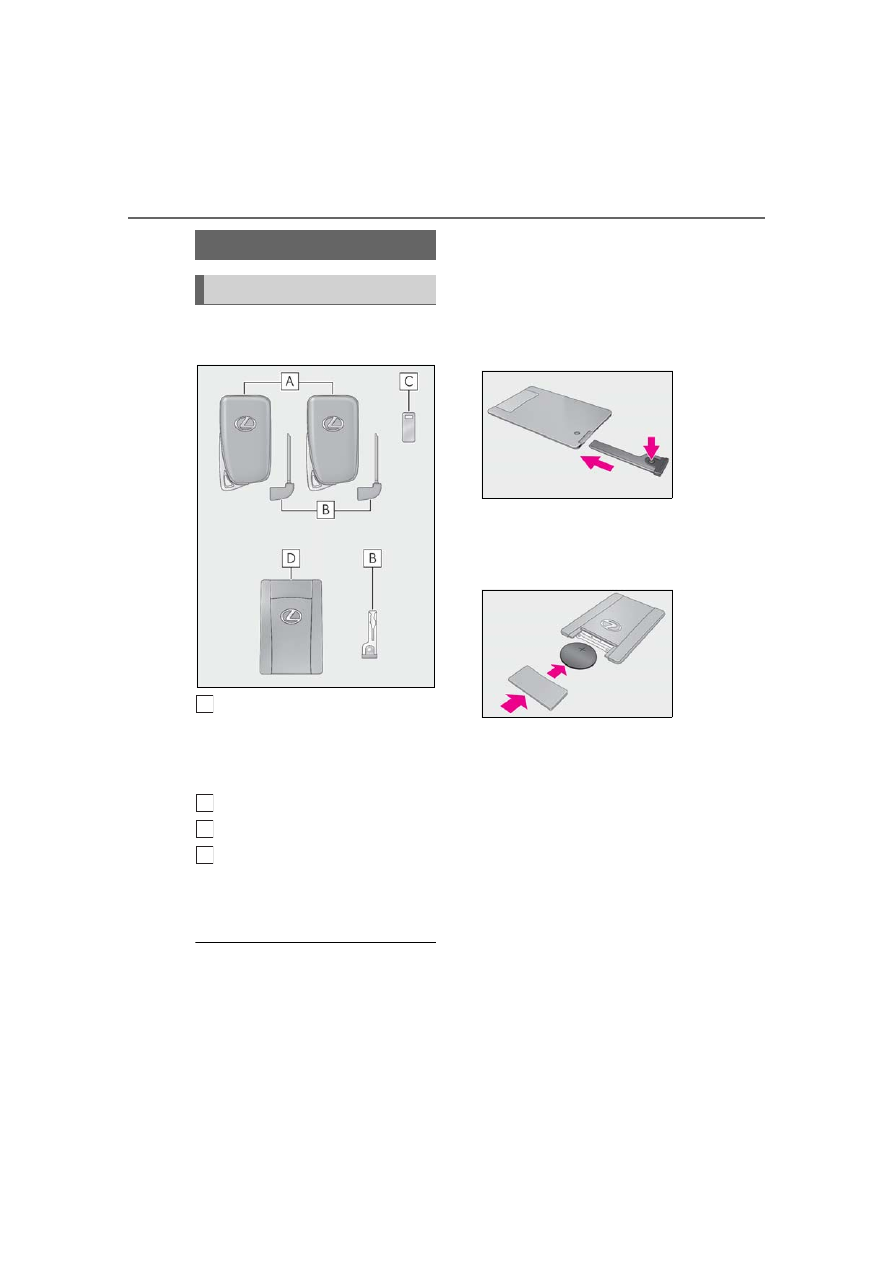

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart access system with

push-button start (



P.97)

• Operating the wireless remote control

function (



P.88)

Mechanical keys
Key number plate
Card key (electronic key) (if
equipped)

Operating the smart access system with
push-button start (



P.97)

■

Card key (if equipped)

●

The card key is not waterproof.

●

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

●

If it is difficult to take out the mechanical

key, push down the lock release button

using a pen tip etc. If it is still difficult to

pull it out, use a coin etc.

●

To store the mechanical key in the card

key, insert it while pressing the lock

release button.

●

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

■

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag etc., ensure that

the buttons are not likely to be pressed acci-

dentally. Pressing a button may cause the

electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

(The card key battery life is about a year

and a half.)

●

If the battery becomes low, an alarm will

sound in the cabin and a message will be

shown on the multi-information display

when the engine is stopped.

Keys

The keys

B
C
D

Lexus IS300 (2022 year). Manual in english - page 4
