Remote Touch

■

Switches

“MAP” button

Press this button to display the cur-

rent location.

“MENU” button

Press this button to display the menu

screen.

Back button

Press this button to display the previ-

ous screen.

Touchpad

Slide your finger on the touchpad and move the pointer to select a function, letter

and screen button.
Press the touchpad to enter the selected function, letter or screen button. Certain

finger movements on the touchpad can perform functions, such as changing map

scalings and scrolling list screens.

Sub function button

When

is displayed on the screen, a function screen assigned to the screen

can be displayed.

■

Using the touchpad

Select: Touch the touchpad to
select the desired button on the
screen.
Enter: The buttons on the screen
can be selected by either
depressing or double tapping on
the touchpad. Once a button has
been selected, the screen will
change.

The Remote Touch can be used to operate the Center Display.
For details on the Remote touch, refer to the “NAVIGATION SYSTEM
OWNER’S MANUAL”.

Remote Touch operation

397

Inte
rior fe

■

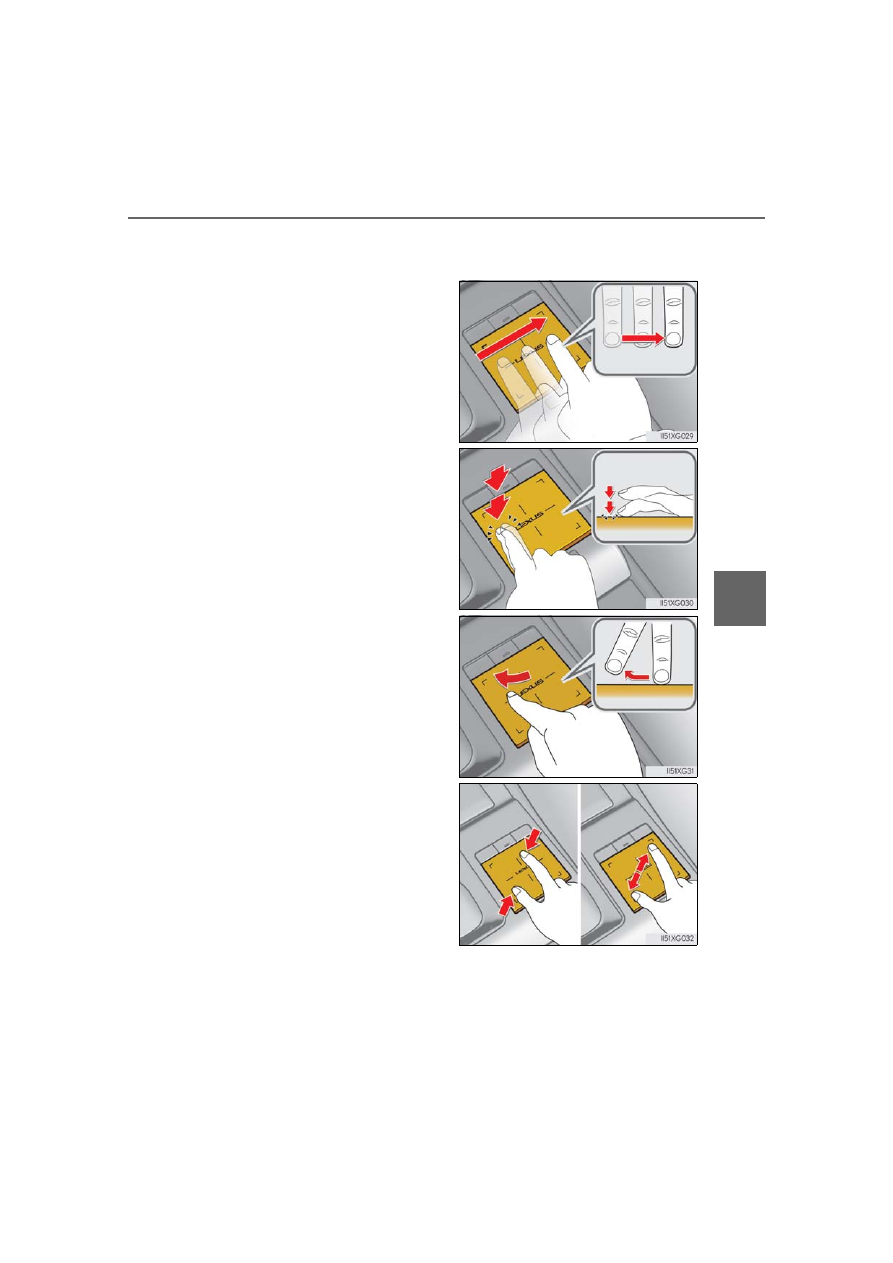

Touch operation

Operations are performed by touching the touchpad with your finger.

●

Trace

Trace the pad surface while maintain-

ing contact with the touchpad. Mov-

ing the cursor and the pointer.

●

Double tap

Tap the touchpad twice, quickly.

Select the button on the screen.

●

Flick

Quick and long movement along the

touchpad with your finger. Move the

list screen.

●

Pinch in/Pinch out

Slide fingers toward each other or

apart on the touchpad. Change the

scale of the map.

398

NOTICE

■

To prevent damage to the Remote Touch

Observe the following precautions. Failure to do so may cause damage to the

Remote Touch.

●

Do not allow the Remote Touch to come into contact with food, liquid, stickers or lit

cigarettes.

●

Do not subject the Remote Touch to excessive pressure or strong impact.

●

Do not push the touchpad with a strong force or use a sharp pointed object to oper-

ate the pad.

399

Inte
rior fe

Center Display

■

Menu screen

Press the “MENU” button on the
Remote Touch to display the menu
screen.
This system can also be operated by
the touch screen.
For details, refer to “NAVIGATION
SYSTEM OWNER’S MANUAL”.
The displays shown in the illustra-
tions are used for example only and
may differ from the actual vehicle.

Center Display overview

400

: If equipped

: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

: This function is not made available in some countries or areas.

Switch

Function

Select to display the destination screen.

1, 2

Select to display the audio control screen.

Select to display the hands-free control screen.

Select to display the “Apps” screen.

2, 3

When an Apple CarPlay/Android Auto connection

is established and this button displays “Apple Car-

Play”/“Android Auto”, select to display the home
screen of Apple CarPlay/Android Auto.

2, 3

Select to display the information screen.

(



P.88, 91)

Select to display the general settings screen.

Select to display the air conditioning control screen.

(



P.403)

401

Inte
rior fe

■

Split-screen display

Different information can be displayed on the left and right of the screen. For
example, air conditioning system screen can be displayed and operated while
the fuel consumption information screen is being displayed. The large screen
on the left of the display is called the main display, and the small screen to the
right is called the side display.

■

Main display

For details about the functions and operation of the main display, refer to the
respective section and “NAVIGATION SYSTEM OWNER’S MANUAL”.

■

Side display

The following functions can be displayed and operated on the side display.
Select

to display the desired screen.

Navigation system

Audio

Vehicle information (

P.99)

Air conditioning system
(

5-2. Using the air conditioning system and defogger

P.403)

Show/hide the side display

: Refer to the “NAVIGATION SYS-

TEM OWNER’S MANUAL”.

■

Screen display during low temperatures

When the ambient temperature is extremely low, screen response may be delayed even

if the Remote Touch is operated.

2
3
4

402

Front automatic air conditioning system

Left-hand side temperature control switch
Automatic mode switch
OFF switch
Fan speed decrease switch
Fan speed increase switch
Airflow mode control switch
Windshield defogger switch
Rear window defogger and outside rear view mirror defoggers switch
REAR switch
Outside/recirculated air mode switch
Right-hand side temperature control switch
DUAL switch

Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
Press the “MENU” button on the Remote Touch, then select “Climate” to dis-
play the air conditioning control screen. (

5-2. Using the air conditioning system and defogger

P. 396)

The air conditioning system can be displayed and operated on the side display.

Control panel

2
3
4
5
6
7
8
9

403

Inte
rior fe

5-2. Using the air conditioning system and defogger

■

Main control screen

Using the touchpad of the Remote Touch, select the button on the screen.
This system can also be operated by the touch screen.

Sub menu

Selecting the sub menu item to

switch the main screen.

: Display the air conditioning

control screen

: Display the rear air conditioning

control screen (vehicles with “3-

ZONE” mode) (



P. 405)

: Display the option control screen

Adjust the left-hand side temperature setting
Adjust the fan speed setting
Select the air flow mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

: Air flows to the feet and the windshield defogger operates

Adjust the right-hand side temperature setting
Function on/off indicators

When the function is on, the indicator illuminates on the control screen.

Sub function menu

When the sub function button on the Remote Touch is pressed, the following func-

tions can be switched on and off.
“AUTO”: Set automatic mode on/off (



P. 406)

“Off”: Turn the fan off
“A/C”: Set cooling and dehumidification function
“DUAL” (if equipped): Adjust the temperature for driver and front passenger seats

separately (“DUAL” mode) (



P. 407)

“3-ZONE” (if equipped): Adjust the temperature for the driver, front passenger

and rear seats separately (“3-ZONE” mode) (



P. 407)

Control screen

2
3
4

5
6

404

■

Option control screen

Select

on the sub menu to display the option control screen.

The functions can be switched on and off.
When the function is on, the indicator illuminates on the screen.

Adjust the temperature for the
driver and front passenger seats
separately

• “DUAL” (if equipped)

(

)

• “3-ZONE” (if equipped)

(

)

Cooling and dehumidification
function
Prevent ice from building up on the windshield and wiper blades (Wind-
shield wiper de-icer) (if equipped)
Removing pollen from the air (Micro dust and pollen filter)

■

Side display

Adjust the left-hand side tem-
perature setting
Adjust the fan speed setting
Adjust the right-hand side tem-
perature setting
Set cooling and dehumidification
function on/off
Adjust the temperature for the
driver’s and front passenger’s
seats separately

• “DUAL” (if equipped)

(



)

• “3-ZONE” (if equipped)

(



5-2. Using the air conditioning system and defogger

)

Select the air flow mode

2
3

405

Inte
rior fe

5-2. Using the air conditioning system and defogger

■

Rear air conditioning control screen (if equipped)

Using the touchpad of the Remote Touch, select the button on the screen. This
system can also be operated by the touch screen.

Sub menu

Selecting the sub menu item to

switch the main screen.

: Display the air conditioning

control screen

: Display the rear air conditioning

control screen

: Display the option control

screen

Adjust the fan speed setting
Select the air flow mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

Adjust the temperature setting
Function on/off indicators

When the function is on, the indicator illuminates on the control screen.

Sub function menu

When the sub function button on the Remote Touch is pressed, the following func-

tions can be switched on and off.
“Rear AUTO”: Set automatic mode on/off
“Rear Off”: Turn the fan off

: Disables operation of the rear air conditioning system using the Rear air

conditioning system control panel.

2
3

4
5

406

■

Adjusting the temperature setting

Operate the temperature control switch upwards to increase the temperature
and downwards to decrease the temperature.

If the “A/C” indicator is turned off, the system will blow ambient temperature air or

heated air.

■

Adjusting the fan speed setting

Operate the fan speed increase switch to increase the fan speed and the fan
speed decrease switch to decrease the fan speed.
Press the OFF switch to turn the fan off.

■

Changing the air flow mode

Press the airflow mode control switch.
The mode changes as follows each time the switch is pressed.
(

P. 402, 403)

Press

to operate the voice com-

mand system. (Refer to the
“NAVIGATION SYSTEM OWNER’S
MANUAL”.)

Press the automatic mode switch or select “AUTO” on the sub function menu.
(

5-2. Using the air conditioning system and defogger

P. 402, 403)

Press the outside/recirculated air mode switch to switch to automatic air
intake mode. (if equipped)

The air conditioning system automatically switches between outside air and recircu-

lated air modes.

Adjust the temperature setting.
To stop the operation, press the OFF switch or select “Off” on the sub function
menu. (



P. 402, 403)

If the fan speed setting or air flow modes are operated, the automatic mode indicator

goes off. However, automatic mode for functions other than that operated is main-

tained.

Air conditioning controls

Using the voice command system

Using automatic mode

3
4

407

Inte
rior fe

■

Adjusting the temperature for driver and passenger seats separately



Vehicles with “DUAL” mode

Adjust the temperature for driver and passenger seats separately.
While in “DUAL” mode, the temperature of the rear air outlets is set at the
passenger’s side temperature setting.
To turn on the “DUAL” mode, perform any of the following procedures:

●

Press the DUAL switch. (

P. 402)

●

Select “DUAL” on the sub function menu. (



P. 403)

●

Select “DUAL” on the option control screen. (

●

Select “DUAL” on the side display. (

●

Adjust the front passenger’s side temperature setting.

The indicator on the main control screen comes on when the “DUAL” mode is on.



Vehicles with “3-ZONE” mode

Adjust the temperature for the driver, front passenger and rear passenger
seats separately.
To turn on the “3-ZONE” mode, perform any of the following procedures:

●

Select “3-ZONE” on the sub function menu. (

P. 403)

●

Select “3-ZONE” on the option control screen. (

●

Select “3-ZONE” on the side display. (



5-2. Using the air conditioning system and defogger

●

Adjust any passenger seat temperature.

The indicator on the main control screen comes on when the “3-ZONE” mode is

on.

Other functions

408

■

Adjusting the temperature for rear seats (vehicles with rear air condition-
ing system)

Adjusting the temperature for rear seats, perform of the following proce-
dures:

Press the REAR switch.
Adjust the rear seats temperature setting on the rear air conditioning con-
trol screen. (



P. 405)

■

Switching between outside air and recirculated air modes

Press the outside/recirculated air mode switch.

The mode changes as follows each time the switch is pressed.

(recirculated air mode)



automatic mode

(if equipped)



(outside air mode)



(recirculated air mode)

When the system is switched to automatic mode, the air conditioning system oper-

ates automatically.

: This item cannot be selected when the air conditioning is off.

■

Defogging the windshield

Defoggers are used to defog the windshield and front side windows.
Press the windshield defogger switch.

Set the outside/recirculated air mode button to outside air mode if the recirculated

air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and tempera-

ture up.
To return to the previous mode, press the windshield defogger switch again when

the windshield is defogged.

409

5-2. Using the air conditioning system and defogger

Inte
rior fe

■

Defogging the rear window and outside rear view mirrors

Defoggers are used to defog the rear window, and to remove raindrops, dew
and frost from the outside rear view mirrors.
Press rear window defogger and outside rear view mirror defoggers switch.

The defoggers will automatically turn off after a period of time.

■

Micro dust and pollen filter mode

Pollen is removed from the air and the air flows to the upper part of the body.

Select

on the option control screen. (

P. 403)

When the micro dust and pollen filter mode is on,

is displayed on the con-

trol screen.
In order to prevent the windshield from fogging up when the outside air is cold, the

dehumidification function may operate.
The pollens are filtered out even if the micro dust and pollen filter mode is turned

off.

■

Windshield wiper de-icer (if equipped)

This feature is used to prevent ice from building up on the windshield and
wiper blades.
Select

on the option control screen. (

5-2. Using the air conditioning system and defogger

When the windshield wiper de-icer is on,

is displayed on the control screen.

The windshield wiper de-icer will automatically turn off after a period of time.

■

The windshield wiper de-icer can be operated when (vehicles with windshield wiper

de-icer)

The engine switch is in IGNITION ON mode.

■

When the windshield wiper de-icer is on (vehicles with windshield wiper de-icer)

The windshield wiper de-icer will automatically turn off after approximately 15 minutes.

WARNING

■

When the windshield wiper de-icer is on (vehicles with windshield wiper de-icer)

Do not touch the glass at the lower part of the windshield or the side of the front pillars

as the surfaces can become very hot and burn you.

410

■

Location of air outlets

The air outlets and air volume
changes according to the selected
air flow mode.

: Vehicles without rear air

conditioning system

■

Adjusting the air flow direction and opening/closing the air outlets

Direct air flow to the left or right, up or down.
Turn the knob to open or close the vent.

Air outlets



Front outlets



Rear outlets (vehicles without
rear air conditioning system)

411

5-2. Using the air conditioning system and defogger

Inte
rior fe
