2. Instrument cluster

Instrument cl

uste
r

Multi-information display

The following information will be dis-
played when a menu icon is selected.
(



P. 92)

Some of the information may be dis-
played automatically depending on the
situation.

Drive information

Select to display various drive data. (



P. 93)

Vehicle information display

Select to display the vehicle information. (



P. 94)

Driving assist system information

Select to display the operational status of the following systems:

• Dynamic radar cruise control (



P. 255)

• LDA (Lane Departure Alert) (



P. 247)

Warning message display

Select to display warning messages and measures to be taken if a malfunction is

detected. (



P. 544)

Settings display

Select to change the meter display settings and the operation settings of some

vehicle functions. (



P. 95)

Display contents

2. Instrument cluster

The multi-information display is operated using the meter control switches.

: Switch menu

: Change displayed con-

tent, scroll up/down the
screen and move the
cursor up/down

Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Press: Displays the screen registered to

When no screen has been registered, the drive information screen will be dis-

played.

Press and hold: Registers the currently displayed screen to

When the confirmation screen is displayed, select yes to register the screen. If the

selected screen cannot be registered, a registration failure message will be shown.

Operating the meter control switches

3
4

2. Instrument cluster

Instrument cl

uste
r

■

After Start

●

Average fuel economy

Displays the average fuel consumption since the engine was started.

●

Average vehicle speed
Displays the average vehicle speed since the engine was started.

●

Elapsed time
Displays the elapsed time since the engine was started.

: Use the displayed average fuel economy as a reference.

■

After Reset

●

Current fuel economy
Displays the current rate of fuel consumption.

●

Average fuel economy

1, 2

Displays the average fuel consumption since the function was reset.

●

Average vehicle speed

Displays the average vehicle speed since the function was reset.

●

Elapsed time

Displays the elapsed time since the function was reset.

: Use the displayed average fuel economy as a reference.

: Pressing and holding

will reset.

■

After Refuel

●

Range

1, 2

Displays the driving range with remaining fuel.

●

Average fuel economy

2, 3

Displays the average fuel consumption since the vehicle was refueled.

: This distance is computed based on your average fuel consumption. As a result,

the actual distance that can be driven may differ from that displayed.

: When only a small amount of fuel is added to the tank, the display may not be

updated. When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.

: Use the displayed average fuel economy as a reference.

Drive information

2. Instrument cluster

■

Eco Indicator (Eco Driving Indicator Zone Display)



P. 96

■

Speed

Displays the vehicle speed.

■

Sway warning

Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s attention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest.

This display is a part of the LDA (Lane Departure Alert) system. The display is

enabled when the operating conditions of the vehicle sway warning function are

met. (



P. 247)

■

Blank screen (display off)

Drive information is not displayed.

■

Front tire angle

Displays the direction of the front tires.

The tire direction is displayed in 3 stages for both left and right, in accordance with

the angle of the tire.
If a battery terminal is disconnected and reconnected, the display may be disabled

temporarily. After driving the vehicle for a while, the display will be enabled.

■

Tire inflation pressure

Displays inflation pressure of each tire.

The inflation pressure of the spare tire will also be displayed.

Vehicle information

2. Instrument cluster

Instrument cl

uste
r

The settings of the following items can be changed. (



P. 600)

For functions that can be enabled or disabled, the function switches between on and
off each time

is pressed.

■

LDA (Lane Departure Alert) (



P. 247)

■

BSM (Blind Spot Monitor) (



P. 374)

■

PCS (Pre-Collision System) (



P. 237)

■

Intuitive parking assist (



P. 267)

■

Rear Seat Reminder (



P. 114)

■

Vehicle settings

●

Tire pressure warning system (



P. 489)

●

Scheduled maintenance

(



P. 465)

●

Oil maintenance (



P. 478)

■

Meter settings

Select to set the following items.

●

Language
Select to change the language on the display.

●

Units
Select to change the unit for measure.

●

Eco Driving Indicator Light

Select to activate/deactivate the Eco Driving Indicator Light.

●

Switch settings

You can register 1 screen as the top screen. To register, press and hold
while the desired screen is displayed.

●

Initialization
Registered or changed meter settings will be deleted or returned to their
default setting.

: If equipped

Settings display

2. Instrument cluster

■

Eco Driving Indicator

●

The shift lever is in any position other than D.

●

Vehicles with adaptive variable suspension system: The driving mode is set to sport

mode.

●

The vehicle speed is approximately 81 mph (130 km/h) or higher.

■

When disconnecting and reconnecting battery terminals

The drive information other than the current fuel consumption will be reset.

■

Tire inflation pressure

●

It may take a few minutes to display the tire inflation pressure after the engine switch is

turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-

tion pressure after inflation pressure has been adjusted.

●

“---” may be displayed if the tire information cannot be determined due to unfavorable

radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may also be dif-

ferent from the values measured using a tire pressure gauge.

■

When setting up the display

Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P.

■

Suspension of the settings display

In the following situations, the settings display using the meter control switches will be

suspended.

●

When a warning message appears on the multi-information display

●

When the vehicle begins to move

■

Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is characteristic

of liquid crystal displays, and there is no problem continuing to use the display.

Eco Driving Indicator Light
During Eco-friendly acceleration operation

(Eco driving), the Eco Driving Indicator Light

will turn on. When the acceleration exceeds

Zone of Eco driving, or when the vehicle is

stopped, the light turns off.
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current

Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco driv-

ing, the right side of Eco Driving Indicator

Zone Display will illuminate.
Zone of Eco driving

Eco Driving Indicator will not operate under the

following conditions:

2. Instrument cluster

Instrument cl

uste
r

WARNING

■

Caution for use while driving

For safety, avoid operating the meter control switch while driving as much as possible,

and do not look continuously at the multi-information display while driving. Stop the

vehicle and operate the meter control switch. Failure to do so may cause a steering

wheel operation error, resulting in an unexpected accident.

■

Cautions while setting up the display

As the engine needs to be running during setting up the display, ensure that the vehicle

is parked in a place with adequate ventilation. In a closed area such as a garage,

exhaust gases including harmful carbon monoxide (CO) may collect and enter the

vehicle. This may lead to death or a serious health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that the engine is running while setting up the dis-

play features.

2. Instrument cluster

Fuel consumption screen

Center Display
“MENU” button
Touchpad

Fuel consumption information can be displayed on the Center Display.
The consumption screen can be displayed on the side display.

System components

2
3

2. Instrument cluster

Instrument cl

uste
r

Press the “MENU” button on the Remote Touch, then select

on the screen,

and then select “Trip Information” or “History”.
This system can also be operated by the touch screen.

■

Trip information

If a screen other than “Trip Information” is displayed, select “Trip Information”.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine
was started.
Cruising range

Average fuel consumption for the past 15 minutes is divided by color into past

averages and averages attained since the engine switch was last turned to IGNI-

TION ON mode. Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.

■

History

If a screen other than “History” is displayed, select “History”.

Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel con-
sumption data

The average fuel consumption his-

tory is divided by color into past

averages and the average fuel con-

sumption since the last updated. Use

the displayed average fuel consump-

tion as a reference.
The image is an example only, and may vary slightly from actual conditions.

Consumption

3
4

2
3
4
5

100

2. Instrument cluster

■

Updating the history data

Update the latest fuel consumption by selecting “Update” to measure the current fuel

consumption again.

■

Resetting the data

The fuel consumption data can be deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quantity of fuel

remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.

101

2. Instrument cluster

Instrument cl

uste
r

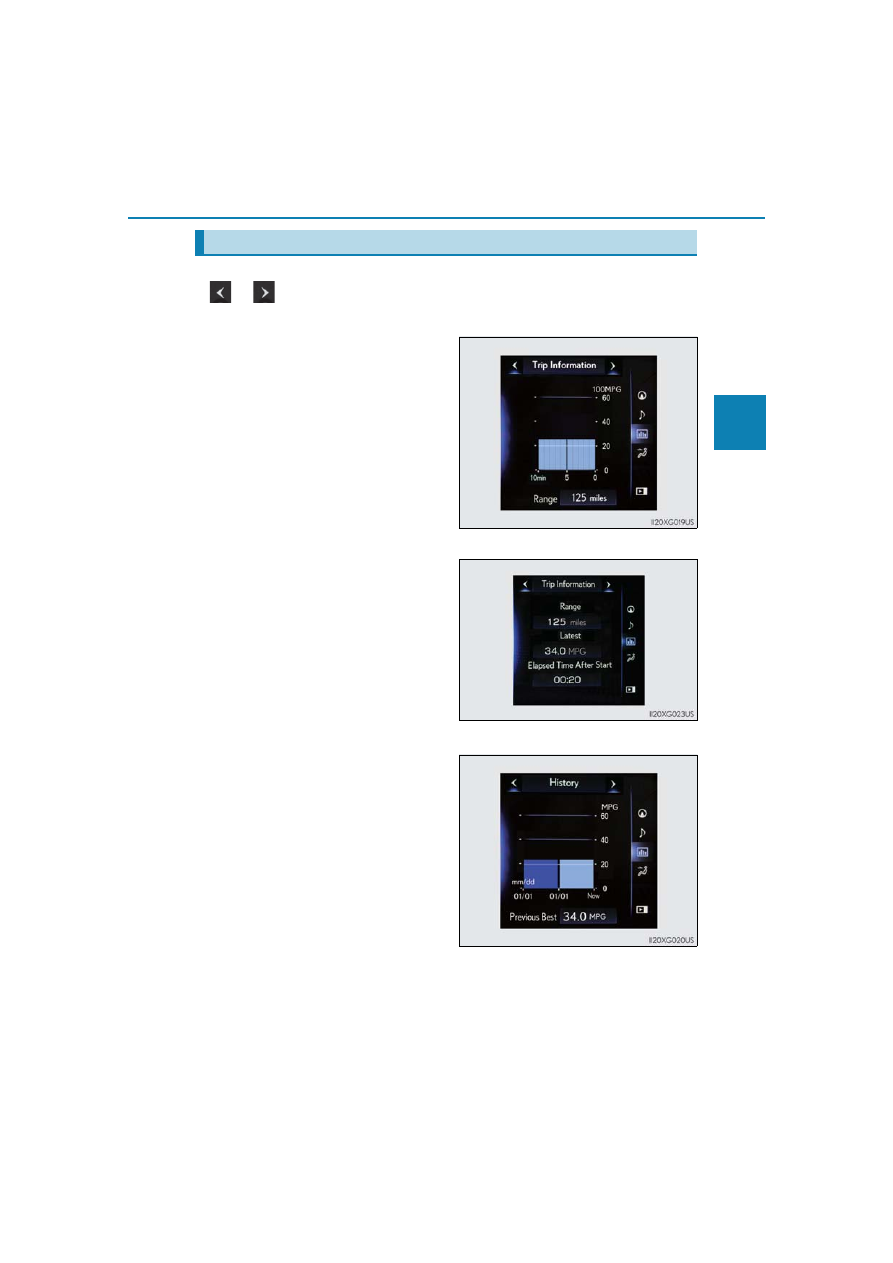

Display the vehicle information on the side display (



P. 404), and then select

to display the desired screen.

■

Trip information (type A)

Displays the average fuel consump-
tion for the past 10 minutes in 1 min-
ute intervals, as well as the cruising
range.

The image is an example only, and

may vary slightly from actual condi-

tions.
Use the displayed average fuel con-

sumption as a reference.

■

Trip information (type B)

Displays the cruising range, latest
fuel consumption and the amount of
time elapsed since the engine was
started.

The image is an example only, and

may vary slightly from actual condi-

tions.
Use the displayed average fuel con-

sumption as a reference.

■

History

Displays the average fuel consump-
tion and highest fuel consumption.

The image is an example only, and

may vary slightly from actual condi-

tions.
Use the displayed average fuel con-

sumption as a reference.

Using the side display

103

Operation of

each component

3-1. Key information

Keys.................................................. 104

3-2. Opening, closing and

locking the doors

Side doors......................................108
Back door.........................................116
Glass hatch......................................121
Smart access system with

push-button start.......................126

3-3. Adjusting the seats

Front seats...................................... 132
Rear seats....................................... 134
Driving position memory......... 145
Head restraints ............................150

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............................. 153
Inside rear view mirror ............. 155
Outside rear view mirrors........157

3-5. Opening, closing the windows

and moon roof

Power windows ........................... 160
Moon roof...................................... 163

104

3-1. Key information

Keys

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart access system

with push-button start (



P. 126)

• Operating the wireless remote con-

trol function

Mechanical keys
Key number plate

Locks the doors (



P. 108)

Unlocks the doors (



P. 108)

Opens the windows and moon roof

(



P. 108)

Opens the glass hatch (



P. 121)

Sounds the alarm (



P. 105)

: These settings must be customized at your Lexus dealer.

The keys

2
3

Wireless remote control

2
3

4
5

105

3-1. Key information

Op
era
tio

n of
ea

To take out the mechanical key, push
the release button and take the key out.

The mechanical key can only be

inserted in one direction, as the key only

has grooves on one side. If the key can-

not be inserted in a lock cylinder, turn it

over and re-attempt to insert it.
After using the mechanical key, store it

in the electronic key. Carry the mechan-

ical key together with the electronic key.

If the electronic key battery is depleted

or the entry function does not operate

properly, you will need the mechanical

key. (



P. 564)

■

Panic mode

■

When required to leave the vehicle’s key with a parking attendant

Lock the glove box as circumstances demand. (



P. 424)

Remove the mechanical key for your own use and provide the attendant with the elec-

tronic key only.

■

If you lose your mechanical keys

New genuine mechanical keys can be made by your Lexus dealer using another

mechanical key and the key number stamped on your key number plate. Keep the plate

in a safe place such as your wallet, not in the vehicle.

Using the mechanical key

When

is pressed for longer than about

one second, an alarm will sound intermittently

and the vehicle lights will flash to deter any per-

son from trying to break into or damage your

vehicle.
To stop the alarm, press any button on the elec-

tronic key.

106

3-1. Key information

■

When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press any but-

tons on the electronic key while inside the aircraft cabin. If you are carrying an electronic

key in your bag etc., ensure that the buttons are not likely to be pressed accidentally.

Pressing a button may cause the electronic key to emit radio waves that could interfere

with the operation of the aircraft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

●

If the battery becomes low, an alarm will sound in the cabin when the engine is stopped.

●

As the electronic key always receives radio waves, the battery will become depleted

even if the electronic key is not used. The following symptoms indicate that the elec-

tronic key battery may be depleted. Replace the battery when necessary. (



P. 507)

• The smart access system with push-button start or the wireless remote control does

not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface does not turn on.

●

To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of the

following electrical appliances that produce a magnetic field:
• TVs

• Personal computers

• Cellular phones, cordless phones and battery chargers

• Recharging cellular phones or cordless phones

• Table lamps

• Induction cookers

●

Battery-saving mode can reduce the power consumption of electronic keys that are not

used for long periods of time. (



P. 128)

■

Replacing the battery

107

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys close to

such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the electronic key.

●

Do not place the keys near objects that produce magnetic fields, such as TVs, audio

systems and induction cookers.

●

Do not place the keys near medical electrical equipment such as low-frequency ther-

apy equipment or microwave therapy equipment, and do not receive medical atten-

tion with the keys on your person.

■

Carrying the electronic key on your person

Carry the electronic key 3.9 in. (10 cm) or more away from electric appliances that are

turned on. Radio waves emitted from electric appliances within 3.9 in. (10 cm) of the

electronic key may interfere with the key, causing the key to not function properly.

■

In case of a smart access system with push-button start malfunction or other key-
