WARNING

■

If both the ABS and the brake system warning lights remain on

Stop your vehicle in a safe place immediately and contact your Lexus dealer. The vehi-

cle will become extremely unstable during braking, and the ABS system may fail, which

could cause an accident resulting in death or serious injury.

■

If the tire pressure warning light comes on

Be sure to observe the following precautions. Failure to do so could cause loss of vehi-

cle control and result in death or serious injury.

●

Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure

immediately.

●

If the tire pressure warning light comes on even after tire inflation pressure adjust-

ment, it is probable that you have a flat tire. Check the tires. If the tire is flat, change to

the spare tire and have the flat tire repaired by the nearest Lexus dealer.

●

Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose

control of the steering wheel or the brakes.

■

If a blowout or sudden air leakage should occur

The tire pressure warning system may not activate immediately.

531

When trouble

WARNING

■

Maintenance of the tires

Each tire, including the spare (if provided), should be checked monthly when cold and

inflated to the inflation pressure recommended by the vehicle manufacturer on the

vehicle placard or tire inflation pressure label (tire and load information label). (If your

vehicle has tires of a different size than the size indicated on the vehicle placard or tire

inflation pressure label [tire and load information label], you should determine the

proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure moni-

toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure

telltale (tire pressure warning light) when one or more of your tires is significantly

under-inflated. Accordingly, when the low tire pressure telltale (tire pressure warning

light) illuminates, you should stop and check your tires as soon as possible, and inflate

them to the proper pressure. Driving on a significantly under-inflated tire causes the

tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency

and tire tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for proper

tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure,

even if under-inflation has not reached the level to trigger illumination of the TPMS low

tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-

function indicator to indicate when the system is not operating properly. The TPMS

(tire pressure warning system) malfunction indicator is combined with the low tire pres-

sure telltale (tire pressure warning light). When the system detects a malfunction, the

telltale will flash for approximately one minute and then remain continuously illumi-

nated. This sequence will continue upon subsequent vehicle start-ups as long as the

malfunction exists. When the malfunction indicator is illuminated, the system may not

be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of reasons,

including the installation of replacement or alternate tires or wheels on the vehicle that

prevent the TPMS (tire pressure warning system) from functioning properly. Always

check the TPMS (tire pressure warning system) malfunction telltale after replacing one

or more tires or wheels on your vehicle to ensure that the replacement or alternate

tires and wheels allow the TPMS (tire pressure warning system) to continue to function

properly.

NOTICE

■

To ensure the tire pressure warning system operates properly

Do not install tires with different specifications or makers, as the tire pressure warning

system may not operate properly.

532

If a warning message is displayed

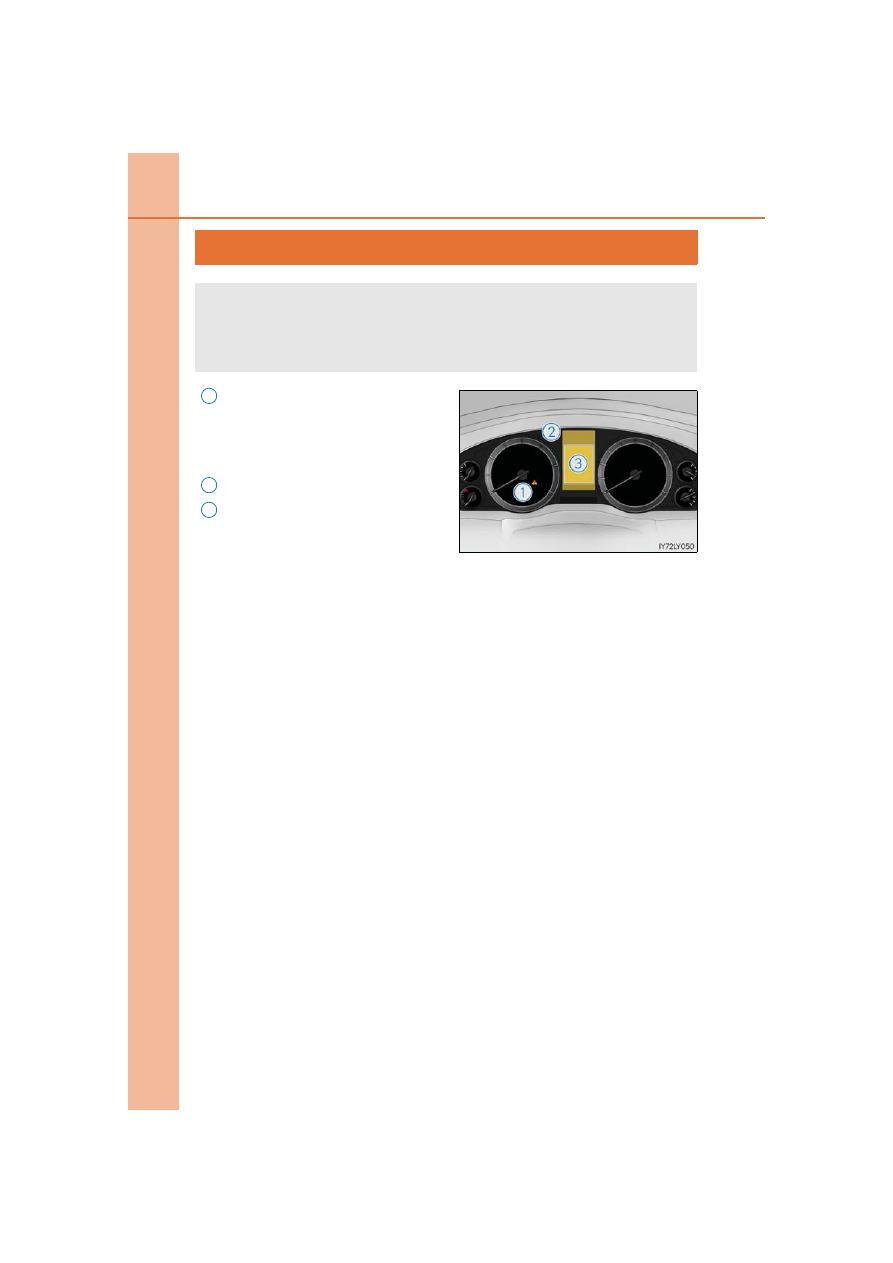

Master warning light

The master warning light also comes on

or flashes in order to indicate that a mes-

sage is currently being displayed on the

instrument cluster.

Multi-information display
Handling Method

Follow the instructions of the message

on the multi-information display.

If any of the warning messages are shown again after the following actions have
been performed, contact your Lexus dealer.

The multi-information display shows warnings of system malfunctions, incor-
rectly performed operations, and messages that indicate a need for mainte-
nance. When a message is shown, perform the correction procedure
appropriate to the message.

2
3

533

When trouble

The warning lights and warning buzzers operate as follows depending on the
content of the message. If a message indicates the need for inspection by a
dealer, have the vehicle inspected by your Lexus dealer immediately.

: A buzzer sounds the first time a message is shown on the multi-information display.

■

System warning lights

The master warning light does not come on or flash in the following case. Instead, a sepa-

rate system warning light will come on along with a message or image shown on the

multi-information display.

●

Indicates that the PCS (Pre-Collision System) is not currently functional

The PCS warning light comes on. (



P. 525)

Messages and warnings

System

warning

light

Warning

buzzer

Warning

Comes on

Sounds

Indicates an important situation, such as

when a system related to driving is malfunc-

tioning or that danger may result if the cor-

rection procedure is not performed

Comes on



Sounds



Comes on

or flashes

Sounds

Indicates an important situation, such as

when the systems shown on the multi-infor-

mation display may be malfunctioning

Flashes



Sounds

Indicates a situation, such as when damage

to the vehicle or danger may result

Comes on



Does not

sound

Indicates a condition, such as malfunction of

electrical components, their condition, or

indicates the need for maintenance

Flashes



Does not

sound

Indicates a situation, such as when an opera-

tion has been performed incorrectly, or indi-

cates how to perform an operation correctly

534

■

If “See Owner’s Manual” is shown

●

If “Smart Access System Malfunction” is shown, this may be a malfunction.

Immediately have the vehicle inspected by your Lexus dealer.

●

If “Transmission Fluid Temp High” is shown, it indicates that the automatic transmission

fluid temperature is too high.
Immediately stop the vehicle in a safe place, shift the shift lever to P and wait until the

warning message and light go off. If the warning message and light go off, you may

start the vehicle again. If the warning message and light do not go off, contact your

Lexus dealer.

■

If “Shift to P Before Exiting Vehicle” is shown

Message is displayed when the driver’s door is opened without turning the engine switch

to off with the shift lever in any position other than P.

Shift the shift lever to P.

■

If “Power Turned Off to Save Battery” is shown

Power was turned off due to the automatic power off function.

Next time when starting the engine, increase the engine speed slightly and maintain that

level for approximately 5 minutes to recharge the battery.

■

When a message that indicates the need for the shift lever operation is shown

To prevent the shift lever from being operated incorrectly or the vehicle from moving

unexpectedly, a message that requires shifting the shift lever may be shown on the multi-

information display. In that case, follow the instruction of the message and shift the shift

lever.

■

When “Headlight System Malfunction Visit Your Dealer” is displayed on the multi-

information display

The following systems may be malfunctioning. Have the vehicle inspected by your Lexus

dealer.

●

The LED headlight system

●

The automatic headlight leveling system

●

Automatic High Beam

■

If “Forward Camera System Unavailable” or “Forward Camera System Unavailable

Clean Windshield” is displayed (if equipped)

The following systems may be suspended until the problem shown in the message is

resolved. (



P. 267, 524)

●

PCS (Pre-Collision System)

●

LDA (Lane Departure Alert)

●

Dynamic radar cruise control with full-speed range

●

Automatic High Beam

■

If “Engine Oil Level Low” is shown

Indicates that engine oil level is low.

Check the level of engine oil, and add if necessary.

This message may appear if the vehicle is stopped on a slope.

Move the vehicle to a level surface and check to see if the message disappears.

535

When trouble

■

If a following message is shown, take appropriate action and confirm that the message

has disappeared. (



P. 314)

●

“Crawl Not Available Select L4 and Shift to [D] or [R] Position”

●

“Crawl Not Available Check System Operation Conditions”

●

“Turn Assist Function Not Available Check System Operation Conditions”

●

“Turn Assist Function Not Available Activate Crawl Control”

■

If “Maintenance Required Soon” is shown (U.S.A. only)

Indicates that all maintenance according to the driven distance on the maintenance

schedule

should be performed soon.

Comes on approximately 4500 miles (7200 km) after the message has been reset.

If necessary, perform maintenance.

: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual Supple-

ment” for the maintenance interval applicable to your vehicle.

■

If “Maintenance Required Visit Your Dealer” is shown (U.S.A. only)

Indicates that all maintenance is required to correspond to the driven distance on the

maintenance schedule

Comes on approximately 5000 miles (8000 km) after the message has been reset.

(The indicator will not work properly unless the message has been reset.)

Perform the necessary maintenance. Please reset the message after the maintenance is

performed (



P. 469)

: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual Supple-

ment” for the maintenance interval applicable to your vehicle.

■

If “Oil Maintenance Required Soon” is shown

Indicates that the engine oil is scheduled to be changed. (The indicator will not work

properly unless the message has been reset.)

Check the engine oil, and change if necessary. After changing the engine oil, the mes-

sage should be reset. (



P. 479)

■

If “Oil Maintenance Required Visit Your Dealer” is shown

Indicates that the engine oil should be changed. (The indicator will not work properly

unless the message has been reset.)

Check and change the engine oil, and oil filter by your Lexus dealer. After changing the

engine oil, the message should be reset. (



P. 479)

■

If “Visit Your Dealer” is shown

The system or part shown on the multi-information display is malfunctioning. Have the

vehicle inspected by your Lexus dealer immediately.

■

Warning buzzer

In some cases, the buzzer may not be heard due to being in a noisy location or audio

sound.

NOTICE

■

While the engine oil level warning is displayed

Continued engine operation with low engine oil will damage the engine.

536

If you have a flat tire

●

Stop the vehicle in a safe place on a hard, flat surface.

●

Set the parking brake.

●

Shift the shift lever to “P”.

●

Turn off the 4-Wheel AHC. (



P. 302)

●

Stop the engine.

●

Turn on the emergency flashers.

Your vehicle is equipped with a spare tire. The flat tire can be replaced with
the spare tire.
For details about tires:



P. 490

WARNING

■

If you have a flat tire

Do not continue driving with a flat tire.

Driving even a short distance with a flat tire can damage the tire and the wheel beyond

repair, which could result in an accident.

Before jacking up the vehicle

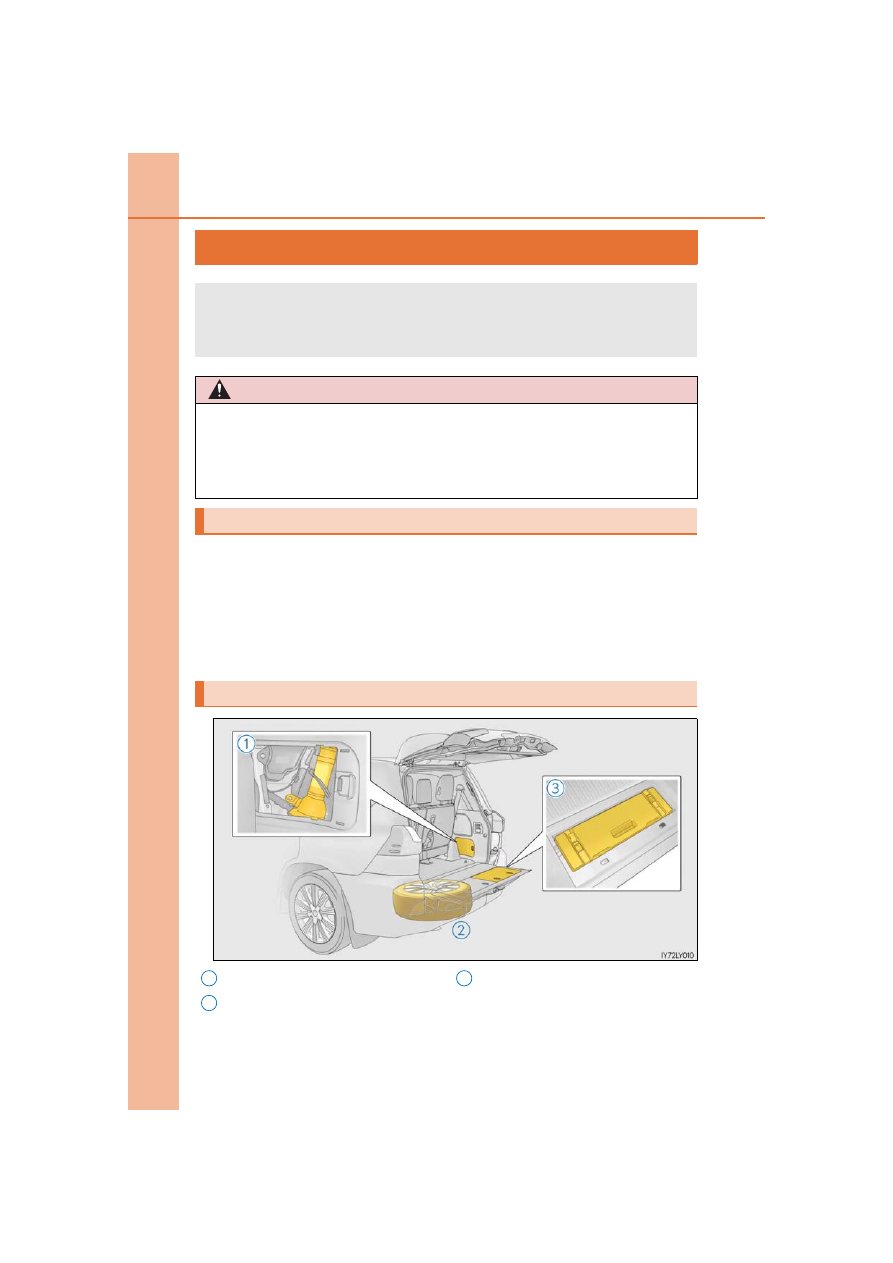

Location of the spare tire, jack and tools

Jack
Spare tire

Tool box

537

When trouble

WARNING

■

Using the tire jack

Improper use of the tire jack may lead to death or serious injuries due to the vehicle

suddenly falling off the jack.

●

Do not use the tire jack for any purpose other than replacing tires or installing and

removing tire chains.

●

Only use the tire jack that comes with this vehicle for replacing a flat tire.

Do not use it on other vehicles, and do not use other tire jacks for replacing tires on

this vehicle.

●

Always check that the tire jack is securely set to the jack point.

●

Be sure to turn off the 4-Wheel AHC and stop the engine.

●

Do not put any part of your body under the vehicle supported by a jack.

●

Do not start or run the engine while your vehicle is supported by the jack.

●

Do not raise the vehicle while someone is in it.

●

When raising the vehicle, do not put an object on or under the jack.

●

Do not raise the vehicle to a height greater than that required to replace the tire.

●

Use a jack stand if it is necessary to get under the vehicle.

Take particular care when lowering the vehicle to ensure that no one working on or

near the vehicle will be injured.

■

Using the jack handle

Tighten all the jack handle bolts securely using a Phillips-head screwdriver, to prevent

the extension parts from coming apart unexpectedly.

538

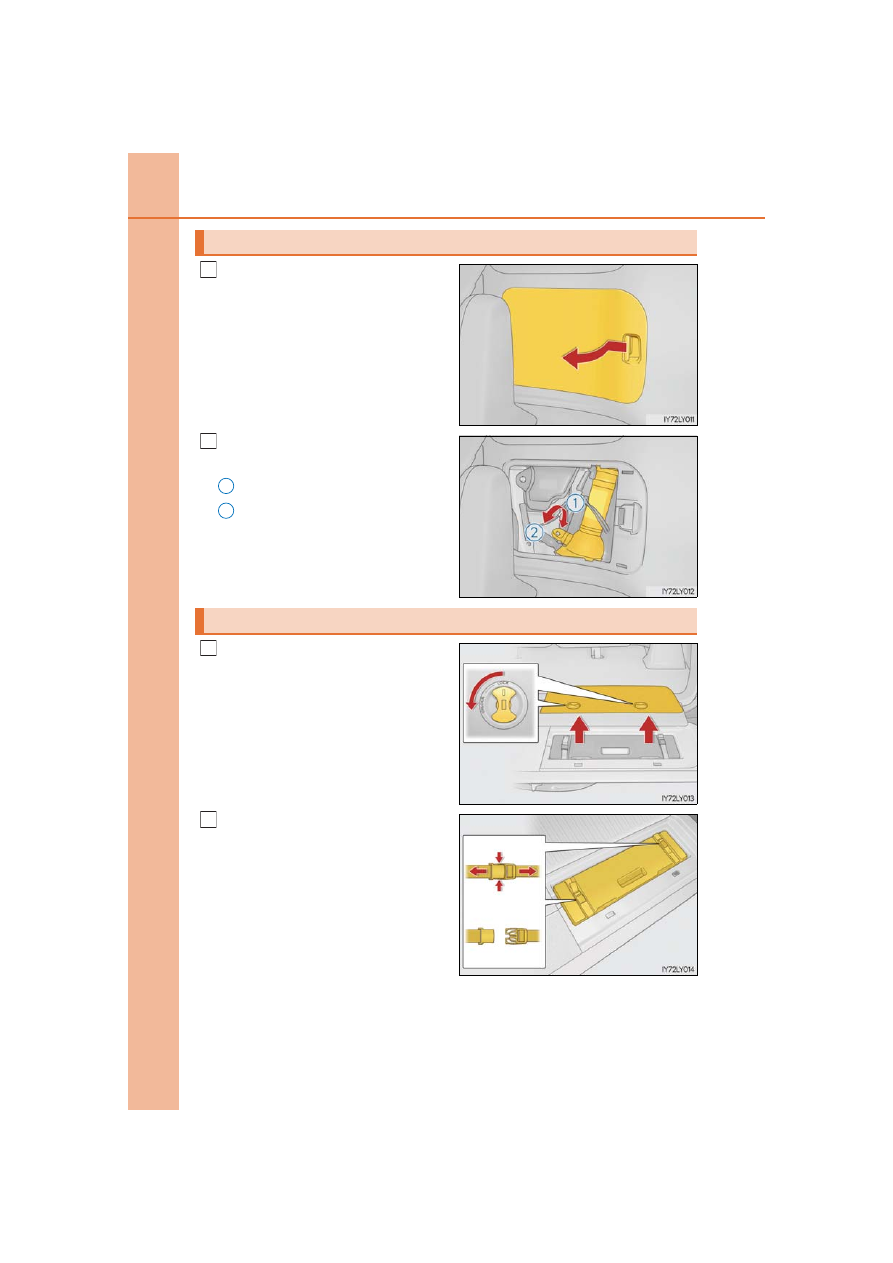

Remove the cover.

Unhook the rubber band and take
out the jack.

Loosen
Tighten

Loosen and remove the jack.

Remove the cover.

Take out the tool box.

Taking out the jack

Taking out the tool box

539

When trouble

Assembling the jack handle.

Remove the jack handle and the jack extension bar from the tool box and assemble by

following these steps.

Loosen the screw using a screw-
driver.

Assemble the jack handle and the
jack handle extension bar and
tighten the screw.

Check that the screw is firmly tight-

ened.

Open the cover.

Insert the jack handle extension into
the lowering screw.

Lower
Raise

Place a rag under the jack handle

extension to protect the back door.

Taking out the spare tire

540

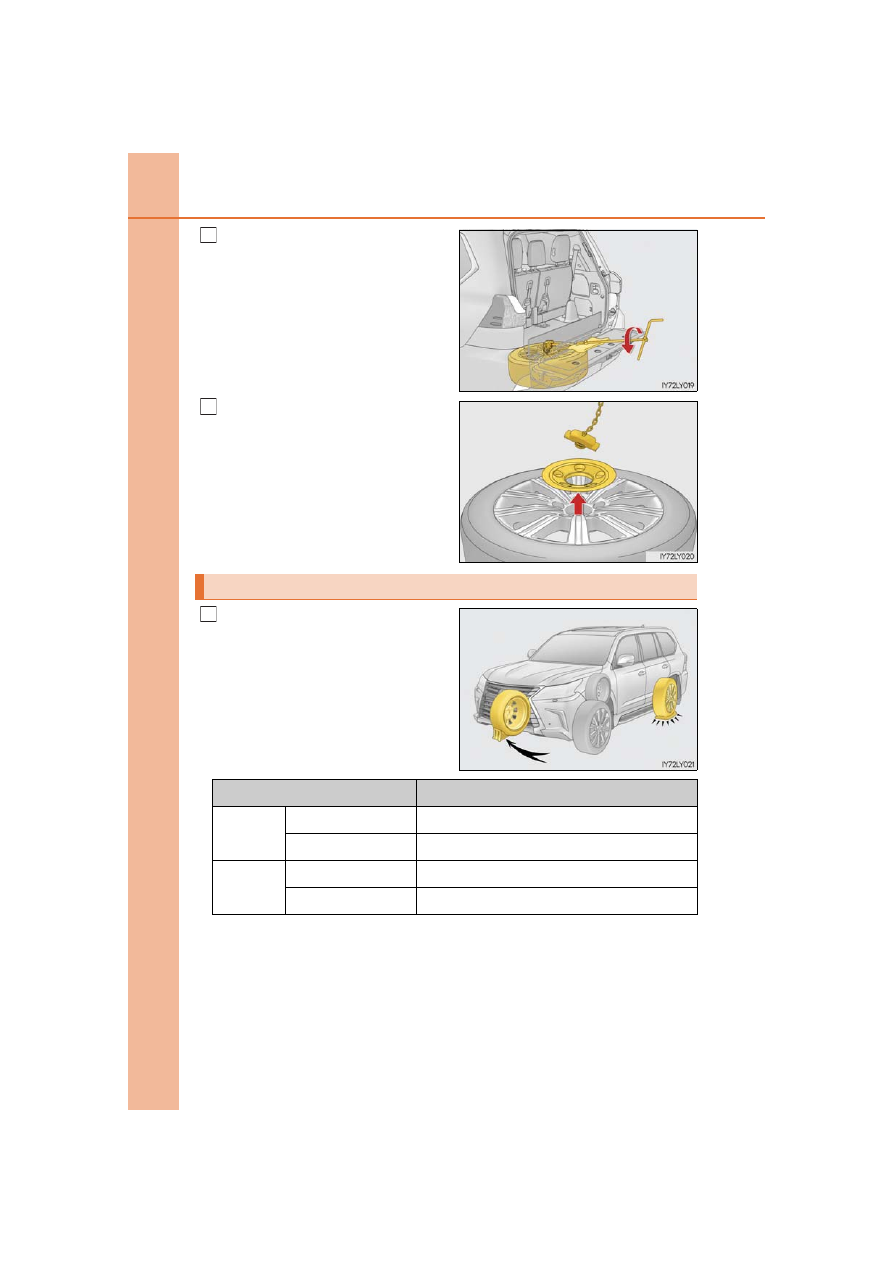

Lower the spare tire completely to
the ground.

Pull out the spare tire and remove
the holding bracket and spare wheel
cover.

Chock the tires.

Replacing a flat tire

Flat tire

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

541

When trouble

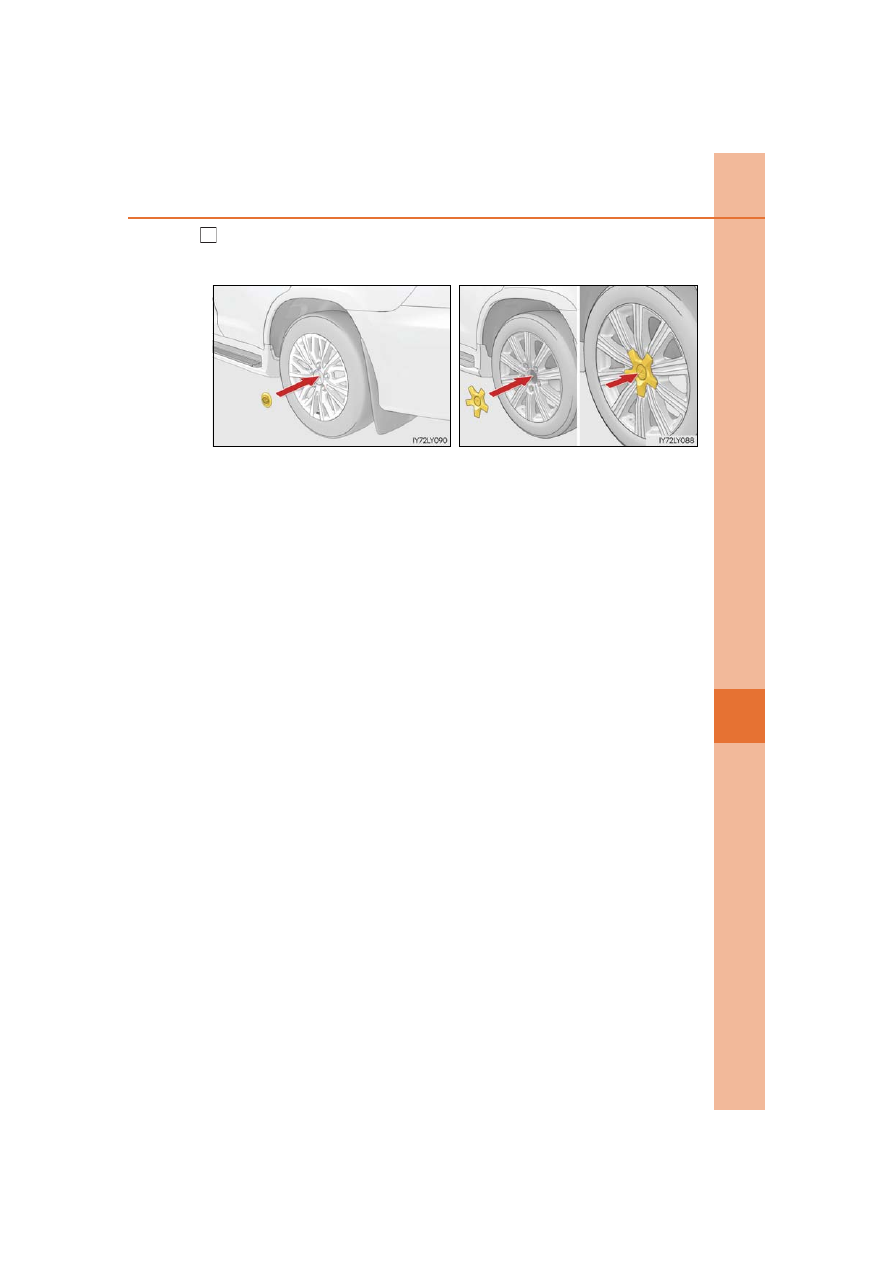

21-inch tires: Pry off the wheel orna-
ment, using the beveled end of the
wheel ornament remover as shown.

Slightly loosen the wheel nuts (one
turn).

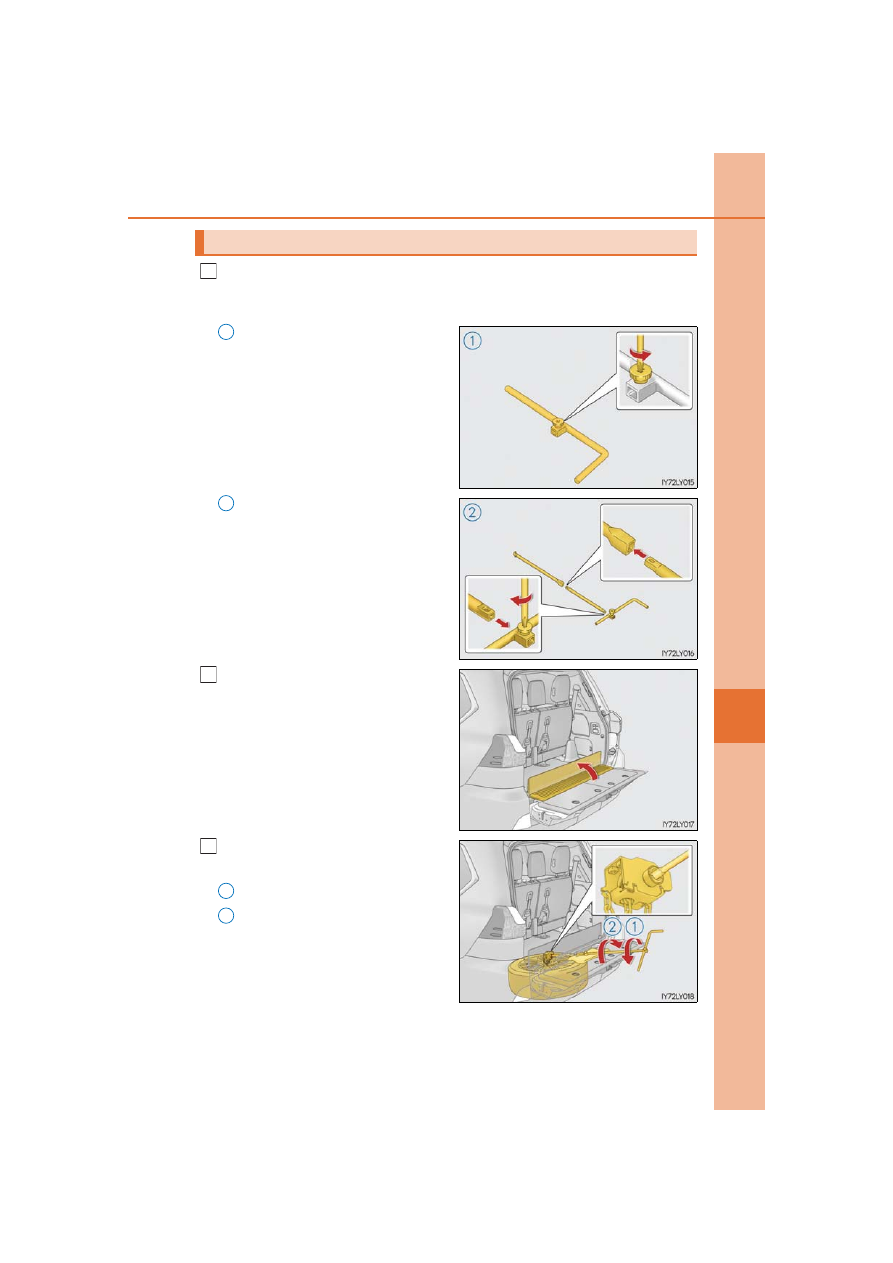

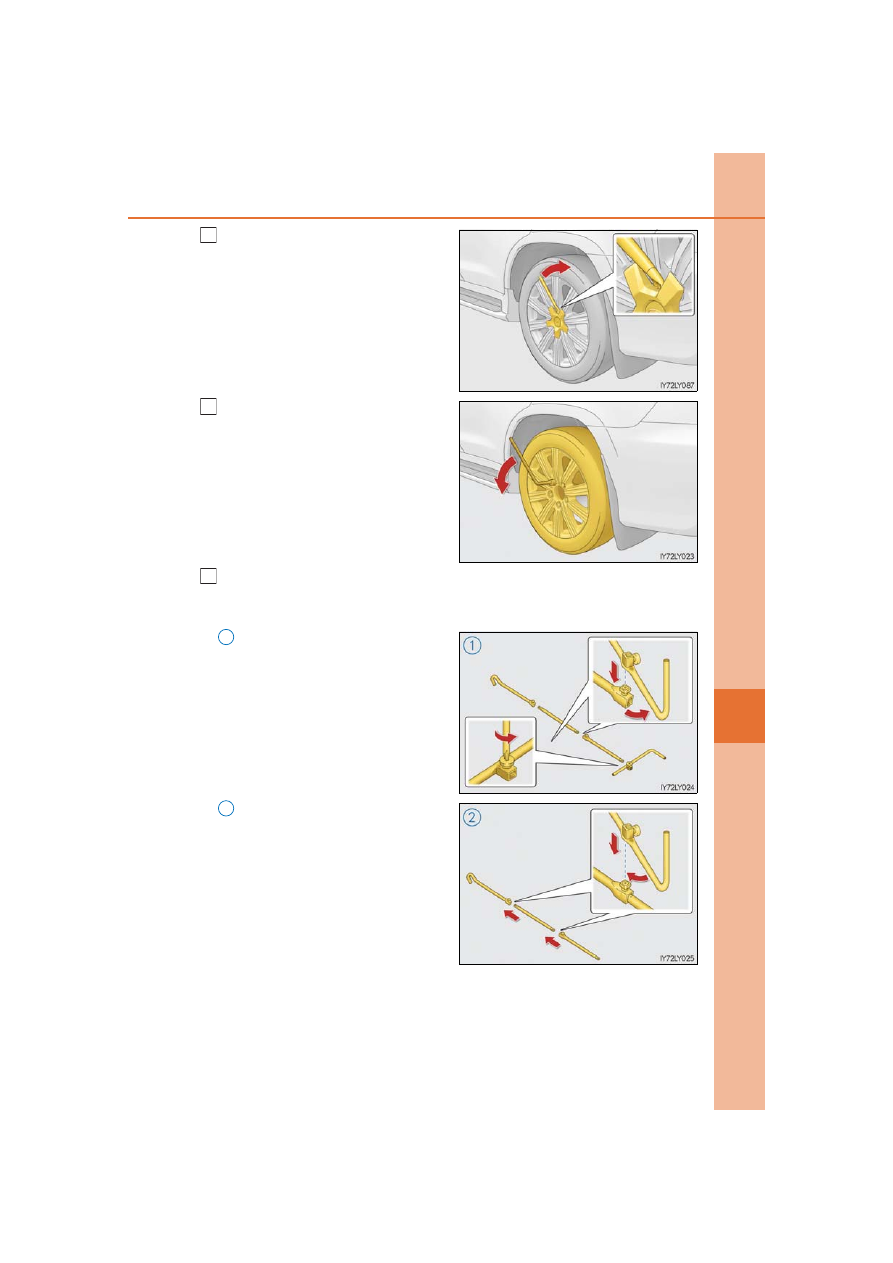

Assembling the jack handle.

Remove the jack handle, jack extension bar and jack handle bar from the tool box and

assemble by following these steps.

Loosen the bolts and the screw
using either the jack handle or a
screwdriver.

Assemble the jack handle exten-
sion bar and the jack handle bar
and tighten the bolts.

Check that the bolts are firmly tight-

ened.

542

Assemble the jack handle exten-
sion bar and the jack handle and
tighten the screw.

Check that the screw is firmly tight-

ened.

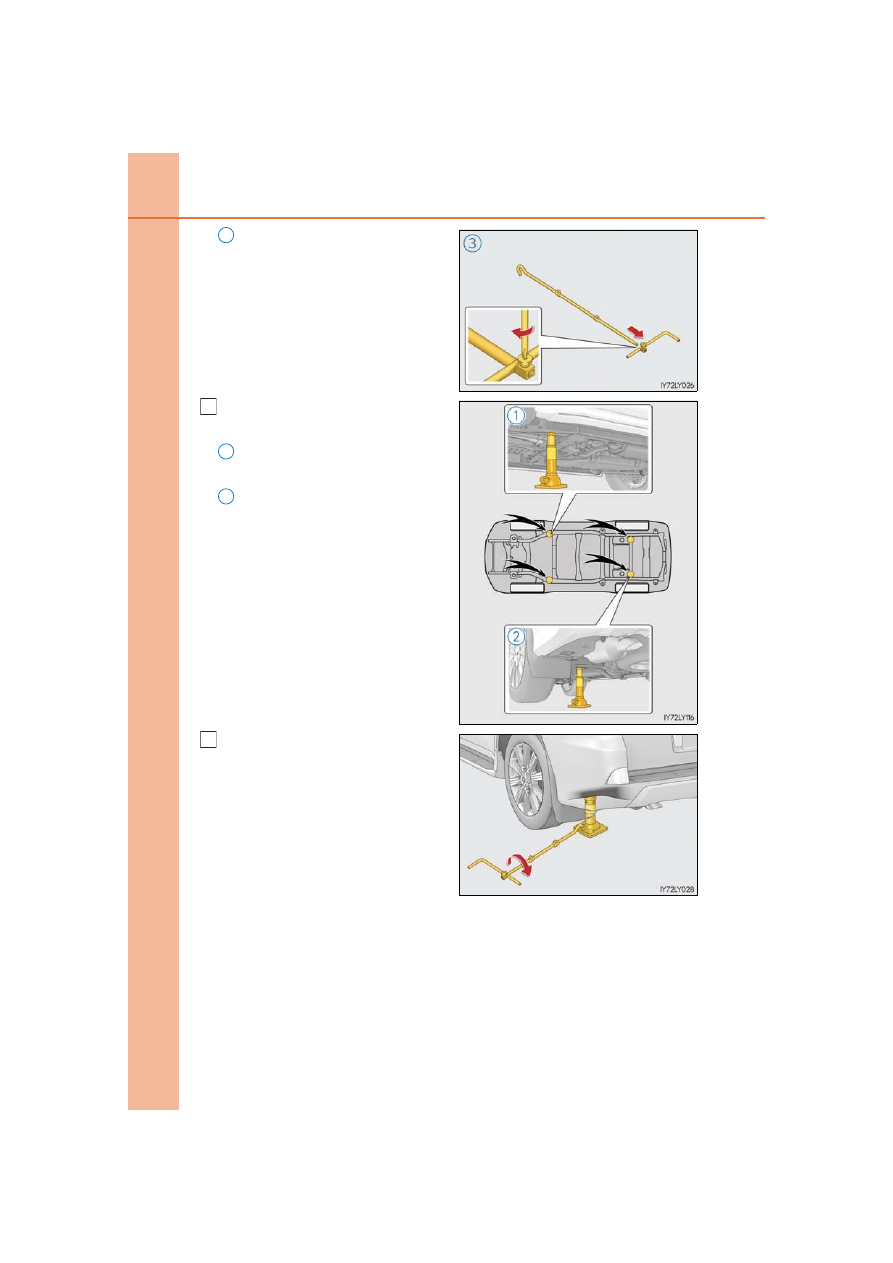

Position the jack at the jack points as
shown.

Front
Under the chassis frame side rail
Rear
Under the rear axle housing

Raise the vehicle until the tire is
slightly raised off the ground.

543

When trouble

Remove all the wheel nuts and the
tire.

When resting the tire on the ground,

place the tire so that the wheel design

faces up to avoid scratching the wheel

surface.

WARNING

■

Replacing a flat tire

●

Observe the following precautions.

Failure to do so may result in serious injury:
• Lower the spare tire completely to the ground before removing it from under the

vehicle.

• Do not try to remove the wheel ornament by hand. Take due care in handling the

ornament to avoid unexpected personal injury.

• Do not touch the disc wheels or the area around the brakes immediately after the

vehicle has been driven.

After the vehicle has been driven the disc wheels and the area around the brakes

will be extremely hot. Touching these areas with hands, feet or other body parts

while changing a tire, etc. may result in burns.

• Turn off the vehicle height control.

The vehicle height may change due to the automatic leveling function and you may

catch part of your body in the vehicle, resulting in an accident. (



P. 302)

●

Failure to follow these precautions could cause the wheel nuts to loosen and the tire

to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.

Oil and grease may cause the wheel nuts to be excessively tightened, leading to

bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts

to loosen and the wheel may fall off, causing a serious accident. Remove any oil or

grease from the wheel bolts or wheel nuts.

• Have the wheel nuts tightened with a torque wrench to 97 ft

•

lbf (131 N

•

m, 13.4

kgf

•

m) as soon as possible after changing wheels.

• When installing a tire, only use wheel nuts that have been specifically designed for

that wheel.

• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes

of the wheel, have the vehicle inspected by your Lexus dealer.

• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while

the vehicle is moving.

■

Replacing a flat tire for vehicles with power back door

In cases such as when replacing tires, make sure to turn off the power back door main

switch (



P. 130). Failure to do so may cause the back door to operate unintentionally

if the power back door switch is accidentally touched, resulting in hands and fingers

being caught and injured.

544

Remove any dirt or foreign matter
from the wheel contact surface.

If foreign matter is on the wheel contact

surface, the wheel nuts may loosen

while the vehicle is in motion, and the

tire may come off the vehicle.

Install the spare tire and loosely
tighten each nut by hand to approxi-
mately the same amount.

Turn the nut washers until they come

into contact with the disc wheel.

Lower the vehicle.

Firmly tighten each nut two or three
times in the order shown in the illus-
tration.

Tightening torque:

97 ft•lbf (131 N•m, 13.4 kgf•m)

Installing the spare tire

Disc wheel

Washer

545

When trouble
