Lexus LX570 (2021 year). Manual in english - page 6

Instrument cl

Displays the following multi-information display linked icons:

: Master warning icon

Displayed when a warning message is displayed on the multi-information
display. (



P. 532)

: Information icon

Displayed when a suggestion/advice pop-up display is displayed on the
multi-information display. (



P. 96)

Displays the following items in the appropriate situation:

■

Warning/Message (if equipped)

Displays the following system warning/messages:

• Pre-collision warning (pre-collision system)

• Notification message (dynamic radar cruise control with full-speed range)

■

Audio system operation status

Displayed when the audio system is operated.

■

Outside temperature

Displayed in the following situations:

• When the engine switch is turned to IGNITION ON mode

• When the low outside temperature indicator is flashing

Displayed content is the same as that displayed on the multi-information display.

(

P. 92)

Displays the following items which are linked to the navigation system:

■

Route guidance to destination

Displayed when the navigation system is performing route guidance. When
approaching an intersection, an arrow will be displayed to indicate the sug-
gested direction of travel.

■

Compass

Displays the direction of travel.

Warning and information icons

Message display area

Navigation system-linked display area

108

■

Head-up display

The head-up display may seem dark or hard to see when viewed through sunglasses,

especially polarized sunglasses.

Adjust the brightness of the head-up display or remove your sunglasses.

■

When the battery is disconnected

The customize settings of the head-up display will be reset.

■

Display brightness

●

The brightness of the head-up display can be adjusted on

of the multi-information

display. Also, it is automatically adjusted according to the ambient brightness.

●

When the vehicle is stopped, the display may dim temporarily. This is not a malfunction.

■

Enabling/disabling of the head-up display

If the head-up display is disabled, it will remain disabled when the engine switch is turned

off then back to IGNITION ON mode.

■

Head-up display automatic position adjustment

If the display position is recorded into memory, the head-up display will be automatically

adjusted to the desired position. (



P. 157)

WARNING

■

Before using the head-up display

●

Check that the position and brightness of the head-up display image does not inter-

fere with safe driving. Incorrect adjustment of the image’s position or brightness may

obstruct the driver’s view and lead to an accident, resulting in death or serious injury.

●

Do not continuously look at the head-up display while driving as you may fail to see

pedestrians, objects on the road, etc. ahead of the vehicle.

■

Caution for changing settings of the head-up display

As the engine needs to be running while changing the settings of the head-up display,

ensure that the vehicle is parked in a place with adequate ventilation. In a closed area

such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to death or a serious health hazard.

109

Instrument cl

NOTICE

■

To prevent damage to components

■

When changing the settings of the head-up display

To prevent battery discharge, ensure that the engine is running while the changing the

settings of the head-up display.

●

Do not place any drinks near the head-up dis-

play projector. If the projector gets wet, elec-

trical malfunctions may result.

●

Do not place anything on or put stickers onto

the head-up display projector.

Doing so could interrupt head-up display

indications.

●

Do not touch the inside of the head-up display

projector or thrust sharp edges or the like into

the projector.

Doing so could cause mechanical malfunc-

tions.

110

Fuel consumption information

Remote Touch screen
Remote Touch knob (



P. 400)

“MENU” button
“ENTER” button

Fuel consumption information can be displayed on the Remote Touch screen.
The fuel consumption information can be displayed and operated on the side
display.

2
3
4

111

Instrument cl

Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu”
screen, and then select “Fuel Consumption”.

■

Trip information

If the “Past Record” screen is displayed, select “Trip Information”.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine
was started.
Cruising range (



P. 112)

Average fuel consumption for the past 15 minutes is divided by color into past

averages and averages attained since the engine switch was last turned to IGNI-

TION ON mode. Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.

Fuel consumption

3
4

112

■

Past record

If the “Trip Information” screen is displayed, select “Past Record”.

Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data

The average fuel consumption his-

tory is divided by color into past

averages and the average fuel con-

sumption since the last reset. Use the

displayed average fuel consumption

as a reference.
The image is an example only, and may vary slightly from actual conditions.

■

Updating the past record data

Update the average fuel consumption by selecting “Update” to measure the current fuel

consumption again.

■

Resetting the data

The fuel consumption data can be deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quantity of fuel

remaining.

This distance is computed based on your average fuel consumption.

As a result, the actual distance that can be driven may differ from that displayed.

2
3
4
5

113

Instrument cl

Vehicle information can be displayed on the side display (



P. 405), then select

to select the desired screen.



Fuel consumption

Displays the average fuel consumption
for the past 10 minutes in 1 minute inter-
vals, as well as the cruising range.



Past record

Displays the average fuel consumption
and highest fuel consumption.



Trip information

Displays the cruising range, average
fuel consumption and the amount of
time elapsed since the engine was
started.

The image is an example only, and may vary slightly from actual conditions.

Using the side display

115

Operation of

each component

3-1. Key information

Keys....................................................116

3-2. Opening, closing and

locking the doors

Side doors........................................121
Back door....................................... 128
Smart access system with

push-button start......................138

3-3. Adjusting the seats

Front seats...................................... 146
Rear seats....................................... 148
Driving position memory..........157
Head restraints ..............................161

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............................. 164
Inside rear view mirror ............. 166
Outside rear view mirrors....... 168

3-5. Opening, closing the

windows and moon roof

Power windows ............................. 171
Moon roof.......................................174

116

Keys

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart access system

with push-button start (



P. 138)

• Operating the wireless remote con-

trol function

Mechanical keys
Key number plate
Card key (electronic key)

Operating the smart access system with

push-button start (



P. 138)

Locks the doors (



P. 121)

Unlocks the doors (



P. 121)

Opens the windows and moon roof

(

P. 121)

Opens/closes the power back door
(

Sounds the alarm (

: This setting must be customized at your Lexus dealer.

The keys

2
3
4

Wireless remote control

2
3

117

Op
era
tio

n of
ea

To take out the mechanical key, push
the release button and take the key out.

The mechanical key can only be

inserted in one direction, as the key only

has grooves on one side. If the key can-

not be inserted in a lock cylinder, turn it

over and re-attempt to insert it.
After using the mechanical key, store it

in the electronic key. Carry the mechan-

ical key together with the electronic key.

If the electronic key battery is depleted

or the entry function does not operate

properly, you will need the mechanical

key. (

P. 550)

■

Panic mode

■

Card key

●

The mechanical key that is stored inside the card key should be used only in an emer-

gency, such as when the key does not operate properly.

●

If it is difficult to take out the mechanical key, push down the lock release button using a

pen tip etc. If it is difficult to pull it out, use a coin etc.

Using the mechanical key

When

is pressed for longer than about

one second, an alarm will sound intermittently

and the vehicle lights will flash to deter any per-

son from trying to break into or damage your

vehicle.
To stop the alarm, press any button on the elec-

tronic key.

●

To store the mechanical key in the card key,

insert it inside while pressing the lock release

button.

118

●

The card key is not waterproof.

■

When required to leave the vehicle’s key with a parking attendant

Lock the glove box as circumstances demand. (

P. 429)

Remove the mechanical key for your own use and provide the attendant with the elec-

tronic key only.

■

If you lose your mechanical keys

New genuine mechanical keys can be made by your Lexus dealer using another

mechanical key and the key number stamped on your key number plate. Keep the plate

in a safe place such as your wallet, not in the vehicle.

■

When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press any but-

tons on the electronic key while inside the aircraft cabin. If you are carrying an electronic

key in your bag etc., ensure that the buttons are not likely to be pressed accidentally.

Pressing a button may cause the electronic key to emit radio waves that could interfere

with the operation of the aircraft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years. (The card key battery life is about a year and a

half.)

●

If the battery becomes low, an alarm will sound in the cabin when the engine stops.

●

As the electronic key always receives radio waves, the battery will become depleted

even if the electronic key is not used. The following symptoms indicate that the elec-

tronic key battery may be depleted. Replace the battery when necessary. (



P. 507)

• The smart access system with push-button start or the wireless remote control does

not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface does not turn on.

●

To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of the

following electrical appliances that produce a magnetic field:
• TVs

• Personal computers

• Cellular phones, cordless phones and battery chargers

• Recharging cellular phones or cordless phones

• Table lamps

• Induction cookers

●

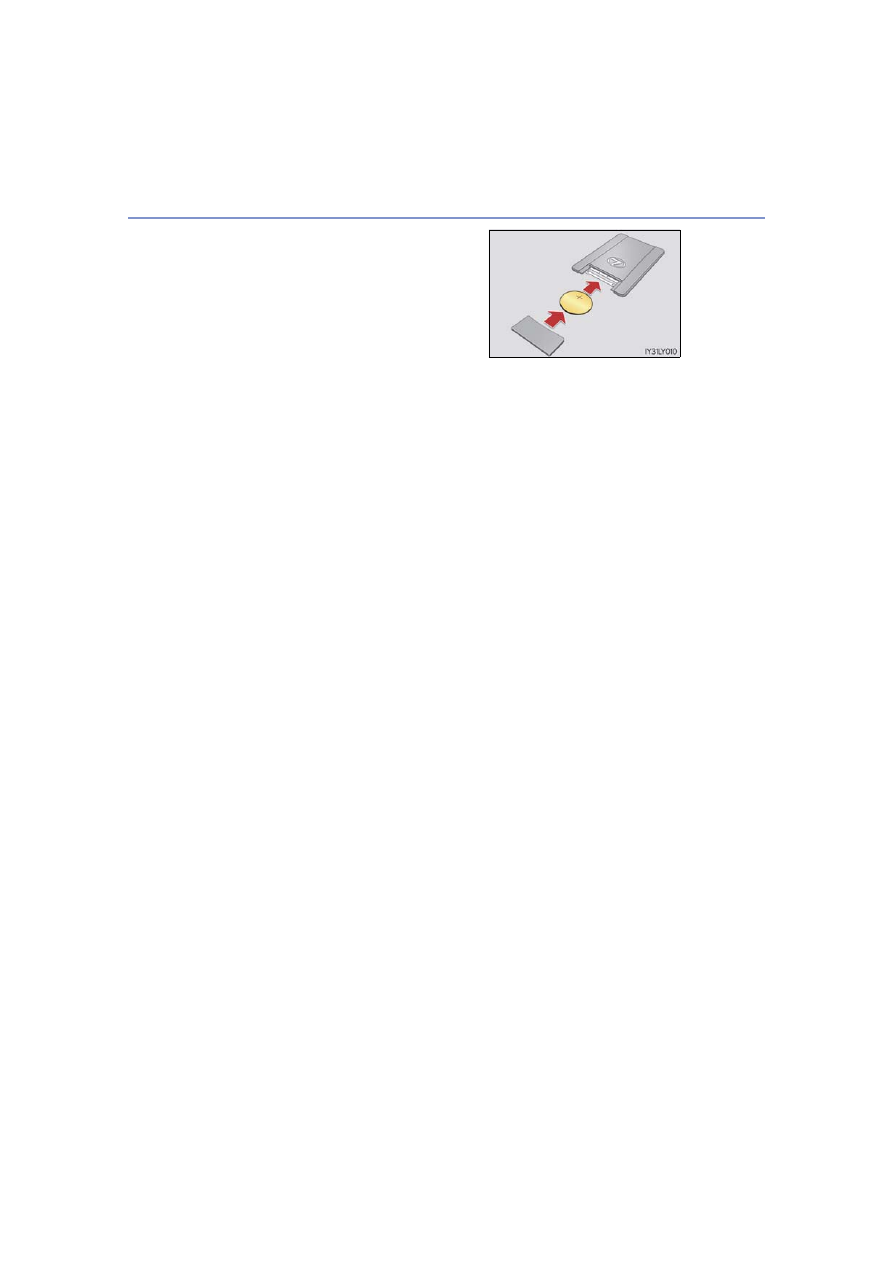

If the battery cover is not installed and the bat-

tery falls out or if the battery was removed

because the key got wet, reinstall the battery

with the positive terminal facing the Lexus

emblem.

119

Op
era
tio

n of
ea

■

Replacing the key battery

P. 507

■

Confirmation of the registered key number

The number of keys already registered to the vehicle can be confirmed. Ask your Lexus

dealer.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys close to

such materials.

●

Do not attach a sticker or anything else to the surface of the electronic key.

●

Do not disassemble the keys.

●

Do not place the keys near objects that produce magnetic fields, such as TVs, audio

systems and induction cookers.

●

Do not place the keys near medical electrical equipment such as low-frequency ther-

apy equipment or microwave therapy equipment, and do not receive medical atten-

tion with the keys on your person.

120
