Lexus LC (2021 year). Manual in english - page 14

297

4

4-5. Using the driving support systems

Dr

ivin
g

Approximately 150 cm (4.9 ft.)

Approximately 60 cm (2.0 ft.)

The diagram shows the detection range of
the sensors. Note that the sensors cannot
detect obstacles that are extremely close
to the vehicle.
The range of the sensors may change
depending on the shape of the object etc.

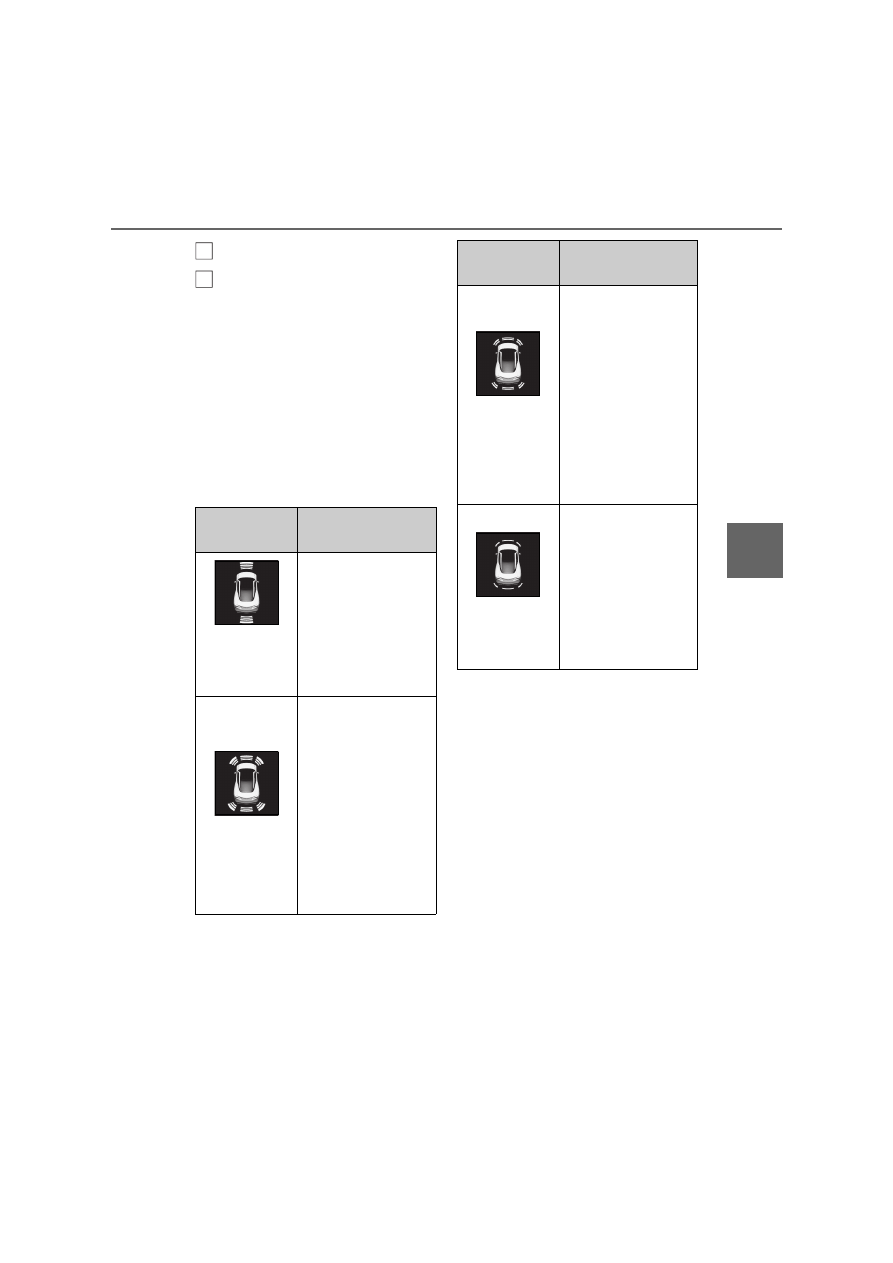

Q

Multi-information display, head-up
display and Center Display

Sensors that detect an obstacle will illu-
minate continuously or blink.

*1

: The illustrations show the graphics on

the Multi-information display, and differ
from the graphics on the head-up dis-
play and Center Display. Depending on
the distance of the obstacle, the sensor
display on Center Display illuminates or
blinks in various cycles, although the
width of it does not change.

*2

: Multi-information display and head-up

display

*3

: Center  Display

Q

Buzzer operation and distance to
an obstacle

A buzzer sounds when the sensors are
operating.



The buzzer beeps faster as the vehi-
cle approaches an obstacle. When

Display

*1

Approximate distance

to obstacle

(continuous

*2

 or

blinking

slowly

*3

)

Front center sensor:
100 cm (3.3 ft.) to 50
cm (1.6 ft.)
Rear center sensor:
150 cm (4.9 ft.) to 60
cm (2.0 ft.)

(continuous

*2

or

blinking

*3

)

Front center sensor:
50 cm (1.6 ft.) to 40 cm
(1.3 ft.)
Rear center sensor:
60 cm (2.0 ft.) to 45
cm (1.5 ft.)
Front and rear corner
sensor:
60 cm (2.0 ft.) to 45
cm (1.5 ft.)

B
C

(continuous

*2

 or

blinking rap-

idly

*3

)

Front center sensor:
40 cm (1.3 ft.) to 30 cm
(1.0 ft.)
Rear center sensor:
45 cm (1.5 ft.) to 35 cm
(1.1 ft.)
Front and rear corner
sensor:
45 cm (1.5 ft.) to 30 cm
(1.0 ft.)

(blinking

*2

 or

continuous

*3

)

Front center sensor:
Less than 30 cm (1.0 ft.)
Rear center sensor:
Less than 35 cm (1.1 ft.)
Front and rear corner
sensor:
Less than 30 cm (1.0 ft.)

Display

*1

Approximate distance

to obstacle

298

4-5. Using the driving support systems

the vehicle comes within the follow-
ing distance of the obstacle, the
buzzer sounds continuously:

• Front center sensors: Approximately 30

cm (1.0 ft.)

• Corner sensors: Approximately 30 cm

(1.0 ft.)

• Rear center sensors: Approximately 35

cm (1.1 ft.)



When 2 or more obstacles are
detected simultaneously, the buzzer
system responds to the nearest
obstacle. If one or both come within
the above distances, the beep will
repeat a long tone, followed by fast
beeps.

*

: If  equipped

BSM (Blind Spot Monitor)

*

The Blind Spot Monitor uses the
sensors installed behind the rear
bumper. The system is intended to
assist the driver check areas that
are not easily visible. The system
has the following 2 functions:



The BSM (Blind Spot Monitor)
function

Assists the driver in making a deci-
sion when changing lanes



The RCTA (Rear Crossing Traffic
Alert) function

Assists the driver when backing up

These functions use same sensors.

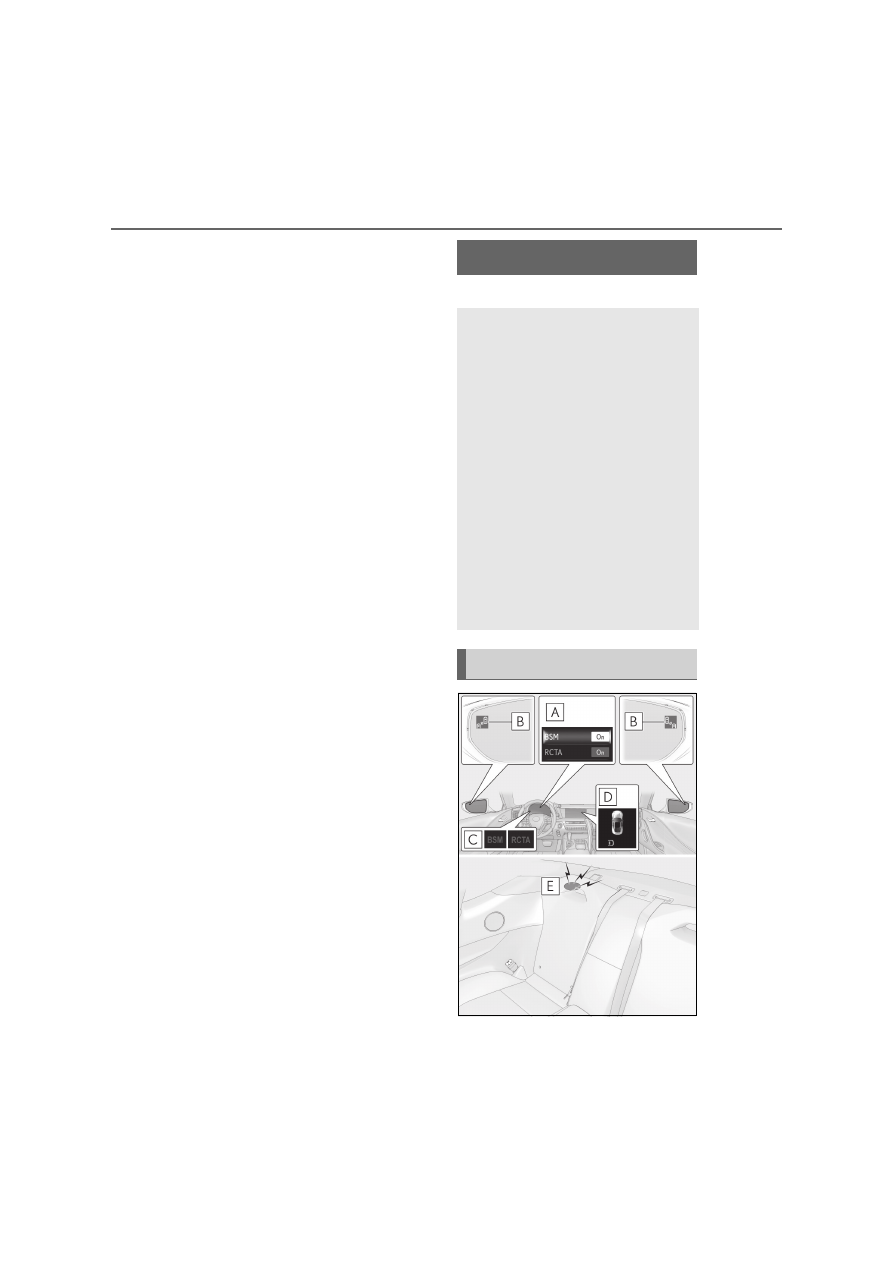

System components

299

4

4-5. Using the driving support systems

Dr

ivin
g

Multi-information display

The BSM function/RCTA function can be
turned on/off.
The RCTA function is available when the
BSM function is on.

Outside rear view mirror indicators

BSM function:
When a vehicle is detected in a blind spot
of the outside rear view mirrors or
approaching rapidly from behind into a
blind spot, the outside rear view mirror
indicator on the detected side will illumi-
nate. If the turn signal lever is operated
toward the detected side, the outside rear
view mirror indicator will flash.
RCTA function:
When a vehicle approaching from the right
or left at the rear of the vehicle is detected,
both outside rear view mirror indicators
will flash.

BSM indicator/RCTA indicator

When the BSM function/RCTA function is
turned on, the indicator comes on.

Monitor screen display (RCTA
function only)

If a vehicle approaching from the right or
left at the rear of the vehicle is detected,
the RCTA icon (



P.316) for the detected

side will be displayed on the monitor
screen. This illustration shows an example
of a vehicle approaching from the left at the
rear of the vehicle.

RCTA buzzer (RCTA function only)

If a vehicle approaching from the right or
left at the rear of the vehicle is detected, a
buzzer will sound. The buzzer also sounds
for approximately 1 second immediately
after the BSM function is operated to turn
the system on.

1

Press

 or

 of the meter con-

trol switches, select

.

2

Press

 or

 of the meter con-

trol switches, select “BSM”, and
press “OK”.

3

Press

 or

 of the meter con-

trol switches, select “BSM” or
“RCTA”, and press “OK”.

Q

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

Q

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to hear

over loud noises, such as if the audio system

volume is high.

Q

When “Blind Spot Monitor Unavailable”

is shown on the multi-information dis-

play

Water, snow, mud, etc., may be built up in

the vicinity of the sensor area of the bumper.

(



P.312) Removing the water, snow, mud,

etc., from the vicinity of the sensor area of

the bumper should return it to normal.
Also, the sensor may not function normally

when used in extremely hot or cold weather.

Q

When “Blind Spot Monitor System Mal-

function Visit Your Dealer” is shown on

the multi-information display

There may be a sensor malfunction or volt-

age abnormality. Have the vehicle

inspected at any authorized Lexus retailer

or Lexus authorized repairer, or any reliable

repairer.

Q

Customization

Some functions can be customized.

(Customizable features:



P.495)

A

B

C

D

E

Turning the BSM function/RCTA
function on/off

313

4

4-5. Using the driving support systems

Dr

ivin
g

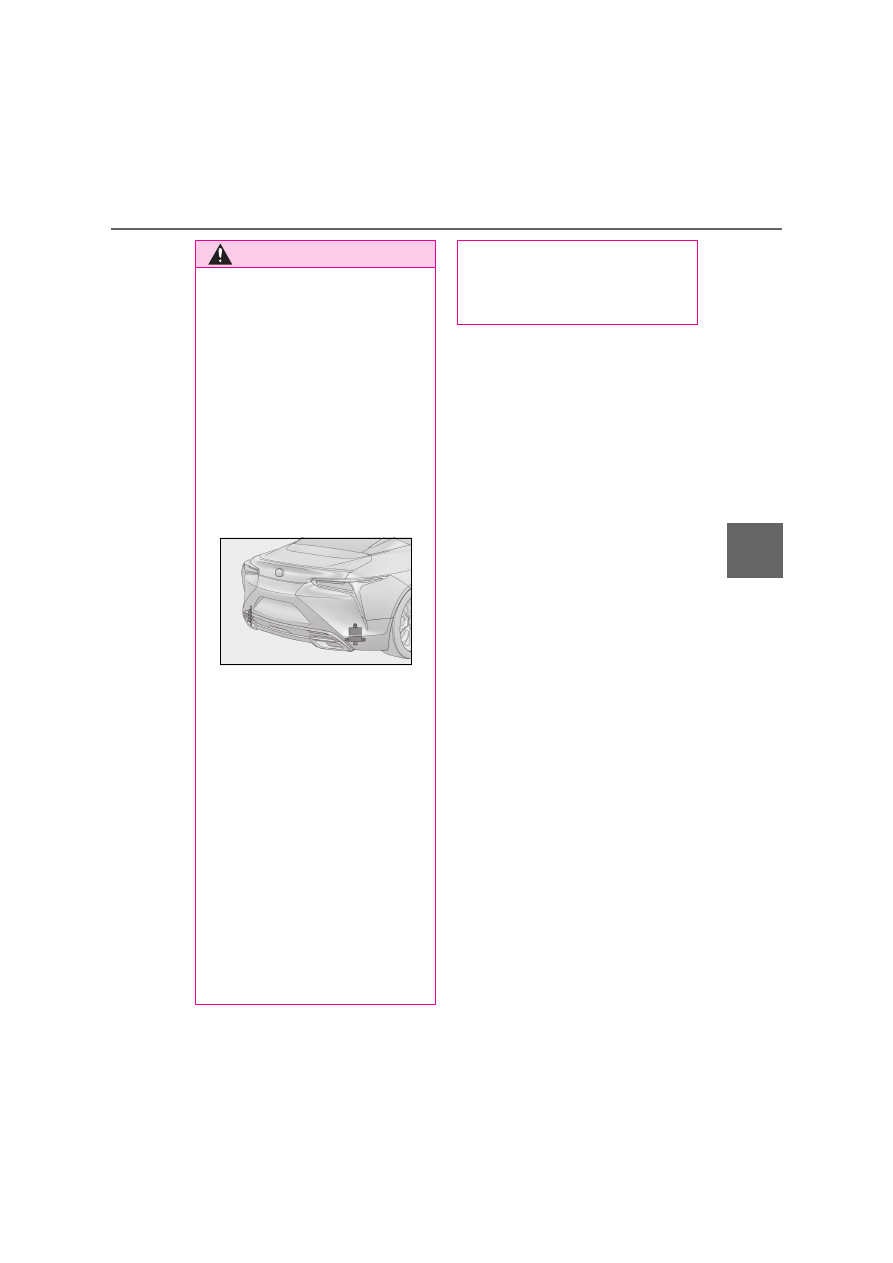

WARNING

O

Keep the sensors and the surrounding

areas on the rear bumper clean at all

times.

If a sensor or its surrounding area on

the rear bumper is dirty or covered

with snow, the Blind Spot Monitor may

not operate and a warning message

(



P.299) will be displayed. In this sit-

uation, clear off the dirt or snow and

drive the vehicle with the operation

conditions of the BSM function

(



P.315) satisfied for approximately

10 minutes. If the warning message

does not disappear, have the vehicle

inspected by any authorized Lexus

retailer or Lexus authorized repairer,

or any reliable repairer.

O

Do not subject a sensor or its sur-

rounding area on the rear bumper to a

strong impact.

If a sensor is moved even slightly off

position, the system may malfunction

and vehicles may not be detected cor-

rectly.

In the following situations, have your

vehicle inspected by any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

• A sensor or its surrounding area is

subject to a strong impact.

• If the surrounding area of a sensor is

scratched or dented, or part of them

has become disconnected.

O

Do not disassemble the sensor.

O

Do not attach stickers to the sensor or

surrounding area on the rear bumper.

O

Do not modify the sensor or surround-

ing area on the rear bumper.

O

Do not paint the rear bumper any

color other than an official Lexus color.

314

4-5. Using the driving support systems

Q

Operation of the BSM function

The BSM function uses radar sensors to detect the following vehicles traveling in
adjacent lanes and advises the driver of the presence of such vehicles via the indi-
cators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)

Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)

Q

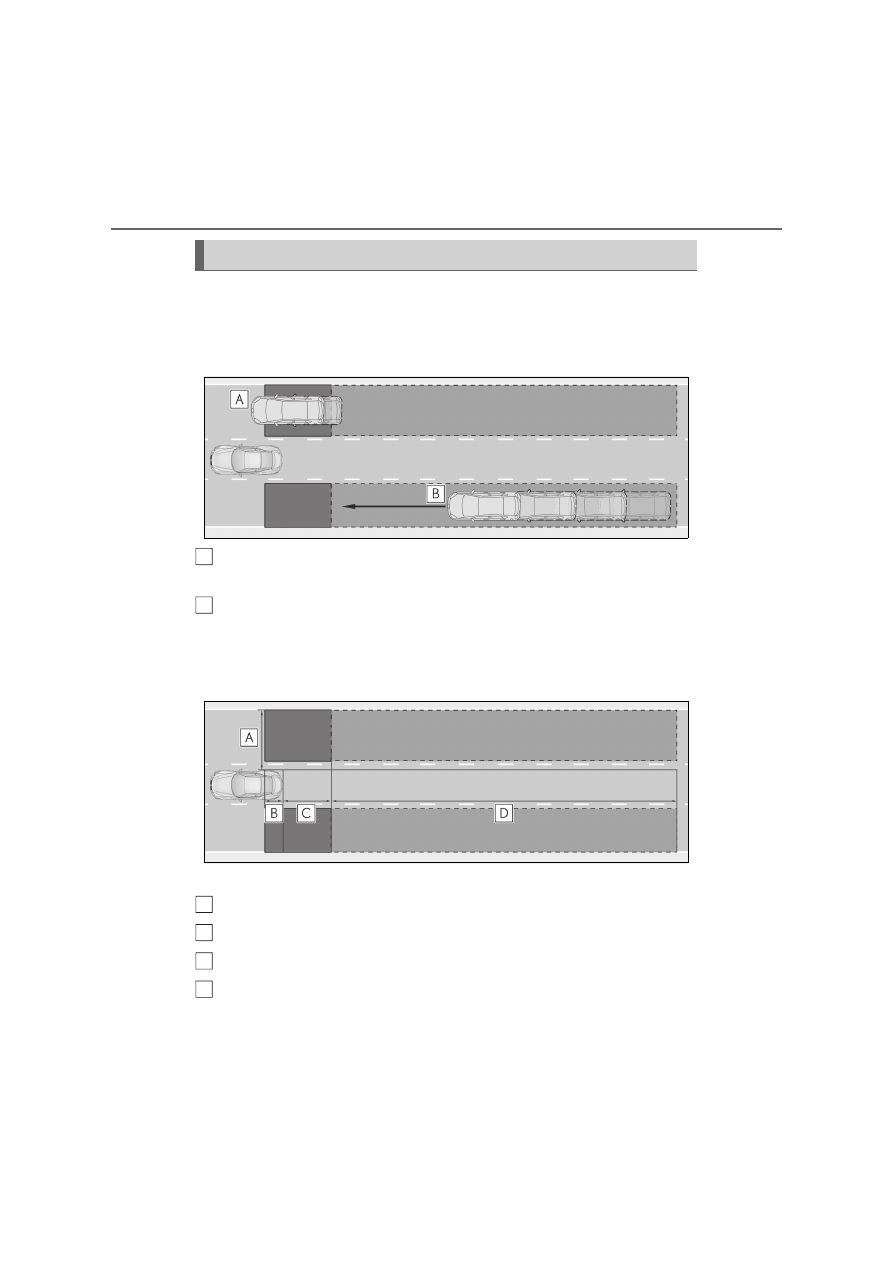

BSM function detection areas

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 0.5 m (1.6 ft.) to 3.5 m (11.5 ft.) from either side of the vehicle

*1

Approximately 1 m (3.3 ft.) forward of the rear bumper

Approximately 3 m (9.8 ft.) from the rear bumper

Approximately 3 m (9.8 ft.) to 60 m (197 ft.) from the rear bumper

*2

*1

: The area between the side of the vehicle and 0.5 m (1.6 ft.) from the side of the vehicle

BSM function

A

B

A
B
C
D

315

4

4-5. Using the driving support systems

Dr

ivin
g

cannot be detected.

*2

: The greater the difference in speed between your vehicle and the detected vehicle is,

the farther away the vehicle will be detected, causing the outside rear view mirror indi-
cator to illuminate or flash.

Q

The BSM function is operational when

The BSM function is operational when all of

the following conditions are met:

O

The BSM function is on.

O

The shift position is in a position other

than R.

O

The vehicle speed is greater than approx-

imately 16 km/h (10 mph).

Q

The BSM function will detect a vehicle

when

The BSM function will detect a vehicle pres-

ent in the detection area in the following sit-

uations:

O

A vehicle in an adjacent lane overtakes

your vehicle.

O

You overtake a vehicle in adjacent lane

slowly.

O

Another vehicle enters the detection

area when it changes lanes.

Q

Conditions under which the BSM func-

tion will not detect a vehicle

The BSM function is not designed to detect

the following types of vehicles and/or

objects:

O

Small motorcycles, bicycles, pedestrians,
etc.

*

O

Vehicles traveling in the opposite direc-

tion

O

Guardrails, walls, signs, parked vehicles
and similar stationary objects

*

O

Following vehicles that are in the same
lane

*

O

Vehicles traveling 2 lanes away from your
vehicle

*

O

Vehicles which are being overtaken rap-
idly by your vehicle.

*

*

: Depending on the conditions, detection

of a vehicle and/or object may occur.

Q

Conditions under which the BSM func-

tion may not function correctly

O

The BSM function may not detect vehi-

cles correctly in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When the distance between your vehicle

and a following vehicle is short

• When there is a significant difference in

speed between your vehicle and the vehi-

cle that enters the detection area

• When the difference in speed between

your vehicle and another vehicle is

changing

• When a vehicle enters a detection area

traveling at about the same speed as your

vehicle

• As your vehicle starts from a stop, a vehi-

cle remains in the detection area

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When vehicle lanes are wide, or when

driving on the edge of a lane, and the

vehicle in an adjacent lane is far away

from your vehicle

• When an accessory (such as a bicycle

carrier) or towing eyelet is installed to the

rear of the vehicle

• When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

• Immediately after the BSM function is

316

4-5. Using the driving support systems

turned on

O

Instances of the BSM function unneces-

sarily detecting a vehicle and/or object

may increase in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When the distance between your vehicle

and a guardrail, wall, etc. that enters the

detection area is short

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When vehicle lanes are narrow, or when

driving on the edge of a lane, and a vehi-

cle traveling in a lane other than the adja-

cent lanes enters the detection area

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When the tires are slipping or spinning

• When the distance between your vehicle

and a following vehicle is short

• When an accessory (such as a bicycle

carrier) or towing eyelet is installed to the

rear of the vehicle

Q

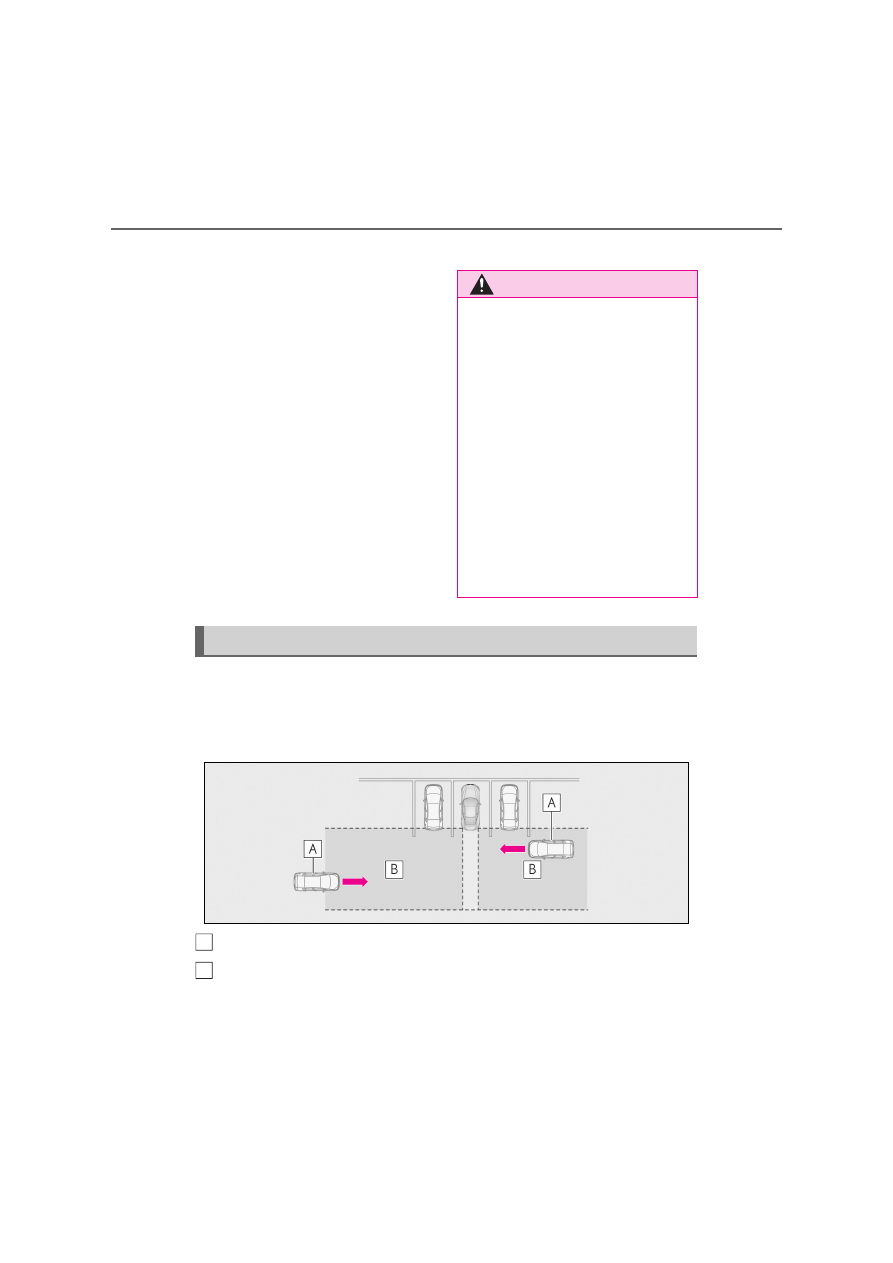

Operation of the RCTA function

The RCTA function uses radar sensors to detect vehicles approaching from the
right or left at the rear of the vehicle and alerts the driver of the presence of such
vehicles by flashing the outside rear view mirror indicators and sounding a buzzer.

Approaching vehicles

Detection areas of approaching vehicles

Q

RCTA icon display

When a vehicle approaching from the

right or left at the rear of the vehicle is
detected, the following will be dis-

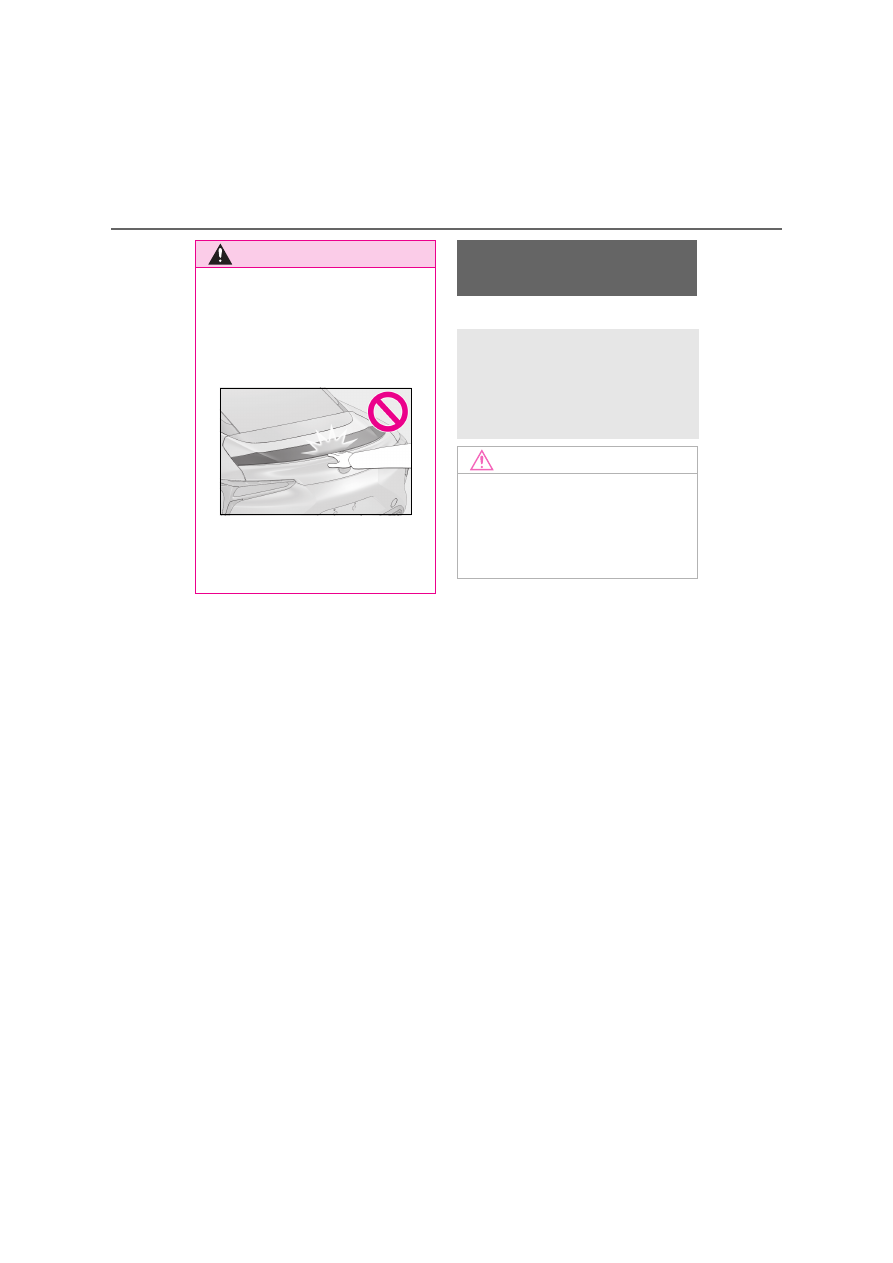

WARNING

Q

Cautions regarding the use of the

function

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.
The BSM function is a supplementary

function which alerts the driver that a

vehicle is in a blind spot of the outside

rear view mirrors or is approaching rap-

idly from behind into a blind spot. Do not

overly rely on the BSM function. As the

function cannot judge if it is safe to

change lanes, over reliance could lead to

an accident resulting in death or serious

injury.
As the system may not function correctly

under certain conditions, the driver’s own

visual confirmation of safety is necessary.

RCTA function

A
B

317

4

4-5. Using the driving support systems

Dr

ivin
g

played on the monitor screen

Q

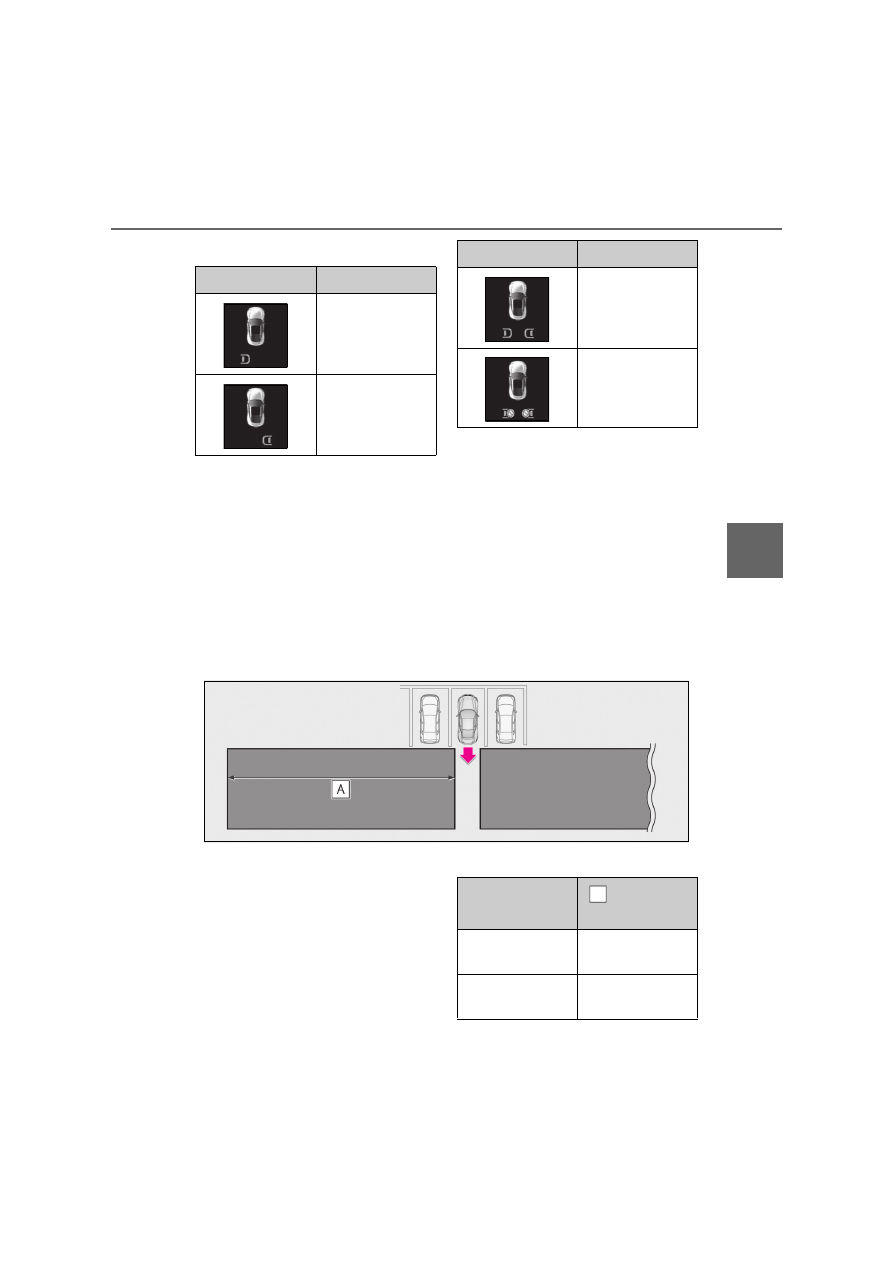

RCTA function detection areas

The areas that vehicles can be detected in are outlined below.

The buzzer can alert the driver of faster
vehicles approaching from farther away.

Example:

Display

Content

A vehicle is
approaching from
the left at the rear of
the vehicle

A vehicle is
approaching from
the right at the rear
of the vehicle

Vehicles are
approaching from
both sides of the
vehicle

The RCTA function
is malfunctioning
(



P.299)

Display

Content

Approaching vehi-

cle speed

Approximate

alert distance

28 km/h (18 mph)

(fast)

20 m (65 ft.)

8 km/h (5 mph)

(slow)

5.5 m (18 ft.)

A

318

4-5. Using the driving support systems

Q

The RCTA function is operational when

The RCTA function operates when all of the

following conditions are met:

O

The RCTA function is on.

O

The shift position is in R.

O

The vehicle speed is less than approxi-

mately 8 km/h (5 mph).

O

The approaching vehicle speed is

between approximately 8 km/h (5 mph)

and 28 km/h (18 mph).

Q

Conditions under which the RCTA func-

tion will not detect a vehicle

The RCTA function is not designed to

detect the following types of vehicles and/or

objects:

O

Vehicles approaching from directly

behind

O

Vehicles backing up in a parking space

next to your vehicle

O

Vehicles that the sensors cannot detect

due to obstructions

O

Guardrails, walls, signs, parked vehicles
and similar stationary objects

*

O

Small motorcycles, bicycles, pedestrians,
etc.

*

O

Vehicles moving away from your vehicle

O

Vehicles approaching from the parking
spaces next to your vehicle

*

*

: Depending on the conditions, detection

of a vehicle and/or object may occur.

Q

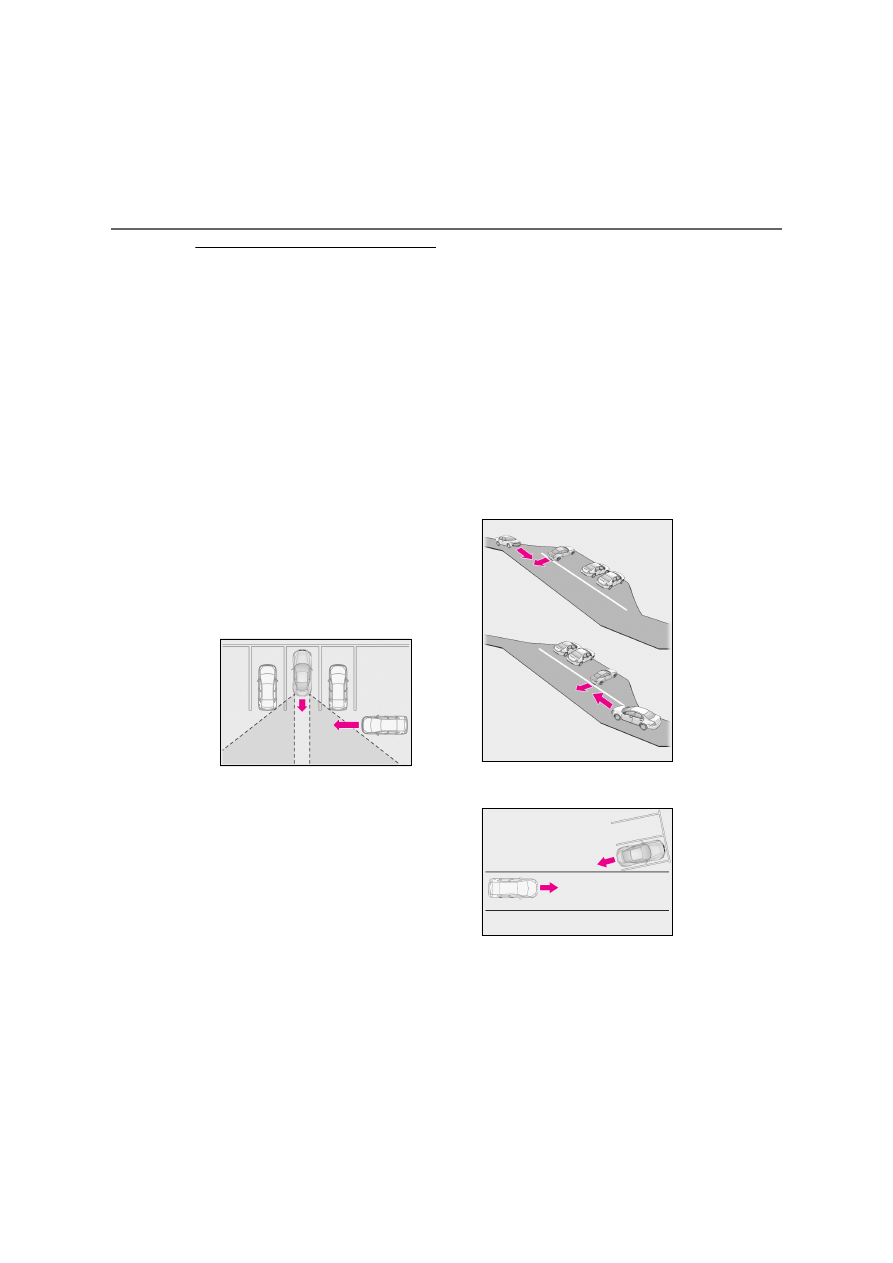

Conditions under which the RCTA func-

tion may not function correctly

O

The RCTA function may not detect vehi-

cles correctly in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When a vehicle is approaching at high

speed

• When a towing eyelet is installed to the

rear of the vehicle.

• When backing up on a slope with a sharp

change in grade

• When backing out of a shallow angle

parking spot

• Immediately after the RCTA function is

turned on

• Immediately after the engine <hybrid sys-

tem> is started with the RCTA function on

• When the sensors cannot detect a vehi-

cle due to obstructions

319

4

4-5. Using the driving support systems

Dr

ivin
g

O

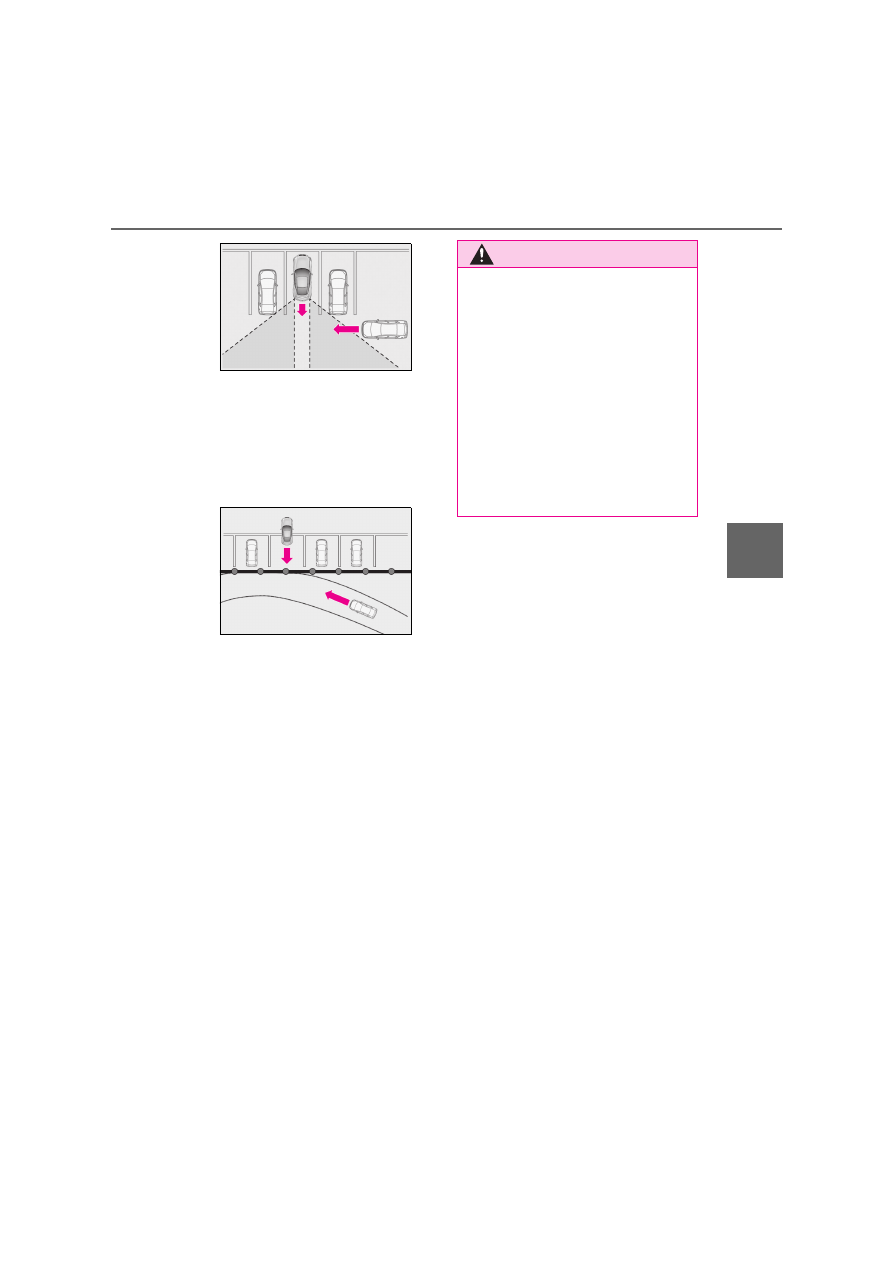

Instances of the RCTA function unneces-

sarily detecting a vehicle and/or object

may increase in the following situations:

• When a vehicle passes by the side of your

vehicle

• When the parking space faces a street

and vehicles are being driven on the

street

• When the distance between your vehicle

and metal objects, such as a guardrail,

wall, sign, or parked vehicle, which may

reflect electrical waves toward the rear of

the vehicle, is short

• When a towing eyelet is installed to the

rear of the vehicle.

WARNING

Q

Cautions regarding the use of the

function

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.
The RCTA function is only a supplemen-

tary function which alerts the driver that a

vehicle is approaching from the right or

left at the rear of the vehicle. As the

RCTA function may not function cor-

rectly under certain conditions, the

driver’s own visual confirmation of safety

is necessary. Over reliance on this func-

tion may lead to an accident resulting

death or serious injury.

320

4-5. Using the driving support systems

*

: If equipped

Multi-information display (



P.106)

Displays the status of the active rear wing

Active rear wing switch

Operates the active rear wing manually

Indicator

Illuminates when the active rear wing is
raised and turns off when it is retracted

Q

The active rear wing can be operated

when

O

The engine switch <power switch> is in

IGNITION ON mode <ON mode>.

O

The trunk is closed.

O

The active rear wing has been activated

in a customized setting.

Q

Conditions which stop the operation

In the following situations operation of the

active rear wing will stop:

O

The engine switch <power switch> is

turned to ACCESSORY mode or off

while the active rear wing is operating.

O

The trunk is opened while the active rear

wing is operating.

O

The raising operation of the active rear

wing is interrupted by an object, etc.

O

The active rear wing is operated in an

unusual manner causing it to stop at an

irregular position.

In such cases, pressing the active rear wing

switch will fully raise the active rear wing.

Or, begin driving the vehicle and the active

rear wing will raise automatically when the

vehicle speed reaches 25 km/h (16 mph).

Q

When there is a malfunction in the sys-

tem

A warning message will be displayed on the

multi-information display. (



P.451)

Q

Customization

The active rear wing can be turned on/ off.

(Customizable features:



P.495)

Active rear wing

*

The vehicle is equipped with an
active rear wing that operates auto-
matically while the vehicle is being
driven. This active rear wing
enhances aerodynamic perfor-
mance, especially at high speeds,
contributing to a more stable ride.
The active rear wing can be con-
trolled manually using a switch.

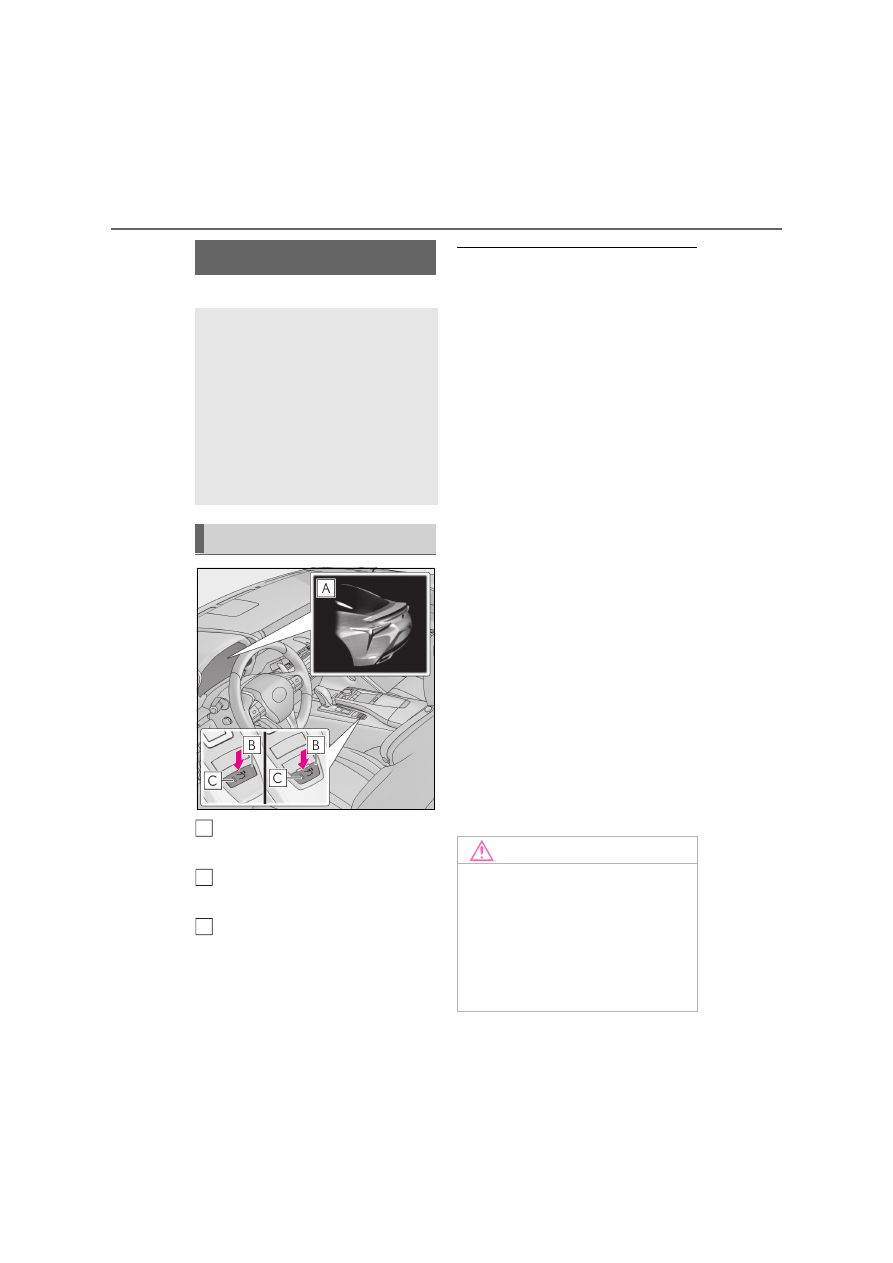

System components

A

B

C

NOTICE

Q

To prevent system damage

O

Do not apply pressure to the active

rear wing when pushing or pulling the

vehicle.

O

Do not lean on the active rear wing.

O

Do not attach any accessories or other

objects to the active rear wing.

321

4

4-5. Using the driving support systems

Dr

ivin
g

The active rear wing will operate auto-
matically at the following speeds
according to the selected driving
mode (



P.292).

(Always observe the legal speed limit
when driving on public roads.)



When other than Eco drive mode is
selected
Up: Approximately 80 km/h (50
mph)
Down: Approximately 40 km/h (25
mph)



When Eco drive mode is selected
Up: Approximately 130 km/h (80
mph)
Down: Approximately 40 km/h (25
mph)

Operate the active rear wing switch to
raise/retract the active rear wing man-
ually.
The active rear wing retracts when it is
raised and raises when retracted.

However, the active rear wing does not
respond to switch operations while the
active rear wing is operating.

*

: Press and hold the switch until the indi-

cator turns off. If the switch is released
while the active rear wing is moving, it
will return to the raised position auto-
matically.

Q

Restoring automatic operation after the

active rear wing is operated manually

If the active rear wing is operated manually,

automatic operation will resume according

to the vehicle speed.

NOTICE

O

Do not modify or disassemble the

active rear wing.

O

Do not subject the active rear wing to

severe impact.

Q

To prevent 12-volt battery discharge

Do not operate the active rear wing

repeatedly while the engine <hybrid sys-

tem> is turned off.

Automatic operation

Changing to manual operation

Vehicle speed

Up/Down

0 km/h (0 mph)

(vehicle stopped)

Press/Press and

hold

*

Approximately 0 –

20 km/h (0 – 12

mph)

Operation not pos-

sible

Approximately 20 –

120 km/h (12 – 75

mph)

Press/Press

Approximately 120

km/h (75 mph) or

more

Operation not pos-

sible

WARNING

Q

When manually operating the active

rear wing

Observe the following precautions

before operating the active rear wing.

Failure to do so may result in death or

serious injury.

O

Ensure that the surrounding area is

free of any objects that may come into

contact with or get caught on the

active rear wing.

322

4-5. Using the driving support systems

*

: If  equipped

WARNING

O

If there are people near the active rear

wing, make sure that there is no possi-

bility of their clothing, personal

belongings or body parts getting

caught. Children especially should be

warned not to touch the active rear

wing while it is being operated.

O

If there is a risk that an object may

become caught on the active rear

wing during operation, stop operation

immediately.

Exhaust Gas Filter system

*



(LC500)

The Exhaust Gas Filter system is
designed to collect particulate
matter in the exhaust gases using
an exhaust gas filter installed to the
exhaust pipes.

NOTICE

Q

To prevent the Exhaust Gas Filter sys-

tem from failing

O

Do not use fuel other than the speci-

fied type

O

Do not modify the exhaust pipes

323

4

4-5. Using the driving support systems

Dr

ivin
g

*

: If equipped

Q

If “Exhaust Filter Full See Owner’s Man-

ual” is shown on the multi-information

display

O

The message may be displayed while

high load driving with particulate matter

accumulating.

O

Hybrid system output (engine speed) is

restricted when a certain amount of par-

ticulate matter accumulates, however, it is

possible to drive the vehicle unless the

malfunction indicator lamp comes on.

O

Particulate matter can accumulate more

quickly if the vehicle is frequently driven

short trips or at low speeds, or if the

hybrid system is regularly started in an

extremely cold environment. Excessive

accumulation of particulate matter can

be prevented by periodically driving long

distances continuously with intermittent

releasing of the accelerator pedal, such

as when driving on highways and free-

ways.

Q

If the malfunction indicator lamp comes

on or “Exhaust Filter Full Visit Your

Dealer” is shown on the multi-informa-

tion display

The amount of accumulated particulate

matter has exceeded a certain level. Have

the vehicle inspected by any authorized

Lexus retailer or Lexus authorized repairer,

or any reliable repairer immediately.

GPF (Gasoline Particulate
Filter) system

*

 (LC500h)

The GPF system collects particu-
late matter in the exhaust gas by
using an exhaust gas filter.
The system will operate to regener-
ate the filter automatically, depend-
ing on the vehicle conditions.

NOTICE

Q

To prevent the GPF system from not

operating properly

O

Do not use fuel other than the speci-

fied type

O

Do not modify the exhaust pipes

324

4-5. Using the driving support systems

Q

ECB (Electronically Controlled
Brake System)

The electronically controlled system
generates braking force correspond-
ing to the brake operation

Q

ABS (Anti-lock Brake System)

Helps to prevent wheel lock when the
brakes are applied suddenly, or if the
brakes are applied while driving on a
slippery road surface

Q

Brake assist

Generates an increased level of brak-
ing force after the brake pedal is
depressed when the system detects a
panic stop situation

Q

VSC (Vehicle Stability Control)

Helps the driver to control skidding
when swerving suddenly or turning on
slippery road surfaces

Q

TRC (Traction Control)

Helps to maintain drive power and pre-
vent the drive wheels from spinning

when starting the vehicle or accelerat-
ing on slippery roads

Q

Active Cornering Assist (ACA) (if
equipped)

Helps to prevent the vehicle from drift-
ing to the outer side by performing
inner wheel brake control when
attempting to accelerate while turning

Q

Hill-start assist control

Helps to reduce the backward move-
ment of the vehicle when starting on an
uphill

Q

VGRS (Variable Gear Ratio Steer-
ing) (if equipped)

Adjusts the front wheel turning angle in
accordance with the vehicle speed and
steering wheel movement

Q

DRS (Dynamic Rear Steering) (if
equipped)

Contributes to the turning characteris-
tics and responsiveness of the vehicle
by slightly adjusting the rear wheel
angle of the vehicle in accordance with
steering wheel movement.

Q

EPS (Electric Power Steering)

Employs an electric motor to reduce
the amount of effort needed to turn the
steering wheel

Q

AVS (Adaptive Variable Suspen-
sion System)

By independently controlling the
damping force of the shock absorbers
for each of the 4 wheels according to
the road and driving conditions, this
system helps riding comfort with supe-

Driving assist systems

To keep driving safety and perfor-
mance, the following systems oper-
ate automatically in response to
various driving situations. Be aware,
however, that these systems are
supplementary and should not be
relied upon too heavily when oper-
ating the vehicle.

Summary of the driving assist
systems

325

4

4-5. Using the driving support systems

Dr

ivin
g

rior vehicle stability, and helps good
vehicle posture
Also, the damping force changes
depending on the selected driving
mode. (



P.292)

Q

LDH (Lexus Dynamic Handling
system) (if equipped)

Provides integrated control of the
VGRS, DRS and EPS. Contributes to
turning characteristics at low speeds,
responsiveness at medium speeds and
safety at high speeds by controlling the
steering angle of the front and rear
wheels in accordance with the steering
wheel operation and vehicle speed.

Q

VDIM (Vehicle Dynamics Inte-
grated Management)

Provides integrated control of the
ABS, brake assist, TRC, VSC, hill-start
assist control, EPS, VGRS (if
equipped) and DRS (if equipped) sys-
tems
Helps to maintain vehicle stability when
swerving on slippery road surfaces by
controlling the brakes, engine <hybrid
system> output, steering assist (if
equipped), and steering ratio (if
equipped)

Q

Emergency brake signal

When the brakes are applied suddenly,
the stop lights automatically flash to
alert the vehicle behind

Q

Secondary Collision Brake (if
equipped)

When the SRS airbag sensor detects a
collision and the system operates, the

brakes and brake lights are automati-
cally controlled to reduce the vehicle
speed and help reduce the possibility
of further damage due to a secondary
collision.

Q

When the
TRC/VSC/ABS/VGRS

*

/DRS

*

 systems

are operating

The slip indicator light will flash while the
TRC/VSC/ABS/VGRS

*

/DRS

*

 systems are

operating.

*

: Only when controlled by the VDIM sys-

tem.

Q

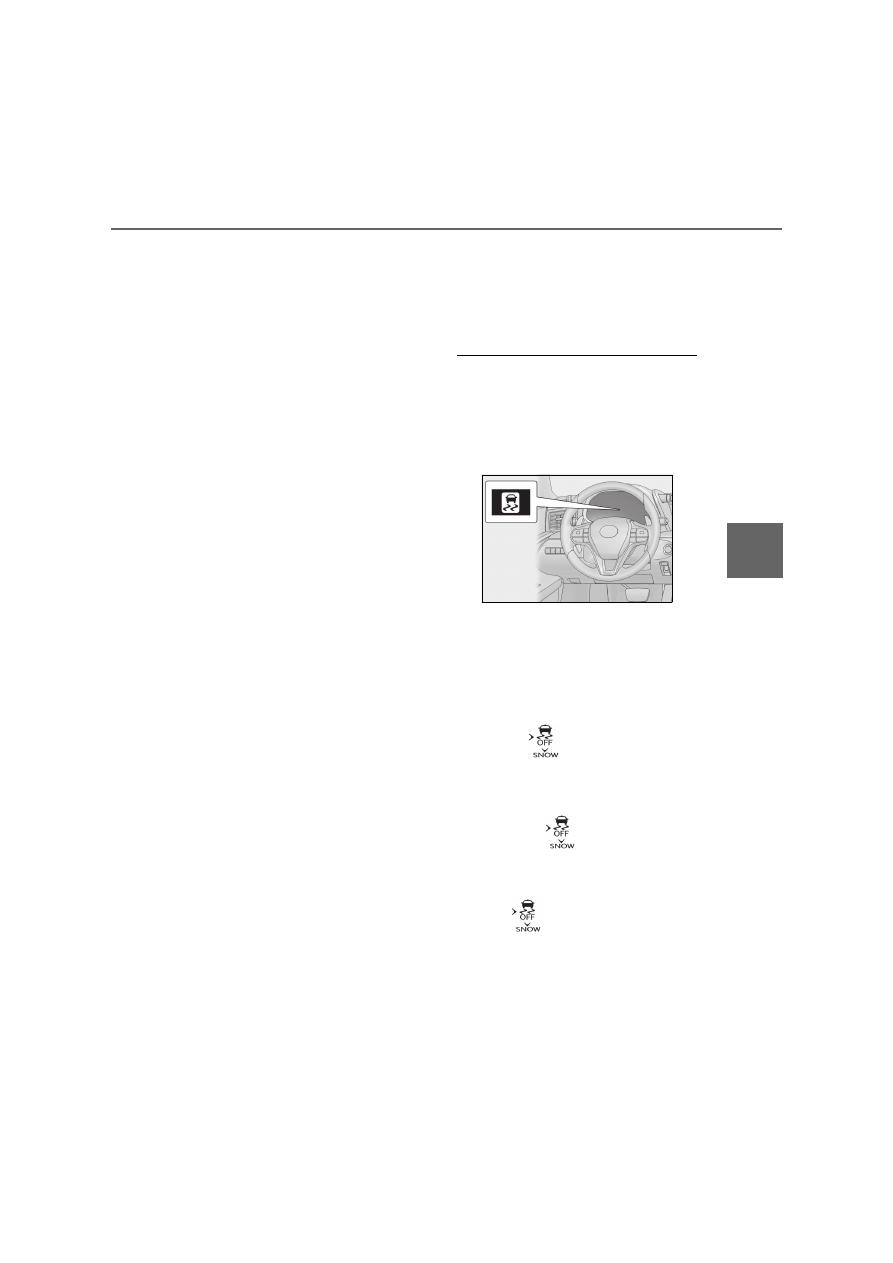

Disabling the TRC system

If the vehicle gets stuck in mud, dirt or snow,

the TRC system may reduce power from

the engine <hybrid system> to the wheels.

Pressing the

 switch to turn the sys-

tem off may make it easier for you to rock

the vehicle in order to free it.
To turn the TRC system off, quickly press

and release the

 switch.

The “Traction Control Turned Off” will be
shown on the multi-information display.

Press the

 switch again to turn the sys-

tem back on.
