1-1. For safe use

●

The surface of the seats with the side airbag is

scratched, cracked, or otherwise damaged.

●

The portion of the front pillars, rear pillars or

roof side rail garnishes (padding) containing

the curtain shield airbags inside is scratched,

cracked, or otherwise damaged.

1-1. For safe use

For
sa

d s

uri

Exhaust gas precautions

Harmful substance to the human body is included in exhaust gases if inhaled.

WARNING

Exhaust gases include harmful carbon monoxide (CO), which is colorless and odorless.

Observe the following precautions.

Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident

caused by light-headedness, or may lead to death or a serious health hazard.

■

Important points while driving

●

Keep the back door closed.

●

If you smell exhaust gases in the vehicle even when the back door is closed, open the

windows and have the vehicle inspected at any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer as soon as possible.

■

When parking

●

If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the

hybrid system.

●

Do not leave the vehicle with the hybrid system on for a long time.

If such a situation cannot be avoided, park the vehicle in an open space and ensure

that exhaust fumes do not enter the vehicle interior.

●

Do not leave the hybrid system operating in an area with snow build-up, or where it is

snowing. If snowbanks build up around the vehicle while the hybrid system is operat-

ing, exhaust gases may collect and enter the vehicle.

■

Exhaust pipe

The exhaust system needs to be checked periodically. If there is a hole or crack caused

by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle

inspected and repaired by any authorized Lexus retailer or Lexus authorized repairer,

or any reliable repairer.

1-2. Child safety

Airbag manual on-off system

“PASSENGER AIR BAG” indicator

The “ON” indicator light turns on when

the airbag system is on (only when the

power switch is in ON mode).

Airbag manual on-off switch

Insert the mechanical key into the cylin-
der and turn to the “OFF” position.

The “OFF” indicator light turns on (only

when the power switch is in ON mode).

This system deactivates the front passenger airbag and front passenger knee
airbag.
Only deactivate the airbags when using a child restraint system on the front
passenger seat.

Deactivating the airbags for the front passenger

1-2. Child safety

For
sa

d s

uri

■

“PASSENGER AIR BAG” indicator information

If any of the following problems occur, it is possible that there is a malfunction in the sys-

tem. Have the vehicle inspected by any authorized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

●

Neither “ON” nor “OFF” comes on.

●

The indicator light does not change when the airbag manual on-off switch is switched

to “ON” or “OFF”.

WARNING

■

When installing a child restraint system

For safety reasons, always install the child restraint system in a rear seat. In the event

that the rear seat cannot be used, the front seat can be used as long as the airbag man-

ual on-off system is set to “OFF”.

If the airbag manual on-off system is left on, the strong impact of the airbag deployment

(inflation) may cause serious injury or even death.

■

When a child restraint system is not installed on the front passenger seat

Ensure that the airbag manual on-off system is set to “ON”.

If it is left off, the airbag may not deploy in the event of an accident, which may result in

serious injury or even death.

1-2. Child safety

Riding with children

●

It is recommended that children sit in the rear seats to avoid accidental con-
tact with the shift lever, wiper switch etc.

●

Use the rear door child-protector lock or the window lock switch to avoid
children opening the door while driving or operating the power window acci-
dentally. (



P. 126, 248)

●

Do not let small children operate equipment which may catch or pinch body
parts, such as the power window, hood, back door, seats etc.

Observe the following precautions when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle’s seat belt.

WARNING

Never leave children unattended in the vehicle, and never allow children to have or use

the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is also a

danger that children may injure themselves by playing with the windows, the moon roof

(if equipped) or other features of the vehicle. In addition, heat build-up or extremely

cold temperatures inside the vehicle can be fatal to children.

1-2. Child safety

For
sa

d s

uri

Child restraint systems

Points to remember....................................................................................................... P. 49
When using a child restraint system ......................................................................... P. 51
Child restraint system compatibility for each seating
position................................................................................................................................. P. 54
Child restraint system installation method............................................................ P. 62

• Fixed with a seat belt................................................................................................  P. 63
• Fixed with an ISOFIX lower anchorage..........................................................  P. 65
• Using a top tether anchorage..............................................................................  P. 67

●

Prioritize and observe the warnings, as well as the laws and regulations for
child restraint systems.

●

Use a child restraint system until the child becomes large enough to properly
wear the vehicle’s seat belt.

●

Choose a child restraint system appropriate to the age and size of the child.

●

Note that not all child restraint systems can fit in all vehicles.
Before using or purchasing a child restraint system, check the compatibility of
the child restraint system with seat positions. (



P. 54)

Before installing a child restraint system in the vehicle, there are precautions
that need to be observed, different types of child restraint systems, as well as
installation methods, etc., written in this manual.

●

Use a child restraint system when riding with a small child that cannot prop-
erly use a seat belt. For the child’s safety, install the child restraint system to a
rear seat. Be sure to follow the installation method that is in the operation
manual enclosed with the restraint system.

●

The use of a Lexus genuine child restraint system is recommended, as it is
safer to use in this vehicle. Lexus genuine child restraint systems are made
specifically for Lexus vehicles. They can be purchased at a Lexus dealer.

Table of contents

Points to remember

1-2. Child safety

WARNING

■

When a child is riding

Observe the following precautions.

Failure to do so may result in death or serious injury.

●

For effective protection in automobile accidents and sudden stops, a child must be

properly restrained, using a seat belt or child restraint system which is correctly

installed. For installation details, refer to the operation manual enclosed with the child

restraint system. General installation instruction is provided in this manual.

●

Lexus strongly urges the use of a proper child restraint system that conforms to the

weight and size of the child, installed on the rear seat. According to accident statistics,

the child is safer when properly restrained in the rear seat than in the front seat.

●

Holding a child in your or someone else’s arms is not a substitute for a child restraint

system. In an accident, the child can be crushed against the windshield or between

the holder and the interior of the vehicle.

■

Handling the child restraint system

If the child restraint system is not properly fixed in place, the child or other passengers

may be seriously injured or even killed in the event of sudden braking, sudden swerv-

ing, or an accident.

●

If the vehicle were to receive a strong impact from an accident, etc., it is possible that

the child restraint system has damage that is not readily visible. In such cases, do not

reuse the restraint system.

●

Depending on the child restraint system, installation may be difficult or impossible. In

those cases, check whether the child restraint system is suitable for installment in the

vehicle. (



P. 54) Be sure to install and observe the usage rules after carefully read-

ing the child restraint system fixing method in this manual, as well as the operation

manual enclosed with the child restraint system.

●

Keep the child restraint system properly secured on the seat even if it is not in use. Do

not store the child restraint system unsecured in the passenger compartment.

●

If it is necessary to detach the child restraint system, remove it from the vehicle or

store it securely in the luggage compartment.

1-2. Child safety

For
sa

d s

uri

■

When installing a child restraint system to a front passenger seat

For the safety of a child, install a child restraint system to a rear seat. When
installing a child restraint system to a front passenger seat is unavoidable,
adjust the seat as follows and install the child restraint system.

●

Adjust the seatback angle to the
most upright position.

When installing a forward-facing

child seat, if there is a gap between

the child seat and the seatback,

adjust the seatback angle until good

contact is achieved.

●

The seat cushion to the fully rear-
ward position

●

If the head restraint interferes with your child restraint system, and the head
restraint can be removed, remove the head restraint. Otherwise, put the
head restraint in the upper most position.

When using a child restraint system

1-2. Child safety

WARNING

■

When using a child restraint system

Observe the following precautions.

Failure to do so may result in death or serious injury.

●

Never use a rear-facing child restraint system

on the front passenger seat when the airbag

manual on-off switch is on. (



P. 46)

The force of the rapid inflation of the front

passenger airbag can cause death or serious

injury to children in the event of an accident.

●

There is a label(s) on the passenger side sun

visor, indicating it is forbidden to attach a

rear-facing child restraint system to the front

passenger seat.

Details of the label(s) are shown in the

illustration below.

1-2. Child safety

For
sa

d s

uri

WARNING

■

When using a child restraint system

●

When a junior seat is installed, always ensure that the shoulder belt is positioned

across the center of the child’s shoulder. The belt should be kept away from the child’s

neck, but not so that it could fall off the child’s shoulder.

●

Use a child restraint system suitable to the age and size of the child and install it to the

rear seat.

●

Only put a forward-facing child restraint sys-

tem on the front seat when unavoidable.

When installing a forward-facing child

restraint on the front passenger seat, move

the seat as far back as possible. Failing to do

so may result in death or serious injury if the

airbags deploy (inflate).

●

Do not allow the child to lean his/her head or

any part of his/her body against the door or

the area of the seat, front or rear pillars, or

roof side rails from which the SRS side air-

bags or SRS curtain shield airbags deploy

even if the child is seated in the child restraint

system. It is dangerous if the SRS side airbags

and curtain shield airbags inflate, and the

impact could cause death or serious injury to

the child.

●

If the driver’s seat interferes with the child

restraint system and prevents it from being

attached correctly, attach the child restraint

system to the right-hand rear seat.

(



P. 60, 61)

1-2. Child safety

■

Child restraint system compatibility for each seating position

Compatibility of each seating position with child restraint systems (



P. 56)

displays the type of child restraint systems that can be used and possible seat-
ing positions for installation using symbols. Also, the recommended child
restraint system that is suitable for your child can be selected.
Otherwise, check [Recommended child restraint systems and Compatibility
table] for recommended child restraint systems. (



P. 60)

Check the selected child restraint system together with the following [Before
confirming the compatibility of each seating position with child restraint sys-
tems].

■

Before confirming the compatibility of each seating position with child
restraint systems

Checking the child restraint system standards.
Use a child restraint system that conforms to UN(ECE) R44

The following approval mark is displayed on child restraint systems which
are conformed.
Check for an approval mark attached to the child restraint system.

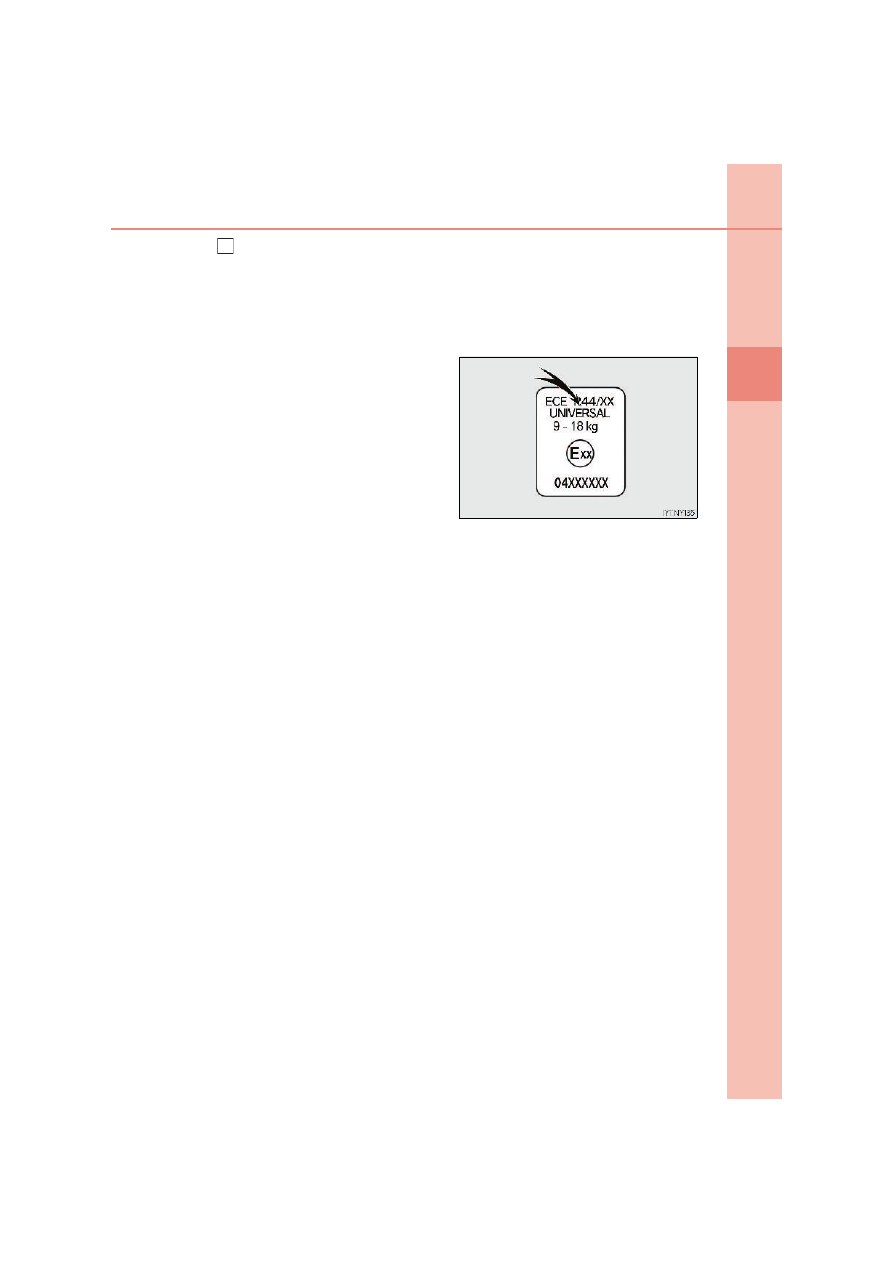

Example of the displayed regula-
tion number
UN(ECE) R44 approval mark

The weight range of the child who
is applicable for an UN(ECE)
R44 approval mark is indicated.

: UN(ECE) R44 is U.N. regulations for child restraint systems.

: The displayed mark may differ depending on the product.

Child restraint system compatibility for each seating position

1-2. Child safety

For
sa

d s

uri

Checking the category of the child restraint system.
Check the approval mark of the child restraint system for which of the fol-
lowing categories the child restraint system is suitable.
Also, if there are any uncertainties, check the user’s guide included with the
child restraint system or contact the retailer of the child restraint system.

• “universal”
• “semi-universal”
• “restricted”
• “vehicle specific”

1-2. Child safety

■

Compatibility of each seating position with child restraint systems

1, 2, 3

Suitable for “universal” category child restraint system fixed with the seat

belt.

Suitable for child restraint systems given on recommended child restraint

systems and compatibility table (



P. 60).

Suitable for ISOFIX child restraint system.

Includes a top tether anchorage point.

Never use a rear-facing child restraint system on the front passenger seat

when the airbag manual on-off switch is on.

1-2. Child safety

For
sa

d s

uri

: Move the front seat fully rearward. If the passenger seat height can be adjusted, move

it to the upper most position.

: Adjust the seatback angle to the most

upright position.
When installing a forward-facing child
seat, if there is a gap between the child
seat and the seatback, adjust the seat-
back angle until good contact is
achieved.

: If the head restraint interferes with your child restraint system, and the head restraint

can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.

: Use only a front-facing child restraint system when the airbag manual on-off switch is

on.

1-2. Child safety

■

Detail information for child restraint systems installation

Seat position number

Seating position

Airbag manual

on-off switch

OFF

Seating position suitable for universal
belted (Yes/No)

Yes

Forward-

facing

only

Yes

i-Size seating position (Yes/No)

Seating position suitable for lateral fixture
(L1/L2/No)

Suitable rearward facing fixture (R1/
R2X/R2/R3/No)

Suitable forward facing fixture (F2X/F2/
F3/No)

F2X, F2,

Suitable junior seat fixture (B2/B3/No)

1-2. Child safety

For
sa

d s

uri

ISOFIX child restraint systems are divided into different “fixture”. The child
restraint system can be used in the seating positions for “fixture” mentioned in
the table above. For kind of “fixture” relation, confirm the following table.
If your child restraint system has no kind of “fixture” (or if you cannot find infor-
mation in the table below), please refer to the child restraint system “vehicle
list” for compatibility information or ask the retailer of your child seat.

Fixture

Description

Full-height, forward-facing child restraint systems

Reduced-height forward-facing child restraint systems

F2X

Reduced-height forward-facing child restraint systems

Full-size, rearward-facing child restraint systems

Reduced-size, rearward-facing child restraint systems

R2X

Reduced-size, rearward-facing child restraint systems

Rearward-facing infant seat

Left lateral-facing (carrycot) infant seat

Right lateral-facing (carrycot) infant seat

Junior seat

Content .. 1 2 3 ..
