LEXUS RX 450HL (2019 year). Instruction

704

8-2. Steps to take in an emergency

RX450h_RX450hL_U

■

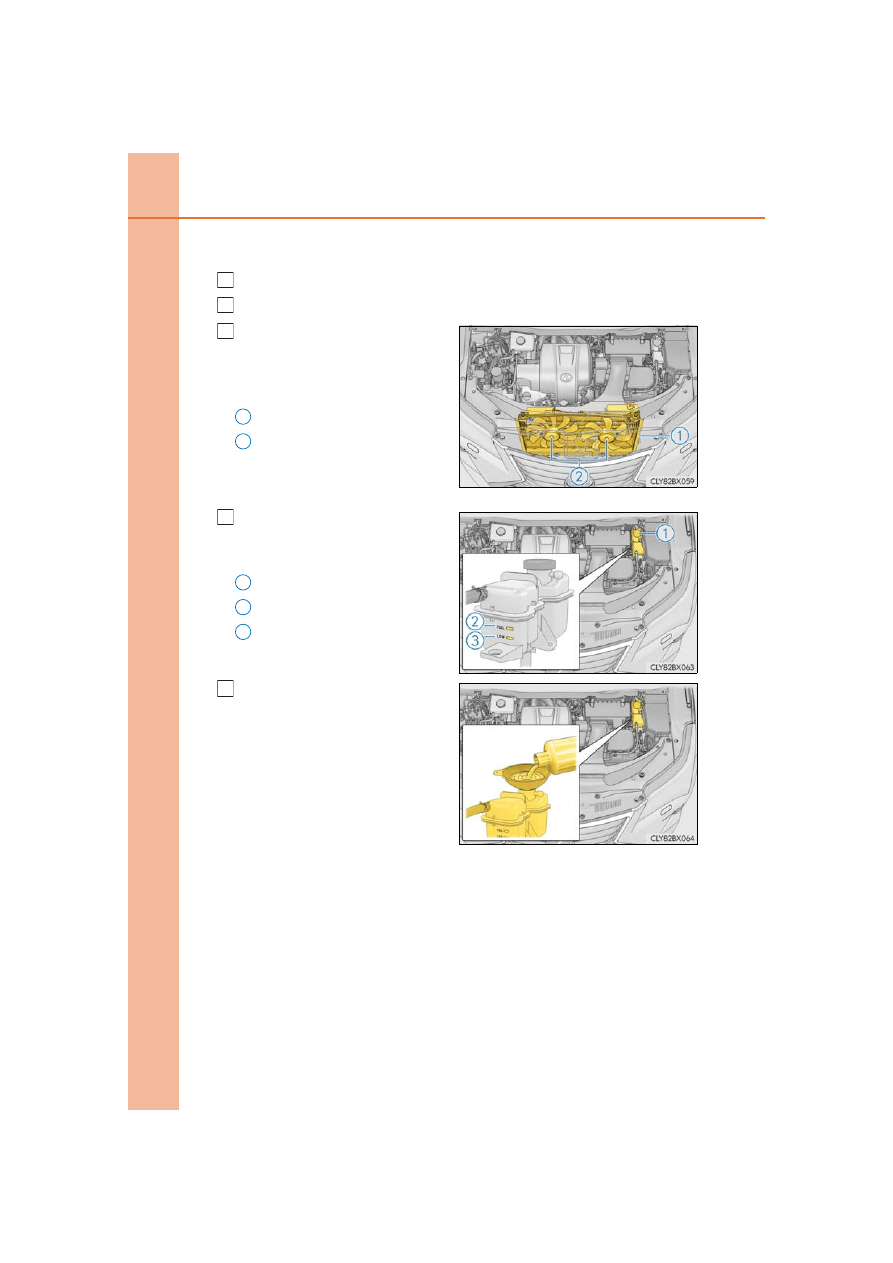

If “Hybrid System Overheated Reduced Output Power” is shown on the
multi-information display

Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has
cooled down, inspect the hoses
and radiator core (radiator) for
any leaks.

Radiator
Cooling fans

If a large amount of coolant leaks,

immediately contact your Lexus

dealer.

The coolant level is satisfactory if
it is between the “FULL” and
“LOW” lines on the reservoir.

Reservoir
“FULL” line
“LOW” line

Add coolant if necessary.

Water can be used in an emergency

if coolant is unavailable.

2
3

705

8-2. Steps to take in an emergency

When trouble

ari

ses

RX450h_RX450hL_U

Start the hybrid system and check if “Hybrid System Overheated Reduced
Output Power” is shown on the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.

WARNING

■

To prevent an accident or injury when inspecting under the hood of your vehicle
Observe the following precautions.

Failure to do so may result in serious injury such as burns.

●

If steam is seen coming from under the hood, do not open the hood until the steam

has subsided. The engine compartment may be very hot.

●

After the hybrid system has been turned off, check that the “READY” indicator is off.

When the hybrid system is operating, the gasoline engine may automatically start, or

the cooling fans may suddenly operate even if the gasoline engine stops. Do not

touch or approach rotating parts such as the fans, which may lead to fingers or cloth-

ing (especially a tie, a scarf or a muffler) getting caught, resulting in serious injury.

●

Do not loosen the radiator cap and the coolant reservoir caps while the hybrid system

and radiator are hot.

High temperature steam or coolant could spray out.

NOTICE

■

When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool

coolant to a hot hybrid system too quickly can cause damage to the hybrid system.

■

To prevent damage to the cooling system
Observe the following precautions:

●

Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).

●

Do not use any coolant additive.

706

8-2. Steps to take in an emergency

RX450h_RX450hL_U

Stop the hybrid system. Shift the shift lever to P and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels to help pro-
vide traction.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.

■

When it is difficult to free the vehicle

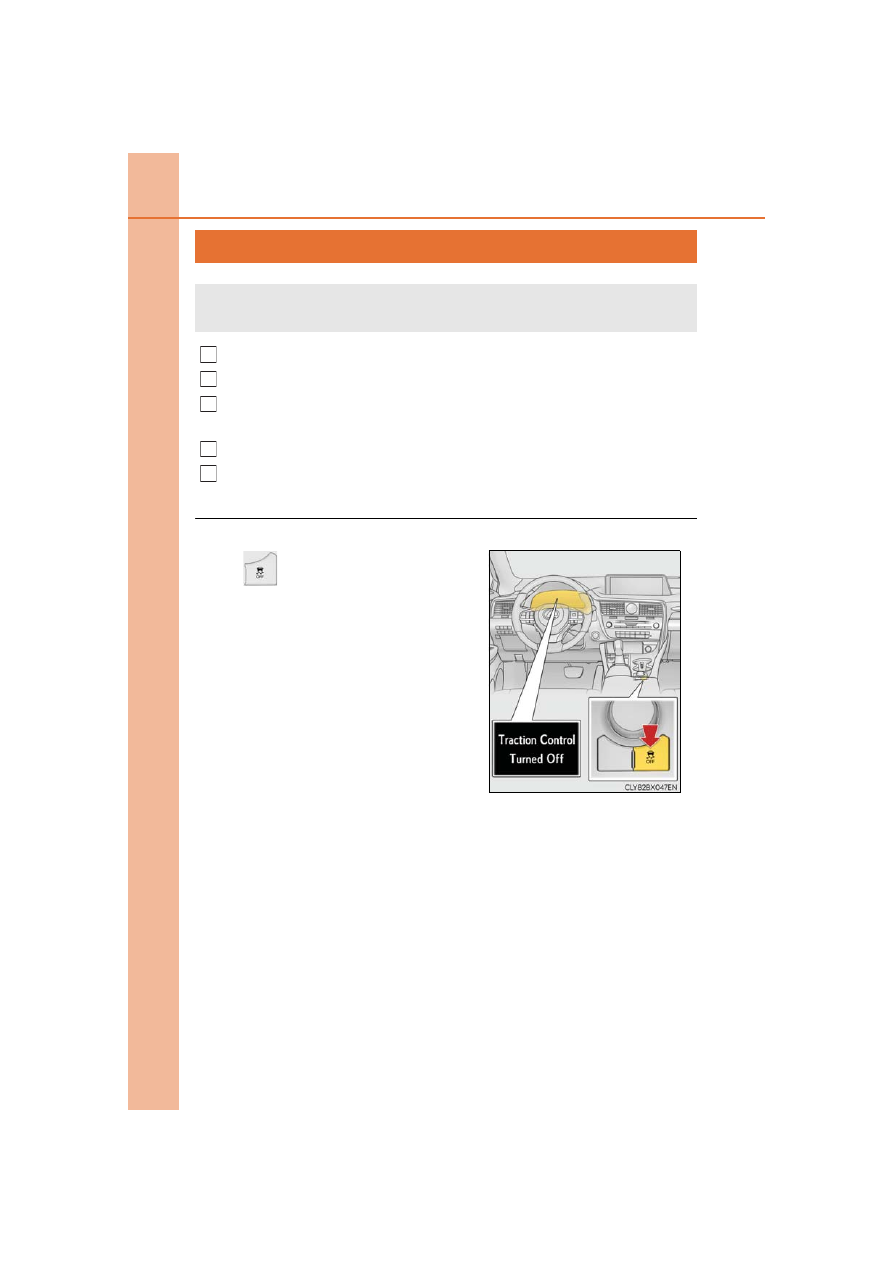

If the vehicle becomes stuck

Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:

Press

to turn off TRAC.

2
3

4
5

707

8-2. Steps to take in an emergency

When trouble

ari

ses

RX450h_RX450hL_U

WARNING

■

When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding

area is clear to avoid striking other vehicles, objects or people. The vehicle may also

lunge forward or lunge back suddenly as it becomes free. Use extreme caution.

■

When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.

This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-

dent resulting in death or serious injury.

NOTICE

■

To avoid damage to the hybrid transmission and other components

●

Avoid spinning the front wheels and depressing the accelerator pedal more than nec-

essary.

●

If the vehicle remains stuck even after these procedures are performed, the vehicle

may require towing to be freed.

710

RX450h_RX450hL_U

9-1. Specifications

: Unladen vehicle

: Vehicles with towing package

: RX450h

: RX450hL

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

192.5 in. (4890 mm)

196.9 in. (5000 mm)

Overall width

74.6 in. (1895 mm)

Overall height

67.7 in. (1720 mm)

Wheelbase

109.8 in. (2790 mm)

Tread

Front

64.4 in. (1635 mm)

64.5 in. (1640 mm)

Rear

64.0 in. (1625 mm)

64.1 in. (1630 mm)

Vehicle capacity weight

(Occupants + luggage)

920 lb. (420 kg)

1070 lb. (490 kg)

Trailer Weight Rating

(Trailer weight + cargo weight)

3500 lb. (1585 kg)

711

9-1. Specifications

icl

e spe

cif

atio

RX450h_RX450hL_U

■

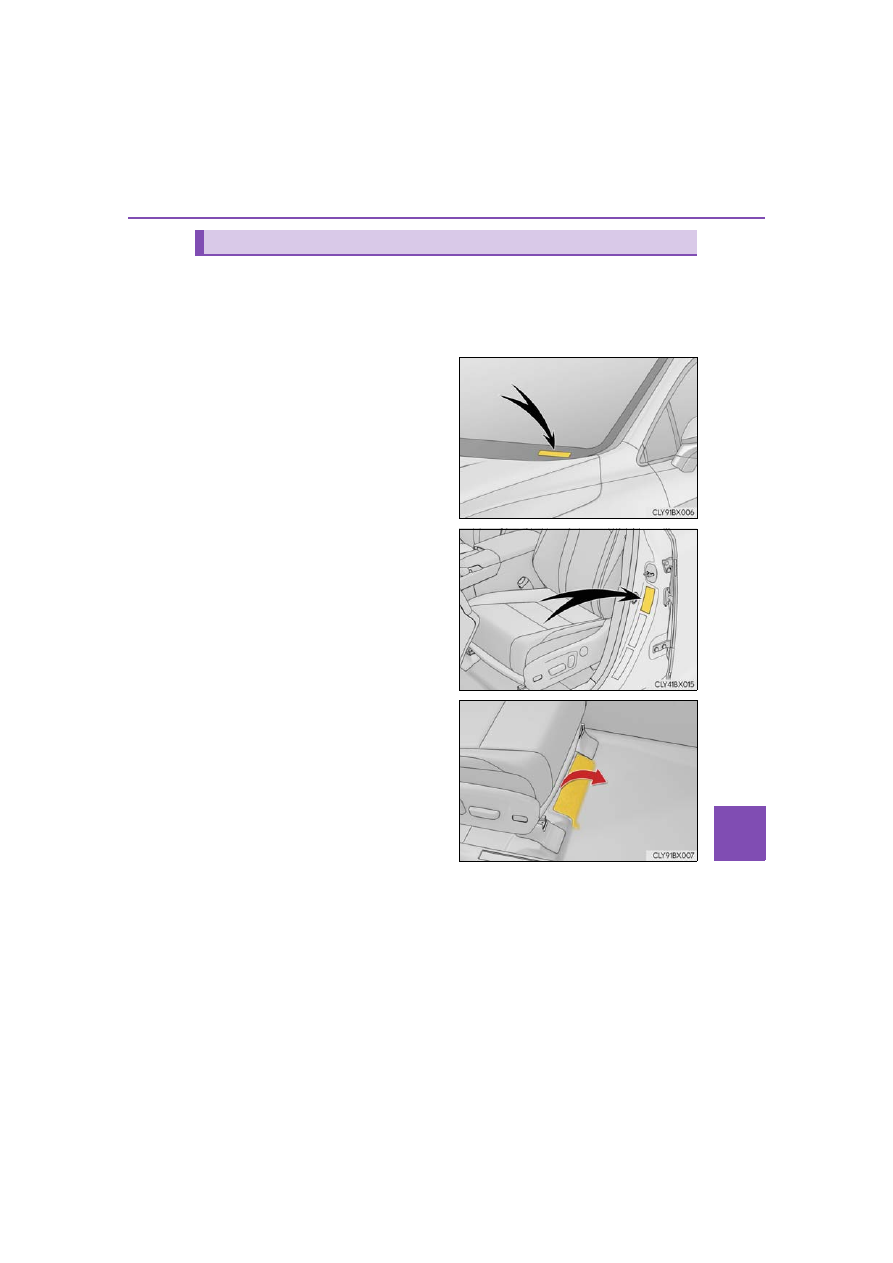

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.

This number is also on the Certifica-
tion Label.

On some models, this number is also
stamped under the right-hand front
seat.

Vehicle identification

712

9-1. Specifications

RX450h_RX450hL_U

■

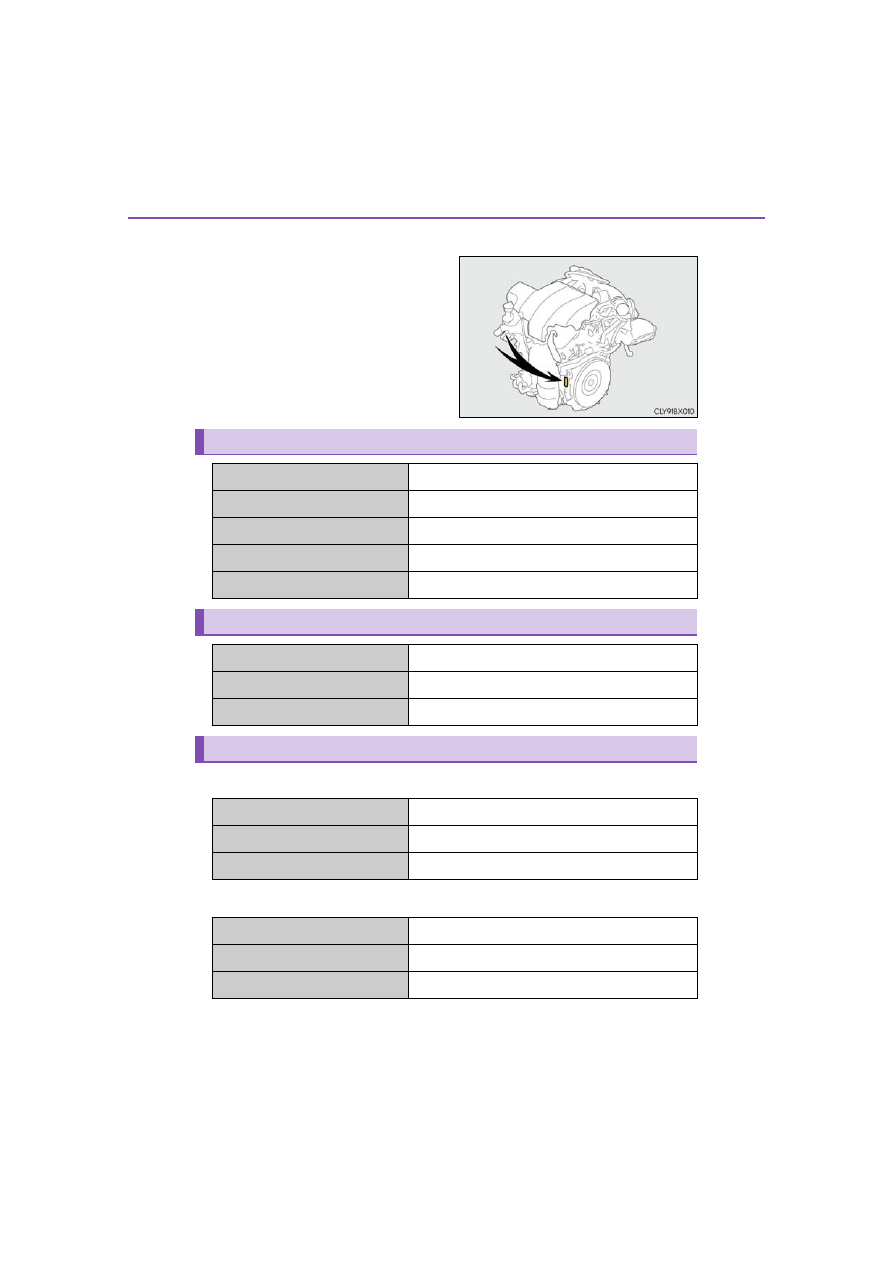

Engine number
The engine number is stamped on
the engine block as shown.



Front



Rear

Engine

Model

3.5 L 6-cylinder (2GR-FXS)

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70

 3.27 in. (94.0  83.0 mm)

Displacement

210.9 cu. in. (3456 cm

)

Valve clearance (engine cold)

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

91 (Research Octane Number 96) or higher

Fuel tank capacity (Reference)

17.2 gal. (65 L, 14.3 Imp. gal.)

Electric motor (traction motor)

Type

Permanent magnet synchronous motor

Maximum output

123 kW

Maximum torque

247 ft•lbf (335 N•m, 34.2 kgf•m)

Type

Permanent magnet synchronous motor

Maximum output

50 kW

Maximum torque

103 ft•lbf (139 N•m, 14.2 kgf•m)

713

9-1. Specifications

icl

e spe

cif

atio

RX450h_RX450hL_U

: The engine oil capacity is a reference quantity to be used when changing the engine

oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.

Hybrid battery (traction battery)

Type

Nickel-Metal hydride battery

Voltage

9.6 V/module

Capacity

6.5 Ah (3HR)

Quantity

30 modules

Overall voltage

288 V

Lubrication system

Oil capacity

(Drain and refill — reference

)

With filter



Vehicles with towing package

5.8 qt. (5.5 L, 4.8 Imp. qt.)



Vehicles without towing package

5.7 qt. (5.4 L, 4.8 Imp. qt.)

Without filter

5.6 qt. (5.3 L, 4.7 Imp. qt.)

714

9-1. Specifications

RX450h_RX450hL_U

■

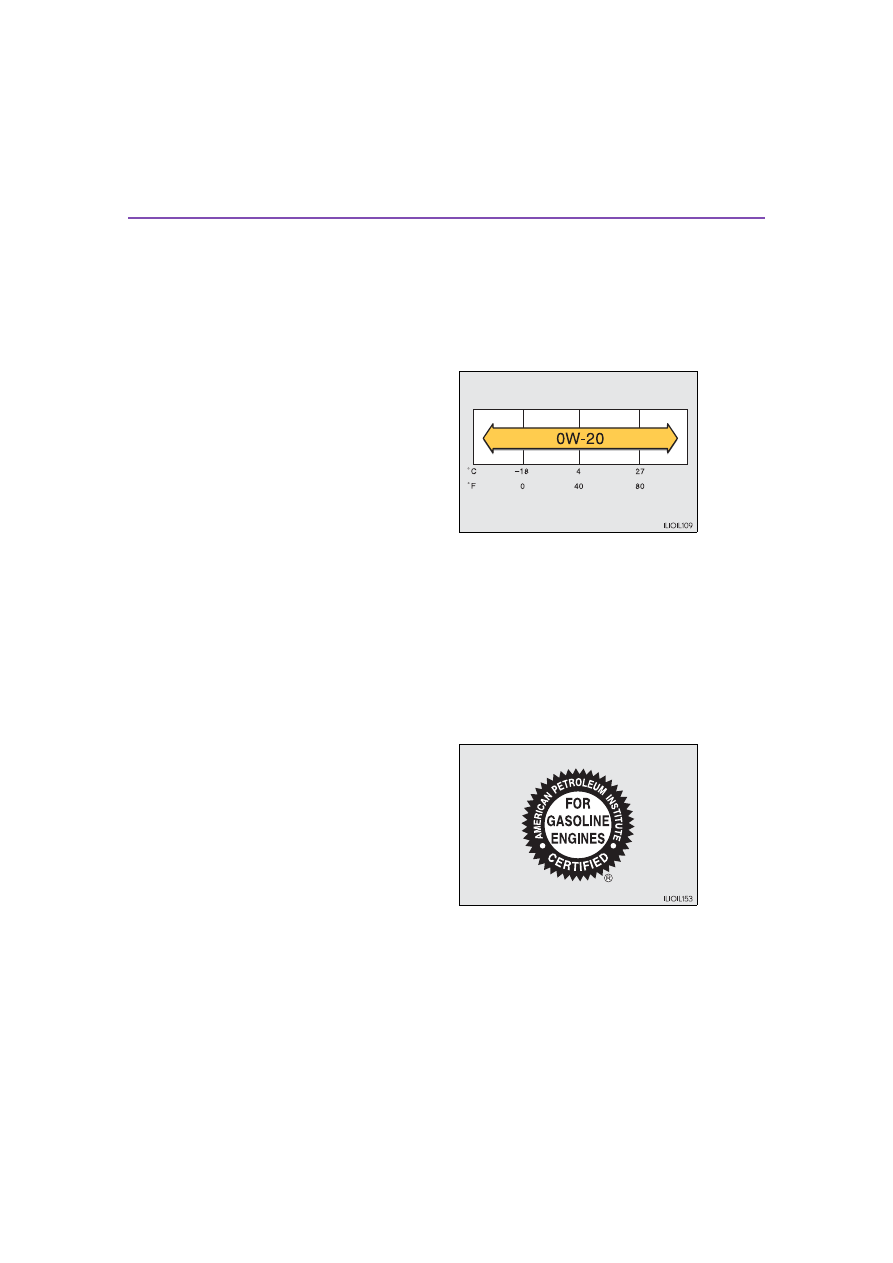

Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.

Outside temperature

715

9-1. Specifications

icl

e spe

cif

atio

RX450h_RX450hL_U

: The coolant capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

Cooling system

Capacity

Gasoline

engine



RX450h

10.7 qt. (10.1 L, 8.9 Imp. qt.)



RX450hL

13.2 qt. (12.5 L, 11 Imp. qt.)

Power control

unit

2.0 qt. (1.9 L, 1.7 Imp. qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”

• Similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and non-

borate coolant with long-life hybrid organic

acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make

DENSO FK20HBR8

Gap

0.03 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

12-volt battery

Open voltage at 68

F (20C):

12.6 V or higher: Fully charged

12.2 — 12.4 V: Half charged

12.0 V or lower: Discharged

(Voltage is checked 20 minutes after the hybrid

system and all lights are turned off.)

Charging rates

5 A max.

716

9-1. Specifications

RX450h_RX450hL_U

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50.0 kgf)

while the hybrid system is operating.

Hybrid transmission

Fluid capacity

5.1 qt. (4.8 L, 4.2 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may ultimately damage

the hybrid transmission of your vehicle.

Rear differential (Rear electric motor)

Fluid capacity

1.9 qt. (1.8 L, 1.6 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Hybrid transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may ultimately damage

the hybrid transmission of your vehicle.

Brakes

Pedal clearance

3.7 in. (95 mm) Min.

Brake pad wear limit

0.04 in. (1.0 mm)

Pedal free play

0.04 — 0.24 in. (1.0 — 6.0 mm)

Fluid type

FMVSS No. 116 DOT 3 or SAE J1703

717

9-1. Specifications

icl

e spe

cif

atio

RX450h_RX450hL_U



Type A

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

235/65R18 106V, T165/90D18 107M (spare)

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front tire

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Rear tire

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Spare tire

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph [160 km/h])

(in countries where such speeds are permitted by

law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to the

front and rear tires. Never exceed the maximum

cold tire inflation pressure indicated on the tire

sidewall.

Wheel size

 8 J, 18  4 T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

718

9-1. Specifications

RX450h_RX450hL_U



Type B

Tire size

235/55R20 102V, T165/90D18 107M (spare)

Tire inflation pressure

(Recommended cold tire

inflation pressure)

RX450h:

Front tire

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Rear tire

33 psi (230 kPa, 2.3 kgf/cm

or bar)

Spare tire

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph [160 km/h])

(in countries where such speeds are permitted by

law)

Add 11 psi (70 kPa, 0.7 kgf/cm

or bar) to the

front and rear tires. Never exceed the maximum

cold tire inflation pressure indicated on the tire

sidewall.

RX450hL:

Front tire

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear tire

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare tire

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph [160 km/h])

(in countries where such speeds are permitted by

law)

Add 9 psi (62 kPa, 0.6 kgf/cm

or bar) to the

front and rear tires. Never exceed the maximum

cold tire inflation pressure indicated on the tire

sidewall.

Wheel size

 8 J, 18  4 T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

719

9-1. Specifications

icl

e spe

cif

atio

RX450h_RX450hL_U

Light bulbs

Bulb No.

Type

Exterior

Front side marker lights



Front turn signal lights

7444NA

28/8

Rear turn signal lights



Back-up lights

921

Interior

Door courtesy lights



Vanity lights



Luggage compartment light



A: Wedge base bulbs (amber)

B: Wedge base bulbs (clear)

: Vehicles with single-beam headlights

: Vehicles without door trim ornament lights

LEXUS RX 450HL (2019 year). Instruction - part 44
