LEXUS RX 450HL (2019 year). Instruction - part 17

272

4-3. Operating the lights and wipers

RX450h_RX450hL_U

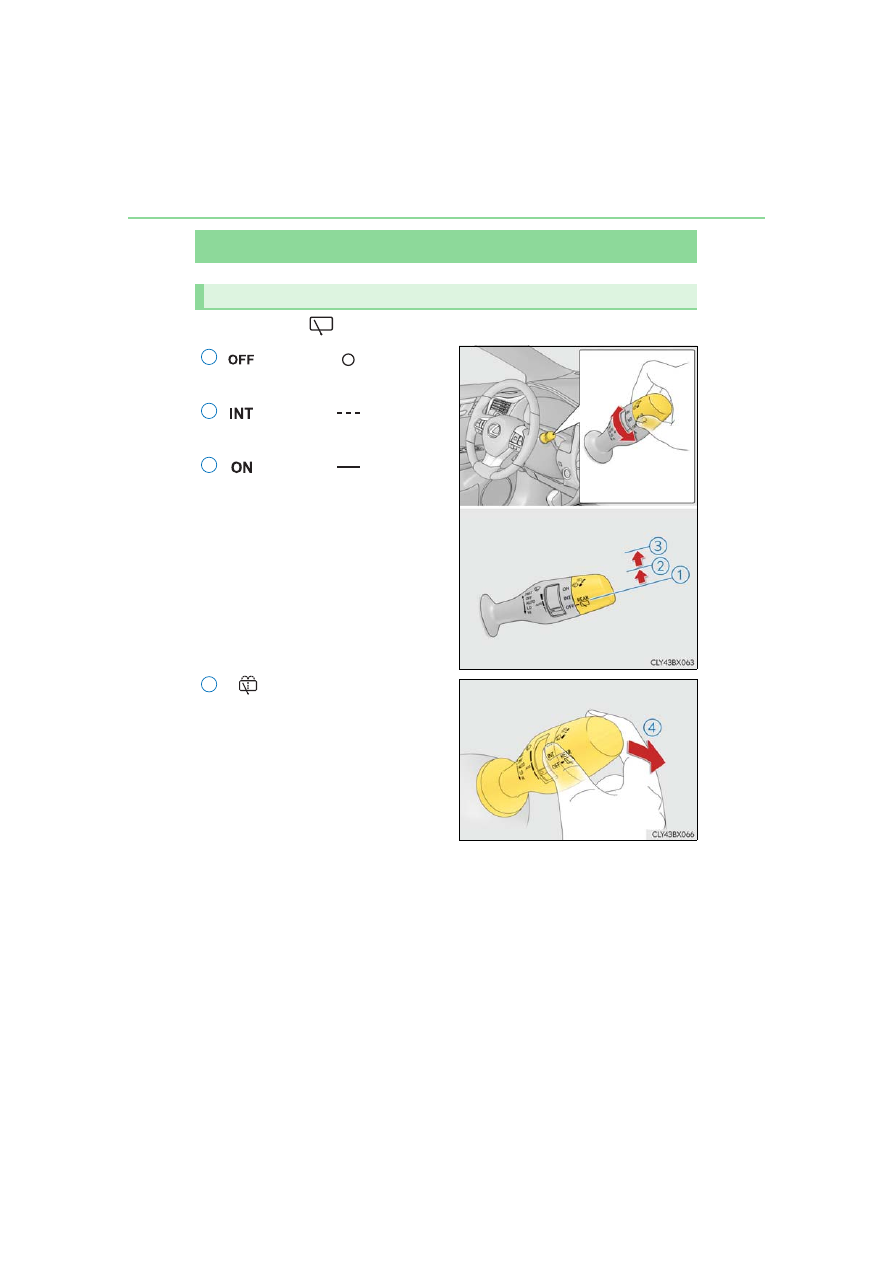

Operating the

switch operates the rear wiper as follows:

(U.S.A.) or

(Canada)

Off

(U.S.A.) or

(Canada)

Intermittent operation

(U.S.A.) or

(Canada)

Normal operation

Washer/wiper dual opera-
tion

Pushing the lever operates the wiper

and washer.
The wiper will automatically operate a

couple of times after the washer squirts.

Rear window wiper and washer

Operating the wiper lever

273

4-3. Operating the lights and wipers

iving

RX450h_RX450hL_U

■

The rear window wiper and washer can be operated when
The power switch is in ON mode.

■

If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the washer fluid

tank.

NOTICE

■

When the rear window is dry
Do not use the wiper, as it may damage the rear window.

■

When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.

■

When a nozzle becomes blocked
In this case, contact your Lexus dealer.

Do not try to clear it with a pin or other object. The nozzle will be damaged.

274

RX450h_RX450hL_U

4-4. Refueling

●

Close all the doors and windows, and turn the power switch off.

●

Confirm the type of fuel.

■

Fuel types
P. 720

■

Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only accom-

modates the special nozzle on unleaded fuel pumps.

Opening the fuel tank cap

The fuel tank of your vehicle has a special structure, which requires a reduc-
tion in fuel tank pressure before refueling. After the opener switch has been
pressed, it will take several seconds until the vehicle is ready for refueling.

Before refueling the vehicle

275

4-4. Refueling

iving

RX450h_RX450hL_U

WARNING

■

When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may

result in death or serious injury.

●

After exiting the vehicle and before opening the fuel door, touch an unpainted metal

surface to discharge any static electricity. It is important to discharge static electricity

before refueling because sparks resulting from static electricity can cause fuel vapors

to ignite while refueling.

●

Always hold the grips on the fuel tank cap and turn it slowly to remove it.

A whooshing sound may be heard when the fuel tank cap is loosened. Wait until the

sound cannot be heard before fully removing the cap. In hot weather, pressurized fuel

may spray out of the filler neck and cause injury.

●

Do not allow anyone that has not discharged static electricity from their body to come

close to an open fuel tank.

●

Do not inhale vaporized fuel.

Fuel contains substances that are harmful if inhaled.

●

Do not smoke while refueling the vehicle.

Doing so may cause the fuel to ignite and cause a fire.

●

Do not return to the vehicle or touch any person or object that is statically charged.

This may cause static electricity to build up, resulting in a possible ignition hazard.

■

When refueling
Observe the following precautions to prevent fuel overflowing from the fuel tank:

●

Securely insert the fuel nozzle into the fuel filler neck.

●

Stop filling the tank after the fuel nozzle automatically clicks off.

●

Do not top off the fuel tank.

NOTICE

■

Refueling

●

Finish refueling within 30 minutes. If more than 30 minutes passes, the internal valve

closes. In this condition, fuel may overflow during the refueling process. Press the fuel

filler door opener switch again.

●

Do not spill fuel during refueling.

Doing so may damage the vehicle, such as causing the emission control system to

operate abnormally or damaging fuel system components or the vehicle’s painted

surface.

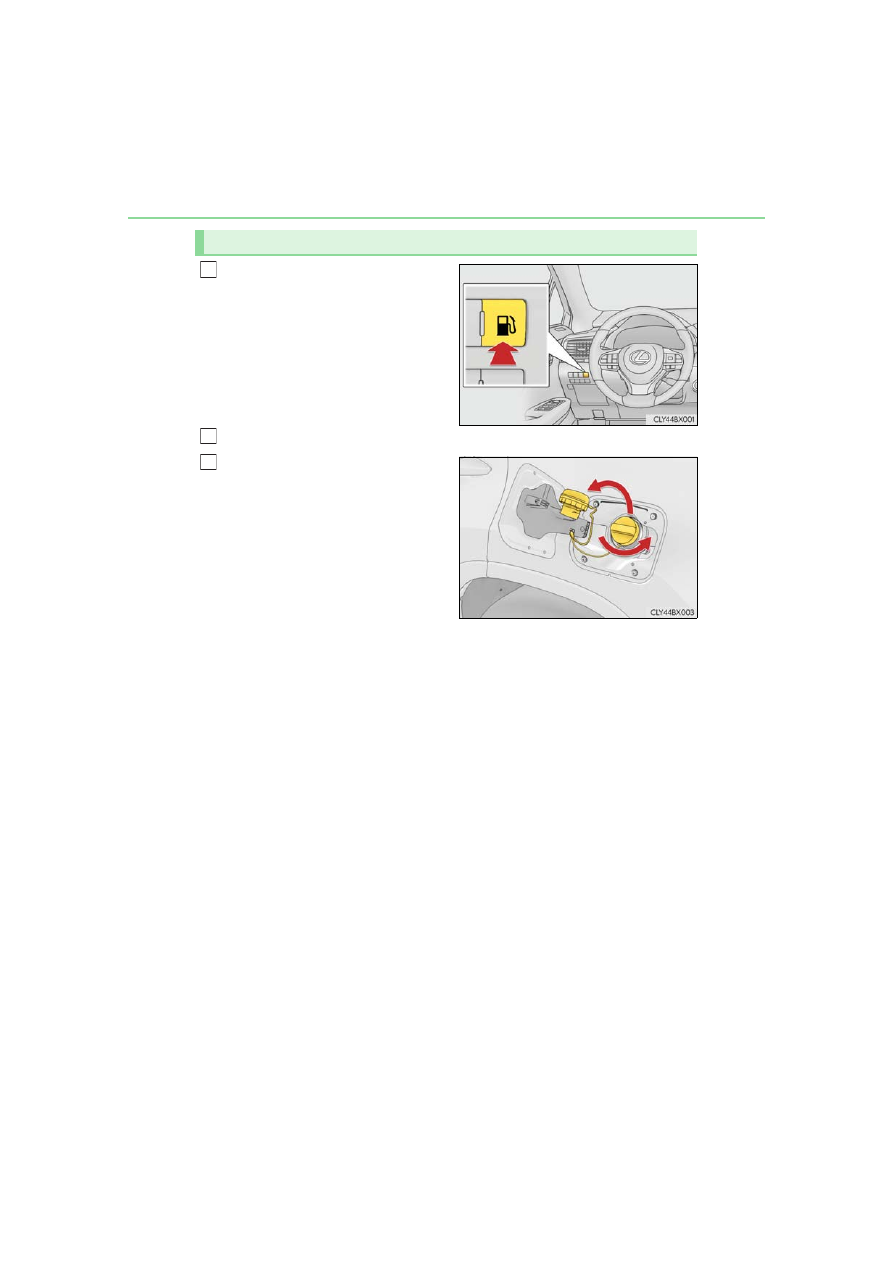

276

4-4. Refueling

RX450h_RX450hL_U

Press the switch to open the fuel
filler door.

The fuel filler door will open within about

10 seconds of the switch being pressed.

Before refueling is possible, a message

will be shown on the multi-information

display in the instrument cluster to indi-

cate the progress of the fuel filler door

opener.

Open the fuel filler door until it is securely locked.
Turn the fuel tank cap slowly and
remove it, then put it into the holder
on the fuel filler door.

Opening the fuel tank cap

277

4-4. Refueling

iving

RX450h_RX450hL_U

■

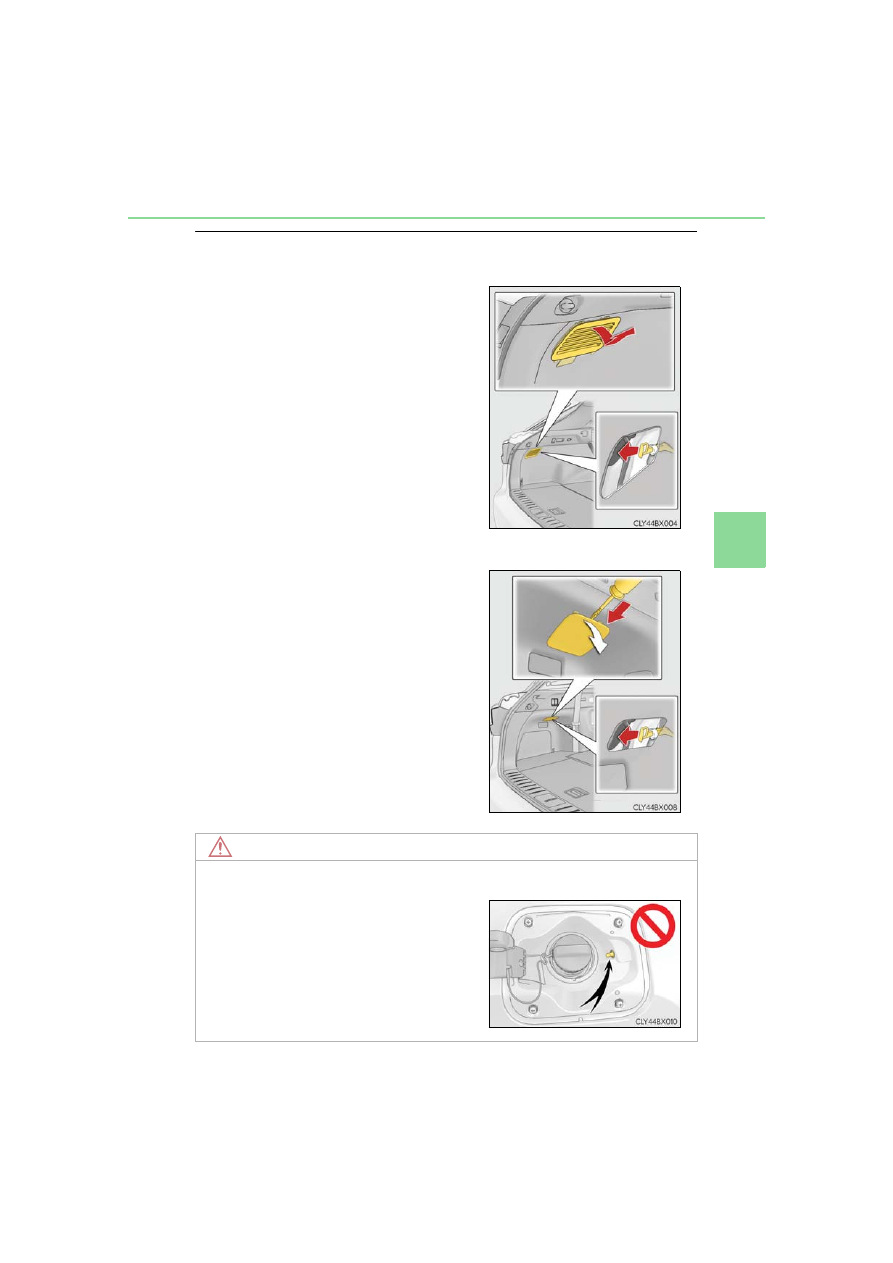

When the fuel filler door cannot be opened by pressing the inside switch



RX450h



RX450hL

●

If the fuel filler door cannot be opened by

pressing the rear edge of the fuel filler door

with the doors unlocked, remove the cover

inside the luggage compartment and pull the

lever to open the fuel filler door.

●

Using the lever to open the fuel filler door may

not allow for an adequate reduction in fuel

tank pressure before refueling. To prevent fuel

from spilling out, turn the cap slowly when

removing it.

During refueling, fuel may spill out from the

filler opening due to air being discharged from

inside the fuel tank. Therefore, fill the fuel tank

carefully and slowly.

If the fuel filler door cannot be opened by press-

ing its rear edge with the doors unlocked,

remove the cover inside the luggage compart-

ment using a tool, such as a flathead screw-

driver, and pull the lever to open the fuel filler

door.

When using a screwdriver, make sure to wrap its

tip with tape to protect the cover.

NOTICE

■

When refueling
When refueling your vehicle, make sure that

the fuel filler door lock is not pushed by the fuel

nozzle boot, etc., as this may cause a valve to

close, possibly resulting in a fuel spill.
If the fuel filler door lock has been pushed,

operate the fuel filler door opener switch in the

vehicle before continuing to refuel.

278

4-4. Refueling

RX450h_RX450hL_U

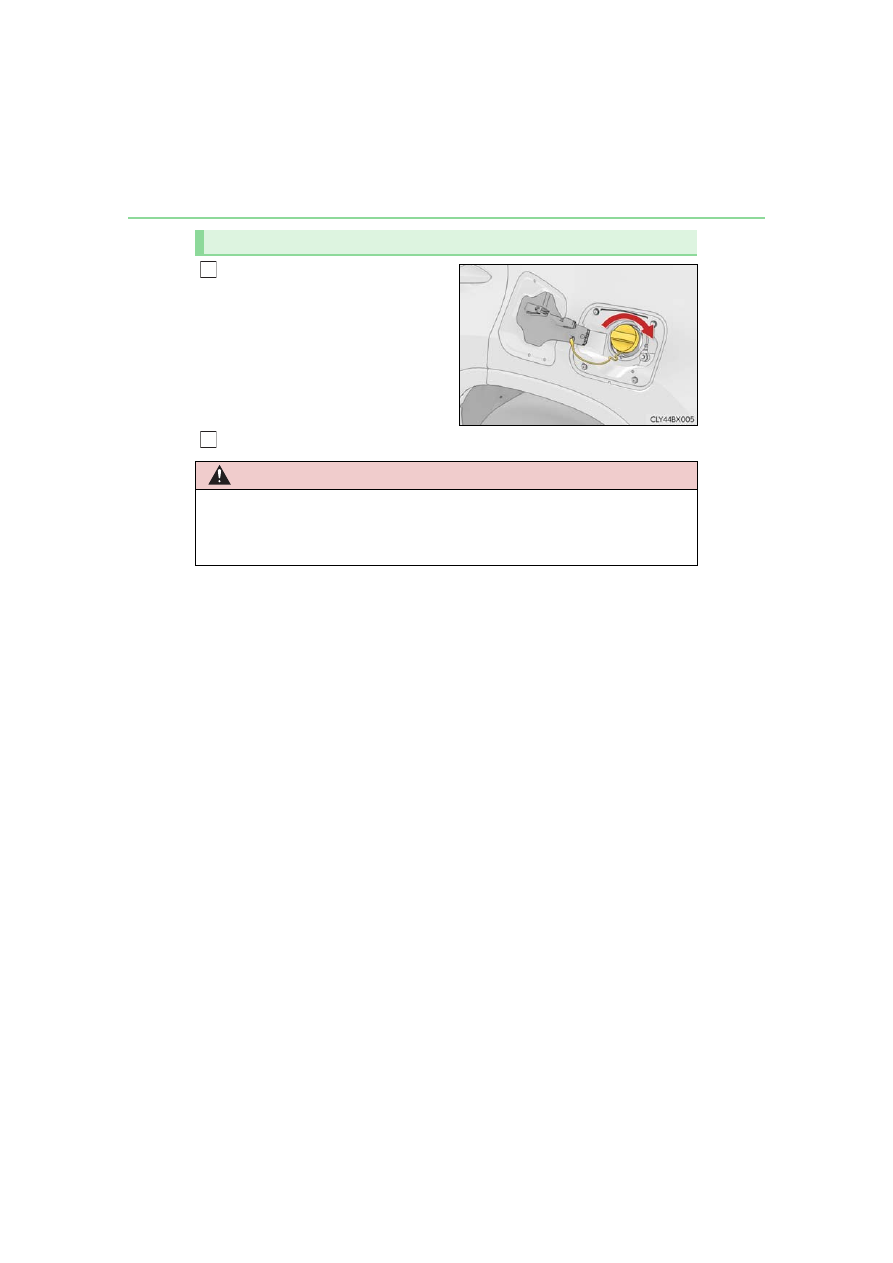

After refueling, turn the fuel tank cap
until you hear a click. Once the cap
is released, it will turn slightly in the
opposite direction.

Close the fuel filler door.

Closing the fuel tank cap

WARNING

■

When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle. Doing

so may cause a fire or other incident which may result in death or serious injury.

279

iving

RX450h_RX450hL_U

4-5. Using the driving support systems

◆

PCS (Pre-Collision System)

P. 286

◆

LKA (Lane-Keeping Assist)

P. 297

◆

Automatic High Beam

P. 262

◆

Dynamic radar cruise control with full-speed range

P. 306

Lexus Safety System+

The Lexus Safety System+ consists of the following drive assist systems and
contributes to a safe and comfortable driving experience:

WARNING

■

Lexus Safety System+
The Lexus Safety System+ is designed to operate under the assumption that the driver

will drive safely, and is designed to help reduce the impact to the occupants and the

vehicle in the case of a collision or assist the driver in normal driving conditions.
As there is a limit to the degree of recognition accuracy and control performance that

this system can provide, do not overly rely on this system. The driver is always responsi-

ble for paying attention to the vehicle's surroundings and driving safely.

280

4-5. Using the driving support systems

RX450h_RX450hL_U

The pre-collision system is equipped with a sophisticated computer that will
record certain data, such as:

• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the pre-collision system functions
• Information (such as the distance and relative speed between your vehicle

and the vehicle ahead or other objects)

• Images from the camera sensor (available only when the pre-collision braking

function or the pre-collision brake assist function was operating)

The pre-collision system does not record conversations, sounds or images of the
inside of the vehicle.

●

Data usage
Lexus may use the data recorded in this computer to diagnose malfunctions,
conduct research and development, and improve quality.
Lexus will not disclose the recorded data to a third party except:

• With the consent of the vehicle owner or with the consent of the lessee if

the vehicle is leased

• In response to an official request by the police, a court of law or a govern-

ment agency

• For use by Lexus in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or

vehicle owner

●

Recorded images can be erased using a specialized device.
The image recording function can be disabled. However, if the function is dis-
abled, data from when the pre-collision system operates will not be available.

Vehicle data recording

281

4-5. Using the driving support systems

iving

RX450h_RX450hL_U

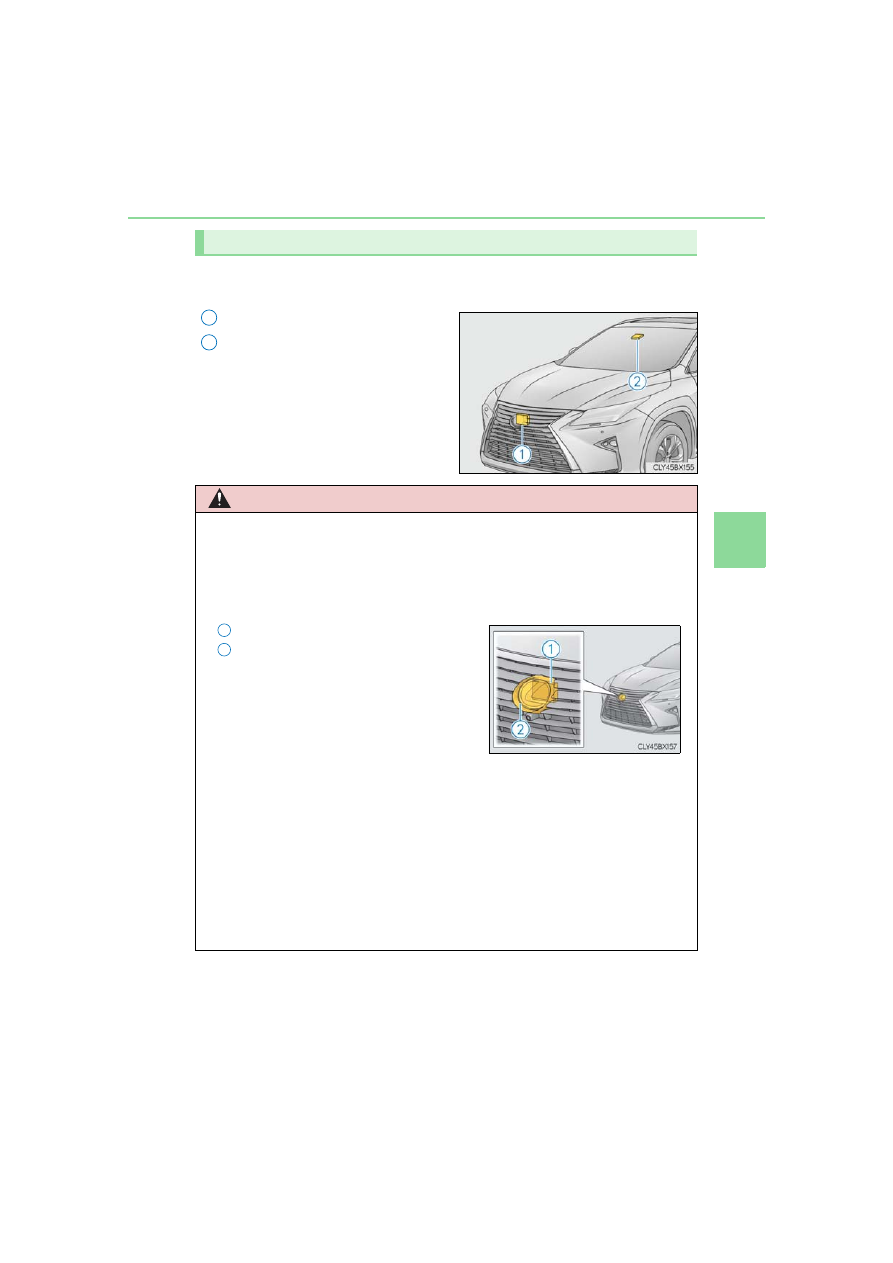

Two types of sensors, located behind the front grille and windshield, detect infor-
mation necessary to operate the drive assist systems.

Radar sensor
Camera sensor

Sensors

WARNING

■

To avoid malfunction of the radar sensor
Observe the following precautions.
Otherwise, the radar sensor may not operate properly, possibly leading to an accident

resulting in death or serious injury.

●

Keep the radar sensor and front grille emblem clean at all times.

●

Do not attach accessories, stickers (including transparent stickers) or other items to

the radar sensor, front grille emblem or surrounding area.

●

Do not subject the radar sensor or surrounding area to a strong impact.

If the radar sensor, front grille, or front bumper has been subjected to a strong impact,

have the vehicle inspected by your Lexus dealer.

●

Do not disassemble the radar sensor.

●

Do not modify or paint the radar sensor, front grille emblem or surrounding area.

●

If the radar sensor, front grille, or front bumper needs to be removed and installed, or

replaced, contact your Lexus dealer.

Radar sensor
Front grille emblem

If the front of the radar sensor or the front or

back of the front grille emblem is dirty or

covered with water droplets, snow, etc., clean

it.
Clean the radar sensor and front grille

emblem with a soft cloth so you do not mark

or damage them.

282

4-5. Using the driving support systems

RX450h_RX450hL_U

WARNING

■

To avoid malfunction of the camera sensor
Observe the following precautions.
Otherwise, the camera sensor may not operate properly, possibly leading to an acci-

dent resulting in death or serious injury.

●

Keep the windshield clean at all times.
• If the windshield is dirty or covered with an oily film, water droplets, snow, etc.,

clear the windshield.

• If a glass coating agent is applied to the windshield, it will still be necessary to use

the windshield wipers to remove water droplets, etc. from the area of the wind-

shield in front of the camera sensor.

• If the inner side of the windshield where the camera sensor is installed is dirty, con-

tact your Lexus dealer.

●

If the part of the windshield in front of the camera sensor is fogged up or covered with

condensation or ice, use the windshield defogger to remove the fog, condensation or

ice. (

P. 516)

●

If water droplets cannot be properly removed from the area of the windshield in front

of the camera sensor by the windshield wipers, replace the wiper insert or wiper

blade.
• To replace the wiper insert:

P. 628

• If the wiper blades need to be replaced, contact your Lexus dealer.

●

Do not attach window tinting to the windshield.

●

Replace the windshield if it is damaged or cracked.

If the windshield needs to be replaced, contact your Lexus dealer.

●

Do not get the camera sensor wet.

●

Do not allow bright lights to shine into the camera sensor.

●

Do not dirty or damage the camera sensor.

When cleaning the inside of the windshield, do not allow glass cleaner to contact the

lens. Also, do not touch the lens.

If the lens is dirty or damaged, contact your Lexus dealer.

●

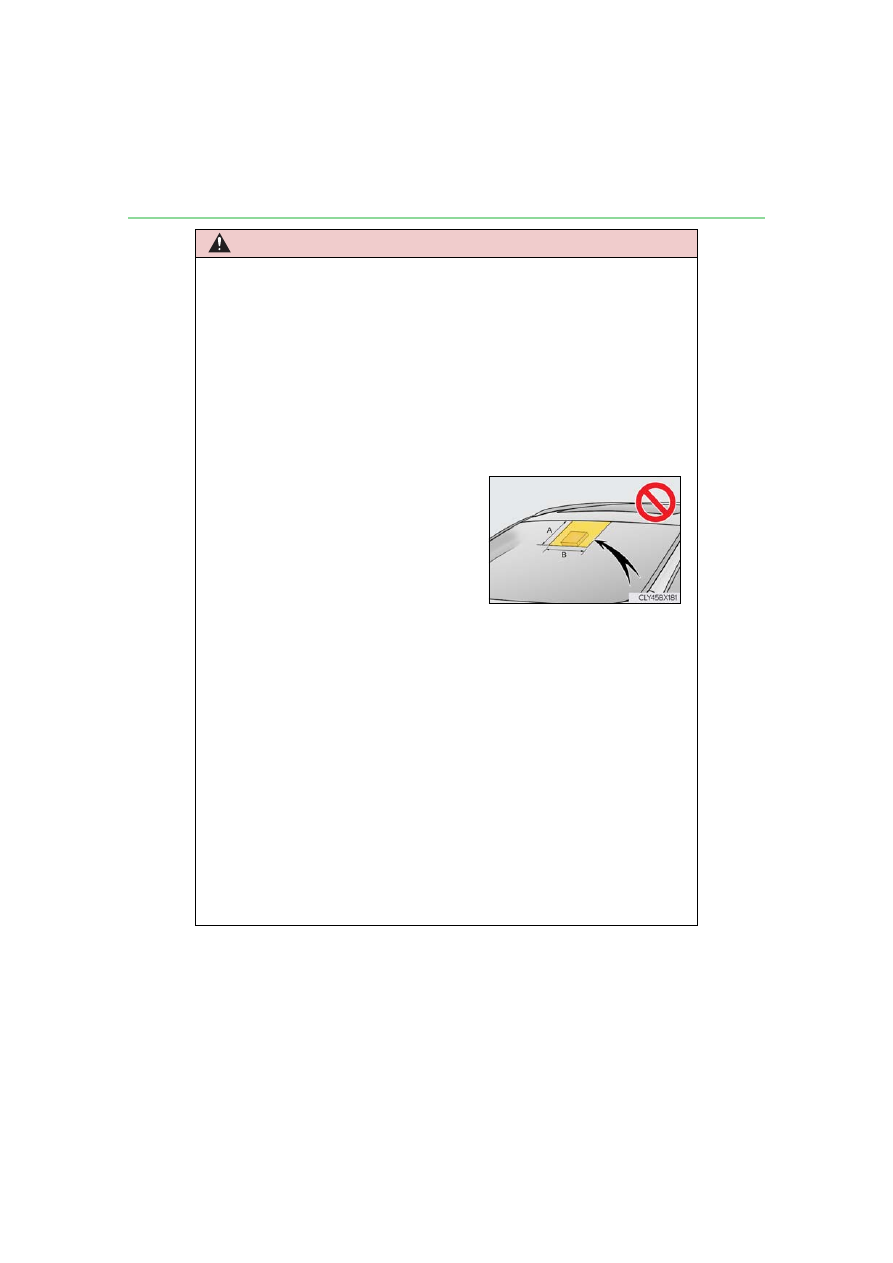

Do not attach objects, such as stickers, trans-

parent stickers, and so forth, to the outer side

of the windshield in front of the camera sensor

(shaded area in the illustration).

A: From the top of the windshield to approxi-

mately 0.4 in. (1 cm) below the bottom of the

camera sensor

B: Approximately 7.9 in. (20 cm) (Approxi-

mately 4.0 in. [10 cm] to the right and left

from the center of the camera sensor)

283

4-5. Using the driving support systems

iving

RX450h_RX450hL_U

WARNING

●

Do not subject the camera sensor to a strong impact.

●

Do not change the installation position or direction of the camera sensor or remove it.

●

Do not disassemble the camera sensor.

●

Do not modify any components of the vehicle around the camera sensor (inside rear

view mirror, etc.) or ceiling.

●

Do not attach any accessories that may obstruct the camera sensor to the hood, front

grille or front bumper. Contact your Lexus dealer for details.

●

If a surfboard or other long object is to be mounted on the roof, make sure that it will

not obstruct the camera sensor.

●

Do not modify the headlights or other lights.

284

4-5. Using the driving support systems

RX450h_RX450hL_U

■

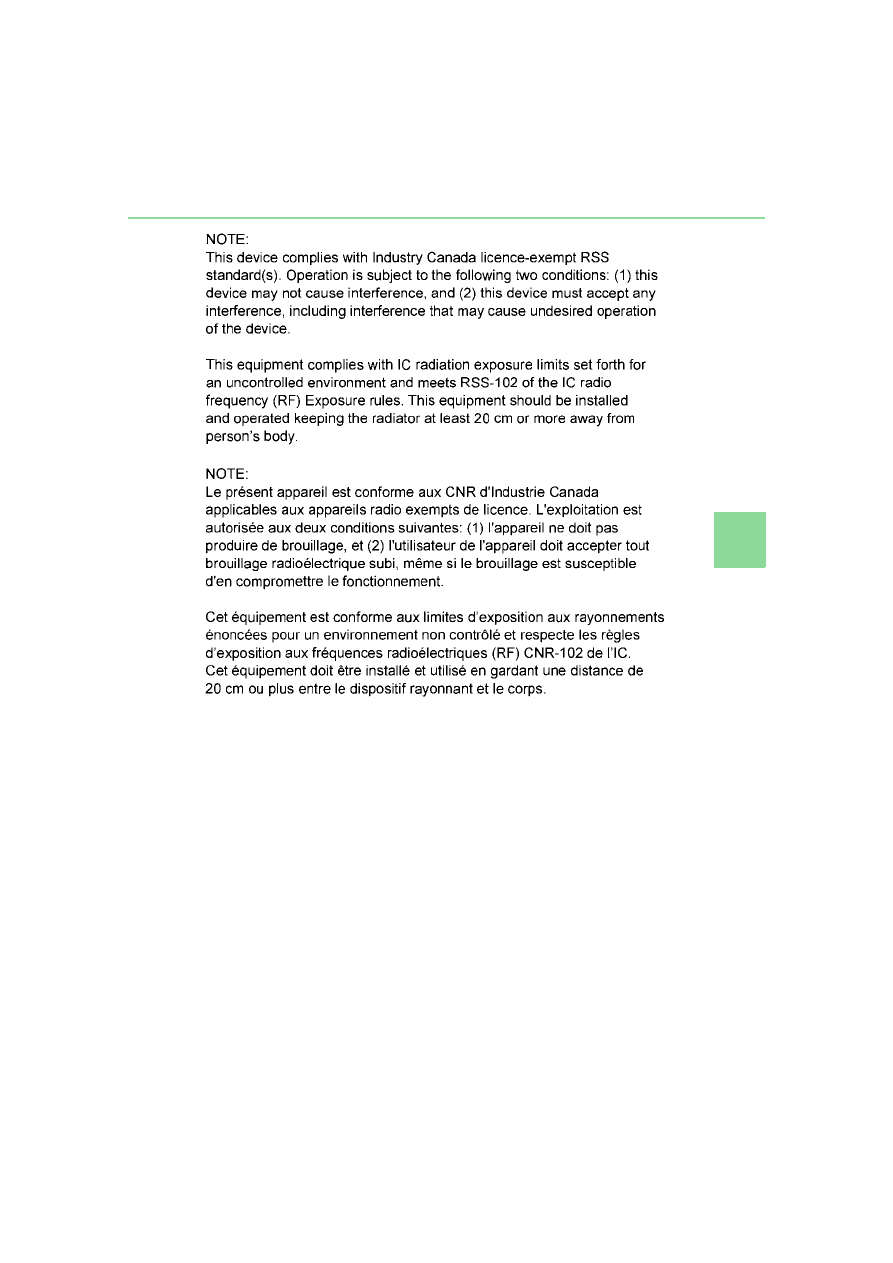

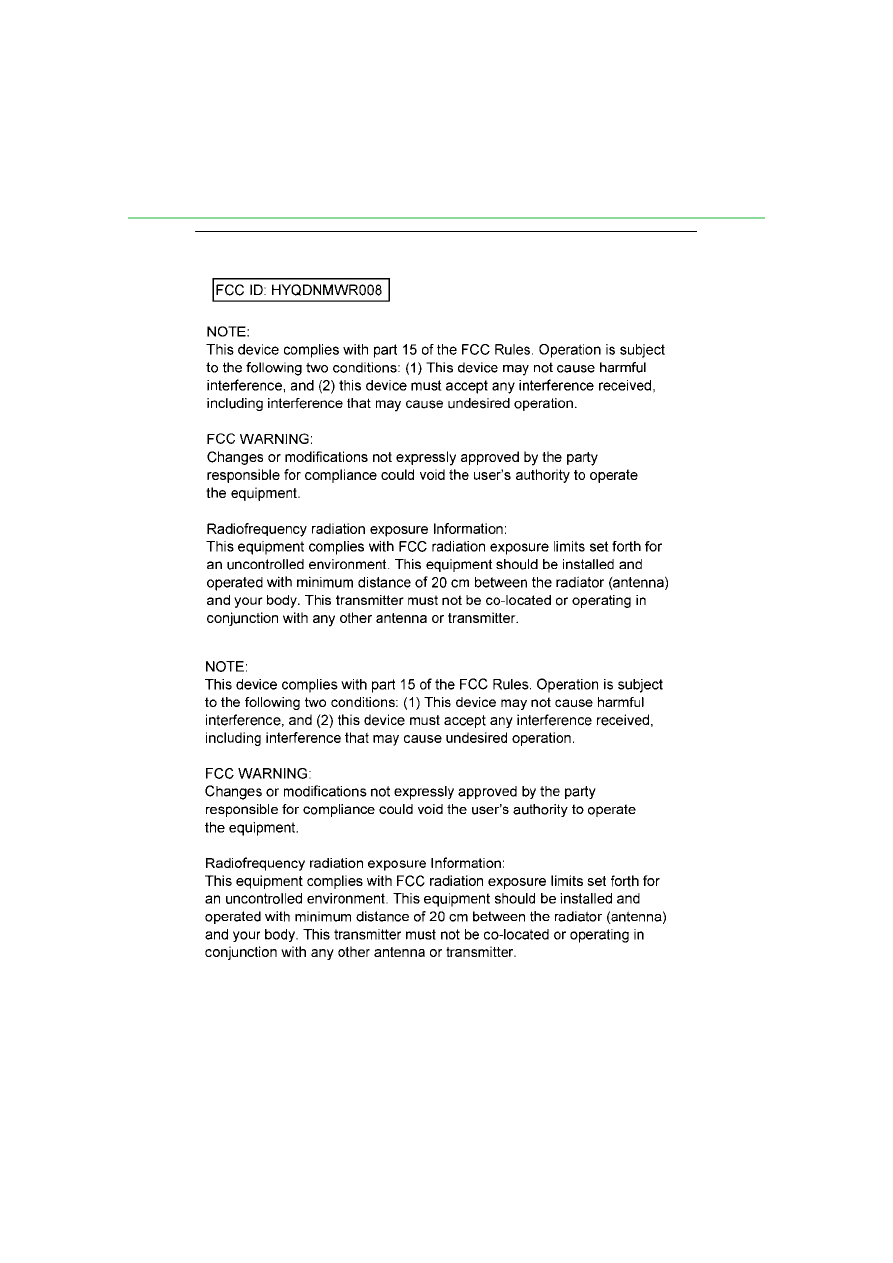

Certification

285

4-5. Using the driving support systems

iving

RX450h_RX450hL_U

286

4-5. Using the driving support systems

RX450h_RX450hL_U

PCS (Pre-Collision System)

The pre-collision system uses a radar sensor and camera sensor to detect
vehicles and pedestrians

in front of your vehicle. When the system determines

that the possibility of a frontal collision with a vehicle or pedestrian is high, a
warning operates to urge the driver to take evasive action and the potential
brake pressure is increased to help the driver avoid the collision. If the system
determines that the possibility of a frontal collision with a vehicle or pedes-
trian is extremely high, the brakes are automatically applied to help avoid the
collision or help reduce the impact of the collision.

The pre-collision system can be disabled/enabled and the warning timing can
be changed. (

P. 290)

287

4-5. Using the driving support systems

iving

RX450h_RX450hL_U

◆

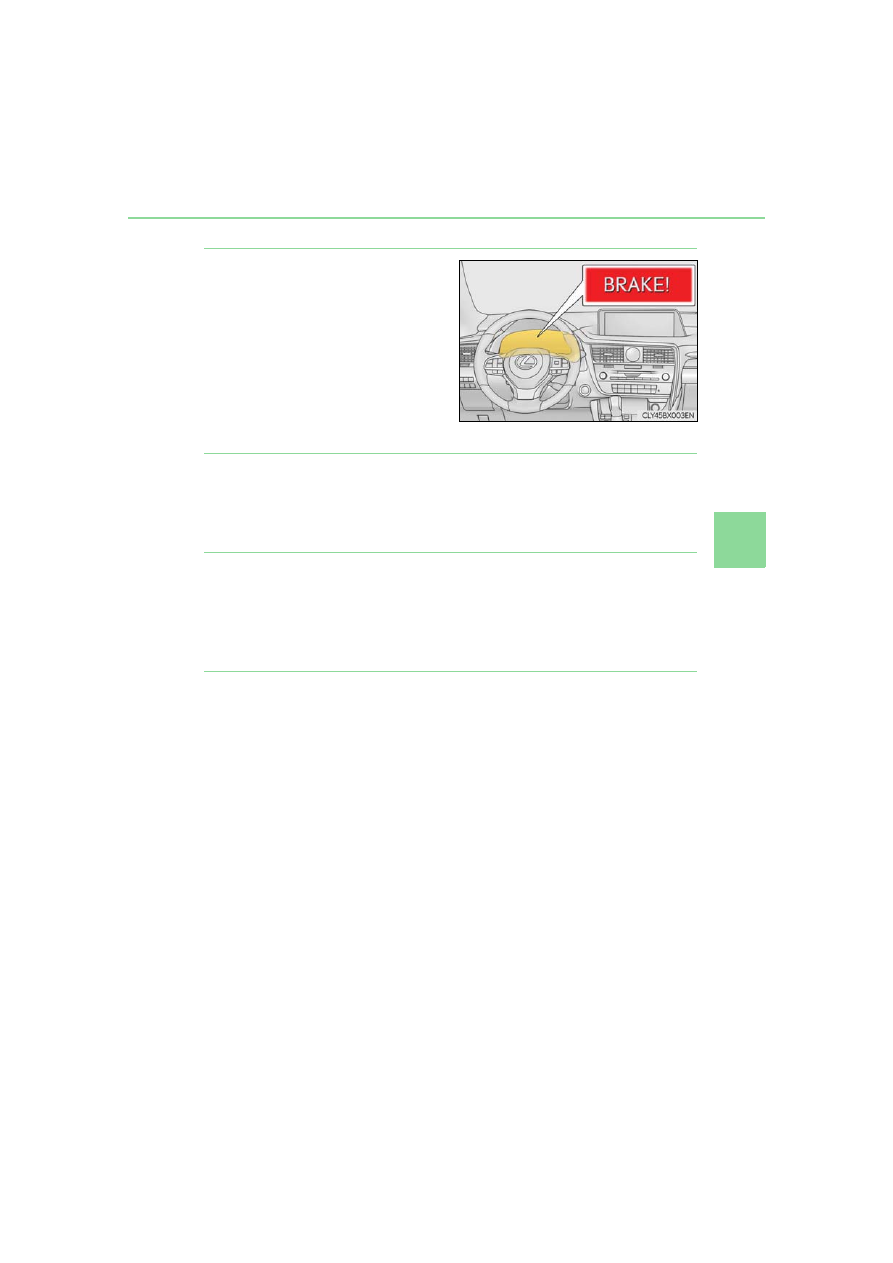

Pre-collision warning

When the system determines that
the possibility of a frontal collision is
high, a buzzer will sound and a warn-
ing message will be displayed on the
multi-information display to urge the
driver to take evasive action.

◆

Pre-collision brake assist

When the system determines that the possibility of a frontal collision is high,
the system applies greater braking force in relation to how strongly the brake
pedal is depressed.

◆

Pre-collision braking

When the system determines that the possibility of a frontal collision is high,
the system warns the driver. If the system determines that the possibility of a
frontal collision is extremely high, the brakes are automatically applied to help
avoid the collision or reduce the collision speed.

◆

Suspension control (if equipped)

When the system determines that the possibility of a frontal collision is high,
the Adaptive Variable Suspension System (

P. 383) will control the damp-

ing force of the shock absorbers to help maintain an appropriate vehicle pos-
ture.

Content .. 15 16 17 18 ..
