1-2. Child safety

For safety

and security

RX350/RX350L_U

A child restraint system for a small child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.

◆

Installing child restraint system using a seat belt (child restraint lock func-
tion belt)

Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.

■

Rear-facing — Infant seat/convertible seat

Adjust the rear seat
If there is a gap between the child seat and the seatback, adjust the seat-
back angle until good contact is achieved.
Place the child restraint system
on the rear seat facing the rear of
the vehicle.

Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.

Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.

Child restraint system fixed with a seat belt

1-2. Child safety

RX350/RX350L_U

While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.

After the shoulder belt has retracted

to a point where there is no slack in

the belt, pull the belt to check that it

cannot be extended.

After installing the child restraint system, rock it back and forth to ensure
that it is installed securely. (

P. 66)

■

Forward-facing — Convertible seat

Adjust the seat



When using the front passenger seat

If installing the child restraint system to the front passenger seat is unavoid-
able, refer to P. 59 for the front passenger seat adjustment.



When using the rear seat

If there is a gap between the child seat and the seatback, adjust the seat-
back angle until good contact is achieved.
Remove the head restraint if it
interferes with your child restraint
system. (

P. 177)

If the head restraint cannot be

removed, raise it to the uppermost

position.

Place the child restraint system
on the seat facing the front of the
vehicle.

1-2. Child safety

For safety

and security

RX350/RX350L_U

Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.

Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.

While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.

After the shoulder belt has retracted

to a point where there is no slack in

the belt, pull the belt to check that it

cannot be extended.

If the child restraint has a top tether strap, follow the child restraint manu-
facturer’s operation manual regarding the installation, using the top tether
strap to latch onto the top tether strap anchor. (

P. 70)

After installing the child restraint system, rock it back and forth to ensure
that it is installed securely. (

P. 66)

1-2. Child safety

RX350/RX350L_U

■

Booster seat

If installing the child restraint system to the front passenger seat is unavoid-
able, refer to P. 59 for the front passenger seat adjustment.
High back type: Remove the head
restraint if it interferes with your
child restraint system. (

P. 177)

If the head restraint cannot be

removed, raise it to the uppermost

position.

Place the child restraint system on the seat facing the front of the vehicle.

Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instructions
and insert the plate into the
buckle. Make sure that the belt is
not twisted.

Check that the shoulder belt is cor-

rectly positioned over the child’s

shoulder and that the lap belt is as

low as possible. (

P. 32)



Booster type



High back type

1-2. Child safety

For safety

and security

RX350/RX350L_U

◆

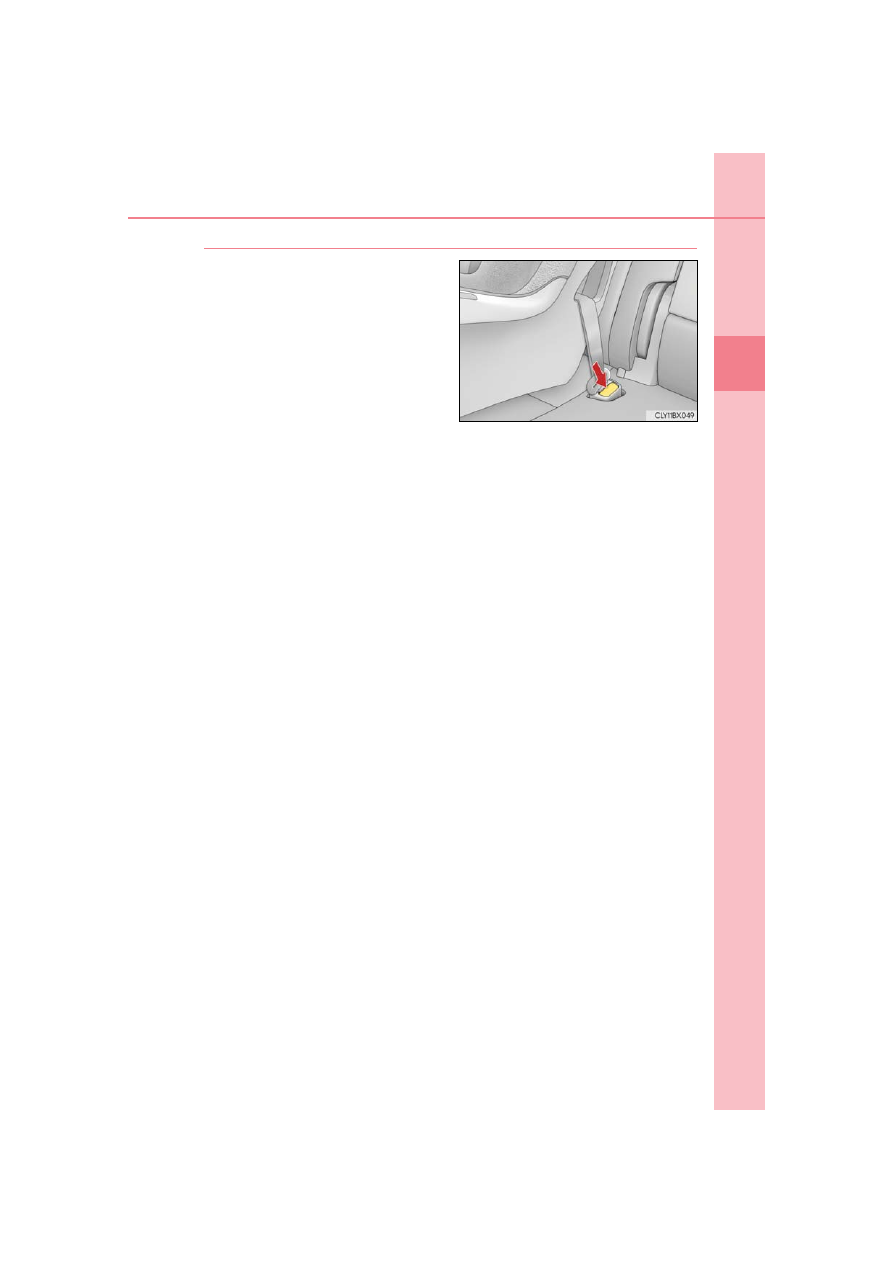

Removing a child restraint system installed with a seat belt

Press the buckle release button and
fully retract the seat belt.

When releasing the buckle, the child

restraint system may spring up due to

the rebound of the seat cushion.

Release the buckle while holding

down the child restraint system.
Since the seat belt automatically

reels itself, slowly return it to the

stowing position.

1-2. Child safety

RX350/RX350L_U

WARNING

■

When installing a child restraint system
Observe the following precautions.

Failure to do so may result in death or serious injury.

●

Do not allow children to play with the seat belt. If the seat belt becomes twisted

around a child’s neck, it may lead to choking or other serious injuries that could result

in death.

If this occurs and the buckle cannot be unfastened, scissors should be used to cut the

belt.

●

Ensure that the belt and plate are securely locked and the seat belt is not twisted.

●

Shake the child restraint system left and right, and forward and backward to ensure

that it has been securely installed.

●

After securing a child restraint system, never adjust the seat.

●

When a booster seat is installed, always ensure that the shoulder belt is positioned

across the center of the child’s shoulder. The belt should be kept away from the child’s

neck, but not so that it could fall off the child’s shoulder.

●

Follow all installation instructions provided by the child restraint system manufacturer.

●

When securing some types of child restraint systems in rear seats, it may not be possi-

ble to properly use the seat belts in positions next to the child restraint without inter-

fering with it or affecting seat belt effectiveness. Be sure your seat belt fits snugly

across your shoulder and low on your hips. If it does not, or if it interferes with the child

restraint, move to a different position. Failure to do so may result in death or serious

injury.

●

When installing a child restraint system in the rear center seat, adjust both seat cush-

ions to the same position and align both seatbacks at the same angle. The seatbacks

must be adjusted to the same angle. Otherwise, the child restraint system cannot be

securely restrained and this may cause death or serious injuries in the event of sudden

braking, sudden swerving or an accident.

■

When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the shoulder

belt. ALR mode causes the belt to tighten only. This could cause injury or discomfort to

the child. (

P. 33)

■

Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the seat belt will

not securely hold the child restraint system, which could cause death or serious injury

to the child or other passengers in the event of sudden braking, sudden swerving or an

accident.

1-2. Child safety

For safety

and security

RX350/RX350L_U

■

Child restraint LATCH anchors
LATCH anchors are provided for
the outboard rear seats. (Buttons
displaying the location of the
anchors are attached to the seats.)

■

When installing in the rear outboard seats
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.

Adjust the seat
If there is a gap between the child seat and the seatback, adjust the seat-
back angle until good contact is achieved.
Remove the head restraint if it
interferes with your child restraint
system. (

P. 177)

If the head restraint cannot be

removed, raise it to the uppermost

position.

Widen the gap between the seat cushion and seatback slightly.

Child restraint system fixed with a child restraint LATCH anchor

1-2. Child safety

RX350/RX350L_U



With flexible lower attachments
Latch the hooks of the lower
straps onto the LATCH anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.



With rigid lower attachments
Latch the buckles onto the
LATCH anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.

P. 70)

Canada only

1-2. Child safety

For safety

and security

RX350/RX350L_U

After installing the child restraint system, rock it back and forth to ensure
that it is installed securely. (

P. 66)

■

When installing in the rear center seat
There are no LATCH anchors behind the rear center seat. However, the
inboard LATCH anchors of the outboard seats, which are 18.1 in. (460 mm)
apart, can be used if the child restraint system manufacturer’s instructions per-
mit use of those anchors with the anchor spacing stated.
Child restraint systems with rigid lower attachments cannot be installed in the
center seat. This type of child restraint system can only be installed in the out-
board seat.

■

Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.

Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be

used.

This vehicle is designed to conform to SAE J1819.

WARNING

■

When installing a child restraint system
Observe the following precautions.

Failure to do so may result in death or serious injury.

●

When using the LATCH anchors, be sure that there are no foreign objects around the

anchors and that the seat belt is not caught behind the child restraint system.

●

Follow all installation instructions provided by the child restraint system manufacturer.

●

Never attach two child restraint system attachments to the same anchor. In a collision,

one anchor may not be strong enough to hold two child restraint system attachments

and may break.

If the LATCH anchors are already in use, use the seat belt to install a child restraint

system in the center seat.

●

When securing some types of child restraint systems in rear seats, it may not be possi-

ble to properly use the seat belts in positions next to the child restraint without inter-

fering with it or affecting seat belt effectiveness. Be sure your seat belt fits snugly

across your shoulder and low on your hips. If it does not, or if it interferes with the child

restraint, move to a different position. Failure to do so may result in death or serious

injury.

●

When installing a child restraint system in the rear center seat, adjust both seat cush-

ions to the same position and align both seatbacks at the same angle. The seatbacks

must be adjusted to the same angle. Otherwise, the child restraint system cannot be

securely restrained and this may cause death or serious injuries in the event of sudden

braking, sudden swerving or an accident.

●

If the seat is adjusted, reconfirm the security of the child restraint system.

1-2. Child safety

RX350/RX350L_U

■

Anchor brackets (for top tether strap)
Anchor brackets are provided for the following seats:

Using an anchor bracket (for top tether strap)



Bench-type second-row seats



Separate-type second-row seats



Third-row left side seat

Anchor brackets

1-2. Child safety

For safety

and security

RX350/RX350L_U

■

Fixing the top tether strap to the anchor bracket (second-row seats)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.

Remove the head restraint if it
interferes with your child restraint
system. (

P. 177)

If the head restraint cannot be

removed, raise it to the uppermost

position.

Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.

Make sure the top tether strap is

securely latched. (

P. 66)

When installing the child restraint

system with the head restraint being

raised, be sure to have the top tether

strap pass underneath the head

restraint.

Hook

Top tether strap

1-2. Child safety

RX350/RX350L_U

■

Fixing the top tether strap to the anchor bracket (third-row left side seat)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.

Remove the head restraint if it
interferes with your child restraint
system. (

P. 177)

If the head restraint cannot be

removed, raise it to the uppermost

position.

Latch the hook onto the anchor
bracket and tighten the top tether
strap.

Make sure the top tether strap is

securely latched. (

P. 66)

When installing the child restraint

system with the head restraint being

raised, be sure to have the top tether

strap pass underneath the head

restraint.

■

Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.

Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be

used.

This vehicle is designed to conform to SAE J1819.

Hook

Top tether strap

1-2. Child safety

For safety

and security

RX350/RX350L_U

WARNING

■

When installing a child restraint system
Observe the following precautions.

Failure to do so may result in death or serious injury.

●

Firmly attach the top tether strap and make sure that the belt is not twisted.

●

Do not attach the top strap to anything other than the anchor bracket of the seat the

child restraint system is installed to.

●

Follow all installation instructions provided by the child restraint system manufacturer.

●

When installing the child restraint system with the head restraint being raised, after

the head restraint has been raised and then the anchor bracket has been fixed, do not

lower the head restraint.

●

When installing a child restraint system in the rear center seat, adjust both seat cush-

ions to the same position and align both seatbacks at the same angle. The seatbacks

must be adjusted to the same angle. Otherwise, the child restraint system cannot be

securely restrained and this may cause death or serious injuries in the event of sudden

braking, sudden swerving or an accident.

●

If the seat is adjusted, reconfirm the security of the child restraint system.

NOTICE

■

Anchor brackets (for top tether strap)
When not in use, make certain to close the lid. If it remains open, the lid may be dam-

aged.

RX350/RX350L_U

1-3. Theft deterrent system

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.

■

System maintenance
The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key registered to the security system (key

with a built-in transponder chip) of another vehicle

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if a key has not been previously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee
absolute security against all vehicle thefts.

1-3. Theft deterrent system

For safety

and security

RX350/RX350L_U

■

Certification for the engine immobilizer system



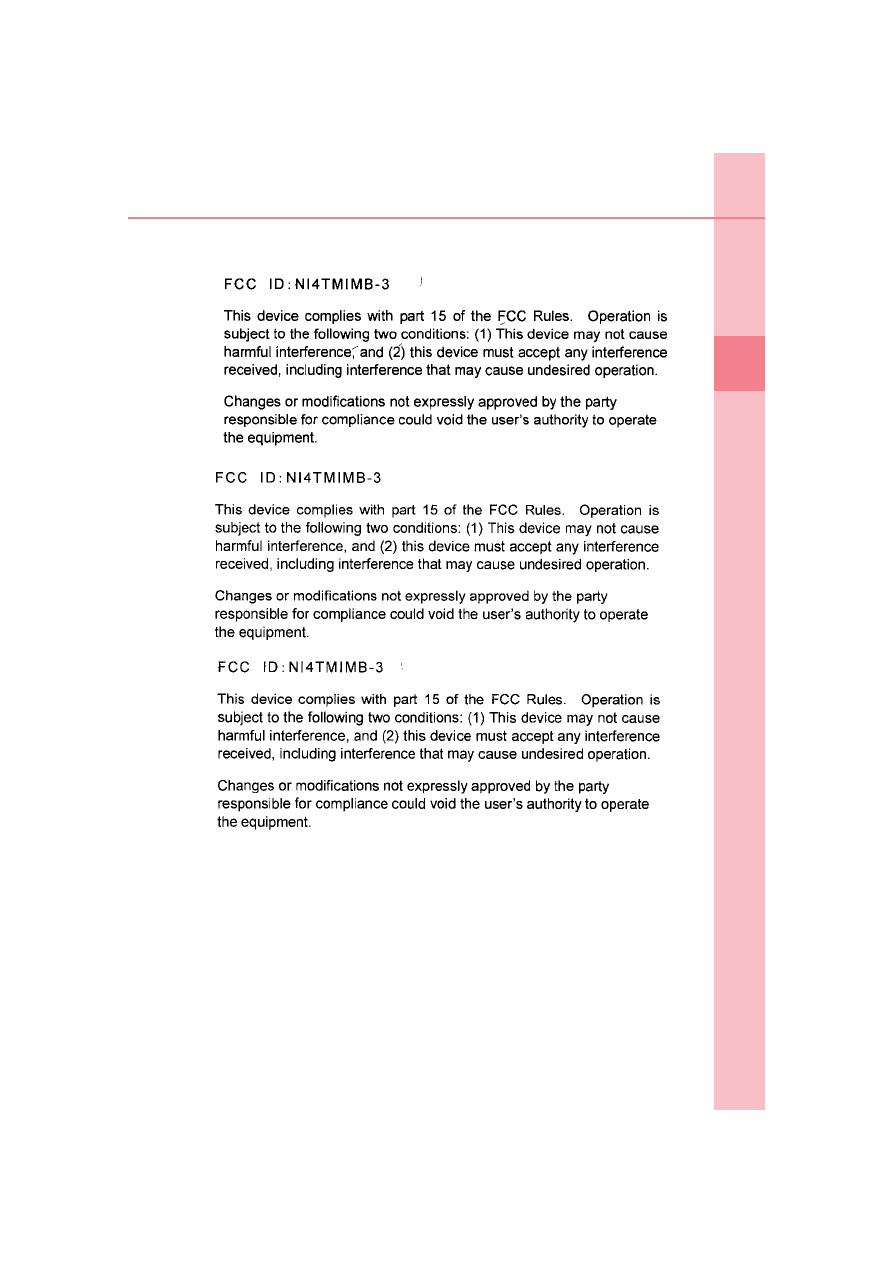

For vehicles sold in the U.S.A.

1-3. Theft deterrent system

RX350/RX350L_U



For vehicles sold in Canada

WARNING

■

Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.

NOTICE

■

To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of

the system cannot be guaranteed.

Content .. 2 3 4 5 ..
