5-4. Using the storage features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

3

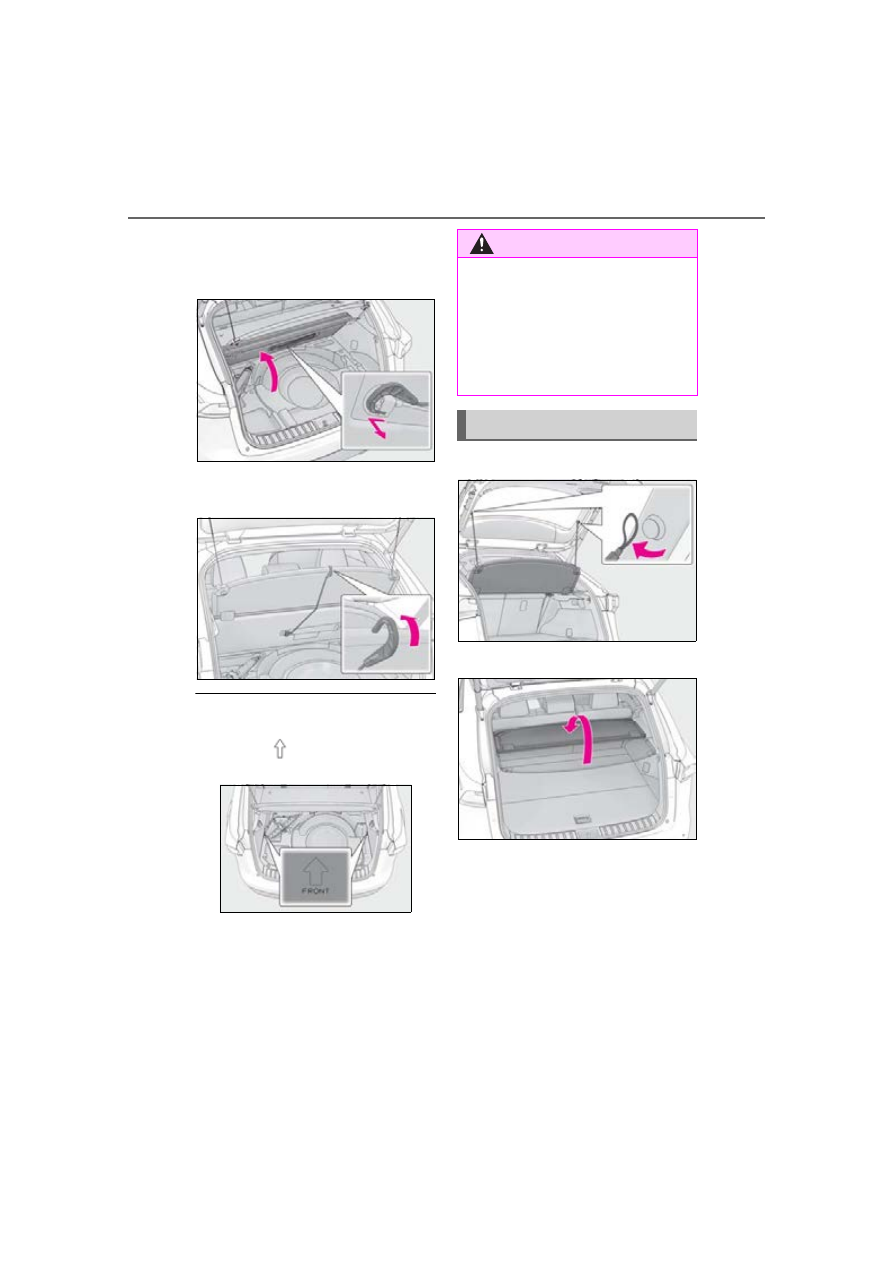

Lift the deck board and remove the
hook on the backside of the deck
board.

4

Use the hook to secure the deck
board as shown in the illustration.

■

When attaching the side deck board

When attaching the side deck board, attach
it so that the “

FRONT” mark points to

the front side of the vehicle.

1

Unhook the cords.

2

Fold up the luggage cover.

WARNING

■

If the deck boards are opened or

removed

Return them to their original positions

before driving. In the event of sudden

braking, an accident may occur due to an

occupant being struck by the deck

boards or the items stored in the deck

under tray.

Stowing the luggage cover

285

5-4. Using the storage features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

5

Interio

r fe

atures

3

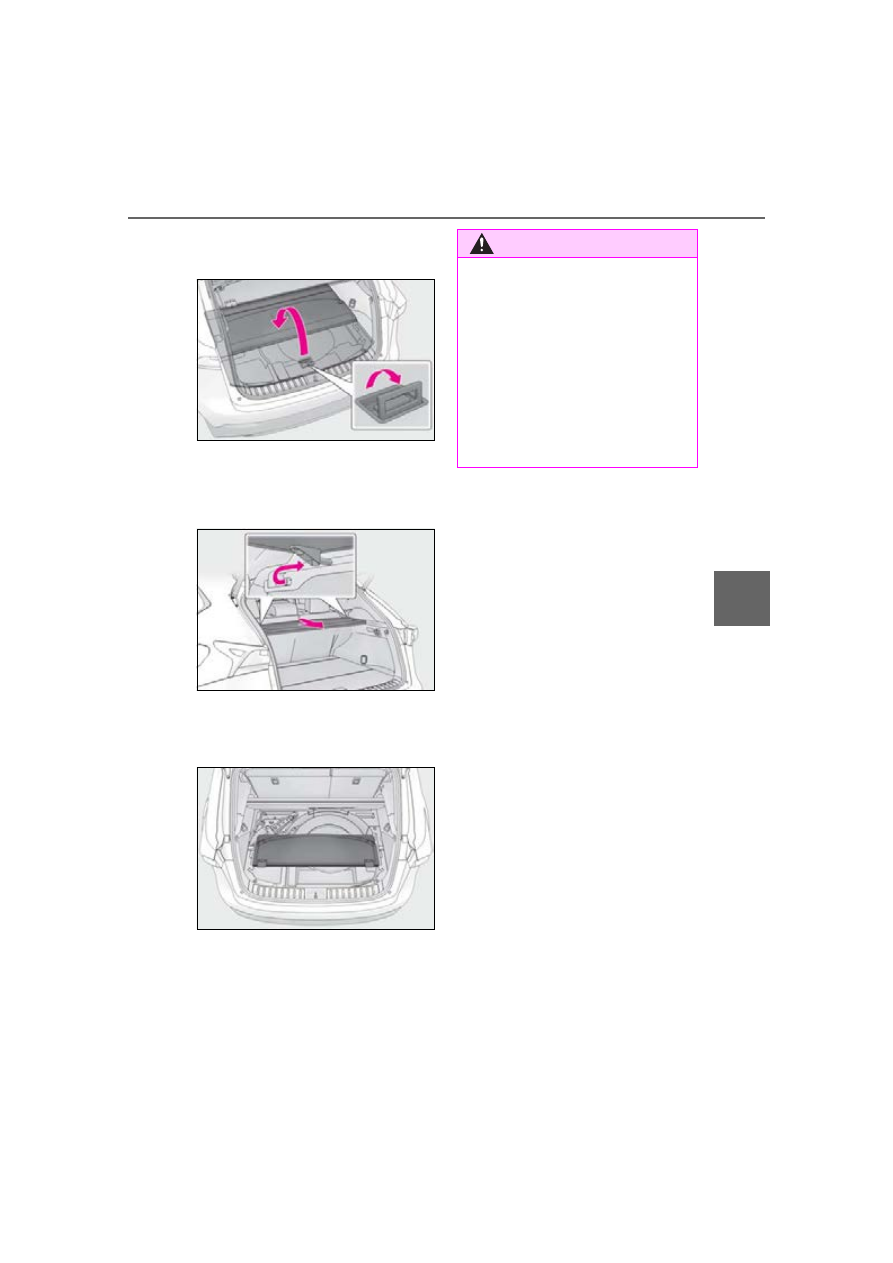

Pull the lever upwards and open the
deck board.

4

Remove the luggage cover.

When the seatback for the rear seat is col-

lapsed to the rear, remove the cover after

the cover most upright position. (

P.127)

5

Stow the luggage cover in the deck
under tray while lifting the deck
board.

WARNING

■

Luggage cover

●

Do not place anything on the luggage

cover. In the event of sudden braking

or turning, the item may go flying and

strike an occupant. This could lead to

an unexpected accident, resulting in

death or serious injury.

●

Do not allow children to climb on the

luggage cover. Climbing on the lug-

gage cover could result in damage to

the luggage cover, possibly causing

death or serious injury to the child.

286

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

5-5.Using the other interior features

1

To set the visor in the forward posi-
tion, flip it down.

2

To set the visor in the side position,
flip down, unhook, and swing it to
the side.

3

To use the side extender, place the
visor in the side position, then slide
it backward.

■

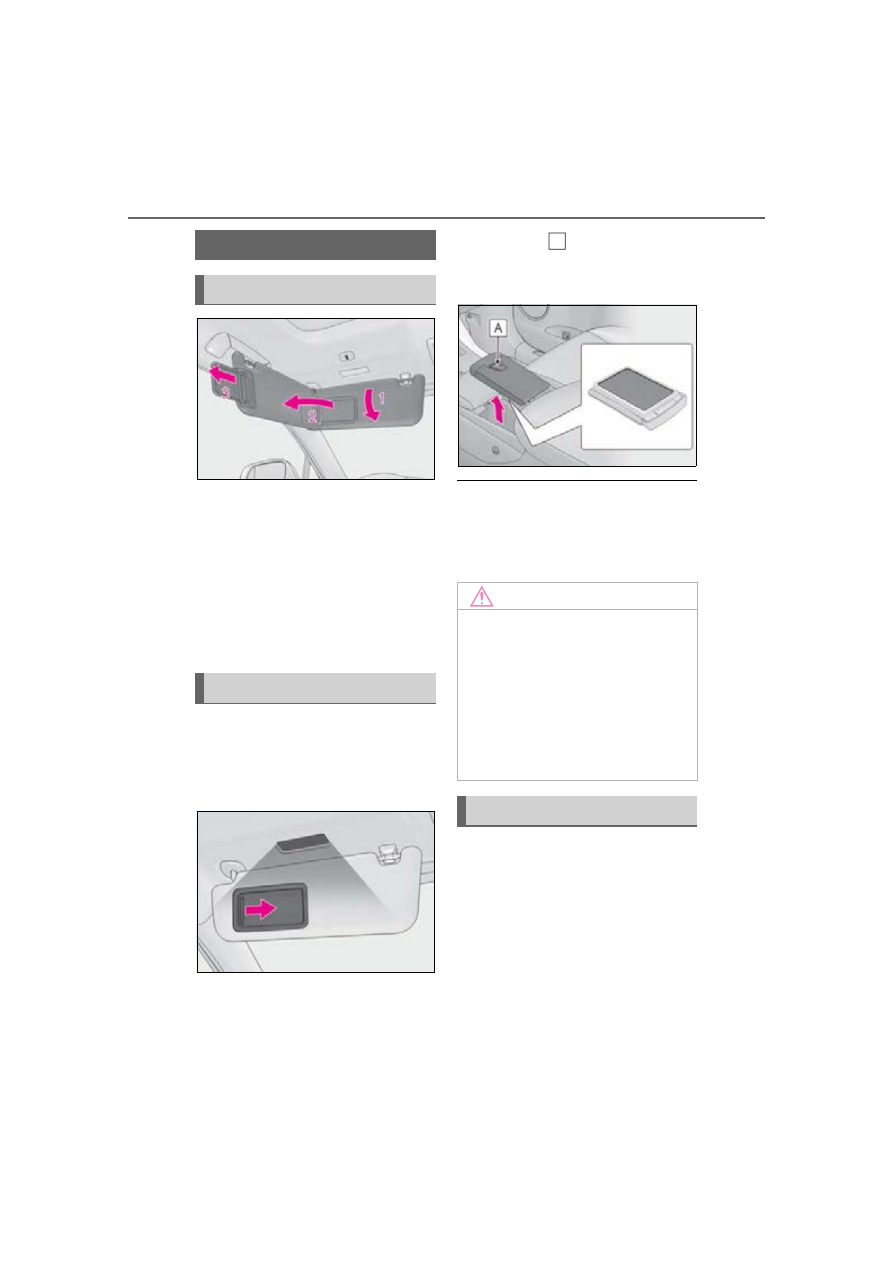

Sun visors

Slide the cover to open.

The light turns on when the cover is
opened.

■

Sunglass holder

Remove the lid of sunglasses holder

using the strap  . (

P.281)

There is a vanity mirror on the back side of
the lid.

■

Automatic light off to prevent 12-volt

battery discharge

If the vanity lights remain on when the

power switch is turned off, the lights will go

off automatically after 20 minutes.

The GPS clock’s time is automatically
adjusted by utilizing GPS time infor-
mation.
For details, refer to the “NAVIGA-
TION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Other interior features

Sun visors

Vanity mirrors

NOTICE

■

To prevent damage to the vanity mir-

ror

When the lid of sunglass holder is

removed, do not subject it to strong

impacts or set heavy objects on top of it.

■

To prevent 12-volt battery discharge

Do not leave the vanity lights on longer

than necessary when the hybrid system is

off.

Clock

A

287

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

5

Interio

r fe

atures

Please use a power supply for elec-
tronic goods that use less than 12
VDC/10 A (power consumption of
120 W).
When using electronic goods, make
sure that the power consumption of all
the connected power outlets is less
than 120 W.

■

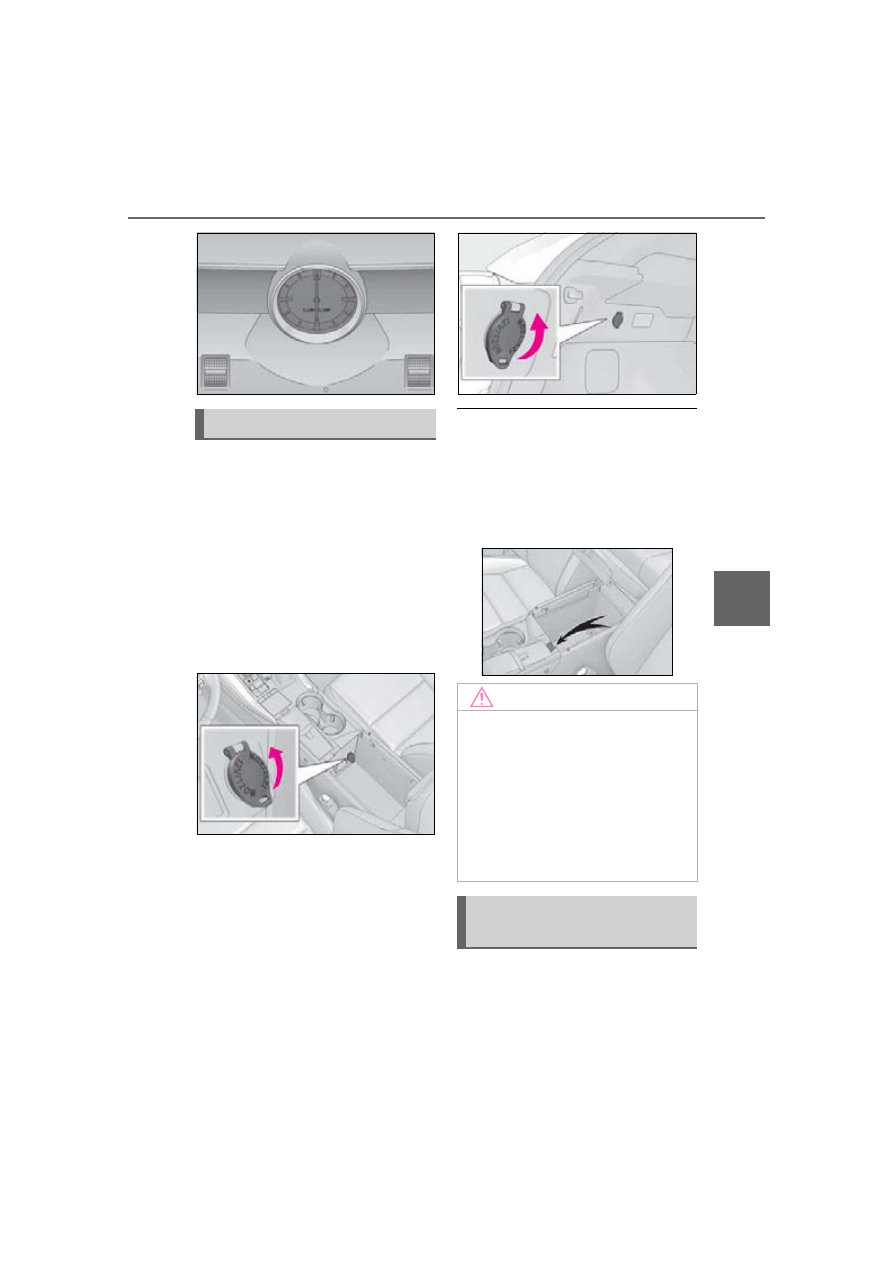

Console box

Open the lid.

■

Luggage compartment

Open the lid.

■

The power outlet can be used when

The power switch is in ACCESSORY or

ON mode.

■

Using power outlet

The notch in console box allows power

cables to be passed through even when the

console box is closed.

Please use a power supply for elec-
tronic goods that use less than 120
VAC (power consumption of 100 W).
Open the lid.

Power outlet (12 VDC)

NOTICE

■

When power outlet is not in use

To avoid damaging the power outlet,

close the power outlet lid when the

power outlet is not in use.

Foreign objects or liquids that enter the

power outlet may cause a short circuit.

■

To prevent 12-volt battery discharge

Do not use the power outlet longer than

necessary when the hybrid system is off.

Power outlet (120 VAC) (if
equipped)

288

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

■

The power outlet can be used when

The power switch is in ON mode.

A portable device can be charged by
just placing Qi standard wireless
charge compatible portable devices
according to the Wireless Power Con-
sortium, such as smart phones and
mobile batteries, etc., on the charge
area.
This function cannot be used with por-
table devices that are larger than the
charging area. Also, depending on the
portable device, it may not operate as
normal. Please read the operation
manual for portable devices to be
used.

■

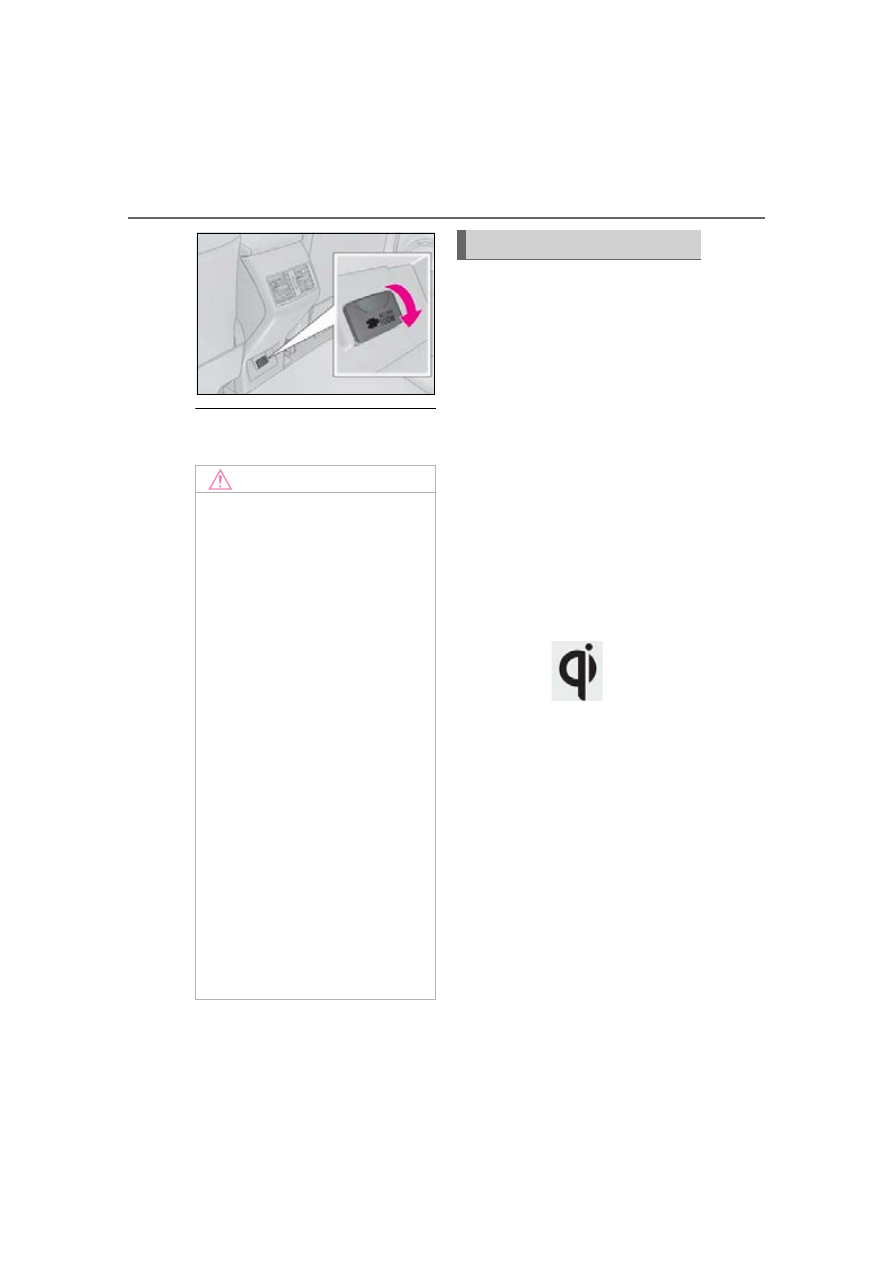

The “Qi” symbol

The “Qi” symbol is a trademark of the
Wireless Power Consortium.

NOTICE

■

When power outlet (120 VAC) is not

in use

To avoid damaging the power outlet,

close the power outlet lid when the

power outlet is not in use.

Foreign objects or liquids that enter the

power outlet may cause a short circuit.

■

To prevent blown fuse

Do not use a 120 VAC appliance that

requires more than 100W.

If a 120 VAC appliance that consumes

more than 100 W is used, the protection

circuit will cut the power supply.

■

To prevent battery discharge

Do not use the power outlet longer than

necessary when the hybrid system is off.

■

Appliances that may not operate

properly

The following 120 VAC appliances may

not operate properly even if their power

consumption is under 100W:

●

Appliances with high initial peak watt-

age

●

Measuring devices that process pre-

cise data

●

Other appliances that require an

extremely stable power supply

Wireless charger (if equipped)

289

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

5

Interio

r fe

atures

■

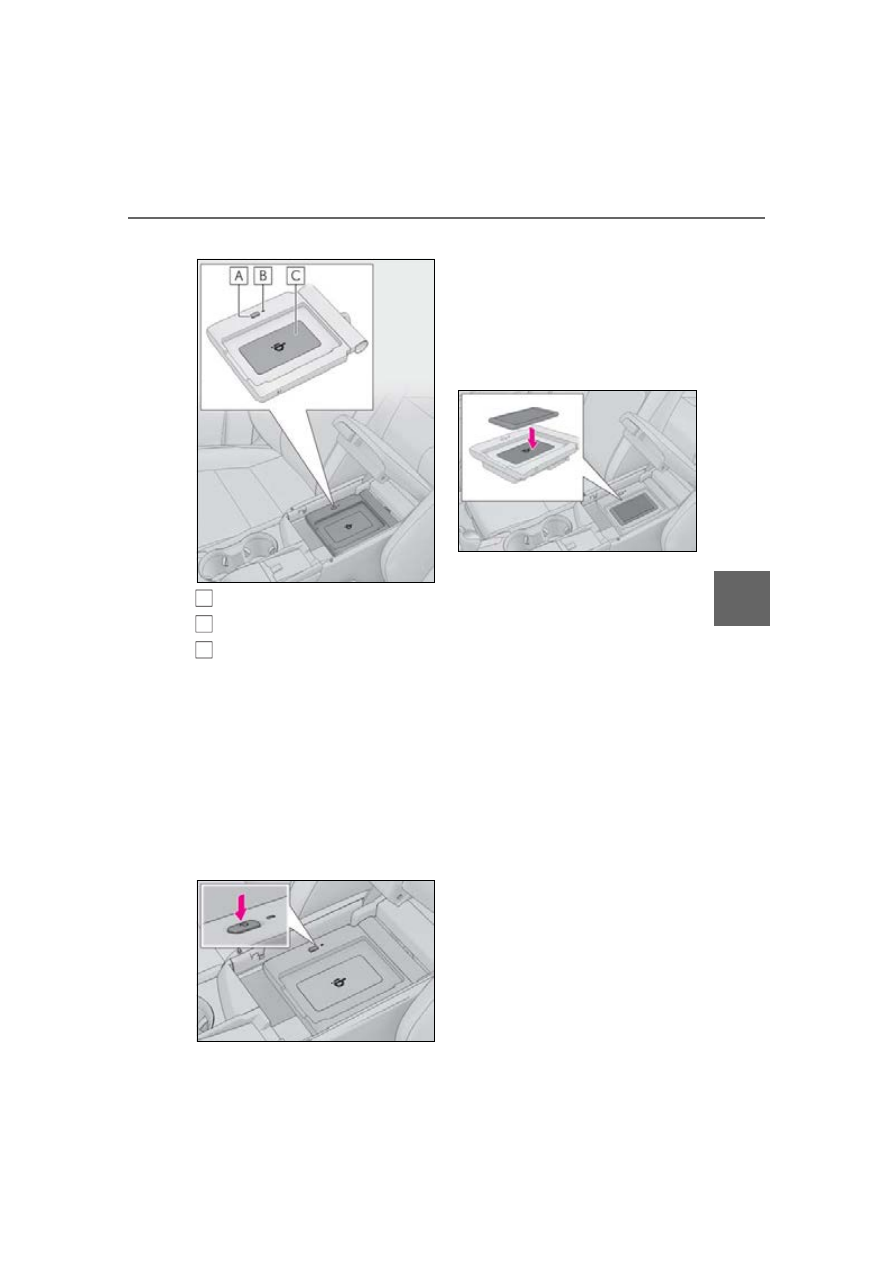

Name for all parts

Power supply switch
Operation indicator light
Charge area

■

Using the wireless charger

1

Open the console box. (

P.280)

2

Press the power supply switch of
the wireless charger.

Switches on and off with each press of the

power supply switch.

When turned on, the operation indicator

light (green) comes on.

Even with the hybrid system off, the on/off

state of the power supply switch is memo-

rized.

3

Place the charging side of the por-
table device down.

When charging, the operation indicator

light (orange) comes on.

If charging is not occurring, try placing the

portable device as close to the center of

the charging area as possible.

When charging is complete, the operation

indicator light (green) comes on.

 Recharging function
• When charging is complete and

after a fixed time in the charge sus-
pension state, charging restarts.

• When the portable device is moved,

charging is stopped for a moment
and then it restarts.

A
B
C

290

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

■

Lighting conditions of operation
indicator light

*

: Depending on the portable device, there

are cases where the operation indicator
light will continue being lit up orange
even after the charging is complete.

 When the operation indicator light

flashes

When an error occurs, the operation indi-
cator light flashes an orange color. Handle
the error based on the following tables.
• Flashing repeatedly once every second

(Orange)

• Repeatedly flashes 3 times continuously

(Orange)

• Repeatedly flashes 4 times continuously

(Orange)

■

The wireless charger can be operated

when

The power switch is in ACCESSORY or

ON mode.

■

Usable portable devices

●

Qi standard wireless charge standard

can be used on compatible devices.

However, not all Qi standard devices and

compatibility are guaranteed.

●

Starting with mobile phones and smart

phones, it is aimed for low power electri-

cally supplied portable devices of no

more than 5W.

■

When covers and accessories are

attached to portable devices

Do not charge in situations where cover

and accessories not able to handle Qi are

attached to the portable device. Depending

on the type of cover and accessory, it may

not be possible to charge. When charging is

not performed even with the portable

device placed on the charge area, remove

the cover and accessories.

Operation

indicator

light

Conditions

Turning off

When the Wireless charger
power supply is off

Green
(comes on)

On Standby (charging pos-
sible state)

When charging is complete

*

Orange
(comes on)

When placing the portable
device on the charging area
(detecting the portable
device)

Charging

Suspected causes

Handling method

Vehicle to charger
communication fail-
ure.

Contact your Lexus
dealer.

Suspected causes

Handling method

A foreign substance
is between the por-
table device and
charge area.

Remove the foreign
substance from
between portable
device and the
charge area.

The portable device
is out of sync due to
the device being
shifted from the cen-
ter of the charge
area.

Place the portable
device near the cen-
ter of the charge
area.

Suspected causes

Handling method

Temperature rising
within the wireless
charger.

Stop charging at
once and start
charging again after
for a while.

291

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

5

Interio

r fe

atures

■

While charging, noise enters the AM

radio

Turn off the wireless charger and confirm

that the noise has decreased. If the noise

decreases, continuously pushing the power

supply switch of the wireless charger for 2

seconds, the frequency of the charger can

be changed and the noise can be reduced.

Also, on that occasion, the operation indi-

cator light will flash orange 2 times.

■

Important points of the wireless charger

●

If the electronic key cannot be detected

within the vehicle interior, charging can-

not be done. When the door is opened

and closed, charging may be temporarily

suspended.

●

When charging, the wireless charging

device and portable device will get

warmer, however this is not a malfunction.

When a portable device gets warm while

charging, charging may stop due to the

protection function on the portable

device side. In this case, when the tem-

perature of the portable device drops

significantly, charge again.

■

Operation sounds

When the power supply is turned on, while

searching for the portable device a sound

will be produced, however this is not a mal-

function.

■

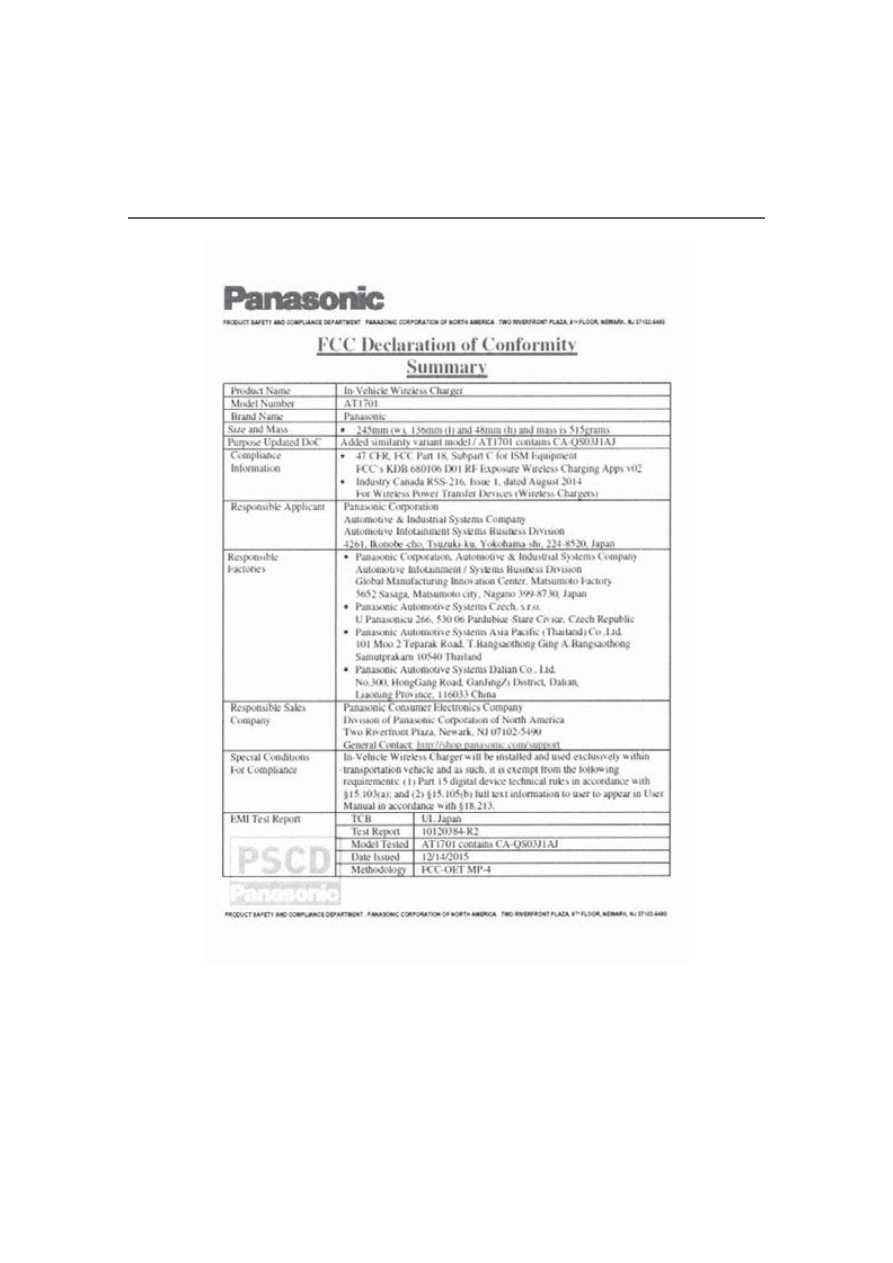

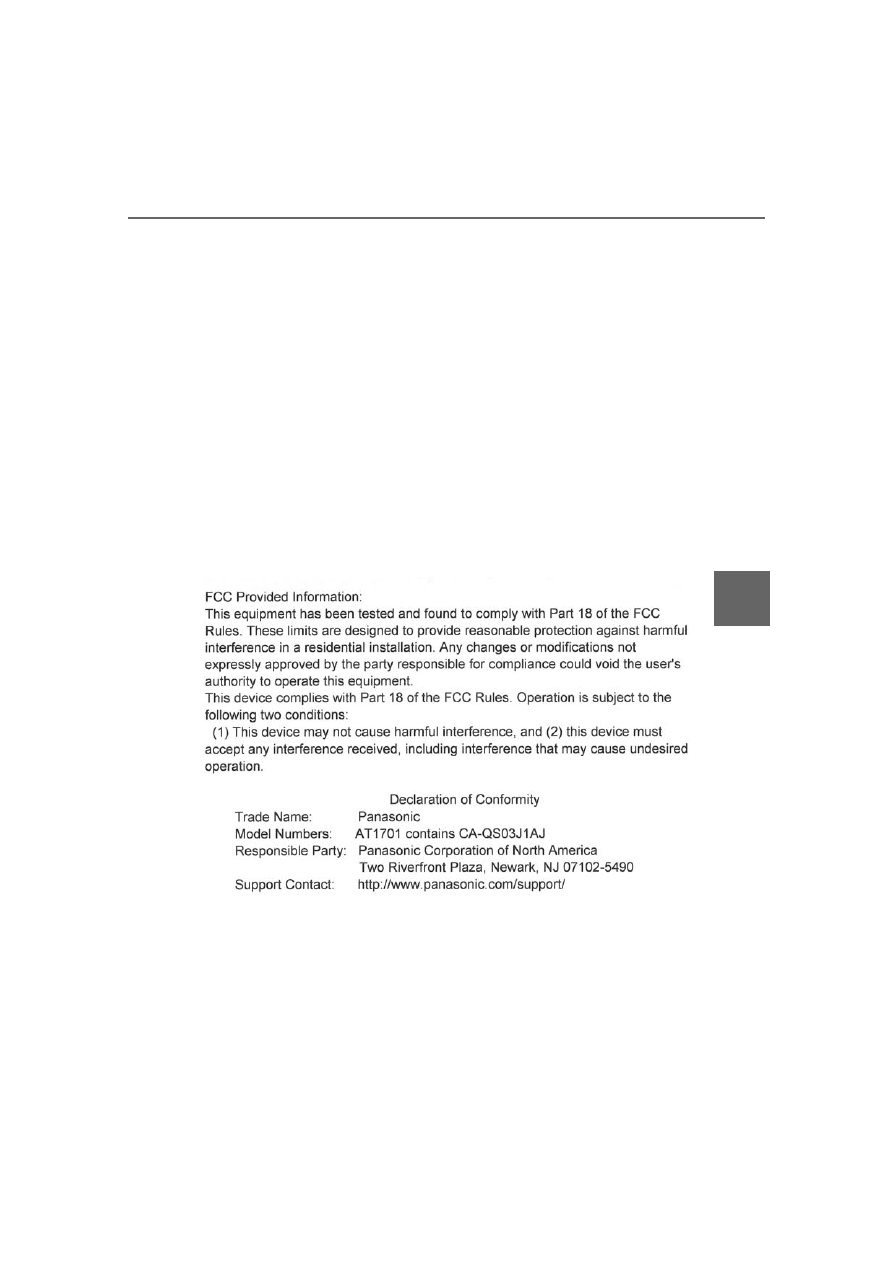

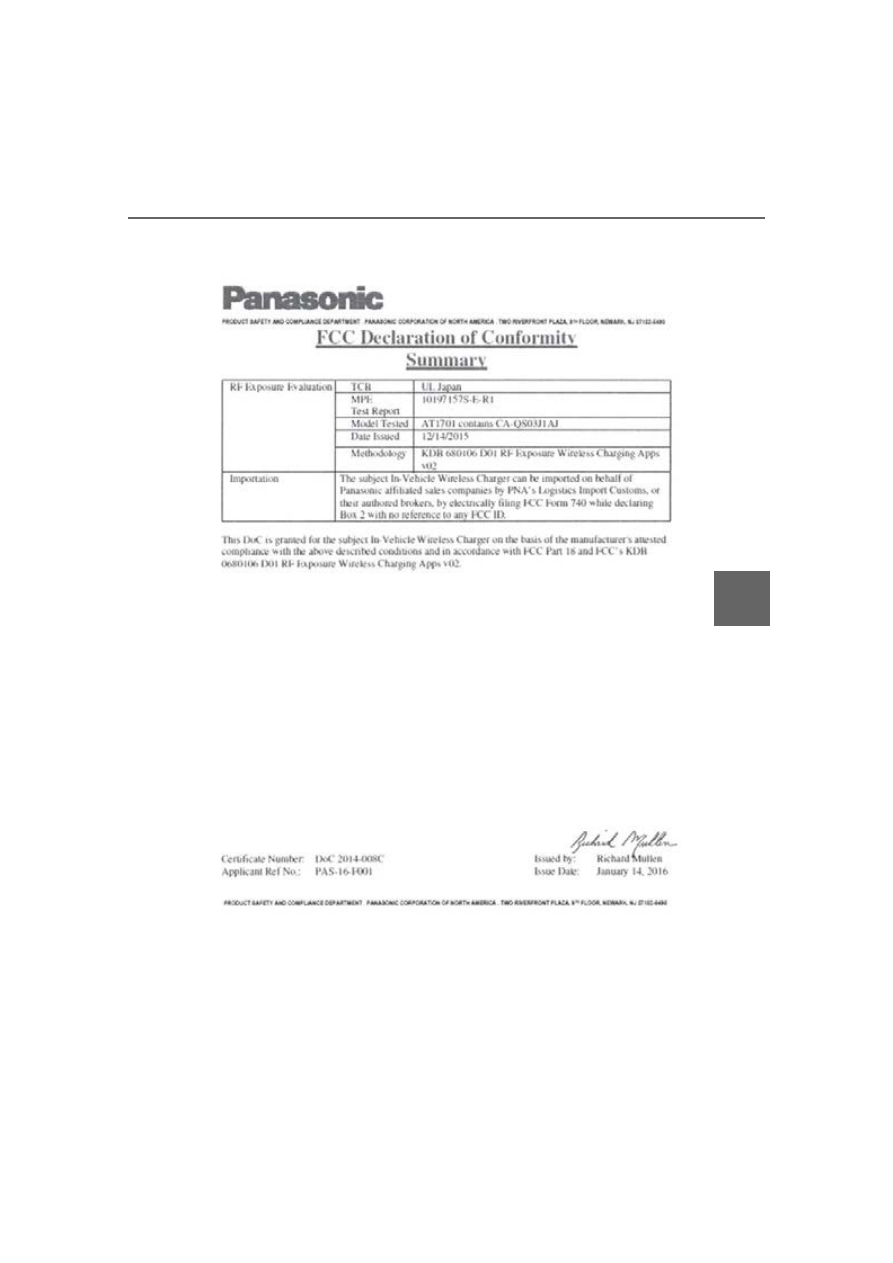

Certification for the wireless charger

FCC Note: This equipment has been tested

and found to comply with Part 18 of the

FCC Rules. These limits are designed to

provide reasonable protection against

harmful interference in a residential installa-

tion.

FCC Caution: Any changes or modifica-

tions not expressly approved by the party

responsible for compliance could void the

user’s authority to operate this equipment.

292

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

293

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

5

Interio

r fe

atures

294

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

WARNING

■

Caution while driving

When charging a portable device, for

safety reasons, the driver should not

operate the main the part of the portable

device while driving.

■

Caution regarding interference with

electronic devices

People with implantable cardiac pace-

makers, cardiac resynchronization ther-

apy-pacemakers or implantable

cardioverter defibrillators, as well as any

other electrical medical device, should

consult their physician about the usage of

the wireless charger.

The operations of the wireless charger

may have an affect on medical devices.

■

To prevent damage or burns

Observe the following precautions.

Failure to do so may result in a possibility

of equipment failure and damage, catch

fire, burns due to overheat.

●

Do not insert any metallic objects

between the charging area and the

portable device while charging

●

Do not attach stickers, metallic

objects, etc., to the charger area or

portable device

●

Do not cover with cloth, etc., and

charge

●

Do not charge portable devices other

than designated

●

Do not attempt to dismantle for disas-

sembly or modifications

●

Do not hit or apply a strong force

NOTICE

■

Conditions in which the function may

not operate correctly

In the following conditions, it may not

operate correctly

●

The portable device is fully charged

●

There is foreign matter between the

charge area and portable device

●

The temperature of the portable

device gets higher from charging

●

The charging surface of the portable

device is facing up

●

The placement of the portable device

is out of alignment with the charge

area

●

Near a TV tower, electric power plant,

gas station, radio station, large display,

airport or other facility that generates

strong radio waves or electrical noise

●

When the electronic key is in contact

with, or is covered by the following

metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have aluminum

foil inside

• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that emit

radio waves) are being used nearby

In addition, excluding the above-men-
tioned, when the charger does not per-
form normally or the operation display
lamp is flashing continuously, it is consid-
ered that the wireless charger is malfunc-
tioning. Contact your Lexus dealer.

■

To prevent failure or damage to data

●

Do not bring magnetic cards, such as

credit cards, or magnetic recording

media, etc., close to the charger while

charging, otherwise, data may disap-

pear under the influence of magne-

tism. Also, do not bring precision

instruments such as wrist watches, etc.,

close to the charger, as such objects

may break.

295

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

5

Interio

r fe

atures

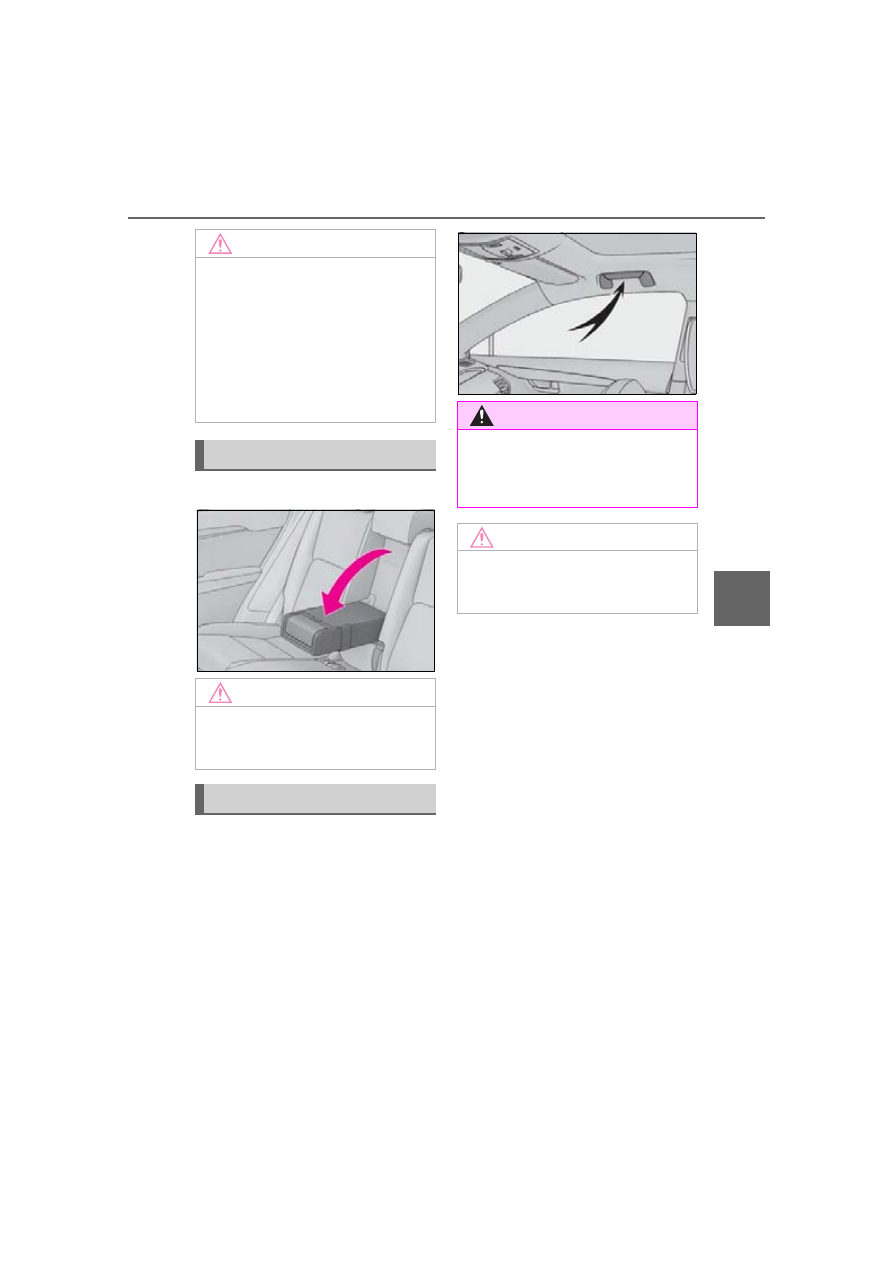

Fold down the armrest for use.

An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.

NOTICE

●

Do not leave portable devices in the

cabin. The temperature inside the

cabin may become high, when under

the sun, and cause damage to the

device.

■

To prevent 12-volt battery discharge

When the hybrid system is stopped, do

not use the wireless charger for a long

time.

Armrest

NOTICE

■

To prevent damage to the armrest

Do not apply too much load on the arm-

rest.

Assist grips

WARNING

■

Assist grips

Do not use the assist grip when getting in

or out of the vehicle or rising from your

seat.

NOTICE

■

To prevent damage to the assist grip

Do not hang any heavy object or put a

heavy load on the assist grip.

296

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

*

: If  equipped

The HomeLink

®

 wireless control sys-

tem in your vehicle has 3 buttons which
can be programmed to operate 3 dif-
ferent devices. Refer to the program-
ming methods on the following pages
to determine the method which is
appropriate for the device.

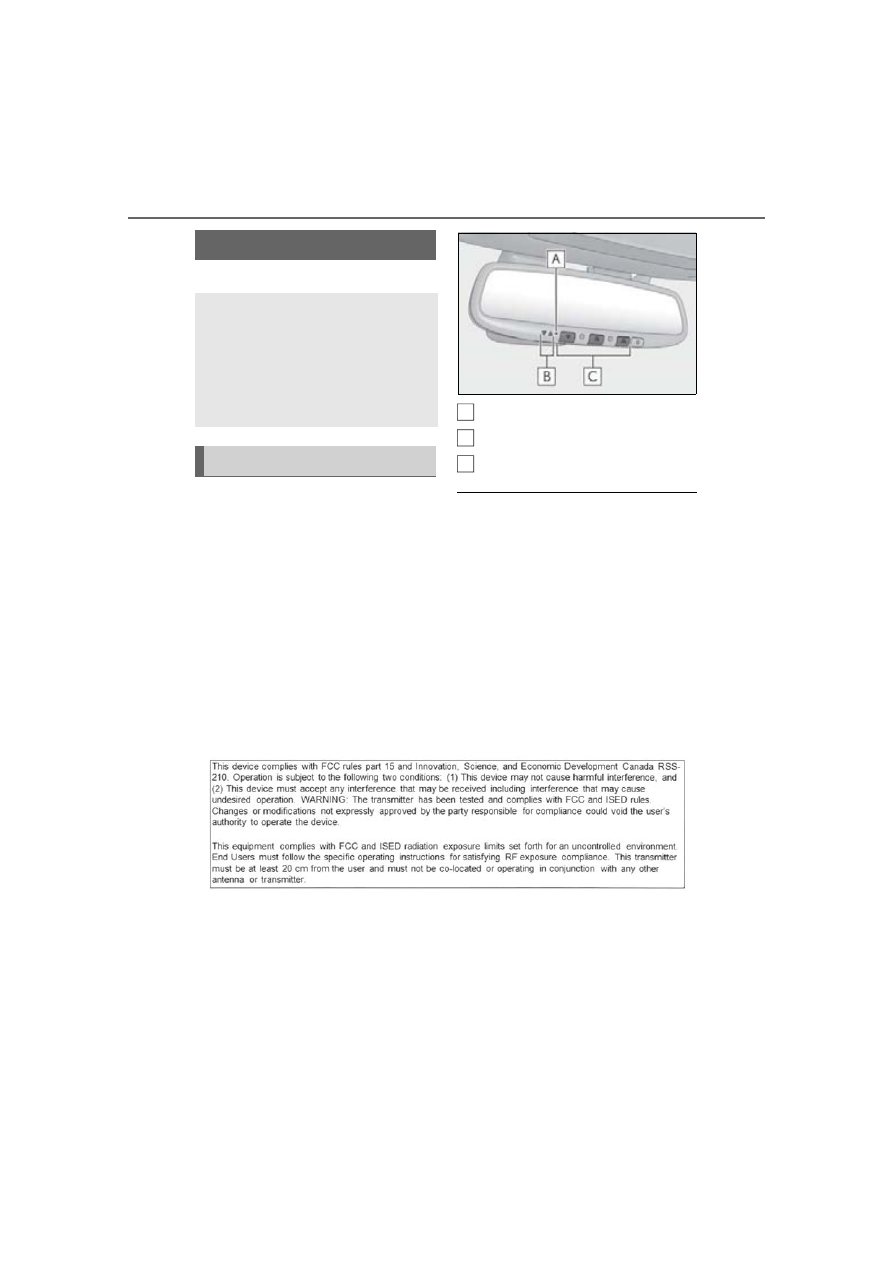

HomeLink

®

 indicator light

Garage door operation indicators
Buttons

■

Codes stored in the HomeLink

®

 mem-

ory

●

The registered codes are not erased even

if the battery cable is disconnected.

●

If learning failed when registering a dif-
ferent code to a HomeLink

®

 button that

already has a code registered to it, the

already registered code will not be

erased.

■

Certification for the garage door opener



For vehicles sold in the U.S.A.

Garage door opener

*

The garage door opener can be
programmed using the Home-
Link

®

 to operate garage doors,

gates, entry doors, door locks,
home lighting systems, security sys-
tems, and other devices.

System components

A
B
C

297

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

5

Interio

r fe

atures



For vehicles sold in Canada

■

When support is necessary

Visit on the web at www.homelink.com/

lexus or call 1-800-355-3515.

■

Before programming the Home-
Link

®

 During programming, it is possible

that garage doors, gates, or other
devices may operate. For this rea-
son, make sure that people and
objects are clear of the garage door
or other devices to prevent injury or
other potential harm.

 It is recommended that a new bat-

tery be placed in the remote control
transmitter for more accurate pro-
gramming.

 Garage door opener motors manu-

factured after 1995 may be
equipped with rolling code protec-
tion. If this is the case, you may need
a stepladder or other sturdy, safe
device to reach the “learn” or
“smart” button on the garage door
opener motor.

WARNING

■

When programming a garage door or

other remote control device

The garage door or other device may

operate, so ensure people and objects

are out of danger to prevent potential

harm.

■

Conforming to federal safety stan-

dards

Do not use the HomeLink

®

 compatible

transceiver with any garage door opener

or device that lacks safety stop and

reverse features as required by federal

safety standards.

This includes any garage door that can-

not detect an interfering object. A door

or device without these features

increases the risk of death or serious

injury.

■

When operating or programming
HomeLink

®

Never allow a child to operate or play
with the HomeLink

®

 buttons.

Programming the HomeLink

®

298

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

■

Programming the HomeLink

®

Steps

1

 through

3

 must be performed

within 60 seconds, otherwise the indi-
cator light will stop flashing and pro-
gramming will not be able to be
completed.

1

Press and release the HomeLink

®



button you want to program and
check that the HomeLink

®

 indica-

tor light flashes orange.

2

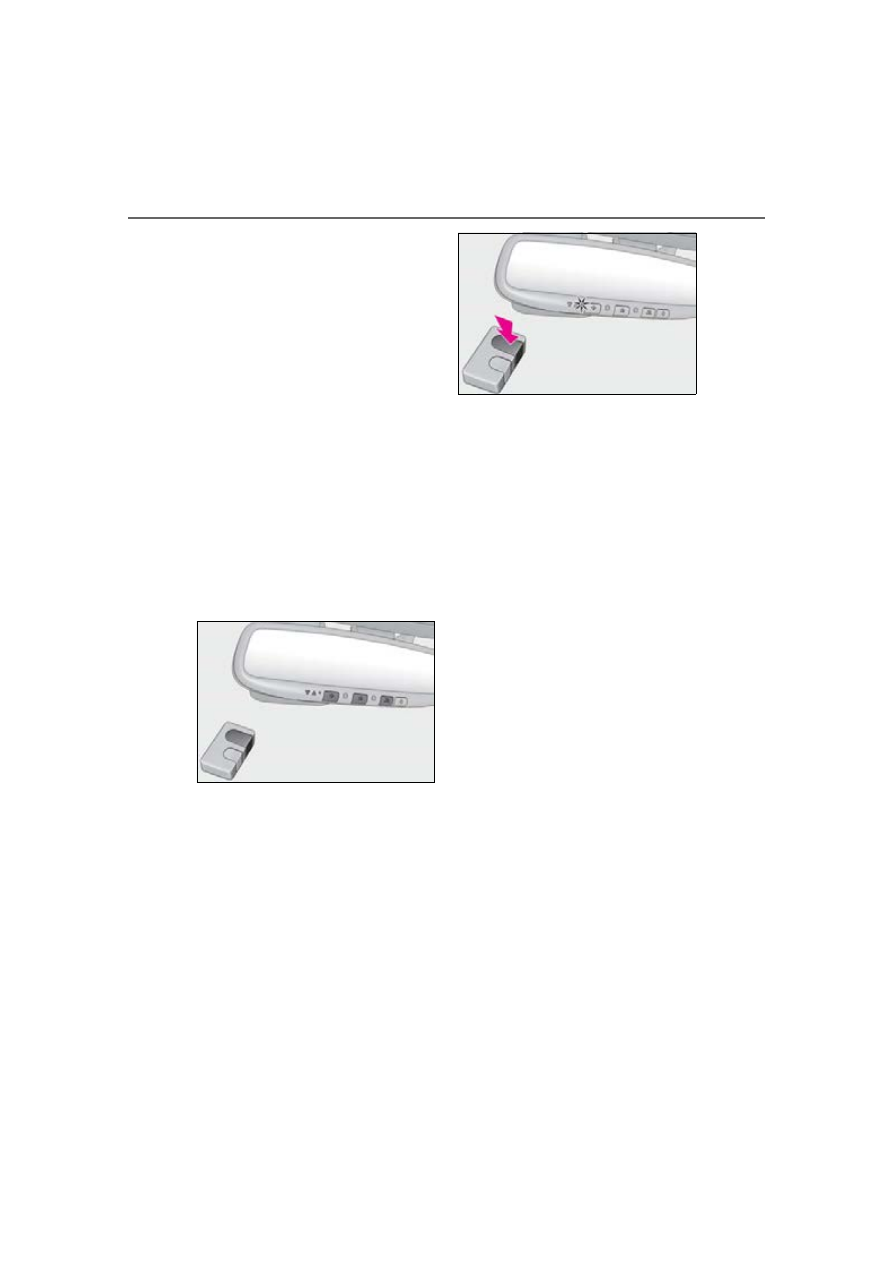

Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink

®

 buttons.

Keep the HomeLink

®

 indicator light in

view while programming.

3

Program a device.



Programming a device other than
an entry gate (for U.S.A. owners)

Press and hold the remote control trans-
mitter button until the HomeLink

®

 indica-

tor light changes from slowly flashing
orange to rapidly flashing green (rolling
code) or continuously lit green (fixed
code), then release the button.



Programming an entry gate (for
U.S.A. owners)/Programming a
device in the Canadian market

Press and release the remote control trans-
mitter button at 2 second intervals, repeat-
edly, until the HomeLink

®

 indicator light

changes from slowly flashing orange to
rapidly flashing green (rolling code) or
continuously lit green (fixed code).

4

Test the HomeLink

®

 operation by

pressing the newly programmed
button and observing the indicator
light:

 Indicator light illuminates: Program-

ming of a fixed code device has
completed. The garage door or
other device should operate when a
HomeLink

®

 button is pressed and

released.

 Indicator light flashes rapidly: The

garage door opener motor or other
device is equipped with a rolling
code. To complete programming,
firmly press and hold the Home-
Link

®

 button for 2 seconds then

release it.

 If the garage door or other device

does not operate, proceed to “Pro-
gramming a rolling code system”.

299

5-5. Using the other interior features

LEXUS NX300h Owners Manu-

al_USA_M78287_en

5

Interio

r fe

atures

5

Repeat the steps above to program
another device for any of the
remaining HomeLink

®

 buttons.

■

Programming a rolling code sys-
tem

2 or more people may be necessary to
complete rolling code programming.

1

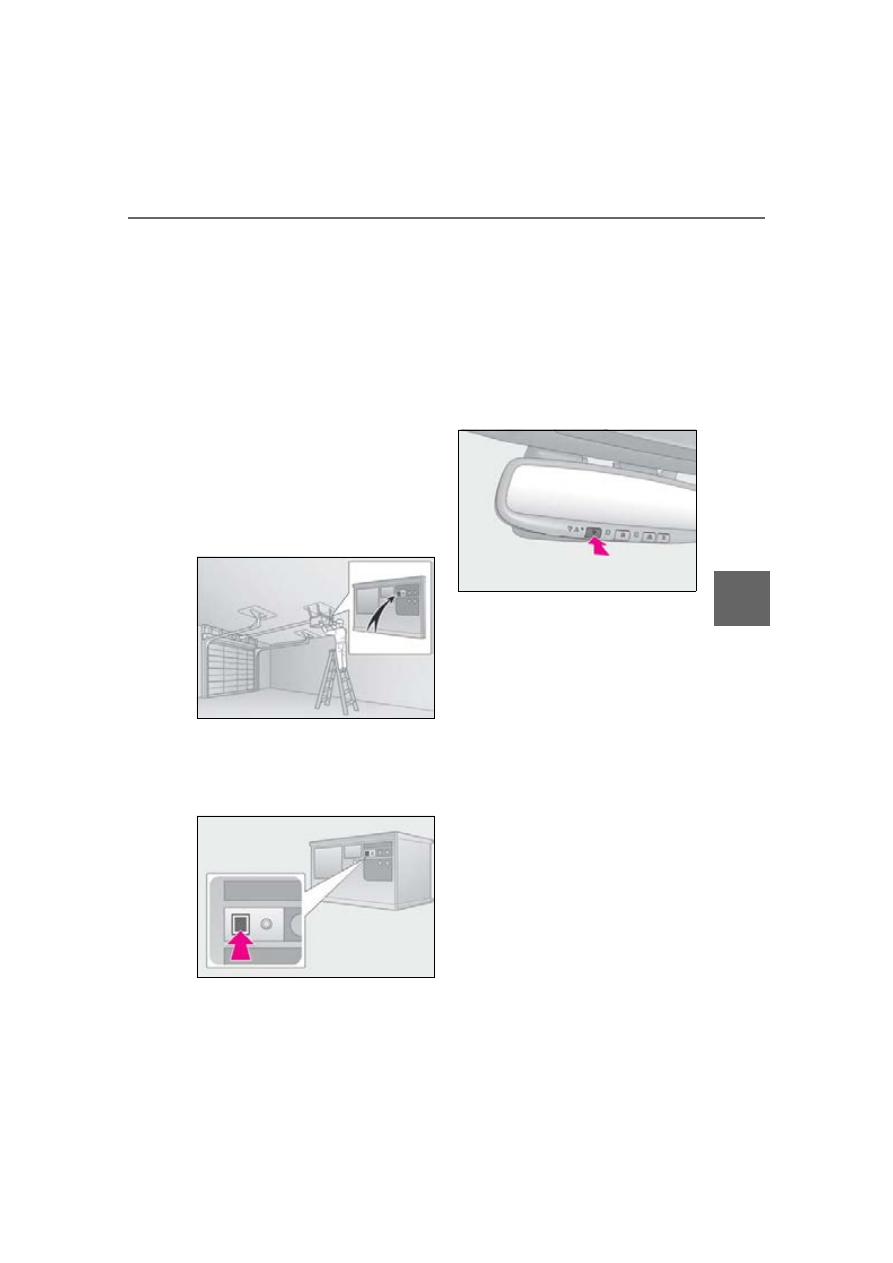

Locate the “Learn” or “Smart” but-
ton on the garage door opener
motor in the garage.

This button can usually be found where the

hanging antenna wire is attached to the

unit. The name and color of the button may

vary by manufacturer. Refer to the Owner’s

manual supplied with the garage door

opener motor for details.

2

Press and release the “Learn” or
“Smart” button.
Perform

3

 within 30 seconds after

performing

2

.

3

Press and hold the desired Home-
Link

®

 button (inside the vehicle)

for 2 seconds and release it. Repeat
this sequence (press/hold/release)
up to 3 times to complete pro-
gramming.
If the garage door opener motor
operates when the HomeLink

®



button is pressed, the garage door
opener motor recognizes the
HomeLink

®

 signal.

■

Enabling 2-way communication
with a garage door (only available
for compatible devices)

When enabled, 2-way communication
allows you to check the status of the
opening and closing of a garage door
through indicators in your vehicle.
2-way communication is only available
if the garage door opener motor used
is a compatible device. (To check
device compatibility, refer to
www.HomeLink.com.)

1

Within 5 seconds after program-
ming the garage door opener has
been completed, if the garage door
opener motor is trained to Home-
Link

®

, both garage door operation

indicators will flash rapidly green
and the light on the garage door
opener motor will blink twice, indi-
