4-3. Operating the lights and wipers

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Turns the fog lights off

Turns the fog lights on

■

Fog lights can be used when

The headlights are on in low beam.

Operate

lever as follows to select

the wiper operation.

■

Intermittent windshield wipers with
interval adjuster (if equipped)



Type A

Off

Intermittent operation

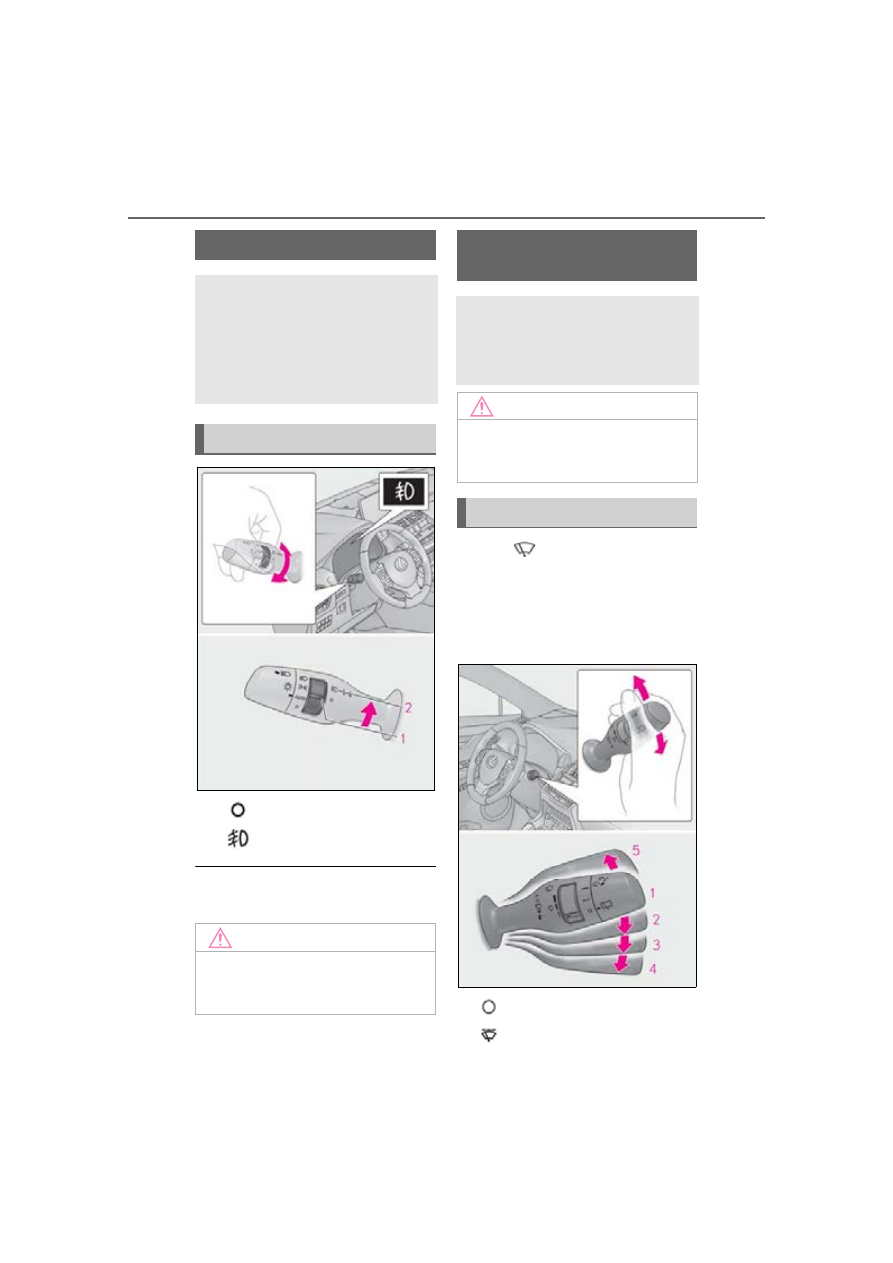

Fog light switch

When in difficult driving conditions,
such as in rain and fog, turn on the
front fog lights to secure front visi-
bility and turn on the rear fog lights
to notify following vehicles the exis-
tence of your vehicle.

Operating procedure

NOTICE

■

To prevent 12-volt battery discharge

Do not leave the lights on longer than

necessary when the hybrid system is off.

Windshield wipers and
washer

Operating the lever can switch
between automatic operation and
manual operation, or can use the
washer.

NOTICE

■

When the windshield is dry

Do not use the wipers, as they may dam-

age the windshield.

Operating the wiper lever

189

4-3. Operating the lights and wipers

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Driving

Low speed operation

High speed operation

Temporary operation

Wiper intervals can be adjusted when
intermittent operation is selected.

Increases the intermittent wind-
shield wiper frequency

Decreases the intermittent wind-
shield wiper frequency

Washer/wiper dual operation

The wipers will automatically operate a
couple of times after the washer squirts.
Vehicles with headlight cleaners:
When the headlights are on and the lever is
pulled and held, the headlight cleaners will
operate once. After this, the headlight
cleaners will operate every 5th time the
lever is pulled.



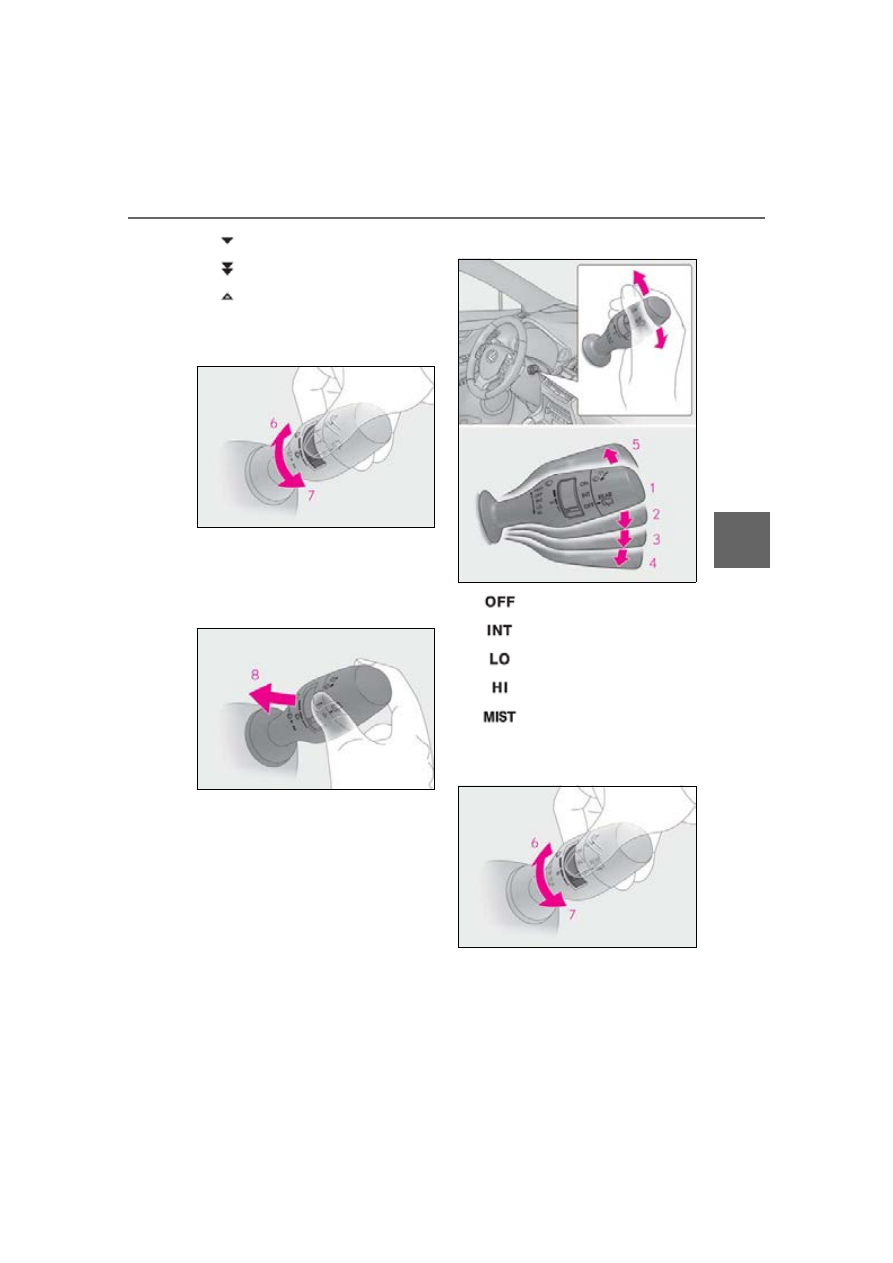

Type B

Off

Intermittent operation

Low speed operation

High speed operation

Temporary operation

Wiper intervals can be adjusted when
intermittent operation is selected.

Increases the intermittent wind-
shield wiper frequency

Decreases the intermittent wind-
shield wiper frequency

190

4-3. Operating the lights and wipers

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Washer/wiper dual operation

■

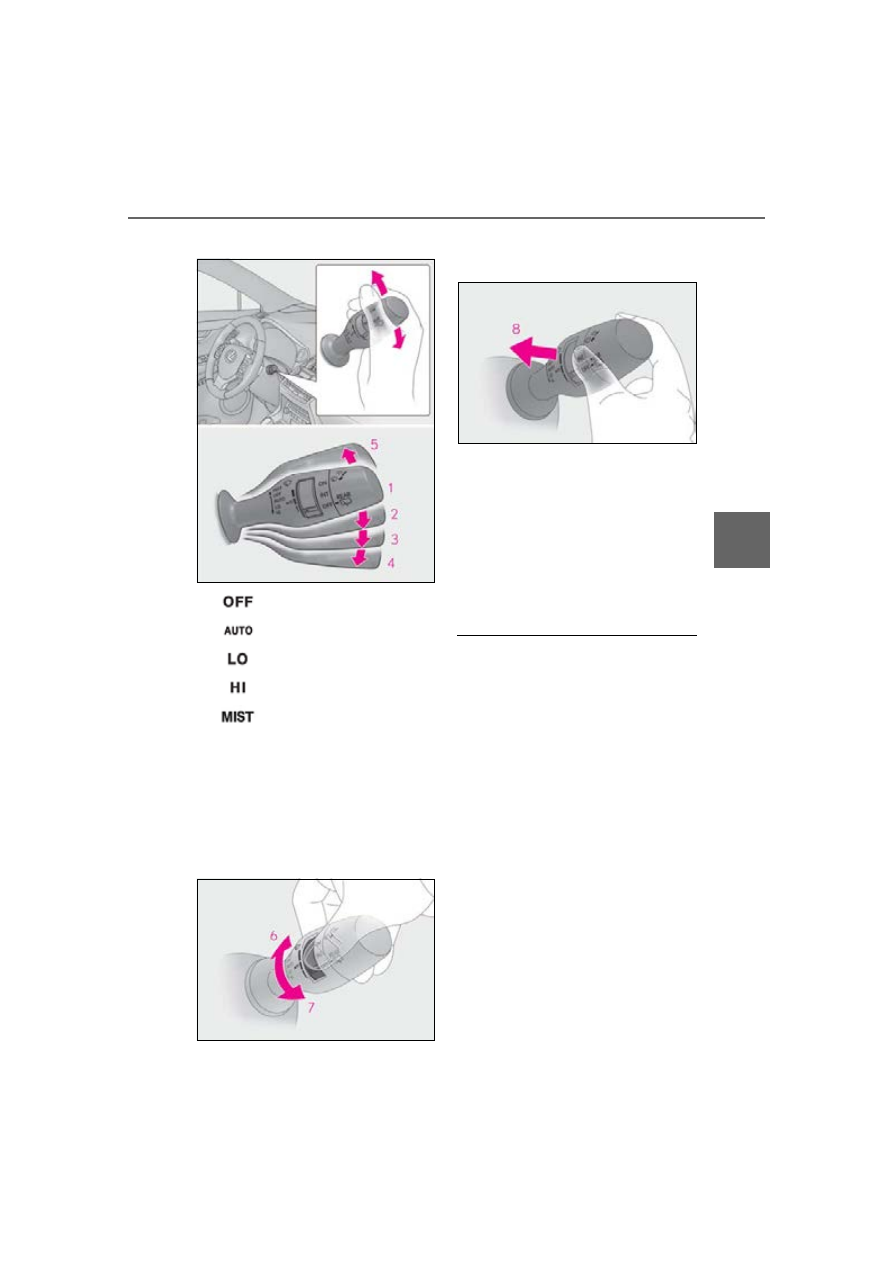

Rain-sensing windshield wipers (if
equipped)



Type A

Off

Rain-sensing operation

Low speed operation

High speed operation

Temporary operation

When “AUTO” is selected, the wipers will
operate automatically when the sensor
detects falling rain. The system automati-
cally adjusts wiper timing in accordance
with rain volume and vehicle speed.

The sensor sensitivity can be adjusted
when “AUTO” is selected.

Increases the sensitivity

Decreases the sensitivity

Washer/wiper dual operation

191

4-3. Operating the lights and wipers

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Driving



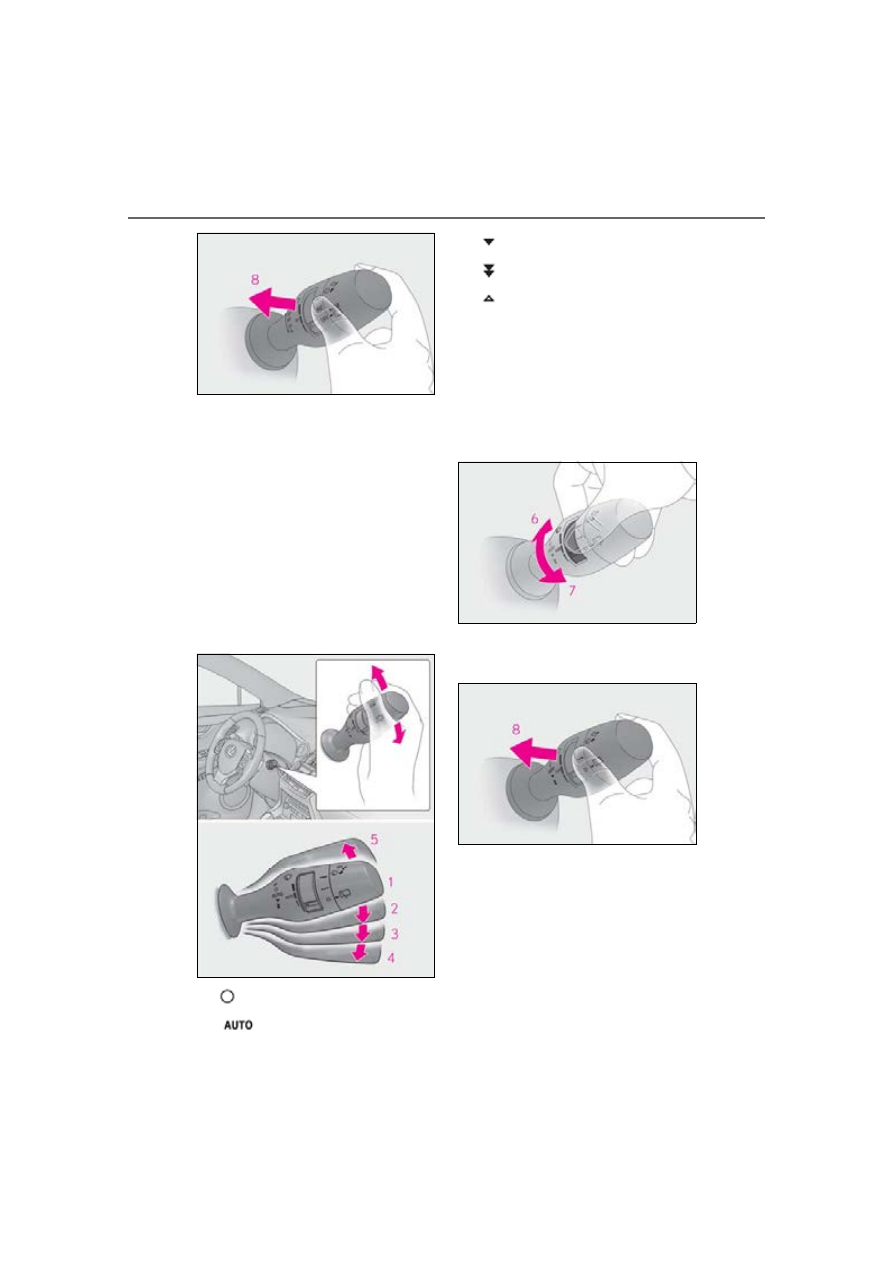

Type B

Off

Rain-sensing operation

Low speed operation

High speed operation

Temporary operation

The sensor sensitivity can be adjusted
when “AUTO” is selected.

Increases the sensitivity

Decreases the sensitivity

Washer/wiper dual operation

■

The windshield wipers and washer can

be operated when

The power switch is in ON mode.

■

Dripping prevention wiper sweep (vehi-

cles with rain-sensing windshield wip-

ers)

After washing and wiping operation several

times, the wipers operate one more time

after a short delay to prevent dripping.

However, this function will not operate while

driving.

■

Effects of vehicle speed on wiper opera-

tion (vehicles with rain-sensing wind-

shield wipers)

Vehicle speed affects the Intermittent wiper

interval.

■

Raindrop sensor (vehicles with rain-

sensing windshield wipers)

●

The raindrop sensor judges the amount

of raindrops.

An optical sensor is adopted. It may not

operate properly when sunlight from the

rising or setting of the sun intermittently

192

4-3. Operating the lights and wipers

LEXUS NX300h Owners Manu-

al_USA_M78287_en

strikes the windshield, or if bugs, etc. are

present on the windshield.

●

If the wiper switch is turned to the

“AUTO” position while the power switch

is in ON mode, the wipers will operate

once to show that AUTO mode is acti-

vated.

●

If the temperature of the raindrop sensor

is 194°F (90°C) or higher, or 5°F (-15°C)

or lower, automatic operation may not

occur. In this case, operate the wipers in

any mode other than AUTO mode.

■

If no windshield washer fluid sprays

Check that the washer nozzles are not

blocked, if there is washer fluid in the

washer fluid tank.

WARNING

■

Caution regarding the use of wind-

shield wipers in AUTO mode (vehi-

cles with rain-sensing windshield

wipers)

The windshield wipers may operate

unexpectedly if the sensor is touched or

the windshield is subject to vibration in

AUTO mode. Take care that your fingers,

etc. do not become caught in the wind-

shield wipers.

■

Caution regarding the use of washer

fluid

When it is cold, do not use the washer

fluid until the windshield becomes warm.

The fluid may freeze on the windshield

and cause low visibility. This may lead to

an accident, resulting in death or serious

injury.

NOTICE

■

When the washer fluid tank is empty

Do not operate the switch continually as

the washer fluid pump may overheat.

■

When a nozzle becomes blocked

In this case, contact your Lexus dealer.

Do not try to clear it with a pin or other

object. The nozzle will be damaged.

■

To prevent 12-volt battery discharge

Do not leave the wipers on longer than

necessary when the hybrid system is off.

193

4-3. Operating the lights and wipers

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Driving

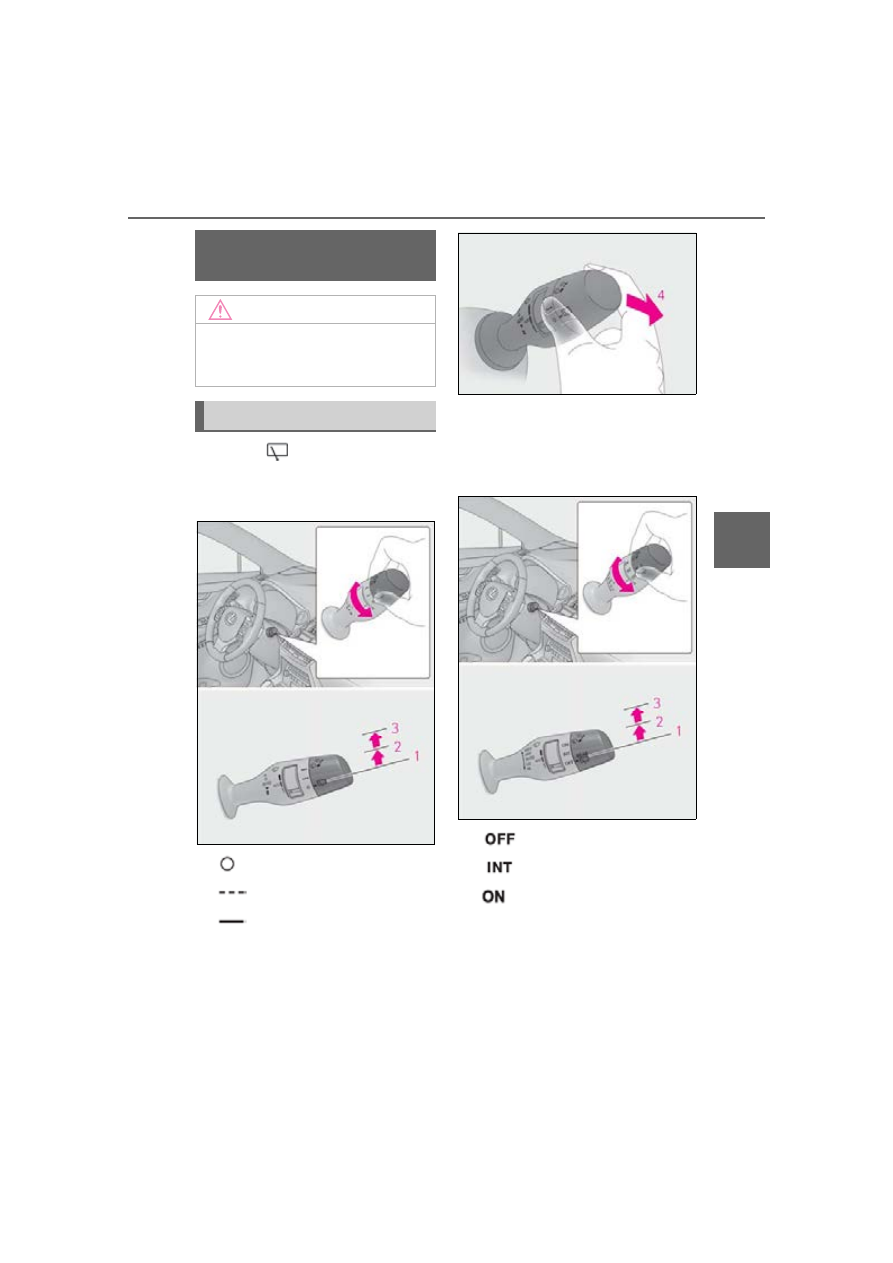

Turning the

switch turns on the rear

window wiper and washer as follows:



Type A

Off

Intermittent operation

Normal operation

Washer/wiper dual operation

The wiper will automatically operate a cou-
ple of times after the washer squirts.



Type B

Off

Intermittent operation

Normal operation

Rear window wiper and
washer

NOTICE

■

When the rear window is dry

Do not use the wiper, as it may damage

the rear window.

Operating the wiper lever

194

4-3. Operating the lights and wipers

LEXUS NX300h Owners Manu-

al_USA_M78287_en

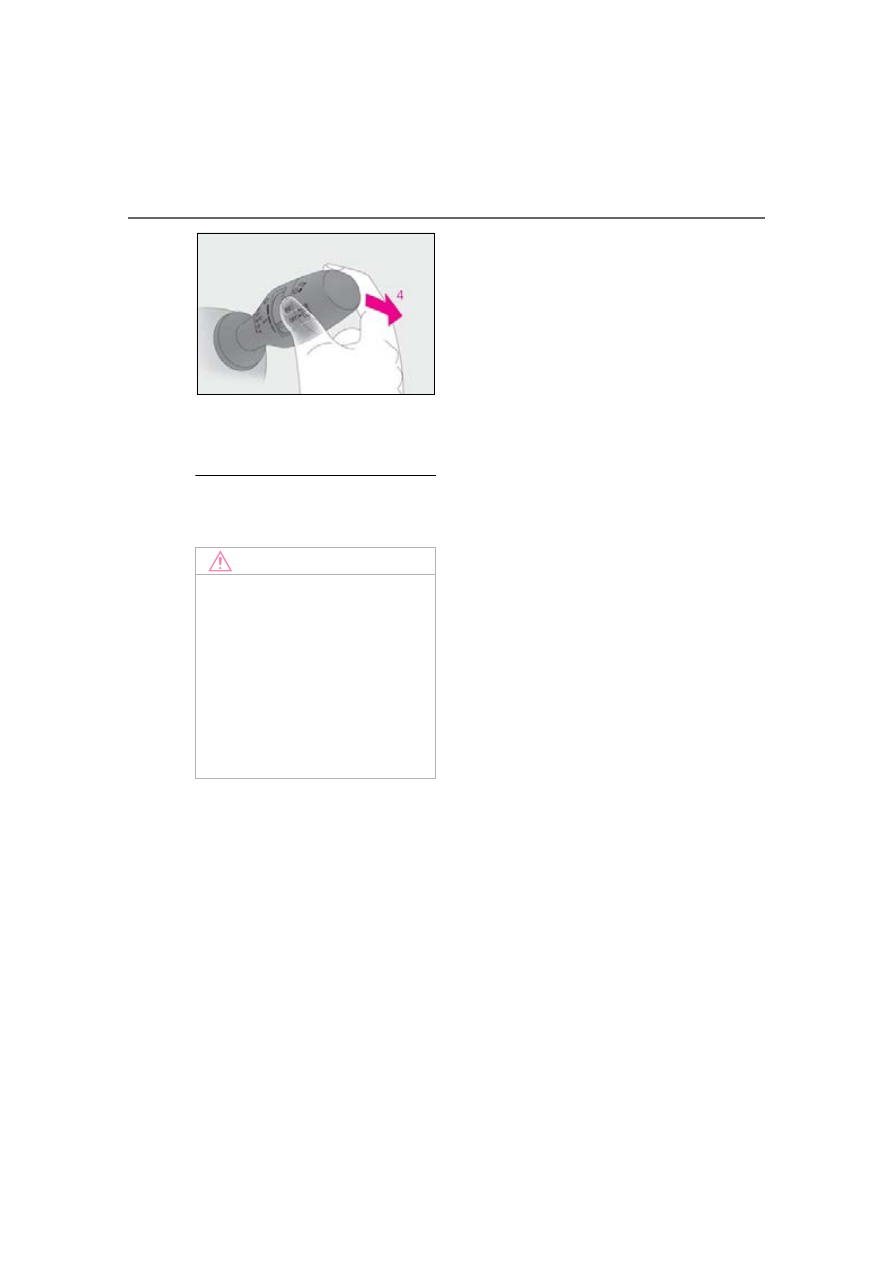

Washer/wiper dual operation

The wiper will automatically operate a cou-
ple of times after the washer squirts.

■

The rear window wiper and washer can

be operated when

The power switch is in ON mode.

NOTICE

■

When the washer fluid tank is empty

Do not operate the switch continually as

the washer fluid pump may overheat.

■

When a nozzle becomes blocked

In this case, contact your Lexus dealer.

Do not try to clear it with a pin or other

object. The nozzle will be damaged.

■

To prevent 12-volt battery discharge

Do not leave the wiper on longer than

necessary when the hybrid system is off.

195

4-4. Refueling

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Driving

4-4.Refueling

 Turn the power switch off and

ensure that all the doors and win-
dows are closed.

 Confirm the type of fuel.

■

Fuel types

P.410

■

Fuel tank opening for unleaded gasoline

To help prevent incorrect fueling, your vehi-

cle has a fuel tank opening that only accom-

modates the special nozzle on unleaded

fuel pumps.

With all doors unlocked, press the
center of the rear edge of the fuel
filler door.

Push inward and take your hand away to

slightly open the fuel filler door. Then open

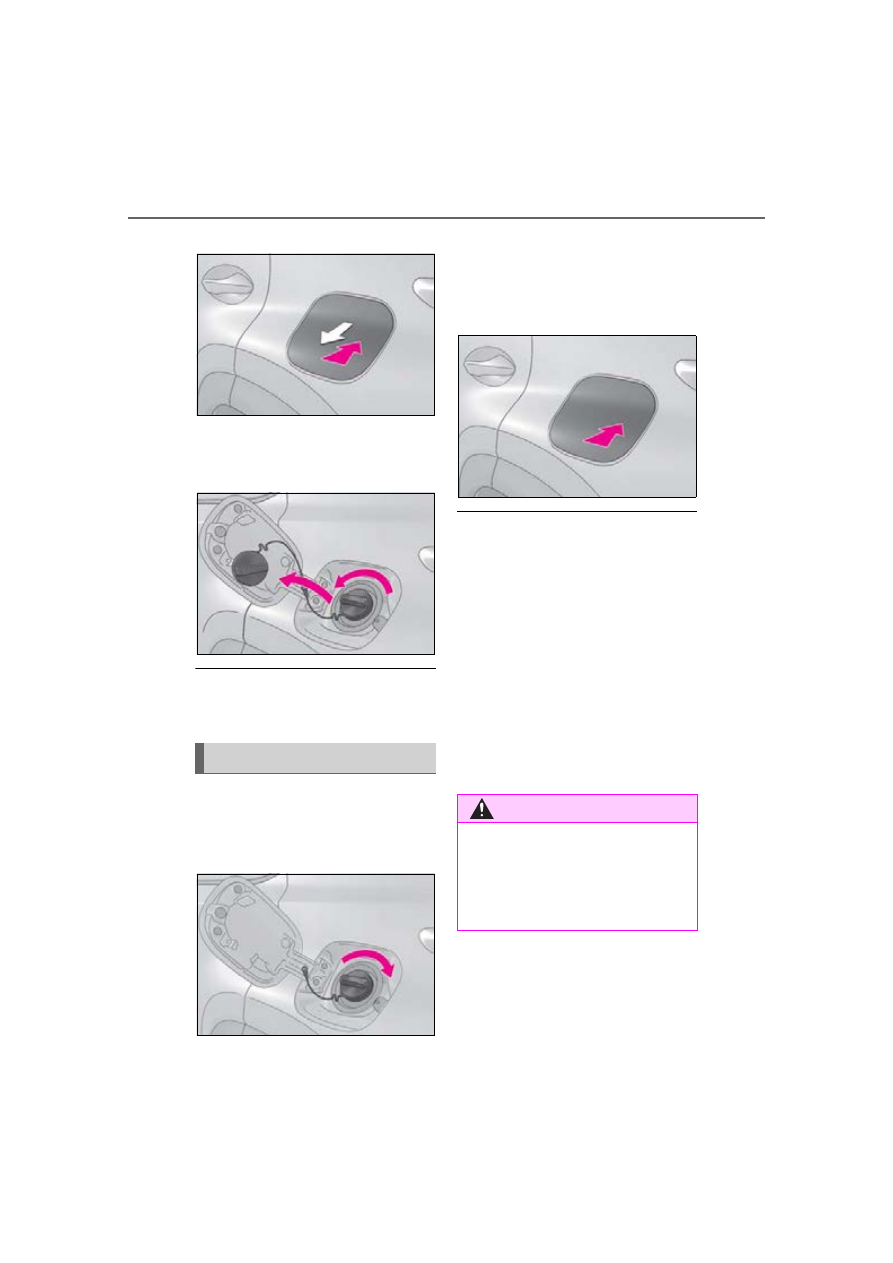

Opening the fuel tank cap

Before refueling the vehicle

WARNING

■

When refueling the vehicle

Observe the following precautions while

refueling the vehicle. Failure to do so may

result in death or serious injury.

●

After exiting the vehicle and before

opening the fuel door, touch an

unpainted metal surface to discharge

any static electricity. It is important to

discharge static electricity before refu-

eling because sparks resulting from

static electricity can cause fuel vapors

to ignite while refueling.

●

Always hold the grips on the fuel tank

cap and turn it slowly to remove it.

A whooshing sound may be heard

when the fuel tank cap is loosened.

Wait until the sound cannot be heard

before fully removing the cap. In hot

weather, pressurized fuel may spray

out of the filler neck and cause injury.

●

Do not allow anyone that has not dis-

charged static electricity from their

body to come close to an open fuel

tank.

●

Do not inhale vaporized fuel.

Fuel contains substances that are

harmful if inhaled.

●

Do not smoke while refueling the vehi-

cle.

Doing so may cause the fuel to ignite

and cause a fire.

●

Do not return to the vehicle or touch

any person or object that is statically

charged. This may cause static elec-

tricity to build up, resulting in a possible

ignition hazard.

■

When refueling

Observe the following precautions to

prevent fuel overflowing from the fuel

tank:

●

Securely insert the fuel nozzle into the

fuel filler neck.

●

Stop filling the tank after the fuel noz-

zle automatically clicks off.

●

Do not top off the fuel tank.

NOTICE

■

Refueling

Do not spill fuel during refueling.

Doing so may damage the vehicle, such

as causing the emission control system to

operate abnormally, damaging fuel sys-

tem components or the vehicle’s painted

surface.

Opening the fuel tank cap

196

4-4. Refueling

LEXUS NX300h Owners Manu-

al_USA_M78287_en

the door fully by hand.

Turn the fuel tank cap slowly to
open and put it into the holder on
the fuel filler door.

■

When the fuel filler door cannot be

opened

P.389

After refueling, turn the fuel tank
cap until you hear a click. Once the
cap is released, it will turn slightly in
the opposite direction.

Close the fuel filler door, and press
the center of the rear edge of the
fuel filler door.

When you lock the doors, the fuel filler

door will lock also.

■

Fuel filler door lock condition

The fuel filler door may not be locked even

when the vehicle’s doors are locked in the

following conditions:

●

When operating the door lock button

inside the vehicle

●

When the automatic door locking system

is operated

●

When the fuel filler door is closed after

the vehicle’s doors are locked

■

Warning buzzer for loose fuel cap

When the power switch is in ON mode and

the cap is loose, the buzzer sounds and a

message is displayed on the multi-informa-

tion display.

Closing the fuel tank cap

WARNING

■

When replacing the fuel tank cap

Do not use anything but a genuine Lexus

fuel tank cap designed for your vehicle.

Doing so may cause a fire or other inci-

dent which may result in death or serious

injury.

197

4-5. Using the driving support systems

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Driving

4-5.Using the driving support systems

■

PCS (Pre-Collision System)

P.202

■

LDA (Lane Departure Alert with
steering control)

P.209

■

Automatic High Beam

P.185

■

Dynamic radar cruise control with
full-speed range

P.217

The pre-collision system is equipped

with a sophisticated computer that will
record certain data, such as:
• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the pre-collision

system functions

• Information (such as the distance

and relative speed between your
vehicle and the vehicle ahead or
other objects)

• Images from the camera sensor

(available only when the pre-colli-
sion braking function or the pre-col-
lision brake assist function was
operating)

The pre-collision system does not
record conversations, sounds or
images of the inside of the vehicle.
 Data usage

Lexus may use the data recorded in this
computer to diagnose malfunctions, con-
duct research and development, and
improve quality.
Lexus will not disclose the recorded data to
a third party except:
• With the consent of the vehicle owner or

with the consent of the lessee if the vehi-
cle is leased

• In response to an official request by the

police, a court of law or a government
agency

• For use by Lexus in a lawsuit
• For research purposes where the data is

not tied to a specific vehicle or vehicle
owner

 Recorded images can be erased

using a specialized device.

The image recording function can be dis-

Lexus Safety System+

The Lexus Safety System+ consists
of the following drive assist systems
and contributes to a safe and com-
fortable driving experience:

Drive assist systems of Lexus
Safety System+

WARNING

■

Lexus Safety System+

The Lexus Safety System+ is designed to

operate under the assumption that the

driver will drive safely, and is designed to

help reduce the impact to the occupants

and the vehicle in the case of a collision

or assist the driver in normal driving con-

ditions.

As there is a limit to the degree of recog-

nition accuracy and control performance

that this system can provide, do not

overly rely on this system. The driver is

always responsible for paying attention

to the vehicle’s surroundings and driving

safely.

Vehicle data recording

198

4-5. Using the driving support systems

LEXUS NX300h Owners Manu-

al_USA_M78287_en

abled. However, if the function is disabled,
data from when the pre-collision system
operates will not be available.

Two types of sensors, located behind
the front grille and windshield, detect
information necessary to operate the
drive assist systems.

Radar sensor
Camera sensor

■

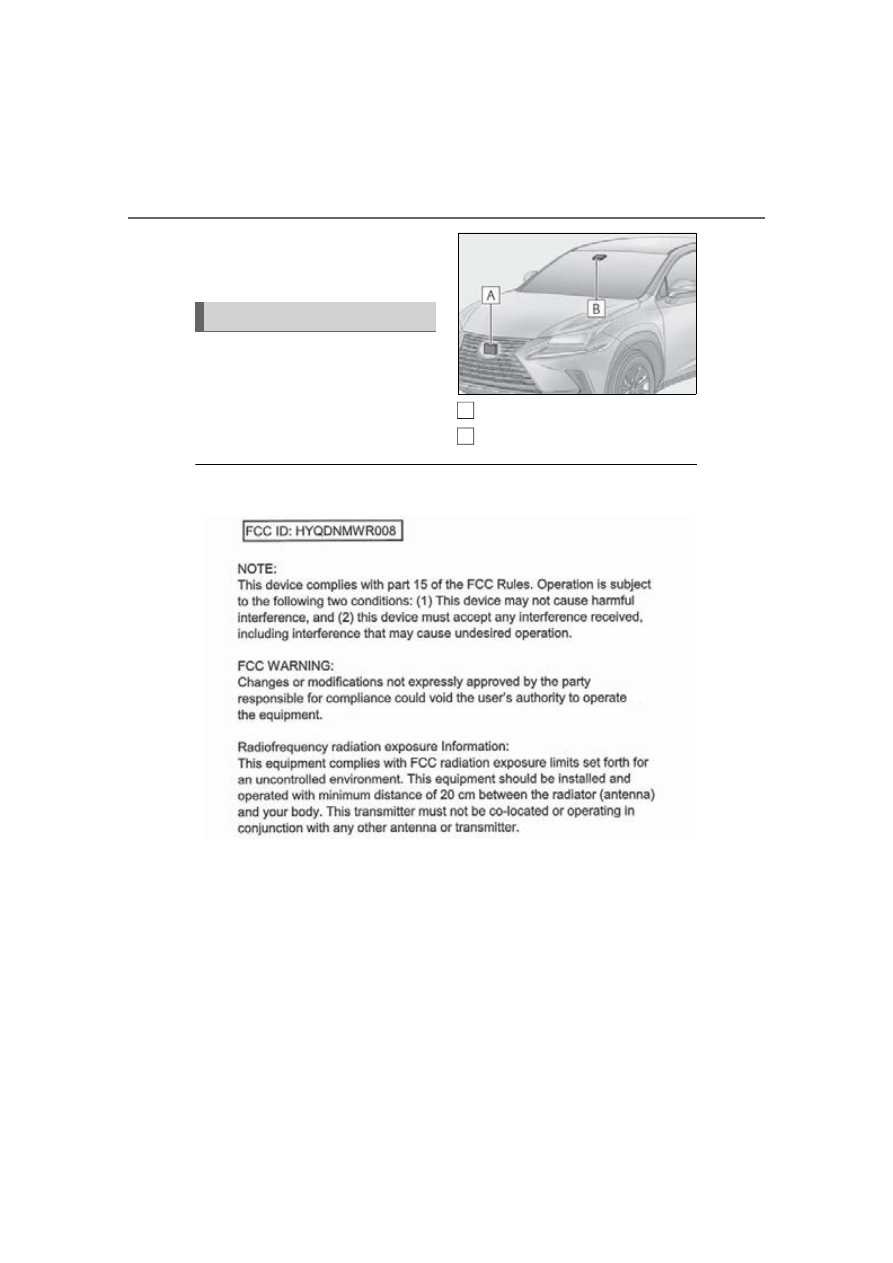

Certification



For vehicles sold in the U.S.A.

Sensors

A
B

199

4-5. Using the driving support systems

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Driving



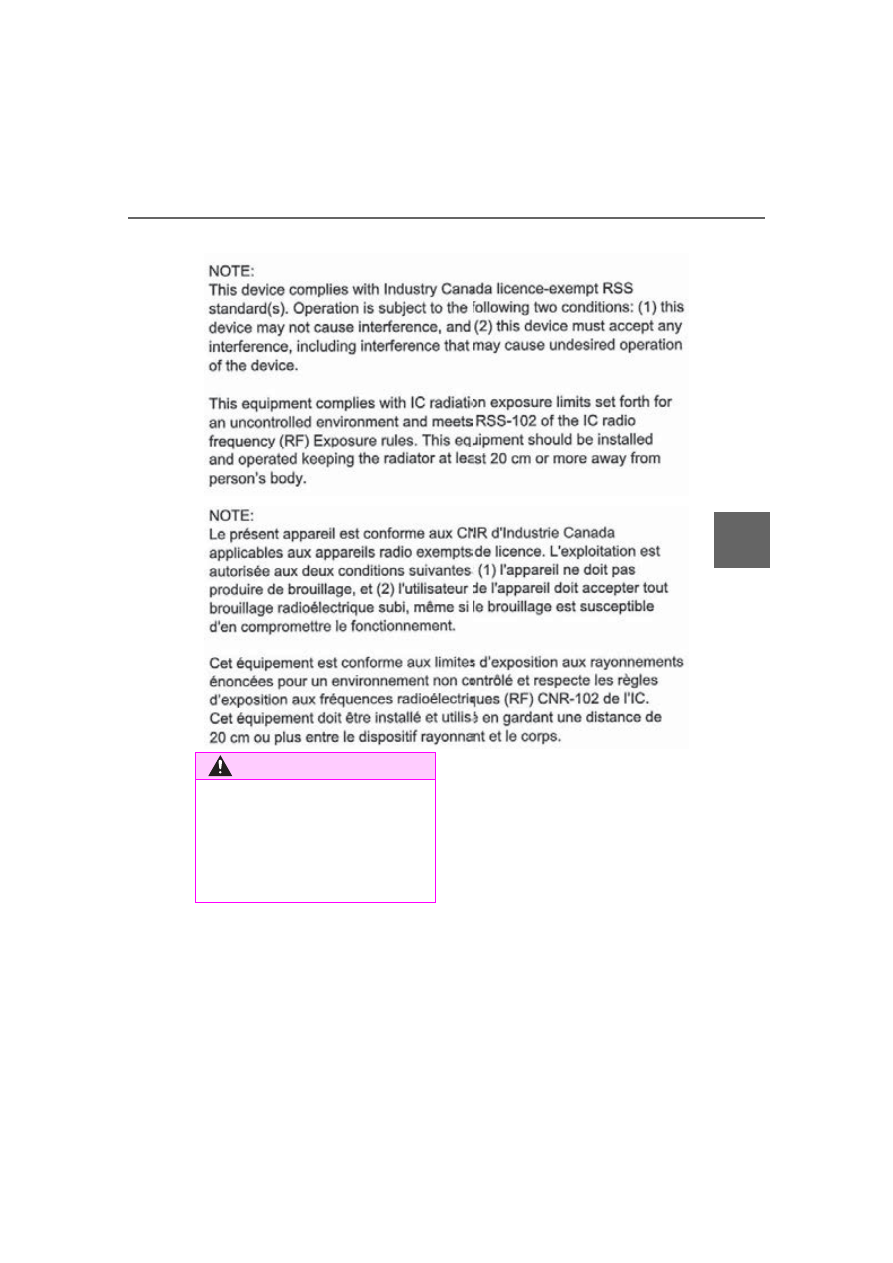

For vehicles sold in Canada

WARNING

■

To avoid malfunction of the radar sen-

sor

Observe the following precautions.

Otherwise, the radar sensor may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

200

4-5. Using the driving support systems

LEXUS NX300h Owners Manu-

al_USA_M78287_en

WARNING

●

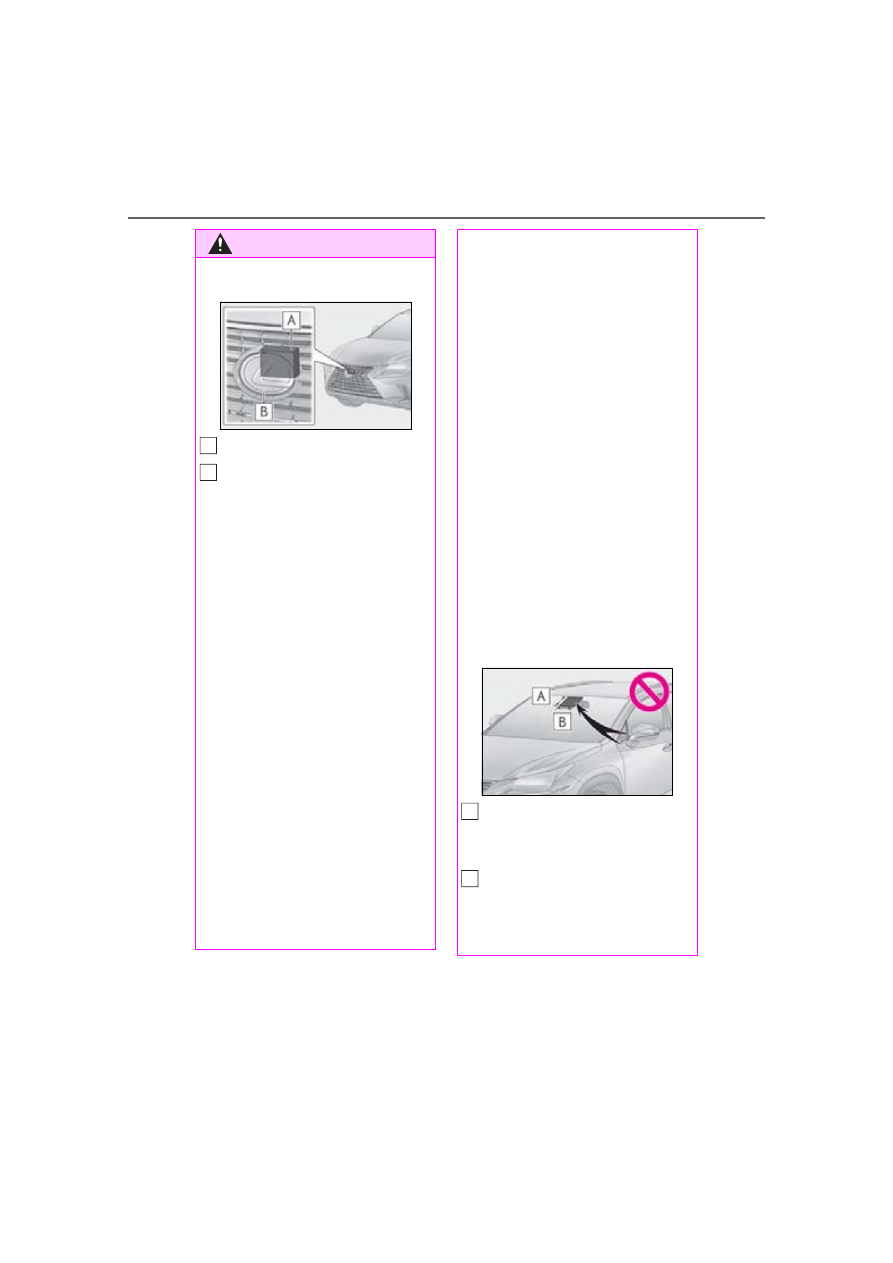

Keep the radar sensor and front grille

emblem clean at all times.

Radar sensor

Front grille emblem

If the front of the radar sensor or the front
or back of the front grille emblem is dirty
or covered with water droplets, snow,
etc., clean it.
Clean the radar sensor and front grille
emblem with a soft cloth so you do not
mark or damage them.

●

Do not attach accessories, stickers

(including transparent stickers) or

other items to the radar sensor, front

grille emblem or surrounding area.

●

Do not subject the radar sensor or sur-

rounding area to a strong impact.

If the radar sensor, front grille, or front

bumper has been subjected to a

strong impact, have the vehicle

inspected by your Lexus dealer.

●

Do not disassemble the radar sensor.

●

Do not modify or paint the radar sen-

sor, front grille emblem or surrounding

area.

●

If the radar sensor, front grille, or front

bumper needs to be removed and

installed, or replaced, contact your

Lexus dealer.

A
B

■

To avoid malfunction of the camera

sensor

Observe the following precautions.

Otherwise, the camera sensor may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

●

Keep the windshield clean at all times.

• If the windshield is dirty or covered

with an oily film, water droplets, snow,

etc., clear the windshield.

• If a glass coating agent is applied to the

windshield, it will still be necessary to

use the windshield wipers to remove

water droplets, etc. from the area of

the windshield in front of the camera

sensor.

• If the inner side of the windshield

where the camera sensor is installed is

dirty, contact your Lexus dealer.

●

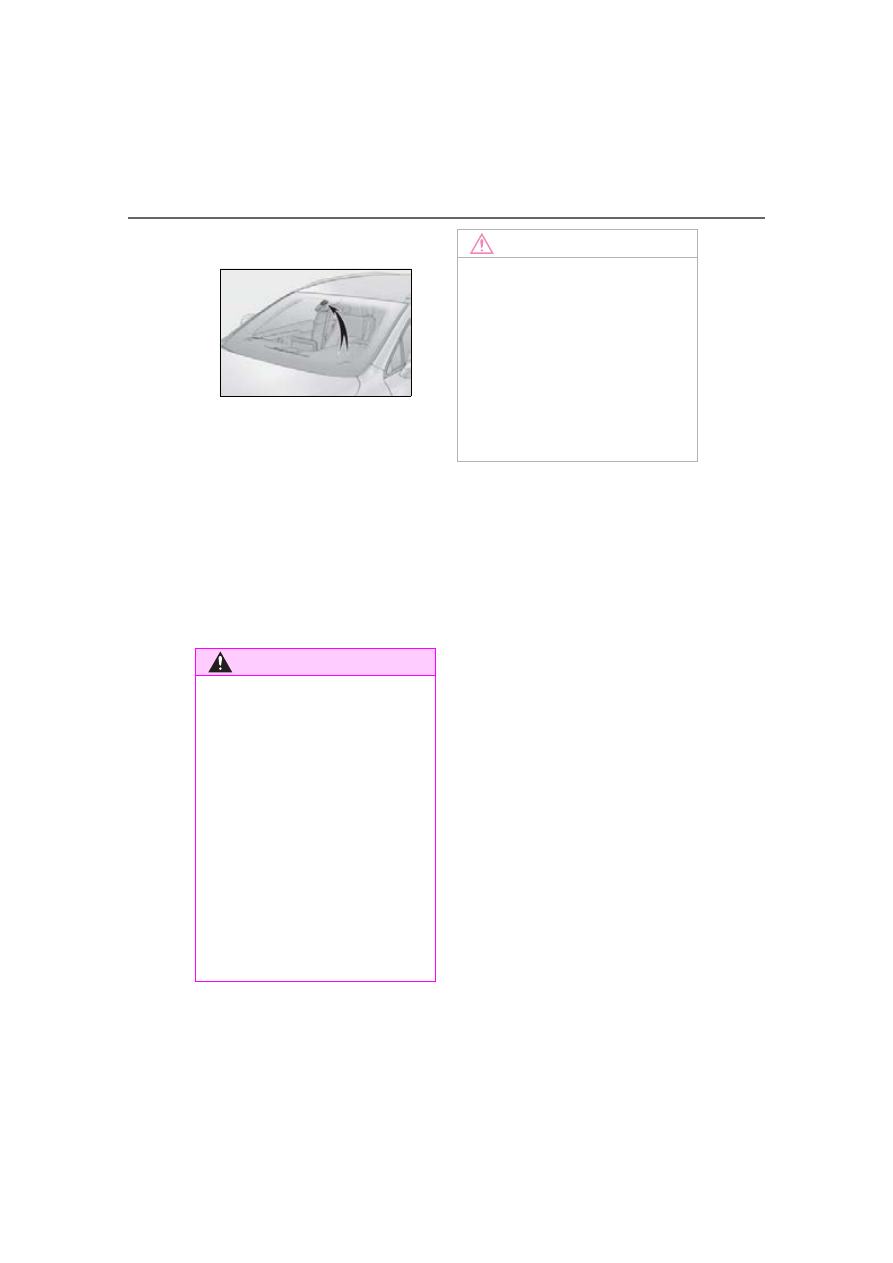

Do not attach objects, such as stickers,

transparent stickers, etc., and so forth,

to the outer side of the windshield in

front of the camera sensor (shaded

area in the illustration).

From the top of the windshield to
approximately 0.4 in. (1 cm) below
the bottom of the camera sensor

Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. (10 cm) to the
right and left from the center of the
camera sensor)

201

4-5. Using the driving support systems

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Driving

WARNING

●

If the part of the windshield in front of

the camera sensor is fogged up or

covered with condensation or ice, use

the windshield defogger to remove the

fog, condensation or ice. (

P.267)

●

If water droplets cannot be properly

removed from the area of the wind-

shield in front of the camera sensor by

the windshield wipers, replace the

wiper insert or wiper blade.

If the wiper inserts or wiper blades

need to be replaced, contact your

Lexus dealer.

●

Do not attach window tinting to the

windshield.

●

Replace the windshield if it is damaged

or cracked.

If the windshield needs to be replaced,

contact your Lexus dealer.

●

Do not get the camera sensor wet.

●

Do not allow bright lights to shine into

the camera sensor.

●

Do not dirty or damage the camera

sensor.

When cleaning the inside of the wind-

shield, do not allow glass cleaner to

contact the lens. Also, do not touch the

lens.

If the lens is dirty or damaged, contact

your Lexus dealer.

●

Do not subject the camera sensor to a

strong impact.

●

Do not change the installation position

or direction of the camera sensor or

remove it.

●

Do not disassemble the camera sen-

sor.

●

Do not modify any components of the

vehicle around the camera sensor

(inside rear view mirror, etc.) or ceiling.

●

Do not attach any accessories that

may obstruct the camera sensor to the

hood, front grille or front bumper.

Contact your Lexus dealer for details.

●

If a surfboard or other long object is to

be mounted on the roof, make sure

that it will not obstruct the camera sen-

sor.

●

Do not modify the headlights or other

lights.

202

4-5. Using the driving support systems

LEXUS NX300h Owners Manu-

al_USA_M78287_en

■

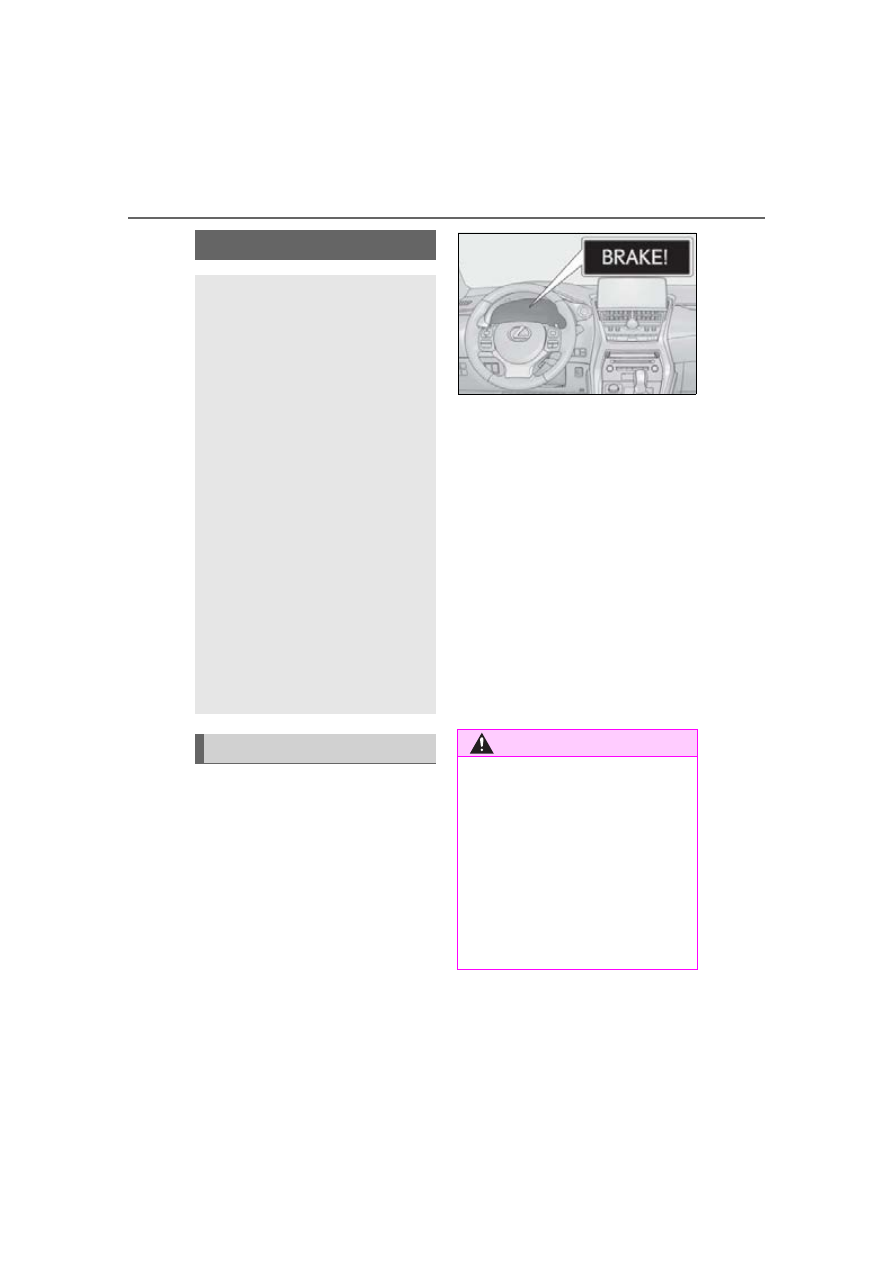

Pre-collision warning

When the system determines that the
possibility of a frontal collision is high, a
buzzer will sound and a warning mes-
sage will be displayed on the multi-
information display to urge the driver
to take evasive action.

■

Pre-collision brake assist

When the system determines that the
possibility of a frontal collision is high,
the system applies greater braking
force in relation to how strongly the
brake pedal is depressed.

■

Pre-collision braking

When the system determines that the
possibility of a frontal collision is high,
the system warns the driver. If the sys-
tem determines that the possibility of a
frontal collision is extremely high, the
brakes are automatically applied to
help avoid the collision or reduce the
collision speed.

PCS (Pre-Collision System)

The pre-collision system uses a
radar sensor and camera sensor to
detect vehicles and pedestrians in
front of your vehicle. When the sys-
tem determines that the possibility
of a frontal collision with a vehicle
or pedestrian is high, a warning
operates to urge the driver to take
evasive action and the potential
brake pressure is increased to help
the driver avoid the collision. If the
system determines that the possi-
bility of a frontal collision with a
vehicle or pedestrian is extremely
high, the brakes are automatically
applied to help avoid the collision
or help reduce the impact of the
collision.
The pre-collision system can be dis-
abled/enabled and the warning tim-
ing can be changed. (

P.204)

System functions

WARNING

■

Limitations of the pre-collision system

●

The driver is solely responsible for safe

driving. Always drive safely, taking

care to observe your surroundings.

Do not use the pre-collision system

instead of normal braking operations

under any circumstances. This system

will not prevent collisions or lessen col-

lision damage or injury in every situa-

tion. Do not overly rely on this system.

Failure to do so may lead to an acci-

dent, resulting in death or serious

injury.

203

4-5. Using the driving support systems

LEXUS NX300h Owners Manu-

al_USA_M78287_en

Driving

WARNING

●

Although this system is designed to

help avoid a collision or help reduce

the impact of the collision, its effective-

ness may change according to various

conditions, therefore the system may

not always be able to achieve the same

level of performance.

Read the following conditions care-

fully. Do not overly rely on this system

and always drive carefully.

• Conditions under which the system

may operate even if there is no possi-

bility of a collision:

P.206

• Conditions under which the system

may not operate properly:

P.207

●

Do not attempt to test the operation of

the pre-collision system yourself, as the

system may not operate properly, pos-

sibly leading to an accident.

■

Pre-collision braking

●

When the pre-collision braking func-

tion is operating, a large amount of

braking force will be applied.

●

If the vehicle is stopped by the opera-

tion of the pre-collision braking func-

tion, the pre-collision braking function

operation will be canceled after

approximately 2 seconds. Depress the

brake pedal as necessary.

●

The pre-collision braking function may

not operate if certain operations are

performed by the driver. If the acceler-

ator pedal is being depressed strongly

or the steering wheel is being turned,

the system may determine that the

driver is taking evasive action and pos-

sibly prevent the pre-collision braking

function from operating.

●

In some situations, while the pre-colli-

sion braking function is operating,

operation of the function may be can-

celed if the accelerator pedal is

depressed strongly or the steering

wheel is turned and the system deter-

mines that the driver is taking evasive

action.

●

If the brake pedal is being depressed,

the system may determine that the

driver is taking evasive action and pos-

sibly delay the operation timing of the

pre-collision braking function.

■

When to disable the pre-collision sys-

tem

In the following situations, disable the

system, as it may not operate properly,

possibly leading to an accident resulting

in death or serious injury:

●

When the vehicle is being towed

●

When your vehicle is towing another

vehicle

●

When transporting the vehicle via

truck, boat, train or similar means of

transportation

●

When the vehicle is raised on a lift with

the hybrid system on and the tires are

allowed to rotate freely

●

When inspecting the vehicle using a

drum tester such as a chassis dyna-

mometer or speedometer tester, or

when using an on vehicle wheel bal-

ancer

●

When a strong impact is applied to the

front bumper or front grille, due to an

accident or other reasons

●

If the vehicle cannot be driven in a sta-

ble manner, such as when the vehicle

has been in an accident or is malfunc-

tioning

●

When the vehicle is driven in a sporty

manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When tires of a size other than speci-

fied are installed

●

When tire chains are installed

Content .. 10 11 12 13 ..
