LEXUS NX 300 (2019 year). Instruction - part 7





108

3-2. Opening, closing and locking the doors

LEXUS NX300 Owners Manu-

al_USA_M78285_en

• Portable radio, cellular phone, cordless

phone or other wireless communication

devices

• Another vehicle’s electronic key or a

wireless key that emits radio waves

• Personal computers or personal digital

assistants (PDAs)

• Digital audio players

• Portable game systems

If window tint with a metallic content or

metallic objects are attached to the rear

window

When the electronic key is placed near a

battery charger or electronic devices

Note for the entry function

Even when the electronic key is within the

effective range (detection areas), the sys-

tem may not operate properly in the fol-

lowing cases:

• The electronic key is too close to the win-

dow or outside door handle, near the

ground, or in a high place when the doors

are locked or unlocked.

• The electronic key is near the ground or

in a high place, or too close to the rear

bumper center when the back door is

opened.

• The electronic key is on the instrument

panel, luggage room, floor, or in the door

pockets or glove box when the engine is

started or engine switch modes are

changed.

Do not leave the electronic key on top of

the instrument panel or near the door

pockets when exiting the vehicle.

Depending on the radio wave reception

conditions, it may be detected by the

antenna outside the cabin and the door

will become lockable from the outside,

possibly trapping the electronic key

inside the vehicle.

As long as the electronic key is within the

effective range, the doors may be locked

or unlocked by anyone.

Even if the electronic key is not inside the

vehicle, it may be possible to start the

engine if the electronic key is near the

window.

The doors may unlock if a large amount

of water splashes on the door handle,

such as in the rain or in a car wash when

the electronic key is within the effective

range. (The door will automatically be

locked after approximately 60 seconds if

the doors are not opened and closed.)

If the wireless remote control is used to

lock the doors when the electronic key is

near the vehicle, there is a possibility that

the door may not be unlocked by the

entry function. (Use the wireless remote

control to unlock the doors.)

Touching the door lock sensor while

wearing gloves may delay or prevent lock

operation. Remove the gloves and touch

the lock sensor again.

When the lock operation is performed

using the lock sensor, recognition signals

will be shown up to two consecutive

times. After this, no recognition signals

will be given.

If the door handle becomes wet while the

electronic key is within the effective

range, the door may lock and unlock

repeatedly. In that case, follow the follow-

ing correction procedures to wash the

vehicle:

• Place the electronic key in a location 6 ft.

(2 m) or more away from the vehicle.

(Take care to ensure that the key is not

stolen.)

• Set the electronic key to battery-saving

mode to disable the smart access system

with push-button start. (

P.107)

If the electronic key is inside the vehicle

and a door handle becomes wet during a

car wash, a message may be shown on

the multi-information display and a

buzzer will sound outside the vehicle. To

turn off the alarm, lock all the doors.

The lock sensor may not work properly if

it comes into contact with ice, snow, mud,

etc. Clean the lock sensor and attempt to

operate it again.

A sudden approach to the effective

range or door handle may prevent the

doors from being unlocked. In this case,

return the door handle to the original

position and check that the doors unlock

before pulling the door handle again.

If there is another electronic key in the

detection area, it may take slightly longer

to unlock the doors after the door handle

109

3-2. Opening, closing and locking the doors

LEXUS NX300 Owners Manu-

al_USA_M78285_en

3

Be

fore
 dri
ving

is gripped.

When the vehicle is not driven for

extended periods

To prevent theft of the vehicle, do not

leave the electronic key within 6 ft. (2 m)

of the vehicle.

The smart access system with push-but-

ton start can be deactivated in advance.

To operate the system properly

Make sure to carry the electronic key when

operating the system. Do not get the elec-

tronic key too close to the vehicle when

operating the system from the outside of the

vehicle.
Depending on the position and holding

condition of the electronic key, the key may

not be detected correctly and the system

may not operate properly. (The alarm may

go off accidentally, or the door lock preven-

tion may not operate.)

If the smart access system with push but-

ton start does not operate properly

Locking and unlocking the doors: Use

the mechanical key. (

P.372)

Starting the engine:

P.372

Customization

Settings (e.g. smart access system with

push-button start) can be changed. (Cus-

tomizable features:

P.401)

If the smart access system with push-button

start has been deactivated by a customized

setting, refer to the explanations for the fol-

lowing operations.

Locking and unlocking the doors:

Use the wireless remote control or

mechanical key. (

P.90, 372)

Starting the engine and changing engine

switch modes:

P.372

Stopping the engine:

P.156

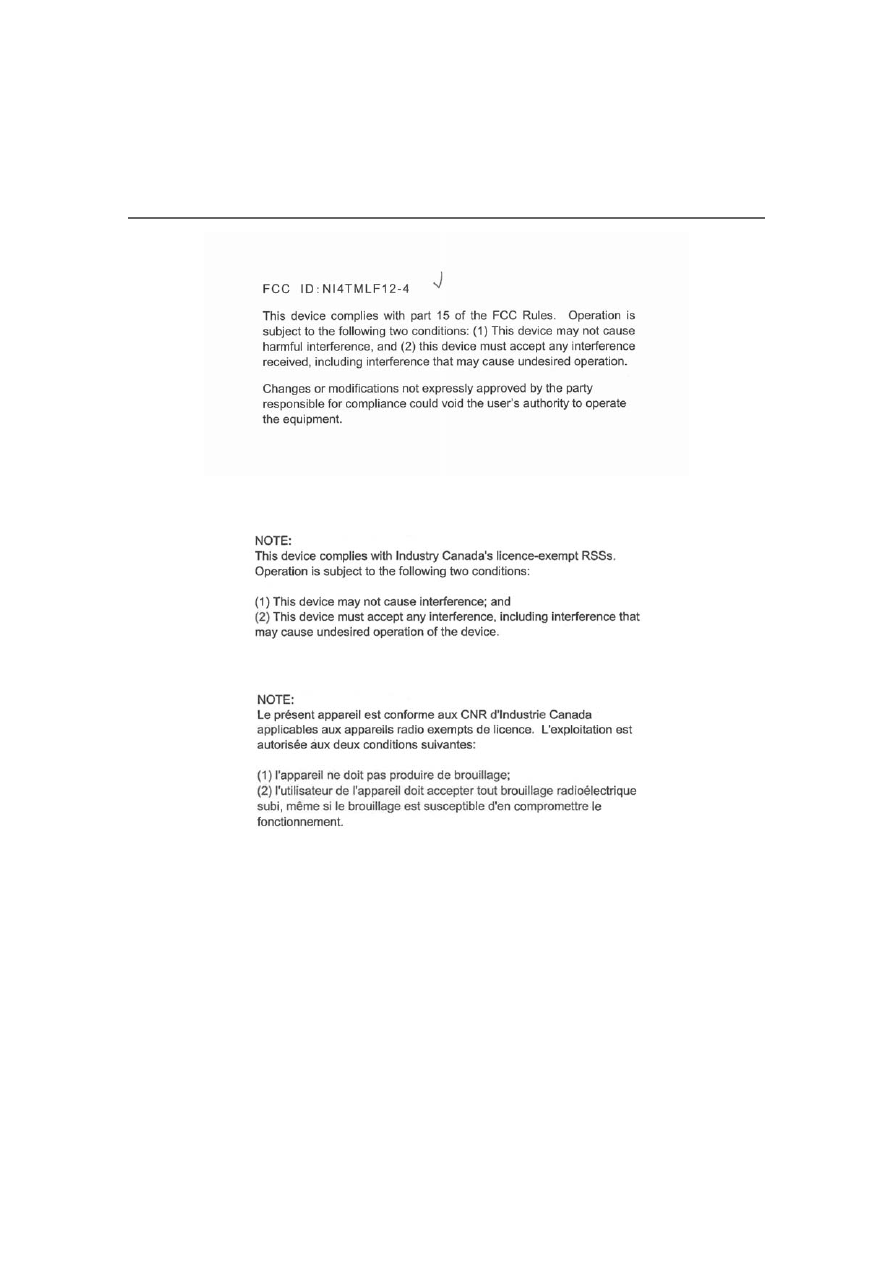

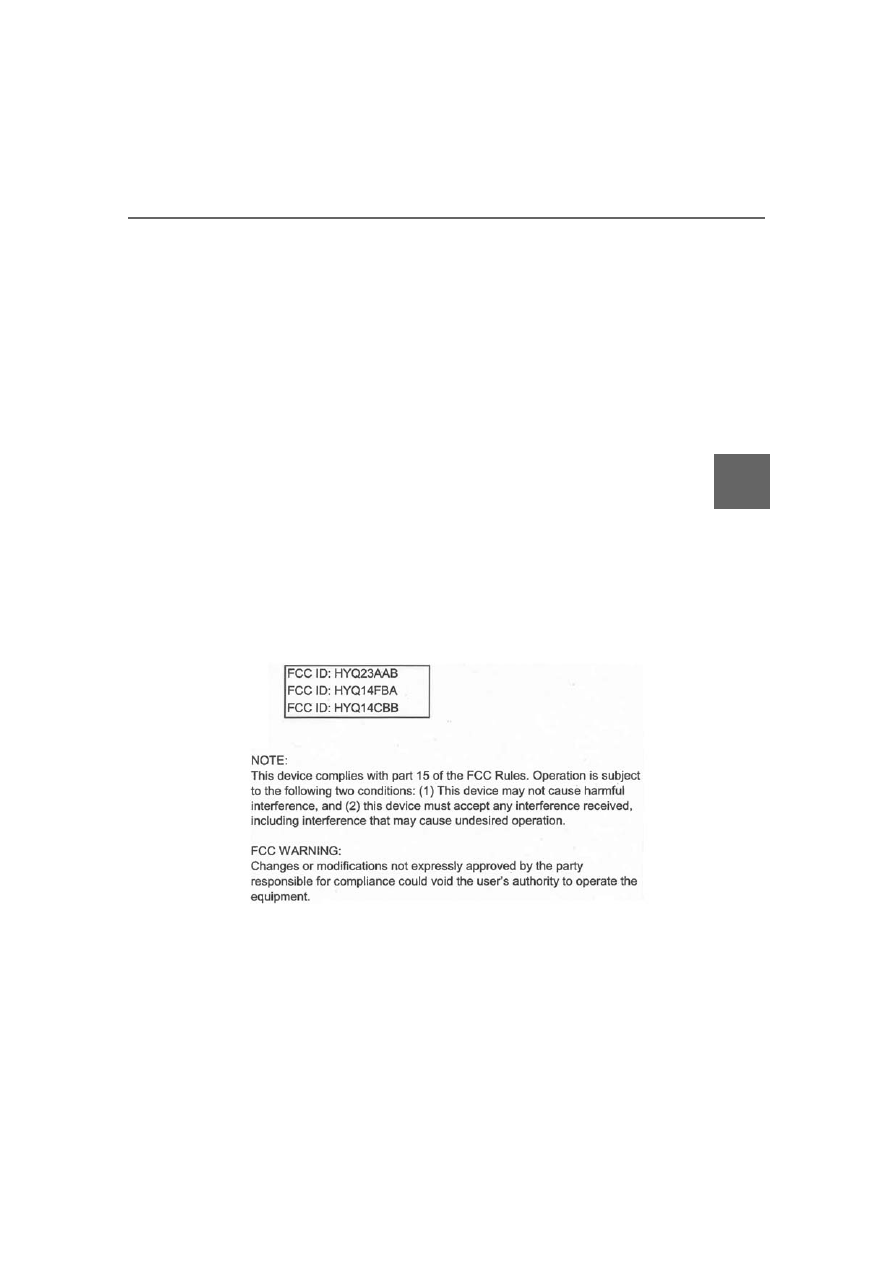

Certification for the smart access system with push-button start

For vehicles sold in the U.S.A.

110

3-2. Opening, closing and locking the doors

LEXUS NX300 Owners Manu-

al_USA_M78285_en

For vehicles sold in Canada

111

3-2. Opening, closing and locking the doors

LEXUS NX300 Owners Manu-

al_USA_M78285_en

3

Be

fore
 dri
ving

WARNING

Caution regarding interference with

electronic devices

People with implantable cardiac pace-

makers, cardiac resynchronization

therapy-pacemakers or implantable

cardioverter defibrillators should keep

away from the smart access system

with push-button start antennas.

(

P.106)

The radio waves may affect the opera-

tion of such devices. If necessary, the

entry function can be disabled. Ask

your Lexus dealer for details, such as

the frequency of radio waves and tim-

ing of the emitted radio waves. Then,

consult your doctor to see if you

should disable the entry function.

Users of any electrical medical device

other than implantable cardiac pace-

makers, cardiac resynchronization

therapy-pacemakers or implantable

cardioverter defibrillators should con-

sult the manufacturer of the device for

information about its operation under

the influence of radio waves.

Radio waves could have unexpected

effects on the operation of such medi-

cal devices.

Ask your Lexus dealer for details on dis-

abling the entry function.

112

3-3. Adjusting the seats

LEXUS NX300 Owners Manu-

al_USA_M78285_en

3-3.Adjusting the seats

Seat position adjustment switch
Seat cushion (front) angle adjust-
ment switch
Vertical height adjustment switch
Seatback angle adjustment switch
Lumbar support adjustment switch
(for driver’s side)

Power easy access system (if equipped)

The driver’s seat and steering wheel move

in accordance with engine switch mode and

the driver’s seat belt condition. (

P.118)

Front seats

The seats can be adjusted (longitu-
dinally, vertically, etc.). Adjust the
seat to ensure the correct driving
posture.

Adjustment procedure

A
B

C
D

E

WARNING

When adjusting the seat position

Take care when adjusting the seat

position to ensure that other passen-

gers are not injured by the moving

seat.

Do not put your hands under the seat

or near the moving parts to avoid

injury.

Fingers or hands may become

jammed in the seat mechanism.

Seat adjustment

To reduce the risk of sliding under the lap

belt during a collision, do not recline the

seat more than necessary.

If the seat is too reclined, the lap belt may

slide past the hips and apply restraint

forces directly to the abdomen, or your

neck may contact the shoulder belt,

increasing the risk of death or serious

injury in the event of an accident.

Adjustments should not be made while

driving as the seat may unexpectedly

move and cause the driver to lose control

of the vehicle.

113

3-3. Adjusting the seats

LEXUS NX300 Owners Manu-

al_USA_M78285_en

3

Be

fore
 dri
ving

Manual seat

Reclining adjustment

Power seat

Reclining adjustment

Operating conditions for reclining

adjustment (power seat)

When the following conditions are met,

switch operations are possible.

When the seatback position is within the

 range in the following illustration from

the upright position.

When the other operation switches for

the seat being operated are not pressed.

Reclining adjustment (power seat)

Stop the seatback partway. To set the seat-

back to the rearmost position, press the

button again.

Power seat operations (if equipped)

If the seat has a cover or seat cushion, it may

not operate properly. Also, when folding

down the seat, check that there is nothing

on the rear seat that would interfere with

the operation.

Rear seats

Reclining adjustments and folding
the seat backs can be done with
either lever or switch operations.

Adjustment procedure

A

A

WARNING

When operating the seatback

Observe the following precautions.

Failure to do so may cause death or seri-

ous injury.

Keep other passengers from being hit

with the seatback.

A

114

3-3. Adjusting the seats

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Before folding down the rear seat-
backs

1

Stow the rear center seat belt, seat
belt buckles and armrest. (

P.27)

2

Lower the head restraint of the rear
seat. (

P.121)

Folding down rear seatbacks (man-
ual seat)

Pull the seatback angle adjustment
lever and fold down the seatback.

Folding down rear seatbacks
(power seat)

Press and hold the switch to fold down
the seatback.

The buzzer sounds and operations start.
The buzzer sounds again when the opera-
tion is complete.
To stop the operation of a seat partway,
press either seat operation switch for that
seat, once more. Switches for that seat in
other locations can be used to stop the
operations. (buzzer sounds depending on
stopping position of the seatback)

Instrument panel switch

Rear seat switch

When the seatback is collapsed to the
rear, put the seatback in the most
upright position and press the switch
once again.

WARNING

Do not bring your hands close to the

moving parts or between the seats, as

well as do not let any part of your body

get caught.

Vehicles with power seat: Do not let

children operate the seatback as other

passengers may get caught in seat.

Vehicles with power seat: Check that

there are no passengers sitting in the

seat before folding that seat forward.

Also, do let other passengers sit in the

seat while the seat is forward folding.

Seat adjustment

To reduce the risk of sliding under the lap

belt during a collision, do not recline the

seat more than necessary.

If the seat is too reclined, the lap belt may

slide past the hips and apply restraint

forces directly to the abdomen, or your

neck may contact the shoulder belt,

increasing the risk of death or serious

injury in the event of an accident.

Adjustments should not be made while

driving as the seat may unexpectedly

move and cause the driver to lose control

of the vehicle.

Folding down the rear seatbacks

115

3-3. Adjusting the seats

LEXUS NX300 Owners Manu-

al_USA_M78285_en

3

Be

fore
 dri
ving

Luggage room switch

Returning the rear seatbacks
(manual seat)

1

Raise the rear seatback until it
locks.

2

Check that the plate for the seat
belt is on the front side of the seat.

When using the seat belt for the rear cen-

ter seat (

P.26)

Returning the rear seatbacks
(power seat)

1

Press and hold the switch to return
the seatback.

The buzzer sounds and operations start.

The buzzer sounds again when the opera-

tion is complete.

To stop the operation of a seat partway,

press either seat operation switch for that

seat, once more. Switches for that seat in

other locations can be used to stop the

operations. (buzzer sounds depending on

stopping position of the seatback)

Instrument panel switch

Rear seat switch

116

3-3. Adjusting the seats

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Luggage room switch

2

Check that the plate for the seat
belt is on the front side of the seat.

When using the seat belt for the rear cen-

ter seat (

P.26)

Operating conditions for folding down

the seatback (power seat)

When the following conditions are met,

switch operations are possible.

When operating the rear seat switch: The
seatback position is within the

 range

in the illustration from the most upright
position.

When operating the instrument panel
switch or luggage compartment switch:
The seatback position is within the



range in the illustration.

When operating the rear seat switch:

When the rear door for the seat to be

operated is open.

When operating the luggage compart-

ment switch: When the back door is

open.

When the other operation switches for

the seat being operated are not pressed.

When the engine switch is in IGNITION

ON mode, in addition to the above, the

power seat operates for any of the following

conditions:
• Parking brake is engaged
• The brake pedal is depressed
• The shift lever is in P

Operating conditions for returning the

seatback (power seat)

When the following conditions are met,

switch operations are possible.

When operating the rear seat switch: The
seatback position is within the

 range

in the illustration from the most upright
position.

When operating the rear seat switch:

When the rear door for the seat to be

operated is open.

When operating the luggage compart-

ment switch: When the back door is

open.

When the other operation switches for

the seat being operated are not pressed.

When the engine switch is in IGNITION

ON mode, in addition to the above, the

power seat operates for any of the following

conditions:
• Parking brake is engaged
• The brake pedal is depressed

A

B

A

117

3-3. Adjusting the seats

LEXUS NX300 Owners Manu-

al_USA_M78285_en

3

Be

fore
 dri
ving

• The shift lever is in P

Seatback jam protection function

(power seat)

When folding down the seatback, if a for-

eign object is perceived between the seat-

back and seat cushion, the seatback will

reverse operations and then stops opera-

tions.

The buzzer sounds intermittently during

reverse operations and sounds continu-

ously when operations are stopped.

WARNING

When folding the rear seatbacks

down and after folded

Observe the following precautions.

Failure to do so may result in death or

serious injury.

Do not fold the seatbacks down while

driving.

Stop the vehicle on level ground, set

the parking brake and shift the shift

lever to P.

Do not allow anyone to sit on a folded

seatback or in the luggage compart-

ment while driving.

Do not allow children to enter the lug-

gage compartment.

After returning the rear seatback to

the upright position

Observe the following precautions.

Failure to do so may result in death or

serious injury.

Make sure that the seatback is

securely locked in position by lightly

pushing it back and forth.

Check that the seat belts are not

twisted or caught in the seatback.

Jam protection function (vehicles

with power seat)

Observe the following precautions.

Failure to do so may cause death or seri-

ous injury.

Never use any part of your body to

intentionally activate the jam protec-

tion function.

The jam protection function may not

work if something gets caught just

before the seatback is fully folded for-

ward. Be careful not to get fingers

caught or anything else.

The jam protection function may not

work depending on the shape of the

object that is caught. Be careful not to

catch fingers or anything else.

NOTICE

Stowing the seat belts

The seat belts and the buckles for the

rear center seat, as well as the armrest,

must be stowed before you fold down the

rear seatbacks. (

P.27)

118

3-3. Adjusting the seats

LEXUS NX300 Owners Manu-

al_USA_M78285_en

*

: If  equipped

When all of the following have been
performed, the driver’s seat and steer-
ing wheel are automatically adjusted to
a position that allows driver to enter
and exit the vehicle easily.
• The shift lever has been shifted to P.
• The engine switch has been turned

off.

• The driver’s seat belt has been

unfastened.

When any of the following has been
performed, the driver’s seat and steer-

ing wheel automatically return to their
original positions.
• The engine switch has been turned

to ACCESSORY mode or IGNI-
TIONON mode.

• The driver’s seat belt has been fas-

tened.

Operation of the power easy access sys-

tem

When exiting the vehicle, the power easy

access system may not operate if the seat is

already close to the rearmost position, etc.

Customization

The seat movement amount settings of the

power easy access system can be custom-

ized. (Customizable features:

P.401)

1

Check that the shift lever is in P.

2

Turn the engine switch to IGNI-
TION ON mode.

3

Adjust the driver’s seat, steering
wheel and outside rear view mir-
rors to the desired positions.

4

While pressing the “SET” button, or
within 3 seconds after the “SET”
button is pressed, press button “1”,
“2” or “3” until the buzzer sounds.

If the selected button has already been

preset, the previously recorded position

Driving position memory

*

This feature automatically adjusts
the front seats, steering wheel and
outside rear view mirrors to make
entering and exiting the vehicle
easier or to suit your preferences.
Three different driving positions
can be recorded into memory.
Each electronic key (including a
card key) can be registered to
recall your preferred driving posi-
tion.

Enabling easier driver entry and
exit (Power easy access system)

Recording a driving position into
memory

119

3-3. Adjusting the seats

LEXUS NX300 Owners Manu-

al_USA_M78285_en

3

Be

fore
 dri
ving

will be overwritten.

Seat positions that can be memorized

(

P.112)

The adjusted positions other than the posi-

tion adjusted by lumbar support switch can

be recorded.

In order to correctly use the driving

position memory function

If a seat position is already in the furthest

possible position and the seat is operated in

the same direction, the recorded position

may be slightly different when it is recalled.

1

Check that the shift lever is in P.

2

Turn the engine switch to IGNI-
TION ON mode.

3

Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.

To stop the position recall operation

part-way through

Perform any of the following:

Press the “SET” button.

Press button “1”, “2” or “3”.

Operate any of the seat adjustment

switches (only cancels seat position

recall).

Operate the tilt and telescopic steering

control switch (only cancels steering

wheel position recall).

Operating the driving position memory

after turning the engine switch off

Recorded seat positions can be activated

up to 180 seconds after the driver’s door is

opened and another 60 seconds after it is

closed again.

Registering procedure

Record your driving position to button
“1”, “2” or “3” before performing the
following:
Carry only the key you want to register,
and then close the driver’s door.
If 2 or more keys are in the vehicle, the

WARNING

Seat adjustment caution

Take care during seat adjustment so that

the seat does not strike the rear passen-

ger or squeeze your body against the

steering wheel.

Recalling a driving position

Registering/canceling/recall a
driving position to an electronic
key (memory recall function)

120

3-3. Adjusting the seats

LEXUS NX300 Owners Manu-

al_USA_M78285_en

driving position cannot be recorded
properly.

1

Check that the shift lever is in P.

2

Turn the engine switch to IGNI-
TION ON mode.

3

Recall the driving position that you
want to record.

4

While pressing the recalled button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds.

If the driving position could not be regis-

tered, the buzzer sounds continuously for

approximately 3 seconds.

Cancelation procedure

1

Carry only the key you want to can-
cel and then close the driver’s door.

If 2 or more keys are in the vehicle, the

driving position cannot be canceled prop-

erly.

2

Turn the engine switch to IGNI-
TIONON mode.

3

While pressing the “SET” button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds twice.

If it could not be canceled, the buzzer

sounds continuously for approximately 3

seconds.

Recall procedure

1

Make sure that the doors are
locked before recalling the driving
position.Carry the electronic key
that has been registered to the driv-
ing position, and then unlock and
open the driver’s door using the
smart access system with push-but-
ton start or wireless remote control.

The driving position will move to the

recorded position (not including the steer-

ing wheel). However, the seat will move to

a position slightly behind the recorded

position in order to make entering the vehi-

cle easier.

If the driving position is in a position that

has already been recorded, the seat and

outside rear view mirrors will not move.

2

Turn the engine switch to ACCES-
SORY mode or IGNITION ON
mode, or fasten a seat belt.

The seat and steering wheel will move to

the recorded position.

Recalling the driving position using the

memory recall function

Different driving positions can be regis-

tered for each electronic key. Therefore,

the driving position that is recalled may

be different depending on the key being

carried.

If a door other than the driver’s door is

unlocked with the smart access system

with push-button start, the driving posi-

tion cannot be recalled. In this case, press

the driving position button which has

been set.

Customization

The unlock door settings of the memory

recall function can be customized. (Cus-

tomizable features:

P.401)

121

3-3. Adjusting the seats

LEXUS NX300 Owners Manu-

al_USA_M78285_en

3

Be

fore
 dri
ving

Front seats

1

Up

Pull the head restraints up.

2

Down

Push the head restraint down while press-
ing the lock release button

.

Rear seats

1

Up

Pull the head restraints up.

2

Down

Push the head restraint down while press-
ing the lock release button

.

Adjusting the height of the head

restraints

Make sure that the head restraints are

adjusted so that the center of the head

restraint is closest to the top of your ears.

Adjusting the center rear seat head

restraint

Always raise the head restraint one level

from the stowed position when using.

The position of the front head restraint
can be adjusted forward in 4 stages.

If the head restraint is pulled forward from
the foremost position, it will return to the
rearmost position.

Head restraints

Head restraints are provided for all
seats.

WARNING

Head restraint precautions

Observe the following precautions

regarding the head restraints.

Failure to do so may result in death or

serious injury.

Use the head restraints designed for

each respective seat.

Adjust the head restraints to the cor-

rect position at all times.

After adjusting the head restraints,

push down on them and make sure

they are locked in position.

Do not drive with the head restraints

removed.

Vertical adjustment

A

Horizontal adjustment (if
equipped)

A

122

3-3. Adjusting the seats

LEXUS NX300 Owners Manu-

al_USA_M78285_en

Pull the head restraint up while press-
ing the lock release button  .
If the head restraint touches the ceiling,
making the removal difficult, change
the seat height or angle. (

P.112, 113)

Align the head restraint with the instal-
lation holes and push it down to the
lock position.

Press and hold the lock release button



when lowering the head restraint.

Removing the head restraints

Installing the head restraints

A

A

123

3-4. Adjusting the steering wheel and mirrors

LEXUS NX300 Owners Manu-

al_USA_M78285_en

3

Be

fore
 dri
ving

3-4.Adjusting the steering wheel and mirrors

Manual type

1

Hold the steering wheel and push
the lever down.

2

Adjust to the ideal position by mov-
ing the steering wheel horizontally
and vertically.

After adjustment, pull the lever up to

secure the steering wheel.

Power type

Operating the switch moves the steer-
ing wheel in the following directions:

1

Up

2

Down

3

Toward the driver

4

Away from the driver

The steering wheel can be adjusted

when (power type)

The engine switch is in ACCESSORY or
IGNITION ON mode

*

.

*

: If the driver’s seat belt is fastened, the

steering wheel can be adjusted regard-
less of engine switch mode.

Automatic adjustment of the steering

position (if equipped)

A desired steering position can be entered

to memory and recalled automatically by

the driving position memory system.

(

P.118)

Power easy access system (if equipped)

The steering wheel and driver’s seat move

in accordance with engine switch mode and

the driver’s seat belt condition. (

P.118)

After adjusting the steering wheel

(manual type)

Make sure that the steering wheel is

securely locked.

The horn may not sound if the steering

wheel is not securely locked.

Steering wheel

Adjustment procedure















Content   ..  5  6  7  8   ..
