LEXUS LX 570 (2019 year). Instruction - part 6

2. Instrument cluster

Instrument cl

uste
r

: This light is displayed on the multi-information display.

■

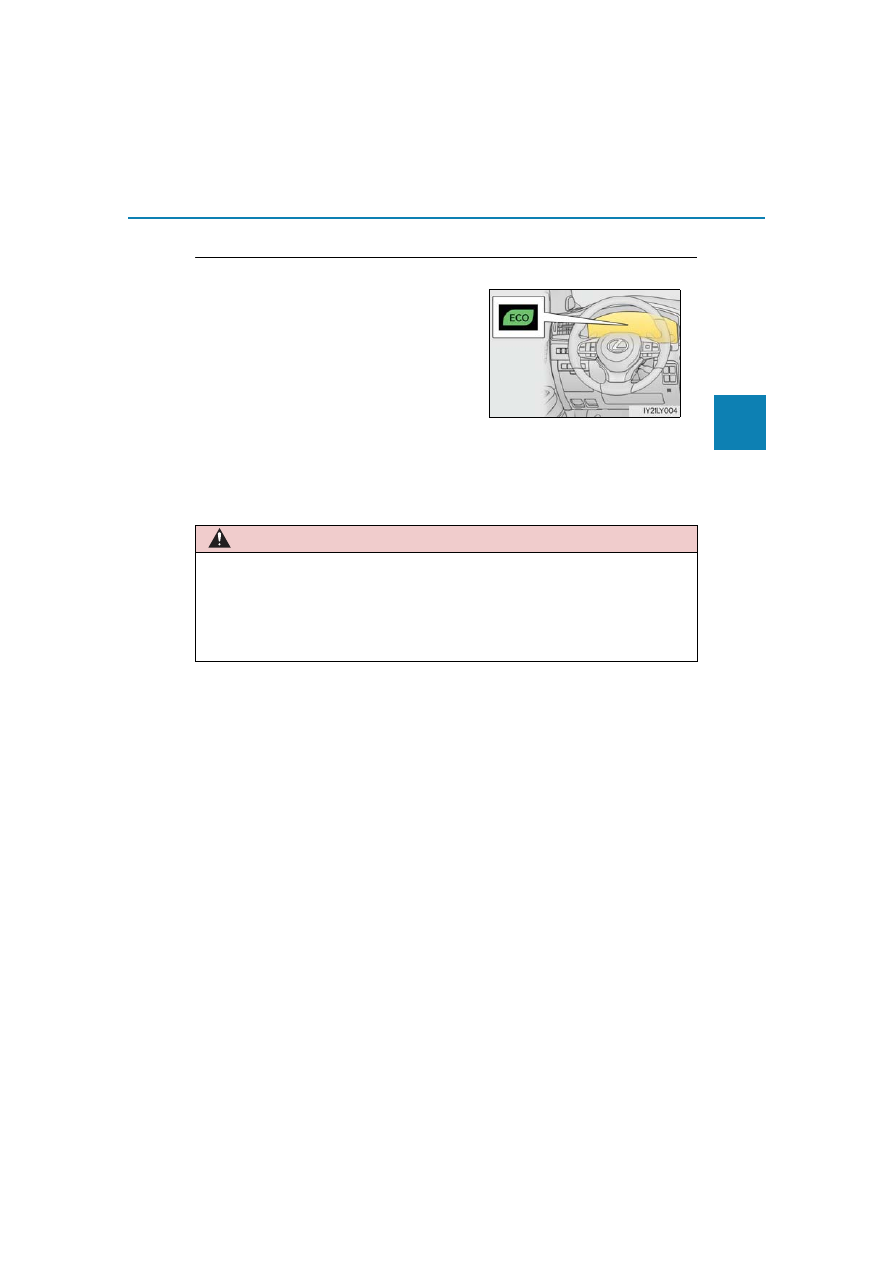

Eco Driving Indicator Light

●

The vehicle is set to second start mode. (

P. 216)

●

The vehicle is set to sport mode or customized mode. (

P. 290)

●

The vehicle speed is approximately 81 mph (130 km/h) or higher.

●

The Crawl Control is operating. (

P. 313)

●

The paddle shift switch (if equipped) is operating.

During Eco-Friendly acceleration operation

(Eco driving), Eco Driving Indicator Light will

turn on. When the acceleration exceeds Zone

of Eco driving (

P. 103), or when the vehicle is

stopped, the light turns off.
Eco Driving Indicator Light will not operate in

the following conditions:

●

The shift lever is in any position other than D.

WARNING

■

If a safety system warning light does not come on
Should a safety system light such as the Multi Terrain ABS and the SRS warning light

not come on when you start the engine, this could mean that these systems are not

available to help protect you in an accident, which could result in death or serious

injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.

2. Instrument cluster

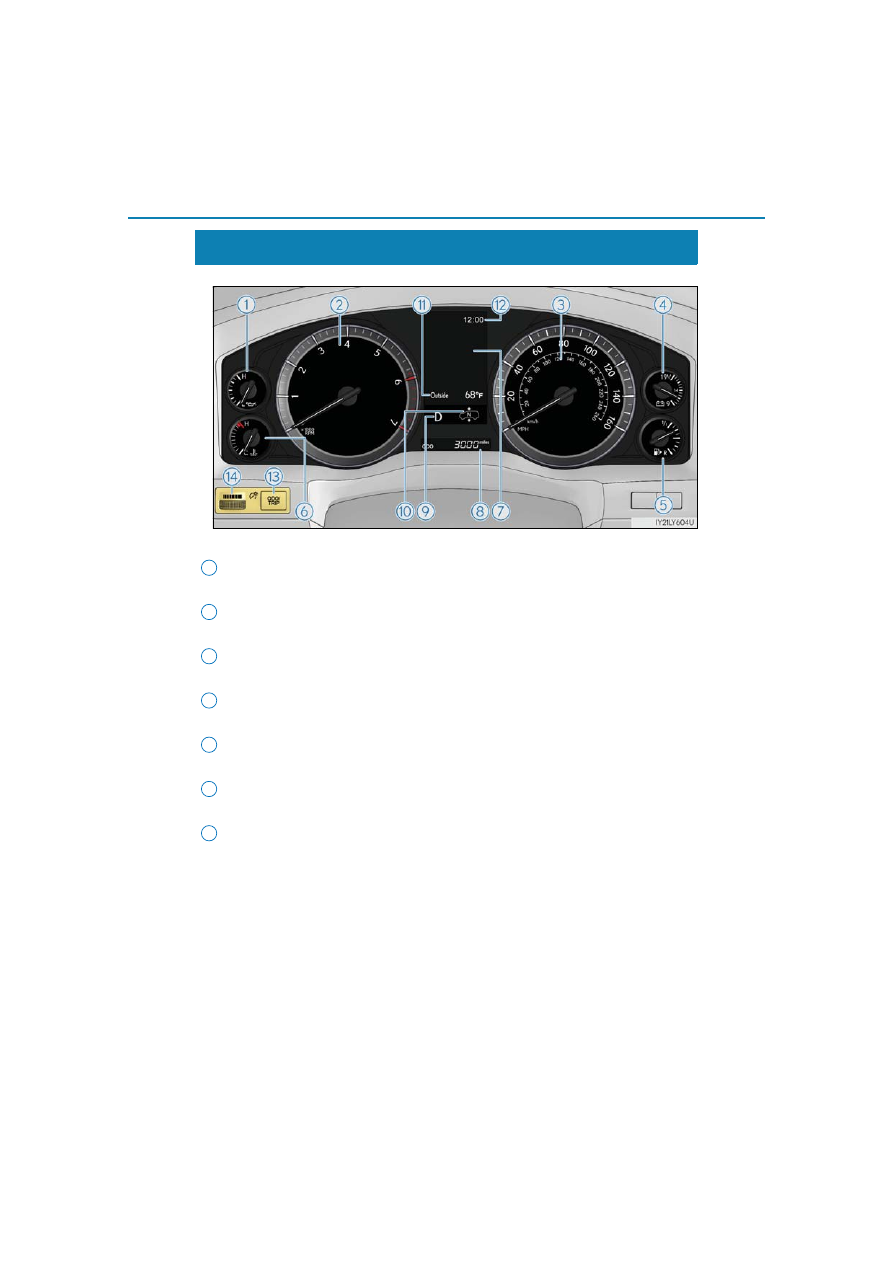

Gauges and meters

The units used on the speedometer may differ depending on the target region.

Engine oil pressure gauge

Displays the engine oil pressure

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Displays the vehicle speed

Voltmeter

Displays the charge state

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Multi-information display

Presents the driver with a variety of driving-related data

P. 96)

2. Instrument cluster

Instrument cl

uste
r

Odometer and trip meter display

Odometer:

Displays the total distance the vehicle has been driven
Trip meter:

Displays the distance the vehicle has been driven since the meter was last reset. Trip

meters A and B can be used to record and display different distances independently.

Shift position and shift range display

Displays the selected shift position or selected shift range (

P. 216)

4-Wheel AHC display

Display the status of 4-Wheel AHC (Active Height Control Suspension). (

P. 301)

Outside temperature

Displays the outside temperature within the range of -40

F (-40C) to 122F

(50

C). Low outside temperature indicator comes on when the ambient temperature

is 37

F (3C) or lower.

Clock

Time displayed is linked to the analog clock on the instrument panel. (

P. 438)

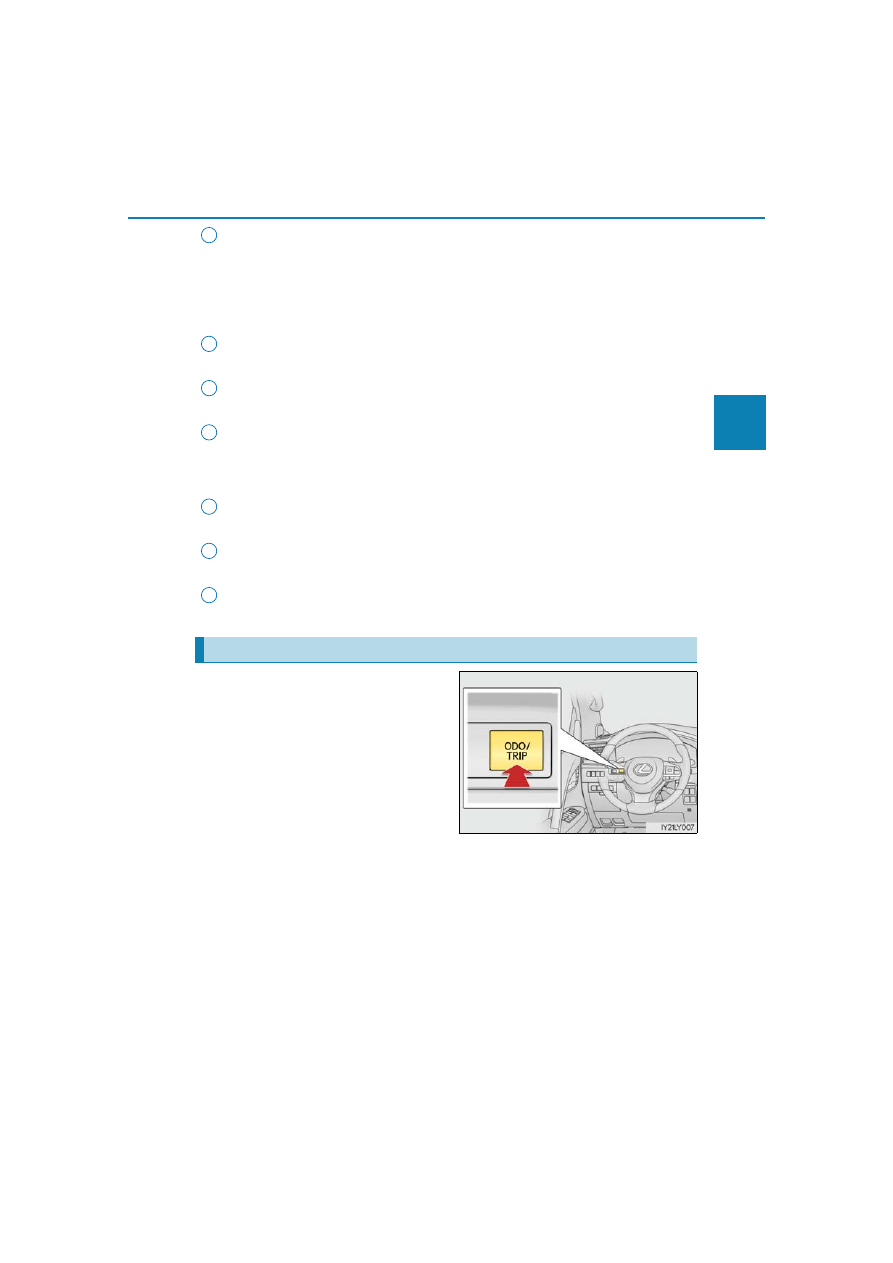

Odometer/trip meter display change button

Switches between odometer and trip meter displays

Instrument panel light control dial

The brightness of the instrument panel light can be adjusted

Switches between odometer and trip
meter displays. When the trip meter is
displayed, pressing and holding the
button will reset the trip meter.

Changing the display

2. Instrument cluster

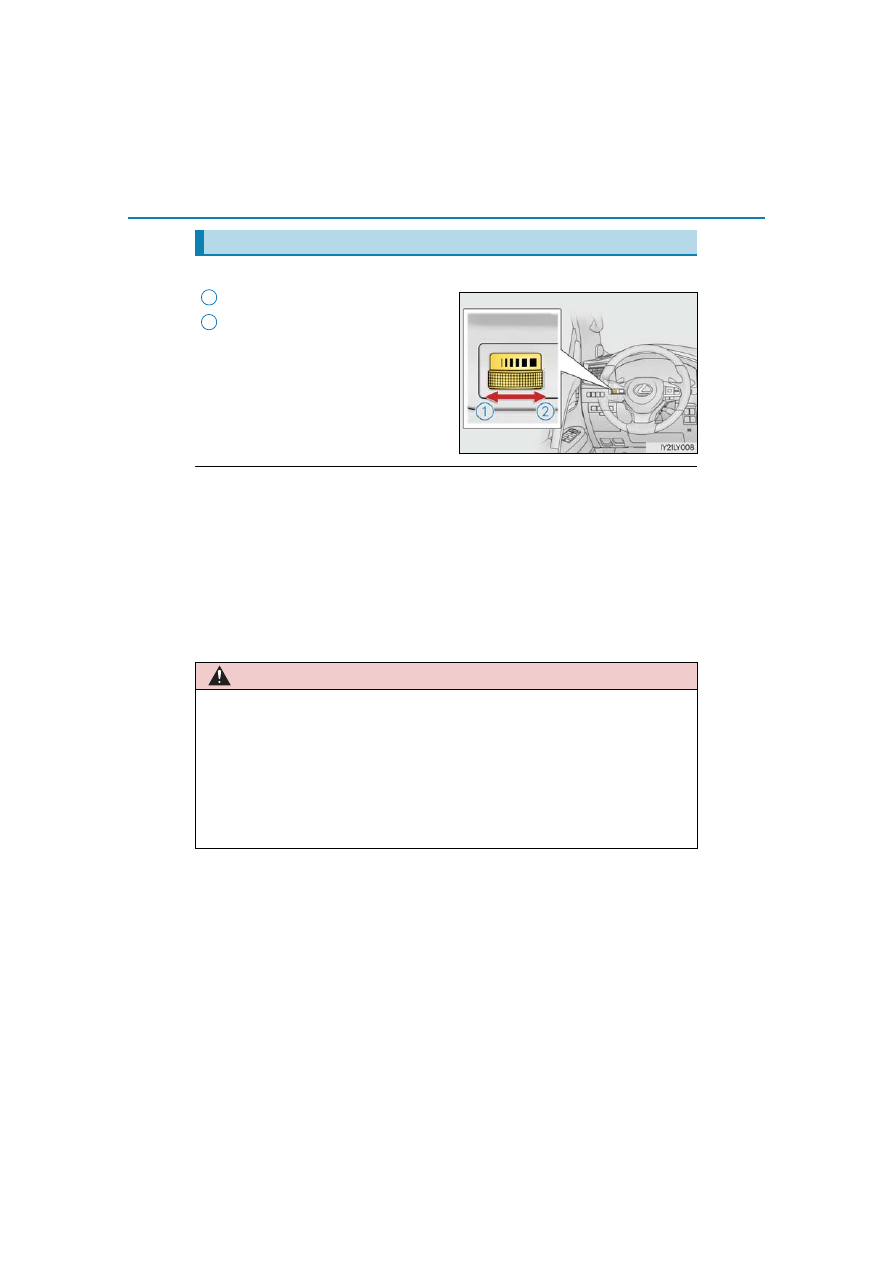

The brightness of the instrument panel lights can be adjusted.

Darker
Brighter

■

The meters and display illuminate when
The engine switch is in IGNITION ON mode.

■

The brightness of the instrument panel lights
When the tail lights are turned on, the meter’s brightness will be reduced slightly unless

the meter brightness level adjustment is set to the brightest setting.
If the tail lights are turned on when the surroundings are dark, the meter’s brightness will

be reduced slightly. However, when the surroundings are bright, such as during the day-

time, the meter’s brightness will not be reduced even if the tail lights are turned on.

■

Customization
The meter display can be customized on the multi-information display. (

P. 584)

Instrument panel light control

WARNING

■

The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information

display. At extremely low temperatures, the information display monitor may respond

slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number

appearing on the display. This lag could cause the driver to downshift again, causing

rapid and excessive engine braking and possibly an accident resulting in death or

injury.

2. Instrument cluster

Instrument cl

uste
r

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which indicates

the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is in the red

zone (H). In this case, immediately stop the vehicle in a safe place, and check the

engine after it has cooled completely. (

P. 555)

■

Voltmeter
When the voltmeter indicates 19 V or higher or 9 V or lower while the engine is run-

ning, there may be a battery or charging system malfunction. Have the vehicle

inspected at your Lexus dealer.

■

Engine oil pressure gauge
When the value of the engine oil pressure gauge drops while the engine is running,

stop the vehicle in a safe place immediately and check the amount of engine oil.

(

 P. 477)

When the oil pressure drops even though the engine oil amount has not decreased, or

if the oil pressure does not increase when engine oil is added, contact your Lexus

dealer, as there may be a problem with the lubrication system.

2. Instrument cluster

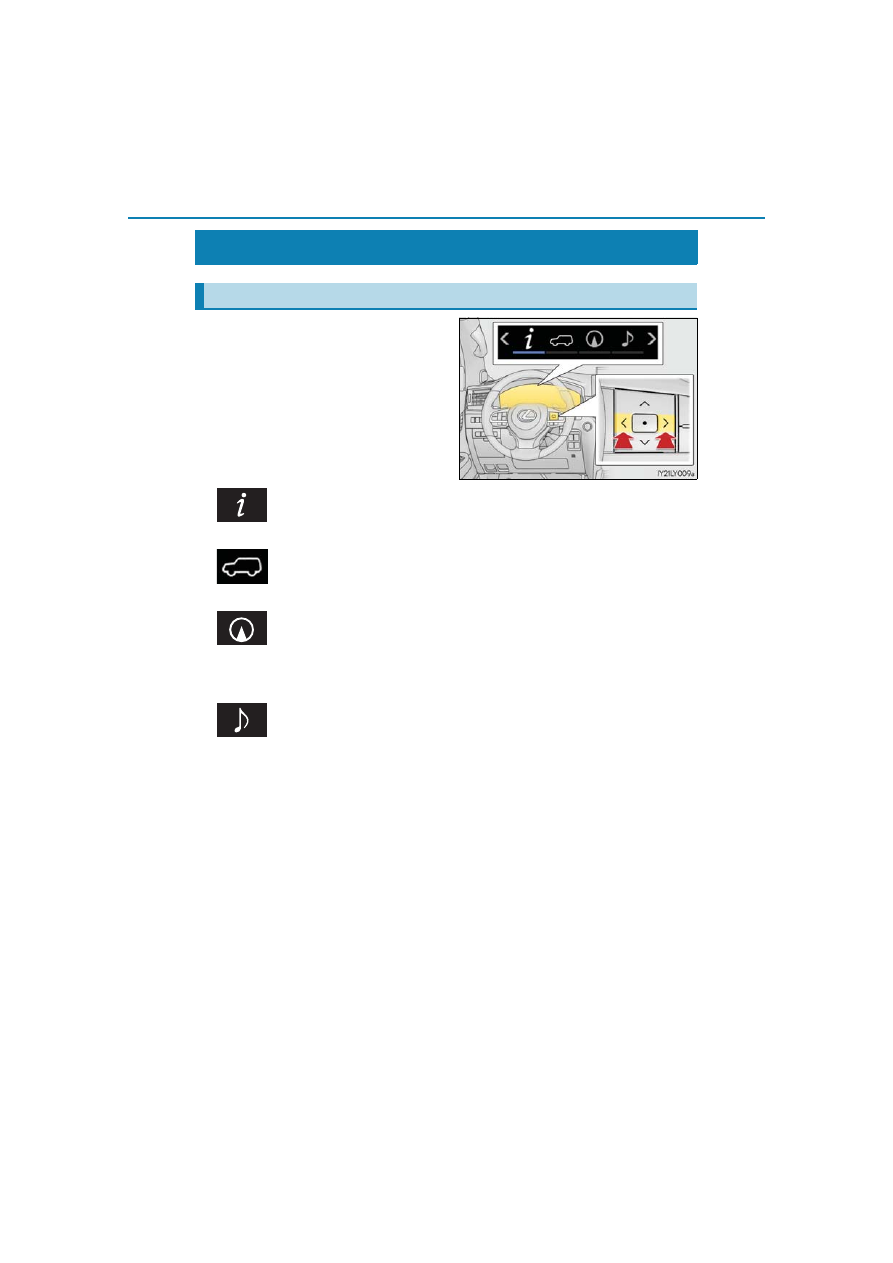

Multi-information display

The following information will be dis-
played when a menu icon is selected.
(

P. 98)

Some of the information may be dis-
played automatically depending on the
situation.

Drive information

Select to display various drive data. (

P. 99)

Vehicle information display (if equipped)

Select to display the vehicle information. (

P. 100)

Navigation system-linked display

Select to display the following navigation system-linked information.

• Route guidance

• Compass display (north-up display/heading-up display)

Audio system-linked display

Select to enable selection of an audio source or track on the display using the

meter control switches.

Display contents

2. Instrument cluster

Instrument cl

uste
r

Driving assist system information (if equipped)

Select to display the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (

P. 275)

When the vehicle is in constant speed control mode (

P. 283), the menu

icon will change to

• LDA (Lane Departure Alert) (

P. 267)

Warning message display

Select to display warning messages and measures to be taken if a malfunction is

detected. (

P. 531)

Settings display

Select to change the meter display settings and the operation settings of some

vehicle functions. (

P. 101)

2. Instrument cluster

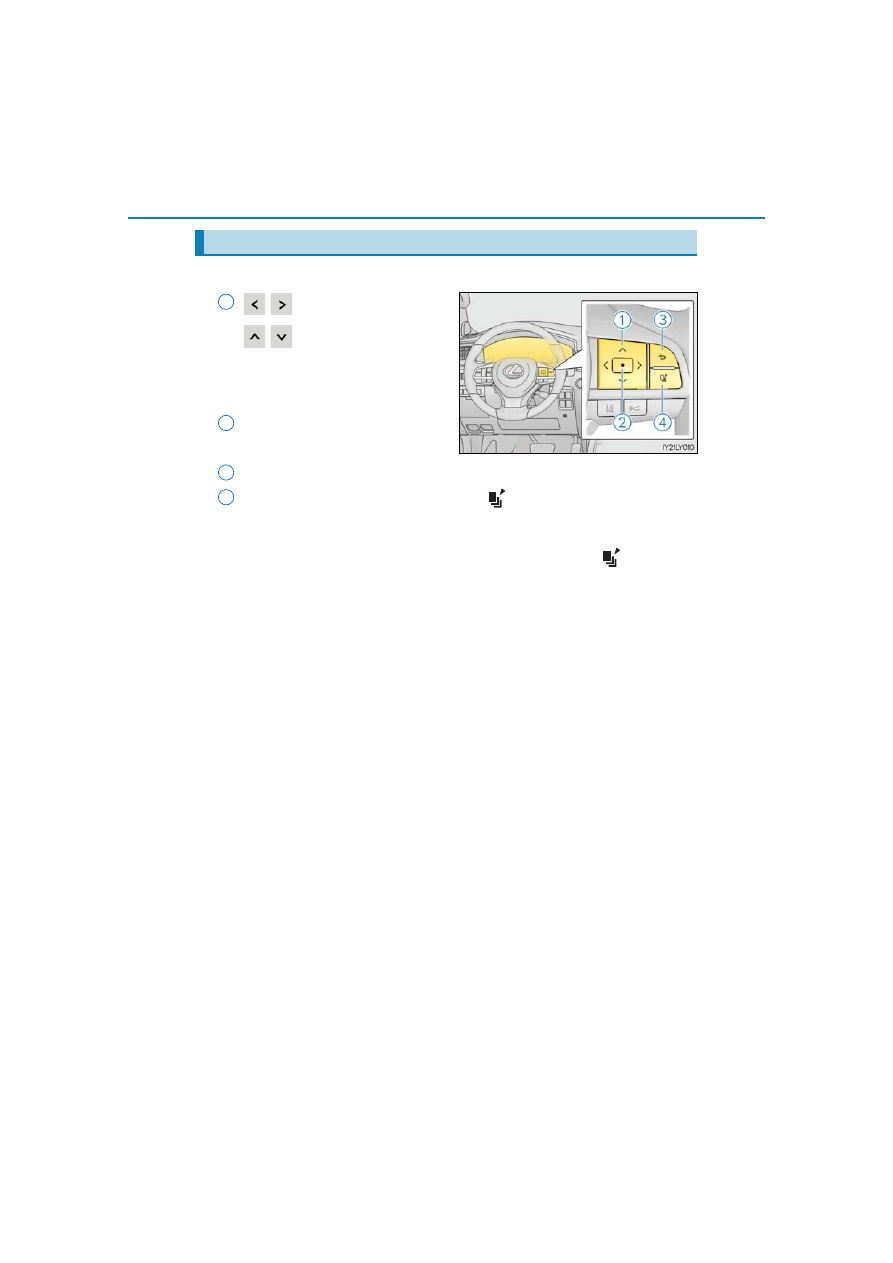

The multi-information display is operated using the meter control switches.

: Switch menu

: Change displayed con-

tent, scroll up/down the
screen and move the
cursor up/down

Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Press: Displays the screen registered to

When no screen has been registered, the drive information screen will be dis-

played.

Press and hold: Registers the currently displayed screen to

When the confirmation screen is displayed, select yes to register the screen. If the

selected screen cannot be registered, a registration failure message will be shown.

Operating the meter control switches

3
4

2. Instrument cluster

Instrument cl

uste
r

■

Drive information
4 of the following items can be registered and displayed as the drive informa-
tion 1 and the drive information 2 (2 items on each screen).
Refer to P. 101 for the registration method of the drive information 1 and the
drive information 2.

●

Current fuel consumption (bar type/value type)
Displays the current rate of fuel consumption.

●

Average fuel consumption (after reset

/after start/after refuel)

Displays the average fuel consumption since the function was reset, the
engine was started, and the vehicle was refueled, respectively.

●

Average vehicle speed (after reset

/after start)

Displays the average vehicle speed since the function was reset and the
engine was started, respectively.

●

Elapsed time (after reset

/after start)

Displays the elapsed time since the function was reset and the engine was
started, respectively.

●

Distance (driving range/after start)
Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining.

• This distance is computed based on your average fuel consumption.

As a result, the actual distance that can be driven may differ from that
displayed.

• When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.

: Use the displayed average fuel consumption as a reference.

: The function can be reset by pressing

for longer than 1 second when the item to

reset is displayed. If there is more than one item that can be reset, the item selection
screen will appear.

Drive information

100

2. Instrument cluster

■

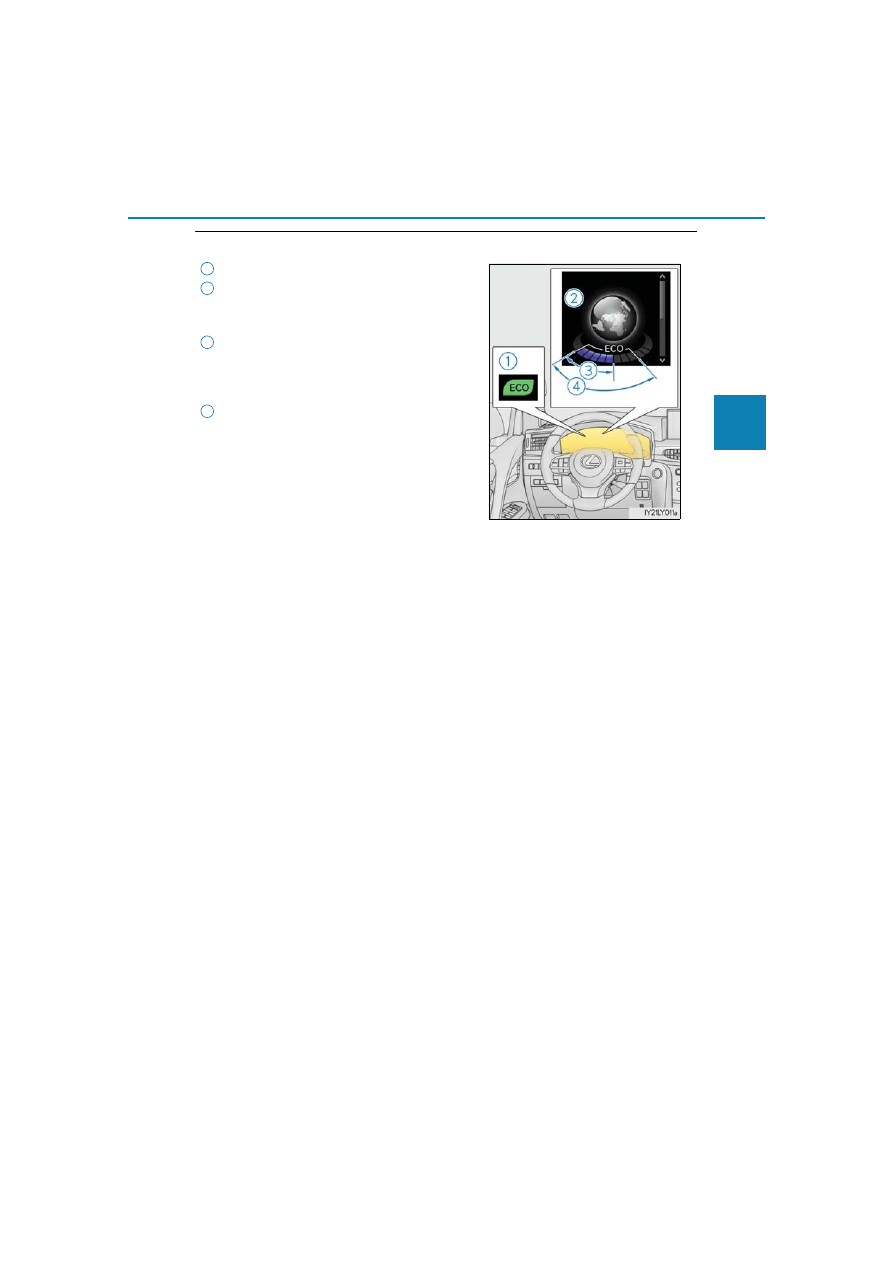

Eco Indicator (Eco Driving Indicator Zone Display)
P. 103

■

Speed
Displays the vehicle speed.

■

Outside temperature
Displays the outside temperature within the range of -40

F (-40C) to 122F

(50

C).

■

Sway warning (if equipped)
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s attention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest.

This display is a part of the LDA (Lane Departure Alert) system. The display is

enabled when the operating conditions of the vehicle sway warning are met.

(

P. 267)

■

Blank screen (display off)
Drive information is not displayed.

■

Front tire angle (if equipped)
Displays the direction of the front tires.

The tire direction is displayed in 3 stages for both left and right, in accordance with

the angle of the tire.
If a battery terminal is disconnected and reconnected, the display may be disabled

temporarily. After driving the vehicle for a while, the display will be enabled.

■

Tire inflation pressure
Displays inflation pressure of each tire.

The inflation pressure of the spare tire will be displayed.

■

Oil maintenance (if equipped)
Displays the remaining distance before the next maintenance is required.

Vehicle information

101

2. Instrument cluster

Instrument cl

uste
r

The settings of some features can be changed by using the meter control
switches.

■

Setting procedure
For functions that can be enabled or disabled, the function switches between
on and off each time

is pressed.

■

Setting items

●

LDA (Lane Departure Alert)

Select to set up LDA. (

P. 584)

• Alert method
• Alert sensitivity
• Sway warning
• Sway sensitivity

●

BSM (Blind Spot Monitor)

Select to set up BSM. (

P. 584)

• BSM on/off
• RCTA (Rear Cross Traffic Alert) on/off

●

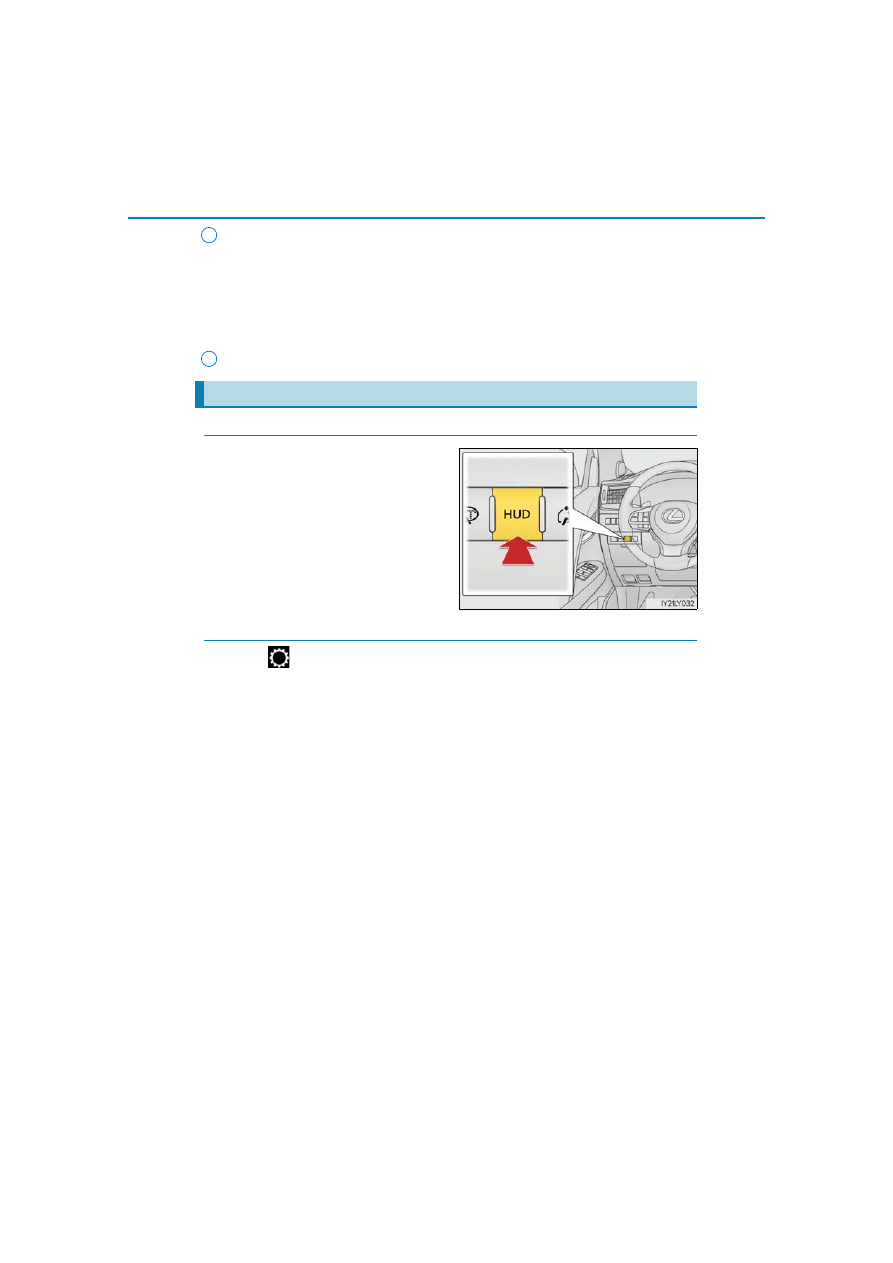

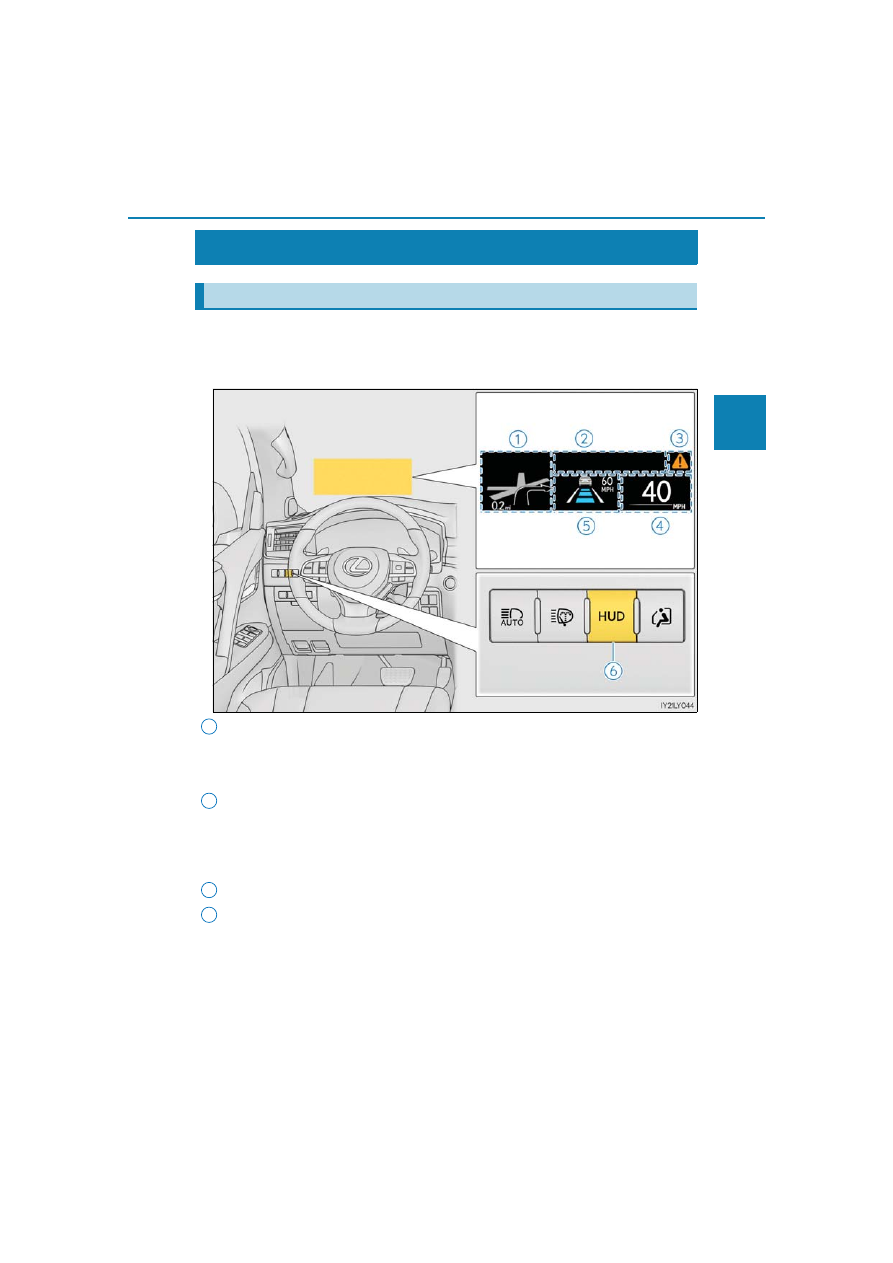

Head-up display

Select to set up Head-up display. (

P. 584)

• Display brightness/location
• Display content

●

Scheduled maintenance
Select to reset the message indicating maintenance is required.

●

Oil maintenance

Select to reset the engine oil maintenance information

Settings display

102

2. Instrument cluster

●

Meter settings
Select to set the following items.

• Language

Select to change the language on the display.

• Units

Select to change the unit for measure.

•

Eco Driving Indicator Light

Select to activate/deactivate the Eco Driving Indicator Light. (



P. 91)

•

switch settings

You can register 1 screen as the top screen. To register, press and hold

while the desired screen is displayed.

• Drive information 1 and 2

Select to select up to 2 items that will be displayed on a drive informa-
tion screen, up to 2 drive information screens can be set.

• Clock

Select to set the display mode of the clock.

• Pop-up display

Select to set the pop-up displays, which may appear in some situations,
on/off. (

P. 103)

• Accent color

Select to change the accent colors on the screen, such as the cursor
color.

• Initialization

Registered or changed meter settings will be deleted or returned to
their default setting.

: If equipped

103

2. Instrument cluster

Instrument cl

uste
r

■

Eco Driving Indicator

■

When disconnecting and reconnecting battery terminals
The drive information will be reset (only items that can be reset manually).

■

Pop-Up display
The pop-up display is displayed on the multi-information display according to the operat-

ing conditions of the following functions:

●

Route guidance display of the navigation system-linked system

●

Incoming call display of the hands-free phone system (if equipped)

The pop-up display function can be disabled. (

P. 101)

■

Tire inflation pressure

●

It may take a few minutes to display the tire inflation pressure after the engine switch is

turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-

tion pressure after inflation pressure has been adjusted.

●

“---” may be displayed if the tire information cannot be determined due to unfavorable

radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may also be dif-

ferent from the values measured using a tire pressure gauge.

■

When setting up the display
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P.

■

Suspension of the settings display
In the following situations, the settings display using the meter control switches will be

suspended.

●

When a warning message appears on the multi-information display

●

When the vehicle begins to move

■

Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic

of liquid crystal displays, and there is no problem continuing to use the display.

Eco Driving Indicator Light (

P. 91)

Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current

Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco driv-

ing, the right side of Eco Driving Indicator

Zone Display will illuminate.
Zone of Eco driving

104

2. Instrument cluster

WARNING

■

Caution for use while driving
For safety, avoid operating the meter control switch while driving as much as possible,

and do not look continuously at the multi-information display while driving. Stop the

vehicle and operate the meter control switch. Failure to do so may cause a steering

wheel operation error, resulting in an unexpected accident.

■

Cautions while setting up the display
As the engine needs to be running during setting up the display, ensure that the vehicle

is parked in a place with adequate ventilation. In a closed area such as a garage,

exhaust gases including harmful carbon monoxide (CO) may collect and enter the

vehicle. This may lead to death or a serious health hazard.

NOTICE

■

While setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the dis-

play features.

105

2. Instrument cluster

Instrument cl

uste
r

Head-up display



The head-up display is linked to the meters and navigation system and projects a
variety of information in front of the driver, such as the current vehicle speed and
route guidance to a set destination.

Navigation system-linked display area (

P. 107)

Displays the following items, which are linked to the navigation system:

• Route guidance to destination

• Compass

Message display area (

P. 107)

Displays the following items:

• Warning/Message (if equipped)

• Audio system operation status

• Outside temperature

Warning and information icons (
