LEXUS LS 500H (2019 year). Instruction - part 8

124

3-2. Opening, closing and locking the doors and trunk

LS500h_OM_(U)_1809

■

Effective range (areas within which the

electronic key is detected)

When locking or unlocking the doors

The system can be operated when the
electronic key is within about 2.3 ft. (0.7 m)
of an outside door handle. (Only the doors
detecting the key can be operated.)

When opening the trunk

The system can be operated when the
electronic key is within about 2.3 ft. (0.7 m)
of the trunk release button.

When starting the hybrid system or
changing power switch modes

The system can be operated when the
electronic key is inside the vehicle.

■

Alarms and warning messages

An alarm sounds and warning messages

are displayed on the multi-information dis-

play to protect against unexpected acci-

dents or theft of the vehicle resulting from

erroneous operation. When a warning mes-

sage is displayed, take appropriate mea-

sures based on the displayed message.

(

P.434)

When only an alarm sounds, circumstances

and correction procedures are as follows.

●

When an exterior alarm sounds once for

5 seconds

●

When an interior alarm sounds continu-

ously

■

If “Key Detected in Vehicle” is shown on

the multi-information display

An attempt was made to lock the doors

using the smart access system with

push-button start while the electronic key

was still inside the vehicle. Retrieve the elec-

tronic key from the vehicle and lock the

doors again.

■

Battery-saving function

The battery-saving function will be acti-

vated in order to prevent the electronic key

battery and the 12-volt battery from being

discharged while the vehicle is not in opera-

tion for a long time.

●

In the following situations, the smart

access system with push-button start may

Situation

Correction

procedure

An attempt was made to

lock the vehicle while a

door was open.

Close all of the
doors and lock

the doors

again.

The trunk was closed

while the electronic key

was still inside the trunk

and all the doors were

locked.

Retrieve the

electronic key
from the trunk

and close the

trunk lid.

Situation

Correction

procedure

The power switch was

turned to ACCESSORY

mode while the driver’s

door was open (The

driver’s door was opened

when the power switch

was in ACCESSORY

mode).

Turn the power

switch off and

close the

driver’s door.

The power switch was

turned off while the

driver’s door was open.

Close the

driver’s door.

125

3-2. Opening, closing and locking the doors and trunk

LS500h_OM_(U)_1809

fore
dri
ving

take some time to unlock the doors.

• The electronic key has been left in an

area of approximately 6 ft. (2 m) of the

outside of the vehicle for 10 minutes or

longer.

• The smart access system with push-but-

ton start has not been used for 5 days or

longer.

●

If the smart access system with push-but-

ton start has not been used for 14 days or

longer, the doors cannot be unlocked at

any doors except the driver’s door. In this

case, take hold of the driver’s door han-

dle, or use the wireless remote control or

the mechanical key, to unlock the doors.

■

Turning an electronic key to bat-

tery-saving mode

When battery-saving mode is set, battery

depletion is minimized by stopping the elec-

tronic key from receiving radio waves.

Press

twice while pressing and holding

. Confirm that the electronic key indica-

tor flashes 4 times.
While the battery-saving mode is set, the

smart access system with push-button start

cannot be used. To cancel the function,

press any of the electronic key buttons.

■

Conditions affecting operation

The smart access system with push-button

start uses weak radio waves. In the following

situations, the communication between the

electronic key and the vehicle may be

affected, preventing the smart access sys-

tem with push-button start, wireless remote

control and immobilizer system from oper-

ating properly. (Ways of coping:

P.443)

●

When the electronic key battery is

depleted

●

Near a TV tower, electric power plant,

gas station, radio station, large display,

airport or other facility that generates

strong radio waves or electrical noise

●

When carrying a portable radio, cellular

phone, cordless phone or other wireless

communication device

●

When the electronic key is in contact

with, or is covered by the following metal-

lic objects

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil

inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

●

When other wireless keys (that emit radio

waves) are being used nearby

●

When carrying the electronic key

together with the following devices that

emit radio waves

• Another vehicle’s electronic key or a

wireless key that emits radio waves

• Personal computers or personal digital

assistants (PDAs)

• Digital audio players

• Portable game systems

●

If window tint with a metallic content or

metallic objects are attached to the rear

window

●

When the electronic key is placed near a

battery charger or electronic devices

●

When the vehicle is parked in a pay park-

ing spot where radio waves are emitted.

■

Note for the entry function

●

Even when the electronic key is within the

effective range (detection areas), the sys-

tem may not operate properly in the fol-

lowing cases:

• The electronic key is too close to the win-

dow or outside door handle, near the

ground, or in a high place when the doors

are locked or unlocked.

• The electronic key is near the ground or

in a high place, or too close to the center

of the rear bumper when the trunk is

opened.

• The electronic key is on the instrument

panel, rear package tray or floor, or in the

door pockets or glove box when the

hybrid system is started or power switch

126

3-2. Opening, closing and locking the doors and trunk

LS500h_OM_(U)_1809

modes are changed.

●

Do not leave the electronic key on top of

the instrument panel or near the door

pockets when exiting the vehicle.

Depending on the radio wave reception

conditions, it may be detected by the

antenna outside the cabin and the doors

will become lockable from the outside,

possibly trapping the electronic key

inside the vehicle.

●

As long as the electronic key is within the

effective range, the doors may be locked

or unlocked by anyone. However, only

the doors detecting the electronic key

can be used to unlock the vehicle.

●

Even if the electronic key is not inside the

vehicle, it may be possible to start the

hybrid system if the electronic key is near

the window.

●

The doors may unlock or lock if a large

amount of water splashes on the door

handle, such as in the rain or in a car

wash, when the electronic key is within

the effective range. (The doors will auto-

matically be locked after approximately

60 seconds if the doors are not opened

and closed.)

●

If the wireless remote control is used to

lock the doors when the electronic key is

near the vehicle, there is a possibility that

the door may not be unlocked by the

entry function. (Use the wireless remote

control to unlock the doors.)

●

Touching the door lock sensor while

wearing gloves may delay or prevent lock

operation.

●

When the lock operation is performed

using the lock sensor, recognition signals

will be shown up to two consecutive

times. After this, no recognition signals

will be given.

●

If the door handle becomes wet while the

electronic key is within the effective

range, the door may lock and unlock

repeatedly. In this case, follow the follow-

ing correction procedures to wash the

vehicle:

• Place the electronic key in a location 6 ft.

(2 m) or more away from the vehicle.

(Take care to ensure that the key is not

stolen.)

• Set the electronic key to battery-saving

mode to disable the smart access system

with push-button start. (

P.125)

●

If the electronic key is inside the vehicle

and a door handle becomes wet during a

car wash, a message may be shown on

the multi-information display and a

buzzer will sound outside the vehicle. To

turn off the alarm, lock all the doors.

●

The lock sensor may not work properly if

it comes into contact with ice, snow, mud,

etc. Clean the lock sensor and attempt to

operate it again.

●

A sudden approach to the effective

range or door handle may prevent the

doors from being unlocked. In this case,

return the door handle to the original

position and check that the doors unlock

before pulling the door handle again.

●

If there is another electronic key in the

detection area, it may take slightly longer

to unlock the doors after the door handle

is gripped.

■

When the vehicle is not driven for

extended periods

●

To prevent theft of the vehicle, do not

leave the electronic key within 6 ft. (2 m)

of the vehicle.

●

The smart access system with push-but-

ton start can be deactivated in advance.

●

Setting the electronic key to battery-sav-

ing mode helps to reduce key battery

depletion. (

P.125)

■

To operate the system properly

●

Make sure to carry the electronic key

when operating the system. Do not get

the electronic key too close to the vehicle

when operating the system from the out-

side of the vehicle.

Depending on the position and holding
condition of the electronic key, the key may
not be detected correctly and the system
may not operate properly. (The alarm may
go off accidentally, or the door lock pre-
vention function may not operate.)

●

Do not leave the electronic key inside the

trunk.

The key confinement prevention function

127

3-2. Opening, closing and locking the doors and trunk

LS500h_OM_(U)_1809

fore
dri
ving

may not operate, depending on the loca-

tion of the key (the inside edge of the

trunk), conditions (inside a metal bag,

close to metallic objects) and the radio

waves in the surrounding area. (

P.120)

■

If the smart access system with

push-button start does not operate

properly

●

Locking and unlocking the doors and

trunk:

P.443

●

Starting the hybrid system:

P.444

■

Customization

Some functions can be customized.

(

P.479)

■

If the smart access system with

push-button start has been deactivated

in a customized setting

●

Locking and unlocking the doors and

opening the trunk:

Use the wireless remote control or

mechanical key. (

P.112, 119, 443)

●

Starting the hybrid system and changing

power switch modes:

P.444

●

Stopping the hybrid system:

P.172

■

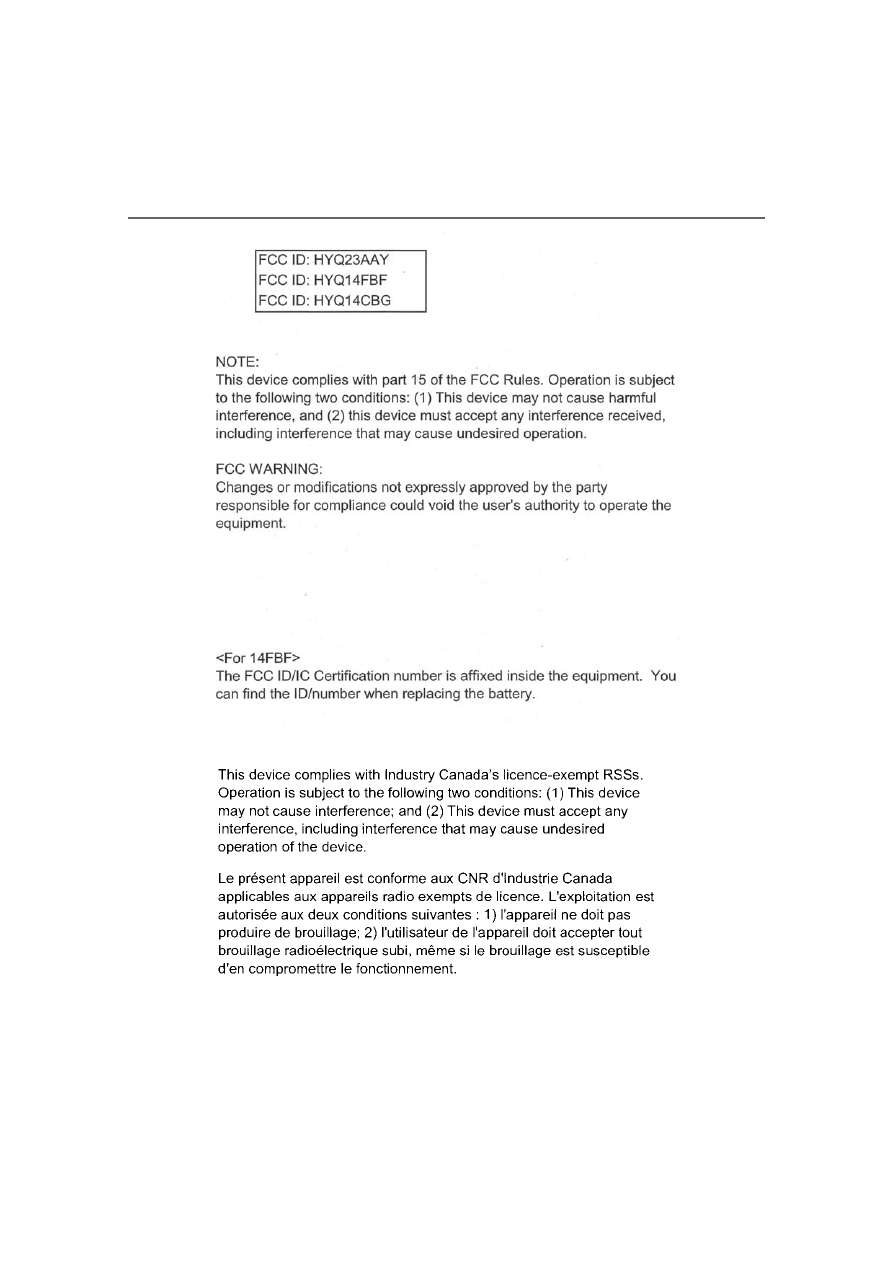

Certification for the smart access system with push-button start



For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico

128

3-2. Opening, closing and locking the doors and trunk

LS500h_OM_(U)_1809



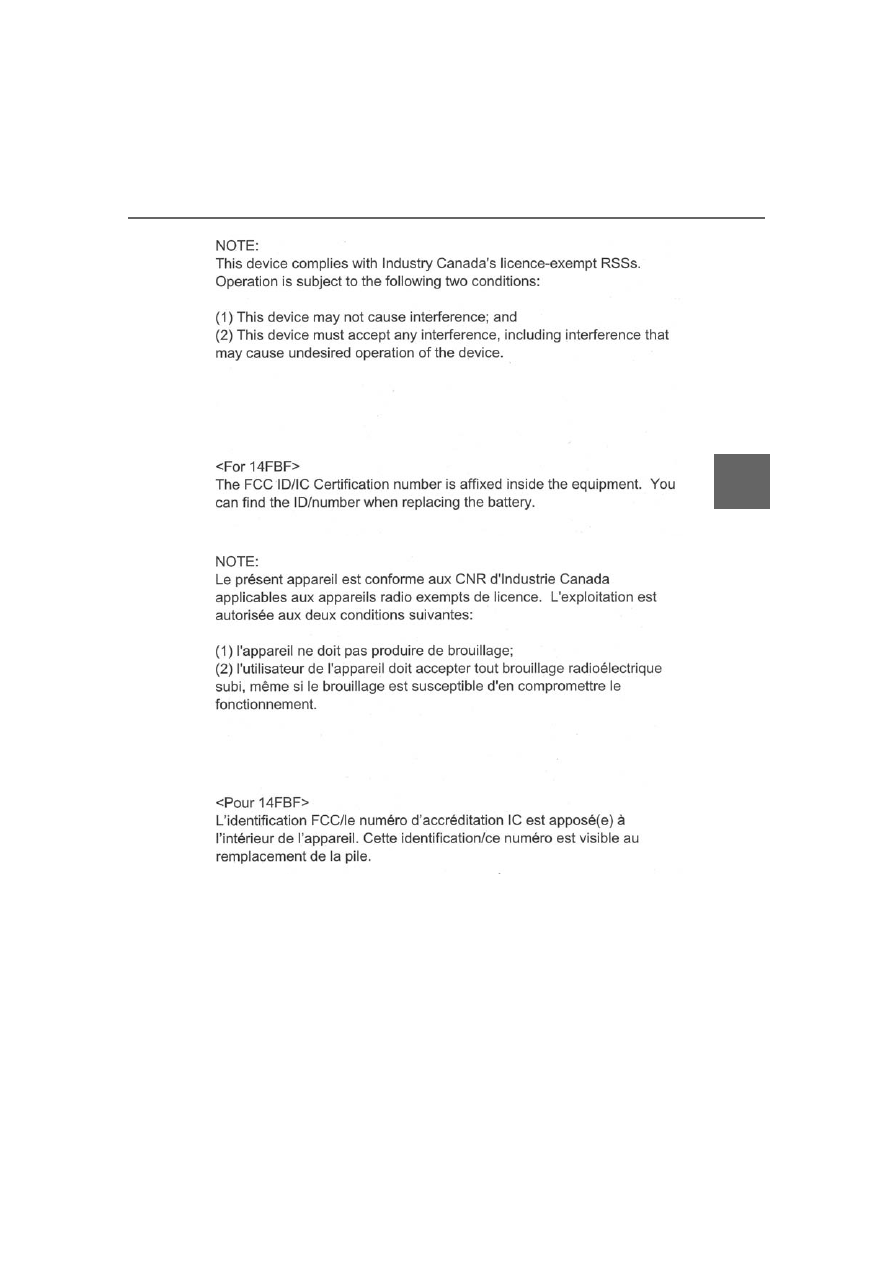

For vehicles sold in Canada

129

3-2. Opening, closing and locking the doors and trunk

LS500h_OM_(U)_1809

fore
dri
ving

130

3-2. Opening, closing and locking the doors and trunk

LS500h_OM_(U)_1809

WARNING

■

Caution regarding interference with

electronic devices

●

People with implantable cardiac pace-

makers, cardiac resynchronization

therapy-pacemakers or implantable

cardioverter defibrillators should keep

away from the smart access system

with push-button start antennas.

(

P.123)

The radio waves may affect the opera-

tion of such devices. If necessary, the

entry function can be disabled. Ask

your Lexus dealer for details, such as

the frequency of radio waves and tim-

ing of the emitted radio waves. Then,

consult your doctor to see if you

should disable the entry function.

●

Users of any electrical medical device

other than implantable cardiac pace-

makers, cardiac resynchronization

therapy-pacemakers or implantable

cardioverter defibrillators should con-

sult the manufacturer of the device for

information about its operation under

the influence of radio waves.

Radio waves could have unexpected

effects on the operation of such medi-

cal devices.

Ask your Lexus dealer for details on dis-

abling the entry function.

131

3-3. Adjusting the seats

LS500h_OM_(U)_1809

fore
dri
ving

3-3.Adjusting the seats

■

Seat adjustment switches

Seat position adjustment switch
Seatback angle adjustment switch
Seat cushion (front) angle adjust-
ment switch
Vertical height adjustment switch

Front seats

WARNING

■

When adjusting the seat position

●

Take care when adjusting the seat

position to ensure that other passen-

gers are not injured by the moving

seat.

●

Do not put your hands under the seat

or near the moving parts to avoid

injury.

Fingers or hands may become

jammed in the seat mechanism.

●

Make sure to leave enough space

around the feet so they do not get

stuck.

■

Seat adjustment

To reduce the risk of sliding under the lap

belt during a collision, do not recline the

seat more than necessary.

If the seat is too reclined, the lap belt may

slide past the hips and apply restraint

forces directly to the abdomen, or your

neck may contact the shoulder belt,

increasing the risk of death or serious

injury in the event of an accident.

Adjustments should not be made while

driving as the seat may unexpectedly

move and cause the driver to lose control

of the vehicle.

■

Operating the front passenger’s seat

from the driver’s seat or rear seat

Do not operate the front passenger’s seat

when a passenger is seated in it. In addi-

tion, do not let anyone sit down in the

front passenger’s seat while the seat is

being operated or when the head

restraint is being folded. The front pas-

senger may catch their legs between the

instrument panel and seat, or the head

restraint may interfere with their head,

resulting in injury.

■

When the front passenger’s seat is

folded forward

If the outside rear view mirror is difficult

to see, due to the position of the front

passenger’s seat, move the front passen-

ger’s seat to an appropriate position.

Doing so may lead to mishandling of the

vehicle and cause an accident, resulting

in death or serious injury.

NOTICE

■

Operating the front passenger’s seat

from the driver’s seat or rear seat

Before operating the front passenger’s

seat, make sure that there is no luggage

or any other objects on the seat or in the

footwell that could prevent its operation.

Such items may result in excess force

being applied, causing damage to the

seat and/or the luggage.

Adjustment procedure

A
B
C

132

3-3. Adjusting the seats

LS500h_OM_(U)_1809

Lumbar support adjustment switch
Seat cushion length adjustment
switch (if equipped)

■

Center Display

Press the seat switch.

Using the Remote Touch pad,
select “Driver Seat Adjustment” or
“Passenger Seat Adjustment”.

Select the button for the desired
adjustment.

Head restraint adjustment
(

P.147)

Shoulder bolster adjustment (if
equipped)
Lumbar support adjustment
Pelvic support adjustment
Seatback side bolster adjustment (if
equipped)
Seat cushion side bolster adjust-
ment (if equipped)

Hip support adjustment (if
equipped)

Perform adjustment using the dis-
played buttons.

The seat will move while a button is

selected.

■

When adjusting the front seats

While adjusting a front seat, to avoid con-

tact with the ceiling, instrument panel or

rear seats, the operation of the seat may be

restricted or parts of the seat other than that

being adjusted may move.

■

Operation after the power switch is

turned off

After a certain time elapses after the power

switch is turned off, the following parts of

the front seats will move to their neutral

positions.

●

Shoulder bolster (if equipped)

●

Lumbar support

●

Pelvic support

●

Seatback side bolster (if equipped)

●

Seat cushion side bolster (if equipped)

●

Hip support (if equipped)

■

Automatic angle adjustment of the rear

displays (if equipped)

When a seat is adjusted, the angle of the

rear display will be adjusted automatically

to maintain an optimal viewing angle for the

rear display from the rear seat.

■

Pre-collision seatbacks for the passen-

ger seats

P.213, 223

■

Customization

Some functions can be customized.

(

P.479)

E
F

C
D

133

3-3. Adjusting the seats

LS500h_OM_(U)_1809

fore
dri
ving

■

Using the driver’s seat adjustment
switches to adjust the front passen-
ger’s seat (front passenger mode)

The mode of the driver’s seat adjust-
ment switches can be changed to
adjust the front passenger’s seat.

Press the mode change button on
the driver’s side door.

The indicator

will illuminate when front

passenger mode is selected.

Using the seat adjustment switches
on the driver’s seat, adjust the front
passenger’s seat.

To cancel front passenger mode, press the

mode change button again.
Front passenger mode will be canceled

automatically if the driver’s seat adjustment

switches are not operated for approxi-

mately 30 seconds.

■

Using the Center Display (vehicles
with a foldable head restraint)

Press the seat switch.

Press the sub function button of the
Remote Touch. (

P.314)

Select the button for the desired
operation.

Moves the front passenger’s seat
forward and folds the seatback and
head restraint forward
Moves the front passenger’s seat
backward and the seatback and
head restraint to the upright posi-
tion

If the rear seat behind the front passenger’s
seat is not in the upright position, it will
move to the upright position before the
front passenger’s seat moves to its upright
position.
To stop the front passenger seat while it is
moving, select the

button or

press the seat switch.

Operating the front passenger’s
seat from the driver’s seat

134

3-3. Adjusting the seats

LS500h_OM_(U)_1809

■

Operating the foldable head restraint

using the driver’s seat adjustment

switches in front passenger mode (if

equipped)

●

When the front passenger’s seatback

angle is adjusted using the driver’s seat

adjustment switches in front passenger

mode, the front passenger’s head

restraint will operate automatically as fol-

lows:

• When the front passenger’s seatback is

moved forward to the upright position,

the head restraint will lower and fold for-

ward when the seatback angle adjust-

ment switch is released.

• When the front passenger’s seatback is

moved backward to the upright position,

the head restraint will move to the upright

position when the seatback angle adjust-

ment switch is released.

●

If any of the following conditions are met,

the front passenger’s head restraint will

not fold forward even though the front

passenger’s seatback angle is being

adjusted using the driver’s seat adjust-

ment switches in front passenger mode:

• The power switch is in ACCESSORY

mode or off.

• The weight of an occupant or heavy

object, etc. is detected on the front pas-

senger’s seat.

Once weight is detected on the seat, the
seat will be judged as occupied until the
front passenger’s door is opened then
closed or the power switch is turned off.
• Vehicles without a rear seat entertain-

ment system:The front passenger’s seat is

in the rear most position.

• The front passenger’s seat belt is fas-

tened.

• The front passenger’s door is open. (The

front seat will not move forward.)

• The front passenger’s seat is not in the

lowest position.

• The front passenger’s seat seat cushion

(front) is not in the lowest position.

• The front passenger’s seat seat cushion is

extended (if equipped).

●

If either of the following conditions is met,

the front passenger’s head restraint will

not return to the upright position even

though the front passenger’s seatback

angle is being adjusted using the driver’s

seat adjustment switches in front passen-

ger mode:

• The power switch is in ACCESSORY

mode or off.

• The front passenger’s seat position is

moved to a position forward of the neu-

tral position.

■

Operating the foldable head restraint

using the front passenger’s seat adjust-

ment switches (if equipped)

When the front passenger’s head restraint is

folded forward and the front passenger’s

door is open, if the front passenger’s seat

adjustment switches are used to move the

seat backward or recline the seatback, the

head restraint will move to the upright posi-

tion automatically when the switch is

released.
To stop the operation of the front passen-

ger’s head restraint part-way, perform any

of the following operations:

●

Operate any front passenger’s seat

adjustment switch.

The head restraint will stop when the seat
position adjustment switch or seatback
angle adjustment switch is operated to
move the seat backward or recline the
seatback, and will resume operating when
the switch is released.

●

Press the “SET” button.

●

Press the “1”, “2” or “3” button.

●

Press the seat switch.

■

Operation of the front passenger’s seat

using the Center Display will be can-

celed when (vehicles with a foldable

head restraint)

In the following situations, the front passen-

ger’s seat cannot be operated using the

Center Display:

●

The power switch is in ACCESSORY

mode or off.

●

The weight of an occupant or heavy

object, etc. is detected on the front pas-

senger’s seat.

Once weight is detected on the seat, the

135

3-3. Adjusting the seats

LS500h_OM_(U)_1809

fore
dri
ving

seat will be judged as occupied until the
front passenger’s door is opened then
closed or the power switch is turned off.

●

The front passenger’s seat belt is fas-

tened.

●

The front passenger’s door is open. (The

front seat will not move forward.)

■

When the front passenger’s seat is

folded forward

By reclining the front passenger’s seat seat-

back, the forward view of the rear passen-

ger can be improved.

Press and hold to move the front
passenger’s seat forward and fold
the seatback forward.

Press and hold to move the front
passenger’s seat backward and
move the seatback to the upright
position.

■

Automatic operation

Display the home screen on the
Rear Multi Operation Panel
(

P.318) and then touch “Seat”.

Touch the button for the desired
operation.

When the operating conditions are not

met, the buttons will be grayed out.

Move the front passenger’s seat
forward and fold the seatback for-
ward.

On vehicles with a foldable head restraint,
the head restraint will also fold forward.

Move the front passenger’s seat
backward and the seatback to the
upright position.

If the rear seat behind the front passenger’s
seat is not in the upright position, it will
move to the upright position before the
front passenger’s seat moves to its previous
position.
On vehicles with a foldable head restraint,
the head restraint will also move to the
upright position.
To stop the front passenger seat while it is

moving, touch “STOP”.

■

Manual operation

Display the home screen on the
Rear Multi Operation Panel
(

P.318) and then touch “Seat”.

Touch “Right”

Operating the front passenger’s
seat from the rear seat (vehicles
without power rear seat)

Operating the front passenger’s
seat from the rear seat (vehicles
with power rear seat)

136

3-3. Adjusting the seats

LS500h_OM_(U)_1809

Touch the button for the desired
operation.

Touch and hold to move the front
passenger’s seat forward and fold
the seatback forward.

On vehicles with a foldable head restraint,
the head restraint will also fold forward.

Touch and hold to move the front
passenger’s seat backward and the
seatback to the upright position.

On vehicles with a foldable head restraint,
the head restraint will also move to the
upright position.

■

Operating the front passenger’s seat

from the rear seat

●

In the following situations, the front pas-

senger’s seat cannot be operated using

the Rear Multi Operation Panel:

• The power switch is in ACCESSORY

mode or off.

• The rear seat belt is not fastened and

weight is not detected on the rear seat.

Once weight is detected on the seat, the
seat will be judged as occupied until a rear
door is opened then closed or the power
switch is turned off and the doors are
locked.
• The weight of an occupant or heavy

object, etc. is detected on the front pas-

senger’s seat.

Once weight is detected on the seat, the
seat will be judged as occupied until the
front passenger’s door is opened then

closed or the power switch is turned off.
• The front passenger’s seat belt is fas-

tened.

• The front passenger’s door is open. (The

front seat will not move forward.)

●

If the rear armrest is stowed while the

seat position is being adjusted, the opera-

tion will stop.

■

Canceling an operation

To cancel an operation, press and hold the

button of the Rear Multi Opera-

tion Panel or press it 3 times in quick suc-

cession.

■

When the front passenger’s seat is

folded forward

P.135

Pneumatic chambers built into the
front seat apply pressure to the occu-
pant’s body at different modes and
intensities.

Press the seat switch.

Using the Remote Touch pad,
select “Driver Seat Refresh” or
“Passenger Seat Refresh”.

Select the desired mode.

 “Centripetal”

Applies pressure sequentially from the
front of the seat cushion to top of the seat-

Front seat refresh system (if
equipped)

137

3-3. Adjusting the seats

LS500h_OM_(U)_1809

fore
dri
ving

back

 “Centrifugal”

Applies pressure sequentially from the top
of the seatback to the front of the seat
cushion

 “Upper Body”

Applies pressure sequentially from the bot-
tom to the top of the seatback

 “Lower Body”

Applies pressure sequentially from the
front to the back of the seat cushion

 “Lumbar”

Applies pressure sequentially from the bot-
tom to the top of the lumbar area of the
seatback

Select the desired intensity and
then confirm the setting.

The intensity can be adjusted in 5 steps.
To stop the operation select “Stop”.
If a seat is not occupied, do not operate the

front seat refresh system for that seat.

■

Refresh system

●

Operating conditions

• The power switch is in ON mode.

• The temperature in the cabin is not

extremely high.

• For the front passenger’s seat: The weight

of an occupant is detected on the front

passenger’s seat or the front passenger’s

seat belt is fastened.

Once weight is detected on the seat, the
seat will be judged as occupied until the
front passenger’s door is opened then
closed or the power switch is turned off.

●

Automatic stop function

• The operation will be canceled automati-

cally after approximately 15 minutes.

• If the power easy access system begins

operating, the front seat refresh system

will stop.

WARNING

■

Important points while driving

Do not adjust the driver’s seat refresh

system while driving.

Using it may affect your ability to control

the vehicle, possibly leading to an acci-

dent resulting in death or serious injury.

■

Using the refresh system

●

Those who are pregnant, have recently

given birth, or suffer from ailments

requiring rest (heart disease etc.)

should consult a doctor before use.

●

Do not allow children to use the

refresh function.

●

Do not use immediately after consum-

ing a meal or alcohol, or for an

extended period of time.

●

If you feel sick while using the refresh

function, immediately discontinue use.

138

3-3. Adjusting the seats

LS500h_OM_(U)_1809

: If equipped

■

Automatic operation

The seat can be moved to preset posi-
tions.

Display the home screen on the
Rear Multi Operation Panel
(

P.318) and then touch “Seat”.

Touch the desired preset button.

When the operating conditions are not

Power rear seat

WARNING

■

When adjusting the seat position

●

Take care when adjusting the seat

position to ensure that other passen-

gers are not injured by the moving

seat.

●

When adjusting the rear seat with an

ottoman, make sure there is sufficient

space so that a foot does not get

caught between the ottoman and front

passenger seat. (If equipped)

●

Vehicles with a rear seat entertainment

system: When the rear seat is moving

to the Entertainment Mode position,

do not allow hands near the rear dis-

play. Otherwise, a hand or finger may

be caught, possibly causing injury.

■

Seat adjustment

To reduce the risk of sliding under the lap

belt during a collision, do not recline the

seat more than necessary.

If the seat is too reclined, the lap belt may

slide past the hips and apply restraint

forces directly to the abdomen, or your

neck may contact the shoulder belt,

increasing the risk of death or serious

injury in the event of an accident.

Adjustments should not be made while

driving as the seat may unexpectedly

move and cause the driver to lose control

of the vehicle.

■

Using the ottoman (if equipped)

●

Do not sit on the ottoman.

If someone sits on the ottoman, the seat
belt cannot be fitted properly, and they
may be thrown from the seat, resulting in
death or serious injury in the event of an
accident or sudden braking.

●

When getting in or out of the vehicle,

retract the ottoman. If the ottoman is

not retracted, it may cause a fall, result-

ing in injury.

●

Do not operate the ottoman when the

vehicle is moving.

●

Do not allow anyone to put their hands

or feet under the rear seat when stow-

ing the ottoman.

NOTICE

■

To prevent an ottoman malfunction (if

equipped)

●

Do not place any objects in the rear

seat footwell that could prevent the

operation of the ottoman.

●

Do not place heavy luggage on the

ottoman.

●

Do not place any objects under the

ottoman while it is raised for use. These

objects may interfere with the ottoman

being folded, causing damage to the

ottoman or the objects themselves.

■

To prevent a rear display malfunction

(if equipped)

Do not attempt to move the rear display

by hand, as doing so may damage the

rear display.

Adjustment procedure

139

3-3. Adjusting the seats

LS500h_OM_(U)_1809

fore
dri
ving

met, the preset buttons will be grayed out.

Moves the left-hand rear seat to the
upright position (Business Mode)
Moves the right-hand rear seat to
the upright position (Business
Mode)
Moves the rear seat with an otto-
man to a slightly reclined position
(Entertainment Mode) (if
equipped)

Vehicles without a rear seat entertainment
system: Moves the front passenger’s seat
forward.
Vehicles with a rear seat entertainment
system: Moves the front passenger’s seat
and rear display to allow the rear display to
be comfortably viewed.

Moves the rear seat with an otto-
man to a deeply reclined position
(Relaxation Mode) (if equipped)

Moves the front passenger’s seat forward
and folds the seatback and head restraint
forward.
To stop the front passenger seat while it is

moving, touch “STOP”.

■

Manual operation

Display the home screen on the
Rear Multi Operation Panel
(

P.318) and then touch “Seat”.

Touch “Left” or “Right”.

Select the button for the desired
adjustment.

Head restraint adjustment
(

P.147)

Shoulder bolster adjustment
Lumbar/pelvic support adjustment
Seatback angle adjustment
Seat cushion (front) angle adjust-
ment
Ottoman adjustment (if equipped)

Perform adjustment using the dis-
played buttons.

The seat will move while a button is

touched.

■

Adjustment of the rear seat

●

When a rear seat is close to a front seat,

the operation of the rear seat may be

restricted.

●

If the rear armrest is stowed while the

seat position is being adjusted, the opera-

tion will stop.

■

Operating conditions of Business Mode

When the rear seat belt is not fastened and

weight is not detected on the rear seat,

Business Mode cannot be selected.
Once weight is detected on the seat, the
seat will be judged as occupied until a rear
door is opened then closed or the power
switch is turned off and the doors are
locked.

B
C
D

Content .. 6 7 8 9 ..
