7-2. Steps to take in an emergency

LS500_OM_(U)_1809

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift position

Be careful not to shift the shift position

with the accelerator pedal depressed.

This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damaging the transmission

and other components

●

Avoid spinning the rear wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be freed.

445

LS500_OM_(U)_1809

Vehi

cle

spec

ifi

tions

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) ..............................................

446

Fuel information.........................

455

Tire information..........................

457

8-2. Customization

Customizable features............

466

8-3. Initialization

Items to initialize .........................

481

446

8-1. Specifications

LS500_OM_(U)_1809

8-1.Specifications

: Unladen vehicles

: Without electronically modulated air suspension

: With electronically modulated air suspension

: Except F SPORT models

: F SPORT models

■

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left

of the instrument panel.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

206.1 in. (5235 mm)

Overall width

74.8 in. (1900 mm)

Overall height

2WD models

57.5 in. (1460 mm)

57.1 in. (1450 mm)

AWD models

57.9 in. (1470 mm)

57.5 in. (1460 mm)

Wheelbase

123.0 in. (3125 mm)

Tread

Front

2WD models

64.2 in. (1630 mm)

AWD models

64.2 in. (1630 mm)

64.4 in. (1635 mm)

Rear

64.4 in. (1635 mm)

63.6 in. (1615 mm)

Vehicle capacity weight
(Occupants + luggage)

870 lb. (395 kg)

Vehicle identification

447

8-1. Specifications

LS500_OM_(U)_1809

Vehi

cle

spec

ifi

tions

This number is also stamped under the
right-hand front seat.

This number is also on the Certification
Label.

■

Engine number

The engine number is stamped on the
engine block as shown.

Engine

Model

3.5 L 6-cylinder (V35A-FTS)

Type

6-cylinder V type, 4-cycle, gasoline (with
turbocharger)

Bore and stroke

3.37

 3.94 in. (85.5  100.0 mm)

Displacement

210.2 cu. in. (3445 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

448

8-1. Specifications

LS500_OM_(U)_1809

■

Oil capacity (Drain and refill [Ref-
erence

])

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade
engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20 at

the next oil change.

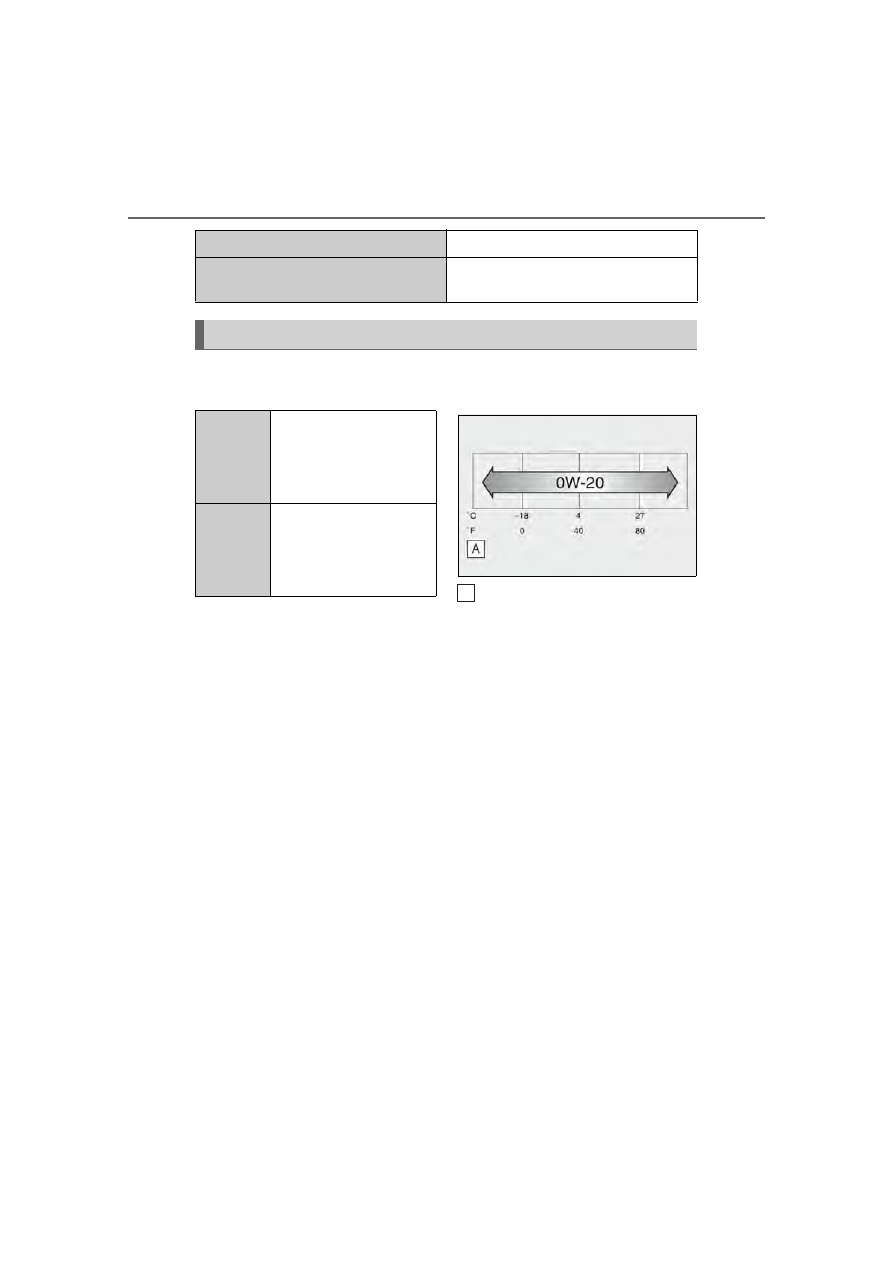

Recommended viscosity (SAE):

Outside temperature

Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 20 in 0W-20 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil

Octane Rating

91 (Research Octane Number 96) or higher

Fuel tank capacity
(Reference)

21.7 gal. (82.0 L, 18.0 Imp. gal.)

Lubrication system

With filter



2WD models

6.7 qt. (6.3 L, 5.5 Imp. qt.)



AWD models

7.5 qt. (7.1 L, 6.2 Imp. qt.)

Without fil-

ter



2WD models

6.1 qt. (5.8 L, 5.1 Imp. qt.)



AWD models

7.0 qt. (6.6 L, 5.8 Imp. qt.)

449

8-1. Specifications

LS500_OM_(U)_1809

Vehi

cle

spec

ifi

tions

containers to help you select the oil you
should use.

Cooling system

Capacity



Engine

2WD models: 11.2 qt. (10.6 L, 9.3 Imp. qt.)
AWD models: 11.1 qt. (10.5 L, 9.2 Imp. qt.)



Intercooler

4.5 qt. (4.3 L, 3.8 Imp. qt.)

Coolant type

Use either of the following:
 “Toyota Super Long Life Coolant”

 Similar high-quality ethylene glycol-based non-silicate,

non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make

DENSO EC22HPR-D7

Gap

0.028 in. (0.7 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

450

8-1. Specifications

LS500_OM_(U)_1809

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Lexus dealer.

: Your Lexus vehicle is filled with Toyota genuine gear oil at the factory. Use Lexus

approved Toyota genuine gear oil or an equivalent of matching quality to satisfy the
above specification. Please contact your Lexus dealer for further details.

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent oil of

Electrical system (battery)

Open voltage at 68°F (20°C):

12.3 V or higher
(Turn the engine switch off and turn on the head-
lights for 20 to 30 seconds.)

Charging rates
Quick charge
Slow charge

15 A max.
5 A max.

Automatic transmission

Fluid capacity

9.5 qt. (9.0 L, 7.9 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Automatic transmission fluid type

Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in

shift quality, locking up of your transmission accompanied by vibration, and ultimately

damage the transmission of your vehicle.

Transfer (AWD models)

Oil capacity

0.74 qt. (0.70 L, 0.62 Imp. qt.)

Oil type and viscosity

Toyota Genuine Transfer gear oil LL 80 or equivalent

Front differential (AWD models)

Oil capacity

0.69 qt. (0.65 L, 0.57 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

451

8-1. Specifications

LS500_OM_(U)_1809

Vehi

cle

spec

ifi

tions

matching quality to satisfy the above specification. Please contact your Lexus dealer for
further details.



2WD models



AWD models

: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent oil of
matching quality to satisfy the above specification. Please contact your Lexus dealer for
further details.

: Minimum pedal clearance when depressed with a force of 112 lbf (500 N, 51 kgf) while

the engine is running.
When performing the brake pedal inspection, also be sure to check that the brake sys-
tem warning light is not illuminated when the engine is running. (If the brake system

Rear differential

Oil capacity

0.90 qt. (0.85 L, 0.75 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

Oil capacity

1.42 qt. (1.35 L, 1.19 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT 75W-85
GL-5 or equivalent

Brakes

Pedal clearance

4.8 in. (121 mm) Min.

4.8 in. (122 mm) Min.

Pedal free play

0.04

 0.24 in. (1  6 mm)

Brake pad wear limit

0.04 in. (1 mm)

Parking brake lining wear limit

0.04 in. (1 mm)

Parking brake indicator

When pushing the parking brake switch for 1 to 2
seconds: comes on
When pulling the parking brake switch for 1 to 2
seconds: turns off

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

452

8-1. Specifications

LS500_OM_(U)_1809

warning light is illuminated, refer to P.415.)

: Make sure to confirm that the brake warning light (yellow) does not illuminate. (If the

brake warning light illuminates, refer to P.415.)

: Vehicles without Lexus Safety System + A

: Vehicles with Lexus Safety System + A



19-inch tires (type A)



19-inch tires (type B)

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

245/50RF19 101W

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Driving under normal conditions

Front: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Driving at high speeds above 118 mph (190 km/h) (in coun-
tries where such speeds are permitted by law)

Add 9 psi (60 kPa, 0.6 kgf/cm

or bar) to the front tires and

rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size

 8J

Wheel nut torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

Tire size

245/50RF19 101V

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Driving under normal conditions

Front: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Driving at high speeds above 100 mph (160 km/h) (in
countries where such speeds are permitted by law)

Add 9 psi (60 kPa, 0.6 kgf/cm

or bar) to the front tires and

rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

453

8-1. Specifications

LS500_OM_(U)_1809

Vehi

cle

spec

ifi

tions



20-inch tires (type A)



20-inch tires (type B)

Wheel size

 8J

Wheel nut torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

Tire size

245/45RF20 99Y

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Driving under normal conditions

Front: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Driving at high speeds above 137 mph (220 km/h) (in
countries where such speeds are permitted by law)

Add 9 psi (60 kPa, 0.6 kgf/cm

or bar) to the front tires and

rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size

 8 1/2J

Wheel nut torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

Tire size

Front tires: 245/45RF20 99Y
Rear tires: 275/40RF20 102Y

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Driving under normal conditions

Front: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Driving at high speeds above 137 mph (220 km/h) (in
countries where such speeds are permitted by law)

Add 9 psi (60 kPa, 0.6 kgf/cm

or bar) to the front tires and

rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size

Front wheels: 20

 8 1/2J

Rear wheels: 20

 9 1/2J

Wheel nut torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

454

8-1. Specifications

LS500_OM_(U)_1809



20-inch tires (type C)



20-inch tires (type D)

Tire size

245/45RF20 99V

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Driving under normal conditions

Front: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear: 35 psi (240 kPa, 2.4 kgf/cm

or bar)

Driving at high speeds above 100 mph (160 km/h) (in
countries where such speeds are permitted by law)

Add 9 psi (60 kPa, 0.6 kgf/cm

or bar) to the front tires and

rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size

 8 1/2J

Wheel nut torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

Tire size

Front tires: 245/45RF20 99V
Rear tires: 275/40RF20 102V

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Driving under normal conditions

Front: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Rear: 36 psi (250 kPa, 2.5 kgf/cm

or bar)

Driving at high speeds above 100 mph (160 km/h) (in
countries where such speeds are permitted by law)

Add 9 psi (60 kPa, 0.6 kgf/cm

or bar) to the front tires and

rear tires. Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.

Wheel size

Front wheels: 20

 8 1/2J

Rear wheels: 20

 9 1/2J

Wheel nut torque

103 ft•lbf (140 N•m, 14.3 kgf•m)

455

8-1. Specifications

LS500_OM_(U)_1809

Vehi

cle

spec

ifi

tions

■

Gasoline quality

In very few cases, driveability problems may

be caused by the brand of gasoline you are

using. If driveability problems persist, try

changing the brand of gasoline. If this does

not correct the problem, consult your Lexus

dealer.

■

Recommendation of the use of gasoline

containing detergent additives

●

Lexus recommends the use of gasoline

that contains detergent additives to avoid

the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains

minimum detergent additives to clean

and/or keep clean intake systems, per

EPA’s lowest additives concentration pro-

gram.

●

Lexus strongly recommends the use of

Top Tier Detergent Gasoline. For more

information on Top Tier Detergent Gaso-

line and a list of marketers, please go to

the official website www.toptiergas.com.

■

Recommendation of the use of low

emissions gasoline

Gasolines containing oxygenates such as

ethers and ethanol, as well as reformulated

gasolines, are available in some cities.

These fuels are typically acceptable for use,

providing they meet other fuel require-

ments.
Lexus recommends these fuels, since the

formulations allow for reduced vehicle

emissions.

■

Non-recommendation of the use of

blended gasoline

●

Use only gasoline containing up to 15%

ethanol.

DO NOT use any flex-fuel or gasoline

that could contain more than 15% etha-

nol, including from any pump labeled
E30 (30% ethanol [

]), E50 (50%

ethanol [

]), E85 (85% ethanol [

])

(which are only some examples of fuel

containing more than 15% ethanol).

●

If you use gasohol in your vehicle, be sure

that it has an octane rating no lower than

91.

●

Lexus does not recommend the use of

gasoline containing methanol.

■

Non-recommendation of the use of gas-

oline containing MMT

Some gasoline contains an octane enhanc-

ing additive called MMT (Methylcyclopen-

tadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gas-

oline that contains MMT. If fuel containing

MMT is used, your emission control system

may be adversely affected.
The malfunction indicator lamp on the

instrument cluster may come on. If this hap-

pens, contact your Lexus dealer for service.

■

If your engine knocks

●

Consult your Lexus dealer.

●

You may occasionally notice light knock-

ing for a short time while accelerating or

Fuel information

You must only use unleaded gaso-
line.
Select premium unleaded gasoline
with an octane rating of 91
(Research Octane Number 96) or
higher required for optimum
engine performance and fuel econ-
omy.
If the octane rating is less than 91,
damage to the engine may occur
and may void the vehicle warranty.

At minimum, the gasoline you use
should meet the specifications of
ASTM D4814 in the U.S.A.

456

8-1. Specifications

LS500_OM_(U)_1809

driving uphill. This is normal and there is

no need for concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper

fuels are used, the engine will be dam-

aged.

●

Do not use leaded gasoline.

Leaded gasoline can cause damage to

your vehicle’s three-way catalytic con-

verters causing the emission control

system to malfunction.

●

Do not use gasohol other than the type

previously stated.

Other gasohol may cause fuel system

damage or vehicle performance prob-

lems.

●

Using unleaded gasoline with an

octane number or rating lower than

the level previously stated may cause

persistent heavy knocking.

At worst, this may lead to engine dam-

age and will void the vehicle warranty.

■

When refueling with gasohol

Take care not to spill gasohol. It can dam-

age your vehicle’s paint.

■

Fuel-related poor driveability

If poor driveability is encountered after

using a different type of fuel (poor hot

starting, vaporization, engine knocking,

etc.), discontinue the use of that type of

fuel.

457

8-1. Specifications

LS500_OM_(U)_1809

Vehi

cle

spec

ifi

tions

Tire size (

P.458)

Run-flat tire (RFT) or standard tire (

P.429)

This vehicle can be equipped with either run-flat tires (RFT) or standard tires. A

mark is molded on the sidewall of the run-flat tire.

DOT and Tire Identification Number (TIN) (

P.458)

Location of treadwear indicators (

P.382)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies
in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A tube type tire has a
tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure (

P.383)

Maximum cold tire inflation pressure (

P.452)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires (

P.383)

Tire information

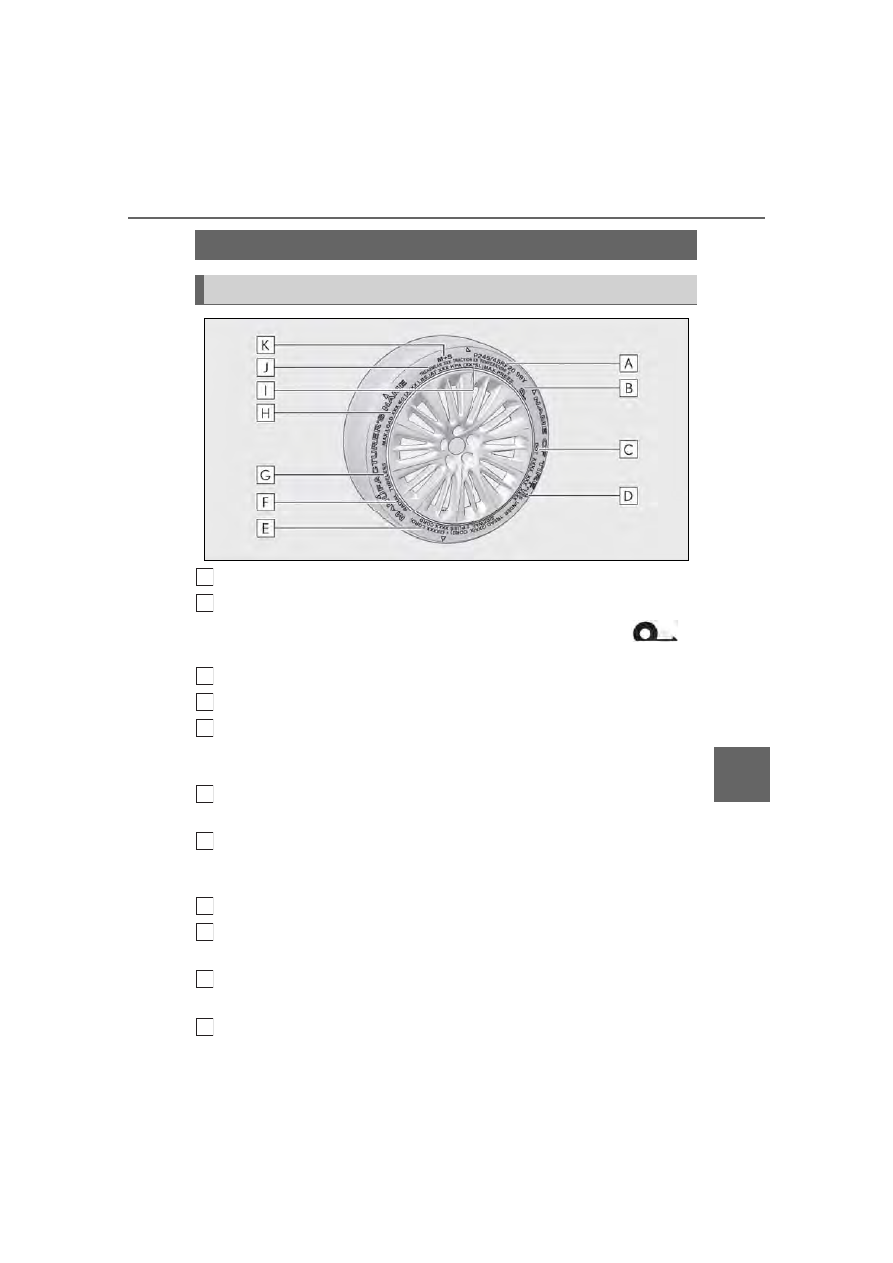

Typical tire symbols

A
B

C
D

458

8-1. Specifications

LS500_OM_(U)_1809

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a summer tire.



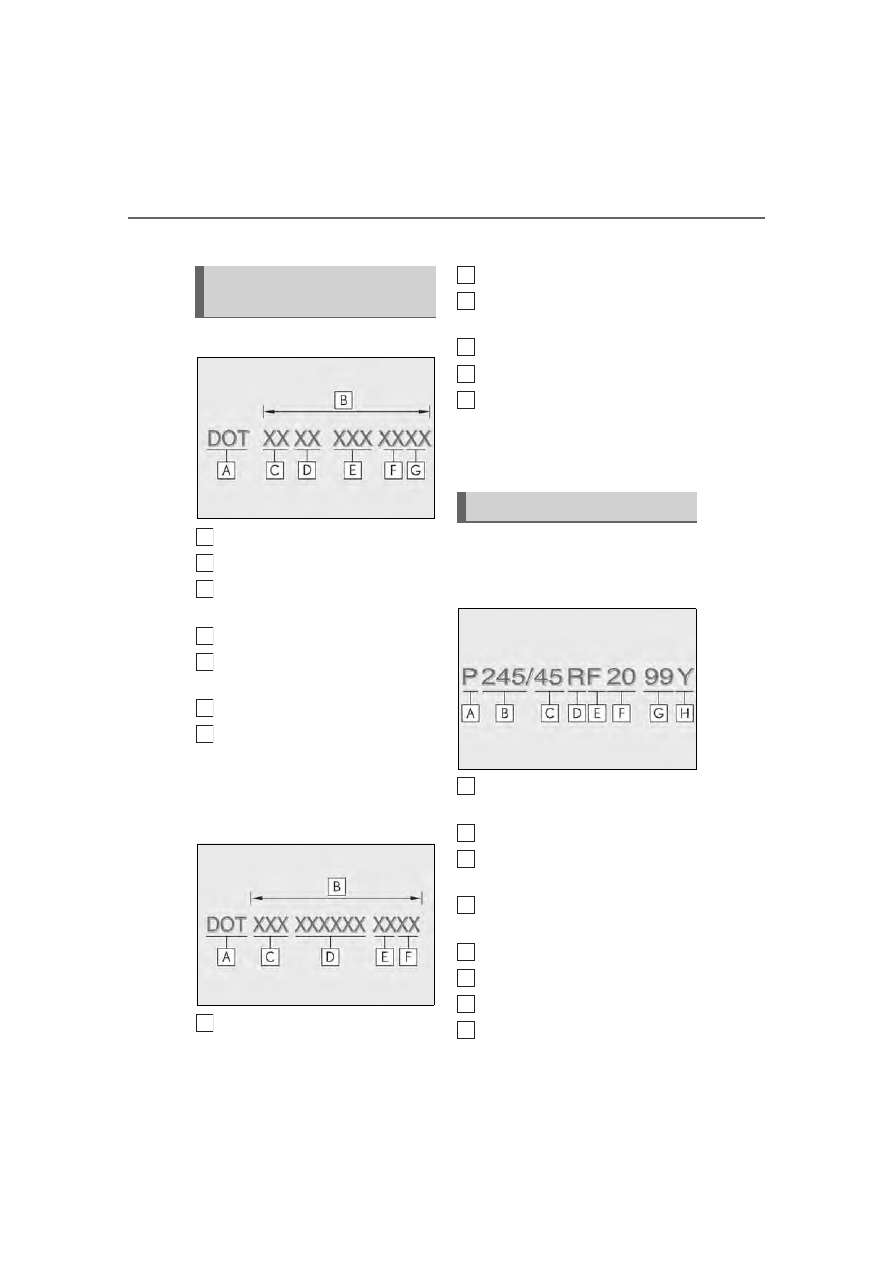

Type A

DOT symbol

Tire Identification Number (TIN)
Tire manufacturer’s identification
mark
Tire size code
Manufacturer’s optional tire type
code (3 or 4 letters)
Manufacturing week
Manufacturing year

: The DOT symbol certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.



Type B

DOT symbol

Tire Identification Number (TIN)
Tire manufacturer’s identification
mark
Manufacturer’s code
Manufacturing week
Manufacturing year

: The DOT symbol certifies that the tire

conforms to applicable Federal Motor
Vehicle Safety Standards.

■

Typical tire size information

The illustration indicates typical tire
size.

Tire use (P = Passenger car, T =
Temporary use)
Section width (millimeters)
Aspect ratio (tire height to section
width)
Tire construction code (R = Radial,
D = Diagonal)
Run-flat tire code
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol (alphabet with one

Typical DOT and Tire Identifica-
tion Number (TIN)

A
B
C

Tire size

B
C

E
F

B
C

E
F

459

8-1. Specifications

LS500_OM_(U)_1809

Vehi

cle

spec

ifi

tions

letter)

■

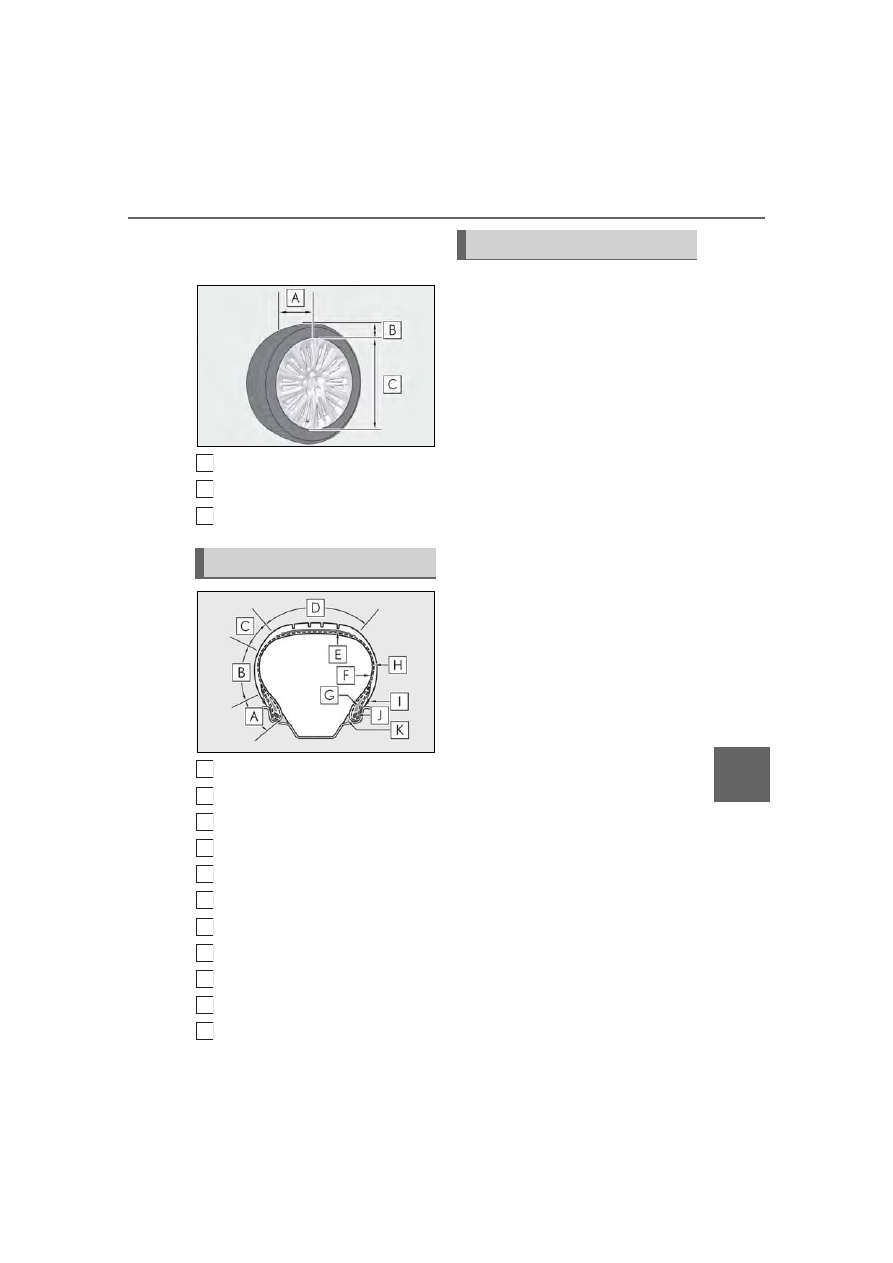

Tire dimensions

Section width
Tire height
Wheel diameter

Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer

This information has been prepared in
accordance with regulations issued by
the National Highway Traffic Safety
Administration of the U.S. Department
of Transportation.
It provides the purchasers and/or pro-
spective purchasers of Lexus vehicles
with information on uniform tire quality
grading.

Your Lexus dealer will help answer any
questions you may have as you read this
information.

■

DOT quality grades

All passenger vehicle tires must con-
form to Federal Safety Requirements in
addition to these grades. Quality
grades can be found where applicable
on the tire sidewall between tread
shoulder and maximum section width.

For example: Treadwear 200 Traction AA
Temperature A

■

Treadwear

The treadwear grade is a comparative
rating based on the wear rate of the tire
when tested under controlled condi-
tions on a specified government test
course.

For example, a tire graded 150 would wear
one and a half (1 - 1/2) times as well on the
government course as a tire graded 100.
The relative performance of tires depends
upon the actual conditions of their use.
Performance may differ significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.

Tire section names

A
B
C

A
B
C
D

E
F

Uniform Tire Quality Grading

Content .. 26 27 28 29 ..
