LEXUS LS 500 (2019 year). Instruction - part 12

188

4-3. Operating the lights and wipers

LS500_OM_(U)_1809

NOTICE

●

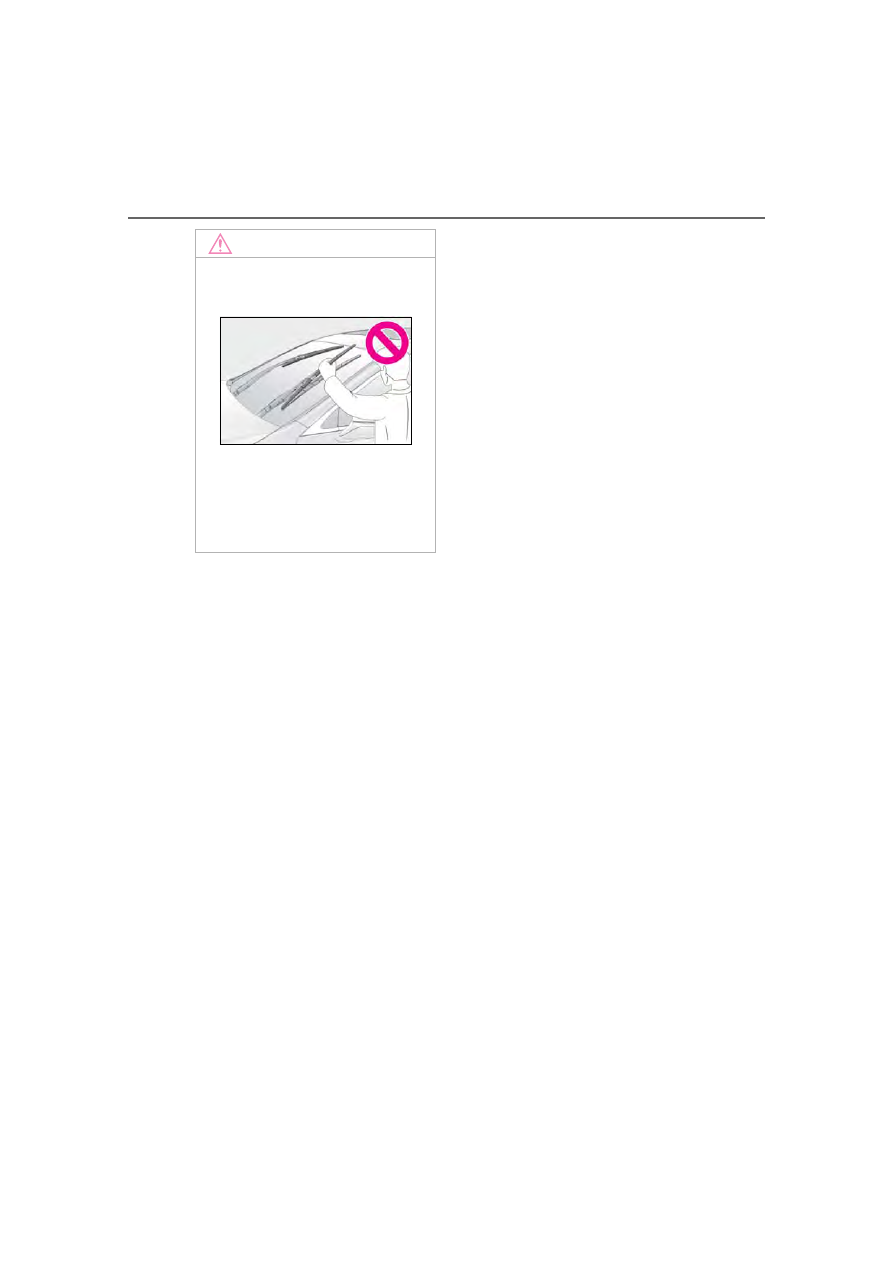

Do not lift a windshield wiper by the

wiper blade. Otherwise, the wiper

blade may be deformed.

●

Do not operate the wiper lever when

the windshield wipers are lifted. Oth-

erwise, the windshield wipers may

contact the hood, possibly resulting in

damage to the windshield wipers

and/or hood.

189

4-4. Refueling

LS500_OM_(U)_1809

4

Driving

4-4.Refueling

 Close all the doors and windows,

and turn the engine switch off.

 Confirm the type of fuel.

■

Fuel types

P.455

■

Fuel tank opening for unleaded gasoline

To help prevent incorrect fueling, your vehi-

cle has a fuel tank opening that only accom-

modates the special nozzle on unleaded

fuel pumps.

Opening the fuel tank cap

Perform the following steps to open
the fuel tank cap:

Before refueling the vehicle

WARNING

■

When refueling the vehicle

Observe the following precautions while

refueling the vehicle. Failure to do so may

result in death or serious injury.

●

After exiting the vehicle and before

opening the fuel door, touch an

unpainted metal surface to discharge

any static electricity. It is important to

discharge static electricity before refu-

eling because sparks resulting from

static electricity can cause fuel vapors

to ignite while refueling.

●

Always hold the grips on the fuel tank

cap and turn it slowly to remove it.

A whooshing sound may be heard

when the fuel tank cap is loosened.

Wait until the sound cannot be heard

before fully removing the cap. In hot

weather, pressurized fuel may spray

out the filler neck and cause injury.

●

Do not allow anyone that has not dis-

charged static electricity from their

body to come close to an open fuel

tank.

●

Do not inhale vaporized fuel.

Fuel contains substances that are

harmful if inhaled.

●

Do not smoke while refueling the vehi-

cle.

Doing so may cause the fuel to ignite

and cause a fire.

●

Do not return to the vehicle or touch

any person or object that is statically

charged.

This may cause static electricity to

build up, resulting in a possible ignition

hazard.

■

When refueling

Observe the following precautions to

prevent fuel overflowing from the fuel

tank:

●

Securely insert the fuel nozzle into the

fuel filler neck.

●

Stop filling the tank after the fuel noz-

zle automatically clicks off.

●

Do not top off the fuel tank.

NOTICE

■

Refueling

Do not spill fuel during refueling.

Doing so may damage the vehicle, such

as causing the emission control system to

operate abnormally or damaging fuel

system components or the vehicle’s

painted surface.

190

4-4. Refueling

LS500_OM_(U)_1809

1

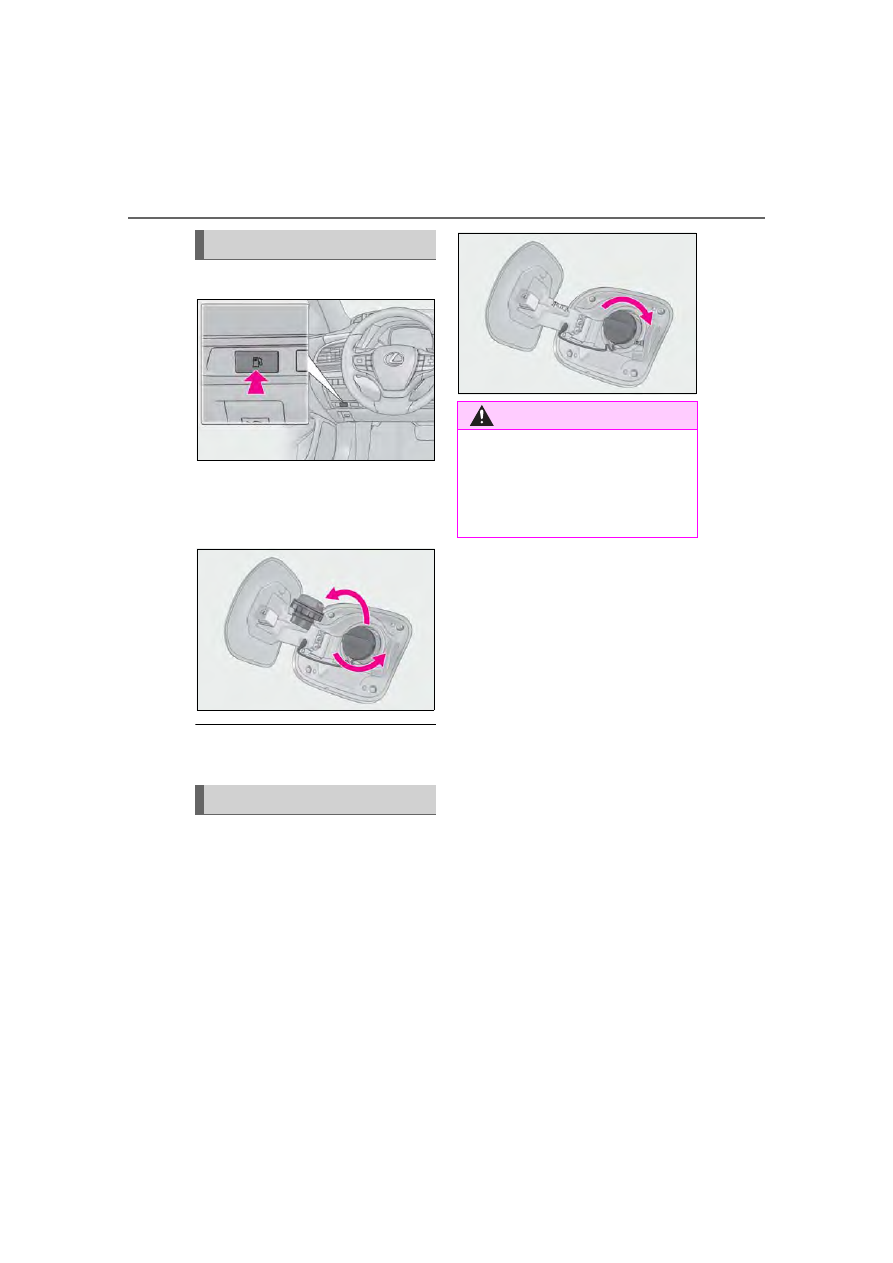

Press the opener switch.

2

Turn the fuel tank cap slowly and
remove it, then put it into the holder
on the fuel filler door.

■

If the fuel filler door cannot be opened

P.432

After refueling, turn the fuel tank cap
until you hear a click. Once the cap is
released, it will turn slightly in the oppo-
site direction.

Opening the fuel tank cap

Closing the fuel tank cap

WARNING

■

When replacing the fuel tank cap

Do not use anything but a genuine Lexus

fuel tank cap designed for your vehicle.

Doing so may cause a fire or other inci-

dent which may result in death or serious

injury.

191

4-5. Using the driving support systems

LS500_OM_(U)_1809

4

Driving

4-5.Using the driving support systems

*

: If  equipped

■

PCS (Pre-Collision System) (vehi-
cles with Lexus Safety System + A)

P.204

■

FCTA (Front Cross Traffic Alert)

P.222

■

LTA (Lane Tracing Assist)

P.225

■

AHB (Automatic High Beam)

P.182

■

RSA (Road Sign Assist)

*

*

: If  equipped

P.247

■

Dynamic radar cruise control with
full-speed range

P.237

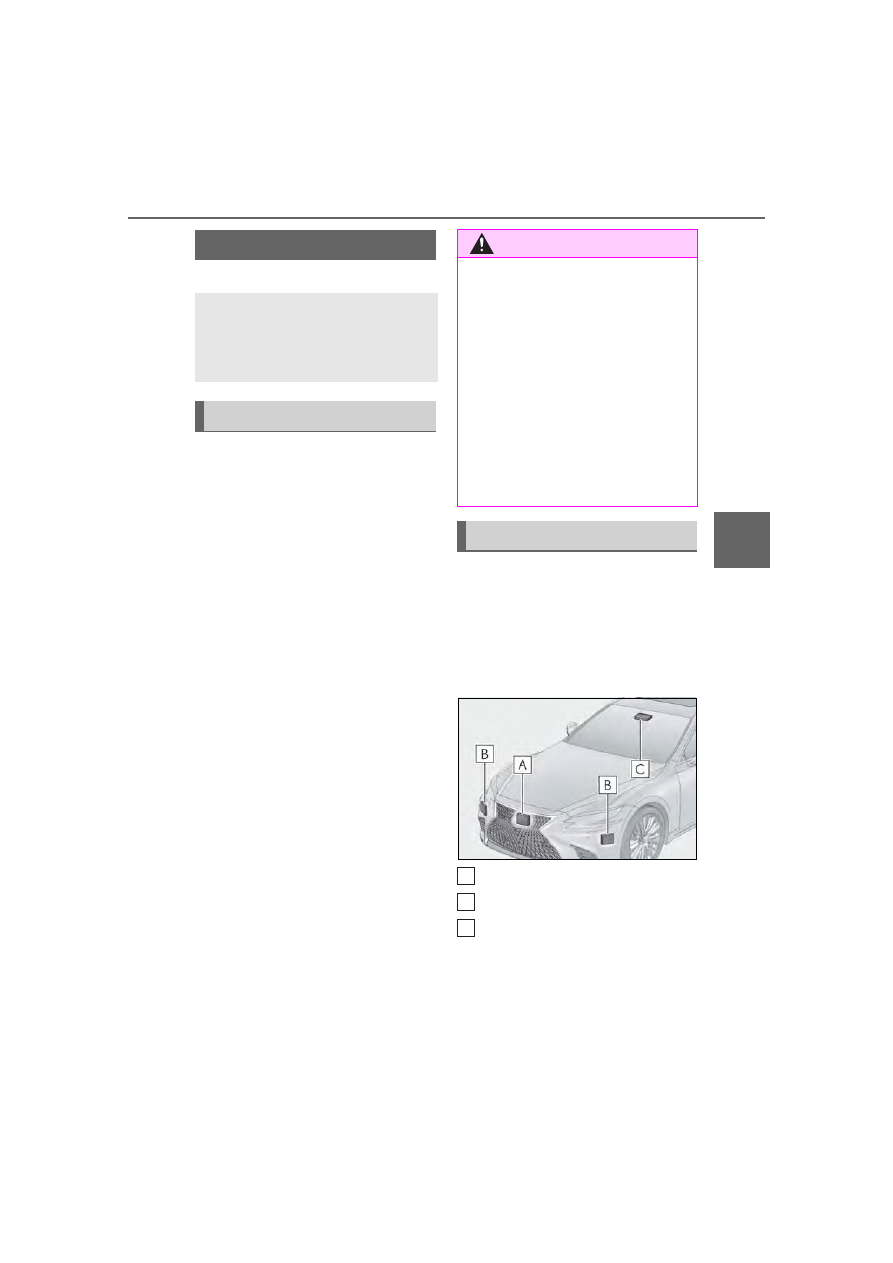

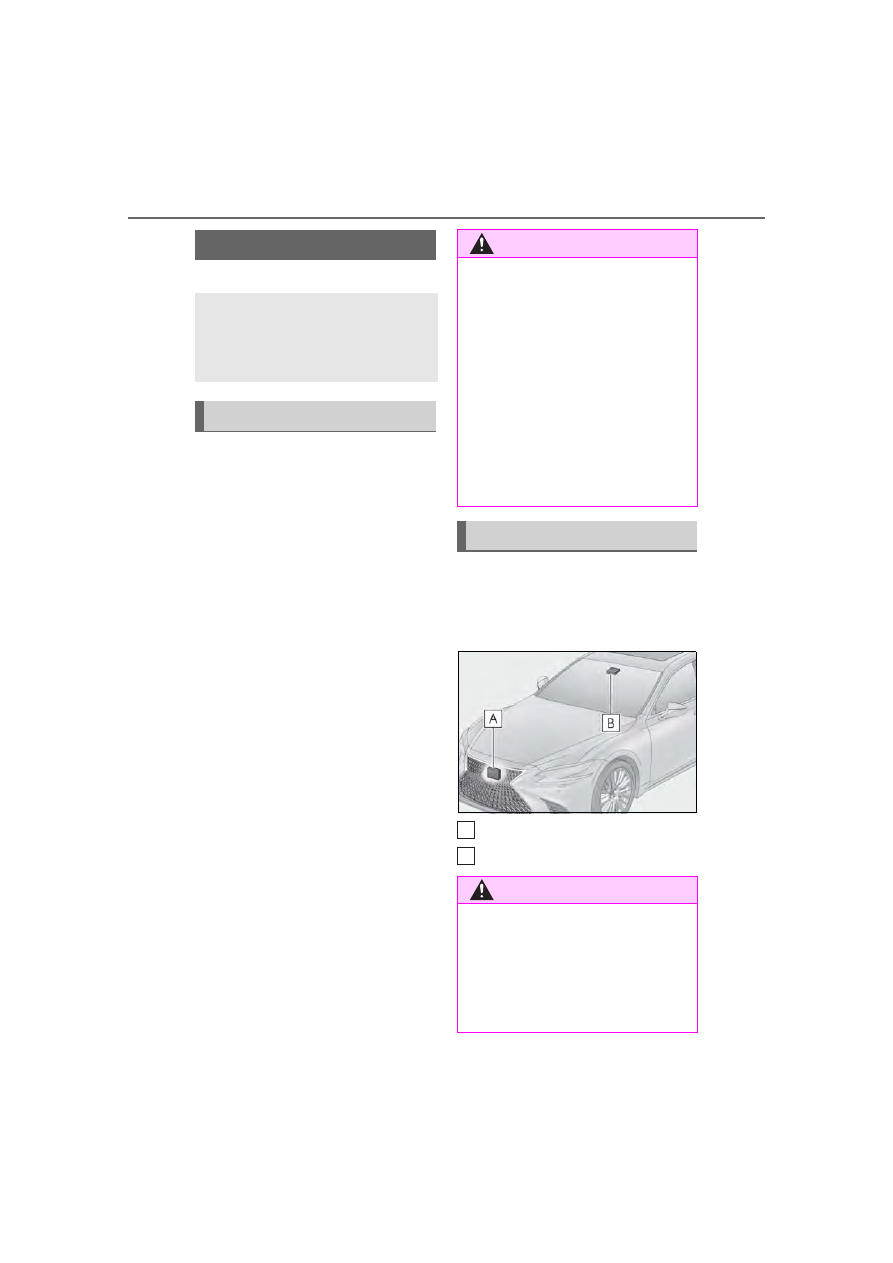

Four types of sensors, located behind
the front grille, front bumper, rear
bumper and windshield, detect infor-
mation necessary to operate the drive
assist systems.
 Front

Front radar sensor
Front side radar sensors
Front camera

 Rear

Rear side radar sensors (



P.250

)

Lexus Safety System + A

*

The Lexus Safety System + A con-
sists of the following drive assist sys-
tems and contributes to a safe and
comfortable driving experience:

Drive assist system

WARNING

■

Lexus Safety System + A

The Lexus Safety System + A is designed

to operate under the assumption that the

driver will drive safely, and is designed to

help reduce the impact to the occupants

and the vehicle in the case of a collision

or assist the driver in normal driving con-

ditions.
As there is a limit to the degree of recog-

nition accuracy and control performance

that this system can provide, do not

overly rely on this system. The driver is

always responsible for paying attention

to the vehicle’s surroundings and driving

safely.

Sensors

A
B
C

192

4-5. Using the driving support systems

LS500_OM_(U)_1809

WARNING

■

To avoid malfunction of the front

radar sensor

Observe the following precautions.
Otherwise, the radar sensor may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

●

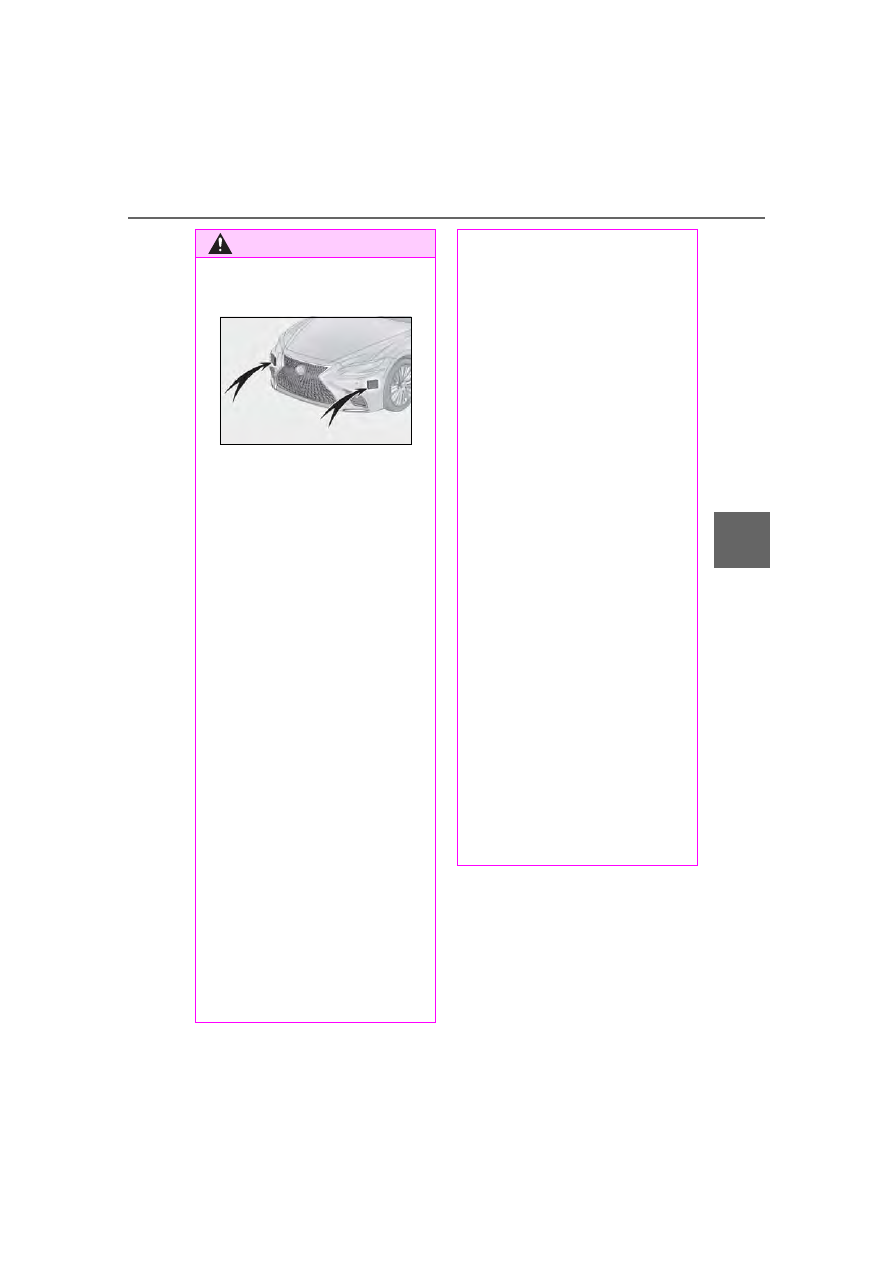

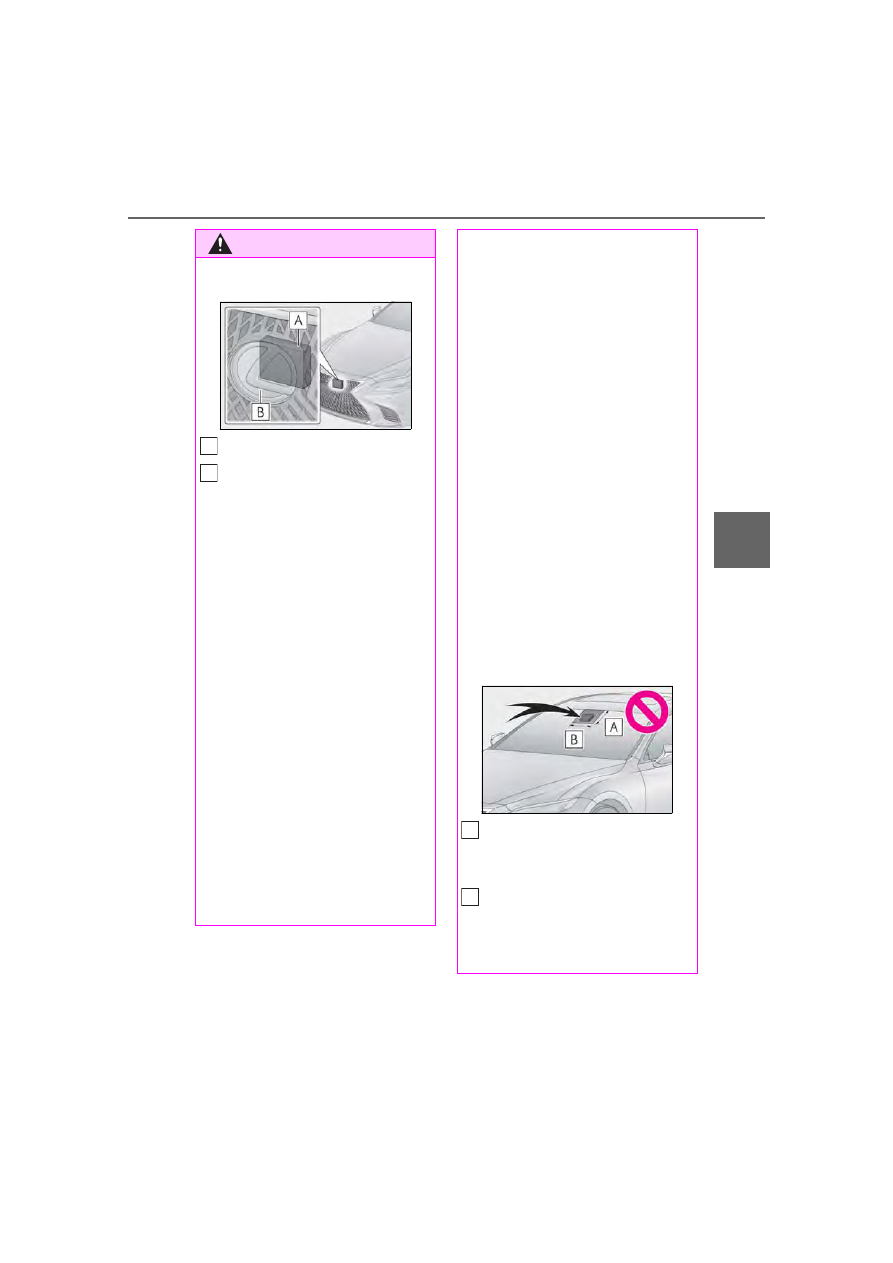

Keep the radar sensor and the grille

cover clean at all times.

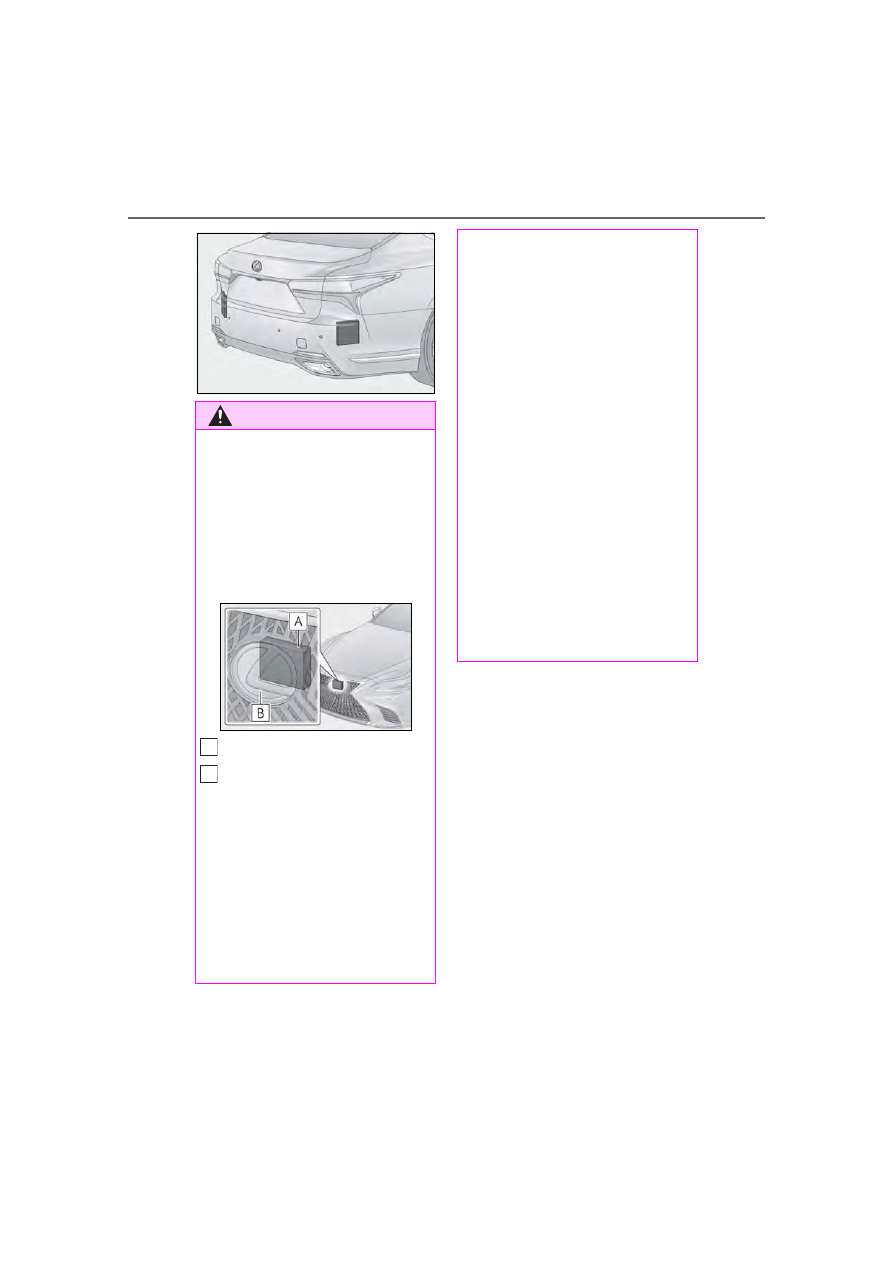

Radar sensor

Grille cover

If the front of the radar sensor or the front
or back of the grille cover is dirty or cov-
ered with water droplets, snow, etc.,
clean it.
Clean the radar sensor and grille cover
with a soft cloth to avoid damage them.

●

Do not attach accessories, stickers

(including transparent stickers) or

other items to the radar sensor, grille

cover or surrounding area.

A
B

●

Do not subject the radar sensor or its

surrounding area to a strong impact.

If the radar sensor is moved even

slightly off position, the system may

malfunction and objects may not be

detected correctly.

If the radar sensor, front grille, or front

bumper has been subjected to a

strong impact, have the vehicle

inspected by your Lexus dealer.

●

Do not disassemble the radar sensor.

●

Do not modify or paint the radar sen-

sor or grille cover.

●

If the radar sensor, front grille, or front

bumper needs to be removed and

installed, or replaced, contact your

Lexus dealer.

■

To avoid malfunction of the front side

radar sensors

Observe the following precautions.
Otherwise, the radar sensor may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

193

4-5. Using the driving support systems

LS500_OM_(U)_1809

4

Driving

WARNING

●

Keep the radar sensors and their sur-

rounding areas on the front bumper

clean at all times.

If a radar sensor or its surrounding area
on the front bumper is dirty or covered
with snow, the system may not operate
and a warning message (

P.428) will be

displayed.
If this occurs, clean off the dirt or snow
and drive the vehicle for approximately
10 minutes.
If the warning message does not disap-
pear, have your vehicle inspected by your
Lexus dealer.

●

Do not attach accessories, stickers

(including transparent stickers), alumi-

num tape or other items to the radar

sensors or their surrounding area.

●

Do not subject a radar sensor or its

surrounding area on the front bumper

to a strong impact.

If a radar sensor is moved even slightly
off position, the system may malfunction
and vehicles may not be detected cor-
rectly.
In the following situations, have your
vehicle inspected by your Lexus dealer.
• If a radar sensor or its surrounding

area is subject to a strong impact

• If the area on the front bumper around

a radar sensor is scratched or dented,

or the front bumper has become par-

tially disengaged

●

Do not disassemble the radar sensors.

●

Do not modify the radar sensors or

their surrounding area on the front

bumper.

●

If a radar sensor or the front bumper

needs to be removed and installed, or

replaced, contact your Lexus dealer.

●

Do not paint the front bumper any

color other than an official Lexus color.

■

To avoid malfunction of the front cam-

era

Observe the following precautions.
Otherwise, the front camera may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

●

Keep the windshield clean at all times.

• If the windshield is dirty or covered

with an oily film, water droplets, snow,

etc., clean the windshield.

• As some glass coating agents may

affect the detection performance of

the front camera, consult your Lexus

dealer when using a glass coating

agent.

• If a glass coating agent is applied to the

windshield, it will still be necessary to

use the windshield wipers to remove

water droplets, etc. from the area of

the windshield in front of the front

camera.

• If the inner side of the windshield

where the front camera is installed is

dirty, contact your Lexus dealer.

194

4-5. Using the driving support systems

LS500_OM_(U)_1809

WARNING

●

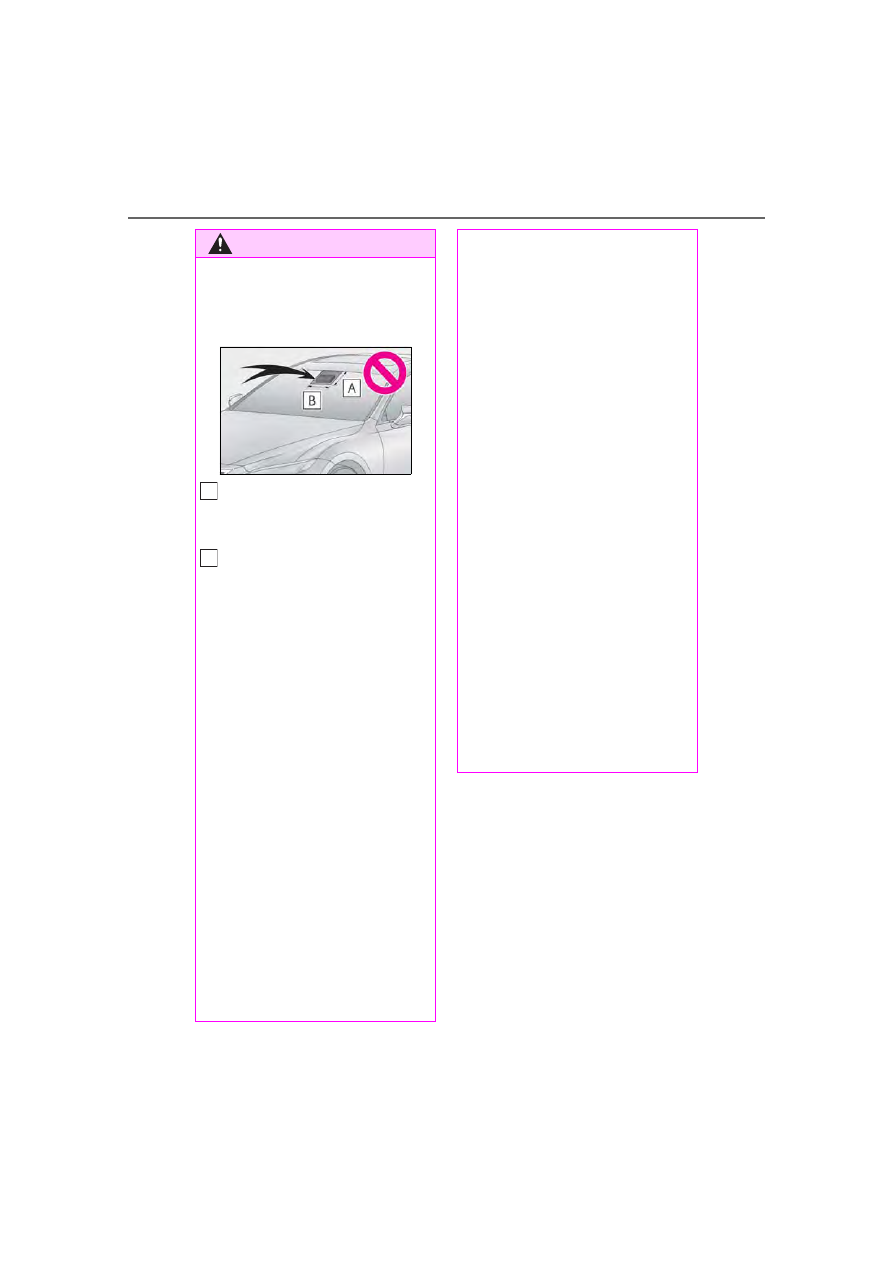

Do not attach objects, such as stickers,

transparent stickers, and so forth, to

the outer side of the windshield in front

of the front camera (shaded area in the

illustration).

From the top of the windshield to
approximately 0.4 in. (1 cm) below
the bottom of the front camera

Approximately 14.2 in. (36 cm)
(Approximately 7.1 in. [18 cm] to the
right and left from the center of the
front camera)

●

If the part of the windshield in front of

the front camera is fogged up or cov-

ered with condensation or ice, use the

windshield defogger to remove the

fog, condensation or ice. (

P.314)

●

If water droplets cannot be properly

removed from the area of the wind-

shield in front of the front camera by

the windshield wipers, replace the

wiper insert or wiper blade.

If the wiper inserts or wiper blades need
to be replaced, contact your Lexus
dealer.

●

Do not attach window tint to the wind-

shield.

●

Replace the windshield if it is damaged

or cracked.

If the windshield needs to be replaced,

contact your Lexus dealer.

●

Do not allow liquids to contact the

front camera.

A

B

●

Do not allow bright lights to shine into

the front camera.

●

Do not dirty or damage the front cam-

era.

When cleaning the inside of the wind-

shield, do not allow glass cleaner to

contact the lens of the front camera.

Also, do not touch the lens.

If the lens is dirty or damaged, contact

your Lexus dealer.

●

Do not subject the front camera to a

strong impact.

●

Do not change the installation position

or direction of the front camera or

remove it.

●

Do not disassemble the front camera.

●

Do not modify any components of the

vehicle around the front camera

(inside rear view mirror, etc.) or ceiling.

●

Do not attach any accessories to the

hood, front grille or front bumper that

may obstruct the front camera. Con-

tact your Lexus dealer for details.

●

If a surfboard or other long object is to

be mounted on the roof, make sure

that it will not obstruct the front cam-

era.

●

Do not modify the headlights or other

lights.

195

4-5. Using the driving support systems

LS500_OM_(U)_1809

4

Driving

■

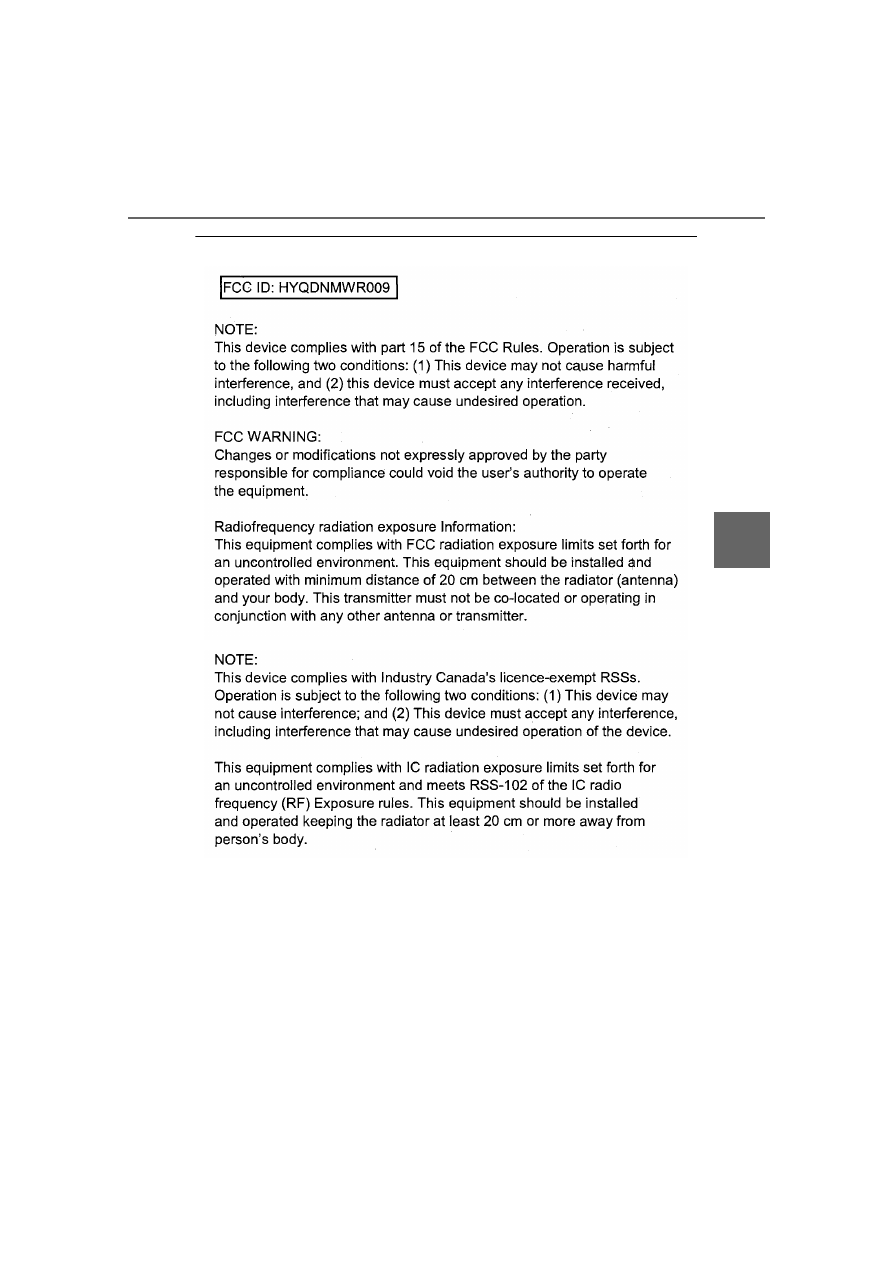

Certification

196

4-5. Using the driving support systems

LS500_OM_(U)_1809

■

If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in the system.

●

In the following situations, perform the actions specified in the table. When the normal

operating conditions are detected, the message will disappear and the system will

become operational.

If the message does not disappear, contact your Lexus dealer.

Situation

Actions

When the area around a sensor is covered
with dirt, moisture (fogged up, covered with
condensation, ice, etc.), or other foreign
matter

To clean the part of the windshield in front of
the front camera , use the windshield wipers
or the windshield defogger of the air condi-
tioning system (

P.314).

197

4-5. Using the driving support systems

LS500_OM_(U)_1809

4

Driving

●

In the following situations, if the situation has changed (or the vehicle has been driven for

some time) and the normal operating conditions are detected, the message will disappear

and the system will become operational.

If the message does not disappear, contact your Lexus dealer.

• When the temperature around the radar sensor is outside of the operational range, such

as when the vehicle is in the sun or in an extremely cold environment

• When the front camera cannot detect objects in front of the vehicle, such as when driving

in the dark, snow, or fog, or when bright lights are shining into the front camera

When the temperature around the front
camera is outside of the operational range,
such as when the vehicle is in the sun or in an
extremely cold environment

If the front camera is hot, such as after the
vehicle had been parked in the sun, use the
air conditioning system to decrease the tem-
perature around the front camera.
If a sunshade was used when the vehicle
was parked, depending on its type, the sun-
light reflected from the surface of the sun-
shade may cause the temperature of the
front camera to become excessively high.

If the front camera is cold, such after the
vehicle is parked in an extremely cold envi-
ronment, use the air conditioning system to
increase the temperature around the front
camera.

The area in front of the front camera is
obstructed, such as when the hood is open
or a sticker is attached to the part of the
windshield in front of the front camera.

Close the hood, remove the sticker, etc. to
clear the obstruction.

Situation

Actions

198

4-5. Using the driving support systems

LS500_OM_(U)_1809

*

: If  equipped

■

PCS (Pre-Collision System) (vehi-
cles with Lexus Safety System +
2.0)

P.215

■

LTA (Lane Tracing Assist)

P.225

■

AHB (Automatic High Beam)

P.182

■

RSA (Road Sign Assist)

*

P.247

*

: If  equipped

■

Dynamic radar cruise control with
full-speed range

P.237

Two types of sensors, located behind
the front grille and windshield, detect
information necessary to operate the
drive assist systems.

Radar sensor
Front camera

Lexus Safety System + 2.0

*

The Lexus Safety System + 2.0 con-
sists of the following drive assist sys-
tems and contributes to a safe and
comfortable driving experience:

Driving assist system

WARNING

■

Lexus Safety System + 2.0

The Lexus Safety System + 2.0 is

designed to operate under the assump-

tion that the driver will drive safely, and is

designed to help reduce the impact to

the occupants and the vehicle in the case

of a collision or assist the driver in normal

driving conditions.
As there is a limit to the degree of recog-

nition accuracy and control performance

that this system can provide, do not

overly rely on this system. The driver is

always responsible for paying attention

to the vehicle’s surroundings and driving

safely.

Sensors

WARNING

■

To avoid malfunction of the radar sen-

sor

Observe the following precautions.
Otherwise, the radar sensor may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

A
B

199

4-5. Using the driving support systems

LS500_OM_(U)_1809

4

Driving

WARNING

●

Keep the radar sensor and the grille

cover clean at all times.

Radar sensor

Grille cover

If the front of the radar sensor or the front
or back of the grille cover is dirty or cov-
ered with water droplets, snow, etc.,
clean it.
Clean the radar sensor and grille cover
with a soft cloth to avoid damaging them.

●

Do not attach accessories, stickers

(including transparent stickers) or

other items to the radar sensor, grille

cover or surrounding area.

●

Do not subject the radar sensor or its

surrounding area to a strong impact.

If the radar sensor, front grille, or front

bumper has been subjected to a

strong impact, have the vehicle

inspected by your Lexus dealer.

●

Do not disassemble the radar sensor.

●

Do not modify or paint the radar sen-

sor or grille cover.

●

If the radar sensor, front grille, or front

bumper needs to be removed and

installed, or replaced, contact your

Lexus dealer.

A
B

■

To avoid malfunction of the front cam-

era

Observe the following precautions.
Otherwise, the front camera may not

operate properly, possibly leading to an

accident resulting in death or serious

injury.

●

Keep the windshield clean at all times.

• If the windshield is dirty or covered

with an oily film, water droplets, snow,

etc., clean the windshield.

• If a glass coating agent is applied to the

windshield, it will still be necessary to

use the windshield wipers to remove

water droplets, etc. from the area of

the windshield in front of the front

camera.

• If the inner side of the windshield

where the front camera is installed is

dirty, contact your Lexus dealer.

●

Do not attach objects, such as stickers,

transparent stickers, etc., to the outer

side of the windshield in front of the

front camera (shaded area in the illus-

tration).

From the top of the windshield to
approximately 0.4 in. (1 cm) below
the bottom of the front camera

Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. [10 cm] to the
right and left from the center of the
front camera)

A

B

200

4-5. Using the driving support systems

LS500_OM_(U)_1809

WARNING

●

If the part of the windshield in front of

the front camera is fogged up or cov-

ered with condensation, or ice, use the

windshield defogger to remove the

fog, condensation, or ice. (

P.314)

●

If water droplets cannot be properly

removed from the area of the wind-

shield in front of the front camera by

the windshield wipers, replace the

wiper insert or wiper blade.

If the wiper inserts or wiper blades need
to be replaced, contact your Lexus
dealer.

●

Do not attach window tint to the wind-

shield.

●

Replace the windshield if it is damaged

or cracked.

If the windshield needs to be replaced,

contact your Lexus dealer.

●

Do not allow liquids to contact the

front camera.

●

Do not allow bright lights to shine into

the front camera.

●

Do not dirty or damage the front cam-

era.

When cleaning the inside of the wind-

shield, do not allow glass cleaner to

contact the lens of the front camera.

Also, do not touch the lens.

If the lens is dirty or damaged, contact

your Lexus dealer.

●

Do not subject the front camera to a

strong impact.

●

Do not change the installation position

or direction of the front camera or

remove it.

●

Do not disassemble the front camera.

●

Do not modify any components of the

vehicle around the front camera

(inside rear view mirror, etc.) or ceiling.

●

Do not attach any accessories to the

hood, front grille or front bumper that

may obstruct the front camera. Con-

tact your Lexus dealer.

●

If a surfboard or other long object is to

be mounted on the roof, make sure

that it will not obstruct the front cam-

era.

●

Do not modify the headlights or other

lights.

201

4-5. Using the driving support systems

LS500_OM_(U)_1809

4

Driving

■

Certification

202

4-5. Using the driving support systems

LS500_OM_(U)_1809

■

If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in the system.

●

In the following situations, perform the actions specified in the table. When the normal

operating conditions are detected, the message will disappear and the system will

become operational.

If the message does not disappear, contact your Lexus dealer.

Situation

Actions

When the area around a sensor is covered
with dirt, moisture (fogged up, covered with
condensation, ice, etc.), or other foreign
matter

To clean the part of the windshield in front of
the front camera , use the windshield wipers
or the windshield defogger of the air condi-
tioning system (

P.314).

When the temperature around the front
camera is outside of the operational range,
such as when the vehicle is in the sun or in an
extremely cold environment

If the front camera is hot, such as after the
vehicle had been parked in the sun, use the
air conditioning system to decrease the tem-
perature around the front camera.
If a sunshade was used when the vehicle
was parked, depending on its type, the sun-
light reflected from the surface of the sun-
shade may cause the temperature of the
front camera to become excessively high.

If the front camera is cold, such after the
vehicle is parked in an extremely cold envi-
ronment, use the air conditioning system to
increase the temperature around the front
camera.

203

4-5. Using the driving support systems

LS500_OM_(U)_1809

4

Driving

●

In the following situations, if the situation has changed (or the vehicle has been driven for

some time) and the normal operating conditions are detected, the message will disappear

and the system will become operational.

If the message does not disappear, contact your Lexus dealer.

• When the temperature around the radar sensor is outside of the operational range, such

as when the vehicle is in the sun or in an extremely cold environment

• When the front camera cannot detect objects in front of the vehicle, such as when driving

in the dark, snow, or fog, or when bright lights are shining into the front camera

The area in front of the front camera is
obstructed, such as when the hood is open
or a sticker is attached to the part of the
windshield in front of the front camera.

Close the hood, remove the sticker, etc. to
clear the obstruction.

Situation

Actions
