4-5. Using the driving support systems

• When the engine switch <power switch>

is turned off once and turned to IGNI-

TION ON mode <ON mode> again

■

If “Clean Parking Assist Sensor” is dis-

played on the multi-information display

A sensor may be dirty or covered with snow

or ice. In such cases, if it is removed from

the sensor, the system should return to nor-

mal.
Also, due to the sensor being frozen at low

temperatures, a malfunction display may

appear or an obstacle may not be detected.

If the sensor thaws out, the system should

return to normal.

■

If “Parking Assist Malfunction” or “Park-

ing Assist Malfunction Visit Your

Dealer” is displayed on the multi-infor-

mation display

There is a malfunction and the device may

not be working properly.
Have the vehicle inspected by your Lexus

dealer.

■

Sensor detection information

●

The sensor’s detection areas are limited

to the areas around the vehicle’s front and

rear bumpers.

●

Certain vehicle conditions and the sur-

rounding environment may affect the

ability of the sensor to correctly detect

obstacles. Particular instances where this

may occur are listed below.

• There is dirt, snow or ice on the sensor.

(Wiping the sensors will resolve this

problem.)

• The sensor is frozen. (Thawing the area

will resolve this problem.)

In especially cold weather, if a sensor is

frozen the screen may show an abnormal

display, or obstacles may not be

detected.

• The sensor is covered in any way.

• The vehicle is leaning considerably to one

side.

• On an extremely bumpy road, on an

incline, on gravel, or on grass.

• The vicinity of the vehicle is noisy due to

vehicle horns, motorcycle engines, air

brakes of large vehicles, or other loud

noises producing ultrasonic waves.

• There is another vehicle equipped with

parking assist sensor in the vicinity.

• The sensor is coated with a sheet of spray

or heavy rain.

• The vehicle is equipped with a fender

pole or wireless antenna.

• Towing eyelets are installed.

• The bumper or sensor receives a strong

impact.

• The vehicle is approaching a tall or

curved curb.

• In harsh sunlight or intense cold weather.

• The area directly under the bumpers is

not detected.

• If obstacles draw too close to the sensor.

• A non-genuine Lexus suspension (low-

ered suspension etc.) is installed.

• People may not be detected if they are

wearing certain types of clothing.

In addition to the examples above, there are
instances in which, because of their shape,
signs and other objects may be judged by
the sensor to be closer than they are.

●

The shape of the obstacle may prevent

the sensor from detecting it. Pay particu-

lar attention to the following obstacles:

• Wires, fences, ropes, etc.

• Cotton, snow and other materials that

absorb sound waves

• Sharply-angled objects

• Low obstacles

• Tall obstacles with upper sections pro-

jecting outwards in the direction of your

vehicle

●

The following situations may occur

during use.

• Depending on the shape of the obstacle

and other factors, the detection distance

may shorten, or detection may be impos-

sible.

• Obstacles may not be detected if they

are too close to the sensor.

• There will be a short delay between

obstacle detection and display. Even at

slow speeds, there is a possibility that the

obstacle will come within the sensor’s

detection areas before the display is

shown and the warning beep sounds.

• Thin posts or objects lower than the sen-

sor may not be detected when

approached, even if they have been

detected once.

• It might be difficult to hear beeps due to

217

4-5. Using the driving support systems

4

Driving

the volume of the audio system or air flow

noise of the air conditioning system.

• It might be difficult to hear beeps due to

the sounds of other systems.

■

Customization

Some functions can be customized.

(

P.391)

■

Certification



For vehicles sold in the U.S.A.



For vehicles sold in Canada

WARNING

■

When using the intuitive parking

assist

Observe the following precautions.

Failing to do so may result in the vehicle

being unable to be driven safely and pos-

sibly cause an accident.

●

Do not use the sensor at speeds in

excess of 6 mph (10 km/h).

●

The sensors’ detection areas and reac-

tion times are limited. When moving

forward or reversing, check the areas

surrounding the vehicle (especially the

sides of the vehicle) for safety, and

drive slowly, using the brake to control

the vehicle’s speed.

●

Do not install accessories within the

sensors’ detection areas.

NOTICE

■

When using intuitive parking assist

In the following situations, the system

may not function correctly due to a sen-

sor malfunction etc. Have the vehicle

checked by your Lexus dealer.

●

The intuitive parking assist operation

display flashes or shows continuously,

and a beep sounds when no obstacles

are detected.

●

If the area around a sensor collides

with something, or is subjected to

strong impact.

●

If the bumper or grille collides with

something.

218

4-5. Using the driving support systems

■

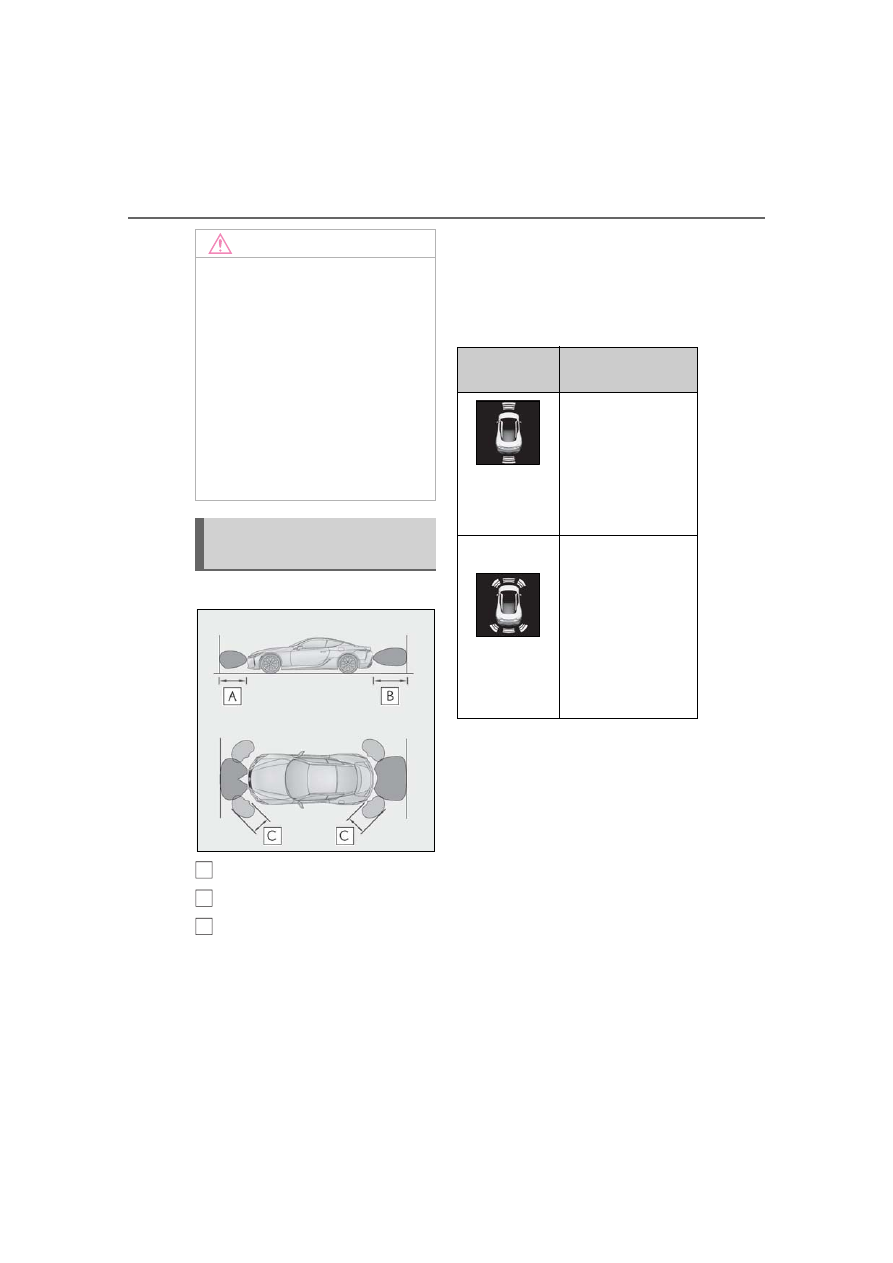

Detection range of the sensors

Approximately 3.3 ft. (100 cm)

Approximately 4.9 ft. (150 cm)

Approximately 2.0 ft. (60 cm)

The diagram shows the detection range of
the sensors. Note that the sensors cannot
detect obstacles that are extremely close
to the vehicle.
The range of the sensors may change

depending on the shape of the object etc.

■

Multi-information display, head-up
display and Center Display

Sensors that detect an obstacle will illu-
minate continuously or blink.

NOTICE

●

If the display flashes or shows continu-

ously without beeping, except when

the mute function has been turned on.

●

If a display error occurs, first check the

sensor.

If the error occurs even when there is

no ice, snow or mud on the sensor, it is

likely that the sensor is malfunctioning.

■

Notes when washing the vehicle

Do not apply intensive bursts of water or

steam to the sensor area.
Doing so may result in the sensor mal-

functioning.

Sensor detection display, obsta-
cle distance

A
B
C

Display

*1

Approximate distance

to obstacle

(continuous

*2

 or

blinking

slowly

*3

)

Front center sensor:
3.3 ft. (100 cm) to 1.6 ft.
(50 cm)
Rear center sensor: 4.9
ft. (150 cm) to 2.0 ft.
(60 cm)

(continuous

*2

 or

blinking

*3

)

Front center sensor: 1.6
ft. (50 cm) to 1.3 ft. (40
cm)
Rear center sensor: 2.0
ft. (60 cm) to 1.5 ft. (45
cm)
Front and rear corner
sensor: 2.0 ft. (60 cm)
to 1.5 ft. (45 cm)

219

4-5. Using the driving support systems

4

Driving

*1

: The illustrations show the graphics on

the Multi-information display, and differ
from the graphics on the head-up dis-
play and Center Display. Depending on
the distance of the obstacle, the sensor
display on the Center Display illumi-
nates or blinks in various cycles,
although the width of it does not
change.

*2

: Multi-information display and head-up

display

*3

: Center  Display

■

Buzzer operation and distance to
an obstacle

A buzzer sounds when the sensors are
operating.
 The buzzer beeps faster as the vehi-

cle approaches an obstacle. When
the vehicle comes within the follow-
ing distance of the obstacle, the
buzzer sounds continuously:

• Front center sensors: Approximately 1.0

ft. (30 cm)

• Corner sensors: Approximately 1.0 ft.

(30 cm)

• Rear center sensors: Approximately 1.1 ft.

(35 cm)

 When 2 or more obstacles are

detected simultaneously, the buzzer
system responds to the nearest
obstacle. If one or both come within
the above distances, the beep will
repeat a long tone, followed by fast
beeps.

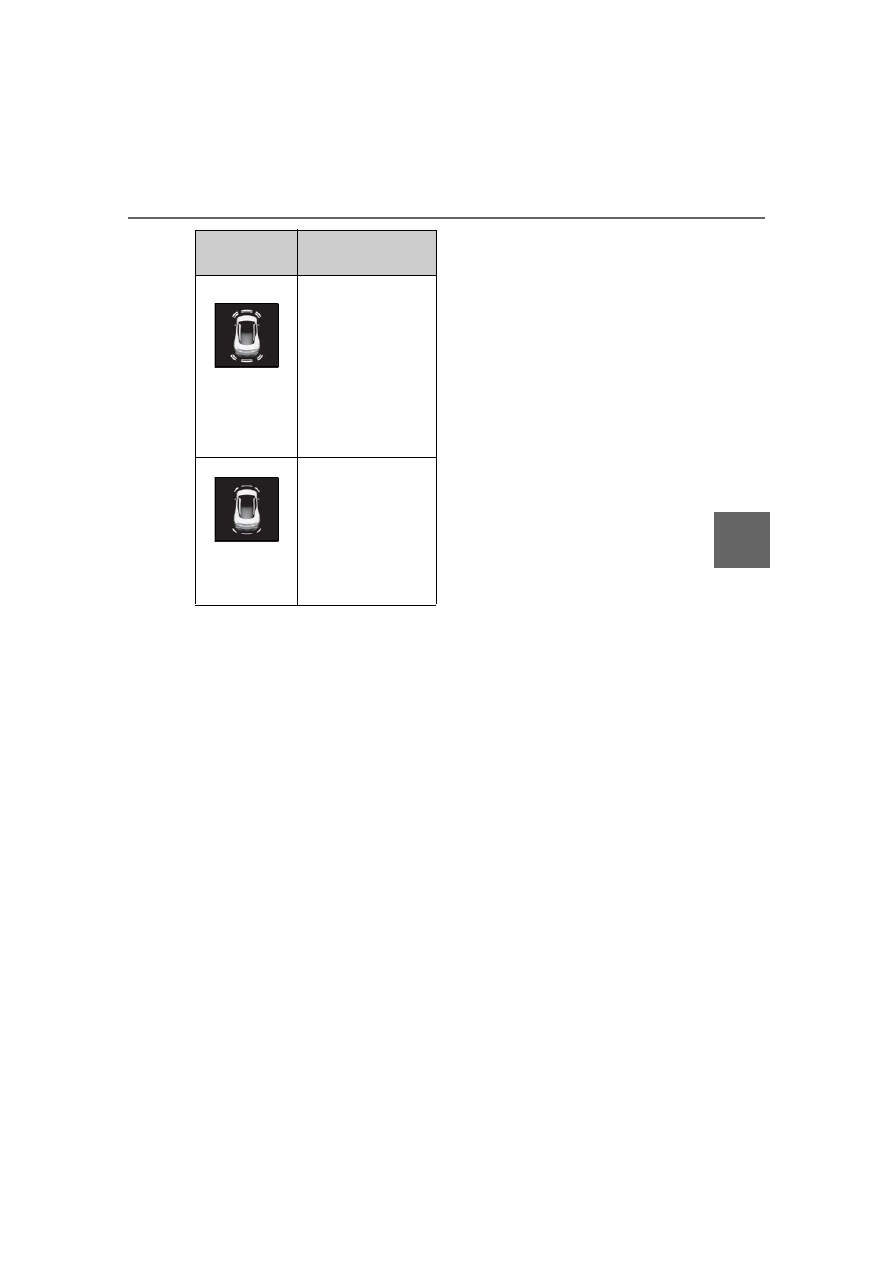

(continuous

*2

 or

blinking rap-

idly

*3

)

Front center sensor: 1.3
ft. (40 cm) to 1.0 ft. (30
cm)
Rear center sensor: 1.5
ft. (45 cm) to 1.1 ft. (35
cm)
Front and rear corner
sensor: 1.5 ft. (45 cm) to
1.0 ft. (30 cm)

(blinking

*2

 or

continuous

*3

)

Front center sensor:
Less than 1.0 ft. (30 cm)
Rear center sensor:
Less than 1.1 ft. (35 cm)
Front and rear corner
sensor: Less than 1.0 ft.
(30 cm)

Display

*1

Approximate distance

to obstacle

220

4-5. Using the driving support systems

*

: If  equipped

Multi-information display

Turning the BSM function/RCTA function
on/off.
The RCTA function is available when the
BSM function is on.

Outside rear view mirror indicators

BSM function:
When a vehicle is detected in a blind spot
of the outside rear view mirrors or
approaching rapidly from behind into a
blind spot, the outside rear view mirror
indicator on the detected side will illumi-
nate. If the turn signal lever is operated
toward the detected side, the outside rear
view mirror indicator will flash.
RCTA function:
When a vehicle approaching from the right
or left at the rear of the vehicle is detected,
both outside rear view mirror indicators
will flash.

BSM indicator/RCTA indicator

When the BSM function/RCTA function is
turned on, the indicator comes on.

Monitor screen display (RCTA
function only)

If a vehicle approaching from the right or
left at the rear of the vehicle is detected,
the RCTA icon (

P.226) for the detected

side will be displayed on the monitor
screen. This illustration shows an example
of a vehicle approaching from the left at the
rear of the vehicle.

RCTA buzzer (RCTA function only)

If a vehicle approaching from the right or
left at the rear of the vehicle is detected, a
buzzer will sound. The buzzer also sounds
for approximately 1 second immediately
after the BSM function is operated to turn
the system on.

BSM (Blind Spot Monitor)

*

The Blind Spot Monitor uses the
sensors installed behind the rear
bumper. The system is intended to
assist the driver check areas that
are not easily visible. The system
has the following 2 functions:
 The BSM (Blind Spot Monitor)

function

Assists the driver in making a deci-
sion when changing lanes
 The RCTA (Rear Cross Traffic

Alert) function

Assists the driver when backing up
These functions use same sensors.

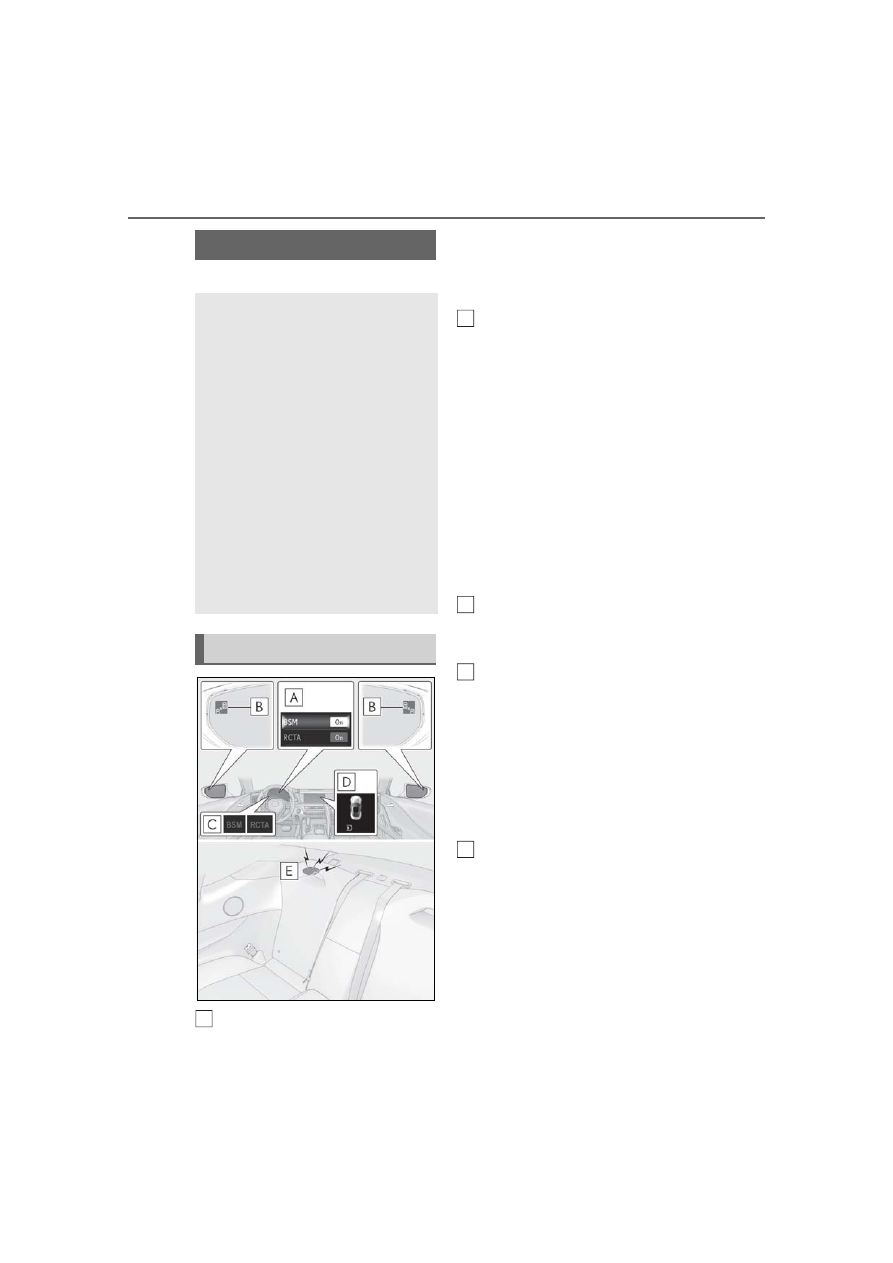

System components

A

B

C

D

E

221

4-5. Using the driving support systems

4

Driving

1

Press

 or

 of the meter con-

trol switches, select

.

2

Press

 or

 of the meter con-

trol switches, select “BSM”, and
then press “OK”.

3

Press

 or

 of the meter con-

trol switches, select “BSM” or
“RCTA”, and press “OK”.

■

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

■

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to hear

over loud noises, such as if the audio system

volume is high.

■

When “Blind Spot Monitor Unavailable”

is shown on the multi-information dis-

play

Water, snow, mud, etc., may be built up in

the vicinity of the sensor area of bumper.

(

P.222) Removing the water, snow, mud,

etc., from the vicinity of the sensor area

bumper should return it to normal.
Also, the sensor may not function normally

when used in extremely hot or cold weather.

■

When “Blind Spot Monitor System Mal-

function” is shown on the multi-informa-

tion display

There may be a sensor malfunction or volt-

age abnormality. Have the vehicle

inspected at your Lexus dealer.

■

Customization

Some functions can be customized. (Cus-

tomizable features:

P.391)

■

Certification for the Blind Spot Monitor



For vehicles sold in the U.S.A., Hawaii and Puerto Rico

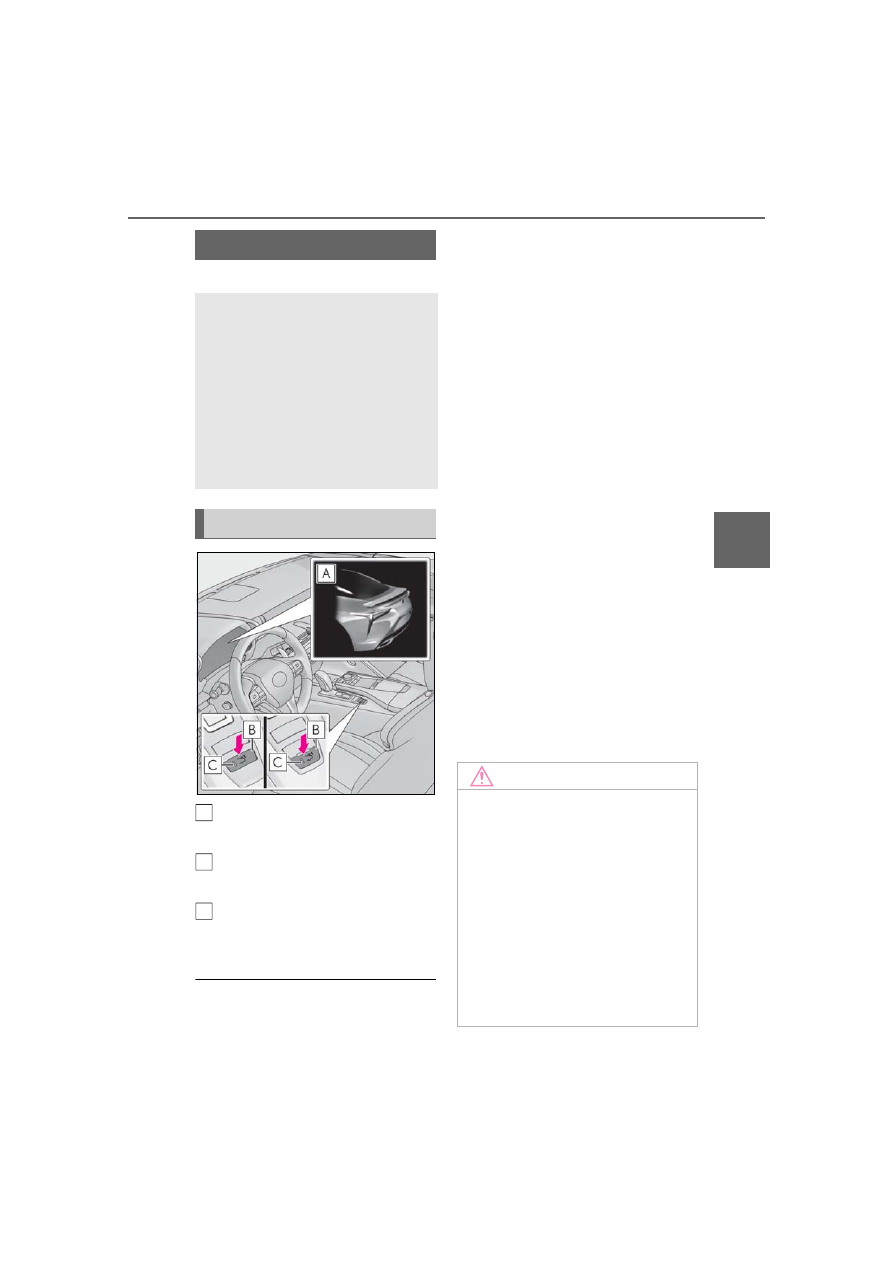

Turning the BSM function/RCTA
function on/off

222

4-5. Using the driving support systems



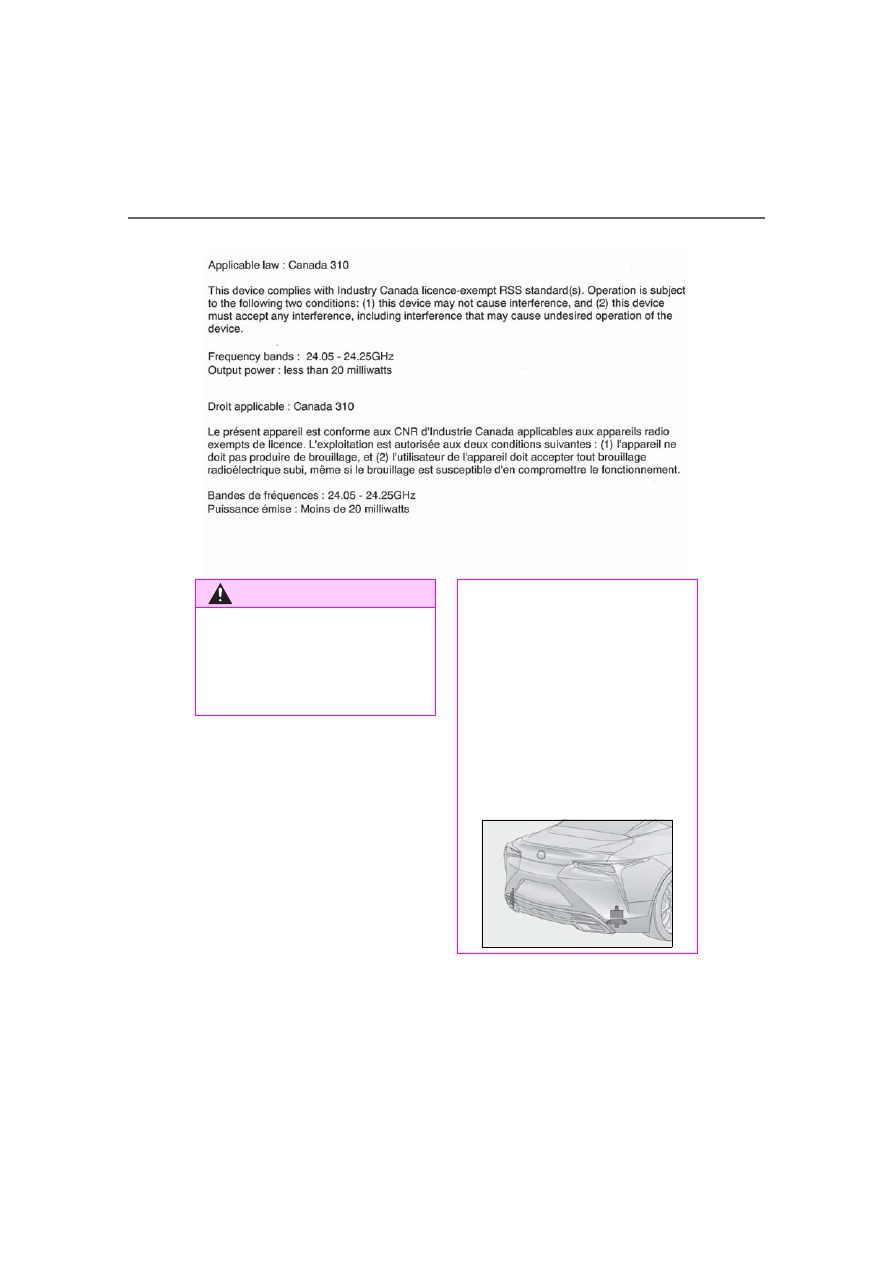

For vehicles sold in Canada

WARNING

■

Handling the radar sensor

Blind Spot Monitor sensors are installed

behind the left and right sides of the rear

bumper respectively. Observe the fol-

lowing to ensure the Blind Spot Monitor

can function correctly.

●

Keep the sensors and the surrounding

areas on the rear bumper clean at all

times.

If a sensor or its surrounding area on

the rear bumper is dirty or covered

with snow, the Blind Spot Monitor may

not operate and a warning message

(

P.221) will be displayed. In this situ-

ation, clear off the dirt or snow and

drive the vehicle with the operation

conditions of the BSM function

(

P.224) satisfied for approximately

10 minutes. If the warning message

does not disappear, have the vehicle

inspected by your Lexus dealer.

223

4-5. Using the driving support systems

4

Driving

■

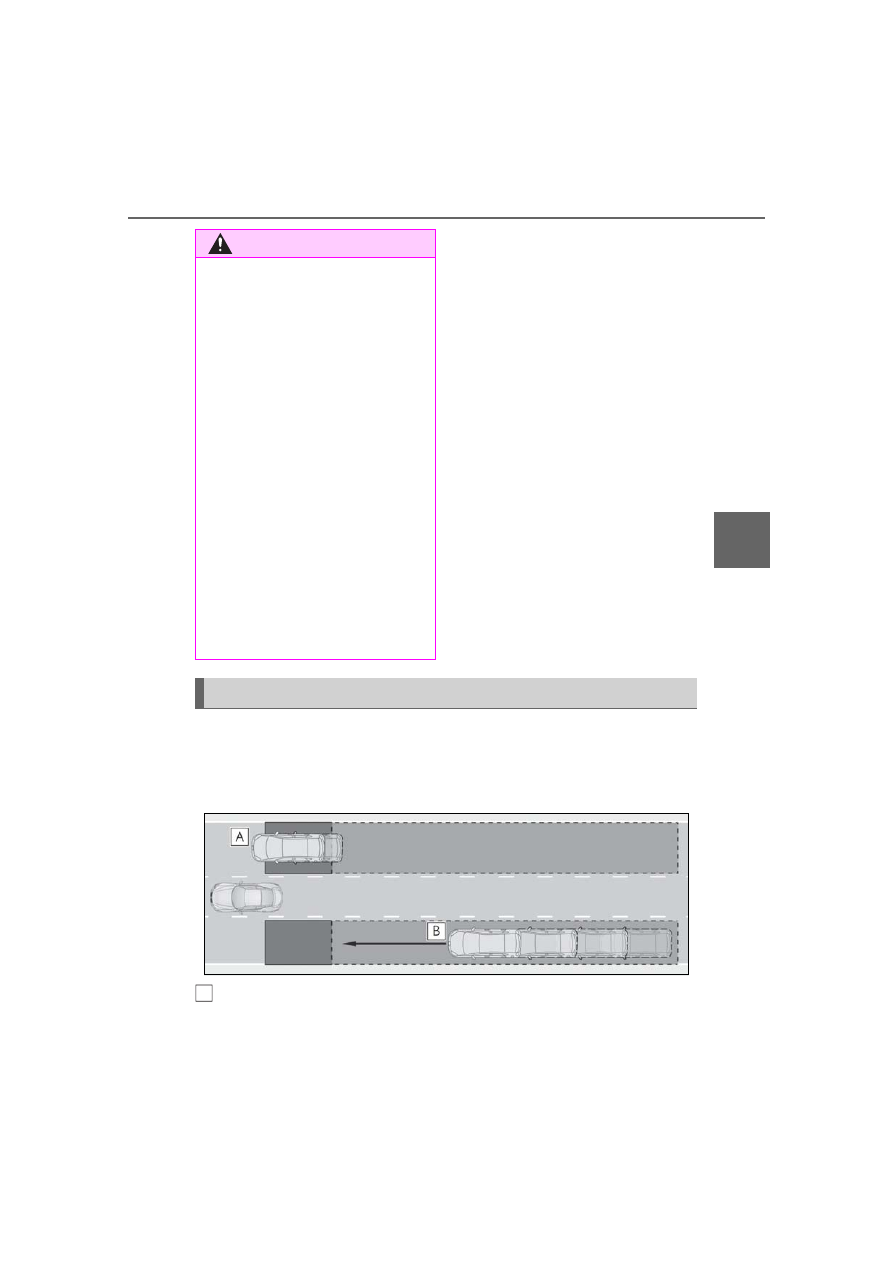

Operation of the BSM function

The BSM function uses radar sensors to detect the following vehicles traveling in
adjacent lanes and advises the driver of the presence of such vehicles via the indi-
cators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)

WARNING

●

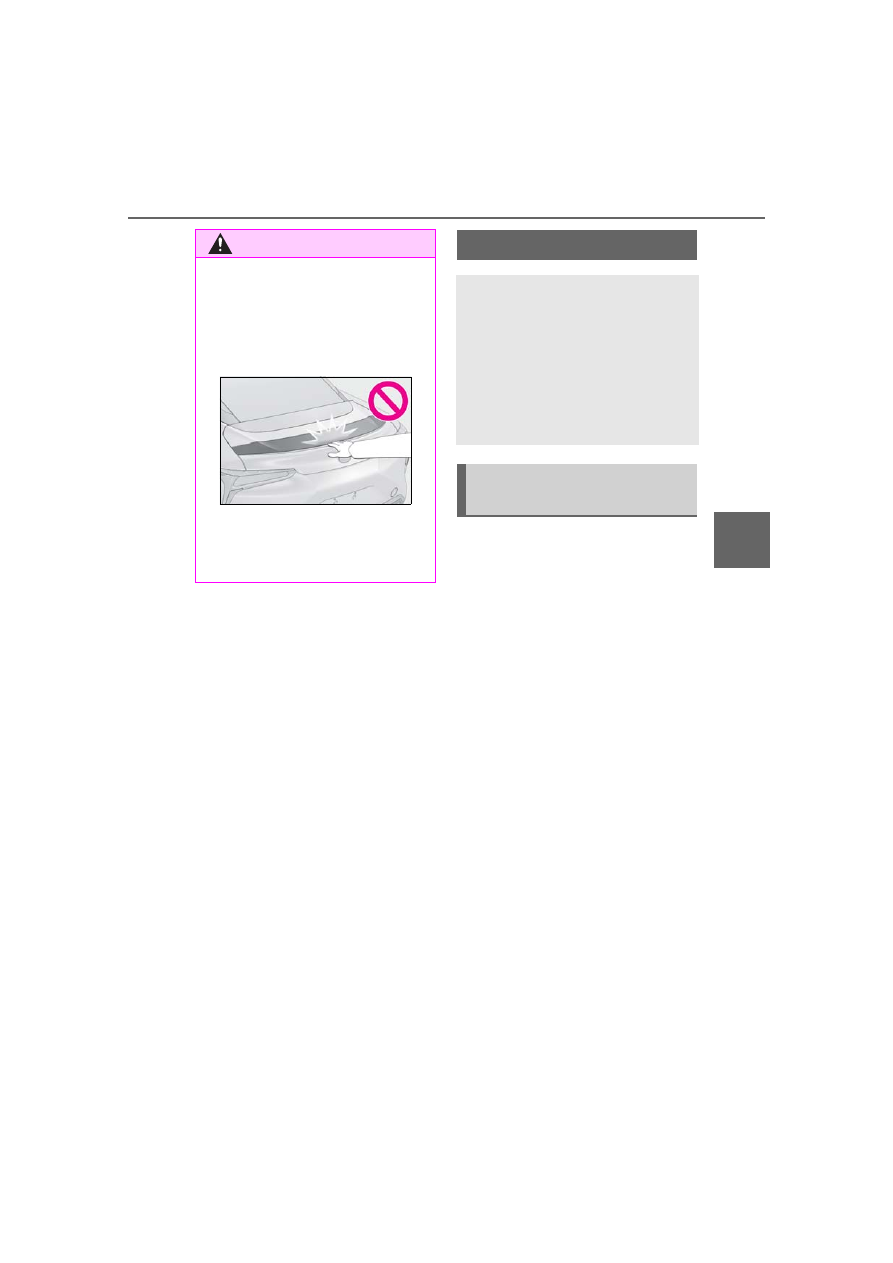

Do not subject a sensor or its sur-

rounding area on the rear bumper to a

strong impact.

If a sensor is moved even slightly off

position, the system may malfunction

and vehicles may not be detected cor-

rectly.

In the following situations, have your

vehicle inspected by your Lexus

dealer.

• A sensor or its surrounding area is

subject to a strong impact.

• If the surrounding area of a sensor is

scratched or dented, or part of them

has become disconnected.

●

Do not disassemble the sensor.

●

Do not attach stickers to the sensor or

surrounding area on the rear bumper.

●

Do not modify the sensor or surround-

ing area on the rear bumper.

●

Do not paint the rear bumper any

color other than an official Lexus color.

BSM function

A

224

4-5. Using the driving support systems

Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)

■

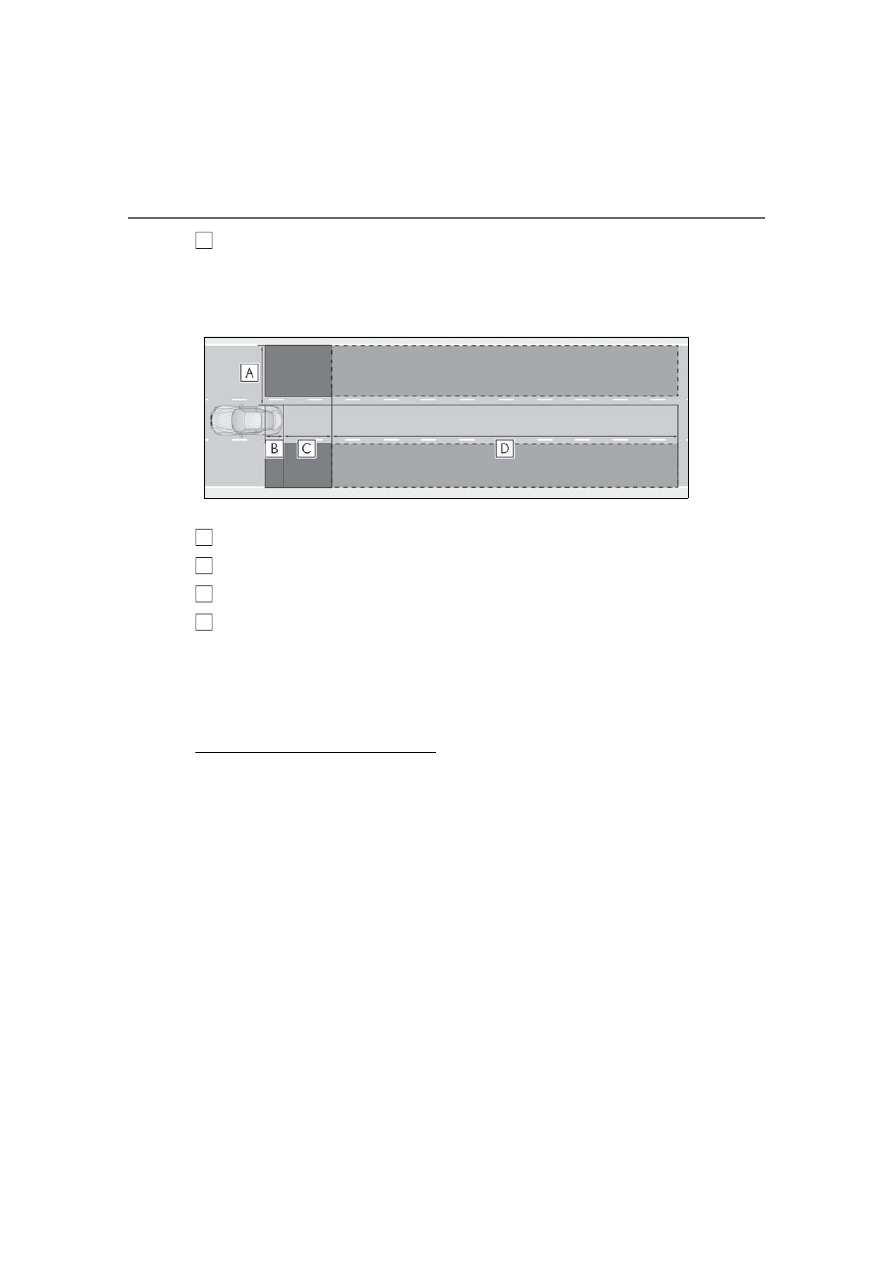

BSM function detection areas

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of the vehicle

*1

Approximately 3.3 ft. (1 m) forward of the rear bumper

Approximately 9.8 ft. (3 m) from the rear bumper

Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear bumper

*2

*1

: The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side of the vehicle

cannot be detected.

*2

: The greater the difference in speed between your vehicle and the detected vehicle is,

the farther away the vehicle will be detected, causing the outside rear view mirror indi-
cator to illuminate or flash.

■

The BSM function is operational when

The BSM function is operational when all of

the following conditions are met:

●

The BSM function is on.

●

The shift position is in a position other

than R.

●

The vehicle speed is greater than approx-

imately 10 mph (16 km/h).

■

The BSM function will detect a vehicle

when

The BSM function will detect a vehicle pres-

ent in the detection area in the following sit-

uations:

●

A vehicle in an adjacent lane overtakes

your vehicle.

●

You overtake a vehicle in adjacent lane

slowly.

●

Another vehicle enters the detection

area when it changes lanes.

■

Conditions under which the BSM func-

tion will not detect a vehicle

The BSM function is not designed to detect

the following types of vehicles and/or

objects:

●

Small motorcycles, bicycles, pedestrians,
etc.

*

●

Vehicles traveling in the opposite direc-

tion

●

Guardrails, walls, signs, parked vehicles
and similar stationary objects

*

●

Following vehicles that are in the same

B

A
B
C
D

225

4-5. Using the driving support systems

4

Driving

lane

*

●

Vehicles traveling 2 lanes away from your
vehicle

*

●

Vehicles which are being overtaken rap-
idly by your vehicle.

*

*

: Depending on the conditions, detection

of a vehicle and/or object may occur.

■

Conditions under which the BSM func-

tion may not function correctly

●

The BSM function may not detect vehi-

cles correctly in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When the distance between your vehicle

and a following vehicle is short

• When there is a significant difference in

speed between your vehicle and the vehi-

cle that enters the detection area

• When the difference in speed between

your vehicle and another vehicle is

changing

• When a vehicle enters a detection area

traveling at about the same speed as your

vehicle

• As your vehicle starts from a stop, a vehi-

cle remains in the detection area

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When vehicle lanes are wide, or when

driving on the edge of a lane, and the

vehicle in an adjacent lane is far away

from your vehicle

• When an accessory (such as a bicycle

carrier) or towing eyelet is installed to the

rear of the vehicle

• When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

• Immediately after the BSM function is

turned on

●

Instances of the BSM function unneces-

sarily detecting a vehicle and/or object

may increase in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When the distance between your vehicle

and a guardrail, wall, etc. that enters the

detection area is short

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When vehicle lanes are narrow, or when

driving on the edge of a lane, and a vehi-

cle traveling in a lane other than the adja-

cent lanes enters the detection area

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When the tires are slipping or spinning

• When the distance between your vehicle

and a following vehicle is short

• When an accessory (such as a bicycle

carrier) or towing eyelet is installed to the

rear of the vehicle

WARNING

■

Cautions regarding the use of the

function

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.
The BSM function is a supplementary

function which alerts the driver that a

vehicle is in a blind spot of the outside

rear view mirrors or is approaching rap-

idly from behind into a blind spot. Do not

overly rely on the BSM function. As the

function cannot judge if it is safe to

change lanes, over reliance could lead to

an accident resulting in death or serious

injury.
As the system may not function correctly

under certain conditions, the driver’s own

visual confirmation of safety is necessary.

226

4-5. Using the driving support systems

■

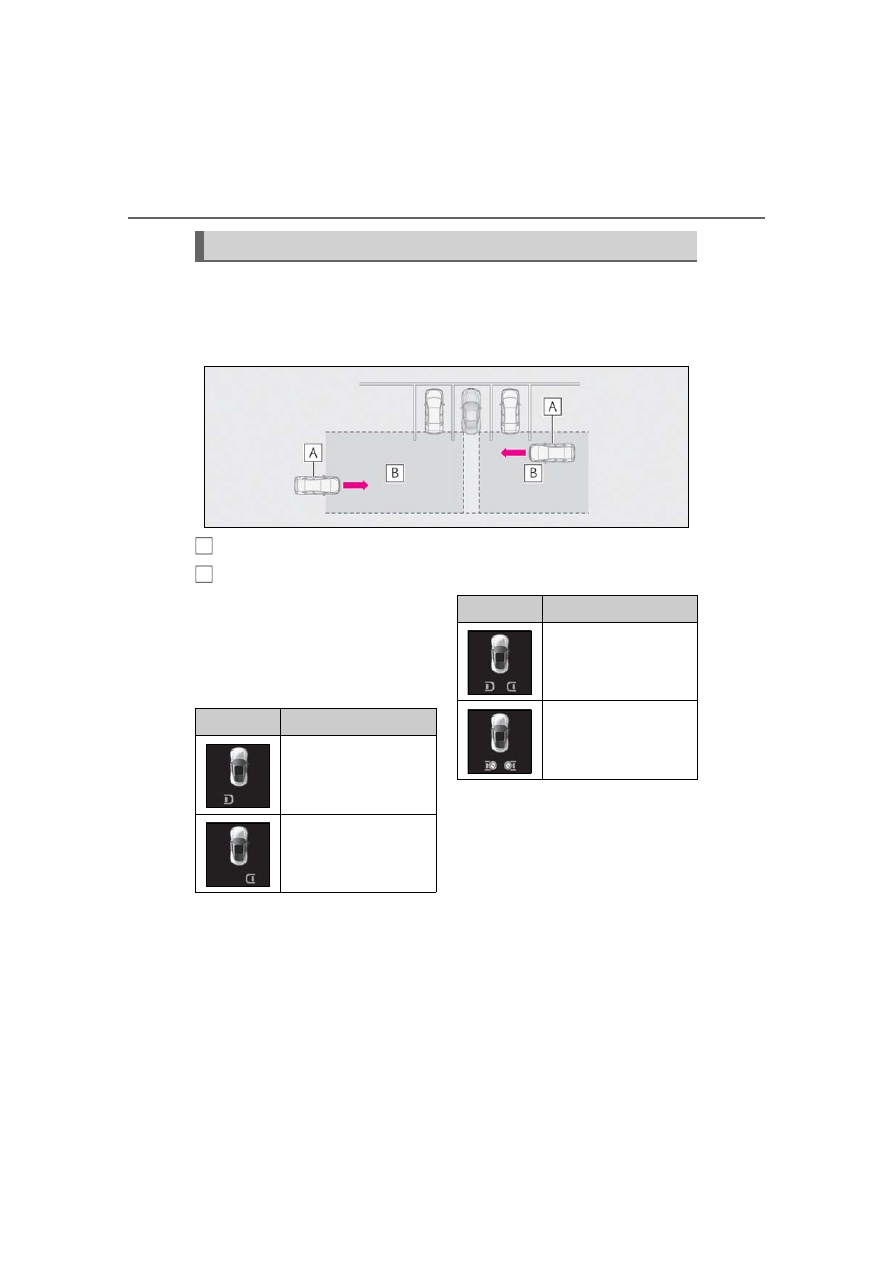

Operation of the RCTA function

The RCTA function uses radar sensors to detect vehicles approaching from the
right or left at the rear of the vehicle and alerts the driver of the presence of such
vehicles by flashing the outside rear view mirror indicators and sounding a buzzer.

Approaching vehicles

Detection areas of approaching vehicles

■

RCTA icon display

When a vehicle approaching from the
right or left at the rear of the vehicle is
detected, the following will be dis-
played on the monitor screen.

RCTA function

A
B

Display

Content

A vehicle is approaching
from the left at the rear of
the vehicle

A vehicle is approaching
from the right at the rear of
the vehicle

Vehicles are approaching
from both sides of the vehi-
cle

The RCTA function is mal-
functioning
(

P.221)

Display

Content

227

4-5. Using the driving support systems

4

Driving

■

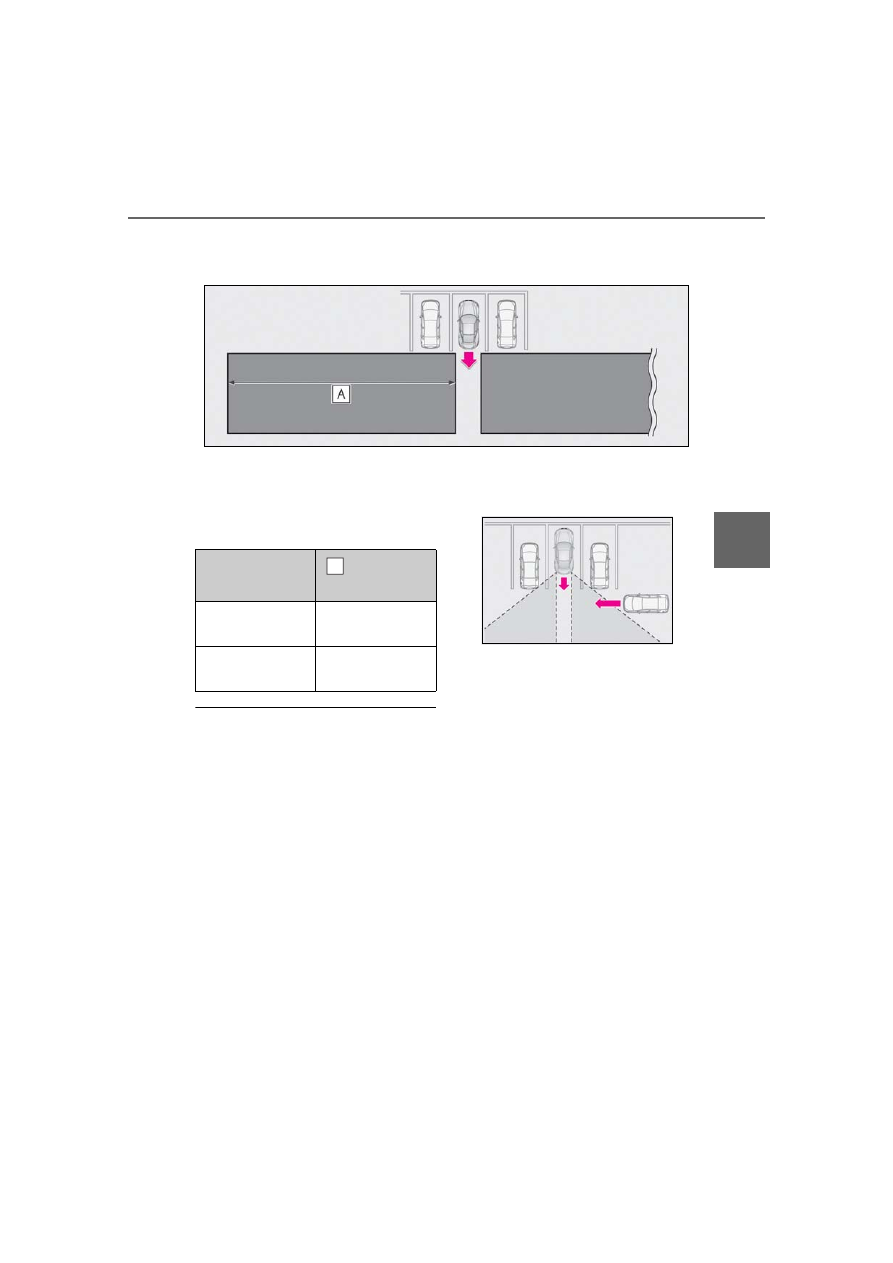

RCTA function detection areas

The areas that vehicles can be detected in are outlined below.

The buzzer can alert the driver of
faster vehicles approaching from far-
ther away.
Example:

■

The RCTA function is operational when

The RCTA function operates when all of the

following conditions are met:

●

The RCTA function is on.

●

The shift position is in R.

●

The vehicle speed is less than approxi-

mately 5 mph (8 km/h).

●

The approaching vehicle speed is

between approximately 5 mph (8 km/h)

and 18 mph (28 km/h).

■

Conditions under which the RCTA func-

tion will not detect a vehicle

The RCTA function is not designed to

detect the following types of vehicles and/or

objects:

●

Vehicles approaching from directly

behind

●

Vehicles backing up in a parking space

next to your vehicle

●

Vehicles that the sensors cannot detect

due to obstructions

●

Guardrails, walls, signs, parked vehicles
and similar stationary objects

*

●

Small motorcycles, bicycles, pedestrians,
etc.

*

●

Vehicles moving away from your vehicle

●

Vehicles approaching from the parking
spaces next to your vehicle

*

*

: Depending on the conditions, detection

of a vehicle and/or object may occur.

■

Conditions under which the RCTA func-

tion may not function correctly

●

The RCTA function may not detect vehi-

cles correctly in the following situations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

Approaching vehi-

cle speed

 Approximate

alert distance

18 mph (28 km/h)

(fast)

65 ft. (20 m)

5 mph (8 km/h)

(slow)

18 ft. (5.5 m)

A

228

4-5. Using the driving support systems

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When a vehicle is approaching at high

speed

• When a towing eyelet is installed to the

rear of the vehicle.

• When backing up on a slope with a sharp

change in grade

• When backing out of a shallow angle

parking spot

• Immediately after the RCTA function is

turned on

• Immediately after the engine <hybrid sys-

tem> is started with the RCTA function on

• When the sensors cannot detect a vehi-

cle due to obstructions

●

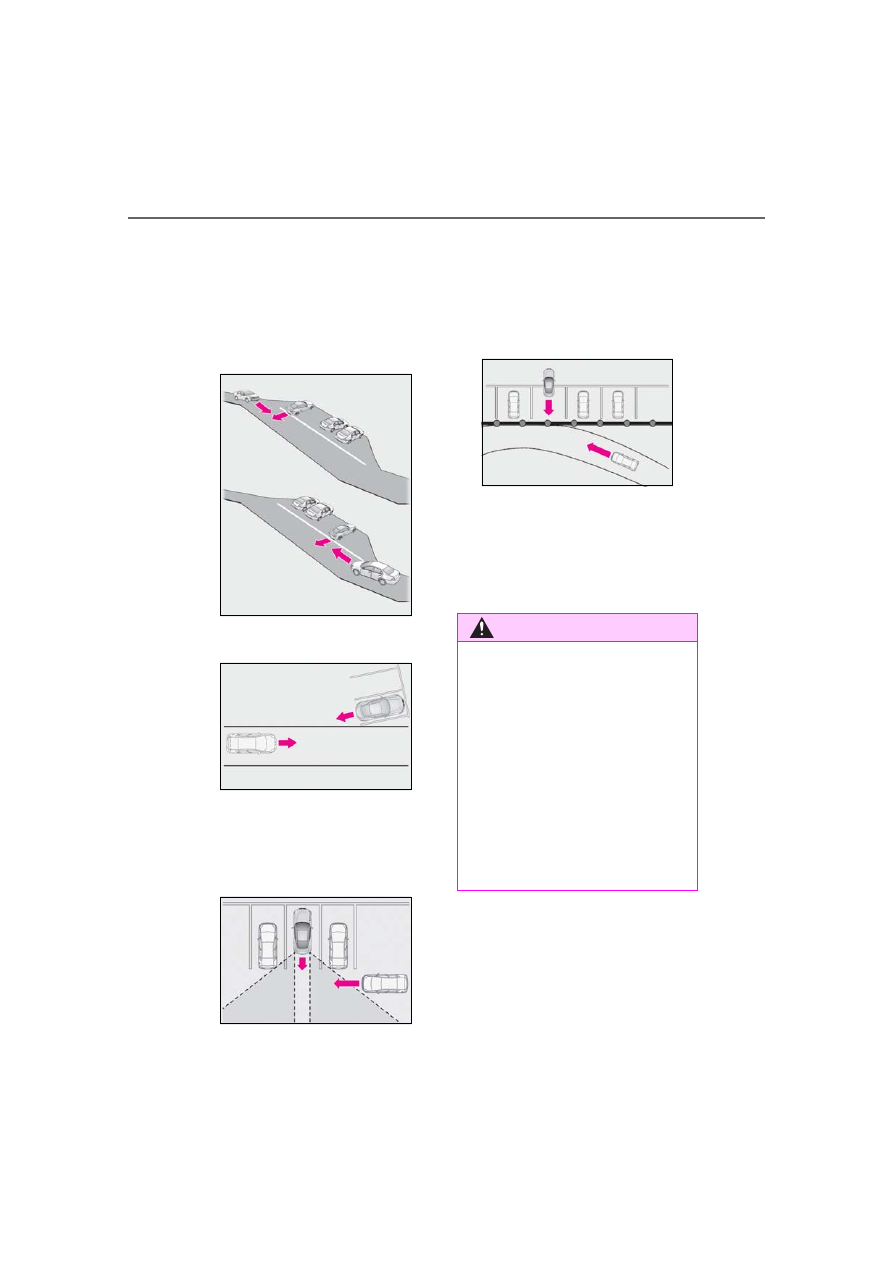

Instances of the RCTA function unneces-

sarily detecting a vehicle and/or object

may increase in the following situations:

• When a vehicle passes by the side of your

vehicle

• When the parking space faces a street

and vehicles are being driven on the

street

• When the distance between your vehicle

and metal objects, such as a guardrail,

wall, sign, or parked vehicle, which may

reflect electrical waves toward the rear of

the vehicle, is short

• When a towing eyelet is installed to the

rear of the vehicle

WARNING

■

Cautions regarding the use of the

function

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.
The RCTA function is only a supplemen-

tary function which alerts the driver that a

vehicle is approaching from the right or

left at the rear of the vehicle. As the

RCTA function may not function cor-

rectly under certain conditions, the

driver’s own visual confirmation of safety

is necessary. Over reliance on this func-

tion may lead to an accident resulting

death or serious injury.

229

4-5. Using the driving support systems

4

Driving

*

: If  equipped

Multi-information display (

P.84)

Displays the status of the active rear wing.

Active rear wing switch

Operates the active rear wing manually.

Indicator

Illuminates when the active rear wing is
raised and turns off when it is retracted.

■

The active rear wing can be operated

when

●

The engine switch <power switch> is in

IGNITION ON mode <ON mode>.

●

The trunk is closed.

●

The active rear wing has been activated

in a customized setting.

■

Conditions which stop the operation

In the following situations operation of the

active rear wing will stop:

●

The engine switch <power switch> is

turned to ACCESSORY mode or off

while the active rear wing is operating.

●

The trunk is opened while the active rear

wing is operating.

●

The raising operation of the active rear

wing is interrupted by an object, etc.

●

The active rear wing is operated in an

unusual manner causing it to stop at an

irregular position.

In such cases, pressing the active rear wing

switch will fully raise the active rear wing.

Or, begin driving the vehicle and the active

rear wing will raise automatically when the

vehicle speed reaches 16 mph (25 km/h).

■

When there is a malfunction in the sys-

tem

A warning message will be displayed on the

multi-information display. (

P.344)

■

Customization

The active rear wing can be turned on/ off.

(Customizable features:

P.391)

Active rear wing

*

The vehicle is equipped with an
active rear wing that operates auto-
matically while the vehicle is being
driven. This active rear wing
enhances aerodynamic perfor-
mance, especially at high speeds,
contributing to a more stable ride.
The active rear wing can be con-
trolled manually using a switch.

System components

A

B

C

NOTICE

■

To prevent system damage

●

Do not apply pressure to the active

rear wing when pushing or pulling the

vehicle.

●

Do not lean on the active rear wing.

●

Do not attach any accessories or other

objects to the active rear wing.

●

Do not modify or disassemble the

active rear wing.

●

Do not subject the active rear wing to

severe impact.

230

4-5. Using the driving support systems

The active rear wing will operate auto-
matically at the following speeds
according to the selected driving
mode (

P.213).

(Always observe the legal speed limit
when driving on public roads.)
 When other than Eco drive mode is

selected
Up: Approximately 50 mph (80
km/h)
Down: Approximately 25 mph (40
km/h)

 When Eco drive mode is selected

Up: Approximately 80 mph (130
km/h)
Down: Approximately 25 mph (40
km/h)

Operate the active rear wing switch to
raise/retract the active rear wing man-
ually.
The active rear wing retracts when it is
raised and raises when retracted.
However, the active rear wing does not
respond to switch operations while the
active rear wing is operating.

*

: Press and hold the switch until the indi-

cator turns off. If the switch is released
while the active rear wing is moving, it
will return to the raised position auto-
matically.

■

Restoring automatic operation after the

active rear wing is operated manually

If the active rear wing is operated manually,

automatic operation will resume according

to the vehicle speed.

NOTICE

■

To prevent 12-volt battery discharge

Do not operate the active rear wing

repeatedly while the engine <hybrid sys-

tem> is turned off.

Automatic operation

Changing to manual operation

Vehicle speed

Up/Down

0 mph (0 km/h)

(vehicle stopped)

Press/Press and

hold

*

Approximately 0 –

12 mph (0 – 20

km/h)

Operation not pos-

sible

Approximately 12 –

75 mph (20 – 120

km/h)

Press/Press

Approximately 75

mph (120 km/h) or

more

Operation not pos-

sible

WARNING

■

When manually operating the active

rear wing

Observe the following precautions

before operating the active rear wing.

Failure to do so may result in death or

serious injury.

●

Ensure that the surrounding area is

free of any objects that may come into

contact with or get caught on the

active rear wing.

231

4-5. Using the driving support systems

4

Driving

■

ECB (Electronically Controlled
Brake System)

The electronically controlled system
generates braking force correspond-
ing to the brake operation

■

ABS (Anti-lock Brake System)

Helps to prevent wheel lock when the
brakes are applied suddenly, or if the
brakes are applied while driving on a
slippery road surface

■

Brake assist

Generates an increased level of brak-
ing force after the brake pedal is
depressed when the system detects a
panic stop situation

■

VSC (Vehicle Stability Control)

Helps the driver to control skidding
when swerving suddenly or turning on
slippery road surfaces

■

Secondary Collision Brake

When the airbag sensor detects a colli-
sion, the brakes and brake lights are
automatically controlled to reduce the

WARNING

●

If there are people near the active rear

wing, make sure that there is no possi-

bility of their clothing, personal

belongings or body parts getting

caught. Children especially should be

warned not to touch the active rear

wing while it is being operated.

●

If there is a risk that an object may

become caught on the active rear

wing during operation, stop operation

immediately.

Driving assist systems

To keep safety and performance,
the following systems operate auto-
matically in response to various
driving situations. Be aware, how-
ever, that these systems are supple-
mentary and should not be relied
upon too heavily when operating
the vehicle.

Summary of the driving assist
systems
