7-3. Do-it-yourself maintenance

IS350 AWD/IS350/IS300 AWD/IS300_U

Turn the engine switch off.

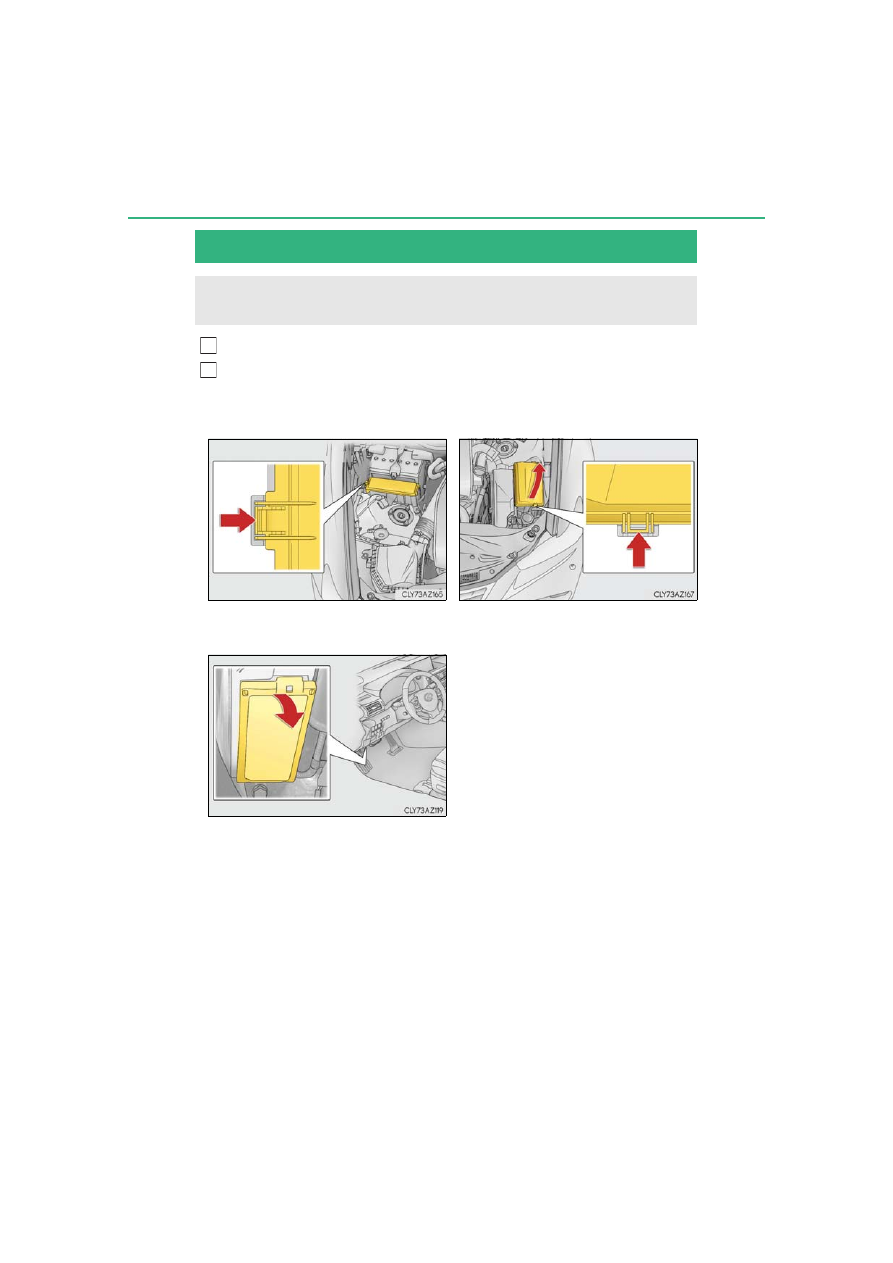

Open the Fuse box cover.

Checking and replacing fuses

If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and replace the fuses as necessary.

1

2

Engine compartment (type A fuse
box)

Push the tab in and lift the lid off.

Engine compartment (type B fuse
box)

Push the tab in and lift the lid off.

Driver’s side instrument panel

Remove the lid.

505

7-3. Do-it-yourself maintenance

7

Main

tenance an

d care

IS350 AWD/IS350/IS300 AWD/IS300_U

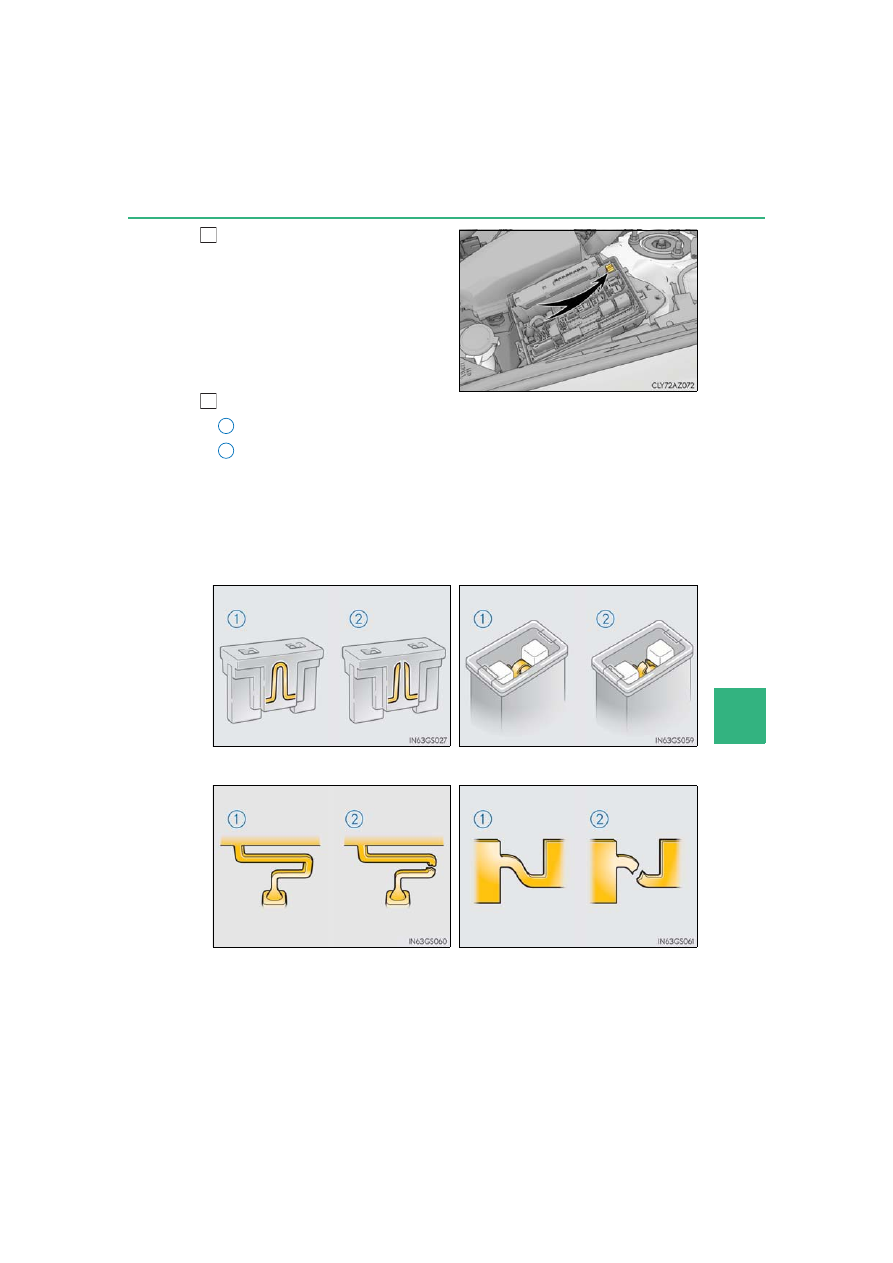

Remove the fuse with the pullout
tool.

Only type A fuses can be removed

using the pullout tool.

Check if the fuse is blown.

Normal fuse
Blown fuse

Type A and B:

Replace the blown fuse with a new fuse of an appropriate amperage rating. The

amperage rating can be found on the fuse box lid.
Type C and D:

Contact your Lexus dealer.

3

4

1

2

Type A

Type B

Type C

Type D

506

7-3. Do-it-yourself maintenance

IS350 AWD/IS350/IS300 AWD/IS300_U

■

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb may need

replacement. (

P. 507)

●

If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.

■

If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.

■

When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.

Because certain bulbs are connected to circuits designed to prevent overload, non-gen-

uine parts or parts not designed for this vehicle may be unusable.

WARNING

■

To prevent system breakdowns and vehicle fire
Observe the following precautions.

Failure to do so may cause damage to the vehicle, and possibly a fire or injury.

●

Never use a fuse of a higher amperage rating than that indicated, or use any other

object in place of a fuse.

●

Always use a genuine Lexus fuse or equivalent.

Never replace a fuse with a wire, even as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus dealer as

soon as possible.

507

7-3. Do-it-yourself maintenance

7

Main

tenance an

d care

IS350 AWD/IS350/IS300 AWD/IS300_U

Check the wattage of the light bulb to be replaced. (

P. 597)

Light bulbs

You may replace the following bulbs by yourself. The difficulty level of replace-
ment varies depending on the bulb. If necessary bulb replacement seems diffi-
cult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.

Preparing for light bulb replacement

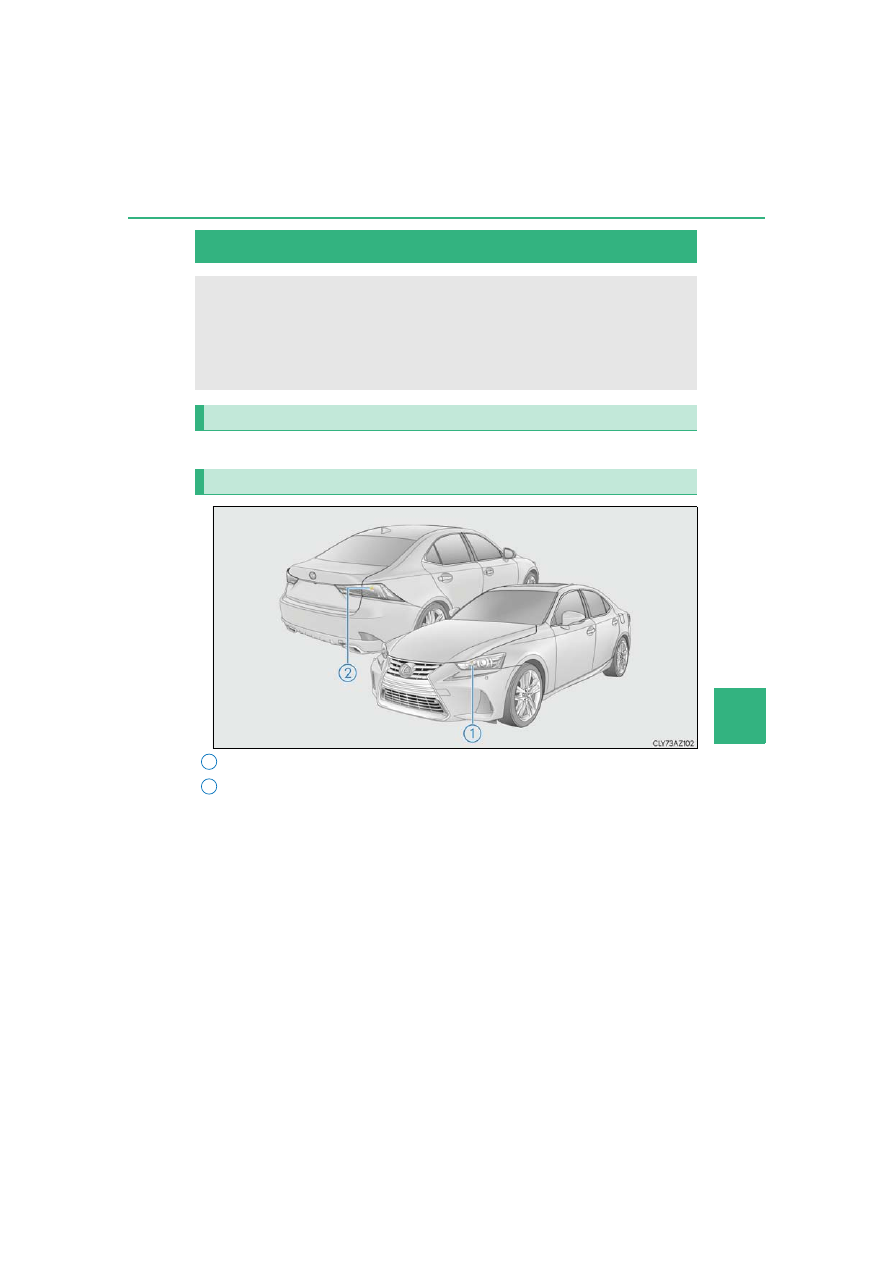

Bulb locations

Front turn signal light (bulb type)
Rear turn signal light

1

2

508

7-3. Do-it-yourself maintenance

IS350 AWD/IS350/IS300 AWD/IS300_U

■

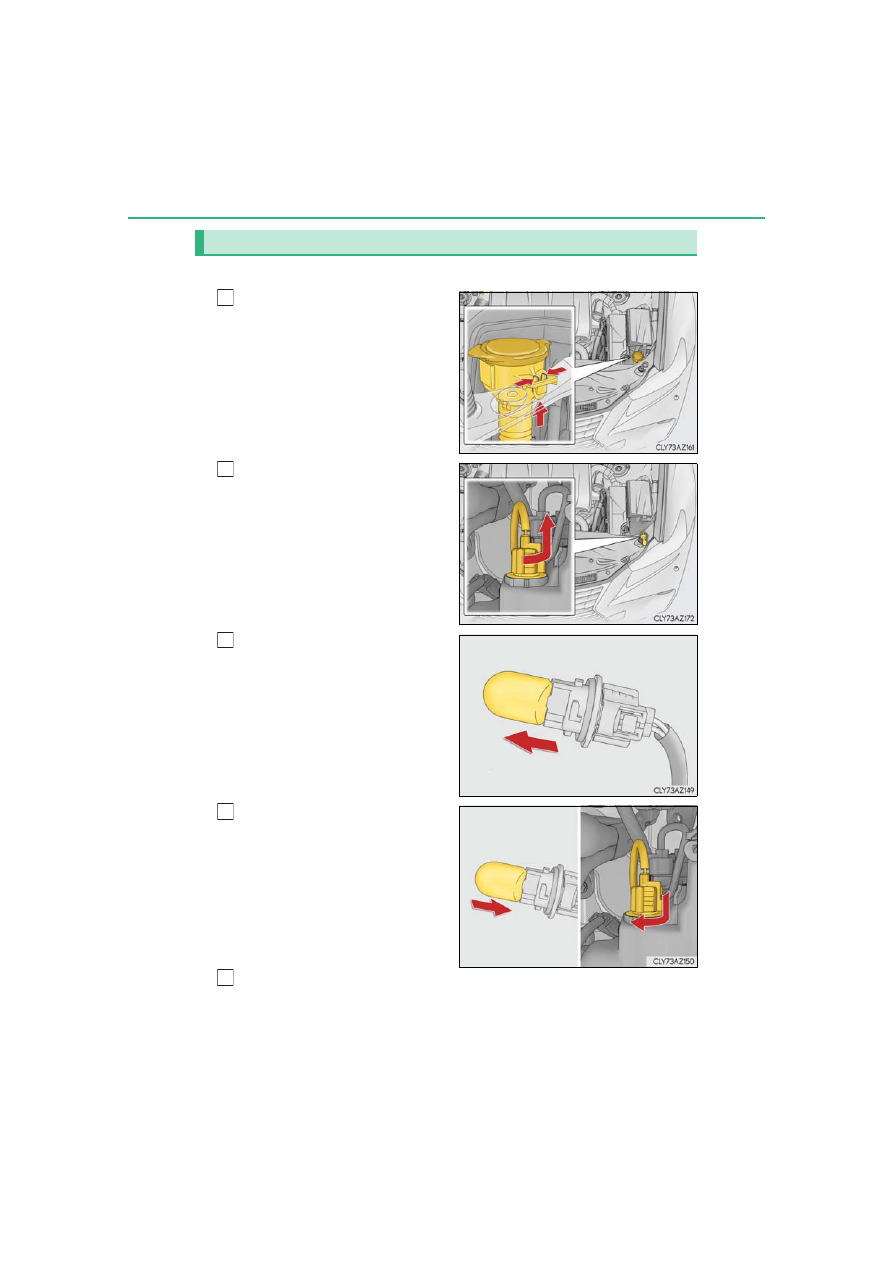

Front turn signal lights (bulb type)

For the left side only: Pinch the
clip  to  remove  the  washer  fluid
filler opening.

Turn the bulb base counterclock-
wise.

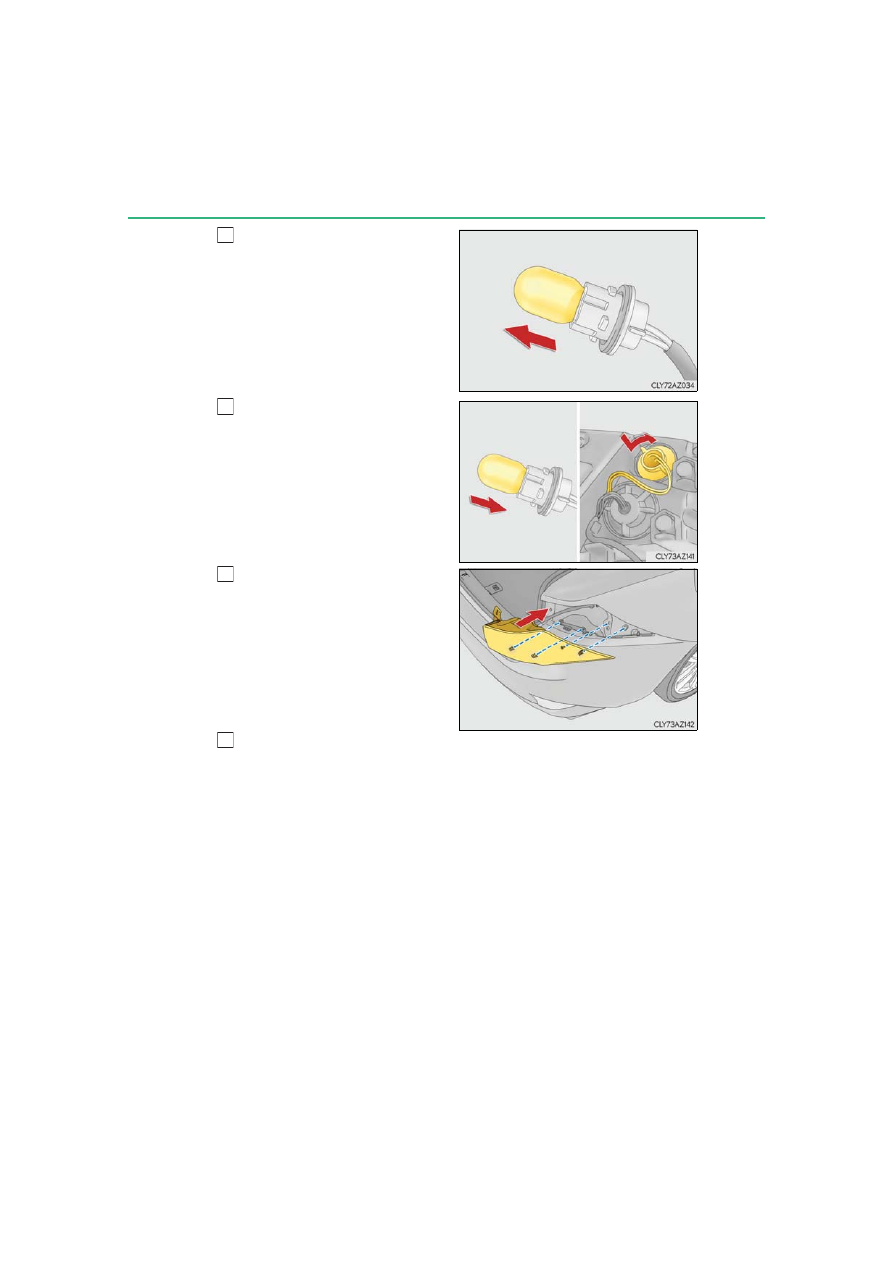

Remove the light bulb.

Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.

After installing the light bulb, turn on

the front turn signal light to visually

check that there is no light leaking

from the bulb base.

After replacing the left side bulb, install the washer fluid filler opening to its
original position.

Replacing light bulbs

1

2

3

4

5

509

7-3. Do-it-yourself maintenance

7

Main

tenance an

d care

IS350 AWD/IS350/IS300 AWD/IS300_U

■

Rear turn signal lights

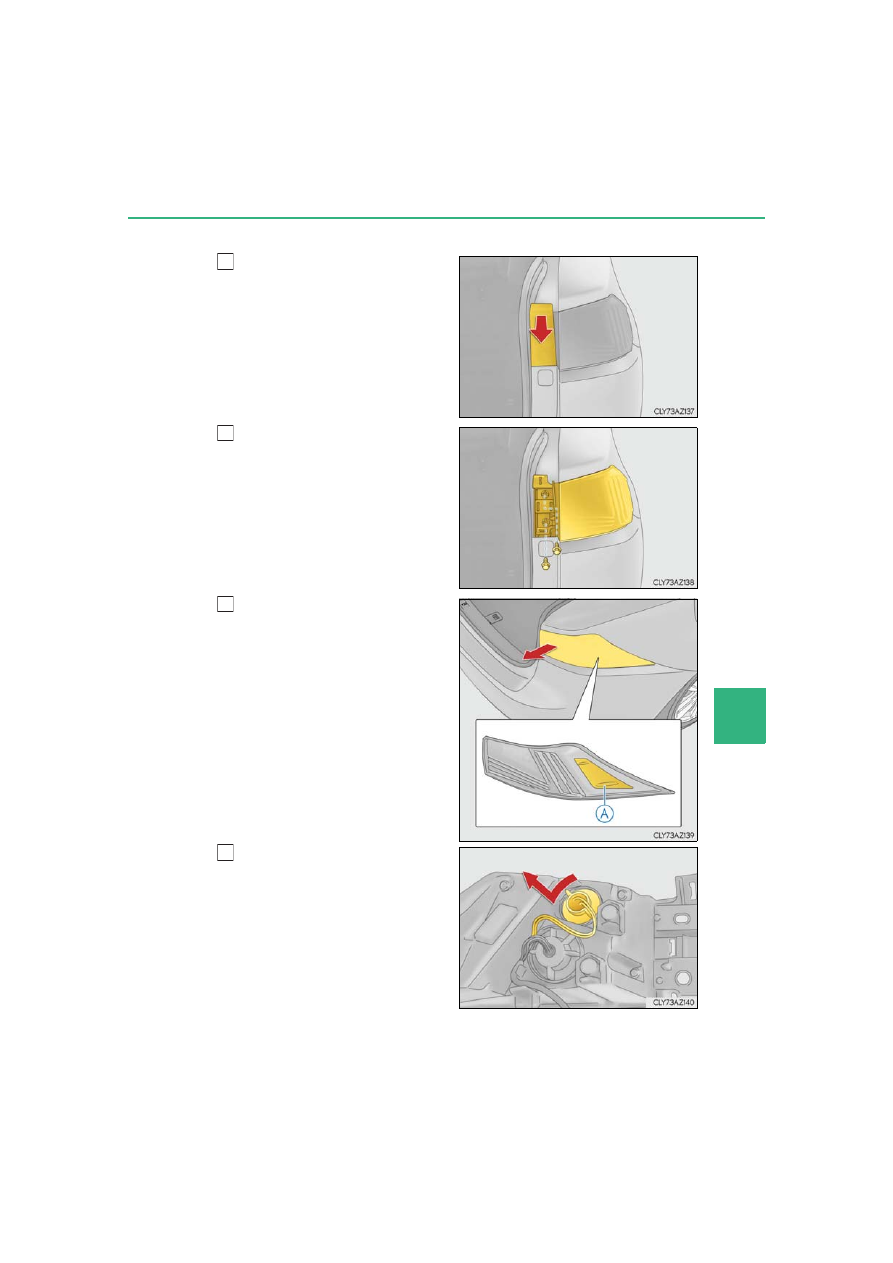

Open the trunk, and remove the
cover.

Remove the 2 screws.

Push and pull the light unit toward
the rear of the vehicle as shown in
the illustration to remove it.

Apply protective tape to the periph-

eral of the light unit installation sur-

face on the vehicle body, such as the

rear bumper, to protect the vehicle

from damage.
Pushing on the portion A in the illus-

tration toward the rear of the vehicle

will make disengagement of the tabs

easier.

Turn the bulb base counterclock-
wise.

1

2

3

4

510

7-3. Do-it-yourself maintenance

IS350 AWD/IS350/IS300 AWD/IS300_U

Remove the light bulb.

Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.

After installing the light bulb, turn on

the rear turn signal light to visually

check that there is no light leaking

from the bulb base.

Align the tabs and push the light
unit toward the front of the vehicle
to install it.

Remove the protective tape applied

to the peripheral of the light unit

installation surface on the vehicle

body.

Install the 2 screws and cover.

5

6

7

8

511

7-3. Do-it-yourself maintenance

7

Main

tenance an

d care

IS350 AWD/IS350/IS300 AWD/IS300_U

■

Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer.

●

Headlights

●

Parking lights and daytime running lights

●

Front turn signal lights (LED type)

●

Side marker lights

●

Side turn signal lights

●

Outer foot lights

●

Stop/tail lights

●

Tail lights

●

Back-up light

●

High mounted stoplight

●

License plate lights

■

LED Lights
The lights other than the front turn signal lights (bulb type), rear turn signal lights and

outer foot lights each consist of a number of LEDs. If any of the LEDs burn out, take your

vehicle to your Lexus dealer to have the light replaced.

■

Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a

malfunction. Contact your Lexus dealer for more information in the following situations:

●

Large drops of water have built up on the inside of the lens.

●

Water has built up inside the headlight.

■

When replacing the front turn signal lights (bulb type)
When the washer fluid filler opening is removed with a large amount of washer fluid con-

tained in the washer tank, washer fluid may spill onto the vehicle and cleaning may be

required.

■

When replacing light bulbs
P. 506

512

7-3. Do-it-yourself maintenance

IS350 AWD/IS350/IS300 AWD/IS300_U

WARNING

■

Replacing light bulbs

●

Turn off the lights. Do not attempt to replace the bulb immediately after turning off the

lights.

The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is unavoid-

able to hold the glass portion, use and hold with a clean dry cloth to avoid getting

moisture and oils on the bulb.

Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failure to do so may result

in heat damage, fire, or water entering the headlight unit. This may damage the head-

lights or cause condensation to build up on the lens.

■

To prevent damage or fire

●

Make sure bulbs are fully seated and locked.

●

Check the wattage of the bulb before installing to prevent heat damage.

514

IS350 AWD/IS350/IS300 AWD/IS300_U

8-1. Essential information

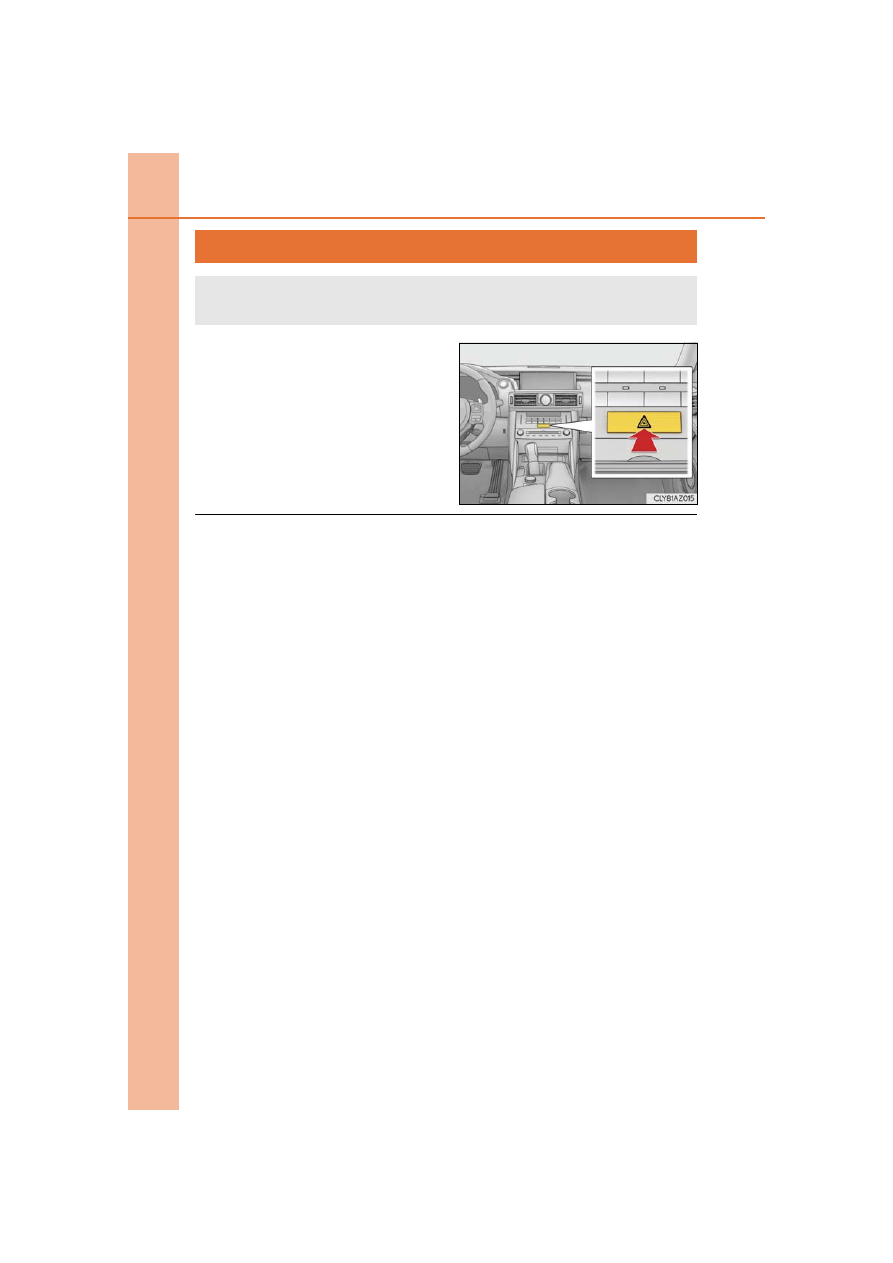

Press the switch.

All the turn signals will flash.

To turn them off, press the switch once

again.

■

Emergency flashers
If the emergency flashers are used for a long time while the engine is not operating, the

battery may discharge.

Emergency flashers

The emergency flashers are used to warn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.

515

8-1. Essential information

8

When trouble

ari

ses

IS350 AWD/IS350/IS300 AWD/IS300_U

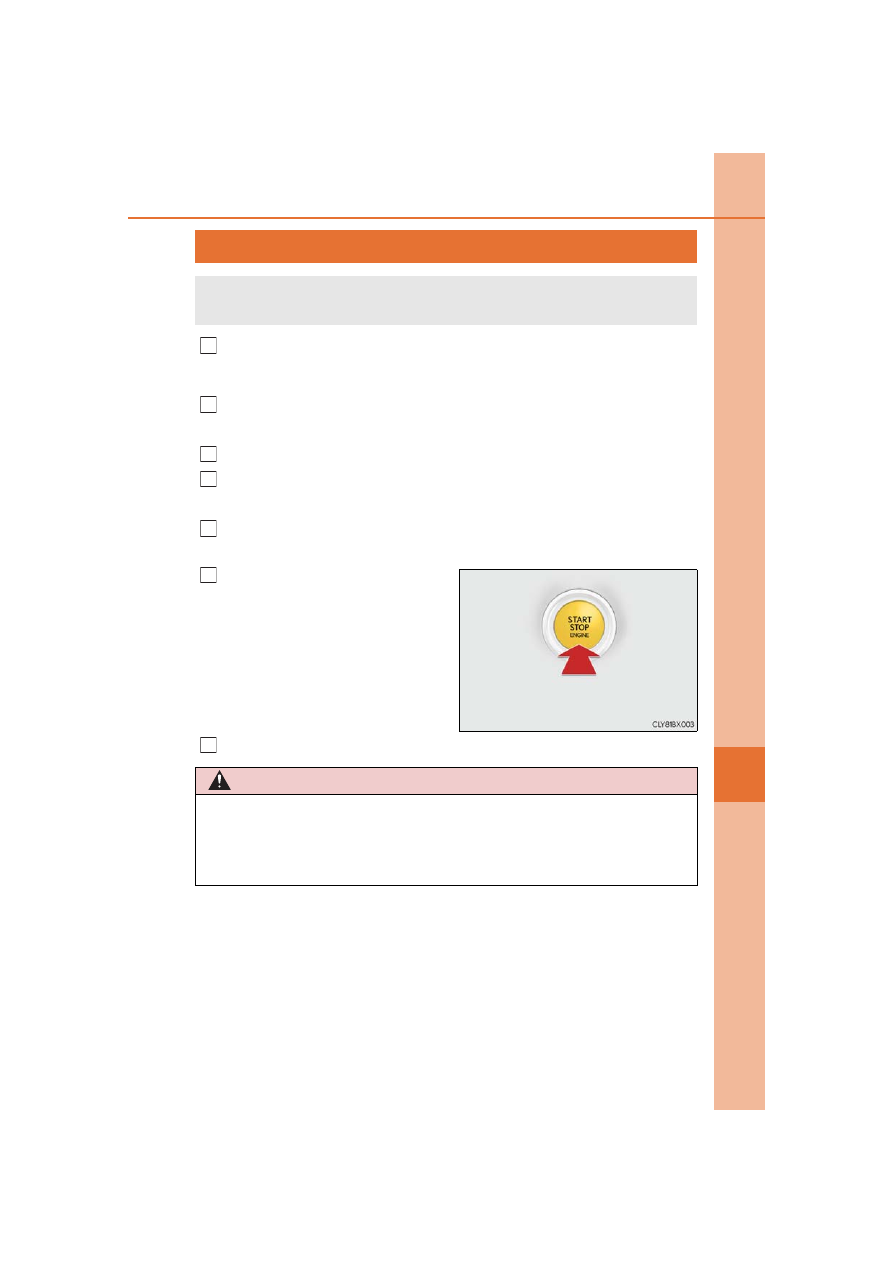

Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort required to

slow the vehicle.

Shift the shift lever to N.

If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.

If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as
much as possible.
To stop the engine, press and hold
the engine switch for 2 consecutive
seconds or more, or press it briefly 3
times or more in succession.

Stop the vehicle in a safe place by the road.

If your vehicle has to be stopped in an emergency

Only in an emergency, such as if it becomes impossible to stop the vehicle in
the normal way, stop the vehicle using the following procedure:

1

2

3
4

3

Press and hold for 2 seconds or more
or press briefly 3 times or more

4

WARNING

■

If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake pedal

harder to depress and the steering wheel heavier to turn. Decelerate as much as possi-

ble before turning off the engine.

5

516

8-1. Essential information

IS350 AWD/IS350/IS300 AWD/IS300_U

●

Remove the seat belt first.

●

If the door can be opened, open the door and exit the vehicle.

●

If the door can not be opened, open the window using the power window
switch and exit the vehicle through the window.

●

If the window can not be opened using the power window switch, remain
calm, wait until the water level inside the vehicle rises to the point that the
water pressure inside of the vehicle equals the water pressure outside of the
vehicle, and then open the door and exit the vehicle.

If the vehicle is trapped in rising water

In the event the vehicle is submerged in water, remain calm and perform the
following.

WARNING

■

Using an emergency hammer

*

 for emergency escape

The front side windows and rear side windows, as well as the rear window can be shat-
tered with an emergency hammer

*

 used for emergency escape. However, an emer-

gency hammer can not shatter the windshield as it is laminated glass.

*

: Contact your Lexus dealer or aftermarket accessory manufacturer for further infor-

mation about an emergency hammer.

■

Escaping the vehicle from the window
There are cases where escaping the vehicle from the window is not possible due to

seating position, passenger body type, etc.
When using an emergency hammer, consider your seat location and the size of the

window opening to ensure that the opening is accessible and large enough to escape.

517

8

When trouble

ari

ses

IS350 AWD/IS350/IS300 AWD/IS300_U

8-2. Steps to take in an emergency

The following may indicate a problem with your transmission. Contact your
Lexus dealer or commercial towing service before towing.

●

The engine is running but the vehicle does not move.

●

The vehicle makes an abnormal sound.

If your vehicle needs to be towed

If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or commercial towing service, using a wheel-lift type truck or
flatbed truck.
Use a safety chain system for all towing, and abide by all state/provincial and
local laws.

Situations when it is necessary to contact dealers before towing

518

8-2. Steps to take in an emergency

IS350 AWD/IS350/IS300 AWD/IS300_U

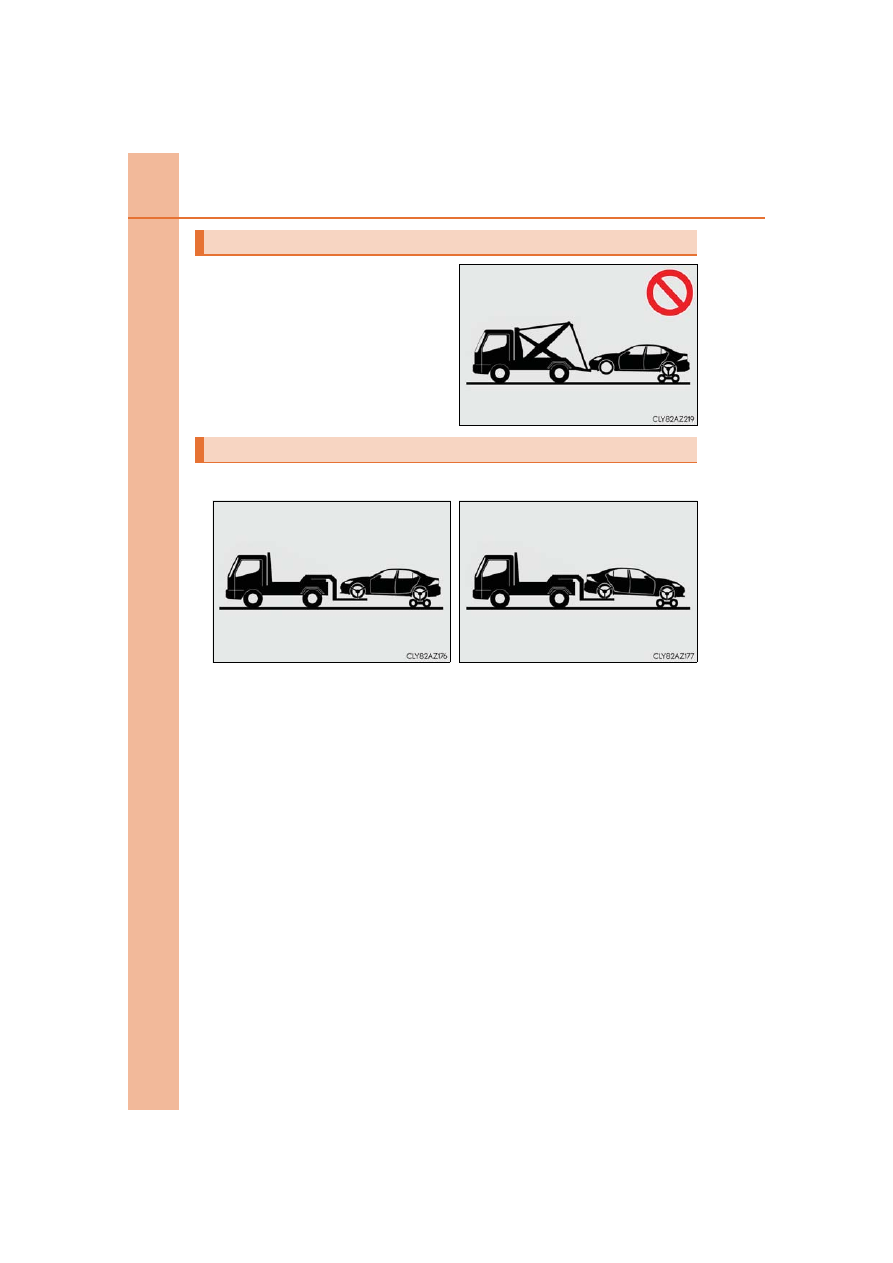

Do not tow with a sling-type truck to
prevent body damage.

Towing with a sling-type truck

Towing with a wheel-lift type truck

From the front

From the rear

Use a towing dolly under the rear
wheels.

Use a towing dolly under the front
wheels.

519

8-2. Steps to take in an emergency

8

When trouble

ari

ses

IS350 AWD/IS350/IS300 AWD/IS300_U

If your vehicle is transported by a flat-

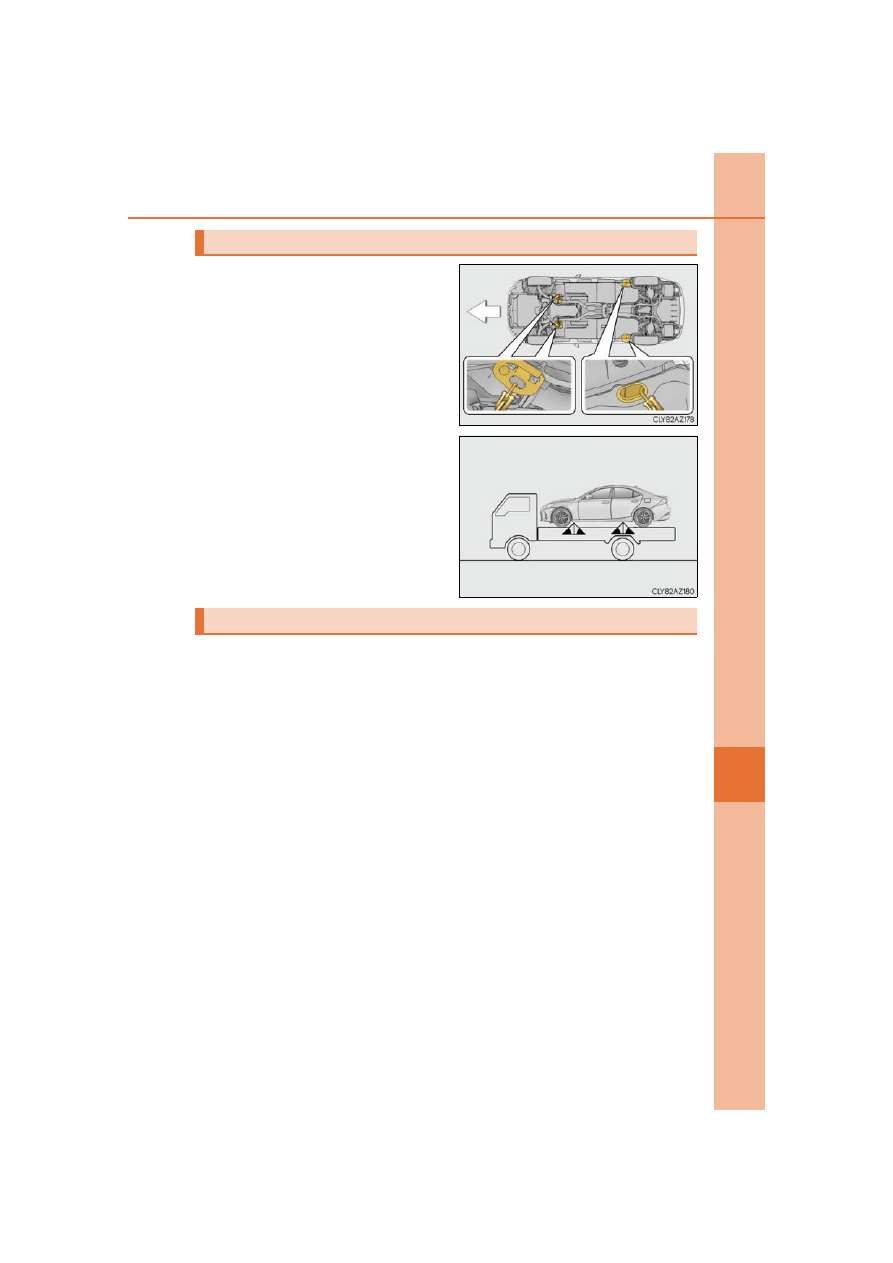

bed truck, it should be tied down at the
locations shown in the illustration.

If you use chains or cables to tie down
your vehicle, the angles shaded in black
must be 45

.

Do not overly tighten the tie downs or
the vehicle may be damaged.

If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using cables or chains secured to the emergency towing eyelets. This
should only be attempted on hard surfaced roads for at most 50 miles (80 km)
at under 18 mph (30 km/h).
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and brakes must be in good condition.

Using a flatbed truck

Emergency towing















Content   ..  30  31  32  33   ..
