G-force
Displays lateral G-forces on the vehicle
Also displays, around the periphery of the G-force display, the left and right
steering amount, accelerator pedal input, and brake fluid pressure

●

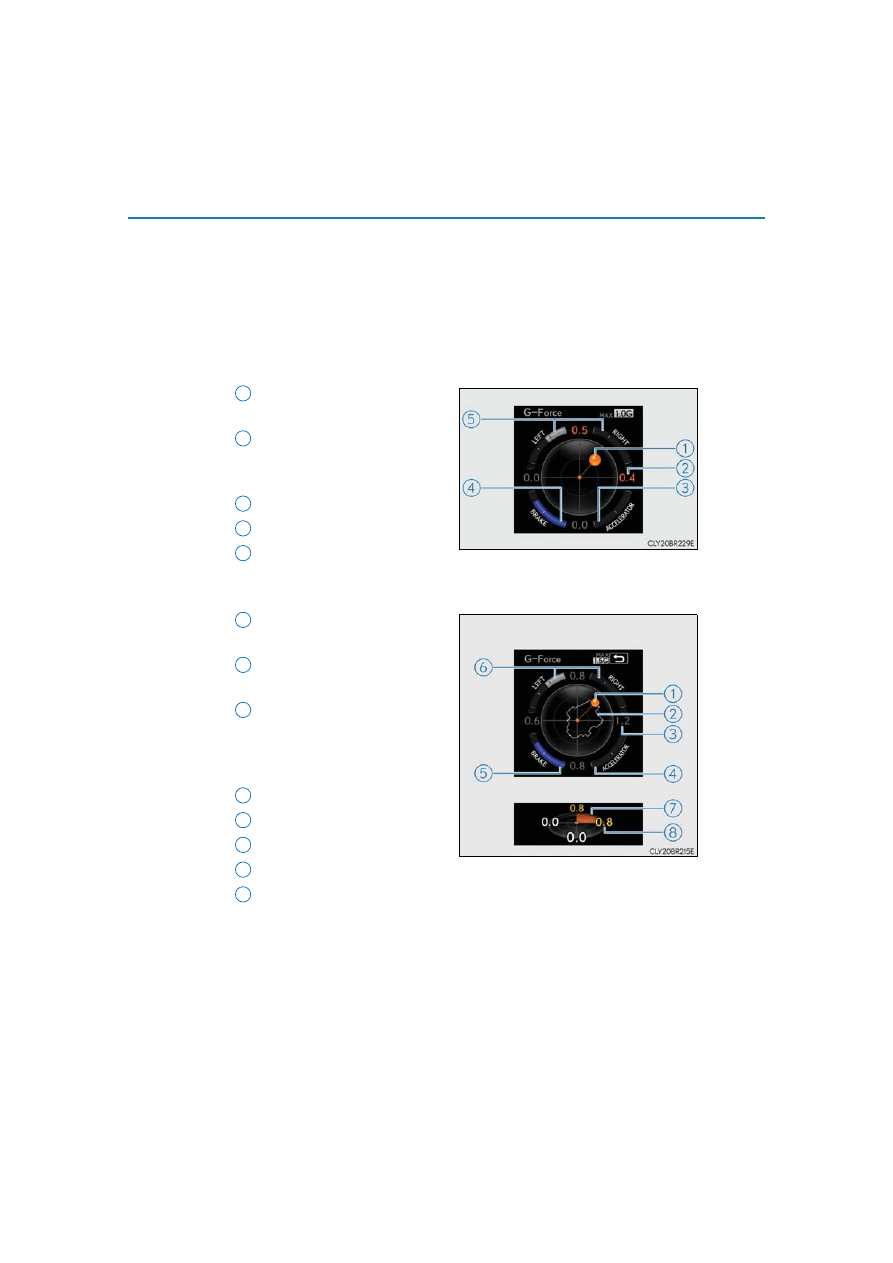

Reading the display

• Normal display

Displays the following on the multi-information display
Acceleration G-force on the
vehicle
Current G-force value (ana-
lyzed value of front/rear and
left/right G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount

• Advanced display

Displays the following on the main meter and multi-information display
Acceleration G-force on the
vehicle
Record of the maximum G-
forces
Value of the maximum G-
force since display reset (ana-
lyzed value of front/rear and
left/right G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount
G-force direction
Current G-force value (analyzed value of front/rear and left/right G-
forces)

Actual vehicle conditions may differ from the displayed information depending on

road conditions, temperature, vehicle speed and other factors.

Use this information as reference.

3
4
5

Multi-information display

Main meter

4
5
6
7
8

121

2. Instrument cluster

Instrument cl

uste
r

●

Switching the display

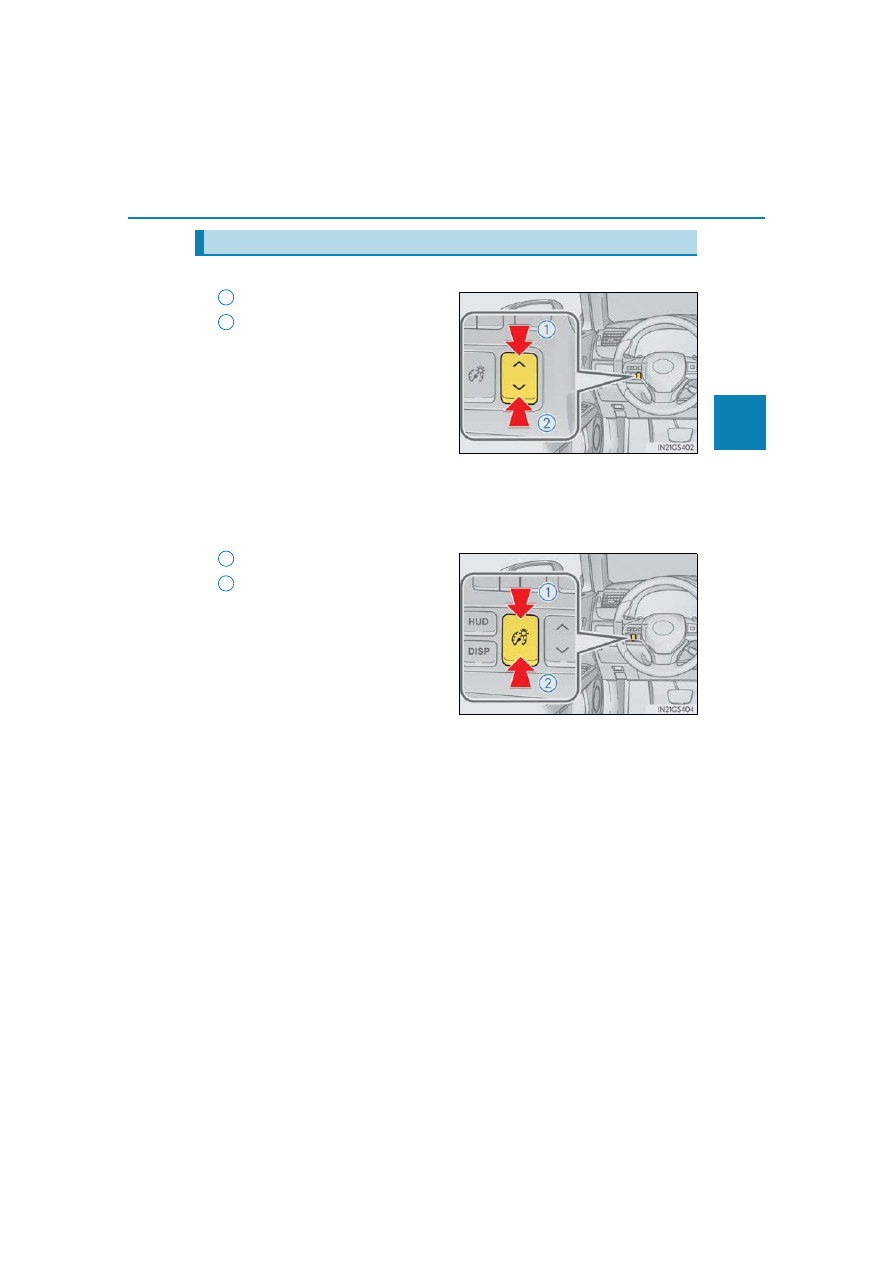

To switch to advanced display, press

To return to normal display, press

●

Resetting the record of maximum G-forces
With the record of maximum G-forces displayed, press and hold

reset the display.

●

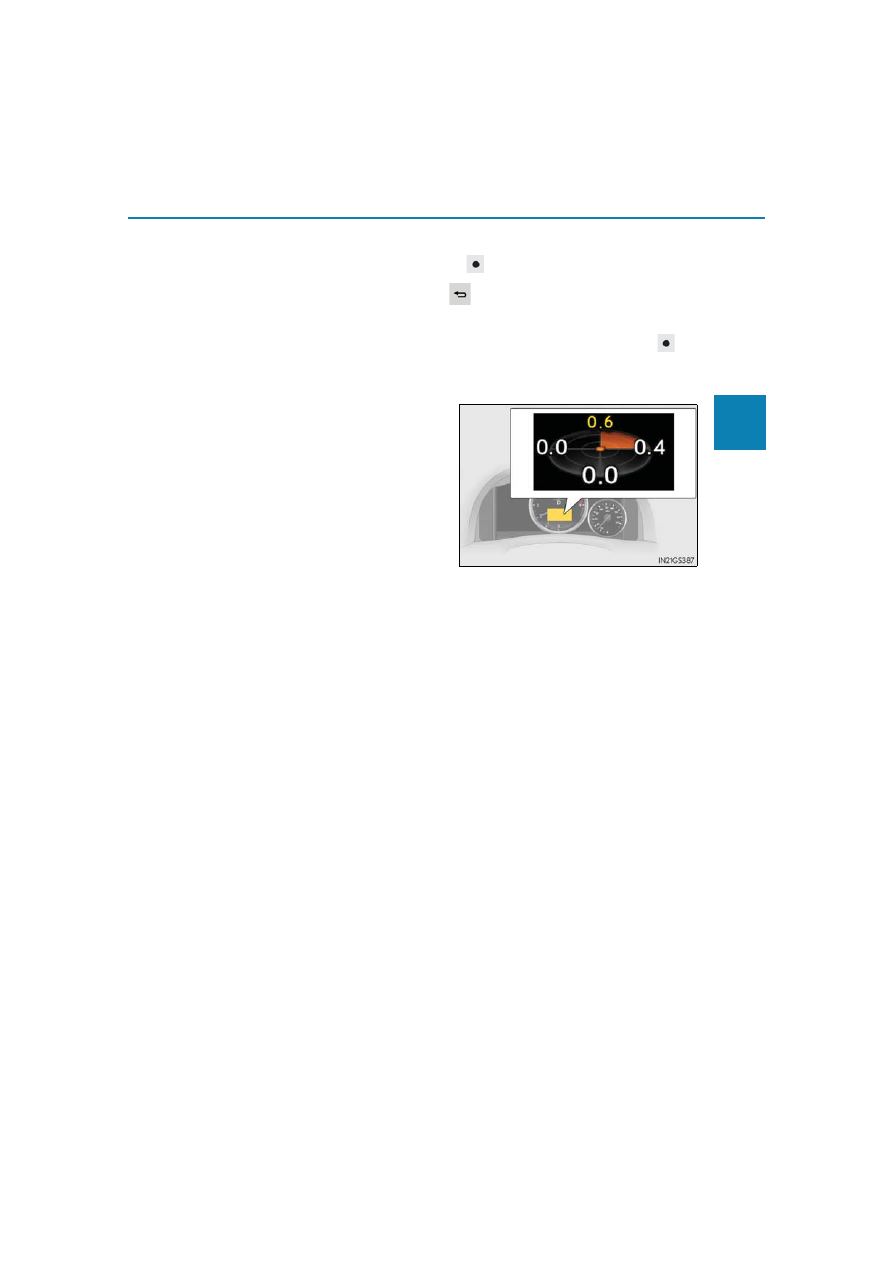

Peak hold function (advanced display only)
If lateral G-forces of 0.5 G or
greater are generated, the G-
force value displayed on the main
meter will turn yellow and be held
for 3 seconds.

■

Tire inflation pressure
Displays the tire inflation pressure (

P. 396)

Unlike the tire pressure display on the drive information menu, the tire inflation

pressure display of the “F” content menu can be displayed while lap time is being

measured.

122

2. Instrument cluster

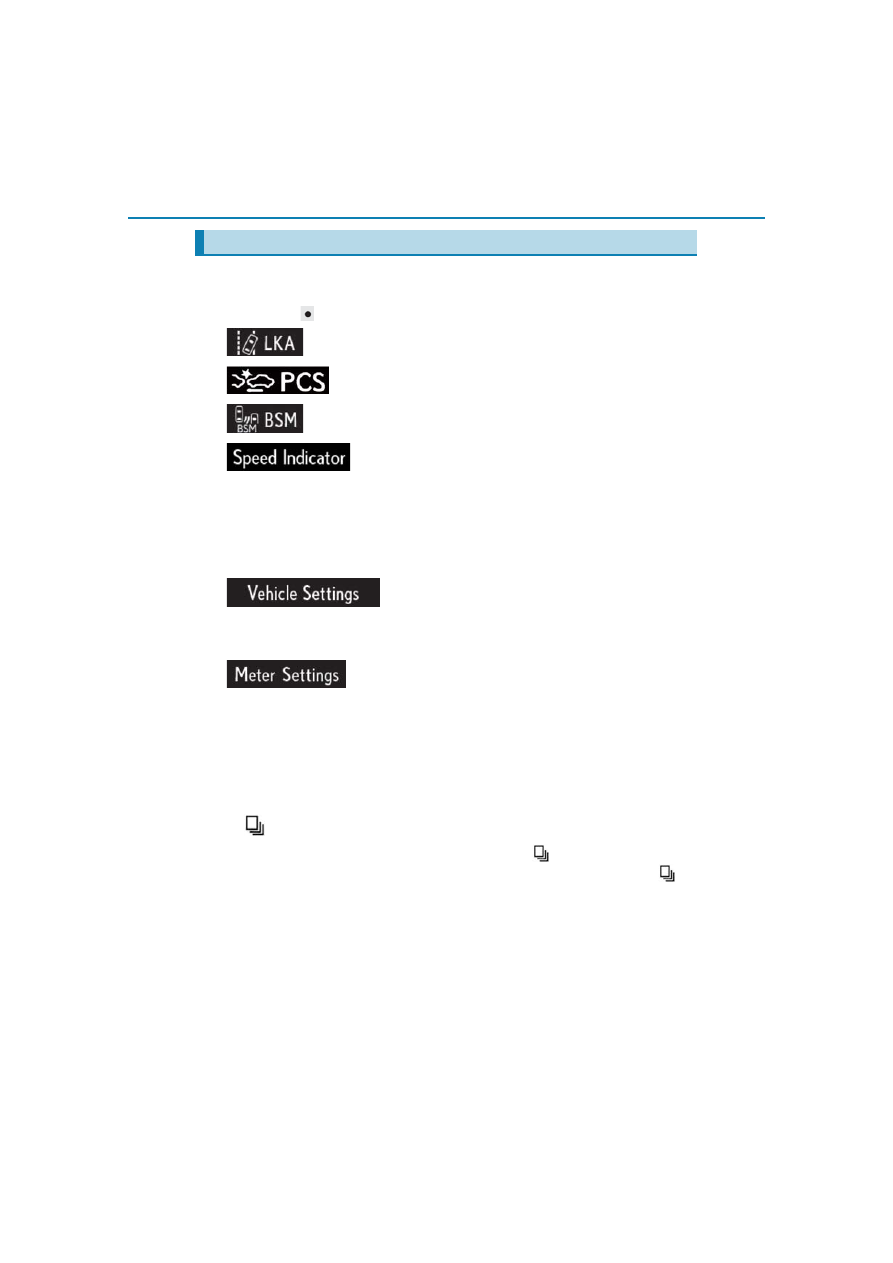

The settings of the following items can be changed, refer to P. 549

For functions that can be enabled or disabled, the function switches between on and

off each time is pressed.

■

(Lane-Keeping Assist) (if equipped)

(

P. 256)

■

(Pre-Collision System) (if equipped)

(

P. 245)

■

(Blind Spot Monitor) (if equipped)

(

P. 286)

■

(

P. 101)

• Display of the indicator can be turned on or off.
• The speed at which the indicator is displayed can be set.

Selectable speed range:

30 mph to 100 mph (50 km/h to 160 km/h)

: Always observe the legal speed limit when driving on public roads.

■

●

Scheduled Maintenance

(

P. 368)

●

TPMS (Tire pressure warning system) (if equipped)

(

P. 397)

■

●

Language

Select to change the language on the display.

●

Units

Select to change the unit of measure.

●

Eco Driving Indicator Light

Select to activate/deactivate the Eco Driving Indicator Light

●

switch

Displays a procedure to register a desired screen to

You can register 1 screen as a shortcut, which can be displayed by pressing

●

Drive information 1/2/3

Select to select up to 2 items that will be displayed on a Drive information screen,

up to 3 Drive information screens can be set.

Settings display

123

2. Instrument cluster

Instrument cl

uste
r

●

Pop-up display

Select to set the following pop-up displays, which may appear in some situations,

on/off.

• Route guidance of the navigation system-linked display (if equipped)

• Incoming call display of the hands-free phone system

• Instrument panel brightness adjustment display

• TVD control mode change display

●

Rev indicator

Select to set the rev indicator on/off.

When set to on, proceed to set the engine speed at which the rev indicator will be

displayed.

●

Rev peak

Select to set the rev peak on/off.

●

Drive gauges

The meter display when in SPORT S, SPORT S+ or customized mode can be

selected and set from the Eco drive mode screen

/normal mode screen

/SPORT

S mode screen/SPORT S+ mode screen.

: Only customized mode can be selected.

●

Default settings

Registered or changed meter settings will be deleted or returned to their default

setting.

124

2. Instrument cluster

■

Start-up display
When the engine is started, the name of the vehicle is displayed on the multi-information

display.

While the start-up display is being displayed, the meter display cannot be changed even

if the drive mode is changed. When the start-up display is finished, the meter display for

the currently selected mode will be displayed.

■

Torque distribution display
Torque distribution may not be displayed correctly in some cases, such as when the vehi-

cle passes over road expansion joints.

■

G-force display

●

The G-force values may not be zero even when the vehicle is parked, such as when it is

parked on an incline.

●

The steering amount, accelerator pedal input, and brake fluid pressure displays are dis-

abled until the engine has warmed up (the variable red zone of the tachometer has

retracted to 7300 rpm).

After the engine has warmed up, these displays will be enabled.

●

Depending on the vehicle usage conditions, the brake fluid pressure display may not

reach its maximum reading even though the brake pedal is fully depressed.

●

If a battery terminal is disconnected and reconnected, the steering amount display may

be disabled temporarily. After driving the vehicle for a while, the display will be enabled.

■

Suspension of the settings display
In the following situations, operation of the settings display will be temporarily sus-

pended.

●

When a warning message appears on the multi-information display

●

When the vehicle begins to move

■

Tire inflation pressure

●

It may take a few minutes to display the tire inflation pressure after the engine switch is

turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-

tion pressure after inflation pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined due to

unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may also be dif-

ferent from the values measured using a tire pressure gauge.

■

When disconnecting and reconnecting battery terminals
The following information data will be reset:

●

Lap timer: Measured lap times, history

●

G-force: Record of the maximum G-forces

■

Using the lap timer
If the engine is stopped while a lap is being timed, the lap timer will stop and the lap time

up to that point will be recorded.

■

Liquid crystal display
P. 104

125

2. Instrument cluster

Instrument cl

uste
r

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra attention to the

safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as you may fail

to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that the vehicle

is parked in a place with adequate ventilation. In a closed area such as a garage,

exhaust gases including harmful carbon monoxide (CO) may collect and enter the

vehicle. This may lead to death or a serious health hazard.

NOTICE

■

During setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the dis-

play features.

126

2. Instrument cluster

Head-up display



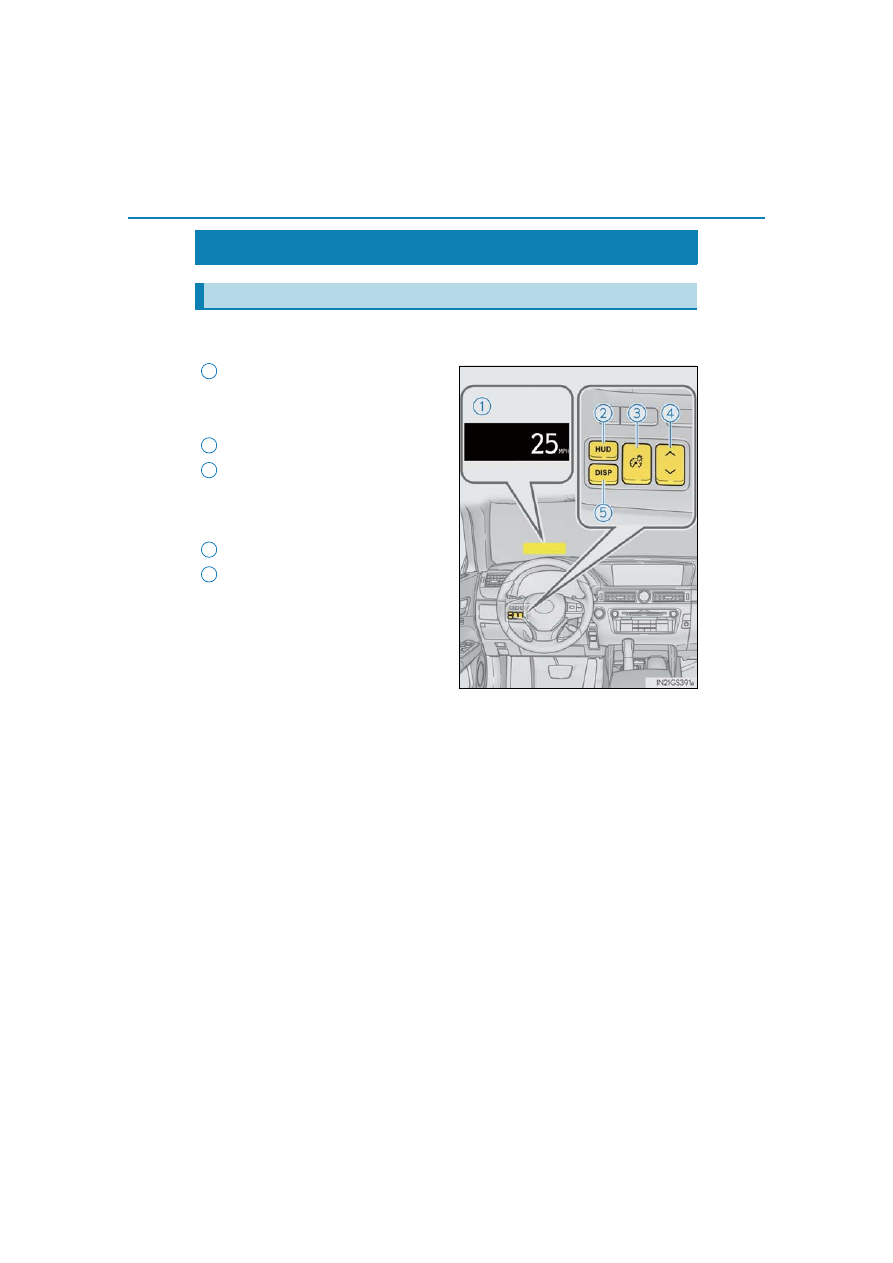

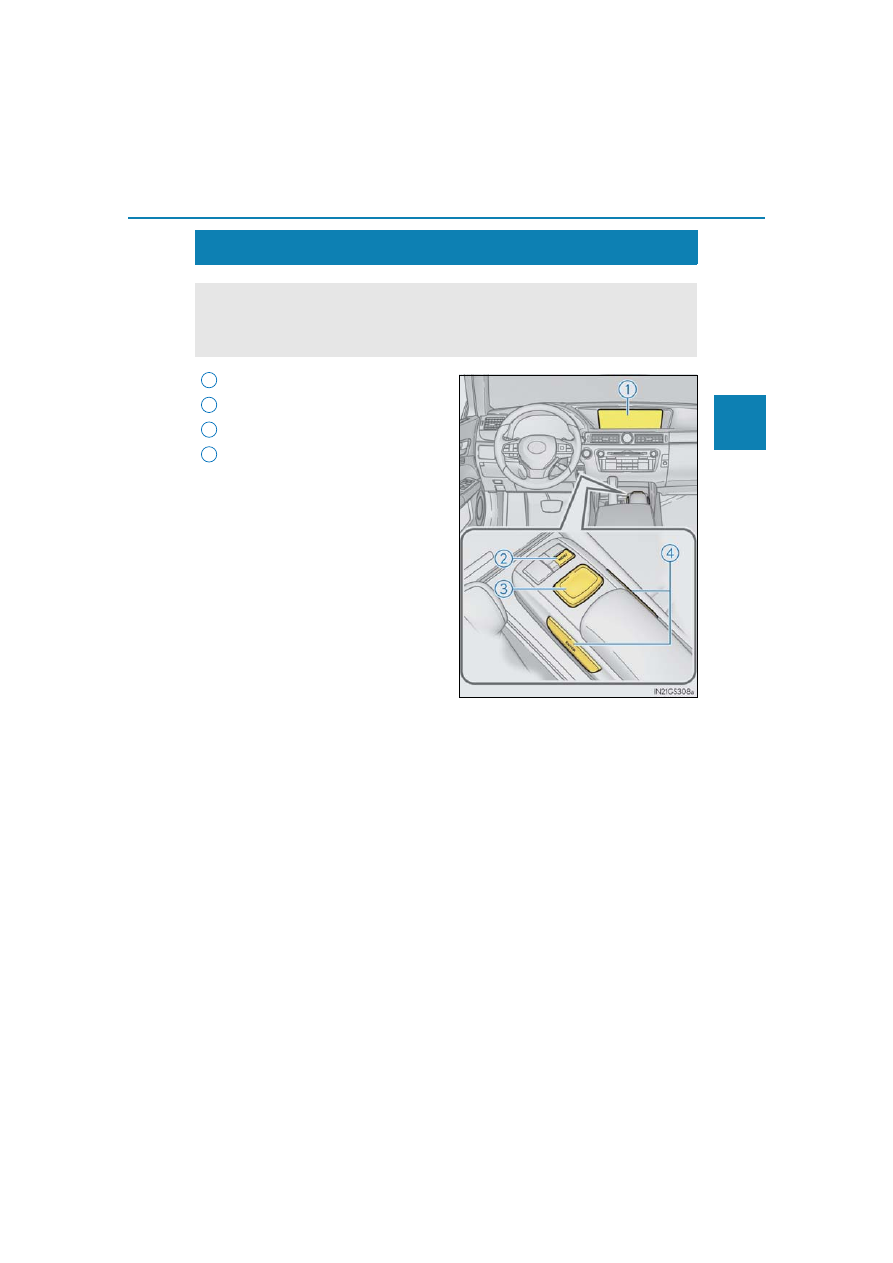

The head-up display can be used to project vehicle speed and other information
onto the windshield.

Head-up display

Display brightness will change automat-

ically according to the brightness of the

surrounding area.

“HUD” button
Display brightness adjustment
switch

Display brightness can be adjusted to

the desired level.

Display position adjustment switch
“DISP” button



: If equipped

Summary of functions

2
3

4
5

127

2. Instrument cluster

Instrument cl

uste
r

●

Vehicle speed

●

Tachometer

●

Shift position and shift range

Displays the selected shift position or selected shift range

(

P. 208)

●

Eco Driving Indicator (GS350/GS300)

(

P. 130)

●

Head-up rev indicator (GS F)

(

P. 130)

●

Audio display

Displays audio information for approximately 3 seconds when the audio system is

operated

●

Route guidance display (vehicles with navigation system)

(

P. 130)

When approaching an intersection while the navigation system is giving route guid-

ance, an arrow will automatically be displayed to indicate the direction of travel.

●

Lexus Enform (if equipped)

Displays “LEXUS Enform” for approximately 3 seconds when LEXUS App Suite is

operated

●

Lane departure warning display (LKA [Lane-Keeping Assist]) (if equipped)
(

P. 445)

●

Approach warning display (dynamic radar cruise control with full-speed
range) (if equipped)

(

P. 445)

●

Pre-collision warning message (PCS [Pre-Collision System])
(if equipped)

(

P. 445)

●

Speed limit display (vehicles with navigation system)

(

P. 131)

: The default setting is off

■

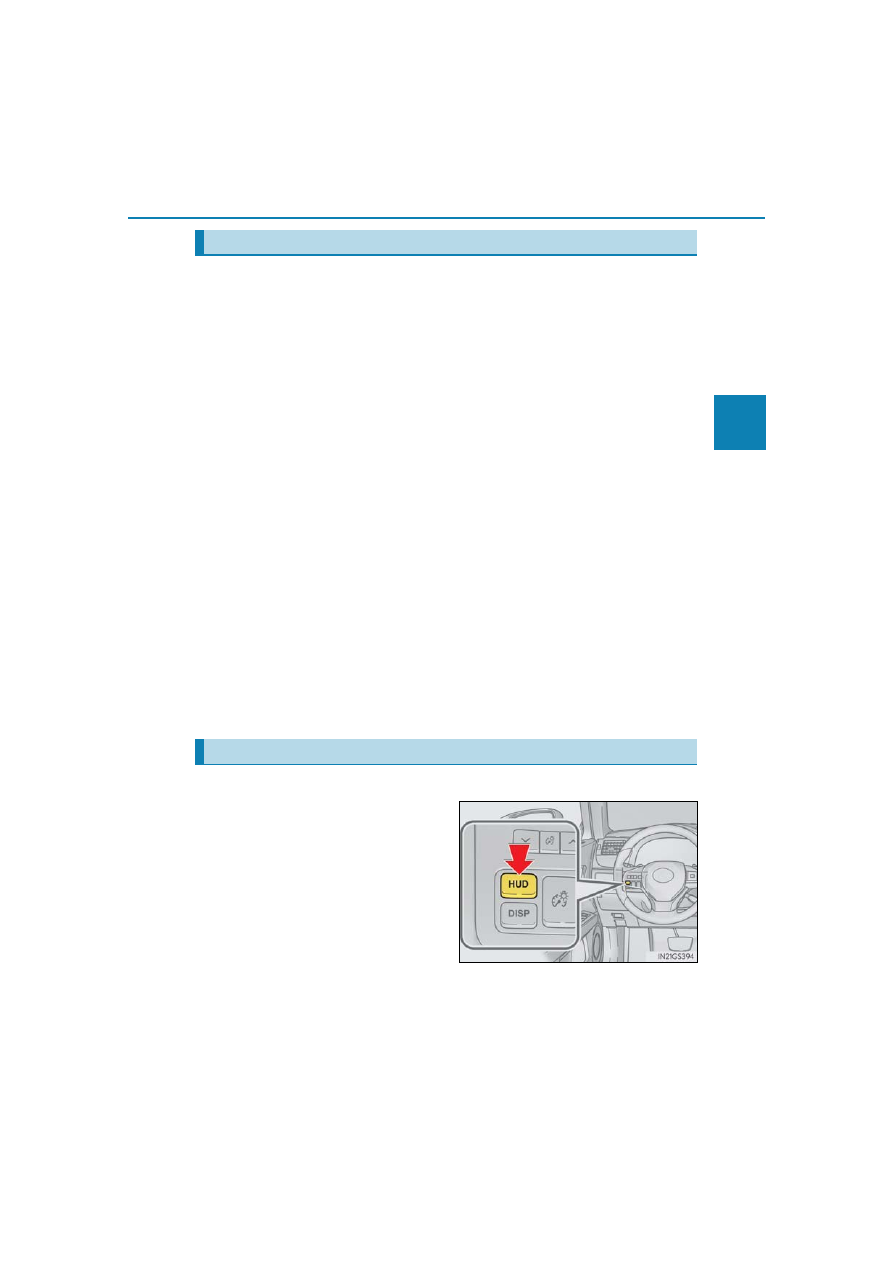

“HUD” button
Pressing the switch turns the head-
up display on/off and changes the
vehicle speed display units as fol-
lows:



U.S.A.

OFF

 ON (MPH) 

ON (km/h)

 OFF



Canada

OFF

 ON (km/h)  ON (MPH)  OFF

Head-up display contents

Switching the head-up display

128

2. Instrument cluster

■

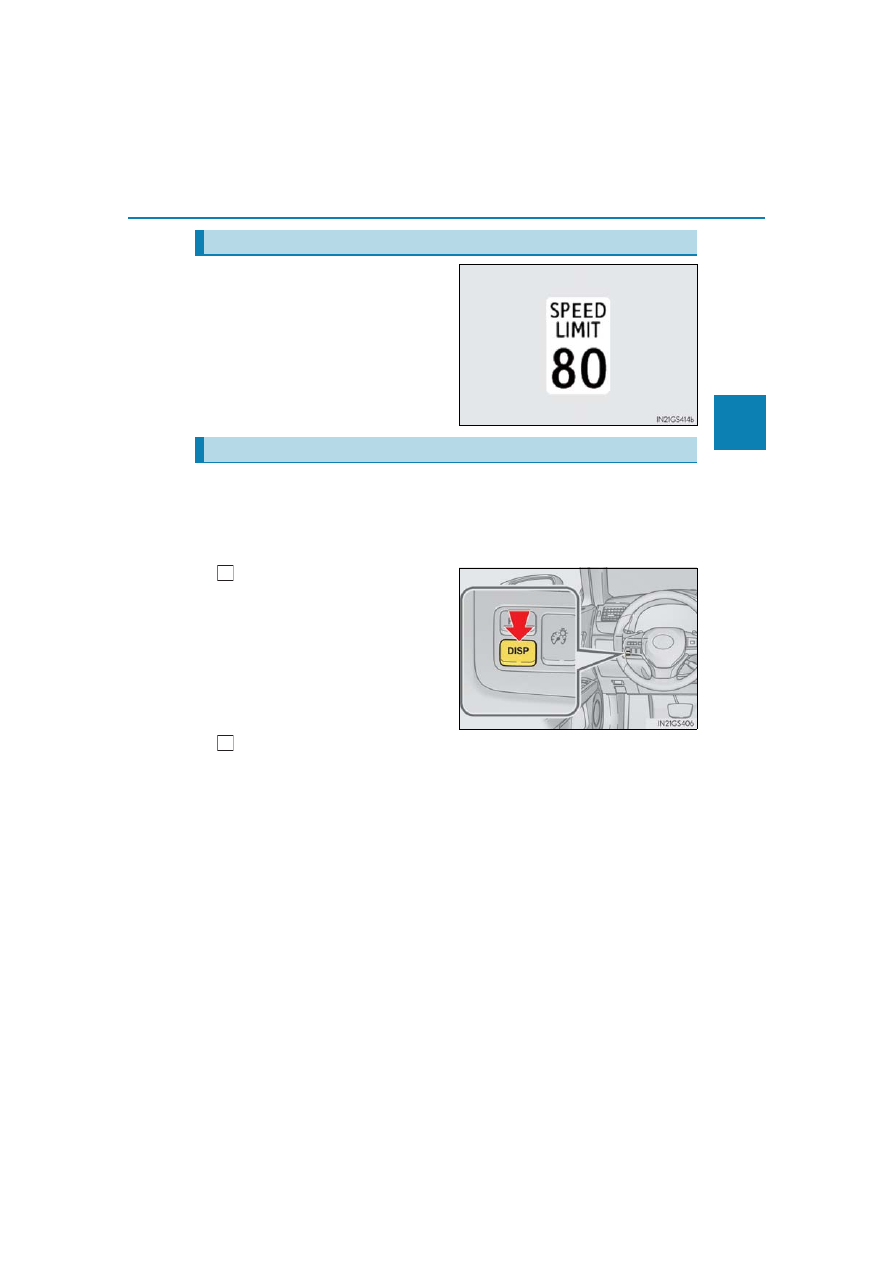

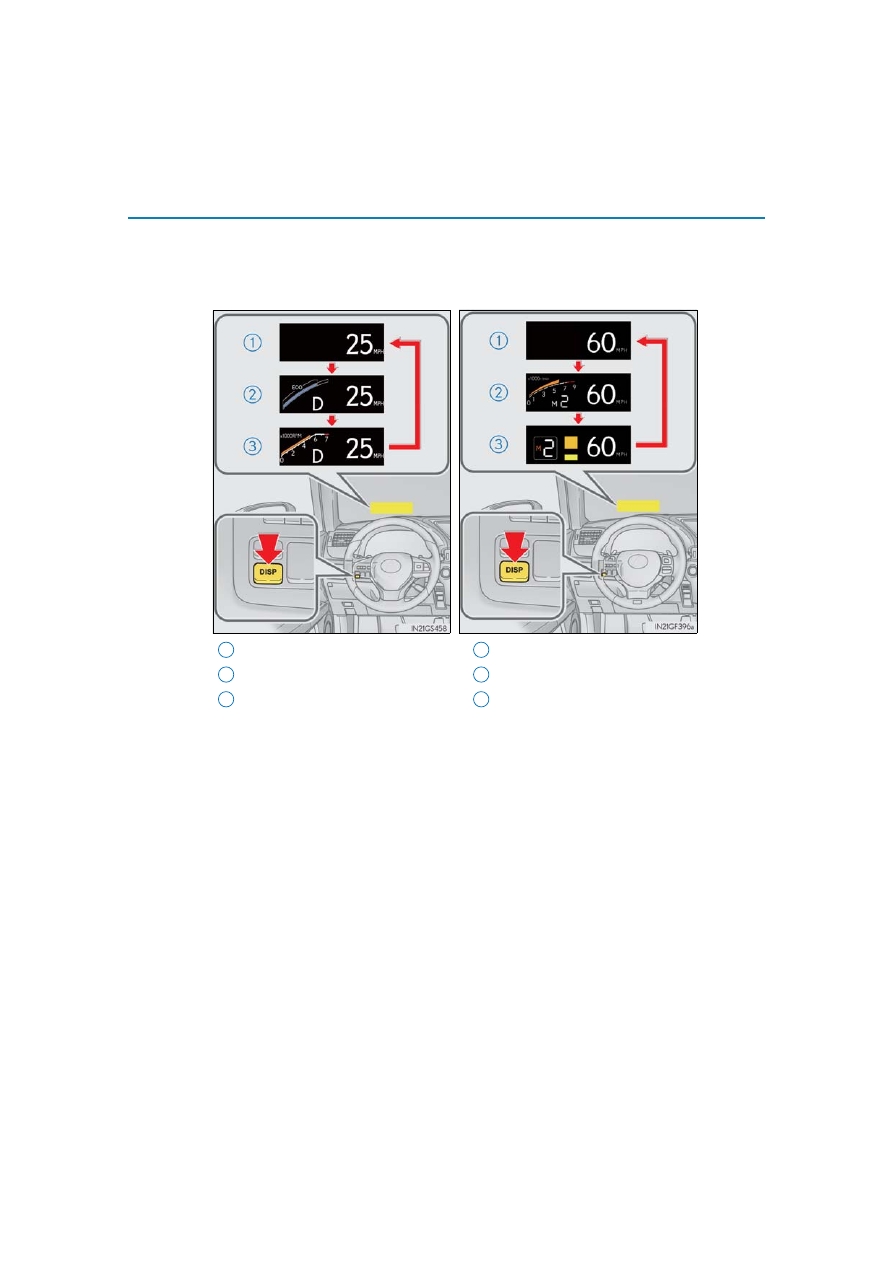

“DISP” button
Pressing the button changes the display items (except vehicle speed).

When any of the following displays are operating, the display items do not
change (except vehicle speed): Audio display/Route guidance display (vehi-
cles with navigation system)/Lexus Enform (if equipped)/Lane departure
warning display (if equipped)/Approach warning display (if equipped)/Pre-
collision warning message (if equipped)/Speed limit display (vehicles with
navigation system).

: Displayed when the drive gauges displays the SPORT mode screen and the shift lever

in M



GS350/GS300



GS F

Off
Eco Driving Indicator
Tachometer

Off
Tachometer
Head-up rev indicator

2
3

129

2. Instrument cluster

Instrument cl

uste
r

■

Adjusting the display position

Higher
Lower

■

Setting the brightness
The brightness of the display is automatically adjusted in accordance with the
brightness of the surrounding environment. However, the brightness can also
be manually adjusted in 9 stages.

Brighter
Darker

Making the display easier to see

130

2. Instrument cluster

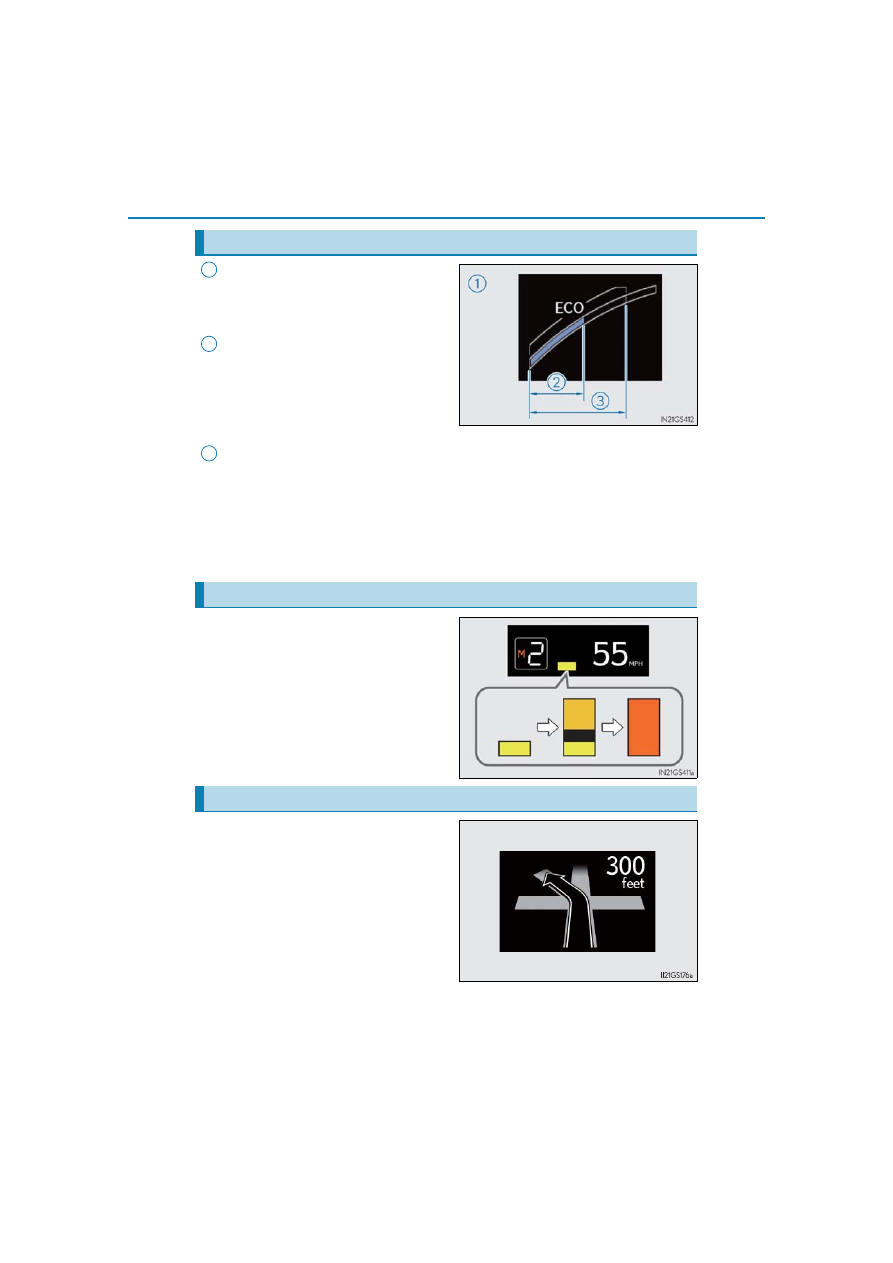

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with

current Eco driving ratio based on

acceleration.

Eco driving ratio based on accelera-
tion

If the acceleration exceeds the Zone of

Eco driving, the right side of the Eco

Driving Indicator Zone Display will illu-

minate.

Zone of Eco driving

Eco Driving Indicator will not operate under the following conditions:
●

The shift lever is in any position other than D.

●

A paddle shift switch is operated.

●

Neither normal mode nor Eco drive mode is selected. (

P. 281)

●

The vehicle speed is approximately 80 mph (130 km/h) or higher.

While the drive gauges displays the
SPORT mode screen with the shift
lever in M, the display changes to one
of 3 levels in response to the engine
speed, notifying you of when to shift up.

This may also be displayed when shifting

down as well, depending on the engine

speed.

When the vehicle approaches an inter-
section, the direction the vehicle should
go is guided by the arrow.
When the vehicle approaches an inter-
section, the route guidance will start
and the distance* to the intersection
will also be displayed.

: The distance decreases in increments of

164 ft. (50 m) and the distance indica-
tion will disappear when the vehicle
passes through the intersection.

Eco Driving Indicator (GS350/GS300)

Head-up rev indicator (GS F)

Route guidance display (vehicles with navigation system)

131

2. Instrument cluster

Instrument cl

uste
r

Displays the speed limit for the current
road.

Display of the following screens can be switched on or off.

●

Audio display

●

Route guidance display (vehicles with navigation system)

■

Changing the settings

Continue holding the “DISP” but-
ton until the screen changes, and
repeat the process until the set-
ting you want to change is dis-
played.

Customization can be performed

when the head-up display is on and

the vehicle is traveling at less than

5 mph (8 km/h).

Press the “DISP” button to switch between on and off.

On and off will be switched between each time the button is pressed.
If the button is left alone without being operated for a short time, setting will be fin-

ished automatically.

Speed limit display (vehicles with navigation system)

Display customization

132

2. Instrument cluster

■

Head-up display

●

The head-up display may seem dark and hard to see when viewed through sunglasses,

especially polarized sunglasses.

Adjust the brightness of the head-up display or remove your sunglasses.

●

When the head-up display is turned off, it will remain off even if the engine switch is

turned to IGNITION ON mode after the engine switch has been turned off.

●

The startup image will be displayed on the head-up display after the engine switch has

been turned to IGNITION ON mode while the head-up display switch is set to on.

■

Head-up rev indicator

●

The head-up display is linked to the rev indicator in the meter.

●

Whether or not to display the rev indicator in the head-up display, as well as display tim-

ing, can be changed through the settings for the rev indicator in the meter. (

P. 123)

■

When the battery is disconnected
The customize settings of the head-up display will be reset.

■

Head-up display automatic position adjustment
If the display position is recorded into memory, the head-up display will be automatically

adjusted to the desired position. (

P. 166)

WARNING

■

Before using the head-up display
Check that the position and brightness of the head-up display image does not interfere

with safe driving. Incorrect adjustment of the image’s position or brightness may

obstruct the driver’s view and lead to an accident, resulting in death or serious injury.

NOTICE

■

To prevent damage to components

●

Do not touch the inside of the head-up display projector or thrust sharp edges or the

like into the projector.

Doing so could cause mechanical malfunctions.

●

Do not place any drinks near the head-up dis-

play projector. If the projector gets wet, elec-

trical malfunctions may result.

●

Do not place anything on or put stickers onto

the head-up display projector.

Doing so could interrupt head-up display

indications.

133

2. Instrument cluster

Instrument cl

uste
r

Fuel consumption information

Remote Touch screen
“MENU” button
Remote Touch knob
“ENTER” buttons

Fuel consumption information can be displayed on the Remote Touch screen.
Vehicles with 12.3-inch display: The fuel consumption information can be dis-
played and operated on the side display.

2
3
4

134

2. Instrument cluster

Press the “MENU” button on the Remote Touch, then select

on the “Menu”

screen, and then select “Fuel Consumption”.

■

Trip information
If the “Past Record” screen is displayed, select “Trip Information”.

Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine
was started.
Cruising range (

P. 135)

Average fuel consumption for the past 15 minutes is divided by color into past

averages and averages attained since the engine switch was last turned to IGNI-

TION ON mode. Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.

Fuel consumption

3
4

135

2. Instrument cluster

Instrument cl

uste
r

■

Past record
If the “Trip Information” screen is displayed, select “Past Record”.

Resetting the past record data
Best recorded fuel economy
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data

The average fuel consumption his-

tory is divided by color into past

averages and the average fuel con-

sumption since the last reset. Use the

displayed average fuel consumption

as a reference.
The image is an example only, and may vary slightly from actual conditions.

■

Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the current fuel

consumption again.

■

Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.

■

Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel

remaining.
This distance is computed based on your average fuel consumption.

As a result, the actual distance that can be driven may differ from that displayed.

2
3
4
5

Content .. 6 7 8 9 ..
