LEXUS ES 350 (2019 year). Instruction - part 13

198

4-5. Using the driving support systems

■

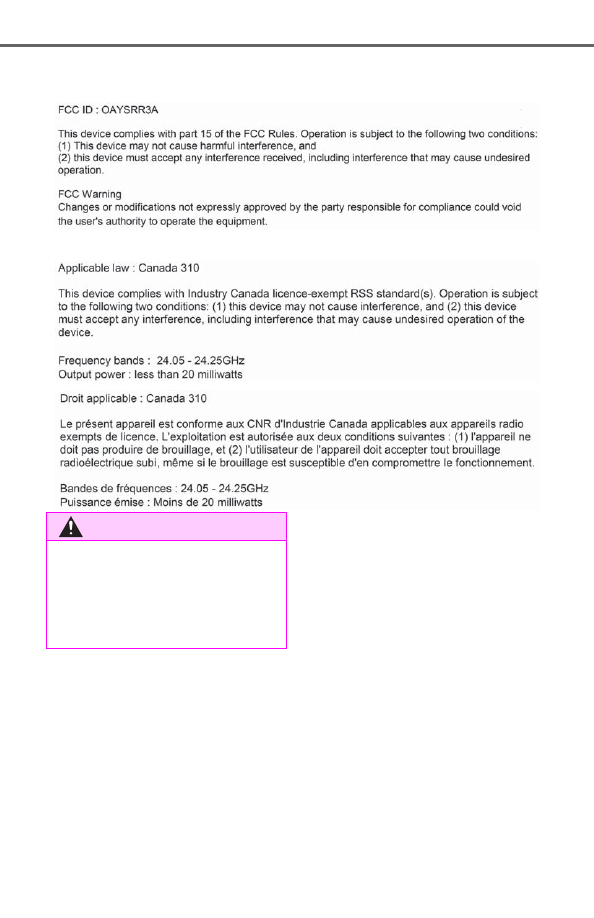

Certification for the Blind Spot Monitor



For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico



For vehicles sold in Canada

WARNING

■

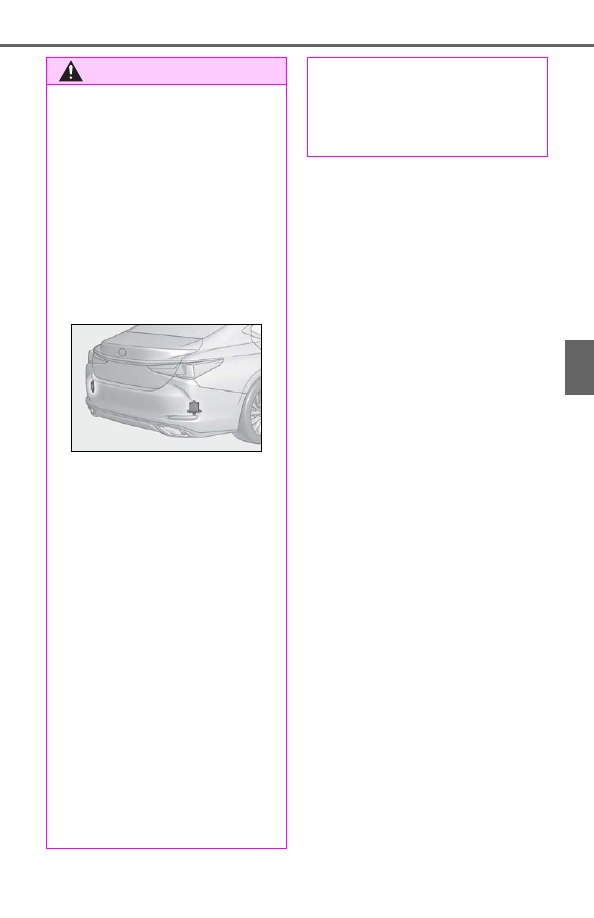

Handling the rear side radar sensors

Blind Spot Monitor sensors are installed

behind the left and right sides of the rear

bumper respectively. Observe the fol-

lowing to ensure the Blind Spot Monitor

can function correctly.

199

4-5. Using the driving support systems

riv

ing

WARNING

●

Keep the sensors and the surrounding

areas on the rear bumper clean at all

times.

If a sensor or its surrounding area on

the rear bumper is dirty or covered

with snow, the Blind Spot Monitor may

not operate and a warning message

(

P.197) will be displayed. In this situ-

ation, clear off the dirt or snow and

drive the vehicle with the operation

conditions of the BSM function

(

P.201) satisfied for approximately

10 minutes. If the warning message

does not disappear, have the vehicle

inspected by your Lexus dealer.

●

Do not subject a sensor or its sur-

rounding area on the rear bumper to a

strong impact.

If a sensor is moved even slightly off

position, the system may malfunction

and vehicles may not be detected cor-

rectly.

In the following situations, have your

vehicle inspected by your Lexus

dealer.

• A sensor or its surrounding area is

subject to a strong impact.

• If the surrounding area of a sensor is

scratched or dented, or part of them

has become disconnected.

●

Do not disassemble the sensor.

●

Do not attach accessories, stickers

(including transparent stickers), alumi-

num tape, etc. to a sensor or its sur-

rounding area on the rear bumper.

●

Do not modify the sensor or surround-

ing area on the rear bumper.

●

If a sensor or the rear bumper needs to

be removed/installed or replaced,

contact your Lexus dealer.

●

Do not paint the rear bumper any

color other than an official Lexus color.

200

4-5. Using the driving support systems

■

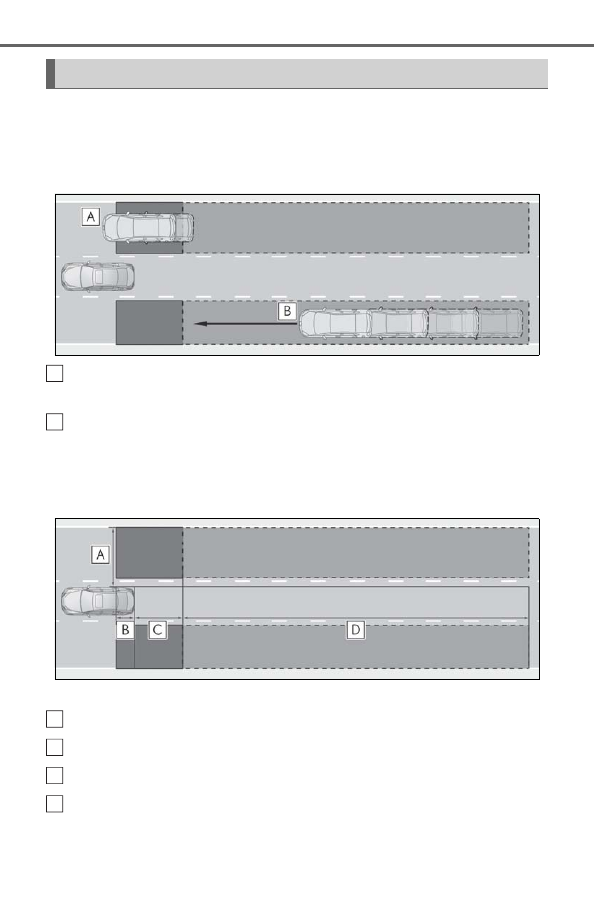

Vehicles that can be detected by the Blind Spot Monitor

The Blind Spot Monitor uses rear side radar sensors to detect the following vehi-
cles traveling in adjacent lanes and advises the driver of the presence of such vehi-
cles via the indicators on the outside rear view mirrors.

Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)

Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)

■

Blind Spot Monitor detection areas

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of the vehicle

Approximately 3.3 ft. (1 m) forward of the rear bumper

Approximately 9.8 ft. (3 m) from the rear bumper

Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear bumper

: The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side of the vehicle

cannot be detected.

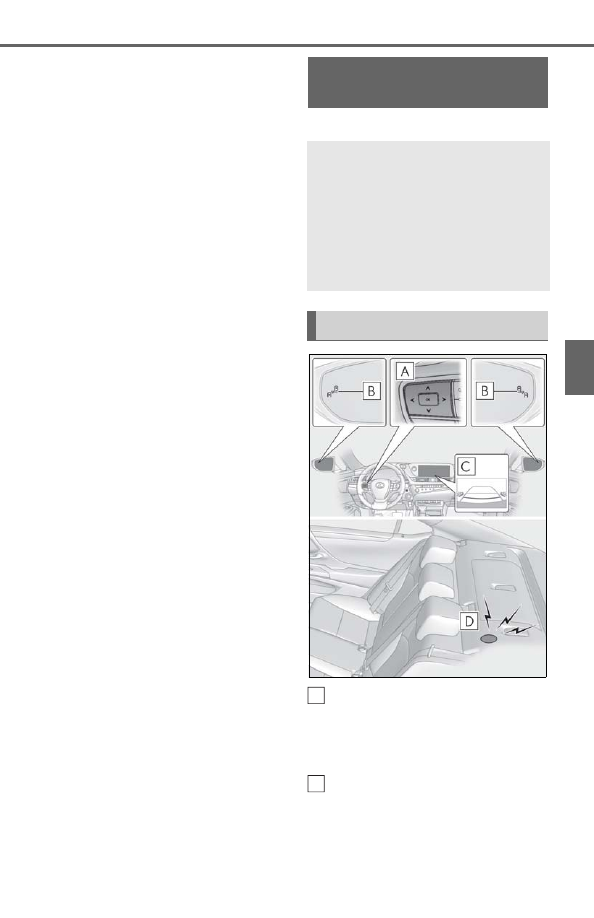

Blind Spot Monitor operation

A
B
C
D

201

4-5. Using the driving support systems

riv

ing

: The greater the difference in speed between your vehicle and the detected vehicle is,

the farther away the vehicle will be detected, causing the outside rear view mirror indi-
cator to illuminate or flash.

■

The Blind Spot Monitor is operational

when

The Blind Spot Monitor is operational when

all of the following conditions are met:

●

The Blind Spot Monitor is on.

●

The shift lever is in a position other than R.

●

The vehicle speed is greater than approx-

imately 10 mph (16 km/h).

■

The Blind Spot Monitor will detect a

vehicle when

The Blind Spot Monitor will detect a vehicle

present in the detection area in the follow-

ing situations:

●

A vehicle in an adjacent lane overtakes

your vehicle.

●

You overtake a vehicle in adjacent lane

slowly.

●

Another vehicle enters the detection

area when it changes lanes.

■

Conditions under which the Blind Spot

Monitor will not detect a vehicle

The Blind Spot Monitor is not designed to

detect the following types of vehicles and/or

objects:

●

Small motorcycles, bicycles, pedestrians,
etc.

●

Vehicles traveling in the opposite direc-

tion

●

Guardrails, walls, signs, parked vehicles
and similar stationary objects

●

Following vehicles that are in the same
lane

●

Vehicles traveling 2 lanes away from your
vehicle

●

Vehicles which are being overtaken rap-

idly by your vehicle.

: Depending on the conditions, detection

of a vehicle and/or object may occur.

■

Conditions under which the Blind Spot

Monitor may not function correctly

●

The Blind Spot Monitor may not detect

vehicles correctly in the following situa-

tions:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When mud, snow, ice, a sticker, etc. is

covering the sensor or surrounding area

on the rear bumper

• When driving on a road surface that is

wet with standing water during bad

weather, such as heavy rain, snow, or fog

• When multiple vehicles are approaching

with only a small gap between each vehi-

cle

• When the distance between your vehicle

and a following vehicle is short

• When there is a significant difference in

speed between your vehicle and the vehi-

cle that enters the detection area

• When the difference in speed between

your vehicle and another vehicle is

changing

• When a vehicle enters a detection area

traveling at about the same speed as your

vehicle

• As your vehicle starts from a stop, a vehi-

cle remains in the detection area

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When vehicle lanes are wide, or when

driving on the edge of a lane, and the

vehicle in an adjacent lane is far away

from your vehicle

• When an accessory (such as a bicycle

carrier) or towing eyelet is installed to the

rear of the vehicle

• When there is a significant difference in

height between your vehicle and the

vehicle that enters the detection area

• Immediately after the Blind Spot Monitor

is turned on

●

Instances of the Blind Spot Monitor

unnecessarily detecting a vehicle and/or

202

4-5. Using the driving support systems

object may increase in the following situ-

ations:

• When the sensor is misaligned due to a

strong impact to the sensor or its sur-

rounding area

• When the distance between your vehicle

and a guardrail, wall, etc. that enters the

detection area is short

• When driving up and down consecutive

steep inclines, such as hills, dips in the

road, etc.

• When vehicle lanes are narrow, or when

driving on the edge of a lane, and a vehi-

cle traveling in a lane other than the adja-

cent lanes enters the detection area

• When driving on roads with sharp bends,

consecutive curves, or uneven surfaces

• When the tires are slipping or spinning

• When the distance between your vehicle

and a following vehicle is short

• When an accessory (such as a bicycle

carrier) or towing eyelet is installed to the

rear of the vehicle



Vehicles without Adaptive Variable
Suspension system

Normal mode

Provides an optimal balance of fuel econ-
omy, quietness, and dynamic performance.
Suitable for city driving.
Press the switch to change the normal
mode when not in normal mode.

Eco drive mode

Helps the driver accelerate in an eco-
friendly manner and improve fuel economy
through moderate throttle characteristics
and by controlling the operation of the air
conditioning system (heating/cooling).
When not in Eco drive mode, if the Driving
Mode Select switch is turned toward you,
the “Eco” indicator comes on.

Sport mode

Controls the transmission and engine to
provide quick, powerful acceleration. This

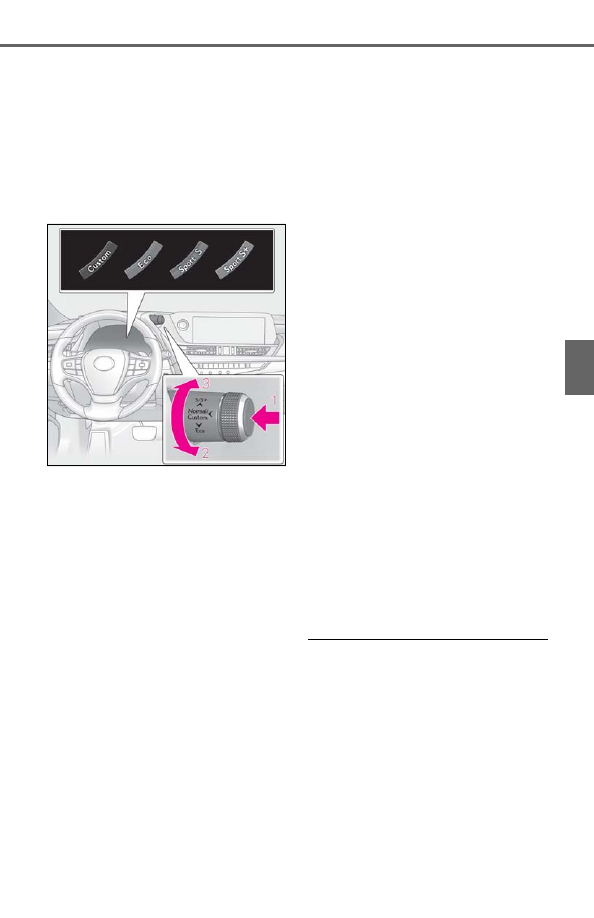

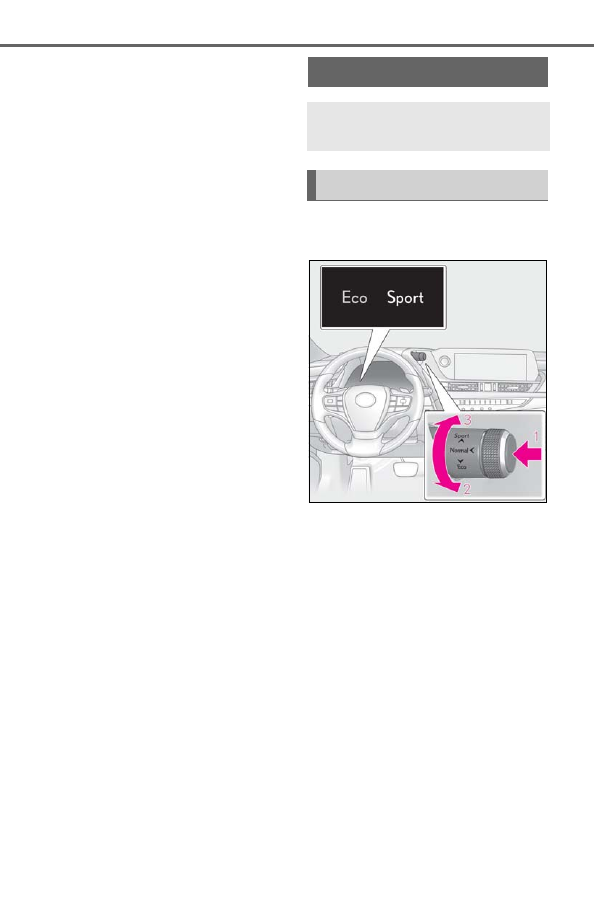

Driving Mode Select switch

The driving modes can be selected
to suit driving condition.

Selecting the driving mode

203

4-5. Using the driving support systems

riv

ing

mode is suitable for when agile driving
response is desired, such as when driving
on roads with many curves.
When not in SPORT mode, if the Driving
Mode Select switch is turned away from
you, the “Sport” indicator comes on.



Vehicles with Adaptive Variable
Suspension system

Normal mode/Custom mode

Normal mode and custom mode are
selected by pressing the Driving Mode
Select switch. Each time the switch is
pressed, the driving mode changes
between normal mode and custom mode.
When custom mode is selected, the “Cus-
tom” indicator comes on.
Press the switch to change the driving
mode to normal mode when not in normal
mode.
• Normal mode
Provides an optimal balance of fuel econ-
omy, quietness, and dynamic performance.
Suitable for city driving.
• Custom mode
Allows you to drive with the power train,
chassis and air conditioning system func-
tions set to your preferred settings.
Custom mode settings can only be
changed on the drive mode customization

display of the Center Display. (

P.245)

Eco drive mode

Sport mode

• SPORT S mode
Controls the transmission and engine to
provide quick, powerful acceleration. This
mode is suitable for when agile driving
response is desired, such as when driving
on roads with many curves.
When not in SPORT S mode, if the Driving
Mode Select switch is turned away from
you, the “Sport S” indicator comes on.
• SPORT S+ mode
Helps to ensure steering performance and
driving stability by simultaneously con-
trolling the steering and suspension in
addition to the transmission and engine.
Suitable for sportier driving.
When in SPORT S mode, if the Driving
Mode Select switch is turned away from
you, the “Sport S+” indicator comes on.

■

Operation of the air conditioning sys-

tem in Eco drive mode

Eco drive mode controls the heating/cool-

ing operations and fan speed of the air con-

ditioning system to enhance fuel efficiency.

To improve air conditioning performance,

perform the following operations:

●

Turn off eco air conditioning mode

(

P.255)

●

Adjust the fan speed (

P.254)

●

Turn off Eco drive mode (

P.202)

204

4-5. Using the driving support systems

■

Automatic deactivation of sport mode

and custom mode (if equipped)

If the engine switch is turned off after driv-

ing in sport mode or custom mode, the

drive mode will be changed to normal

mode.

■

Driving mode pop-up display (12.3-inch

display model)

When the driving mode is changed, the

selected driving mode will be temporarily

displayed on the side display. (

P.247)

■

Customization (vehicles with Adaptive

Variable Suspension system)

Settings (e.g. custom mode) can be

changed.
(Customizable features:

P.400)

: If equipped

■

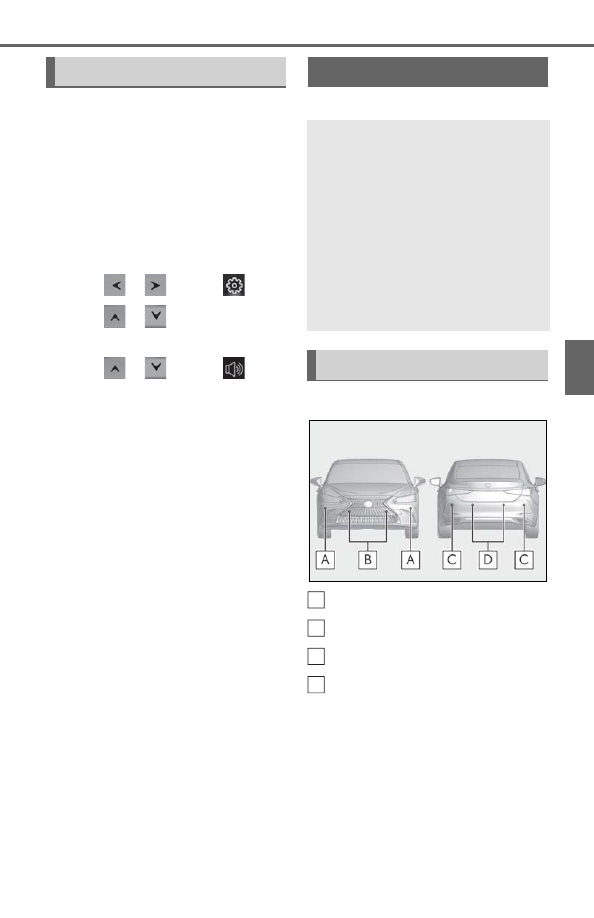

Intuitive parking assist

Ultrasonic sensors are used to detect
static objects in the detection area
when driving at a low speed or backing
up. (

P.205)

■

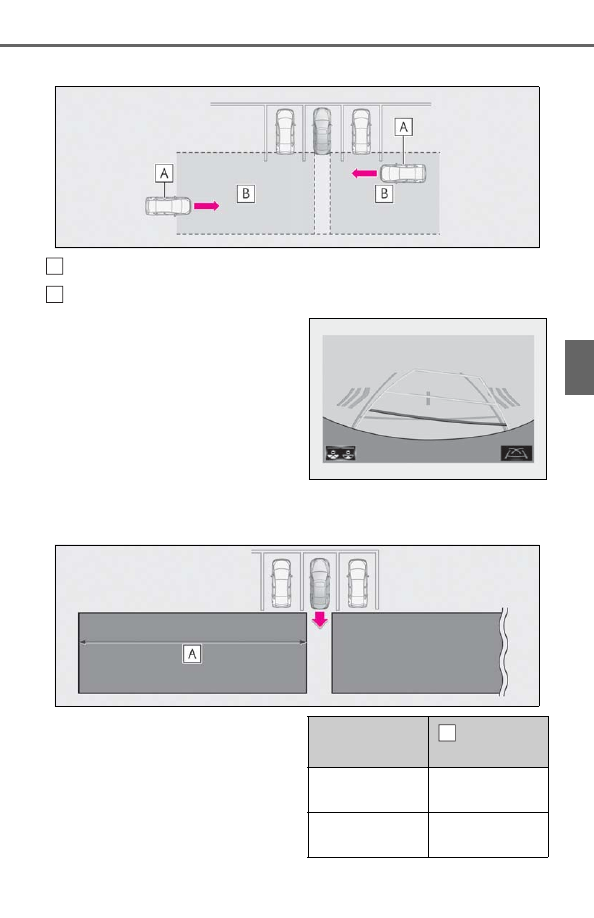

RCTA (Rear Cross Traffic Alert)
function (if equipped)

Rear side radar sensors are used to
detect approaching vehicles in the
detection areas behind the vehicle
when backing up. (

P.211)

■

RCD (Rear Camera Detection)
function (if equipped)

A rear camera sensor is used to detect
pedestrians in the detection area
behind the vehicle when backing up.
(

P.215)

PKSA (Parking Support
Alert)

The Parking Support Alert system
consists of the following functions
that operate when driving at a low
speed or backing up, such as when
parking. When the system deter-
mines that the possibility of a colli-
sion with a detected object, such as
a wall, or pedestrian is high, a warn-
ing operates to urge the driver to
take evasive action.

PKSA (Parking Support Alert)
system

205

4-5. Using the driving support systems

riv

ing

■

Adjusting the buzzer volume

The buzzer volume can be adjusted on
the multi-information display. The vol-
ume of buzzers for the intuitive parking
assist, RCTA function and RCD func-
tion will be adjusted simultaneously.
Use the meter control switches to
change settings. (

P.72)

Press

to select

Press

to select “PKSA”

and then press “OK”.

Press

to select

and

then press “OK”.

Each time the switch is pressed, the volume

level will change between 1, 2, and 3.

■

Muting a buzzer temporarily

A mute button will be displayed on the
multi-information display when an
object or pedestrian is detected. To
mute the buzzer, press “OK”.
The buzzers for the intuitive parking
assist, RCTA function and RCD func-
tion will be muted simultaneously.
Mute will be automatically canceled in
the following situations:
 When the shift position is changed.
 When there is a malfunction in a

sensor or the system is temporarily
unavailable.

 When the function is disabled while

it is operating.

 When the engine switch is turned

off.

: If equipped

■

Types of sensors

Front corner sensors

Front center sensors

Rear corner sensors

Rear center sensors

■

Display

When the sensors detect an object,
such as a wall, a graphic is shown on
the multi-information display, head-up
display (if equipped) and Center Dis-
play depending on the position and dis-
tance to the object.

Setting the buzzer volume

Intuitive parking assist

The distance from your vehicle to
objects, such as a wall, when paral-
lel parking or maneuvering into a
garage is measured by the sensors
and communicated via the multi-
information display, head-up dis-
play (if equipped), Center Display
and a buzzer. Always check the sur-
rounding area when using this sys-
tem.

System components

A
B
C
D

206

4-5. Using the driving support systems

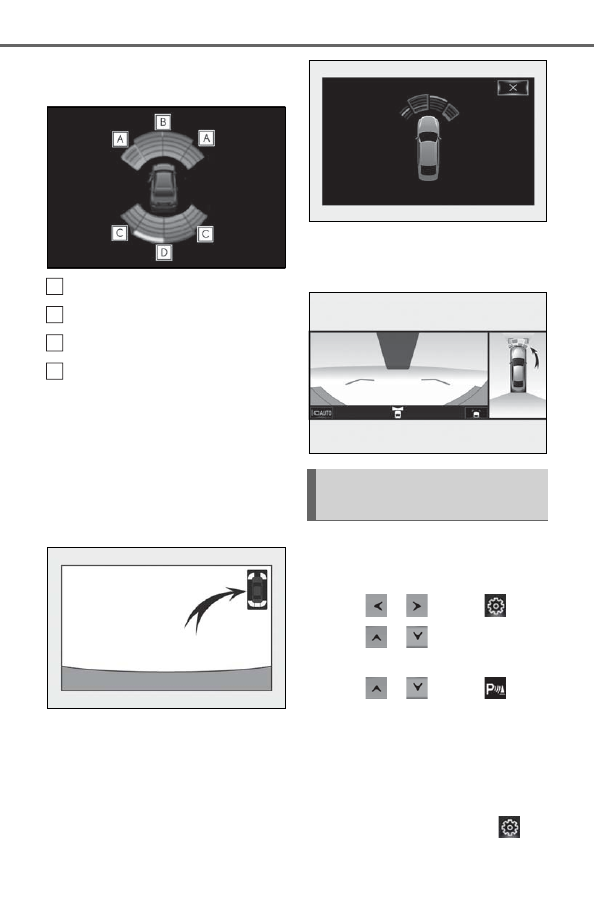

 Multi-information display and head-

up display

Front corner sensor detection

Front center sensor detection

Rear corner sensor detection

Rear center sensor detection

 Center Display

A graphic is shown when the Lexus park-
ing assist monitor (if equipped) is dis-
played.
A simplified image is displayed on the
Center Display when an object is detected.
• When the shift lever is in R

• When the shift lever is in N, S or D (vehi-

cle moving forward)

When an object is detected, a graphic will
be displayed on the panoramic view moni-
tor (if equipped).

Use the meter control switches to
enable/disable the Lexus parking
assist-sensor. (

P.72)

Press

to select

Press

to select “PKSA”

and then press “OK”.

Press

to select

and

then press “OK”.

When the intuitive parking assist func-
tion is disabled, the intuitive parking
assist OFF indicator (

P.62) illumi-

nates on the multi-information display.

To re-enable the system, select

the multi-information display, select

A
B
C
D

Turning intuitive parking assist
on/off

207

4-5. Using the driving support systems

riv

ing

and turn it on. If the system is dis-

abled, it will remain off even if the
engine switch is turned to IGNTION
ON mode after the engine switch has
been turned off.

■

The system can be operated when

●

The engine switch is in IGNITION ON

mode.

●

Intuitive parking assist function is on.

●

The vehicle speed is less than about 6

mph (10 km/h).

WARNING

■

When using the intuitive parking

assist

Observe the following precautions.

Failing to do so may result in the vehicle

being unable to be driven safely and pos-

sibly cause an accident.

●

Do not use the sensor at speeds in

excess of 6 mph (10 km/h).

●

The sensors’ detection areas and reac-

tion times are limited. When moving

forward or reversing, check the areas

surrounding the vehicle (especially the

sides of the vehicle) for safety, and

drive slowly, using the brake to control

the vehicle’s speed.

●

Do not install accessories within the

sensors’ detection areas.

●

The area directly under the bumpers is

not detected.

■

When to disable the function

In the following situations, disable the

function as it may operate even though

there is no possibility of a collision.

●

The vehicle is equipped with a fender

pole or wireless antenna.

●

The front or rear bumper or a sensor

receives a strong impact.

●

A non-genuine Lexus suspension

(lowered suspension, etc.) is installed.

●

Towing eyelet is installed. (vehicles

with a towing eyelet)

●

A backlit license plate is installed.

■

When using intuitive parking assist

In the following situations, the system

may not function correctly due to a sen-

sor malfunction, etc. Have the vehicle

checked by your Lexus dealer.

●

The intuitive parking assist operation

display flashes or shows continuously,

and a buzzer sounds when no objects

are detected.

●

If the area around a sensor collides

with something, or is subjected to

strong impact.

●

If the bumper or grille collides with

something.

●

If the display flashes or is displayed

continuously and a buzzer does not

sound, except when the mute function

has been turned on.

●

If a display error occurs, first check the

sensor.

If the error occurs even when there is

no ice, snow or mud on the sensor, it is

likely that the sensor is malfunctioning.

■

Notes when washing the vehicle

Do not apply intensive bursts of water or

steam to the sensor area.
Doing so may result in the sensor mal-

functioning.

●

When using a high pressure washer to

wash the vehicle, do not spray the sen-

sors directly, as doing so may cause a

sensor to malfunction.

●

When using steam to clean the vehicle,

do not direct steam too close to the

sensors as doing so may cause a sen-

sor to malfunction.

208

4-5. Using the driving support systems

●

A shift lever is shifted to a position other

than P.

■

Setting the buzzer volume

The buzzer volume can be adjusted on the

multi-information display. (

P.205)

■

If “Parking Assist Unavailable Clean

Parking Assist Sensor” is displayed on

the multi-information display

A sensor may be covered with ice, snow,

dirt, etc. Remove the ice, snow, dirt, etc.,

from the sensor to return the system to nor-

mal.
Also, due to ice forming on a sensor at low

temperatures, a warning message may be

displayed or the sensor may not be able to

detect an object. Once the ice melts, the

system will return to normal.

■

Sensor detection information

●

The sensor’s detection areas are limited

to the areas around the vehicle’s front and

rear bumpers.

●

The following situations may occur

during use.

• Depending on the shape of the object

and other factors, the detection distance

may shorten, or detection may be impos-

sible.

• There will be a short delay between

object detection and display. Even at low

speeds, there is a possibility that the

object will come within the sensor’s

detection areas before the display is

shown and the warning beep sounds.

• It might be difficult to hear the buzzer due

to the volume of the audio system or air

flow noise of the air conditioning system.

■

Conditions under which the function

may not function correctly

Certain vehicle conditions and the sur-

rounding environment may affect the ability

of a sensor to correctly detect objects. Par-

ticular instances where this may occur are

listed below.

●

There is dirt, snow or ice on a sensor.

(Cleaning the sensors will resolve this

problem.)

●

A sensor is frozen. (Thawing the area will

resolve this problem.)

In especially cold weather, if a sensor is

frozen the sensor display may be dis-

played abnormally, or objects, such as a

wall, may not be detected.

●

A sensor is covered in any way.

●

When a sensor or the area around a sen-

sor is extremely hot or cold.

●

On an extremely bumpy road, on an

incline, on gravel, or on grass.

●

The vicinity of the vehicle is noisy due to

vehicle horns, motorcycle engines, air

brakes of large vehicles, or other loud

noises producing ultrasonic waves.

●

There is another vehicle equipped with

parking assist sensors in the vicinity.

●

A sensor is coated with a sheet of spray

or heavy rain.

●

If a sensor is hit by a large amount of

water, such as when driving on a flooded

road.

●

If the vehicle is significantly tilted.

●

The vehicle is approaching a tall or

curved curb.

●

If objects draw too close to the sensor.

■

Objects which may not be properly

detected

The shape of the object may prevent the

sensor from detecting it. Pay particular

attention to the following objects:

●

Wires, fences, ropes, etc.

●

Cotton, snow and other materials that

absorb sound waves

●

Sharply-angled objects

●

Low objects

●

Tall objects with upper sections project-

ing outwards in the direction of your vehi-

cle

People may not be detected if they are

wearing certain types of clothing.

209

4-5. Using the driving support systems

riv

ing

■

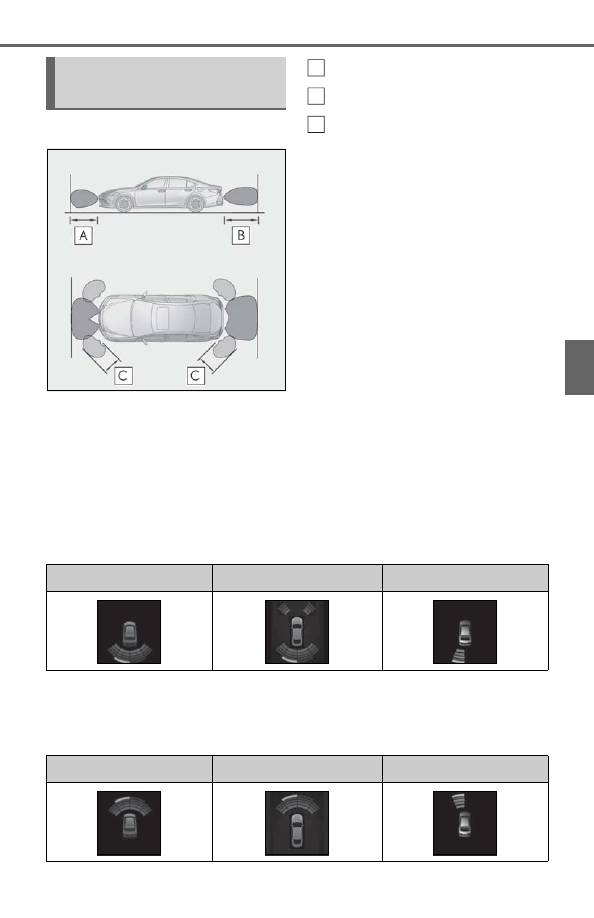

Detection range of the sensors

Approximately 3.3 ft. (100 cm)

Approximately 4.9 ft. (150 cm)

Approximately 2.1 ft. (65 cm)

The diagram shows the detection range of
the sensors. Note that the sensors cannot
detect objects that are extremely close to
the vehicle.
The range of the sensors may change
depending on the shape of the object, etc.

■

Multi-information display, head-up display (if equipped) and Center Display

When an object is detected by a sensor, the approximate distance to the object will
be displayed on the multi-information display, Center Display, and head-up display
(if equipped). (As the distance to the object becomes short, the distance segments
may blink.)

 Approximate distance to object: 4.9 ft. (150 cm) to 2.1 ft. (65 cm)

(Rear center

sensor)

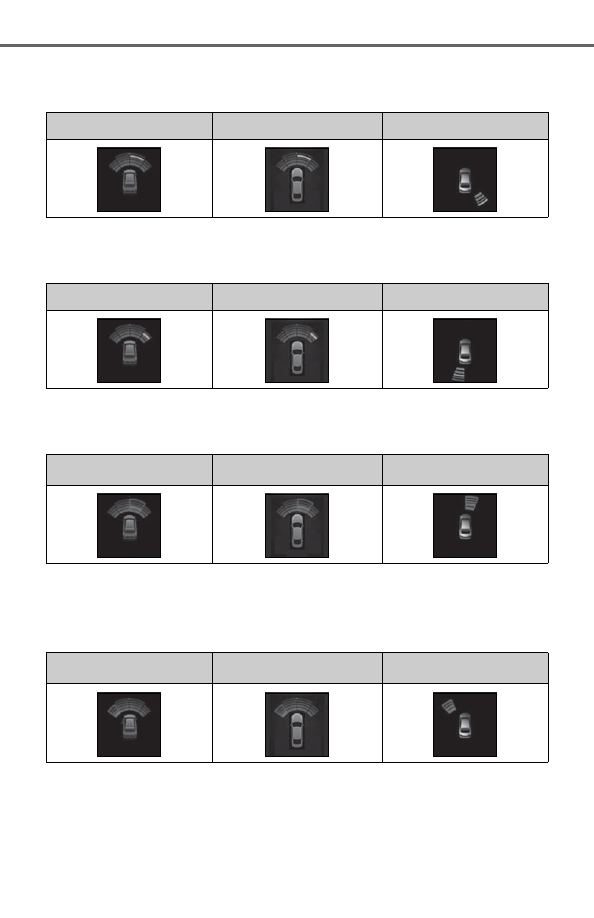

: Automatic buzzer mute function is enabled. (

P.211)

 Approximate distance to object: 3.3 ft. (100 cm) to 2.1 ft. (65 cm)

(Front center

sensor)

Sensor detection display, object
distance

A
B
C

Multi-information display

Center Display

Head-up display

Multi-information display

Center Display

Head-up display

210

4-5. Using the driving support systems

: Automatic buzzer mute function is enabled. (

P.211)

 Approximate distance to object: 2.1 ft. (65 cm) to 1.5 ft. (45 cm)

: Automatic buzzer mute function is enabled. (

P.211)

 Approximate distance to object: 1.5 ft. (45 cm) to 1.0 ft. (30 cm)

: Automatic buzzer mute function is enabled. (

P.211)

 Approximate distance to object: 1.0 ft. (30 cm) to 0.5 ft. (15 cm)

: Automatic buzzer mute function is disabled. (

P.211)

: The distance segments will blink slowly.

 Approximate distance to object: Less than 0.5 ft. (15 cm)

: Automatic buzzer mute function is disabled. (

P.211)

: The distance segments will blink rapidly.

Multi-information display

Center Display

Head-up display

Multi-information display

Center Display

Head-up display

Multi-information display

Center Display

Head-up display

Multi-information display

Center Display

Head-up display

211

4-5. Using the driving support systems

riv

ing

■

Buzzer operation and distance to
an object

A buzzer sounds when the sensors are
operating.
 The buzzer beeps faster as the vehi-

cle approaches an object. When the
vehicle comes within the following
distance of the object, the buzzer
sounds continuously:

Approximately 1.0 ft. (30 cm)

 When 2 or more objects are

detected simultaneously, the buzzer
sounds for the nearest object. If one
or more objects come within
approximately 1.0 ft. (30 cm) of the
vehicle, the buzzer will repeat a long
tone, followed by fast beeps.

 Automatic buzzer mute function:

After a buzzer begins sounding, if
the distance between the vehicle
and the detected object does not
become shorter, the buzzer will be
muted automatically. (However, if
the distance between the vehicle
and object is 1.0 ft. (30 cm) or less,
this function will not operate.)

The buzzer sounds volume can be
adjusted. (

P.205)

: If equipped

Meter control switches

Turn the RCTA function on/off.
When the RCTA function is disabled, the
RCTA OFF indicator illuminates.

Outside rear view mirror indicators

When a vehicle approaching from the right
or left at the rear of the vehicle is detected,
both outside rear view mirror indicators
will flash.

RCTA (Rear cross traffic
alert) function

The RCTA function uses the BSM
rear side radar sensors installed on
the inner side of the rear bumper.
This function is intended to assist
the driver in checking areas that
are not easily visible when backing
up.

System components

212

4-5. Using the driving support systems

Center Display

If a vehicle approaching from the right or
left at the rear of the vehicle is detected,
the RCTA icon (

P.213) for the detected

side will be displayed on the Center Dis-
play. This illustration shows an example of a
vehicle approaching from both sides of the
vehicle.

RCTA buzzer

If a vehicle approaching from the right or
left at the rear of the vehicle is detected, a
buzzer will sound.

Use the meter control switches to
enable/disable the RCTA function.
(

P.72)

Press

to select

Press

to select “PKSA”

and then press “OK”.

Press

to select “RCTA”

and then press “OK”.

When the RCTA function is disabled, the

RCTA OFF indicator (

P.62) illuminates

on the multi-information display. (Each

time the engine switch is turned off then

changed to IGNITION ON mode, the

RCTA function will be enabled automati-

cally.)

■

Outside rear view mirror indicator visi-

bility

In strong sunlight, the outside rear view mir-

ror indicator may be difficult to see.

■

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to hear

over loud noises, such as if the audio system

volume is high.

■

When “Rear Cross Traffic Alert

Unavailable” is shown on the multi-

information display

Ice, snow, mud, etc., may be attached to the

rear bumper around the sensors. (

P.199)

Remove the ice, snow, mud, etc., attached

to the rear bumper around the sensors to

return the function to normal. Additionally,

the sensors may not operate normally when

driving in extremely hot or cold environ-

ments.

■

Rear side radar sensors

P.199

■

Operation of the RCTA function

The RCTA function uses rear side radar sensors to detect vehicles approaching
from the right or left at the rear of the vehicle and alerts the driver of the presence
of such vehicles by flashing the outside rear view mirror indicators and sounding a

Turning the RCTA function
on/off

WARNING

■

Cautions regarding the use of the

function

The driver is solely responsible for safe

driving. Always drive safely, taking care

to observe your surroundings.
The RCTA function is only a supplemen-

tary function which alerts the driver that a

vehicle is approaching from the right or

left at the rear of the vehicle. As the

RCTA function may not function cor-

rectly under certain conditions, the

driver’s own visual confirmation of safety

is necessary. Over reliance on this func-

tion may lead to an accident resulting

death or serious injury.

RCTA function

213

4-5. Using the driving support systems

riv

ing

buzzer.

Approaching vehicles

Detection areas of approaching vehicles

■

RCTA icon display

When a vehicle approaching from the
right or left at the rear of the vehicle is
detected, the following will be dis-
played on the Center Display.

Example (Lexus parking assist monitor) (if
equipped): Vehicles are approaching from
both sides of the vehicle

■

RCTA function detection areas

The areas that vehicles can be detected in are outlined below.

The buzzer can alert the driver of
faster vehicles approaching from far-
ther away.
Example:

A
B

Approaching vehi-

cle speed

Approximate

alert distance

18 mph (28 km/h)

(fast)

65 ft. (20 m)

5 mph (8 km/h)

(slow)

18 ft. (5.5 m)

Content .. 11 12 13 14 ..
