LEXUS ES 350 (2019 year). Instruction - part 4





54

1-3. Theft deterrent system

1-3.Theft deterrent system

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to

ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.

System maintenance

The vehicle has a maintenance-free type

engine immobilizer system.

Conditions that may cause the system to

malfunction

If the grip portion of the key is in contact

with a metallic object

If the key is in close proximity to or touch-

ing a key registered to the security sys-

tem (key with a built-in transponder chip)

of another vehicle

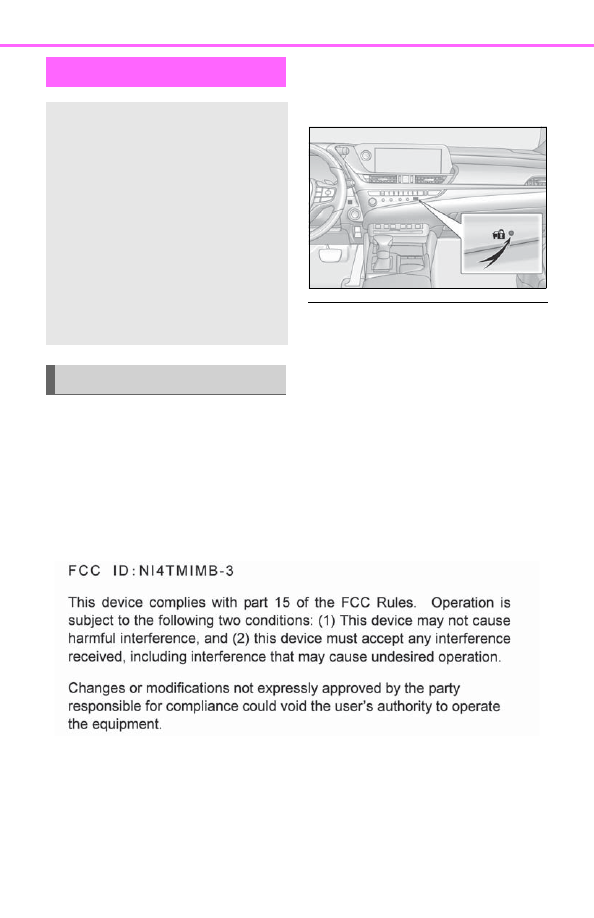

Certifications for the engine immobilizer system

For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico

Engine immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.
This system is designed to help pre-
vent vehicle theft but does not guar-
antee absolute security against all
vehicle thefts.

Operating the system

55

1-3. Theft deterrent system

1

For safety and security

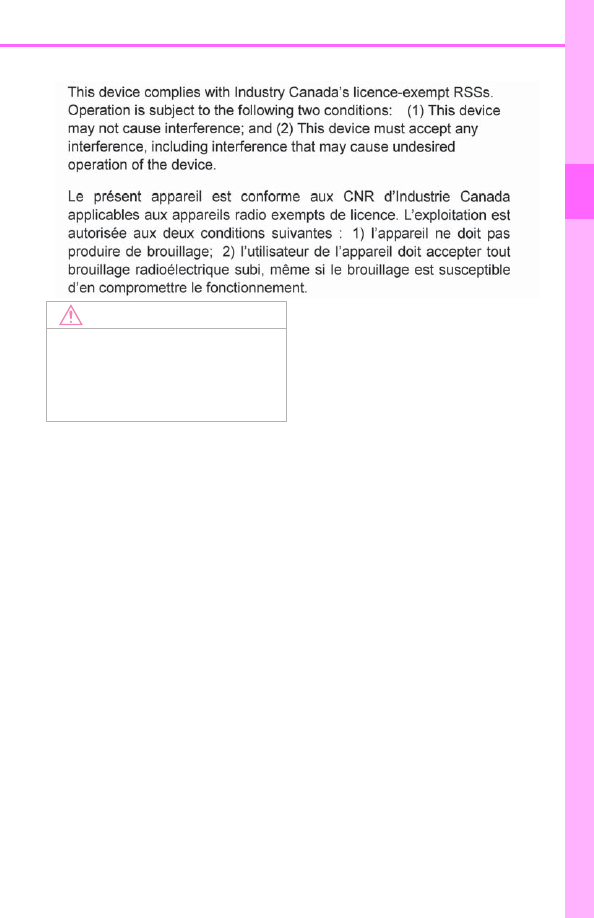

For vehicles sold in Canada

NOTICE

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

56

1-3. Theft deterrent system

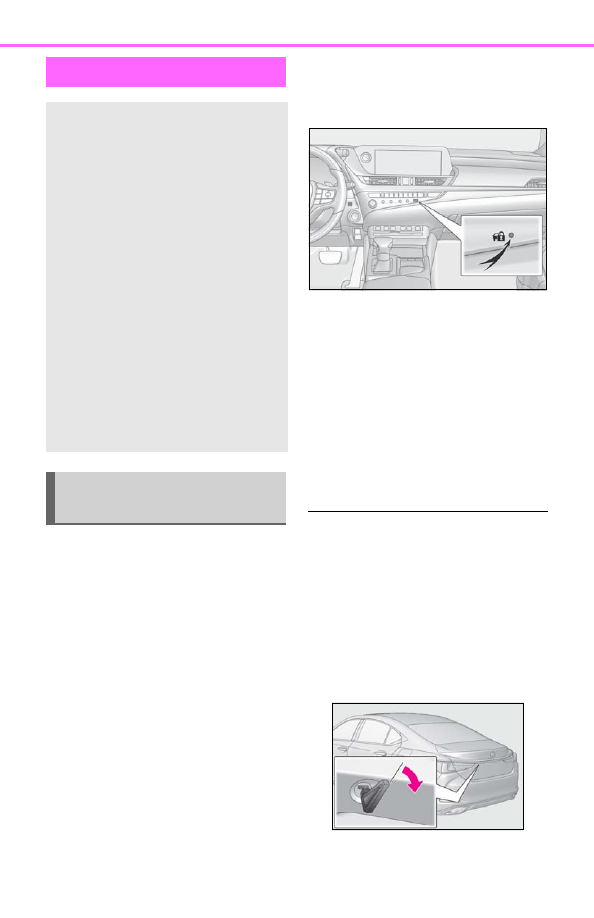

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
 Nobody is in the vehicle.
 The windows and moon roof (if

equipped) or panoramic moon roof
(if equipped) are closed before the
alarm is set.

 No valuables or other personal

items are left in the vehicle.

Setting

Close the doors, trunk and hood, and
lock all the doors. The system will be

set automatically after 30 seconds.

The indicator light changes from being on
to flashing when the system is set.

Canceling or stopping

Do one of the following to deactivate
or stop the alarm:
 Unlock the doors.
 Turn the engine switch to ACCES-

SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)

System maintenance

The vehicle has a maintenance-free type

alarm system.

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

The trunk is unlocked using the mechani-

cal key.

A person inside the vehicle opens a door,

the trunk or hood, or unlocks the vehicle

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:
 A locked door is unlocked or

opened in any way other than
using the entry function, wireless
remote control or mechanical
key. (The doors will lock again
automatically.)

 A locked trunk is unlocked or

opened in any way other than
using the entry function or wire-
less remote control.

 The hood is opened.

Setting/canceling/stopping the
alarm system

57

1-3. Theft deterrent system

1

For safety and security

using a door lock switch.

The battery is recharged or replaced

when the vehicle is locked. (

P.376)

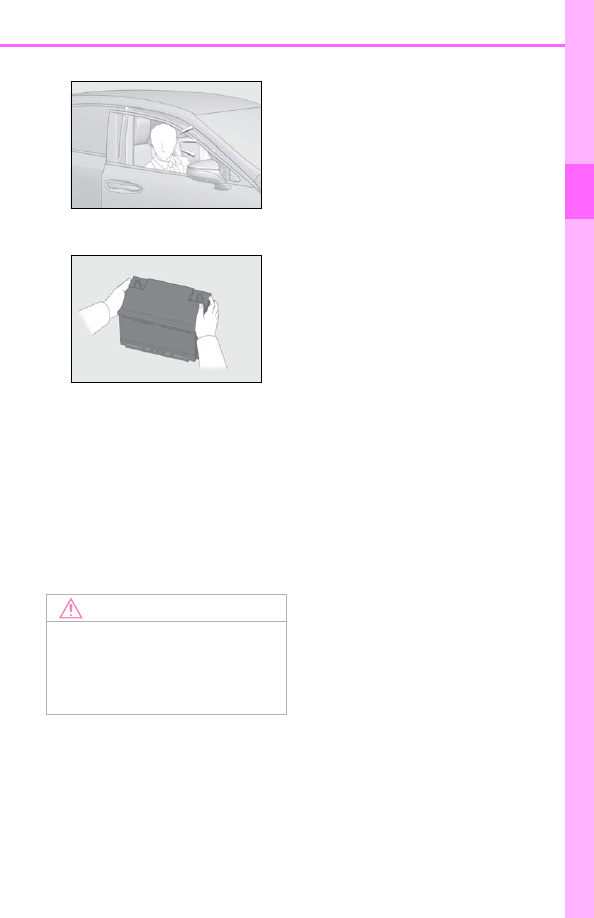

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

When recharging or replacing the bat-

tery

NOTICE

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

58

1-3. Theft deterrent system

59

2

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

Vehicle status information

and indicators

2-1. Instrument cluster

Warning lights and indicators.

60

Gauges and meters (except F

SPORT models) ........................

64

Gauges and meters (F SPORT

models)..........................................

67

Multi-information display............

71

Head-up display ...........................

78

Fuel consumption screen..........

82

60

2-1. Instrument cluster

2-1.Instrument cluster

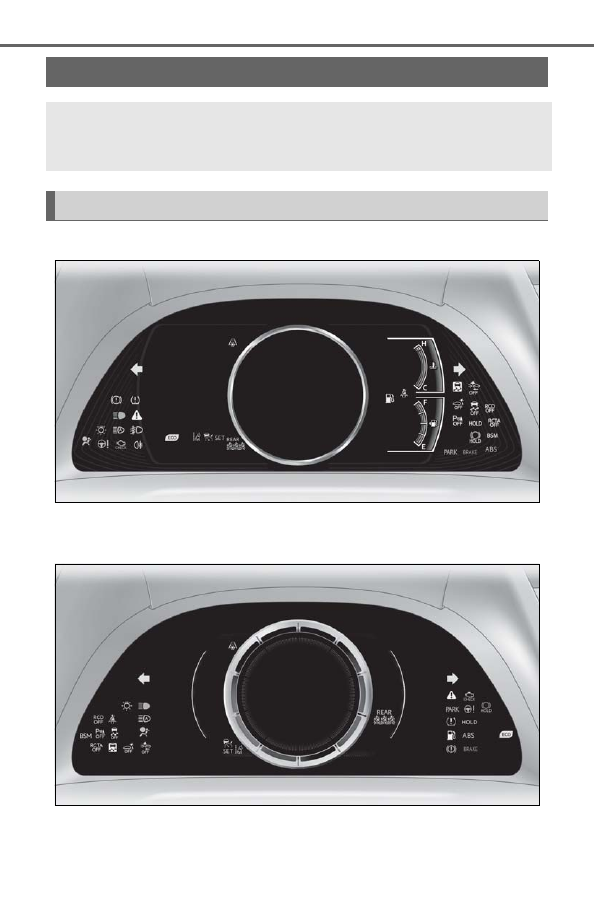

Except F SPORT models

The image may differ from the actual condition.

F SPORT models

The image may differ from the actual condition.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.

Warning lights and indicators displayed on the instrument cluster

61

2-1. Instrument cluster

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.

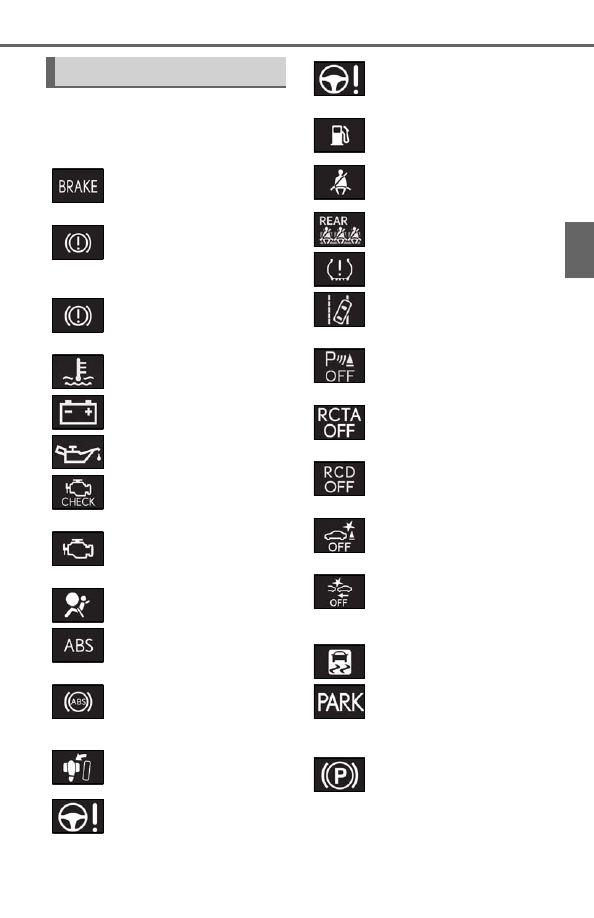

Warning lights

(U.S.A.)

Brake system warning light

*1



(

P.348)

(red)

(Canada)

Brake system warning light

*1



(

P.348)

(yellow)

Brake system warning light

*1



(

P.348)

High coolant temperature
warning light

*2

 (

P.348)

Charging system warning
light

*2

 (

P.349)

Low engine oil pressure warn-
ing light

*2

 (

P.349)

(U.S.A.)

Malfunction indicator lamp

*1



(

P.349)

(Canada)

Malfunction indicator lamp

*1



(

P.349)

SRS warning light

*1

 (

P.349)

(U.S.A.)

ABS warning light

*1

 (

P.350)

(Canada)

ABS warning light

*1

 (

P.350)

Brake Override System warn-
ing light/Drive-Start Control
warning light

*2

 (

P.350)

(red)

Electric power steering system
warning light

*1

 (

P.350)

(yellow)

Electric power steering system
warning light

*1

 (

P.350)

Low fuel level warning light
(

P.351)

Driver’s and front passenger’s
seat belt reminder light
(

P.351)

Rear passengers’ seat belt
reminder lights (

P.351)

Tire pressure warning light

*1



(

P.352)

(orange)

LTA indicator (

P.352)

(flashes)

Intuitive parking assist OFF indi-
cator

*1

 (if equipped) (

P.352)

(flashes)

RCTA OFF indicator

*1

 (if

equipped) (

P.353)

(flashes)

RCD OFF indicator (if
equipped) (

P.353)

(flashes)

PKSB OFF indicator

*1

 (if

equipped) (

P.353)

(flashes or

illuminates)

PCS warning light

*1

 (

P.354)

Slip indicator

*1

 (

P.354)

(flashes)

(U.S.A.)

Parking brake indicator
(

P.354)

(flashes)

(Canada)

Parking brake indicator
(

P.354)

62

2-1. Instrument cluster

*1

: These lights come on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will go off after
the engine is on, or after a few seconds.
There may be a malfunction in a system
if the lights do not come on, or go off.
Have the vehicle inspected by your
Lexus dealer.

*2

: This light illuminates on the multi-infor-

mation display.

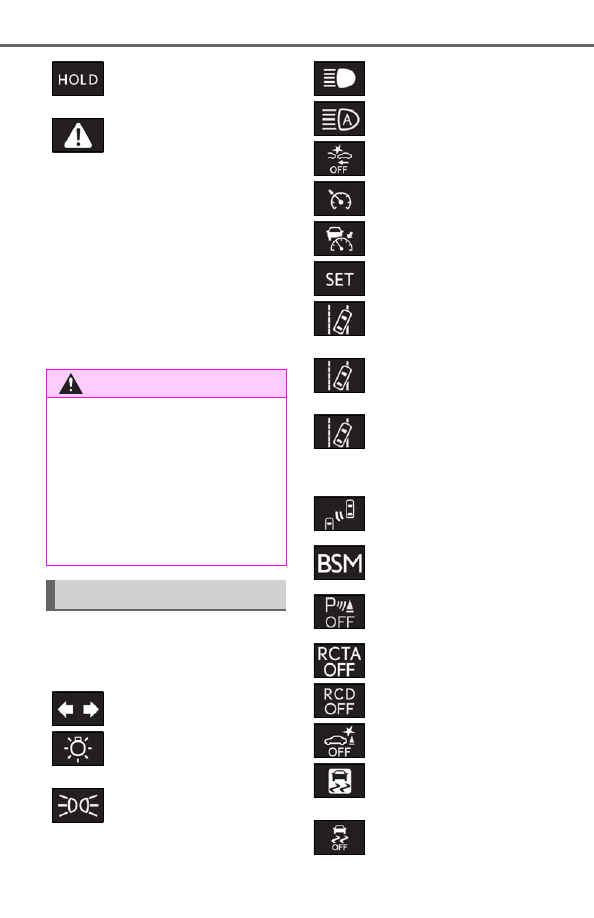

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

(flashes)

Brake hold operated indicator

*1



(

P.355)

Master warning light

*1



(

P.355)

WARNING

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the engine, this could

mean that these systems are not available

to help protect you in an accident, which

could result in death or serious injury.

Have the vehicle inspected by your

Lexus dealer immediately if this occurs.

Indicators

Turn signal indicator (

P.145)

(U.S.A.)

Headlight indicator (

P.150)

(Canada)

Tail light indicator (

P.150)

Headlight high beam indicator
(

P.152)

Automatic High Beam indicator
(

P.153)

PCS warning light

*1, 2

 (

P.171)

Cruise control indicator
(

P.194)

Dynamic radar cruise control
indicator (

P.187)

Cruise control “SET” indicator
(

P.187)

(white)

LTA indicator (

P.181)

(green)

LTA indicator (

P.181)

(orange)

(flashes)

LTA indicator (

P.181)

BSM outside rear view mirror
indicators

*1, 3

 (if equipped)

(

P.197, 211)

BSM indicator (if equipped)
(

P.197)

Intuitive parking assist OFF indi-
cator

*1, 2

(if equipped)

(

P.206)

RCTA OFF indicator

*1, 2

 (if

equipped) (

P.212)

RCD OFF indicator

*2

 (if

equipped) (

P.215)

PKSB OFF indicator

*1, 2

 (if

equipped) (

P.219)

(flashes)

Slip indicator

*1

 (

P.237)

VSC OFF indicator

*1, 2



(

P.237)

63

2-1. Instrument cluster

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

 Drive mode indicators

Except F SPORT models

F SPORT models

*1

: These lights come on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will go off after
the engine is on, or after a few seconds.
There may be a malfunction in a system
if the lights do not come on, or go off.
Have the vehicle inspected by your
Lexus dealer.

*2

: This light comes on when the system is

turned off.

*3

: This light illuminates on the outside rear

view mirrors.

*4

: When the outside temperature is

approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

*5

: This light illuminates on the center

panel.

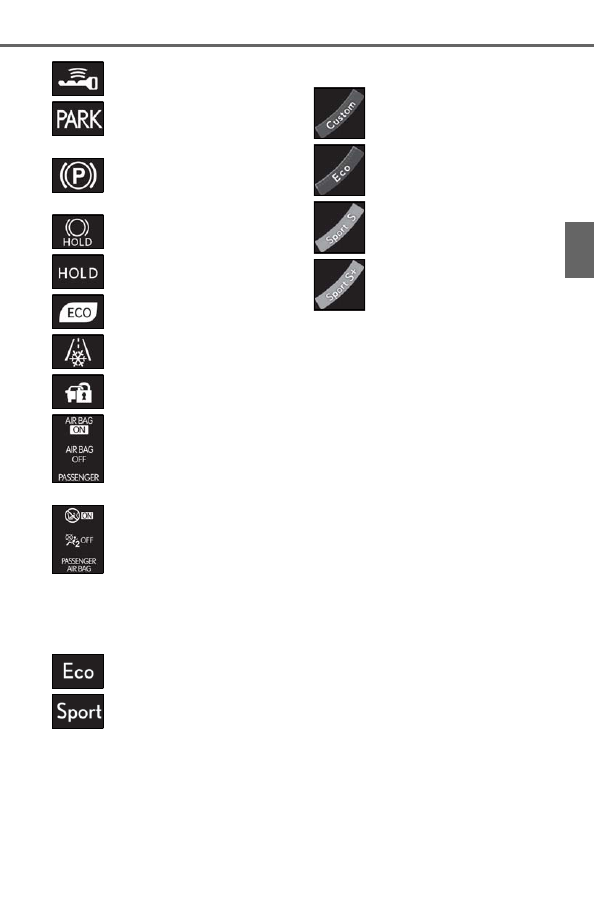

Smart access system with push-
button start indicator (

P.137)

(U.S.A.)

Parking brake indicator
(

P.146)

(Canada)

Parking brake indicator
(

P.146)

Brake hold standby indicator

*1



(

P.148)

Brake hold operated indicator

*1



(

P.148)

Eco Driving Indicator Light

*1



(

P.74)

Low outside temperature indi-
cator

*4

 (

P.64, 67)

Security indicator

*5

 (

P.54,

56)

(U.S.A.)

“AIR BAG ON/OFF” indica-
tor

*1, 5

 (

P.37)

(Canada)

“AIR BAG ON/OFF” indica-
tor

*1, 5

 (

P.37)

Eco drive mode indicator
(

P.202)

Sport mode indicator
(

P.202)

Custom mode indicator
(

P.202)

Eco drive mode indicator
(

P.202)

Sport S mode indicator
(

P.202)

Sport S+ mode indicator
(

P.202)

64

2-1. Instrument cluster

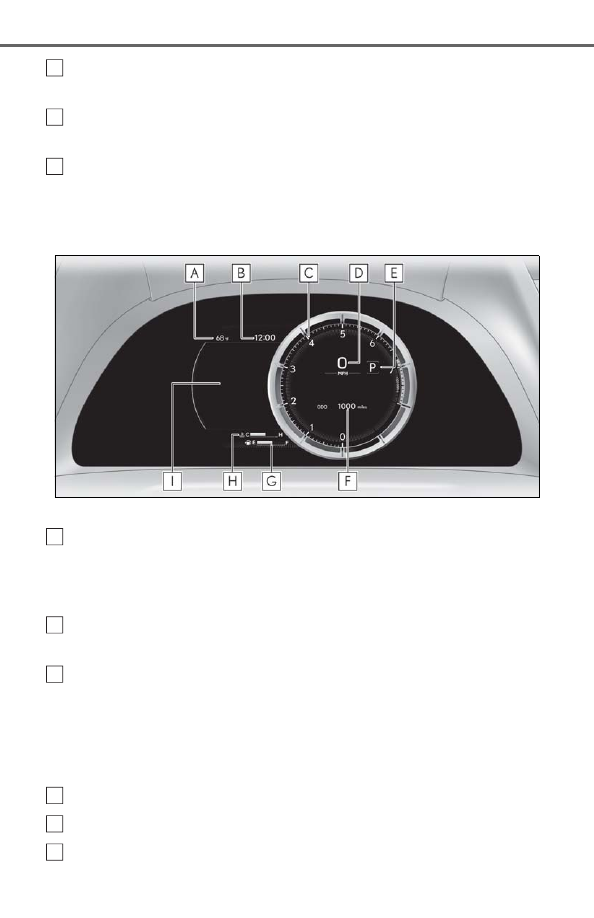

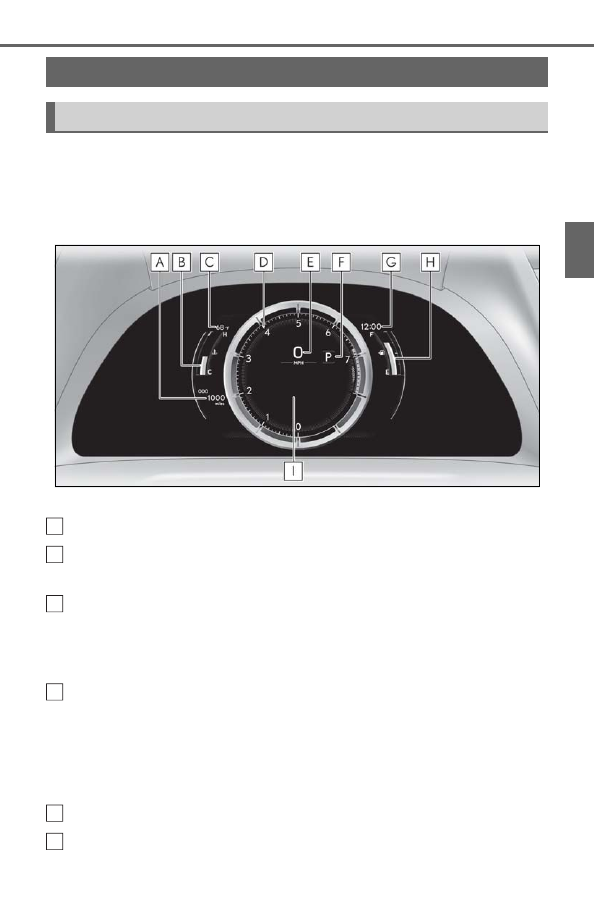

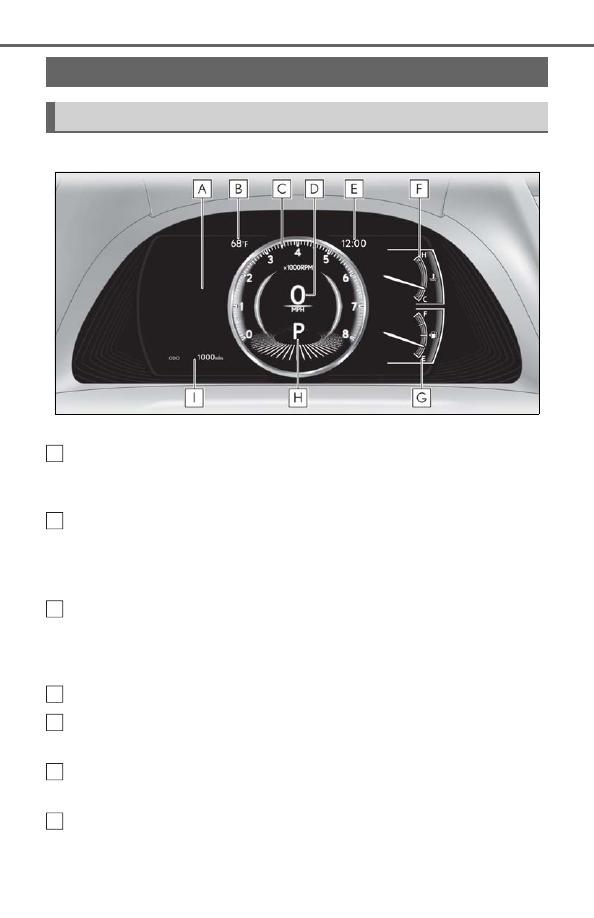

Locations of gauges and meters

The units of measure may differ depending on the intended destination of the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (

P.71)

Displays warning messages if a malfunction occurs (

P.358)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F (3°C)
or lower

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Speedometer

Clock

Time displayed is linked to the analog clock on the center panel. (

P.269)

Engine coolant temperature gauge

Displays the engine coolant temperature

Fuel gauge

Displays the quantity of fuel remaining in the tank

Gauges and meters (except F SPORT models)

Meter display

A

B

C

D

E

F

G

65

2-1. Instrument cluster

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

Shift position and shift range (

P.141)

Odometer and trip meter display (

P.65)

Outside temperature display

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

Liquid crystal display

P.72

Customization

The gauges and meters can be customized
on

 of the multi-information display.

(

P.76)

Display items

 Odometer

Displays the total distance the vehicle has
been driven.

 Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.

 Distance until next engine oil

change

Displays the distance the vehicle can be
driven until an oil change is necessary.

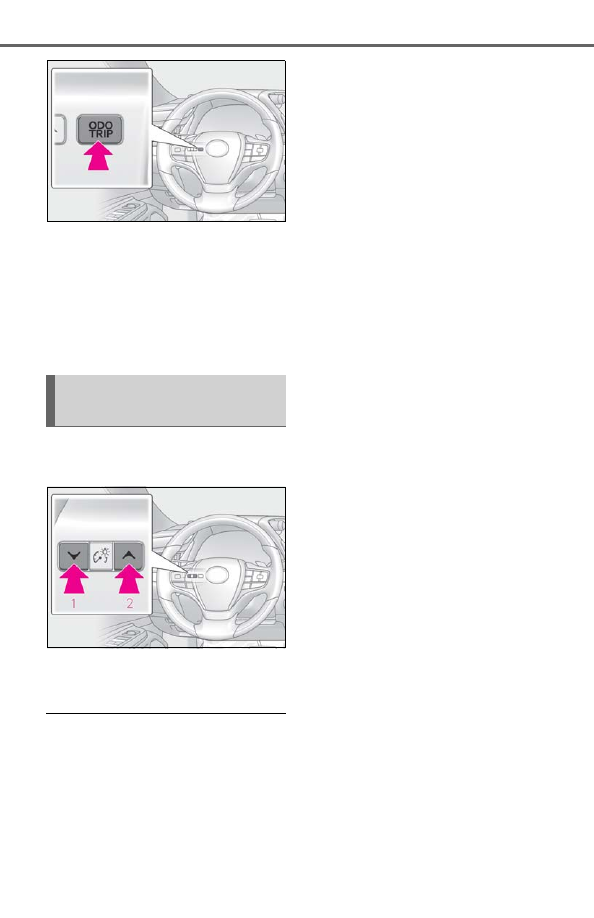

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

H

I

WARNING

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

To prevent damage to the engine and

its components

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (

P.377)

Odometer and trip meter dis-
play

66

2-1. Instrument cluster

Pop-up display

Distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

The brightness of the instrument panel
lights can be adjusted.

1

Darker

2

Brighter

Brightness of the meter lights (day mode

and night mode)

The brightness of the meter lights can be

adjusted individually.
In the following situations, the meters

changes between day mode and night

mode.

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

Night mode: When the tail lights are on

and the surrounding area is dark

Changing the instrument panel
light brightness

67

2-1. Instrument cluster

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

Locations of gauges and meters

When the main meter is moved to the right, some of the meter displays and the
gauge layout will change. (

P.71)

Main meter in center position

The units of measure may differ depending on the intended destination of the vehicle.

Odometer and trip meter display (

P.70)

Engine coolant temperature gauge

Displays the engine coolant temperature

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F (3°C)
or lower

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.
• Rev indicator (

P.69)

• Rev  peak  (

P.69)

Speedometer

Shift position/shift range/gear position (

P.141)

Gauges and meters (F SPORT models)

Meter display

A
B

C

D

E
F

68

2-1. Instrument cluster

Clock

Time displayed is linked to the analog clock on the center panel. (

P.269)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Multi-information display

Presents the driver with a variety of vehicle data (

P.71)

Displays warning messages if a malfunction occurs (

P.358)

Main meter moved to the right

The units of measure may differ depending on the intended destination of the vehicle.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Low outside temperature indicator comes on when the ambient temperature is 37°F (3°C)
or lower

Clock

Time displayed is linked to the analog clock on the center panel. (

P.269)

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.
• Rev indicator (

P.69)

• Rev  peak  (

P.69)

Speedometer

Shift position and shift range (

P.141)

Odometer and trip meter display (

P.70)

G

H

I

A

B

C

D

E
F

69

2-1. Instrument cluster

2

Veh
icl

e status

inf

ormatio

n and indica

to

rs

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Multi-information display

Presents the driver with a variety of vehicle data (

P.71)

Displays warning messages if a malfunction occurs (

P.358)

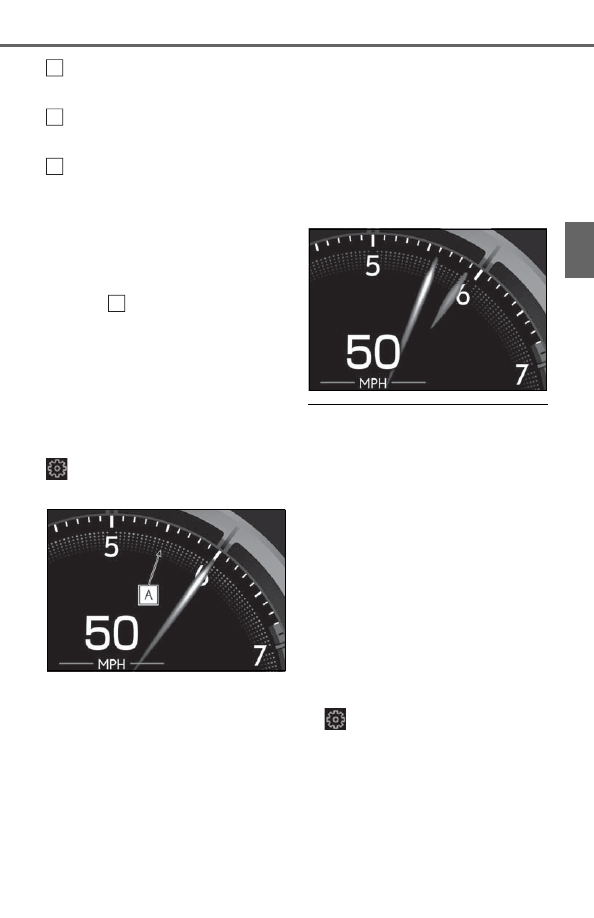

Rev indicator

When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator (

) will be displayed on the

tachometer.

The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on

 of the multi-information display.

(

P.76)

Rev peak

When the engine speed reaches or
exceeds 5000 rpm, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

Outside temperature display

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

Liquid crystal display

P.72

Customization

The gauges and meters can be customized
on

 of the multi-information display.

(

P.76)

G

H

I

A















Content   ..  2  3  4  5   ..
