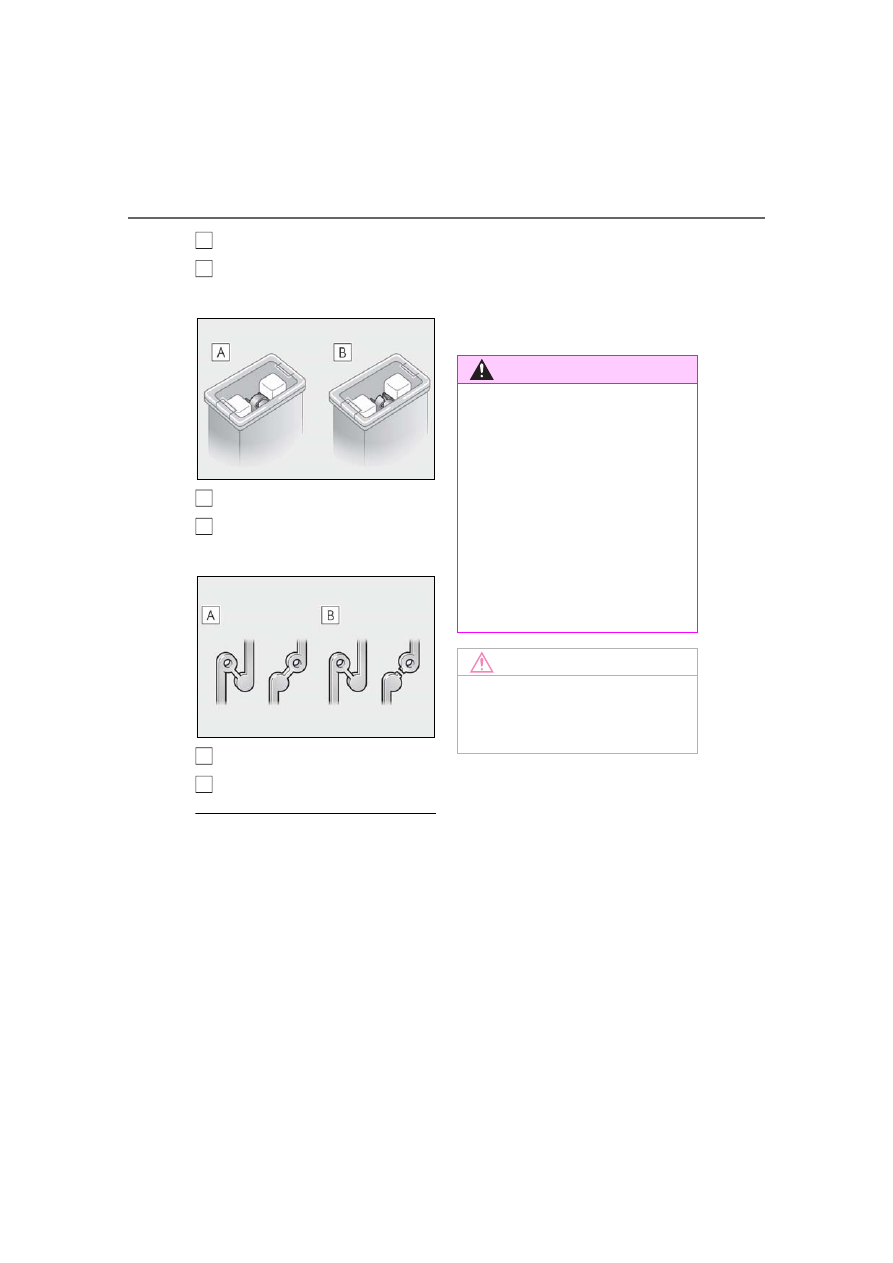

Normal fuse

Blown fuse



Type B

Normal fuse

Blown fuse



Type C

Normal fuse

Blown fuse

■

After a fuse is replaced

●

When installing the lid, make sure that the

tab is installed securely.

●

If the lights do not turn on even after the

fuse has been replaced, a bulb may need

replacement. (

P.344)

●

If the replaced fuse blows again, have the

vehicle inspected by your Lexus dealer.

■

If there is an overload in a circuit

The fuses are designed to blow, protecting

the wiring harness from damage.

■

When replacing light bulbs

Lexus recommends that you use genuine

Lexus products designed for this vehicle.

Because certain bulbs are connected to cir-

cuits designed to prevent overload, non-

genuine parts or parts not designed for this

vehicle may be unusable.

A
B

WARNING

■

To prevent system breakdowns and

vehicle fire

Observe the following precautions.

Failure to do so may cause damage to

the vehicle, and possibly a fire or injury.

●

Never use a fuse of a higher amperage

rating than that indicated, or use any

other object in place of a fuse.

●

Always use a genuine Lexus fuse or

equivalent.

Never replace a fuse with a wire, even

as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical overload

determined and repaired by your Lexus

dealer as soon as possible.

343

6-3. Do-it-yourself maintenance

Mai
nte

e a

are



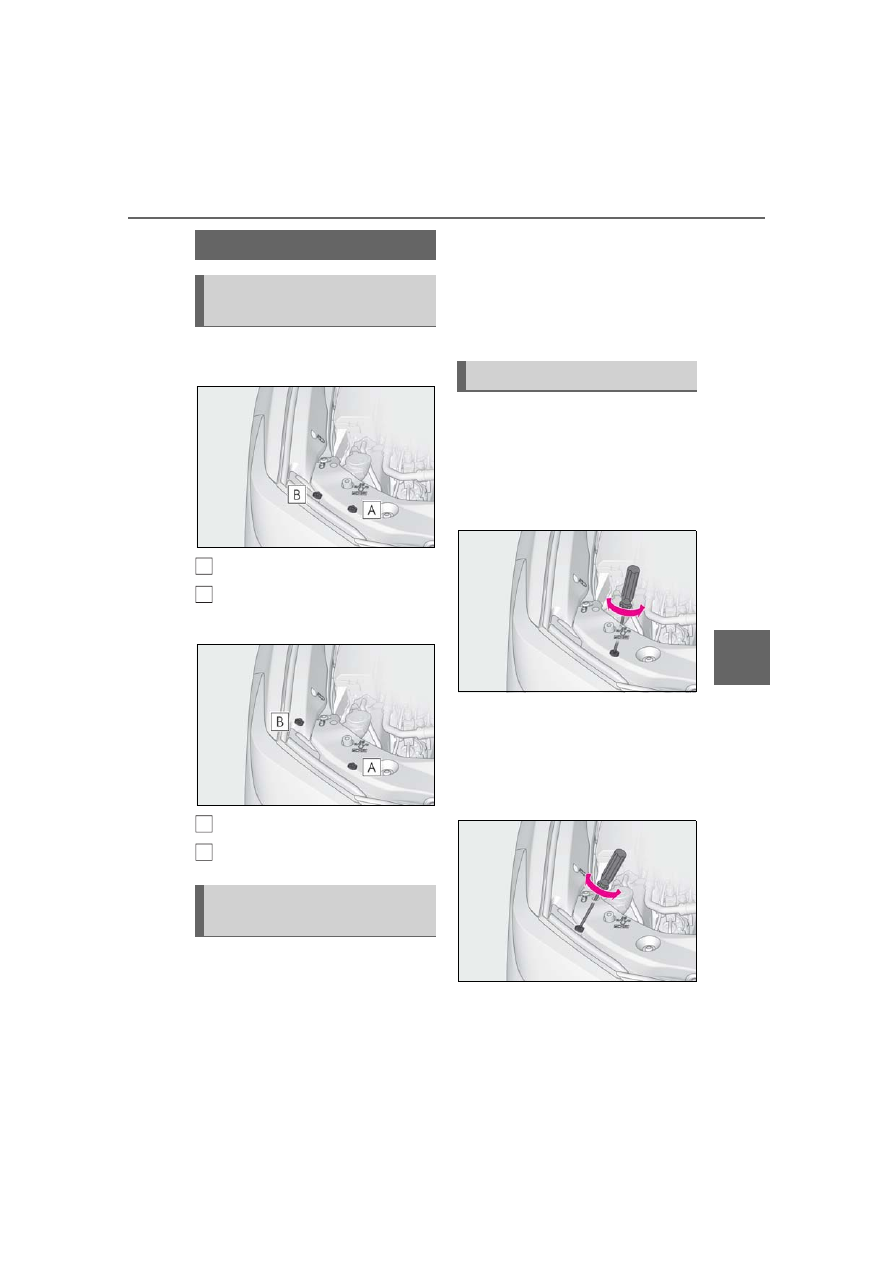

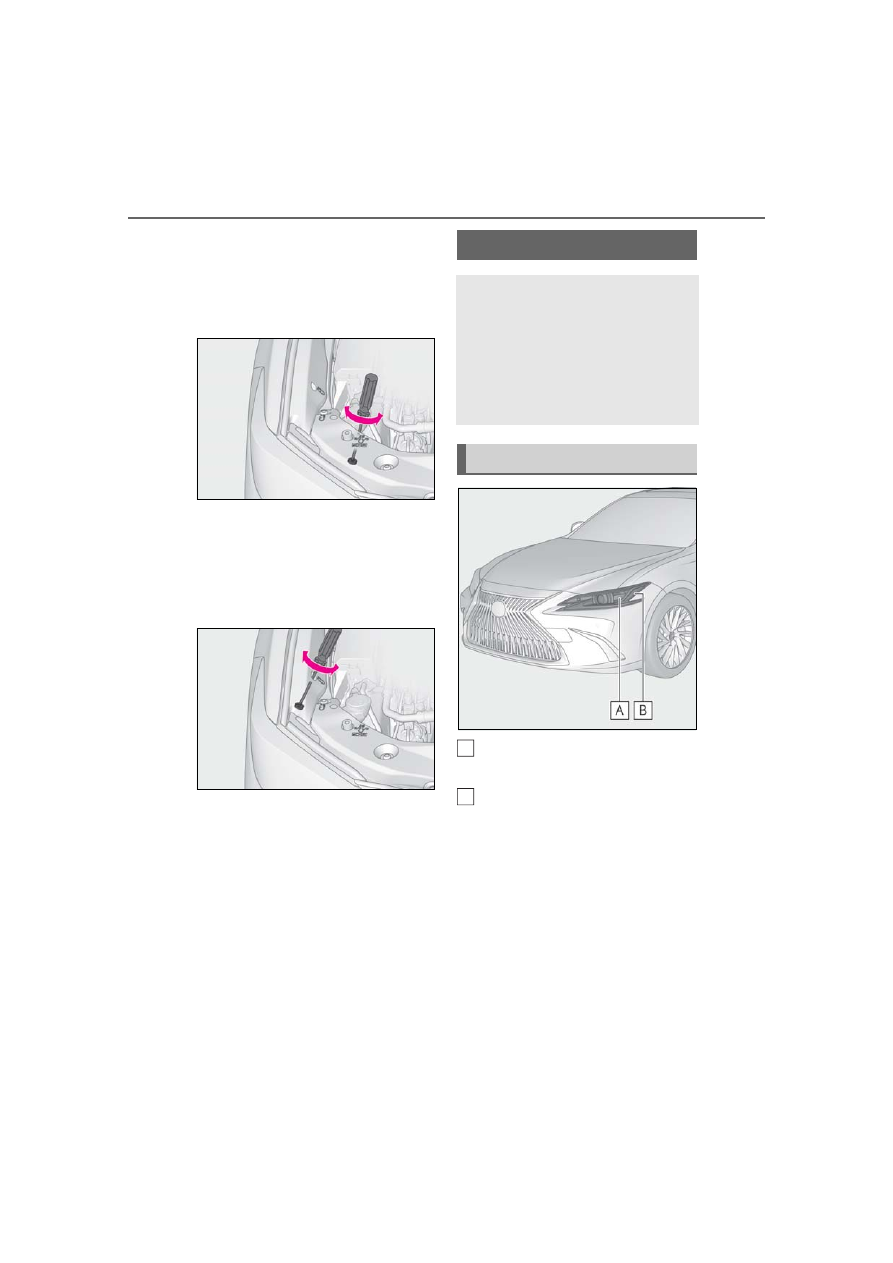

Vehicles with single-beam head-
lights

Adjustment bolt A

Adjustment bolt B



Vehicles with triple-beam headlights

Adjustment bolt A

Adjustment bolt B

 Make sure the vehicle has a full tank

of gasoline and the area around the
headlight is not deformed.

 Park the vehicle on level ground.

 Make sure the tire inflation pressure

is at the specified level.

 Have someone sit in the driver’s

seat.

 Bounce the vehicle several times.



Vehicles with single-beam head-
lights

Using a Phillips-head screwdriver,
turn bolt A in either direction.

Remember the turning direction and the

number of turns.

Turn bolt B the same number of
turns and in the same direction as
step

If the headlight cannot be adjusted using

this procedure, take the vehicle to your

Lexus dealer to adjust the headlight aim.

Headlight aim

Vertical movement adjusting
bolts

Before checking the headlight
aim

A
B

Adjusting the headlight aim

344

6-3. Do-it-yourself maintenance



Vehicles with triple-beam headlights

Using a Phillips-head screwdriver,
turn bolt A in either direction.

Remember the turning direction and the

number of turns.

Turn bolt B the same number of
turns and in the same direction as
step

If the headlight cannot be adjusted using

this procedure, take the vehicle to your

Lexus dealer to adjust the headlight aim.

Front turn signal lights (vehicles
with single-beam headlights)

Front side marker lights (vehicles
with single-beam headlights)

■

Bulbs that need to be replaced by
your Lexus dealer

 Headlights
 Front position lights and daytime

running lights

 Front turn signal lights (vehicles with

triple-beam headlights)

 Front side marker lights (vehicles

with triple-beam headlights)

Light bulbs

You may replace the following bulb
by yourself. Before replacing,
check the wattage of the light bulb
to be replaced. As there is a danger
that components may be damaged,
we recommend that replacement is
carried out by your Lexus dealer.

Bulb location

345

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

 Cornering lights
 Side turn signal lights
 Outer foot lights
 Tail lights
 Stop lights
 Rear turn signal lights
 Rear side marker lights
 Back-up lights
 High mounted stoplight
 License plate lights

■

LED lights

The lights other than the front turn signal

lights (vehicles with single-beam head-

lights) and front side marker lights (vehicles

with single-beam headlights) each consist

of a number of LEDs. If any of the LEDs

burn out, take your vehicle to your Lexus

dealer to have the light replaced.

■

Condensation build-up on the inside of

the lens

Temporary condensation build-up on the

inside of the headlight lens does not indi-

cate a malfunction. Contact your Lexus

dealer for more information in the following

situations:

●

Large drops of water have built up on the

inside of the lens.

●

Water has built up inside the headlight.

■

When replacing light bulbs

P.342

■

Front turn signal lights (vehicles
with single-beam headlights)/front
side marker lights (vehicles with
single-beam headlights)

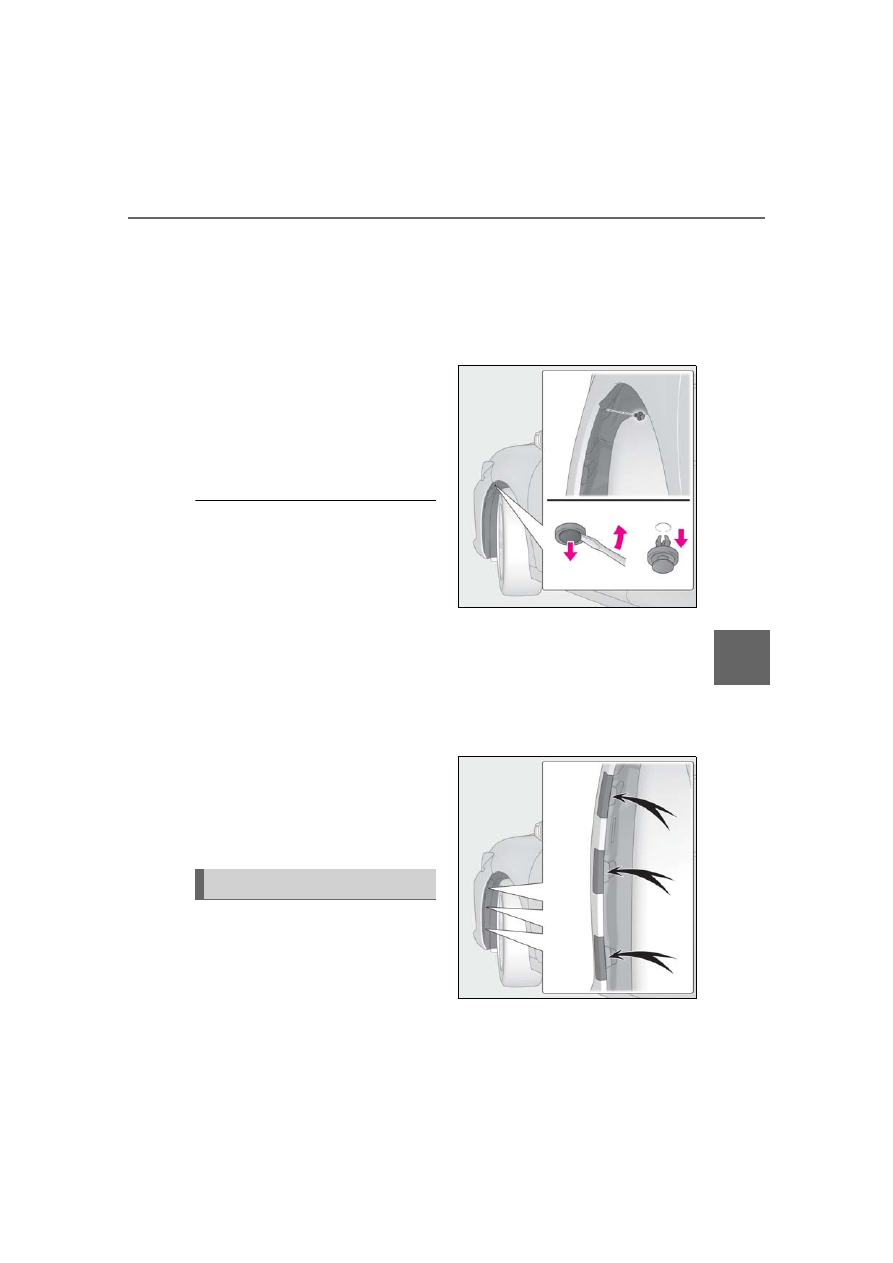

To ensure enough space to per-
form work, turn the steering wheel

to rotate the front wheel away from
the bulb to be replaced. Remove
the fender liner clip.

Turn the steering wheel to the left when

replacing the right side light bulb, and turn

the steering wheel to the right when

replacing the left side light bulb.

To protect the front bumper from
being damaged, apply protective
tape around the clips as shown in
the illustration.

Use masking tape, etc. Do not use duct

tape, as it may leave residue or damage the

paint when removed.

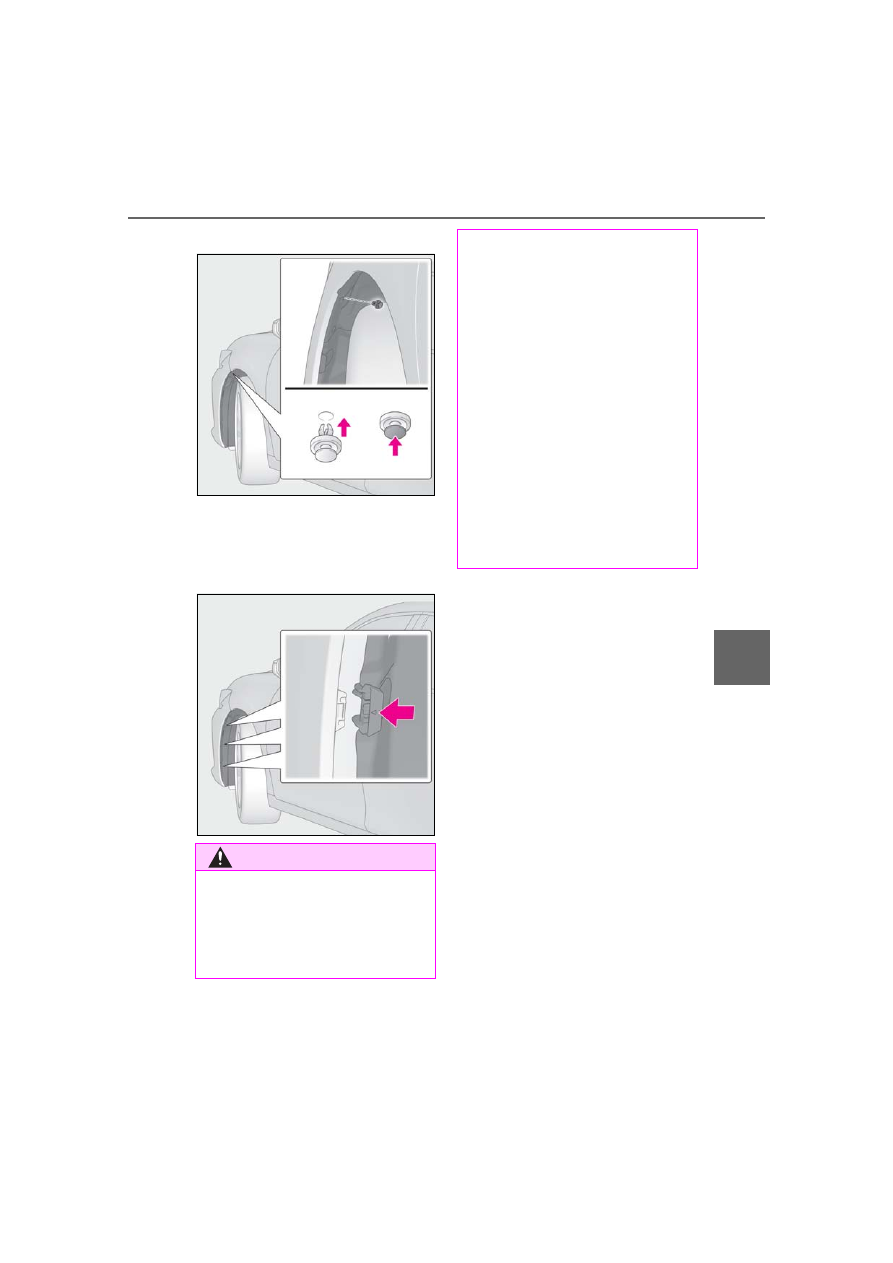

Insert a flathead screwdriver
between the front bumper and

Replacing light bulb

346

6-3. Do-it-yourself maintenance

fender liner and then separate the
front bumper from the fender liner.

To separate the front bumper from the

fender liner, pry up the fender liner while

pulling the front bumper outward as shown

in the illustration.

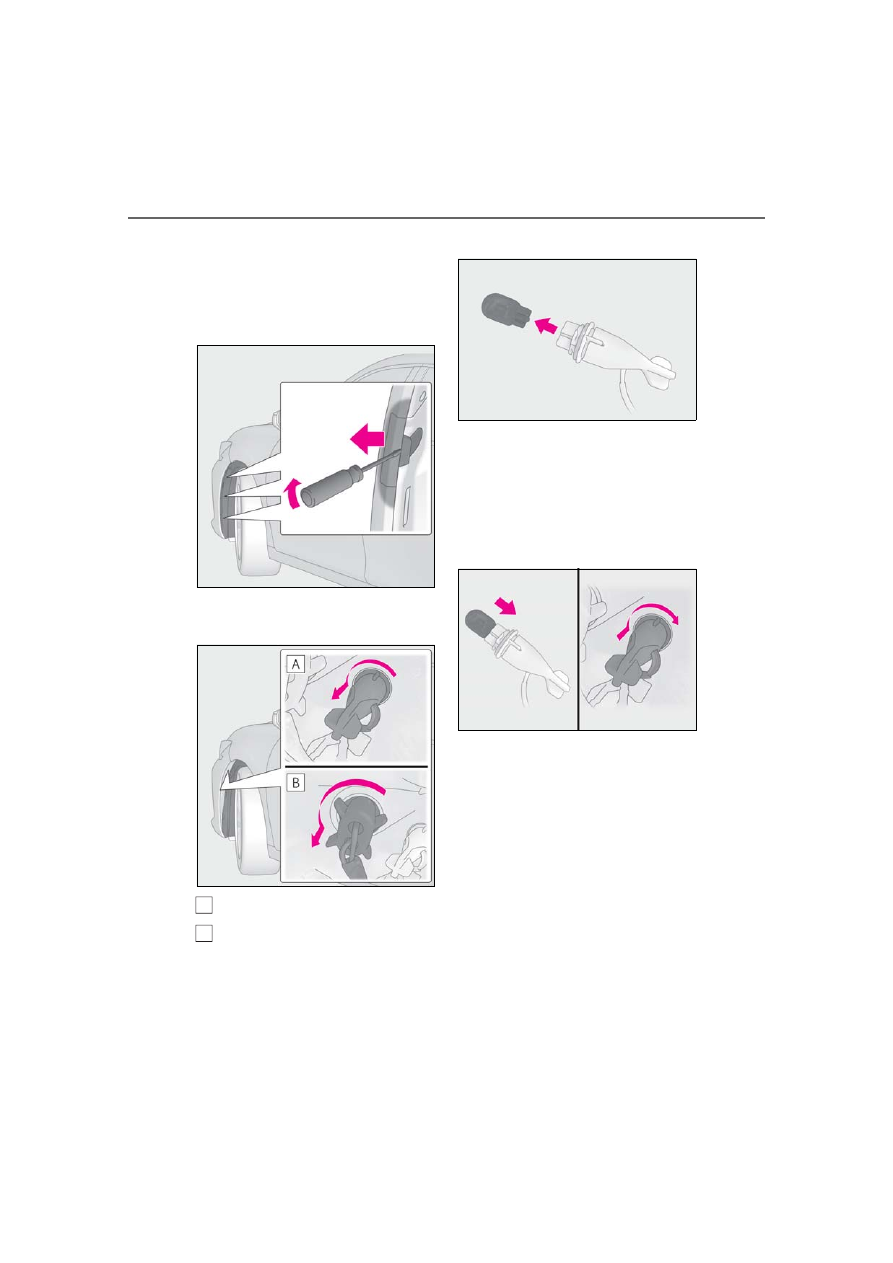

Pull back the fender liner and turn
the bulb base counterclockwise.

Front turn signal lights

Front side marker lights

Remove the light bulb.

Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.

After installing the light bulb, turn on the

front turn signal light to visually check that

there is no light leaking from the bulb base.

Return the fender liner to its origi-
nal position, and install the clip.

Make sure that the fender liner is correctly

positioned on the inner side of the front

A
B

347

6-3. Do-it-yourself maintenance

Mai
nte

e a

are

bumper.

Engage the clips to the front
bumper to install the fender liner,
and then remove the protective
tape.

WARNING

■

Replacing light bulb

●

Turn off the light. Do not attempt to

replace the bulb immediately after

turning off the light.

The bulb become very hot and may

cause burns.

●

Do not touch the glass portion of the

light bulb with bare hands. When it is

unavoidable to hold the glass portion,

use and hold with a clean dry cloth to

avoid getting moisture and oils on the

bulb.

Also, if the bulb is scratched or

dropped, it may blow out or crack.

●

Fully install light bulb and any parts

used to secure it. Failure to do so may

result in heat damage, fire, or water

entering the light unit. This may dam-

age the light or cause condensation to

build up on the lens.

■

To prevent damage or fire

●

Make sure bulb is fully seated and

locked.

●

Check the wattage of the bulb before

installing to prevent heat damage.

348

6-3. Do-it-yourself maintenance

349

When trouble

ari

ses

When trouble arises

7-1. Essential information

Emergency flashers..................

350

If your vehicle has to be stopped in

an emergency..........................

350

If the vehicle is trapped in rising

water.............................................

351

7-2. Steps to take in an emergency

If your vehicle needs to be towed.

353

If you think something is wrong.....

356

If a warning light turns on or a

warning buzzer sounds .......

358

If a warning message is displayed

368

If you have a flat tire..................

372

If the hybrid system will not start...

379

If you lose your keys.................

380

If the fuel filler door cannot be

opened.........................................

381

If the electronic key does not

operate properly .....................

381

If the 12-volt battery is discharged

384

If your vehicle overheats ........

388

If the vehicle becomes stuck .

391

350

7-1. Essential information

7-1.Essential information

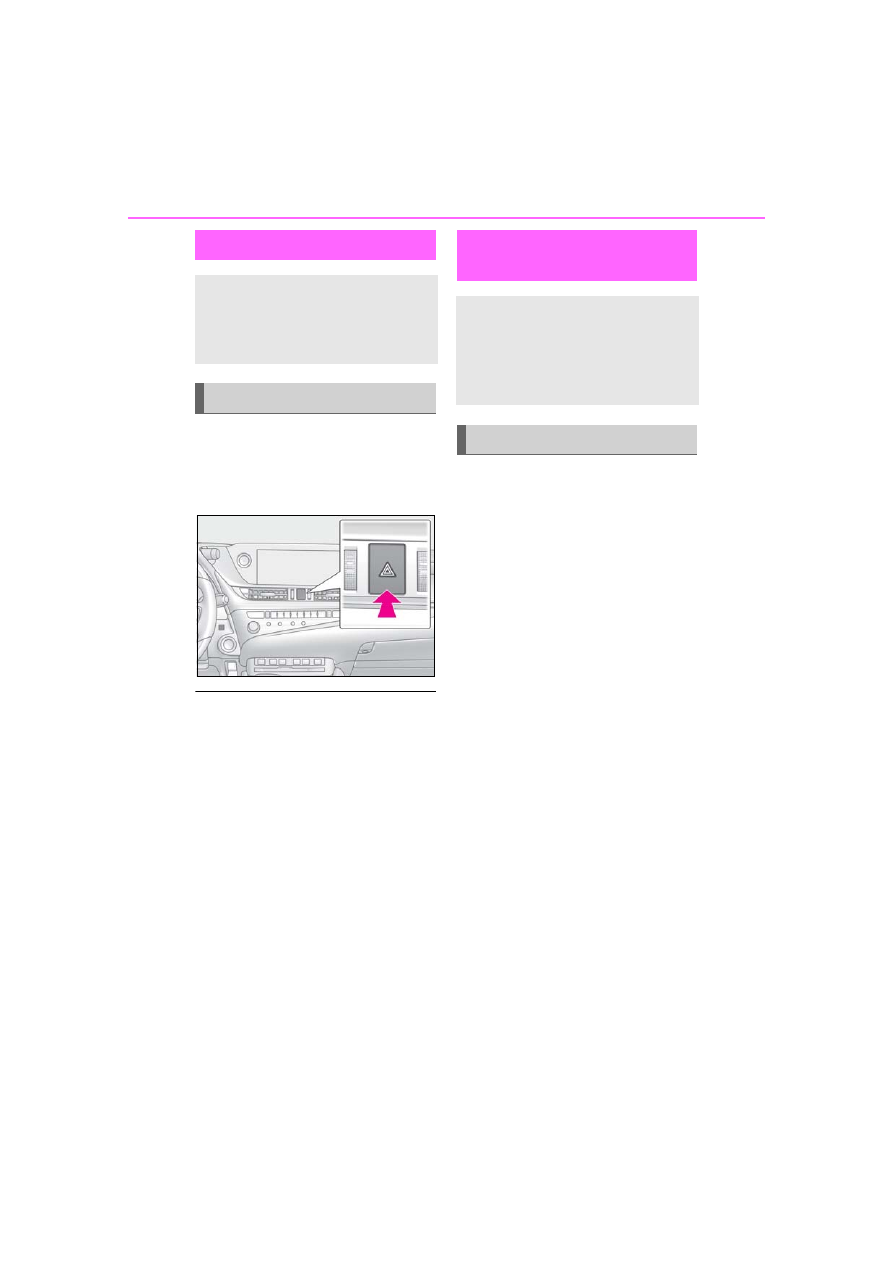

Press the switch to flash all of the turn
signal lights.

To turn them off, press the switch once
again.

■

Emergency flashers

●

If the emergency flashers are used for a

long time while the hybrid system is not

operating (while the “READY” indicator

is not illuminated), the 12-volt battery may

discharge.

●

If any of the SRS airbags deploy (inflate)

or in the event of a strong rear impact, the

emergency flashers will turn on automati-

cally.

The emergency flashers will turn off auto-

matically after operating for approxi-

mately 20 minutes. To manually turn the

emergency flashers off, press the switch

twice.

(The emergency flashers may not turn on

automatically depending on the force of

the impact and conditions of the colli-

sion.)

Steadily step on the brake pedal
with both feet and firmly depress it.

Do not pump the brake pedal repeatedly

as this will increase the effort required to

slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N

After slowing down, stop the vehi-
cle in a safe place by the road.

Stop the hybrid system.



If the shift lever cannot be shifted to
N

Keep depressing the brake pedal
with both feet to reduce vehicle
speed as much as possible.

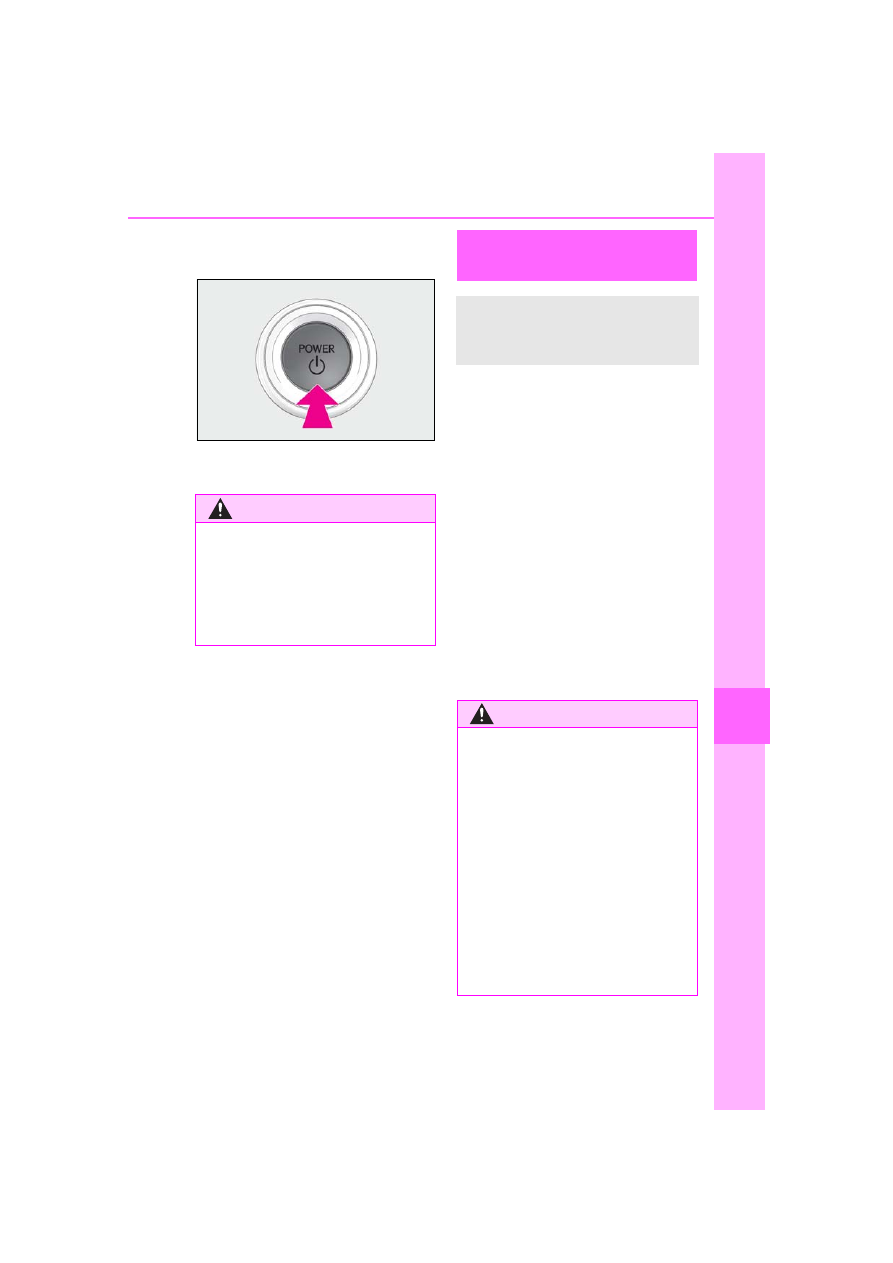

To stop the hybrid system, press
and hold the power switch for 2
consecutive seconds or more, or

Emergency flashers

The emergency flashers are used to
warn other drivers when the vehicle
has to be stopped in the road due to
a breakdown, etc.

Operating instructions

If your vehicle has to be
stopped in an emergency

Only in an emergency, such as if it
becomes impossible to stop the
vehicle in the normal way, stop the
vehicle using the following proce-
dure:

Stopping the vehicle

351

7-1. Essential information

When trouble

ari

ses

press it briefly 3 times or more in
succession.

Stop the vehicle in a safe place by
the road.

 Remove the seat belt first.
 If the door can be opened, open the

door and exit the vehicle.

 If the door can not be opened, open

the window using the power window
switch and exit the vehicle through
the window.

 If the window can not be opened

using the power window switch,
remain calm, wait until the water
level inside the vehicle rises to the
point that the water pressure inside
of the vehicle equals the water pres-
sure outside of the vehicle, and then
open the door and exit the vehicle.

WARNING

■

If the hybrid system has to be turned

off while driving

Power assist for the steering wheel will

be lost, making the steering wheel

heavier to turn. Decelerate as much as

possible before turning off the hybrid sys-

tem.

If the vehicle is trapped in
rising water

In the event the vehicle is sub-
merged in water, remain calm and
perform the following.

WARNING

■

Using an emergency hammer

for

emergency escape

The rear side windows and rear window

of this vehicle can be shattered by an
emergency hammer

used for emer-

gency escape, however, since the wind-
shield and front side windows

are

laminated glass they can not be shattered
by an emergency hammer

: Contact your Lexus dealer or after-

market accessory manufacturer for
further information about an emer-
gency hammer.

: Vehicles with laminated glass

352

7-1. Essential information

■

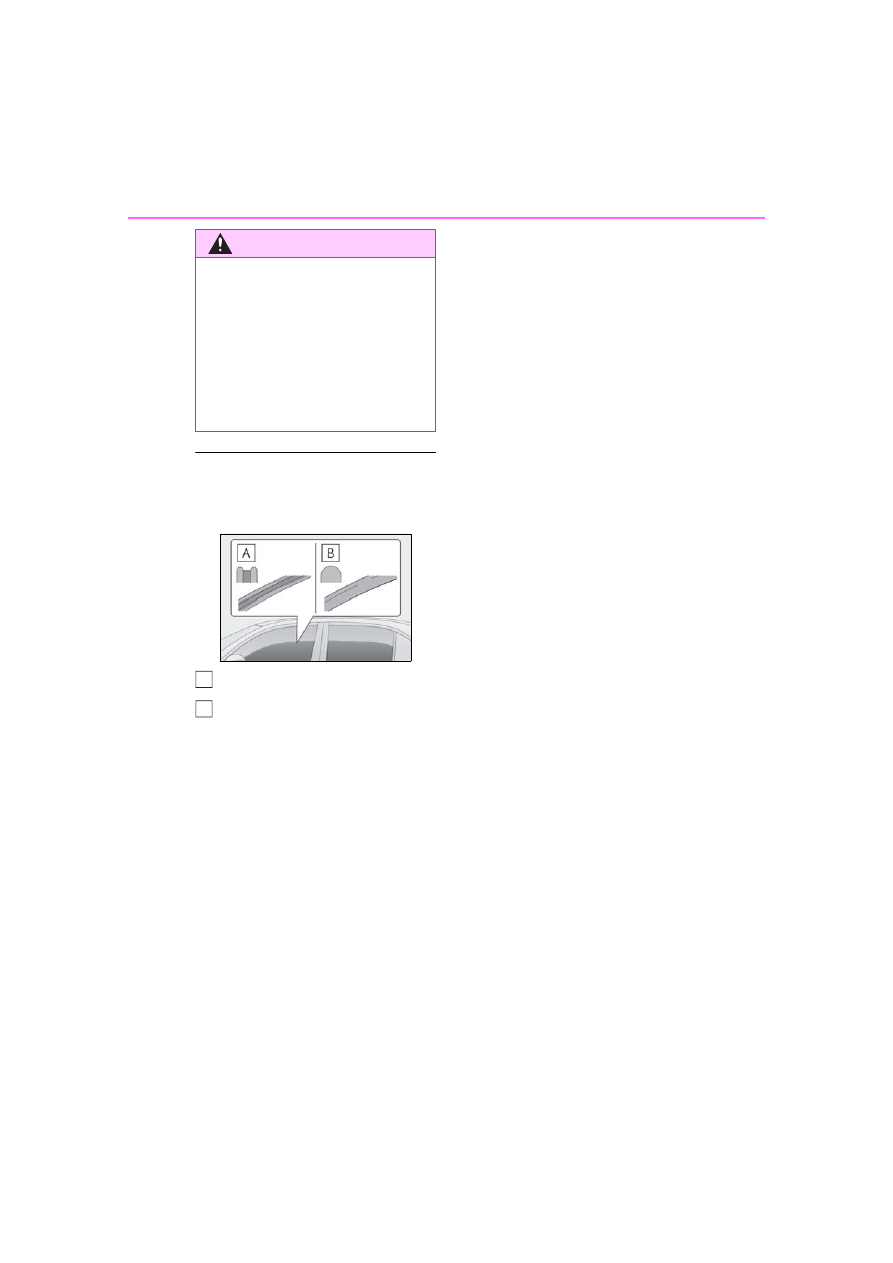

How to distinguish laminated glass

When looking from the cross-sectional

view point, laminated glass is two sheets of

glass pasted together.

Laminated glass

Tempered glass

WARNING

■

Escaping the vehicle from the window

There are cases where escaping the

vehicle from the window is not possible

due to seating position, passenger body

type, etc.
When using an emergency hammer,

consider your seat location and the size

of the window opening to ensure that the

opening is accessible and large enough

to escape.

353

7-2. Steps to take in an emergency

When trouble

ari

ses

7-2.Steps to take in an emergency

The following may indicate a problem
with your hybrid transmission. Contact
your Lexus dealer or commercial tow-
ing service before towing.

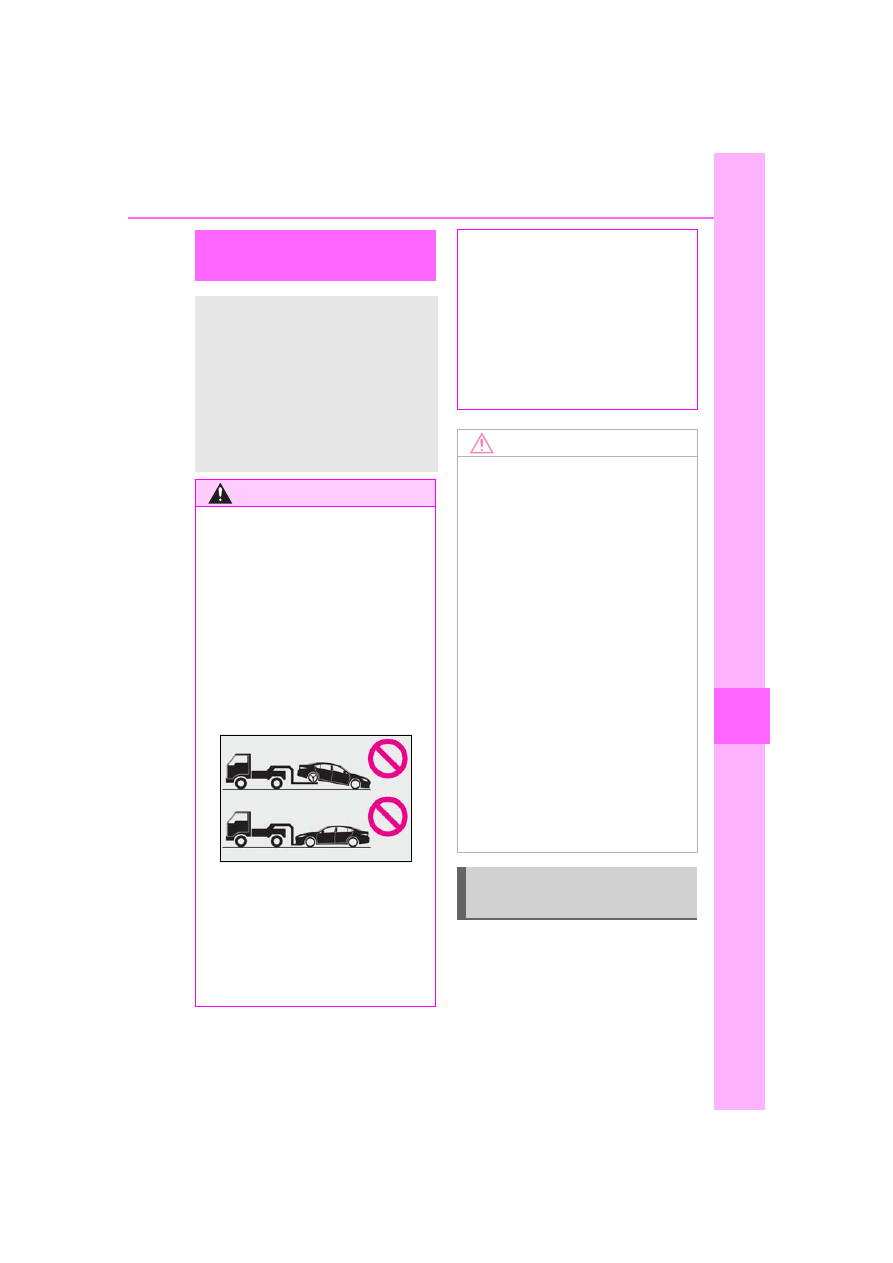

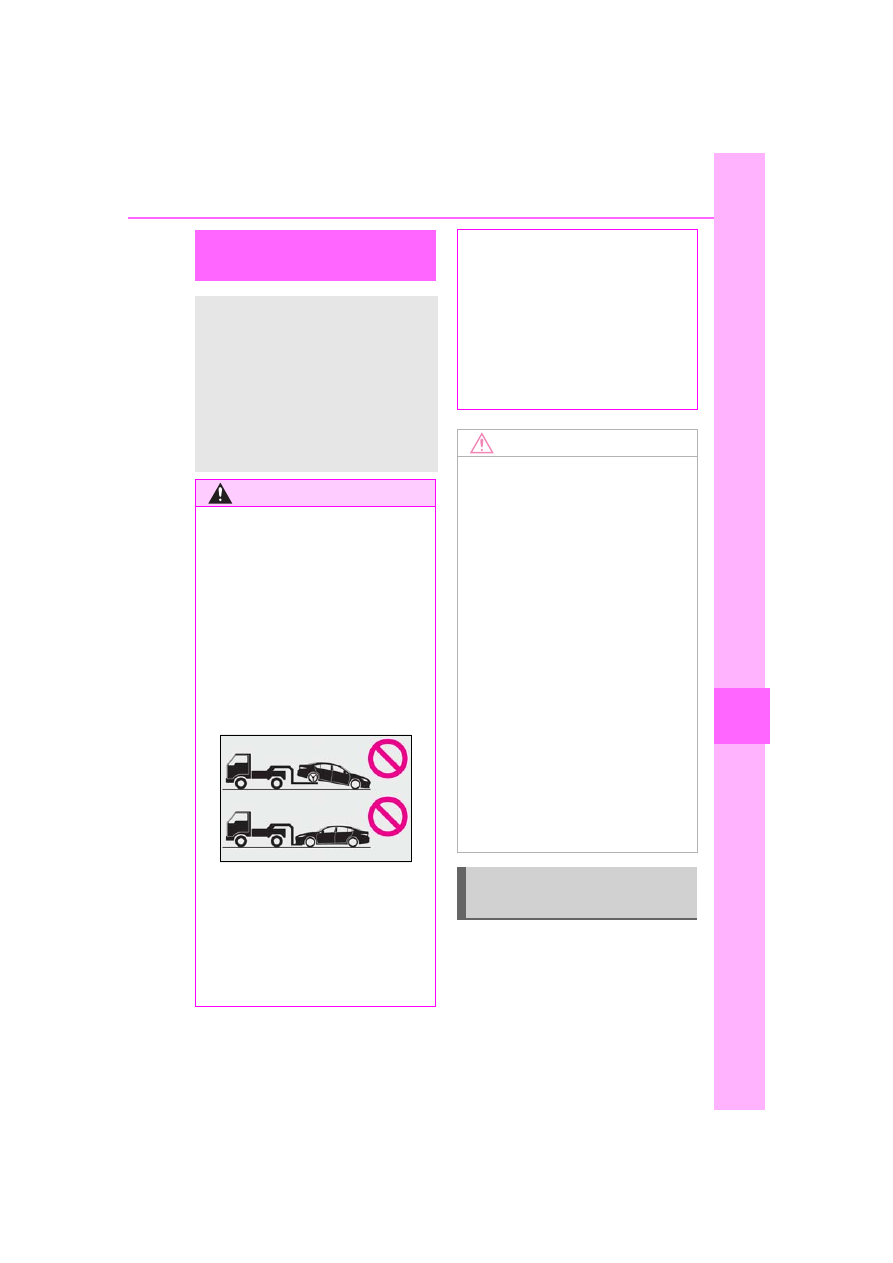

 The hybrid system warning message

If your vehicle needs to be
towed

If towing is necessary, we recom-
mend having your vehicle towed by
your Lexus dealer or commercial
towing service, using a wheel-lift
type truck or flatbed truck.
Use a safety chain system for all
towing, and abide by all state/pro-
vincial and local laws.

WARNING

Observe the following precautions.

Failure to do so may result in death or

serious injury.

■

When towing the vehicle

Be sure to transport the vehicle with the

front wheels raised or with all four wheels

raised off the ground. If the vehicle is

towed with the front wheels contacting

the ground, the drivetrain and related

parts may be damaged or electricity

generated by the operation of the motor

may cause a fire to occur depending on

the nature of the damage or malfunction.

■

While towing

●

When towing using cables or chains,

avoid sudden starts, etc. which place

excessive stress on the towing eyelets,

cables or chains. The towing eyelets,

cables or chains may become dam-

aged, broken debris may hit people,

and cause serious damage.

●

Do not turn the power switch off.

There is a possibility that the steering

wheel is locked and cannot be oper-

ated.

■

Installing towing eyelets to the vehi-

cle

Make sure that towing eyelets are

installed securely.

If not securely installed, towing eyelets

may come loose during towing.

NOTICE

■

To prevent damage to the vehicle

when towing using a wheel-lift type

truck

●

Do not tow the vehicle from the rear

when the power switch is off. The

steering lock mechanism is not strong

enough to hold the front wheels

straight.

●

When raising the vehicle, ensure ade-

quate ground clearance for towing at

the opposite end of the raised vehicle.

Without adequate clearance, the vehi-

cle could be damaged while being

towed.

■

To prevent damage to the vehicle

when towing with a sling-type truck

Do not tow with a sling-type truck, either

from the front or rear.

■

To prevent damage to the vehicle

during emergency towing

Do not secure cables or chains to the

suspension components.

Situations when it is necessary to
contact dealers before towing

354

7-2. Steps to take in an emergency

is shown on the multi-information
display and the vehicle does not
move.

 The vehicle makes an abnormal

sound.

Do not tow with a sling-type truck to
prevent body damage.



From the front

Release the parking brake.



From the rear

Use a towing dolly under the front
wheels.

If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration.

If you use chains or cables to tie down
your vehicle, the angles shaded in
black must be 45°.
Do not overly tighten the tie downs or
the vehicle may be damaged.

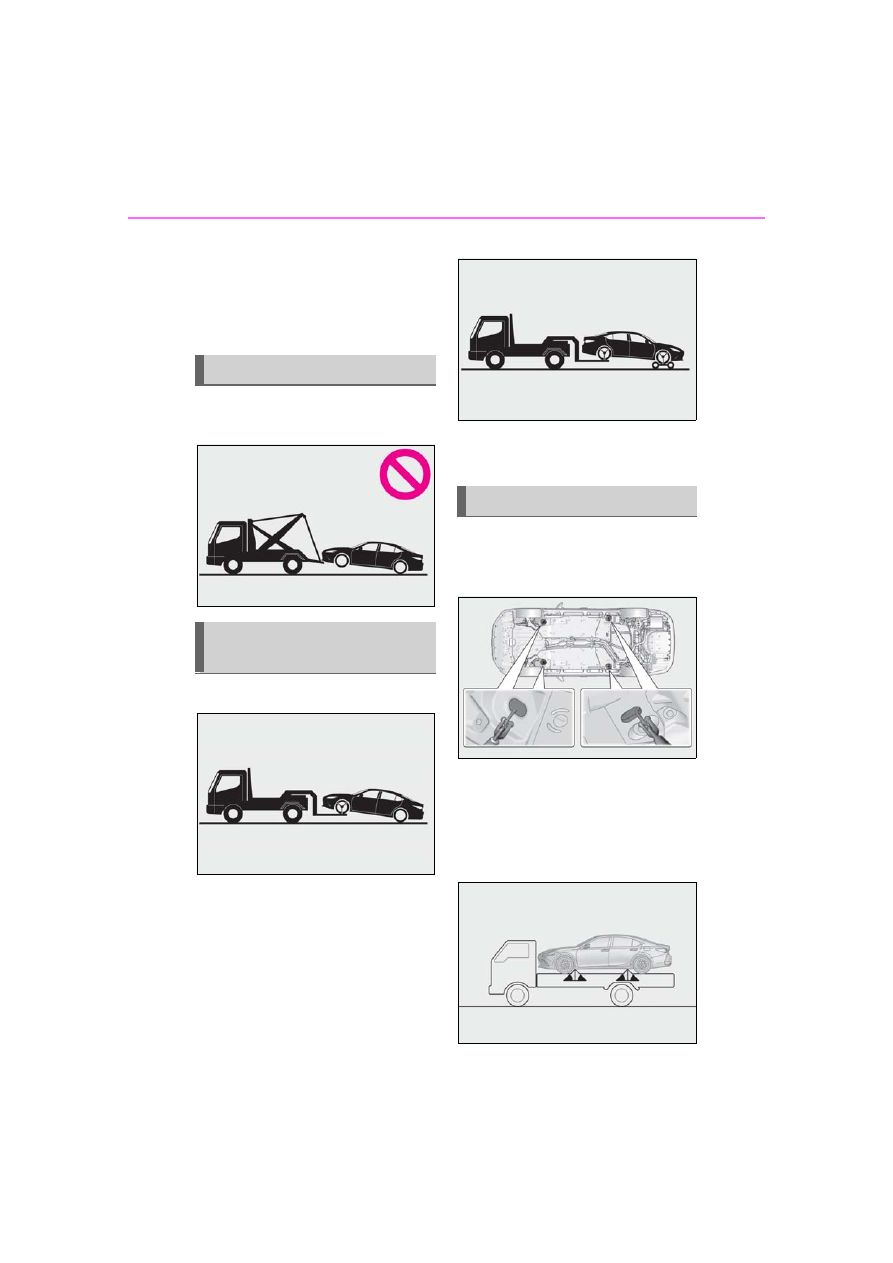

Towing with a sling-type truck

Towing with a wheel-lift type
truck

Using a flatbed truck

355

7-2. Steps to take in an emergency

When trouble

ari

ses

If a tow truck is not available in an
emergency, your vehicle may be tem-
porarily towed using cables or chains
secured to the emergency towing eye-
lets. This should only be attempted on
hard surfaced roads for short distances
at under 18 mph (30 km/h).
A driver must be in the vehicle to steer
and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and
brakes must be in good condition.

To have your vehicle towed by another
vehicle, the towing eyelet must be
installed to your vehicle. Install the tow-
ing eyelet using the following proce-
dure.

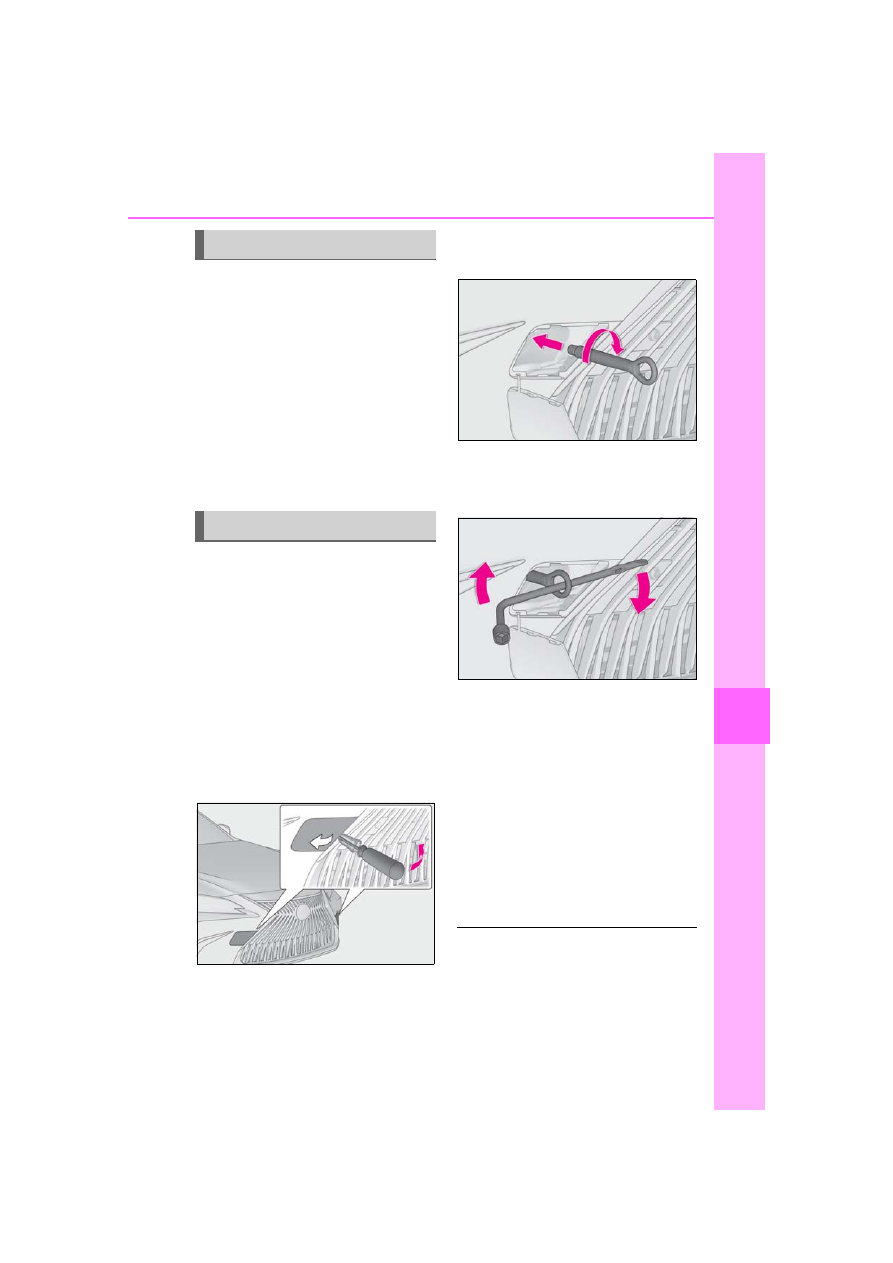

Take out the towing eyelet.
(

P.373)

Remove the eyelet cover using a
flathead screwdriver.

To protect the bodywork, place a rag

between the screwdriver and the vehicle

body as shown in the illustration.

Insert the towing eyelet into the
hole and tighten partially by hand.

Tighten down the towing eyelet
securely using a wheel nut wrench
or hard metal bar.

Securely attach cables or chains to
the towing eyelet.

Take care not to damage the vehicle body.

Enter the vehicle being towed and
start the hybrid system.

If the hybrid system does not start, turn the

power switch to ON mode.

Shift the shift lever to N and release
the parking brake.

When the shift lever cannot be shifted:

P.142

■

While towing

If the hybrid system is off, the power assist

for the brakes and steering will not function,

making steering and braking more difficult.

■

Wheel nut wrench

Wheel nut wrench is installed in trunk.

Emergency towing

Emergency towing procedure

356

7-2. Steps to take in an emergency

(

P.373)

 Fluid leaks under the vehicle. (Water

dripping from the air conditioning
after use is normal.)

 Flat-looking tires or uneven tire

wear

 Engine coolant temperature gauge

continually points higher than nor-
mal.

 Changes in exhaust sound
 Excessive tire squeal when corner-

ing

 Strange noises related to the sus-

pension system

 Pinging or other noises related to

the hybrid system

 Engine missing, stumbling or run-

ning roughly

 Appreciable loss of power
 Vehicle pulls heavily to one side

when braking

If you think something is
wrong

If you notice any of the following
symptoms, your vehicle probably
needs adjustment or repair. Con-
tact your Lexus dealer as soon as
possible.

Visible symptoms

Audible symptoms

Operational symptoms

357

7-2. Steps to take in an emergency

When trouble

ari

ses

 Vehicle pulls heavily to one side

when driving on a level road

 Loss of brake effectiveness, spongy

feeling, pedal almost touches the
floor

Content .. 20 21 22 23 ..
