5-1. Remote Touch

5-1.Remote Touch

■

Switches



8-inch display model

“HOME” button

Press this button to display the home
screen.



12.3-inch display model

“MAP” button

Press to display the current location.

“MENU” button

Press to display the menu screen.

Back button

Press to display the previous screen.

Touchpad

Slide your finger on the touchpad and
move the pointer to select a function, letter
and screen button.
Press the touchpad to enter the selected

function, letter or screen button. Certain
finger movements on the touchpad can
perform functions, such as changing map
scalings and scrolling list screens.

Sub function button

When

is displayed on the screen, a

function screen assigned to the screen can
be displayed.

■

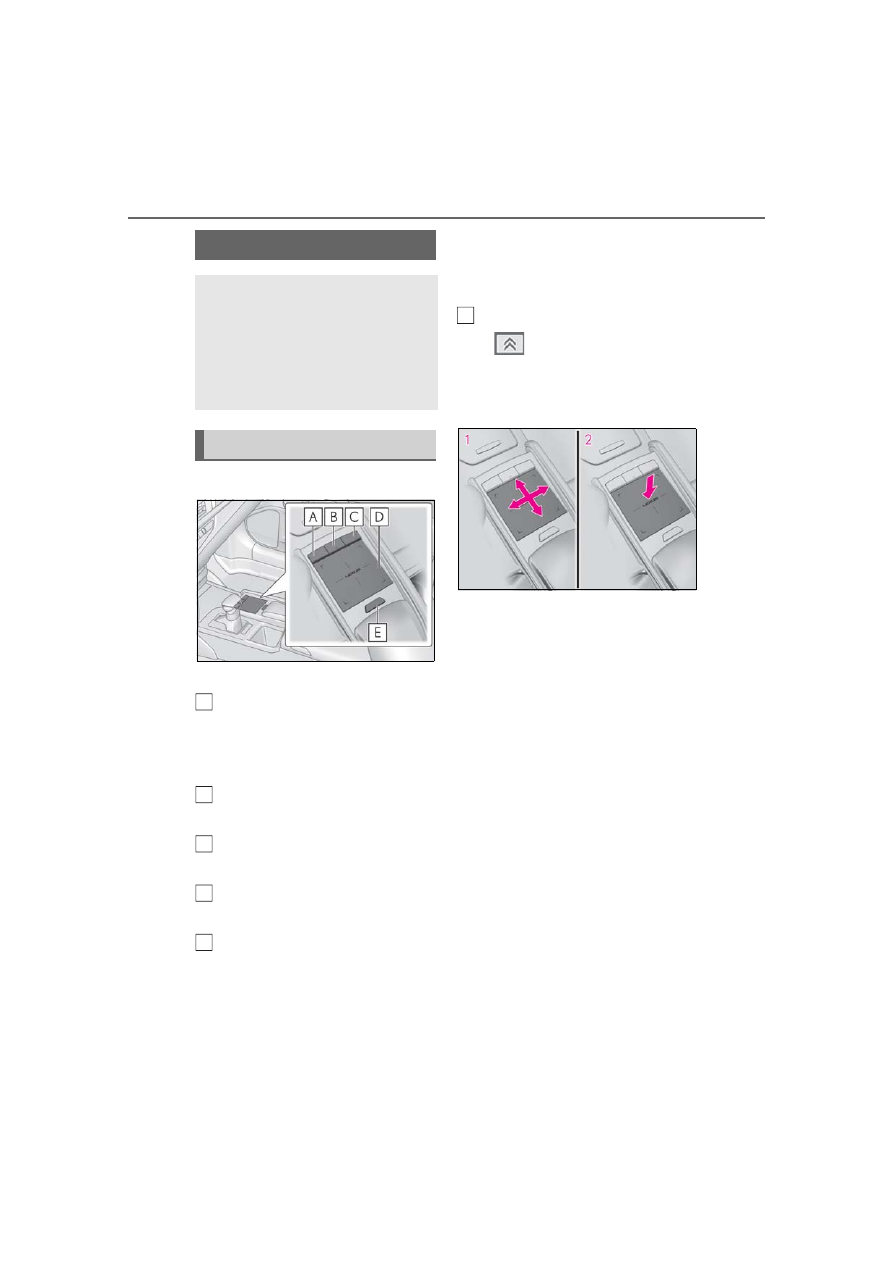

Using the touchpad

Select: Touch the touchpad to
select the desired button on the
screen.

Enter: The buttons on the screen
can be selected by either depress-
ing or double tapping on the touch-
pad. Once a button has been
selected, the screen will change.

■

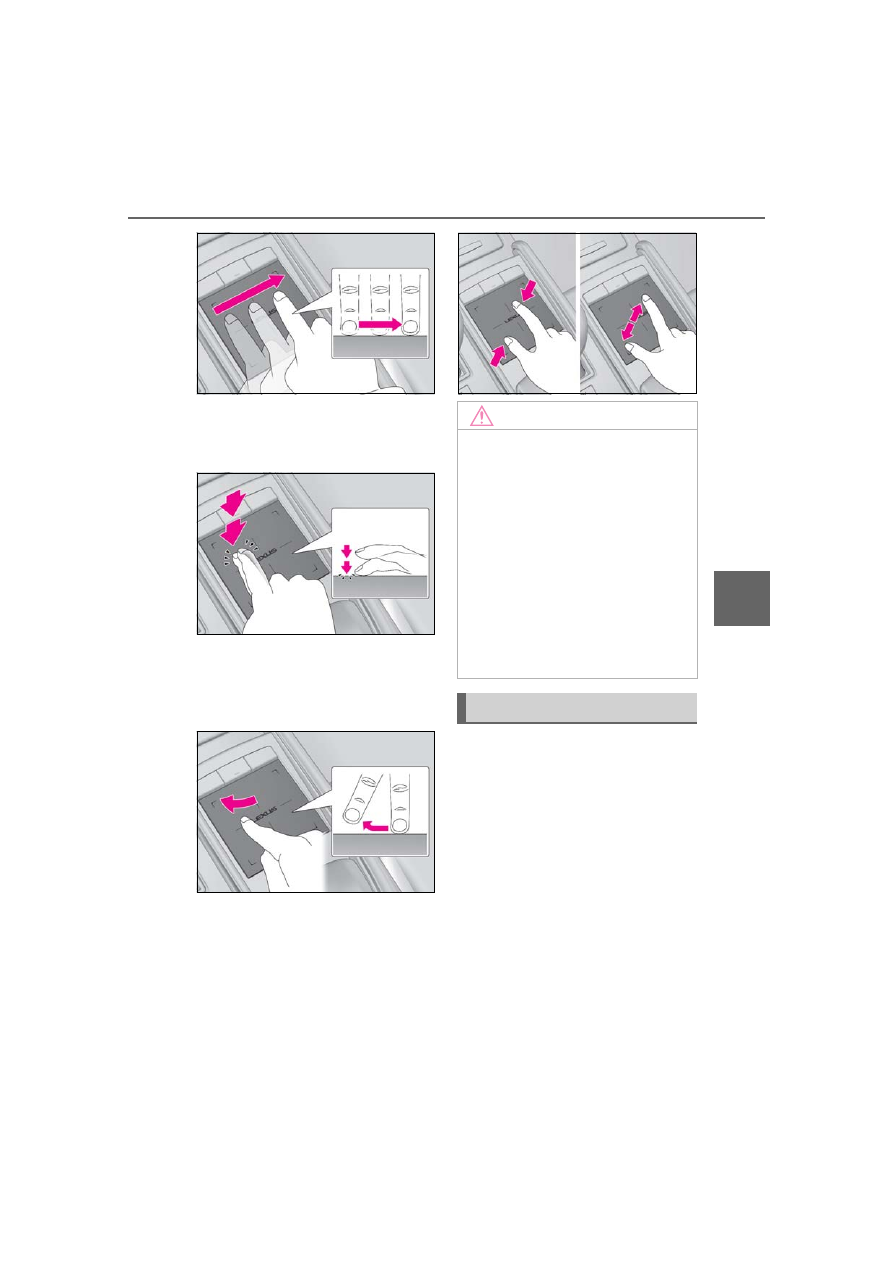

Touch operation

Operations are performed by touching
the touchpad with your finger.
 Trace

Trace the pad surface while maintaining
contact with the touchpad. Moving the
cursor and the pointer.

Remote Touch

The Remote Touch can be used to
operate the Center Display.
For details on the Remote touch,
refer to the “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Remote Touch operation

247

5-1. Remote Touch

Interio

r fe

atures

 Double tap

Tap the touchpad twice, quickly. Select the
button on the screen.

 Flick

Quick and long movement along the
touchpad with your finger. Move the list
screen.

 Pinch in/Pinch out

Slide fingers toward each other or apart on
the touchpad. Change the scale of the
map.

■

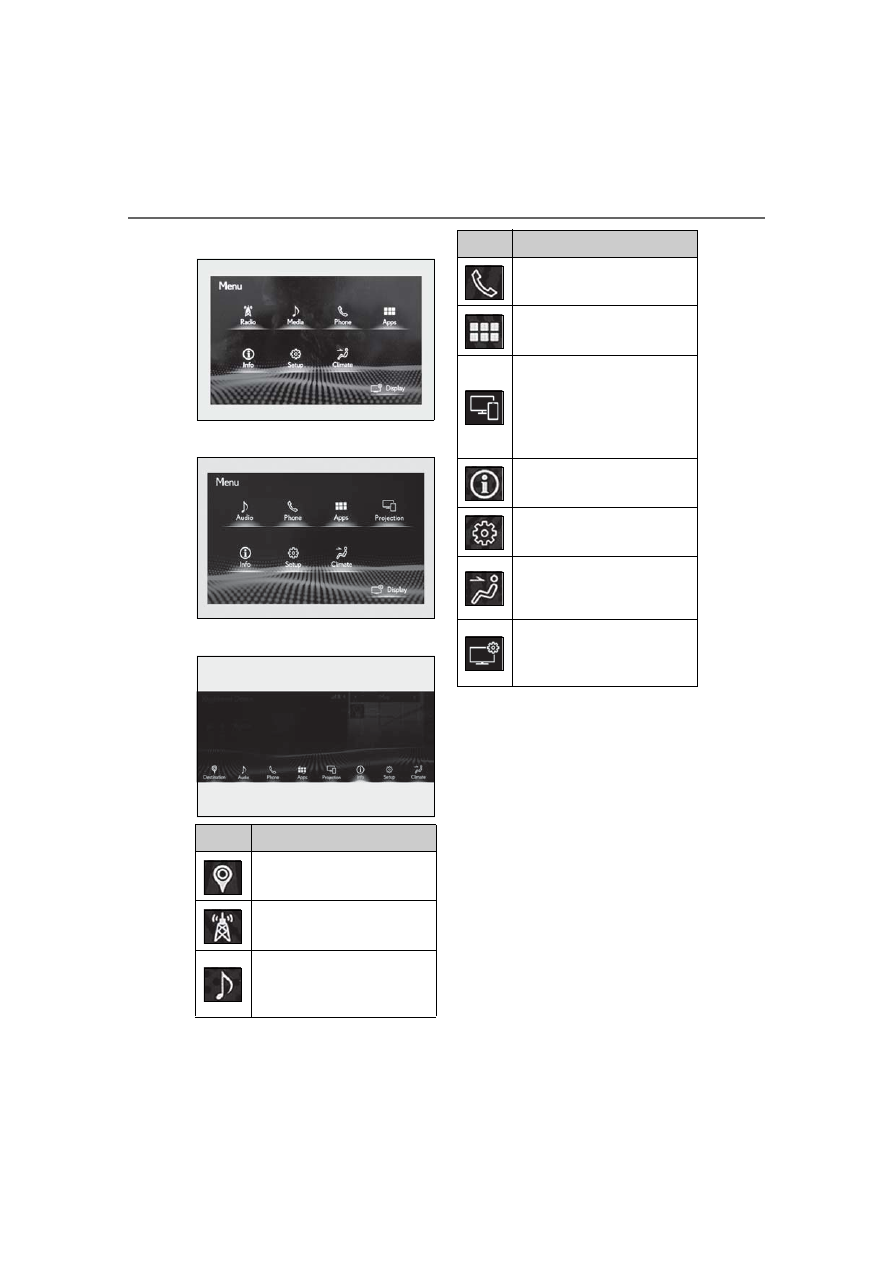

Menu screen

Press the “MENU” button on the
Remote Touch to display the menu
screen.
The display may differ depending on
the type of the system.

NOTICE

■

To prevent damage to the Remote

Touch

Observe the following precautions. Fail-

ure to do so may cause damage to the

Remote Touch.

●

Do not allow the Remote Touch to

come into contact with food, liquid,

stickers or lit cigarettes.

●

Do not subject the Remote Touch to

excessive pressure or strong impact.

●

Do not push the touchpad with a

strong force or use a sharp pointed

object to operate the pad.

Center Display overview

248

5-1. Remote Touch



8-inch display model (type A)



8-inch display model (type B)



12.3-inch display model

: Refer to the “NAVIGATION AND

MULTIMEDIA SYSTEM OWNER’S
MANUAL”.

: This function is not made available on

some models.

Switch

Function

Select to display the “Destina-
tion” screen.

Select to display the radio con-
trol screen.

*1, 2

Select to display the media con-
trol screen or the audio control
screen.

Select to display the hands-free
control screen.

Select to display the “Apps”
screen.

*1, 2

When an Apple CarPlay con-
nection is established and this
button displays “Apple Car-
Play”, select to display the home
screen of Apple CarPlay.

*1, 2

Select to display the information
screen.

(

P.81, 84)

Select to display the “Setup”
screen.

Select to display the air condi-
tioning control screen.
(

P.256)

Select to adjust the contrast and
brightness of the screens, turn
the screen off, etc.

*1, 2

Switch

Function

249

5-1. Remote Touch

Interio

r fe

atures

■

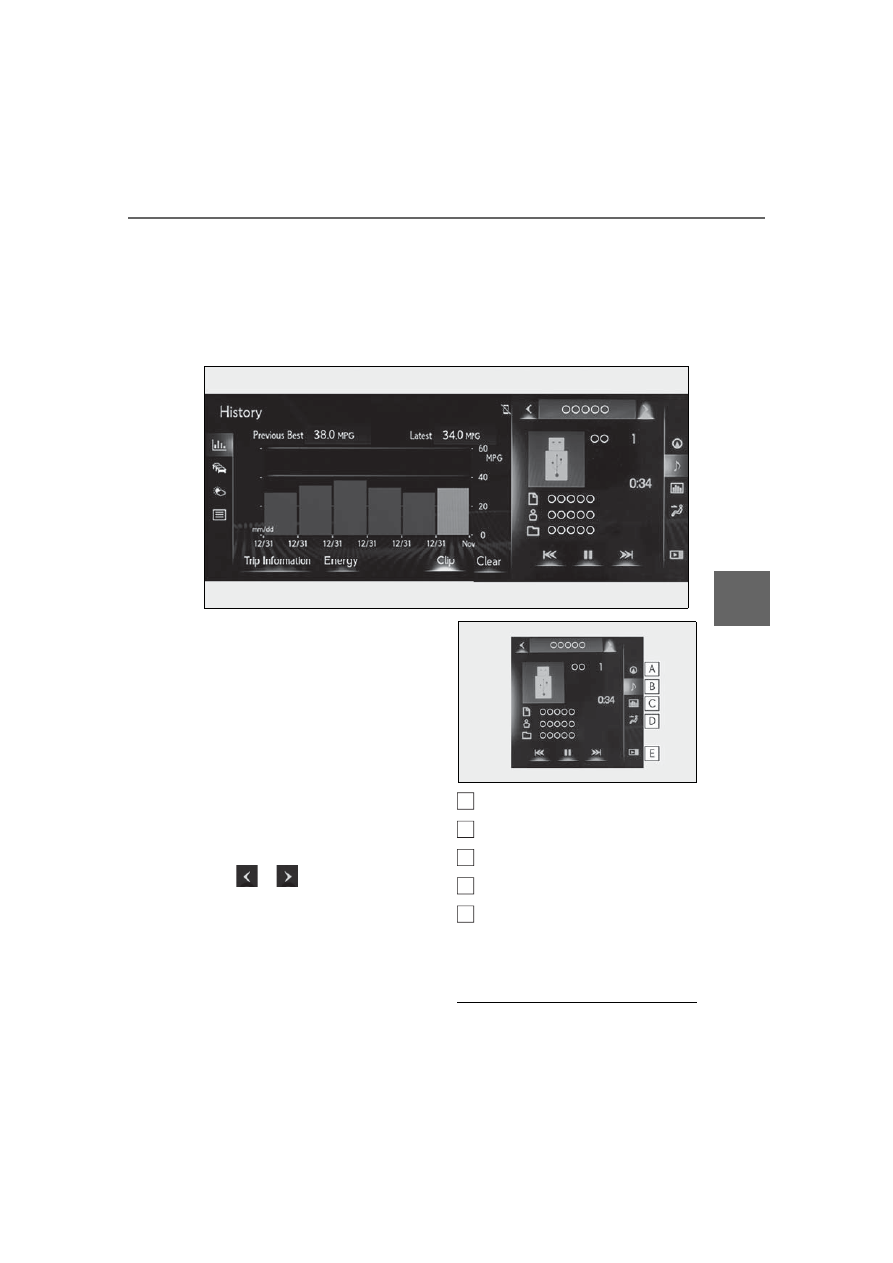

Split-screen display (12.3-inch display model)

Different information can be displayed on the left and right of the screen. For
example, air conditioning system screen can be displayed and operated while the
fuel consumption information screen is being displayed. The large screen on the
left of the display is called the main display, and the small screen to the right is
called the side display.

■

Main display

For details about the functions and
operation of the main display, refer to
the respective section and “NAVIGA-
TION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

■

Side display (12.3-inch display
model)

The following functions can be dis-
played and operated on the side dis-
play.

Select

to display the desired

screen.

Navigation system

Audio

Vehicle information (

P.85)

Air conditioning system (

P.257)

Show/hide the side display

: Refer to the “NAVIGATION AND

MULTIMEDIA SYSTEM OWNER’S
MANUAL”.

■

Screen display during low temperatures

When the ambient temperature is

A
B
C
D

250

5-1. Remote Touch

extremely low, screen response may be

delayed even if the Remote Touch is oper-

ated.

251

5-2. Lexus Climate Concierge

Interio

r fe

atures

5-2.Lexus Climate Concierge

Select

The indicator on the Lexus Climate Con-
cierge control screen illuminates, and the
automatic air conditioning system, seat
heaters and ventilators, and heated steer-
ing wheel operate in automatic mode.
If any of the system is operated manually,
the indicator turns off. However, all other
functions continue to operate in automatic
mode.

■

When using the Lexus Climate Con-

cierge

Lexus Climate Concierge can be operated

on the sub function menu or option control

screen. (

P.256)

■

Automatic air conditioning system
(

P.253)

The temperature can be adjusted indi-
vidually for the driver seat and passen-
ger seat.

■

Seat heaters and ventilators (if
equipped) (

P.261)

Heating or ventilation is automatically
selected according to the set tempera-
ture of the air conditioning system, the
outside temperature, etc. Also, heating
and ventilation may turn off.
The seat heater and ventilator of the
front passenger seat operate in auto-
matic mode if a passenger is detected.

■

Heated steering wheel (if
equipped) (

P.261)

Heated steering wheel operates auto-
matically according to the set tempera-
ture of the air conditioning system, the
outside temperature, etc.

Lexus Climate Concierge

The seat heaters (if equipped), seat
ventilators (if equipped) and heated
steering wheel (if equipped) are
each automatically controlled
according to the set temperature of
the air conditioning system, the out-
side and cabin temperature, etc.
Lexus Climate Concierge allows a
comfortable condition to be main-
tained without adjusting each sys-
tem.

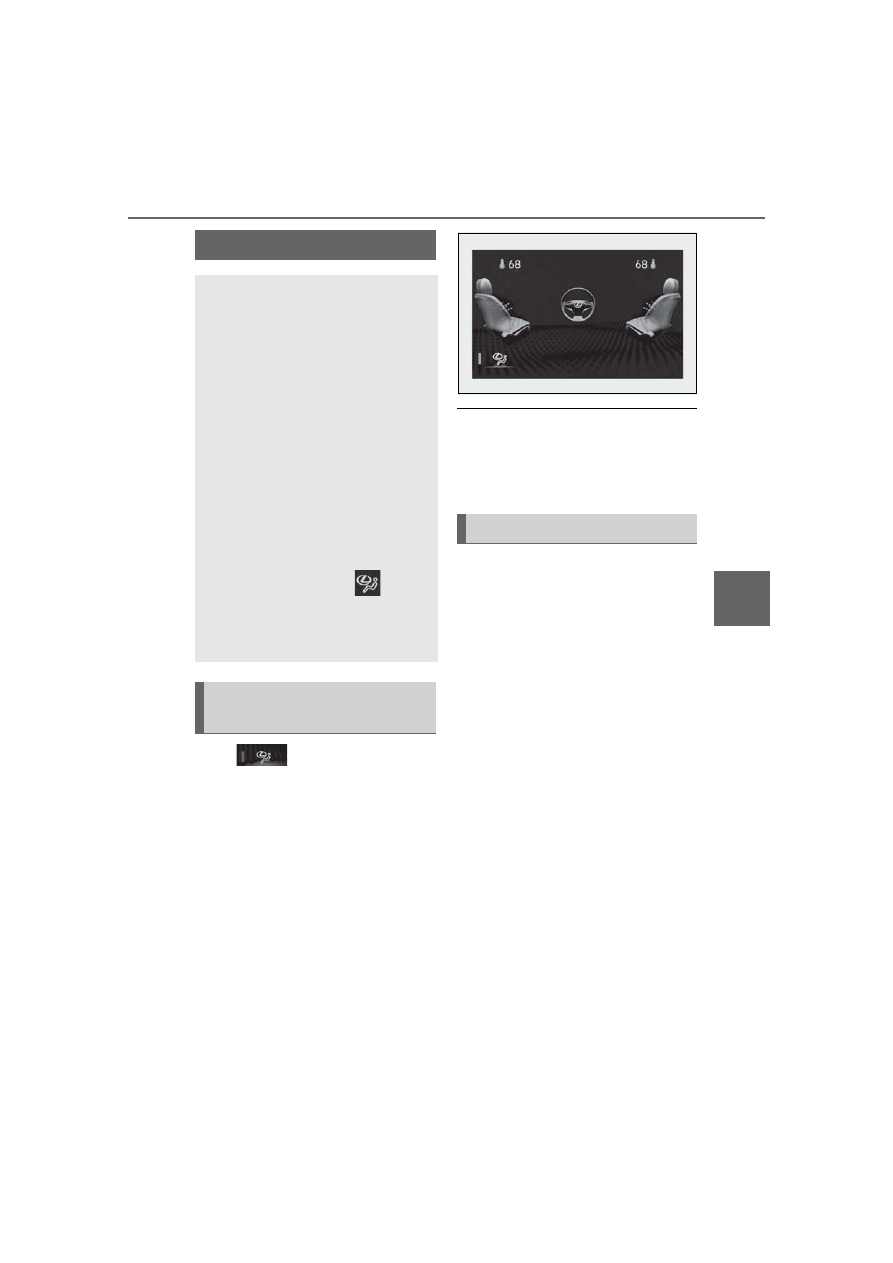

Press the “MENU” button on the
Remote Touch and select “Climate”
to display the air conditioning con-
trol screen. Then, select

on the

sub menu (

P.256) to display the

Lexus Climate Concierge control
screen.

Turning on Lexus Climate Con-
cierge

Operation of each system

252

5-2. Lexus Climate Concierge

■

Seat heater/ventilator operation

When automatic mode is selected using the

seat heater/ventilator switch, passenger

detection is not performed.

253

5-3. Using the air conditioning system

Interio

r fe

atures

5-3.Using the air conditioning system

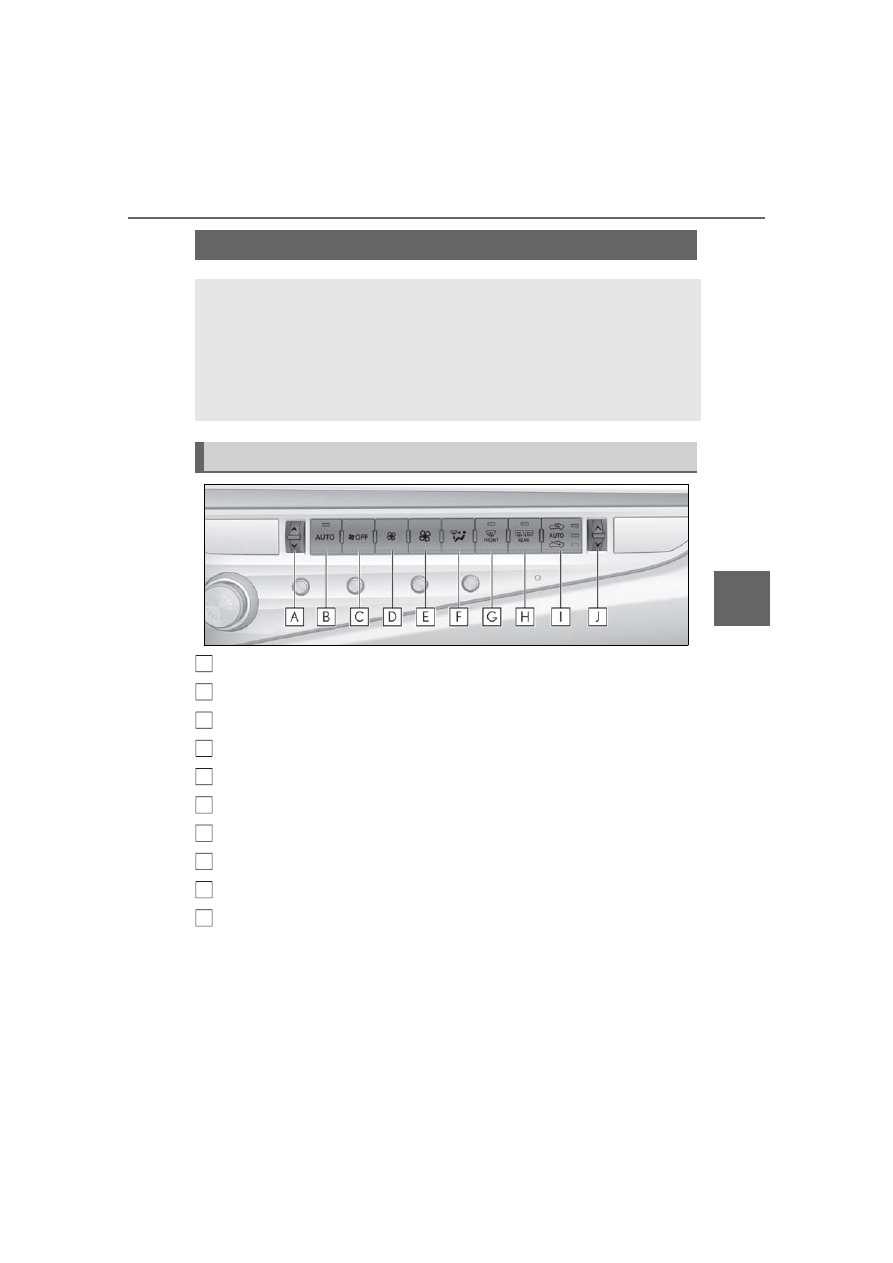

Left-hand side temperature control switch

Automatic mode switch

Off switch

Fan speed decrease switch

Fan speed increase switch

Airflow mode control switch

Windshield defogger switch

Rear window and outside rear view mirror defoggers switch

Outside/recirculated air mode switch

Right-hand side temperature control switch

■

Adjusting the temperature

Operate the temperature control
switch upwards to increase the tem-
perature and downwards to decrease
the temperature.

If the “A/C” indicator is turned off, the sys-
tem will blow ambient temperature air or
heated air.

■

Setting the fan speed

Operate the fan speed increase switch

Automatic air conditioning system

Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.

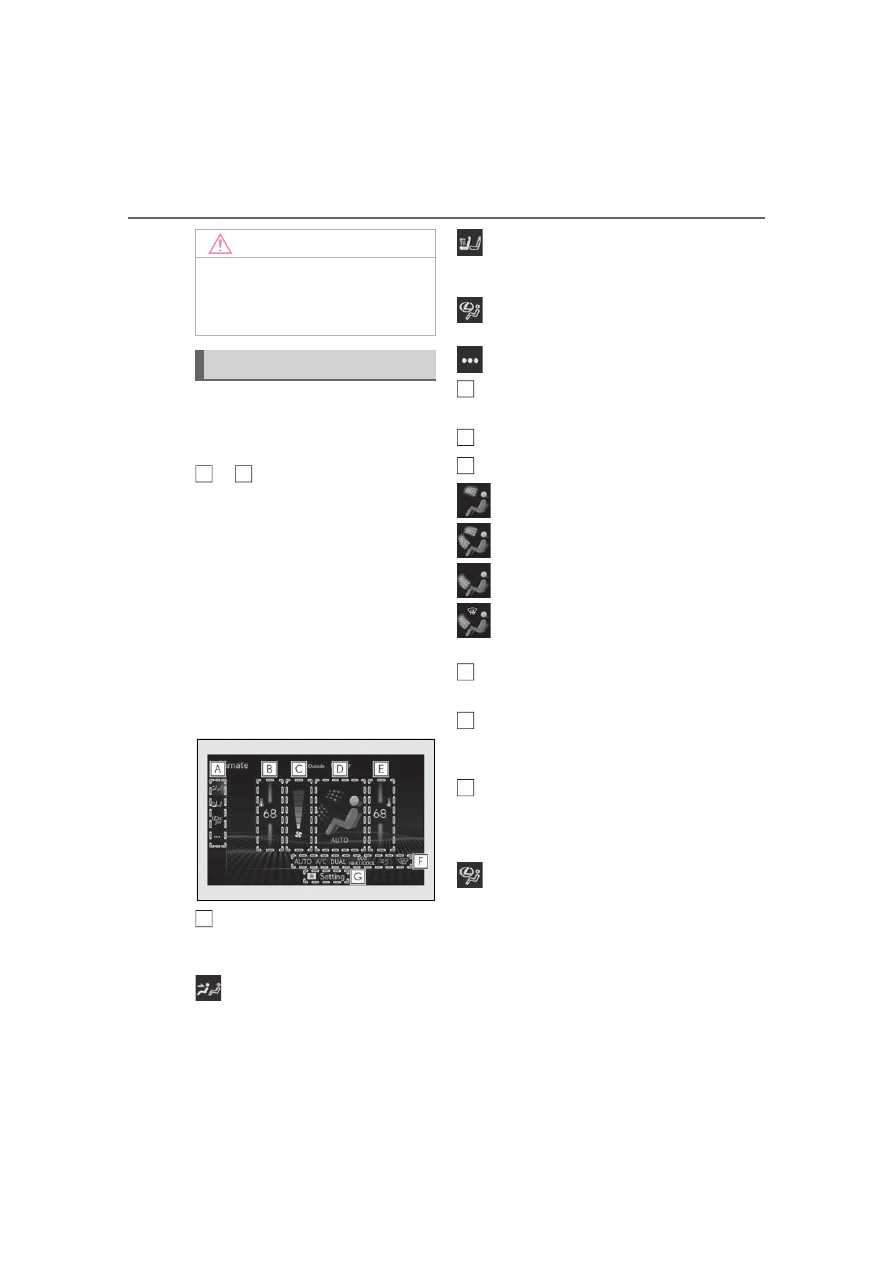

Press the “MENU” button on the Remote Touch, then select “Climate” to dis-
play the air conditioning control screen. (

P.247)

12.3-inch display model: The air conditioning system can be displayed and
operated on the side display.

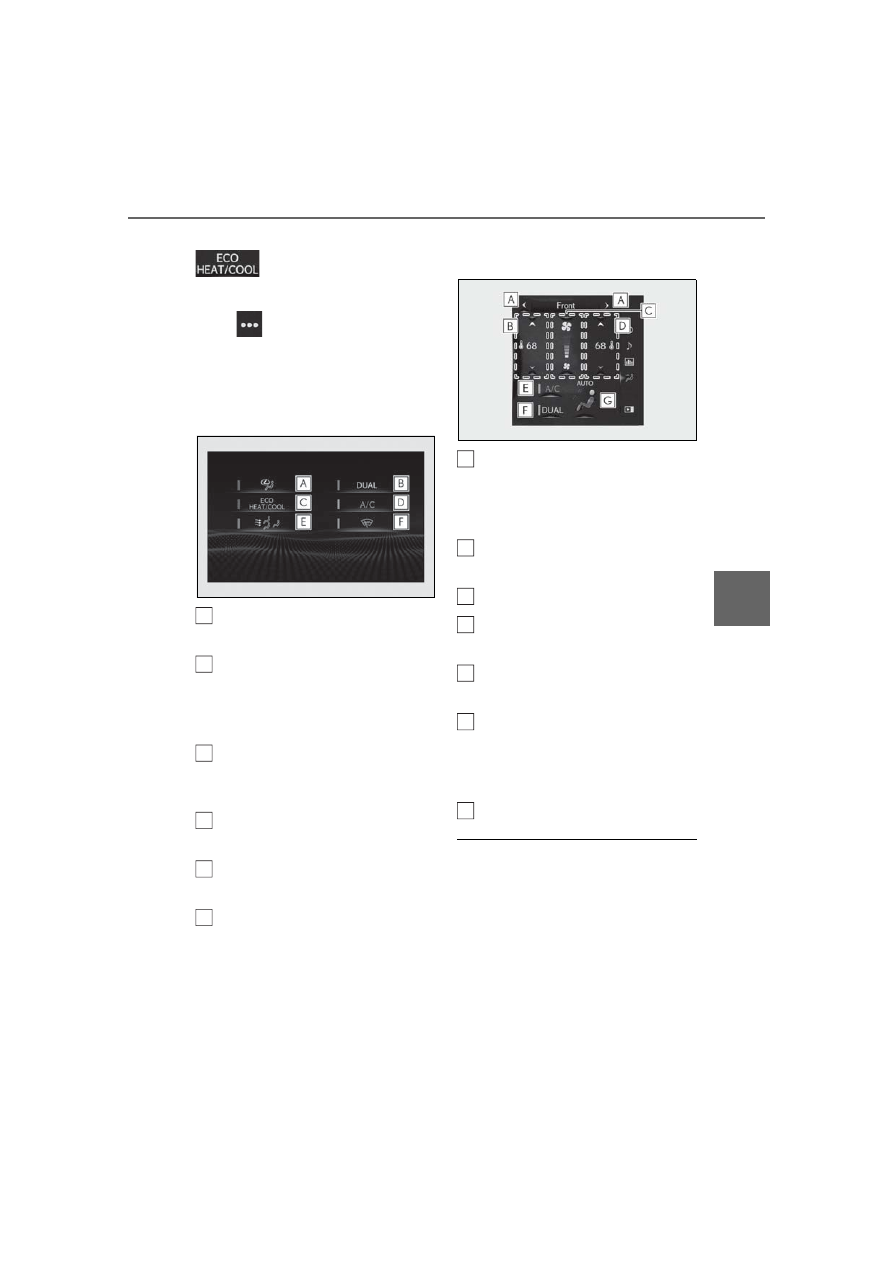

Air conditioning controls

A
B
C
D

E
F

254

5-3. Using the air conditioning system

to increase the fan speed and the fan
speed decrease switch to decrease the
fan speed.

Press the off switch to turn the fan off.

■

Changing the air flow mode

Press the airflow mode control switch.
The mode changes as follows each
time the switch is pressed. (

P.256)

■

Switching between outside air and
recirculated air modes

Press the outside/recirculated air
mode switch.
The mode changes as follows each
time the switch is pressed.

(recirculated air mode)



automatic mode



(outside

air mode)



(recirculated air

mode)

When the system is switched to automatic
mode, the air conditioning system operates
automatically.

: This item cannot be selected when the

air conditioning is off.

■

Defogging the windshield

Defoggers are used to defog the wind-
shield and front side windows.
Press the windshield defogger switch.

Set the outside/recirculated air mode
switch to outside air mode if the recircu-
lated air mode is used. (It may switch auto-
matically.)
To defog the windshield and the side win-
dows early, turn the air flow and tempera-
ture up.
To return to the previous mode, press the
windshield defogger switch again when the

windshield is defogged.

■

Defogging the rear window and
outside rear view mirrors

Defoggers are used to defog the rear
window, and to remove raindrops, dew
and frost from the outside rear view
mirrors.
Press the rear window and outside rear
view mirror defoggers switch.

The defoggers will automatically turn off
after 15 minutes.

■

When the outside temperature exceeds

75°F (24°C) and the air conditioning

system is on

●

In order to reduce the air conditioning

power consumption, the air conditioning

system may switch to recirculated air

mode automatically. This may also

reduce fuel consumption.

●

Recirculated air mode is selected as a

default mode when the power switch is

turned to ON mode.

●

It is possible to switch to outside air mode

at any time by pressing the outside/recir-

culated air mode switch.

■

Fogging up of the windows

The windows will easily fog up when the

humidity in the vehicle is high. Turning “A/C”

on will dehumidify the air from the outlets

and defog the windshield effectively.

●

If you turn “A/C” off, the windows may fog

up more easily.

●

The windows may fog up if the recircu-

lated air mode is used.

■

Outside/recirculated air mode

●

When driving on dusty roads such as tun-

nels or in heavy traffic, set the out-

side/recirculated air mode switch to the

recirculated air mode. This is effective in

preventing outside air from entering the

vehicle interior. During cooling opera-

tion, setting the recirculated air mode will

also cool the vehicle interior effectively.

255

5-3. Using the air conditioning system

Interio

r fe

atures

●

Outside/recirculated air mode may auto-

matically switch regardless of the air con-

ditioning setting depending on the

temperature setting or inside tempera-

ture.

■

Registering air conditioning settings to

electronic keys

●

Unlocking the vehicle using an electronic

key and turning the power switch to ON

mode will recall that key’s registered air

conditioning settings.

●

When the power switch is turned off, the

current air conditioning settings will auto-

matically be registered to the electronic

key that was used to unlock the vehicle.

●

The system may not operate correctly if

more than one electronic key is in the

vicinity or if the smart access system with

push-button start is used to unlock the

passenger door.

●

Vehicles with the driving position mem-

ory: The doors that can recall the air con-
ditioning setting

when unlocked using

the smart access system with push-but-

ton start can be changed. For details,

contact your Lexus dealer.

: The doors that can recall the driving posi-

tion memory are changed at the same
time.

■

Operation of the air conditioning sys-

tem in Eco drive mode

In Eco drive mode, the air conditioning sys-

tem is controlled as follows to prioritize fuel

efficiency:

●

Engine speed and compressor operation

controlled to restrict heating/cooling

capacity

●

Fan speed restricted when automatic

mode is selected

To improve air conditioning performance,

perform the following operations:

●

Turn off eco air conditioning mode

(

P.256)

●

Adjust the fan speed

●

Turn off Eco drive mode (

P.202)

■

When the outside temperature falls to

nearly 32°F (0°C)

The dehumidification function may not

operate even when “A/C” is selected.

■

Ventilation and air conditioning odors

●

To let fresh air in, set the air conditioning

system to the outside air mode.

●

During use, various odors from inside and

outside the vehicle may enter into and

accumulate in the air conditioning sys-

tem. This may then cause odor to be

emitted from the vents.

●

When parking, the system automatically

switches to fresh air intake mode to

encourage better air circulation through-

out the vehicle, helping to reduce odors

that occur when starting the vehicle.

■

Using the voice command system

Air conditioning system can be operated

using voice commands. For details, refer to

the “NAVIGATION AND MULTIMEDIA

SYSTEM OWNER’S MANUAL”.

■

Air conditioning filter

P.338

■

Customization

Settings (e.g. A/C Auto switch operation)

can be changed.

(Customizable features

P.412)

WARNING

■

To prevent the windshield from fog-

ging up

Do not use the windshield defogger

switch during cool air operation in

extremely humid weather. The difference

between the temperature of the outside

air and that of the windshield can cause

the outer surface of the windshield to fog

up, blocking your vision.

■

When the outside rear view mirror

defoggers are operating

Do not touch the outside rear view mir-

ror surfaces, as they can become very

hot and burn you.

256

5-3. Using the air conditioning system

■

Main control screen

Using the touchpad of the Remote
Touch, select the button on the screen.

can be adjusted by perform-

ing the following operations.
Flick operation: Move the pointer to
the desired item and flick the touchpad
up or down.

The item can be adjusted by one level.

Trace operation: After selecting the
desired item, trace the pad surface.

The item can be adjusted by the amount
that you trace.
Trace operation cannot be used while driv-
ing.

Sub menu

Selecting the sub menu item to switch the
main screen.

: Display the air conditioning control

screen

: Display the heated steering

wheel/seat heater/seat ventilator control
screen (if equipped)

: Display the Lexus Climate Con-

cierge control screen

: Display the option control screen

Adjust the left-hand side tempera-
ture setting

Adjust the fan speed setting

Select the air flow mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

: Air flows to the feet and the wind-

shield defogger operates

Adjust the right-hand side tem-
perature setting

Function on/off indicators

When the function is on, the indicator illu-
minates on the control screen.

Sub function menu

When the sub function button on the
Remote Touch is pressed, the following
functions can be switched on and off.

: Set Lexus Climate Concierge

(

P.251)

“AUTO”: Set automatic mode on/off
(

P.258)

“Off”: Turn the fan off
“A/C”: Set cooling and dehumidification
function
“DUAL”: Adjust the temperature for driver
and front passenger seats separately

NOTICE

■

To prevent 12-volt battery discharge

Do not leave the air conditioning system

on longer than necessary when the

hybrid system is off.

Air conditioning control screen

C
D

257

5-3. Using the air conditioning system

Interio

r fe

atures

(“DUAL” mode) (

P.260)

: Set eco air conditioning mode

■

Option control screen

Select

on the sub menu to display

the option control screen.

The functions can be switched on and off.
When the function is on, the indicator illu-
minates on the screen.

Set Lexus Climate Concierge
(

P.251)

Adjusting the temperature for
driver and front passenger seats
separately (“DUAL” mode)
(

P.260)

Set eco air conditioning mode

Air conditioning and heater output is lim-
ited to prioritize fuel economy.

Cooling and dehumidification func-
tion

Select the S-FLOW mode
(

P.258)

Prevent ice from building up on the
windshield and wiper blades
(Windshield wiper de-icer) (if
equipped)

■

Side display (12.3-inch display
model)

Display the heated steering
wheel/seat heaters/seat ventilators
control screen (if equipped)
(

P.261)

Adjust the left-hand side tempera-
ture setting

Adjust the fan speed setting

Adjust the right-hand side tem-
perature setting

Set cooling and dehumidification
function on/off

Adjust the temperature for the
driver’s and front passenger’s seats
separately (“DUAL” mode)
(

P.260)

Select the air flow mode

■

Windshield wiper de-icer (if equipped)

This feature is used to prevent ice from

building up on the windshield and wiper

blades.
The windshield de-icer will automatically

turn off after approximately 15 minutes.

■

Eco air conditioning mode

When Eco drive mode is selected using the

Driving Mode Select switch, eco air condi-

tioning mode turns on.
When a drive mode other than Eco drive

C
D

258

5-3. Using the air conditioning system

mode is selected, eco air conditioning

mode may turn off.

Press the automatic mode switch or
select “AUTO” on the sub function
menu. (

P.256)

Press the outside/recirculated air
mode switch to switch to automatic
air intake mode.

The air conditioning system automatically

switches between outside air and recircu-

lated air modes.

Adjust the temperature setting.

To stop the operation, press the off
switch or select “Off” on the sub
function menu. (

P.256)

If the fan speed setting or air flow
modes are operated, the automatic
mode indicator goes off. However,
automatic mode for functions other
than that operated is maintained.

■

Using automatic mode

Fan speed is adjusted automatically accord-

ing to the temperature setting and the

ambient conditions.
Therefore, the fan may stop for a while until

warm or cool air is ready to flow immedi-

ately after the automatic mode switch is

pressed or “AUTO” is selected.
Cool air may blow around the upper body

even when the heater is on due to sunlight.

■

Windshield fog detection function

When automatic mode is set, the humidity

sensor detects fog on the windshield and

controls the air conditioning system to pre-

vent fog.

■

Automatic mode for air intake control

In automatic mode, the system detects

exhaust gas and other pollutants and auto-

matically switches between outside air and

recirculated air modes.
When the dehumidification function is off,

and the fan is operating, turning automatic

mode on will activate the dehumidification

function. The next time the dehumidification

function is turned off, the AUTO mode for

switching between outside air and recircu-

lated air modes is canceled.

In S-FLOW mode, priority for the air-
flow is given to the front seats, reducing
the airflow and air conditioning effect

WARNING

■

To prevent burns (vehicles with wind-

shield wiper de-icer)

Do not touch the glass at lower part of

the windshield or to the side of the front

pillars when the windshield wiper de-icer

is on.

Using automatic mode

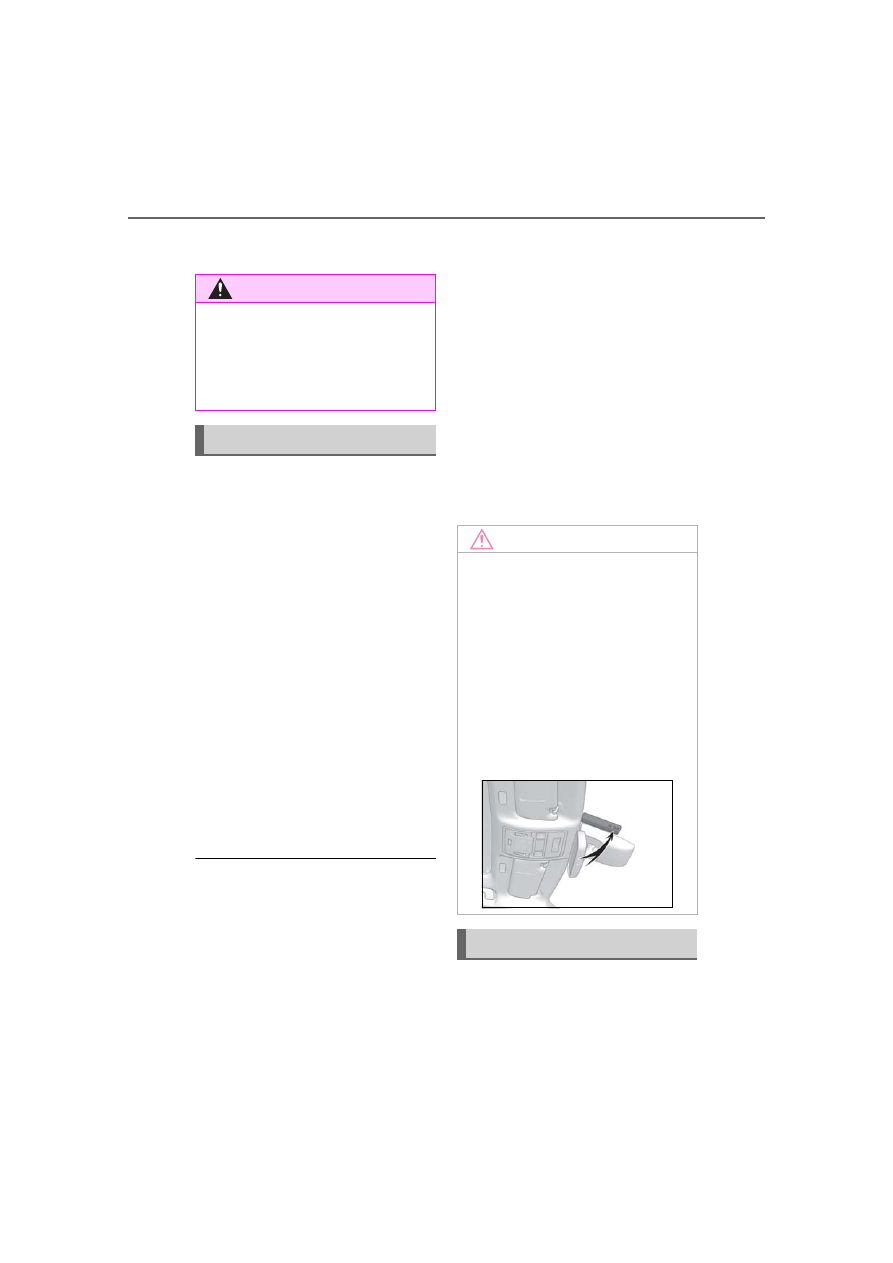

NOTICE

■

Humidity sensor

In order to detect fog on the windshield,

a sensor which monitors the temperature

of the windshield, the surround humidity,

etc. is installed.
Follow these points to avoid damaging

the sensor:

●

Do not disassemble the sensor

●

Do not spray the glass cleaner on the

sensor or subject it to strong impacts

●

Do not stick anything on the sensor

S-FLOW mode

259

5-3. Using the air conditioning system

Interio

r fe

atures

on the rear seats.
The following S-FLOW modes are
available:



Automatic S-FLOW mode

When a rear passenger is determined
to be in the vehicle (

P.259), S-

FLOW mode will be automatically dis-
abled.

The indicator will illuminate on the air con-
ditioning control screen when S-FLOW
mode is enabled.
To enable/disable S-FLOW mode and
enter manual S-FLOW mode, select the S-
FLOW mode switch.



Manual S-FLOW mode

When the S-FLOW mode switch is
selected, S-FLOW mode will be manu-
ally enabled/ disabled.

The indicator will illuminate on the air con-
ditioning control screen when S-FLOW
mode is enabled.

In this mode, the system does not
determine whether a passenger is in
the rear seats, so S-FLOW mode can-
not be automatically disabled.
To automatically disable S-FLOW
mode when opening and closing a rear
door, switch to automatic S-FLOW
mode. (

P.260)

■

S-FLOW air conditioning control

Operation of S-FLOW mode changes
according to the following conditions.
However, depending on the set tem-
perature, the operation may not
change.
 Driver seat priority:

• When the system determines there is no

passenger in the front passenger seat in
manual S-FLOW mode

• When the system determines there are

no passengers in the front passenger
seat and rear seats in automatic S-
FLOW mode

The front passenger temperature display
turns off.

 Front seat priority:

When the system determines there are no
passengers in the rear seats

 S-FLOW disabled:

When the system determines there is a
passenger in the rear seats
Refer to P.259 for details of how the sys-
tem determines whether there are passen-
gers.

■

Passenger presence determination in S-

FLOW mode

The system determines that there is a pas-

senger in any of the following situations.
If a passenger is judged to be in the vehicle,

the system will retain the judgment for a

certain amount of time after the power

switch is turned off.



Front passenger seat

• When the front passenger’s door is

opened and closed

• When a passenger is sitting on the front

passenger seat

• When the front passenger side seat belt

is fastened

• When the front passenger seat set tem-

perature is changed

After only the front passenger side door is
opened and closed, when the vehicle is
driven at 12 mph (20 km/h) or more, the
system determines that there is no passen-
ger in the front passenger seat.



Rear seats

When a rear door is opened and closed

260

5-3. Using the air conditioning system

■

Operation of automatic S-FLOW mode

When the system is operating in S-FLOW

mode, if a rear door is opened and then

closed, S-FLOW mode will be disabled. To

enable S-FLOW mode, select the S-FLOW

mode switch. In this case, the system

switches to manual S-FLOW mode.

■

Changing from manual S-FLOW mode

to automatic S-FLOW mode

• Select the S-FLOW mode switch to dis-

able S-FLOW mode

• Turn the power switch off.
• After 60 minutes have elapsed, change

the power switch to ON mode.

To turn on the “DUAL” mode, perform
any of the following procedures:
 Select “DUAL” on the sub function

menu. (

P.256)

 Select “DUAL” on the option con-

trol screen.

 Adjust the front passenger’s side

temperature setting.

The indicator on the main control screen
comes on when the “DUAL” mode is on.

■

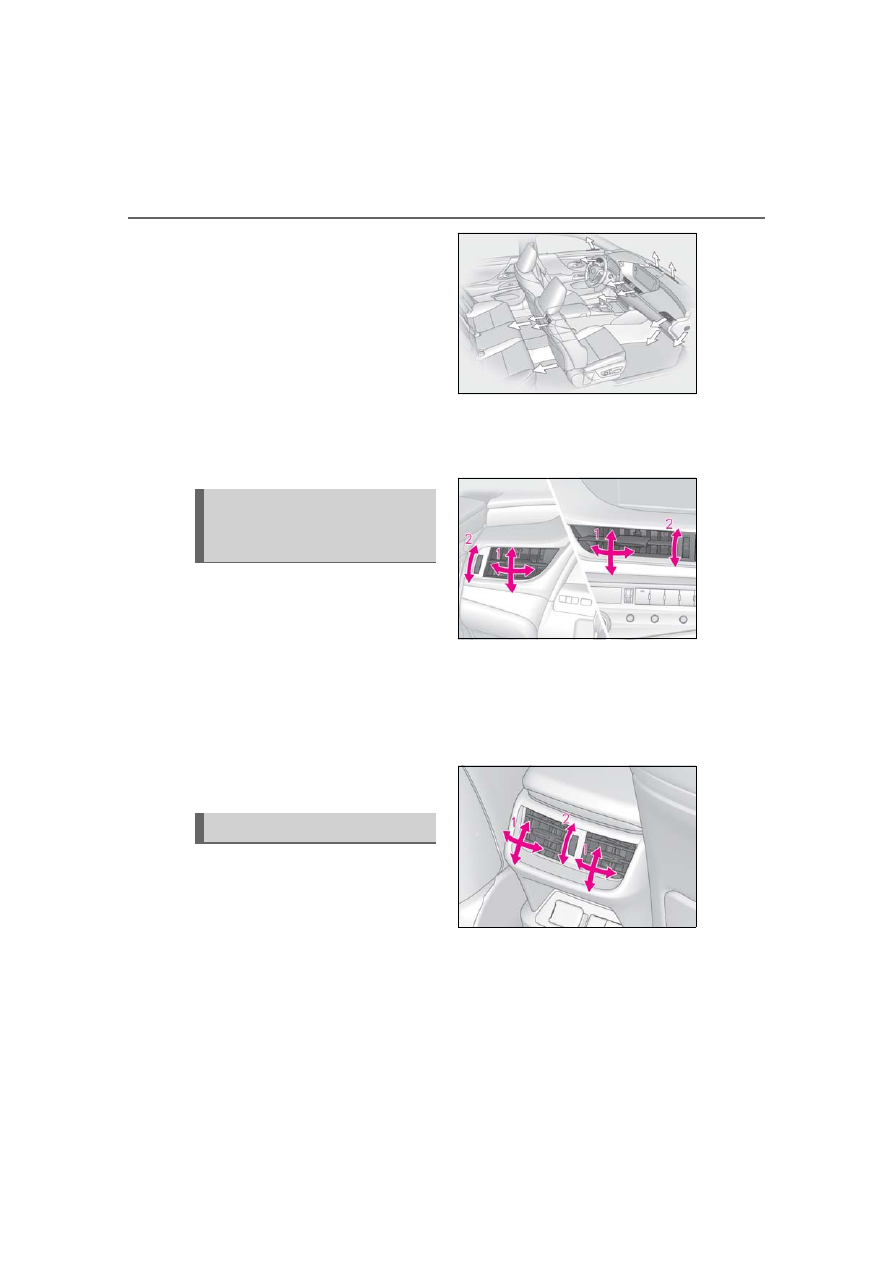

Location of air outlets

The air outlets and air volume changes
according to the selected air flow
mode.

■

Adjusting the air flow direction and
opening/closing the air outlets



Front center/front side

Direct air flow to the left or right, up
or down

Turn the knob to open or close the
vent



Rear

Direct air flow to the left or right, up
or down

Turn the knob to open or close the
vent

Adjusting the temperature for
driver and passenger seats sepa-
rately (“DUAL” mode)

Air outlet layout and operations

261

5-3. Using the air conditioning system

Interio

r fe

atures

: If equipped

WARNING

■

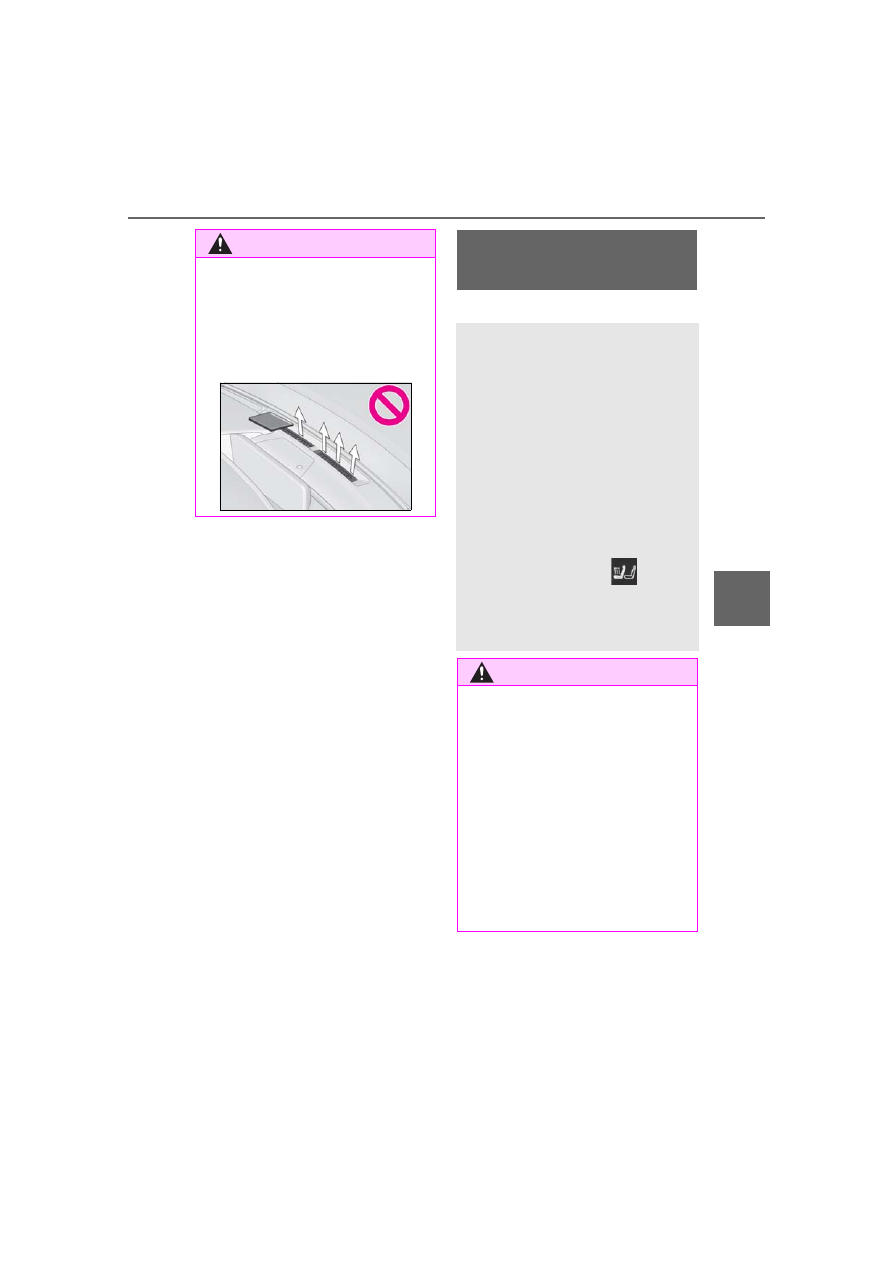

To prevent the windshield defogger

from operating improperly

Do not place anything on the instrument

panel which may cover the air outlets.

Otherwise, air flow may be obstructed,

preventing the windshield defoggers

from defogging.

Heated steering wheel

/seat

heaters

/seat ventilators

 Heated steering wheel

Warms up the grip of the steering wheel

 Seat heaters

Warm up the seat upholstery

 Seat ventilators

Maintain good air flow by sucking air
into the seats

Press the “MENU” button on the
Remote Touch and select “Climate”
to display the air conditioning con-
trol screen. Then, select

on the

sub menu (

P.256) to display the

heated steering wheel/seat heat-
ers/seat ventilators control screen.

WARNING

■

To prevent minor burn injuries

Care should be taken if anyone in the fol-

lowing categories comes in contact with

the steering wheel or seats when the

heater is on:

●

Babies, small children, the elderly, the

sick and the physically challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alcohol or

drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

Content .. 14 15 16 17 ..
